FLIR ThermaCAM P45 User Manual

User’s manual – Benutzerhandbuch – Manual del usuario – Manuel de l’utilisateur – Manuale dell’utente – Manual do utilizador – Felhas-

ználói kézikönyv – Käyttäjän opas –

Betjeningsvejledning – Brukerveiledning – Instrukcja obsługi – Bruksanvisning – Kullanım

Kılavuzu – Uživatelská příručka –

Gebruikershandleiding

ThermaCAM™ P45

User’s manual

1557966Publ. No.
a155Revision
English (EN)Language
February 6, 2006Issue date

Warnings & cautions

1

Important note about this manual

Welcome!

Packing list

System overview

Connecting system components

Introduction to thermographic inspections of
electrical installations

Tutorials

Camera overview

Camera program

2

3

4

5

6

7

8

9

10

Folder and file structure

Electrical power system

A note on LEMO connectors

Maintenance & cleaning

Troubleshooting

11

12

13

14

15

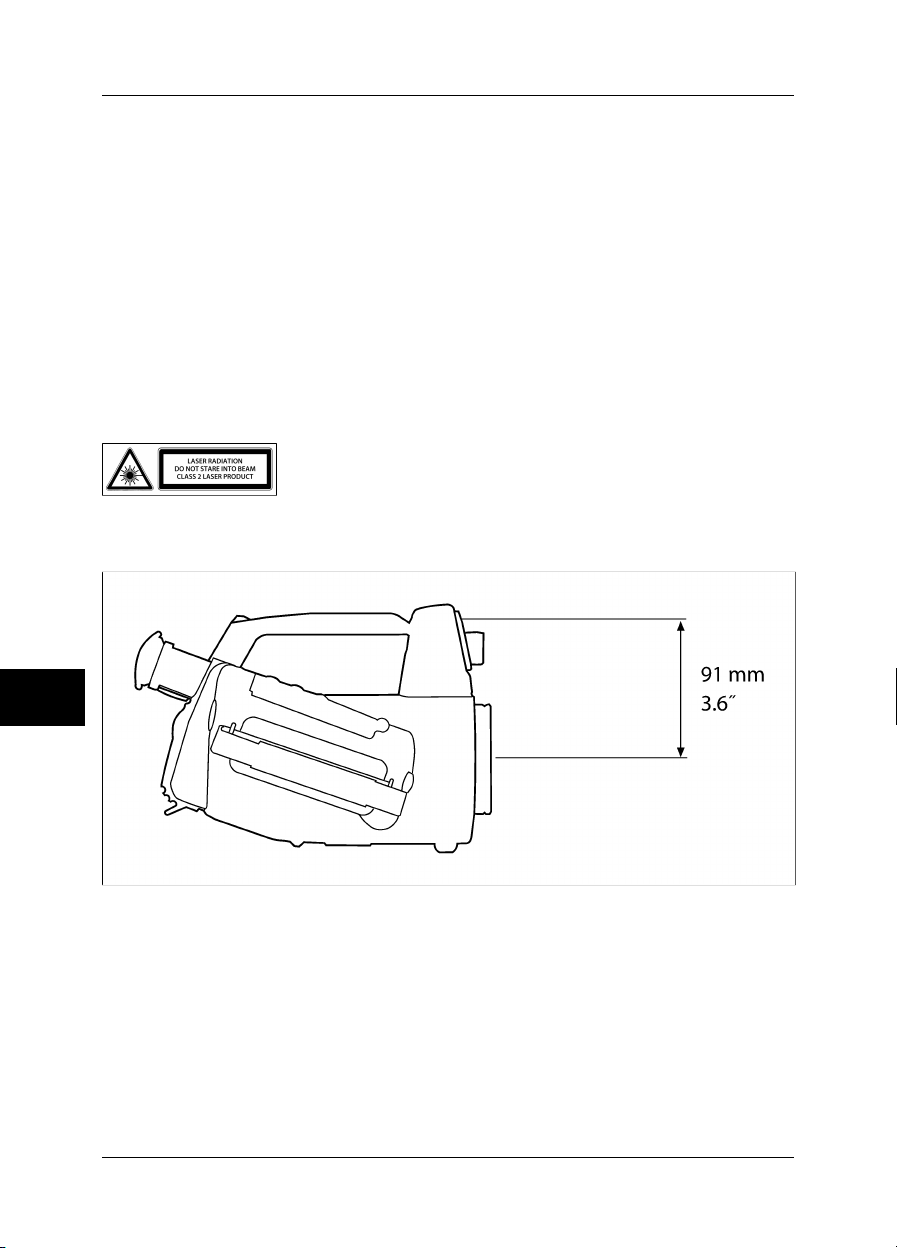

Technical specifications & dimensional drawings

16

Glossary

Thermographic measurement techniques

History of infrared technology

Theory of thermography

The measurement formula

Emissivity tables

17

18

19

20

21

22

ThermaCAM™ P45

User’s manual

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

Legal disclaimer

All products manufactured by FLIR Systemsarewarranted against defectivematerialsandworkmanship for aperiodof one(1)year from the
delivery date of the original purchase, provided such products have been under normal storage, use and service, and in accordance with
FLIR Systems instruction.

All products not manufactured by FLIR Systems included in systemsdelivered by FLIRSystems to theoriginal purchaser carrythe warranty,
if any, of the particular supplier only and FLIR Systems has no responsibilitywhatsoever for such products.

The warranty extends only to the original purchaser and is not transferable. It is not applicable to any product which has been subjected to
misuse, neglect, accident or abnormal conditions of operation. Expendable parts are excluded from the warranty.

In the case of adefect inaproduct coveredbythis warrantytheproduct must notbe furtherusedin order toprevent additional damage.The
purchaser shall promptly report any defect to FLIR Systems or this warranty will not apply.

FLIR Systems will, at its option, repair or replace any such defective product free of charge if, upon inspection, it proves to be defective in
material or workmanship and provided that it is returned to FLIR Systems within the said one-year period.

FLIR Systems has no other obligation or liability for defects than those set forth above.
No other warranty is expressed or implied. FLIR Systems specifically disclaims the implied warranties of merchantability and fitness for a

particular purpose.
FLIR Systems shall not be liable for any direct, indirect, special, incidentalor consequential loss or damage, whether basedon contract, tort

or any other legal theory.

Copyright

© FLIR Systems,2006. All rights reservedworldwide. No parts ofthesoftware including source codemaybe reproduced, transmitted, transcribed
or translated into any language or computer language in any form or by any means, electronic, magnetic, optical, manual or otherwise,
without the prior written permission of FLIR Systems.

This manual must not, in whole or part, be copied, photocopied, reproduced,translated ortransmitted to any electronic mediumor machine
readable form without prior consent, in writing, from FLIR Systems.

Names and marks appearing on the products herein are eitherregistered trademarksor trademarksof FLIR Systems and/or its subsidiaries.
All othertrademarks,trade names or companynames referenced herein areusedfor identification only andarethe property of theirrespective
owners.

Quality assurance

The Quality Management System under which these products are developed and manufactured has been certified in accordance with the
ISO 9001 standard.

FLIR Systems is committed to a policy of continuous development; therefore we reserve the right to make changes and improvements on
any of the products described in this manual without prior notice.

Patents

This product is protected by patents, design patents, patents pending, or design patents pending.
One or several of the following patents, design patents, patents pending, or design patents pending apply to the products and/or features

described in this manual:

Reg. No.StatusDesignation

00809178.1ApplicationChina

01823221.3ApplicationChina

01823226.4ApplicationChina

235308Design PatentChina

ZL02331553.9Design PatentChina

ZL02331554.7Design PatentChina

200530018812.0PendingChina

1188086PatentEPC

01930377.5ApplicationEPO

01934715.2ApplicationEPO

27282912ApplicationEPO

000279476-0001Design PatentEU

1188086PatentFrance

viii Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

Reg. No.StatusDesignation

60004227.8PatentGermany

106017Design PatentGreat Britain

3006596Design PatentGreat Britain

3006597Design PatentGreat Britain

1188086PatentGreat Britain

DM/057692Design PatentInternational

DM/061609Design PatentInternational

2000-620406ApplicationJapan

2002-588123ApplicationJapan

2002-588070ApplicationJapan

1144833Design PatentJapan

1182246Design PatentJapan

1182620Design PatentJapan

2005-020460PendingJapan

PCT/SE01/00983ApplicationPCT

PCT/SE01/00984ApplicationPCT

PCT/SE02/00857ApplicationPCT

PCT/SE03/00307ApplicationPCT

PCT/SE/00/00739ApplicationPCT

0302837-0ApplicationSweden

68657Design PatentSweden

75530Design PatentSweden

518836PatentSweden

522971PatentSweden

524024PatentSweden

09/576266ApplicationU.S.

10/476,217ApplicationU.S.

10/476,760ApplicationU.S.

466540Design PatentU.S.

483782Design PatentU.S.

484155Design PatentU.S.

5,386,117PatentU.S.

5,637,871PatentU.S.

5,756,999PatentU.S.

6,028,309PatentU.S.

6,707,044PatentU.S.

6,812,465PatentU.S.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

Reg. No.StatusDesignation

29/233,400PendingU.S.

x Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

Table of contents

11 Warnings & cautions ......................................................................................................................

32 Important note about this manual .................................................................................................

53 Welcome! .........................................................................................................................................

63.1 About FLIR Systems .............................................................................................................

83.1.1 A few images from our facilities ............................................................................

103.2 Comments & questions ........................................................................................................

114 Packing list ......................................................................................................................................

135 System overview .............................................................................................................................

156 Connecting system components ..................................................................................................

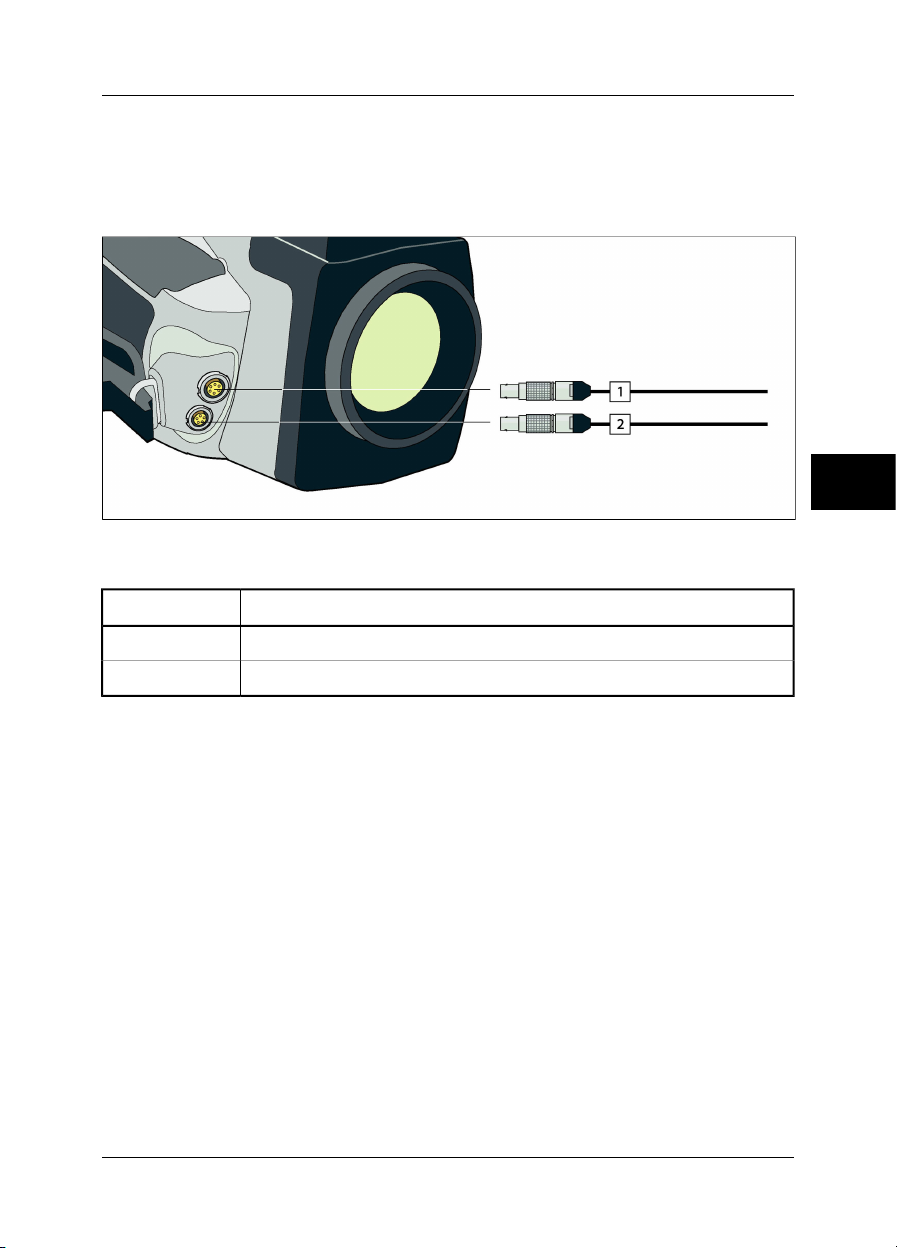

156.1 Front connectors ..................................................................................................................

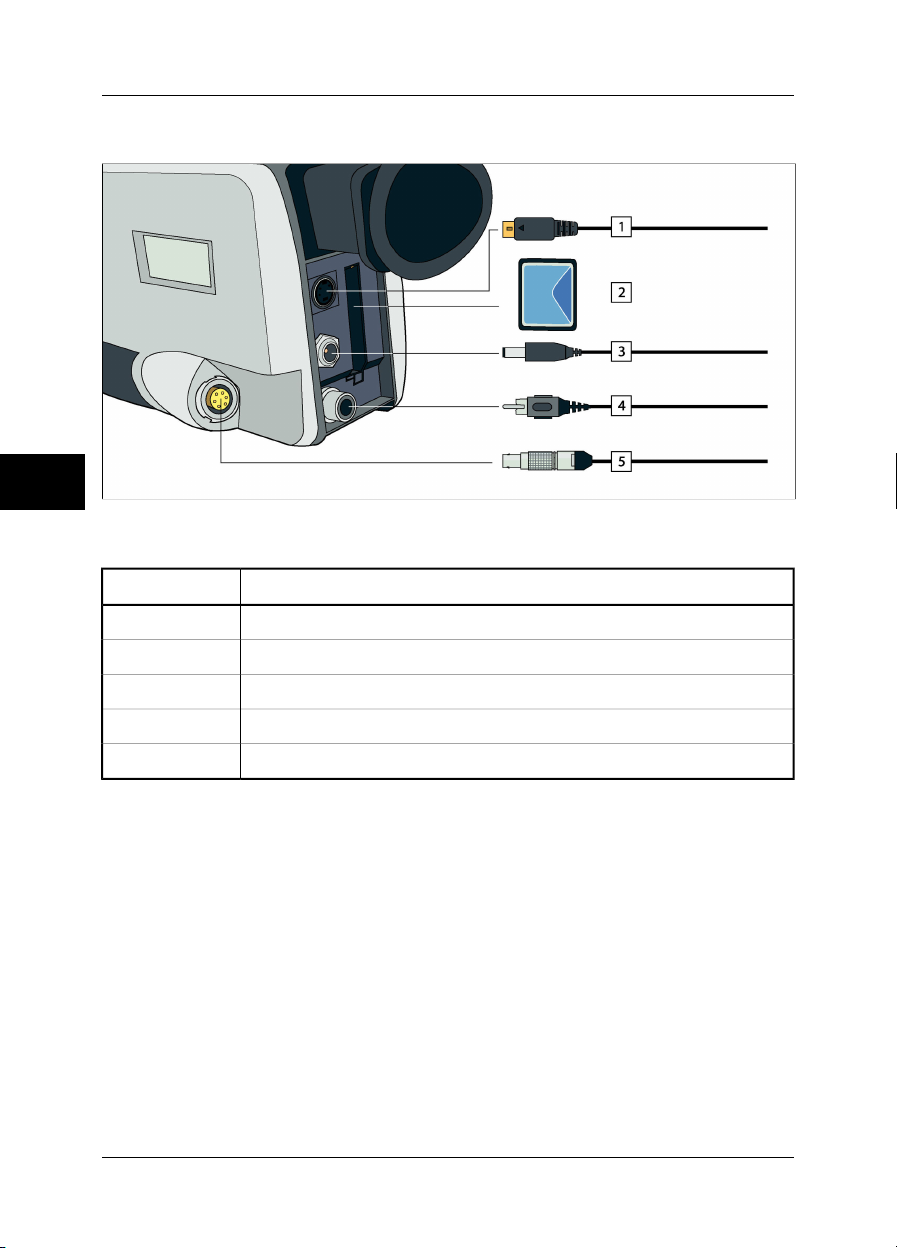

166.2 Rear connectors ...................................................................................................................

177 Introduction to thermographic inspections of electrical installations ......................................

177.1 Important note ......................................................................................................................

177.2 General information ..............................................................................................................

177.2.1 Introduction ...........................................................................................................

187.2.2 General equipment data .......................................................................................

197.2.3 Inspection .............................................................................................................

197.2.4 Classification & reporting ......................................................................................

207.2.5 Priority ...................................................................................................................

207.2.6 Repair ....................................................................................................................

217.2.7 Control ..................................................................................................................

227.3 Measurement technique for thermographic inspection of electrical installations ...............

227.3.1 How to correctly set the equipment .....................................................................

227.3.2 Temperature measurement ...................................................................................

247.3.3 Comparative measurement ..................................................................................

257.3.4 Normal operating temperature .............................................................................

267.3.5 Classification of faults ...........................................................................................

287.4 Reporting ..............................................................................................................................

307.5 Different types of hot spots in electrical installations ...........................................................

307.5.1 Reflections ............................................................................................................

307.5.2 Solar heating .........................................................................................................

317.5.3 Inductive heating ...................................................................................................

317.5.4 Load variations ......................................................................................................

327.5.5 Varying cooling conditions ...................................................................................

337.5.6 Resistance variations ............................................................................................

337.5.7 Overheating in one part as a result of a fault in another ......................................

357.6 Disturbance factors at thermographic inspection of electrical installations ........................

357.6.1 Wind ......................................................................................................................

357.6.2 Rain and snow ......................................................................................................

367.6.3 Distance to object .................................................................................................

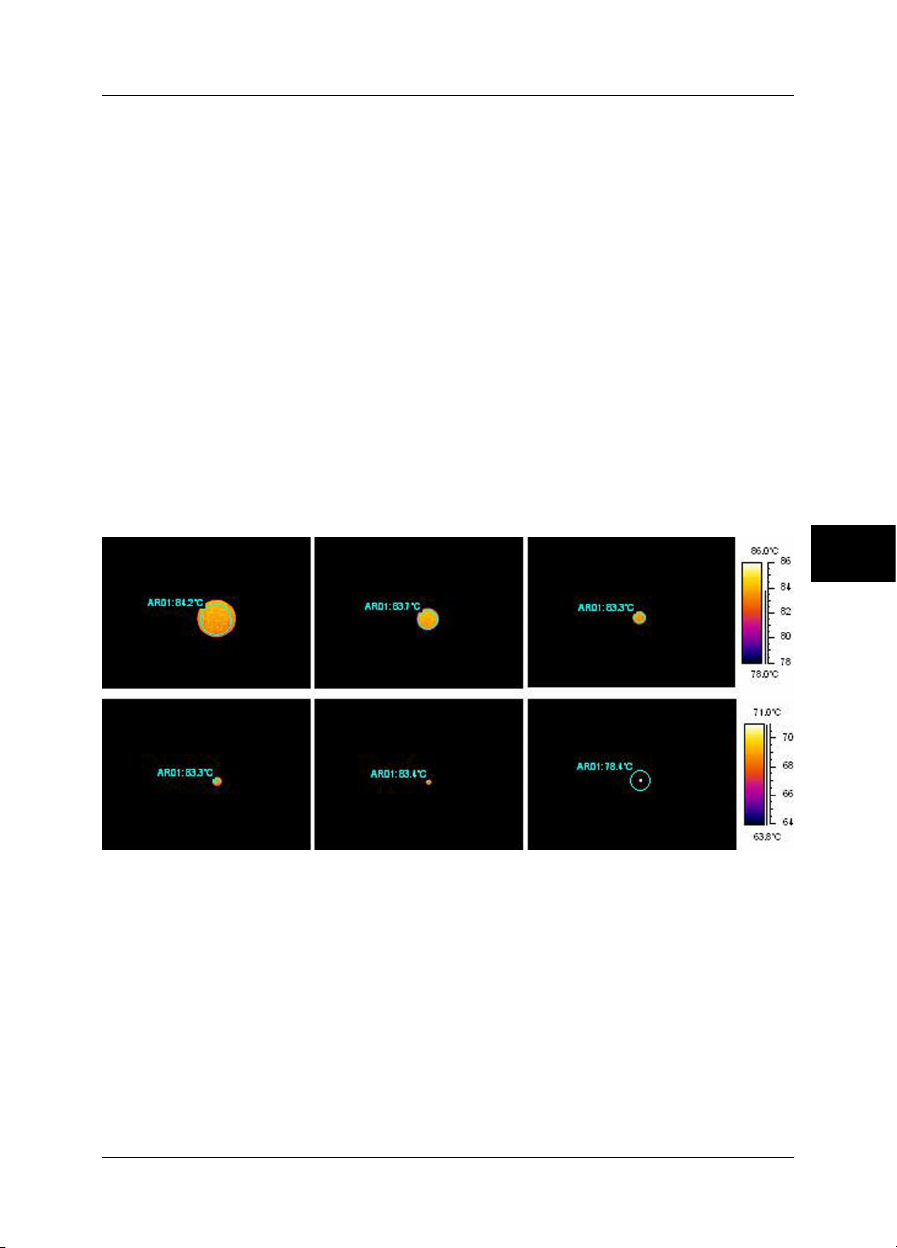

377.6.4 Object size ............................................................................................................

397.7 Practical advice for the thermographer ................................................................................

397.7.1 From cold to hot ...................................................................................................

397.7.2 Rain showers ........................................................................................................

397.7.3 Emissivity ..............................................................................................................

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 xi

407.7.4 Reflected apparent temperature ...........................................................................

407.7.5 Object too far away ...............................................................................................

418 Tutorials ...........................................................................................................................................

418.1 Switching on & switching off the camera .............................................................................

428.2 Working with images & folders .............................................................................................

428.2.1 Acquiring an image ...............................................................................................

428.2.2 Opening an image ................................................................................................

428.2.3 Deleting one or several images ............................................................................

428.2.4 Navigating in folders .............................................................................................

438.2.5 Create a new folder ...............................................................................................

438.2.6 Freezing & unfreezing an image ...........................................................................

438.2.7 Saving an image ...................................................................................................

448.3 Working with measurements ................................................................................................

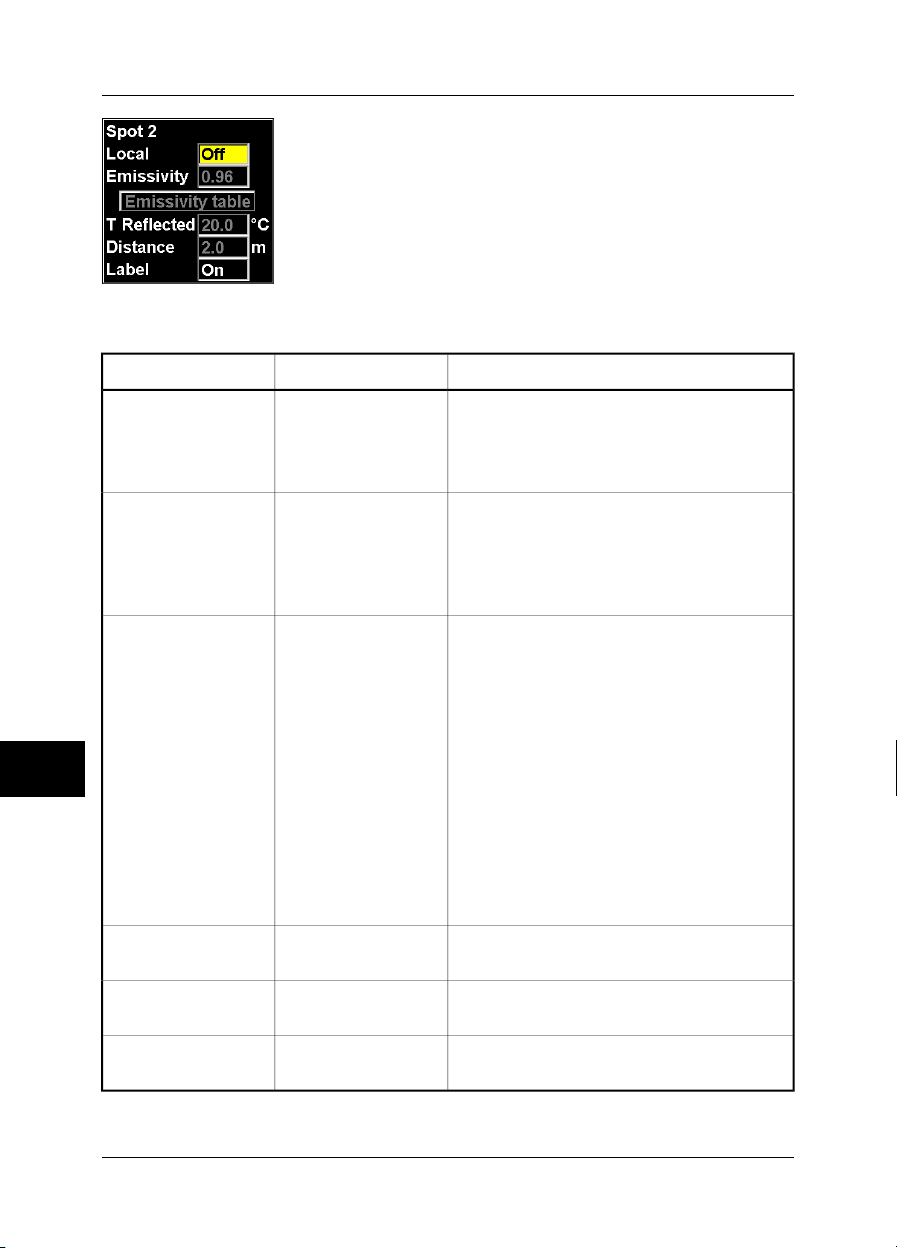

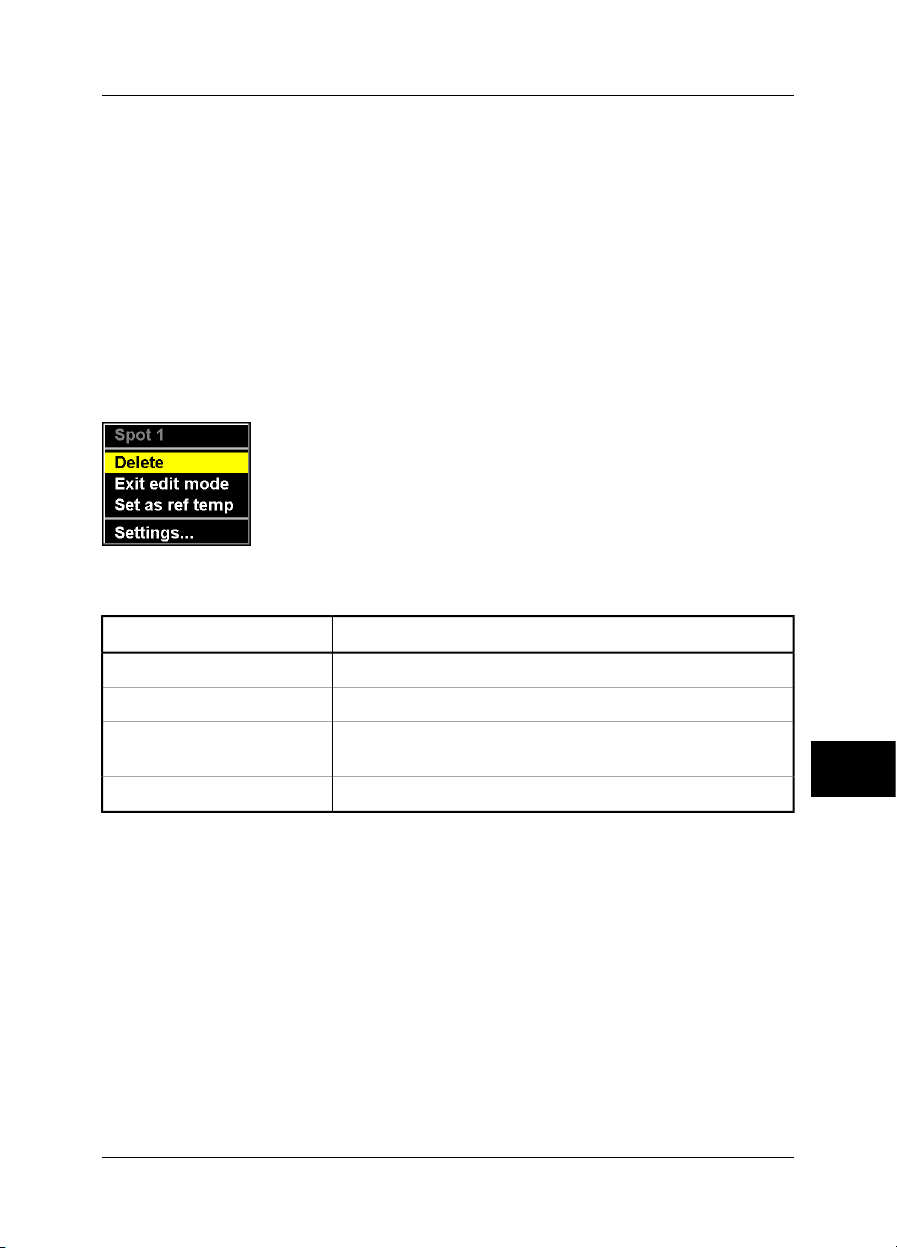

448.3.1 Laying out & moving a spot ..................................................................................

448.3.2 Laying out & moving an box .................................................................................

448.3.3 Laying out & moving a circle ................................................................................

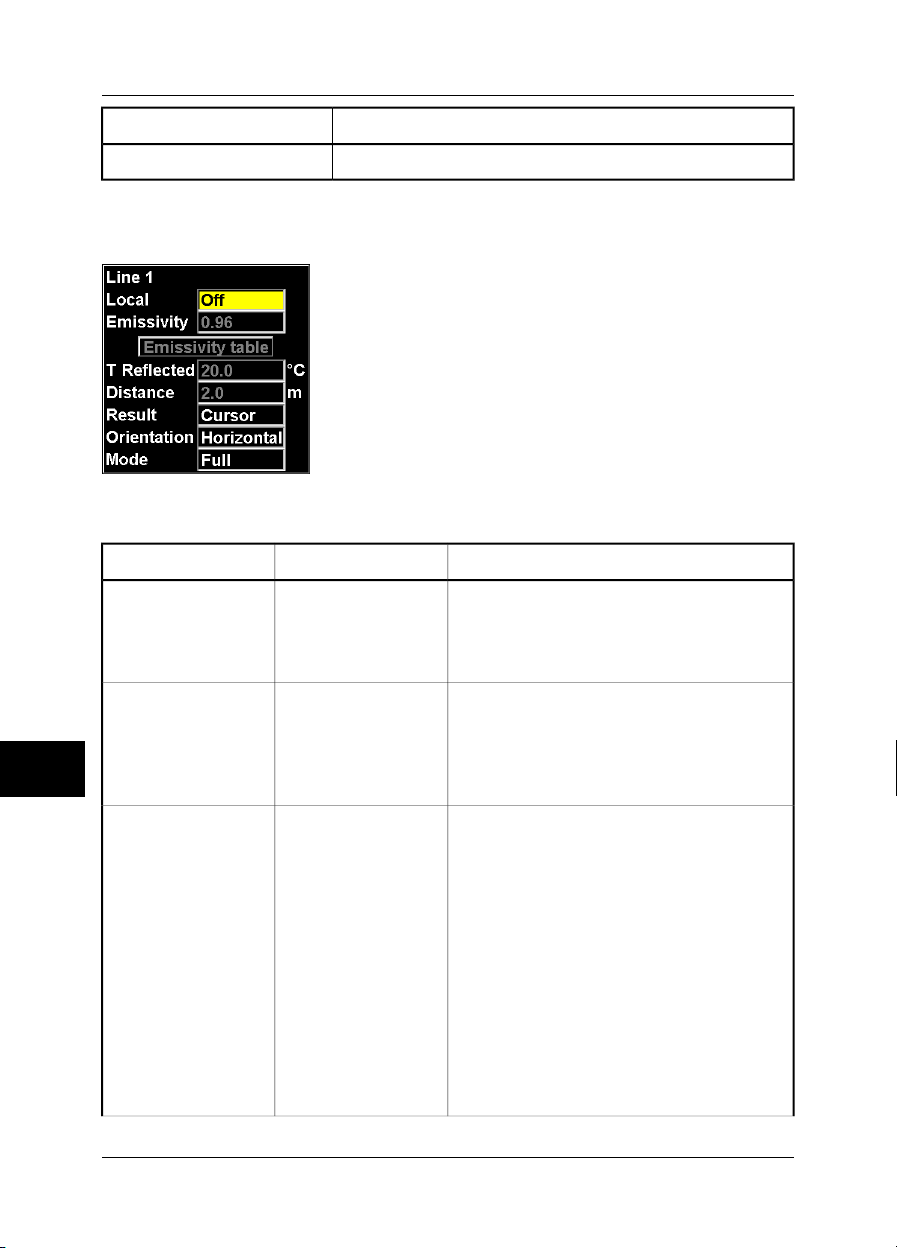

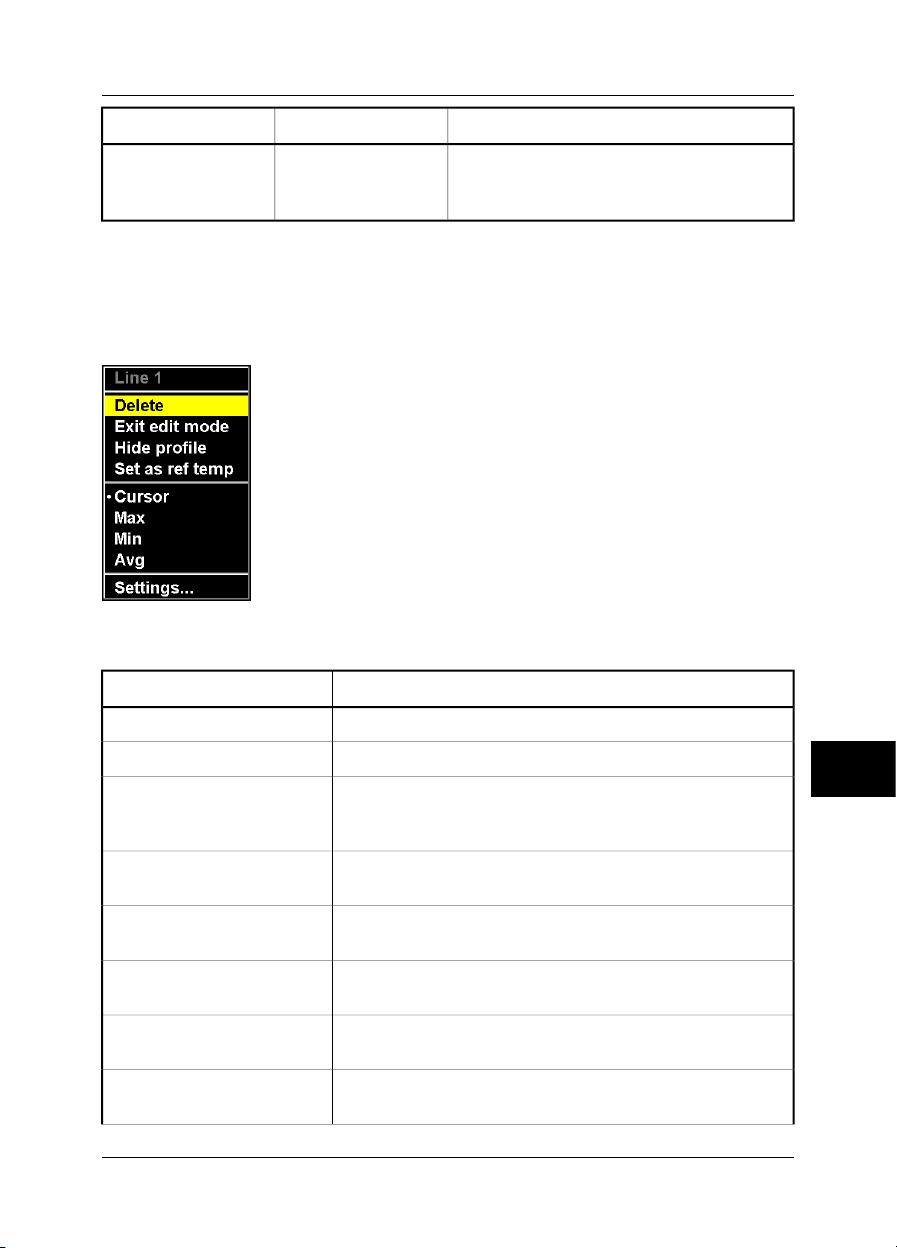

458.3.4 Laying out & moving a line ...................................................................................

458.3.5 Creating & changing an isotherm ........................................................................

458.3.6 Resizing a measurement marker ..........................................................................

468.3.7 Moving a measurement marker ............................................................................

478.4 Working with alarms .............................................................................................................

478.4.1 Setting the reference temperature ........................................................................

488.4.2 Setting up a silent alarm .......................................................................................

488.4.3 Setting up an audible alarm .................................................................................

508.5 Changing level & span .........................................................................................................

508.5.1 Changing the level ................................................................................................

508.5.2 Changing the span ...............................................................................................

518.6 Changing system settings ....................................................................................................

518.6.1 Changing the language ........................................................................................

518.6.2 Changing the temperature unit .............................................................................

518.6.3 Changing the date format .....................................................................................

518.6.4 Changing the time format .....................................................................................

528.6.5 Changing date & time ...........................................................................................

538.7 Working with the camera ......................................................................................................

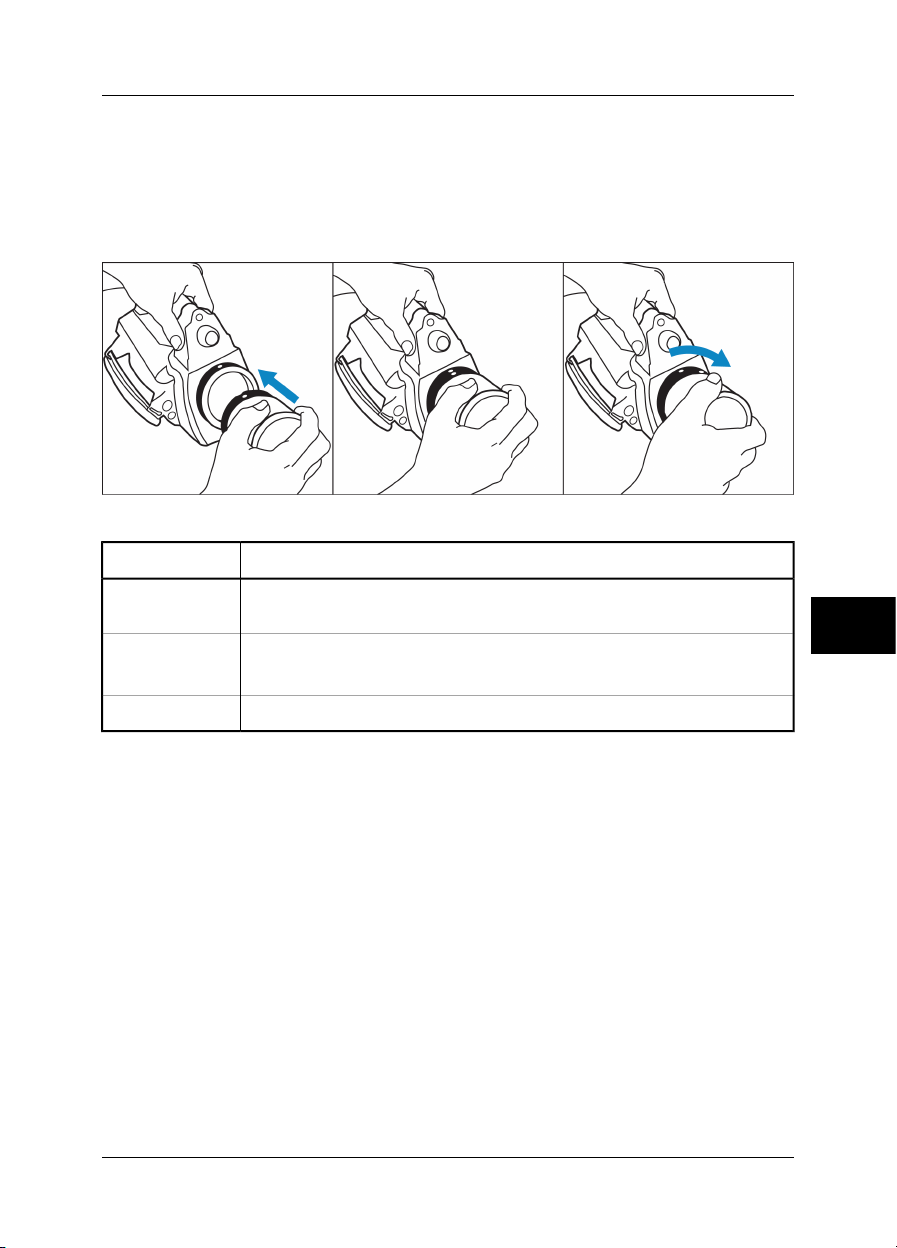

538.7.1 Mounting an additional lens .................................................................................

548.7.2 Camera setup when using the Protective Window (P/N 1 194 977) ....................

548.7.3 Focusing the camera using autofocus .................................................................

548.7.4 Focusing the camera manually ............................................................................

548.7.5 Using the electronic zoom ....................................................................................

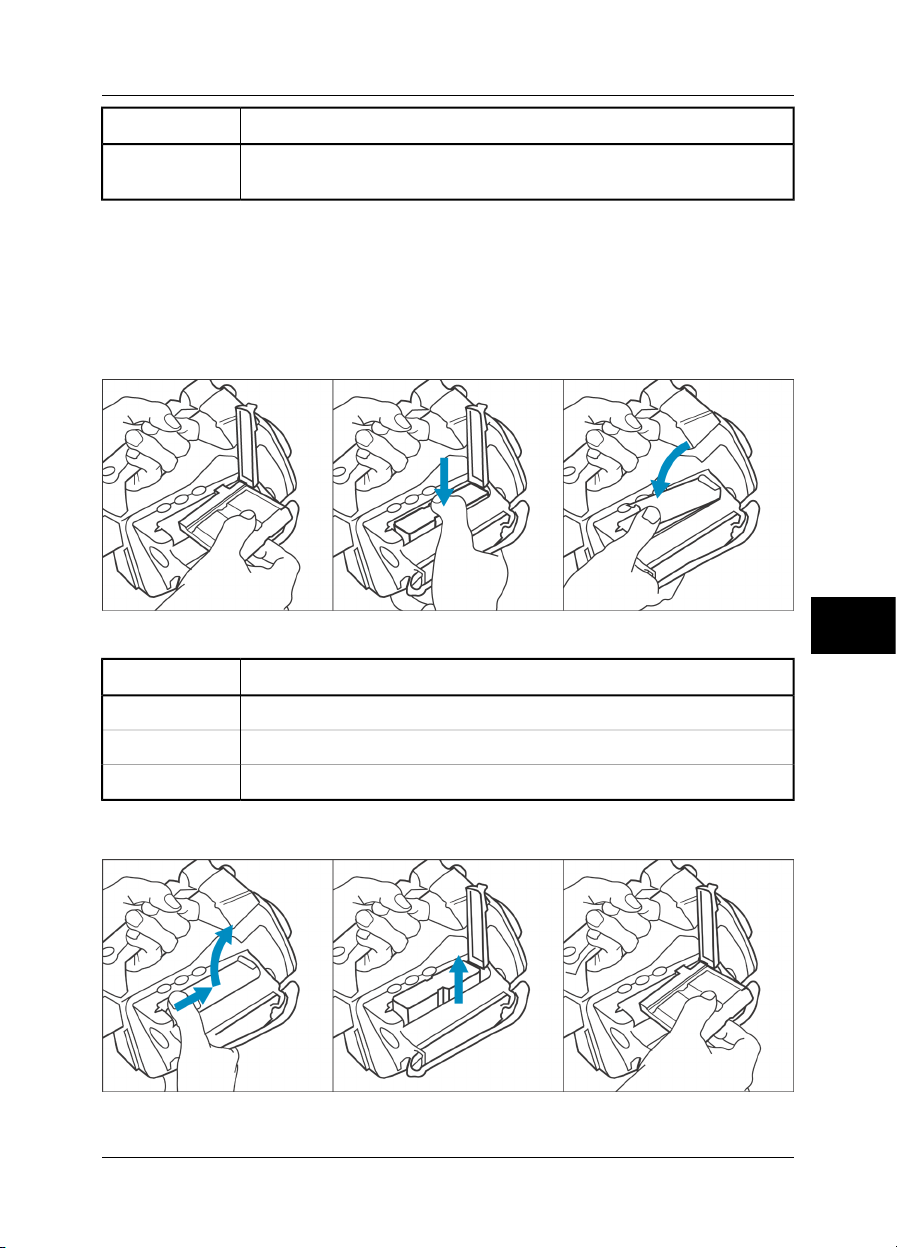

558.7.6 Inserting & removing the battery ..........................................................................

558.7.6.1 Inserting the battery ..........................................................................

558.7.6.2 Removing the battery ........................................................................

579 Camera overview ............................................................................................................................

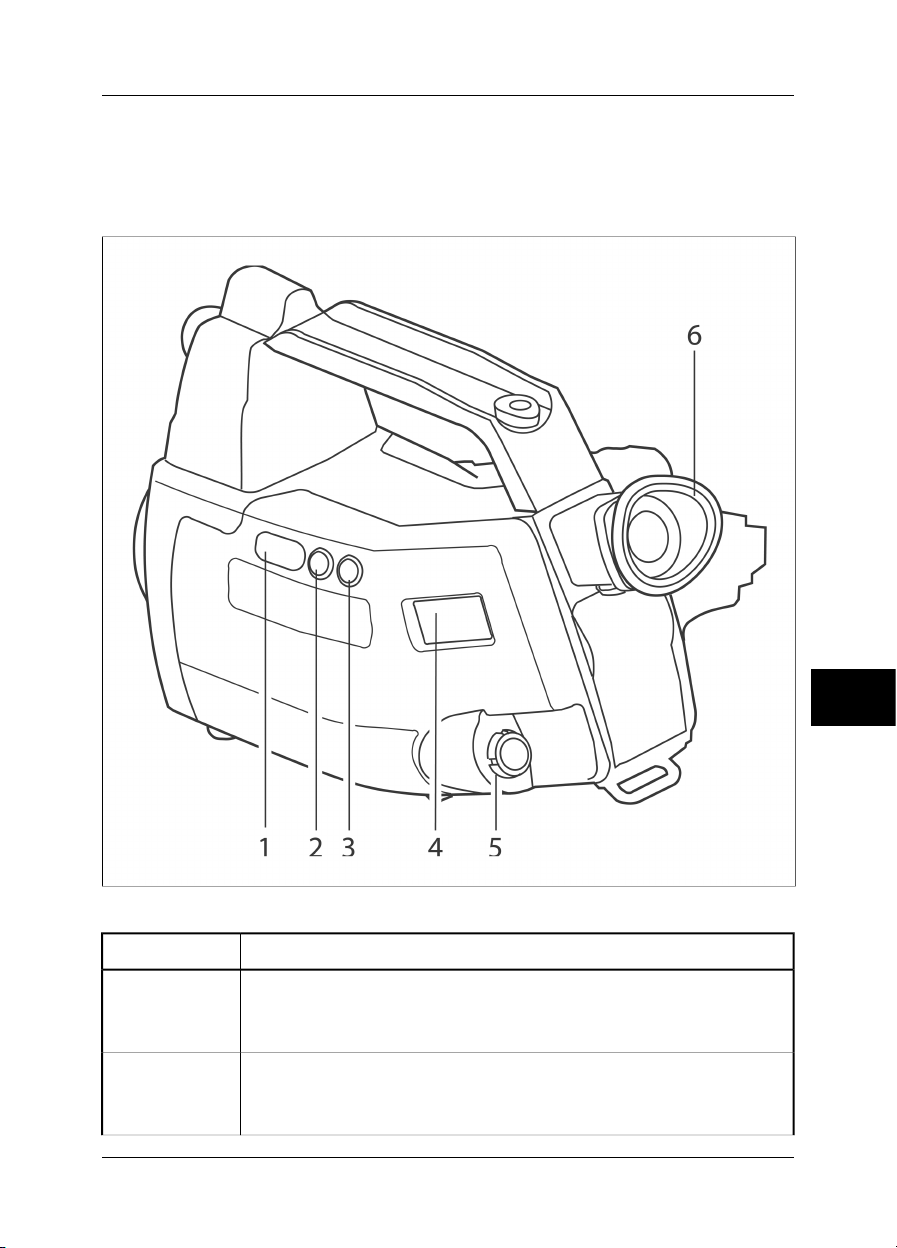

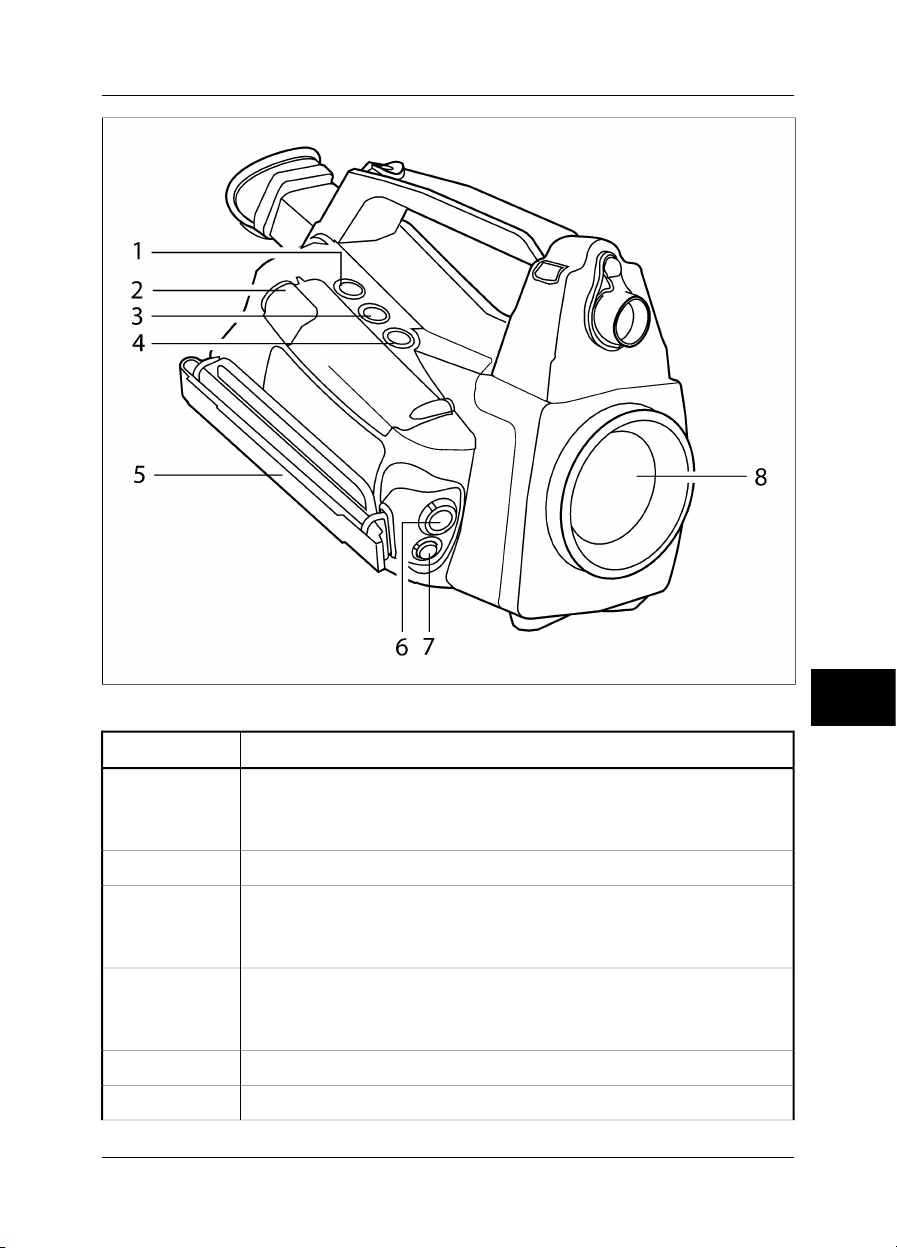

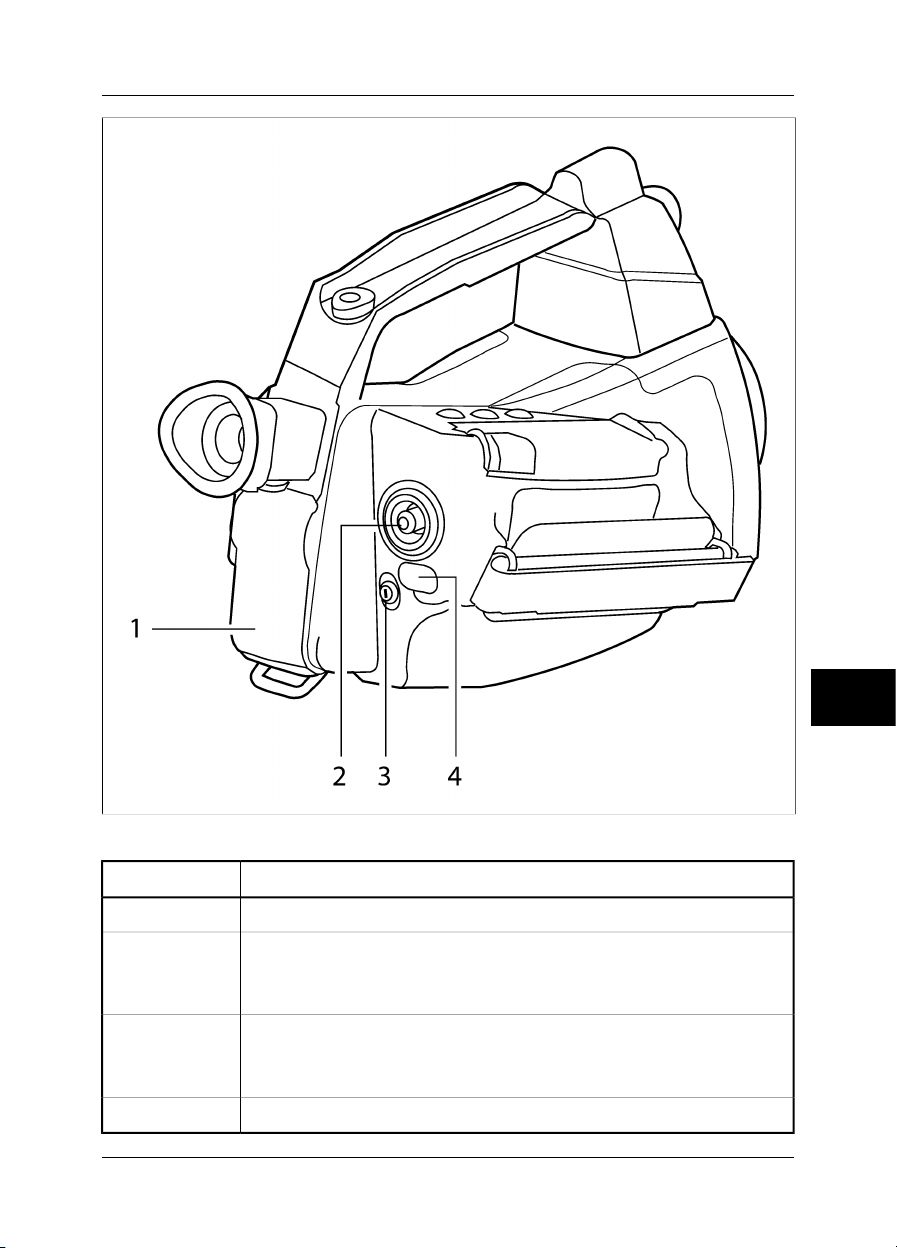

579.1 Camera parts ........................................................................................................................

649.2 Keypad buttons & functions .................................................................................................

669.3 Autofocus ..............................................................................................................................

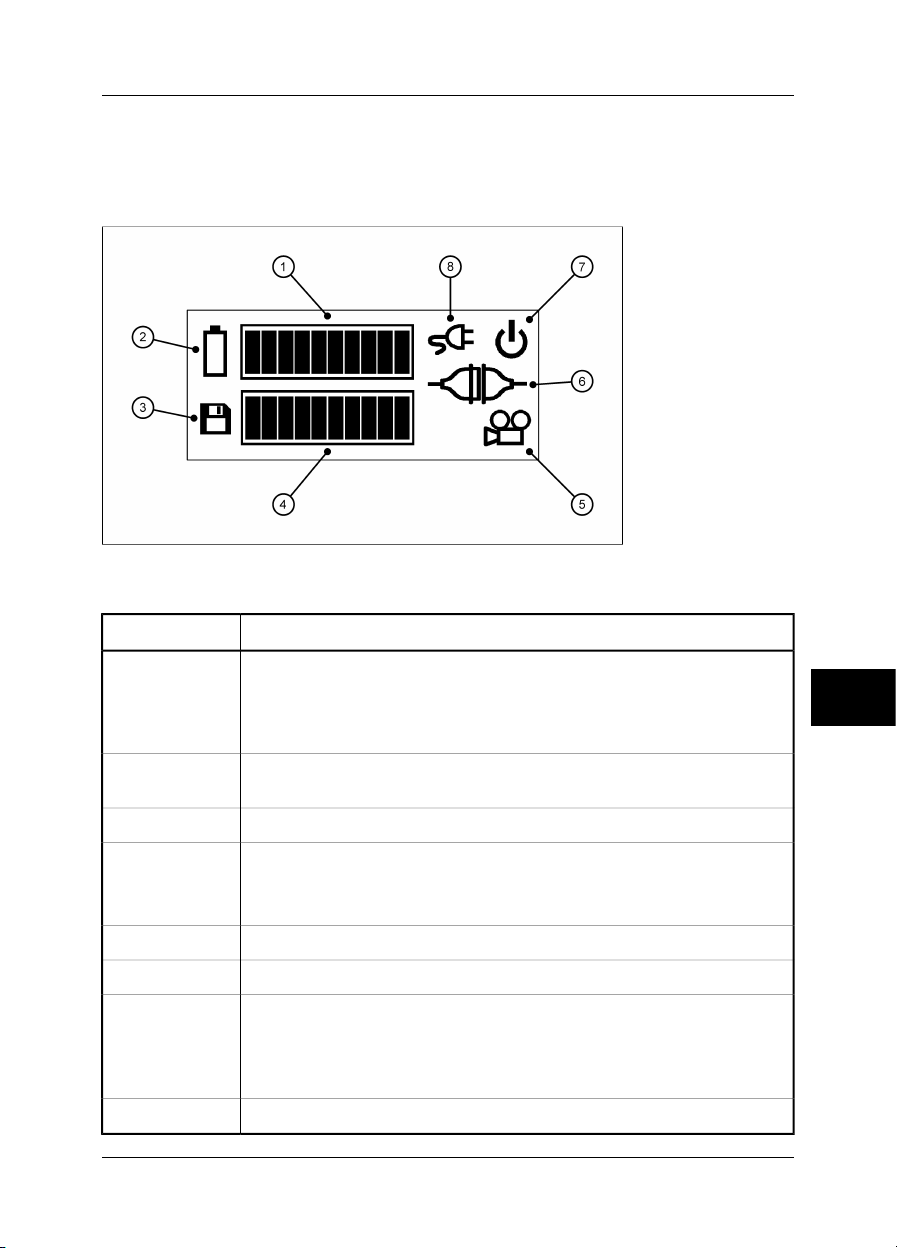

679.4 Camera status LCD ..............................................................................................................

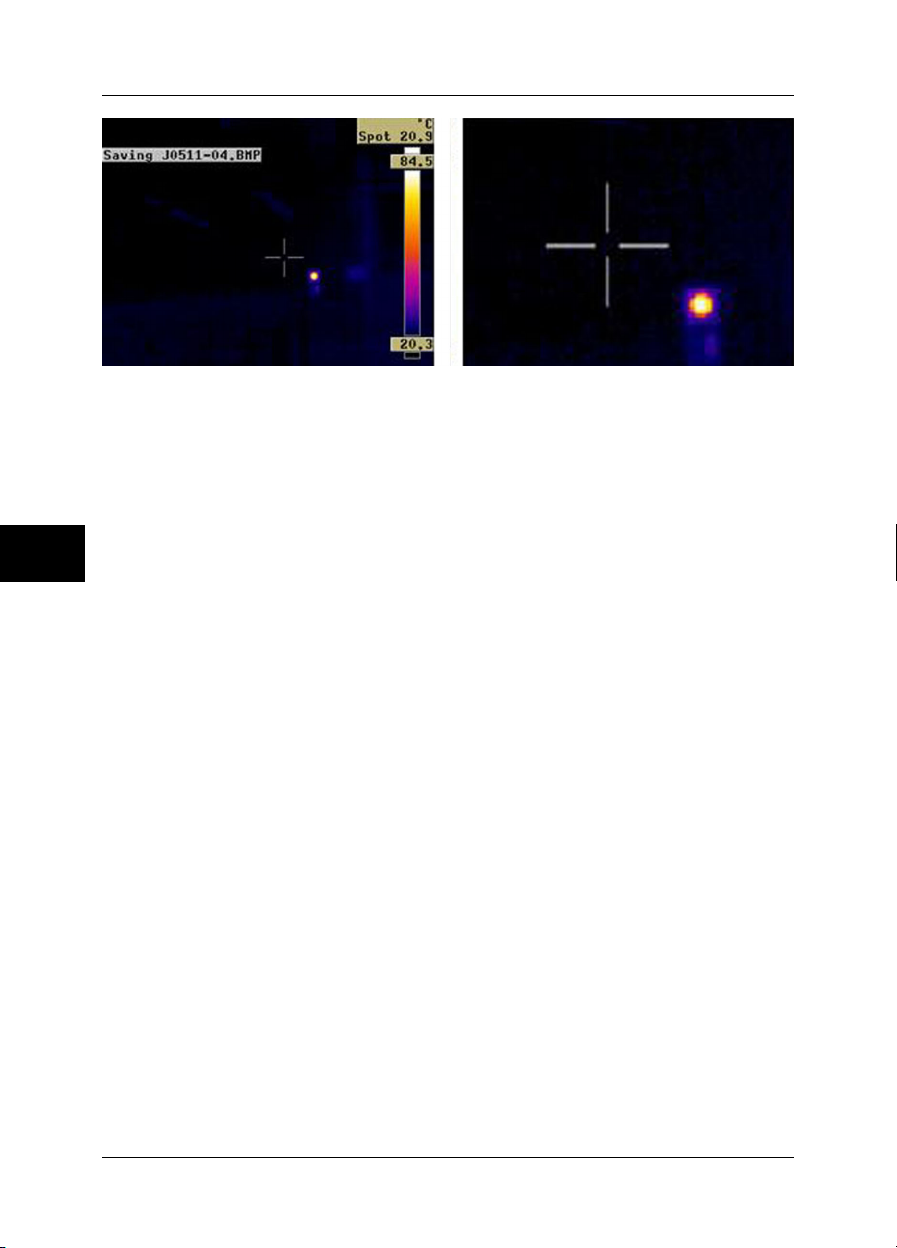

689.5 Laser LocatIR ........................................................................................................................

6910 Camera program .............................................................................................................................

6910.1 Screen objects ......................................................................................................................

6910.1.1 Result table ...........................................................................................................

xii Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

7010.1.2 Status bar ..............................................................................................................

7010.1.3 Temperature scale ................................................................................................

7010.1.4 System messages .................................................................................................

7010.1.4.1 Status messages ...............................................................................

7110.1.4.2 Warning messages ...........................................................................

7210.2 Menu system ........................................................................................................................

7210.2.1 Navigating in the menu system ............................................................................

7310.2.2 File menu ..............................................................................................................

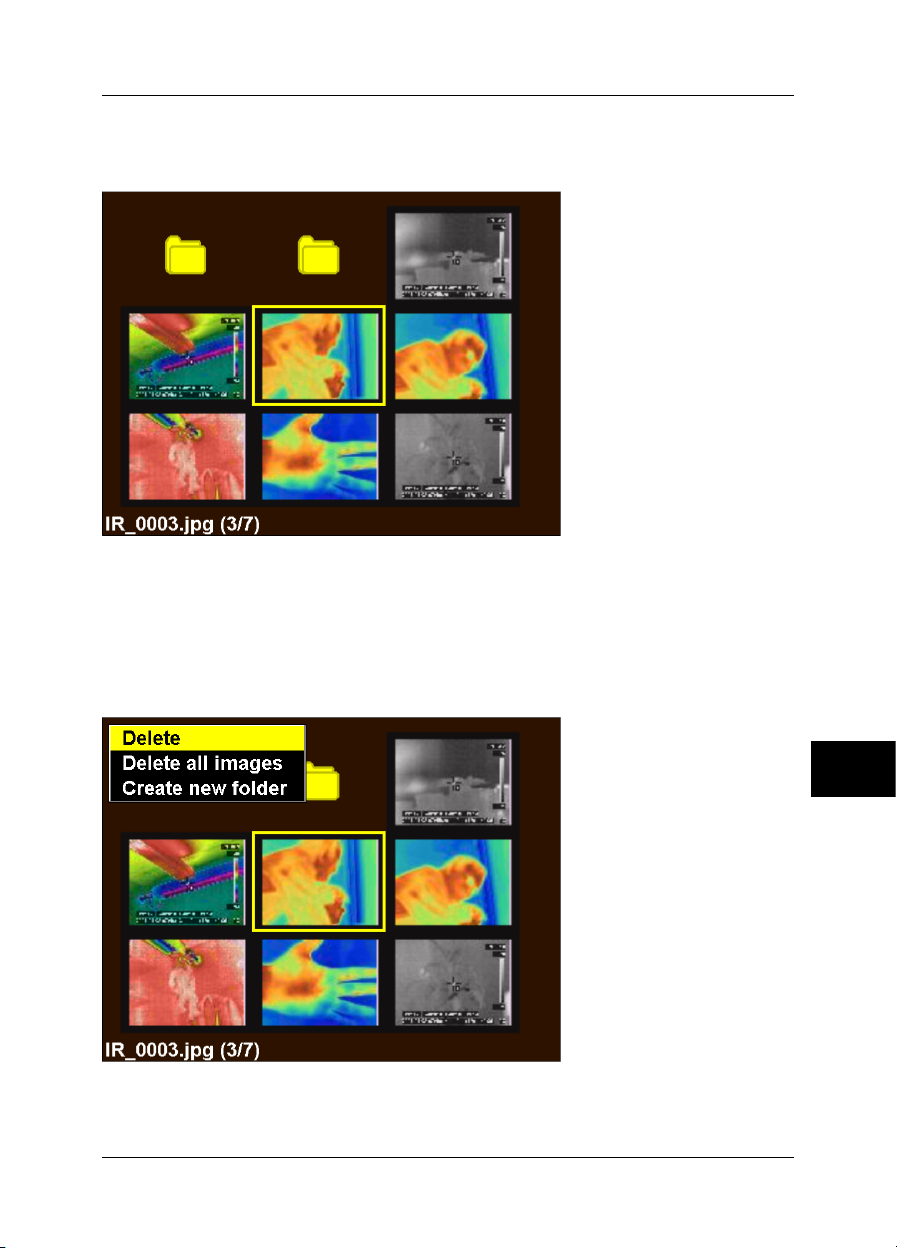

7310.2.2.1 Images ...............................................................................................

7410.2.2.2 Save ...................................................................................................

7410.2.2.3 Periodic save .....................................................................................

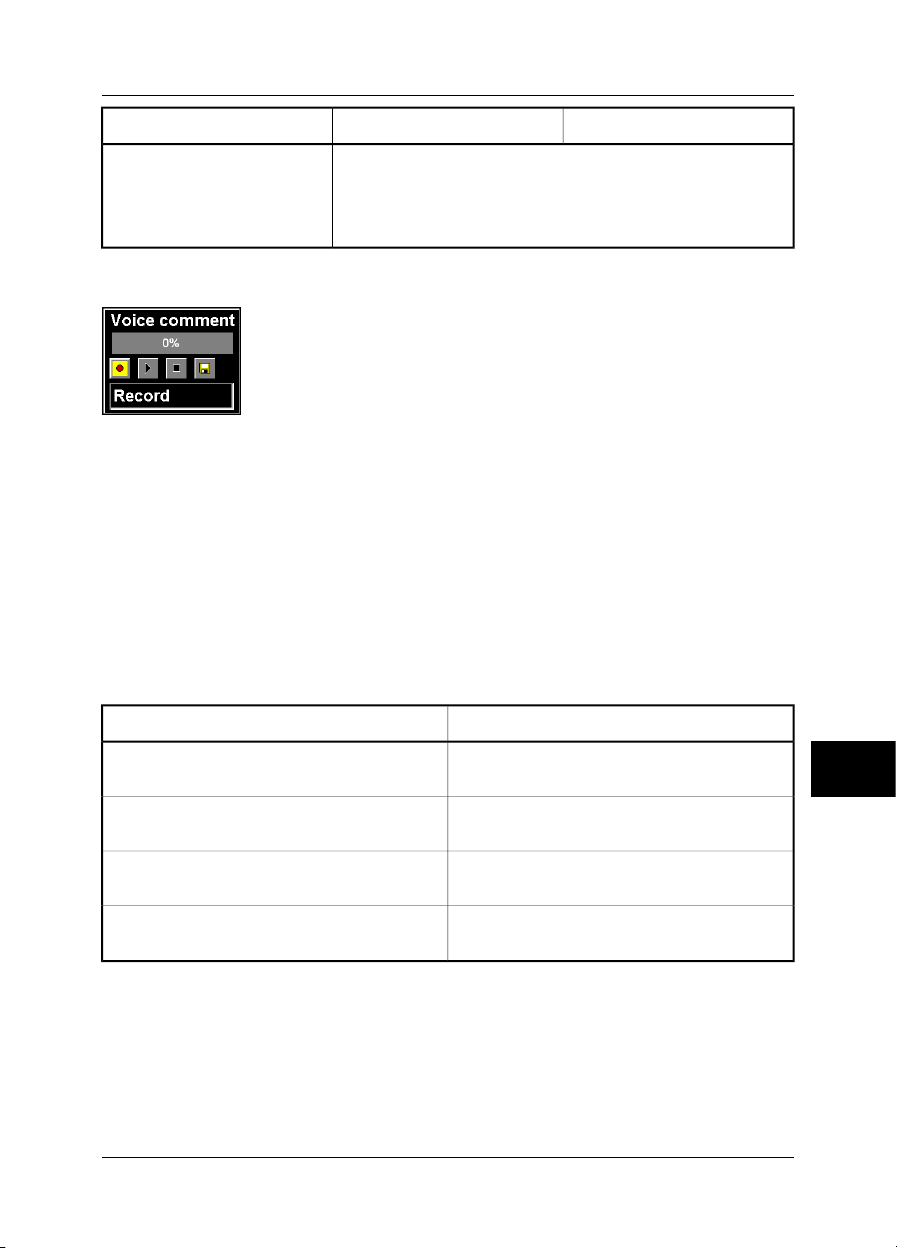

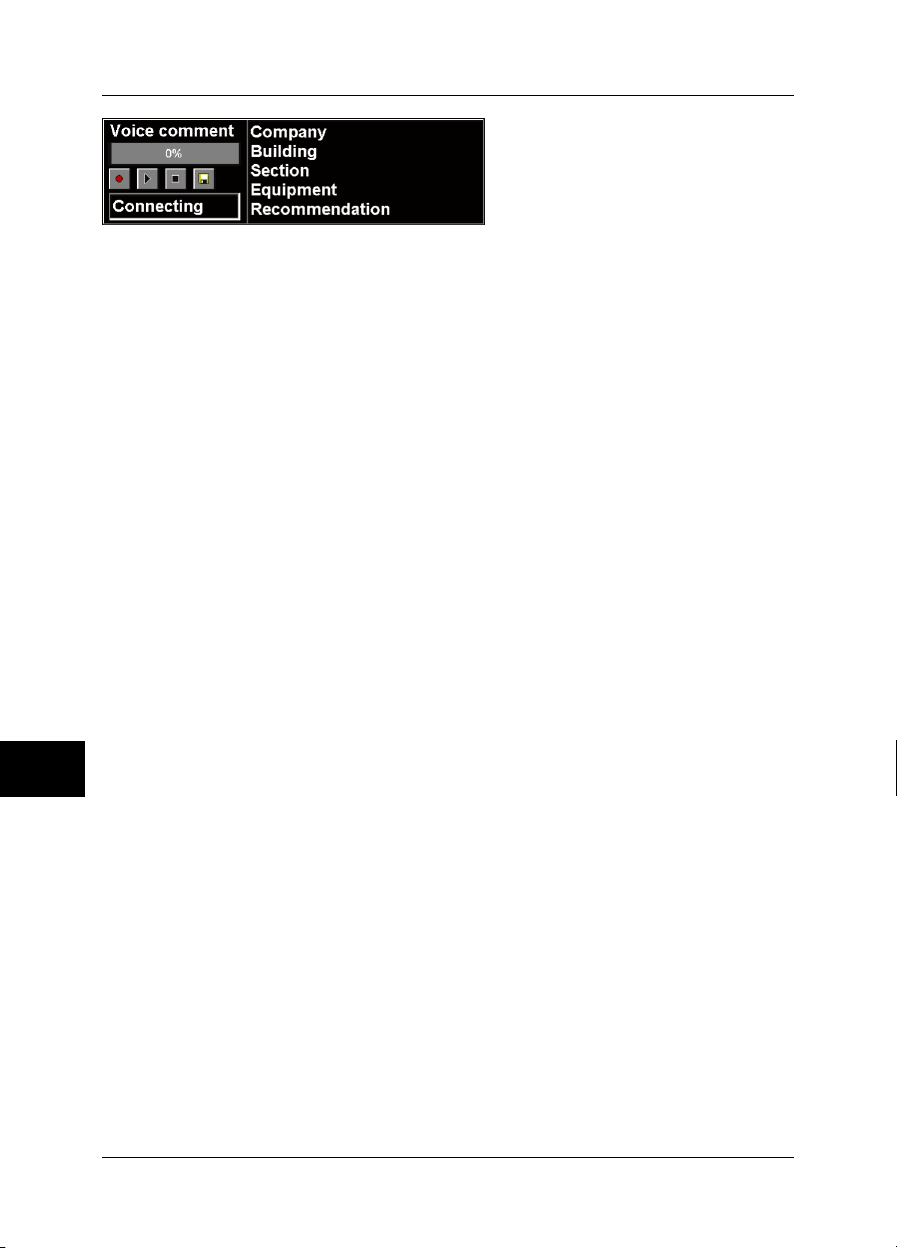

7510.2.2.4 Voice comment .................................................................................

7710.2.3 Analysis menu .......................................................................................................

7710.2.3.1 Edit mode ..........................................................................................

7710.2.3.2 Add spot ............................................................................................

7910.2.3.3 Add box .............................................................................................

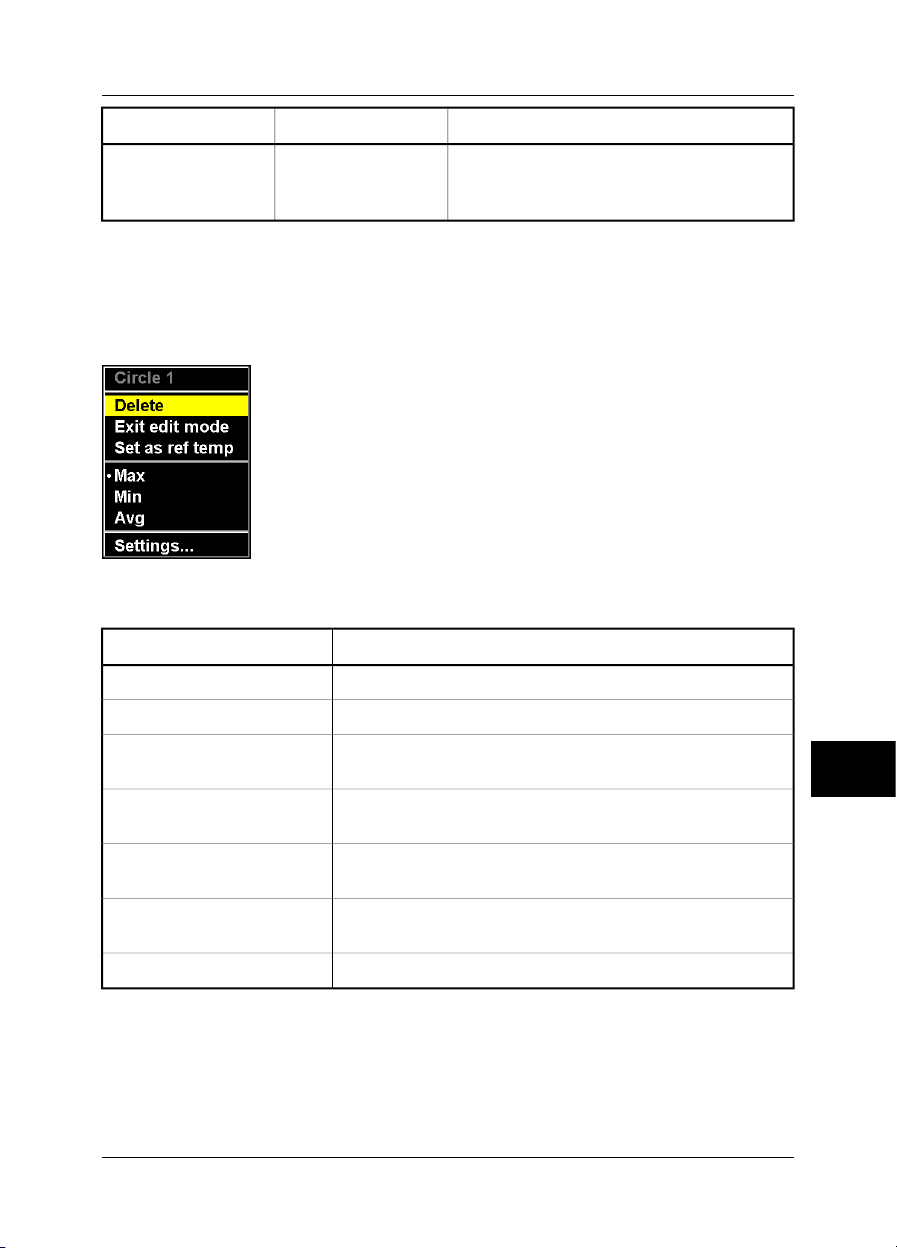

8110.2.3.4 Add circle ..........................................................................................

8310.2.3.5 Add line .............................................................................................

8510.2.3.6 Add isotherm .....................................................................................

8710.2.3.7 Add diff ..............................................................................................

8710.2.3.8 Remove all .........................................................................................

8810.2.3.9 Obj par ...............................................................................................

8810.2.3.10 Deactivate local par. ..........................................................................

8910.2.4 Image menu ..........................................................................................................

8910.2.4.1 Freeze/Live ........................................................................................

8910.2.4.2 Range ................................................................................................

8910.2.4.3 Level/Span .........................................................................................

8910.2.4.4 Manual adjust / Continuous adjust ...................................................

9010.2.4.5 Palette ................................................................................................

9010.2.4.6 Hide graphics ....................................................................................

9110.2.5 Setup menu ...........................................................................................................

9110.2.5.1 Image .................................................................................................

9210.2.5.2 Difference ..........................................................................................

9310.2.5.3 Save ...................................................................................................

9510.2.5.4 Alarm .................................................................................................

9610.2.5.5 Power .................................................................................................

9610.2.5.6 Status bar ..........................................................................................

9710.2.5.7 Buttons ..............................................................................................

9810.2.5.8 Date/time ...........................................................................................

9910.2.5.9 Local settings ....................................................................................

9910.2.5.10 Camera info .......................................................................................

9910.2.5.11 Factory default ...................................................................................

10111 Folder and file structure ...............................................................................................................

10312 Electrical power system .................................................................................................................

10412.1 Internal battery charging ......................................................................................................

10512.2 External battery charging .....................................................................................................

10612.3 Battery safety warnings ........................................................................................................

10913 A note on LEMO connectors .........................................................................................................

10913.1 How to connect & disconnect LEMO connectors ................................................................

11114 Maintenance & cleaning ................................................................................................................

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 xiii

11114.1 Camera body, cables & accessories ....................................................................................

11114.2 Lenses ...................................................................................................................................

11315 Troubleshooting ..............................................................................................................................

11516 Technical specifications & dimensional drawings ......................................................................

11516.1 Imaging performance ...........................................................................................................

11516.2 Detector ................................................................................................................................

11516.3 Image presentation ...............................................................................................................

11516.4 Temperature ranges .............................................................................................................

11516.5 Correction parameters ..........................................................................................................

11616.6 Laser LocatIR ........................................................................................................................

11616.7 Electrical power system ........................................................................................................

11616.8 Environmental specifications ...............................................................................................

11616.9 Physical specifications .........................................................................................................

11716.10 Interfaces & connectors .......................................................................................................

11716.11 Pin configurations .................................................................................................................

11716.11.1 Headset connector ...............................................................................................

11816.11.2 RS-232/USB connector ........................................................................................

11916.11.3 Remote control connector ....................................................................................

11916.11.4 Power connector ...................................................................................................

12016.11.5 CVBS connector ...................................................................................................

12016.11.6 S-Video connector ................................................................................................

12116.12 Relationship between fields of view and distance ...............................................................

13616.13 Basic dimensions – battery charger .....................................................................................

13716.14 Basic dimensions – battery ..................................................................................................

13816.15 Basic dimensions – camera .................................................................................................

13916.16 Basic dimensions – camera .................................................................................................

14117 Glossary ...........................................................................................................................................

14518 Thermographic measurement techniques ...................................................................................

14518.1 Introduction ..........................................................................................................................

14518.2 Emissivity ..............................................................................................................................

14618.2.1 Finding the emissivity of a sample .......................................................................

14618.2.1.1 Step 1: Determining reflected apparent temperature .......................

14818.2.1.2 Step 2: Determining the emissivity ...................................................

14918.3 Reflected apparent temperature ..........................................................................................

14918.4 Distance ................................................................................................................................

14918.5 Relative humidity ..................................................................................................................

14918.6 Other parameters ..................................................................................................................

15119 History of infrared technology ......................................................................................................

15520 Theory of thermography ................................................................................................................

15520.1 Introduction ...........................................................................................................................

15520.2 The electromagnetic spectrum ............................................................................................

15620.3 Blackbody radiation ..............................................................................................................

15720.3.1 Planck’s law ..........................................................................................................

15820.3.2 Wien’s displacement law ......................................................................................

16020.3.3 Stefan-Boltzmann's law .........................................................................................

16020.3.4 Non-blackbody emitters .......................................................................................

16320.4 Infrared semi-transparent materials .....................................................................................

xiv Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

16521 The measurement formula .............................................................................................................

17122 Emissivity tables .............................................................................................................................

17122.1 References ............................................................................................................................

17122.2 Important note about the emissivity tables ..........................................................................

17122.3 Tables ....................................................................................................................................

187Index ................................................................................................................................................

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 xv

xvi Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

1 Warnings & cautions

10474103;a1

■ This equipment generates, uses, and can radiate radio frequency energy and if

not installed and used in accordance with the instruction manual, may cause inter­ference to radio communications. It has been tested and found to comply with the
limits for a Class A computing device pursuant to Subpart Jof Part 15 of FCC Rules,
which are designed to provide reasonable protection against such interference
when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference in which case the user at his own
expense will be required to take whatever measures may be required to correct
the interference.

■ An infrared camera is a precision instrument and uses a very sensitive IR detector.

Pointing the camera towards highly intensive energy sources – such as devices
emitting laser radiation, or reflections from such devices – may affect the accuracy
of the camera readings, or even harm – or irreparably damage – the detector. Note
that this sensitivity is also present when the camera is switched off and the lens
cap is mounted on the lens.

■ Each camera from FLIR Systems is calibrated prior to shipping. It is advisable that

the camera is sent in for calibration once a year.

■ For protective reasons, the LCD (where applicable)will beswitched off if the detector

temperature exceeds +60 °C (+149 °F) and the camera will be switched off if the
detector temperature exceeds +68 °C (+154.4 °F).

■ The camera requires a warm-up time of 5 minutes before accurate measurements

(where applicable) can be expected.

■ In certain outdoor conditions, the sun can enter the eyepiece and cause damage

to the LCD. Use an eyepiece protector when you expect to be using the camera
for extended periods of time in outdoor sunlit environments.

1

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 1

1 – Warnings & cautions

1

INTENTIONALLY LEFT BLANK

2 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

2 Important note about this manual

As far as it is practically possible, FLIR Systems configures each manual to reflect
each customer’s particular camera configuration. However, please note the following
exceptions:

■ The packing list is subject to specific customer configuration and may contain more

or less items

■ FLIR Systems reserves the right to discontinue models,parts andaccessories, and

other items, or change specifications at any time without prior notice

■ In some cases, the manual may describe features that are not available in your

particular camera configuration

2

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 3

2 – Important note about this manual

2

INTENTIONALLY LEFT BLANK

4 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

3 Welcome!

Thank you for choosing the ThermaCAM™ P45 infrared camera.
The ThermaCAM™ P45 infrared condition monitoring system consists of an infrared

camera with a built-in 36 mm lens, and a range of accessories. The infrared camera
measures and images the emitted infrared radiation from an object. The fact that ra­diation is a function of object surface temperature makes it possible for the camera
to calculate and show this temperature.

The ThermaCAM™ P45 camera is dust- and splash-proof and tested for shock and
vibration for use in the most demanding field conditions.It is a handheld, truly portable
camera, which is lightweight and operates for more than two hours on one battery
pack. A high-resolution infrared color image is provided in real-time in the integral
viewfinder.

The camera is very easy to use and is operated by using a few buttons which are
conveniently placed on the camera, allowing fingertip control of major functions. A
built-in menu system also gives easy access to the advanced, simple-to-use camera
software for increased functionality.

To document the object under inspection it is possible to capture and store images
on a removable CompactFlash card. It is also possible to store, together with every
image, voice comments by using the headset connected to the camera. The images
can be analyzed either in the field by using the real-time measurement markers built
into the camera software, or in a PC by using FLIR Systems's software for infrared
analysis and reporting.

3

In the PC, the images can not only be viewed and analyzed, but the voice comments
can also be played back. FLIR Systems’s software makes it very easy to create
complete survey reports (containing numerous infrared images, photos, tables etc.)
from the inspections.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 5

3 – Welcome!

3.1 About FLIR Systems

With over 40 years experience in IR systems and applications development, and over
30 000 infrared cameras in use worldwide, FLIR Systems is the undisputed global
commercial IR industry leader.

10380703;a2

3

Figure 3.1 FLIR Systems, Boston, USA, FLIR Systems, Danderyd, Sweden, and FLIR Systems, Portland,

USA.

10570303;a2

Figure 3.2 Indigo Operations, Niceville, USA,and Indigo Operations,SantaBarbara, USA. IndigoOperations
is a division of FLIR Systems.

As pioneers in the IR industry, FLIR Systems has a long list of ‘firsts’ the world of in­frared thermography:

■ 1965: 1st thermal imaging system for predictive maintenance (Model 650).

■ 1973: 1st battery-operated portable IR scanner for industrial applications predictive

maintenance (Model 750).

■ 1975: 1st TV compatible system (Model 525).

■ 1978: 1st dual-wavelength scanning system capable of real-time analog recording

of thermal events (Model 780). Instrumental in R & D market development.

■ 1983: 1st thermal imaging and measurement system with on-screen temperature

measurement.

■ 1986: 1st TE (thermo-electrically) cooled system.

■ 1989: 1st single-piece infrared camera system for PM (predictive maintenance)

and R & D (research & development) with on-board digital storage.

■ 1991: 1st Windows-based thermographic analysis and reporting system.

■ 1993: 1st Focal Plane Array (FPA) system for PM and R & D applications.

■ 1995: 1st full-featured camcorder style FPA infrared system (ThermaCAM).

■ 1997: 1st: uncooled microbolometer-based PM/R & D system.

6 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

3 – Welcome!

■ 2000: 1st thermography system with both thermal and visual imaging.

■ 2000: 1st thermography system to incorporate thermal/visual/voice and text data

logging.

■ 2002: 1st automated thermography system (model P60) to feature detachable re-

motely controllable LCD, JPEG image storage, enhanced connectivity including
USB and IrDA wireless, thermal/visual/voice and text data logging.

■ 2002: 1st low-cost ultra-compact hand-held thermography camera (E series).

Revolutionary, ergonomic design, lightest IR measurement camera available.

■ 2003: 1st low-cost, ultra-compact infrared camera for fixed installation intended for

automation and security applications. Exceptionally user-friendly due to standard
interfaces and extensive built-in functionality.

■ 2004: 1st camera models specially designed for building thermography (B1, B2

and B20)

10401603;a3

3

Figure 3.3 LEFT: FLIR Systems Thermovision® Model 661. The photo is taken on May 30th, 1969 at the

distribution plant near Beckomberga, in Stockholm, Sweden. The camera weighed approx. 25 kg (55 lb),
the oscilloscope 20 kg (44 lb), the tripod 15 kg (33 lb). The operator also needed a 220 VAC generator
set, and a 10L (2.6US gallon) jar with liquidnitrogen. To theleft ofthe oscilloscope thePolaroid attachment
(6 kg/13 lb) can be seen. RIGHT: FLIR Systems ThermaCAM Model E2 from 2002 – weight: 0.7 kg (1.54
lb), including battery.

With this tradition of unparalleled technical excellence and innovative achievements,
FLIR Systems continues to develop new infrared products, educational venues and
applications expertise to meet the diverse demands of thermographers worldwide.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 7

3 – Welcome!

3.1.1 A few images from our facilities

10401303;a1

3

Figure 3.4 LEFT: Development of system electronics; RIGHT: Testing of an FPA detector

10401403;a1

Figure 3.5 LEFT: Diamond turning machine; RIGHT: Lens polishing

8 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

3 – Welcome!

10401503;a1

Figure 3.6 LEFT: Testing of IR cameras in the climatic chamber; RIGHT: Robot for camera testing and
calibration

3

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 9

3 – Welcome!

3.2 Comments & questions

FLIR Systems is committed to a policy of continuous development, and although we
have tested and verified the information in this manual to the best of our ability, you
may find that features and specifications have changed since the time of printing.
Please let us know about any errors you find, as well as your suggestions for future
editions, by sending an e-mail to:

3

[e-mail]

➲ Do not use this e-mail address for technical support questions. Technical support
is handled by FLIR Systems local sales offices.

10 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

4 Packing list

The ThermaCAM™ P45 and its accessories are delivered in a hard transport case
which typically contains the items below. On receipt of the transport case, inspect all
items andcheck them against the delivery note. Any damaged items must be reported
to the local FLIR Systems representative immediately.

QtyPart numberDescription

11 909 820Adapter for CompactFlash card

21 195 268Battery

11 195 267Battery charger

11 909 653CompactFlash card

11 909 775CVBS video cable

1194 109Headset

11 195 317Lens cap for camera body

11557966Operator’s manual

11 909 528Power supply

1117 132Shoulder strap

11 909 775S-Video cable

4

1Configuration-dependentThermaCAM™ P45

11 195 314USB cable

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 11

4 – Packing list

4

INTENTIONALLY LEFT BLANK

12 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

5 System overview

This system overview shows all accessories that are possible to order for a Therma­CAM™ P45.

10570603;a3

5

Figure 5.1 System overview

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 13

5 – System overview

Figure 5.2 Explanations of callouts

5

Description of partPart No.Callout

Protective plastic window194 5601

Protective window1 194 9772

124 mm IR lens194 5793

72 mm IR lens194 1764

18 mm IR lens194 4015

9.0 mm IR lens194 7026

64/150 close-up IR lens194 5337

34/80 close-up IR lens1 194 9788

50 μm IR lens1 700 5009

Battery1 195 26810

2-bay battery charger1 195 26711

External power supply1 909 52812

Automotive (cigarette lighter) 12 VDC adapter1 195 14313

Shoulder strap117 13214

Adapter for CompactFlash™ card1 909 82015

CompactFlash™ card1 909 65316

1 910 23317

Protective cap for RS-232/USB connector

■

Protective cap for unused remote control con-

■

nector

Protective cap for headset connector1 910 23218

USB cable1 195 31419

RS-232 cable1 195 31320

Headset194 10921

CVBS cable (composite video cable)1 909 77522

S-Video cable1 909 81123

14 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

6 Connecting system components

6.1 Front connectors

10438803;a2

Figure 6.1 How to connect system components: Front connectors

Figure 6.2 Explanations of callouts

ExplanationCallout

USB or RS-232 cable.1

Headset cable2

6

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 15

6 – Connecting system components

6.2 Rear connectors

10438703;a2

6

Figure 6.3 How to connect system components: Rear connectors

Figure 6.4 Explanations of callouts

ExplanationCallout

S-Video cable1

CompactFlash card2

Power supply cable3

CVBS cable (i.e. composite video)4

Remote control cable5

16 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

7 Introduction to thermographic

inspections of electrical
installations

7.1 Important note

All camera functions and features that are described in this section may not be sup­ported by your particular camera configuration.

Electrical regulations differ from country to country. For that reason, the electrical
procedures described in this section may not be the standard of procedure in your
particular country. Also, in many countries carrying out electrical inspections requires
formal qualification. Always consult national or regional electrical regulations.

7.2 General information

7.2.1 Introduction

Today, thermography is a well-established technique for the inspection of electrical
installations. This was the first and still is the largest. the largest application of ther­mography. The infrared camera itself has gone through an explosive development
and we can say that today, the 8th generation of thermographic systems is available.
It all began in 1964, more than 40 years ago. The technique is now established
throughout the whole world. Industrialized countries as well as developing countries
have adopted this technique.

Thermography, in conjunction with vibration analysis, has over the latest decades
been the main method for fault diagnostics in the industry as a part of the preventive
maintenance program. The great advantage with these methods is that it is not only
possible to carry out the inspection on installations in operation; normal working
condition is in fact a prerequisite for a correct measurement result, so the ongoing
production processis notdisturbed. Thermographicinspection ofelectrical installations
are used in three main areas:

■ Power generation

■ Power transmission

■ Power distribution, that is, industrial use of electrical energy.

The fact that these controls are carried out under normal operation conditions has
created a natural division between these groups. The power generation companies
measure during the periods of high load. These periods vary from country to country

7

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 17

7 – Introduction to thermographic inspections of electrical installations

and for the climatic zones. The measurement periods may also differ depending on
the type of plant to be inspected, whether they are hydroelectric, nuclear, coal-based
or oil-based plants.

In the industry the inspections are—at least in Nordic countries with clear seasonal
differences—carried out during spring or autumn or before longer stops in the oper­ation. Thus, repairs are made when the operation is stopped anyway. However, this
seems to be the rule less and less, which has led to inspections of the plants under
varying load and operating conditions.

7.2.2 General equipment data

The equipment to be inspected has a certain temperature behavior that should be
known to the thermographer before the inspection takes place. In the case ofelectrical
equipment, the physical principle of why faults show a different temperature pattern
because of increased resistance or increased electrical current is well known.

However, it is useful to remember that, in some cases, for example solenoids, ‘over­heating’ is natural and does not correspond to a developing defect. In other cases,
like the connections in electrical motors, the overheating might depend on the fact

7

that the healthy part is taking the entire load and therefore becomes overheated. A
similar example is shown in section 7.5.7 – Overheating in one part as a result of a
fault in another on page 33.

Defective parts of electrical equipment can therefore both indicate overheating and
be cooler than the normal ‘healthy’ components. It is necessary to be aware of what
to expect by getting as much information as possible about the equipment before it
is inspected.

The general rule is, however, that a hot spot is caused by a probable defect. The
temperature and the load of that specific component at the moment of inspection will
give an indication of how serious the fault is and can become in other conditions.

Correct assessment in each specific case demands detailed information about the
thermal behavior of the components, that is, we need to know the maximum allowed
temperature of the materials involved and the role the component plays in the system.

Cable insulations, for example, lose their insulation properties above a certain tem­perature, which increases the risk of fire.

In the case of breakers, where the temperature is too high, parts can melt and make
it impossible to open the breaker, thereby destroying its functionality.

18 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

7 – Introduction to thermographic inspections of electrical installations

The more the IR camera operator knows about the equipment that he or she is about
to inspect, the higher the quality of the inspection. But it is virtually impossible for an
IR thermographerto havedetailed knowledgeabout allthe differenttypes of equipment
that can be controlled. It is therefore common practice that a person responsible for
the equipment is present during the inspection.

7.2.3 Inspection

The preparationof theinspection shouldinclude thechoice ofthe righttype ofreport.
It isoften necessaryto use complementary equipmentsuch as ampere meters in order
to measure the current in the circuits where defects were found. An anemometer is
necessary if you want to measure the wind speed at inspection of outdoorequipment.

Automatic functions help the IR operator to visualize an IR image of the components
with the right contrast to allow easy identification of a fault or a hot spot. It is almost
impossible to miss a hot spot on a scanned component. A measurement function will
also automatically display the hottest spot within an area in the image or the difference
between the maximum temperature in the chosen area and a reference, which can
be chosen by the operator, for example the ambient temperature.

10712703;a3

7

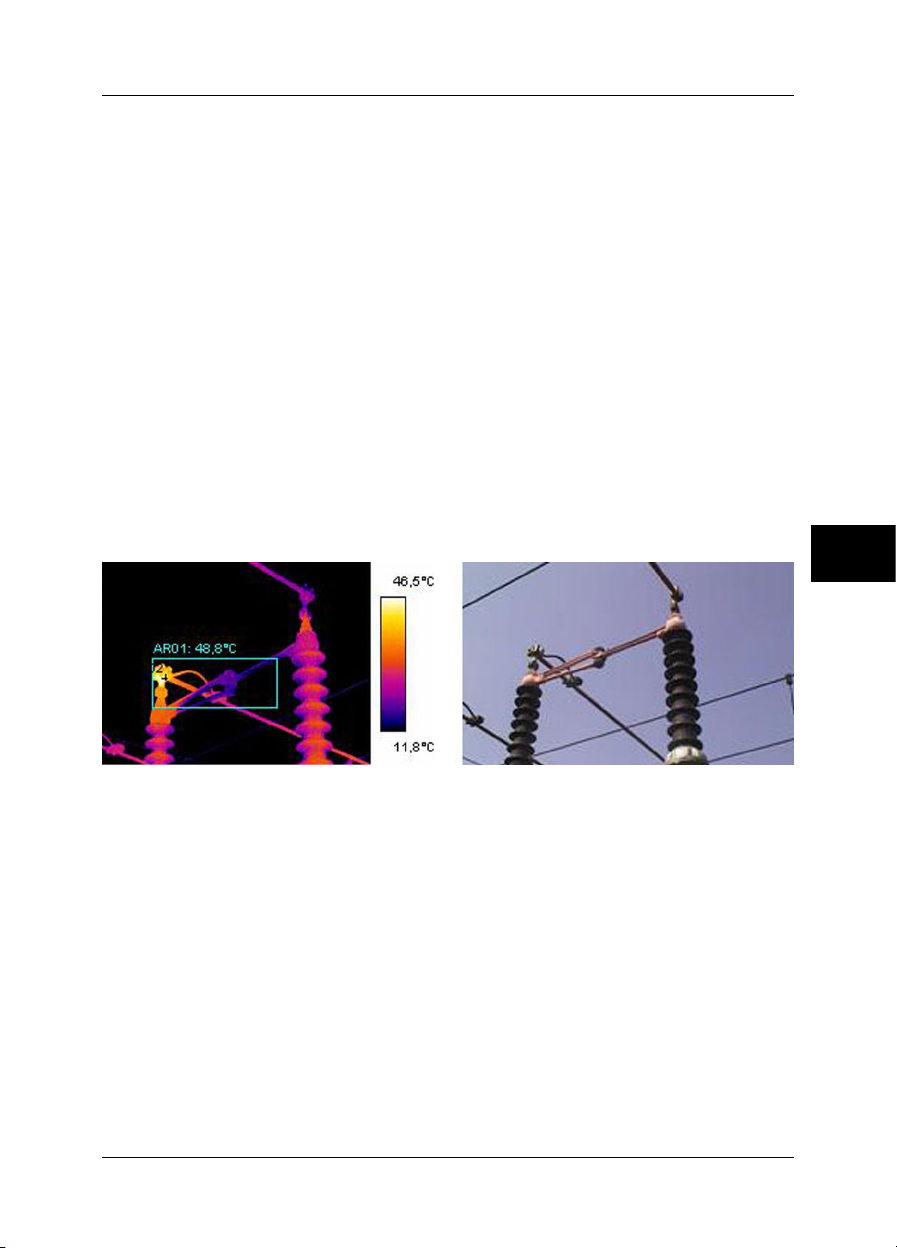

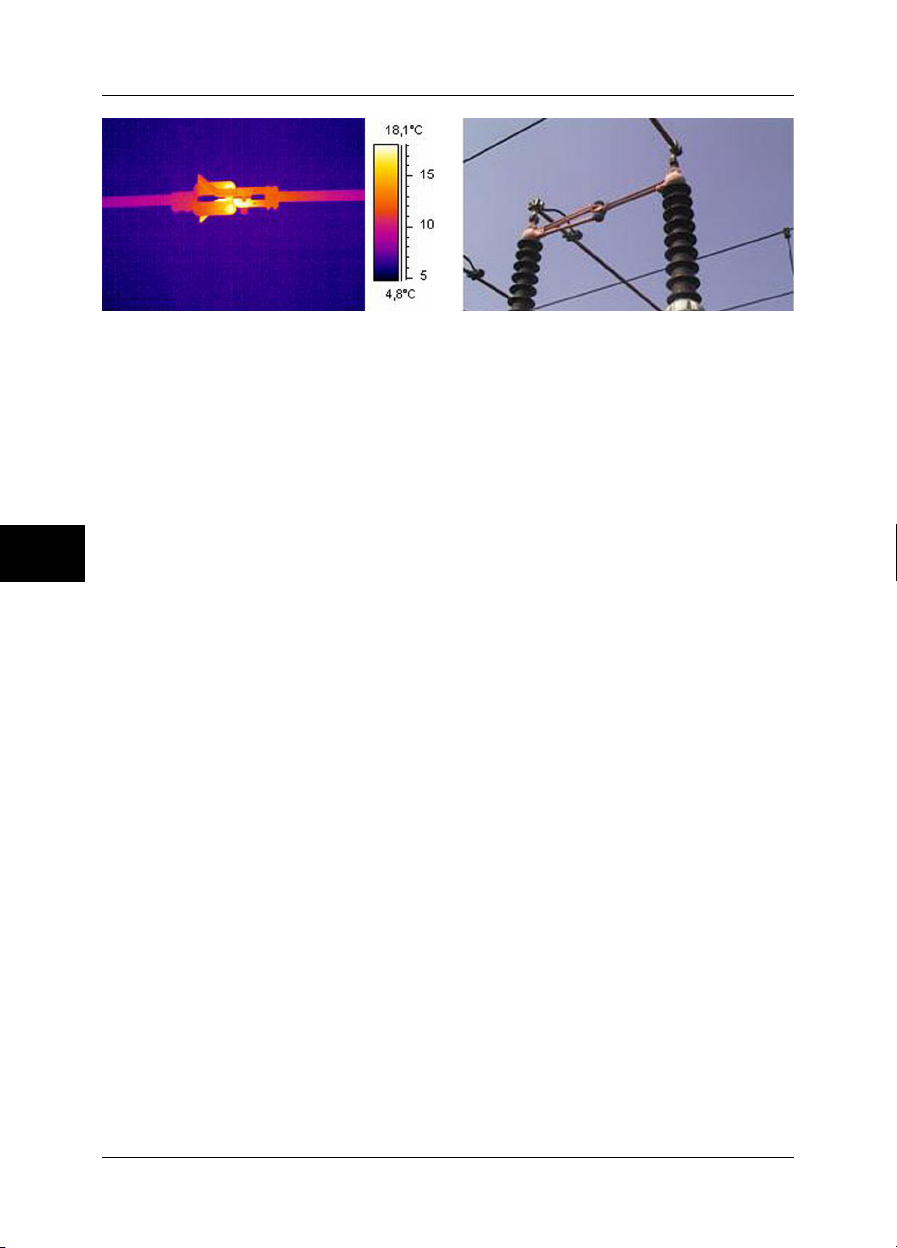

Figure 7.1 An infrared and a visual image of a power line isolator

When the fault is clearly identified and the IR thermographer has made sure that it is
not a reflection or a naturally occurring hot spot, the collection of the data starts, which
will allow the correct reporting of the fault. The emissivity, the identification of the
component, and the actual working conditions, together with the measured tempera­ture, will be used in the report. In order to make it easy to identify the component a
visual photo of the defect is often taken.

7.2.4 Classification & reporting

Reporting has traditionally been the most time-consuming part of the IR survey. A
one-day inspection could result in one or two days’ work to report and classify the
found defects. This is still the case for many thermographers, who have chosen not
to use the advantages that computers and modern reporting software have brought
to IR condition monitoring.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 19

7 – Introduction to thermographic inspections of electrical installations

The classification of the defects gives a more detailed meaning that not only takes
into account the situation at the time of inspection (which is certainly of great impor­tance), but also the possibility to normalize the over-temperature to standard load
and ambient temperature conditions.

An over-temperature of +30°C (+86°F) is certainly a significant fault. But if that over­temperature is valid for one component working at 100% load and for another at 50%
load, it is obvious that the latter will reach a much higher temperature should its load
increase from 50% to 100%. Such a standard can be chosen by the plant’s circum­stances. Very often, however, temperatures are predicted for 100% load. A standard
makes it easier to compare the faults over time and thus to make a more complete
classification.

7.2.5 Priority

Based on the classification of the defects, the maintenance manager gives the defects
a repair priority. Very often, the information gathered during the infrared survey is put
together withcomplementary informationon the equipment collected by other means
such as vibration monitoring, ultrasound or the preventive maintenance scheduled.

7

Even if the IR inspection is quickly becoming the most used method of collecting in­formation about electrical components safely with the equipment under normal oper­ating conditions, there are many other sources of information the maintenance or the
production manager has to consider.

The priority of repair should therefore not be a task for the IR camera operator in the
normal case. If a critical situation is detected during the inspection or during the
classification of the defects, the attention of the maintenance manager should of
course be drawn to it, but the responsibility for determining the urgency of the repair
should be his.

7.2.6 Repair

To repair the known defects is the most important function of preventive maintenance.
However, to assure production at the right time or at the right cost can also be impor­tant goals for a maintenance group. The information provided by the infrared survey
can be used to improve the repair efficiency as well as to reach the other goals with
a calculated risk.

To monitor the temperature of a known defect that can not be repaired immediately
for instance because spare parts are not available, can often pay for the cost of in­spection a thousandfold and sometimes even for the IR camera. To decide not to
repair knowndefects tosave on maintenance costs and avoid unnecessary downtime
is also another way of using the information from the IR survey in a productive way.

20 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

7 – Introduction to thermographic inspections of electrical installations

However, themost commonresult of the identification and classification of the detected
faults is a recommendation to repair immediately or as soon as it is practically possible.
It is important that the repair crew is aware of the physical principles for the identifica­tion of defects. If a defect shows a high temperature and is in a critical situation, it is
very common that the repair personnel expect to find a highly corroded component.
It should also come as no surprise to the repair crew that a connection, which is
usually healthy, can give the same high temperatures as a corrodedone if it has come
loose. These misinterpretations are quite common and risk putting in doubt the relia­bility of the infrared survey.

7.2.7 Control

A repaired component should be controlled as soon as possible after the repair. It is
not efficient to wait for the next scheduled IRsurvey in order to combine a new inspec­tion with the control of the repaired defects. The statistics on the effect of the repair
show that up to a third of the repaired defects still show overheating. Thatis the same
as saying that those defects present a potential risk of failure.

To wait until the next scheduled IR survey represents an unnecessary risk for the
plant.

Besides increasing the efficiency of the maintenance cycle (measured in terms of
lower risk for the plant) the immediate control of the repair work brings other advan­tages to the performance of the repair crew itself.

7

When a defect still shows overheating after the repair, the determination of the cause
of overheating improves the repair procedure, helps choose the best component
suppliers and detect design shortcomings on the electrical installation. The crew
rapidly sees the effect of the work and can learn quickly both from successful repairs
and from mistakes.

Another reason to provide the repair crew with an IR instrument is that many of the
defects detected during the IR survey are of low gravity. Instead of repairing them,
which consumes maintenance and production time, it can be decided to keep these
defects under control. Therefore the maintenance personnel should have access to
their own IR equipment.

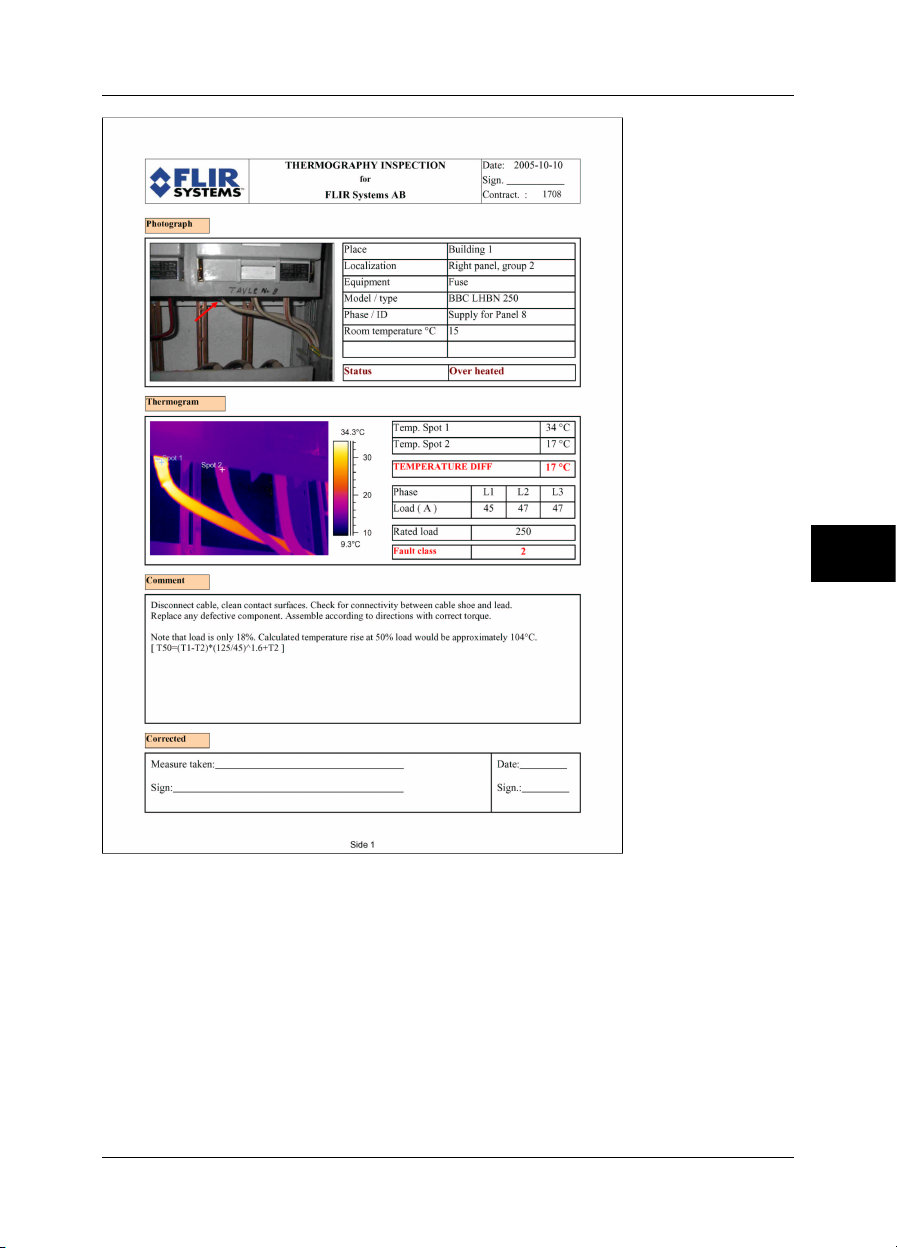

It is common to note on the report form the type of fault observed during the repair
as well as the action taken. These observations make an important source of experi­ence that can be used to reduce stock, choose the best suppliers or to train new
maintenance personnel.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 21

7 – Introduction to thermographic inspections of electrical installations

7.3 Measurement technique for thermographic inspection of electrical installations

7.3.1 How to correctly set the equipment

A thermal image may show high temperature variations:

10712803;a4

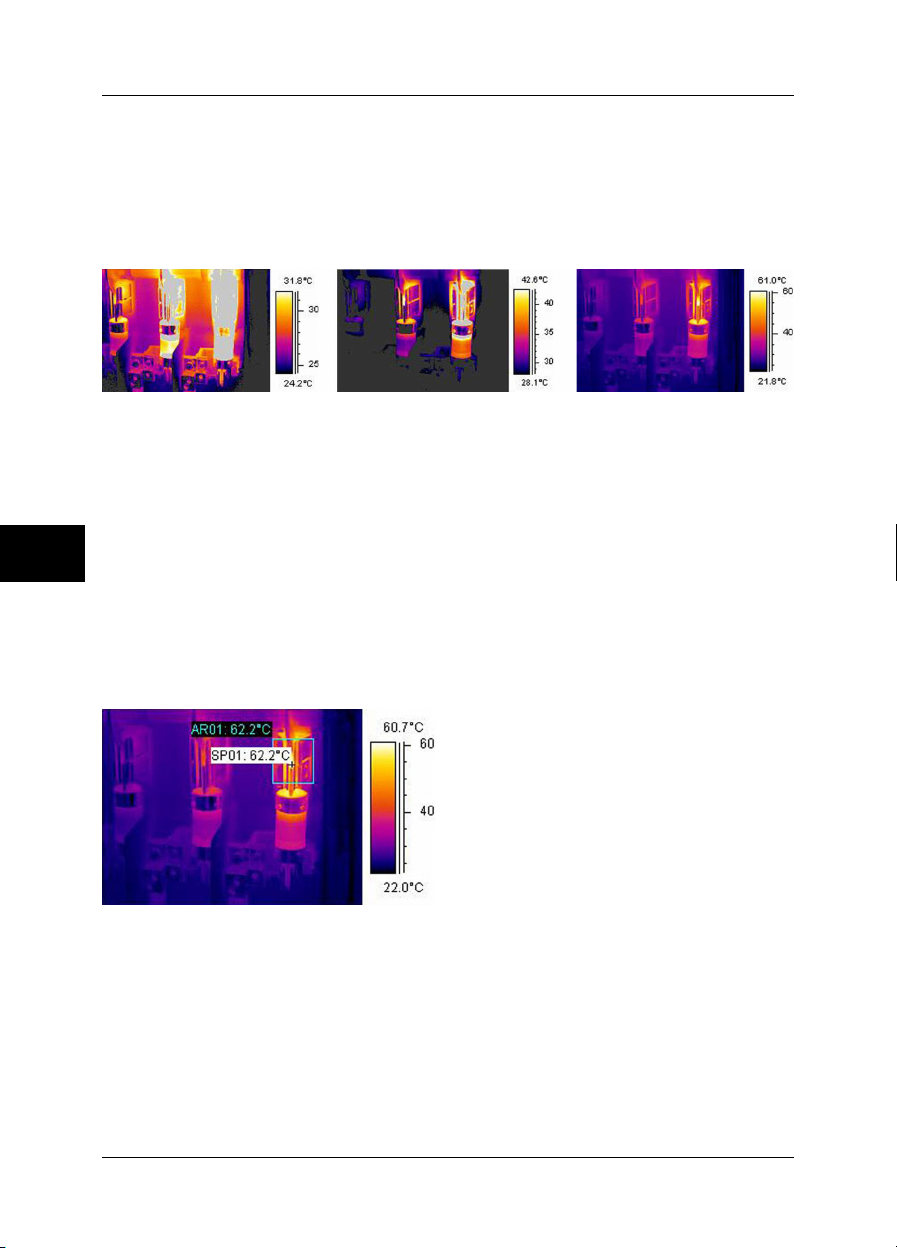

Figure 7.2 Temperature variations in a fusebox

In the images above, the fuse to the right has a maximum temperature of +61°C
(+142°F), whereas the one to the left is maximum +32°C (+90°F) and the one in the
middle somewhere in between. The three images are different inasmuch as the tem­perature scale enhances only one fuse in each image. However, it is the same image
and all the information about all three fuses is there. It is only a matter of setting the

7

temperature scale values.

7.3.2 Temperature measurement

Some cameras today can automatically find the highest temperature in the image.
The image below shows how it looks to the operator.

10712903;a3

Figure 7.3 An infrared image of a fusebox where the maximum temperature is displayed

The maximum temperature in the area is +62.2°C (+144.0°F). The spot meter shows
the exact location of the hot spot. The image can easily be stored in the camera
memory.

The correct temperature measurement depends, however, not only on the function
of the evaluation software or the camera. It may happen that the actual fault is, for
example, a connection, which is hidden from the camera in the position it happens

22 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

7 – Introduction to thermographic inspections of electrical installations

to be in for the moment. It might be so that you measure heat, which has been con­ducted oversome distance,whereas the ‘real’ hot spot is hidden from you. An example
is shown in the image below.

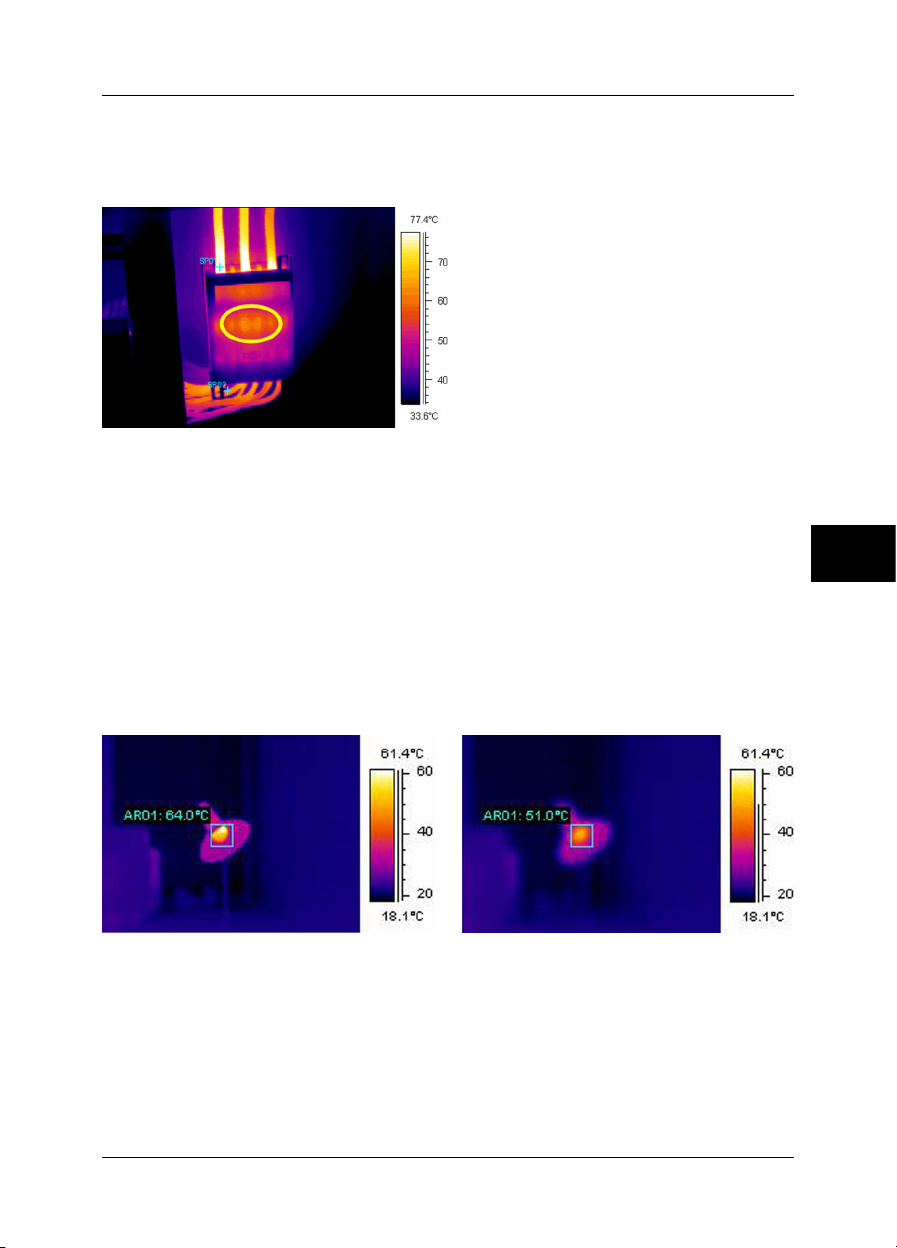

10717603;a3

Figure 7.4 A hidden hot spot inside a box

Try to choose different angles and make sure that the hot area is seen in its full size,
that is, that it is not disappearing behind something that might hide the hottest spot.
In this image, the hottest spot of what the camera can‘see’, is +83°C (+181°F), where
the operating temperature on the cables below the box is +60°C (+140°F). However,
the real hot spot is most probably hidden inside the box, see the in yellow encircled
area. This fault is reported as a +23.0°C (+41.4°F) excess temperature, but the real
problem is probably essentially hotter.

7

Another reason for underestimating the temperature of an object is bad focusing. It
is very important that the hot spot found is in focus. See the example below.

10717403;a2

Figure 7.5 LEFT: A hot spot in focus; RIGHT: A hot spot out of focus

In the left image, the lamp is in focus. Its average temperature is +64°C (+147°F). In
the right image, the lamp is out of focus, which will result in only +51°C (+124°F) as
the maximum temperature.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 23

7 – Introduction to thermographic inspections of electrical installations

7.3.3 Comparative measurement

For thermographic inspections of electrical installations a special method is used,
which is based on comparison of different objects, so-called measurement with a
reference. This simply means that you compare the three phases with each other.
This method needs systematic scanning of the three phases in parallel in order to
assess whether a point differs from the normal temperature pattern.

A normal temperature pattern means that current carrying components have a given
operation temperature shown in a certain color (or gray tone) on the display, which
is usually identical for all three phases under symmetrical load. Minor differences in
the color might occur in the current path, for example, at the junction of two different
materials, at increasing or decreasing conductor areas or on circuit breakers where
the current path is encapsulated.

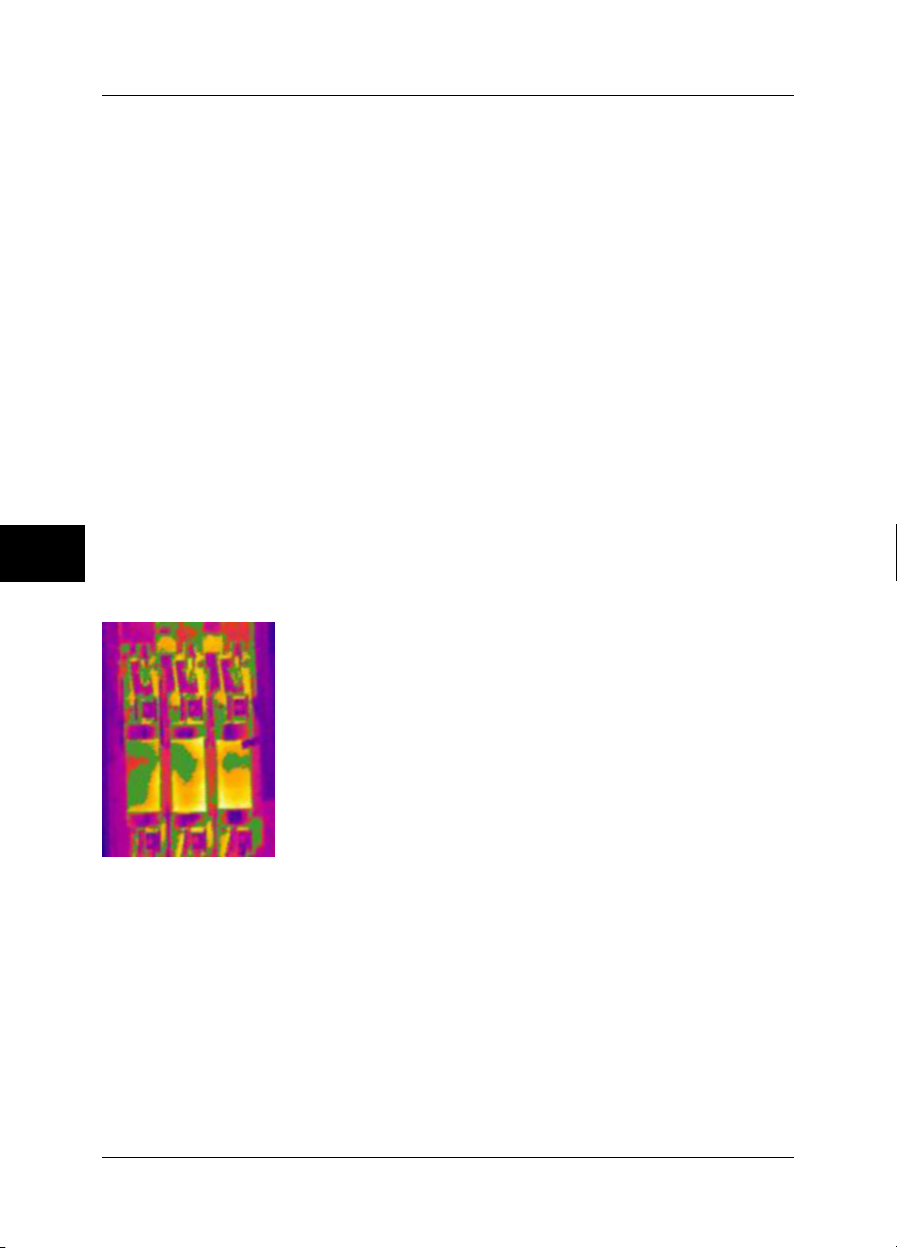

The image below shows three fuses, thetemperatures of which are very close toeach
other. The inserted isotherm actually shows less than +2°C (+3.6°F) temperature
difference between the phases.

Different colors are usually the result if the phases are carrying an unsymmetrical

7

load. This difference in colors does not represent any overheating since this does not
occur locally but is spread along the whole phase.

10713203;a3

Figure 7.6 An isotherm in an infrared image of a fusebox

A ‘real’ hot spot, on the other hand, shows a rising temperature as you look closer
to the source of the heat. See the image below, where the profile (line) shows a
steadily increasing temperature up to about +93°C (+199°F) at the hot spot.

24 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

7 – Introduction to thermographic inspections of electrical installations

10713303;a4

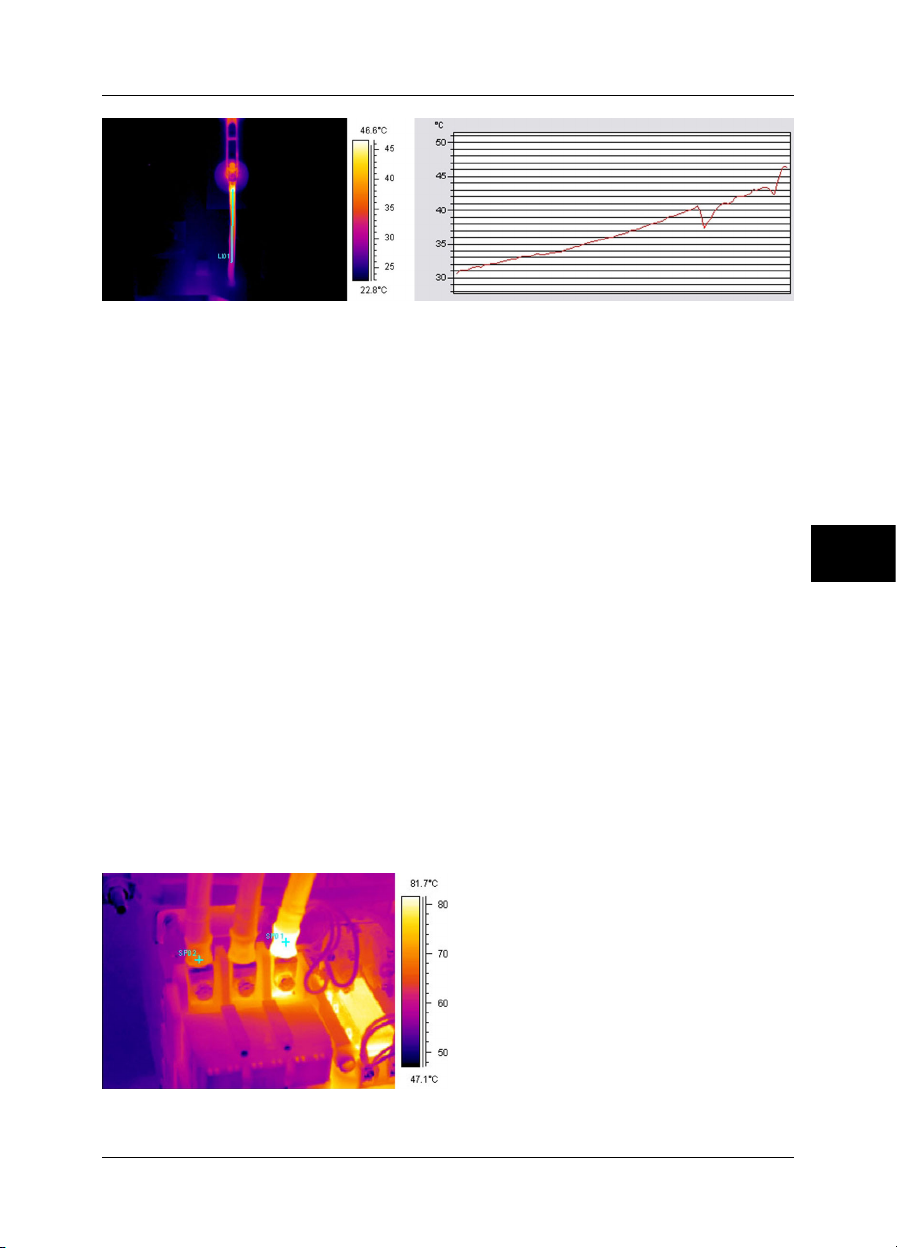

Figure 7.7 A profile (line) in an infrared image and a graph displaying the increasing temperature

7.3.4 Normal operating temperature

Temperature measurement with thermography usually gives the absolute temperature
of the object. In order to correctly assess whether the component is too hot, it is
necessary to know its operating temperature, that is, its normal temperature if we
consider the load and the temperature of its environment.

As the direct measurement will give the absolute temperature—which must be con­sidered as well (as most components have an upper limit to their absolute tempera­tures)—it is necessary to calculate the expected operating temperature given the load
and the ambient temperature. Consider the following definitions:

■ Operating temperature: the absolute temperature of the component. It depends

on the current load and the ambient temperature. It is always higher than the am­bient temperature.

■ Excess temperature (overheating): the temperature difference between a properly

working component and a faulty one.

7

The excess temperature is found as the difference between the temperature of a
‘normal’ component and the temperature of its neighbor. It is important to compare
the same points on the different phases with each other.

As an example, see the following images taken from indoor equipment:

10713403;a4

Figure 7.8 An infrared image of indoor electrical equipment (1)

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 25

7 – Introduction to thermographic inspections of electrical installations

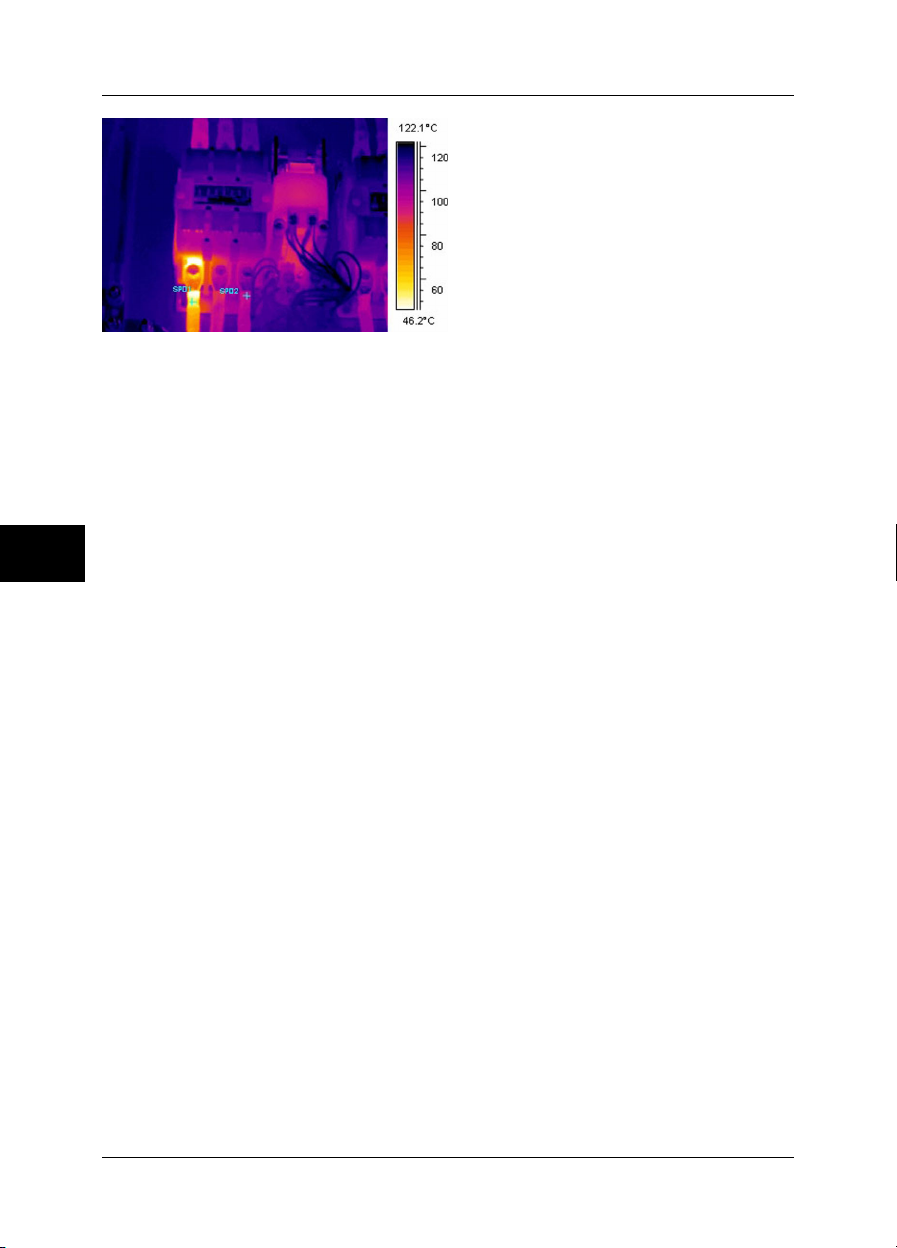

10713503;a4

Figure 7.9 An infrared image of indoor electrical equipment (2)

The two left phases are considered as normal, whereas the right phase shows a very
clear excess temperature. Actually, the operating temperature of the left phase is
+68°C (+154°F), that is, quite a substantial temperature, whereas the faulty phase
to the right shows a temperature of +86°C (+187°F). This means an excess temper­ature of +18°C (+33°F), that is, a fault that has to be attended to quickly.

For practical reasons, the (normal, expected) operating temperature of a component
is taken as the temperature of the components in at least two out of three phases,

7

provided that you consider them to be working normally.. The ‘most normal’ case is
of course that all three phases have the same or atleast almost the same temperature.

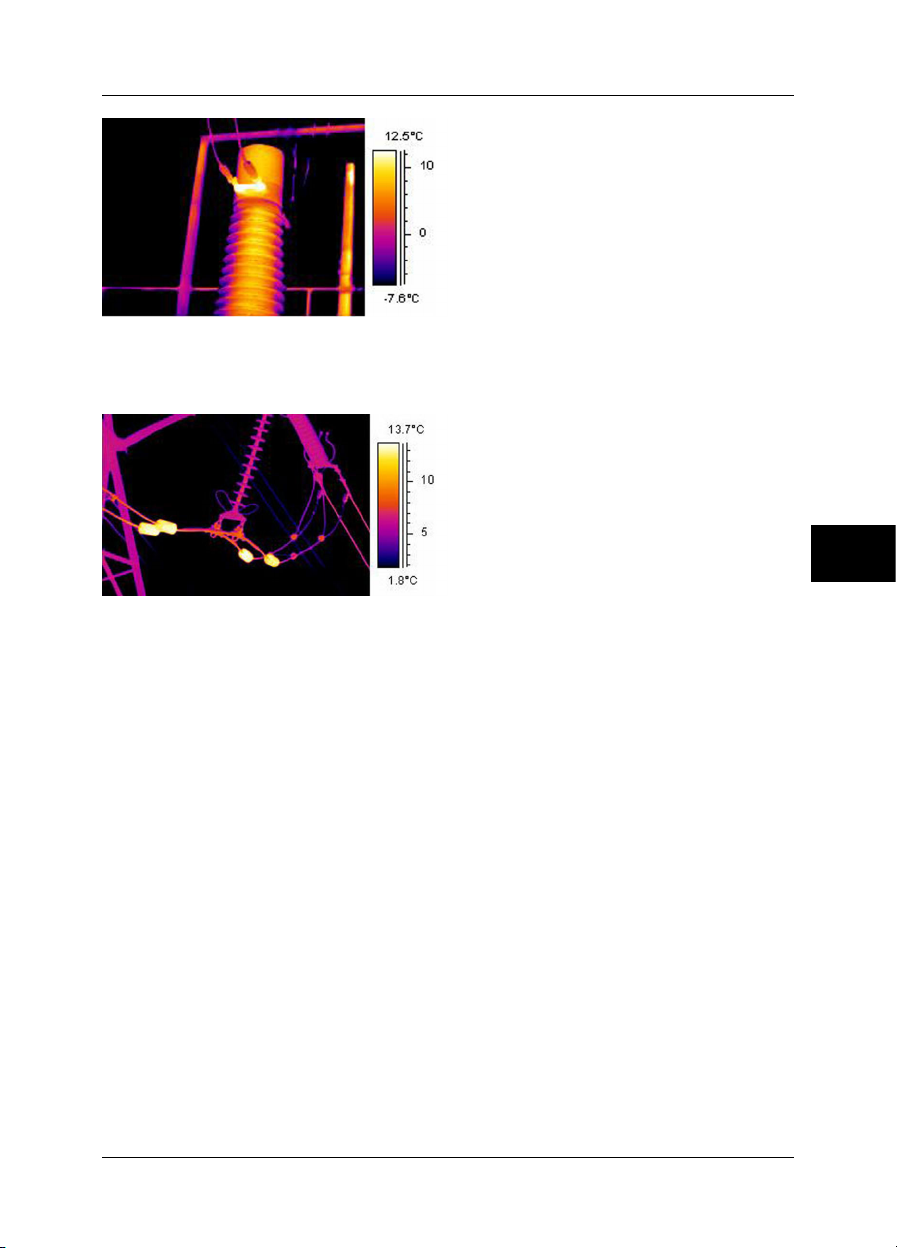

The operating temperature of outdoor components in substations or power lines is
usually only 1°C or 2°C above the air temperature (1.8°F or 3.6°F). In indoor substa­tions, the operating temperatures vary a lot more.

This fact is clearly shown by the bottom image as well. Here the left phase is the one,
which shows an excess temperature. The operating temperature, taken from the two
‘cold’ phases, is +66°C (+151°F). The faulty phase shows a temperature of +127°C
(+261°F), which has to be attended to without delay.

7.3.5 Classification of faults

Once a faulty connection is detected, corrective measures may be necessary—or
may not be necessary for the time being. In order to recommend the most appropriate
action the following criteria should be evaluated:

■ Load during the measurement

■ Even or varying load

■ Position of the faulty part in the electrical installation

■ Expected future load situation

■ Is the excess temperature measured directlyon thefaulty spot or indirectly through

conducted heat caused by some fault inside the apparatus?

Excess temperatures measured directly on the faulty part are usually divided into
three categories relating to 100% of the maximum load.

26 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

7 – Introduction to thermographic inspections of electrical installations

< 5°C (9°F)I

5–30°C (9–54°F)II

>30°C (54°F)III

The start of the overheat condi­tion. This must be carefully
monitored.

Developed overheating. It must
be repaired as soon as possible
(but think about the load situa­tion before a decision is made).

Acute overheating. Must be re­paired immediately (but think
about the load situation before
a decision is made).

7

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 27

7 – Introduction to thermographic inspections of electrical installations

7.4 Reporting

Nowadays, thermographicinspections of electrical installationsare probably, without
exception, documentedand reportedby theuse ofa reportprogram. Theseprograms,
which differ from one manufacturer to another, are usually directly adapted to the
cameras and will thus make reporting very quick and easy.

The program, which has been used for creating the report page shown below, is
called ThermaCAM™Reporter. It isadapted toseveral typesof infrared cameras from
FLIR Systems.

A professional report is often divided into two sections:

■ Front pages, with facts about the inspection, such as:

Who the client is, for example, customer’s company name and contact person

□

Location of the inspection: site address, city, and so on

□

Date of inspection

□

Date of report

□

Name of thermographer

□

7

Signature of thermographer

□

Summary or table of contents

□

■ Inspection pages containing IR images to document and analyze thermal properties

or anomalies.

Identification of the inspected object:

□

What is the object: designation, name, number, and so on

■


■

IR image. When collecting IR images there are some details to consider:

□

Optical focus

■

Thermal adjustment of the scene or the problem (level & span)

■

Composition: proper observation distance and viewing angle.

■

Comment

□

Is there an anomaly or not?

■

Is there a reflection or not?

■

Use a measurement tool—spot, area or isotherm—to quantify the problem.

■

Use the simplest tool possible; a profile graph is almost never needed in
electrical reports.

28 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

10713603;a3

7 – Introduction to thermographic inspections of electrical installations

7

Figure 7.10 A report example

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 29

7 – Introduction to thermographic inspections of electrical installations

7.5 Different types of hot spots in electrical installations

7.5.1 Reflections

The thermographiccamera sees any radiation that enters the lens, not only originating
from the object that you are looking at, but also radiation that comes from other
sources andhas beenreflected by the target. Most of the time, electrical components
are like mirrors to the infrared radiation, even if it is not obvious to the eye. Bare
metal parts are particularly shiny, whereas painted, plastic or rubber insulated parts
are mostly not. In the image below, you can clearly see a reflection from the thermo­grapher. This is of course not a hot spot on the object. A good way to find out if what
you see is a reflection or not, is for you to move. Look at the target from a different
angle and watch the ‘hot spot.’ If it moves when you do, it is a reflection.

Measuring temperature of mirror like details is not possible. The object in the images
below has painted areas which are well suited for temperature measurement. The
material is copper, which is a very good heat conductor. This means that temperature
variation over the surface is small.

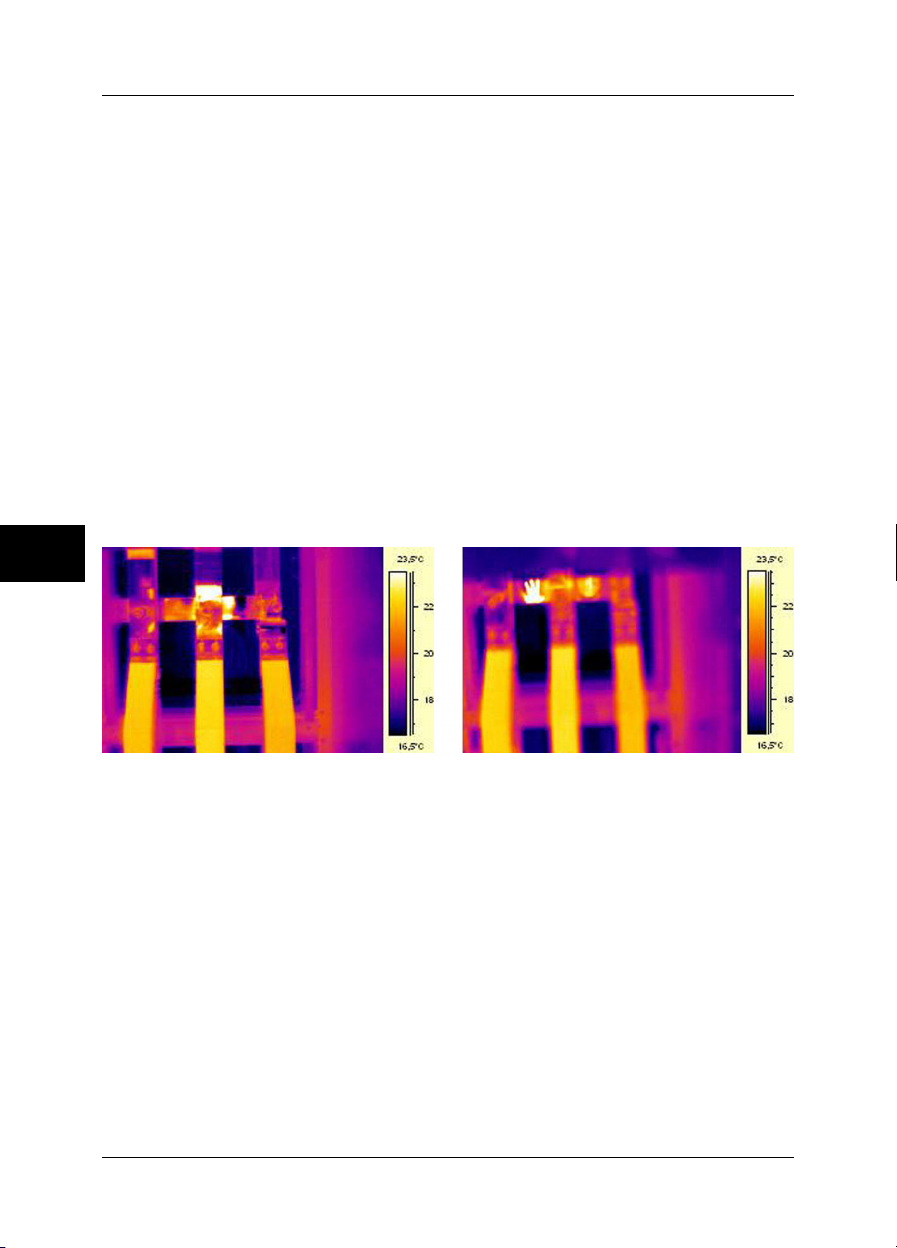

10717503;a2

7

Figure 7.11 Reflections in an object

7.5.2 Solar heating

The surface of a component with a high emissivity, for example, a breaker, can on a
hot summer day be heated up to quite considerable temperatures by irradiation from
the sun. The image shows a circuit breaker, which has been heated by the sun.

30 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

7 – Introduction to thermographic inspections of electrical installations

10713803;a3

Figure 7.12 An infrared image of a circuit breaker

7.5.3 Inductive heating

10713903;a3

Figure 7.13 An infrared image of hot stabilizing weights

Eddy currents can cause a hot spot in the current path. In cases of very high currents
and close proximity of other metals, this has in some cases caused serious fires. This
type of heating occurs in magnetic material around the current path, such as metallic
bottom plates for bushing insulators. In the image above, there arestabilizing weights,
through which a high current is running. These metal weights, which are made of a
slightly magnetic material, will not conduct any current but are exposed to the alter­nating magnetic fields, which will eventually heat up the weight. The overheating in
the image is less than +5°C (+9°F). This, however, need not necessarily always be
the case.

7

7.5.4 Load variations

3-phase systems are the norm in electric utilities. When looking foroverheated places,
it is easy to compare the three phases directly with each other, for example, cables,
breakers, insulators. An even load per phase should result in a uniform temperature
pattern forall threephases. Afault maybe suspectedin caseswhere the temperature
of onephase differs considerably from the remaining two. However, you should always
make sure that the load is indeed evenly distributed. Looking at fixed ampere meters
or using a clip-on ampere meter (up to 600 A) will tell you.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 31

7 – Introduction to thermographic inspections of electrical installations

10714003;a3

Figure 7.14 Examples of infrared images of load variations

The image to the left shows three cables next to each other. They are so far apart that
they can be regarded as thermally insulated from each other. The one in the middle
is colder than the others. Unless two phases arefaulty and overheated, this is a typical
example of a very unsymmetrical load. The temperature spreads evenly along the
cables, which indicates a load-dependent temperature increase rather than a faulty
connection.

The image to the right shows two bundles with very different loads. In fact, the bundle

7

to the right carries next to no load. Those which carry a considerable current load,
are about 5°C (9°F) hotter than those which do not. No fault to be reported in these
examples.

7.5.5 Varying cooling conditions

10714103;a3

Figure 7.15 An infrared image of bundled cables

When, for example, a number of cables are bundled together it can happen that the
resulting poorcooling of the cables in the middle can lead to them reaching very high
temperatures. See the image above.

The cables to the right in the image do not show any overheating close to the bolts.
In the vertical part of the bundle, however, the cables are held together very tightly,
the cooling of the cables is poor, the convection can not take the heat away, and the
cables arenotably hotter, actually about 5°C (9°F) above the temperature ofthe better
cooled part of the cables.

32 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

7 – Introduction to thermographic inspections of electrical installations

7.5.6 Resistance variations

Overheating can have many origins. Some common reasons are described below.
Low contact pressure can occur when mounting a joint, or through wear of the mate-

rial, for example, decreasing spring tension, worn threads in nuts and bolts, even too
much force applied at mounting. With increasing loads and temperatures, the yield
point of the material is exceeded and the tension weakens.

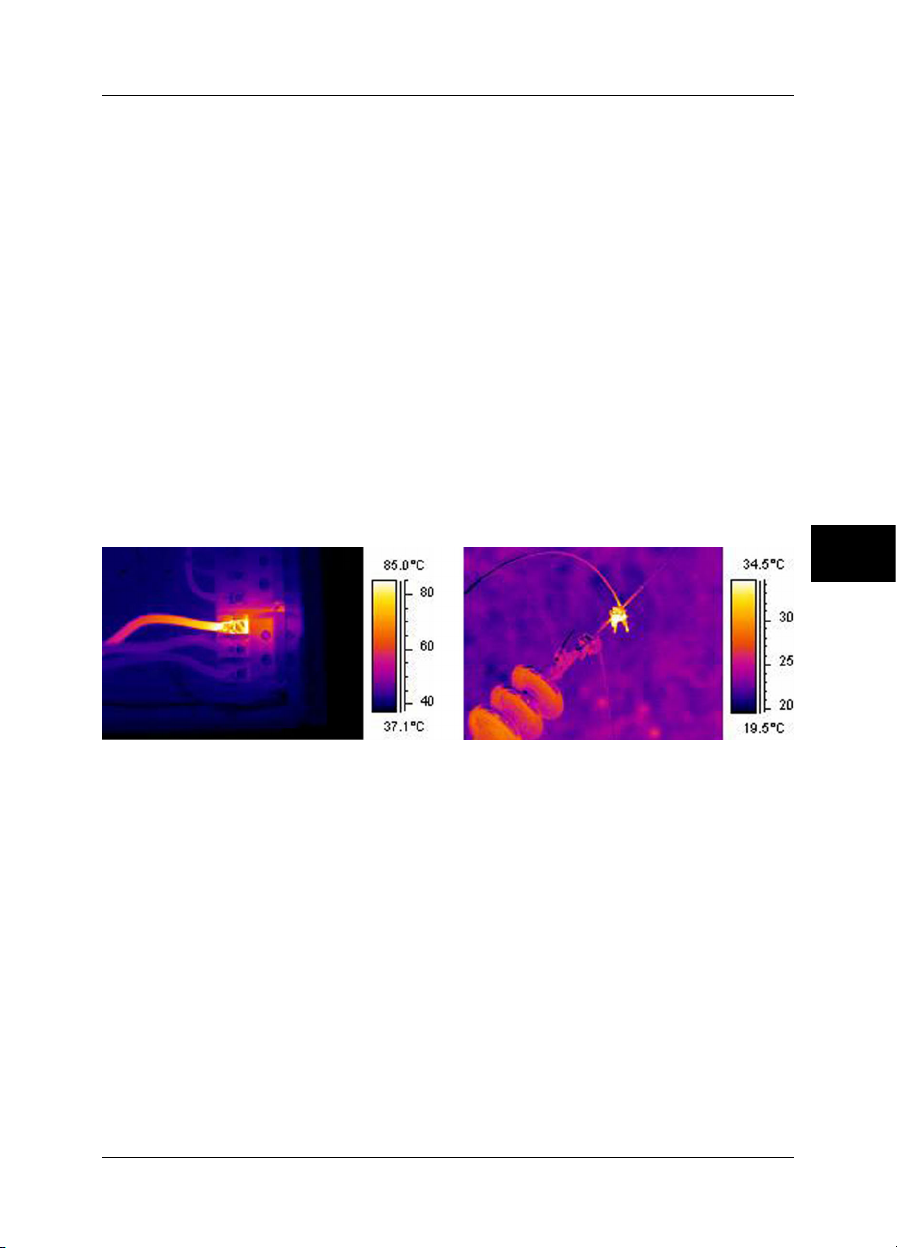

The image to the left below shows a bad contact due to a loose bolt. Since the bad
contact is of very limited dimensions, it causes overheating only in a very small spot
from which the heat is spread evenly along the connecting cable. Note the lower
emissivity ofthe screw itself, whichmakes it look slightly colder than the insulated—and
thereby it has a high emissivity—cable insulation.

The image to the right shows another overheating situation, this time again due to a
loose connection. It is an outdoor connection, hence it is exposed to the cooling effect
of the wind and it is likely that the overheating wouldhave showna higher temperature,
if mounted indoors.

10714203;a3

7

Figure 7.16 LEFT: An infrared image showing bad contact due to a loose bolt; RIGHT: A loose outdoor

connection, exposed to the wind cooling effect.

7.5.7 Overheating in one part as a result of a fault in another

Sometimes, overheating can appear in a component although that component is OK.
The reason is that two conductors share the load. One of the conductors has an in­creased resistance, but the other is OK. Thus, the faulty component carries a lower
load, whereas the fresh one has to take a higher load, which may be too high and
which causes the increased temperature. See the image.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 33

7 – Introduction to thermographic inspections of electrical installations

10714303;a3

Figure 7.17 Overheating in a circuit breaker

The overheating of this circuit breaker is most probably caused by bad contact in the
near finger of the contactor. Thus, the far finger carries more current and gets hotter.
The component in the infrared image and in the photo is not the same, however, it is
similar).

7

34 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

7 – Introduction to thermographic inspections of electrical installations

7.6 Disturbance factors at thermographic inspection of electrical installations

During thermographic inspections of different types of electrical installations, distur­bance factors such as wind, distance to object, rain or snow often influence the
measurement result.

7.6.1 Wind

During outdoorinspection, the cooling effect of the wind should be taken intoaccount.
An overheating measured at a wind velocity of 5 m/s (10 knots) will be approximately
twice as high at 1 m/s (2 knots). An excess temperature measured at 8 m/s (16 knots)
will be 2.5 times as high at 1 m/s (2 knots). This correction factor, which is based on
empirical measurements, is usually applicable up to 8 m/s (16 knots).

There are, however, cases when you have to inspect even if the wind is stronger than
8 m/s (16 knots). There are many windy places in the world, islands, mountains, and
so on but it is important to know that overheated components found would have
shown a considerably higher temperature at a lower wind speed. The empirical cor­rection factor can be listed.

Correction factorWind speed (knots)Wind speed (m/s)

121

1.3642

7

1.6463

1.8684

2.06105

2.23126

2.40147

2.54168

The measured overheating multiplied by the correction factor gives the excess tem­perature with no wind, that is, at 1 m/s (2 knots).

7.6.2 Rain and snow

Rain and snow also have a cooling effect on electrical equipment. Thermographic
measurement can still be conducted with satisfactory results during light snowfall
with dry snow and light drizzle, respectively. The image qualitywill deteriorate in heavy

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 35

7 – Introduction to thermographic inspections of electrical installations

snow or rain and reliable measurement is no longer possible. This is mainly because
a heavy snowfall as well as heavy rain is impenetrable to infrared radiation and it is
rather the temperature of the snowflakes or raindrops that will be measured.

7.6.3 Distance to object

This image is taken from a helicopter 20 meters (66 ft.) away from this faulty connec­tion. The distance was incorrectly set to 1 meter (3 ft.) and the temperature was
measured to+37.9°C (+100.2°F).The measurementvalue afterchanging the distance
to 20 meters (66 ft.), which was done afterwards, is shown in the image to the right,
where the corrected temperature is +38.8°C (+101.8°F). The difference is not too
crucial, but may take the fault into a higher class of seriousness. So the distance
setting must definitely not be neglected.

10714403;a3

7

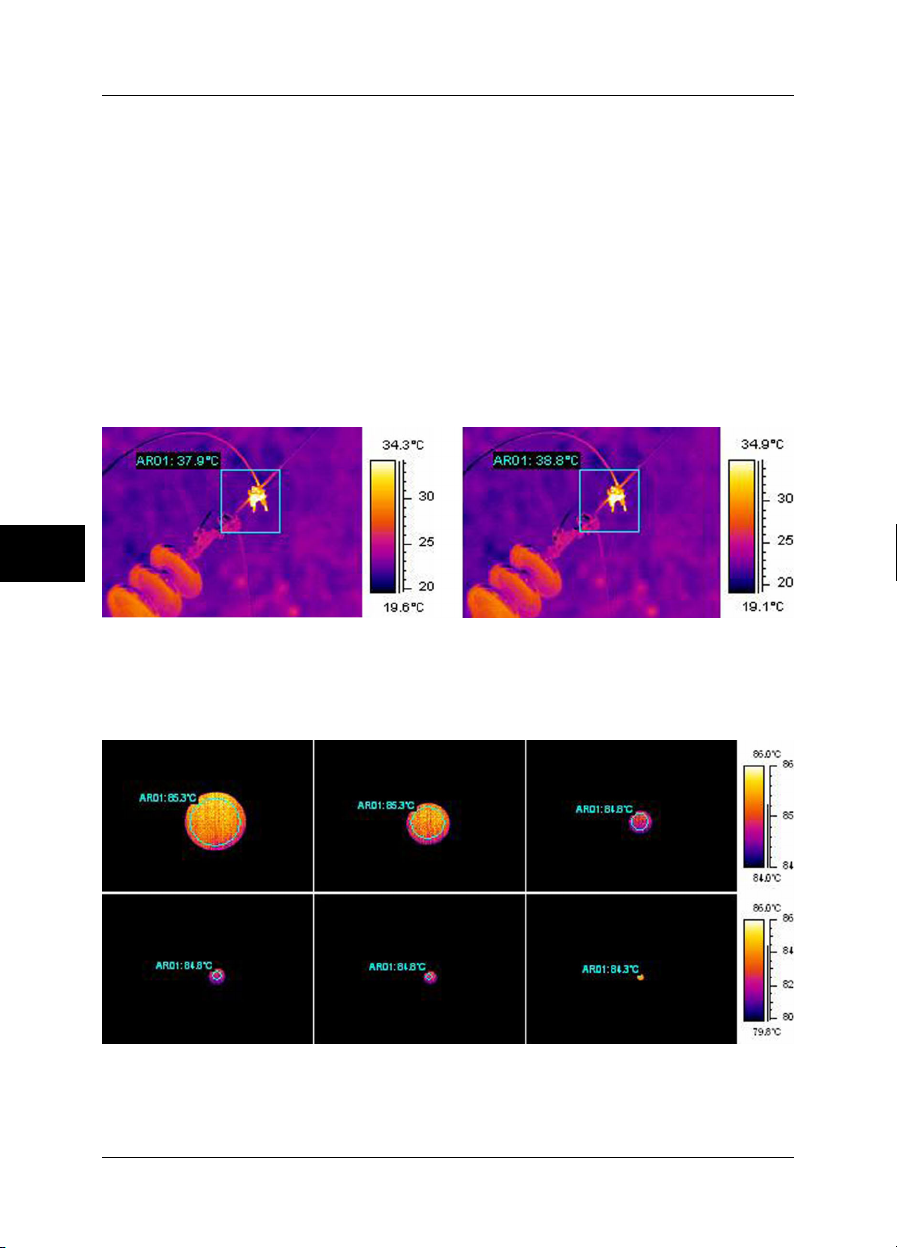

Figure 7.18 LEFT: Incorrect distance setting; RIGHT: Correct distance setting

The images below show the temperature readings from a blackbody at +85°C
(+185°F) at increasing distances.

10714503;a3

Figure 7.19 Temperature readings from a blackbody at +85°C (+185°F) at increasing distances

36 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

7 – Introduction to thermographic inspections of electrical installations

The measured average temperatures are, from left to right, +85.3°C
(+185.5°F),+85.3°C (+185.5°F), +84.8°C (+184.6°F), +84.8°C (+184.6°F), +84.8°C
(+184.6°F) and +84.3°C (+183.7°F) from a blackbody at +85°C (+185°F). The ther­mograms are taken with a 12° lens. The distances are 1, 2, 3, 4, 5 and 10 meters (3,
7, 10, 13, 16 and 33 ft.). The correction for the distance has been meticulously set
and works, because the object is big enough for correct measurement.

7.6.4 Object size

The second series of images below shows the same but with the normal 24° lens.
Here, the measured average temperatures of the blackbody at +85°C (+185°F) are:
+84.2°C (+183.6°F), +83.7°C (+182.7°F), +83.3°C (+181.9°F), +83.3°C(+181.9°F),
+83.4°C (+181.1°F) and +78.4°C (+173.1°F).

The last value, (+78.4°C (+173.1°F)), is the maximum temperature as it was not
possible to place a circle inside the now very small blackbody image. Obviously, it
is not possible to measure correct values if the object is too small. Distance was
properly set to 10 meters (33 ft.).

10714603;a3

7

Figure 7.20 Temperature readings from ablackbody at +85°C (+185°F) atincreasing distances (24° lens)

The reason for this effect is that there is a smallest object size, which gives correct
temperature measurement. This smallest size is indicated to the user in all FLIR Sys­tems cameras. The image below shows what you see in the viewfinder of camera
model 695. The spot meter has an opening in its middle,more easily seen in the detail
to the right. The size of the object hasto be bigger than that opening or some radiation
from its closest neighbors, which are much colder, will come into the measurement
as well, strongly lowering the reading. In the above case, where we have a point­shaped object, which is much hotter than the surroundings, the temperature reading
will be too low.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 37

7 – Introduction to thermographic inspections of electrical installations

10714703;a3

Figure 7.21 Image from the viewfinder of a ThermaCAM 695

This effect is due to imperfections in the opticsand to the size of the detector elements.
It is typical for all infrared cameras and can not be avoided.

7

38 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

7 – Introduction to thermographic inspections of electrical installations

7.7 Practical advice for the thermographer

Working in a practical way with a camera, you will discover small things that make
your job easier. Here are ten of them to start with.

7.7.1 From cold to hot

You have been out with the camera at +5°C (+41°F). To continue your work, you
now have to perform the inspection indoors. If you wear glasses, you are used to
having towipe offcondensed water, or you will not be able to see anything. The same
thing happens with the camera. To measure correctly, you should wait until the
camera has become warm enough for the condensation to evaporate. This will also
allow for the internal temperature compensation system to adjust to the changed
condition.

7.7.2 Rain showers

If it starts raining you should not perform the inspection because the water will drasti­cally change the surface temperature of the object that you are measuring. Neverthe­less, sometimes you need to use the camera even under rain showers or splashes.
Protect your camera with a simple transparent polyethylene plastic bag. Correction
for the attenuation which is caused by the plastic bag can be made by adjusting the
object distance until the temperature reading is the same as without the plastic cover.
Some camera models have a separate External optics transmission entry.

7

7.7.3 Emissivity

You have to determine the emissivity for the material, which you are measuring.
Mostly, you will not find the value in tables. Use optical black paint, that is, Nextel
Black Velvet. Paint a small piece of the material you are working with. The emissivity
of the optical paint is normally 0.94. Remember that the object has to have a temper­ature, which is different—usually higher—than the ambient temperature. The larger
the difference the better the accuracy in the emissivity calculation. The difference
should be at least 20°C (36°F). Remember that there are other paints that support
very high temperatures up to +800°C (+1472°F). The emissivity may, however, be
lower than that of optical black.

Sometimes you can not paint the object that you are measuring. In this case you can
use a tape. A thin tape for which you have previously determined the emissivity will
work in most cases and you can remove it afterwards without damaging the object
of your study. Pay attention to the fact that some tapes are semi-transparent and thus
are not very good for this purpose. One of the best tapes for this purpose is Scotch
electrical tape for outdoor and sub-zero conditions.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 39

7 – Introduction to thermographic inspections of electrical installations

7.7.4 Reflected apparent temperature

You are in a measurement situation where thereare several hot sources that influence
your measurement. You need to have the right value for the reflected apparent tem­perature to input into the camera and thus get the best possible correction. Do it in
this way: set the emissivity to 1.0. Adjust the camera lens to near focus and, looking
in the opposite direction away from the object, save one image. With the area or the
isotherm, determine the most probable value of the average of the image and use
that value for your input of reflected apparent temperature.

7.7.5 Object too far away

Are you in doubt that the camera you have is measuring correctly at the actual dis­tance? A rule of thumb for your lens is to multiply the IFOV by 3. (IFOV is the detail
of the object seen by one single element of the detector). Example: 25 degrees cor­respond to about 437 mrad. If your camera has a 120 × 120 pixel image, IFOV be­comes 437/120 = 3.6 mrad (3.6 mm/m) and your spot size ratio is about
1000/(3 × 3.6)=92:1. This means that at a distance of 9.2 meters(30.2 ft.), your target
has to be at least about 0.1 meter or 100 mm wide (3.9"). Try to work on the safe side
by coming closer than 9 meters (30 ft.). At 7–8 meters (23–26 ft.), your measurement

7

should be correct.

40 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

8 Tutorials

8.1 Switching on & switching off the camera

ActionStep

1

3

Insert a battery into the battery compartment.
For information about inserting a battery, see section 8.7.6 – Inserting & removing

the battery on page 55.

Briefly press the green ON/OFF button to switch on the camera.2

Press and hold down the green on/off button for a few seconds to switch off the
camera.

For information about buttons, see section 9.2 – Keypad buttons & functions on page

64.

8

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 41

8 – Tutorials

8.2 Working with images & folders

8.2.1 Acquiring an image

ActionStep

Briefly press the green ON/OFF button to switch on the camera.1

Point the camera at a warm object, like a face or a hand.2

Press and hold down the A button for one second to adjust the focus.3

Briefly press the A button to autoadjust the camera.4

8.2.2 Opening an image

ActionStep

Press the joystick to display the horizontal menu bar.1

Point to Images on the File menu and press the joystick.2

Select the image you want to open by moving the joystick up/down or left/right.3

To recall a selected image, press the joystick.4

For more information about opening images, see section 10.2.2.1 – Images on page

8

73.

8.2.3 Deleting one or several images

ActionStep

Press the joystick to display the horizontal menu bar.1

Point to Images on the File menu and press the joystick.2

Move the joystick up/down or left/right to select the image you want to delete.3

Press and hold down the joystick for two seconds to display a shortcut menu.4

5

On the shortcut menu, select Delete or Delete all images to delete one or several
images.

8.2.4 Navigating in folders

ActionStep

Press the joystick to display the horizontal menu bar.1

Point to Images on the File menu and press the joystick.2

42 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

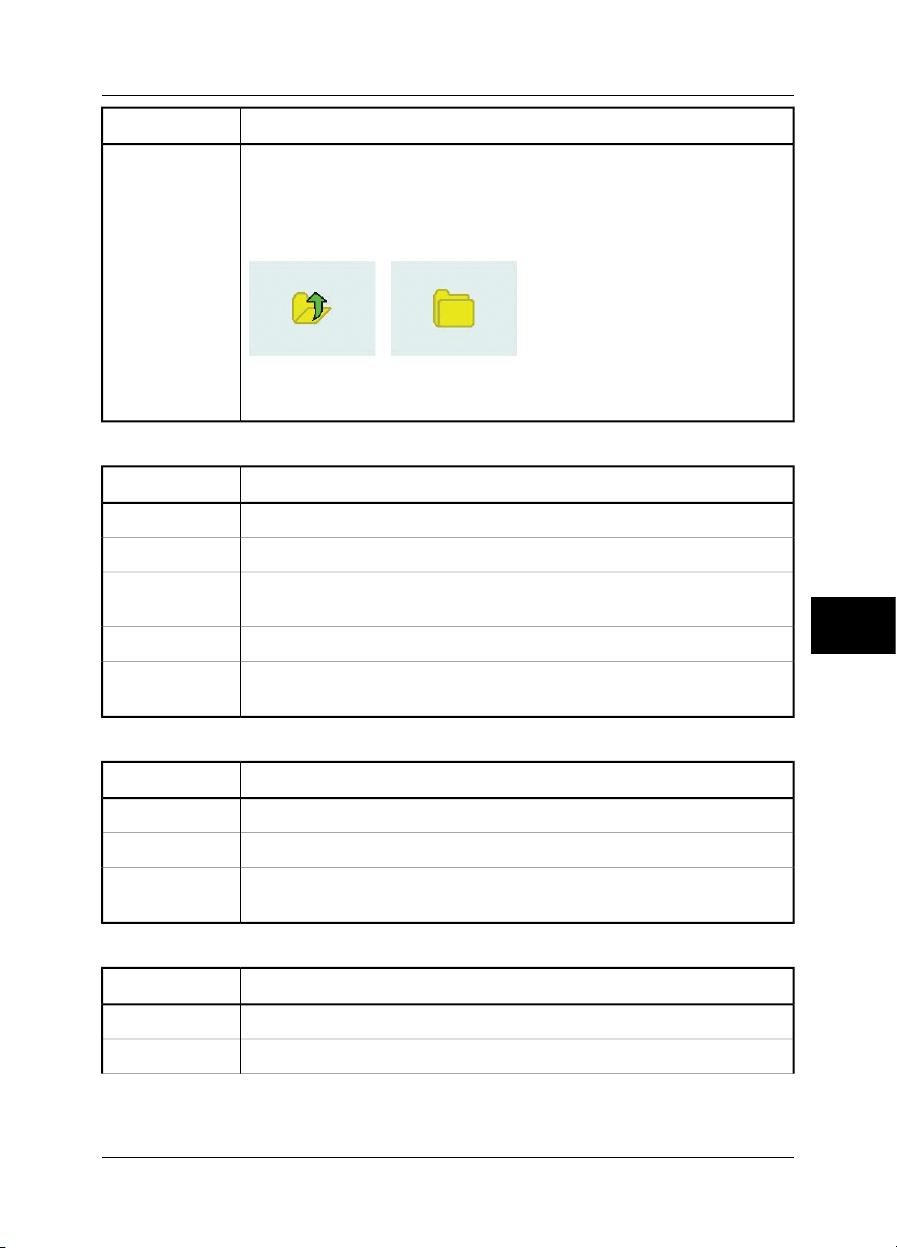

8 – Tutorials

ActionStep

3

Do one of the following:

To go up on level, select the symbol to the left below, and press the joystick.

■

To go down one level, select the symbol to the right below, and press the joy-

■

stick.

10726403;a2

Figure 8.1 LEFT: Folder symbol to go up one level; RIGHT: Folder symbol to
down one level

8.2.5 Create a new folder

ActionStep

Press the joystick to display the horizontal menu bar.1

Point to Images on the File menu and press the joystick.2

3

5

Move the joystick up/down or left/right to any position in a directory where you
want to create a new folder.

Press and hold down the joystick for two seconds to display a shortcut menu.4

On the shortcut menu,select Create new folder to create a new folderat thecurrent
level.

8.2.6 Freezing & unfreezing an image

8

ActionStep

Press and hold down the A button for one second to adjust the focus.1

Briefly press the A button to autoadjust the camera.2

3

Briefly press the S button to freeze the image. To unfreeze the image, press the
S button once again.

8.2.7 Saving an image

ActionStep

Press and hold down the A button for one second to adjust the focus.1

Briefly press the A button to autoadjust the camera.2

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 43

8 – Tutorials

ActionStep

3

Do one of the following:

Press and hold down the S button for a few seconds to save the image

■

Point to Save on the File menu and press the joystick

■

For more information about saving images, see section 10.2.2.2 – Save on page 74.

8.3 Working with measurements

8.3.1 Laying out & moving a spot

ActionStep

Press the joystick to display the horizontal menu bar.1

2

For more information about spots, see section 10.2.3.2 – Add spot on page 77.

8

8.3.2 Laying out & moving an box

Point to Add spot on the Analysis menu and press the joystick. A spot will now
appear on the screen. The measured temperature will be displayed in the result
table in the top right corner of the screen.

You are now in edit mode and can move the spot in any direction by pressing and
moving the joystick. To leave the edit mode, press the C button twice. You can
also leave the edit mode by holding down the joystick for a few seconds, which
will display a shortcut menu.

ActionStep

Press the joystick to display the horizontal menu bar.1

2

Point to Add box on the Analysis menu and press the joystick. A box will now
appear on the screen. The measured temperature will be displayed in the result
table in the top right corner of the screen.

You are now in edit mode and can move the box in any direction by pressing and
moving the joystick. To leave the edit mode, press the C button twice. You can
also leave the edit mode by holding down the joystick for a few seconds, which
will display a shortcut menu.

For more information about boxes, see section 10.2.3.3 – Add box on page 79.

8.3.3 Laying out & moving a circle

ActionStep

Press the joystick to display the horizontal menu bar.1

44 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

8 – Tutorials

ActionStep

2

Point to Add circle on the Analysis menu and press the joystick. A circle will now
appear on the screen. The measured temperature will be displayed in the result
table in the top right corner of the screen.

You are now in edit mode and can move the circle in any direction by pressing
and moving the joystick. To leave the edit mode, press the C button twice. You
can also leave the edit mode by holding down the joystick for a few seconds,
which will display a shortcut menu.

For more information about circles, see section 10.2.3.4 – Add circle on page 81.

8.3.4 Laying out & moving a line

ActionStep

Press the joystick to display the horizontal menu bar.1

2

Point to Add line on the Analysis menu and press the joystick. A line will now ap­pear onthe screen. Themeasured temperature willbe displayed in theresult table
in the top right corner of the screen.

You are now in edit mode and can move the line in any direction by pressing and
moving the joystick. To leave the edit mode, press the C button twice. You can
also leave the edit mode by holding down the joystick for a few seconds, which
will display a shortcut menu.

For more information about lines, see section 10.2.3.5 – Add line on page 83.

8.3.5 Creating & changing an isotherm

ActionStep

8

Press the joystick to display the horizontal menu bar.1

2

Point to Add isotherm on the Analysis menu and press the joystick. An isotherm
will nowbe added toyourimage. The isothermlevels will be displayedin the result
table in the top right corner of the screen.

You are now in edit mode and can change the isotherm levels by moving the joy­stick up/down. To leave the edit mode, press the C button twice. You can also
leave the edit mode by holding down the joystick for a few seconds, which will
display a shortcut menu.

For more information about creating & changing an isotherm, see section 10.2.3.6 –
Add isotherm on page 85.

8.3.6 Resizing a measurement marker

➲ This example procedure, which applies to all types of measurement markers, as­sumes that you have laid out only one measurement box on the screen and exited
the menu system.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 45

8 – Tutorials

ActionStep

Press the joystick to display the horizontal menu bar.1

2

6

Point to Edit mode on the Analysis menu and press the joystick. This will display
eight gray handles on the box.

Press the joystick once again. This will make a smallbox inthe middleturn yellow.3

Move the joystick left/right or up/down to select one of the yellow handles.4

Press the joystick once again. This will make the yellow handle turn blue.5

To resize the box, move the joystick any direction, then press the joystick again
to confirm the size.

Press the C button once to leave the edit mode.7

8.3.7 Moving a measurement marker

➲ This example procedure, which applies to all types of measurement markers, as­sumes that you have laid out only one measurement box on the screen and exited
the menu system.

ActionStep

Press the joystick to display the horizontal menu bar.1

8

2

Point to Edit mode on the Analysis menu and press the joystick. This will display
eight gray handles on the box.

Press the joystick once again. This will make a smallbox inthe middleturn yellow.3

Press the joystick once again. This will make the small box turn blue.4

To move the box, move the joystick any direction.5

Press the C button three times to leave the edit mode.6

46 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

8 – Tutorials

8.4 Working with alarms

You can choose between the following alarm outputs:

■ a silent alarm, which, willmake thebackground of the corresponding measurement

function turn red when an alarm is triggered

■ an audible alarm, which, compared to the silent alarm, also triggers a ’beep’

A settings can also be made in the camera so that an alarm output takes into account
the referencetemperature. A typical application when you would want to use an alarm
that takes into account the reference temperature is screening of people for face
temperature detection.

Firstly, the reference temperature is set by screening 10 persons with normal face
temperature. The camera puts each of these 10 results in an internal camera buffer
and calculates the average temperature value after having discarded the two highest
and two lowest values in the event of erroneous samples. Every time a new sample
is saved to the internal buffer, the oldest sample will be discarded and a new reference
temperature will be calculated ’on the fly’.

Using an alarm that takes into account the reference temperature means that an alarm
output will only be triggered if the temperature value exceeds the sum of the average
temperature value in the buffer + the user-defined delta alarm offset value.

8.4.1 Setting the reference temperature

8

ActionStep

Press the joystick to display the menu bar.1

Point to Buttons on the Setup menu and press the joystick.2

In the Buttons setup dialog box, press the joystick up/down to go to F1 or F2.3

Press the joystick left/right to select Update ref temp.4

Press the joystick to confirm the choice and leave the dialog box.5

Now point to Image on the Setup menu and press the joystick.6

7

8

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 47

Press the joystick up/down to go to Shutter period.
Although the shutter period works independently of other functions described in

this document, FLIR Systems recommends that Short is selected when using the
camera for detection of face temperature.

➲ Selecting Normal will calibrate the camera at least every 15th minute, while se-
lecting Short will calibrate the camera at least every 3rd minute.

Pointing thecamera to thefirst person witha normal facetemperature and pressing
the F1 or F2 button will display the message Sampled nn.n °C.

8 – Tutorials

ActionStep

9

After having carried out the same procedure on the following 9 persons, you can
do one of the following:

Actively continue to sample every new person by the F1 or F2 button, and let

■

the camera update the reference temperature
Stop sampling andlet the camera trigger an alarm as soon as the alarm condi-

■

tions are met (> reference temperature + delta alarm value)

8.4.2 Setting up a silent alarm

ActionStep

Press the joystick to display the menu bar.1

2

3

4

5

8

7

Point to Alarm on the Setup menu and press the joystick to display the Alarm
setup dialog box.

Select Type by pressing the joystick left/right. This setting defines whether the
alarm shouldbe triggered whenthe temperature exceedsor drops belowthe alarm
temperature.

Select Function by pressing the joystick left/right. This setting defines what mea­surement function should be used to trigger the alarm.

Select Identity by pressingthe joystickleft/right to assignan identityto the function
selected above.

Select Output by pressing the joystick left/right until Silent is highlighted.6

Specify the Alarm temp by pressing the joystick left/right.
➲ Alarm temp will only be availableif Set from ref temp has been disabled below.

8

9

Specify whether the alarm temperature should be set from the reference tempera­ture or not by pressing the joystick left/right.

Specify Delta alarm by pressing the joystick left/right.

➲ Delta alarm will only be available if Set from ref temp has been enabled above.

8.4.3 Setting up an audible alarm

ActionStep

Press the joystick to display the menu bar.1

2

3

Point to Alarm on the Setup menu and press the joystick to display the Alarm
setup dialog box.

Select Type by pressing the joystick left/right. This setting defines whether the
alarm shouldbe triggered whenthe temperature exceedsor drops belowthe alarm
temperature.

48 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

8 – Tutorials

ActionStep

4

5

7

8

9

Select Function by pressing the joystick left/right. This setting defines what mea­surement function should be used to trigger the alarm.

Select Identity by pressingthe joystickleft/right to assignan identityto the function
selected above.

Select Output by pressing the joystick left/right until Beep is highlighted.6

Specify the Alarm temp by pressing the joystick left/right.
➲ Alarm temp will only be availableif Set from ref temp has been disabled below.

Specify whether the alarm temperature should be set from the reference tempera­ture or not by pressing the joystick left/right.

Specify Delta alarm by pressing the joystick left/right.
➲ Delta alarm will only be available if Set from ref temp has been enabled above.

8

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 49

8 – Tutorials

8.5 Changing level & span

8.5.1 Changing the level

ActionStep

Press the joystick to display the horizontal menu bar.1

2

3

If the camera is in continuous adjust mode, point to Manual adjust on the Image
menu and press the joystick.

Change the level by moving the joystick up/down. An arrow pointing upwards or
downwards will be displayed.

Press the joystick to leave level/span mode.4

➲ You can also change the level by pointing to Level/Span on the Image menu, and
then change the level by moving the joystick up/down.

For more information about level, see section 10.2.4.3 – Level/Span on page 89.

8.5.2 Changing the span

ActionStep

Press the joystick to display the horizontal menu bar.1

8

2

3

If the camera is in continuous adjust mode, point to Manual adjust on the Image
menu and press the joystick.

Change the span by moving the joystick left/right. Two arrows pointing away from
each other or towards each other will be displayed.

Press the joystick to leave level/span mode.4

➲ You can also change the span by pointing to Level/Span on the Image menu, and
then change the span by moving the joystick left/right.

For more information about span, see section 10.2.4.3 – Level/Span on page 89.

50 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

8.6 Changing system settings

8.6.1 Changing the language

ActionStep

Press the joystick to display the horizontal menu bar.1

Point to Local settings on the Setup menu and press the joystick.2

Move the joystick up/down to select Language.3

Move the joystick left/right to change the language.4

8 – Tutorials

5

Press the joystick to confirm your changes and leave the dialog box.
➲ Changing the language will make the camera restart the camera program. This

will take a few seconds.

8.6.2 Changing the temperature unit

ActionStep

Press the joystick to display the horizontal menu bar.1

Point to Local Settings on the Setup menu and press the joystick.2

Move the joystick up/down to select Temp unit.3

Move the joystick left/right to change the temperature unit.4

Press the joystick to confirm your changes and leave the dialog box.5

8.6.3 Changing the date format

ActionStep

Press the joystick to display the horizontal menu bar.1

Point to Local Settings on the Setup menu and press the joystick.2

Move the joystick up/down to select Date format.3

Move the joystick left/right to change the date format.4

Press the joystick to confirm your changes and leave the dialog box.5

8

8.6.4 Changing the time format

ActionStep

Press the joystick to display the horizontal menu bar.1

Point to Local Settings on the Setup menu and press the joystick.2

Move the joystick up/down to select Time format.3

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 51

8 – Tutorials

ActionStep

Move the joystick left/right to change the time format.4

Press the joystick to confirm your changes and leave the dialog box.5

8.6.5 Changing date & time

ActionStep

Press the joystick to display the horizontal menu bar.1

Point to Date/time on the Setup menu and press the joystick.2

Move the joystick up/down to select year, month, day, minute and second.3

Move the joystick left/right to change each parameter.4

Press the joystick to confirm your changes and leave the dialog box.5

8

52 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

8 – Tutorials

8.7 Working with the camera

8.7.1 Mounting an additional lens

➲ Before trying to remove fingerprints or other marks on the lens elements, see section

14.2 – Lenses on page 111.

10592203;a1

Figure 8.2 Mounting an additional lens

ActionStep

1

2

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 53

Make sure the index mark on the IR lens is lined up with the index mark on the
camera.

Carefully push the lens into the lens recess.
➲ Do not use excessive force.

Rotate the lens 30° clock-wise.3

8

8 – Tutorials

8.7.2 Camera setup when using the Protective Window (P/N 1 194 977)

The protective window (P/N 1 194 977) contains an optical material that affects the
transmission of infrared radiation to the FPA detector inside the camera. This means
that you have to specify a temperature and a transmission value for external optics
in the camera software for P and S series cameras.

Follow this procedure to enter the temperature and transmission value for external
optics:

ActionStep

Point to Analysis on the menu bar and press the joystick.1

Point to Object param and press the joystick.2

Set External optics to On.3

4

5

8

Enter a transmission value of 0.83 in the Optics transmission text box by moving
the joystickleft/right. This valuehasbeen measured atFLIR Systems AB, Sweden.

Enter an external temperature for the lens in the Optics temperature text box by
moving the joystick left/right. Usually, this temperature is the same temperature
as the camera’s ambient temperature.However, in some situations –such as when
looking at very hot targets – the temperature can be considerably higher.

Press the joystick to confirm the changes and leave the dialog box.6

8.7.3 Focusing the camera using autofocus

ActionStep

Press the green ON/OFF button to switch on the camera.1

2

Press and hold down the A button forone secondto adjust the focus. An indicator
will be displayed on the left side of the screen when focusing.

8.7.4 Focusing the camera manually

ActionStep

Press the green ON/OFF button to switch on the camera.1

2

Adjust the focus by moving the joystick up/down. An indicator will be displayed
on the left side of the screen when focusing.

8.7.5 Using the electronic zoom

ActionStep

Press the green ON/OFF button to switch on the camera.1

54 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

8 – Tutorials

ActionStep

2

Adjust the zoom factor by moving the joystick left/right. An indicator will be dis­played on the left side of the screen when zooming.

8.7.6 Inserting & removing the battery

➲ The camera is shipped with charged batteries. To increase battery life, the battery
should be fully discharged and charged a couple of times. You can do this by using
the camera until the battery is fully depleted.

8.7.6.1 Inserting the battery

10592303;a1

Figure 8.3 Inserting the battery

ActionStep

Open the lid of the battery compartment by pressing its locking mechanism.1

8

Push the battery intothe battery compartmentuntil thebattery release springlocks.2

Close the lid of the battery compartment.3

8.7.6.2 Removing the battery

10592403;a1

Figure 8.4 Removing the battery

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 55

8 – Tutorials

ActionStep

Open the lid of the battery compartment by pressing its locking mechanism.1

The battery release spring will push out the batteryfrom thebattery compartment.2

Close the lid of the battery compartment.3

For more information about the battery system, see section 12 – Electrical power
system on page 103.

8

56 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

9 Camera overview

9.1 Camera parts

10592503;a1

9

Figure 9.1 Camera parts, 1

Description of partCallout

1

2

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 57

+/– buttons
For moreinformation about thefunctionality of thisbutton, see section9.2 –Keypad

buttons & functions on page 64.

F1 button
For moreinformation about thefunctionality of thisbutton, see section9.2 –Keypad

buttons & functions on page 64.

9 – Camera overview

Description of partCallout

3

4

F2 button
For moreinformation about thefunctionality of thisbutton, see section9.2 –Keypad

buttons & functions on page 64.

Camera status LCD
For more information about the LCD, see section 9.4 – Camera status LCD on

page 67.

Connector for remote control5

Viewfinder6

9

58 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

10592703;a1

9 – Camera overview

Figure 9.2 Camera parts, 2

Description of partCallout

1

C button
For more information about the C button, see section 9.2 – Keypad buttons &

functions on page 64.

Lid of the battery compartment2

3

S button
For more information about the S button, see section 9.2 – Keypad buttons &

functions on page 64.

4

A button
For more information about the A button, see section 9.2 – Keypad buttons &

functions on page 64.

Hand strap5

RS-232/USB connector6

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 59

9

9 – Camera overview

Description of partCallout

Headset connector7

Lens8

9

60 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

10592803;a1

9 – Camera overview

Figure 9.3 Camera parts, 3

Description of partCallout

Cover for additional connectors1

2

Joystick
For more information about the joystick, see section 9.2 – Keypad buttons &

functions on page 64.

3

ON/OFF button (green)
For more information about the ON/OFF button, see section 9.2 – Keypad buttons

& functions on page 64.

Not implemented.4

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 61

9

9 – Camera overview

10394603;a4

9

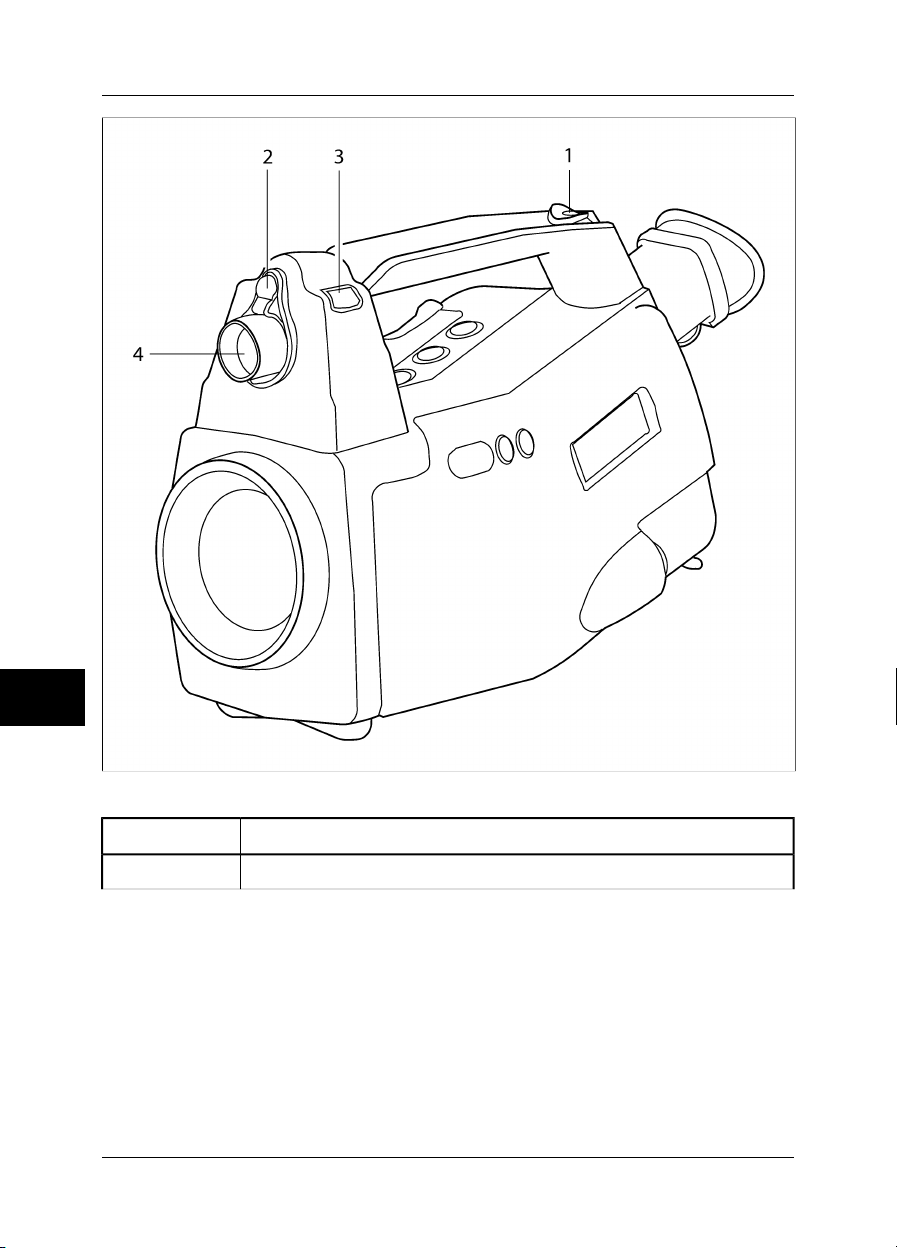

Figure 9.4 Camera parts, 4

Description of partCallout

Spring-loaded locking latch for the remote control1

62 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

9 – Camera overview

Description of partCallout

2

Laser LocatIR with lens cap
➲ Please note the following:

A laser icon appears on the screen when the Laser LocatIR is switched on.

■

Since the distance between the laser beam and the image center will vary by

■

the target distance, LaserLocatIR should onlybe used asan aimingaid. Always
check the LCD to make sure the camera captures the desired target.
Do not look directly into the laser beam.

■

When not in use, the Laser LocatIR should always be protected by the lens

■

cap.

For more information about Laser LocatIR, see section 9.5 – Laser LocatIR on
page 68.

3

Button for Laser LocatIR
For more information about Laser LocatIR, see section 9.5 – Laser LocatIR on

page 68.

Not implemented.4

9

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 63

9 – Camera overview

9.2 Keypad buttons & functions

Figure 9.5 Camera buttons – explanations

CommentsButton

ON/OFF

A

S

Press briefly to switch on the camera

■

Press and hold down for a few seconds to switch off the camera

■

Press briefly to autoadjust the camera

■

Press and hold down for a few seconds autofocus the camera

■

Press briefly to freeze an image

■

Press briefly to store an image if the image is currently frozen

■

Press and hold down for a few seconds to store without freezing

■

the image
Press to move between panes in some dialog boxes

■

Press to leave freeze mode and go to live mode

■

C

Press to leave dialog boxes without changing any settings

■

Press twice to leave edit mode

■

If the camera is in manual adjust mode, press to change the

■

function of the joystick to level (up/down) and span (left/right)

Joystick

Press to display the menu system

■

Press to exit the menu system

■

Press to confirm selections and leave dialog boxes

■

Press to select measurement markers

■

Move up/down or left/right to navigate in menus, dialog boxes,

■

and on the screen
Move up/down or left/right to move or resize measurement

9

■

markers
Move up/down to change focus and left/right to zoom

■

If the camera is in manual adjust mode, press C to change the

■

function of the joystick to level (up/down) and span (left/right)

+/–

F1

Programmable functions:

Focus

■

Zoom

■

Level

■

Span

■

Programmable functions:

None

■

Adjust once

■

Auto focus

■

Reverse palette

■

Next palette

■

Update ref temp

■

64 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

9 – Camera overview

CommentsButton

F2

Programmable functions:

None

■

Adjust once

■

Auto focus

■

Reverse palette

■

Next palette

■

Update ref temp

■

Press to switch on Laser LocatIRButton for Laser LocatIR

9

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 65

9 – Camera overview

9.3 Autofocus

To focus the camera using the autofocus feature, press and hold down the A button
for one second.

➲ Please note the following:

■ The area that the camera uses when autofocusing is a 80 × 60 pixel box, centered

vertically and horizontally on the screen

■ The camera will have difficulties autofocusing when the image has low contrasts

between different areas

■ You should keep the camera steady when autofocusing

9

66 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

9 – Camera overview

9.4 Camera status LCD

The camera status LCD on the left side of the camera displays information about
battery status, communication status, memory status etc.

10346003;a3

Figure 9.6 Camera status LCD

Figure 9.7 Camera status LCD – explanations

CommentsCallout

1

Battery status bar. The frame around the battery status bar is switched on when
a battery is inserted.

All segments switched on = fully charged battery

■

All segments switched off = empty battery or no battery inserted

■

2

Battery indicator. Switched onif a batteryis inserted,flashing if thebattery is being
charged internally.

CompactFlash card indicator. Switched on if a CompactFlash card is inserted.3

4

CompactFlash status bar:

All segments switched on = the card is empty

■

All segments switched off = the card is full

■

Not implemented.5

Communication indicator. Switched on when a communication link is active.6

7

Power indicator:

Both segments switched on when the camera is switched on

■

Both segments switched off when the camera is switched off

■

The outer segment flashing when the camera is in ‘deep sleep’

■

External power indicator. Switched on when the camera is externally powered.8

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 67

9

9 – Camera overview

9.5 Laser LocatIR

The ThermaCAM™ P45 infrared camera features a laser pointer located at the front
of the camera handle. To display the laser dot, press the Laser LocatIR button on left
side of the handle. The laser dot will appear approx. 91 mm/3.6" above the target.

➲ Please note the following:

■ A laser icon appears on the screen when the Laser LocatIR is switched on.

■ Since the distance between the laser beam and the image center will vary by the

target distance,Laser LocatIR should only be used as an aiming aid. Alwayscheck
the LCD to make sure the camera captures the desired target.

■ Do not look directly into the laser beam.

■ When not in use, the Laser LocatIR should always be protected by the lens cap.

10376403;a2

Figure 9.8 Wavelength: 635 nm. Max. output power: 1 mW. This product complies with 21 CFR 1040.10
and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated July 26th, 2001

10395103;a3

9

Figure 9.9 Distance between the laser beam and the image center

68 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

10 Camera program

10.1 Screen objects

10.1.1 Result table

The results of measurement markers are displayed in a result table in the top right­hand corner of the screen.

Figure 10.1 Explanation of measurement markers appearing in the result table

ExplanationIcon

Spot

1

1

1

1

1

1

1

1

1

1

1

1

1

✴

Box 1, maximum temperature

Box 1, minimum temperature

Box 1, average temperature

Circle 1, maximum temperature

Circle 1, minimum temperature

Circle 1, average temperature

Line 1, maximum temperature

Line 1, minimum temperature

Line 1, average temperature

Line 1, cursor temperature

Isotherm 1, above

Isotherm 1, below

Isotherm 1, interval

Difference calculationXXX–YYY

The ✴ symbol indicates uncertain result due to an internal updating process after
the range has been changed or the camera has been started. The symbol disap­pears after 15 seconds.

10

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 69

10 – Camera program

10.1.2 Status bar

10388403;a2

Figure 10.2 Status bar, showing atmospheric temperature, relative humidity, distance to target, zoom
factor, date & time, temperature range, emissivity, and reflected ambient temperature.

Information aboutan image and the current conditions appear on the first and second
bottom lines of the screen. If text comments are attached to an image file, they are
displayed above these two lines.

➲ If you enter an emissivity value less than 0.30 the emissivity box will begin flashing
to remind you that this value is unusually low.

10.1.3 Temperature scale

10388503;a2

Figure 10.3 Temperature scale

The temperature scale is displayed on the right-hand side of the screen. The scale
shows how the colors are distributed along the various temperatures in the image,

10

with high temperatures at the upper end and low temperatures at the lower end.

10.1.4 System messages

10.1.4.1 Status messages

Status messages are displayed at the bottom of the screen, or in the top left part of
the screen. Here you will find information about the current status of the camera, etc.

Figure 10.4 Status messages – a few examples

ExplanationMessage

Message is displayed when the image is frozen.Frozen

Manual

Restarting

Message isdisplayedwhen the camera iscurrentlyin manual adjust
mode.

Message is displayed when the software is restarted, i.e. after Fac-
tory default.

70 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

10 – Camera program

ExplanationMessage

Message is displayed while an image is being saved.Saving as

10.1.4.2 Warning messages

Warning messages are displayed in the center of the screen. Here you will find impor­tant information about battery status, etc.

Figure 10.5 Critical camera information – a few examples

ExplanationMessage

The battery level is below a critical level.Battery low

The camera will be switched off immediately.Shutting down

The camera will be switched off in 2 seconds.Shutting down in 2 seconds

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 71

10

10 – Camera program

10.2 Menu system

10.2.1 Navigating in the menu system

■ Press the joystick to display the horizontal menu bar

■ Press the joystick to confirm selections in menus and dialog boxes

■ Press the C button to exit the menu system

■ Press the C button to cancel selections in menus and dialog boxes

■ Move the joystick up/down to move up/down in menus, submenus and dialog

boxes

■ Move the joystickright/left tomove right/leftin menus and submenus, and to change

values in dialog boxes

10

72 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

10 – Camera program

10.2.2 File menu

10.2.2.1 Images

10565503;a1

Figure 10.6 Images folder

Point to Images and press the joystick to display a thumbnail view of the files on the
CompactFlash® card. The following files are displayed:

■ infrared images

■ *.etf files (emissivity table files)

10565603;a4

Figure 10.7 Images folder, showing the context menu

In the Images folder you can do the following:

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 73

10

10 – Camera program

■ Open an imageby selectingthe image using the joystick, then pressing the joystick.

For more information, see see section 8.2.2 – Opening an image on page 42.

■ Create a new folder by selecting an image, then pressing and holding down the

joystick, and selecting Create new folder. For more information, see see section

8.2.5 – Create a new folder on page 43.

■ Delete an image by selecting the image, then pressing and holding down the joy-

stick, and selecting Delete. For more information, see see section 8.2.3 – Deleting
one or several images on page 42.

■ Delete all images by selecting an image, then pressing and holding down the joy-

stick, and selecting Delete all. For more information, see see section 8.2.3 –
Deleting one or several images on page 42.

■ Navigate in folders. For more information, see see section 8.2.4 – Navigating in

folders on page 42.

10.2.2.2 Save

Point to Save and press the joystick to save the displayed image to the CompactFlash
card.

For more information about saving images, see section 10.2.5.3 – Save on page 93.

10.2.2.3 Periodic save

10389603;a3

10

Figure 10.8 Periodic save dialog box

Point to Periodic save and press the joystick to display the Periodic save dialog box.
Using the periodic save feature, you can save a number of images, at a certain se­lectable periodicity, to the internal flash memory or the CompactFlash card. Together
with the images, all the current conditions will be saved.

Figure 10.9 Explanations of the Periodic save dialog box

CommentActionTask

Move the joystick left/rightSetting the periodicity

Press the joystickStarting the recording

The periodicity can be set from
10 seconds up to 24 hours. Se­lect Fast → On for shortest pos­sible time interval (< 10 sec­onds).

74 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

10 – Camera program

CommentActionTask

Stopping the recording

Press the joystick again
➲ Images will be stored sequentially in the current directory. If the

recording is stopped and then started again the new images will be
added at the end of the previous sequence in the same directory.

10.2.2.4 Voice comment

10389803;a3

Figure 10.10 Voice comment dialog box

Point to Voice comment and press the joystick to display the Voice comment dialog
box. Aprogress barin the dialog box will indicate the progress of the voice recording.
Using the voice comment feature, you can:

■ listen to a recorded comment, make a pause, and then continue

■ record a new comment, make a pause, and then continue

■ edit a recorded comment, i.e. listen and/or add a comment at the end of the

recorded comment

■ overwrite an existing recording

Figure 10.11 Explanations of the Voice comment dialog box

ActionTask

Recording a new voice comment,using thehead­set

Stopping the recording

Listening to a voice comment, using the headset

Saving the current voice comment

Move the joystick to select the Record button and
then press the joystick.

Move the joystick to select the Stop button and
then press the joystick.

Move the joystick to select the Play button and
then press the joystick.

Move the joystick to select the Save button and
then press the joystick, or press the S button.

As a reminder to include important information about the infrared object in the voice
comment, you can display a checklist in an expanded voice comment dialog box.
You create this checklist in a simple text editor, save it as voicecomment.txt and
put it in the Images folder in the camera. When you open the voice comment dialog
box the next time, this checklist will be displayed. See the figure below.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 75

10

10 – Camera program

10567903;a3

Figure 10.12 Voice comment dialog box, with checklist

10

76 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

10 – Camera program

10.2.3 Analysis menu

10.2.3.1 Edit mode

Point to Edit mode and press the joystick to enter the edit mode of the camera. When
the camera is in edit mode you can select, move, and resize measurement markers
as well as changing levels of isotherms etc. You leave edit mode by pressing the C
button.

10.2.3.2 Add spot

Point to Add spot and press the joystick to add a spot. A spot will now be displayed
on the screen. Press and hold down the joystick for one second when the spot is
selected to display a shortcut menu.

10390103;a3

Figure 10.13 Shortcut menu for Spot

Figure 10.14 Explanations of the shortcut menu for Spot

ExplanationCommand

Point to Delete and press the joystick to delete the spot.Delete

Point to Exit edit mode and press the joystick to exit the edit mode.Exit edit mode

Set as ref temp

Point to Set as ref temp and press the joystick to use the spot tem­perature as the reference temperature.

See below.Settings

Point to Settings and press the joystick to display a Spot settings dialog box where
you can change the settings for the spot.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 77

10

10 – Camera program

10588303;a2

Figure 10.15 Spot dialog box

Figure 10.16 Explanations of the Spot dialog box

CommentsValueLabel

10

Local

Emissivity

On

■

Off

■

User-defined
(0.01–1.00)

User-definedEmissivity table

User-definedT Reflected

Select On to set the emissivity, the reflected tem­perature, and the distance for this spot only.

Selecting On will also assign an asterisk to the
measurement marker’s label.

You can set the Emissivity if Local is enabled. If
not, this option will be shaded.

➲ If you enter an emissivity value less than 0.30
the emissivity box will begin flashing to remind you
that this value is unusually low.

Press Emissivity table to display an emissivity ta­ble on the screen.

You can use thisemissivity tableto find emissivities
for a number of different materials. An emissivity
table canbe created andedited in FLIRSystems’s
PC software.

➲ The emissivity file can be stored at root level or
at directory level. However, the camera software
prioritizes files that are stored at directory level and
the directory has to be selected in order to store
the emissivity file in the camera memory. If the
camera software does not find an emissivity file at
directory level, it searches for similar files at root
level and saves those instead.

You can set T Reflected if Local is enabled. If not,
this option will be shaded.

User-definedDistance

You can set Distance if Local is enabled. If not,
this option will be shaded.

Label

On

■

Off

■

Select On to assign a label to the measurement
marker (a small box with a number).

78 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

10 – Camera program

10.2.3.3 Add box

Point to Add box and press the joystick to add a box. A box will now appear on the
screen. Press and hold down the joystick for one second when the box is selected
to display a shortcut menu.

10390303;a3

Figure 10.17 Shortcut menu for Box

Figure 10.18 Explanations of the shortcut menu for Box

ExplanationCommand

Point to Delete and press the joystick to delete the box.Delete

Point to Exit edit mode and press the joystick to exit the edit mode.Exit edit mode

Set as ref temp

Max

Min

Avg

Point to Set as ref temp and press the joystick to use the box tem­perature as the reference temperature.

Point to Max and press the joystick to display the maximum temper­ature of the box

Point to Min and press the joystick to display the minimum temper­ature of the box

Point to Avg and press the joystick to display the average tempera­ture of the box.

See below.Settings

Point to Settings and press the joystick to display a Box settings dialog box where
you can change the settings for the box.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 79

10

10 – Camera program

10588403;a2

Figure 10.19 Box dialog box

Figure 10.20 Explanations of the Box dialog box

CommentsValueLabel

10

Local

Emissivity

On

■

Off

■

User-defined
(0.01–1.00)

User-definedEmissivity table

User-definedT Reflected

Select On to set the emissivity, the reflected tem­perature, and the distance for this box only.

Selecting On will also assign an asterisk to the
measurement marker’s label.

You can set the Emissivity if Local is enabled. If
not, this option will be shaded.

➲ If you enter an emissivity value less than 0.30
the emissivity box will begin flashing to remind you
that this value is unusually low.

Press Emissivity table to display an emissivity
table on the screen.

You can use thisemissivity tableto find emissivities
for a number of different materials. An emissivity
table canbe created andedited in FLIRSystems’s
PC software.

➲ The emissivity file can be stored at root level or
at directory level. However, the camera software
prioritizes files that are stored at directory level and
the directory has to be selected in order to store
the emissivity file in the camera memory. If the
camera software does not find an emissivity file at
directory level, it searches for similar files at root
level and saves those instead.

You can set T Reflected if Local is enabled. If not,
this option will be shaded.

User-definedDistance

You can set Distance if Local is enabled. If not,
this option will be shaded.

Label

On

■

Off

■

Select On to assign a label to the measurement
marker (a small box with a number).

80 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

10 – Camera program

CommentsValueLabel

Result

Min

■

Max

■

Avg

■

To change how the measurement results will be
displayed, select Max, Min, or Avg.

10.2.3.4 Add circle

Point to Add circle and press the joystick to add a circle. A circle will now appear on
the screen.Press and hold down the joystick for one second when the circle is selected
to display a shortcut menu.

10390503;a3

Figure 10.21 Shortcut menu for Circle

Figure 10.22 Explanations of the shortcut menu for Circle

ExplanationCommand

Point to Delete and press the joystick to delete the circle.Delete

Point to Exit edit mode and press the joystick to exit the edit mode.Exit edit mode

Set as ref temp

Max

Min

Avg

Point to Set as ref temp and press the joystick to use the circle
temperature as the reference temperature.

Point to Max and press the joystick to display the maximum temper­ature of the circle.

Point to Min and press the joystick to display the minimum temper­ature of the circle.

Point to Avg and press the joystick to display the average tempera­ture of the circle

See below.Settings

Point to Settings and press the joystick to display a Circle settings dialog box where
you can change the settings for the circle.

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 81

10

10 – Camera program

10588503;a2

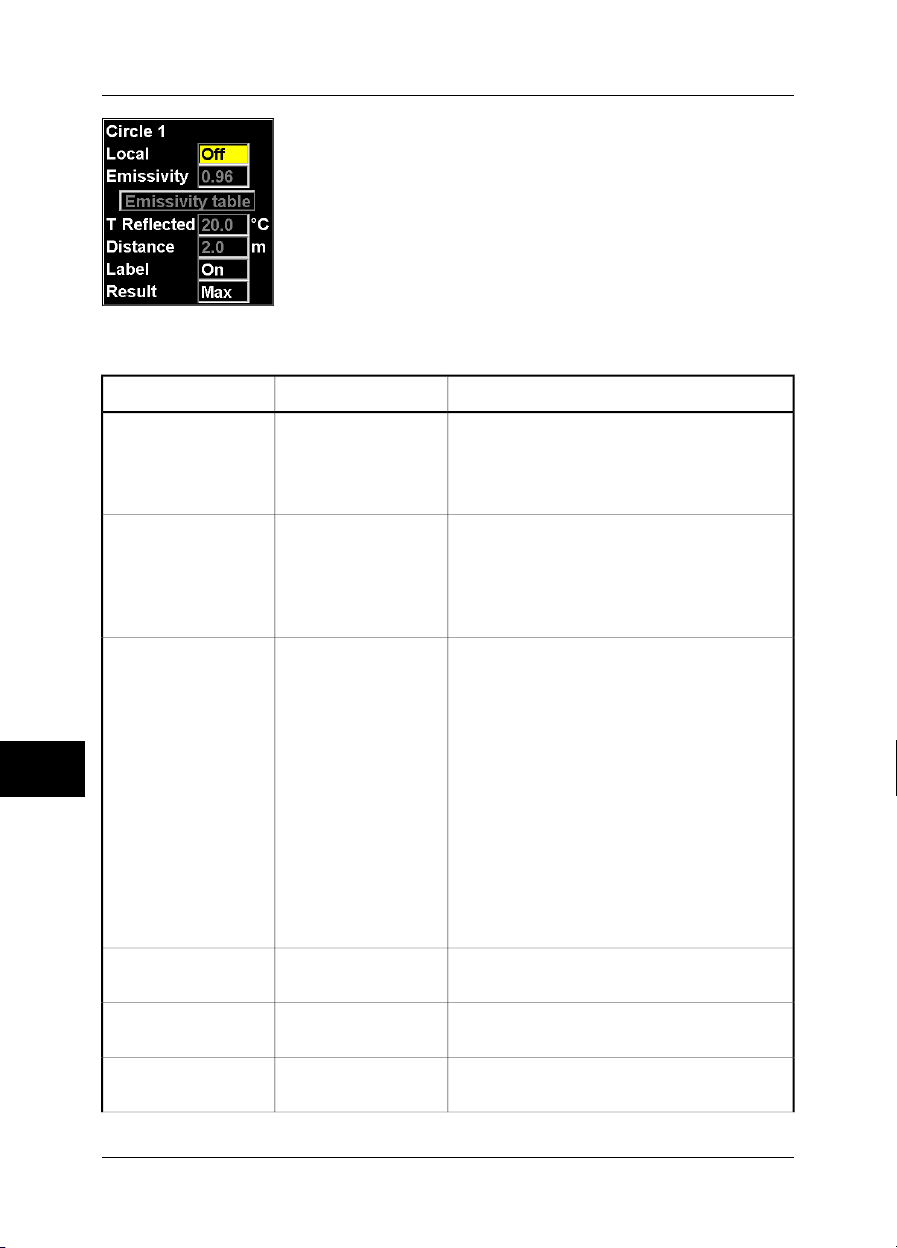

Figure 10.23 Circle dialog box

Figure 10.24 Explanations of the Circle dialog box

CommentsValueLabel

10

Local

Emissivity

On

■

Off

■

User-defined
(0.01–1.00)

User-definedEmissivity table

User-definedT Reflected

Select On to set the emissivity, the reflected tem­perature, and the distance for this circle only.

Selecting On will also assign an asterisk to the
measurement marker’s label.

You can set the Emissivity if Local is enabled. If
not, this option will be shaded.

➲ If you enter an emissivity value less than 0.30
the emissivity box will begin flashing to remind you
that this value is unusually low.

Press the button to the right of Emissivity table
to display an emissivity table on the screen.

You can use thisemissivity tableto find emissivities
for a number of different materials. An emissivity
table canbe created andedited in FLIRSystems’s
PC software.

➲ The emissivity file can be stored at root level or
at directory level. However, the camera software
prioritizes files that are stored at directory level and
the directory has to be selected in order to store
the emissivity file in the camera memory. If the
camera software does not find an emissivity file at
directory level, it searches for similar files at root
level and saves those instead.

You can set T Reflected if Local is enabled. If not,
this option will be shaded.

User-definedDistance

You can set Distance if Local is enabled. If not,
this option will be shaded.

Label

On

■

Off

■

Select On to assign a label to the measurement
marker (a small box with a number).

82 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006

10 – Camera program

CommentsValueLabel

Result

Min

■

Max

■

Avg

■

To change how the circle displays the measure­ment results, select Max, Min, or Avg.

10.2.3.5 Add line

Point to Add line and press the joystick to add a line. A line will now appear on the
screen. Press and hold down the joystick for one second when the line is selected
to display a shortcut menu.

10390703;a3

Figure 10.25 Shortcut menu for Line

Figure 10.26 Explanations of the shortcut menu for Line

ExplanationCommand

Point to Delete and press the joystick to delete the line.Delete

Point to Exit edit mode and press the joystick to exit the edit mode.Exit edit mode

Show profile

Set as ref temp

Cursor

Max

Min

Avg

Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 83

Point to Show profile and press the joystick to display a profile
window.The profilewindow displays thedifferent temperature levels
along the line as a graph.

Point to Set as ref temp and press the joystick to use the line tem­perature as the reference temperature.

Point to Cursor and press the joystick to display a cursor that you
can move along the line.

Point to Max and press the joystick to display the maximum temper­ature along the line.

Point to Min and press the joystick to display the minimum temper­ature along the line.

Point to Avg and press the joystick to display the average tempera­ture along the line.

10

10 – Camera program

ExplanationCommand

See below.Settings

Point to Settings and press the joystick to display a Line settings dialog box where
you can change the settings for the line.

10588803;a2

Figure 10.27 Line dialog box

Figure 10.28 Explanations of the Line dialog box

CommentsValueLabel

Select On to set the emissivity, the reflected tem­perature, and the distance for this line only.

Selecting On will also assign an asterisk to the
measurement marker’s label.

You can set the Emissivity if Local is enabled. If
not, this option will be shaded.

➲ If you enter an emissivity value less than 0.30
the emissivity box will begin flashing to remind you
that this value is unusually low.

Press Emissivity table to display an emissivity
table on the screen.

You can use thisemissivity tableto find emissivities
for a number of different materials. An emissivity
table canbe created andedited in FLIRSystems’s
PC software.

➲ The emissivity file can be stored at root level or
at directory level. However, the camera software
prioritizes files that are stored at directory level and
the directory has to be selected in order to store
the emissivity file in the camera memory. If the
camera software does not find an emissivity file at
directory level, it searches for similar files at root
level and saves those instead.

10

Local

Emissivity

On

■

Off

■

User-defined
(0.01–1.00)

User-definedEmissivity table

84 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006
