FLIR T860 24°
Imaging and optical data
Infrared resolution 640 × 480 pixels
UltraMax (super-resolution)
NETD
Field of view
Minimum focus distance
Minimum focus distance with MSX 0.5 m (1.64 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.7 mrad/pixel
Available extra lenses
Lens identification Automatic
f number
Image frequency 30 Hz
Focus
Field of view match Yes
Digital zoom 1–8× continuous
1
In FLIR Tools
<40 mK @ +30°C (+86°F)
24° × 18°
• 0.15 m (0.49 ft.)
• Macro mode 50 µm as option
• 42° (AutoCal)
• 14° (AutoCal)
• 6° (service calibration required)
1.3
• Continuous LDM
• One-shot LDM
• One-shot contrast
• Manual
1 (11)
Detector data
Focal plane array/spectral range Uncooled microbolometer/7.5–14 µm
Detector pitch 12 µm
1. Not supported when using macro.
www.flir.com
FLIR T860 24°
P/N: 89202-0101
© 2019, FLIR Systems, Inc.
#89202-0101; r. 59387;
Image presentation
Resolution (display) 640 × 480 pixels (VGA)
Surface brightness (cd/m
Screen size 4 in.
Viewing angle 80°
Color depth (bits)
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 2
Viewfinder Yes
Image adjustment
Image presentation modes
Infrared image Yes
Visual image Yes
MSX Yes
Picture in picture Resizable and movable
Gallery
2
)
400
24
• Automatic
• Automatic maximum
• Automatic minimum
• Manual
Yes
Measurement
Camera temperature range Object temperature range Accuracy — for ambient
–20 to +120°C (–4 to +248°F) –20 to +100°C (–4 to +212°F) ±2°C (±3.6°F)
+100 to +120°C (+212 to +248°
F)
0 to +650°C (+32 to +1202°F) 0 to +100°C (+32 to +212°F) ±2°C (±3.6°F)
+100 to + 650°C (+212 to
+1202°F)
+300 to +2000°C (+572 to
+3632°F)
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Automatic maximum/minimum markers within
+300 to +2000°C (+572 to
+3632°F)
area
temperature +15 to +35°C (+59
to +95°F)
±2%
±2%
±2%
2 (11)
www.flir.com
FLIR T860 24°
P/N: 89202-0101
© 2019, FLIR Systems, Inc.
#89202-0101; r. 59387;
Measurement analysis
Measurement presets
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes, variable from 0.01 to 1.0 or selected from
Measurement corrections Yes
External optics/windows correction
Screening 0.5°C (0.9°F) accuracy at 37°C (98.6°F) with
Alarm
Color alarm (isotherm)
Measurement function alarm Audible/visual alarms (above/below) on any
Set-up
Color palettes
Setup commands Local adaptation of units, language, date, and
Languages 21
• No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
materials list
Yes
reference
• Above
• Below
• Interval
• Condensation (moisture/humidity/dewpoint)
• Insulation
selected measurement function
• Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
time formats
3 (11)
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory: SD card
Time lapse (Periodic image storage) 10 seconds to 24 hours (infrared)
Remote control operation
Image file format Standard JPEG, measurement data included.
Image annotations
Voice 60 seconds with built-in microphone and speaker
Text Text from predefined list or soft keyboard on
www.flir.com
• Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Infrared-only mode.
(and via Bluetooth) on still images and video
touchscreen
FLIR T860 24°
P/N: 89202-0101
© 2019, FLIR Systems, Inc.
#89202-0101; r. 59387;
Image annotations
Visual image annotation Yes
Image sketch Yes: on infrared only
Sketch From touchscreen
METERLiNK Wireless connection (Bluetooth) to:
FLIR meters with METERLiNK
Laser distance meter information Yes
Area measurement information Yes
GPS Location data automatically added to every still
Video recording in camera
Radiometric infrared-video recording RTRR (.csq)
Non-radiometric infrared-video recording H.264 to memory card
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared-video streaming
(compressed)
Non-radiometric video streaming (compressed:
IR, MSX, visual, Picture in Picture)
Visual video streaming Yes
image and first frame in video from built-in GPS
Over UVC
• H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by dedicated button
Laser
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi, DisplayPort
METERLiNK/Bluetooth Communication with headset and external
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
53° × 41°
Class 2, 0.05–40 m (0.16–131 ft.) ±1% of
measured distance
sensors
images
4 (11)
www.flir.com
FLIR T860 24°
P/N: 89202-0101
© 2019, FLIR Systems, Inc.
#89202-0101; r. 59387;
Data communication interfaces
Video out DisplayPort
Video connector type
Radio
Operating frequency Bluetooth + EDR/LE: 2402–2480 MHz
RF output (EIRP) Bluetooth + EDR/LE: < 10 dBm
Antenna Integrated PIFA antenna (gain: maximum 1.4 dBi)
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 4 hours at 25°C (77°F) with typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
Charging time (using two-bay charger) 3.5 h to 90% capacity, on-screen indicator
Charging temperature 0°C to +45°C (+32°F to +113°F), except for the
External power operation AC adapter 90–260 V AC (50/60 Hz) or 12 V from
Power management Automatic shut-down and sleep mode
DisplayPort over USB Type-C
WLAN 2.4 GHz: 2412–2462 MHz
WLAN 5 GHz: 5150–5350 MHz (DFS: only slave
mode)
Note that frequency band 5150–5350 MHz is for
indoor use only, see national regulations.
WLAN: < 17 dBm
two-bay charger
Korean market: +10°C to +45°C (+50°F to +113°
F)
a vehicle (cable with standard plug, optional)
5 (11)
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (–40 to 158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours, 95% relative humidity,
EMC
Radio spectrum
Encapsulation
Shock 25g (IEC 60068-2-27)
Vibration
Safety EN/UL/CSA/PSE 60950-1
www.flir.com
25–40°C (77–104°F)/2 cycles
• ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
• ETSI EN 300 228
• FCC Part 15.249
• RSS-247 Issue 2
IP 54 (IEC 60529)
2g (IEC 60068-2-6)
FLIR T860 24°
P/N: 89202-0101
© 2019, FLIR Systems, Inc.
#89202-0101; r. 59387;
Physical data
Weight (including battery) 1.4 kg (3.1 lb.)
Size (L × W × H)
Battery weight 195 g (6.89 oz.)
Battery size (L × W × H) 59 × 66 × 94 mm (2.3 × 2.6 × 3.7 in.)
Tripod mounting
Housing material
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
Packaging, contents
Packaging, weight 5.9 kg (13.0 lb.)
Packaging, size 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)
EAN-13 7332558024959
UPC-12
Country of origin Sweden
• Lens vertical: 150.5 × 201.3 × 84.1 mm (5.9 ×
7.9 × 3.3 in.)
• Lens horisontal: 150.5 × 201.3 × 167.3 mm
(5.9 × 7.9 × 6.6 in.)
UNC ¼″-20
PCABS with TPE, magnesium
• Accessory box I:
◦ Power supply for battery charger
◦ Power supply, 15 W/3 A
◦ Printed documentation
◦ SD card (8 GB)
◦ USB 2.0 A to USB Type-C cable
◦ USB Type-C to HDMI and PD adapter
◦ USB Type-C to USB Type-C cable (USB
2.0 standard)
• Accessory box II:
◦ Lens cap strap
◦ Lens cleaning cloth
◦ Neck strap
◦ Small eyecup
• Battery (2 ea)
• Battery charger
• FLIR Tools+ license card
• Hard transport case
• Infrared camera with lens
• Lens cap, front
• Lens cap, front and rear (only for extra lenses)
845188020705
6 (11)
Supplies & accessories:
• T199300ACC; Battery
• T199610; Battery charger
• T199347ACC; Hard transport case
• T300030; Option, No radio
• T130531ACC; Large eyecup
• T300188; Hand strap and neck strap
www.flir.com
FLIR T860 24°
P/N: 89202-0101
© 2019, FLIR Systems, Inc.
#89202-0101; r. 59387;
• T199609; Option, Macro mode 71/103 µm for 24°
• T850105; FLIR Inspection Route - Camera Option
• T130337ACC; Calibration target
• T199588; Lens 14° + case
• T199589; Lens 24° + case
• T199590; Lens 42° + case
• T300095; Lens 6° with case
• T911630ACC; Power supply for camera, 15 W/3 A
• T911631ACC; USB 2.0 A to USB Type-C cable, 0.9 m
• T911633ACC; Power supply for battery charger
• T911705ACC; USB Type-C to USB Type-C cable (USB 2.0 standard), 1.0 m
• T911706ACC; Car adapter 12 V
• T911845ACC; USB Type-C to HDMI and PD adapter
• T911846ACC; USB 2.0 A to USB Type-C with Power supply
• T198495; Pouch
• T197771ACC; Bluetooth Headset
• T300244; FLIR Route Creator Plugin for FLIR Thermal Studio Pro, 1 Year
Subscription
• T300243; FLIR Thermal Studio Pro, 1 Year Subscription
• T300083; FLIR Thermal Studio Pro, Perpetual license
• T198583; FLIR Tools+ (download card incl. license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• INST-EW-0155; Extended Warranty 1 Year for A3xxf, T540, T600/bx, T610, T840,
T860
• INST-EWGM-0165; Premium Service Package for T540, T600/bx, T610, T840, T860
• INST-GM-0150; General Maintenance Package for T540, T6xx, T840, T860
7 (11)
www.flir.com

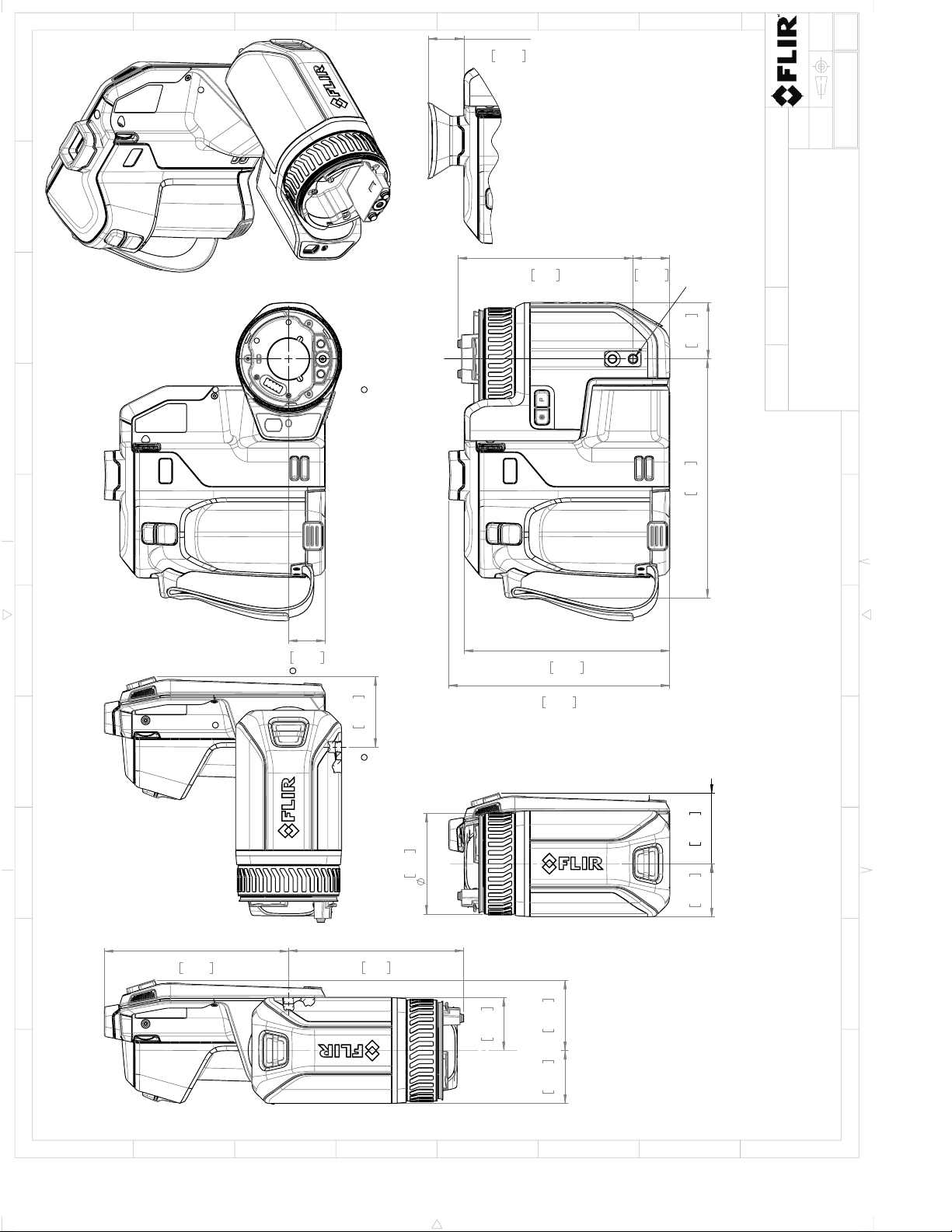

0,98in
25mm
4,7in
119,4mm
5,51in
140mm
1,52in
38,5mm
6,41in
162,8mm
5,93in
150,5mm
UNC ¼” -20
Optical axis
2,7in
68,7mm
1,43in
36,2mm
1,89in
47,9mm
Optical axis
0,98in
25mm
1,89in
47,9mm
4,7in
119,4mm
4,94in
125,5mm
1,89in
47,9mm
1,42in
36mm
1,42in
36,1mm
Optical axis
0,96in
24,3mm
Camera housing
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
1(4)
T129914

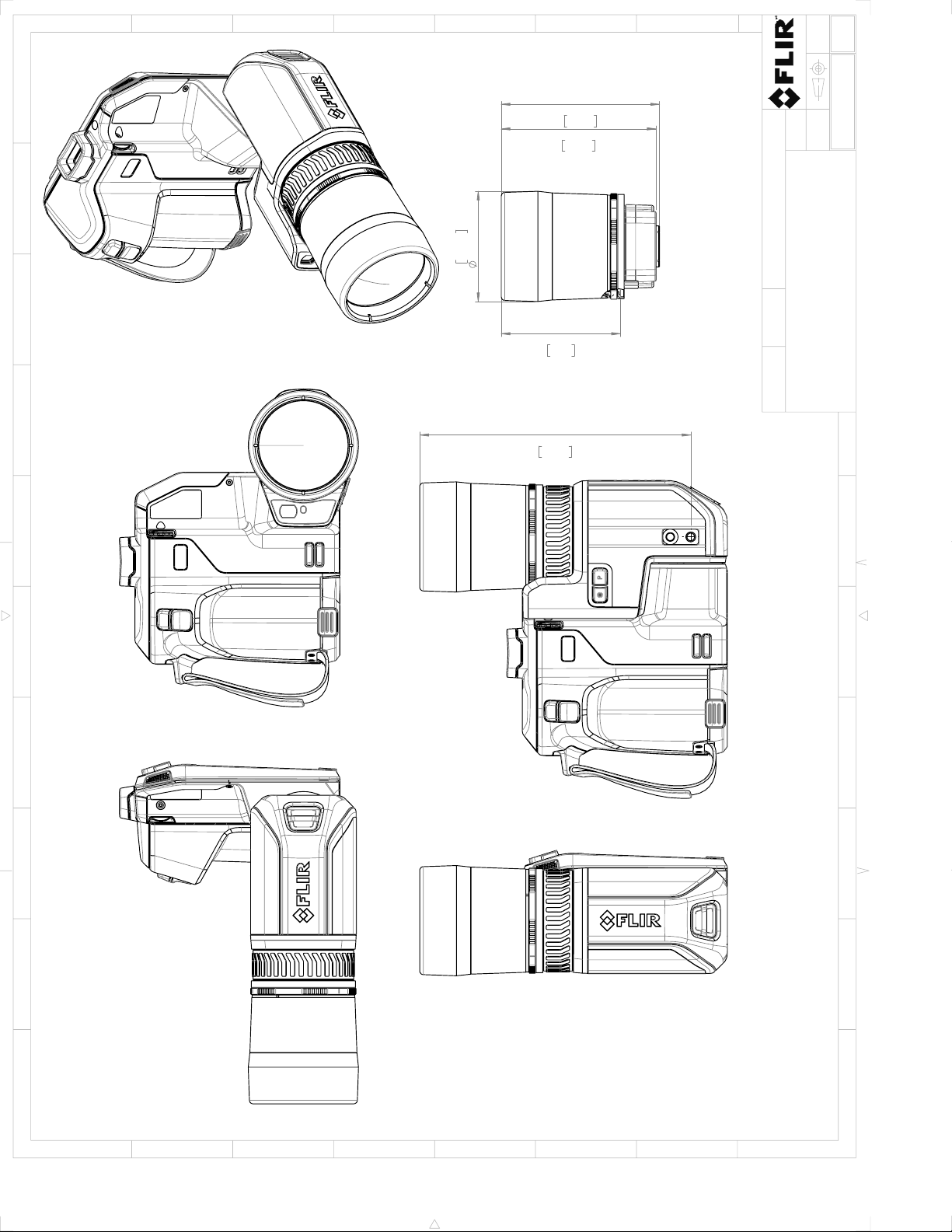

Basic dimensions FLIR T8xx
JOHE
2018-09-24
R&D Instruments
Modified
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
F
G
H
1 32 54
C
F
B
D
G
E
A
6
Rev
A
1:2
Scale
© 2016, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
4,84in
122,9mm
2,83in
72mm
1,68in
42,8mm
1,79in
45,4mm
0,73in
18,7mm
For additional dimensions see page 1
Camera with Lens IR f=17mm (24°)
Camera with Lens IR f=10mm (42°)
Camera with Lens IR f=29mm (14°)
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
2(4)
T129914
Basic dimensions FLIR T8xx
JOHE
2018-09-24
R&D Instruments
Modified
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
F
G
H
1 32 54
C
F
B
D
G
E
A
6
Rev
A
1:5
Scale
© 2016, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
7,28in
184,9mm
4,15in
105,5mm
4,25in
108mm
2,96in
75,2mm
3,2in
81,3mm
For additional dimensions see page 1
Camera with Lens IR f=70mm (6°)
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
3(4)
T129914
Basic dimensions FLIR T8xx
JOHE
2018-09-24
R&D Instruments
Modified
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
F
G
H
1 32 54
C
F
B
D
G
E
A
6
Rev
A
1:5
Scale
© 2016, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
Loading...
