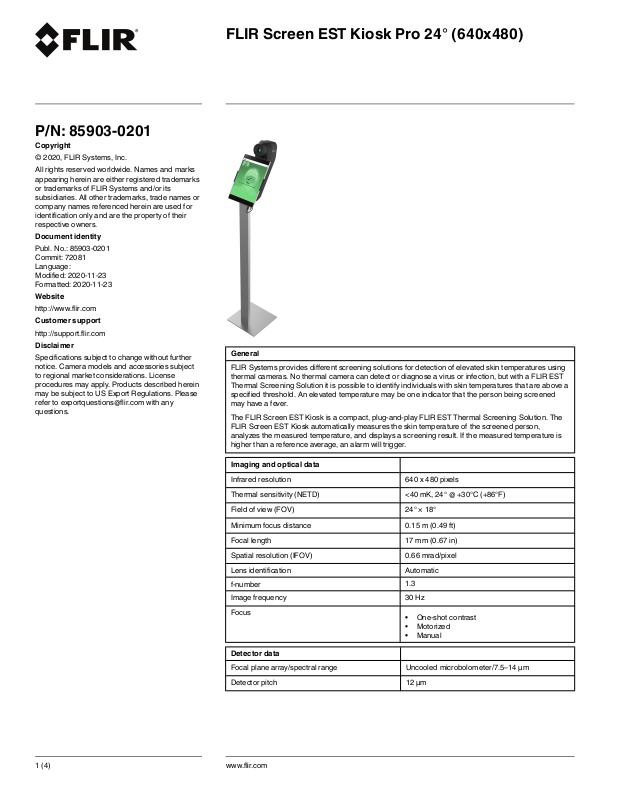

Page 1
P/N: 85903-0201
Copyright
© 2020, FLIR Systems, Inc.
All rights reserved worldwide. Names and marks
appearing herein are either registered trademarks
or trademarks of FLIR Systems and/or its
subsidiaries. All other trademarks, trade names or
company names referenced herein are used for
identification only and are the property of their
respective owners.
Document identity
Publ. No.: 85903-0201
Commit: 72081
Language:
Modified: 2020-11-23
Formatted: 2020-11-23
Website
http://www.flir.com
Customer support
http://support.flir.com
Disclaimer
Specifications subject to change without further
notice. Camera models and accessories subject
to regional market considerations. License
procedures may apply. Products described herein
may be subject to US Export Regulations. Please
refer to exportquestions@flir.com with any
questions.
FLIR Screen EST Kiosk Pro 24° (640x480)
General
FLIR Systems provides different screening solutions for detection of elevated skin temperatures using
thermal cameras. No thermal camera can detect or diagnose a virus or infection, but with a FLIR EST
Thermal Screening Solution it is possible to identify individuals with skin temperatures that are above a
specified threshold. An elevated temperature may be one indicator that the person being screened
may have a fever.
The FLIR Screen EST Kiosk is a compact, plug-and-play FLIR EST Thermal Screening Solution. The
FLIR Screen EST Kiosk automatically measures the skin temperature of the screened person,
analyzes the measured temperature, and displays a screening result. If the measured temperature is
higher than a reference average, an alarm will trigger.
Imaging and optical data
Infrared resolution 640 x 480 pixels
Thermal sensitivity (NETD) <40 mK, 24° @ +30°C (+86°F)
Field of view (FOV)
Minimum focus distance 0.15 m (0.49 ft)
Focal length 17 mm (0.67 in)
Spatial resolution (IFOV) 0.66 mrad/pixel
Lens identification Automatic
f-number
Image frequency 30 Hz
Focus
Detector data
Focal plane array/spectral range Uncooled microbolometer/7.5–14 µm
Detector pitch 12 µm
24° × 18°
1.3
• One-shot contrast
• Motorized
• Manual
1 (4)
www.flir.com
Page 2
FLIR Screen EST Kiosk Pro 24° (640x480)
P/N: 85903-0201
© 2020, FLIR Systems, Inc.
#85903-0201; r. 72081;
Measurement
Camera temperature range 15 to 45°C (59 to 113°F)
Accuracy ±0.3°C (±0.5°F) when used with EST
screening software
Configuration of camera
Web interface Yes
Video streaming
Image quality
Video streaming, Image source 0:
Resolution (source 0) 640 × 480 pixels
Contrast enhancement FSX / Histogram equalization (IR only)
Overlay (source 0) With / Without
Image source (source 0) Visual / IR / MSX
Pixel format (source 0) YUV411
Encoding (source 0) H.264 / MPEG4 / MJPEG
Video streaming, Image source 1:
Resolution (source 1) 1280 × 960 pixels
Overlay (source 1) No
Image source (source 1) Visual
Pixel format (source 1) YUV411
Encoding (source 1) H.264 / MPEG4 / MJPEG
Radiometric streaming
Resolution (radiometric) 640 × 480 pixels
Source IR
Pixel format (radiometric) MONO 16
Encoding (radiometric)
Bit rate set through Camera web
• Compressed JPEG-LS
• FLIR Radiometric
2 (4)
Ethernet
Interface
Connector type
Ethernet, purpose Control, result, image, and power
Ethernet, type 1000 Mbps
Ethernet, standard IEEE 802.3
Ethernet, communication
www.flir.com
• Wired
• Wi-Fi
• M12 8-pin X-coded, Female
• RP-SMA, Female
TCP/IP socket-based FLIR proprietary
Page 3
FLIR Screen EST Kiosk Pro 24° (640x480)
P/N: 85903-0201
© 2020, FLIR Systems, Inc.
#85903-0201; r. 72081;
Digital Input/output
Connector type M12 12-pin A-coded, Male (shared with external
Digital output
Digital output, purpose As function of alarm, output to external device, for
Digital I/O, isolation voltage 500 VRMS
Camera power system
Connector type M12 12-pin A-coded, Male (shared with Digital I/
Power consumption
External power operation
External voltage Allowed range 18–56 V DC
Wi-Fi (Option)
Connector type RP-SMA, Female
Standard IEEE802.11a/b/g/n
Antenna
Connection type Peer to peer (ad hoc) or infrastructure (network)
power)
• 3x opto-isolated, 0–48 V DC, max. 350 mA
(derated to 200 mA at 60C)
• Solid state opto relay
• 1x dedicated as Fault output (NC)
example when the screening alarm is triggered.
O)
• 7.5 W at 24 V DC typical
• 7.8 W at 48 V DC typical
• 8.1 W at 48 V PoE typical
24/48 V DC 8 W max
Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi)
Physical data
Camera unit: Size (L × W × H) 460 × 110 × 180 mm (18 × 4.3 × 7.1 in.)
Camera unit: Weight 2.5 kg (5.5 lb.)
FLIR Screen EST Kiosk: Size (L × W × H) 360 × 270 × 1300 mm (14 × 11 × 51.2 in.)
FLIR Screen EST Kiosk: Weight 8.3 kg (18 lb.)
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type
Packaging, contents
Packaging, weight 14 kg (31 lb)
Packaging, size 1170 × 680 × 150 mm (46.1 × 27 × 5.9 in.)
EAN-13 7332558027592
Cardboard box
• Camera unit
• Surface Pro7 tablet
• Tablet stand
• Mains cables (Europe, UK, US)
• Screening position floor sticker
• FLIR Screen EST license card
• Printed documentation
3 (4)
www.flir.com
Page 4
FLIR Screen EST Kiosk Pro 24° (640x480)
P/N: 85903-0201
© 2020, FLIR Systems, Inc.
#85903-0201; r. 72081;
Shipping information
UPC-12
Country of origin Sweden
845188023645
Supplies & accessories:
• T131177; Roll-up, Backdrop for screening
• T131178; Floor sticker, Direction arrow (5 pcs)
• T131179; Floor sticker, Queue markers (5 pcs)
• T131181; Floor sticker, Position for screening
