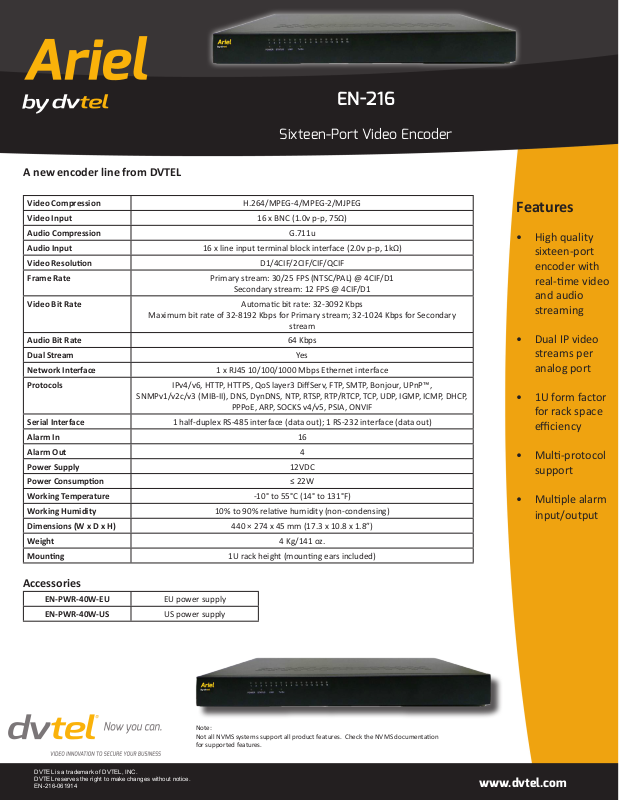

Flir EN-216 Specsheet

A new encoder line from DVTEL

EN-216

Sixteen-Port Video Encoder

Video Compression H.264/MPEG-4/MPEG-2/MJPEG

Video Input 16 x BNC (1.0v p-p, 75Ω)

Audio Compression G.711u

Audio Input 16 x line input terminal block interface (2.0v p-p, 1kΩ)

Video Resoluon D1/4CIF/2CIF/CIF/QCIF

Frame Rate Primary stream: 30/25 FPS (NTSC/PAL) @ 4CIF/D1

Secondary stream: 12 FPS @ 4CIF/D1

Video Bit Rate Automac bit rate: 32-3092 Kbps

Maximum bit rate of 32-8192 Kbps for Primary stream; 32-1024 Kbps for Secondary

stream

Audio Bit Rate 64 Kbps

Dual Stream Yes

Network Interface 1 x RJ45 10/100/1000 Mbps Ethernet interface

Protocols IPv4/v6, HTTP, HTTPS, QoS layer3 DiServ, FTP, SMTP, Bonjour, UPnP™,

SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP/RTCP, TCP, UDP, IGMP, ICMP, DHCP,

PPPoE, ARP, SOCKS v4/v5, PSIA, ONVIF

Serial Interface 1 half-duplex RS-485 interface (data out); 1 RS-232 interface (data out)

Alarm In 16

Alarm Out 4

Power Supply 12VDC

Power Consumpon ≤ 22W

Working Temperature -10° to 55°C (14° to 131°F)

Working Humidity 10% to 90% relave humidity (non-condensing)

Dimensions (W x D x H) 440 × 274 x 45 mm (17.3 x 10.8 x 1.8”)

Weight 4 Kg/141 oz.

Mounng 1U rack height (mounng ears included)

Features

• High quality
sixteen-port
encoder with

real-me video

and audio

streaming

• Dual IP video
streams per

analog port

• 1U form factor
for rack space

eciency

• Mul-protocol
support

• Mulple alarm
input/output

Accessories

EN-PWR-40W-EU EU power supply

EN-PWR-40W-US US power supply

DVTEL is a trademark of DVTEL, INC.
DVTEL reserves the right to make changes without notice.
EN-216-061914

Note:

Not all NVMS systems support all product features. Check the NVMS documentaon
for supported features.
