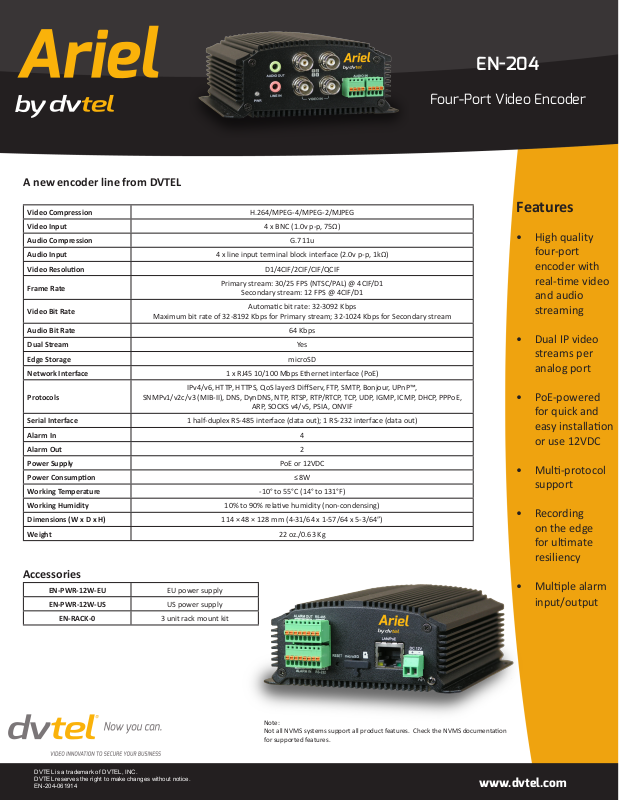

Flir EN-204 Specsheet

A new encoder line from DVTEL

EN-204

Four-Port Video Encoder

Video Compression H.264/MPEG-4/MPEG-2/MJPEG

Video Input 4 x BNC (1.0v p-p, 75Ω)

Audio Compression G.711u

Audio Input 4 x line input terminal block interface (2.0v p-p, 1kΩ)

Video Resoluon D1/4CIF/2CIF/CIF/QCIF

Frame Rate

Video Bit Rate

Audio Bit Rate 64 Kbps

Dual Stream Yes

Edge Storage microSD

Network Interface 1 x RJ45 10/100 Mbps Ethernet interface (PoE)

Protocols

Serial Interface 1 half-duplex RS-485 interface (data out); 1 RS-232 interface (data out)

Alarm In 4

Alarm Out 2

Power Supply PoE or 12VDC

Power Consumpon ≤ 8W

Working Temperature -10° to 55°C (14° to 131°F)

Working Humidity 10% to 90% relave humidity (non-condensing)

Dimensions (W x D x H) 114 × 48 × 128 mm (4-31/64 x 1-57/64 x 5-3/64”)

Weight 22 oz./0.63 Kg

Maximum bit rate of 32-8192 Kbps for Primary stream; 32-1024 Kbps for Secondary stream

IPv4/v6, HTTP, HTTPS, QoS layer3 DiServ, FTP, SMTP, Bonjour, UPnP™,

SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP/RTCP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,

Primary stream: 30/25 FPS (NTSC/PAL) @ 4CIF/D1

Secondary stream: 12 FPS @ 4CIF/D1

Automac bit rate: 32-3092 Kbps

ARP, SOCKS v4/v5, PSIA, ONVIF

Accessories

EN-PWR-12W-EU EU power supply

EN-PWR-12W-US US power supply

EN-RACK-0 3 unit rack mount kit

Features

• High quality
four-port
encoder with

real-me video

and audio

streaming

• Dual IP video
streams per

analog port

• PoE-powered
for quick and

easy installaon

or use 12VDC

• Mul-protocol
support

• Recording
on the edge

for ulmate

resiliency

• Mulple alarm
input/output

DVTEL is a trademark of DVTEL, INC.
DVTEL reserves the right to make changes without notice.
EN-204-061914

Note:

Not all NVMS systems support all product features. Check the NVMS documentaon
for supported features.
