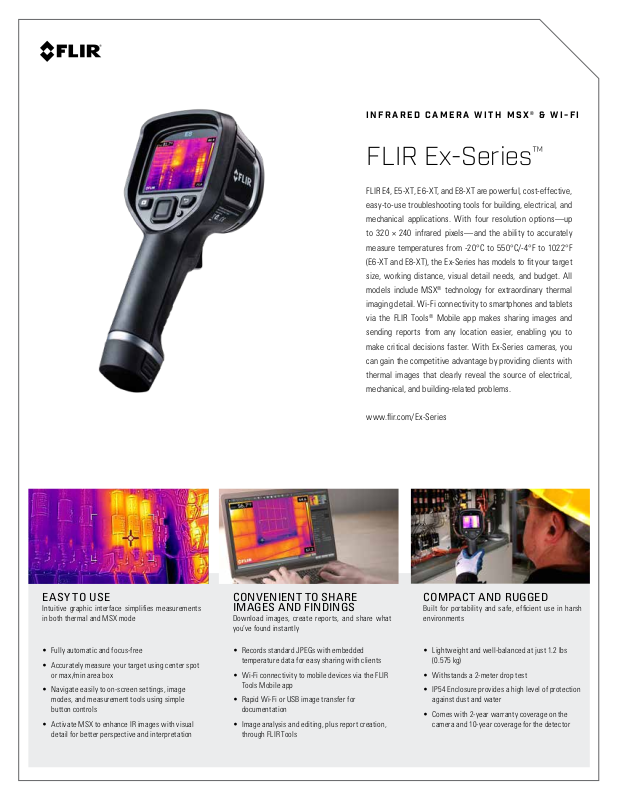

FLIR E5-XT Specifications
INFRARED CAMERA WITH MSX® & WI-FI
FLIR Ex-Series
™
FLIR E4, E5-X T, E6-XT, and E8-XT are powerful, cost-effective,
easy-to-use troubleshooting tools for building, electrical, and
mechanical applications. With four resolution options—up
to 320 × 240 infrared pixels—and the ability to accurately
measure temperatures from -20°C to 550°C/-4°F to 1022°F
(E6-XT and E8-XT), the Ex-Series has models to t your target
size, working distance, visual detail needs, and budget. All
®
models include MSX
imaging detail. Wi-Fi connectivity to smartphones and tablets
via the FLIR Tools
sending reports from any location easier, enabling you to
make critical decisions faster. With Ex-Series cameras, you
can gain the competitive advantage by providing clients with
thermal images that clearly reveal the source of electrical,
mechanical, and building-related problems.
www.ir.com/Ex-Series
technology for extraordinary thermal
®
Mobile app makes sharing images and
EASY TO USE
Intuitive graphic interface simplies measurements
in both thermal and MSX mode
• Fully automatic and focus-free
• Accurately measure your target using center spot
or max/min area box
• Navigate easily to on-screen settings, image
modes, and measurement tools using simple
button controls
• Activate MSX to enhance IR images with visual
detail for better perspective and interpretation
CONVENIENT TO SHARE
IMAGES AND FINDINGS
Download images, create reports, and share what
you’ve found instantly
• Records standard JPEGs with embedded
temperature data for easy sharing with clients
• Wi-Fi connectivity to mobile devices via the FLIR
Tools Mobile app
• Rapid Wi-Fi or USB image transfer for
documentation
• Image analysis and editing, plus repor t creation,
through FLIR Tools
COMPACT AND RUGGED
Built for portability and safe, efcient use in harsh
environments
• Lightweight and well-balanced at just 1.2 lbs
(0.575 kg)
• Withstands a 2-meter drop test
• IP54 Enclosure provides a high level of protection
against dust and water
• Comes with 2-year warranty coverage on the
camera and 10-year coverage for the detector
SPECIFICATIONS
Image and optical data E4 E5-XT E6-XT E8-XT
IR resolution 80 × 60 (4,80 0 pixels) 160 × 120 (19,200 pixels) 240 × 180 (4 3,200 pixels) 320 × 240 (76,800 pixels)
Thermal sensitivity/NETD <0.15°C (0.27°F) / <150 mK <0.10°C (0.27°F) / <100 mK <0.0 6°C (0.11°F ) / <60 mK <0.0 5°C (0.09°F) / <50 mK
Spatial resolution (IFOV ) 10.3 m rad 5.2 mrad 3.4 mrad 2.6 mrad
Field of view (FOV) 45° × 34°
F-number 1.5
Image frequency 9 H
Focus Focus-free
Detector data
Detector t ype Focal Plane Array (FPA), uncooled microbolometer
Spectral range 7.5 –13 µm
Image presentation and modes
Display 3” 320 × 24 0 color LCD
Image adjustment Automatic adjust/lock image
Image modes Thermal MSX , thermal, picture-in-picture, thermal blending, digital c amera
Color palettes Iron, Rainbow, Black & White
Measurement and analysis
Object temperature range –20°C to 250°C (–4°F t o 482°F) -20°C to 40 0°C (- 4°F to 752°F )
in two r anges
Accuracy ±2°C (±3.6°F ) or ±2% of reading for ambient temper ature 10°C to 3 5°C (5 0°F to 95°F) and object temperature above 0 °C (32°F)
Spotmeter Center spot
Area Box wit h max /min
Isotherm Above alarm, below alarm
Data communication and interfaces
Interfaces USB Micro: data t rans fer to and from PC and Mac device
Wi-Fi Peer-to-peer or infrastructure
File for mat Standard JP EG, 14-bit measurement data included
General
Operating temperature range 15°C to 50 °C (5°F to 122°F)
Battery Rechargeable 3.6 V Li ion bat tery
Battery operating time Approx. 4 hours at 25°C (7 7°F) ambient temperature and t ypical use
Battery charging time 2.5 hours to 90 % capacity in camera. 2 hours in charger
Drop 2 m (6.6 ft .)
Camer a weight, incl. b attery 0.575 kg (1.27 lb.)
Camer a size (L × W × H) 244 × 95 × 14 0 mm (9.6 × 3.7 × 5.5 in)
Box contents Infrared camer a, hard transport case, b att ery, USB cable, power supply/charger with E U, UK, US and Australian plugs, printed documentation
-20°C to 550°C (- 4°F to 1022°F)
in two r anges
-20°C to 550°C (- 4°F to 1022°F)
in two r anges
Specications are subjec t to change wit hout notice. For the most up-to -date specs, go to w ww.ir.com
