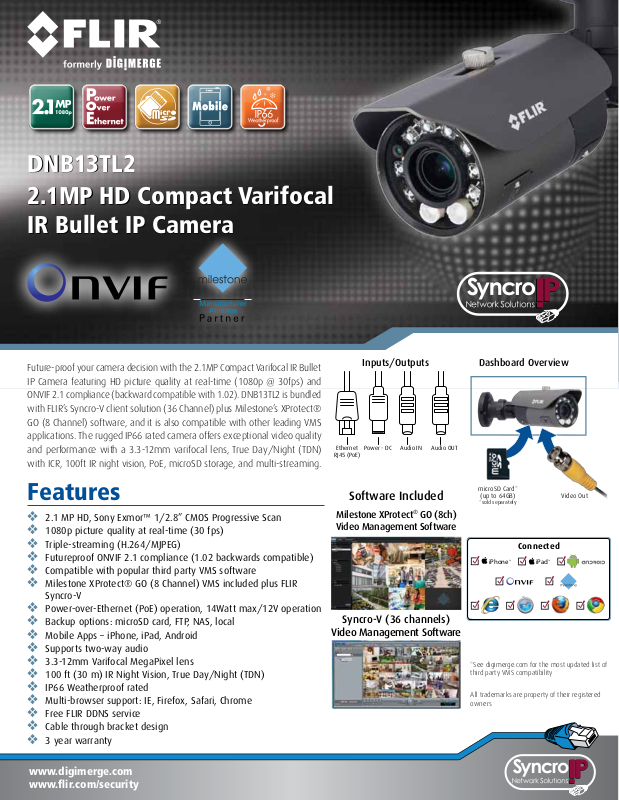

Flir DNB13TL2 Specsheet

DNB13TL2

2.1MP HD Compact Varifocal
IR Bullet IP Camera

Future-proof your camera decision with the 2.1MP Compact Varifocal IR Bullet
IP Camera featuring HD picture quality at real-time (1080p @ 30fps) and
ONVIF 2.1 compliance (backward compatible with 1.02). DNB13TL2 is bundled
with FLIR’s Syncro-V client solution (36 Channel) plus Milestone’s XProtect®
GO (8 Channel) software, and it is also compatible with other leading VMS
applications. The rugged IP66 rated camera offers exceptional video quality
and performance with a 3.3-12mm varifocal lens, True Day/Night (TDN)
with ICR, 100ft IR night vision, PoE, microSD storage, and multi-streaming.

Features

❖❖ 2.1❖MP❖HD,❖Sony❖Exmor™❖1/2.8”❖CMOS❖Progressive❖Scan
❖❖ 1080p❖picture❖quality❖at❖real-time❖(30❖fps)
❖❖ Triple-streaming❖(H.264/MJPEG)
❖❖ Futureproof❖ONVIF❖2.1❖compliance❖(1.02❖backwards❖compatible)
❖❖ Compatible❖with❖popular❖third❖party❖VMS❖software
❖❖ Milestone❖XProtect®❖GO❖(8❖Channel)❖VMS❖included❖plus❖FLIR❖

Syncro-V

❖❖ Power-over-Ethernet❖(PoE)❖operation,❖14Watt❖max/12V❖operation
❖❖ Backup❖options:❖microSD❖card,❖FTP,❖NAS,❖local
❖❖ Mobile❖Apps❖–❖iPhone,❖iPad,❖Android
❖❖ Supports❖two-way❖audio
❖❖ 3.3-12mm❖Varifocal❖MegaPixel❖lens
❖❖ 100❖ft❖(30❖m)❖IR❖Night❖Vision,❖True❖Day/Night❖(TDN)
❖❖ IP66❖Weatherproof❖rated
❖❖ Multi-browser❖support:❖IE,❖Firefox,❖Safari,❖Chrome
❖❖ Free❖FLIR❖DDNS❖service
❖❖ Cable❖through❖bracket❖design
❖❖ 3❖year❖warranty

Ethernet

Power - DC Audio IN Audio OUT

RJ45 (PoE)

Software Included

Milestone XProtect® GO (8ch)
Video Management Software

Syncro-V (36 channels)

Video Management Software

Dashboard OverviewInputs/Outputs

microSD Card*

(up to 64GB)

*sold separately

Connected

™

iPhone

*See digimerge.com for the most updated list of
third party VMS compatibility

All trademarks are property of their registered
owners

iPad

Video Out

™

www.digimerge.com
www.flir.com/security

Specifications

Camera

Sensor/DSP:

Day/Night:

Resolutions and Max
supported frame rate:

Min. Illumination:

Lens:

Horizontal Field of View:

IR LED:

IR Distance:

Video Output:

Electronic Shutter:

Video

Compression:

Bit Rate (CBR/VBR):

Quality Setting:

Multi- Streaming:

Brightness/Sharpness:

Gain Control:

Orientation:

Text Overlay:

Masking:

Network

Ethernet:

TCP/IP:

Compliance:

RTSP Video:

Web Language:

Recording Simultaneous:

Network Protocols:

1/2.8”❖CMOS❖Progressive❖Scan

True❖Day/Night❖with❖ICR❖Filter.❖❖
High❖Powered❖IR❖LEDs

1920x1080❖Full❖HD❖2.1MP❖at❖30fps

Color:❖0.1❖lux@F1.2❖/❖❖
(0❖Lux❖IR❖LED❖On)

3.3-12mm❖Vari-focal

30°❖~❖79°

10pc❖Super❖Flux❖LEDs❖850nm

100❖feet/30❖Meters

RJ45,❖Setup/Service❖BNC❖Video❖Out

Auto/User❖1/5❖-❖1/50,0000

H-264❖High❖Profile❖(Support❖Baseline❖Profile/
MJPEG)

Stream1❖20Kbps❖-❖5Mbps❖;❖Stream2❖10Kbps❖-❖
6Mbps❖;❖Stream3❖(MJPEG❖Fixed)

1❖-❖9❖(9❖Highest)

User❖setting❖of❖Stream❖1/2❖at❖supported❖
Resolutions,❖Stream3❖fixed❖MJPEG❖Stream

Variable❖0~100/0~100

Auto/Fixed❖8~102db

Horizontal❖Mirror/Vertical❖Flip

Time/Date/Camera/Custom❖OSD

3❖User❖defined❖masking❖areas❖<❖8%❖of❖total❖

1❖Ethernet❖(10/100❖Base-T)❖RJ-45❖Connector❖
one❖network❖coupler❖supplied

IPv4/IPv6❖(DHCP/Fixed)

Onvif❖2.1❖(1.02❖backward❖compatible)

Standard❖RFC2326,❖Support❖QuickTime/VLC❖
Player.❖User❖security❖authentication❖(Enabled/
Disabled)

English,❖Chinese,❖Russian,❖Polish

Local❖microSD❖Memory*,❖Remote❖FTP❖server,❖
TCP/UDP❖CMS,❖RTSP❖connection❖(stream❖1,2❖or❖3)

HTTP,❖TCP/IP,❖UDP/IP,❖RTSP,❖FTP,❖DHCP,❖NTP,❖
PPoE.

Video❖streaming❖from❖SDK❖&❖NVMS/NVR❖
software❖or❖3rd❖party❖applications.

User❖Ports❖setting❖for❖Web❖port,❖RTSP❖Port,❖
and❖SDK❖Control❖Port❖and❖Alarm❖Port.

Audio

Input/Output:

Audio Compression:

1❖x❖RCA❖Input/1❖x❖RCA❖Audio❖Output❖1v❖Line❖
Level

G711❖A-Law,❖G711❖U-Law,❖RAW_PCM

General

Power:

Power over Ethernet:

Operating Temperature:

Operating Humidity

Approvals

Product Dimensions

Product Weight

12V❖DC,❖740mA/9W

PoE❖Class❖3,❖14W❖max

-4°F❖to❖122°F/-20ºC❖to❖50ºC

10%❖-❖85%❖RH

CE/FCC/RoHS❖Compliant/IP66/IK10

10.5❖x❖3.3”/265❖x❖83mm

0.85kg/1.9lb

Dimensions

Product Information

UPC: 8-41430-00872-9

Weight: 1.13kg/2.5lbs

Package
Dimensions:
(W x D x H)

Package Cube: 0.0058 cbm/0.203cu ft

300 x 160 x 120mm

11.8 x 6.1 x 4.7”

What’s Included:

Software CD:

Milestone XProtect® GO Software

Syncro-V

Auto Port Forwarding wizard

User Manual

Surface Mounting Template

*microSD card not included. Up to 64GB.

FLIR Systems Inc.
250 Royal Crest Court, Markham, ON Canada L3R 3S1
Tel: [phone] Fax: [phone]

www.digimerge.com www.flir.com/security

Because our products are subject to continuous

improvement, FLIR reserves the right to modify

product design and specifications without notice and

without incurring any obligation. E&O.E.

1-12092013
