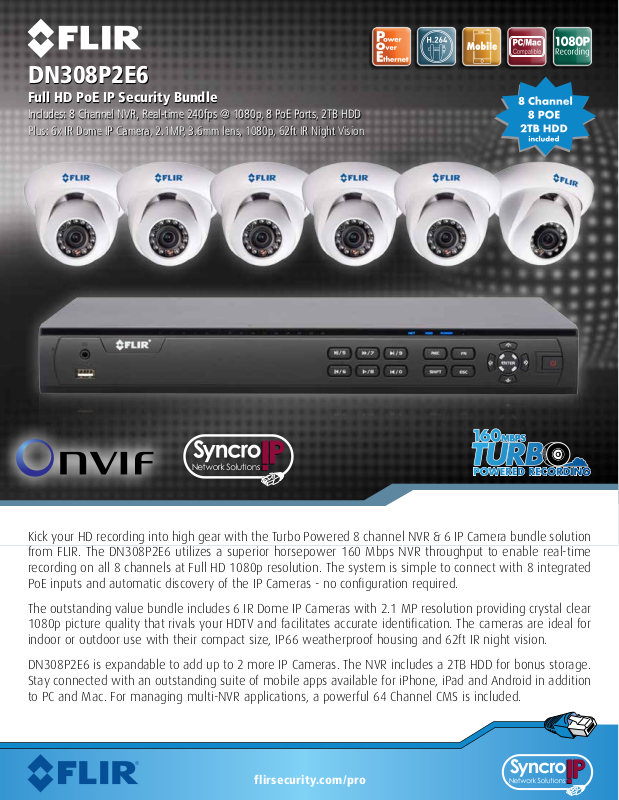

Page 1
DN308P2E6
Full HD PoE IP Security Bundle
Includes: 8 Channel NVR, Real-time 240fps @ 1080p, 8 PoE Ports, 2TB HDD
Plus: 6x IR Dome IP Camera, 2.1MP, 3.6mm lens, 1080p, 62ft IR Night Vision
Kick your HD recording into high gear with the Turbo Powered 8 channel NVR & 6 IP Camera bundle solution
from FLIR. The DN308P2E6 utilizes a superior horsepower 160 Mbps NVR throughput to enable real-time
recording on all 8 channels at Full HD 1080p resolution. The system is simple to connect with 8 integrated
PoE inputs and automatic discovery of the IP Cameras - no configuration required.
The outstanding value bundle includes 6 IR Dome IP Cameras with 2.1 MP resolution providing crystal clear
1080p picture quality that rivals your HDTV and facilitates accurate identification. The cameras are ideal for
indoor or outdoor use with their compact size, IP66 weatherproof housing and 62ft IR night vision.
DN308P2E6 is expandable to add up to 2 more IP Cameras. The NVR includes a 2TB HDD for bonus storage.
Stay connected with an outstanding suite of mobile apps available for iPhone, iPad and Android in addition
to PC and Mac. For managing multi-NVR applications, a powerful 64 Channel CMS is included.
flirsecurity.com/pro
Page 2
DN308P2E6
System Includes:
64 Channel CMS Included
NVR Features
Easiest Connection
PoE Switch Built-In
C CO E EN N T D
*Trademarks are property of their registered owners
*
EASY NVR
8 x PoE
Easy Connection and setup with 8 integrated Power over
Ethernet (PoE) ports and auto-discovery of IP Cameras
Full HD 1080P recording provides the most detailed picture and
reliable identification with selectable area digital zoom
Record 8 cameras in Real-Time (30 fps per channel) at 1080p Full
HD quality
Turbo Powered recording bit rate of 160Mbps
Dual streaming (H.264) and dual core processing
ONVIF 2.1 conformance
64 Channel CMS by FLIR included
2.1MP HD IR Dome IP Camera
2.1 MP HD, 1/3” CMOS Progressive Scan
1080p picture quality at realtime (30 fps)
ONVIF 2.1 compliant (backwards compatible)
Compatible with popular third party VMS software
Dual-streaming (H.264/MJPEG)
64 channel CMS by FLIR included
Power-over-Ethernet (PoE), 14Watt max/12V operation
Mobile Apps – iPhone, iPad, Android
Fully PC/Mac compatible
Mobile apps: iPhone, iPad, Android
Advanced mobile app features: remote playback, push
notifications for motion/alarm, E-map, manual record/
snapshot to device
HDMI/VGA/BNC simultaneous video output
Free DDNS service by FLIR with secure and redundant servers
Supports 2x SATA HDDs up to 4 TB (8 TB total), 2 x USB 2.0 ports
Audio I/O: 1 in -1 out
5/3/1 Fortress Vision warranty
IP66 weatherproof rating
3.6mm wide angle lens
62ft (19m) IR Night Vision/TDN
3-Axis design for Wall/Ceiling mounting
Free DDNS service by FLIR
Multi-browser support: IE, Firefox, Safari, Chrome
Advanced Digital Noise Reduction
3 year warranty
Includes:
8 Channel
Network Video Recorder
2 x Power Adapters
6 x IR Dome IP Cameras USB Mouse
Ethernet Cable
Quick Start Guides
flirsecurity.com/pro
2TB HDD
CD (Software & Manual)
Remote Control
Page 3
Specifications
NVR System
Main Processor: Dual-core embedded processor
Operating System: Embedded LINUX
Pentaplex Operation:
Simultaneous View, Record, Playback, Backup,
and Remote Monitoring
Inputs/Outputs
IP Camera Input: 8 channel
Power over Ethernet (PoE):
Audio: 1 channel input (BNC), 1 channel output (BNC)
PTZ: RS-485, supports Pelco-D and Pelco-P
USB: 2 ports
Alarm Input: 8 Channel
Relay Out: 3 Channel
8 integrated PoE ports
Display
Interface: 1 HDMI, 1 VGA, 1 BNC
Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split: 1/4/8
OSD: Camera title, Time, Camera Lock, Motion
Detection, Recording Status
Recording
Compression: H.264
Resolution: 1080P (1920×1080) / 720p (1280x720)
Record Rate: 240fps@1080p
Bit Rate: 160Mbps
Record Mode: High Quality Stream/Sub-Stream Recording:
Record Interval: 1~120 min (default: 60 min), Pre-record: 1~30
Manual, Schedule, Motion Detection, Alarm
sec, Post-record: 10~300 sec
Video Detection and Alarm
Trigger Events: Recording, PTZ, Tour, Alarm, Video Push, Email,
Video Detection: Motion Detection
FTP, Buzzer & Screen tips
Playback and Backup
Sync Playback: 1/4/8
Playback Function: 8 Channel
Backup Mode: USB Device / Network
Configuration Backup: To USB Device
Network
Ethernet: RJ-45 port (10/100M/1000M)
Network Function: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP,
Max. User Access: 20 simultaneous users
Smart Phone: iPhone, iPad, Android
IP Cameras Supported: FLIR, Digimerge, Panasonic, Sony, Dynacolor,
NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm
Server, IP Search
Samsung, AXIS, Arecont, Bosch, Canon,
Honeywell, Pelco, Vivotek, Sanyo, Tyco
Storage
SATA ports: 2 internal SATA ports (2HDDs)
Maximum Storage Capacity:
8 TB (2 x 4 TB) internal
IP Camera
Sensor/DSP:
Scanning System:
Day/Night:
Resolutions/frame rate:
Min. Illumination:
Lens:
Field of View (H/V):
IR LED:
IR Distance:
Video Output:
Electronic Shutter Speed:
S/N Ratio:
Video
Compression:
Bit Rate:
Frame Rate:
Multi- Streaming:
Resolution:
Backlight Compensation:
White Balance:
Gain Control:
Noise Reduction:
Privacy Masking:
Network
Ethernet:
TCP/IP:
Compliance:
Max. User Access:
Smart Phone:
Protocol:
General
Power:
Power over Ethernet:
Operating Temperature:
Operating Humidity:
Approvals:
Camera Weight:
2.1 MP 1/3” CMOS
Progressive Scan
True Day/Night with ICR Filter. High
Powered IR LEDs
1920x1080 Full HD 2.1MP @ 30fps
Color: 0.1 lux@F1.2/0 Lux IR LED On
3.6mm Fixed Mega Pixel
70°/46°
12 LEDs
62 feet/19 Meters
RJ45
Auto/Manual, 1/4~1/10000s
>50dB
H.264 / MJPEG
H.264: 32K ~ 8192Kbps, MJPEG: 32K ~20480Kbps
Main Stream 1080P/720P(1 ~ 30fps)
Sub stream D1/CIF (1~30fps)
User setting of Stream 1/2 (at supported
Resolutions)
1080P(1920×1080) / 720P(1280×720) /
D1(704×480) / CIF(352×240)
BLC / HLC / DWDR
Auto
Auto/Manual
2D
Up to 4 areas
1 Ethernet (10/100 Base-T) RJ-45 Connector
IPv4/IPv6
Onvif 2.1
10 users
iPhone, iPad, Android
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,
PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
12v DC, <5W
PoE Class 3, 14W max, 802.3af
14°F to 122°F/-20°C to 60°C
10% - 85% RH
CE/FCC/RoHS Compliant/IP66
0.4kg
Dimensions
Weight: 2.3kg / 5.1lbs
Power
Power Supply: 1x 12V DC 5A (for NVR); 1x 48V DC 2.5A (for PoE)
flirsecurity.com/pro
Page 4
Specifications
/ 114mm
Package Dimensions
Weight: 6.7kg /14.8lbs
Package
Dimensions:
460 x 376 x 312mm / 18.1 x 14.8 x 12.3”
(W x H x D)
Cube: 0.054 Cubic Metres / 1.9 Cubic Feet
NVR Dimensions
375mm/14.8”
Front
285mm/11.2”
Side
50mm/
2.0”
NVR Back Panel
Network (LAN) RS232 Power SwitchAlarm In/OutVideo OutPower (forPoE)
Mic In/Out
USB Port
VGA
HDMI
Power (for NVR)PoE Video In x8
Product Information
UPC: 8-41430-00942-9
Includes: NVR, HD Dome IP Cameras (x6), 1 x 2TB HDD, USB
mouse, remote control, power adapters (x2), ethernet
cable, quick start guide, CD (software & manual)
IP Camera Dimensions
3.4” / 86mm
4.5”
flirsecurity.com/pro
FLIR Systems, Inc
250 Royal Crest Court, Markham, ON Canada L3R 3S1
Tel: 905.946.8477 Fax: 905.947.0138
Because our products are subject to continuous
improvement, FLIR Systems reserves the right to
modify product design and specifications without
notice and without incurring any obligation. E&O.E.
1-04102014
