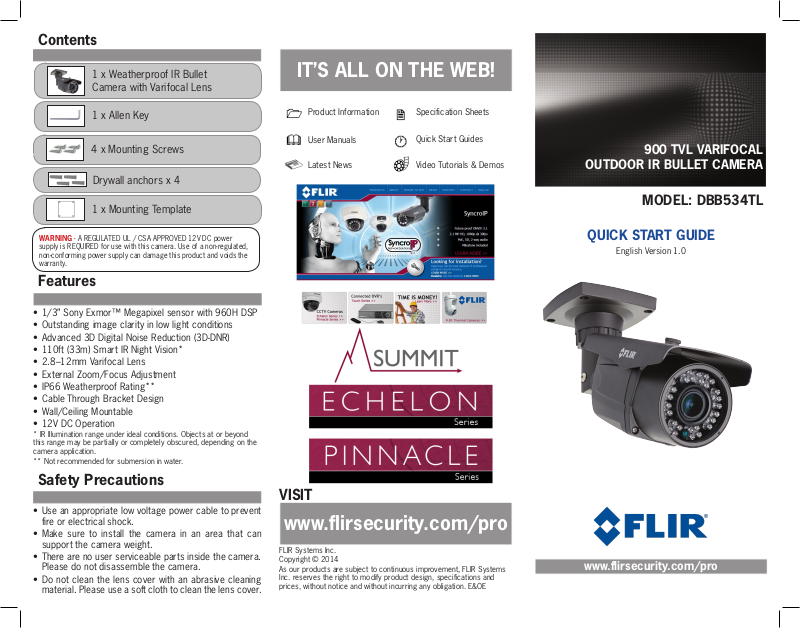

Flir DBB534TL Quick Start Guide
Contents
1 x Weatherproof IR Bullet
Camera with Varifocal Lens
1 x Allen Key
4 x Mounting Screws
Drywall anchors x 4
1 x Mounting Template
WARNING - A REGULATED UL / CSA APPROVED 12V DC power
supply is REQUIRED for use with this camera. Use of a non-regulated,
non-conforming power supply can damage this product and voids the
warranty.
Features
• 1/3” Sony Exmor™ Megapixel sensor with 960H DSP
• Outstanding image clarity in low light conditions
• Advanced 3D Digital Noise Reduction (3D-DNR)
• 110ft (33m) Smart IR Night Vision*
• 2.8–12mm Varifocal Lens
• External Zoom/Focus Adjustment
• IP66 Weatherproof Rating**
• Cable Through Bracket Design
• Wall/Ceiling Mountable
• 12V DC Operation
* IR Illumination range under ideal conditions. Objects at or beyond
this range may be partially or completely obscured, depending on the
camera application.
** Not recommended for submersion in water.
IT’S ALL ON THE WEB!
Product Information
User Manuals
Specification Sheets
Quick Start Guides
Video Tutorials & DemosLatest News
900 TVL VARIFOCAL
OUTDOOR IR BULLET CAMERA
MODEL: DBB534TL
QUICK START GUIDE
English Version 1.0
Safety Precautions
• Use an appropriate low voltage power cable to prevent
fire or electrical shock.
• Make sure to install the camera in an area that can
support the camera weight.
• There are no user serviceable parts inside the camera.
Please do not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning
material. Please use a soft cloth to clean the lens cover.
VISIT
www.flirsecurity.com/pro
FLIR Systems Inc.
Copyright © 2014
As our products are subject to continuous improvement, FLIR Systems
Inc. reserves the right to modify product design, specifications and
prices, without notice and without incurring any obligation. E&OE
www.flirsecurity.com/pro
Installing the Camera
Camera SpecificationsSetting up the Camera
ATTENTION - Test the camera prior to selecting a permanent
mounting location by temporarily connecting the camera(s) and
cables to the DVR.
To install the camera:
1. Use the camera base or mounting template
to drill holes in
Camera base
NOTE: Insert the included drywall anchors if
installing the camera in drywall.
2. Connect the power and video cables
according to the section ‘Setting up the
Camera.’
3. Mount the camera to the wall or ceiling
using the included mounting screws.
4. Loosen the camera stand screws using
the included allen key. Loosen the
adjustment ring.
the wall or ceiling.
1. Connect the BNC connector of the camera
to the video cable.
2. DC Power—Power Adapter: Connect a
12V DC Power Adapter (not included) to
the camera. Plug the Power Adapter into a
local power outlet.
• DC Power—Power Pigtail (not included):
Connect a Power Pigtail to the camera.
Connect the terminating wires of the cable
directly to the DC power source.
NOTE: For pigtail connection with 12V DC, make sure to
check polarity specifications on the power adapter.
3. Use the included Allen key to adjust the
ZOOM and FOCUS control screws on the
bottom of the camera as required.
FOCUS
ZOOM
Image Sensor 1/3” Sony Exmor™ Megapixel CMOS
Video Format NTSC
Effective Pixels H: 1305 V: 1049
Horizontal Resolution 900 TVL
Scan System 2:1 Interlace
Sync System Internal
S / N Ratio 48dB
Iris AES
AES Shutter Speed 1/60 ~ 1/100,000 sec.
Min. Illumination 0.01 LUX (IR Off)
0 LUX (IR LEDs ON)
Video Output Composite 1.0Vpp @ 75ohm
Lens Focal Length / Type 2.8–12mm F1.4 / Varifocal
FOV (Diagonal) 29–93°
Termination BNC Type
IR Range / Qty. 110ft / 33m; 36 IR LED’s
Power Requirement 12V DC ± 10%
Power Consumption 440mA MAX with IR LED
Operating Temp. Range –4° ~ 122°F / –20° ~ 50°C
Environmental Rating IP66
Dimensions L: 9.3” (235mm), W: 4.4” (111mm),
H: 5.1” (130mm)
Weight (including stand) 1.7lbs / 0.8kg
Adjustment
ring
Camera Stand Screws
5. Move the camera to the desired
position, and while holding it firmly in
place, turn the adjustment ring on the
camera stand clockwise to tighten.
Tighten the screws on the camera
stand.
Dimensions
235mm / 9.3”
130mm
5.1”
95mm / 3.7”
