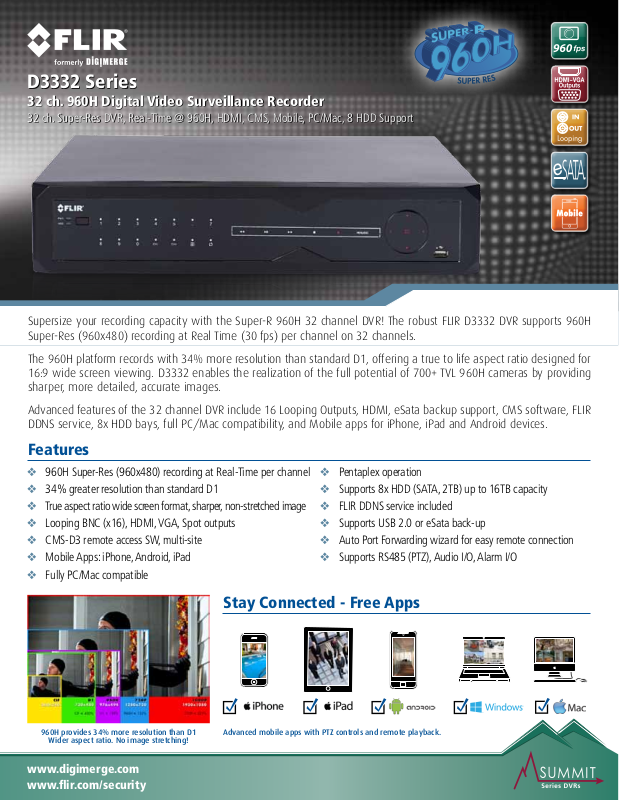

D3332 Series
32 ch. 960H Digital Video Surveillance Recorder
32 ch. Super-Res DVR, Real-Time @ 960H, HDMI, CMS, Mobile, PC/Mac, 8 HDD Support
Supersize your recording capacity with the Super-R 960H 32 channel DVR! The robust FLIR D3332 DVR supports 960H
Super-Res (960x480) recording at Real Time (30 fps) per channel on 32 channels.
The 960H platform records with 34% more resolution than standard D1, offering a true to life aspect ratio designed for
16:9 wide screen viewing. D3332 enables the realization of the full potential of 700+ TVL 960H cameras by providing
sharper, more detailed, accurate images.
Advanced features of the 32 channel DVR include 16 Looping Outputs, HDMI, eSata backup support, CMS software, FLIR
DDNS service, 8x HDD bays, full PC/Mac compatibility, and Mobile apps for iPhone, iPad and Android devices.
Features
960H Super-Res (960x480) recording at Real-Time per channel
34% greater resolution than standard D1
True aspect ratio wide screen format, sharper, non-stretched image
Looping BNC (x16), HDMI, VGA, Spot outputs
CMS-D3 remote access SW, multi-site
Mobile Apps: iPhone, Android, iPad
Fully PC/Mac compatible
Pentaplex operation
Supports 8x HDD (SATA, 2TB) up to 16TB capacity
FLIR DDNS service included
Supports USB 2.0 or eSata back-up
Auto Port Forwarding wizard for easy remote connection
Supports RS485 (PTZ), Audio I/O, Alarm I/O
Stay Connected - Free Apps
960H provides 34% more resolution than D1
Wider aspect ratio. No image stretching!
www.digimerge.com
www.flir.com/security
Advanced mobile apps with PTZ controls and remote playback.
Specifications
System
Operating System Embedded LINUX
Pentaplex Simultaneous View, Record, Playback, Backup &
Number of Channels 32 Channel
System Navigation USB Mouse, IR Remote Controller
User Authority By user group
Remote Monitoring
Inputs/Outputs
Video IN 32 x 1Vp-p, CVBS, 75ohms, BNC
Video Outputs 2 x BNC
Loop Output 16CH
Audio IN 16CH BNC
Audio OUT 2CH BNC
USB Port 2x USB, USB 2.0
Alarm IN 16CH
Alarm OUT 4ch Out
PTZ control RS-485 Pelco D & P Protocol
Display
Video Output Resolution 800*600,1024*768, 1280*1024,1440*900,
Live Display 1, 4, 9, 16, 25, 32
1920x1080
Recording
Video Compression H.264
Audio Compression G.711
Recording Resolutions
Supported
Recording Speed 960H (960x480) @ 30fps per channel / D1
Recording Quality Control 3 levels
Motion Area Setting Adjustable grid (30x44) NTSC
Sensitivity levels 8
Pre Recording Max. 10 Seconds
Post Recording Max. 5 Minutes
Covert Video Yes
NTSC: 960x480 (960H), 960x240, 720x480
(D1), 720x240 (2CIF), 480x240, 360x240 (CIF)
PAL: 960x576 (960H), 960x288, 720x576 (D1),
720x288 (2CIF), 480x288, 360x288 (CIF)
(720x480) @ 30fps per channel
Adjustable grid (36x44) PAL
Playback
Playback Channel 1/4/8/16 Adjustable
Playback Speed Variable Max 16x
Playback Players Backup Player
Search By time & event
Log Search Up to 1,000,000 lines for motion detected,
Audio Play Yes
configuration changes, connects/disconnects
and video loss.
Storage & Backup
Storage Up to 8 HDDs (SATA) 3.5”
Maximum Capacity Up to 8 x 2TB
Backup Media USB Flash Drive, USB External HDD, E-SATA
Backup File Format H.264 file (AVI generator included)
Configuration Backup Via USB Device
External HDD
Network
Supported Operating
Systems
Browsers Internet Explorer & Safari 6.0
Email notification Text with snapshot
Instant Smart Phone
Compatibility*
System Configuration Full setup configuration over network
Ports Programmable by User
Network Protocol TCP/IP / DHCP / UDP / DDNS / PPPoE
Network Interface 10/100-Base-TX, RJ-45
Network Speed Control 48Kb ~ 8MB/sec.
Firmware Upgrade Via USB device and Network
Time Synchronization Auto time sync by NTP server
Windows™ XP, Vista, 7, 8
Mac OSX Snow Leopard 10.6 or above
Smart Phone & Tablet Compatibility: iPad™,
iPhone™, Android (version 2.2 & above).
General
Supply Voltage 100VAC-240VAC, 6.3A, 50/60Hz
Unit Dimensions
(W x D x H)
Unit Weight (KGs) 7.8 kg / 17.2lbs
Operating temperature 32° ~ 104° F / 0° ~ 40° C
DDNS FLIR DDNS included
Humidity 10 ~ 90% NC
17.32 x 18.11 x 3.5”/
440 x 460 x 89mm
* Microsoft Windows™ is a trademark of Microsoft
Corporation. iPhone®, iPad® and Mac® are trademarks of
Apple Inc. Android™ is a trademark of Google Inc.
