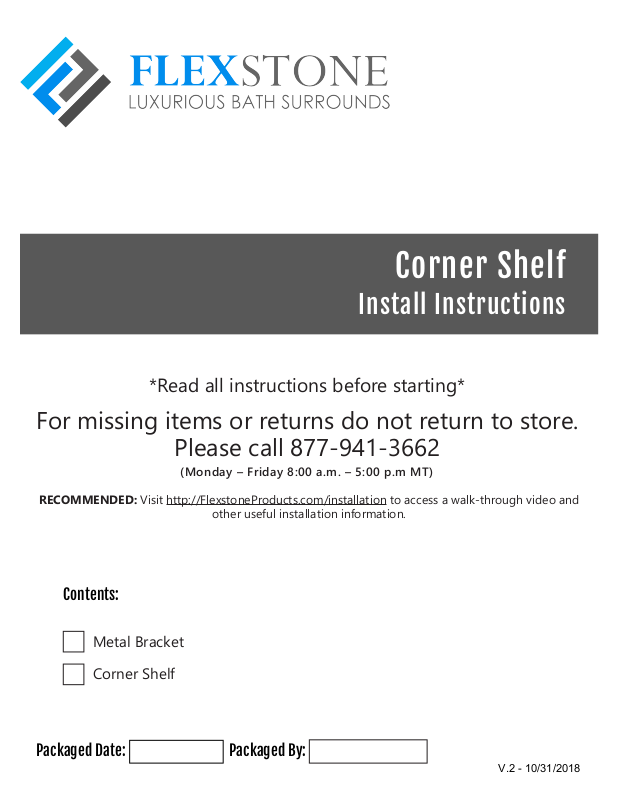

Corner Shelf
V.2 - 10/31/2018
Install Instructions
*Read all instructions before starting*
For missing items or returns do not return to store.
Please call 877-941-3662
(Monday – Friday 8:00 a.m. – 5:00 p.m MT)
RECOMMENDED: Visit http://FlexstoneProducts.com/installation to access a walk-through video and
other useful installation information.
Contents:
Packaged Date: Packaged By:
Metal Bracket
Corner Shelf
Corner Shelf Instructions
V.2 - 10/31/2018
Corner Shelf with Bracket
FLXCSB15
Installation of Corner Shelf
NOTE: Corner shelf includes a folding-triangle metal bracket with
screw holes which is designed to mount directly to the FlexStone wall
panels. Be sure to peel away protective masking from the wall panels
before securing the bracket.
1. Position corner shelf bracket in desired corner at desired
height. Use a level to mark level lines in pencil. Adjust the
alignment to include a slight forward slope for water runo.
2. Using drywall screws or other coarse-thread screws, fasten each side of the bracket using pre-drilled holes through
the FlexStone panels and the sheetrock.
3. Fold bracket and complete triangle by bending the tab
over to secure bracket. Dry t the corner shelf material over
the bracket. If corner is out of square, trim one side of shelf
to achieve a tight t.
4. Peel back protective masking from edges of shelf,
apply adhesive to top and bottom of bracket and place
FlexStone material over bracket like a clamshell.
5. Apply 100% silicone sealant to all joints where corner
shelf meets the wall panels. Follow any directions on the
silicone tube.
– 1 –
