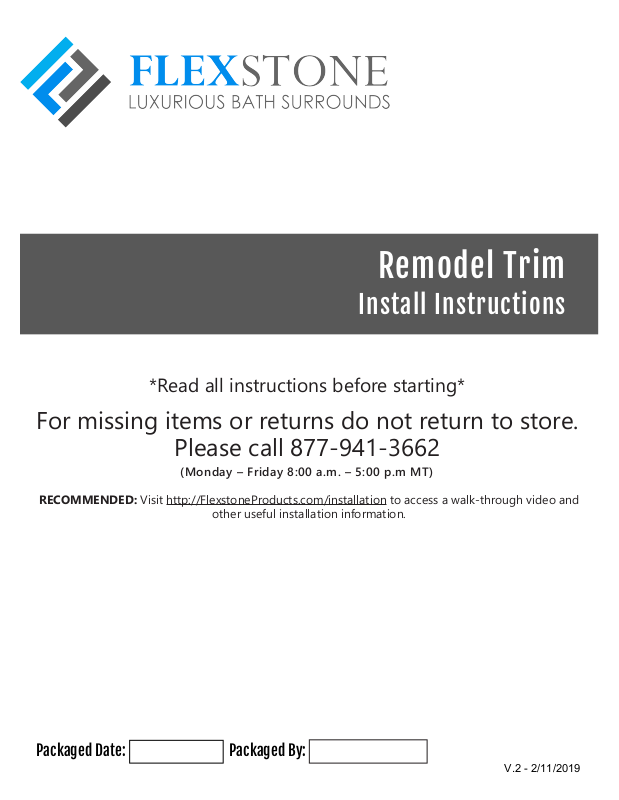

Remodel Trim
V.2 - 2/11/2019
Install Instructions
*Read all instructions before starting*
For missing items or returns do not return to store.
Please call 877-941-3662
(Monday – Friday 8:00 a.m. – 5:00 p.m MT)
RECOMMENDED: Visit http://FlexstoneProducts.com/installation to access a walk-through video and
other useful installation information.
Packaged Date: Packaged By:
Remodel Trim Instructions
V.2 - 2/11/2019
Remodel Trim
FLXRTK3296
Installation of Remodel Trim
1. Remodel Trim allows FlexStone to be used over existing
tile. Tile should be in good shape, clean and dry, and wall sur-
faces should be at (i.e. remove any accessories that would
interfere with the FlexStone panels). The Remodel Trim will
need to be cut to proper length and mitered according to the
FlexStone Bath Kit being installed.
2. The return lip of the trim (the one without the nished
edge) is oversized to t almost any bathroom tile thickness,
and should be cut to size depending on your tile thickness.
Size the lip to cover the existing tile, plus the FlexStone wall
panel, plus approx. 1/4” of space for adhesive (adhesive
between tile and FlexStone wall panel, and adhesive between
panel and trim molding). Use a table saw, if available, to easily rip the trim lip to size, or a straight edge and utility knife.
3. Follow instructions for installation of your particular FlexStone Bath kit, using the Remodel Trims in place of standard
trims.
Cut lip to size depending
on tile thickness
– 1 –
