FLEXLINK TCEL40MB Datasheet

Page 1
ENCLOSURES AND SAFETY GUARDS
PRODUCT CATALOGUE
Page 2
Page 3
© Copyright FlexLink 2021
The contents of this publication are the copyright of the publishers and may not be reproduced (even extracts) unless permission is granted. Every care has been taken to ensure the accuracy of the information but no liability can be accepted for any errors or omis­sions. The right is reserved to make design modifications.
Patents
Essential parts of the FlexLink product range are protected by pat­ents and design regulations. Drawings are made to European standards.
Profile system TC40
© FlexLink 2021 1
Page 4
2 © FlexLink 2021
Page 5
Contents
Safety engineering ......................................................5
Icon overview..............................................................7
Profiles TC40
Summary of TC40 profiles ..........................................9
Common dimensions ................................................10
Aluminum profiles, Light ...........................................11
Aluminum profiles, Basic ..........................................12
Aluminum profiles, Heavy .........................................18
Aluminum profiles, Ultra ...........................................21
Aluminum profiles, others.........................................23
Aluminum profiles, TC40 Roller conveyors ...............25
End caps....................................................................26
Dimensions End caps................................................27
Plastic extrusion profiles
Cover and frame profile TC40 ...................................31
Table support profile TC40 ........................................32
Bumper profile TC40 .................................................33
Slot cover profile TC40..............................................34
Frame profile TC40....................................................35
Rim strip TC40 ..........................................................36
Screw channel TC40 .................................................37
End caps and plugs,TC40 for connecting elements
End caps and plugs ...................................................40
Connecting system TC40
Connecting elements TC40 without profile machining.
...................................................................................41
Summary of Joints TC40...........................................42
Universal joint TC40 ..................................................44
Central joint TC40, 90º rigid.......................................46
Central joint TC40, 30°- 90°, articulated ....................47
Central joint TC40, 0°- 90°, mitred ............................49
Central joint, TC40, 180° butt-type............................50
Central joint, TC40, 90° rigid, with M8 thread...........51
Corner joint TC40 ......................................................52
Angle bracket TC40...................................................54
Angle bracket TC40...................................................55
M12 Screwed joint, TC40 .........................................56
M8 Screwed joint TC40, with T-slot nut ...................58
M8 Screwed joint, TC40 ...........................................60
M12 clamped joint, TC40 ..........................................62
T-slot nut TC40..........................................................64
Connecting strip TC40...............................................65
Connecting joint TC40...............................................66
Connector plate TC40 ...............................................67
Stay bracket TC40 .....................................................69
Corner bracket TC40, 40x40 .....................................71
40x40 / 90° Corner connector TC40..........................72
Corner bracket, 40x40 / 90°/ R40 TC40 ....................73
Fixing elements, TC40 ..............................................74
T-head bolts, TC40 ....................................................76
Cable holders, TC40 ..................................................77
Reducing sleeve M12/ M8, TC40..............................78
Base elements
Adjustable feet TC40 ................................................ 83
Floor attachment bracket TC40 ................................ 86
End plate................................................................... 87
Foot Plate for beams ................................................ 89
Floor washer, open version ...................................... 92
Floor attachment bracket.......................................... 93
Floor attachment bracket.......................................... 94
Castors...................................................................... 95
Foot........................................................................... 98
Fittings for doors, flaps and sliding ele­ments
Hinge, AL 30 ........................................................... 100
Hinge, Double hinge, AL 30.................................... 102
Hinge, AL 50 ........................................................... 103
Hinge, AL 75, concealed......................................... 104
Hinge, AL 90 ........................................................... 106
Hinge, plastic 50 ..................................................... 108
Hinge, plastic 50, with cover cap............................ 109
Handle, plastic 130 ................................................. 110
Handle, plastic 200 ................................................. 112
Handle, plastic 190 ST ............................................ 113
Handle, AL 175 ....................................................... 114
Handle, plastic 135 ................................................. 115
Handle, plastic 240 ................................................. 116
Lockable handle ...................................................... 117
Magnetic catch ....................................................... 119
Ball catch, plastic .................................................... 120
Double ball catch, plastic ........................................ 122
Door catch .............................................................. 123
Sliding T-slot block for profile-framed sliding elements 124 Locking handle for profile-framed sliding elements 126
Guide rollers for profile-framed sliding elements....127
Fitting for horizontal profile-framed sliding doors ... 129
Tools
Overview of punching tools .................................... 133
Punching tools, TC40, Slot cover............................ 134
Punching tool TC40................................................. 136
Hand punch, TC40, Slot cover ................................ 137
Drilling jig, TC 40, for M8-/M12 joint, central joint .. 138
Drill fixture Central Joints TC40 for open T-slots .... 139
Drill fixture Central Joints TC40 for closed profiles 140
Hand deburring tool for opened profile slots .......... 141
Countersink............................................................. 142
Twist drill ................................................................ 143
Hexalobular socket bits........................................... 144
Mini bit ratchet, hexagon socket 6 mm .................. 145
Technical specification
Aluminum profiles................................................... 147
Product index
Product designations in alphanumeric order...........155
Frame elements
Assembly block TC40................................................79
Multiblock TC40 ........................................................81
Connecting strip TC40...............................................82
© FlexLink 2021 3
Page 6
4 © FlexLink 2021
Page 7

Safety engineering

FlexLink applies a holistic approach to safety engineer­ing. Our team of experts supports you through every phase of the project.
We assist in performing risk analysis, defining the func­tional requirements, undertake construction, installation and maintenance tasks. This enables you to save valua ble time and reduce costs.
Our goal is to provide flexible, reliable and safe systems for your individual applications.
-
Guardings
Our safety guards protect areas that could cause injury to operators. We offer fence solutions that are modular, with a highly flexible design. While quick and easy to assemble, they also facilitate compliance with many types of legal requirements.
It is possible to order special dimensions which will fit perfectly to your application and hence reduced the required floor space to a minimum.
Virtually any RAL colour is available. Safety switches, sensors or special locks can be integrated in line with customer requirements.
• High flexibility
• Modular design
• Ready for integration of sensors and electrical devices
• Robust
• Short assembly time
• Complete range:
- Structures
- Safety accessories
-Doors
- Panels
© FlexLink 2021 Safety engineering 5
Page 8
Enclosures
© Copyright sortimat/ATS Automation

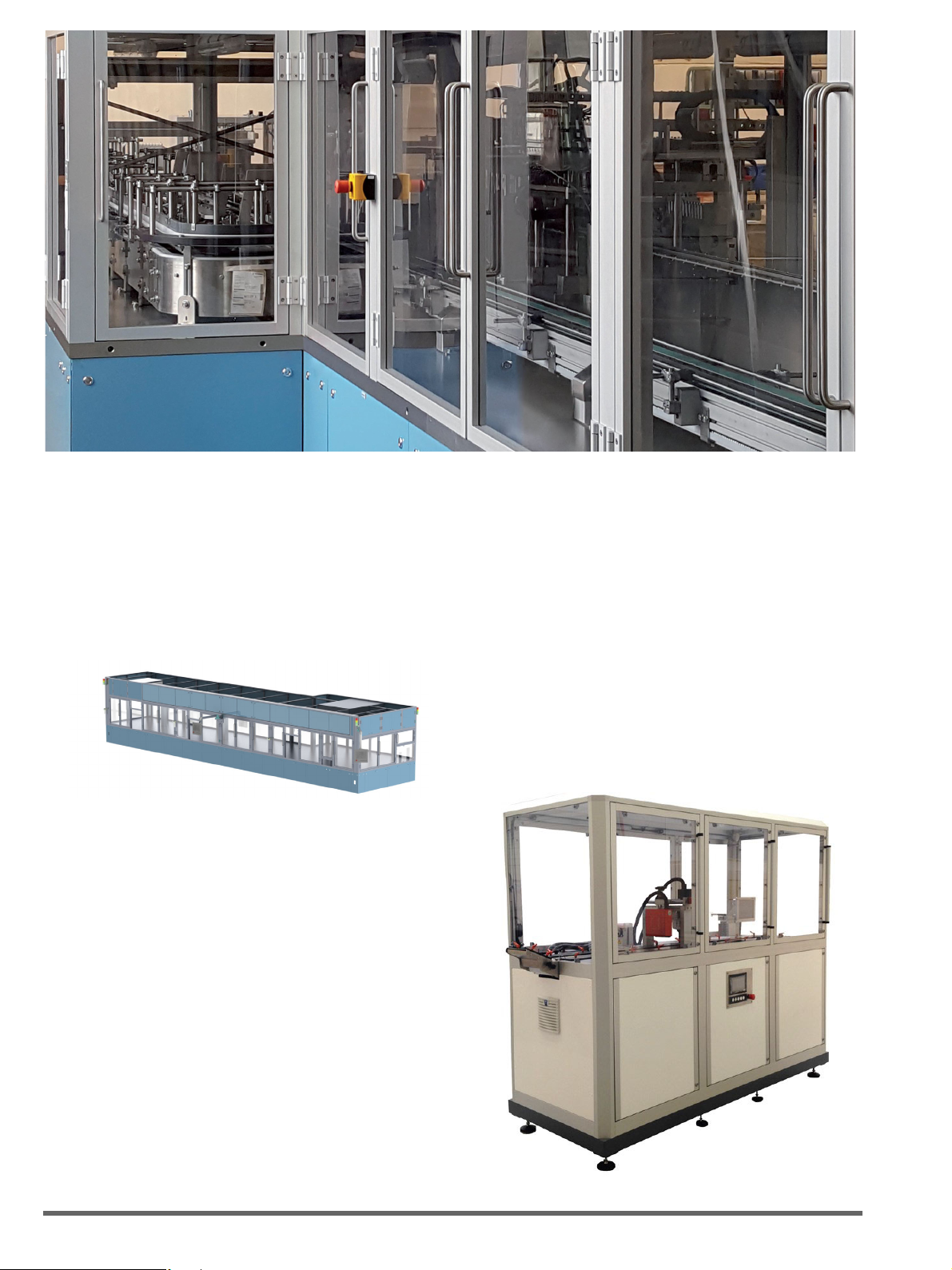

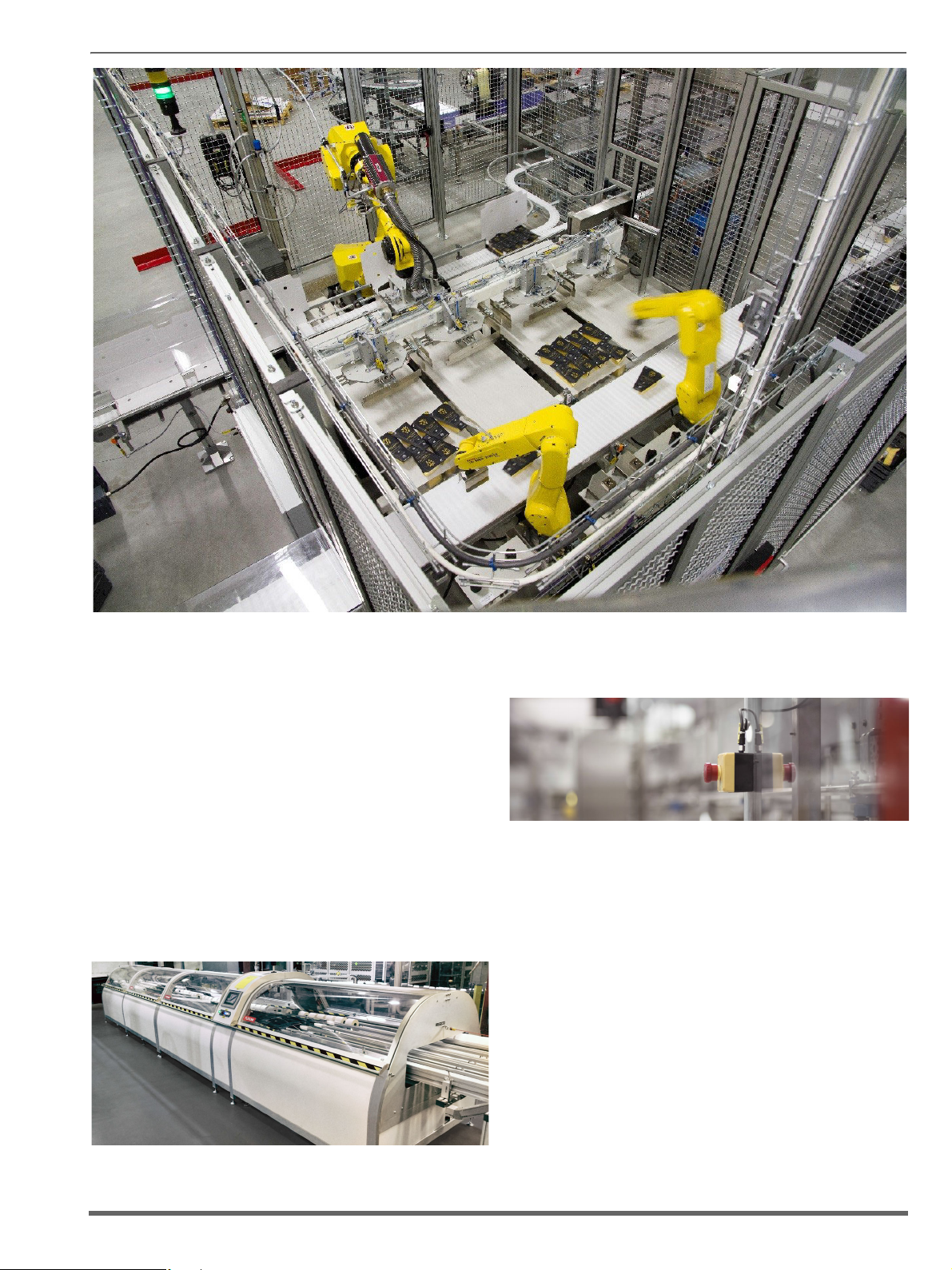

Contamination and disturbances can be eliminated by encapsulating your process machines. We have a com plete range of components for designing the enclosure that meets your particular needs. For example, our closed beams make a clean and professional impression, while serving their intended purpose of eliminating places where dirt and dust can hide. They are also designed to facilitate compact layouts and quick installa tion.
The exterior features a clear, modern appearance. The individualized colour scheme and high-quality appear ance of the enclosures from the FlexLink profile system ensures that your machines are easily recognizable. With the profile system from FlexLink, it is also easier to sat isfy the increasing requirements of health and safety reg­ulations.
• Integral part of the machine safety concept
• Complete range of components
• Open and closed profiles for light, medium and heavy-duty applications
• Modern and attractive design
- Brand builder
- Increase value
• Easy to design and assemble
• Easy to clean
• Robust and flexible
-
-
Easy to design and order
Machine enclosures and safety guards can be easily designed in the FlexLink Design Tool. With its built-in intelligence to help avoid errors, it saves valuable time for both design and mechanical engineers. The software tool also exports to STEP and SAT files allowing quick integration into the general machine or line drawing.
With the export feature of the bill of material (BoM),
­including all necessary machining, ordering is completed
quick and easy. Intuitive assembly drawings that enable fast and trouble free installation can be easily prepared as well. BoM is imported into FlexLink’s e-commerce site, the Online Store - where you find CAD blocks for the most common CAD types for nearly all of FlexLink’s components. The full use of FlexLink’s engineering tools is a real time saver.
-
6 Safety engineering © FlexLink 2021
Page 9

Icon overview

I
R
x
I
y
R
General
Packing unit Area Type/version
Material Tools Fabrication
Colour Cutting profile to length Antistatic type
System-related
Dimensions
Weight Left hand version/right
hand version RS
Profile series Slot pull-out force Opening angle
End cap Maximal load-bearing
capacity
Tightening torque
Floor plate Anti-rotation element
Sizes, dimensions lx moment of inertia Min. bending radius Rx
Stock length ly moment of inertia Min. bending radius Ry
Thread Wx drag torque
Wy drag torque
© FlexLink 2021 Icon overview 7
Page 10
8 Icon overview © FlexLink 2021
Page 11

Profiles TC40

LIGHT
BASIC
HEAVY
ULTRA
TCB... x40
TCBL ..x 40x80
TCBB...x40
TCBB...x40 C
TCBB...x40 T
TCBB...x40 Z
TCBB ..x40 L
TCBB...x40 U
TCBB...x40x80
TCBB... x40x80 C
TCBB...x40x80 L
TCBB...x40x120
TCBB...x40x160
TCBB...x80
TCBB...x80 C
TCBH ...x40
TCBH ...x40 C
TCBH ...x40x80
TCBH ...x40x80 C
TCBH... x80
TCBH ...x80 C
TCBU... x80
TCBU ...x80x120
TCBU ...x80x 160
TCBB...x40x16
TCBR ...x40
TCBR ...x56
TCBA...x40 TCBA...x80 TCRC ...x40x80
TCRC ...x40x120
TCBS...x40 MC
TCFL...
TCBP...x34x4 0
OTHER
Contents
Summary of TC40 profiles ..........................................9
Common dimensions ................................................10
Aluminum profiles, Light ...........................................11
Aluminum profiles, Basic ..........................................12
Aluminum profiles, Heavy .........................................18
Aluminum profiles, Ultra ...........................................21

Summary of TC40 profiles

Aluminum profiles, others ........................................ 23
Aluminum profiles, TC40 Roller conveyors............... 25
End caps ................................................................... 26
Dimensions End caps ............................................... 27
Fewer profiles – more application options
The range of profiles from the TC40 system consists of open profiles in types L (Light), B (Basic), H (Heavy) and U (Ultra) for moderate to high static and dynamic demands, and closed profiles in types BC (Basic Closed) and HC (Heavy Closed).
The range is complemented by a variety of angular and round-edged profiles. All series come with a standard­ised outer radius of 1mm to avoid visible cut edges and dirt traps. The reinforced slot geometry even permits the use of clampable joints in the standard TC40 L (Light) version.
Lengths and tolerance of our aluminium profiles
If no other tolerance is stated in the catalogue all “3 m” and “6 m” aluminium beams will be delivered with a length of 3030 ±5 mm respective 6070 ±5 mm.
The extra length compensates for cut losses on local site.
If no other range is mentioned in the catalogue L-cut alu­minium profiles can be ordered in the range of 30-6000 mm.
© FlexLink 2021 Summary of TC40 profiles 9
Page 12

Common dimensions

7,2
(M8)
(M12)
11,1
5,3
(M6)
11,1
(M12)
7,2
(M8)
11,1
(M12)
Heavy
Light
Basic Basic closed
Ultra
Heavy closed
29,6
8,5
11,2
R
1
27,7
8,5
11,2
R
1
0,7
0,7
29,6
R
1
8,5
11,2
40
(M6)
5
68
8,5
11,2
10,2
(M12)
R
1
10 Common dimensions © FlexLink 2021
Page 13

Aluminum profiles, Light

40
40
29,629,6
29,629,6
TCBE 40 G / TCBE 40 B
80
69,6
40
40
29,6
TCBE 40x80 G / TCBE 40x80 B
Profile, 40x40 Light
Profile, 40x40 Light
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10 or pack size 100
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBL 3x40 TCBL 6x40 TCBL Lx40
TCBE 40 G*
TCBE 40 B*
Profile, 40x80 Light
Profile, 40x80 Light
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBL 3x40x80 TCBL 6x40x80 TCBL Lx40x80
TCBE 40x80 G*
TCBE 40x80 B*
© FlexLink 2021 Aluminum profiles, Light 11
Page 14

Aluminum profiles, Basic

40
40
29,6
29,6
TCBE 40 G / TCBE 40 B
40
29,6
40
29,6
TCBE 40 G / TCBE 40 B
29,6
29,6
40
40
TCBE 40 G / TCBE 40 B
40
29,6
40
29,6
TCBE 40 G / TCBE 40 B
Profile, 40x40 Basic
Profile, 40x40, Basic
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10 or pack size 100
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBB 3x40 TCBB 6x40 TCBB Lx40
TCBE 40 G*
TCBE 40 B*
Profile, 40x40 Basic, One side closed
Profile, 40x40 Basic, One side closed
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10 or pack size 100
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBB 3x40 T TCBB 6x40 T TCBB Lx40 T
TCBE 40 G*
TCBE 40 B*
Profile, 40x40 Basic, Closed
Profile, 40x40 Basic, Closed
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10 or pack size 100
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBB 3x40 C TCBB 6x40 C TCBB Lx40 C
TCBE 40 G*
TCBE 40 B*
Profile, 40x40 Basic. Z-Shaped closed
Profile, 40x40 Basic. Z-Shaped closed
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10 or pack size 100
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBB 3x40 Z TCBB 6x40 Z TCBB Lx40 Z
TCBE 40 G*
TCBE 40 B*
12 Aluminum profiles, Basic © FlexLink 2021
Page 15
Aluminum profiles, Basic (continued)
40
40
29,6
29,6
TCBE 40 G / TCBE 40 B
40
40
29,629,6
29,6
TCBE 40 G / TCBE 40 B
Profile, 40x40 Basic, L-shaped closed
Profile, 40x40 Basic, L-shaped closed
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10 or pack size 100
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBB 3x40 L TCBB 6x40 L TCBB Lx40 L
TCBE 40 G*
TCBE 40 B*
Profile, 40x40 Basic, U-Shaped closed
Profile, 40x40 Basic, U-Shaped closed
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10 or pack size 100
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBB 3x40 U TCBB 6x40 U TCBB Lx40 U
TCBE 40 G*
TCBE 40 B*
© FlexLink 2021 Aluminum profiles, Basic 13
Page 16
Aluminum profiles, Basic (continued)
40
80
40
69,6
29,6
TCBE 40x80 G / TCBE 40x80 B
40
80
69,6
40
29,6
TCBE 40x80 G / TCBE 40x80 B
Profile, 40x80 Basic
Profile, 40x80, Basic
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBB 3x40x80 TCBB 6x40x80 TCBB Lx40x80
TCBE 40x80 G*
TCBE 40x80 B*
Profile, 40x80 Basic, Closed
Profile, 40x80 Basic, Closed
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBB 3x40x80 C TCBB 6x40x80 C TCBB Lx40x80 C
TCBE 40x80 G*
TCBE 40x80 B*
14 Aluminum profiles, Basic © FlexLink 2021
Page 17
Aluminum profiles, Basic (continued)
TCBE 40x80 G / TCBE 40x80 B
40
8080
69,6
40
29,6
120
40
40
40
109,6
29,6
TCBE 40x120 G/TCBE 40x120 B
Profile, 40x80 Basic, L-Shaped, Closed
Profile, 40x120 Basic
Profile, 40x80 Basic, L-Shaped, Closed
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey*
End cap, black*
TCBB 3x40x80 L TCBB 6x40x80 L TCBB Lx40x80 L
TCBE 40x80 G*
TCBE 40x80 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
Profile, 40x120 Basic
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
TCBB 3x40x120 TCBB 6x40x120 TCBB Lx40x120
TCBE 40x120 G*
TCBE 40x120 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
© FlexLink 2021 Aluminum profiles, Basic 15
Page 18
Aluminum profiles, Basic (continued)
160
40
40
40
40
29,6
149,6
TCBE 40x80 G / TCBE 40x80 B
TCBE 80 G/TCBE 80 B
40
80
69,6
69,6
Profile, 40x160 Basic
Profile, 80x80 Basic
Profile, 40x160 Basic
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey (2 pcs)
End cap, black (2 pcs)
TCBB 3x40x160 TCBB 6x40x160 TCBB Lx40x160
TCBE 40x80 G*
TCBE 40x80 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
Profile, 80x80 Basic
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
TCBB 3x80 TCBB 6x80 TCBB Lx80
TCBE 80 G*
TCBE 80 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
16 Aluminum profiles, Basic © FlexLink 2021
Page 19
Aluminum profiles, Basic (continued)
TCBE 80 G/TCBE 80 B
40
80
69,6
69,6
Profile, 80x80 Basic, Closed
Profile, 80x80 Basic, Closed
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
TCBB 3x80 C TCBB 6x80 C TCBB Lx80 C
TCBE 80 G*
TCBE 80 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
© FlexLink 2021 Aluminum profiles, Basic 17
Page 20

Aluminum profiles, Heavy

40
40
27,7
27,7
TCBE 40 G / TCBE 40 B
40
40
27,7
27,7
TCBE 40 G / TCBE 40 B
40
27,7
8080
4040
67,7
TCBE 40x80 G / TCBE 40x80 B
Profile, 40x40 Heavy
Profile, 40x40 Heavy
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10 or pack size 100
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBH 3x40 TCBH 6x40 TCBH Lx40
TCBE 40 G*
TCBE 40 B*
Profile, 40x80 Heavy
Profile, 40x40 Heavy, Closed
Profile, 40x80 Heavy, Closed
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10 or pack size 100
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBH 3x40 C TCBH 6x40 C TCBH Lx40 C
TCBE 40 G*
TCBE 40 B*
Profile, 40x80 Heavy
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
TCBH 3x40x80 TCBH 6x40x80 TCBH Lx40x80
TCBE 40x80 G*
TCBE 40x80 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
18 Aluminum profiles, Heavy © FlexLink 2021
Page 21
Aluminum profiles, Heavy (continued)
40
27,7
80
40
67,7
TCBE 40x80 G / TCBE 40x80 B
80
40
67,7
67,7
TCBE 80 G/TCBE 80 B
Profile, 40x80 Heavy, Closed
Profile, 80x80 Heavy
Profile, 40x80 Heavy, Closed
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
TCBH 3x40x80 C TCBH 6x40x80 C TCBH Lx40x80 C
TCBE 40x80 G*
TCBE 40x80 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
Profile, 80x80 Heavy
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
TCBH 3x80 TCBH 6x80 TCBH Lx80
TCBE 80 G*
TCBE 80 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
© FlexLink 2021 Aluminum profiles, Heavy 19
Page 22
Aluminum profiles, Heavy (continued)
80
40
67,7
67,7
TCBE 80 G/TCBE 80 B
Profile, 80x80 Heavy, Closed
Profile, 80x80 Heavy, Closed
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
TCBH 3x80 C TCBH 6x80 C TCBH Lx80 C
TCBE 80 G*
TCBE 80 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
20 Aluminum profiles, Heavy © FlexLink 2021
Page 23

Aluminum profiles, Ultra

80
40
68
68
TCBE 80 G/TCBE 80 B
120
40
40
40
80
108
68
TCBE 80x120 G/TCBE 80x120 B
Profile, 80x80 Ultra
Profile, 80x120 Ultra
Profile, 80x80 Ultra
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
TCBU 3x80 TCBU 6x80 TCBU Lx80
TCBE 80 G*
TCBE 80 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
Profile, 80x120 Ultra
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
TCBU 3x80x120 TCBU 6x80x120 TCBU Lx80x120
TCBE 80x120 G*
TCBE 80x120 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
© FlexLink 2021 Aluminum profiles, Ultra 21
Page 24
Aluminum profiles, Ultra (continued)
80
160
40
40
40
40
148
68
TCBE 80 G/TCBE 80 B
Profile, 80x160 Ultra
Profile, 80x160 Ultra
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey (2 pcs)
End cap, black (2 pcs)
TCBU 3x80x160 TCBU 6x80x160 TCBU Lx80x160
TCBE 80 G*
TCBE 80 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
22 Aluminum profiles, Ultra © FlexLink 2021
Page 25

Aluminum profiles, others

TCBE 40x16 G/TCBE 40x16 B
40
16
29,6
R40
40
40
TCBE 40 R40 G/TCBE 40 R40B
40
R80
R40
45°
TCBE 56 RG/TCBE 56 RB
40
R3
29,6
29,6
40
TCBE 40 AG/TCBE 40 AB
Profile, 40x16 Basic
Profile, 40x16 Basic
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
TCBB 3x40x16 TCBB 6x40x16 TCBB Lx40x16
TCBE 40x16 G*
TCBE 40x16 B*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
Profile, 40x40x90º R40 Basic
Profile, 40x56x45º R80 Basic
Profile, 40x56 / 45º R80 Basic
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBR 3x56 TCBR 6x56 TCBR Lx56
TCBE 56 RG *
TCBE 56 RB*
Profile, 40x40 / 90º R40 Basic
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
© FlexLink 2021 Aluminum profiles, others 23
Profile, 40x40x90º R40 Basic
TCBR 3x40 TCBR 6x40 TCBR Lx40
TCBE 40 R40G*
TCBE 40 R40B*
Profile, 40x40 / 90º R40 Basic
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
TCBA 3x40 TCBA 6x40 TCBA Lx40
TCBE 40 AG*
TCBE 40 AB*
Page 26
Aluminum profiles, others (continued)
40
80
R3
29,6
29,6
TCBE 80 AG/TCBE 80 AB
40
26
40
34
14
40
37
Profile, 80x80x90º Basic
Profile for sliding door, 34x40
Profile for sliding door, 34x40
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
Profile data, see “Profile data” on page 149
TCBP 3x34x40 TCBP 6x34x40 TCBP Lx34x40
Profile, 80x8 / 90º Basic
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
End cap, grey
End cap, black
TCBA 3x80 TCBA 6x80 TCBA Lx80
TCBE 80 AG*
TCBE 80 AB*
* Must be ordered in pack size 10
Profile data, see “Profile data” on page 149 End cap: see “Dimensions End caps” on page 27
Profile, 40x40 MC
Profile, 40x40 MC
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
Profile data, see “Profile data” on page 149
24 Aluminum profiles, others © FlexLink 2021
TCBS 3x40 MC TCBS 6x40 MC TCBS Lx40 MC
Page 27

Aluminum profiles, TC40 Roller conveyors

80
40
4× Ø5
68
48
40
120
88
28
4× Ø5
108
C
E
D
B
88
4040
80
32
2
120
A
B
C
D
E
1
• Special profiles for assembling roller conveyors in 40x80mm and 40x120mm size.
Profile, 40x80Roller conveyor
Profile, Roller conveyor
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
TCRC 3x40x80 TCRC 6x40x80 TCRC Lx40x80
Profile data, see “Profile data” on page 149
Profile, 40x120 Roller conveyor
Assembly
Part list
A Roller-conveyor profile, 40x80mm
B Roller-conveyor profile, 40x120mm
C Cover plate (only for roller-conveyor profile, 40x120mm)
D Conveyor roller with M8 thread
E M8x20 countersunk-head screw
(Not in FlexLink's regular assortment, own production.)
Dimensions
1 Power and control lines
Profile, Roller conveyor
Aluminum, anodized Length 3030 mm ± 5 mm Length 6070 mm ± 5 mm Length to order (30-6000 mm)
Profile data, see “Profile data” on page 149
© FlexLink 2021 Aluminum profiles, TC40 Roller conveyors 25
TCRC 3x40x120 TCRC 6x40x120 TCRC Lx40x120
Page 28

End caps

A
B
C
G
D E
F
H
• End caps:
- close off profile end faces
- prevent ingress of dirt
- prevent cuts.
• Aesthetically pleasing design: rounded End caps in shallow, flat geometry.
• Rational: No need to deburr cut surface.
• End caps are pressed / knocked into the screw chan­nels.
Silver grey (similar to RAL 7001)
Black (similar to RAL 9005)
Part list
A) End cap, 40x40 mm
B) End cap, 40x80 mm
C) End cap, 80x80 mm
D) End cap, 40x120 mm
E) End cap, 80x120 mm
F) End cap, 40x16 mm
G) End cap, 40x40/ 90° mm
H) End cap, 40/45°/R80 mm
26 End caps © FlexLink 2021
Page 29

Dimensions End caps

(L) Light
TCBL...x40 A TCBE 40 G TCBE 40 B 40x40
1) Grey 2) Black mm
t=2 mm
(B) Basic
TCBL...x40x80 B TCBE 40x80 G TCBE 40x80 B 40x80
t=2 mm
TCB...x40x16 F TCBE 40x16 G TCBE 40x16 B 40x16
t=2 mm
TCBB...x40 A TCBE 40 G TCBE 40 B 40x40
t=2 mm
TCBB...x40 T A TCBE 40 G TCBE 40 B 40x40
t=2 mm
TCBB...x40 L A TCBE 40 G TCBE 40 B 40x40
t=2 mm
TCBB...x40 U A TCBE 40 G TCBE 40 B 40x40
t=2 mm
TCBB...x40 C A TCBE 40 G TCBE 40 B 40x40
t=2 mm
TCBB...x40 Z A TCBE 40 G TCBE 40 G 40x40
t=2 mm
TCBA...x40 G TCBE 40 AG TCBE 40 AB 40x40/90°
TCBR...x56 H TCBE 56 RG TCBE 56 RB 40x45°R80
TCBB...x40x80 B TCBE 40x80 G TCBE 40x80 B 40x80
TCBB...x40x80 L
© FlexLink 2021 Dimensions End caps 27
B TCBE 40x80 G TCBE 40x80 B 40x80
t=2 mm
t=2 mm
t=2 mm
t=2 mm
Page 30
(B) Basic
TCBB...x40x80 C
1) Grey 2) Black mm
B TCBE 40x80 G TCBE 40x80 B 40x80
t=2 mm
(H) Heavy
TCBB...x40x120 D
TCBB...x40x160 2xB TCBE 40x80 G TCBE 40x80 B 40x80
TCBB...x80 C TCBE 80 G TCBE 80 B 80x80
TCCB...x80 C C TCBE 80 G TCBE 80 B 80x80
TCBH...x40 A TCBE 40 G TCBE 40 B 40x40
TCBH...x40 C A TCBE 40 G TCBE 40 B 40x40
TCBE 40x120 G
TCBE 40x120 B 40x120
t=2 mm
t=2 mm
t=2 mm
t=2 mm
t=2 mm
t=2 mm
(U) Ultra
TCBH...x40x80 B TCBE 40x80 G TCBE 40x80 B 40x80
t=2 mm
TCBH...x40x80 C
TCBH...x80 C TCBE 80 G TCBE 80 B 80x80
TCBU...x80 C C TCBE 80 G TCBE 80 B 80x80
TCBU...x80 C TCBE 80 G TCBE 80 B 80x80
B TCBE 40x80 G TCBE 40x80 B 40x80
t=2 mm
t=2 mm
t=2 mm
t=2 mm
28 Dimensions End caps © FlexLink 2021
Page 31
(U) Ultra
Silver grey (similar to RAL 7001)
Black (similar to RAL 9005)
TCBU...x80x120 E
TCBU...x80x160 2xC TCBE 80 G TCBE 80 B 80x80
1) Grey 2) Black mm
TCBE 80x120 G
TCBE 80x120 B 80x120
t=2 mm
t=2 mm
© FlexLink 2021 Dimensions End caps 29
Page 32
30 Dimensions End caps © FlexLink 2021
Page 33

Plastic extrusion profiles

8.5
11
8,5
11
8,5
11
X
10,9
8,5
9
1
2
Contents
Cover and frame profile TC40..............................................31
Table support profiles TC40 ................................................32
Bumber profiles TC40 .........................................................33
Slot cover profiles TC40......................................................34

Cover and frame profile TC40

• One profile for two applications:
- used as a cover profile (1), it closes off profile slots to prevent ingress of coarse dirt.
- with open side facing out, it can be used as frame profile (2) for panel elements.
• Cover and frame profiles are fitted by pressing/ knocking them into the system slots.
Frame profile TC40..............................................................35
Rim strip TC40 ....................................................................36
Screw channel TC40............................................................37
Net strip, 5 mm, grey
Net strip, 5 mm, grey
Length 2 m
TCET 2 CG
Dimensions
Net strip 2-3 mm, grey
1 For use as cover profile
2 For use as frame profile
Net strip 2-3 mm, grey
Length 2 m
TCET 2 AG
Net strip 4 mm, grey
Net strip 4 mm, grey
Length 2 m
TCET 2 BG
© FlexLink 2021 Cover and frame profile TC40 31
Page 34

Table support profile TC40

20
10
15,5
10
20
• Table support profile prevents damage to item resting on it.
• Abrasion-resistant surface.
• Other colours available on request.
• Table support profiles are pressed/ knocked into the system slots
Support rail, Table support, black
Support rail, Table support, black
Length 6 m Length to order (30-6000 mm)
Dimensions
TCAP 6x10x20 B TCAP Lx10x20 B
32 Table support profile TC40 © FlexLink 2021
Page 35

Bumper profile TC40

11
34
5
5
34
• Butt profiles provide a protective edge on frames, doors or devices.
• Abrasion-resistant surface.
• Other colours are available on request.
• Butt profiles are pressed/ knocked into the system slots.
Support rail, Bumper profile, black
Support rail, bumper profile, black
Length 6 m Length to order (30-6000 mm)
Dimensions
TCAP 6x5x34 B TCAP Lx5x34 B
© FlexLink 2021 Bumper profile TC40 33
Page 36

Slot cover profile TC40

9
5
• Slot cover profile for closing off profile slots for aes­thetic and practical reasons:
- easier to keep clean
- concealed wiring.
• Cover profiles are pressed/ knocked into the system slots.
Sliding profile, Silver
Sliding profile, Silver Length 2 m
Note: Pack size 1.
Dimensions
TCAC 2
34 Slot cover profile TC40 © FlexLink 2021
Page 37

Frame profile TC40

9
11
18
2-5
7
8
A
2
1
8
• For installing panel material of different thicknesses directly in profile slot. Profile frame is mounted around panel material.
• Assembly:
- Fit frame profiles with mitred or butt joint.
- To facilitate mounting panel material, hold upper
part of edges or spray with lubricant (e.g.silicone spray).
Net strip, 2-5 mm
Dimensions
Part list
A Frame profile
1 Panel material
2 Rippled grid
Net strip, 2-5 mm
Length 2 m Note: Pack size 1.
TCET 2 EB
© FlexLink 2021 Frame profile TC40 35
Page 38

Rim strip TC40

8,5
X = 3-5
3
40
A
9
40
Mounting tool, seal fitter
• For installing panel material of different thicknesses directly in profile slot. Profile frame is mounted around panel material.
• Assembly:
- Starting at centre of upper profile, press in seal all
the way round.
- No cutting is necessary at corners.
• The seal fitter (Part. no TTSF 170) facilitates installa­tion.
Rim strip, Push-in seal 3 - 5 mm, grey or black
Mounting tool, seal fitter
Dimensions
Part list
A Push-in seal, 3-5 mm Silver grey
B Seal fitter
Push-in seal, 3-5 mm Black
TTSF 170
Rim strip, Push-in seal 3 - 5 mm, black
Length 100 m
TCET 100 FB
Rim strip, Push-in seal 3 - 5 mm, grey
Length 100 m
TCET 100 FG
36 Rim strip TC40 © FlexLink 2021
Page 39

Screw channel TC40

10
9
3
10
11
4,15
Ø10,5
Ø7
H
L
3,2
10,5
A
B
L=12 H=1-5
L=20 H=8-13
Self tapping screw, PD 6x20 mm
• For mounting construction parts and accessories.
• Any length of screw channel can be clipped into the profile. This also makes it possible to provide screwed joints at irregular intervals throughout the length of the profile.
• PD screws with low screw-in torque.
• High pull-out forces
Screw channel profile
Screw channel profile, Black
Length 2 m
TCEF 2 B
Self tapping screw, PD 6x20 mm
* Must be ordered in pack size 100
Dimensions
Part list
A PD screw
B Screw channel
TCPD 6x20*
Self tapping screw, PD 6x12 mm
Self tapping screw, PD 6x12 mm
* Must be ordered in pack size 100
© FlexLink 2021 Screw channel TC40 37
TCPD 6x12*
Page 40
38 Screw channel TC40 © FlexLink 2021
Page 41
End caps and plugs,TC40 for
Ø25
1,5
Ø20
1,5
1,5
Ø15
1,5
Ø18
4,8
Ø12,4
1,2
13
64
1
2
3
4
5
6
Ø10,25
Ø6,3
Ø9
Ø5,3
connecting
elements
Contents
End caps and plugs .............................................................40
Caps for covering connecting elements to provide an aesthetically pleasing finish.
Dimensions
Grey Black Material
1 Screwed joint, M12 TCBE M12 G TCBE M12 B 2 M8 screwed joint TCBE M8 G TCBE M8 B 3 M12 clamped joint TCBE M12CJ G TCBE M12CJ B 4 Central joint TCBE EC14 G TCBE EC14 B 5 M6 ULS screw ISO 7380 M6 TCBE M6 G TCBE M6 B 6 Universal joint TCBE UJ64 G TCBE UJ64 B
PA6
© FlexLink 2021 31
Page 42

End caps and plugs

Plug, Screwed joint M12, grey or black
Plug, Screwed joint M12, grey
Plug, Screwed joint M12, black
Pack size 100 pcs
TCBE M12 G
TCBE M12 B
Plug, Screwed joint M8, grey or black
Plug, Screwed joint M8, grey
Plug, Screwed joint M8, black
Pack size 100 pcs
TCBE M8 G
TCBE M8 B
Plug, Clamped joint M12, grey or black
End cap, Universal joint, grey or black
End cap, Universal joint, grey
End cap, Universal joint, black
Pack size 10 pcs
TCBE UJ64 G
TCBE UJ64 B
Plug, Clamped joint M12, grey
Plug, Clamped joint M12, black
Pack size 100 pcs
TCBE M12CJ G
TCBE M12CJ B
Plug, Central joint, grey or black
Plug, Central joint, grey
Plug, Central joint, black
Pack size 100 pcs
TCBE EC14 G
TCBE EC14 B
Plug, for screw ISO 7380 M6, grey or black
Plug, for screw ISO 7380 M6, grey
Plug, for screw ISO 7380 M6, black
Pack size 100 pcs
TCBE M6 G
TCBE M6 B
32 End caps and plugs © FlexLink 2021
Page 43

Connecting system TC40

Contents
Connecting elements TC40 without profile machining ........41
Summary of Joints TC40.....................................................42
Universal joint TC40 ............................................................44
Central joint TC40, 90º rigid ................................................46
Central joint TC40, 30°- 90°, articulated..............................47
Central joint TC40, 0°- 90°, mitred......................................49
Central joint, TC40, 180° butt-type......................................50
Central joint, TC40, 90° rigid, with M8 thread .....................51
Corner joint TC40 ................................................................52
Angle joint TC40..................................................................54
Mounting bracket TC40.......................................................55
M12 Screwed joint, TC40 ....................................................56
M8 Screwed joint TC40, with T-slot nut ..............................58
M8 Screwed joint, TC40 ......................................................60

Connecting elements TC40 without profile machining

M12 clamped joint, TC40 ....................................................62
T-slot nut TC40 ...................................................................64
Connecting tab TC40 ...........................................................65
Connecting joint TC40.........................................................66
Plate for T-joint TC40 ..........................................................67
End joint TC40.....................................................................70
Corner bracket TC40, 40x40................................................72
40x40/ 90° Corner connector TC40.....................................73
Corner bracket, 40x40/ 90°/ R40 TC40 ...............................74
Fixing elements, TC40 .........................................................75
T-head bolts, TC40..............................................................77
Cable holders, TC40 ............................................................78
Reducing sleeve M12/ M8, TC40.........................................79
Jointing elements from the modular TC40 system can be used for joining TC40 profiles.
In terms of rationalisation (i.e.avoid the need for machining), fast assembly and aesthetics, we recommend the fol­lowing joints in particular:
Universal joint
• for connecting profiles with open and closed profile slots,
• without milling and drilling work,
• can also be retrofitted.
Corner and angled joints
• for high loads,
• to achieve force-locked connection between profiles,
• without profile machining.
Screwed joints
Central joint
• for high-load joints,
• with small amount of machining work.
© FlexLink 2021 Connecting elements TC40 without profile machining 41
• for high-load joints
• fast assembling after drilling
Page 44

Summary of Joints TC40

Universal joints
Central joints
Corner and angled joints
M12 screwed joints
42 Summary of Joints TC40 © FlexLink 2021
Page 45
Summary of Joints TC40 (continued)
M8 screwed joints
M12 clamped joints
© FlexLink 2021 Summary of Joints TC40 43
Page 46

Universal joint TC40

0,5-1
32
B
C
A
22
M8
6,9
39
28
79
68
49
8
• For right-angled profile joints.
• Fast installation and high joint strength.
• Suitable for retrofitting profiles in closed frames.
• No machining work necessary to open profiles.
• Rotation prevented by fitting two single joints.
Assembly
Universal joint, variable
Universal joint, variable
Universal joint, variable
Universal joint, variable
* Must be ordered in pack size 10
Dimensions
TCUJ 20*
TCUJ 40*
TCUJ 80*
44 Universal joint TC40 © FlexLink 2021
Page 47
Mounting Universal joints TC40
Step 1: Turn universal joint into the pro­file slot up to a depth of 1mm from the end face (TTSD 50x50).
Step 2: Swing T-slot nut into the slot in the continuous profile and move to the appropriate posi tion.
Step 3: Drive screw into the T-slot nut (fitted beforehand) and tighten. For this purpose, use mini bit ratchet (TTSD 98) and 6-mm ball-head hexagon socket (TTSD 6x98).
Step 4: Turn universal joint into the profile slot up to a depth of 1mm from the end face. (TTSD 50x50)
Step 5: Swing T-slot nut into the opened slot in the continuous
-
profile and move to the appro priate position
Step 6: Drive screw into the T-slot nut (fitted beforehand) and tighten.
-
Mounting Universal joints TC40, BC, HC
Step 1: Using hand punch, open slot cover on the continuous pro file (A).
Step 2: Using hand punch, open slot cover on the profile (B) being connected. For this purpose, use the end stop.
Step 3: Break open the remaining slot cover to the end of the profile, e.g. using a screwdriver.
Step 7: Press end cap on over the slot opening. (TCBE UJ64 G, TCBE UJ64 B)
-
© FlexLink 2021 Universal joint TC40 45
Page 48

Central joint TC40, 90º rigid

B
C
29
Ø14,1
26
29
Ø14,1
A
B
• For right-angled profile joints.
• Flexible positioning.
• Plug for closed profiles.
• Profile machining necessary.
Central joint, 90°, external
Assembly
Part list
A External joint
B Internal joint
C Plug TCBE EC14 G or TCBE EC14 B
Machining
Central joint, 90°, external
TCEC 14 E*
* Must be ordered in pack size 10
Central joint, 90°, internal
Central joint, 90°, internal
* Must be ordered in pack size 10
46 Central joint TC40, 90º rigid © FlexLink 2021
TCEC 14 I*
Page 49

Central joint TC40, 30°- 90°, articulated

B
C
• For profile joints at angles of 30°-90°.
• Joint must be pushed into system slot at end face.
• Flexible positioning.
• Plug for closed profiles.
• Profile machining necessary.
Central joint, Articulated, 30° to 90°, external
Assembly
Part list
A External joint
B Internal joint
C Plug TCBE EC14 G or TCBE EC14 B
Central joint, Articulated, 30° to 90°, external
TCEC 14x30-90 E
Central joint, Articulated, 30° to 90°, internal
Central joint, Articulated, 30° to 90°, internal
© FlexLink 2021 Central joint TC40, 30°- 90°, articulated 47
TCEC 14x30-90 I
Page 50
Machining
B
x
x = 20 • tan (90°- ) [mm]α
h
26
Ø14,1
h
x
α= 30°...90°
Ø14,1
A
Angle Measurement (h)
71°-90° 29 mm
56°-70° 30 mm
41°-55° 31 mm
30°-40° 32 mm
48 Central joint TC40, 30°- 90°, articulated © FlexLink 2021
Page 51

Central joint TC40, 0°- 90°, mitred

B
C
B
x
x = 20 • tan (90°- ) [mm]α
29
26
Ø14,1
29
x
α= 0°...90°
Ø14,1
A
• For mitred joints at angles of 0°-90°.
• Plug for closed profiles.
• Profile machining necessary.
Central joint, Mitred, 0° - 90°, external
Assembly
Part list
A External joint
B Internal joint
C Plug TCBE EC14 G or TCBE EC14 B
Machining
Central joint, Mitred, 0° - 90°, external
TCEC 14x0-90 E
Central joint, Mitred, 0° - 90°, internal
Central joint, Mitred, 0° - 90°, internal
TCEC 14x0-90 I
© FlexLink 2021 Central joint TC40, 0°- 90°, mitred 49
Page 52

Central joint, TC40, 180° butt-type

A
B
29
26
29
Ø14,1
• For butt joints.
• Plug for closed profiles.
• Profile machining necessary.
Assembly
Central joint, Straight connection
Central joint, Straight connection
TCEC 14x180
Part list
A Central joint, 180°, butt-type
B Plug TCBE EC14 G or TCBE EC14 B
Machining
50 Central joint, TC40, 180° butt-type © FlexLink 2021
Page 53

Central joint, TC40, 90° rigid, with M8 thread

A
M8
B
29
Ø14
24,5
12
1
M8
Machining
• Joint with M8 thread for mounting profiles to front of components with M8 threaded hole.
• Profile machining necessary.
Central joint, M8
Central joint, M8
TCEC 14 M8
Assembly
Part list
A Central joint, M8
B Plug TCBE EC14 G or TCBE EC14 B
© FlexLink 2021 Central joint, TC40, 90° rigid, with M8 thread 51
Page 54

Corner joint TC40

4040
20
4
40
4
20
80
40
Ø8,4
80
40
4040
20
4
40
4
20
80
40
Ø8,4
80
40
Angle bracket, 40x80, grey or black
• Corner joint for:
- connecting profiles to profiles
- additionally reinforcing profile joints
- installing different machine components.
• No machining work necessary to open profiles.
• Anti-rotation element (4) can be detached if neces­sary.
• Available either as:
- All-inclusive item: Corner joint (colour coated)
including fixing material
- Single item: Corner joint (colour coated). Please
order end cap and fixing material separately
Angle bracket, 40x40, grey or black
Angle bracket, 40x80, grey
TCFA 40x80 AAG
Corner joint 40x80, end cap grey TCBE 40x112 G and necessary mounting hardware included.
Angle bracket, 40x80, black
TCFA 40x80 AAB
Corner joint 40x80, end cap black TCBE 40x112 B and necessary mounting hardware included.
Angle bracket, 40x40, die-cast
Angle bracket, 40x40, die-cast*
End cap, Corner joint 40x40, grey
End cap, Corner joint 40x40, black
* Must be ordered in pack size 10
TCFA 40x40 AB*
TCBE 40x55 G*
TCBE 40x55 B*
Angle bracket, 40x40, grey
TCFA 40x40 AAG
Angle bracket, 40x80, die-cast
Corner joint 40x40, end cap grey TCBE 40x55 G and necessary mounting hardware included.
Angle bracket, 40x40, black
TCFA 40x40 AAB
Corner joint 40x40,end cap black TCBE 40x55 B and necessary mounting hardware included.
Angle bracket, 40x80, die-cast
TCFA 40x80 AB*
End cap, Corner joint 40x80, grey
TCBE 40x112 G*
End cap, Corner joint 40x80, black
TCBE 40x112 B*
* Must be ordered in pack size 10
52 Corner joint TC40 © FlexLink 2021
Page 55
Assembly
A
C
E
F
B
D
40x80
40x40
D
C
Part list
A 40x40 corner joint
B End cap for 40x40 corner joint
C M8x16 socket head cap screw/ 8.4 washer
D Steel M8 T-slot nut
E 40x80 corner joint
F End cap for 40x80 corner joint
Designation Size Colour of end cap Part number Qty
Corner joint, complete, Silver
Corner joint, silver
End cap
A-D 40x40
E-F 40x80
A 40x40 -- TCFA 40x40 AB 10
E 40x80 -- TCFA 40x80 AB 10
B 40x40
F 40x80
Silver grey (similar to RAL 7001) TCFA 40x40 AAG 1
Black (similar to RAL 9005 TCFA 40x40 AAB 1
Silver grey (similar to RAL 7001) TCFA 40x80 AAG 1
Black (similar to RAL 9005 TCFA 40x80 AAB 1
Silver grey (similar to RAL 7001) TCBE 40x55 G 10
Black (similar to RAL 9005 TCBE 40x55 B 10
Silver grey (similar to RAL 7001) TCBE 40x112 G 10
Black (similar to RAL 9005 TCBE 40x112 B 10
Die-cast zinc
Die-cast zinc
PA6-GB30
© FlexLink 2021 Corner joint TC40 53
Page 56

Angle bracket TC40

A
B
2
1
36
40
70
70
4040
70
70
Ø9
76
Ø10,5
X
X−X
X
Y
Y
Y−Y
A
B
40
40
• Angle bracket for:
- connecting profiles to profiles
- additionally reinforcing profile joints
- installing different machine components.
• No profile machining necessary.
• Secure fit- position marking shows position of T-head.
• Available as complete pack.
Angle bracket, 40x70
Assembly
Angle bracket, 40x70
* Must be ordered in pack size 10
Angle bracket, 80x70
Angle bracket, 80x70
* Must be ordered in pack size 10
TCFA 40x70 BA*
TCFA 80x70 BA*
Part list
A 40x70 angle joint/ M8x25 T-head bolt/ M8 nut (self-lock-
ing/ 8.4 washer
B 80x70 angle joint/ M8x25 T-head bolt/ M8 nut (self-lock-
ing/ 8.4 washer
1 Anti-rotation element
2 Positio n mark ing
Dimensions
54 Angle bracket TC40 © FlexLink 2021
Page 57

Angle bracket TC40

A
B
20
40
80
40
X
X−X
X
Ø9
5
40
20
40
A
B
• Particularly suitable for retrofitting profiles.
• Fixing material included.
24,2528,29
Angle bracket, 40x40
Assembly
Angle bracket, 40x40
TCFA 40x40 CA*
* Must be ordered in pack size 10
30,31
Angle bracket, 40x80
Part list
A 40x40mm mounting bracket/ M8x16 socket head cap
B 40x80mm mounting bracket/ M8x16 socket head cap
screw/ 8.4 washer/ aluminium M8 T-slot nut
screw/ 8.4 washer/ aluminium M8 T-slot nut
Dimensions
Angle bracket, 40x80
* Must be ordered in pack size 10
TCFA 40x80 CA*
© FlexLink 2021 Angle bracket TC40 55
Page 58

M12 Screwed joint, TC40

Screwed joint 100 mm, M12, for 80 mm profile
• For right-angled profile joints.
• High flexural strength.
• Plug for closed profiles.
• Profile machining necessary.
• Rotation prevented by use of spring blade where only one screw is fitted.
• TC40 U profile range M12 thread must be tapped in the profile being connected.
Screwed joint, M12, for 40 mm profile
Screwed joint, M12, 80 mm
TCSJ 12x80*
* Must be ordered in pack size 10
Screwed joint 140 mm, M12, for 120 mm profile
Screwed joint, M12, 120 mm
* Must be ordered in pack size 10
TCSJ 12x120*
Spring blade, Anti rotation device M12
Spring blade, Anti rotation device M12
* Must be ordered in pack size 10
TCSB 12*
Screwed joint, M12, 40 mm
TCSJ 12x40*
* Must be ordered in pack size 10
56 M12 Screwed joint, TC40 © FlexLink 2021
Page 59
Assembly
M12x55
M12x100
M12x140
M12x100
M12x140
MS 40 U
+
MS 40 U
+
MS 40 U
+
MS 40 L MS 40 B MS 40 H
+
+
+
MS 40 U
+
MS 40 U
+
M12x140
A
C
B
X
52
1
1
*
*
*
Ø25
1,5
11,5
Ø13
Ø20
TC40C
40
TC
Part list
A M12 socket head cap screw/ 12 circlip
B M12 spring blade
C Plug TCBE EC14 G or TCBE EC14 B
1 TC40 U only: M12 thread must be tapped.
Machining
Tightening torques
*
TC40 L 17
TC40 B 17
TC40 H 20
TC40 U 20
Nm
© FlexLink 2021 M12 Screwed joint, TC40 57
Page 60

M8 Screwed joint TC40, with T-slot nut

A
B
Screwed joint, M8x20
• Universal use:
- for mounting accessories and panel elements to
profiles
- for profile joints at any angled position.
• Unilateral flexible positioning.
• Medium flexural strength.
• Plug for closed profiles.
• Profile machining necessary.
Screwed joint, M8x12
Screwed joint, M8x20
* Must be ordered in pack size 10
Screwed joint, M8x25
Screwed joint, M8x25
* Must be ordered in pack size 10
Screwed joint, M8x40
Screwed joint, M8x40
* Must be ordered in pack size 10
Screwed joint, M8x80
TCSJ 8 C*
TCSJ 8 D*
TCSJ 8 E*
Screwed joint, M8x12
* Must be ordered in pack size 10
TCSJ 8 A*
Screwed joint, M8x10
Screwed joint, M8x10
* Must be ordered in pack size 10
58 M8 Screwed joint TC40, with T-slot nut © FlexLink 2021
TCSJ 8 B*
Screwed joint, M8x80
* Must be ordered in pack size 10
TCSJ 8 F*
Page 61
Designation Size Colour Part num-
A
B
C
M8x80
M8x80
M8x40
11,5
Ø9
Ø15
X
X
Ø9
M8x12, X=0-3 mm TCSJ 8 A 10
M8x16, X=4-7 mm TCSJ 8 B 10
M8x20, X=8-11 mm TCSJ 8 C 10
M8 screwed joint A-B M8x25, X=13-16 mm TCSJ 8 D 10 1) TCAD M8M12CJ
M8x40, X=28-31 mm TCSJ 8 E 10 2) TTCS 9x15
M8x80, X=68-71 mm TCSJ 8 F 10
Plug
(1) Drill fixture
(2) Counter bore, 9.0/15.0 mm diameter
C Silver grey (similar to RAL 7001) TCBE M8 G 100
Black (similar to RAL 9005) TCBE M8 B 10 0
ber
Qty Tool
Steel, galva­nised
Assembly Machining
Part list
A M8 socket head cap screw/ 8 circlip
B T-slot nut M8, steel
C Plug
Tightening torques
*
TC40 L 17
TC40 B 17
TC40 H 20
TC40 U 20
Nm
© FlexLink 2021 M8 Screwed joint TC40, with T-slot nut 59
Page 62

M8 Screwed joint, TC40

Screwed joint, M8, 40 mm
• For right-angled profile joints.
• High flexural strength.
• Plug for closed profiles.
• Profile machining necessary.
• Rotation prevented by use of spring blade where only one screw is fitted.
Screwed joint, M8, 40 mm
TCSJ 8x40*
* Must be ordered in pack size 10
Screwed joint, M8, 80 mm
Screwed joint, M8, 80 mm
* Must be ordered in pack size 10
TCSJ 8x80*
Spring blade, Anti rotation device M8
Spring blade, Anti rotation device M8
* Must be ordered in pack size 10
TCSB 8*
Designation Size Thread Colour Part number Qty Material Tool
M8 screwed joint A
M8 spring blade B TCSB 8 10 Spring steel
Plug C
(1) Drill fixture
(2) Counter bore, 9.0/15.0mm diameter
40 M8x50 TCSJ 8x40 10
80 M8x90 TCSJ 8x80 10 2) TTCS 9x15
Silver grey (similar to RAL 7001) TCBE M8 G 100
Black (similar to RAL 9005) TCBE M8 B 100
Steel, galvanised
1) TCAD M8M12CJ
60 M8 Screwed joint, TC40 © FlexLink 2021
Page 63
Assembly
X
M8x50
M8x90
M8x90
A
C
B
A
Ø20
1,5
11,5
Ø9
Ø15
TC
TC
40
40 C
Part list
A M8 socket head cap screw/ 8 circlip/ M12/M8 reducing sleeve
B M8 spring blade
C Plug
Tightening torques Machining
Nm
*
TC40 L 17
TC40 B 17
TC40 H 20
TC40 U 20
© FlexLink 2021 M8 Screwed joint, TC40 61
Page 64

M12 clamped joint, TC40

Screw, M12 Clamped joint
• For right-angled profile joints.
• The opposite profile slot can still be used.
• Spring blades act as anti-rotation elements and increase contact area of screw head.
• Plug for closed profiles.
• Profile machining necessary.
Screw, M12 Clamped joint
TCCJ 12x25*
* Must be ordered in pack size 10
Spring blade, Anti rotation device M12
Spring blade, Anti rotation device M12
* Must be ordered in pack size 10
TCSB 12*
Designation Size Thread Colour Part number Qty Material Tool
M12 clamped joint A
M12 spring blade B TCSB 12 10 Spring steel
Plug C
(1) Drill fixture
(2) Counter bore, 9.0/15.0mm diameter
X=40
M12x25 TCCJ 12x25
X=80 10 2) TTCS 9x15
Silver grey (similar to RAL 7001) TCBE M12CJ G 100
Black (similar to RAL 9005) TCBE M12CJ B 100
10
Steel, galvanised
1) TCAD M8M12CJ
62 M12 clamped joint, TC40 © FlexLink 2021
Page 65
Assembly
A
C
B
1
M12x25 17 Nm
38
M12x25 17 Nm
X
1,5
Ø9 Ø15
24
TC
4040
TC
4040 C
Part list
A M12x25 clamping screw
B Spring blade, M12
C Plug
1 Rear view
Tightening torques Machining
*
TC40 L 17
TC40 B 17
TC40 H 20
TC40 U 20
Nm
© FlexLink 2021 M12 clamped joint, TC40 63
Page 66

T-slot nut TC40

A
M8x10
140
30
9,5
M8
17
40 30
• For butt joints.
• Fast installation- T-slot nut is pushed into the profile slot and fixed in place with the premounted grub screws.
• No machining work necessary to open profiles.
• Locked against rotation by using two T-slot nuts.
T-slot nut, 4xM8
Assembly
Part list
A T-slot nut including M8x10 grub screws
Dimensions
T-slot nut, 4xM8
* Must be ordered in pack size 10
Steel, galvanised
TCAN 8x4*
64 T-slot nut TC40 © FlexLink 2021
Page 67

Connecting strip TC40

A
B
40
74
X
X
36
40
114
36
40
Ø8,5
5
13,5X−X
A
B
• For joining or butt-mounting system profiles.
• Fixing material included.
Connecting strip, 40x80
Assembly
Part list
A 40x80 connecting tab/ M8x16 socket head cap screw/
B 40x120 connecting tab/ M8x16 socket head cap screw/
8.4 washer/ steel M8 T-slot nut
8.4 washer/ steel M8 T-slot nut
Dimensions
Connecting strip, 40x80
TCCS 74
Steel, galvanised
Connecting strip, 40x120
Connecting strip, 40x120
Steel, galvanised
TCCS 114
© FlexLink 2021 Connecting strip TC40 65
Page 68

Connecting joint TC40

A
1
20
Ø9
20
40
74
37
X
X−X
X
8
• For joining 80mm system profiles at right angles.
• Mounts by hooking into the profile slot.
• A locked joint is produced by using two joints.
• Secure fit- position marking shows position of T-head.
• Fixing material included.
Assembly
Connecting bracket
Connecting bracket
Aluminum, anodised finish
TCFA 80x37
Part list
A Connecting joint/ M8x25 T-head bolt/ M8 nut (self-lock-
1 Position marking
ing)/ 8.4 washer
Dimensions
66 Connecting joint TC40 © FlexLink 2021
Page 69

Connector plate TC40

• For bracing highly stressed joints.
• T and L joints for 40 and 80mm system profiles.
• Fixing material included.
Connector plate, 150x125
Connector plate, 125x125
Connector plate, 125x125
Connector plate, 200x200
TCPJ 125x125
Connector plate, 150x125
Connector plate, 200x169
Connector plate, 200x169
Plate for T and L-joint including fixing material
TCPJ 150x125
Connector plate, 200x200
TCPJ 200x169
mm Part number Material
A 150x125x3 TCPJ 150x125
B 200x169x3 TCPJ 200x169
C 125x125x3 TCPJ 125x125
D 200x200x3 TCPJ 200x200
TCPJ 200x200
Steel
galvanised
© FlexLink 2021 Connector plate TC40 67
Page 70
Assembly Dimensions
A
B
D
C
60
17
150
110
125
40
18
17
Ø9
t = 3
t = 3
200
17
Ø9
169
135
40
40
125
404017
125
Ø9
Ø13,5
65
65
t = 3
200
454017
200
t = 3
Ø9
80
A
B
D
C
Part list
A Plate for T-joint, 40mm/4 pcs of M8x14 socket head cap
B Plate for T-joint, 80mm/ 8 pcs of M8x14 socket head cap
C Plate for L-joint, 40mm/ 5 pcs of M8x14 socket head cap
D Plate for L-joint, 80mm/ 11 pcs of M8x14 socket head cap
screw/ washer/ Steel M8 T-slot nut
screw/ washer/ Steel M8 T-slot nut
screw/ washer/ Steel M8 T-slot nut
screw/ washer/ Steel M8 T-slot nut
68 Connector plate TC40 © FlexLink 2021
Page 71

Stay bracket TC40

0-90°
D
1
A
E
B
F
C
F
D
F
D
• Stay bracket for:
- joining profiles at any angled position
- use as heavy-duty hinge.
• Wear-resistant plastic bushes for easy action.
• Version with clamping lever permits easy adjustment without the need for tools.
• All mounting hardware are included
Stay bracket
Assembly
Stay bracket
All mounting hardware are included
Stay bracket, with Locking lever
TCFJ 40
Part list
A End joint, standard
B End joint with clamping lever
C M8x14 socket head cap screw/ 8.4 washer
D M8x20 socket head cap screw/ 8.4 washer
E Steel T-slot nut, M8
F M12/ M8 reducing sleeve
1 Anti-rotation element
Stay bracket, with Locking lever
TCFJ 40 A
All mounting hardware are included
© FlexLink 2021 Stay bracket TC40 69
Page 72
Type/Version Part number Material Colour
Ø8,5
8
1,8
40
8
14
8
40
8
1,8
Ø8,5
14
41
30
30
End joint
T- s lo t n u t, M 8 E TCAN 8 Steel, galvanised
M12/ M8 reducing sleeve F TCRS M12M8 Steel, galvanised
A Standard TCFJ 40
B Star grip TCFJ 40 A
Aluminum Anodised finish
Dimensions
70 Stay bracket TC40 © FlexLink 2021
Page 73

Corner bracket TC40, 40x40

A
Ø9
20
20
5,5
4
40
40
• For right-angled corner joints.
• For joining three profiles to create a corner.
• No profile machining necessary.
• Bracket with anti-rotation element.
• Push-on end cap.
Corner connector, 40x40
Assembly
Part list
A Corner connector/ M8x20 ULS screw/ end cap/ M12/M8
reducing sleeve
Dimensions
Corner connector, 40x40
Including cap and fixing material
Die-cast zinc/plastic
TCFA 40 AB
© FlexLink 2021 Corner bracket TC40, 40x40 71
Page 74

40x40 / 90° Corner connector TC40

Ø9
20
20
5,5
4
40
40
• For right-angled corner joints.
• For joining three corner profiles to create a corner.
• No profile machining necessary.
• Bracket with anti-rotation element.
• Push-on end cap.
Corner connector, 40x40/90°
Assembly
Part list
A Corner bracket/ M8x20 ULS screw/ end cap/ M12/M8
reducing sleeve
B TC40- 40x40/ 90° profile (not included)
C 40x40/ 90° end cap (not included)
Dimensions
Corner connector, 40x40 / 90°
Including cap and fixing material
TCFA 40 BB
72 40x40 / 90° Corner connector TC40 © FlexLink 2021
Page 75

Corner bracket, 40x40 / 90°/ R40 TC40

ø9
37,5
37,5
20
20
8
5
• For right-angled corner joints.
• For joining three profiles to create a corner.
• No profile machining necessary.
• Bracket with anti-rotation element.
• Push-on end cap.
Corner connector, 40x40 / 90° / R40
Assembly
Part list
A Corner bracket/ M8x20 ULS screw/ end cap/ M12/M8
reducing sleeve
B TC40- 40x40/ 90° profile (not included)
C 40x40/ 90° end cap (not included)
Dimensions
Corner connector, 40x40 / 90° / R40
Including cap and fixing material
TCFA 40 CB
© FlexLink 2021 Corner bracket, 40x40 / 90°/ R40 TC40 73
Page 76

Fixing elements, TC40

T-slot nut, M8, steel
• For mounting profiles, construction parts and acces­sories at any point.
• T-slot nuts are turned into side of the profile slot or pushed into the end face.
• High-strength steel T-slot nuts- particularly suitable in conjunction with dynamic loading.
T-slot nut, M4, steel
T-slot nut, M4, steel
* Must be ordered in pack size 10 or pack size 100
TCAN 4*
T-slot nut, M5, steel
T-slot nut, M8, steel
TCAN 8*
* Must be ordered in pack size 10 or pack size 100
T-slot nut, 4xM8
T-slot nut, 4xM8
* Must be ordered in pack size 10
TCAN 8x4*
T-slot nut, M5, steel
TCAN 5*
* Must be ordered in pack size 10 or pack size 100
T-slot nut, M6, steel
T-slot nut, M6, steel
* Must be ordered in pack size 10 or pack size 100
TCAN 6*
74 Fixing elements, TC40 © FlexLink 2021
Page 77
Material Dimensions Thread Size Part number
22
M..
9,5
13,5
6,9
140
30
9,5
M8
17
40 30
mm Nm 1 2 3
M4 22 5 Yes Ye s N o
TCAN 4
TCAN 5
M5 22 10 Ye s Ye s N o
M6 22 15 Ye s Ye s N o
TCAN 6
Steel, galvanised
1) Can be turned into the profile slot
2) For locking in position in the slot
3) T-slot nut including. grub screws
M8 22 25 Ye s Ye s N o
TCAN 8
M8 140 25 No No Yes TCAN 8x4
© FlexLink 2021 Fixing elements, TC40 75
Page 78

T-head bolts, TC40

M8
H
L
A
1
T-bolt, M8x25
• For mounting construction parts and accessories at any point.
• T-head is pushed into end face of the profile slot or turned into the side.
• Self-locking nut.
• Secure fit- position marking shows position of T-head.
T-bolt, M8x16
T-bolt, M8x16
* Must be ordered in pack size 100
TCAT 8x16*
T-bolt, M8x20
T- b o l t , M 8 x 2 5
* Must be ordered in pack size 100
T-bolt, M8x30
T- b o l t , M 8 x 3 0
* Must be ordered in pack size 100
T-bolt, M8x40
T- b o l t , M 8 x 4 0
* Must be ordered in pack size 100
Dimensions
TCAT 8x25*
TCAT 8x30*
TCAT 8x40*
T-bolt, M8x20
* Must be ordered in pack size 100
T-bolt, M8x23
T-bolt, M8x23
* Must be ordered in pack size 100
Designation Size H
T-head bolt including. nut A
TCAT 8x20*
TCAT 8x23*
mm
4 M8x16 TCAT 8x16 100
8 M8x20 TCAT 8x20 100
10 M8x23 TCAT 8x23 100
12 M8x25 TCAT 8x25 100
16 M8x30 TCAT 8x30 100
26 M8x40 TCAT 8x40 100
Thread
M8xL mm
Part list
A M8 T-head bolt/ 8.4 washer/ M8 nut
1 Position marking
Part number Pack size Material
Steel, galvanised
76 T-head bolts, TC40 © FlexLink 2021
Page 79

Cable holders, TC40

5
56,5
14,5
Ø56
10
Ø45
5
36,5
14,5
Ø36
10
Ø25
Ø17
16
22
22
10
B
A
• Holder for mounting power and control lines to sys­tem profiles.
• Various shapes and sizes.
• Holders swing into system slot at any position.
Cable holder, black
Cable holder, 45 mm diameter, black
Cable holder, 45 mm diameter, black
TCCH 45 B*
* Must be ordered in pack size 10
Dimensions
Cable holder, 22x22mm black
TCCH 22x22 B*
* Must be ordered in pack size 10
Cable holder, 25 mm diameter, black
Cable holder, 25 mm diameter, black
* Must be ordered in pack size 10
Designation Size
Cable binder block A 22x22 TCCH 22x22 B 10
Cable holder B
TCCH 25 B*
mm
Ø25 TCCH 25 B 10
Ø45 TCCH 45 B 10
Part number Pack
size
Colour Material
Black (similar to RAL 9005) PA 6
© FlexLink 2021 Cable holders, TC40 77
Page 80

Reducing sleeve M12/ M8, TC40

A
1
19
0,5-1
M8
M12
• Use for mounting M8 screws in M12 screw channels.
• The reducing sleeve is screwed into the screw chan­nel using impact driver and 8 mm hexagon socket bit.
Sleeve, M12 to M8
Assembly
Part list
A M12/ M8 reducing sleeve
1 8mm hexagon socket
Dimensions
Sleeve, M12 to M8, steel, galva­nised
TCRS M12M8*
* Must be ordered in pack size 10 or pack size 100
78 Reducing sleeve M12/ M8, TC40 © FlexLink 2021
Page 81

Frame elements

Contents
Assembly block TC40..........................................................79
Multiblock TC40 ..................................................................81

Assembly block TC40

Connecting strip TC40.........................................................82
Spacer, 2/3/5 mm, grey or black
• Any thickness of panel material easy to install using screws.
• Assembly blocks swing into system slot at any posi­tion.
• Adjustable nut for evening out tolerances.
• Push-fit spacers for levelling.
• End cap TCBE M6 G and TCBE M6 B for Hex. socket button head screw
• Please make a separate order for M6 screws for installing panel elements and end caps for TCAM 6 G and TCAM 6 B.
Assembly block, M6, grey or black
Assembly block, M6, grey
Assembly block, M6, black
Plastic PA 30% fiberglass
Screw and anti-loss washer included
* Must be ordered in pack size 10
TCAM 6 AG*
TCAM 6 AB*
Assembly block, M6, grey or black
Spacer, 2 mm, grey
Spacer, 2 mm, black
Spacer, 3 mm, grey
Spacer, 3 mm, black
Spacer, 5 mm, grey
Spacer, 5 mm, black
* Must be ordered in pack size 10
Note! Only for TCAM 6 G and TCAM 6 B
TCAS 2 G*
TCAS 2 B*
TCAS 3 G*
TCAS 3 B*
TCAS 5 G*
TCAS 5 B*
Hex. socket button head screw, ISO 7380 M6x16 10.9-A2K
Hex. socket button head screw, ISO 7380 M6x16 10.9-A2K
* Must be ordered in pack size 100
MBC6S 6x16*
Plug, for screw ISO 7380 M6, grey or black
Plug, for screw ISO 7380 M6, grey
Plug, for screw ISO 7380 M6, black
Pack size 100 pcs
TCBE M6 G
TCBE M6 B
Assembly block, M6, grey
Assembly block, M6, Black
Plastic PA 30% fiberglass
Mounting screw not included, use MBC6S 6x16
* Must be ordered in pack size 10
© FlexLink 2021 Assembly block TC40 79
TCAM 6 G*
TCAM 6 B*
Page 82
Assembly
18
13±2
A
B
C
D
Ø14,1x2
8,5x15
10 15
t
15,3
25
2/3/5
4,8
M6
Ø12,4
13±2
1-2
Further fitting instructions
Part list
A Assembly block
B Spacer
C End cap for ULS M6 screw
D M6x16 ULS screw
Dimensions
80 Assembly block TC40 © FlexLink 2021
Page 83

Multiblock TC40

1
Ø14,1x2
8,5x15
5
10
20
1-5
9
0,5 kN1,75 kN
• Panel material easily installed by clamping, no need for machining work.
• Panel material is installed using a clamping piece.
• Multiblocks swing into system slot at any position.
Multiblock, grey or black
Part list
1 Clamping piece
Dimensions
• Maximal load-bearing capacity: Figure below refer to a panel element in a size of 1.5x1.5m, installed with 12multiblocks.
Further fitting instructions
Multiblock, grey
Multiblock, black
* Must be ordered in pack size 10
Material: PA-GF
TCAM 22 G*
TCAM 22 B*
Assembly
© FlexLink 2021 Multiblock TC40 81
Page 84

Connecting strip TC40

A
C
B
D
2,5 27
18
4,8
M6
Ø12,4
10
1-2
10,5
2000
19x100
M6 x20
10
50
2,5
• For mounting any thickness of panel material using screws.
• The full-length connecting strip is turned into the sys­tem slot and fixed in place using the grub screws.
• Please make a separate order for M6 ULS screw and nut for installing panel elements as well as end caps.
Assembly
Connecting strip, L=2000, 20 x M6
Connecting strip, L=2000, 20 x M6
Material: Aluminum, anodised finish
Slotted set screw, ISO 7380 M6x16 10.9-A2K
TCAM 2x18
Slotted set screw, ISO 7380 M6x16 10.9-A2K
* Must be ordered in pack size 100
MBC6S 6x16 M*
Part list
A Connecting strip
B M6x16 ULS screw
C End cap for ULS M6 screw
D Hexagon nut M6
Dimensions
Plug, for screw ISO 7380 M6, grey or black
Plug, for screw ISO 7380 M6, grey
Plug, for screw ISO 7380 M6, black
* Must be ordered in pack size 100
82 Connecting strip TC40 © FlexLink 2021
TCBE M6 G*
TCBE M6 B*
Page 85

Base elements

Contents
Adjustable feet TC40 ...........................................................83
Floor attachment bracket TC40 ...........................................86
End plate .............................................................................87
Foot Plate for beams ...........................................................89
Floor washer, open version .................................................92

Adjustable feet TC40

Floor attachment bracket.....................................................93
Floor attachment bracket.....................................................94
Castors................................................................................95
Foot .....................................................................................98
Adjustable foot, M8x40, black
• Adjustable foot, infinitely variable in height, for devices and casings.
• Cost-effective, fast assembly directly in the profile using screw channel or in combination with threaded bush/ fixing plates.
• Moving foot plate for stability on uneven surfaces.
• Threaded rod: Steel, galvanised.
• Accessories: Fixing plates and clamping straps.
Adjustable foot, M8x40, black
TCFS 8x40 PB
Adjustable foot, M12x38, grey or black
Adjustable foot, M12x38, grey
Adjustable foot, M12x38, black
TCFS 12x38 PG
TCFS 12x38 PB
© FlexLink 2021 Adjustable feet TC40 83
Page 86
Adjustable feet TC40 (continued)
H1
H2
D
F
M8
M12
M16
M12
1
2
3
Adjustable foot, M12x58, black
Adjustable foot, M12x58, black
TCFS 12x58 PB
Adjustable foot, M12x79, grey or black
Adjustable foot, M16x79, black
Adjustable foot, M16x79, black Die-cast zinc
Assembly
TCFS 16x79 ZB
Adjustable foot, M12x79, grey
Adjustable foot, M12x79, black
Adjustable foot, M12x79, grey Die-cast zinc
Adjustable foot, M12x79, black Die-cast zinc
Adjustable foot, M16x39, black
Adjustable foot, M16x39, black Die-cast zinc
TCFS 12x79 PG
TCFS 12x79 PB
TCFS 12x79 ZG
TCFS 12x79 ZB
1) M12/ M8 reducing sleeve TCRS M12M8
2) Fixing plate
3) Adjustable foot
TCFS 16x39 ZB
84 Adjustable feet TC40 © FlexLink 2021
Page 87
M12
Ø38
66
32
6
M12
Ø58
70
28
6
M16
Ø79
100
32
13
M16
Ø39
66
13
32
M12
Ø79
100
32
6
A
B C
G
F
D E
M12
100
34
6
Ø79
M16M12M8
40
80
17
6,8
M8
Part number
D
[mm]
A M8 40 17 80 7 No No TCFS 8X40 PB Black (similar to RAL 9005)
Adjustable foot
1 Foot plate with damper
2 Foot plate, pivoted
3 Colour
B
C 58 28 70 6,5 No Yes TCFS 12X58 PB Black (similar to RAL 9005)
M12
D 79 32 100 7, 5 Ye s Ye s
E 79 34 10 0 20 Ye s No
F
M16
G 79 32 100 25 Ye s No TCFS 16X79 ZB Black (similar to RAL 9005)
38 32 66 7, 5 Ye s Ye s
39 32 66 25 Ye s No TCFS 16X39 ZB Black (similar to RAL 9005)
H1
[mm]
H2
[mm]
kN 1 2 3 4
TCFS 12X38 PG Silver grey (similar to RAL 7001)
Plastic
Die-cast zinc
TCFS 12X38 PB Black (similar to RAL 9005)
TCFS 12X79 PG Silver grey (similar to RAL 7001)
TCFS 12X79 PB Black (similar to RAL 9005)
TCFS 12X79 ZG Silver grey (similar to RAL 7001)
TCFS 12X79 ZB Black (similar to RAL 9005)
4 Foot plate material
© FlexLink 2021 Adjustable feet TC40 85
Page 88

Floor attachment bracket TC40

1
2
A
B
20
76
48
115,6
149,8
Ø49
Ø14
X−X
• Floor attachment bracket for combining with 79-mm diameter adjustable feet (part. no. TCFS 12X79 ZG, TCFS 12X79 ZB)
• Used for fixing foot to floor
• Can be retrofitted
• Please order floor-mounting fixing material separately
Floor attachment bracket grey or black
Dimensions
Floor attachment bracket, grey
Die-cast zinc Silver grey (similar to RAL
7001)
Floor attachment bracket, black
Die-cast zinc Black (similar to RAL 9005)
For adjustable foot diameter 79 mm
Assembly
TCFF 80x150 G
TCFF 80x150 B
Part list
A Floor attachment bracket
B Anchor bolt
1 Fixing plate
2 Adjustable foot
86 Floor attachment bracket TC40 © FlexLink 2021
Page 89

End plate

• End plates for centred mounting of adjustable feet, castors or eyebolts to 40x80 or 80x80mm system profiles.
• Suitable for high loads.
• Contour geometry designed to match TC40 profiles.
End plate, M12, 40x80
End plate, M12, 80x80
End plate, M12, 80x80
Including screws
End plate, M16, 80x80
TCFE 80 M12
End plate, M12, 40x80
Including screws
End plate, M16, 40x80
End plate, M16, 40x80
Including screws
TCFE 40x80 M12
TCFE 40x80 M16
End plate, M16, 80x80
Including screws
End plate, M12, 80x80 / 90°
End plate, M12, 80x80 / 90°
Including screws
TCFE 80 M16
TCFE 80 M12A
© FlexLink 2021 End plate 87
Page 90
Assembly
B
A
C
40 40
80
40
80
X−X Ø20
Ø11
11
20
X
40
80
X
M16
M12
M12
1
BA C
Part list
A 40x80mm end plate / M12x30 socket head cap screw / 12 circlip
B 80x80mm end plate / M12x30 socket head cap screw / 12 circlip
C 80x80/90° end plate / M12x30 socket head cap screw / 12 circlip
Part. no.
End plate including fixing material
Dimension
D [mm]
A
B 80x80 TCFE 80 M12
M12
C 80x80 / 90° TCFE 80 M12A
A
M16
B 80x80 TCFE 80 M16
40x80 TCFE 40X80 M12
40x80 TCFE 40X80 M16
Aluminum Anodised finish
88 End plate © FlexLink 2021
Page 91

Foot Plate for beams

20
Foot plate for beam, 80x80 Basic
• Foot plate for fixing profiles to the floor.
• Suitable for high loads.
• To facilitate alignment, four M8 threaded holes are in each case provided for fitting levelling screws (not included).
• Profile mounting with countersunk-head screws.
• Please order floor-mounting fixing material sepa­rately.
Foot plate for beam, 40x40 Light/Basic
Foot plate for beam, 40x40 light / basic
TCFB 40 LB
Including screws
19
Foot plate for beam, 40x80 Light/Basic
Foot plate for beam, 80x80 basic
TCFB 80 B
Including screws
21
Foot plate for beam, 40x40 Heavy
Foot plate for beam, 40x40 heavy
TCFB 40 H
Including screws
22
Foot plate for beam, 40x80 Heavy
Foot plate for beam, 40x80 heavy
TCFB 40x80 H
Including screws
23
Foot plate for beam, 80x80 Heavy/Ultra
Foot plate for beam, 40x80 light / basic
Including screws
© FlexLink 2021 Foot Plate for beams 89
TCFB 40x80 LB
Foot plate for beam, 80x80 heavy/ultra
Including screws
TCFB 80 HU
Page 92
Assembly
D
A
E
B
F
G
H
I
C
1
1
1
1) TC L/B profiles:
M8 thread tapping recommended
TC
40 L /
TC
40 B
40 H / TC40 U
TC
Part. no
mm
A 40x40 TCFB 40 LB
B 40x80 TCFB 40X80 LB
End plate including fixing material
C 80x80 TCFB 80 B
D 40x40 TCFB 40 H
E 40x80 TCFB 40X80 H
Steel, galvanised
F 80x80 TCFB 80 HU
Floor washer G See“Floor washer, open version” on page 92 BRB 11X26 Steel, galvanised
Anchor bolt, M8 H --
Levelling screw, M8 I --
90 Foot Plate for beams © FlexLink 2021
Page 93
Dimensions
29,6
100
75
69,6
140
115
69,6
140
115
29,6
100
75
X
X
6
Ø11 M8
Ø9
4,7
X-X
90°
90°
27,7
100
75
40
140
115
67,7
140
115
27,7
100
75
Y
Y
Y
Y
Z
Z
6
Ø11 M8
Ø6,6
3,6
Y-Y
8
Ø11 M8
Ø13,5
6,9
Z-Z
90°
40
C B
EF
D
A
© FlexLink 2021 Foot Plate for beams 91
Page 94

Floor washer, open version

11
Ø26
1
• Washer for easy levelling of floor fixings.
• The open cross section permits subsequent (dis)assembly without having to remove the screw connection.
Washer, open version
Washer, open version
* Must be ordered in pack size 10
Dimensions
BRB 11x26
2
92 Floor washer, open version © FlexLink 2021
Page 95

Floor attachment bracket

B
A
30
50
X
X
Ø13
Ø9
20
40
5
150
35
X−X
• Floor attachment bracket for fixing profiles to the floor.
• Suitable for medium loads.
• Suitable for high vertical loads in conjunction with adjustable foot.
• Fixing material:
- for mounting profile, included
- for floor mounting, please order separately.
Floor attachment bracket, 50x150
Assembly
Part list
A Floor attachment bracket/ M8x16 socket head cap screw/ 8.4
washer/ M8 T-slot block
B Anchor bolt
Floor attachment bracket, 50x150
Steel, galvanised
Dimensions
TCFA 150
© FlexLink 2021 Floor attachment bracket 93
Page 96

Floor attachment bracket

B
A
Ø13
Ø9
20
40
11
3
151,5
41
60
• Floor attachment bracket for fixing profiles to the floor.
• Suitable for high loads. The offset form absorbs flex­ural torque from several directions.
• Suitable for high vertical loads in conjunction with adjustable foot.
• Fixing material:
- for mounting profile, included
- for floor mounting, please order separately.
Part list
A Floor attachment bracket/ M8x12 socket head cap screw/ 8.4
washer/ M8 T-slot block
B Anchor bolt
Dimensions
Floor attachment bracket, 60x152
Floor attachment bracket, 60x152
Steel, galvanised
Assembly
TCFA 150 A
94 Floor attachment bracket © FlexLink 2021
Page 97

Castors

1
2
23
M12
A
15
H
65
SW 17
D
• Designed to match TC40 series profiles in shape and colour.
• Wear-resistant rollers with plain bearing.
• Swivel castor as central lock with brake for castor and axle.
• Cost-effective, fast assembly directly in the profile using screw channel or in combination with fixing plates.
Castor, Plastic, grey
Assembly
Part list
1 Fixing plate
2 Lock
Dimensions
Castor, Plastic, grey
TCAG 75 AG
Castor with multistop brake, plastic grey
Castor, Plastic, grey with multi­stop brake
Swivel castor
1) With/without lock
© FlexLink 2021 Castors 95
No No 0,7
No Yes 0,7
1 kN D [mm] H [mm] A [mm]
TCAG 75 BAG
Part. no
M12 74,6 92,0 60,5 TCAG 75 AG
M12 74,6 92,0 78,4 TCAG 75 BAG
PA Grey (similar to RAL 7004)
Page 98
Castors (Continued)
• Wear-resistant rollers with plain bearing.
• Swivel castor as central lock with brake for castor and axle.
• Mounting options:
- mounting directly in profile end face using the
M12 screw channel
- in combination with M12 fixing plates (please
order separately).
- side mounting in profile slot with M8 T-slot nut
• Fork: Steel, galvanised.
Castor, 125 mm
Castor
TCAG 125
Castor with multistop brake, 125 mm
Castor, 75 mm
Castor
TCAG 75
Castor with multistop brake, 75 mm
Castor with multistop brake, 125 mm
TCAG 125 BA
Castor with multistop brake, 75 mm
96 Castors © FlexLink 2021
TCAG 75 BA
Page 99
Assembly
28/40
Ø13 / Ø10,5
A
H
43/57
D
D
Ø13 / Ø10,5
H
34
B
A
Dimensions
Part list
A Swivel castor incl. M12/M8 countersunk-head screws
B Fixed castor, incl. M12/M8 countersunk-head screws
C Steel M8 T-slot block (included)
1 Fixing plate
2 Lock
1 kN D [mm] H [mm] A [mm] 2 2
Swivel castor
Fixed castor B
A
Yes 0,5
Yes 1,0
No 0,5
No 1,0
M8 75 98 74 TCAG 75 BA
M12 125 158 105 TCAG125 BA
M8 75 98 -- TCAG 75
M12 125 158 -- TCAG 125
Part. no
PA Grey
T-block C TCAN 8 M Steel, galvanised
1) With lock
2) Tyres: Material/colour
31 32 33 34
© FlexLink 2021 Castors 97
Page 100

Foot

160
250
250
Foot, for 80x80 profiles
Foot, for 80x80 profiles
TCFF 80x250
98 Foot © FlexLink 2021
Loading...
