Flexim FLUXUS WD Operating Instruction

Download

Page 1

Operating instruction

FLUXUS WD

UMFLUXUS_WDV1-3EN

Page 2

FLUXUS is a registered trademark of FLEXIM GmbH.

FLEXIM GmbH

Boxberger Straße 4

12681 Berlin

Germany

Tel.: +49 (30) 936 67 660

Fax: +49 (30) 936 67 680

E-mail: [email protected]

www.flexim.com

Operating instruction for

FLUXUS WD

UMFLUXUS_WDV1-3EN, 2018-07-16

Firmware version: V7.18

Article number: 411

Subject to change without prior notice.

Page 3

FLUXUS WD Table of contents

Table of contents

1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.1 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.2 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.3 Not intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2.4 Safety instructions for the user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2.5 Safety instructions for the operator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2.6 Safety instructions for electrical work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2.7 Safety instructions for transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

2.8 Recommended procedure in hazardous situations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

3 General principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

3.1 Measurement principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

3.2 Measurement arrangements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

3.3 Acoustic penetration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

3.4 Undisturbed flow profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

4 Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4.1 Measuring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4.2 Handling concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4.3 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

4.4 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

5 Transport and storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

5.1 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

5.2 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

6.1 Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

6.2 Transducers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

7 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

7.1 Transducers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

7.2 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

7.3 Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

7.4 Service interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

8 Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

8.1 Start-up settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

8.2 Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

8.3 Status indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

8.4 Program branches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

8.5 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

8.6 Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

8.7 Time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

8.8 Information regarding the transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 4

Table of contents FLUXUS WD

9 Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

9.1 Parameter Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

9.2 Measurement settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

9.3 Start of the measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

9.4 Display of measured values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

9.5 Display of parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

9.6 Repeated display of measured values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

9.7 Execution of special functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

9.8 Stop of the measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

10.1 Problems with the measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

10.2 Measuring point selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

10.3 Maximum acoustic contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

10.4 Application-specific problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

10.5 Significant deviations of the measured values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

10.6 Problems with the totalizers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

11 Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

11.1 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

11.2 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

12 Dismounting and disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

12.1 Dismounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

12.2 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

13 User modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

13.1 StandardUser mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

13.2 ExpertUser mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

13.3 SuperUser Mode and SuperUser ext. Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

14 Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

14.1 Configuration of a binary output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

14.2 Activation of a binary output as pulse output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

15 Data logger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

15.1 Configuration of the data logger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

15.2 Deletion of the data logger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

15.3 Information relating the data logger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

15.4 Print of measured values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

15.5 Transmission settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

16 Data transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

16.1 Service interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

16.2 Process interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

17 Advanced functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

17.1 Totalizers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

17.2 FastFood mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

17.3 Calculation channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

17.4 Diagnosis by means of the snap function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

17.5 Modification of the limit for the inner pipe diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

17.6 Remote functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

17.7 Event trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

17.8 Event protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

2018-07-16, UMFLUXUS_WDV1-3EN

Page 5

FLUXUS WD Table of contents

18 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142

18.1 Dialogs and menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142

18.2 Measuring modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

18.3 Measurement settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

18.4 Units of measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145

18.5 Material scroll list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

18.6 Working with parameter records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

18.7 Contrast settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

18.8 HotCodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148

18.9 Key lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148

Annex

A Menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

B Units of measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .165

C Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .168

D Conformity declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 6

Table of contents FLUXUS WD

2018-07-16, UMFLUXUS_WDV1-3EN

Page 7

1 Introduction

Danger!

Warning!

Caution!

Important!

Notice!

FLUXUS WD

1 Introduction

This operating instruction has been written for users operating the ultrasonic flowmeter FLUXUS. It contains important information about the measuring equipment, how to handle it correctly, and how to avoid damages. Read the safety instructions carefully. Make sure you have read and understood this operating instruction before using the measuring equipment.

Any work on the measuring equipment has to be carried out by authorized and qualified personnel in order to detect and avoid possible risks and dangers.

Presentation of warnings

This operating instruction contains warnings marked as follows:

Type and source of danger

danger with high level of risk, which if not avoided, can lead to death or serious injuries  measures of prevention

Type and source of danger

danger with medium level of risk, which if not avoided, can lead to death or serious injuries  measures of prevention

Type and source of danger

danger with low level of risk, which if not avoided, can lead to minor or moderate injuries  measures of prevention

This text contains important information which should be observed to avoid material damage.

This text contains important information about the handling of the measuring equipment.

Storage of the operational manual

The operating instruction must permanently be available at the place where the measuring equipment is used. It must always be available to the user.

User comments

All reasonable effort has been made to ensure the correctness of the content of this operating instruction. If you however find some erroneous information or miss information, please inform us.

We will be grateful for any suggestions and comments regarding the concept and your experience working with the measuring equipment. If you have any suggestions about improving the documentation and particularly this operating instruction, please let us know so that we can consider your comments for future reprints.

The contents of this operating instruction are subject to changes without prior notice. All rights reserved. No part of this operating instruction may be reproduced in any form without FLEXIM's written permission.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 8

2 Safety instructions

2.1 General safety instructions FLUXUS WD

2 Safety instructions

2.1 General safety instructions

Prior to any work, read the operating instruction carefully and in full.

Failure to comply with the instructions, in particular with the safety instructions, poses a risk to health and can lead to material damages. For further information, contact FLEXIM.

During installation and operation of the measuring equipment, observe the ambient and installation conditions specified in the documentation.

The following symbols are affixed to the measuring equipment:

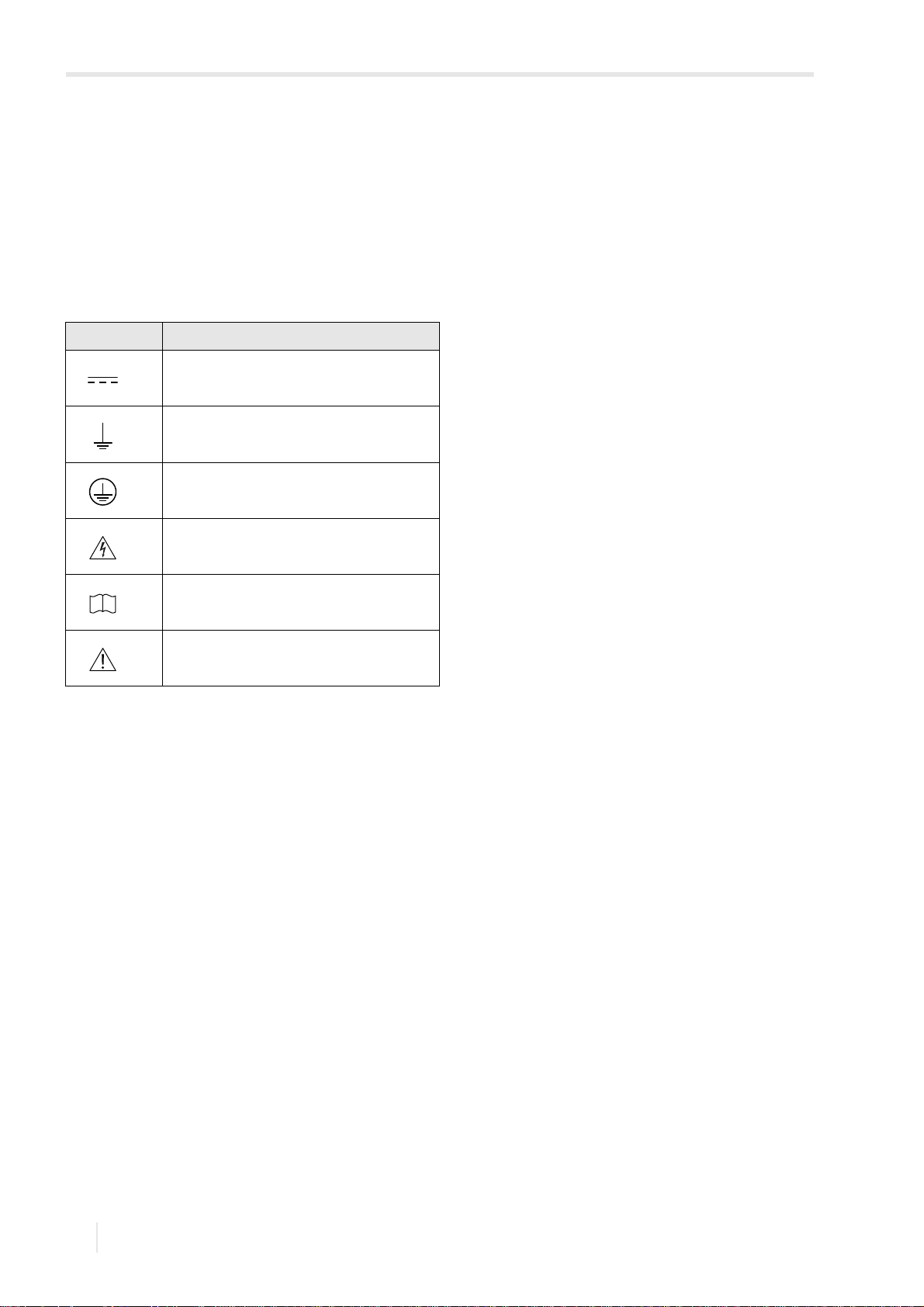

symbol explanation

direct current

connection to ground

ground conductor terminal

warning of voltage

observe the operating instruction

Attention!

The measuring equipment has to be checked for proper condition and operational safety before each use. If troubles or damages have occurred during installation or operation of the measuring equipment, please inform FLEXIM.

It is not allowed to make unauthorized modifications or alterations to the measuring equipment.

If the measuring point is within an explosive atmosphere, the danger zone and present explosive atmosphere have to be determined. The transmitter, transducers and accessories have to be appropriate and approved for the conditions within the corresponding zone.

The personnel has to be suitably trained and experienced for the work.

Observe the "Safety instructions for the use in explosive atmospheres", see document SIFLUXUS. Observe the instructions for hazardous substances and the respective safety data sheets. Observe the regulations for the disposal of electrical equipment.

2.2 Intended use

The measuring equipment is intended for the measurement of fluid properties in closed pipes. By means of connected transducers, the transit times of the ultrasonic signals in the fluid and the pipe as well as other related properties, such as temperature and pressure, are measured and evaluated.

The transmitter uses these values to calculate the sought physical quantities, e.g., volumetric flow rate, mass flow rate, heat quantity, density and concentration. Through comparison with the values stored in the transmitter further physical quantities can be determined. The physical quantities are provided via configurable outputs and the display.

• All instructions of this operating instruction have to be observed to ensure intended use.

• Any use beyond or other than the intended use is not covered by warranty and can present a danger. Any damage arising from not intended use shall be solely the liability of the operator or user.

• The measurement is carried out without direct contact to the fluid in the pipe. The flow profile is not influenced.

• The transducers are fixed to the pipe using the supplied transducer mounting fixture.

• If an extension cable is required to connect the transducers to the transmitter, a junction box can be used (optional). Observe the safety instructions in the operating instruction. For the technical data of the junction box, see Technical specification.

• Observe the operating conditions, e.g., environment, voltage ranges. For the technical data of the transmitter, transducers and accessories, see Technical specification.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 9

2 Safety instructions

FLUXUS WD 2.3 Not intended use

2.3 Not intended use

Not intended use in terms of a misuse means:

• any work on the measuring equipment without observing all instructions in this operating instruction

• use of transmitter, transducer and accessories combinations not intended by FLEXIM

• installation of the transmitter, transducers and accessories in explosive atmospheres they are not approved for

• any work on the measuring equipment (e.g., installation, dismounting, connection, start-up, operation, service and maintenance) carried out by unauthorized and untrained personnel

• storage, installation and operation of the measuring equipment outside the specified ambient conditions, see Technical specification

2.4 Safety instructions for the user

Any work on the transmitter has to be carried out by authorized and qualified personnel. Observe the safety instructions in the operating instruction. For the technical data of the transmitter, transducers and accessories, see Technical specification.

• Observe the safety and accident prevention regulations applicable on the site of operation.

• Only use the supplied mounting fixtures and transducers as well as the intended accessories.

• Always wear the required personal protective equipment.

2.5 Safety instructions for the operator

• The operator shall qualify the personnel to perform their assigned tasks. The operator shall provide the required personal protective equipment and oblige the personnel to wear it. It is recommended to risk assess the workplace.

• Besides the safety instructions in this operating instruction, the health, safety and environment regulations applicable for the range of application of the transmitter, transducers and accessories have to be observed.

• With the exceptions stated in chapter 10, the measuring equipment is maintenance-free. Any components and spare parts may only be replaced by FLEXIM. The operator shall carry out periodic checks for changes or damages that can present a danger. For further information, contact FLEXIM.

• Observe the specifications for the installation and connection of the transmitter, transducers and accessories, see chapter 6 and 7.

2.6 Safety instructions for electrical work

• Prior to any work on the transmitter (e.g., installation, dismounting, connection, service and maintenance), the transmitter has to be disconnected from the power supply. It is not sufficient to remove the internal fuse of the instrument, see section

7.2.

• Electrical work may only be carried out if there is enough space.

• Open the transmitter in safe ambient conditions only (e.g., air humidity < 90 %, no conductive pollution, no explosive atmosphere). Otherwise, additional protective measures have to be taken.

• The degree of protection of the transmitter is only ensured if all cables are tightly fitted using cable glands and the housing is firmly screwed.

• The condition and tight fit of the electrical connections have to be checked at regular intervals.

• When connecting the transmitter to the power supply, an appropriate cutoff device according to IEC 60947-1 and IEC 60947-3 has to be installed as disconnector. The cutoff device has to disconnect all live wires. The ground conductor connection must not be interrupted. The cutoff device has to be easily accessible and clearly marked as a disconnector for the transmitter. It should be located near the transmitter. If the transmitter is used in an explosive atmosphere, the cutoff device has to be installed outside the explosive atmosphere. If this is not possible, it has to be installed in the least hazardous area.

• The connection may only be made to networks up to overvoltage category II. When connecting the inputs and outputs as well as the power supply, observe the installation instructions, in particular the terminal assignment, see chapter 7.

• The front plate must not be removed, see Fig. 2.1. The transmitter does not contain any components to be maintained by the user. For repair and service work, please contact FLEXIM.

• Observe the safety and accident prevention regulations for electrical systems and equipment.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 10

2 Safety instructions

SNAP

DISP

MODEFAST

MUX

Q+Q-

3x Q

OFF

LAN

USB

A+B-P1+

P2+

P3+

P4+

P5a

P6a

P7a

SSP1-

P2-

P3-

P4-

P5b

P6b

P7b

X2 X3

X_AV

KL11

KL12

KL7KL8

KL9KL10

KL4

X_AR X_BV X_BR

T1A

T1BS1T2A

T2B

T3A

T3BS3T4B

T4A

T1a

T1bS1T2a

T2b

T3a

T3bS3T4b

T4a

N(-)

L(+)

AVS

AGN

ARSARBV

BVS

BGN

BRS

front plate

2.7 Safety instructions for transport FLUXUS WD

Fig. 2.1: Transmitter FLUXUS WD

2.7 Safety instructions for transport

• If you detect a transport damage when unpacking the delivery, please contact the supplier or FLEXIM immediately.

• The transmitter is a sensitive electronic measuring instrument. Avoid shocks or impacts.

• Handle the transducer cable with care. Avoid sharp bends or kinks. Observe the ambient conditions.

• Select a solid surface to put the transmitter, transducers and accessories on.

• The transmitter, transducers and accessories have to be properly packed for transport:

– Use, if possible, the original packaging by FLEXIM or an equivalent cardboard box.

– Position the transmitter, transducers and accessories in the middle of the cardboard box.

– Fill any voids with appropriate packaging material (e.g., paper, foam, bubble wrap).

– Protect the cardboard box against humidity.

2.8 Recommended procedure in hazardous situations

Fire fighting measures

• If possible, disconnect the transmitter from the power supply.

• Prior to extinguishing, protect any electrical parts that are not affected by the fire (e.g., using a cover).

• Select a suitable extinguishing agent. Avoid, if possible, conductive extinguishing agents.

• Observe the applicable minimum distances. The minimum distances differ depending on the used extinguishing agent.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 11

3 General principles



sin

------------



sin

------------



sin

------------



sin

-----------

·V·

·m·

V·V

FLUXUS WD 3.1 Measurement principle

3 General principles

In the ultrasonic flow measurement, the flow velocity of the fluid in a pipe is determined. Further physical quantities are derived from the flow velocity and from additional physical quantities, if necessary.

3.1 Measurement principle

The flow velocity of the fluid is measured in the TransitTime mode using the ultrasonic-transit time difference correlation principle. When measuring with a high proportion of gas or solid particles, the transmitter can toggle into the NoiseTrek mode.

3.1.1 Terms

Flow profile

Distribution of flow velocities over the cross-sectional pipe area. For an optimal measurement, the flow profile has to be fully developed and axisymmetrical. The shape of the flow profile depends on whether the flow is laminar or turbulent and is influenced by the conditions at the inlet of the measuring point.

Reynolds number Re

Coefficient describing the turbulence behavior of a fluid in the pipe. The Reynolds number Re is calculated from the flow velocity, the kinematic viscosity of the fluid and the inner pipe diameter.

If the Reynolds number exceeds a critical value (usually approx. 2300, if the fluid flows in a pipe), a transition from a laminar flow to a turbulent flow takes place.

Laminar flow

A flow without any turbulence. There is no mixing between the parallel flowing layers of the fluid.

Turbulent flow

A flow with turbulences (swirling of the fluid). In technical applications, the flow in the pipe is mostly turbulent.

Transition range

The flow is partly laminar and partly turbulent.

Sound speed c

Speed of the propagating sound. The sound speed depends on the mechanical properties of the fluid or the pipe material. In pipe materials and other solid materials, a distinction is made between the longitudinal and transversal sound speed. For the sound speed of some fluids and materials, see annex C.

Flow velocity v

Average value of all flow velocities of the fluid over the cross-sectional pipe area.

Acoustic calibration factor k

ka =

The acoustic calibration factor k

is a transducer parameter which results from the sound speed c within the transducer

and the angle of incidence. According to Snell's law of refraction, the angle of propagation in the adjoining fluid or pipe material is:

= = =

Fluid mechanics correction factor k

With the fluid mechanics calibration factor kRe, the measured value of the flow velocity in the area of the sound beam is converted into the value of the flow velocity across the whole cross-sectional pipe area. In case of a fully developed flow profile, the fluid mechanics calibration factor only depends on the Reynolds number and the roughness of the inner pipe wall. The fluid mechanics calibration factor is recalculated by the transmitter for each new measurement.

Volumetric flow rate

= v · A

The volume of the fluid that passes through the pipe per unit time. The volumetric flow rate is calculated from the product of the flow velocity v and the cross-sectional pipe area A.

Mass flow rate

= · 

The mass of the fluid that passes through the pipe per unit time. The mass flow rate is calculated from the product of the volumetric flow rate and the density .

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 12

3 General principles

t

2t

-----------









reduction of the sound path

flow direction of the fluid

sound path with flow

sound path without flow



flow direction of the fluid

sound path with flow

sound path

without flow







increase of the

sound path



3.1 Measurement principle FLUXUS WD

3.1.2 Measurement of the flow velocity in the TransitTime mode

The signals are emitted and received by 2 transducers alternatively in and against the flow direction. If the fluid is flowing, the signals propagating in the fluid are displaced with the flow.

Caused by this displacement, the sound path of the signal in flow direction is reduced and the signal against the flow direction is increased, see Fig. 3.1 and Fig. 3.2.

This causes a change in the transit times. The transit time of the signal in flow direction is shorter than the transit time against the flow direction. The transit time difference is proportional to the average flow velocity.

The average flow velocity of the fluid is calculated as follows:

· ka ·

v = k

where

v – average flow velocity of the fluid

– fluid mechanics calibration factor

– acoustic calibration factor

t – transit time difference

– transit time in the fluid



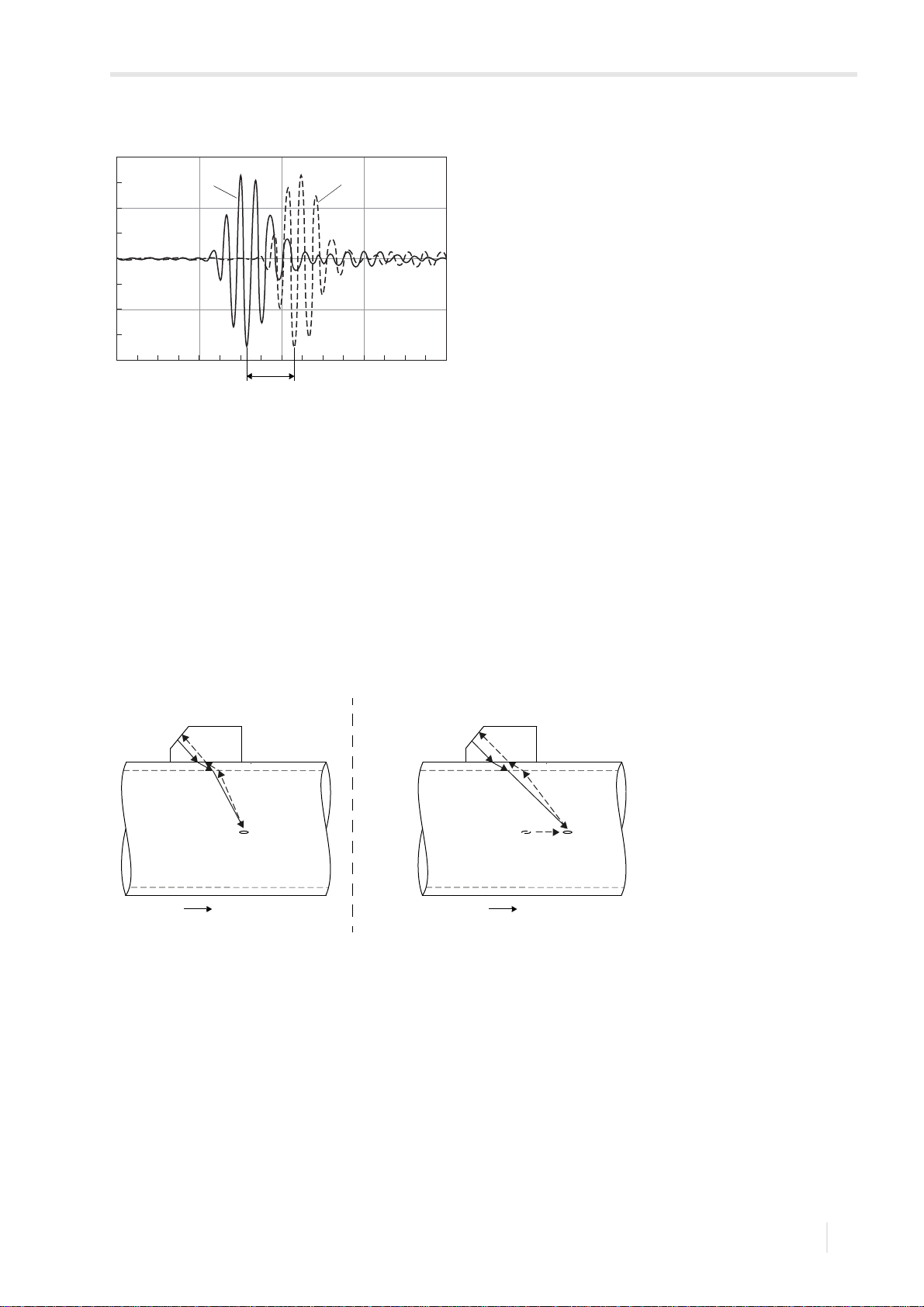

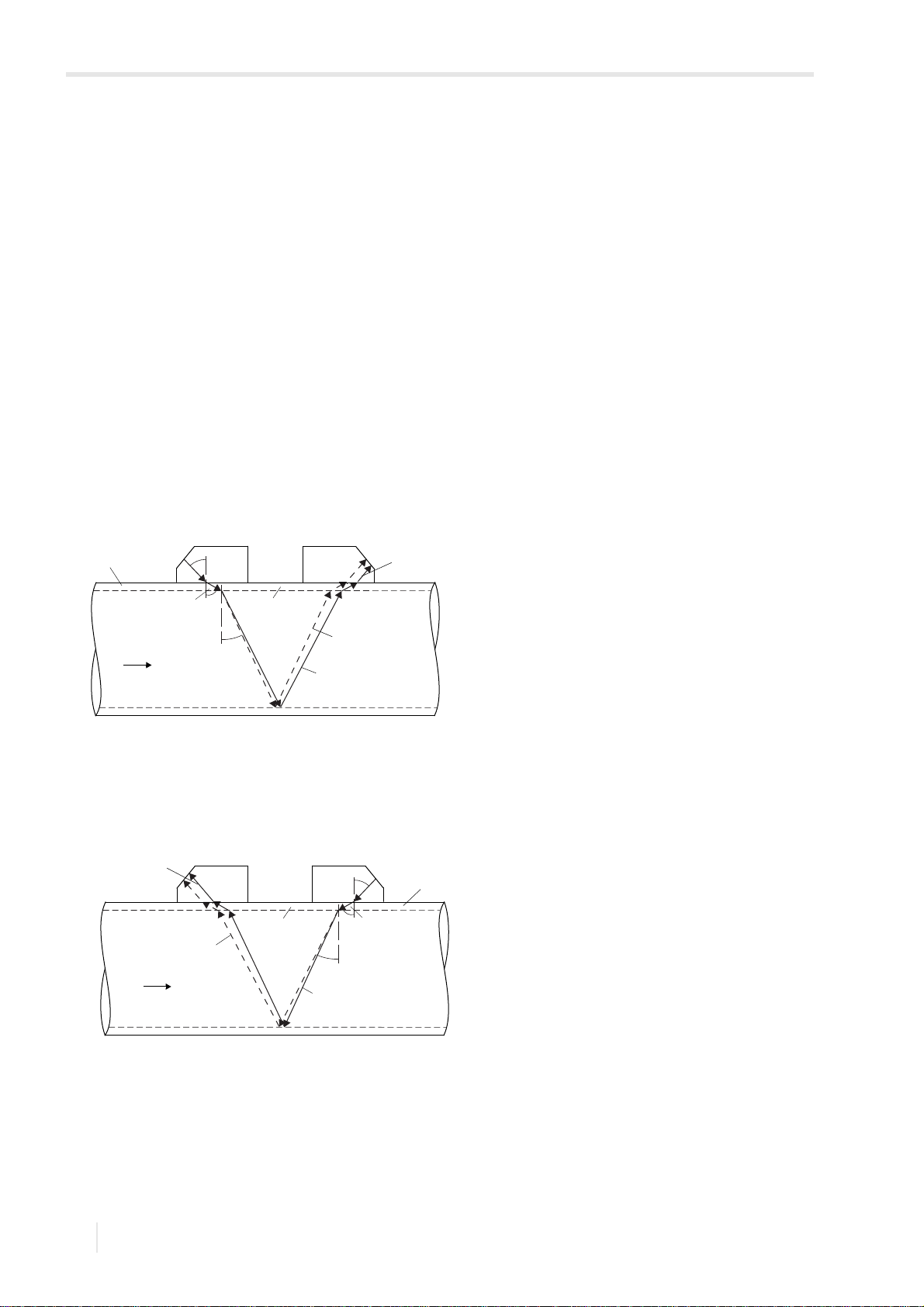

Fig. 3.1: Sound path of the signal in the flow direction

c – sound speed 1 – transducer (emitter) 2 – transducer (receiver) 3 – pipe wall

Fig. 3.2: Sound path of the signal against the flow direction

c – sound speed 1 – transducer (emitter) 2 – transducer (receiver) 3 – pipe wall

2018-07-16, UMFLUXUS_WDV1-3EN

Page 13

3 General principles

1 2

t

flow direction

transducer 1 transducer 1

flow direction

ultrasonic signal S

gas bubble or solids particle

ultrasonic signal S

pulse at time t

gas bubble or solids particle

pulse at time t + t

transit time t

t

2 t



----------------

FLUXUS WD 3.1 Measurement principle

Fig. 3.3: Transit time difference t

1 – signal in the flow direction 2 – signal against the flow direction

3.1.3 Measurement of the flow velocity in the NoiseTrek mode

If the proportion of gas or solids in the fluid is high, the damping of the ultrasonic signal can be so high that the complete propagation of the fluid and therefore a measurement in TransitTime mode is not possible anymore. In this case the NoiseTrek mode has to be used.

The NoiseTrek mode uses the presence of gas bubbles and/or solid particles in the fluid.

Ultrasonic signals are sent from a transducer into the fluid at short intervals, reflected by the gas bubbles and/or the solids particles and again received by the same transducer.

The measurement arrangement used in the TransitTime mode does not need to be changed.

The transit time difference t of 2 consecutive ultrasonic signals is determined. It behaves proportionately to the distance the gas bubble/solid particle is covering between 2 consecutive pulses and thus, to the average flow velocity of the fluid, see Fig. 3.4.

Fig. 3.4: Measurement of the flow velocity in the NoiseTrek mode

The average flow velocity of the fluid is calculated as follows:

Re·ka

v=k

where

v – average flow velocity of the fluid

– fluid mechanics calibration factor

– acoustic calibration factor

– time difference between 2 consecutive pulses

t

t – transit time difference of ultrasonic signals S

Depending on the attenuation of the ultrasonic signal, the error of measurement in the NoiseTrek mode can be greater than in the TransitTime mode.

UMFLUXUS_WDV1-3EN, 2018-07-16

and S2 (t = t2 - t1)

Page 14

3 General principles

3.2 Measurement arrangements FLUXUS WD

3.1.4 Measurement of the flow velocity in the HybridTrek mode

The HybridTrek mode combines the TransitTime and the NoiseTrek mode. During a measurement in the HybridTrek mode, the transmitter automatically toggles between the TransitTime and the NoiseTrek mode depending on the gaseous or solid content.

The measurement arrangement is identical to the one in the TransitTime mode.

3.2 Measurement arrangements

3.2.1 Terms

Diagonal arrangement Reflection arrangement

The transducers are mounted on opposite sides of the pipe. The transducers are mounted on the same side of the pipe.

Sound path

The distance covered by the ultrasonic signal after crossing the pipe once. The number of the sound paths is:

• odd if the measurement is carried out in diagonal arrangement

• even if the measurement is carried out in reflection arrangement

Beam

The path covered by the ultrasonic signal between the transducers, i.e., the transducer emitting the ultrasonic signal and the transducer receiving it. One beam consists of 1 or several sound paths.

Fig. 3.5: Diagonal arrangement with 2

beams and 3 sound paths

Fig. 3.6: Reflection arrangement with 1

beam and 4 sound paths

2018-07-16, UMFLUXUS_WDV1-3EN

Page 15

3 General principles

FLUXUS WD 3.2 Measurement arrangements

Transducer distance

The transducer distance is measured between the inner edges of the transducers.

reflection arrangement

diagonal arrangement (positive transducer distance)

diagonal arrangement (negative transducer distance)

a – transducer distance

Sound beam plane

Plane containing 1 or several sound paths or beams

Fig. 3.7: 2 beams in 1 plane Fig. 3.8: 2 sound paths in 1 plane

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 16

3 General principles

Notice!

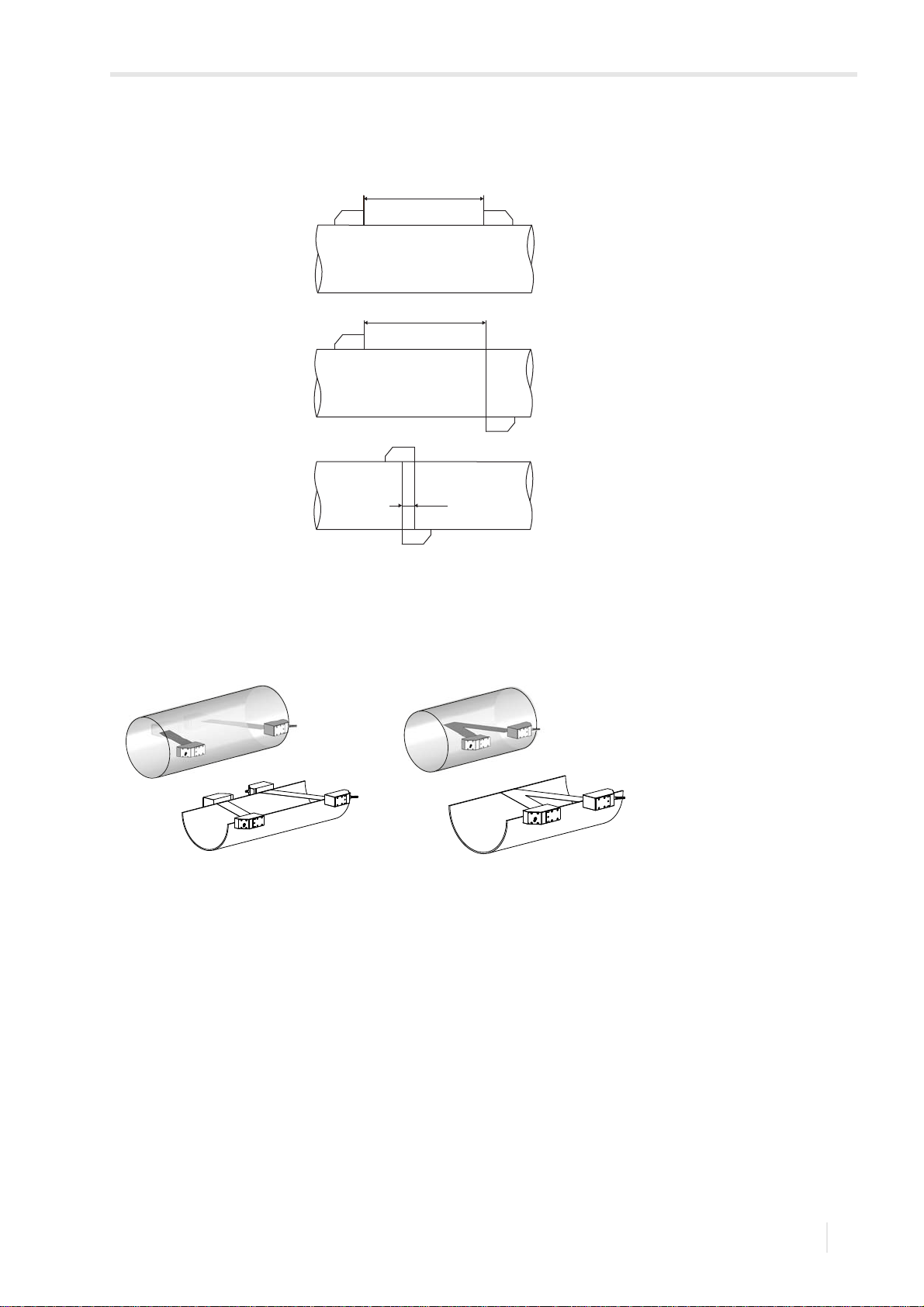

X arrangement

displaced X arrangement

3.3 Acoustic penetration FLUXUS WD

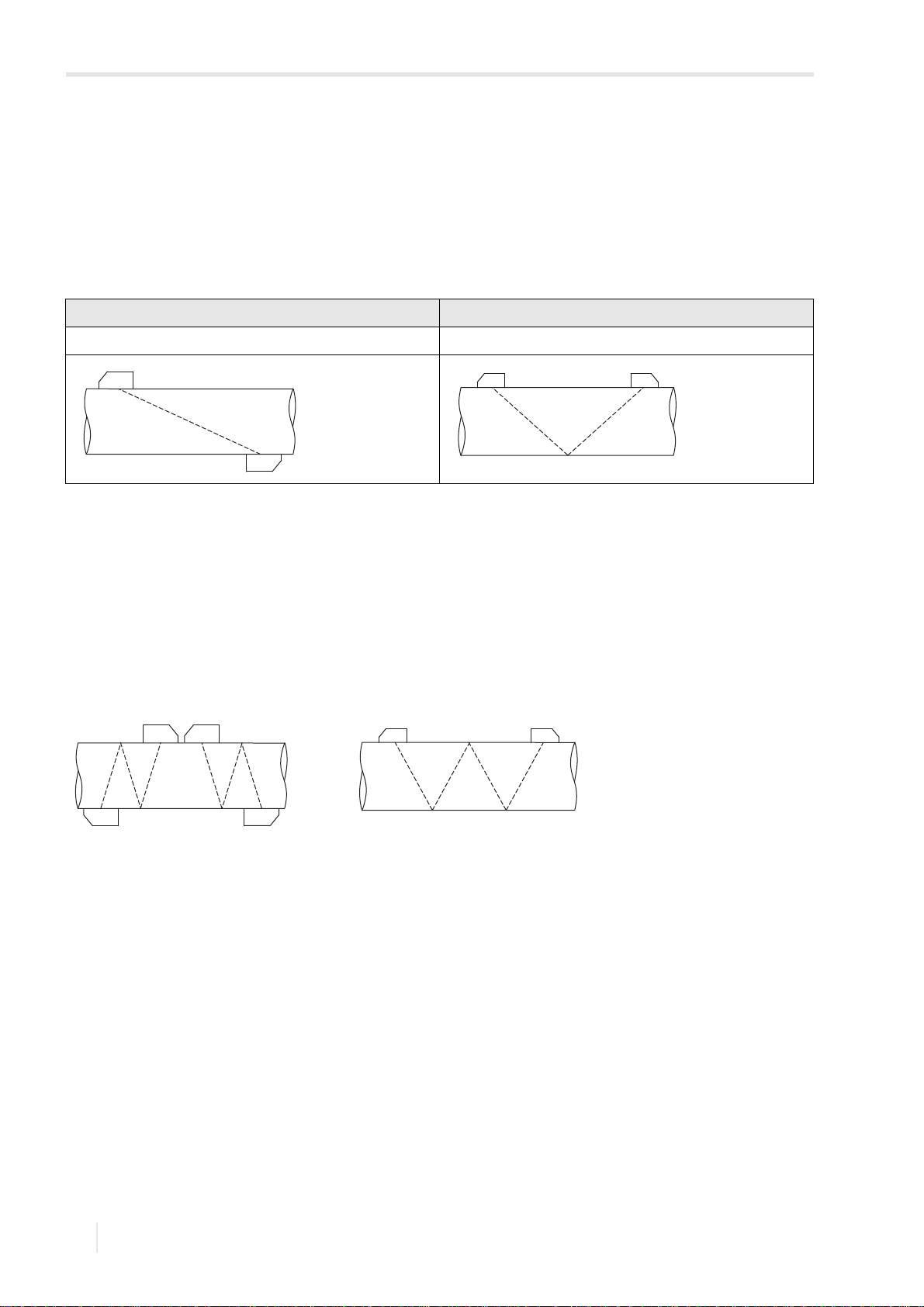

3.2.2 Examples

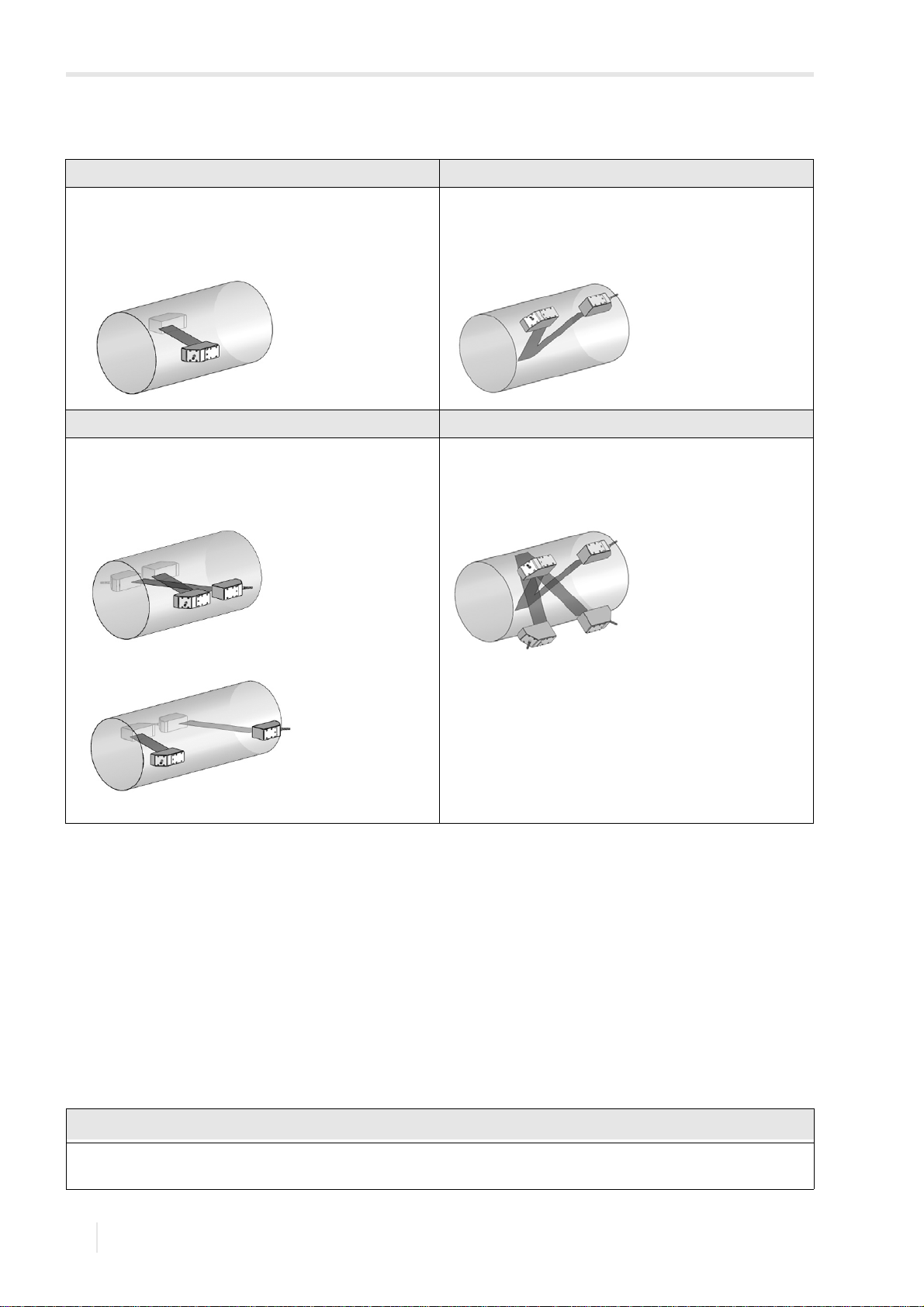

diagonal arrangement with 1 beam reflection arrangement with 1 beam

1 transducer pair 1 sound path 1 beam 1 plane

diagonal arrangement with 2 beams reflection arrangement with 2 beams and 2 planes

2 transducer pairs 2 sound paths 2 beams 1 plane

1 transducer pair 2 sound paths 1 beam 1 plane

2 transducer pairs 4 sound paths 2 beams 2 plane

3.3 Acoustic penetration

The pipe has to be acoustically penetrable at the measuring point. The acoustic penetration is given when pipe and fluid do not attenuate the sound signal so strongly that it is completely absorbed before reaching the second transducer.

The attenuation caused by the pipe and the fluid depends on:

• kinematic viscosity of the fluid

• proportion of gas bubbles and solids in the fluid

• deposits on the inner pipe wall

• pipe material

The following requirements have to be met at the measuring point:

• the pipe is always completely filled

• no solid deposits in the pipe

• no bubble formation in the pipe

Even bubble-free fluids can form gas bubbles when the fluid expands, e.g., before pumps and after great cross-section extensions.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 17

3 General principles

FLUXUS WD 3.4 Undisturbed flow profile

Observe the following notes on the selection of the measuring point:

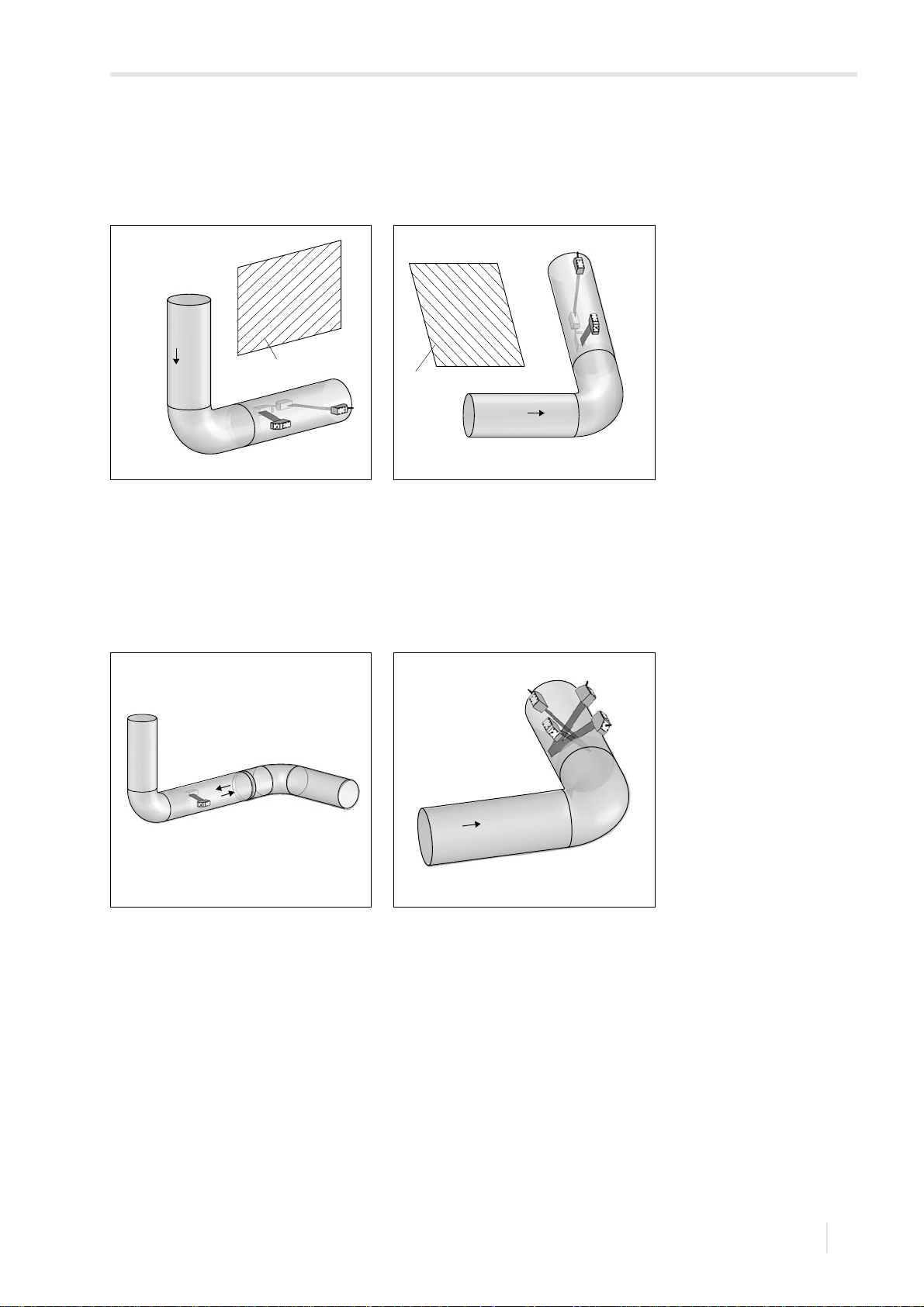

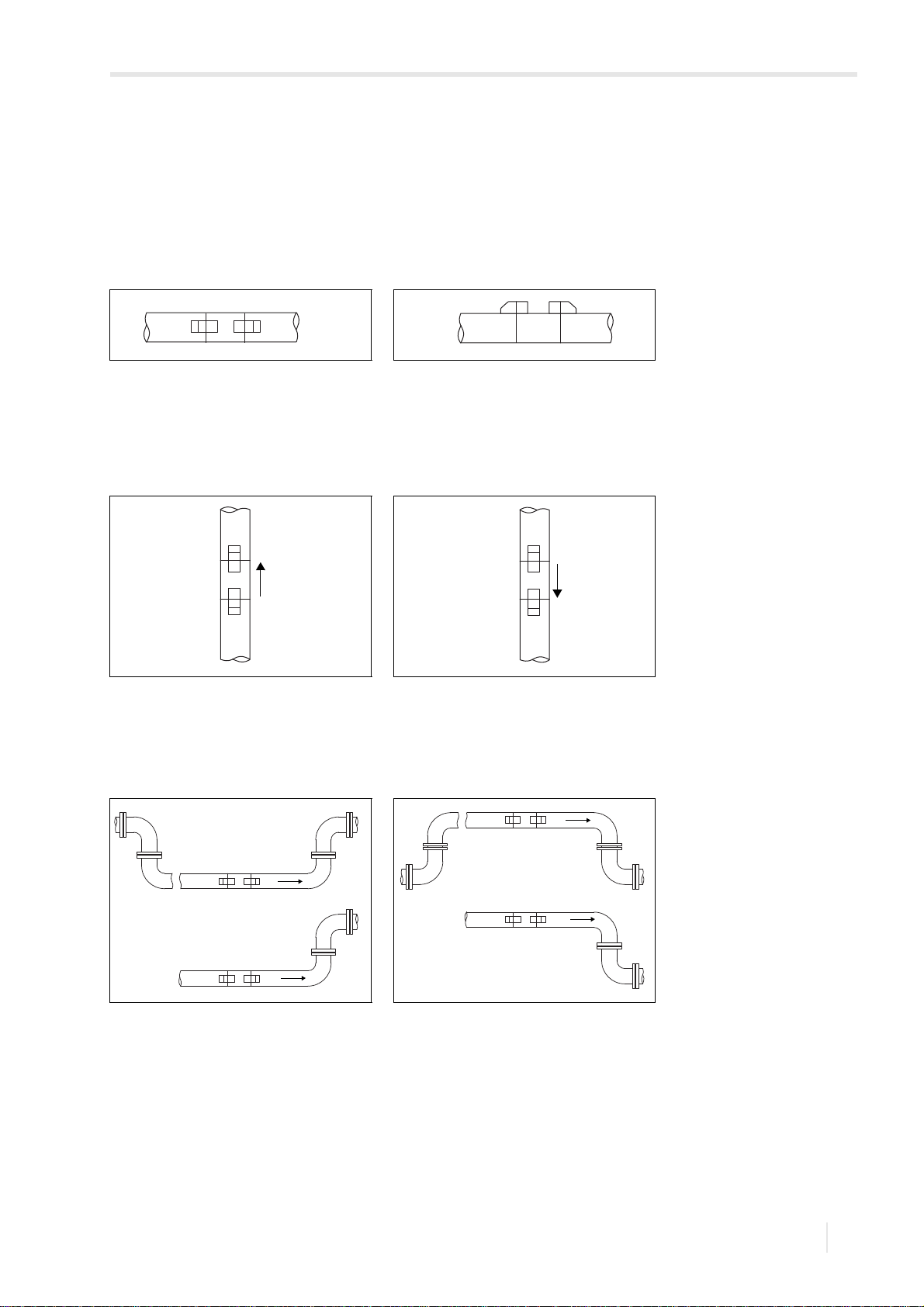

Horizontal pipe

Select a measuring point where the transducers can be mounted laterally on the pipe, allowing the sound waves to propagate horizontally in the pipe. Thus, solids on the bottom of the pipe or gas bubbles in the pipe's upper part are prevented from influencing the propagation of the signal, see Fig. 3.9 and Fig. 3.10.

Fig. 3.9: Recommended transducer

mounting position

Fig. 3.10: Disadvantageous transducer

mounting position

Vertical pipe

Select the measuring point at a pipe location where the fluid flows upward. The pipe has to be completely filled, see Fig.

3.11 and Fig. 3.12.

Fig. 3.11: Recommended transducer

mounting position

Fig. 3.12: Disadvantageous transducer

mounting position

Free inlet or outlet pipe section

Select the measuring point at a pipe section where the pipe cannot run empty, see Fig. 3.13 and Fig. 3.14.

Fig. 3.13: Recommended transducer

mounting position

Fig. 3.14: Disadvantageous transducer

mounting position

3.4 Undisturbed flow profile

Some flow elements (e.g., elbows, valves, pumps, reducers) distort the flow profile in their vicinity. The axisymmetrical flow profile in the pipe needed for correct measurement is no longer given. A careful selection of the measuring point helps to reduce the impact of disturbance sources.

It is most important that the measuring point is chosen at a sufficient distance from any disturbance sources. Only then it can be assumed that the flow profile in the pipe is fully developed. However, measuring results can be obtained even if the recommended distance to disturbance sources cannot be met for practical reasons.

The recommended straight inlet and outlet pipe lengths for different types of flow disturbance sources are shown in the examples in Tab. 3.1.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 18

3 General principles

l l

3.4 Undisturbed flow profile FLUXUS WD

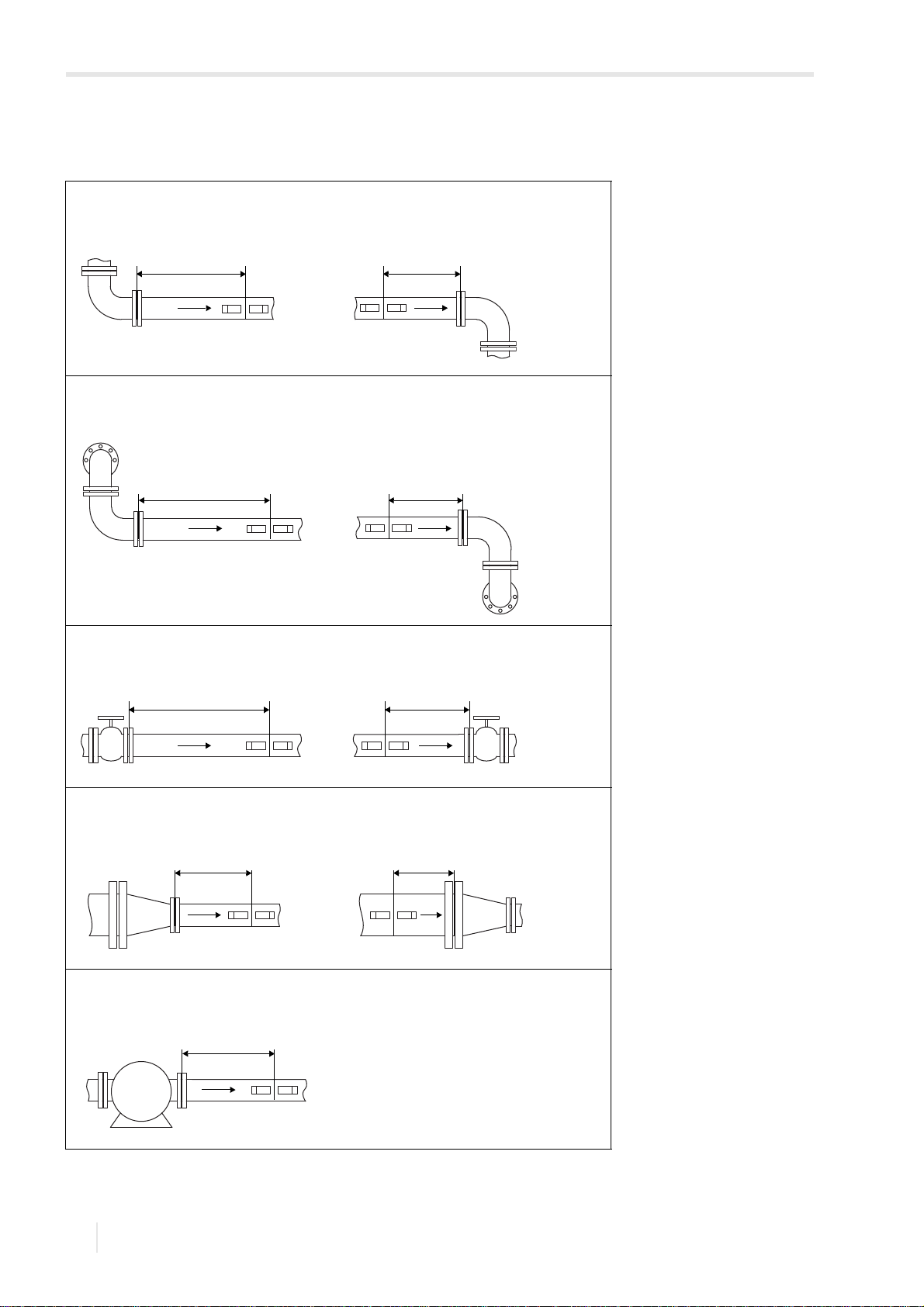

Tab. 3.1: Recommended distance from disturbance sources

D – nominal pipe diameter at the measuring point l – recommended distance between disturbance source and transducer position

disturbance source: 90° elbow

inlet: l  10 D outlet: l  5D

disturbance source: 2 × 90° elbows on different planes

inlet: l  40 D outlet: l  5D

disturbance source: valve

inlet: l  40 D outlet: l  5D

disturbance source: reducer

inlet: l  10 D outlet: l  5D

disturbance source: pump

inlet: l  20 D

2018-07-16, UMFLUXUS_WDV1-3EN

Page 19

4 Product description

SNAP

DISP

MODEFAST

MUX

Q+Q-

3x Q

OFF

LAN

USB

A+B-P1+

P2+

P3+

P4+

P5a

P6a

P7a

SSP1-

P2-

P3-

P4-

P5b

P6b

P7b

X2 X3

X_AV

KL11

KL12

KL7KL8

KL9KL10

KL4

X_AR X_BV X_BR

T1A

T1BS1T2A

T2B

T3A

T3BS3T4B

T4A

T1a

T1bS1T2a

T2b

T3a

T3bS3T4b

T4a

N(-)

L(+)

AVS

AGN

ARSARBV

BVS

BGN

BRS

FLUXUS WD 4.1 Measuring system

4 Product description

4.1 Measuring system

The measurement system consists of a transmitter, the ultrasonic transducers and the pipe on which the measurement is carried out, see Fig. 4.1.

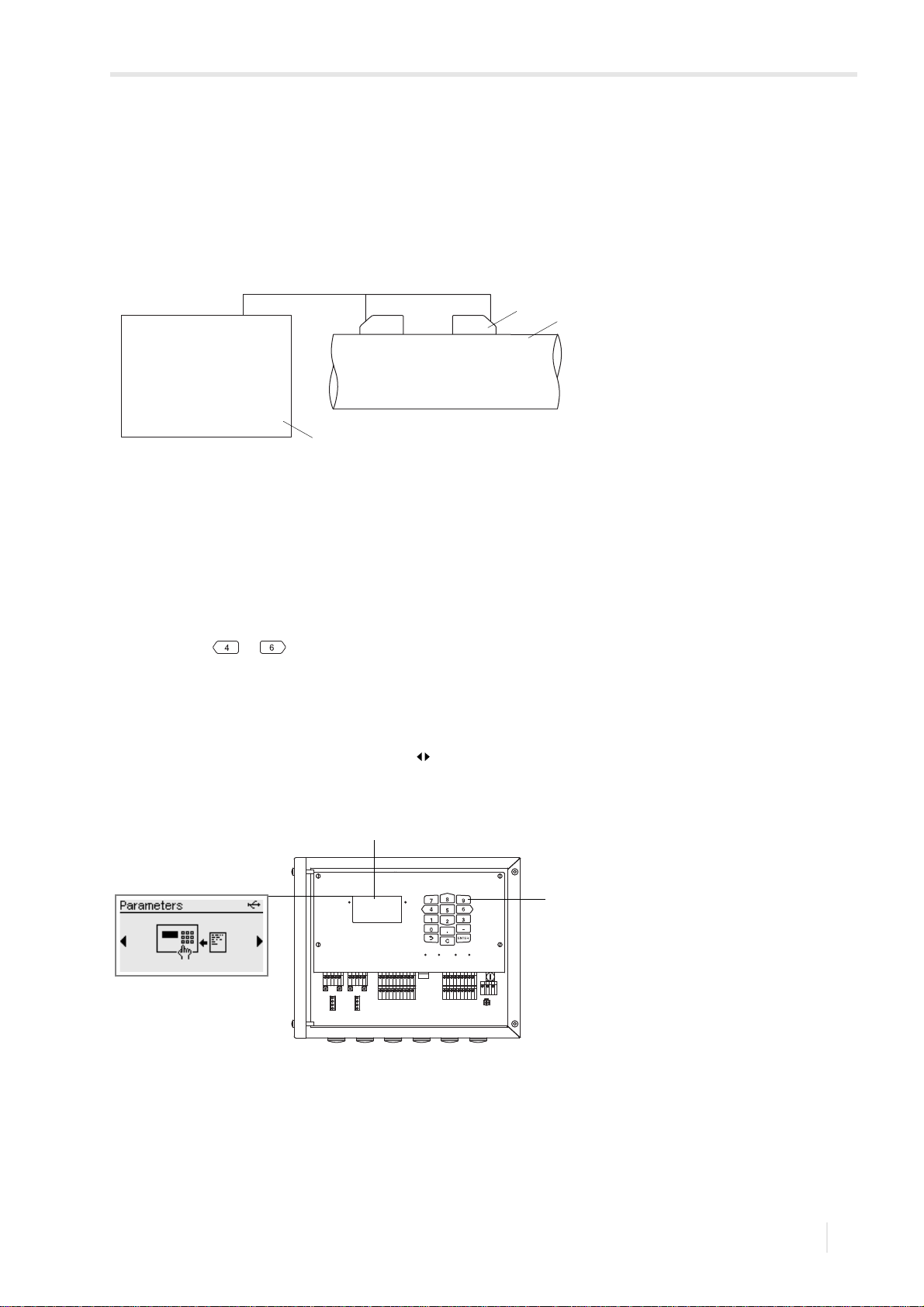

Fig. 4.1: Example for a measurement arrangement

1 – transducer 2 – pipe 3 – transmitter

The ultrasonic transducers are mounted on the pipe. They send and receive ultrasonic signals through the fluid.

The transmitter controls the measuring cycle, eliminates noise signals and analyzes useful signals. The measured values can be displayed, used for calculations and transmitted by the transmitter.

4.2 Handling concept

The transmitter is operated via the keyboard.

By pressing key or the following program branches are displayed consecutively:

•Parameters

•Measurement

•Options

•Special functions

A program branch is displayed between 2 arrows , see Fig. 4.2.

Fig. 4.2: Display of the program branch Parameters

1–display 2–keyboard

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 20

4 Product description

4.2 Handling concept FLUXUS WD

For a description of the individual program branches, see Tab. 4.1.

Tab. 4.1: Description of the program branches

program branch description

Parameters Before starting a measurement, the transducer, pipe and fluid parameters have to be entered in the

program branch Parameters.

Measurement After activating the measuring channels and the input of the transducer distance, the measurement is

Options Channel-related settings are carried out in the program branch Options as e.g., selection of the

Special functions Global settings, relating the transmitter and all measuring channels, are carried out in the program

started in the program branch Measurement.

physical quantity, selection of the unit of measurement, input of the damping factor, assignation of the inputs.

branch Special functions, as e.g. system settings (language, key lock), measuring settings, communication, data logger, snaps, configuration of inputs.

After connecting the transmitter to the power supply and starting up the transmitter for the first time, the following settings according to language, time, date and units of measurement have to be made, see section 8.1. The program branch Parameters will be displayed. Any further start-up will display the measured value in case the measurement was not stopped before the transmitter has been disconnected from the program branch. If the measurement is stopped, the program branch Parameters will be displayed.

After starting the measurement, the parameter settings or configuration of the transmitter outputs can be displayed without interrupting the measurement. A change is not possible. For this, the measurement has to be stopped.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 21

4 Product description

1 2

error message

ongoing measurement

activated FastFood mode

full data logger

connection via USB cable

activated key lock

FLUXUS WD 4.3 Display

4.3 Display

Structure

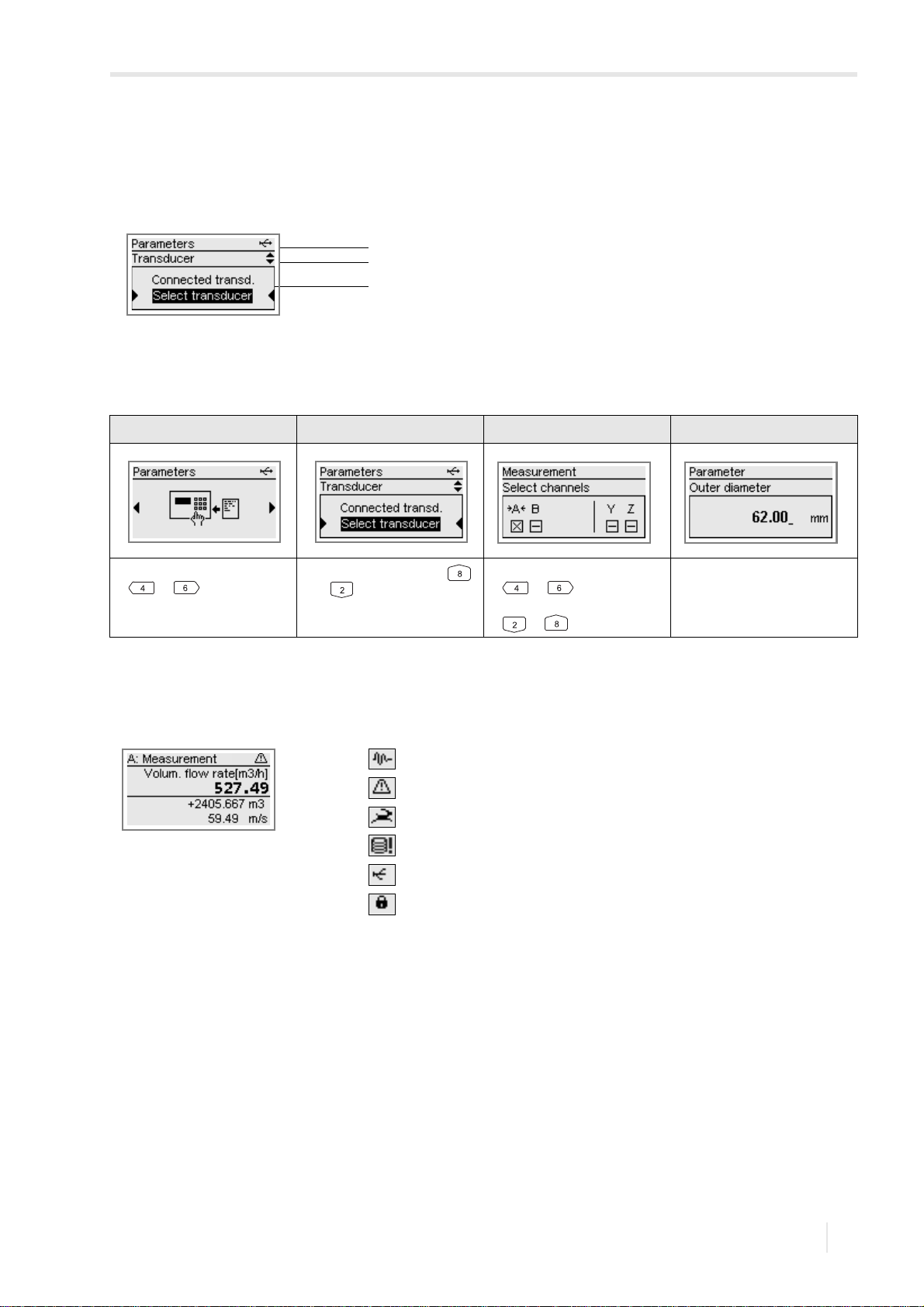

Fig. 4.3: Menu item of the program branch Parameters

1 – program branch 2 – menu item currently edited 3 – area for scroll lists, selection fields or input fields

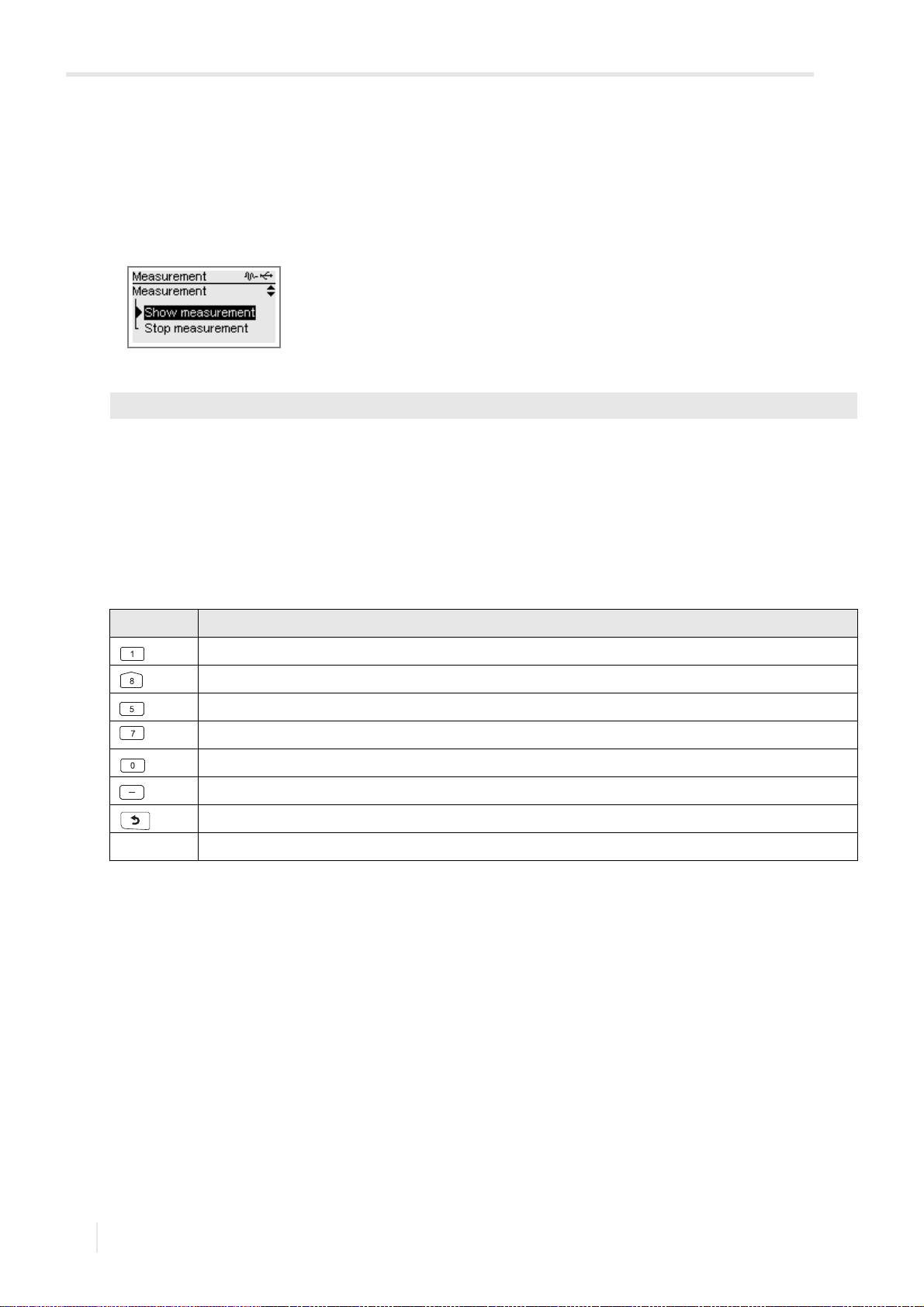

Tab. 4.2: Navigation

horizontal scroll list vertical scroll list selection fields input fields

• scroll horizontally with key or

• scroll vertically with key or

Status indications

Several symbols are used for the status indications.

Fig. 4.4: Status indications (line 1)

• scroll horizontally with key or

• activate/deactivate with key

• input via the 10 numerical keys of the keyboard, see Tab. 4.5

• delete with key C

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 22

4 Product description

4.4 Keyboard FLUXUS WD

4.4 Keyboard

The keyboard has 15 keys, including the 3 function keys: ENTER, and C.

Some key have multiple functions. They can be used to enter data, to navigate through scroll lists as well as to execute special functions (e.g., reset of totalizers).

Tab. 4.3: General functions

ENTER confirmation of selection or input

+ C + ENTER Reset: press these 3 keys simultaneously to correct a malfunction. The reset has the same effect as a restart

+ C INIT: During an initialization of the transmitter, all settings are reset to the factory default settings (see section

Tab. 4.4: Navigation

scroll to the left/right through a scroll list

scroll upwards/downwards through a scroll list

ENTER confirmation of a menu item of the program branch

Tab. 4.5: Input of numbers

… input of the number pictured on the key

C deletion of values

of the transmitter. Stored data are not affected.

8.6).

when entering parameters:

short press: return to the main menu

long press (several seconds): return to the beginning of the program branch

during the measurement:

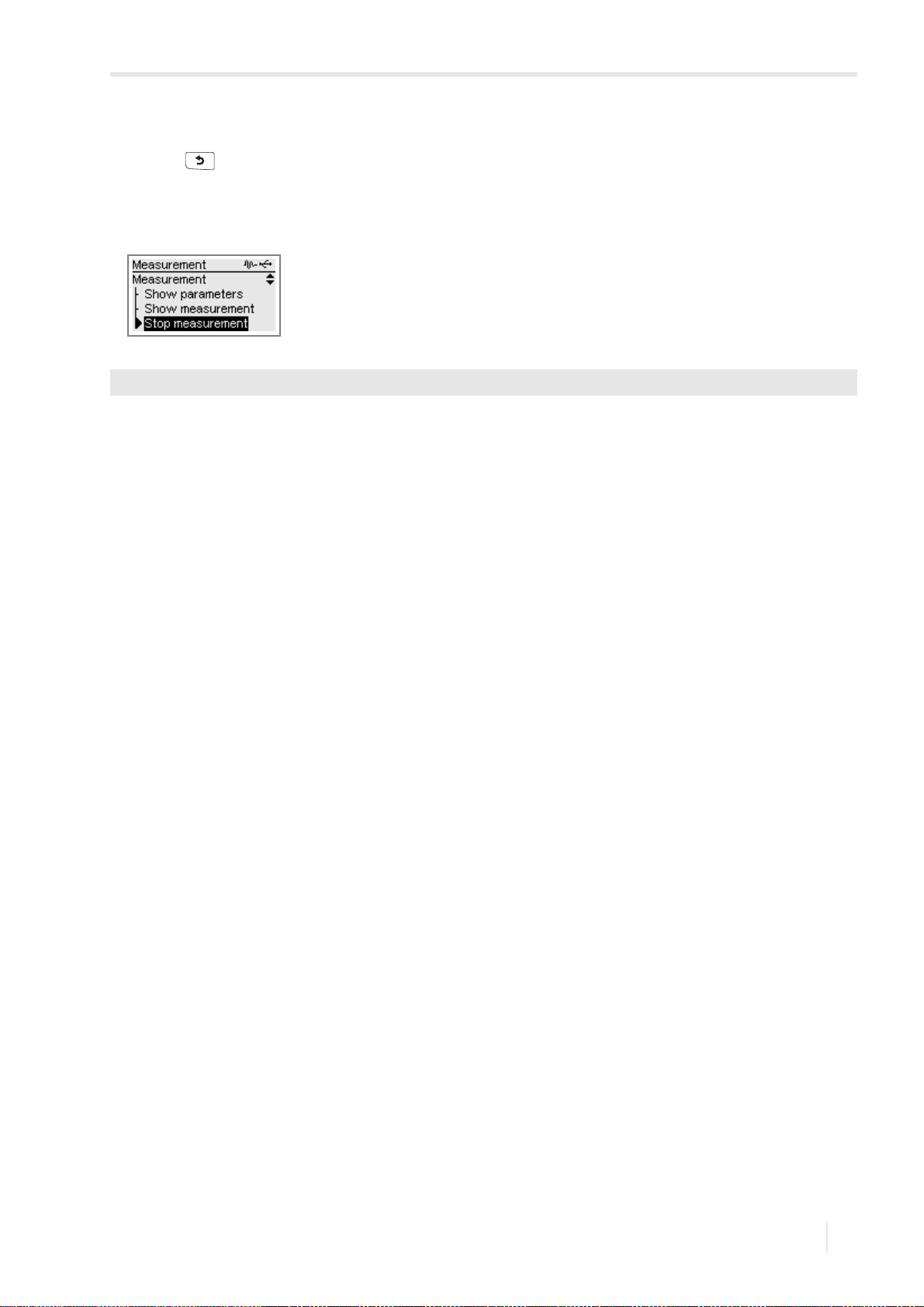

display of scroll list: Stop measurement, Enter parameters, Show measurement

sign for the input of negative values

decimal marker

After the value has been deleted, the previous value will be displayed.

ENTER confirmation of the input

Tab. 4.6: Input of text

positioning of the cursor

"A" is displayed and capitalization is activated

"Z" is displayed and capitalization is activated

toggling between upper and lower case

selection of the previous/next character

deletion of a character and insertion of a blank

ENTER confirmation of the input

2018-07-16, UMFLUXUS_WDV1-3EN

Page 23

5 Transport and storage

Caution!

FLUXUS WD 5.1 Transport

5 Transport and storage

When packaging, the transmitter can fall down.

There is a danger of crushing body parts or damaging the measuring equipment.  Secure the transmitter against falling during packaging. Wear the required personal protective equip-

ment. Observe the applicable rules.

When lifting, the center of gravity of the transmitter can be displaced within the cardboard box. The transmitter can fall down.

There is a danger of crushing body parts or damaging the measuring equipment.  Secure the transmitter against falling during transport. Wear the required personal protective equip-

ment. Observe the applicable rules.

5.1 Transport

The measuring equipment must be packaged properly for transport, see section 2.7. For weight indications of the transmitter and the transducers, see Technical specification.

5.2 Storage

The transmitter and the transducers have to be stored in a dry place.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 24

6 Installation

Warning!

Danger!

Caution!

FLUXUS WD

6 Installation

Installation, connection and start-up by unauthorized and unqualified personnel

This may result in personal or material damage or other dangerous situations.  Any work on the transmitter has to be carried out by authorized and qualified personnel.

Working in mines or cramped confines

Risk of intoxication and/or asphyxiation because of emerging gases, risk of injuries because of cramped conditions.

 Wear the required personal protective equipment. Observe the applicable rules.

Safety and accident prevention regulations for electrical systems and equipment

Failure to observe these regulations may lead to severe injury or death.  Observe the safety and accident prevention regulations for electrical systems and equipment.

Touching hot or cold surfaces

This may result in injuries (e.g., thermal damages).  Observe the ambient conditions at the measuring point during installation. Wear the required personal

protective equipment. Observe the applicable rules.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 25

6 Installation

SNAP

DISP

MODEFAST

MUX

Q+Q-

3x Q

OFF

LAN

USB

A+B-P1+

P2+

P3+

P4+

P5a

P6a

P7a

SSP1-

P2-

P3-

P4-

P5b

P6b

P7b

X2 X3

X_AV

KL11

KL12

KL7KL8

KL9KL10

KL4

X_AR X_BV X_BR

T1A

T1BS1T2A

T2B

T3A

T3BS3T4B

T4A

T1a

T1bS1T2a

T2b

T3a

T3bS3T4b

T4a

N(-)

L(+)

AVS

AGN

ARSARBV

BVS

BGN

BRS

FLUXUS WD 6.1 Transmitter

6.1 Transmitter

6.1.1 Transmitter design

The command panel can be accessed by opening the housing cover.

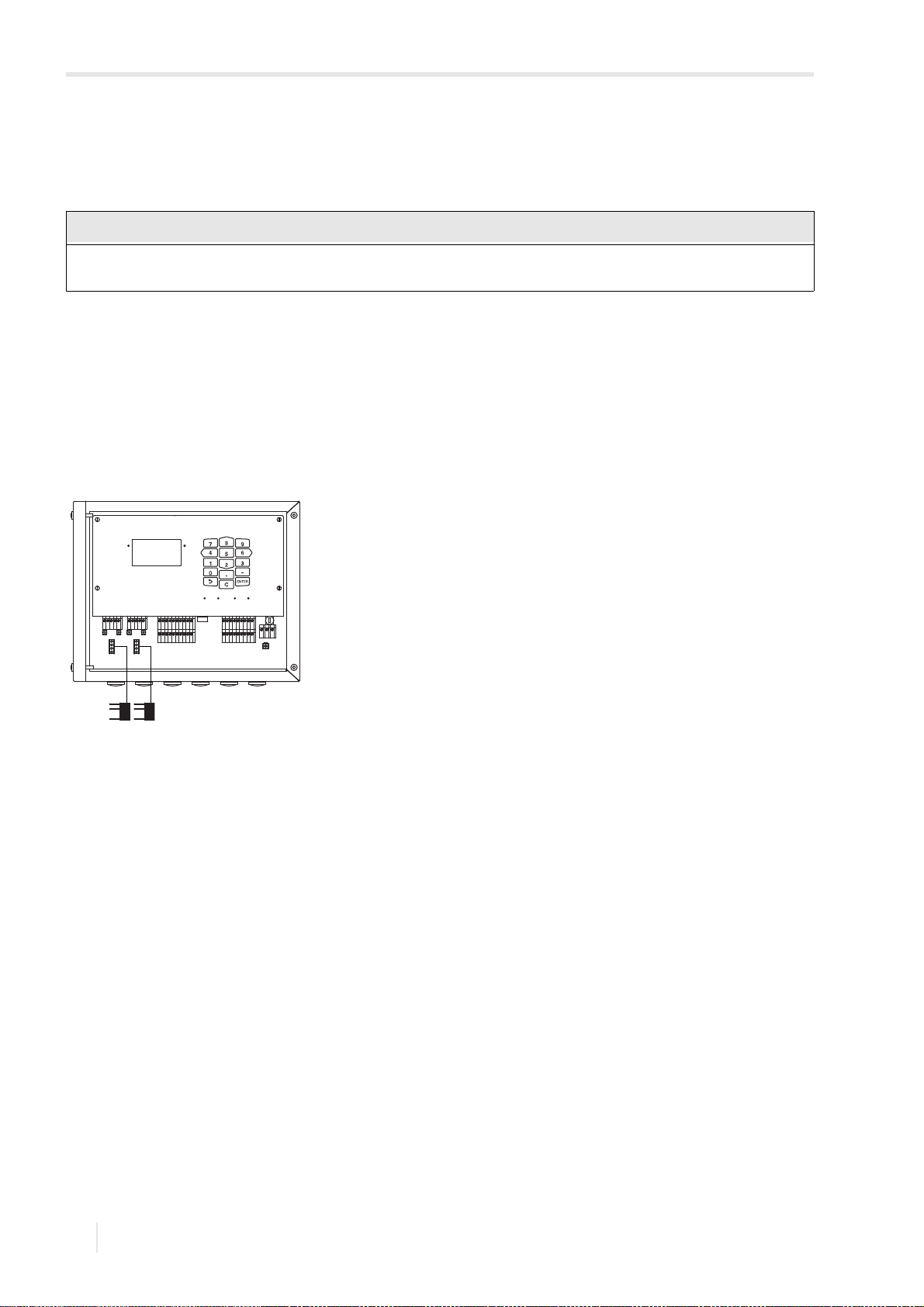

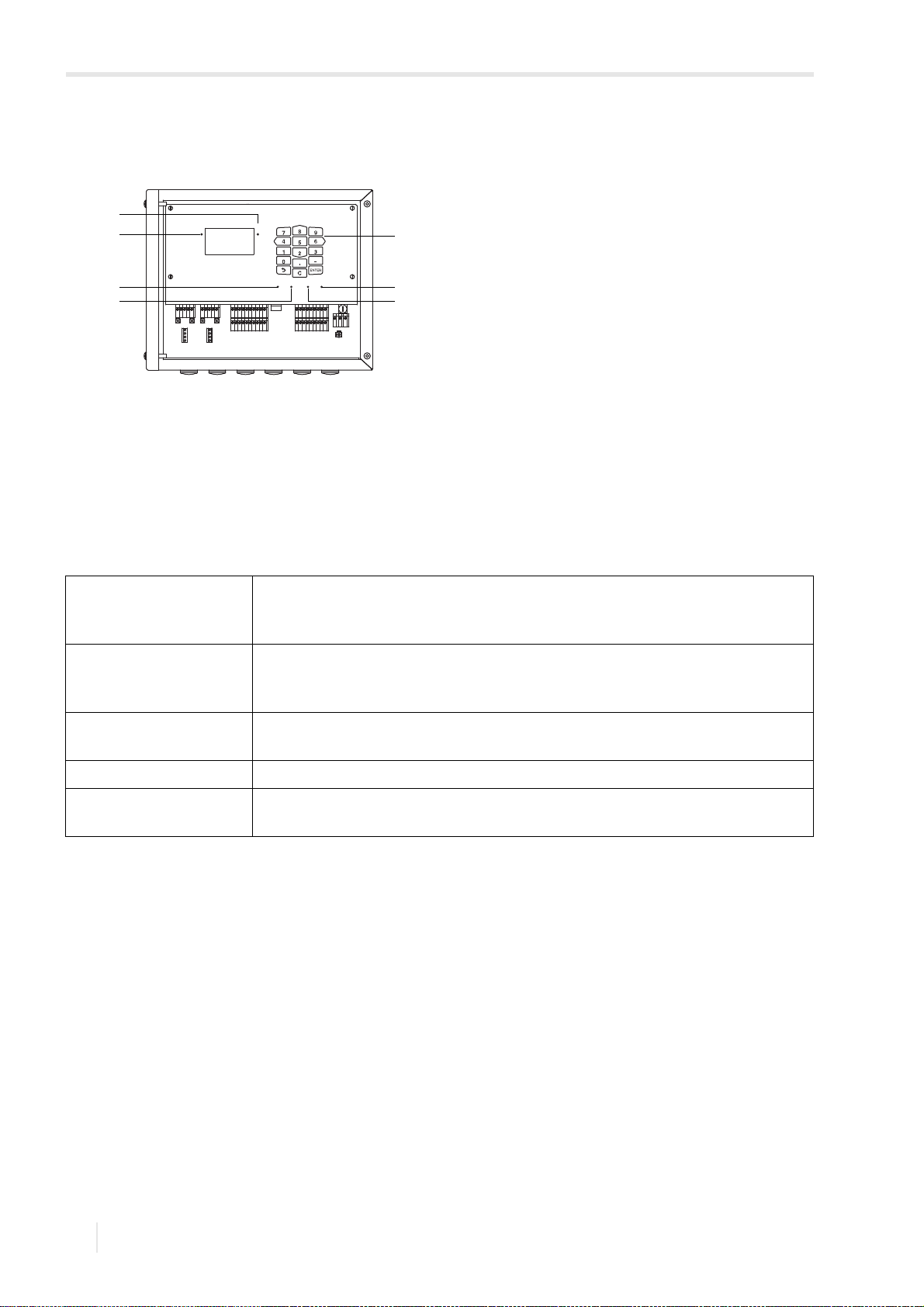

Fig. 6.1: Command panel of the transmitter

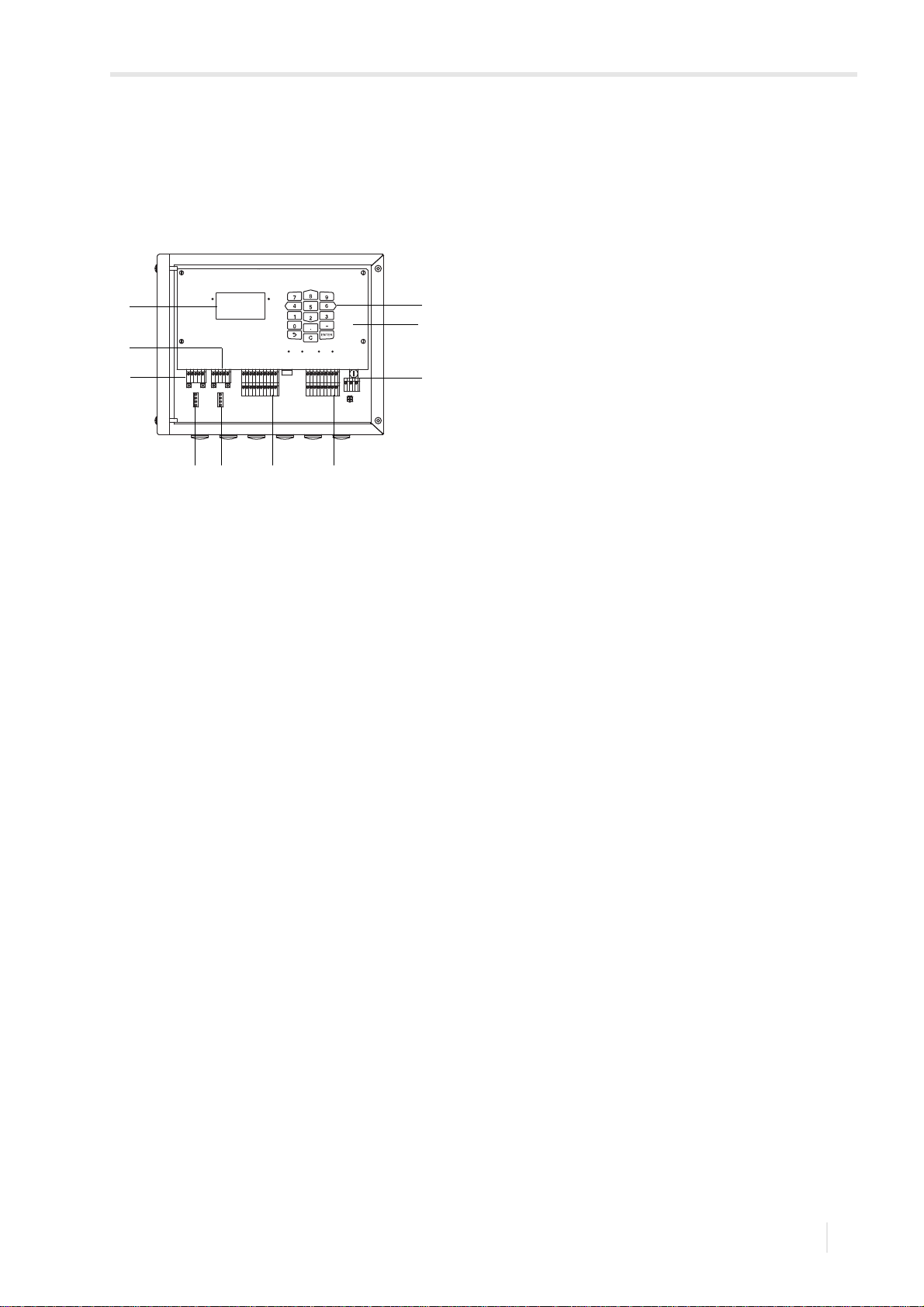

1 – LCD display, backlight 2 – transducers (channel A) 3 – transducers (channel B) 4–keyboard 5 – power supply 6 – sensor module (channel A) 7 – sensor module (channel B) 8 – inputs 9 – outputs 10 – front plate

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 26

6 Installation

Important!

240

280

min. 130

6.1 Transmitter FLUXUS WD

6.1.2 Opening and closing the housing

Opening

Do not use objects which may damage the housing gasket to open the cover housing.

• Loosen the screws of the transmitter housing, see Fig. 6.2 and Fig. 6.3.

• Open the housing cover of the transmitter.

Closing

• Close the housing cover.

• Tighten the screws of the transmitter housing, see Fig. 6.2 and Fig. 6.3.

(transmitter with stainless steel housing: a max. torque of 1 Nm)

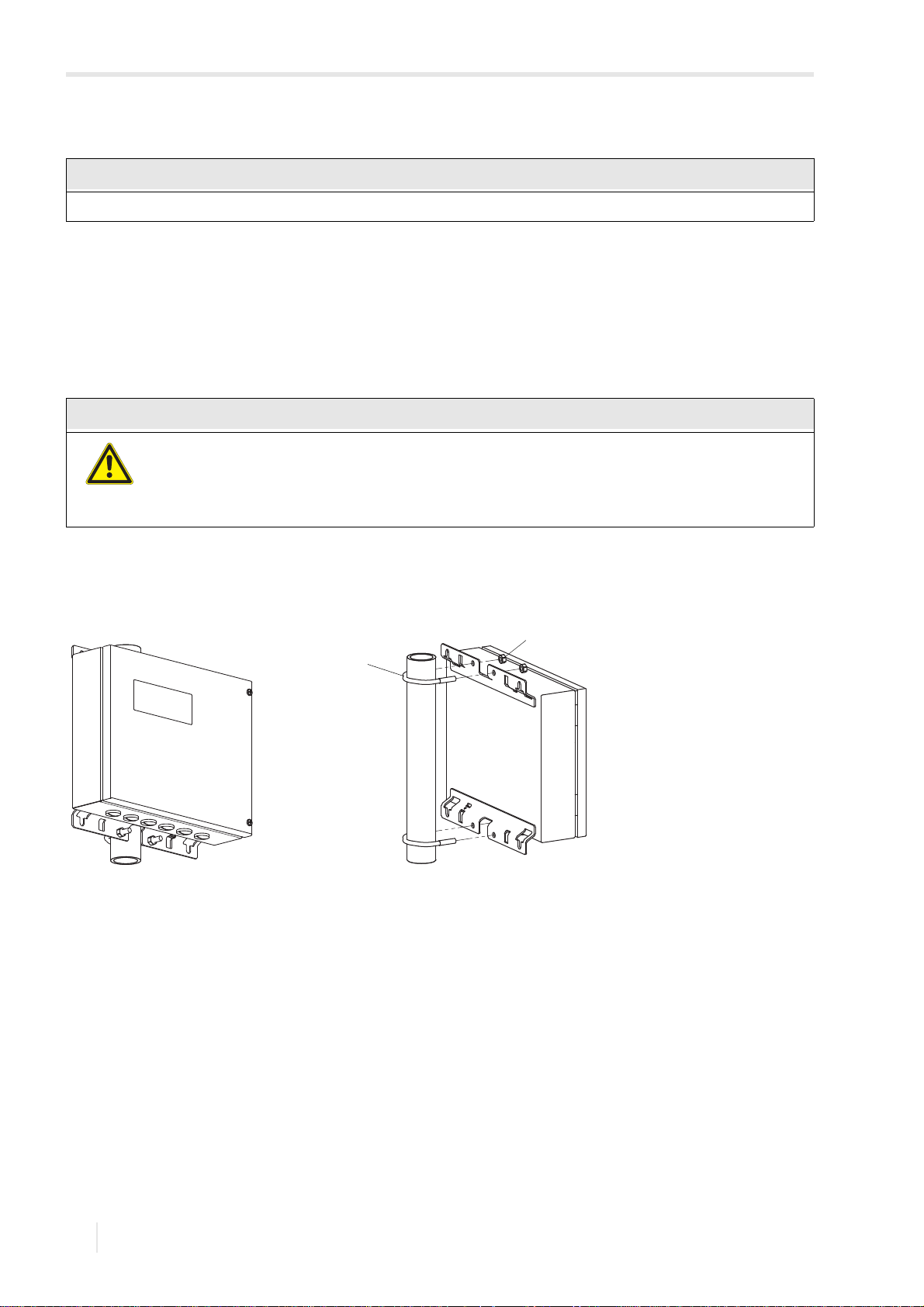

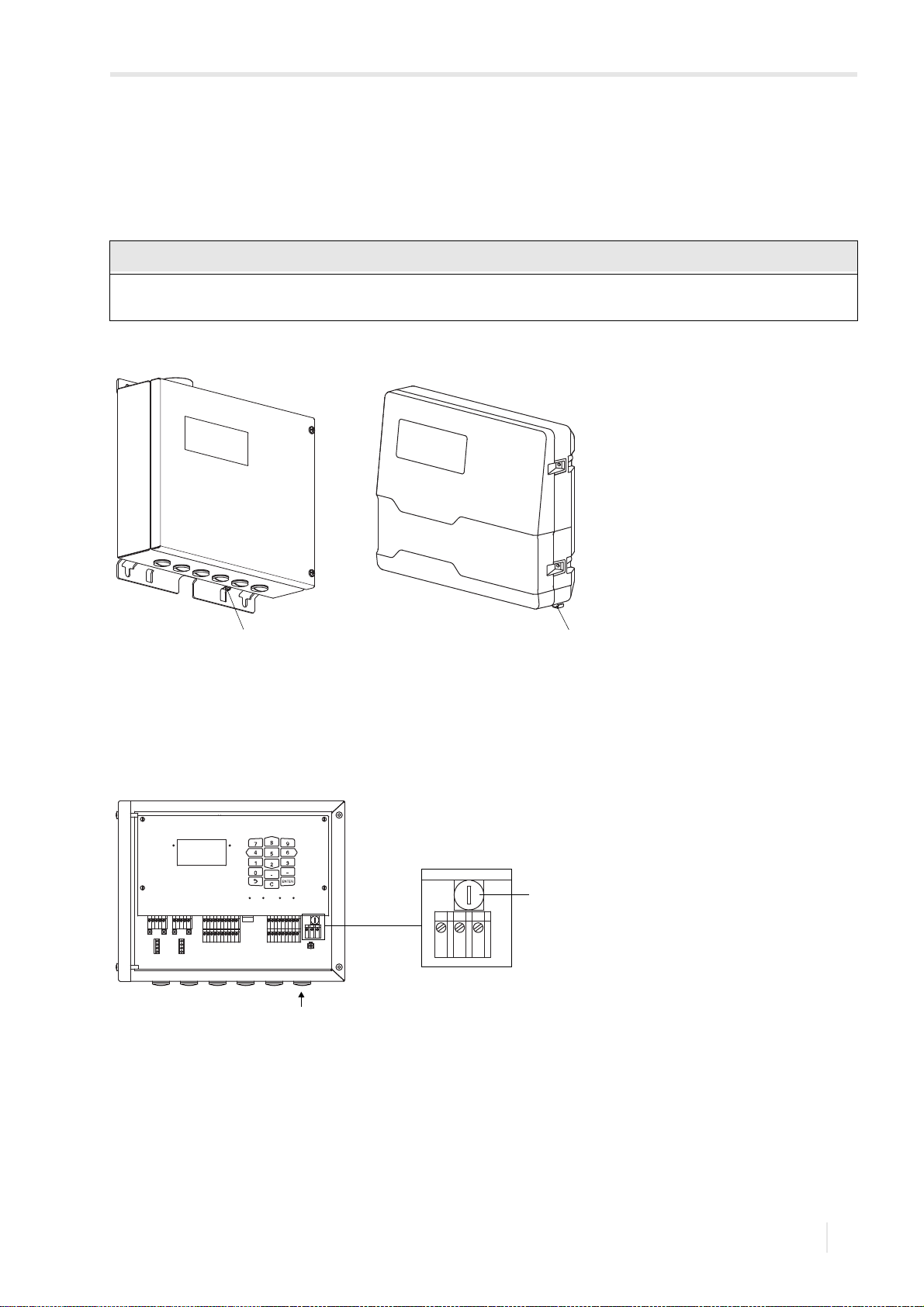

Fig. 6.2: Transmitter with stainless steel housing

1–screws

6.1.3 Installation of the transmitter

6.1.3.1 Wall installation Transmitter with stainless steel housing

• Fix the transmitter with 4 screws to the wall, see Fig. 6.4.

Fig. 6.4: Transmitter with stainless steel housing (dimensions in mm)

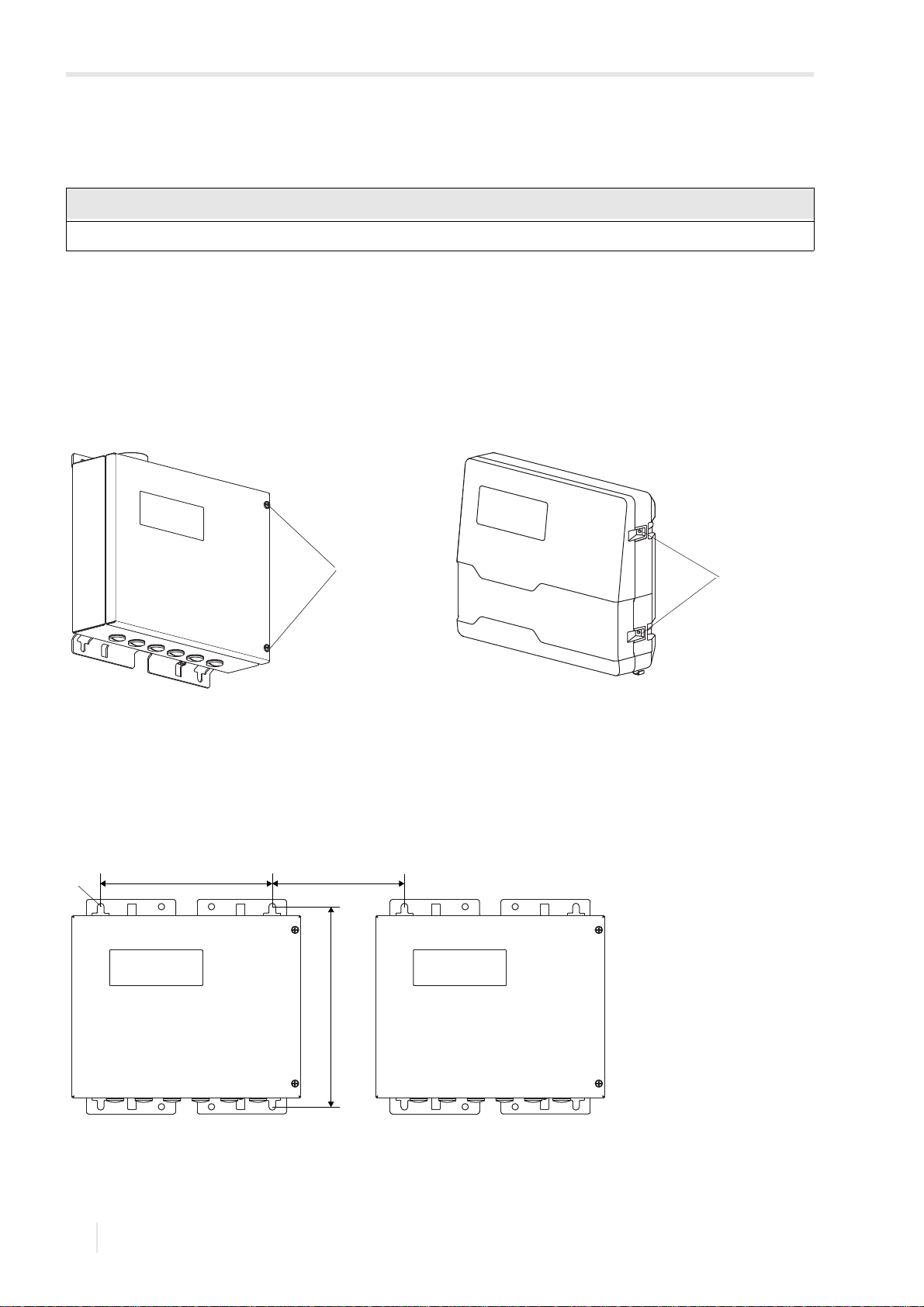

Fig. 6.3: Transmitter with aluminum housing

1–screws

1 – fixing hole for wall mounting Ø 9.5

2018-07-16, UMFLUXUS_WDV1-3EN

Page 27

6 Installation

165.6

Ø 1

0.4

8.5

190.2 min. 180

FLUXUS WD 6.1 Transmitter

Transmitter with aluminum housing

• Fix the wall mount (1) with 3 countersunk-head screws (3) firmly to the wall.

• Use the lower claws (4) to hang the transmitter (2) onto the wall mount.

• Fix the transmitter to wall mount by tightening the 2 screws (5), see Fig. 6.5 and Fig. 6.6.

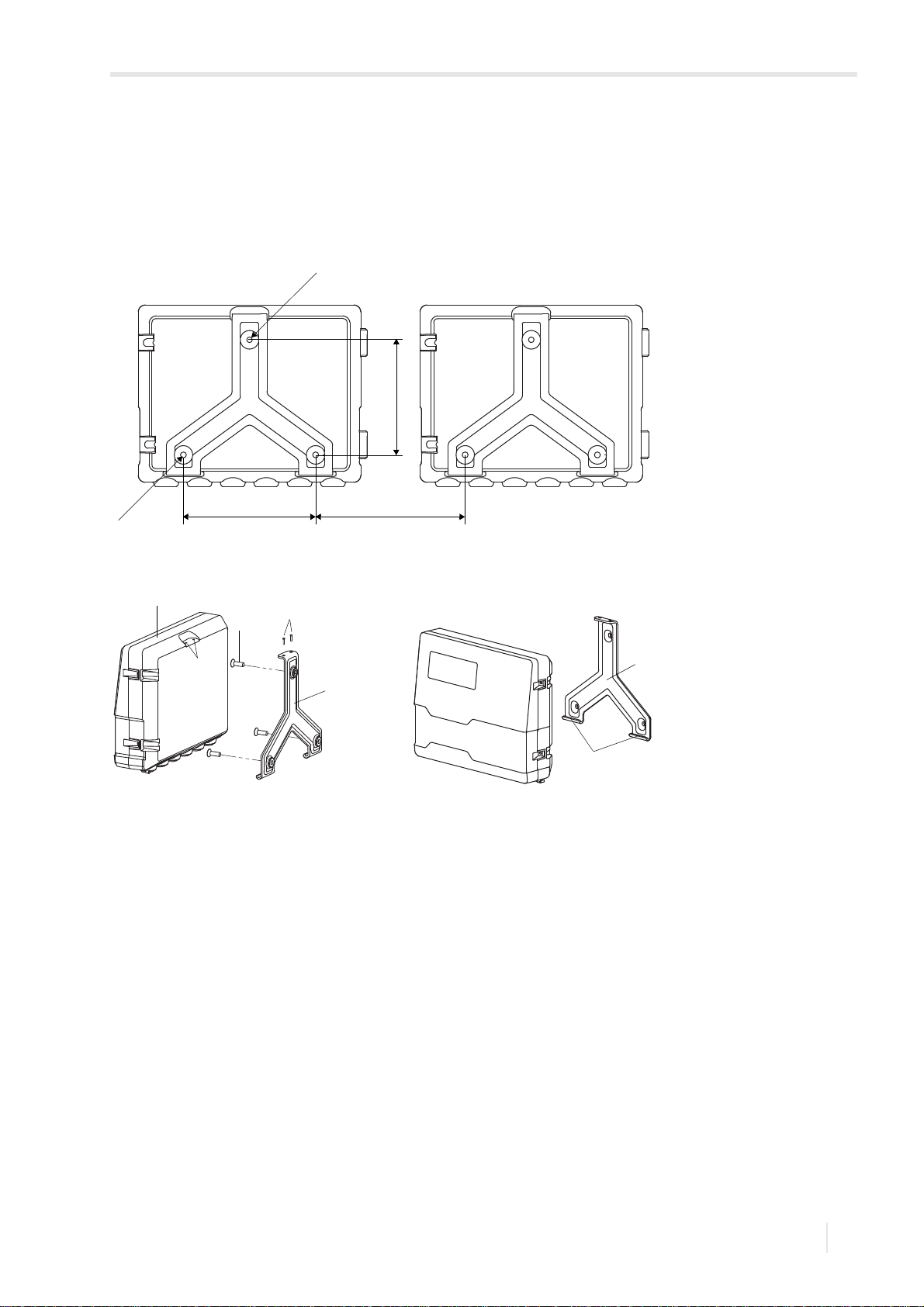

Fig. 6.5: Transmitter with aluminum housing (dimensions in mm)

Fig. 6.6: Installation view

1 – wall mount 2 – transmitter 3 – countersunk-head screw 4 – hooks 5–screws

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 28

6 Installation

Notice!

Caution!

6.1 Transmitter FLUXUS WD

6.1.3.2 Pipe installation

The pipe has to be sufficiently stable to withstand the pressure exerted by the transmitter and the shackles.

Transmitter with stainless steel housing

Installation on a 2'' pipe

• Position the transmitter and the shackle (1) on the pipe, see Fig. 6.7.

• Fix the transmitter with the shackle to the pipe by tightening the nuts (2).

Installation on a pipe > 2''

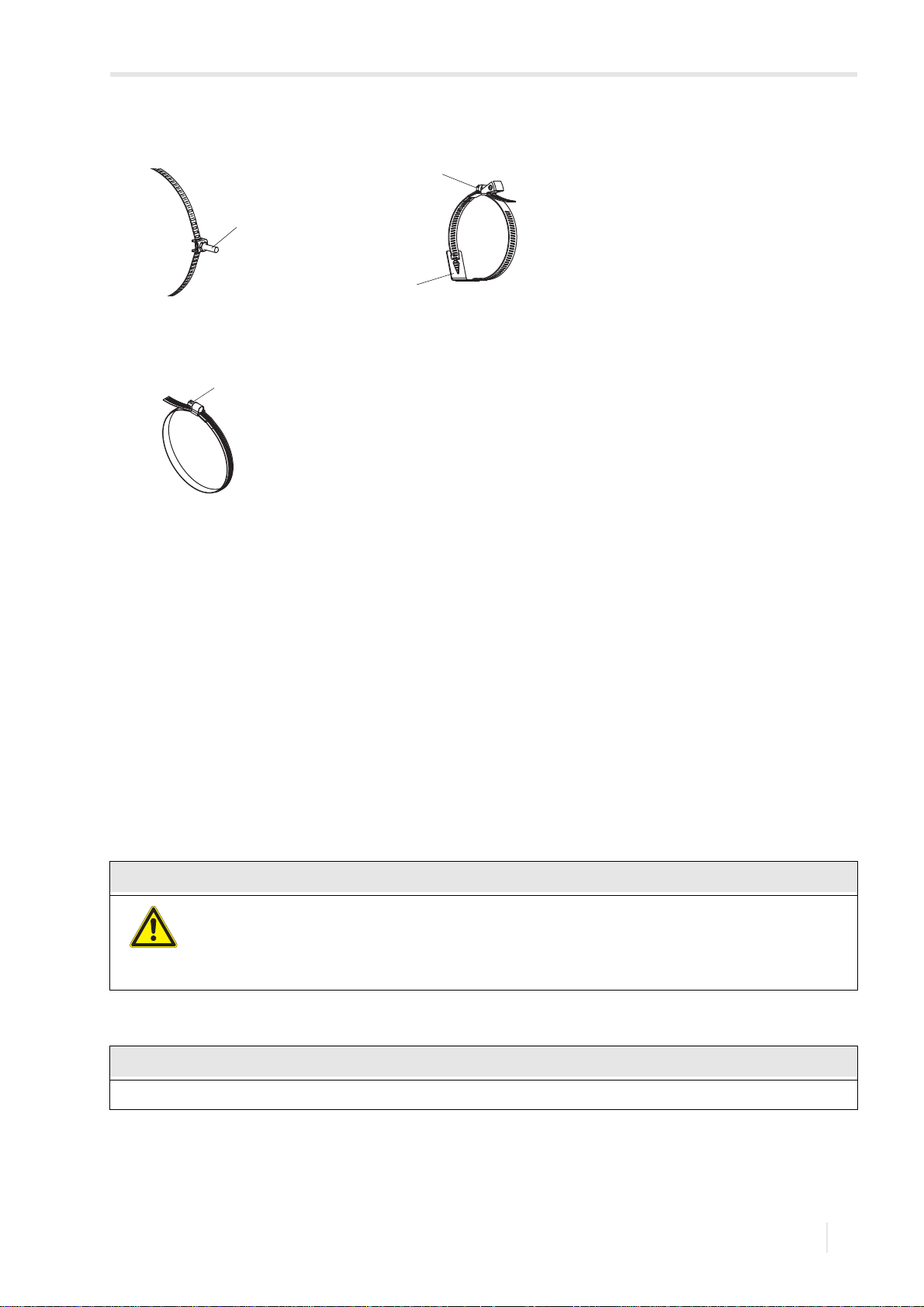

The pipe mounting kit is fixed to the pipe by using tension straps.

The edge of the tension strap is very sharp.

Risk of injury!

 Debur sharp edges.  Wear the required personal protective equipment. Observe the applicable rules.

• Fix the transmitter to the pipe by using tension straps instead of shackles.

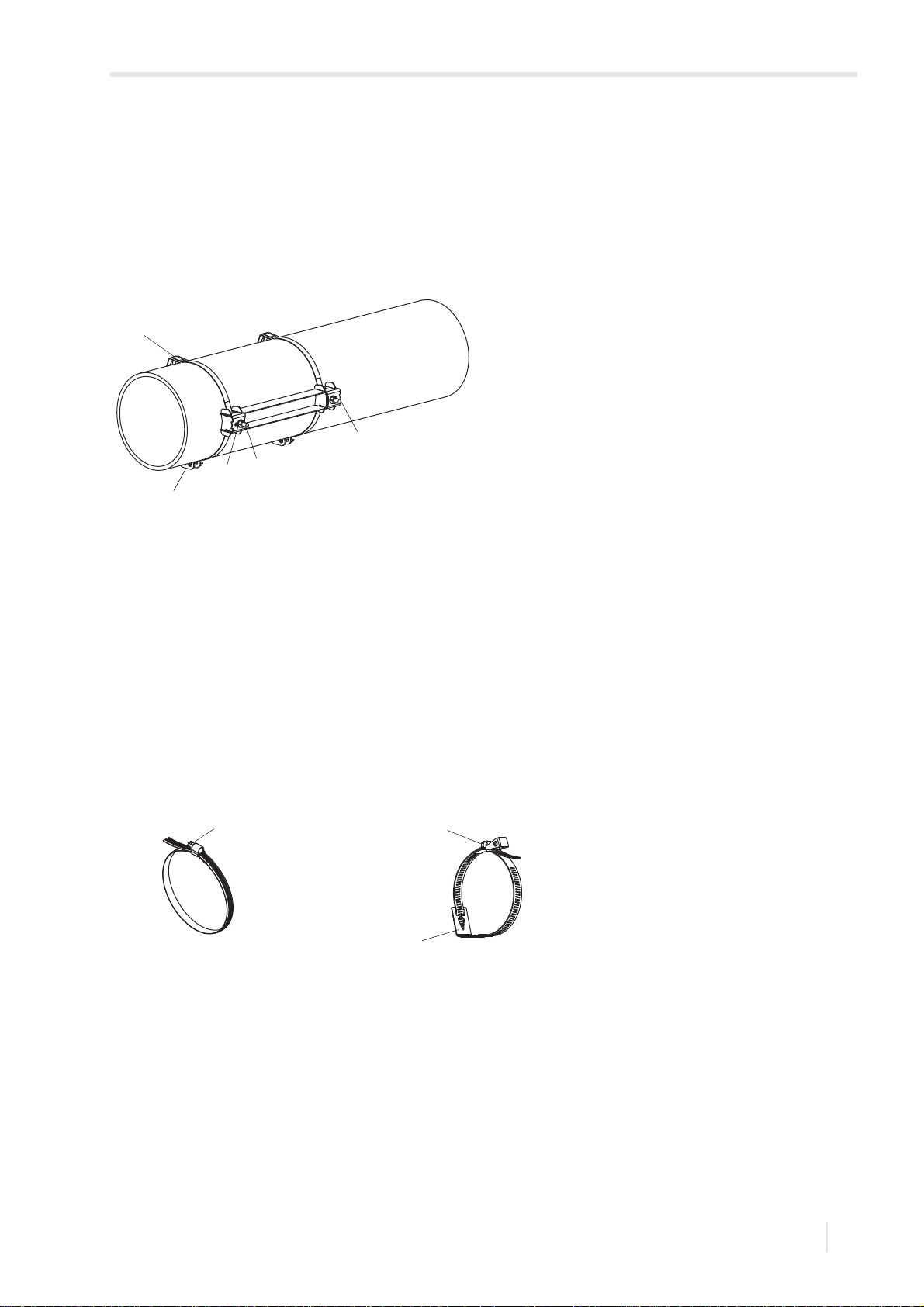

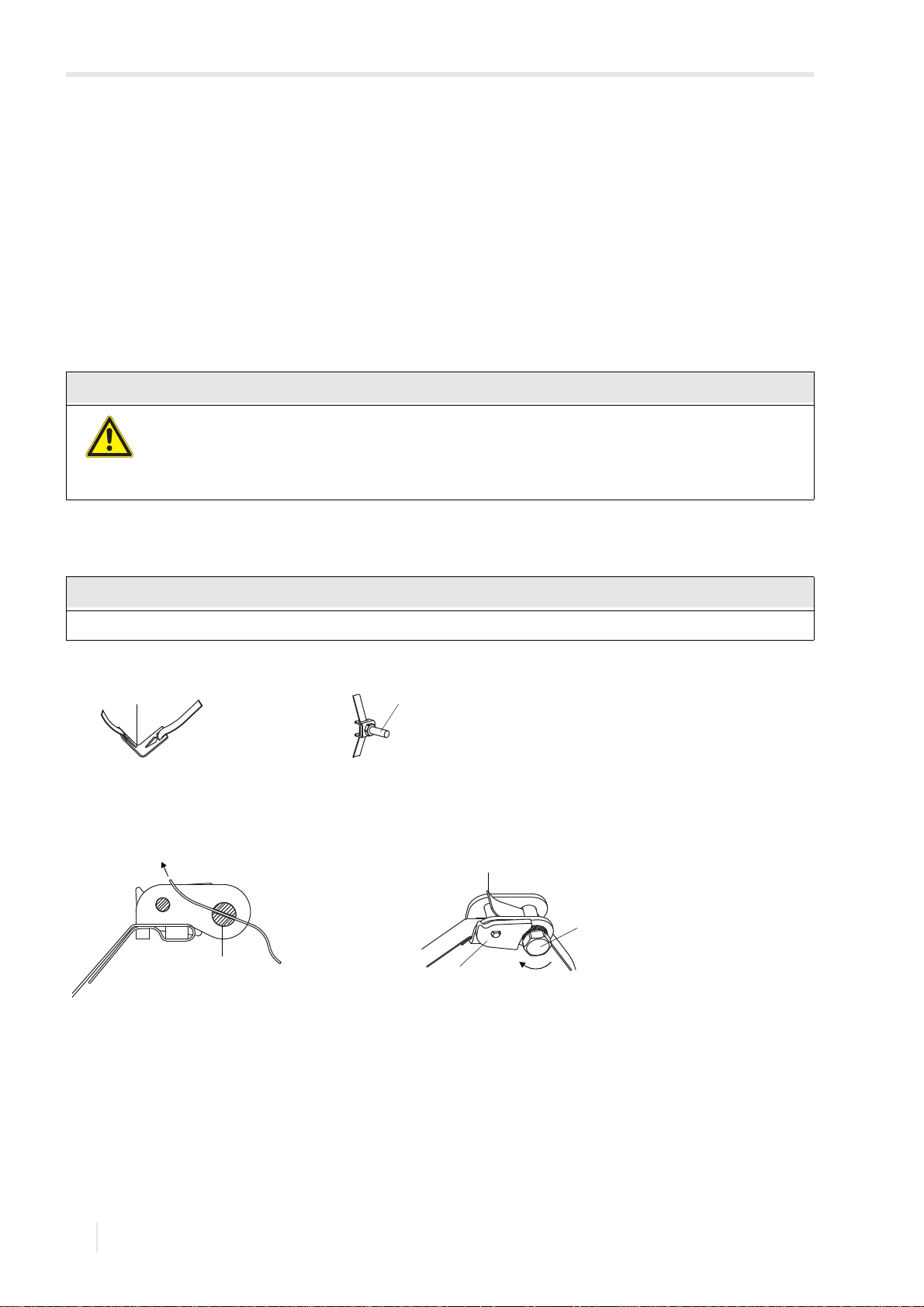

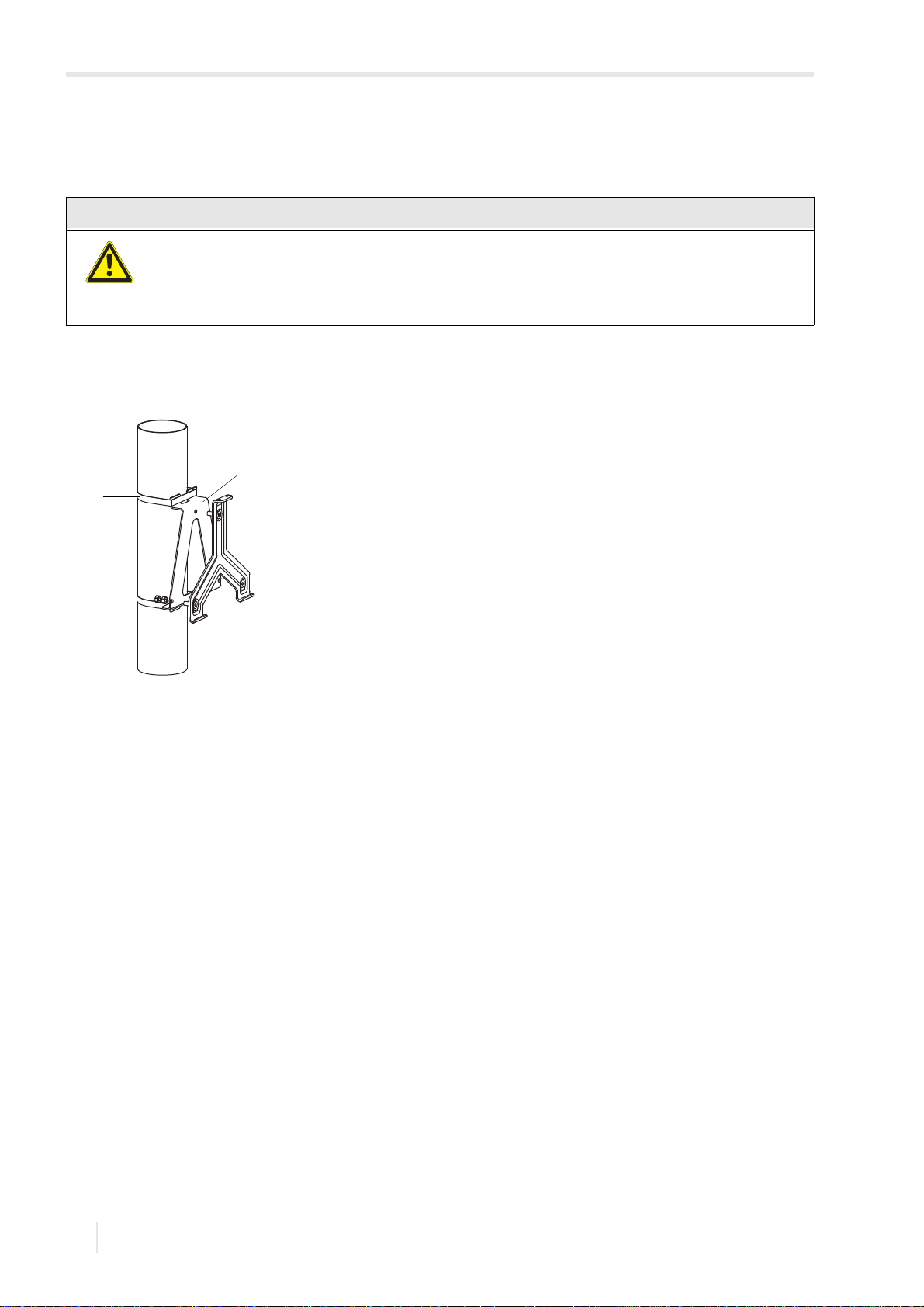

Fig. 6.7: Transmitter with stainless steel housing

1 – shackle 2 – nut

2018-07-16, UMFLUXUS_WDV1-3EN

Page 29

6 Installation

FLUXUS WD 6.1 Transmitter

Transmitter with aluminum housing

Installation on a 2'' pipe

• Fix the wall mount (1) with 3 countersunk-screws (2) and nuts (3) firmly to the instrument mounting plate (4), see Fig. 6.8.

• Position the instrument mounting plate (4) and the shackles (5) to the pipe.

• Fix the instrument mounting plate with the shackles to the pipe by tightening the nuts (6).

• Attach the transmitter to the lower hooks (7) of the wall mount, see Fig. 6.6.

• Fix the transmitter to wall mount by tightening the 2 screws (8), see Fig. 6.8.

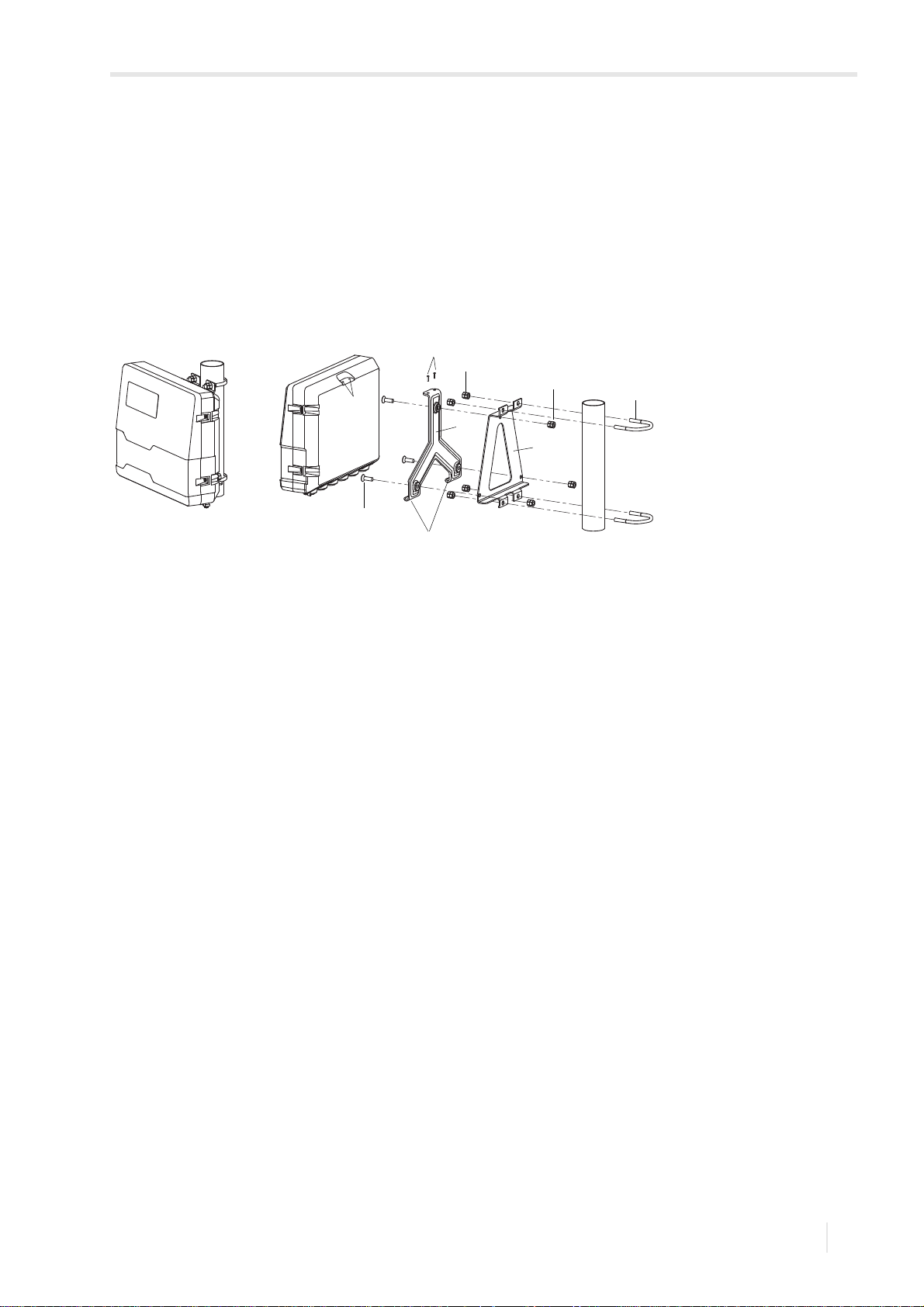

Fig. 6.8: Transmitter with aluminum housing

1 – wall mount 2 – countersunk-head screw 3 – nut of countersunk-head screw 4 – instrument mounting plate 5 – shackle 6 – nut of shackle 7 – hooks 8–screws

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 30

6 Installation

Caution!

6.1 Transmitter FLUXUS WD

Installation on a pipe > 2''

The pipe mounting kit is fixed to the pipe by using tension straps.

The edge of the tension strap is very sharp.

Risk of injury!

 Debur sharp edges.  Wear the required personal protective equipment. Observe the applicable rules.

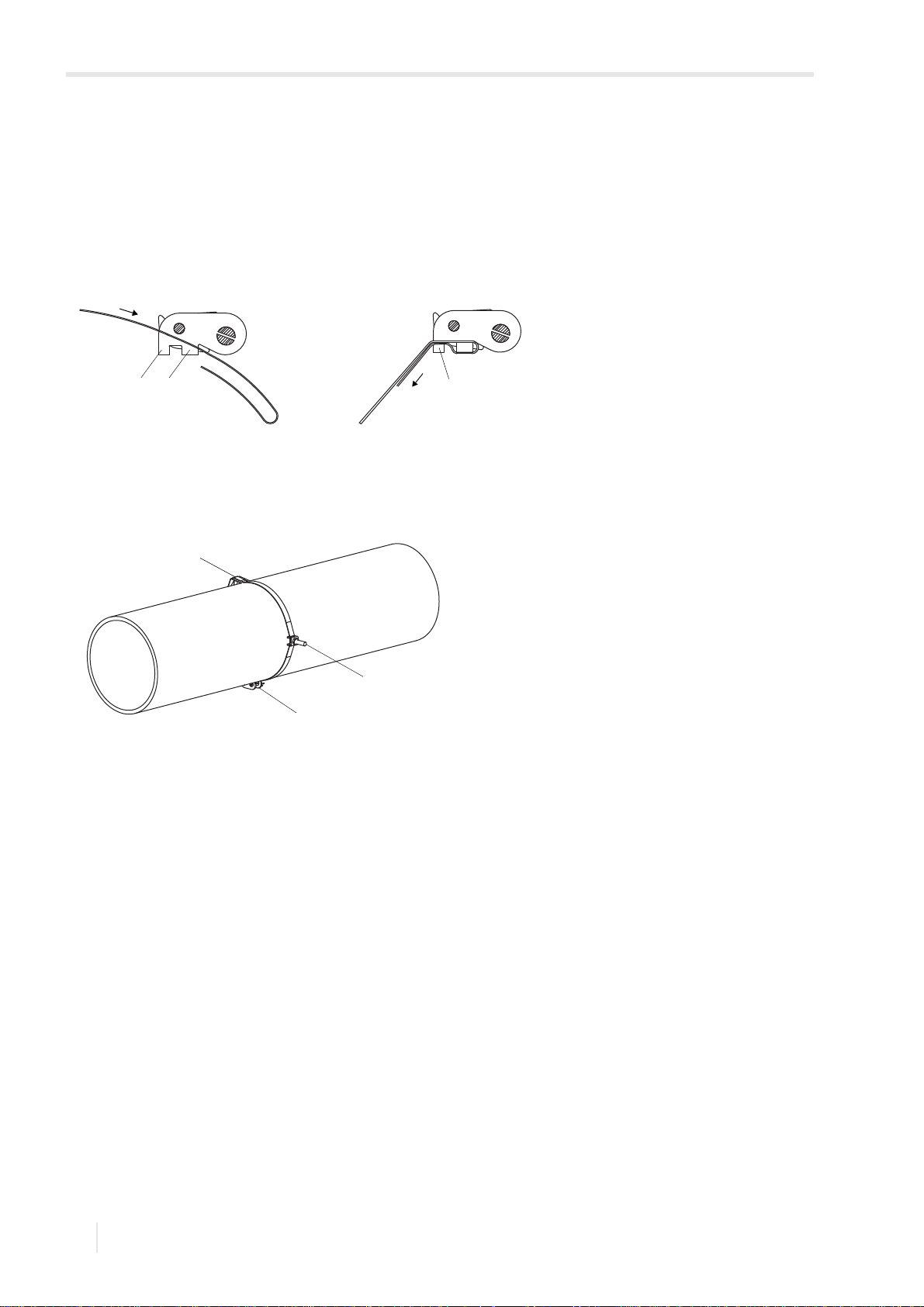

• Fix the instrument mounting plate (1) to the pipe using tension straps (2) instead of the shackles (see Fig. 6.9).

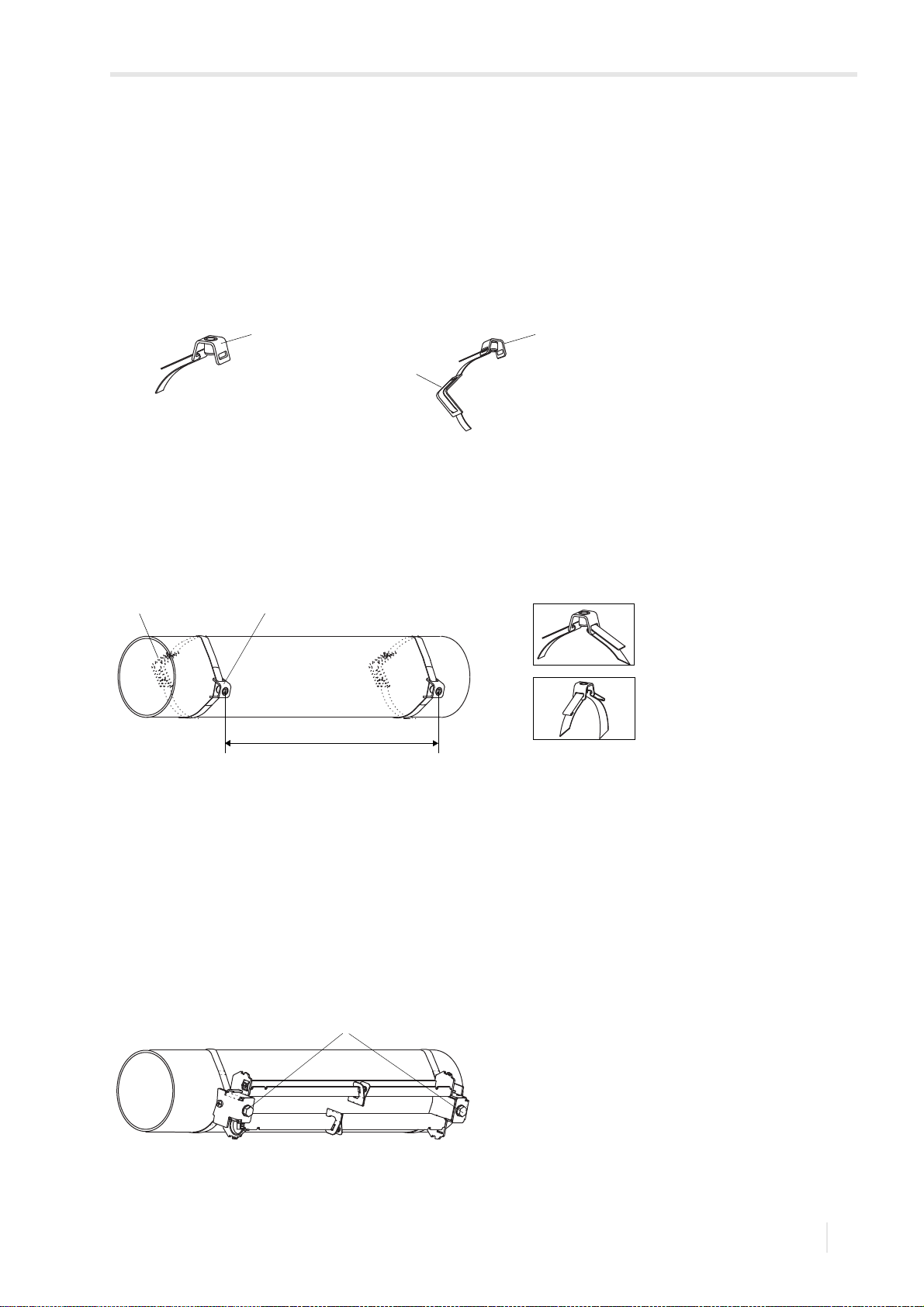

Fig. 6.9: Pipe installation with tension straps

1 – instrument mounting plate 2 – tension strap

2018-07-16, UMFLUXUS_WDV1-3EN

Page 31

6 Installation

Caution!

Important!

Notice!

FLUXUS WD 6.2 Transducers

6 Installation

6.2 Transducers

6.2.1 Preparation

6.2.1.1 Measuring point selection

The correct selection of the measuring point is crucial for achieving reliable measurement results and a high measurement accuracy.

A measurement on a pipe is possible if:

• the ultrasound propagates with a sufficiently high amplitude

• the flow profile is fully developed

The correct selection of the measuring point and the correct transducer positioning guarantee that the sound signal will be received under optimum conditions and evaluated correctly.

Because of the variety of applications and the different factors that influence the measurement, there is no standard solution for the transducer positioning.

The measurement is influenced by the following factors:

– diameter, material, lining, wall thickness and shape of the pipe

–fluid

– gas bubbles in the fluid

• Avoid measuring points in the vicinity of distorted or defective areas of the pipe or in the vicinity of welds.

• Avoid measuring points with deposit formation in the pipe.

• Make sure the pipe surface at the selected measuring point is even.

• Select the location of the transmitter within the transducer cable range.

• The ambient temperature at the measuring point has to be within the operating temperature range of the transmitter and the transducers, see Technical specification.

If the measuring point is within an explosive atmosphere, possibly present danger zones and gases have to be determined. The transducers and the transmitter have to be appropriate for these conditions.

6.2.1.2 Pipe preparation

Contact with grinding dust

This may result in injuries (e.g., breathing difficulties, skin reactions, eye irritations).  Wear the required personal protective equipment. Observe the applicable rules.

The pipe has to be sufficiently stable to withstand the pressure exerted by the transducers and the tension straps.

Observe the selection criteria of pipe and measuring point.

Rust, paint or deposits on the pipe absorb the sound signal. A good acoustic contact between the pipe and the transducers is obtained as follows:

• Clean the pipe at the selected measuring point.

– If present, the paint layer has to be smoothed by grinding. The paint does not need to be removed completely.

– Remove rust or loose paint.

• Use coupling foil or apply a bead of acoustic coupling compound along the center line of the contact surface of the transducers.

• Observe that there must be no air pockets between the transducer contact surface and the pipe wall.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 32

6 Installation

X arrangement

displaced X arrangement

6.2 Transducers FLUXUS WD

6.2.1.3 Selection of the measurement arrangeme nt Diagonal arrangement with 1 beam Reflection arrangement with 1 beam

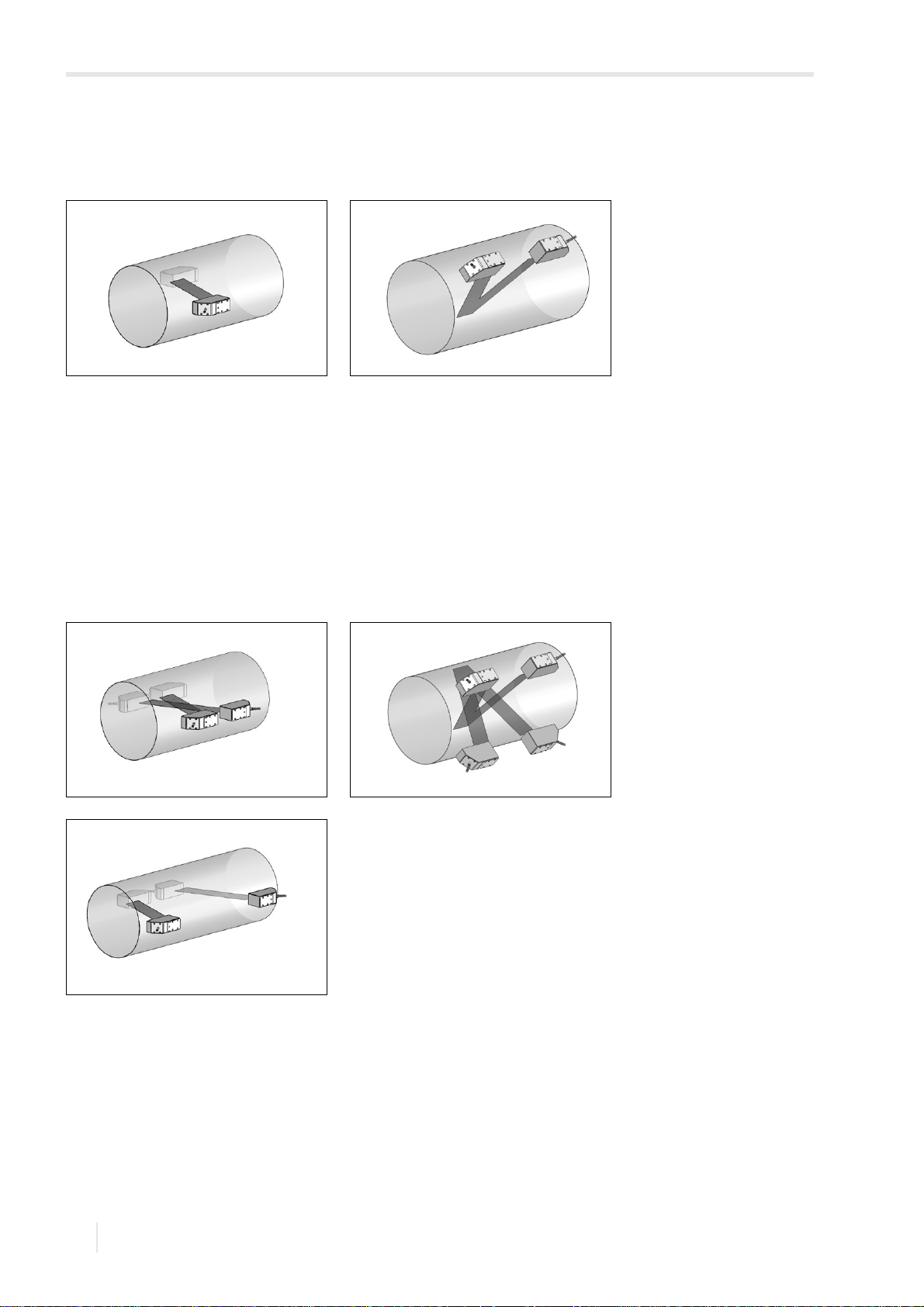

• wider flow velocity and sound speed range compared to the reflection arrangement

• use in the presence of deposits on the inner pipe wall or with strongly attenuating gases or liquids (only 1 sound path)

• smaller flow velocity and sound speed range compared to the diagonal arrangement

• transverse flow effects are compensated because the beam crosses the pipe in 2 directions

• higher accuracy of measurement because the accuracy increases with the number of sound paths

Diagonal arrangement with 2 beams Reflection arrangement with 2 beams

and 2 planes

• same characteristics as reflection arrangement with 2 beams

• additional characteristic: influences of the flow profile are compensated because the measurement takes place in 2 planes

• same characteristics as diagonal arrangement with 1 beam

• additional characteristic: transverse flow effects are compensated because the measurement is conducted with 2 beams

2018-07-16, UMFLUXUS_WDV1-3EN

Page 33

6 Installation

elbow plane

flow di-

rection

flow direction

elbow plane

flow direction

FLUXUS WD 6.2 Transducers

If the measuring point is situated near an elbow, the following measurement arrangements are recommended for the selection of the sound beam plane.

Vertical pipes Horizontal pipes

• The sound beam plan is selected in an angle of 90° to the elbow plane. The elbow is upstream of the measuring point.

• The sound beam plane is selected in an angle of 90° ± 45° to the elbow plane. The elbow is upstream of the measuring point.

Bidirectional measurements Measurements in reflection

arrangement with 2 beams and 2 planes

• The sound beam plane is selected according to the nearest elbow (horizontal or vertical, depending on the pipe orientation, see above).

• The 2 sound beam planes are selected in an angle of 45° to the elbow plane. The elbow is upstream of the measuring point.

• On horizontal pipes, the transducers are mounted on the upper half of the pipe.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 34

6 Installation

6.2 Transducers FLUXUS WD

6.2.2 Installation of the transducers

6.2.2.1 Orientation of the transducers and determination of the transducer distance

Observe the orientation of the transducers. If the transducers have been mounted properly, the engravings on the transducers form an arrow, see Fig. 6.10. The transducer cables show in opposite directions.

The transducer distance is measured between the inner edges of the transducers.

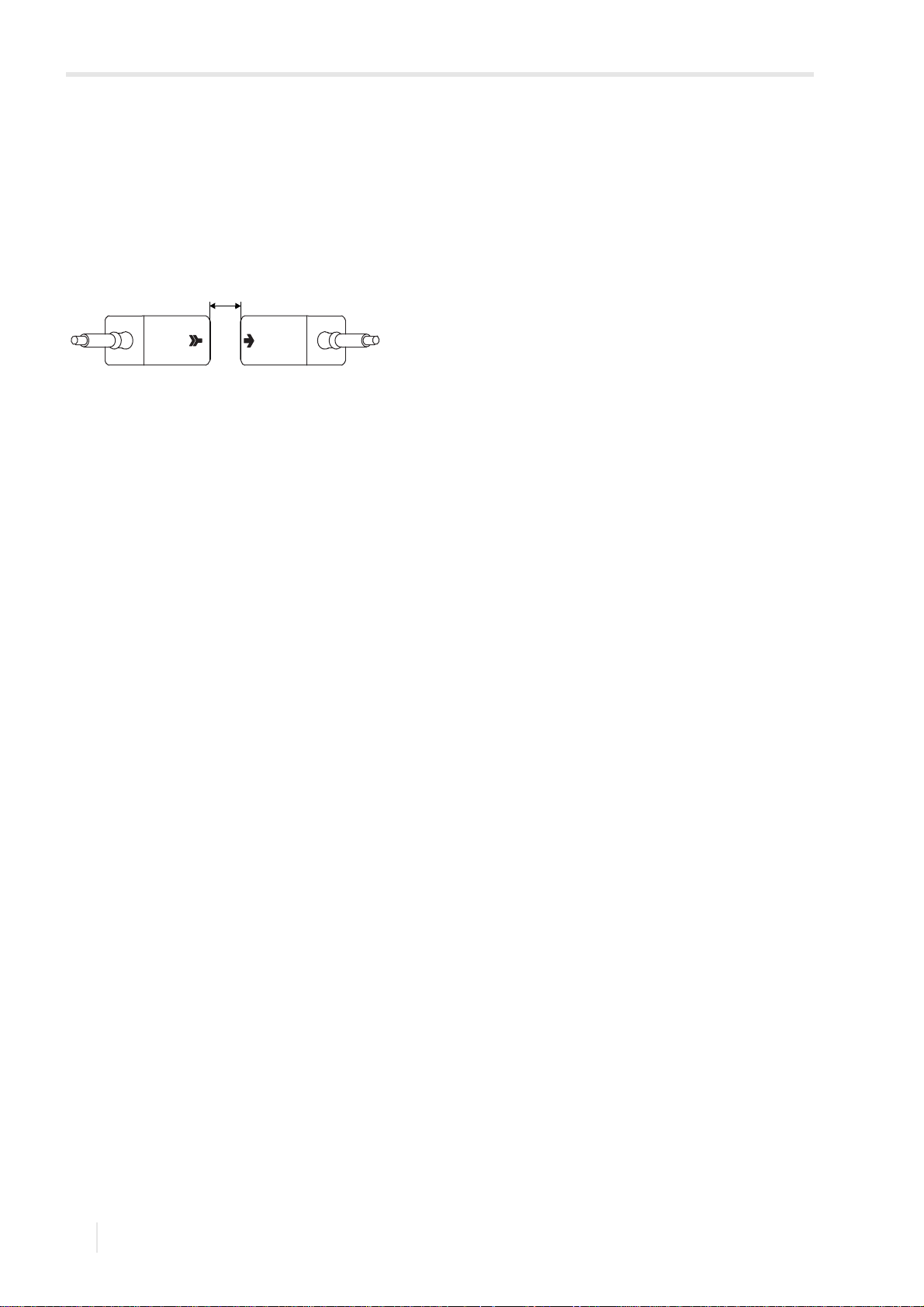

Fig. 6.10: Orientation of the transducers and transducer distance

a – transducer distance

• Select the installation instructions that correspond to the supplied transducer mounting fixture.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 35

6 Installation

FLUXUS WD 6.2 Transducers

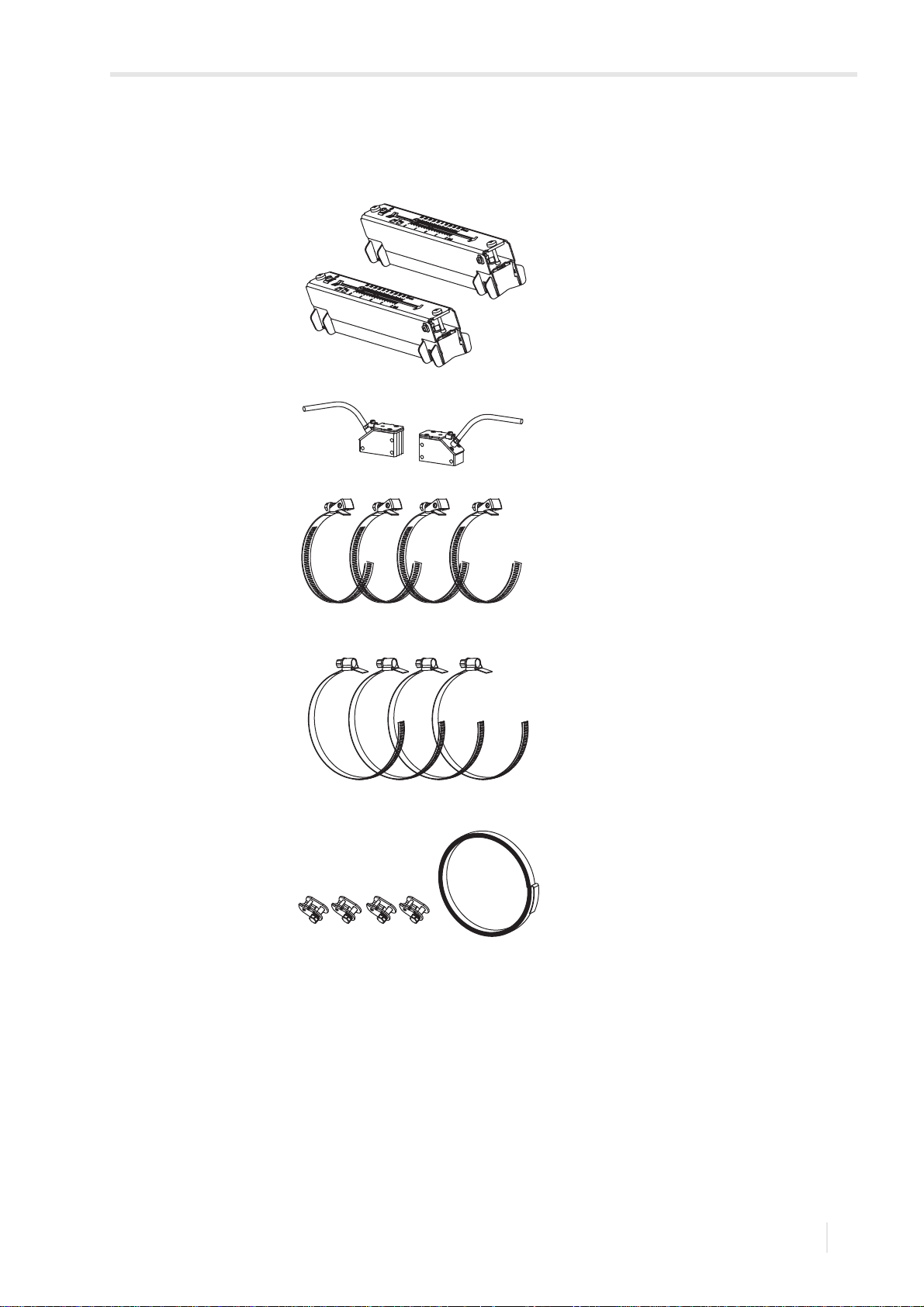

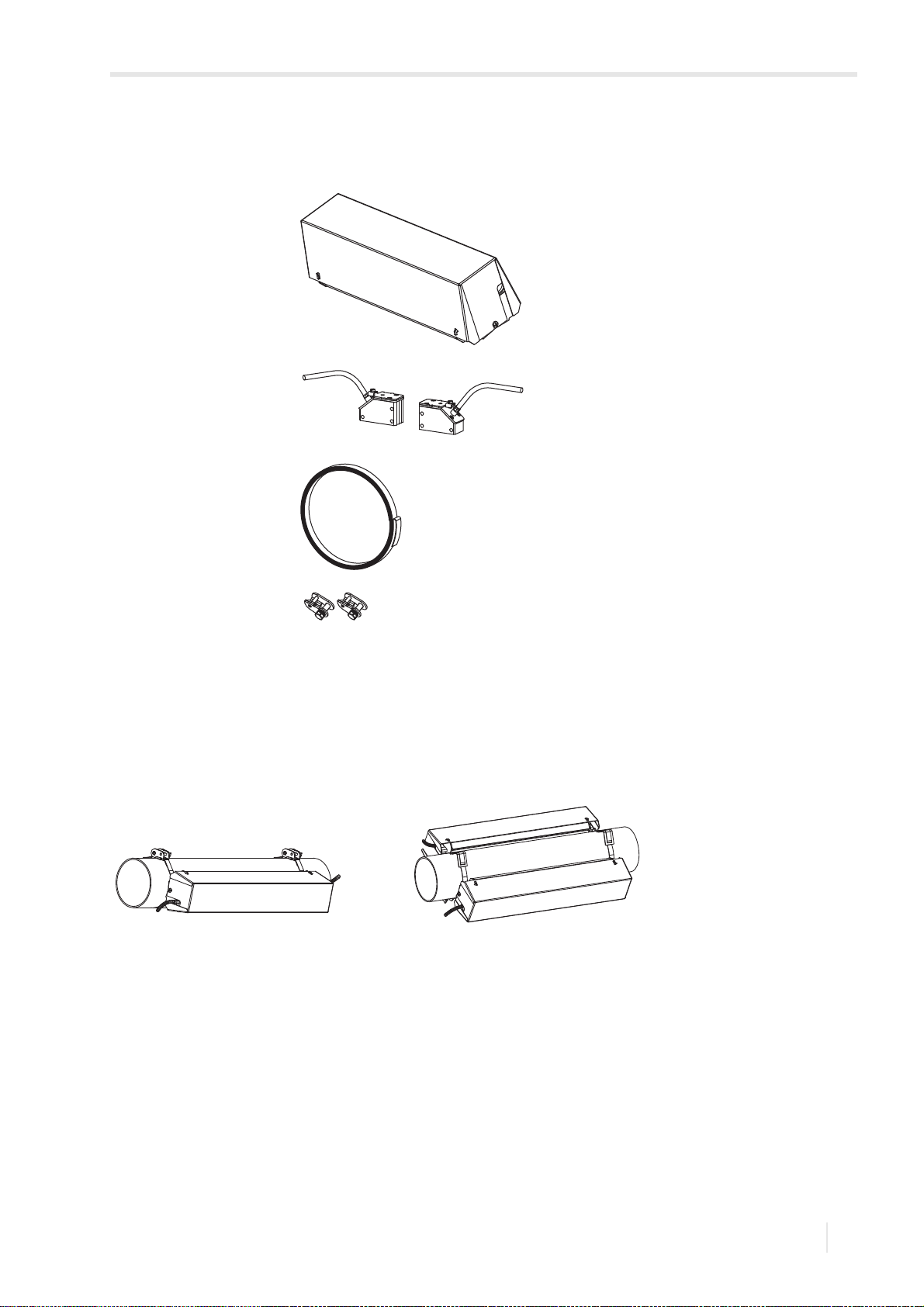

6.2.2.2 Mounting with Variofix L (PermaRail) Scope of delivery

2 × Variofix L

1 × transducer pair

4 × quick release clasp with tension strap

4 × band clamp clasp with tension strap

4 × ratchet clasp and tension strap coil

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 36

6 Installation

6.2 Transducers FLUXUS WD

Mounting

When measuring in diagonal arrangement, the transducer mounting fixtures are mounted on opposite sides of the pipe, see Fig. 6.11. When measuring in reflection arrangement, the transducer mounting fixtures are mounted on the same side of the pipe, see Fig. 6.12.

When measuring in diagonal arrangement with 2 beams in displaced X arrangement, 4 transducer mounting fixtures have to be mounted. When measuring in reflection arrangement and small transducer distance, only 1 transducer mounting fixture has to be mounted, see Tab. 6.1.

Tab. 6.1: Approximate values for the mounting of both transducers in a Variofix L

transducer frequency (third character of the technical type)

F 368 < 94

G, H, K (****LI*) 368 < 94

G, H, K (except ****LI*) 348 < 89

M, P (Lamb wave transducers)

M, P (shear wave transducers)

Q 176 < 69

length of the rail [mm] transducer distance [mm]

234 < 84

< 100

In the following, the mounting of 2 transducer mounting fixtures in reflection arrangement is described (1 transducer mounting fixture for each transducer).

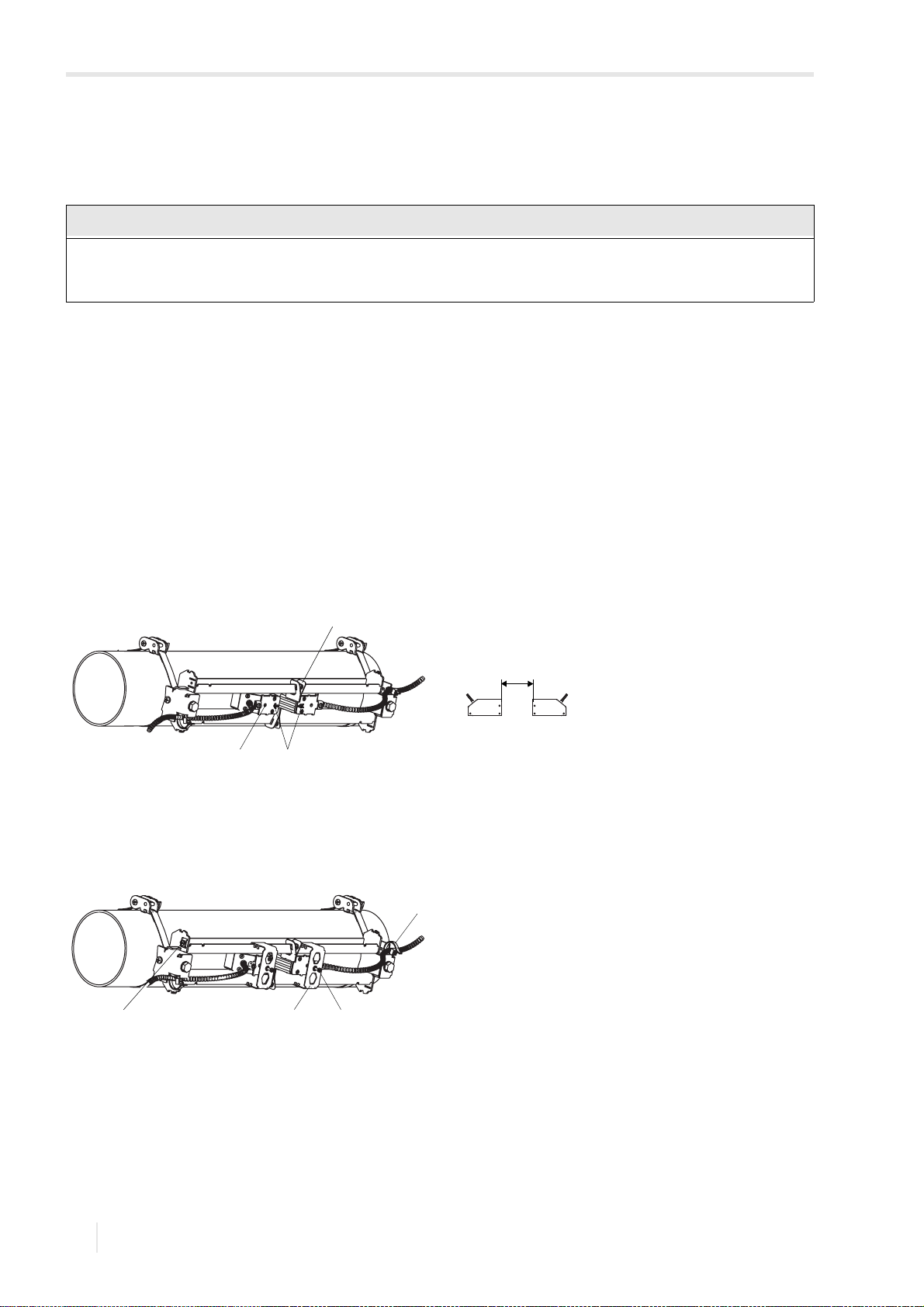

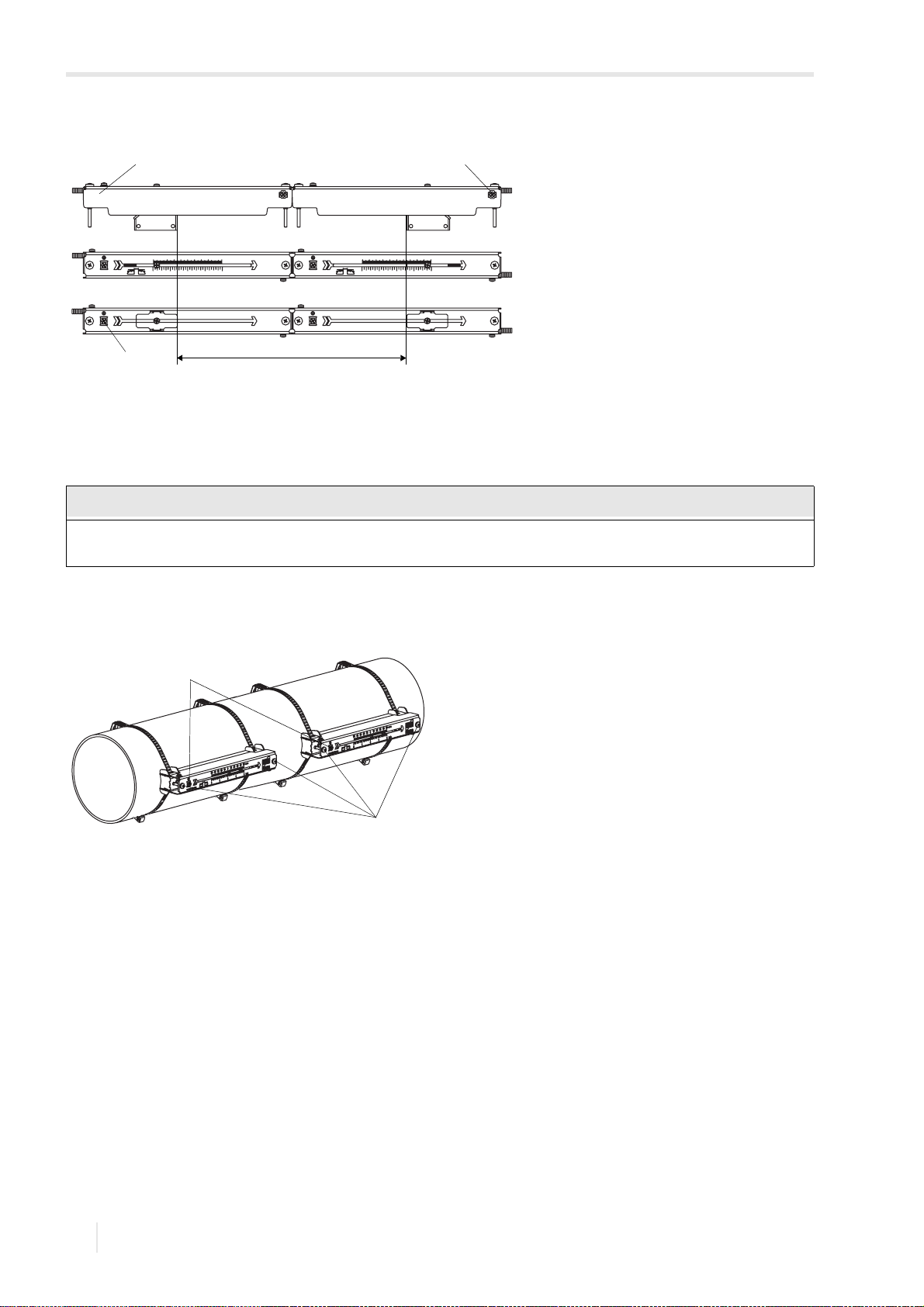

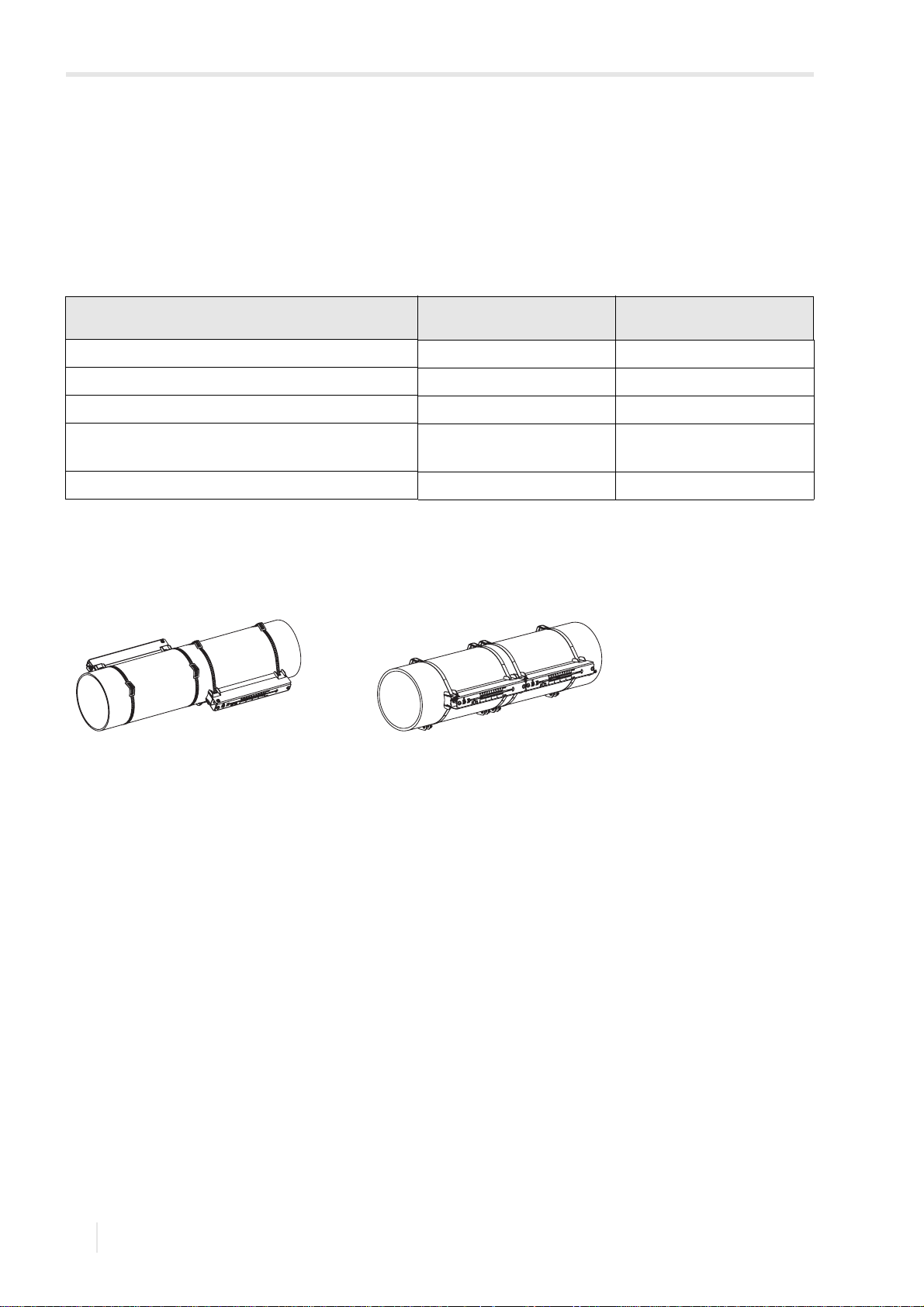

Fig. 6.11: Transducer mounting fixture Variofix L

(diagonal arrangement)

Fig. 6.12: Transducer mounting fixture Variofix L

(reflection arrangement)

Overview of the mounting steps

• step 1

dismounting of the transducer mounting fixture Variofix L

• step 2

fixing the clasps to the tension straps

• step 3

fixing the tension strap to the pipe

• step 4

fixing the rail to the pipe

• step 5

installation in the transducer mounting fixture Variofix L

2018-07-16, UMFLUXUS_WDV1-3EN

Page 37

6 Installation

Caution!

FLUXUS WD 6.2 Transducers

Step 1: Dismounting of the transducer mounting fixture Variofix L

• Disassemble the transducer mounting fixture Variofix L, see Fig. 6.13.

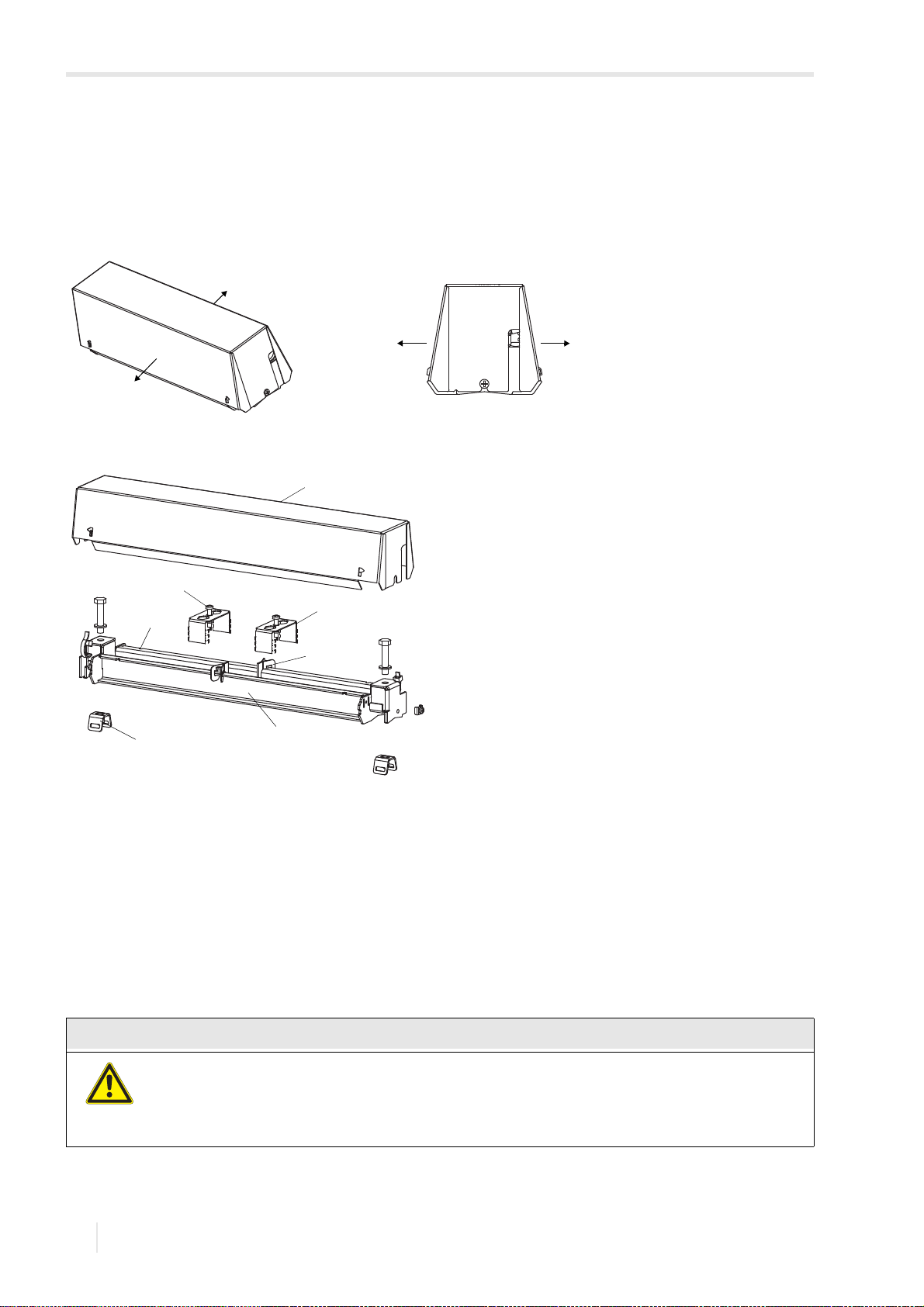

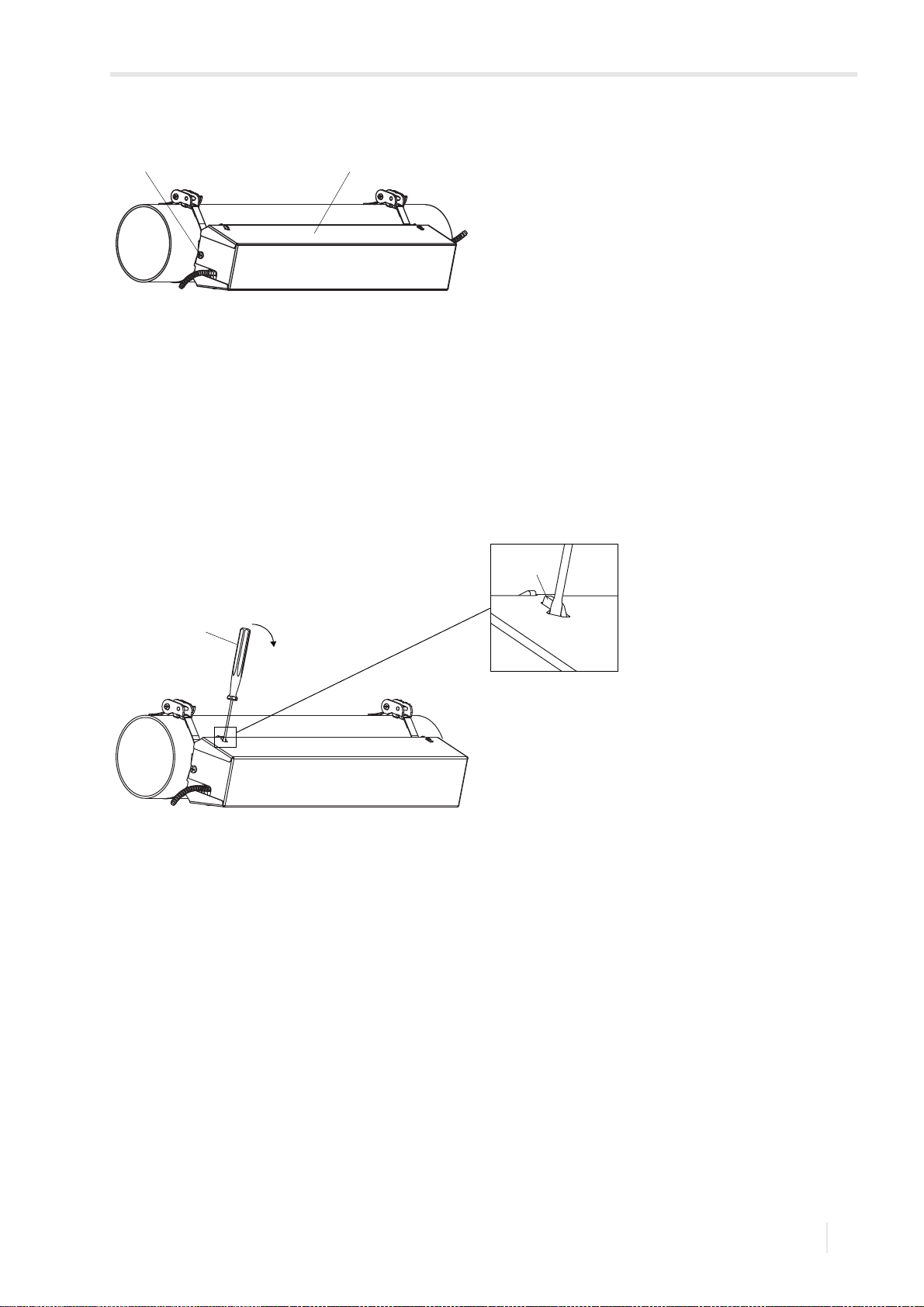

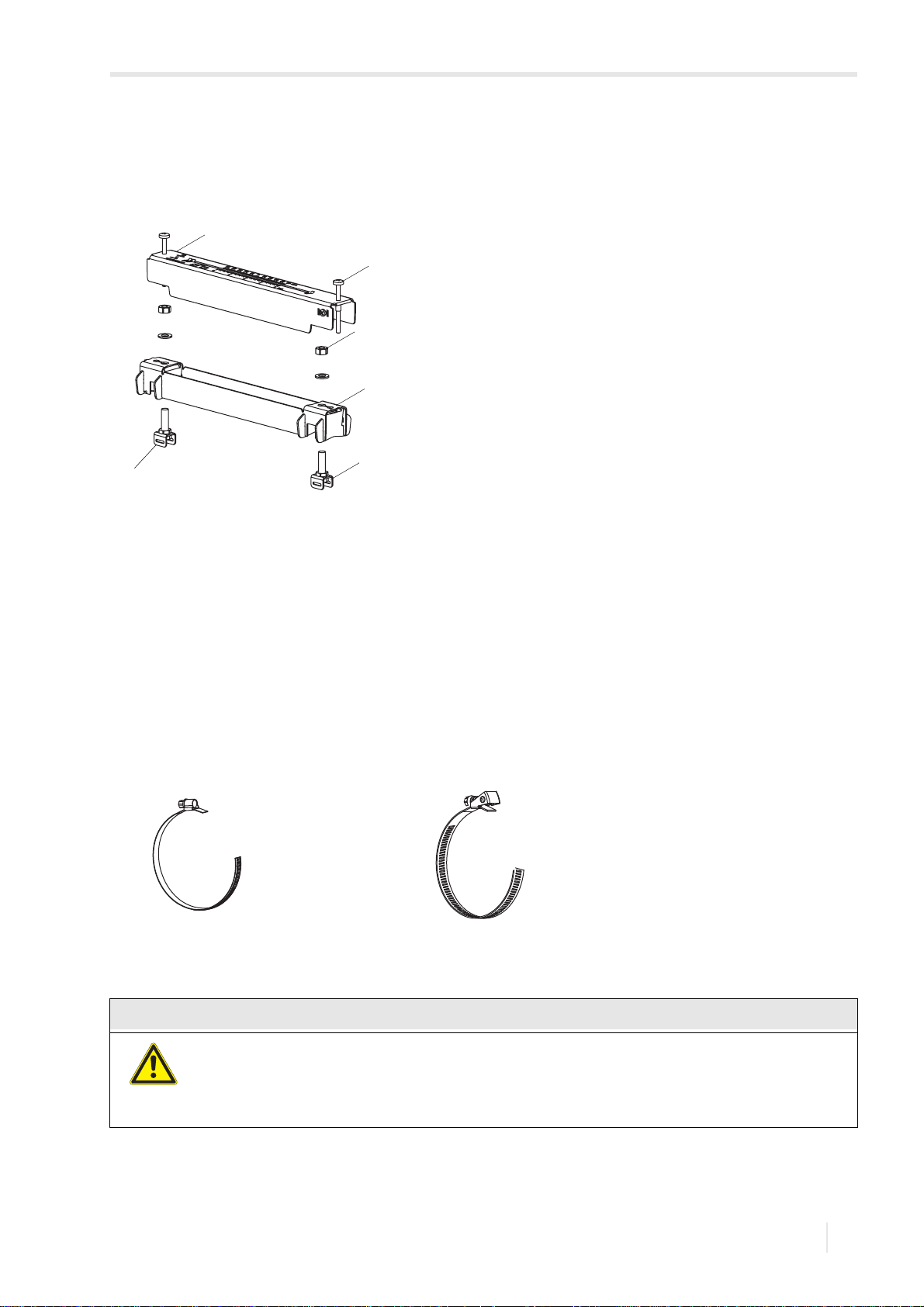

Fig. 6.13: Dismounting of the transducer mounting fixture Variofix L

1–cover 2–screw 3 – nut 4–rail 5 – tension strap clamp

Step 2: Fixing the clasps to the tension straps

• Select the installation instructions according to the supplied clasp:

Band clamp clasp

The clasp is fixed to the tension strap, see Fig. 6.14.

Quick release clasp

The clasp is fixed to the tension strap, see Fig. 6.15.

• Cut the tension strap to length (pipe circumference + at least 120 mm).

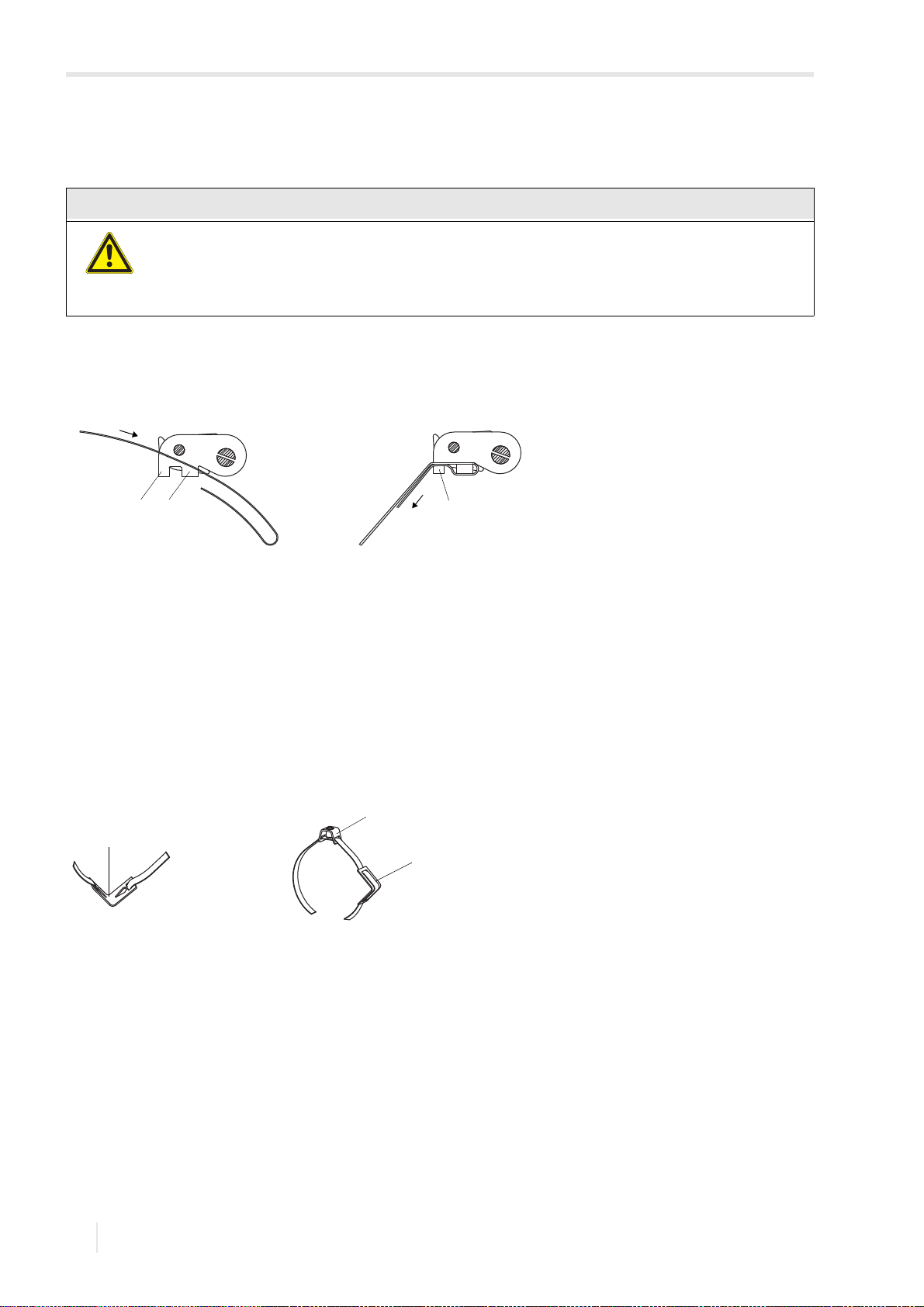

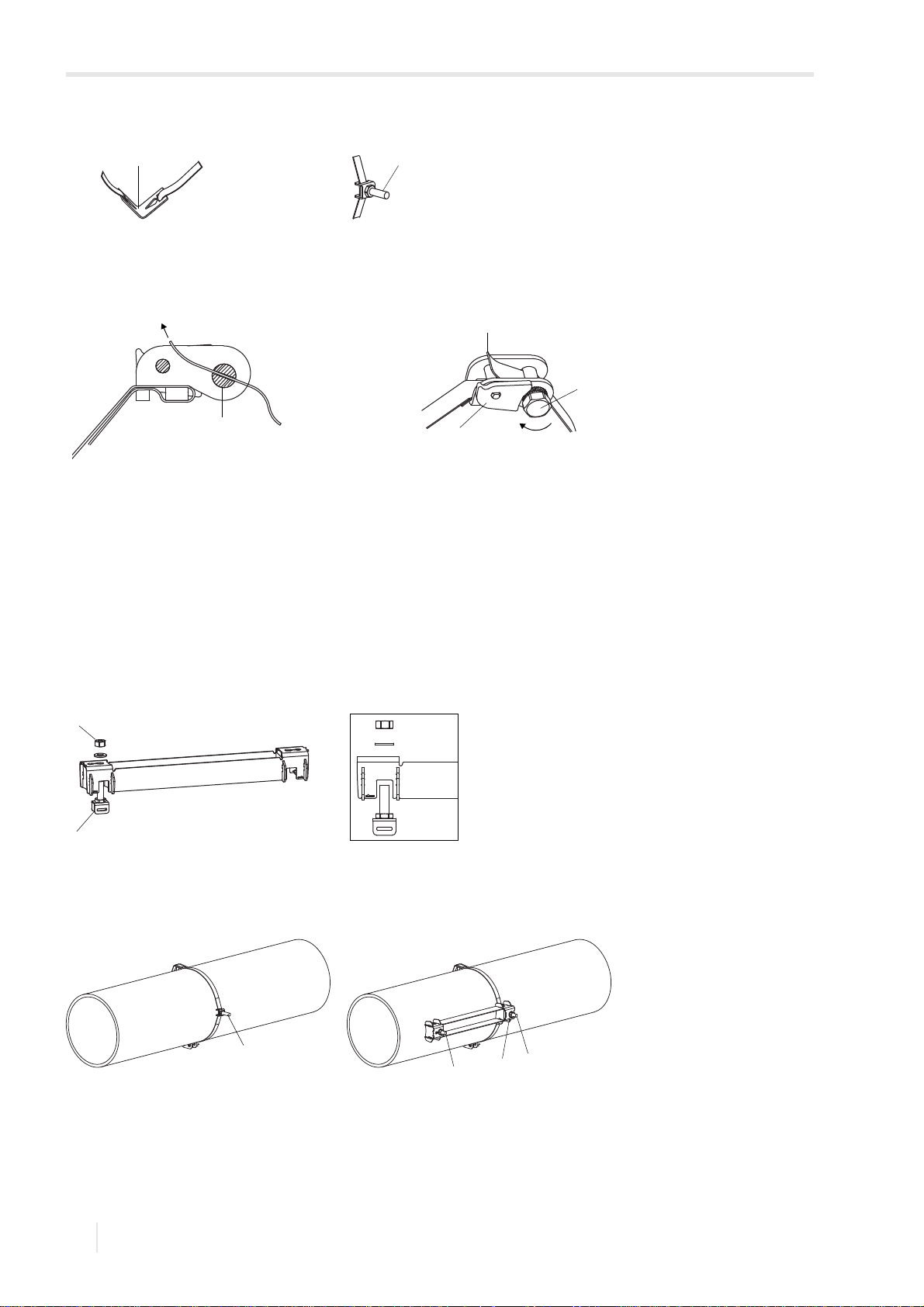

Fig. 6.14: Band clamp clasp with tension strap Fig. 6.15: Quick release clasp with tension strap

Ratchet clasp

• Cut the tension strap to length (pipe circumference + at least 120 mm).

The edge of the tension strap is very sharp.

Risk of injury!

 Debur sharp edges.  Wear the required personal protective equipment. Observe the applicable rules.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 38

6 Installation

12 1

6.2 Transducers FLUXUS WD

• Insert approx. 100 mm of the tension strap into part (1) and (2) of the ratchet clasp, see Fig. 6.16 a.

• Bend the tension strap.

• Insert the tension strap into part (1) of the ratchet clasp, see Fig. 6.16 b.

• Tighten the tension strap.

• Repeat the steps for the second tension strap.

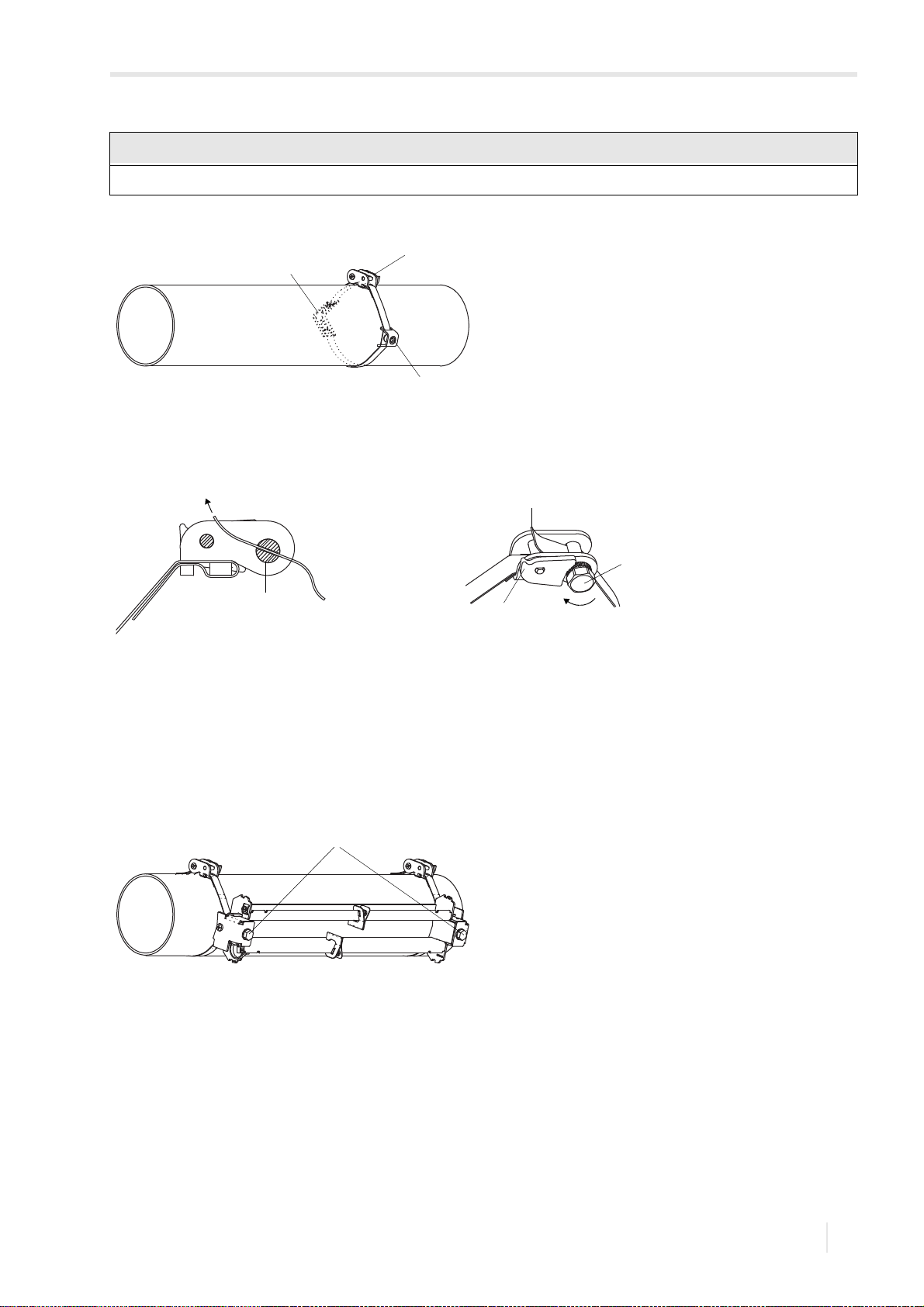

Fig. 6.16: Ratchet clasp with tension strap

Step 3: Fixing the tensions strap to the pipe

One tension strap is fixed to the pipe, see Fig. 6.17. The second tension strap is mounted later.

Fig. 6.17: Tension strap with tension strap clamp and metal spring on the pipe

1 – tension strap clamp 2–clasp 3–metal spring

Select the installation instructions according to the supplied clasp:

Band clamp clasp

• Insert the tension strap into the tension strap clamp, see Fig. 6.18.

• Position the clasp and the tension strap clamp on the pipe, see Fig. 6.17. On a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible.

• Place the tension strap around the pipe and insert it into the clasp, see Fig. 6.20.

• Tighten the tension strap.

• Tighten the clasp screw.

Quick release clasp

• Insert the tension strap into the tension strap clamp and the metal spring, see Fig. 6.18 and Fig. 6.19.

• Position the clasp, the tension strap clamp and the metal spring on the pipe, see Fig. 6.17:

– on a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible

– mount the metal spring opposite to the tension strap clamp

2018-07-16, UMFLUXUS_WDV1-3EN

Page 39

6 Installation

Caution!

Notice!

FLUXUS WD 6.2 Transducers

Fig. 6.18: Tension strap with clamp Fig. 6.19: Tension strap with quick release

1 – tension strap clamp 1 – clasp screw

2–metal spring

Fig. 6.20: Tension strap with band clamp clasp

1 – clasp screw

clasp and metal spring

• Place the tension strap around the pipe and insert it into the clasp, see Fig. 6.19.

• Tighten the tension strap.

• Tighten the clasp screw.

Ratchet clasp

Insert the tension strap into the tension strap clamp and the metal spring, see Fig. 6.21.

•

The metal spring does not have to be

mounted on:

– steel pipes

– pipes with an outer pipe diameter < 80 mm

– pipes that are not subjected to significant temperature fluctuations

• Position the ratchet clasp, tension strap clamp and metal spring (if necessary) on the pipe, see Fig. 6.17:

– on a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible

– mount the metal spring (if necessary) opposite to the tension strap clamp

• Place the tension strap around the pipe and pass it through the slot of the clasp screw, see Fig. 6.22.

• Tighten the tension strap.

• Cut off the protruding tension strap, see Fig. 6.22.

The edge of the tension strap is very sharp.

Risk of injury!

 Debur sharp edges.  Wear the required personal protective equipment. Observe the applicable rules.

• Tighten the clasp screw.

In order to release the screw and the tension strap, press the lever down, see Fig. 6.22.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 40

6 Installation

6.2 Transducers FLUXUS WD

Fig. 6.21: Tension strap with metal spring and clamp

1–metal spring 2 – tension strap clamp

Fig. 6.22: Ratchet clasp with tension strap

1 – sense of rotation 2 – edge 3–lever 4 – clasp screw with slot

Step 4: Fixing the rail to the pipe

• Place the tension strap clamp (2) in the rail, see Fig. 6.23. Observe the orientation of the tension strap clamp.

• Tighten the nut of the tension strap clamp (2) slightly.

• Screw the rail to tension strap clamp (1), see Fig. 6.24.

• Tighten the nut of tension strap clamp (1), but not too firmly in order not to damage the tension strap.

Fig. 6.23: Rail with tension strap clamp

1 – nut 2 – tension strap clamp

Fig. 6.24: Rail, mounted on one side of the pipe

1 – tension strap clamp 2 – tension strap clamp 3 – nut

• Select the installation instructions according to the supplied clasp:

2018-07-16, UMFLUXUS_WDV1-3EN

Page 41

6 Installation

FLUXUS WD 6.2 Transducers

Band clamp clasp

• Insert the tension strap into the tension strap clamp (2), see Fig. 6.25.

• Place the tension strap around the pipe and insert it into the clasp, see Fig. 6.26.

• Tighten the tension strap.

• Tighten the clasp screw.

• Tighten the nut of the tension strap clamp (2), but not too firmly in order not to damage the tension strap, see Fig. 6.25.

Fig. 6.25: Rail on the pipe

1 – tension strap clamp 2 – tension strap clamp 3–metal spring 4 – nut 5–clasp

Quick release clasp

• Insert the tension strap into the tension strap clamp (2) and the metal spring, see Fig. 6.27 and Fig. 6.25.

• Place the tension strap around the pipe and insert it into the clasp.

• Mount the metal spring opposite to the tension strap clamp (2).

• Tighten the tension strap.

• Tighten the clasp screw.

• Tighten the nut of the tension strap clamp (2), but not too firmly in order not to damage the tension strap, see Fig. 6.25.

Fig. 6.26: Tension strap with band clamp clasp Fig. 6.27: Tension strap with quick release

1 – clasp screw 1 – clasp screw

2–metal spring

clasp and metal spring

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 42

6 Installation

Caution!

Notice!

6.2 Transducers FLUXUS WD

Ratchet clasp

• Insert the tension strap into the tension strap clamp (2) and the metal spring, see Fig. 6.25 and Fig. 6.28. The metal spring does not have to be mounted on:

– steel pipes

– pipes with an outer pipe diameter < 80 mm

– pipes that are not subjected to significant temperature fluctuations

• Position the ratchet clasp, tension strap clamp (2) and metal spring (if necessary) on the pipe:

• Mount the metal spring opposite to the tension strap clamp.

• Place the tension strap around the pipe and pass it through the slot of the clasp screw, see Fig. 6.29.

• Tighten the tension strap.

• Cut off the protruding tension strap, see Fig. 6.29.

The edge of the tension strap is very sharp.

Risk of injury!

 Debur sharp edges.  Wear the required personal protective equipment. Observe the applicable rules.

• Tighten the clasp screw.

• Tighten the nut of the tension strap clamp (2), but not too firmly in order not to damage the tension strap, see Fig. 6.25.

In order to release the screw and the tension strap, press the lever down, see Fig. 6.22.

Fig. 6.28: Tension strap with metal spring and clamp

1–metal spring 2 – tension strap clamp

Fig. 6.29: Ratchet clasp with tension strap

1 – sense of rotation 2 – edge 3–lever 4 – clasp screw with slot

2018-07-16, UMFLUXUS_WDV1-3EN

Page 43

6 Installation

Notice!

FLUXUS WD 6.2 Transducers

• Repeat the steps to fix the second rail, see Fig. 6.30.

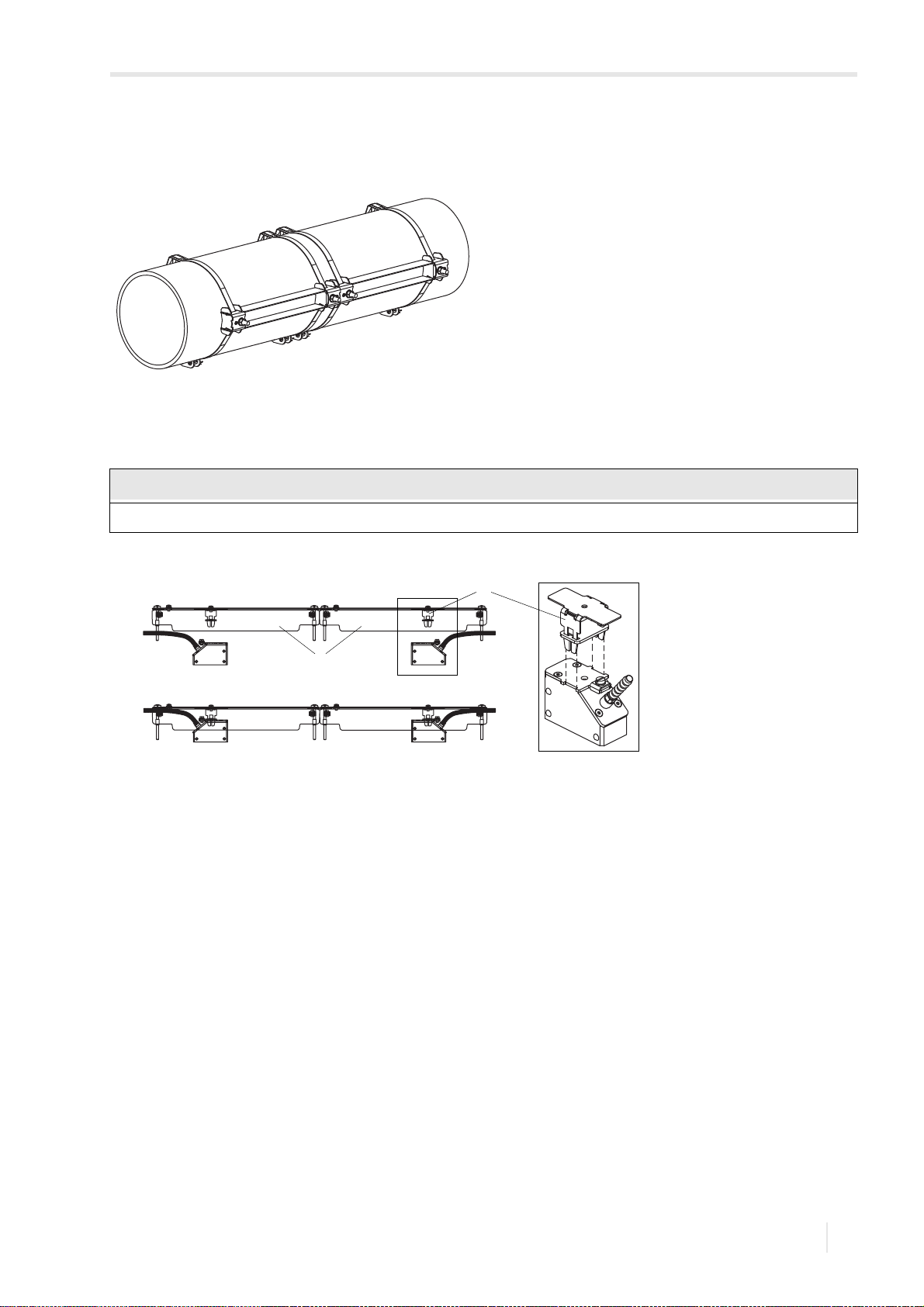

Fig. 6.30: Pipe with 2 rails

Step 5: Installation in the transducer mounting fixture Variofix L

• Press the transducers firmly into the transducer mounting fixture in the covers until the transducers are tightly fixed. The transducer cables show in opposite directions, see Fig. 6.31.

The arrows on the transducers and the covers have to point in the same direction.

Fig. 6.31: Installation of the transducers in the covers

1–cover 2 – transducer clamping fixture

• Adjust the transducer distance displayed by the transmitter, see Fig. 6.32.

• Fix the transducer cables with the strain relief clamp to protect them from mechanical strain, see Fig. 6.32.

• Stick coupling foil (or some coupling compound for a short-term installation) on the contact surface of the transducers. The coupling foil can be fixed to the contact surface with some coupling compound.

• Put the covers with the transducers on the rail.

• Correct the transducer distance, if necessary.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 44

6 Installation

Notice!

6.2 Transducers FLUXUS WD

Fig. 6.32: Adjustment of the transducer distance

1–cover 2 – strain relief clamp 3 – equipotential bonding terminal a – transducer distance

Make sure that the coupling foil remains on the contact surface of the transducers. For information concerning the coupling foil, see the safety data sheet In case a safety data sheet is required, contact FLEXIM.

• Tighten the cover screws, see Fig. 6.33.

Fig. 6.33: Variofix L with transducers on the pipe

1 – equipotential bonding terminal 2 – cover screws

2018-07-16, UMFLUXUS_WDV1-3EN

Page 45

6 Installation

FLUXUS WD 6.2 Transducers

6.2.2.3 Mounting with Variofix C

Scope of delivery

1 × Variofix C

1 × transducer pair

1 × tension strap coil

2 × ratchet clasp

Mounting

When measuring in reflection arrangement, 1 transducer mounting fixture is mounted laterally on the pipe, see Fig. 6.34.

When measuring in diagonal arrangement, 2 transducer mounting fixtures are mounted on opposite sides of the pipe, see Fig. 6.35.

In the following, the installation of 1 transducer mounting fixture in reflection arrangement is described.

Fig. 6.34: Transducer mounting fixture Variofix C

(reflection arrangement)

Fig. 6.35: Transducer mounting fixture Variofix C

(diagonal arrangement)

Overview of the mounting steps

• step 1 dismounting of the transducer mounting fixture Variofix C

• step 2 mounting the rail

• step 3 installation of the transducers in the transducer mounting fixture Variofix C

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 46

6 Installation

Caution!

6.2 Transducers FLUXUS WD

Step 1: Dismounting of the transducer mounting fixture Variofix C

• Disassemble the transducer mounting fixture Variofix C.

In order to remove the cover from the rail, bend the outer sides of the cover outwards, see Fig. 6.36.

In order to remove the spring clip from the rail, slide it over the indentation on the rail and lift it off, see Fig. 6.37.

Fig. 6.36: Removal of the cover

Fig. 6.37: Dismounting of the transducer mounting fixture Variofix C

1–cover 2 – tensioning screw 3 – spring clip 4 – indentation 5 – spacing element 6–rail 7 – tension strap clamp

Step 2: Mounting the rail

• Select the installation instructions according to the supplied clasp:

Mounting of the rail without a clasp

• Cut the tension strap to length (pipe circumference + at least 120 mm).

The edge of the tension strap is very sharp.

Risk of injury!  Debur sharp edges.

 Wear the required personal protective equipment. Observe the applicable rules.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 47

6 Installation

12 a

FLUXUS WD 6.2 Transducers

• Insert approx. 100 mm of the tension strap into one of the slots of the tension strap clamp and bend it, see Fig. 6.38.

• If necessary, insert the long end of the tension strap into the metal spring, see Fig. 6.39. The metal spring does not have to be mounted on:

– steel pipes

– pipes with an outer pipe diameter < 80 mm

– pipes that are not subjected to significant temperature fluctuations

• Place the tension strap around the pipe, see Fig. 6.40.

Fig. 6.38: Tension strap with clamp Fig. 6.39: Tension strap with metal spring and clamp

1 – tension strap clamp 1 – tension strap clamp

2–metal spring

• Position the tension strap clamp and metal spring (if necessary) on the pipe, see Fig. 6.40:

– on a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible

– mount the metal spring (if necessary) opposite to the tension strap clamp

Fig. 6.40: Tension strap with metal spring and tension strap clap on the pipe

1–metal spring 2 – tension strap clamp s = length of the rail - 33 mm

• Insert the long end of the tension strap into the second slot of the tension strap clamp, see Fig. 6.40 a.

• Tighten the tension strap and bend it.

• Bend both ends of the tension strap, see Fig. 6.40 b.

• Repeat the steps for the second tension strap. Position the tension strap at the distance s, see Fig. 6.40.

• Put the rail on the tension strap clamps.

• Use the screws to fix the rail to the tension strap clamps, see Fig. 6.41.

• Tighten the screws.

Fig. 6.41: Rail on the pipe

1–screws

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 48

6 Installation

Caution!

12 1

6.2 Transducers FLUXUS WD

Mounting the rail with ratchet clasp

• Cut the tension strap to length (pipe circumference + at least 120 mm).

The edge of the tension strap is very sharp.

Risk of injury!

 Debur sharp edges.  Wear the required personal protective equipment. Observe the applicable rules.

• Insert approx. 100 mm of the tension strap into part (1) and (2) of the ratchet clasp, see Fig. 6.42 a.

Fig. 6.42: Ratchet clasp with tension strap

• Bend the tension strap.

• Insert the tension strap into part (1) of the ratchet clasp, see Fig. 6.42 b.

• Tighten the tension strap.

• Insert the long end of the tension strap into the tension strap clamp and the metal spring, see Fig. 6.43. The metal spring does not have to be mounted on:

– steel pipes

– pipes with an outer pipe diameter < 80 mm

– pipes that are not subjected to significant temperature fluctuations

• Place the tension strap around the pipe, see Fig. 6.44.

Fig. 6.43: Tension strap with metal spring and clamp

1–metal spring 2 – tension strap clamp

• Position the ratchet clasp, tension strap clamp and metal spring (if necessary) on the pipe:

– on a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible

– mount the metal spring (if necessary) opposite to the tension strap clamp

• Insert the long end of the tension strap into the second slot of the tension strap screw, see Fig. 6.45.

• Tighten the tension strap.

• Cut off the protruding tension strap, see Fig. 6.45.

• Tighten the screw of the ratchet clasp.

• Repeat the steps for the second tension strap.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 49

6 Installation

Notice!

FLUXUS WD 6.2 Transducers

In order to release the screw and the tension strap, press the lever down, see Fig. 6.45.

Fig. 6.44: Ratchet clasp with tension strap, tension strap clamp and metal spring

1–metal spring 2 – ratchet clasp 3 – tension strap clamp

Fig. 6.45: Ratchet clasp with tension strap

1 – sense of rotation 2 – edge 3–lever 4 – clasp screw with slot

• Put the rail on the tension strap clamps, see Fig. 6.46.

• Fix the rail to the tension strap clamps with the screws.

• Tighten the screws.

Fig. 6.46: Rail on the pipe

1–screws

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 50

6 Installation

Notice!

6.2 Transducers FLUXUS WD

Step 3: Installation of the transducers in the transducer mounting fixture Variofix C

If the signal is not sufficient for the measurement, use coupling compound instead of coupling foil. For information concerning the coupling foil or coupling compound, see the safety data sheet. In case a safety data sheet is required, contact FLEXIM.

• Position the transducers on the rail in such way that the engravings on the transducers form an arrow. The transducer cables show in opposite directions, see Fig. 6.47.

• Adjust the transducer distance displayed by the transmitter, see Fig. 6.47.

• Slide the spring clips on the transducers, see Fig. 6.48.

• Fix the transducers by tightening the tensioning screws slightly. The end of the tensioning screw has to be placed above the hole in the transducer, see Fig. 6.47 and Fig. 6.48.

• Correct the transducer distance, if necessary.

• Tighten the tensioning screws.

• Fix the spacing element on the rail to mark the transducer position, see Fig. 6.47.

• Use a cable tie to fix the transducer cables in order to protect them from mechanical strain, see Fig. 6.48.

• Put the cover on the rail, see Fig. 6.49.

• Tighten the screws on both sides of the cover.

Fig. 6.47: Transducers in the rail (spring clip not shown)

1 – spacing element 2 – hole 3 – engravings on the transducers a – transducer distance

Fig. 6.48: Transducers in the rail

1 – equipotential bonding terminal 2 – spring clip 3 – tensioning screw 4 – cable tie

2018-07-16, UMFLUXUS_WDV1-3EN

Page 51

6 Installation

FLUXUS WD 6.2 Transducers

Fig. 6.49: Variofix C with transducers on the pipe

1–screw 2–cover

Remove the cover from the mounted transducer mounting fixture Variofix C as follows:

• Use a lever tool to remove the cover.

• Insert the lever tool in one of the 4 openings of the cover, see Fig. 6.50.

• Press the lever tool against the fixture.

• Bend the cover outwards and release it from the anchoring.

• Repeat the steps for the other 3 openings.

• Remove the cover from the rail.

Fig. 6.50: Removal of the cover

1 – lever tool 2–fixture

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 52

7 Connection

Warning!

Danger!

Warning!

Caution!

FLUXUS WD

7 Connection

Installation, connection and start-up by unauthorized and unqualified personnel

This may result in personal or material damage or other dangerous situations.  Any work on the transmitter has to be carried out by authorized and qualified personnel.

Working in mines or cramped confines

Risk of intoxication and/or asphyxiation because of emerging gases, risk of injuries because of cramped conditions.

 Wear the required personal protective equipment. Observe the applicable rules.

Touching live parts

Electric shock or arc faults can led to severe injuries. The measuring equipment can be damaged.  Prior to any work on the transmitter (e.g., installation, dismounting, connection, start-up), the transmit-

ter has to be disconnected from the power supply. It is not sufficient to remove the internal fuse of the instrument, see section 7.2.

Safety and accident prevention regulations for electrical systems and equipment

Failure to observe these regulations may lead to severe injury or death.  Observe the safety and accident prevention regulations for electrical systems and equipment.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 53

7 Connection

Notice!

Important!

Notice!

SNAP

DISP

MODEFAST

MUX

Q+Q-

3x Q

OFF

LAN

USB

A+B-P1+

P2+

P3+

P4+

P5a

P6a

P7a

SSP1-

P2-

P3-

P4-

P5b

P6b

P7b

X2 X3

X_AV

KL11

KL12

KL7KL8

KL9KL10

KL4

X_AR X_BV X_BR

T1A

T1BS1T2A

T2B

T3A

T3BS3T4B

T4A

T1a

T1bS1T2a

T2b

T3a

T3bS3T4b

T4a

N(-)

L(+)

AVS

AGN

ARSARBV

BVS

BGN

BRS

X2 X3

X_AV

KL11

KL12

X_AR X_BV X_BR

AVS

AGN

ARS

BVS

BGN

BRS

FLUXUS WD 7.1 Transducers

7.1 Transducers

It is recommended to run the cables from the measuring point to the transmitter before connecting the transducers to avoid load on the connectors.

If transducers are replaced or added, the sensor module also has to be replaced or added, see section 7.1.5.

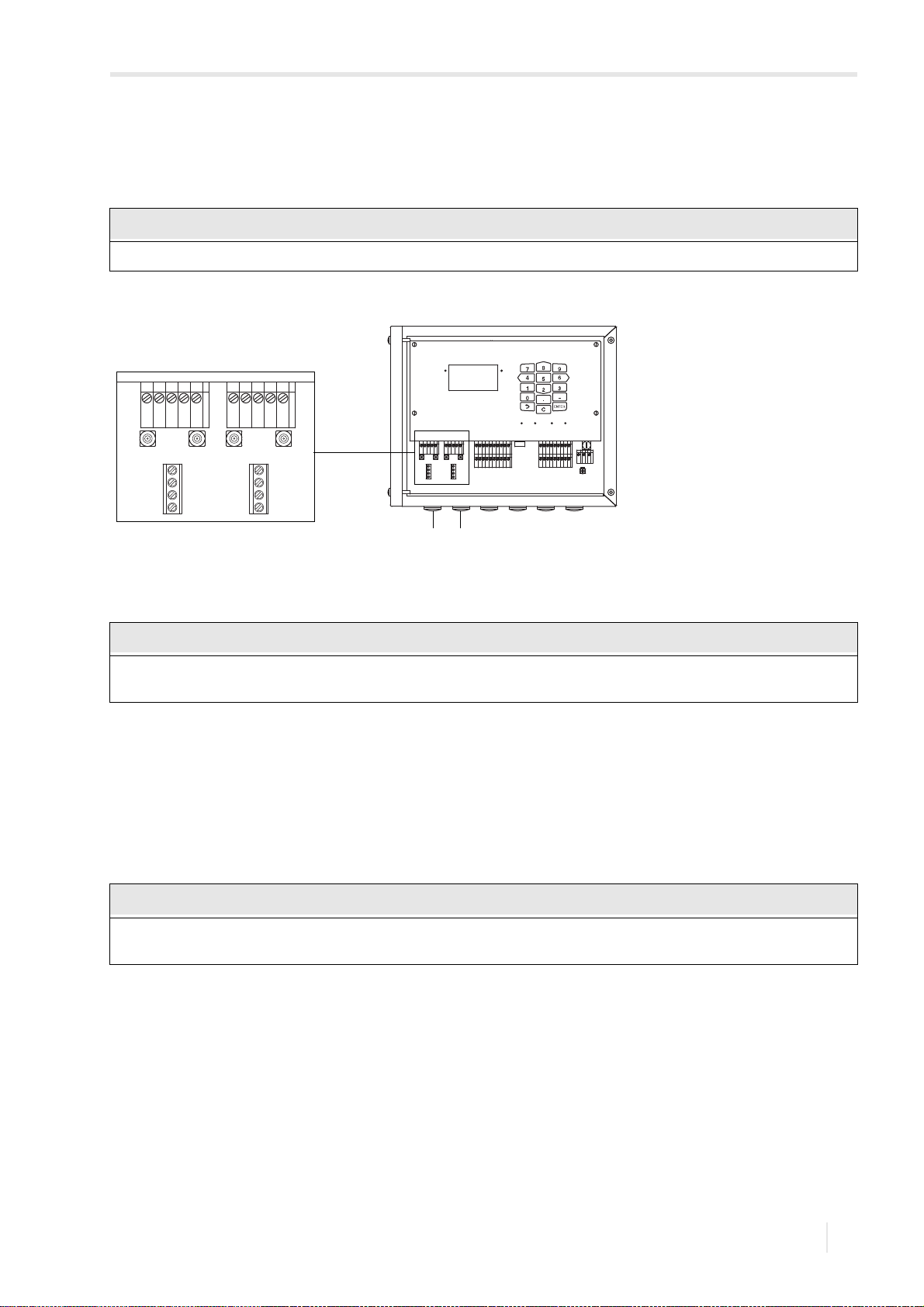

Fig. 7.1: Connection of the transducers to the transmitter

1 – transducers (measuring channel A) 2 – transducers (measuring channel B)

7.1.1 Connection of the transducer cable to the transmitter

The degree of protection of the transmitter is only ensured if all cables are tightly fitted using cable glands and the housing is firmly screwed.

• Remove the blind plug for the connection of the transducer cable.

• Open the cable gland of the transducer cable. The compression part remains in the cap nut.

• Push the transducer cable through the cap nut and the compression part.

• Prepare the transducer cable.

• Shorten the external shield and brush it back over the compression part.

• Screw the sealing ring side of the basic part into the transmitter housing.

• Insert the transducer cable into the housing.

For good electromagnetic compatibility (EMC), it is important to ensure good electrical contact between the external shield and the cap nut (and thus the housing).

• Fix the cable gland by screwing the cap nut onto the basic part.

• Connect the leads of the transducer cable to the terminals of the transmitter, see Fig. 7.2 and Tab. 7.1.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 54

7 Connection

Notice!

SNAP

DISP

MODEFAST

MUX

Q+Q-

3x Q

OFF

LAN

USB

A+B-P1+

P2+

P3+

P4+

P5a

P6a

P7a

SSP1-

P2-

P3-

P4-

P5b

P6b

P7b

X2 X3

X_AV

KL11

KL12

KL7KL8

KL9KL10

KL4

X_AR X_BV X_BR

T1A

T1BS1T2A

T2B

T3A

T3BS3T4B

T4A

T1a

T1bS1T2a

T2b

T3a

T3bS3T4b

T4a

N(-)

L(+)

AVS

AGN

ARSARBV

BVS

BGN

BRS

70 mm

20 mm

10 mm

cable gland

1 23

7.1 Transducers FLUXUS WD

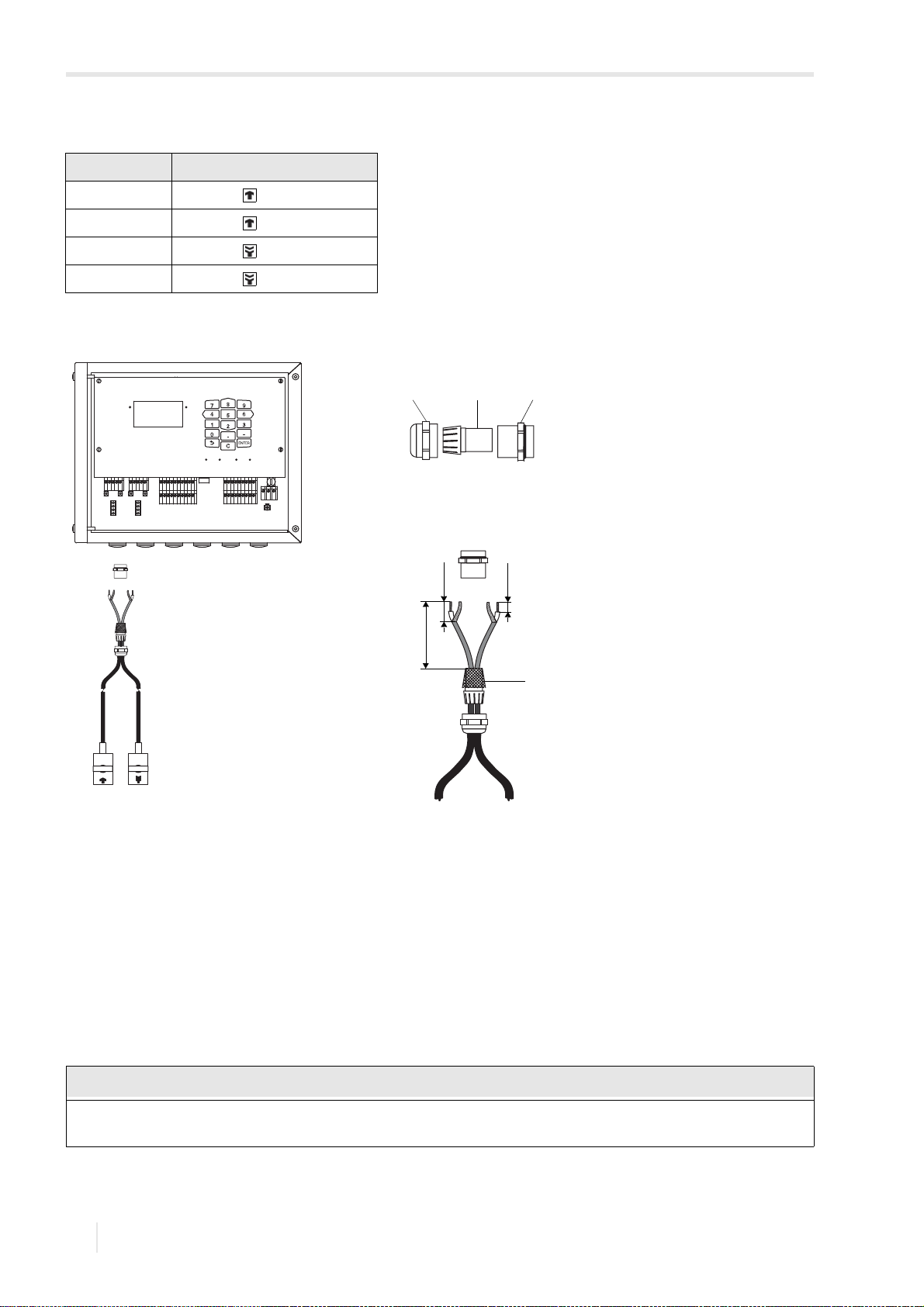

Tab. 7.1: Terminal assignment

terminal connection

AV transducer (core)

AVS transducer (internal shield)

ARS transducer (inner shield)

AR transducer (core)

Fig. 7.2: Connection of the transducer cable with plastic cable jacket and stripped cable ends to

the transmitter

1 – cap nut 2 – compression part 3 – basic part 4 – external shield brushed back

7.1.2 Connection of the extension cable to the transmitter

• Remove the blind plug for the connection of the extension cable.

• Open the cable gland of the extension cable. The compression part remains in the cap nut.

• Push the extension cable through the cap nut and the compression part.

• Prepare the extension cable.

• Shorten the external shield and brush it back over the compression part.

• Screw the sealing ring side of the basic part into the transmitter housing.

• Insert the extension cable into the housing.

For good electromagnetic compatibility (EMC), it is important to ensure good electrical contact between the external shield and the cap nut (and thus the housing).

• Fix the cable gland by screwing the cap nut onto the basic part.

• Connect the extension cable to the terminals of the transmitter, see Fig. Fig. 7.3 and Tab. 7.2.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 55

7 Connection

Notice!

SNAP

DISP

MODEFAST

MUX

Q+Q-

3x Q

OFF

LAN

USB

A+B-P1+

P2+

P3+

P4+

P5a

P6a

P7a

SSP1-

P2-

P3-

P4-

P5b

P6b

P7b

X2 X3

X_AV

KL11

KL12

KL7KL8

KL9KL10

KL4

X_AR X_BV X_BR

T1A

T1BS1T2A

T2B

T3A

T3BS3T4B

T4A

T1a

T1bS1T2a

T2b

T3a

T3bS3T4b

T4a

N(-)

L(+)

AVS

AGN

ARSARBV

BVS

BGN

BRS

cable gland

1 23

70 mm

20 mm

10 mm

FLUXUS WD 7.1 Transducers

Tab. 7.2: Terminal assignment

terminal connection

AV white or marked cable (core)

AVS white or marked cable (shield)

ARS brown cable (shield)

AR brown cable (core)

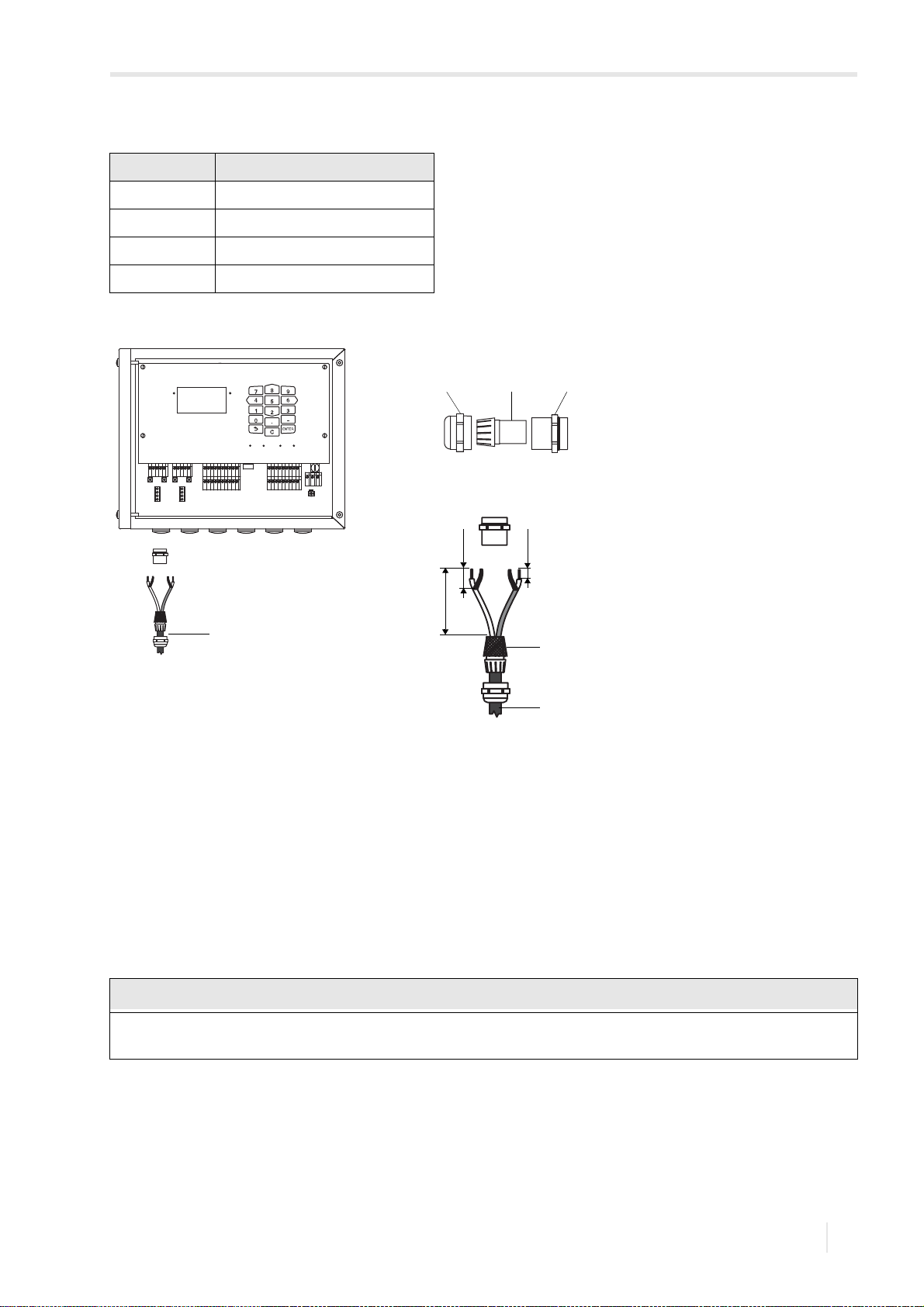

Fig. 7.3: Connection of the extension cable to the transmitter

1 – cap nut 2 – compression part 3 – basic part 4 – external shield brushed back 5 – extension cable

7.1.3 Connection of the transducer cable to the junction box

• Remove the blind plug for the connection of the transducer cable, see Fig. 7.4.

• Open the cable gland of the transducer cable. The compression part remains in the cap nut.

• Push the transducer cable through the cap nut and the compression part. Prepare the transducer cable.

• Shorten the external shield and brush it back over the compression part.

• Screw the gasket ring side of the basic part into the junction box.

• Insert the transducer cable into the junction box.

For good electromagnetic compatibility (EMC), it is important to ensure good electrical contact between the external shield and the cap nut (and thus the housing).

• Fix the cable gland by screwing the cap nut onto the basic part.

• Connect the transducer cable to the terminals of the junction box, see Fig. 7.4 and Tab. 7.3.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 56

7 Connection

Notice!

100 mm

20 mm

10 mm

cable gland

1 23

7.1 Transducers FLUXUS WD

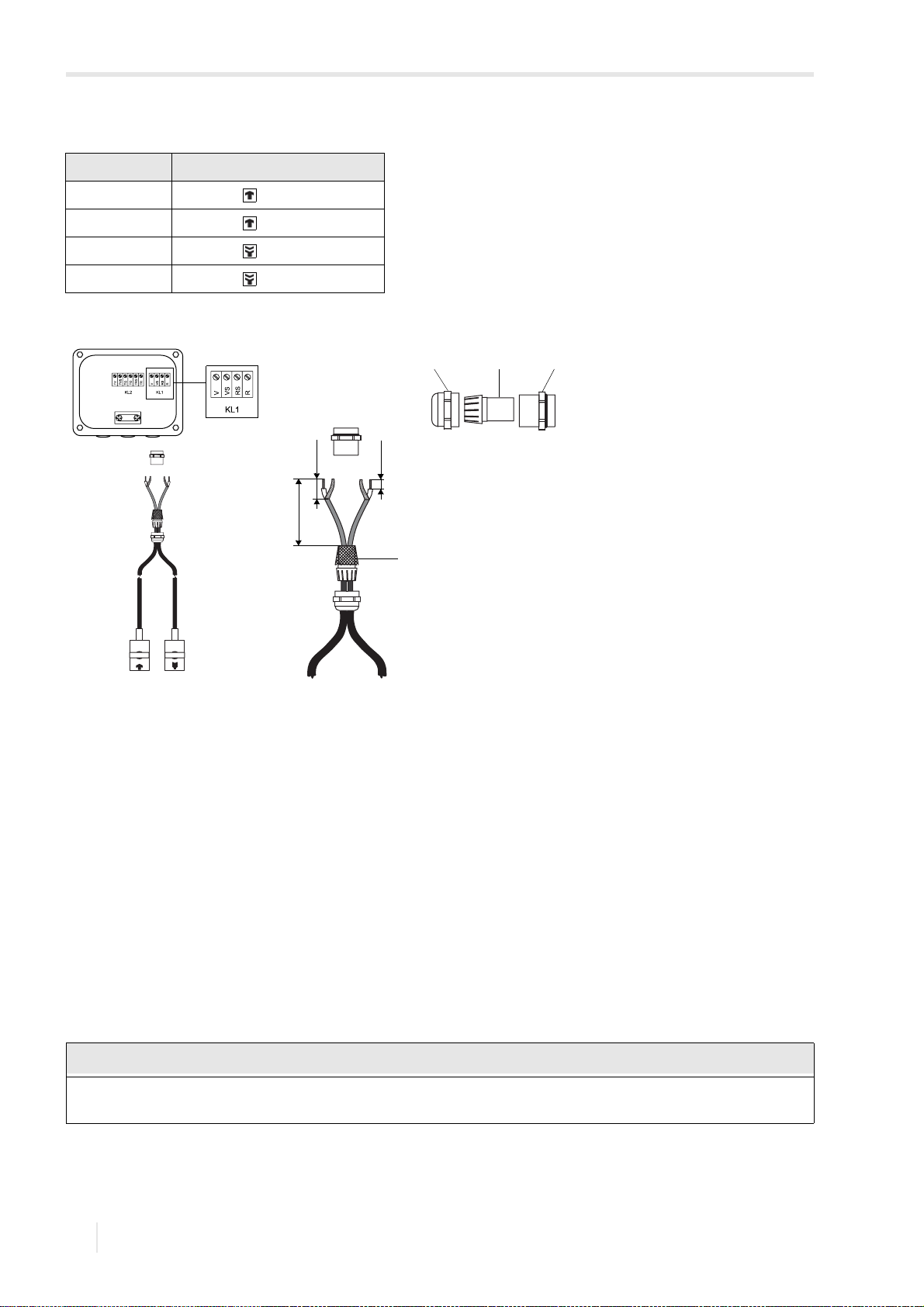

Tab. 7.3: Terminal assignment

terminal connection

V transducer (core)

VS transducer (internal shield)

RS transducer (inner shield)

R transducer (core)

Fig. 7.4: Connection of the transducer cable with plastic cable jacket and stripped cable ends

1 – cap nut 2 – compression part 3 – basic part 4 – external shield brushed back

7.1.4 Connection of the extension cable to the junction box

7.1.4.1 Connection without potential separation (standard)

The connection of the extension cable to the junction box without potential separation ensures that transducer, junction box and transmitter are on the same potential. The extension cable should always be connected in this manner, especially if power current cables are nearby the extension cable. If earthing on the same potential cannot be ensured, see section

7.1.4.2.

• Remove the blind plug for the connection of the extension cable.

• Open the cable gland of the extension cable. The compression part remains in the cap nut.

• Push the extension cable through the cap nut and the compression part.

• Prepare the extension cable.

• Shorten the external shield and brush it back over the compression part.

• Screw the gasket ring side of the basic part into the junction box.

• Insert the extension cable into the junction box.

For good electromagnetic compatibility (EMC), it is important to ensure good electrical contact between the external shield and the cap nut (and thus the housing).

• Fix the cable gland by screwing the cap nut onto the basic part.

• Connect the extension cable to the terminals of the junction box, see Fig. 7.5 and Tab. 7.4.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 57

7 Connection

cable gland

3 45

100 mm

20 mm

10 mm

FLUXUS WD 7.1 Transducers

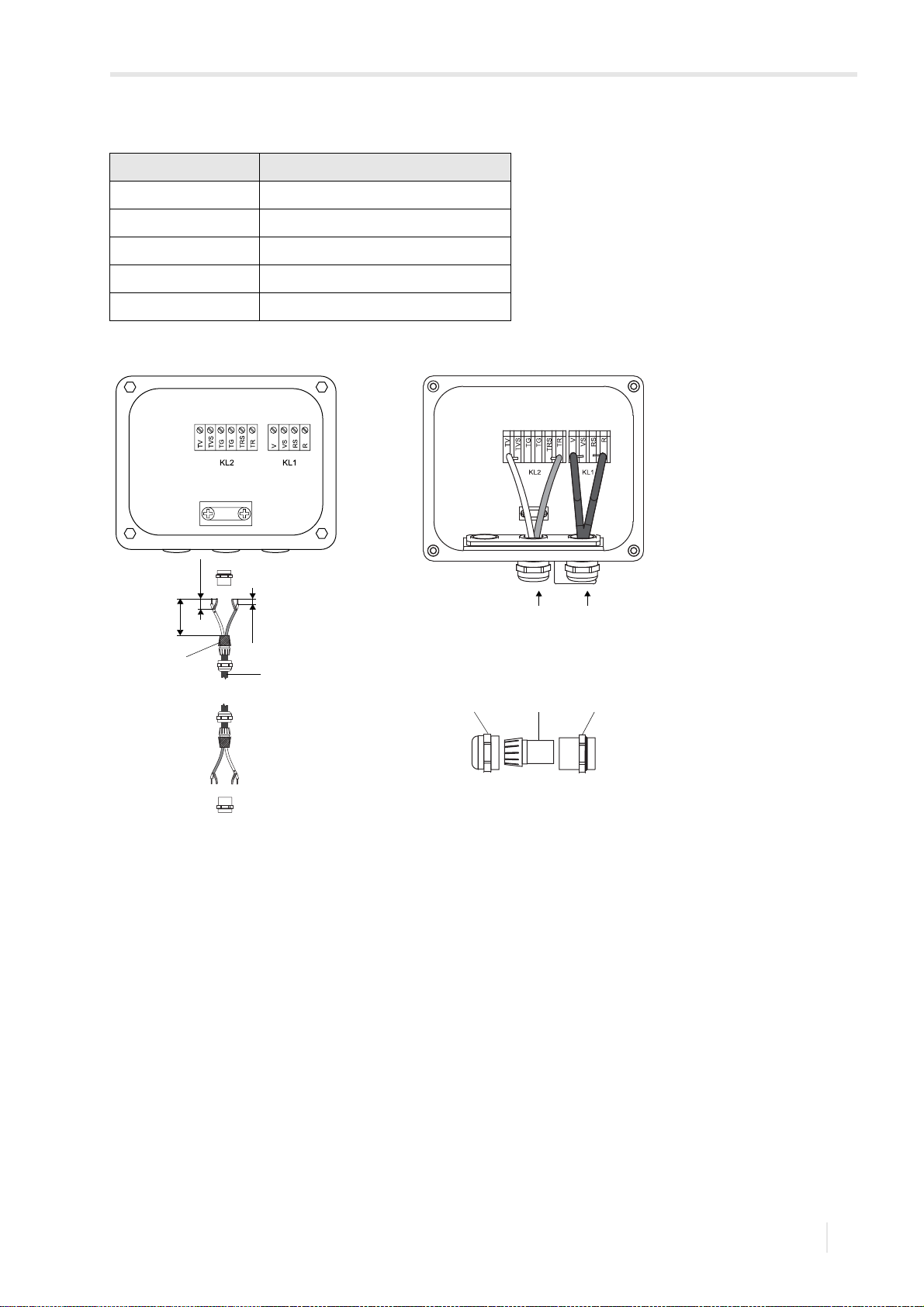

Tab. 7.4: Terminal assignment (junction box, KL2)

terminal connection (extension cable)

TV white or marked cable (core)

TVS white or marked cable (internal shield)

TRS brown cable (internal shield)

TR brown cable (core)

cable gland external shield

Fig. 7.5: Connection of the extension and transducer cable to the junction box

1 – extension cable 2 – external shield brushed back 3 – cap nut 4 – compression part 5 – basic part 6 – connection of the extension cable 7 – connection of the transducer cable

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 58

7 Connection

Important!

7.1 Transducers FLUXUS WD

7.1.4.2 Connection with potential separatio n

If earthing on the same potential cannot be ensured e.g., in measurement arrangements with long extension cables, the extension cable and the junction box have to be electrically insulated from each other. The junction box and the transducers have to be on the same potential. By doing this, no compensation currents can flow to the transmitter via the extension cables.

For measurement arrangements where the junction box and the transducers have to be electrically insulated from each other, see the document TIFLUXUS_GalvSep.

• Remove the blind plug for the connection of the extension cable.

• Open the cable gland of the extension cable. The compression part remains in the cap nut.

• Push the extension cable through the cap nut, the compression part and the basic part.

• Insert the extension cable into the junction box.

• Prepare the extension cable.

• Cut the outer shield and brush it back.

• Pull the extension cable back until the back brushed external shield is below the shield terminal, see Fig. 7.6. The extension cable has to remain completely insulated up to the shield terminal.

• Screw the gasket ring side of the basic part into the junction box.

• Fix the cable gland by screwing the cap nut onto the basic part.

Observe the max. permissible voltage of 60 V DC between the earth potentials.

The external shield of the extension cable must not have electrical contact to the junction box. Therefore, the extension cable has to remain completely insulated up to the shield terminal.

• Fix the extension cable and the external shield to the shield terminal.

• Connect the extension cable to the terminals of the junction box, see Fig. 7.6 and Tab. 7.5.

Tab. 7.5: Terminal assignment (junction box, KL2)

terminal connection (extension cable)

TV white or marked cable (core)

TVS white or marked cable (internal shield)

TRS brown cable (internal shield)

TR brown cable (core)

shield terminal external shield

2018-07-16, UMFLUXUS_WDV1-3EN

Page 59

7 Connection

cable gland

4 56

100 mm

20 mm

10 mm

FLUXUS WD 7.1 Transducers

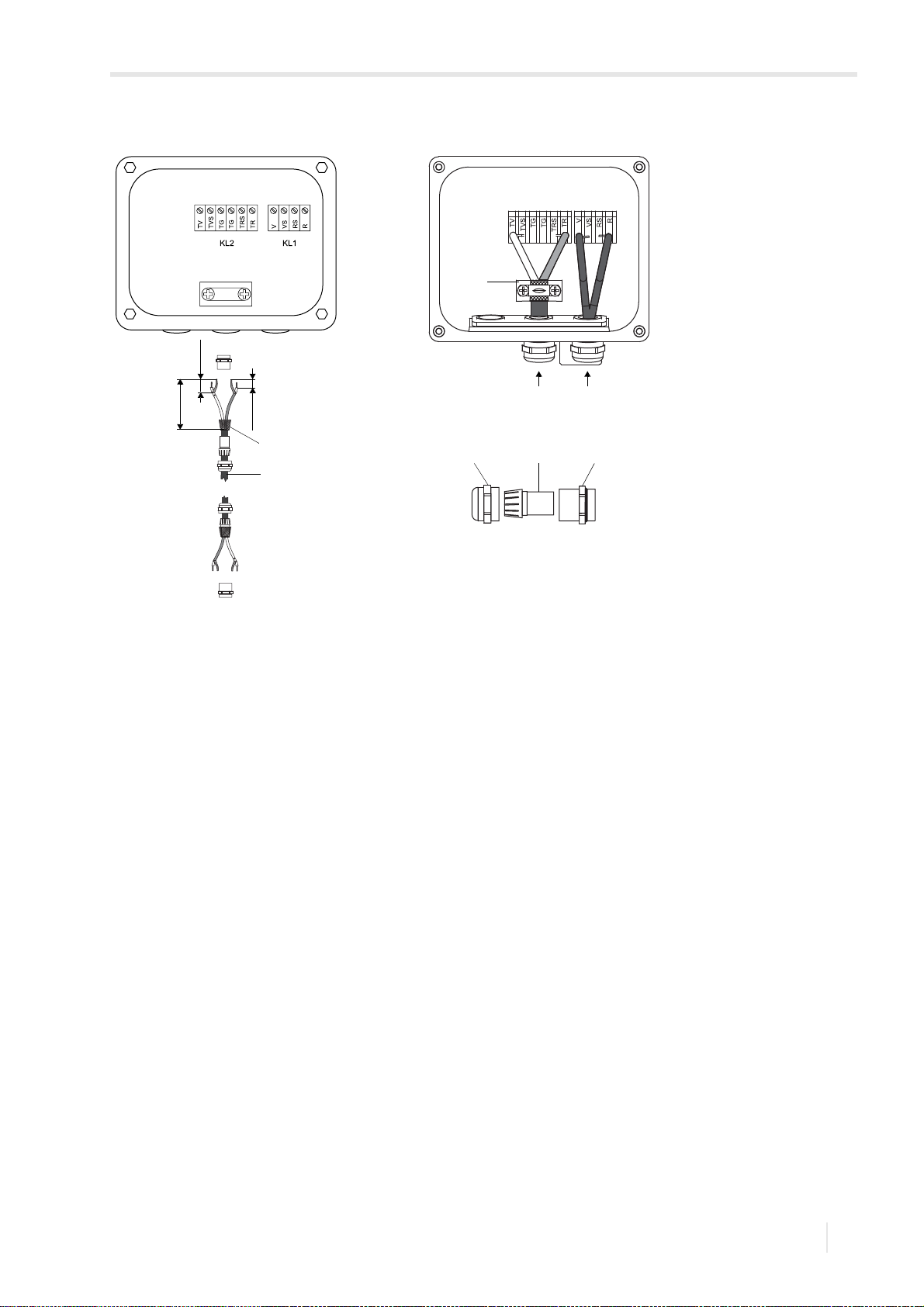

Fig. 7.6: Connection of the extension and transducer cable to the junction box

1 – extension cable 2 – external shield 3 – shield terminal 4 – cap nut 5 – compression part 6 – basic part 7 – connection of the extension cable 8 – connection of the transducer cable

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 60

7 Connection

Notice!

SNAP

DISP

MODEFAST

MUX

Q+Q-

3x Q

OFF

LAN

USB

A+B-P1+

P2+

P3+

P4+

P5a

P6a

P7a

SSP1-

P2-

P3-

P4-

P5b

P6b

P7b

X2 X3

X_AV

KL11

KL12

KL7KL8

KL9KL10

KL4

X_AR X_BV X_BR

T1A

T1BS1T2A

T2B

T3A

T3BS3T4B

T4A

T1a

T1bS1T2a

T2b

T3a

T3bS3T4b

T4a

N(-)

L(+)

AVS

AGN

ARSARBV

BVS

BGN

BRS

1 2

7.1 Transducers FLUXUS WD

7.1.5 Transducer module (SENSPROM)

The transducer module contains important transducer data for the operation of the transmitter with transducers.

If transducers are replaced or added, the sensor module must also be replaced or added.

The serial numbers of the transducer module and the transducer must be identical. A wrong or incorrectly connected sensor module will lead to incorrect measured values or to a measurement failure.

The sensor module is connected to the terminals of the transmitter, see Fig. 7.7.

• Disconnect the transmitter from the power supply.

• Connect the transducer module to the corresponding terminal, see Fig. 7.7. Terminal X2 is assigned to the transducers of measuring channel A, terminal X3 to the transducers of measuring channel B.

• Connect the transmitter to the power supply.

• Enter all parameters of the program branch Parameters.

• Start the measurement.

Fig. 7.7: Sensor module

1 – transducer module (measuring channel A) 2 – transducer module (measuring channel B)

2018-07-16, UMFLUXUS_WDV1-3EN

Page 61

7 Connection

Important!

SNAP

DISP

MODEFAST

MUX

Q+Q-

3x Q

OFF

LAN

USB

A+B-P1+

P2+

P3+

P4+

P5a

P6a

P7a

SSP1-

P2-

P3-

P4-

P5b

P6b

P7b

X2 X3

X_AV

KL11

KL12

KL7KL8

KL9KL10

KL4

X_AR X_BV X_BR

T1A

T1BS1T2A

T2B

T3A

T3BS3T4B

T4A

T1a

T1bS1T2a

T2b

T3a

T3bS3T4b

T4a

N(-)

L(+)

AVS

AGN

ARSARBV

BVS

BGN

BRS

KL4

N(-)

L(+)

FLUXUS WD 7.2 Power supply

7 Connection

7.2 Power supply

The installation of the power supply is carried out by the operator. The operator has to provide an overcurrent protector (fuse or similar device) disconnecting all energizing wires in case of an inadmissible high current consumption. The impedance of the protective earth has to be low ohmic in order not to allow touch voltage pass the permissible limit. The equipotential bonding terminal serves as functional earth of the transmitter, see Fig. 7.8.

The degree of protection of the transmitter will only be guaranteed if the power cable fits firmly and tightly in the cable gland.

Fig. 7.8: Equipotential bonding terminal on the transmitter

1 – equipotential bonding terminal on stainless steel housing 2 – equipotential bonding terminal on aluminum housing

• Connect the power cable to the transmitter.

For the connection of the power supply cable to the transmitter, see section 7.2.1, Fig. 7.9 and Tab. 7.6.

Fig. 7.9: Connection of the power supply to the transmitter

1–fuse 2 – connection of the power supply

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 62

7 Connection

213456

7.2 Power supply FLUXUS WD

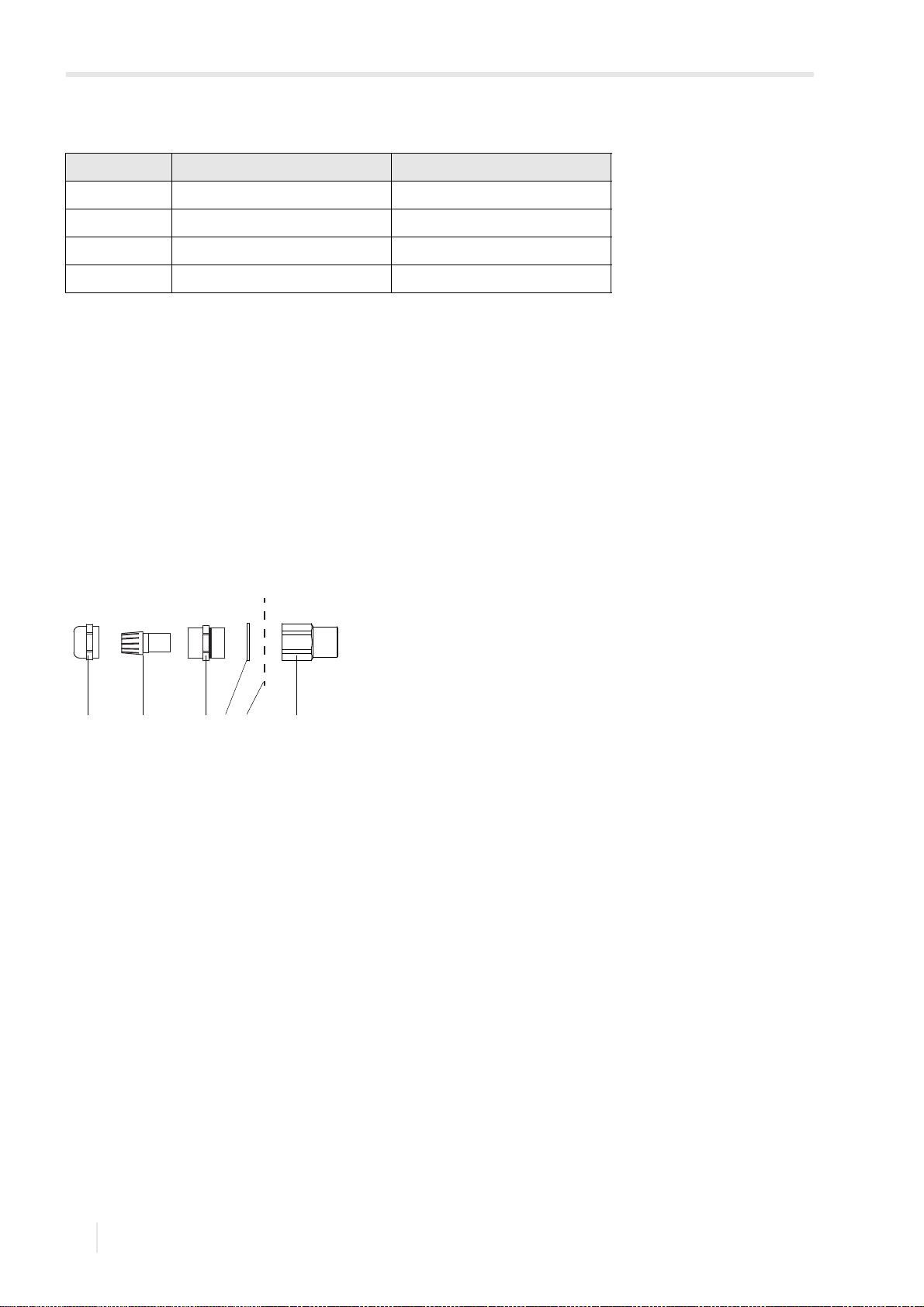

Tab. 7.6: Terminal assignment

terminal connection AC connection DC

PE earth earth

N(-) neutral -

L(+) phase 100...230 V AC, 50...60 Hz +

fuse 1 A, time-lag 1.6 A, time-lag

7.2.1 Cable connection

Transmitter with stainless steel housing

• Remove the blind plug to connect the cable to the transmitter.

• Prepare the cable with a cable gland. The used cable has to have a wire cross-section of 0.25…2.5 mm². The outer diameter of the cable may not exceed 7.6 mm.

• Push the cable through cap nut, compression part, basic part and sealing ring (sealing ring: only for cable gland M20, not for cable gland 1/2 NPS).

• Insert the cable into the housing of the transmitter.

• Fix the cable gland by screwing the cap nut onto the basic part.

• Fix the transducer cable by tightening the cable gland with the ferrite nut.

• Connect the cable to the terminals of the transmitter.

Fig. 7.10: Cable gland for stainless steel housing

1 – cap nut 2 – compression part 3 – basic part 4 – sealing ring: only for cable gland M20, not for cable gland 1/2 NPS 5 – housing wall 6 – ferrite nut

Transmitter with aluminum housing

• Remove the blind plug to connect the cable to the transmitter.

• Prepare the cable with a cable gland.

• The used cable has to have a wire cross-section of 0.25…2.5 mm².

• Push the cable through the cap nut, compression part and basic part of the cable gland.

• Insert the cable into the housing of the transmitter.

• Screw the sealing ring side of the basic part into the transmitter housing.

• Fix the cable gland by screwing the cap nut onto the basic part.

• Connect the cable to the terminals of the transmitter.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 63

7 Connection

Important!

21 3

SNAP

DISP

MODEFAST

MUX

Q+Q-

3x Q

OFF

LAN

USB

A+B-P1+

P2+

P3+

P4+

P5a

P6a

P7a

SSP1-

P2-

P3-

P4-

P5b

P6b

P7b

X2 X3

X_AV

KL11

KL12

KL7KL8

KL9KL10

KL4

X_AR X_BV X_BR

T1A

T1BS1T2A

T2B

T3A

T3BS3T4B

T4A

T1a

T1bS1T2a

T2b

T3a

T3bS3T4b

T4a

N(-)

L(+)

AVS

AGN

ARSARBV

BVS

BGN

BRS

A+B-P1+

P2+

P3+

P4+

P5a

P6a

P7a

SSP1-

P2-

P3-

P4-

P5b

P6b

P7b

KL9KL10

Px+

Px-

int

Px+

Px-

FLUXUS WD 7.3 Outputs

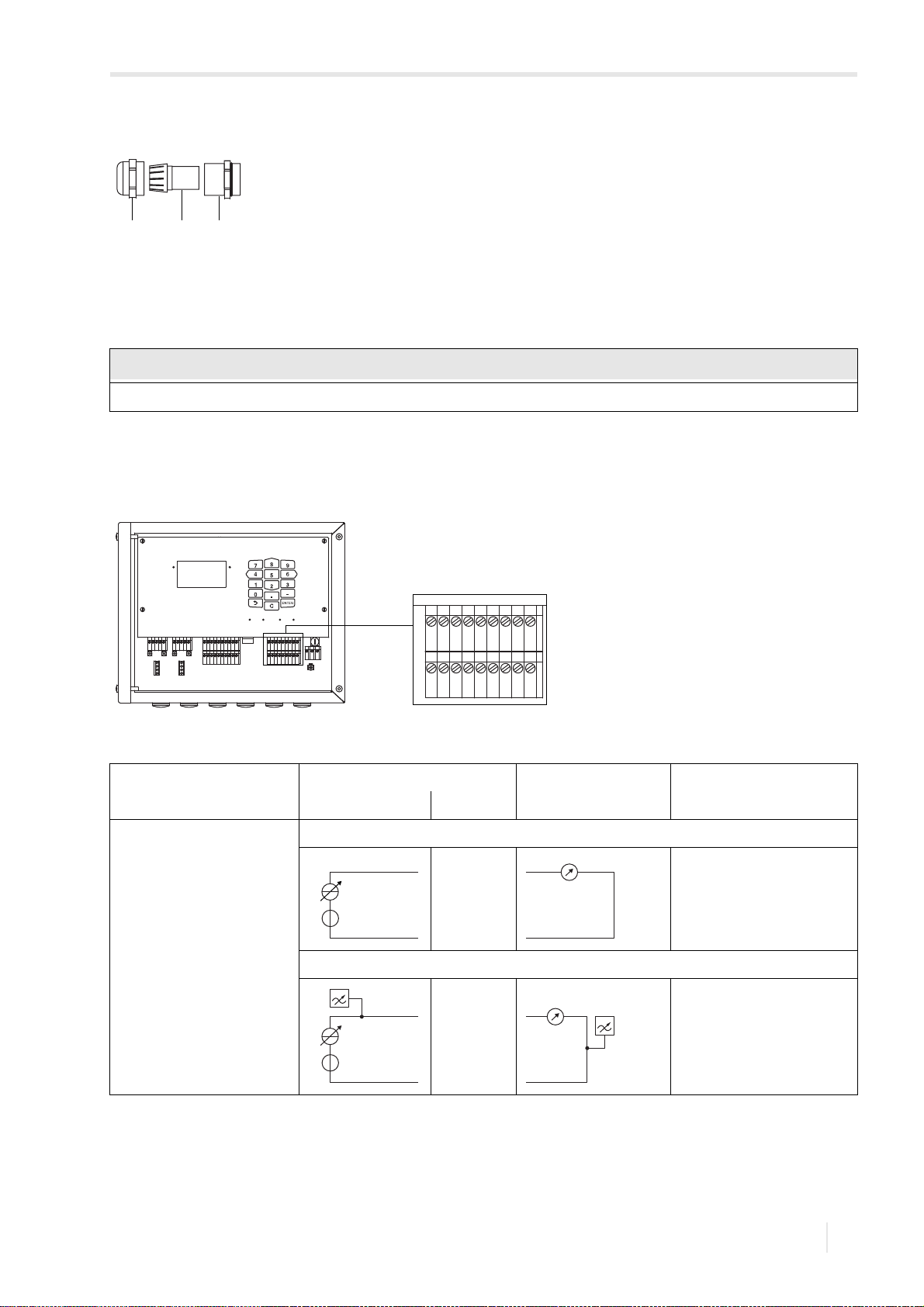

Fig. 7.11: Cable gland for aluminum housing

1 – cap nut 2 – compression part 3 – basic part

7.3 Outputs

The max. permissible voltage between the outputs and against PE is 60 V DC (permanent).

• Connect the output cable to the transmitter.

For the connection of the output cable to the transmitter, see section 7.2.1, Fig. 7.12 and Tab. 7.7.

Fig. 7.12: Connection of the outputs on the transmitter

Tab. 7.7: Circuit of the outputs

output transmitter external circuit remark

internal circuit connection

active current output/HART current output

ext

< 500 

HART

The number, type and the connections of the outputs depend on the order.

is the sum of all ohmic resistances in the circuit (e.g., resistance of the conductors, resistance of the amperemeter/voltmeter).

ext

UMFLUXUS_WDV1-3EN, 2018-07-16

= 24 V

int

Page 64

7 Connection

Px+

Px-

Px+

Px-

ext

Pxa

Pxb

ext

PLC

Pxa

Pxb

ext

- +

PLC

shield

A+

B-

7.3 Outputs FLUXUS WD

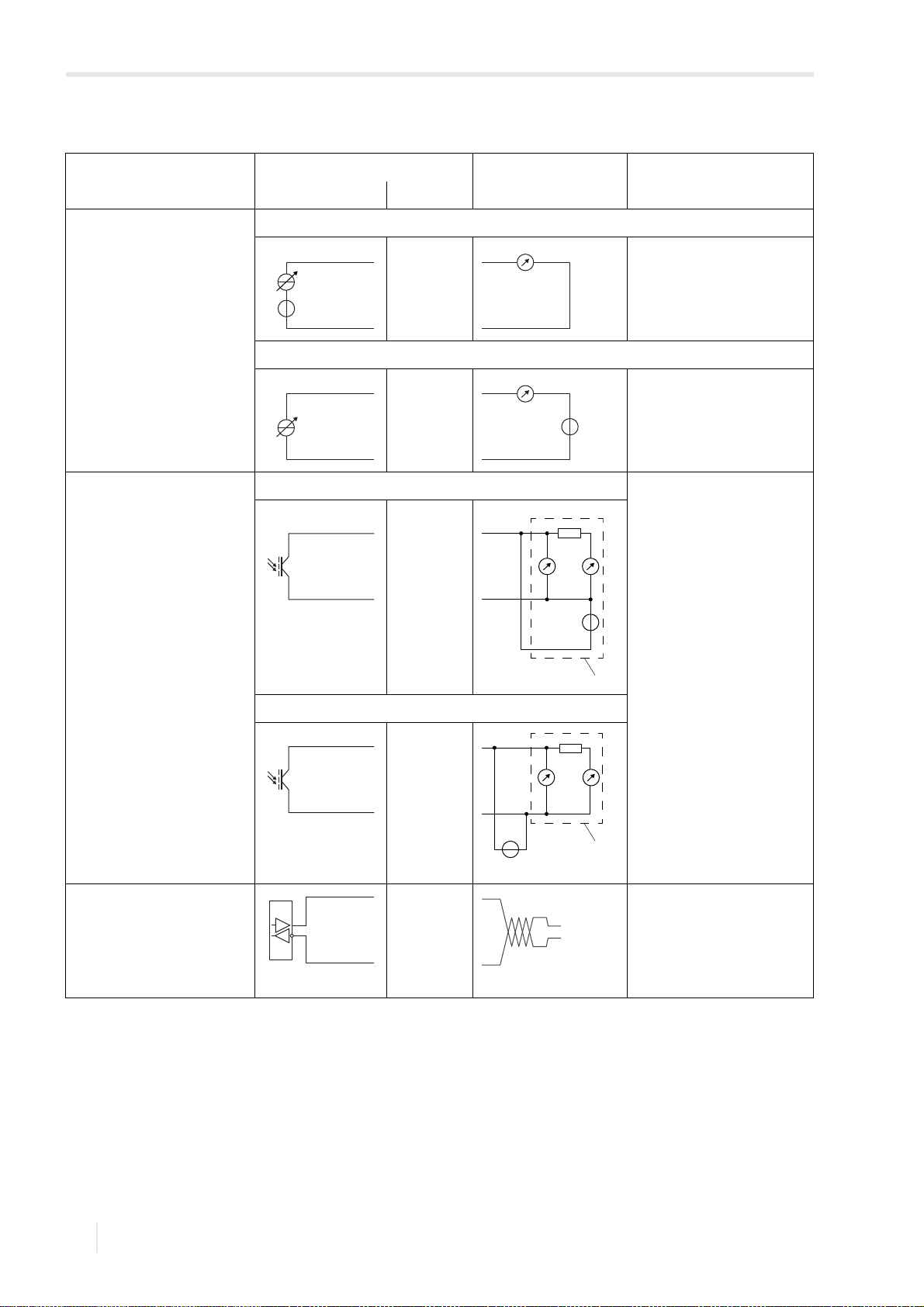

Tab. 7.7: Circuit of the outputs

output transmitter external circuit remark

internal circuit connection

switchable current output

active current output

The switchable current output is switched to active or passive in the menu item Special functions\Outputs.

passive current output

binary output (optorelay) circuit 1 U

< 350 

ext

8...30 V

ext =

> 0.021 A . R

ext

example: U

=12V

ext

 190 

ext

 26 V

ext

 100 mA

[] + 8 V

ext

circuit 2

RS485 120 

termination resistor

The number, type and the connections of the outputs depend on the order. R

is the sum of all ohmic resistances in the circuit (e.g., resistance of the conductors, resistance of the amperemeter/voltmeter).

ext

2018-07-16, UMFLUXUS_WDV1-3EN

Page 65

7 Connection

FLUXUS WD 7.4 Service interfaces

7 Connection

7.4 Service interfaces

7.4.1 USB interface

The transmitter can be connected directly to the PC via USB interface.

• Connect the USB cable to the USB interface of the transmitter and the PC, see Fig. 7.13.

Fig. 7.13: Connection of the USB cable

1 – USB interface

7.4.2 Ethernet interface

The transmitter can be connected to the PC or LAN network via an Ethernet cable.

Transmitter with stainless steel housing

Fig. 7.14: Connection of the Ethernet cable (transmitter with stainless steel housing)

1 – Ethernet interface 2 – ferrite nut 3 – Ethernet connector

• Remove the blind plug on the transmitter to connect the cable, see

Fig. 7.14

• Open the cable gland of the Ethernet cable. The compression part remains in the cap nut, see Fig. 7.15.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 66

7 Connection

213456

7.4 Service interfaces FLUXUS WD

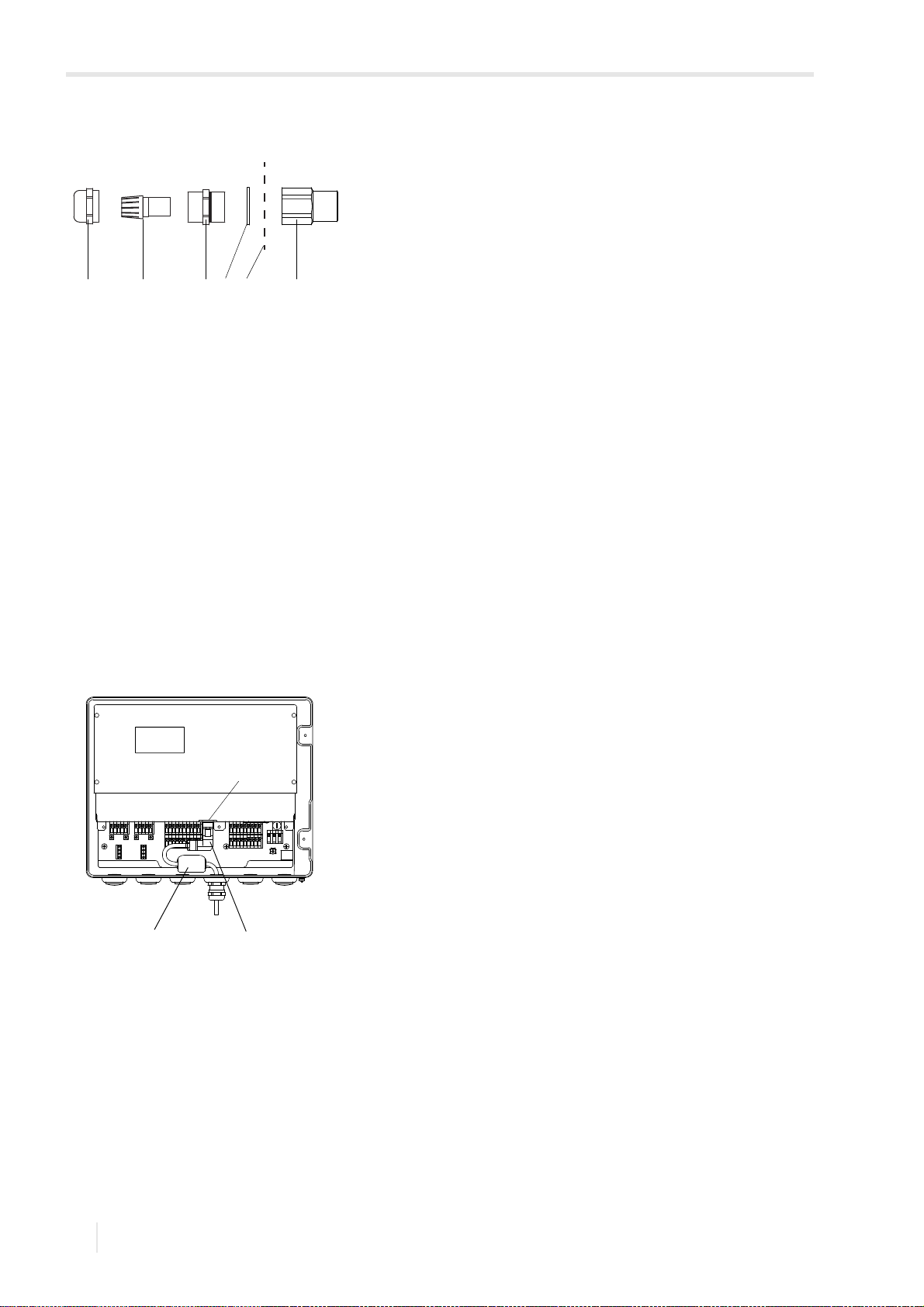

Fig. 7.15: Cable gland

1 – cap nut 2 – compression part 3 – basic part 4 – sealing ring (only for cable gland M20, not for cable gland 1/2 NPS) 5 – housing wall 6 – ferrite nut

• Push the cable through cap nut, compression part, basic part and sealing ring (sealing ring: only for cable gland M20, not for cable gland 1/2 NPS).

• Insert the cable into the housing of the transmitter.

• Push the cable through the ferrite nut.

• Prepare the cable. For the preparation of the cable, see the supplied manufacturer's documents.

• Mount the connector. For the mounting of the connector, see the delivered manufacturer's documents.

• Insert the connector into the Ethernet port.

• Position the cable in the housing as shown in Fig. 7.14.

• Fix the cable gland by screwing the cap nut onto the basic part.

• Fix the transducer cable by tightening the cable gland with the ferrite nut, see Fig. 7.14.

Transmitter with aluminum housing

Fig. 7.16: Connection of the Ethernet cable (transmitter with aluminum housing)

1 – Ethernet interface 2 – foldable ferrite core 3 – Ethernet connector

• Remove the blind plug on the transmitter to connect the cable, see

Fig. 7.16

• Open the cable gland of the Ethernet cable. The compression part remains in the cap nut, see Fig. 7.17.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 67

7 Connection

FLUXUS WD 7.4 Service interfaces

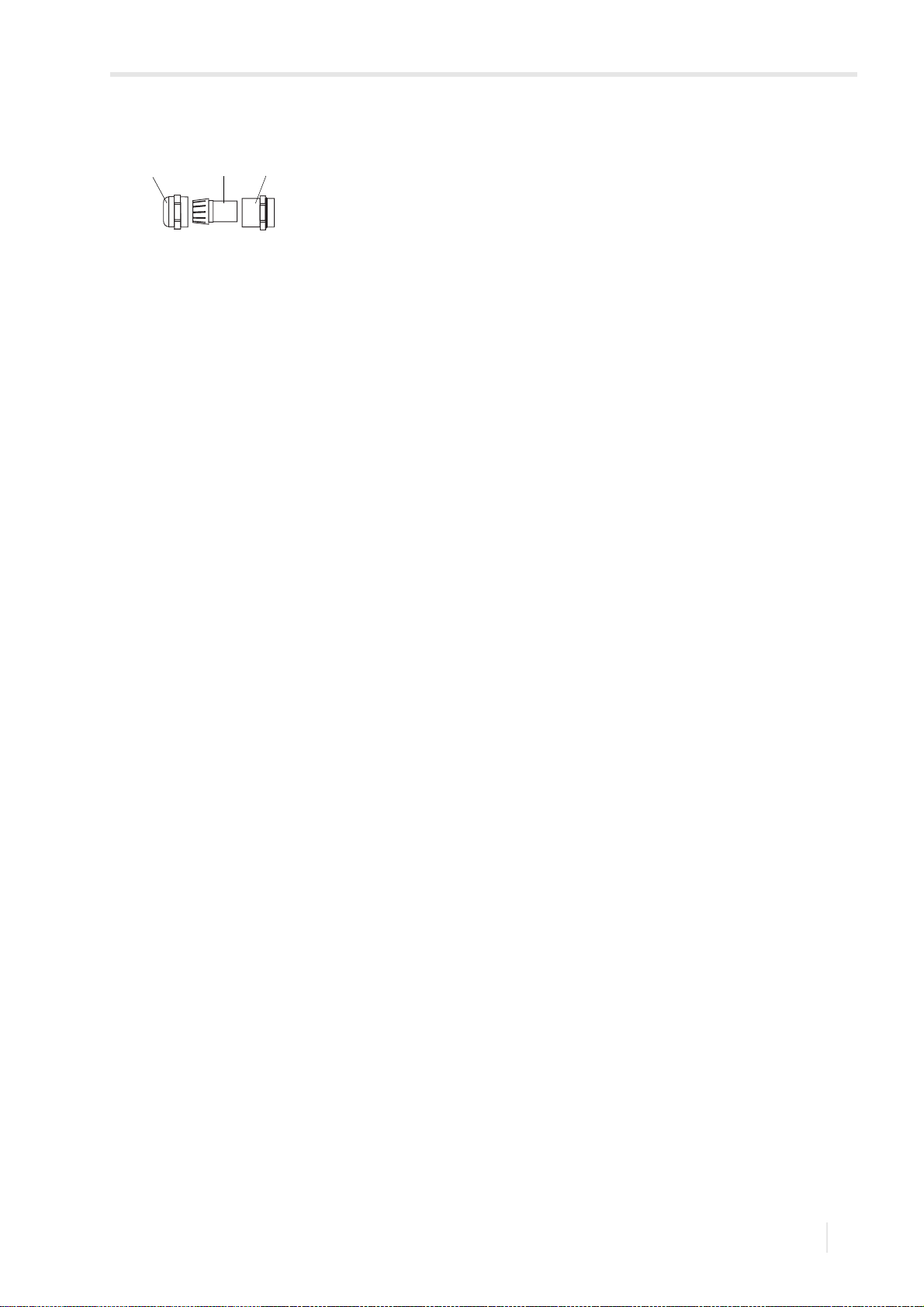

Fig. 7.17: Cable gland

1 – cap nut 2 – compression part 3 – basic part

• Push the cable through the cap nut, compression part and basic part of the cable gland.

• Insert the cable into the housing of the transmitter.

• Prepare the cable. For the preparation of the cable, see the supplied manufacturer's documents.

• Mount the connector. For the mounting of the connector, see the delivered manufacturer's documents.

• Insert the connector into the Ethernet port, see Fig. 7.16.

• Fix the foldable ferrite core to the cable.

• Position the cable in the housing as shown in Fig. 7.16.

• Screw the sealing ring side of the basic part into the transmitter housing.

• Fix the cable gland by screwing the cap nut onto the basic part, see Fig. 7.16.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 68

8 Start-up

Warning!

Danger!

Caution!

Notice!

FLUXUS WD

8 Start-up

Installation, connection and start-up by unauthorized and unqualified personnel

This may result in personal or material damage or other dangerous situations.  Any work on the transmitter has to be carried out by authorized and qualified personnel.

Working in mines or cramped confines

Risk of intoxication and/or asphyxiation because of emerging gases, risk of injuries because of cramped conditions.

 Wear the required personal protective equipment. Observe the applicable rules.

Safety and accident prevention regulations for electrical systems and equipment

Failure to observe these regulations may lead to severe injury or death.  Observe the safety and accident prevention regulations for electrical systems and equipment.

The transmitter and transducers have to be checked to ensure proper condition and operational safety before each use. The transmitter housing must always be closed during operation. Observe that maintenance work must be concluded.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 69

8 Start-up

Notice!

FLUXUS WD 8.1 Start-up settings

8.1 Start-up settings

When starting up the transmitter for the first time, the following settings are required:

• language

• time/date

• unit of measurement

These displays will only be indicated when the transmitter is switched on for the first time or after an intialization, see section 8.6.

Language

The available transmitter languages are displayed.

• Select a language.

• Press ENTER.

The menus are displayed in the selected language.

Set time

The current time is displayed.

• Press ENTER to confirm the time or to set the current time via the numeric field.

• Press ENTER.

Set date

The current date is displayed.

• Press ENTER to confirm the date or to set the current date via the numeric field.

• Press ENTER.

Units of measurement

•Select Metric or Imperial.

• Press ENTER.

Region of Canada

•Select Yes if the transmitter is to be used in the region of Canada.

• Press ENTER.

This display will only be indicated if Imperial is selected.

8.2 Switching on

As soon as the transmitter is connected to the power supply, the menu is displayed in the adjusted language. The language can be changed.

The parameters cannot be changed during the measurement. The measurement has to be stopped in order to change the parameters.

If the transmitter was switched off during the measurement, the message Measurement started will be displayed after connecting the transmitter to the power supply. The measurement is carried out with the parameters last set.

By pressing key in the program branch Measurement it is possible either to stop the measurement or to display the current parameter settings.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 70

8 Start-up

SNAP

DISP

MODEFAST

MUX

Q+Q-

3x Q

OFF

LAN

USB

A+B-P1+

P2+

P3+

P4+

P5a

P6a

P7a

SSP1-

P2-

P3-

P4-

P5b

P6b

P7b

X2 X3

X_AV

KL11

KL12

KL7KL8

KL9KL10

KL4

X_AR X_BV X_BR

T1A

T1BS1T2A

T2B

T3A

T3BS3T4B

T4A

T1a

T1bS1T2a

T2b

T3a

T3bS3T4b

T4a

N(-)

L(+)

AVS

AGN

ARSARBV

BVS

BGN

BRS

4 5

8.3 Status indications FLUXUS WD

8.3 Status indications

Fig. 8.1: Command panel of the transmitter

1 – LED (channel A) 2 – LED (channel B) 3 – keyboard 4 – LED LAN activity 5 – LED LAN mode 6 – LED USB device 7 – LED USB host (not used)

The operation state is indicated by LEDs, see Fig. 8.1.

Tab. 8.1

LED (channel A) Lights if the transmitter is in measuring mode and channel A is activated.

red – invalid measurement

green – valid measurement

LED (channel B) Lights if the transmitter is in measuring mode and channel B is activated.

red – invalid measurement

green – valid measurement

LED LAN activity Lights if the transmitter is connected to a network via USB cable.

Flashes in case of data exchange on the network connection.

LED LAN mode Lights if the data rate is 100 MBit/s otherwise it is 10 MBit/s.

LED USB device Lights if the transmitter is connected to a PC via USB cable.

Flashes in case of data exchange between PC and transmitter.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 71

8 Start-up

FLUXUS WD 8.4 Program branches

8.4 Program branches

The following schema shows the program branches. For a detailed overview of the menu structure see annex A.

Parameters Measurement Options Special functions

Selection of a measuring

channel

Transducer parameter Measuring point number Physical quantity Outputs

Pipe parameters Number of sound paths Units of measurement Measurement

Fluid parameter Transducer distance Outputs Data logger

Length of extension cable Diagnostic values Remote functions Snaps

Selection of measuring

channels

Transducer positioning Event trigger Communication

Measurement Special settings Units of measurement

Selection of a measuring

channel

Minimum pipe diameter

8.5 Language

System settings

Totalizers

Dialogs/menus

Parameter record

Libraries

Special functions\System settings\Language

The language of the transmitter can be selected:

• Select the menu item Language in the program branch Special functions\System settings.

• Press ENTER.

• Select the desired language from the scroll list.

• Press ENTER.

Afterwards the menu will be displayed in the selected language. The selected language remains activated when the transmitter is switched off and on again.

The language can also be changed by entering a HotCode.

8.6 Initialization

During an initialization (INIT) of the transmitter, all settings are reset to the factory default settings.

Proceed as follows to execute an initialization:

• When switching on a transmitter: keep keys and C pressed.

• During the operation of the transmitter: press keys , C and ENTER simultaneously. Release only key ENTER. Keep keys and C pressed.

During an initialization it is tested whether the key lock is activated. If so, it has to be deactivated.

• Enter a 6-digit key lock code.

• Press ENTER.

If a measurement is currently running, it will be stopped.

It will be requested whether the initial settings are to be carried out.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 72

8 Start-up

8.7 Time and date FLUXUS WD

Initial settings

If Yes is selected, the following setting dialogs will be displayed.

•Language

•Time/date

•Units of measurement

•Delete meas. values

•Delete snaps

• Delete user subst. (all user-defined materials and fluids which were stored after delivery will be deleted)

•Reset totalizers

The initialization can also be started with the HotCode 909000.

8.7 Time and date

Special functions\System settings\Time/date

The transmitter has a battery-powered clock. Measured values are automatically stored with time and date.

•Select Time/date.

The adjusted time is displayed.

• Enter the current time via the numeric field.

• Press ENTER.

The adjusted date is displayed.

• Enter the current date via the numeric field.

• Press ENTER.

8.8 Information regarding the transmitter

Special functions\System settings\Transmitter info

•Select Transmitter info.

• Press ENTER.

• Press key or to scroll through the list.

• Press key to return to the menu item System settings.

The following information regarding the transmitter is displayed:

display description

Serial number type and serial number of the transmitter

Firmware version version number of the installed firmware

Firmware date creation date of the installed firmware

Production date manufacturing date of the transmitter

MAC address MAC address of the transmitter

Service TCP Port TCP port of the transmitter

2018-07-16, UMFLUXUS_WDV1-3EN

Page 73

9 Measurement

Notice!

FLUXUS WD 9.1 Parameter input

9 Measurement

9.1 Parameter input

All settings changed in this program branch will be stored at the beginning of the measurement.

Avoid a simultaneous parameter entry via the keyboard and the USB, Ethernet or process interface. The parameter records received via these interfaces will overwrite the current transmitter parameterization.

The pipe and fluid parameters are entered for the selected

Parameters

Channel x

Transducer

measuring point. The parameter ranges are limited by the technical characteristics of the transducers and the transmitter.

• Select the program branch Parameters.

•Press ENTER.

Parameters\Channel A

Connected transducer Select transducer

• Select the channel for which the parameters are to be entered (here: Channel A).

Outer diameter

Pipe material

Pipe wall thickness

Lining

Roughness

•Press ENTER.

The display will not be indicated if the transmitter has only one measuring channel.

9.1.1 Transducer selection

The transducer is selected in dependence of the inner pipe diameter (= outer pipe diameter - 2 × pipe wall

Fluid

Fluid temp.

Extension cable

see annex A, p. 152

thickness), see Technical specification.

Parameters\Clamp-on transducer CDP2E52

• The transducer (here: CDP2E52) connected to the transmitter is displayed.

• Press ENTER.

This display will only be indicated if transducers and sensor module are connected to the transmitter.

Parameters\Connected transd.

The parameter input can also be carried out without connected transducers or sensor module.

•Select Connected transd.

• Press ENTER.

The display Transducer not found will be indicated if neither transducers nor sensor module are connected.

• Press ENTER.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 74

9 Measurement

Notice!

9.1 Parameter input FLUXUS WD

Parameters\Select transducer

•Select Select transducer to use the standard transducer stored in the transmitter.

• Select the transducer.

• Press ENTER.

This display will only be indicated if the transducers and the sensor module are connected to the transmitter.

If a standard transducer is selected, no transducer-specific calibration values are considered. A higher uncertainty has to be expected.

9.1.2 Input of pipe parameters

Outer pipe diameter

Parameters\Outer diameter

• Enter the outer pipe diameter.

• Press ENTER.

It is possible to enter the pipe circumference instead of the outer pipe diameter.

Pipe circumference

Parameters\Pipe circumference

• Activate the input of the pipe circumference.

• Press key in the menu item Outer diameter. The menu item Pipe circumference will be displayed.

• Enter the pipe circumference.

• Press ENTER.

If the outer pipe diameter is to be entered, press key . The menu item Outer diameter is displayed.

Pipe material

Parameters\Pipe material

The pipe material has to be selected to be able to determine the corresponding sound speed.

The sound speeds for the materials in the scroll list are stored in the transmitter.

• Select the pipe material.

• Press ENTER.

• If the material is not in the scroll list, select Other material.

• Press ENTER.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 75

9 Measurement

Notice!

FLUXUS WD 9.1 Parameter input

Sound speed of the pipe material

Parameters\Pipe material\Other material\c material

• Enter the sound speed of the pipe material.

There are 2 sound speeds for pipe materials, the longitudinal and the transversal one. Enter the sound speed which is nearer to 2500 m/s.

• Press ENTER.

•Select Transverse wave or Longitudinal wave.

• Press ENTER.

These displays will only be indicated if Other material is selected.

For the sound speed of some materials, see annex C.

Roughness of the pipe material

Parameters\Pipe material\Other material\Roughness

The flow profile of the fluid is influenced by the roughness of the inner pipe wall.

The roughness is used for the calculation of the profile correction factor.

In most cases, the pipe roughness cannot be exactly determined and must therefore be estimated.

• Press ENTER if the pipe has a lining. The pipe roughness of the lining is included into the calculation.

• Enter the roughness of the pipe material in case the pipe has no lining. Press ENTER.

This display will only be indicated if Other material is selected.

For the roughness of some materials, see annex C.

Wall thickness

Parameters\Pipe wall thickness

• Enter the pipe wall thickness.

• Press ENTER.

Lining

Parameters\Lining

•Select Yes if the pipe has a lining. Select No if the pipe has no lining.

• Press ENTER.

Lining material

Parameters\Lining material

• Select the lining material.

• Press ENTER.

• If the lining material is not included in the scroll list, select Other material.

• Press ENTER.

This display will only be indicated if Yes is selected in the menu item Lining.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 76

9 Measurement

Notice!

9.1 Parameter input FLUXUS WD

Sound speed of the lining material

Parameters\Lining material\Other material\c material

• Enter the sound speed of the lining material.

For pipe materials there are 2 sound speeds, the longitudinal and the transversal one. Enter the sound speed which is nearer to 2500 m/s.

• Press ENTER.

•Select Transverse wave or Longitudinal wave.

• Press ENTER.

These displays will only be indicated if Other material is selected.

Roughness of the lining material

Parameters\Lining material\Other material\Roughness

The flow profile of the fluid is influenced by the roughness of the inner pipe wall.

The roughness is used for the calculation of the profile correction factor.

In most cases, the pipe roughness cannot be exactly determined and must therefore be estimated.

• Enter the roughness of the lining material.

• Press ENTER.

This display will only be indicated if Other material is selected.

Lining thickness

Parameters\Lining thickness

• Enter the thickness of the lining.

• Press ENTER.

This display will only be indicated if Yes is selected in the menu item Lining.

Roughness

Parameters\Roughness

The flow profile of the fluid is influenced by the roughness of the inner pipe wall.

The roughness is used for the calculation of the profile correction factor.

In most cases, the pipe roughness cannot be exactly determined and must therefore be estimated.

•If Automatic is selected, the roughness values stored in the transmitter are used.

•If User-defined is selected, a roughness value has to be entered.

• Press ENTER.

This display will not be indicated if Other material is selected in the menu item Pipe material or Lining material.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 77

9 Measurement

Notice!

FLUXUS WD 9.2 Measurement settings

9.1.3 Input of fluid parameters

Fluid temperature

Parameters\Fluid temp.

The fluid temperature is used:

– at the beginning of the measurement for the interpolation of the sound speed and therefore for the calculation of the

recommended transducer distance

– during the measurement for the interpolation of the density and the viscosity of the fluid

This value is only used, if the temperature is not measured. The value has to be within the operating temperature of the transducers.

• Enter the fluid temperature. In case of a temperature range, enter the average fluid temperature.

If the relation between the sound speed and the temperature is not linear, see the sound speed-temperature curve.

• Press ENTER.

9.1.4 Other parameters

Extension cable

Parameters\Extension cable

In case the transducer cable is extended (e.g., between junction box and transmitter), enter the length of the extension cable.

• Select the menu item Extension cable in the program branch Parameters.

• Enter the length of the extension cable.

• Press ENTER.

9.2 Measurement settings

• Select the program branch Options.

Options

Channel x

Measurement

Physical quantity Flow velocity

Unit of measurement

Damping Mass flow rate

Units of measurement

Volumetric flow rate

•Press ENTER.

Options\Channel A

• Select the channel for which a physical quantity has to be entered (here: Channel A)

•Press ENTER.

This display will not be indicated if the transmitter has only one measuring channel.

•Select Measurement.

•Press ENTER.

Error value delay

see annex A, p. 153

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 78

9 Measurement

Notice!

9.2 Measurement settings FLUXUS WD

9.2.1 Selection of the physical quantity

Options\Channel A\Measurement\Physical quantity

•Select Physical quantity.

• Press ENTER.

9.2.2 Selection of the unit of measurement

Options\Channel A\Physical quantity\Volumetric flow rate

For the selected physical quantity (except sound speed), a scroll list with the available units of measurement is displayed. The unit of measurement which was selected previously is displayed first.

• Select the unit of measurement of the physical quantity.

• Press ENTER.

If the physical quantity or the unit of measurement is changed, the settings of the outputs have to be checked, see section 9.2.5.

9.2.3 Input of the damping factor

Options\Channel A\Measurement\Damping

Each displayed measured value is a floating average of the last x seconds, with x being the damping factor. If 0 s is entered as damping factor, no average is calculated.

The value of 10 s is appropriate for normal flow conditions. If the values fluctuate strongly, caused by a higher dynamic flow, a higher damping factor can be very useful.

• Enter the damping factor.

• Press ENTER.

9.2.4 Input of the error delay

Options\Channel A\Measurement\Error value delay

The error delay is the time interval after which the error value is transmitted to the output, see Tab. 9.3.

This display will only be indicated if the list item Edit is selected in Special functions\Dialogs/Menus\Error value delay.

If the error delay is not entered, the damping factor will be used.

• Enter a value for the error delay.

• Press ENTER.

• Press key to return to the program branch Options.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 79

9 Measurement

FLUXUS WD 9.2 Measurement settings

9.2.5 Configuration of the output

If the transmitter is equipped with outputs, they have to be

Options

Channel x

Outputs

Select the output

configured. In principle, the measured value, the status value or an event value can be transmitted via the different outputs.

In the following, the configuration of an analog outputs is described.

• Select the program branch Options.

•Press ENTER.

Enable the output

Source item

see annex A, p. 156

Selection of the measuring channel

Options\Channel A

• Select the channel (here: Channel A).

•Press ENTER.

This display will not be indicated if the transmitter has only one measuring channel.

Assignment of an output

•Select Outputs.

• Press ENTER.

Options\Channel A\Outputs\Current I1(--)

• Select an output to be assigned to the channel (here: Current I1(--)).

• Press ENTER.

The scroll list contains all available outputs of the transmitter:

– Current Ix (--)

– Binary Bx (--)

If the output has already been assigned to a channel, it is displayed as follows: Current I1 (A).

Options\Channel A\Outputs\Current I1\I1 Enable

•Select Yes to change the settings for an already assigned output or to assign a new output.

•Select No to cancel the assignment and to return to the previous menu item.

• Press ENTER.

Assignment of a source item

One source item has to be assigned to each selected output.

Options\Channel A\Outputs\...\Source item

• Select a source item whose measured value, status value or event value is to be transmitted via the output, see Tab. 9.1.

• Press ENTER.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 80

9 Measurement

9.2 Measurement settings FLUXUS WD

Tab. 9.1: Configuration of the outputs

source item list item output

Flow quantities Flow velocity

Volumetric flow rate

Mass flow rate

Totalizers Volume (+) totalizer for the volumetric flow rate in positive flow direction

Volume (-) totalizer for the volumetric flow rate in negative flow direction

Volume (Δ) difference of the totalizers for the positive and negative flow direction

Mass (+) totalizer for the mass flow rate in positive flow direction

Mass (-) totalizer for the mass flow rate in negative flow direction

Mass (Δ) difference of the totalizers for the positive and negative flow direction

Pulse Pulse |V| pulse without sign consideration of the volume flow rate

Pulse +V pulse for positive measured values of the volumetric flow rate

Pulse -V pulse for negative measured values for the volumetric flow rate

Pulse |m| pulse without sign consideration of the mass flow rate

Pulse +m pulse for the positive measured values of the mass flow rate

Pulse -m pulse for the negative measured values of the mas flow rate

Event trigger R1 limit message (Event trigger R1)

R2 limit message (Event trigger R2)

R3 limit message (Event trigger R3)

R4 limit message (Event trigger R4)

Diagnostic values Amplitude signal amplitude

Quality signal quality

SNR ratio useful signal/noise signal

SCNR ratio useful signal to correlated noise signal

VariAmp amplitude fluctuation

VariTime transit time fluctuation

Amplification amplification, important to receive a useful signal

PIG detection signalizes whether a pig is detected

This display will only be indicated if PIG detection is activated.

Sound speed Sound speed sound speed

Sound speed (Δ) difference of the measured sound speed and the sound speed calculated

from the fluid data

Depending on the selected source item, it is possible to output measured values, status or event values, see Tab. 9.2.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 81

9 Measurement

FLUXUS WD 9.2 Measurement settings

Tab. 9.2: Output of measured values, status values or event values

source item measured value event value

value status

physical quantities Flow quantities xx

Totalizers xx

Fluid properties xx

Miscellaneous (User-def.input 1...4)

Sound speed xx

Pulse xx

Diagnostic values

(except PIG detection)

results Diagnostic values \

PIG detection

Event trigger x

9.2.5.1 Output of a measured value

Source item

Values

Output range

Error value

Measuring range

Output info

Test signal

Test mea. range

see annex A, p. 156

• Select the list item Options\Outputs\...\Values.

•Press ENTER.

Output range

Options\Channel A\Outputs\...\Output range

• Select a list item.

– 4...20 mA

– Other range

•Press ENTER.

If Other range is selected, enter the values Output MIN and Output MAX.

The output range has to have > 10 % of the max. output value (Output MAX). An error message will be displayed if the output range is smaller. The next possible value will be displayed.

Error output

Options\Channel A\Outputs\...\Error value

An error value which is output if the source item cannot be measured, can be defined.

• Select a list item for the error output, see Tab. 9.3.

• Press ENTER.

• If Other value is selected, enter an error value. The value has to be within the output range.

• Press ENTER.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 82

9 Measurement

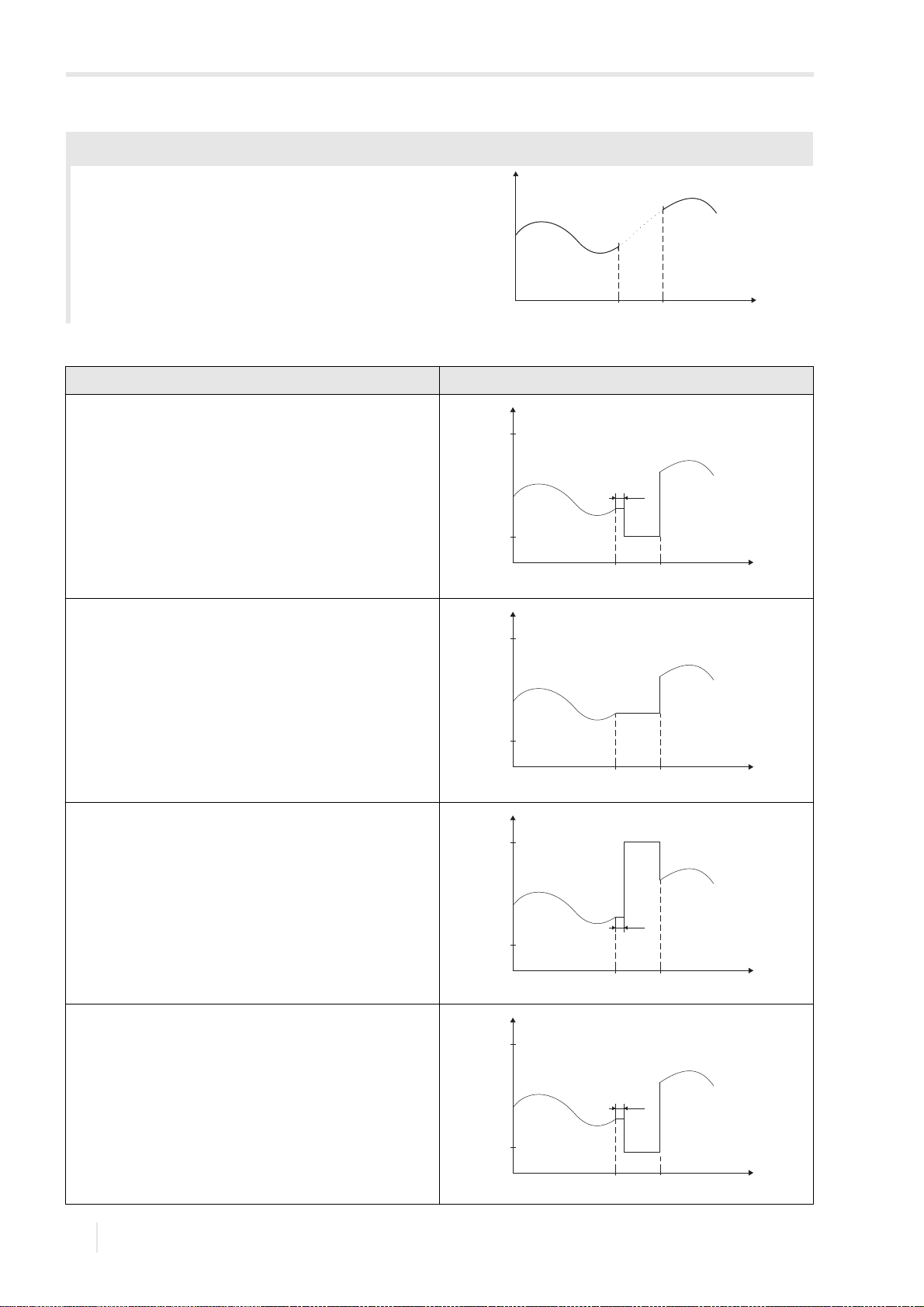

Example

v [m³/h]

I [mA]

9.2 Measurement settings FLUXUS WD

source item:

output:

output range:

volumetric flow rate

current output

4…20 mA

error delay: td>0

(see section 9.2.4 and Tab. 9.3)

The volumetric flow rate cannot be measured during the time interval t

Tab. 9.3: Examples for the error output (output range: 4...20 mA)

list item output signal

4.0 mA

Last value

...t1. The error value will be output.

20.0 mA

Other value

error value = 3.5 mA

2018-07-16, UMFLUXUS_WDV1-3EN

Page 83

9 Measurement

FLUXUS WD 9.2 Measurement settings

Measuring range

The sign of the measured value and the measuring range are determined.

Options\Channel A\Outputs\...\Measured values\Absolute value

•Select Sign if the sign of the measured values is to be considered for the output.

•Select Absolute value if the sign of the measured values is not to be considered for the output.

Options\Channel A\Outputs\...\Start of meas. range

• Enter the lowest expected measured value. The unit of measurement of the source item will be displayed.

Start of meas. range is the value assigned to the value Output MIN of the output range.

Options\Channel A\Outputs\...\End of meas. range

• Enter the highest expected measured value. The unit of measurement of the source item will be displayed.

End of meas. range is the value assigned to the value Output MAX of the output range.

Terminal assignment

Options\Channel A\Outputs\...\Output info

The terminals for the connection of the output are displayed.

By pressing key or further information is displayed.

• Press ENTER.

If the transmitter possesses a switchable current output, it is displayed whether it is active or passive.

Output function test

The function of the output can now be tested.

• Connect an external measuring instrument to the terminals of the output.

Options\Channel A\Outputs\...\Test signal

•Select Yes to test the output. Select No to display the next menu item.

• Press ENTER.

Options\Channel A\Outputs\...\Enter test value

• Enter a test value. It has to be within the output range.

• Press ENTER.

If the external measuring instrument displays the entered value, the output functions correctly.

•Select Repeat to repeat the test, Finish to display the next menu item.

• Press ENTER.

Options\Channel A\Outputs\...\Test mea. range

•Select Yes to test the assignment of the measured value to the output signal. Select No to display the next menu item.

• Press ENTER.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 84

9 Measurement

9.2 Measurement settings FLUXUS WD

Options\Channel A\Outputs\...\Enter test value

• Enter a test value for the selected physical quantity. It has to be within the output range.

• Press ENTER. If the external measuring instrument displays the entered value, the output functions correctly.

•Select Repeat to repeat the test. Select Finish to display the next menu item.

• Press ENTER.

9.2.5.2 Output of a status value

• Select the list item Options\Outputs\...\Status.

• Press ENTER.

Source item

Status

Output range

Options\Channel A\Outputs\...\Output range

• Select a list item.

Status OK

Output info

Test signal

Test mea. range

see annex A, p. 158

– 4...20 mA

– Other range

• Press ENTER.

If Other range is selected, enter the values Output MIN and Output MAX.

The output range has to have > 10 % of the max. output value (Output MAX). An error message will be displayed if the output range is smaller. The next possible value will be displayed.

Status OK

The status of the output signal is defined which is to be output when measuring a measured value.

Options\Channel A\Outputs\...\Status OK

• Select in the scroll list the value for Status OK.

• Press ENTER.

Terminal assignment

Options\Channel A\Outputs\...\Output info

The terminals for the connection of the output are displayed.

By pressing key or further information is displayed.

• Press ENTER.

If the transmitter possesses a switchable current output, it is displayed whether it is active or passive.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 85

9 Measurement

FLUXUS WD 9.2 Measurement settings

Output function test

The function of the output can now be tested.

• Connect an external measuring instrument to the terminals of the output.

Options\Channel A\Outputs\...\Test signal

•Select Yes to test the output. Select No to display the next menu item.

• Press ENTER.

Options\Channel A\Outputs\...\Enter test value

• Enter a test value. It has to be within the output range.

• Press ENTER.

If the external measuring instrument displays the entered value, the output functions correctly.

•Select Repeat to repeat the test, Finish to display the next menu item.

• Press ENTER.

Options\Channel A\Outputs\...\Test mea. range

•Select Yes to test the status of the output signal. Select No to display the next menu item.

• Press ENTER.

Options\Channel A\Outputs\...\Enter test value

• Select in the scroll list Status OK or Status error.

• Press ENTER.

If the external measuring instrument displays the entered value, the output functions correctly.

•Select Repeat to repeat the test, Finish to display the next menu item.

• Press ENTER.

9.2.5.3 Output of an event value Output range

Options\Channel A\Outputs\...\Output range

• Select a list item.

– 4...20 mA

– Other range

• Press ENTER.

If Other range is selected, enter the values Output MIN and Output MAX.

The output range has to have > 10 % of the max. output value (Output MAX). An error message will be displayed if the output range is smaller. The next possible value will be displayed.

Idle state

The status of the output signal which is to be output if no event occurs is defined.

Options\Channel A\Outputs\...\Idle state

• Select the value for the idle state.

• Press ENTER.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 86

9 Measurement

9.2 Measurement settings FLUXUS WD

Terminal assignment

Options\Channel A\Outputs\...\Output info

The terminals for the connection of the output are displayed.

By pressing key or further information is displayed.

• Press ENTER.

If the transmitter possesses a switchable current output, it is displayed whether it is active or passive.

Output function test

The function of the output can now be tested.

• Connect an external measuring instrument to the terminals of the output.

Options\Channel A\Outputs\...\Test signal

•Select Yes to test the output. Select No to display the next menu item.

• Press ENTER.

Options\Channel A\Outputs\...\Enter test value

• Enter a test value. It has to be within the output range.

• Press ENTER.

If the external measuring instrument displays the entered value, the output functions correctly.

•Select Repeat to repeat the test, Finish to display the next menu item.

• Press ENTER.

Options\Channel A\Outputs\...\Test mea. range

•Select Yes to test the status of the output signal. Select No to display the next menu item.

• Press ENTER.

Options\Channel A\Outputs\...\Enter test value

• Select in the scroll list Passive (idle state) or Active.

• Press ENTER.

If the external measuring instrument displays the entered value, the output functions correctly.

•Select Repeat to repeat the test, Finish to display the next menu item.

• Press ENTER.

• Press key to return to the program branch Options.

9.2.5.4 Switchable current output

• Select the menu item Outputs in the program branch

Special functions

Special functions.

• Press ENTER.

Outputs

Active Passive

see annex A, p. 158

Special functions\Outputs

•Select Active if the current output is to be switched to active. Select Passive if the current output is to be switched to passive.

• Press ENTER.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 87

9 Measurement

Notice!

FLUXUS WD 9.3 Start of the measurement

9.3 Start of the measurement

• Select the program branch Measurement.

Measurement

•Press ENTER.

Select channels

Activation of the channels

Measurement\Select channels

Measuring point no.

The channels for the measurement can be activated and

for each

activated

measuring

channel

Sound path

Transducer distance

Signal test

Transducer distance

deactivated.

: the channel is activated

: the channel is deactivated

: the channel cannot be activated

This display will not be indicated if the transmitter has only one measuring channel.

• Select a channel with key or .

Measurement

display

see annex A, p. 155

Pass the program branch

Parameters

in its entirety if is displayed for all channels.

• Press key or to activate or deactivate the channel.

If the parameters in the program branch Parameters are not valid or incomplete, the error message Invalid parameters will be displayed.

A deactivated channel will be ignored during the measurement.

Input of the measuring point number

Measurement\Measuring point no.

• Enter the number of the measuring point.

• Press ENTER.

For the activation of the text input see Special functions\Dialogs/Menus\Measuring point no.

Input of the sound path number

Measurement\Sound path

• Enter the number of sound paths.

• Press ENTER.

Adjustment of the transducer distance

Measurement\Transducer distance

The recommended transducer distance will be displayed. The transducer distance is measured between the inner edges of the transducers. In case of a measurement in diagonal mode on very small pipes, a negative transducer distance is possible.

The accuracy of the recommended transducer distance depends on the accuracy of the entered pipe and fluid parameters.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 88

9 Measurement

2 3

9.3 Start of the measurement FLUXUS WD

• Mount the transducers on the pipe adjusting the transducer distance.

• Press ENTER.

The diagnostics window is displayed, see Fig. 9.1.

Fine adjustment of the transducer distance

The bar graph AMP shows the amplitude of the received signal, see Fig. 9.1.

The bar graph SCNR shows the ratio useful signal to correlated noise signal.

• Shift one of the transducers slightly within the range of the recommended transducer distance until the bar graph reaches the max. length.

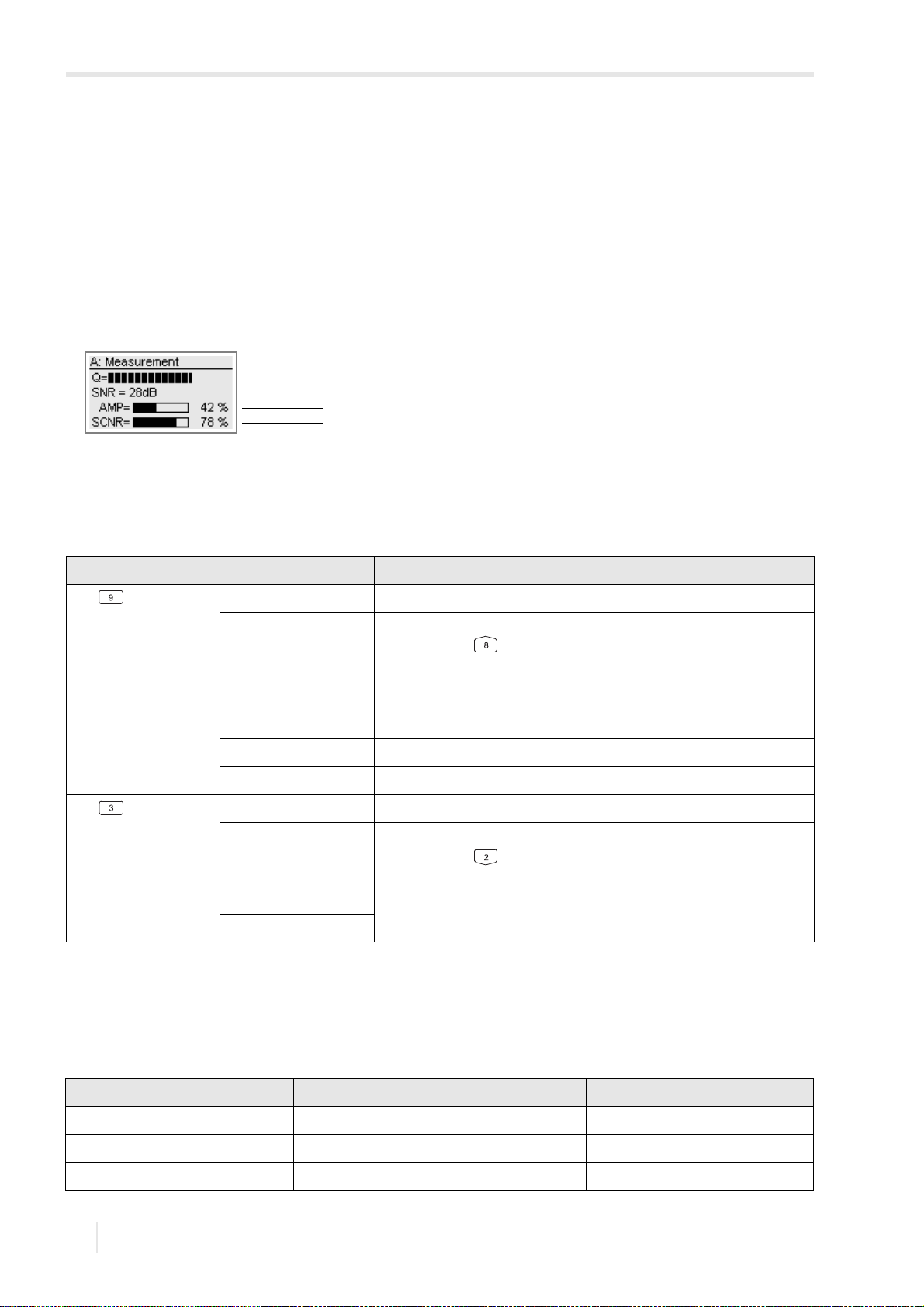

Fig. 9.1: Diagnostics window

1 – additional diagnostic 2 – additional diagnostic 3 – amplitude (bar graph) 4 – SCNR value (bar graph)

Tab. 9.4: Diagnostic values

display

key

(1 in Fig. 9.1)

key

(2 in Fig. 9.1)

In order to avoid doubling, a value already be displayed in one of these lines will be ignored in the other.

SNR ratio useful signal/noise signal

signal quality Q bar graph has to reach max. length

GAIN= 86 dB signal amplification

AMP= 44% G= 86 dB amplitude and gain

SCNR ratio useful signal to correlated noise signal

SNR ratio useful signal/noise signal

signal quality Q bar graph has to reach max. length

■<>■ transducer distance

SCNR ratio useful signal to correlated noise signal

explanation

By pressing key it is possible to display the numeric value instead of the bar graph.

If the current value of the amplification is higher than the max. amplification, the current value is displayed with →FAIL!.

By pressing key it is possible to display the numeric value instead of the bar graph.

• In case of large deviations of the diagnostic values, see Tab. 9.5, check if the entered parameters are correct or repeat the measurement at a different point on the pipe.

• Press ENTER.

Tab. 9.5: Recommended diagnostic limits

good measurement measurement at limit measurement not possible

SCNR  30 dB (> 50 %) 20 dB  SCNR  30 dB (0 % < SCNR  50 %) SCNR  20 dB (= 0 %)

SNR  15 dB 0 dB  SNR  15 dB SNR  0dB

GAIN  98 dB 98 dB  GAIN  113 dB GAIN  113 dB

2018-07-16, UMFLUXUS_WDV1-3EN

Page 89

9 Measurement

1 2 3 4 5

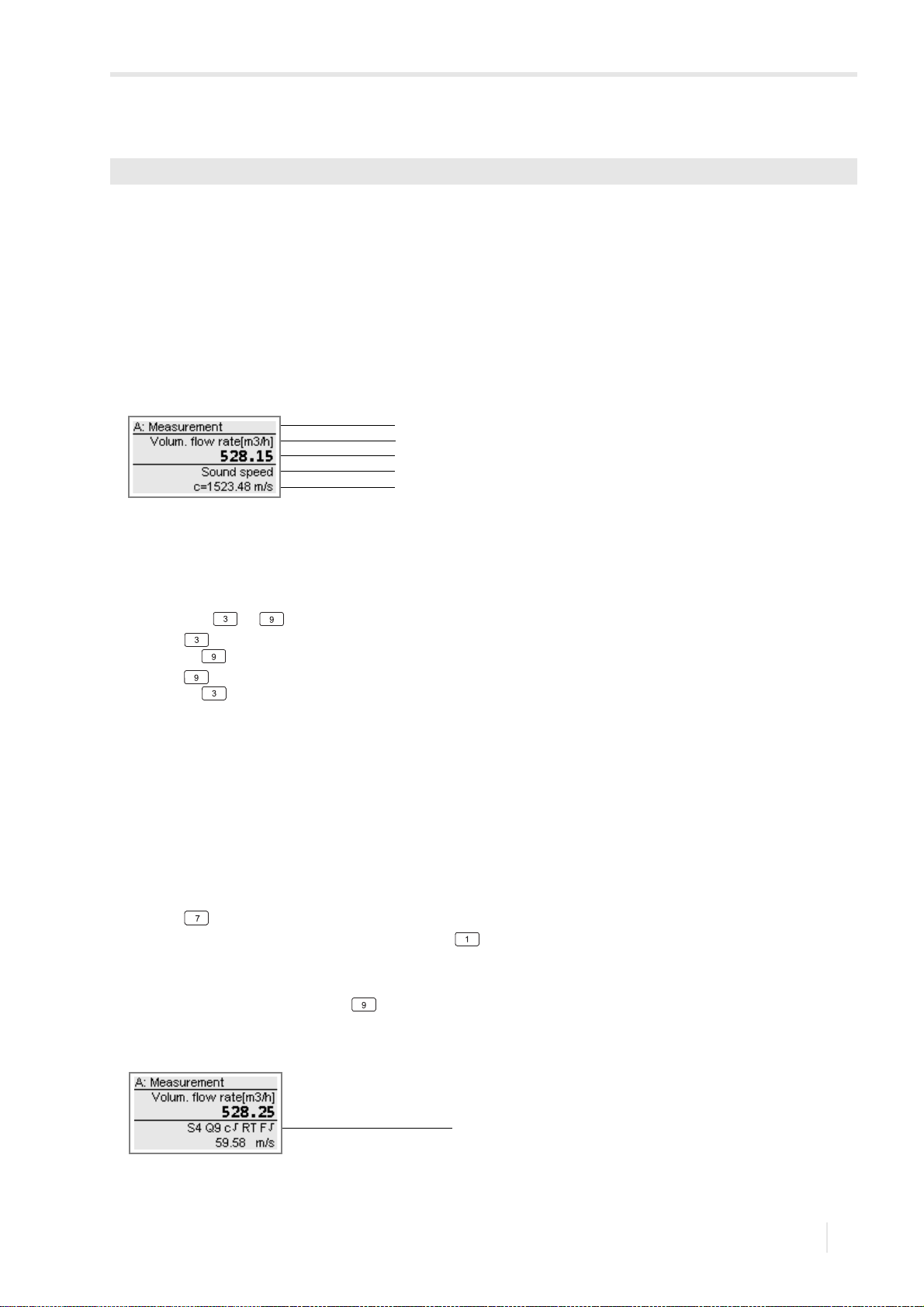

FLUXUS WD 9.4 Display of measured values

Input of the transducer distance

Measurement\Transducer distance

After precise transducer positioning, the recommended transducer distance is displayed in brackets again.

• Measure the transducer distance.

• Enter the measured transducer distance.

• Press ENTER.

The measurement is started. The measured values are displayed.

9.4 Display of measured values

The measured values are displayed during the measurement as follows:

Fig. 9.2: Display of measured values

1 – channel, program branch, status indicators 2 – measurand and unit of measurement 3 – measured value 4 – display of further measured values 5 – display of further measured values

By pressing key or , additional physical quantities can be displayed during the measurement, see Fig. 9.2.

• Press key to display the measured values in line 5. The designation of the physical quantity is displayed in line 4 by pressing key for several seconds.

• Press key to display the measured values in line 4. The designation of the physical quantity is displayed in line 5 by pressing key for several seconds.

Toggling between the channels

If the measurement is started on several channels, the display of the measured values can be adapted during the measurement as follows:

AutoMux mode

If the AutoMux mode is activated, the measured values of all activated channels (measuring and calculation channels) are displayed consecutively. The next active channel is selected after 3 s. The toggle time can be changed in the menu item Special functions\Dialogs/Menus\Toggle time.

HumanMux mode

The measured values of one channel are displayed in the HumanMux mode. The measurement on the other channels continues.

• Press key to display the next activated channel. The measured values for the selected channel are displayed.

Each measurement starts in AutoMux mode. Press key to toggle between the modes.

Status line

Important information of the running measurement is summarized in the status line. The quality and precision of the measurement can be evaluated. Press key during the measurement to scroll to the status line.

Fig. 9.3: Display of the status line

1 – status line

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 90

9 Measurement

9.4 Display of measured values FLUXUS WD

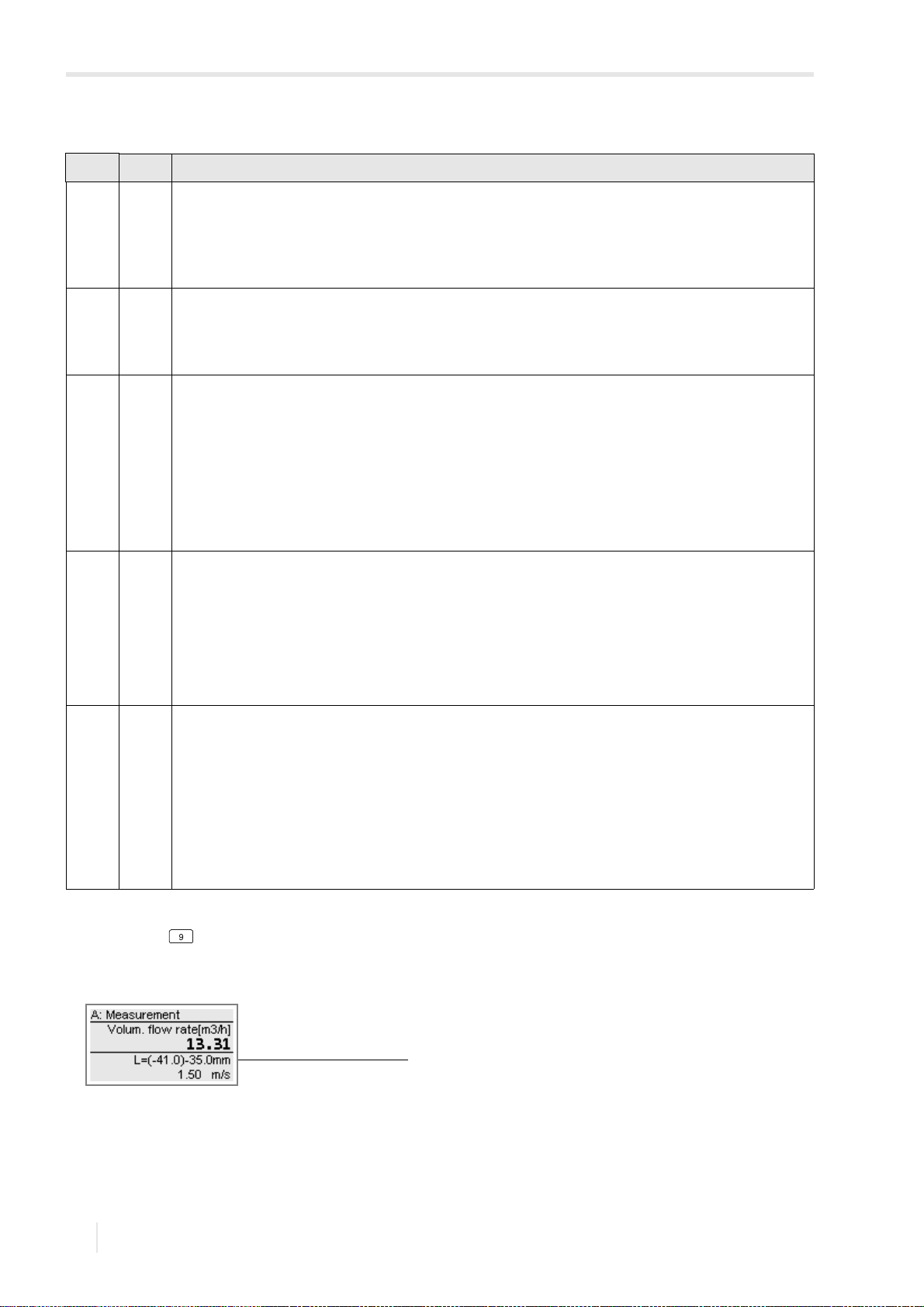

Tab. 9.6: Description of the status line

value explanation

S signal amplitude

0 … 9

Q signal quality

0 … 9

c sound speed

 OK, is equal to the expected value

 > 20 % of the expected value

 < 20 % of the expected value

? unknown, cannot be measured

R flow profile

T fully turbulent flow profile

L fully laminar flow profile

 flow within the transition range between laminar and turbulent flow

< 5 % …  90 %

values  3 are sufficient for the measurement

< 5 % …  90 %

comparison of the measured and the expected sound speed of the fluid

The expected sound speed is calculated from the fluid parameters.

information about the flow profile based on the Reynolds number

? unknown, cannot be calculated

F flow velocity

 OK, the flow velocity is not within the critical range

 the flow velocity is higher than the current limit

 the flow velocity is lower than the current cut-off flow

0 the flow velocity is within the limit range of the measuring method

? unknown, cannot be measured

comparison of the measured flow velocity with the flow limits of the system

Transducer distance

By pressing key during the measurement, it is possible to scroll to the display of the transducer distance.

Fig. 9.4: Display of the transducer distance

1 – transducer distance

The recommended transducer distance (here: -41.0 mm) is displayed in brackets. The measured transducer distance (here: -35.0 mm) is displayed afterwards.

The recommended transducer distance might change during the measurement (e.g., due to temperature fluctuations).

A deviation from the optimum transducer distance (here: 6 mm) will be compensated internally.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 91

9 Measurement

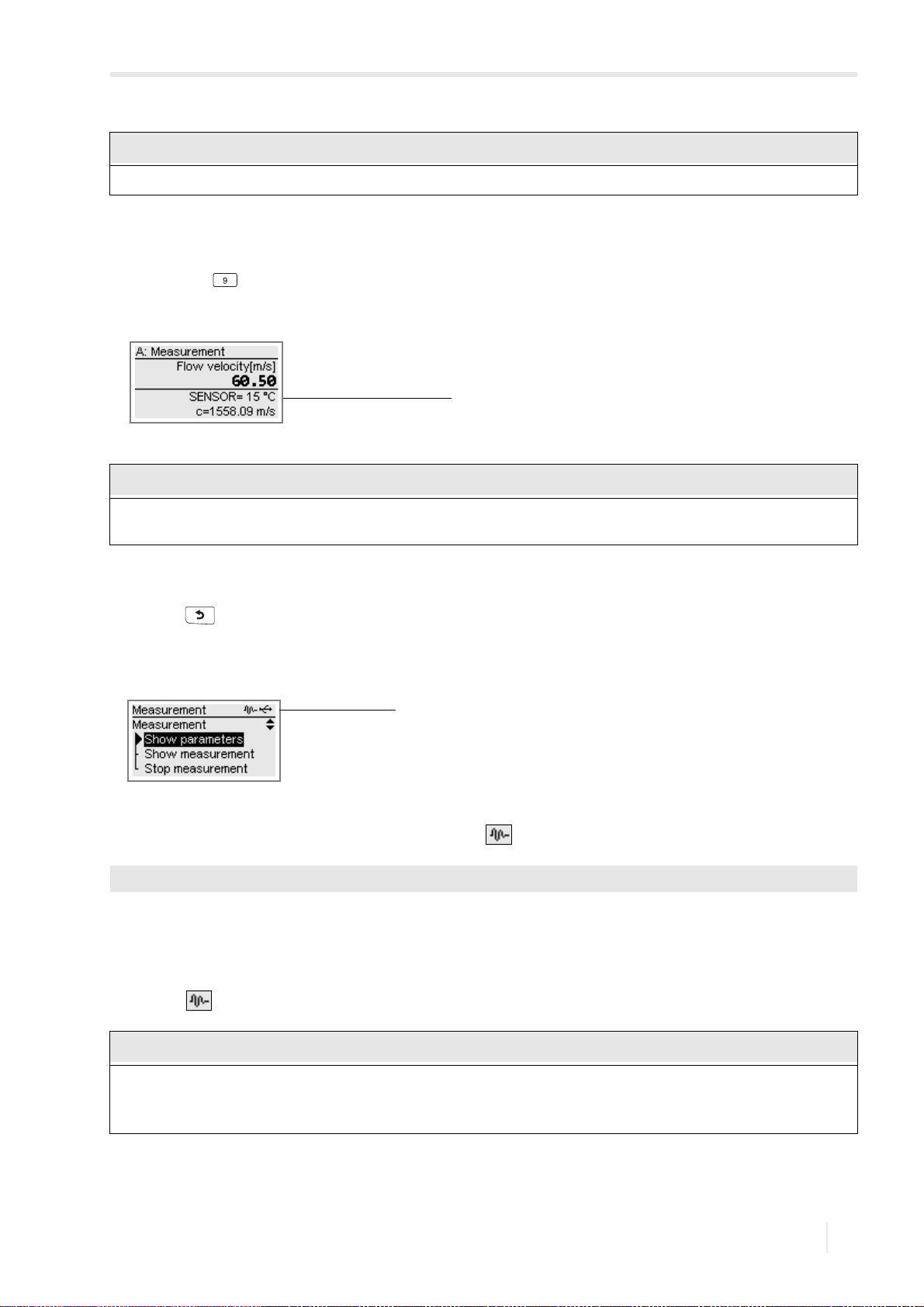

Notice!

FLUXUS WD 9.5 Display of parameters

Never change the transducer distance during the measurement.

Transducer temperature

If the transmitter is operating in the SuperUser or SuperUser ext. mode, the transducer temperature can be displayed during the measurement.

By pressing key during the measurement, it is possible to scroll to the transducer temperature display.

Fig. 9.5: Display of the transducer temperature

1 – transducer temperature

If the compliance of the specified transducer temperature has to be monitored, an event trigger can be set on the temperature value.

9.5 Display of parameters

The parameters can be displayed during the measurement.

• Press key during the measurement.

The following display appears:

Fig. 9.6: Scroll list in the program branch Measurement

1 – status indication

The measurement is running in the background. The symbol is displayed in the status indication, see Fig. 9.6.

Measurement\Show parameters

•Select Show parameters in the scroll list.

• Press ENTER.

• The program branch Measurement is displayed.

• Select a program branch to display the parameters.

The symbol remains visible in all menus. All parameters and settings can be displayed.

The parameters cannot be changed during the measurement. When attempting to change the parameters, the message Read-only mode will be displayed.

The measurement has to be stopped in order to change the parameters.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 92

9 Measurement

9.6 Repeated display of measured values FLUXUS WD

9.6 Repeated display of measured values

• Select the program branch Measurement to return to the measured value display.

• Press ENTER.

The following display appears:

Fig. 9.7: Scroll list in the program branch Measurement

Measurement\Show measurement

•Select Show measurement in the scroll list.

• Press ENTER.

The measured values are displayed.

9.7 Execution of special functions

Some key have multiple functions. They can be used to enter data, to navigate through scroll lists and to execute special functions.

Tab. 9.7: Key functions

key function

toggling between the AutoMux and HumanMux mode

totalizer display

triggering snaps

toggling between the displays of the activated channels

toggling between the TransitTime and the FastFood mode

toggling between the TransitTime and the NoiseTrek mode

display of scroll list in the program branch Measurement, see Fig. 9.6.

ENTER display of diagnostic window

2018-07-16, UMFLUXUS_WDV1-3EN

Page 93

9 Measurement

FLUXUS WD 9.8 Stop of the measurement

9.8 Stop of the measurement

• Press key during the measurement.

The following display appears:

Fig. 9.8: Scroll list in the program branch Measurement

Measurement\Stop measurement

•Select Stop measurement.

• Press ENTER.

The measurement is stopped. The program branch Parameters is displayed.

After disconnecting and reconnecting the power supply, the program branch Parameters appears.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 94

10 Troubleshooting

Warning!

Danger!

Caution!

Warning!

Caution!

FLUXUS WD

10 Troubleshooting

Service works by unauthorized and unqualified personnel

This may result in personal or material damage or other dangerous situations.  Any work on the transmitter has to be carried out by authorized and qualified personnel.

Working in mines or cramped confines

Risk of intoxication and/or asphyxiation because of emerging gases, risk of injuries because of cramped conditions.

 Wear the required personal protective equipment. Observe the applicable rules.

Safety and accident prevention regulations for electrical systems and equipment

Failure to observe these regulations may lead to severe injury or death.  Observe the safety and accident prevention regulations for electrical systems and equipment.

Touching live parts

ter has to be disconnected from the power supply. It is not sufficient to remove the internal fuse of the instrument, see section 7.2.

Touching hot or cold surfaces

This may result in injuries (e.g., thermal damages).  Observe the ambient conditions at the measuring point during installation. Wear the required personal

protective equipment. Observe the applicable rules.

If any problem appears which cannot be solved with the help of this operating instruction, contact our sales office and give a precise description of the problem. Specify the type, the serial number and the firmware version of the transmitter.

Calibration

If installed as recommended in an appropriate location, used cautiously and serviced conscientiously, no troubles should appear.

The transmitter has been calibrated at factory and, usually, a re-calibration of the transmitter is not necessary.

A re-calibration is recommended if:

• the contact surface of the transducers show visible wear or

• the transducers were used for a prolonged period at high temperatures (several months > 130 °C for normal transducers or > 200 °C for high temperature transducers)

In order to realize a recalibration under reference conditions either the transmitter, the transducers or the transmitter with transducers have to be sent to FLEXIM depending on which part needs to be calibrated.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 95

10 Troubleshooting

FLUXUS WD 10.1 Problems with the measurement

The display does not work at all or fails regularly

Check the contrast setting of the transmitter or enter the HotCode 555000 to set the display to medium contrast.

Make sure that the correct voltage is available at the terminals. The destined transmitter voltage is indicated on the nameplate below the outer right terminal.

If the power supply is OK, the transducers or an internal component of the transmitter are defective. The transducers and the transmitter have to be sent to FLEXIM for repair.

If the transmitter is only connected via the USB interface, the backlight will be switched off.

An error is displayed in the status indication (symbol )

Press key to return to the main menu. Select Special functions\System settings\Event log. Press ENTER. The error message list will be displayed.

Date and time are wrong, the measured values are deleted when the transmitter is switched off

The data backup battery has to be replaced if the date and the time are reset or wrong or the measured values are deleted after the transmitter has been switched off and on. Send the transmitter to FLEXIM.

An output does not work

Make sure that the outputs are configured correctly. Check the function of the output. If the output is defective, contact FLEXIM.

10.1 Problems with the measurement

A measurement is not possible because no signal is received. A question mark is displayed after the physical quantity. The LED lights red after starting the measurement.

• Check whether the entered parameters are correct, especially the outer pipe diameter, the pipe wall thickness and the sound speed of the fluid. Typical errors: The circumference or the radius was entered instead of the diameter. The inner pipe diameter was entered instead of the outer pipe diameter.

• Check the number of sound paths.

• Make sure that the recommended transducer distance was adjusted when mounting the transducers.

• Make sure that an appropriate measuring point is selected and the number of sound paths was entered correctly.

• Try to establish a better acoustic contact between the pipe and the transducers.

• Enter a lower value for the number of sound paths. The signal attenuation might be too high due to a high fluid viscosity or deposits on the inner pipe wall.

The measuring signal is received but no measured values can be obtained

• If the defined upper or lower limit of the flow velocity is exceeded or below, UNDEF and an exclamation point will be displayed after the physical quantity. The measured values are marked as invalid. The limit has to be adapted to the measuring conditions.

• If no exclamation point is displayed, a measurement at the selected measuring point is impossible.

Signal loss during the measurement

• If there is no measuring signal after the pipe had been run empty and refilled, contact FLEXIM.

• Wait a moment until the acoustic contact is reestablished. The measurement can be interrupted due to a temporarily higher proportion of gas bubbles and solids in the fluid.

The measured values substantially differ from the expected values

• Wrong measured values are often caused by wrong parameters. Make sure that the entered parameters are correct for the measuring point.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 96

10 Troubleshooting

10.2 Measuring point selection FLUXUS WD

10.2 Measuring point selection

• Make sure that the recommended min. distance to any disturbance source is observed.

• Avoid measuring points with deposit formation in the pipe.

• Avoid measuring points in the vicinity of deformations and defects on the pipe as well as welds.

• Make sure the pipe surface at the selected measuring point is even.

• Measure the temperature at the measuring point and make sure that the transducers are suitable for this temperature.

• Make sure that the outer pipe diameter is within the measuring range of the transducers.

• When measuring on a horizontal pipe, the transducers have to be mounted laterally on the pipe.

• The measuring point on a vertically mounted pipe has always to be filled. The fluid should flow upward.

• No gas bubbles should form (even bubble-free fluids can form gas bubbles when the fluid expands, e.g., upstream of pumps and downstream of great cross-section enlargements).

10.3 Maximum acoustic contact

see section 6.2

10.4 Application-specific problems

A fluid with a wrong sound speed was selected

If the selected sound speed in the fluid does not match the actual one, the transducer distance can probably not be determined correctly.

The fluid sound speed is used to calculate the transducer distance and is therefore very important for the transducer positioning. The sound speeds stored in the transmitter only serve as an orientation.

The entered pipe roughness is not appropriate

Check the entered value. The pipe state should be considered.

Measurements on pipes made of porous materials (e.g ., concrete or cast iron) are only conditionally possible

Contact FLEXIM.

The pipe lining may cause problems during the measurement if it is not firmly attached to the inner pipe wall or consists of acoustically absorbing material

Try to measure on a section of the pipe free from lining.

Highly viscous fluids strongly attenuate the ultrasonic signal

The measurement of fluids with a viscosity of > 1 000 mm²/s is only conditionally possible.

A high concentration of gases or solids in the fluid scatter and absorb the ultrasonic signal and thus attenuate the measuring signal

A measurement is impossible if the value is  10 %. If the proportion is high, but < 10 %, a measurement is only conditionally possible.

10.5 Significant deviations of the measured values

A fluid with a wrong sound speed was selected

If a fluid was selected whose sound speed does not match the actual one, the measuring signal may be confused with the pipe wall signal.

The flow calculated on the basis of the wrong signal by the transmitter is very small or fluctuates around zero.

There is gas in the pipe

If there is gas in the pipe, the measured flow will be too high because both, the liquid and gas volume, are measured.

The defined upper limit of the flow velocity is too low

All measured flow velocities that are greater than the upper limit will be ignored and marked as invalid. All quantities deviated from the flow velocity will also be indicated as invalid. If several correct measured values are ignored, the totalizer values will be too low.

The entered cut-off flow is too high

All flow velocities below the cut-off flow are set to zero. All derived quantities are also set to zero. The cut-off flow has to be set to a low value to be able to measure at low flow velocities (default: 2.5 cm/s).

2018-07-16, UMFLUXUS_WDV1-3EN

Page 97

10 Troubleshooting

FLUXUS WD 10.6 Problems with the totalizers

The entered pipe roughness is not appropriate The flow velocity of the fluid is outside the measuring range of the transmitter The measuring point is not appropriate

Check whether a different measuring point provides better results. Because pipes are never rotationally symmetric, the flow profile is affected.

10.6 Problems with the totalizers

The values of the totalizers are too small

One of the totalizers has reached the upper limit and has to be reset to zero manually.

The sum of the totalizers is not correct

The output sum of both totalizers (throughput Q) transmitted via an output is not valid after one of the totalizers has overflowed for the first time.

A question mark is displayed after the value of the totalizer

The measurement was temporarily impossible, therefore the totalizer value can be wrong.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 98

11 Maintenance and cleaning

Warning!

Danger!

Warning!

Caution!

FLUXUS WD

11 Maintenance and cleaning

Service works by unauthorized and unqualified personnel

This may result in personal or material damage or other dangerous situations.  Any work on the transmitter has to be carried out by authorized and qualified personnel.

Working in mines or cramped confines

Risk of intoxication and/or asphyxiation because of emerging gases, risk of injuries because of cramped conditions.

 Wear the required personal protective equipment. Observe the applicable rules.

Touching live parts

ter has to be disconnected from the power supply. It is not sufficient to remove the internal fuse of the instrument, see section 7.2.

Safety and accident prevention regulations for electrical systems and equipment

Failure to observe these regulations may lead to severe injury or death.  Observe the safety and accident prevention regulations for electrical systems and equipment.

Touching hot or cold surfaces

This may result in injuries (e.g., thermal damages).  Observe the ambient conditions at the measuring point during installation. Wear the required personal

protective equipment. Observe the applicable rules.

2018-07-16, UMFLUXUS_WDV1-3EN

Page 99

11 Maintenance and cleaning

FLUXUS WD 11.1 Maintenance

11.1 Maintenance

The transmitter and the transducers are practically maintenance-free. In order to ensure security, the following maintenance intervals are recommended:

item maintenance step interval measure

stainless steel housing

• transmitter

• junction box

• transducer mounting fixture

aluminum housing

• transmitter

transducers check of the transducer

transmitter firmware check for updates annually update, if necessary

transmitter functional test annually reading of measured and

transmitter and transducers calibration - see chapter 10, section

visual inspection for corrosion and damages

visual inspection for contamination

coupling on the tube

annually, depending on the ambient conditions more frequently

annually replace the coupling foil, if

cleaning (see section 11.2)

necessary

diagnostic values

"Calibration"

11.2 Cleaning

Stainless steel housing

• Clean the stainless steel housing using a soft cloth and care and cleaning spray for stainless steel.

Aluminum housing

• Clean the aluminum housing with a soft cloth. Do not use detergents.

Transducers

• Remove traces of coupling compound from the transducers with a soft paper towel.

UMFLUXUS_WDV1-3EN, 2018-07-16

Page 100

12 Dismounting and disposal

Warning!

Danger!

Warning!

Caution!

12.1 Dismounting FLUXUS WD

12 Dismounting and disposal

Service works by unauthorized and unqualified personnel

This may result in personal or material damage or other dangerous situations.  Any work on the transmitter has to be carried out by authorized and qualified personnel.

Working in mines or cramped confines

Risk of intoxication and/or asphyxiation because of emerging gases, risk of injuries because of cramped conditions.

 Wear the required personal protective equipment. Observe the applicable rules.

Touching live parts

ter has to be disconnected from the power supply. It is not sufficient to remove the internal fuse of the instrument, see section 7.2.

Safety and accident prevention regulations for electrical systems and equipment

Failure to observe these regulations may lead to severe injury or death.  Observe the safety and accident prevention regulations for electrical systems and equipment.

12.1 Dismounting

The dismounting is carried out in reverse order to its installation, see chapter 6.

12.2 Disposal

The measuring equipment has to be disposed in accordance to the applicable regulations.

Depending on the material, the corresponding parts have to be disposed in residual or special waste or recycled. For further information, contact FLEXIM.

100

2018-07-16, UMFLUXUS_WDV1-3EN
