Page 1
FLENDER COUPLINGS
BIPEX-S
Operating Instructions 3410en
Edition 10/2017
BNN, BGG, BCC, BHH, BKK, BCS, BHH-W
Page 2
21.09.2017 12:18
V6.00
Page 3
FLENDER COUPLINGS
BIPEX-S
3410en
BNN, BGG, BCC, BHH, BKK, BCS, BHH-W
Introduction
1
Operating Instructions
Safety instructions
Description
Application planning
Assembly
Commissioning
Operation
Servicing
2
3
4
5
6
7
8
Service and support
Disposal
Spare parts
Technical data
9
10
11
A
Edition 10/2017
Page 4
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will be
used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to property
damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions. Qualified
personnel are those who, based on their training and experience, are capable of identifying risks and avoiding
potential hazards when working with these products/systems.
Proper use of Flender products
Note the following:
WARNING
Flender products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended or
approved by Flender. Proper transport, storage, installation, assembly, commissioning, operation and maintenance
are required to ensure that the products operate safely and without any problems. The permissible ambient
conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Flender GmbH. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software described.
Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the information in
this publication is reviewed regularly and any necessary corrections are included in subsequent editions.
Flender GmbH
Alfred-Flender-Straße 77
46395 BOCHOLT
GERMANY
Document order number: 3410en
Ⓟ 09/2017 Subject to change
Copyright © Flender GmbH 2016, -,
2017.
All rights reserved
Page 5
Table of contents
1 Introduction...................................................................................................................................................9
1.1 About these instructions...........................................................................................................9
1.2 Text attributes..........................................................................................................................9
1.3 Copyright..................................................................................................................................9
2 Safety instructions......................................................................................................................................11
2.1 General information................................................................................................................11
2.2 Intended use..........................................................................................................................12
2.3 General warning notices........................................................................................................13
3 Description..................................................................................................................................................15
4 Application planning...................................................................................................................................23
4.1 Transport of the coupling.......................................................................................................23
4.2 Storage of the coupling..........................................................................................................23
5 Assembly....................................................................................................................................................25
5.1 Preparatory work....................................................................................................................25
5.2 Assembling the coupling........................................................................................................26
5.2.1 Assembling the coupling parts...............................................................................................26
5.2.1.1 Attach the coupling part N (1) with parallel key to the shaft...................................................26
5.2.1.2 Attaching coupling part G (2), C (3), H (4) or K (5) to the shaft with a clamping connection......27
5.2.1.3 Attach coupling part S (6) to the hollow shaft with a clamping connection............................27
5.2.2 Plug-in assembly of the coupling halves................................................................................28
5.2.2.1 Plug-in assembly of types BNN, BGG, BCC, BHH, BKK and BCS........................................28
5.2.2.2 Plug-in assembly of type BHH-W...........................................................................................28
5.3 Aligning the coupling..............................................................................................................29
5.3.1 Purpose of alignment.............................................................................................................29
5.3.2 Possible misalignment...........................................................................................................29
5.3.2.1 Axial misalignment.................................................................................................................30
5.3.2.2 Angular misalignment.............................................................................................................30
5.3.2.3 Radial misalignment...............................................................................................................30
6 Commissioning...........................................................................................................................................31
7 Operation....................................................................................................................................................33
7.1 Normal operation of the coupling...........................................................................................33
7.2 Faults - causes and rectification.............................................................................................33
7.2.1 Procedure in the event of malfunctions..................................................................................33
7.2.2 Identifying the fault cause......................................................................................................33
7.2.2.1 Possible faults........................................................................................................................34
7.2.2.2 Possible causes.....................................................................................................................35
7.2.3 Correcting faults.....................................................................................................................36
BIPEX-S 3410en
Operating Instructions 10/2017 5
Page 6
Table of contents
7.2.3.1 Replacing wearing parts.........................................................................................................36
7.2.3.2 Correcting the changed alignment.........................................................................................37
8 Servicing.....................................................................................................................................................39
8.1 Maintenance intervals............................................................................................................39
8.2 Maximum permissible torsional backlash...............................................................................40
8.3 Replacing wearing parts.........................................................................................................40
8.4 Removing coupling part N (1)................................................................................................41
8.5 Removing coupling part G (2), C (3), H (4) or K (5)...............................................................42
8.6 Removing coupling part S (6).................................................................................................42
9 Service and support....................................................................................................................................43
9.1 Contact...................................................................................................................................43
10 Disposal......................................................................................................................................................45
11 Spare parts.................................................................................................................................................47
11.1 Ordering spare parts..............................................................................................................47
11.2 Spare parts drawing and spare parts list................................................................................48
11.2.1 Type BNN...............................................................................................................................48
11.2.2 Type BGG..............................................................................................................................49
11.2.3 Type BCC...............................................................................................................................50
11.2.4 Type BHH...............................................................................................................................51
11.2.5 Type BKK...............................................................................................................................52
11.2.6 Type BCS...............................................................................................................................53
11.2.7 Type BHH-W..........................................................................................................................54
A Technical data............................................................................................................................................55
A.1 Speeds, geometry data and weights......................................................................................55
A.1.1 Type BNN...............................................................................................................................55
A.1.2 Type BGG..............................................................................................................................56
A.1.3 Type BCC...............................................................................................................................57
A.1.4 Type BHH...............................................................................................................................58
A.1.5 Type BKK...............................................................................................................................59
A.1.6 Type BCS...............................................................................................................................60
A.1.7 Type BHH-W..........................................................................................................................61
A.2 Shaft misalignment values during operation..........................................................................62
A.3 Tightening torques and widths A/F.........................................................................................63
A.4 Tightening procedure.............................................................................................................63
A.5 Cam rings...............................................................................................................................64
A.5.1 Use and storage of the cam rings..........................................................................................64
A.5.2 BIPEX-S cam ring (20)...........................................................................................................64
Tables
Table 4-1 Types of preservative agents for long-term storage....................................................................24
BIPEX-S 3410en
6 Operating Instructions 10/2017
Page 7
Table of contents
Table 7-1 Table of faults..............................................................................................................................34
Table 8-1 Maintenance intervals.................................................................................................................39
Table 8-2 Maximum permissible torsional backlash for the BIPEX-S coupling...........................................40
Table 11-1 Spare parts list for type BNN.......................................................................................................48
Table 11-2 Spare parts list for type BGG......................................................................................................49
Table 11-3 Spare parts list for type BCC.......................................................................................................50
Table 11-4 Spare parts list for type BHH.......................................................................................................51
Table 11-5 Spare parts list for type BKK.......................................................................................................52
Table 11-6 Spare parts list for type BCS.......................................................................................................53
Table 11-7 Spare parts list for type BHH-W..................................................................................................54
Table A-1 Geometry data and weights of type BNN....................................................................................56
Table A-2 Geometry data and weights of type BGG....................................................................................57
Table A-3 Geometry data and weights of type BCC....................................................................................58
Table A-4 Geometry data and weights of type BHH....................................................................................58
Table A-5 Geometry data and weights of type BKK....................................................................................59
Table A-6 Geometry data and weights of type BCS....................................................................................60
Table A-7 Geometry data and weights of type BHH-W...............................................................................61
Table A-8 Maximum permissible shaft misalignment values during operation............................................62
Table A-9 Tightening torques TAand widths A/F SW for parts 11, 12 and 13..............................................63
Table A-10 Tightening procedure..................................................................................................................63
Table A-11 BIPEX-S cam ring.......................................................................................................................64
Figures

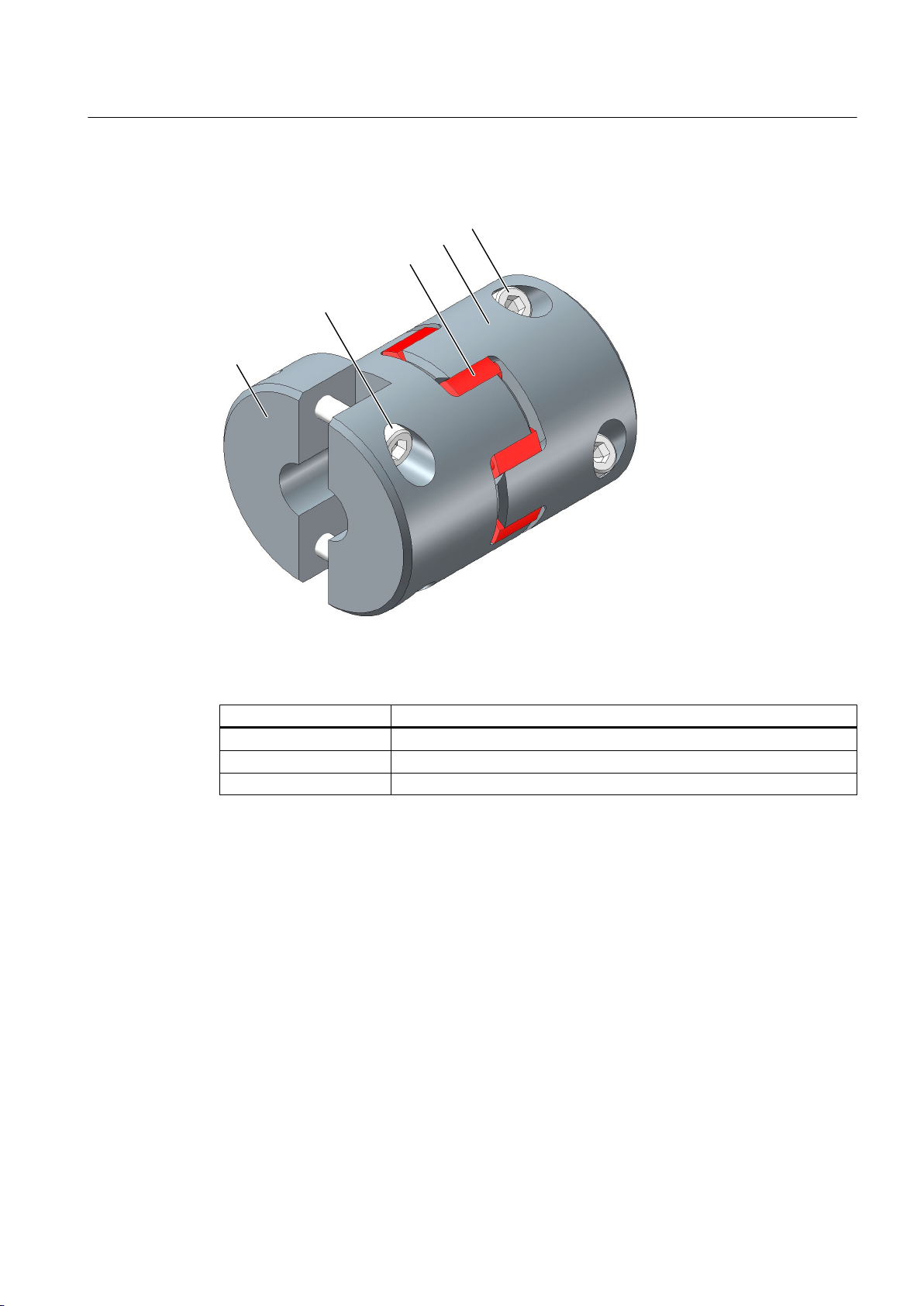

Figure 3-1 Type BNN....................................................................................................................................16
Figure 3-2 Type BGG...................................................................................................................................17
Figure 3-3 Type BCC....................................................................................................................................17
Figure 3-4 Type BHH....................................................................................................................................18
Figure 3-5 Type BKK....................................................................................................................................19
Figure 3-6 Type BCS....................................................................................................................................20

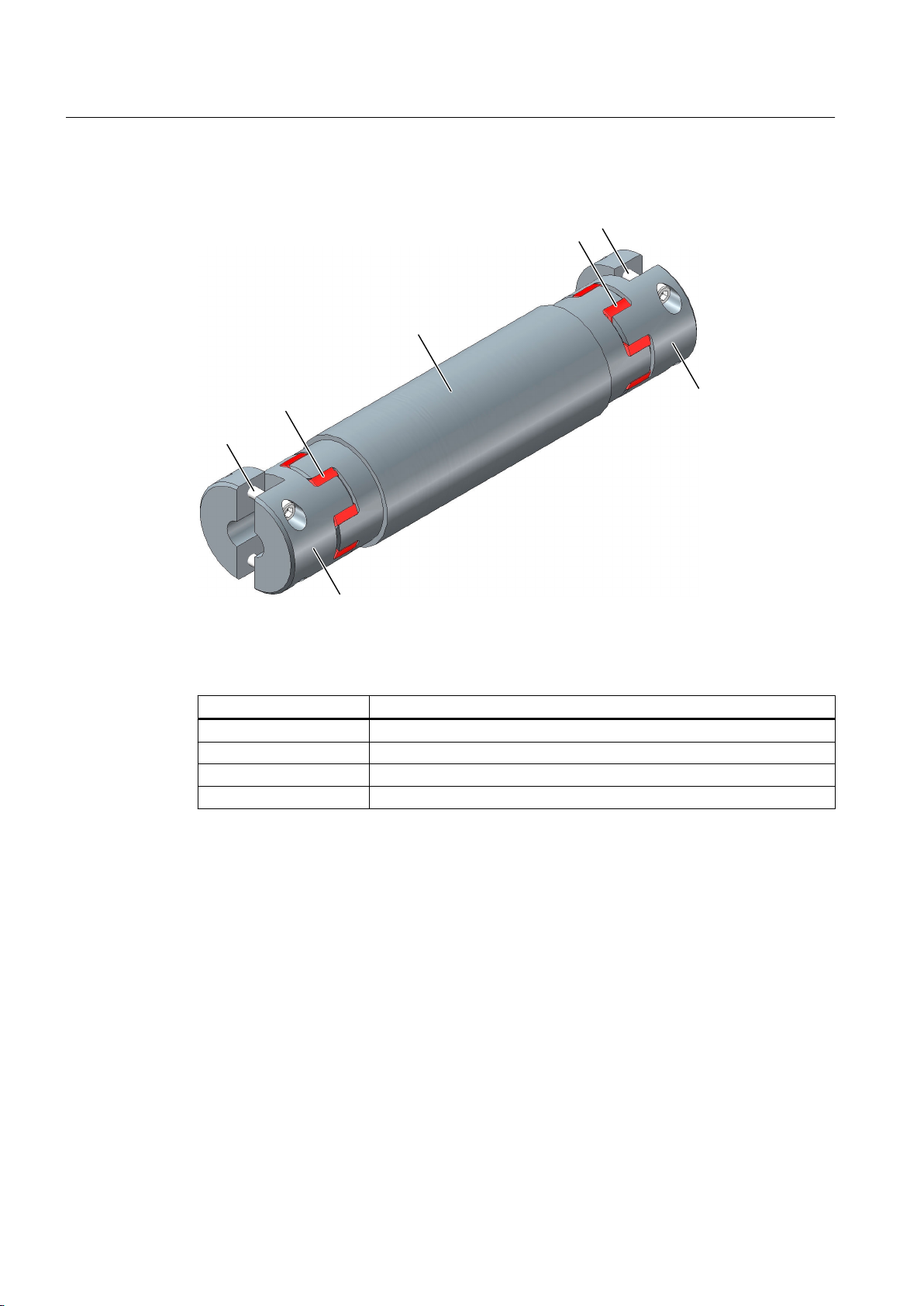

Figure 3-7 Type BHH-W...............................................................................................................................21

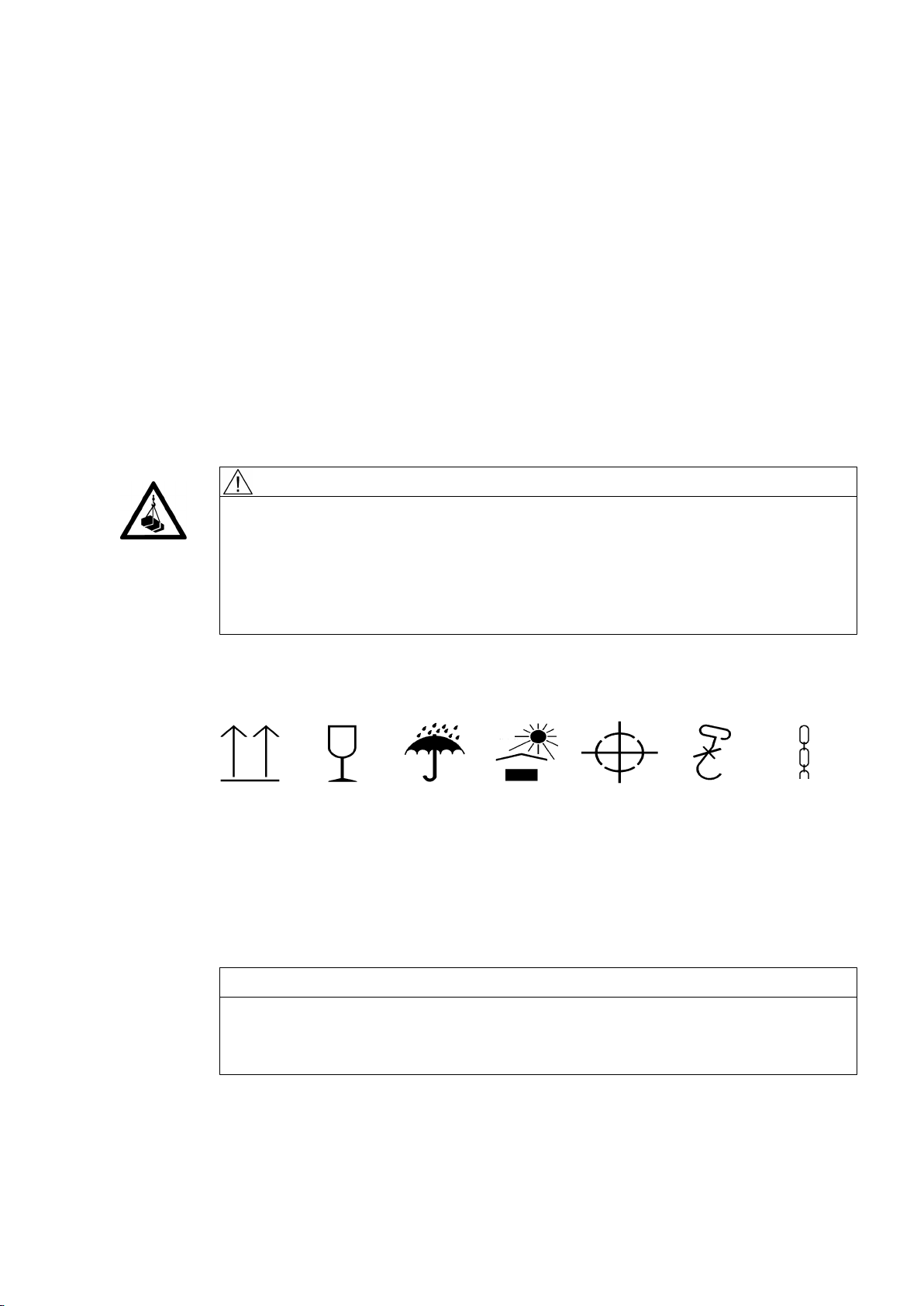

Figure 4-1 Transport symbols.......................................................................................................................23

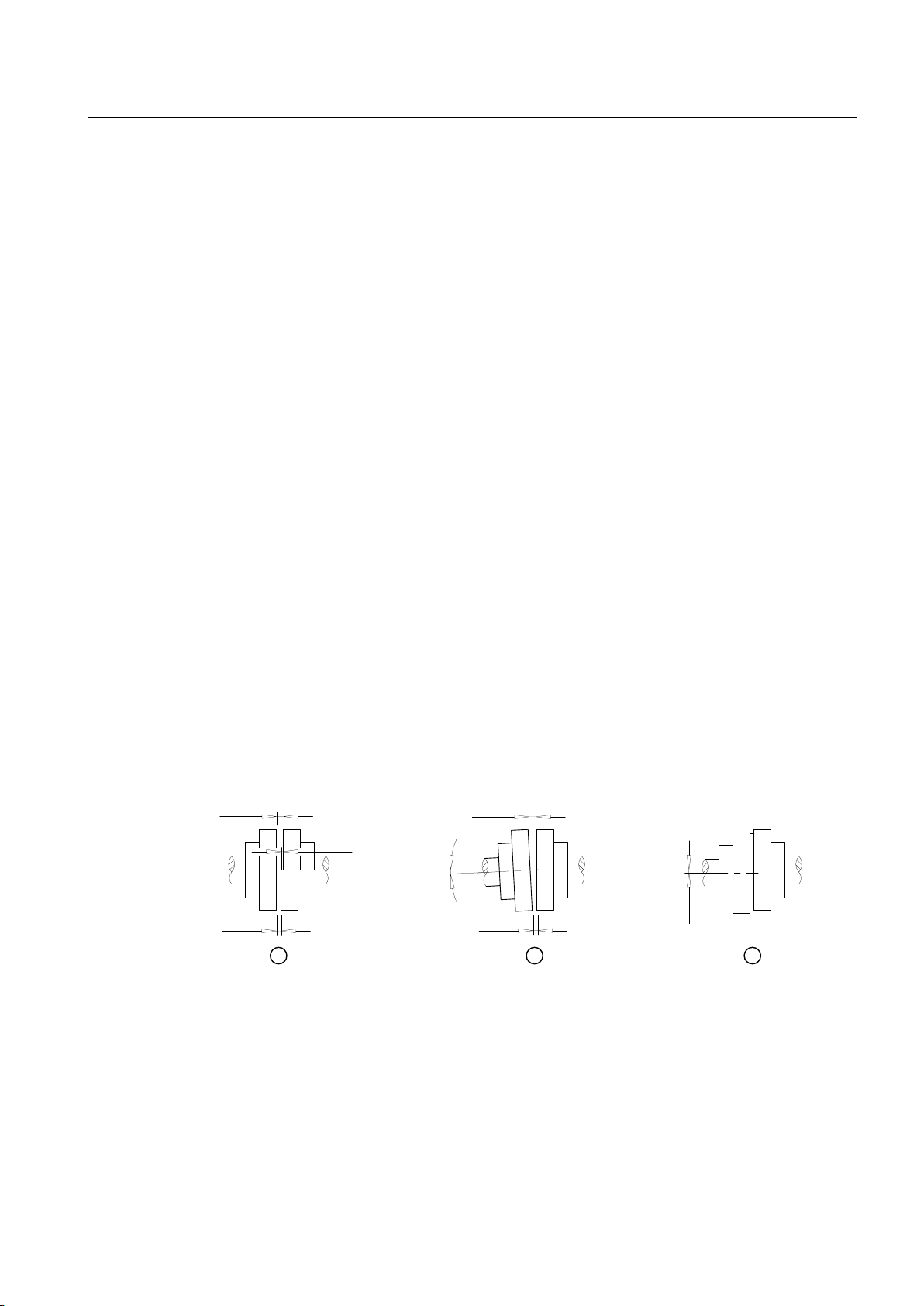

Figure 5-1 Possible misalignment.................................................................................................................29

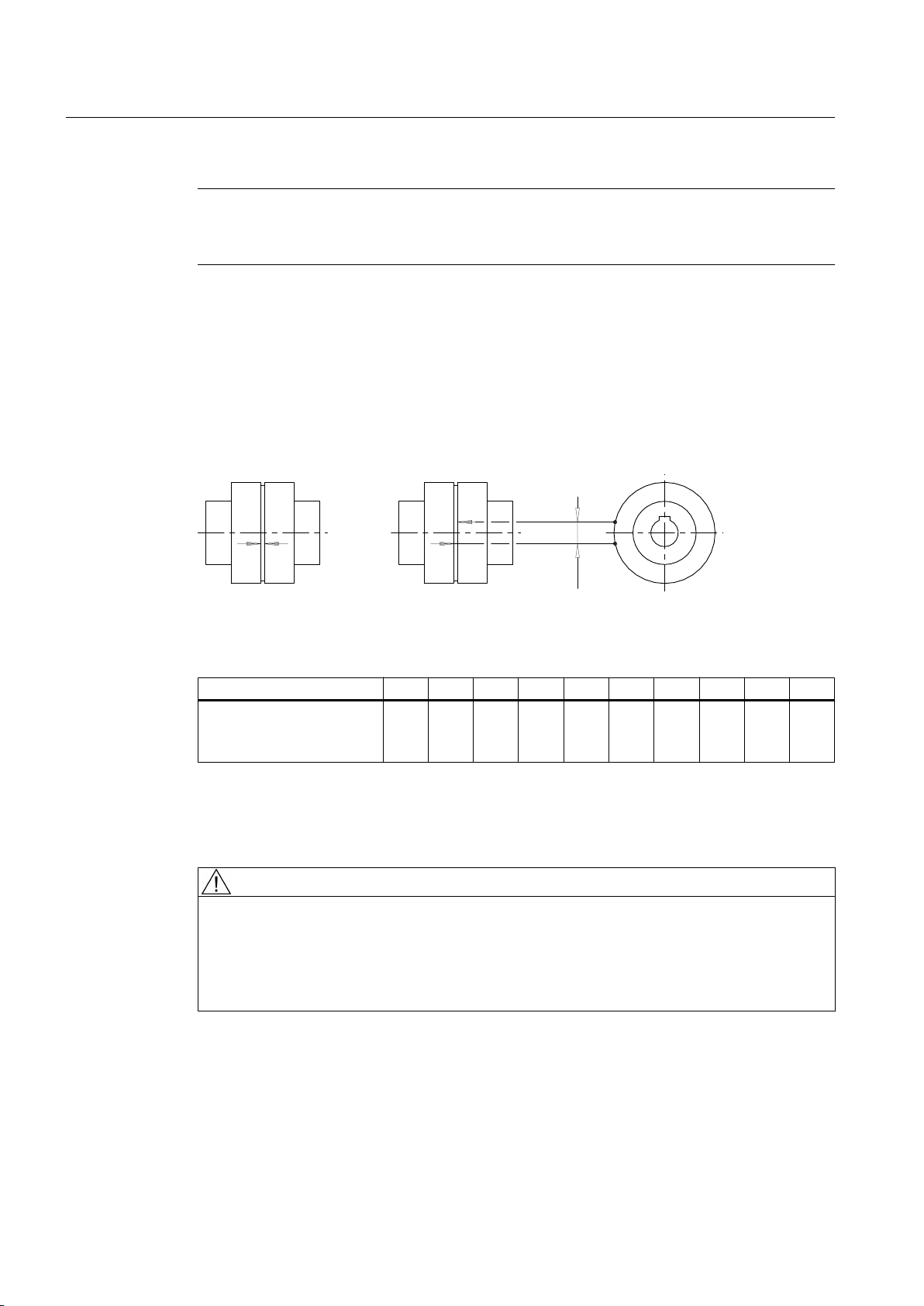

Figure 8-1 Markings for calculating the torsional backlash...........................................................................40
Figure 11-1 Spare parts drawing for type BNN...............................................................................................48
Figure 11-2 Spare parts drawing for type BGG..............................................................................................49
Figure 11-3 Spare parts drawing for type BCC...............................................................................................50
Figure 11-4 Spare parts drawing for type BHH...............................................................................................51
Figure 11-5 Spare parts drawing for type BKK...............................................................................................52
BIPEX-S 3410en
Operating Instructions 10/2017 7
Page 8
Table of contents
Figure 11-6 Spare parts drawing for type BCS...............................................................................................53
Figure 11-7 Spare parts drawing for type BHH-W..........................................................................................54

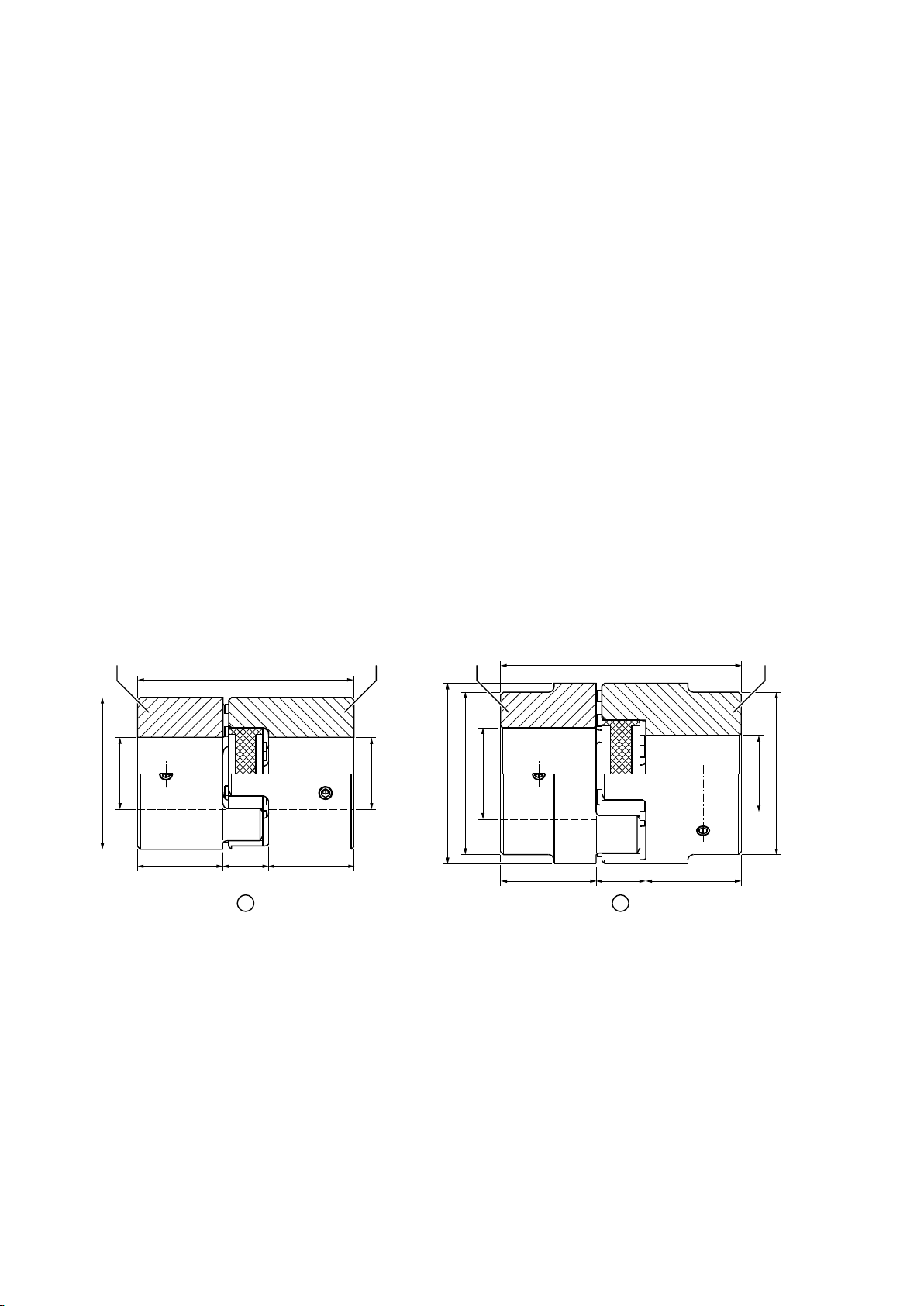

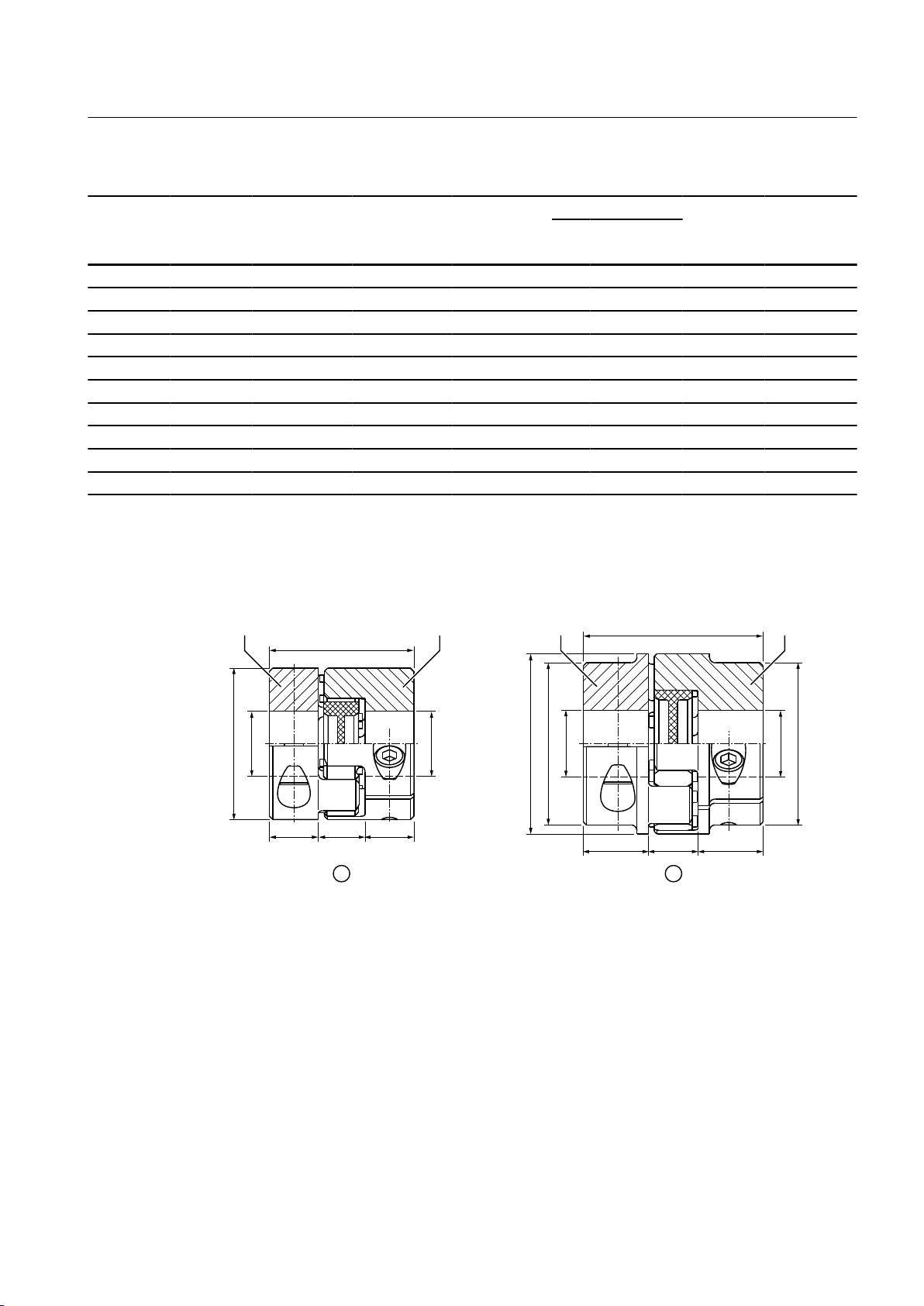

Figure A-1 Type BNN....................................................................................................................................55
Figure A-2 Type BGG...................................................................................................................................56
Figure A-3 Type BCC....................................................................................................................................57
Figure A-4 Type BHH....................................................................................................................................58
Figure A-5 Type BKK....................................................................................................................................59
Figure A-6 Type BCS....................................................................................................................................60

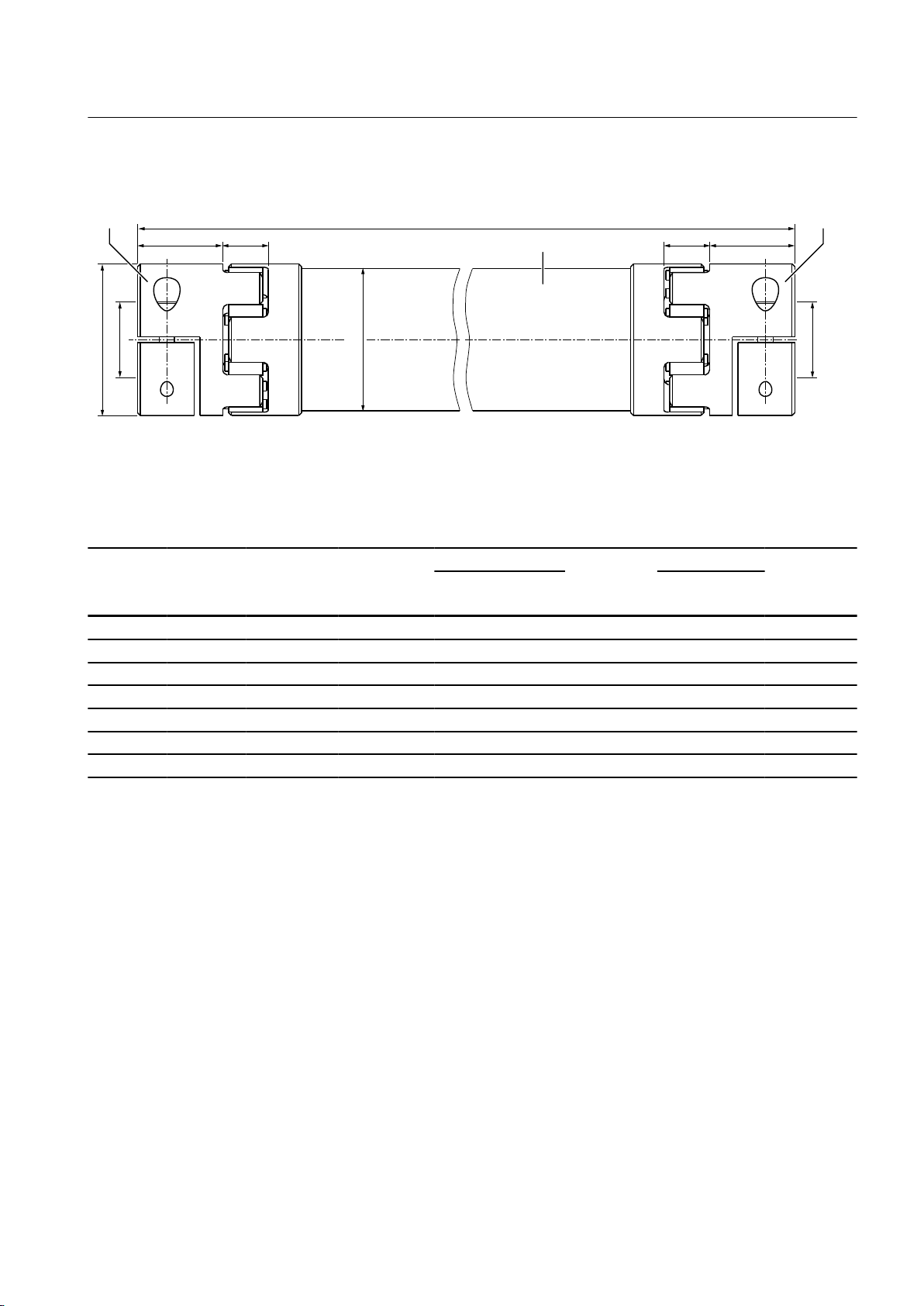

Figure A-7 Type BHH-W...............................................................................................................................61
BIPEX-S 3410en
8 Operating Instructions 10/2017
Page 9
Introduction
1.1 About these instructions
These instructions describe the coupling and provide information about its handling - from
assembly to maintenance. Please keep these instructions for later use.
Please read these instructions prior to handling the coupling and follow the information in them.
1.2 Text attributes
The warning notice system is explained on the back of the inner cover. Always follow the safety
information and notices in these instructions.
In addition to the warning notices, which have to be observed without fail, you will find the
following text attributes in these instructions:
1. Procedural instructions are shown as a numbered list. Always perform the steps in the order
given.
● Lists are formatted as bulleted lists.
– The dash is used for lists at the second level.
1
(1) Numbers in brackets are part numbers.
Note
A note is an important item of information about the product, the handling of the product or the
relevant section of the instructions. The note provides you with help or further suggestions/
ideas.
1.3 Copyright
The copyright for these instructions is held by Flender.
These instructions must not be used wholly or in parts without our authorisation or be given to
third parties.
If you have any technical queries, please contact our factory or one of our service outlets (refer
to Service and support (Page 43)).
BIPEX-S 3410en
Operating Instructions 10/2017 9
Page 10
Introduction
1.3 Copyright
BIPEX-S 3410en
10 Operating Instructions 10/2017
Page 11
Safety instructions
2.1 General information
Instructions
These instructions are part of the delivery. Always keep these instructions close to the coupling.
Please make sure that every person who is commissioned to work on the coupling has read
and understood these instructions prior to handling the coupling and observes all of the points.
Only the knowledge of these instructions can avoid faults on the coupling and ensure fault-free
and safe operation. Non-adherence to the instructions can cause product or property damage
or personal injury. Flender does not accept any liability for damage or operating failures that
are due to non-adherence to these instructions.
State of the art
The coupling described here has been designed in consideration of the latest findings for
demanding technical requirements. This coupling is state-of-the-art at the time of printing these
instructions.
In the interest of further development, Flender reserves the right to make such changes to the
individual components and accessories that increase performance and safety whilst
maintaining the essential features.
2
Symbols
ISO ANSI Warning
Warning - hazardous electrical voltage
--- Warning - entanglement hazard
--- Warning - hot surfaces
--- Warning - substances that are harmful to health or are irritants
--- Warning - corrosive substances
BIPEX-S 3410en
Operating Instructions 10/2017 11
Page 12
Safety instructions
2.2 Intended use
ISO ANSI Warning
--- Warning - suspended load
--- Warning - hand injuries
Explanation regarding Machinery Directive 2006/42/EC
The couplings described here are “components” in accordance with the Machinery Directive
and do not require a declaration of incorporation.
Protective clothing
In addition to the generally prescribed personal protective equipment (safety shoes, overalls,
helmet, etc.), also wear suitable safety gloves and safety goggles when handling the coupling.
Using the coupling
The relevant work safety and environmental protection regulations must be complied with at
all times during transport, assembly, installation, dismantling, operation and maintenance of
the coupling.
Only qualified personnel may operate, assemble, maintain and repair the coupling. Information
about qualified personnel can be found in the legal notes at the beginning of these instructions.
If lifting gear or load suspension devices are used for transporting, these have to be suitable
for the weight of the coupling.
If the coupling has visible damage, it may not be assembled or put into operation.
The coupling may only be operated in a suitable housing or with touch protection according to
applicable standards. This also applies to test runs and rotational direction checks.
Work on the coupling
Only carry out work on the coupling when it is not in operation and is not under load.
Secure the drive unit against being switched on accidentally. Attach a notice to the switch
stating clearly that work is being carried out on the coupling. Ensure that the entire unit is not
under load.
2.2 Intended use
Only use the coupling according to the conditions specified in the service and delivery contract
and the technical data in the annex. Deviating operating conditions are considered improper
use. The user or owner of the machine or plant is solely liable for any resulting damage.
BIPEX-S 3410en
12 Operating Instructions 10/2017
Page 13
When using the coupling please specifically observe the following:
● Do not make any modifications to the coupling that go beyond the permissible machining
described in these instructions. This also applies to touch protection facilities.
● Only use original spare parts from Flender. Flender only accepts liability for original spare
parts from Flender.
Other spare parts are not tested and approved by Flender. Non-approved spare parts may
possibly change the design characteristics of the coupling and thus impact active and/or
passive safety.
Flender will accept no liability or warranty whatsoever for damage occurring as a result of
the use of non-approved spare parts. The same applies to any accessories that were not
supplied by Flender.
If you have any queries, please contact our customer service (see Service and support
(Page 43)).
2.3 General warning notices
Safety instructions
2.3 General warning notices
WARNING
Danger due to bursting of the coupling
The coupling may burst if it is not used properly. There is a risk of fatal injury from flying
fragments.
● Use the coupling for the purpose for which it is intended.
WARNING
Danger from hot coupling parts
Risk of injury due to hot surfaces.
● Wear suitable protective equipment (gloves, safety goggles).
WARNING
Risk of chemical burns due to chemical substances
There is a risk of chemical burns when handling aggressive cleaning agents.
● Please observe the manufacturer's information on how to handle cleaning agents and
solvents.
● Wear suitable protective equipment (gloves, safety goggles).
CAUTION
Physical injury
Risk of injury due to falling coupling parts.
● Secure the coupling parts to prevent them from falling.
BIPEX-S 3410en
Operating Instructions 10/2017 13
Page 14
Safety instructions
2.3 General warning notices
BIPEX-S 3410en
14 Operating Instructions 10/2017
Page 15
Description
Application
Design
3
The BIPEX-S couplings described here are torsionally flexible claw couplings that are free of
torsional backlash and are available in various types and sizes. They are characterised by a
very compact design.
BIPEX-S couplings are fail-safe.
These instructions describe the assembly and operation of a BIPEX-S coupling arranged
horizontally with a shaft-hub connection made by a cylindrical or conical bore with a parallel
key or by various clamping connections. Please consult Flender if you want to use a different
type of installation.
BIPEX-S couplings are designed for use in all kinds of machines. They are primarily used in
drive units with torque transmission without any backlash and only low misalignment.
A BIPEX-S coupling consists of two hub parts that are connected to one another by a cam ring
made of an elastomer material. In the BHH-W type the hub parts are connected to one another
by two cam rings and a spacer.
The cam ring is fitted between the hub cams with a small amount of interference. The coupling
characteristic of zero backlash is based on this.
The hub parts are joined to the shaft by finished bores with a parallel key or various clamping
connections.
The diagrams show the various types with their constituent parts and their part numbers.
BIPEX-S 3410en
Operating Instructions 10/2017 15
Page 16
Description

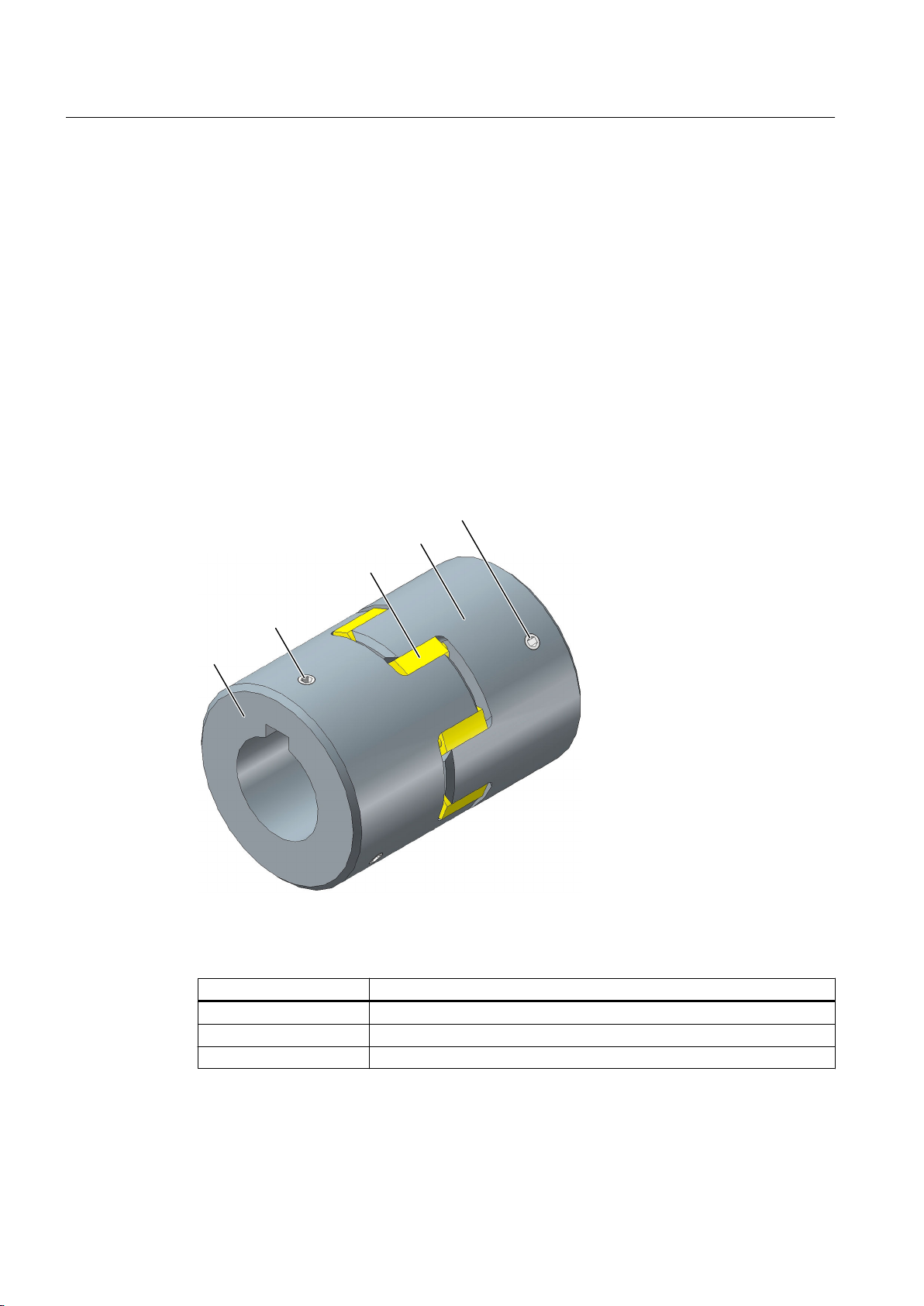

1 Coupling part N
11 Set screw
20 Cam ring
Figure 3-1 Type BNN
BIPEX-S 3410en
16 Operating Instructions 10/2017
Page 17
Description

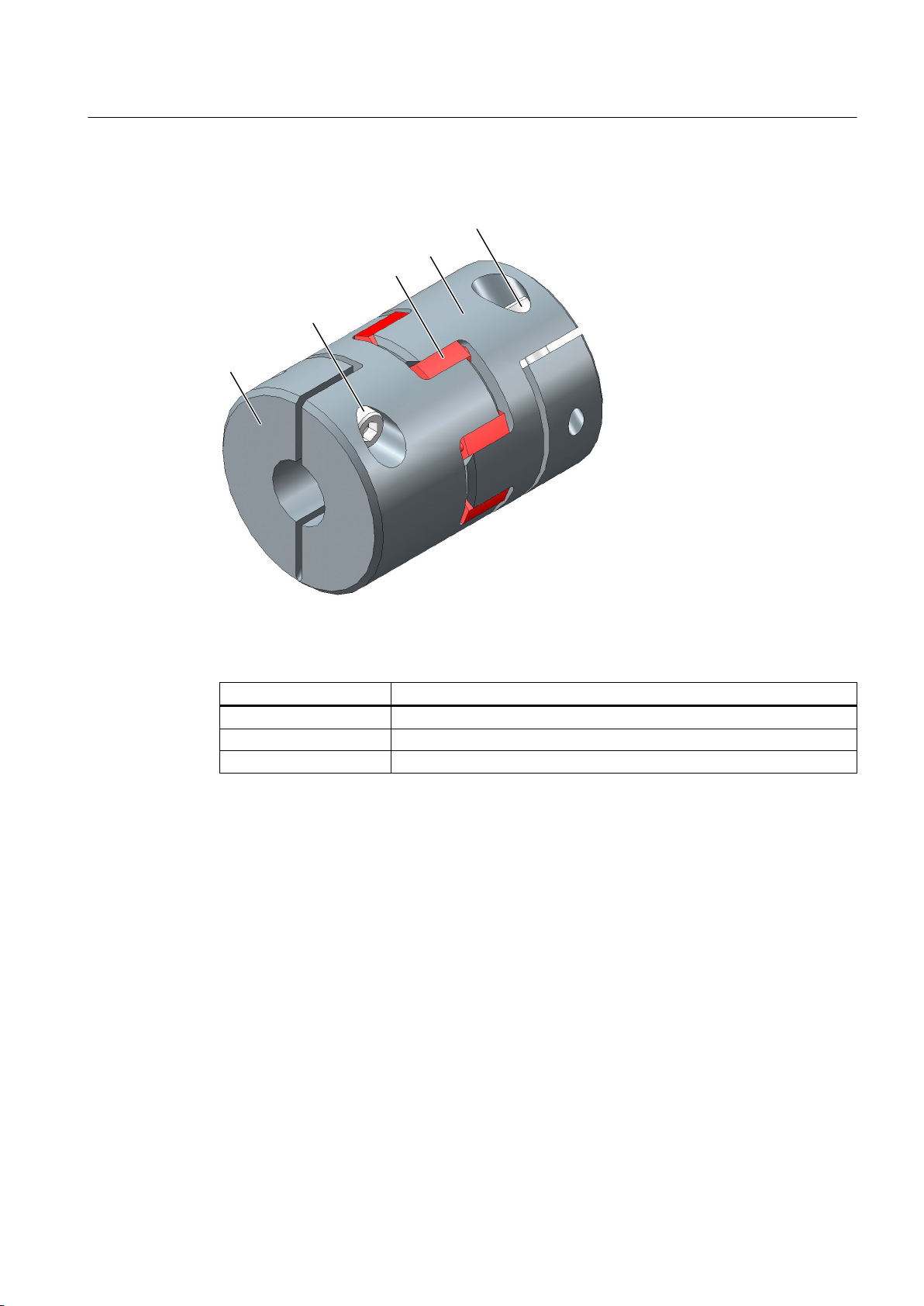

2 Coupling part G
12 Cylinder-head screw
20 Cam ring
Figure 3-2 Type BGG
3 Coupling part C
12 Cylinder-head screw
20 Cam ring
Figure 3-3 Type BCC
BIPEX-S 3410en
Operating Instructions 10/2017 17
Page 18
Description

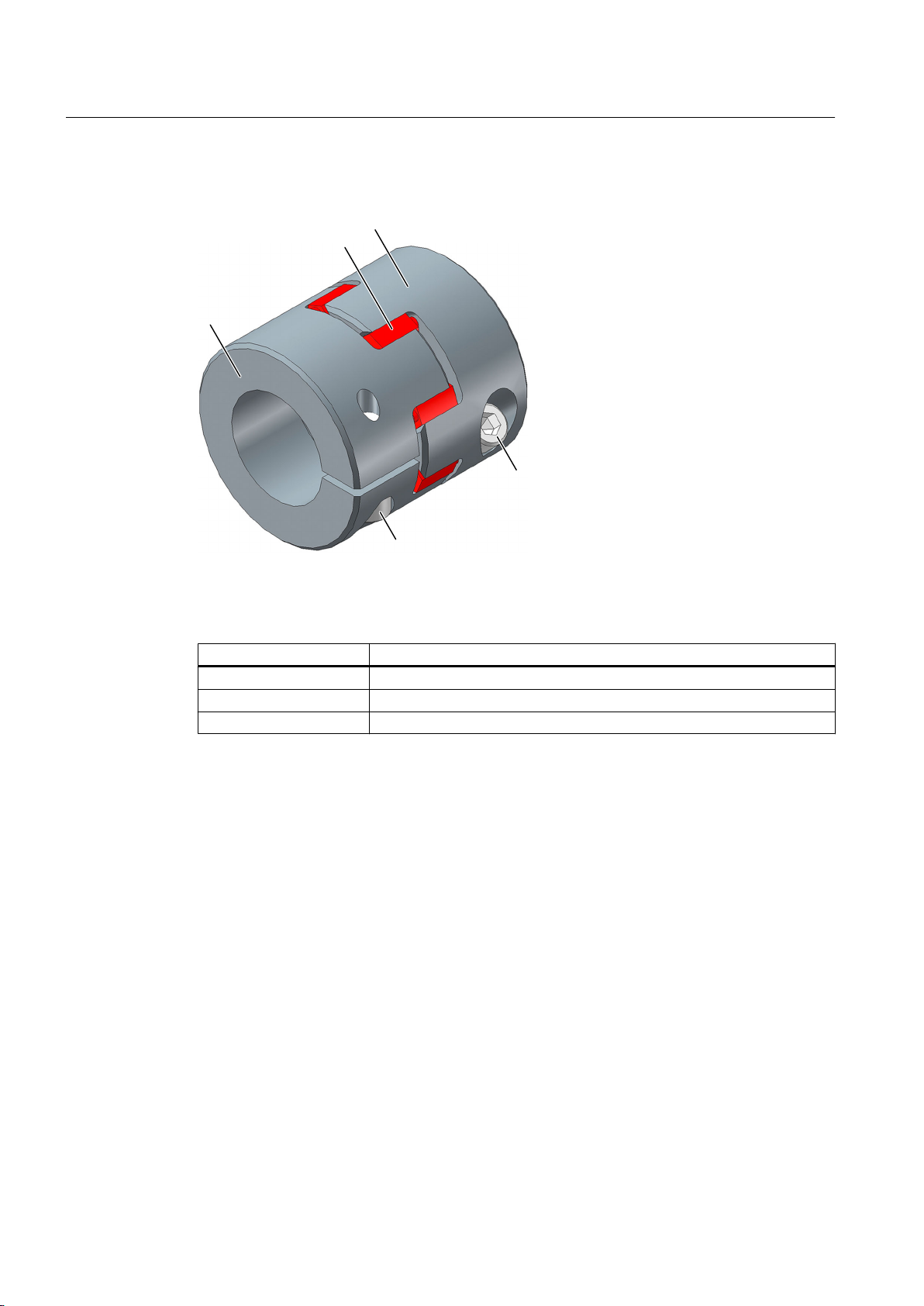

4 Coupling part H
12 Cylinder-head screw
20 Cam ring
Figure 3-4 Type BHH
BIPEX-S 3410en
18 Operating Instructions 10/2017
Page 19
Description
5 Coupling part K
12 Cylinder-head screw
20 Cam ring
Figure 3-5 Type BKK
BIPEX-S 3410en
Operating Instructions 10/2017 19
Page 20
Description
3 Coupling part C
6 Coupling part S
12 Cylinder-head screw
13 Cylinder-head screw
20 Cam ring
61 Clamping taper
Figure 3-6 Type BCS
BIPEX-S 3410en
20 Operating Instructions 10/2017
Page 21
Description
4 Coupling part H
7 Spacer W
12 Cylinder-head screw
20 Cam ring
Figure 3-7 Type BHH-W
BIPEX-S 3410en
Operating Instructions 10/2017 21
Page 22
Description
BIPEX-S 3410en
22 Operating Instructions 10/2017
Page 23
Application planning
7KLVZD\XS)UDJLOH.HHS
GU\
.HHS
GU\
&HQWUHRIJUDYLW\'RQRW
XVHKDQGKRRN
$WWDFKKHUH
Check the delivery for damage and for completeness. Report any damage and/or missing parts
to Flender immediately.
The coupling is delivered in individual parts and preassembled groups. Preassembled groups
may not be dismantled.
4.1 Transport of the coupling
WARNING
Severe personal injury due to improper transport
Severe personal injury due to falling components or due to crushing. Damage to coupling
parts possible due to use of unsuitable transport means.
● Only use lifting gear and load suspension devices with sufficient load bearing capacity for
transport.
● Please observe the symbols applied on the packaging.
4
If not specifically contractually agreed otherwise, the packaging complies with the HPE
Packaging Directive.
Figure 4-1 Transport symbols
4.2 Storage of the coupling
NOTICE
Property damage due to improper storage
Negative changes to the physical properties of the coupling and/or coupling damage.
● Please observe the information about storing the coupling.
BIPEX-S 3410en
Operating Instructions 10/2017 23
Page 24
Application planning
4.2 Storage of the coupling
The coupling, unless not specifically ordered otherwise, is supplied with preservation and can
be stored for up to 3 months.
Note
Information about storing the coupling
● Ensure that the storage room is dry (relative humidity < 65 %) and free of dust.
● Ensure that there is no condensation.
● Do not store the coupling together with corrosive chemicals, acids, caustic solutions, etc.
● If the coupling contains elastomer components, ensure that there are no devices in the
storage room that produce ozone, such as fluorescent lights, mercury vapour lamps or highvoltage electrical equipment.
● Store the coupling on suitable supports or in suitable containers.
Long-term storage
NOTICE
Property damage due to improper long-term storage
Negative changes to the physical properties of the coupling and/or coupling damage.
● Note the handling instructions for long-term storage.
1. You can find the required type of preservative agent in the following table (types of
preservative agents for long-term storage).
2. Remove the elastomer components. These must not come into contact with cleaning agents
and long-term preservative agents.
3. Clean the coupling parts.
4. Apply the stipulated preservative agent.
5. Store the coupling parts and the elastomer components separately.
Table 4-1 Types of preservative agents for long-term storage
Preservative agents Features Indoor storage Outdoor storage
Oil spray Anti-corrosion agent Up to 12 months Up to 4 months
Tectyl 846 or similar Long-term preservative agent on
wax basis
Emulsion cleaner + VCI foil Active system, reusable Up to 5 years Up to 5 years
Up to 36 months Up to 12 months
BIPEX-S 3410en
24 Operating Instructions 10/2017
Page 25
Assembly
5
Assembly of the coupling comprises the following steps:
● Preparatory work (Page 25)
● Assembling the coupling (Page 26)
● Aligning the coupling (Page 29)
WARNING
Danger of injury due to bursting of the coupling
If you do not observe the information stipulated here regarding assembly, this can lead to
bursting of the coupling during operation. There is a risk of fatal injury from flying fragments.
● Please observe all the stipulations concerning assembly.
Note
Information about the assembly of the coupling
● Only use undamaged components for the assembly of the coupling.
● Follow the assembly sequence.
● Please ensure that there is sufficient space at the assembly location and that the location
is tidy and clean in order to be able to assemble and maintain the coupling without any risk.
● If a dimension drawing has been created for the coupling, please observe the information
it contains as a matter of priority.
5.1 Preparatory work
No preparatory work is required, since the coupling is supplied finish bored, grooved and
balanced.
Balancing is performed to customer specifications or according to the half-parallel key
agreement (DIN ISO 21940-32) to balancing quality G16 (DIN ISO 21940).
BIPEX-S 3410en
Operating Instructions 10/2017 25
Page 26
Assembly
5.2 Assembling the coupling
5.2 Assembling the coupling
NOTICE
Property damage
Damage to the elastomer components from cleaning agents.
● Ensure that the elastomer components do not come into contact with cleaning agents.
NOTICE
Property damage
Damage to the shaft end, the coupling parts and/or the parallel key.
● Note the handling instructions regarding assembly of the coupling parts.
Assembly of the coupling comprises the following steps:
● Assembling the coupling parts (Page 26)
● Plug-in assembly of the coupling halves (Page 28)
5.2.1 Assembling the coupling parts
The assembly procedure depends on which coupling part you wish to assemble.
● Attach the coupling part N (1) with parallel key to the shaft (Page 26)
● Attaching coupling part G (2), C (3), H (4) or K (5) to the shaft with a clamping connection
(Page 27)
● Attach coupling part S (6) to the hollow shaft with a clamping connection (Page 27)
5.2.1.1 Attach the coupling part N (1) with parallel key to the shaft
Procedure
1. Undo the set screws until it is no longer possible for there to be a collision with the parallel
key or the shaft.
2. Clean the bores and shaft ends.
BIPEX-S 3410en
26 Operating Instructions 10/2017
Page 27
Assembly
5.2 Assembling the coupling
3. Put coupling part N (1) on the shaft.
Note
Coupling parts with cylindrical bore
To make assembly easier, you can heat coupling part N (1) with cylindrical bore up to a
maximum of 150 °C if required. Note when doing this the temperature range of the cam
ring (20) (refer to section BIPEX-S cam ring (20) (Page 64)). Remove the cam ring (20)
where appropriate. Protect adjacent components against damage and heating to
temperatures above 80 °C.
4. Secure the coupling part with the set screws. When doing this the shaft must not protrude
or be set back from the inner side of the hub.
5. Tighten the set screws to the specified tightening torque TA (see section ).
6. If you have removed the cam ring (20), re-fit the cam ring (20).
5.2.1.2 Attaching coupling part G (2), C (3), H (4) or K (5) to the shaft with a clamping connection
Procedure
1. Undo the cylinder-head screws (12).
2. Clean the bores and shaft ends.
3. Put coupling parts G (2), C (3), H (4) or K (5) on the shaft.
4. When doing this the shaft must not protrude or be set back from the inner side of the hub.
5. Tighten the cylinder-head screws (12) as follows:
– Coupling parts G (2) and C (3)
Tighten the cylinder-head screw (12) to the specified tightening torque TA (see section
Tightening torques and widths A/F (Page 63)).
– Coupling part H (4)
Tighten the cylinder-head screws (12) in alternating order in several stages up to the
specified tightening torque TA (see section Tightening torques and widths A/F
(Page 63)).
– Coupling part K (5)
Tighten the cylinder-head screws (12) in crisscross rotation in several stages to the
specified tightening torque TA (see section Tightening torques and widths A/F
(Page 63)).
5.2.1.3 Attach coupling part S (6) to the hollow shaft with a clamping connection
Procedure
1. Undo the cylinder-head screw (13) and the clamping taper (61).
2. Clean, de-grease/de-oil and dry the hollow shaft hole and the force fit of the coupling
part S (6).
BIPEX-S 3410en
Operating Instructions 10/2017 27
Page 28
Assembly
5.2 Assembling the coupling
3. Insert the coupling part S (6) with cylinder-head screw (13) and clamping taper (61) into
the hollow shaft.
4. Tighten the cylinder-head screw (13) to the specified tightening torque TA (see section
Tightening torques and widths A/F (Page 63)).
5.2.2 Plug-in assembly of the coupling halves
Note
As a result of the interference between the cams and the cam ring (20) an axial force is required
to insert the coupling parts axially. The axial force depends on the size of the coupling and the
Shore hardness of the cam ring (20). It increases again after insertion so that there is no
permanent stressing of the coupled units.
The assembly procedure depends on which type you wish to assemble.
● Plug-in assembly of types BNN, BGG, BCC, BHH, BKK and BCS (Page 28)
● Plug-in assembly of type BHH-W (Page 28)
5.2.2.1 Plug-in assembly of types BNN, BGG, BCC, BHH, BKK and BCS
Procedure
1. Push the cam ring (20) onto a coupling part.
2. Push the coupling halves together. When doing this, pay attention to the dimension S from
section Speeds, geometry data and weights (Page 55).
5.2.2.2 Plug-in assembly of type BHH-W
Procedure
1. Push a cam ring (20) onto each coupling part H.
2. Push the spacer W (7) into a coupling part H and hold or support the spacer W (7).
3. Push the coupling halves together. When doing this, pay attention to the dimension S from
section Speeds, geometry data and weights (Page 55).
BIPEX-S 3410en
28 Operating Instructions 10/2017
Page 29
5.3 Aligning the coupling
ෙ.D
ෙ.Z
ෙ.U
6
PD[
6
PLQ
6
PLQ
6
PD[
5.3.1 Purpose of alignment
The shafts that are joined by the coupling are never on an ideal precise axis but have a certain
amount of misalignment.
Misalignment in the coupling leads to restoring forces that can stress adjacent machine parts
(e.g. the bearings) to an unacceptable extent.
The misalignment values in operation result from the following:
● Misalignment due to assembly
Incorrect position due to a lack of precision when aligning
● Misalignment due to operation
Example: Load-related deformation, thermal expansion
You can minimise misalignment by aligning after assembly. A lower misalignment in the
coupling has the following advantages:
● Reduced wear of the elastomer components
Assembly
5.3 Aligning the coupling
● Reduced restoring forces
● Misalignment reserves for operation of the coupling
You can find the maximum permitted shaft misalignment values during operation in section
Shaft misalignment values during operation (Page 62).
5.3.2 Possible misalignment
The following types of misalignment can occur:
① Axial misalignment (ΔKa)
② Angular misalignment (ΔKw)
③ Radial misalignment (ΔKr)
Figure 5-1 Possible misalignment
BIPEX-S 3410en
Operating Instructions 10/2017 29
Page 30
Assembly
5.3 Aligning the coupling
NOTICE
Property damage
The specified permissible values for axial, angular and/or radial misalignment may not appear
simultaneously.
● Halve the values for if axial, angular and/or radial misalignment if they appear
simultaneously.
5.3.2.1 Axial misalignment
Set the axial misalignment ΔKa to a value within the permissible tolerance range of dimension
S.
You can find the values for dimension S in section Speeds, geometry data and weights
(Page 55).
5.3.2.2 Angular misalignment
Determine the value ΔS (ΔS = S
ΔS
.
perm
You can find the values for ΔS
(Page 62).
If required, you can calculate the angular misalignment ΔKw as follows:
ΔKw [rad] = ΔS / DA
ΔKw [deg] = (ΔS / DA) · (180 / π)
If required, you can calculate the permissible angular misalignment ΔKw
ΔKw
ΔKw
[rad] = ΔS
perm
[deg] = (ΔS
perm
DA in mm see section Speeds, geometry data and weights (Page 55)
ΔS
see section Shaft misalignment values during operation (Page 62)
perm
5.3.2.3 Radial misalignment
Determine the value ΔKr. The determined value ΔKr may not exceed the value ΔKr
You can find the permissible radial misalignment ΔKr
during operation (Page 62).
/ DA
perm
/ DA) · (180 / π)
perm
- S
max
perm
). The determined value ΔS may not exceed the value
min
in section Shaft misalignment values during operation
as follows:
perm
in section Shaft misalignment values
perm
perm
.
BIPEX-S 3410en
30 Operating Instructions 10/2017
Page 31
Commissioning
In order to ensure safe commissioning, carry out various tests prior to commissioning.
Testing before commissioning
WARNING
Danger
Overload conditions can occur during the commissioning of the coupling. The coupling can
burst and metal parts can be flung out. There is a risk of fatal injury from flying fragments.
● Carry out the tests prior to commissioning.
● Do not touch the rotating coupling.
1. Check the tightening torques of the screws of the coupling in accordance with section
Tightening torques and widths A/F (Page 63).
2. Check the tightening torques of the foundation bolts of the coupled machines.
3. Check whether the enclosures (coupling guard, touch protection) have been installed and
that the function of the coupling has not been adversely affected by the enclosure. This
also applies to test runs and rotational direction checks.
6
BIPEX-S 3410en
Operating Instructions 10/2017 31
Page 32
Commissioning
BIPEX-S 3410en
32 Operating Instructions 10/2017
Page 33
Operation
7.1 Normal operation of the coupling
The coupling runs quietly and shock-free during normal operation.
7.2 Faults - causes and rectification
A form of behaviour which is different to normal operation is classed as a fault and has to be
rectified immediately.
Look out specifically for the following faults during coupling operation:
● Unusual coupling noise
● Sudden occurrence of shocks
7.2.1 Procedure in the event of malfunctions
7
WARNING
Danger due to bursting of the coupling
There is a risk of fatal injury from flying fragments.
● Switch off the unit at once if any malfunctions occur.
● Note during the maintenance work the possible causes of faults and the notes on rectifying
them.
Proceed as described below if there is a malfunction of the coupling during operation:
1. De-energise the drive immediately.
2. Initiate the required action for repair, taking into consideration the applicable safety
regulations.
If you cannot determine the cause or if you cannot carry out repair work with your own means,
request one of our customer service technicians.
7.2.2 Identifying the fault cause
Faults occur frequently due to application errors or they occur due to operational circumstances
such as wear of wearing parts or changes to the system.
BIPEX-S 3410en
Operating Instructions 10/2017 33
Page 34
Operation
7.2 Faults - causes and rectification
The faults and fault causes listed below only serve as an indication for troubleshooting. In the
case of a complex system be sure to include all the system components in the search for the
fault.
WARNING
Physical injury
Injury from rotating parts.
● Only carry out work on the coupling when it is not moving.
● Secure the drive unit against being operated accidentally.
● Attach a notice to the switch stating clearly that work is being carried out on the coupling.
● Before starting any work, make sure that the unit is free from loads.
Intended use
The coupling is only approved for the applications specified in these instructions. Please
observe all the stipulations in section Intended use (Page 12).
7.2.2.1 Possible faults
Table 7-1 Table of faults
Fault Cause Rectification
Sudden changes in the noise level and/
or sudden occurrences of shocks
Wear of wearing parts Follow the instructions given in section
Replacing wearing parts (Page 36).
Changed alignment Follow the instructions given in section
Correcting the changed alignment
(Page 37).
Coupling not suitable for the operating
conditions.
Check the possible causes given in sec‐
tion Unsuitable coupling (Page 35).
Incorrect assembly of the coupling.
Check the possible causes given in sec‐
tions Assembly-related causes
(Page 35) and Specific installation-rela‐
ted and maintenance-related causes
(Page 36).
Incorrect maintenance of the coupling.
Check the possible causes given in sec‐
tions Maintenance-related causes
(Page 36) and Specific installation-rela‐
ted and maintenance-related causes
(Page 36).
Use a coupling that is suitable for the
operating conditions.
Reassemble the coupling in accordance
with these instructions.
Please observe all the stipulations and
requirements given in chapter Assem‐
bly (Page 25).
Please observe all the stipulations and
requirements given in chapter Servic‐
ing (Page 39).
BIPEX-S 3410en
34 Operating Instructions 10/2017
Page 35
7.2 Faults - causes and rectification
Fault Cause Rectification
Presence of vibration Coupling not suitable for the operating
conditions.
Check the possible causes given in sec‐
tion Unsuitable coupling (Page 35).
Incorrect assembly of the coupling.
Check the possible causes given in sec‐
tions Assembly-related causes
(Page 35) and Specific installation-rela‐
ted and maintenance-related causes
(Page 36).
Incorrect maintenance of the coupling.
Check the possible causes given in sec‐
tions Maintenance-related causes
(Page 36) and Specific installation-rela‐
ted and maintenance-related causes
(Page 36).
Use a coupling that is suitable for the
operating conditions.
Reassemble the coupling in accordance
with these instructions.
Please observe all the stipulations and
requirements given in chapter Assem‐
bly (Page 25).
Please observe all the stipulations and
requirements given in chapter Servic‐
ing (Page 39).
7.2.2.2 Possible causes
Operation
Unsuitable coupling
● Important information on the description of the drive unit and the environment were not
● System torque too high and/or torque dynamics not permissible.
● System speed too high.
● Application factor not selected correctly.
● Chemically aggressive environment not taken into consideration.
● Coupling not suitable for the ambient temperature.
● Diameter and/or assigned fit of the finished bore not permissible.
● Width across corners of the parallel keyways greater than the width across corners of the
● Shaft-hub connection incorrectly sized.
● Maximum permissible load conditions not taken into consideration.
● Maximum permissible overload conditions not taken into consideration.
● Dynamic load conditions not taken into consideration.
● Coupling and the machine and/or drive train form a critical torsional, axial or bending
available when the coupling was chosen.
parallel keyways in accordance with DIN 6885/1 for the maximum permissible bore.
vibration system.
Assembly-related causes
● Damaged parts installed.
● Shaft diameter outside the stipulated tolerance range.
BIPEX-S 3410en
Operating Instructions 10/2017 35
Page 36
Operation
7.2 Faults - causes and rectification
● Coupling parts interchanged and hence not assigned to the specified shaft.
● Stipulated locking elements to prevent axial movements not installed.
● Stipulated tightening torques not adhered to.
● Bolts inserted dry or greased.
● Flange surfaces of screwed connections not cleaned.
● Alignment and/or shaft misalignment values not set in accordance with the instructions.
● Coupled machines were not correctly connected to the foundation so that a shifting of the
machines leads to an impermissible displacement of the coupling parts.
● Coupled machines not earthed adequately.
● Coupling guard used is not suitable.
Maintenance-related causes
● Stipulated maintenance intervals not adhered to.
● Spare parts that were used were not original spare parts from Flender.
● Flender spare parts that were used were old or damaged.
● Leak in the area of the coupling not detected so that chemically aggressive substances
damage the coupling.
● Indications of faults, such as noise or vibration, were not heeded.
● Stipulated tightening torques not adhered to.
● Alignment and/or shaft misalignment values not set in accordance with the instructions.
Specific installation-related and maintenance-related causes
● Cam ring (20) not fitted.
● Fitted cam ring (20) heated up excessively when applying heat to the coupling parts.
7.2.3 Correcting faults
7.2.3.1 Replacing wearing parts
Cam rings (20) are subject to wear and this wear can result in torsional backlash.
Procedure
1. Check the wear on the cam ring (20) (see section Maximum permissible torsional
backlash (Page 40)).
2. Replace the cam ring (20) where appropriate (see section Replacing wearing parts
(Page 40)).
BIPEX-S 3410en
36 Operating Instructions 10/2017
Page 37
7.2.3.2 Correcting the changed alignment
A changed alignment of the coupling during operation often occurs when the coupled machines
shift towards one another. A cause of this can be loose foundation bolts.
Procedure
1. Correct the cause for the change in alignment.
2. Check the wearing parts for wear and replace them as required.
3. Check the locking elements that prevent axial movements and correct these as required.
4. Realign the coupling.
Operation
7.2 Faults - causes and rectification
BIPEX-S 3410en
Operating Instructions 10/2017 37
Page 38
Operation
7.2 Faults - causes and rectification
BIPEX-S 3410en
38 Operating Instructions 10/2017
Page 39
Servicing
8.1 Maintenance intervals
WARNING
Danger of injury due to bursting of the coupling
The coupling can burst if the maintenance intervals are not adhered to. There is a risk of fatal
injury from flying fragments.
● Please observe all the stipulations concerning maintenance of the coupling in this section.
WARNING
Danger of injury due to bursting of the coupling
The coupling can burst if the maximum permitted torsional backlash is exceeded. There is a
risk of fatal injury from flying fragments.
● Note also the actual wear of the elastomer components.
WARNING
8
Physical injury
Injury from rotating parts.
● Only carry out work on the coupling when it is not moving.
● Secure the drive unit against being operated accidentally.
● Attach a notice to the switch stating clearly that work is being carried out on the coupling.
● Before starting any work, make sure that the unit is free from loads.
Check the torsional backlash between the coupling parts at the specified maintenance
intervals.
● No wear is permitted at the cam ring (20) for applications without backlash. Replace the
cam ring (20) as soon as any torsional backlash is found.
● The maximum permissible torsional backlash for the various types for other applications
can be found in section Maximum permissible torsional backlash (Page 40).
Table 8-1 Maintenance intervals
Type Initial maintenance Follow-up maintenance
All types 3 months after commissioning Every 12 months
BIPEX-S 3410en
Operating Instructions 10/2017 39
Page 40
ෙ6
9
Servicing
8.2 Maximum permissible torsional backlash
Note
Shorter maintenance intervals
If necessary, set shorter maintenance intervals depending on actual wear.
8.2 Maximum permissible torsional backlash
In order to calculate the torsional backlash, rotate one coupling part without applying torque
up to the stop. Mark both of the coupling halves in the way shown in the diagram below. Turn
the coupling part in the opposite direction up to the stop. The markings on both halves will then
move apart. The distance between the markings corresponds to the torsional backlash.
Figure 8-1 Markings for calculating the torsional backlash
Table 8-2 Maximum permissible torsional backlash for the BIPEX-S coupling
Size 5 7 9 14 19 24 28 38 42 48
Maximum permissible
torsional backlash ∆S
[mm]
0.4 0.6 1 1.4 1 1.3 1.7 2 2.4 2.7
V
8.3 Replacing wearing parts
WARNING
Danger due to bursting of the coupling
If you do not observe the information stipulated here regarding replacement of wearing parts,
this can lead to bursting of the coupling during operation. There is a risk of fatal injury from
flying fragments.
● Please observe all the stipulations concerning the replacement of wearing parts.
Replace the cam ring (20) if the maximum permissible torsional backlash has been reached.
BIPEX-S 3410en
40 Operating Instructions 10/2017
Page 41
Procedure
1. With type BHH-W secure the spacer W (7) to prevent it from falling.
2. Move the coupled machines apart.
3. With type BHH-Wremove the spacer W (7) radially.
4. Remove the cam ring (20), or in the case of type BHH-W, both cam rings (20).
5. Insert the new cam ring (20) or the two new cam rings (20).
Please observe the information in section Use and storage of the cam rings (Page 64).
When reinstalling the coupling parts please observe the information in chapters Assembly
(Page 25) and Commissioning (Page 31).
8.4 Removing coupling part N (1)
WARNING
Danger from burners and hot coupling parts
Servicing
8.4 Removing coupling part N (1)
Procedure
Risk of injury due to burners and hot surfaces.
● Wear suitable protective equipment (gloves, safety goggles).
1. Move the coupled machines apart.
2. Secure the coupling parts to prevent them from falling.
3. Remove the set screws.
4. Use a suitable pulling fixture.
5. Heat up the coupling part N (1) using a burner above the parallel keyway along its length
to maximum 80 °C.
Note when doing this the temperature range of the cam ring (20) (refer to section BIPEXS cam ring (20) (Page 64)). Remove the cam ring (20) where appropriate.
6. Pull off the coupling part N (1). Use suitable lifting gear when doing this.
7. Check the hub bore and the shaft for damage and protect them against corrosion.
8. Replace any damaged parts.
When reinstalling the coupling parts please observe the information in chapters Assembly
(Page 25) and Commissioning (Page 31).
BIPEX-S 3410en
Operating Instructions 10/2017 41
Page 42
Servicing
8.5 Removing coupling part G (2), C (3), H (4) or K (5)
8.5 Removing coupling part G (2), C (3), H (4) or K (5)
Procedure
1. With type BHH-Wsecure the spacer W (7) to prevent it from falling.
2. Move the coupled machines apart.
3. With type BHH-Wremove the spacer W (7) radially.
4. Secure the coupling parts to prevent them from falling.
5. Undo the cylinder-head screws (12).
6. Pull off coupling parts G (2), C (3), H (4) or K (5). Use suitable lifting gear when doing this.
7. Check coupling parts G (2), C (3), H (4) or K (5), the spacer W (7) and the shaft for any
damage and protect them against corrosion.
8. Replace any damaged parts.
When reinstalling the coupling parts please observe the information in chapters Assembly
(Page 25) and Commissioning (Page 31).
8.6 Removing coupling part S (6)
Procedure
1. Move the coupled machines apart.
2. Secure the coupling parts to prevent them from falling.
3. Undo the cylinder-head screw (13).
4. Pull off the coupling part S (6) together with the clamping taper (61). Use suitable lifting
gear when doing this.
5. Check the coupling part S (6), the clamping taper (61) and the shaft for any damage and
protect them against corrosion.
6. Replace any damaged parts.
When reinstalling the coupling parts please observe the information in chapters Assembly
(Page 25) and Commissioning (Page 31).
BIPEX-S 3410en
42 Operating Instructions 10/2017
Page 43
Service and support
9.1 Contact
Contact
When ordering spare parts, requesting a customer service technician or in the case of technical
queries, please contact our factory or one of our customer service addresses:
Flender GmbH
Schlavenhorst 100
46395 Bocholt
Germany
Tel.: +49 (0)2871/92-0
Fax.: +49 (0)2871/92-2596
9
BIPEX-S 3410en
Operating Instructions 10/2017 43
Page 44
Service and support
9.1 Contact
BIPEX-S 3410en
44 Operating Instructions 10/2017
Page 45
Disposal
Disposal of the coupling
Dispose of the coupling parts according to applicable national regulations or recycle them.
10
BIPEX-S 3410en
Operating Instructions 10/2017 45
Page 46
Disposal
BIPEX-S 3410en
46 Operating Instructions 10/2017
Page 47
Spare parts
11.1 Ordering spare parts
By stocking the most important spare parts at the installation site you can ensure that the
coupling is ready for use at any time.
Note
Original spare parts
Only use original spare parts from Flender. Flender only accepts liability for original spare parts
from Flender.
Other spare parts are not tested and approved by Flender. Non-approved spare parts may
possibly change the design characteristics of the coupling and thus impact active and/or
passive safety.
Flender will accept no liability or warranty whatsoever for damage occurring as a result of the
use of non-approved spare parts. The same applies to any accessories that were not supplied
by Flender.
You can find the available spare parts for the coupling described here at Spare parts drawing
and spare parts list (Page 48).
11
You will find our contact data for ordering spare parts in Service and support (Page 43).
Information required when ordering spare parts
● Flender order number with item
● Flender drawing number
● Coupling type and size
● Part number (refer to Spare parts drawing and spare parts list (Page 48))
● Dimensions of the pare part, for example:
– Bore
– Bore tolerance
– Parallel keyway and balancing
● Special dimensions, for example, flange connection dimensions, intermediate sleeve length
or brake drum dimensions
BIPEX-S 3410en
Operating Instructions 10/2017 47
Page 48
Spare parts
11.2 Spare parts drawing and spare parts list
● Any special properties of the spare part, such as, for example:
– Temperature resistance
– Electrical insulation
– Operating fluid
– Use in potentially explosive atmospheres
● Quantity
11.2 Spare parts drawing and spare parts list
11.2.1 Type BNN
Figure 11-1 Spare parts drawing for type BNN
Table 11-1 Spare parts list for type BNN
Part number Designation
1 Coupling part N
11 Set screw
20 Cam ring
BIPEX-S 3410en
48 Operating Instructions 10/2017
Page 49
11.2.2 Type BGG
Spare parts
11.2 Spare parts drawing and spare parts list
Figure 11-2 Spare parts drawing for type BGG
Table 11-2 Spare parts list for type BGG
Part number Designation
2 Coupling part G
12 Cylinder-head screw
20 Cam ring
BIPEX-S 3410en
Operating Instructions 10/2017 49
Page 50
Spare parts
11.2 Spare parts drawing and spare parts list

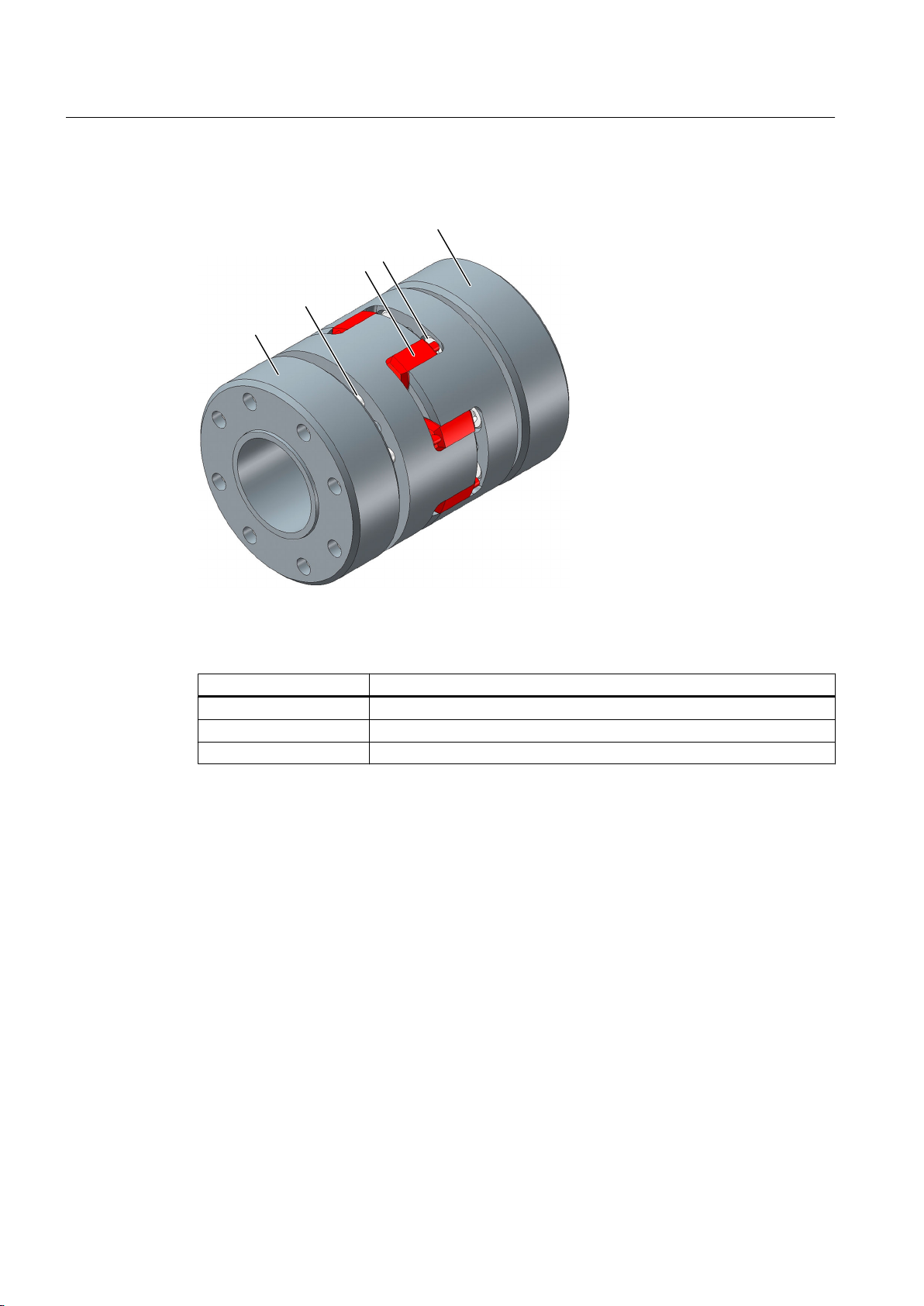

11.2.3 Type BCC
Figure 11-3 Spare parts drawing for type BCC
Table 11-3 Spare parts list for type BCC
Part number Designation
3 Coupling part C
12 Cylinder-head screw
20 Cam ring
BIPEX-S 3410en
50 Operating Instructions 10/2017
Page 51
11.2.4 Type BHH
Spare parts
11.2 Spare parts drawing and spare parts list
Figure 11-4 Spare parts drawing for type BHH
Table 11-4 Spare parts list for type BHH
Part number Designation
4 Coupling part H
12 Cylinder-head screw
20 Cam ring
BIPEX-S 3410en
Operating Instructions 10/2017 51
Page 52
Spare parts
11.2 Spare parts drawing and spare parts list
11.2.5 Type BKK
Figure 11-5 Spare parts drawing for type BKK
Table 11-5 Spare parts list for type BKK
Part number Designation
5 Coupling part K
12 Cylinder-head screw
20 Cam ring
BIPEX-S 3410en
52 Operating Instructions 10/2017
Page 53

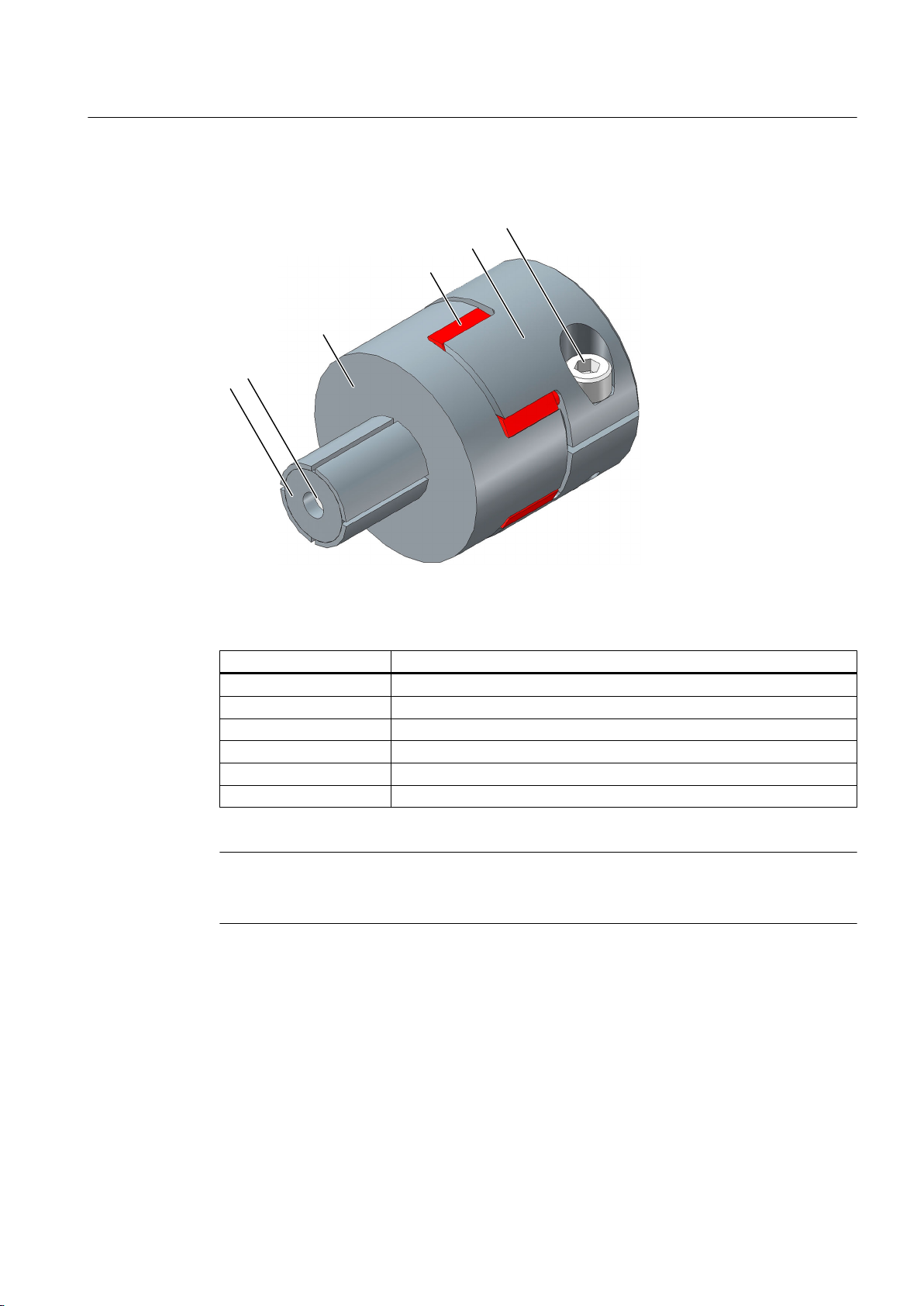

11.2.6 Type BCS
Spare parts
11.2 Spare parts drawing and spare parts list
Figure 11-6 Spare parts drawing for type BCS
Table 11-6 Spare parts list for type BCS
Part number Designation
3 Coupling part C
6 Coupling part S
12 Cylinder-head screw
13 Cylinder-head screw
20 Cam ring
61 Clamping taper
Note
The hub S (6), the clamping taper (61) and the clamping screw (13) make up one module.
Replace the entire module.
BIPEX-S 3410en
Operating Instructions 10/2017 53
Page 54
Spare parts
11.2 Spare parts drawing and spare parts list
11.2.7 Type BHH-W
Figure 11-7 Spare parts drawing for type BHH-W
Table 11-7 Spare parts list for type BHH-W
Part number Designation
4 Coupling part H
7 Spacer W
12 Cylinder-head screw
20 Cam ring
54 Operating Instructions 10/2017
BIPEX-S 3410en
Page 55
Technical data
1'
'$
'$
1'
/*
'
'
'
'
61/1/
61/1/
/*
A.1 Speeds, geometry data and weights
In this section you can find dimensional drawings and technical data for BIPEX-S couplings of
the following types:
● Type BNN (Page 55)
● Type BGG (Page 56)
● Type BCC (Page 57)
● Type BHH (Page 58)
● Type BKK (Page 59)
● Type BCS (Page 60)
● Type BHH-W (Page 61)
A.1.1 Type BNN
A
① Size 5 to 38
② Size 42 to 48
1 Coupling part N
Figure A-1 Type BNN
BIPEX-S 3410en
Operating Instructions 10/2017 55
Page 56
1'
'$
'$
1'
/*
'
'
'
'
61/1/
61/1/
/*
Technical data
A.1 Speeds, geometry data and weights
Table A-1 Geometry data and weights of type BNN
Size DA
mm
5 10 5 - 5 5 +0.2 15 0.003
7 14 7 - 7 8 +0.3 22 0.007
9 20 10 - 10 10 +0.4 30 0.018
14 30 16 - 11 13 +0.5 35 0.045
19 40 24 - 25 16 +0.5 66 0.14
24 55 28 - 30 18 +0.5 78 0.36
28 65 38 - 35 20 +0.5 90 0.53
38 80 45 - 45 24 +1.0 114 1.1
42 95 55 85 50 26 +1.0 126 3.5
48 105 62 95 56 28 +1.0 140 5.3
1)
Maximum bore for parallel keyway in accordance with DIN 6885/1.
2)
Weight applies to one coupling with maximum bore.
D1 / D2
max.
mm
ND1 / ND2
1)
mm
NL1 / NL2
mm
mm
S LG
perm dev.
mm
mm
Weight
m
kg
2)

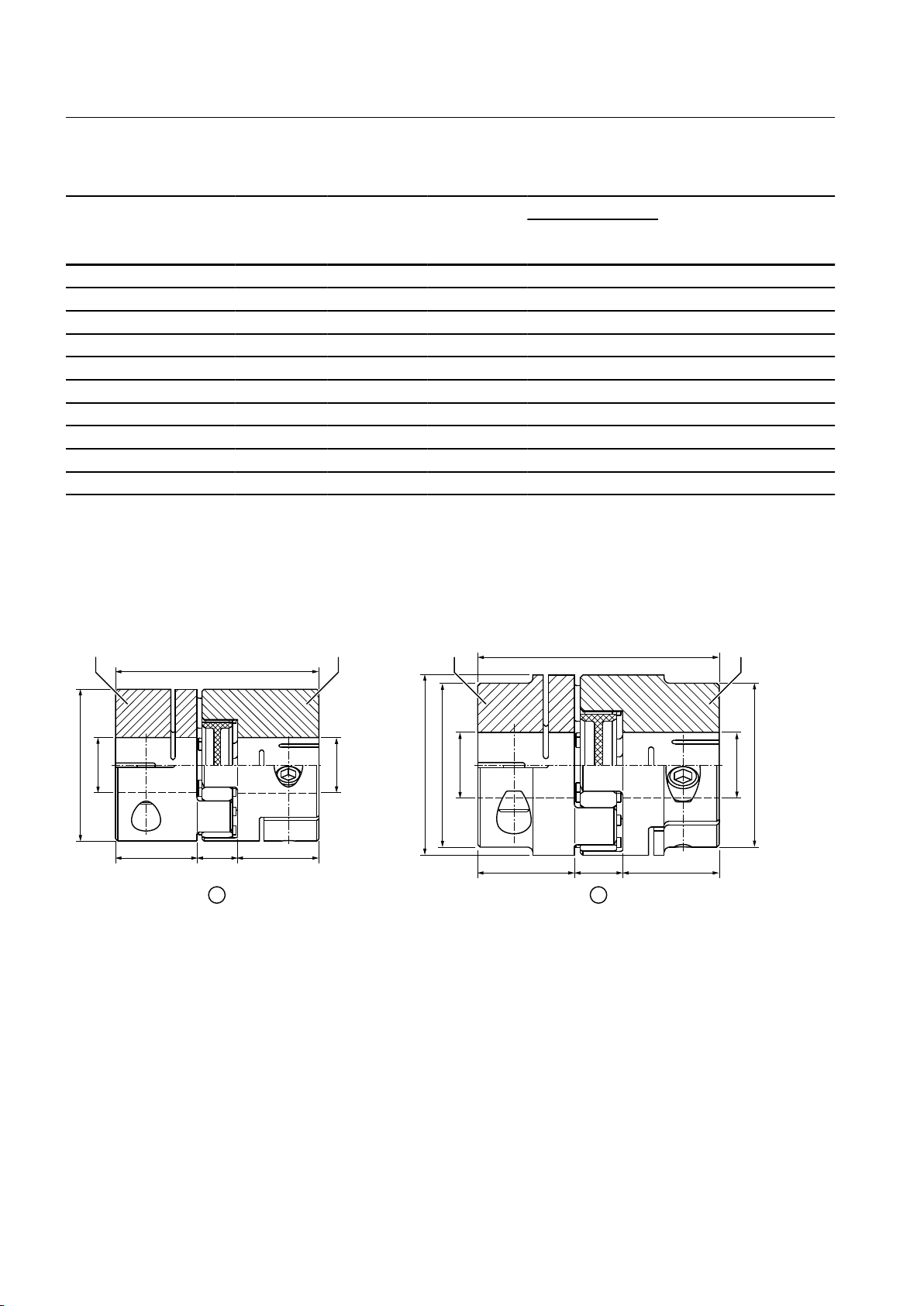

A.1.2 Type BGG
① Size 5 to 38
② Size 42 to 48
2 Coupling part G
Figure A-2 Type BGG
BIPEX-S 3410en
56 Operating Instructions 10/2017
Page 57
1'
'$
'$
1'
/*
/*
'
'
'
'
61/1/
61/1/
A.1 Speeds, geometry data and weights
Table A-2 Geometry data and weights of type BGG
Size DA
mm
5 10 4 - 5 5 +0.2 15 0.003
7 14 7 - 7 8 +0.3 22 0.007
9 20 9 - 10 10 +0.4 30 0.019
14 30 16 - 11 13 +0.5 35 0.04
19 40 24 - 25 16 +0.5 66 0.14
24 55 28 - 30 18 +0.5 78 0.35
28 65 38 - 35 20 +0.5 90 0.51
38 80 45 - 45 24 +1.0 114 1.0
42 95 50 85 50 26 +1.0 126 3.6
48 105 55 95 56 28 +1.0 140 5.0
1)
Weight applies to one coupling with maximum bore.
D1 / D2
max.
mm
ND1 / ND2
mm
NL1 / NL2
mm
mm
S LG
perm dev.
mm
mm
Technical data
Weight
1)
m
kg
A.1.3 Type BCC
① Size 14 to 38
② Size 42 to 48
3 Coupling part C
Figure A-3 Type BCC
BIPEX-S 3410en
Operating Instructions 10/2017 57
Page 58
'$
/*
'
'
61/1/
Technical data
A.1 Speeds, geometry data and weights
Table A-3 Geometry data and weights of type BCC
Size DA
mm
D1 / D2
max.
mm
ND1 / ND2
mm
NL1 / NL2
mm
mm
S LG
perm dev.
mm
mm
14 30 16 - 11 13 +0.5 35 0.04
19 40 24 - 17 16 +0.5 50 0.11
24 55 28 - 20 18 +0.5 58 0.26
28 65 35 - 21 20 +0.5 62 0.38
38 80 45 - 31 24 +1.0 86 0.79
42 95 50 85 34 26 +1.0 94 2.5
48 105 55 95 40 28 +1.0 108 3.3
1)
Weight applies to one coupling with maximum bore.

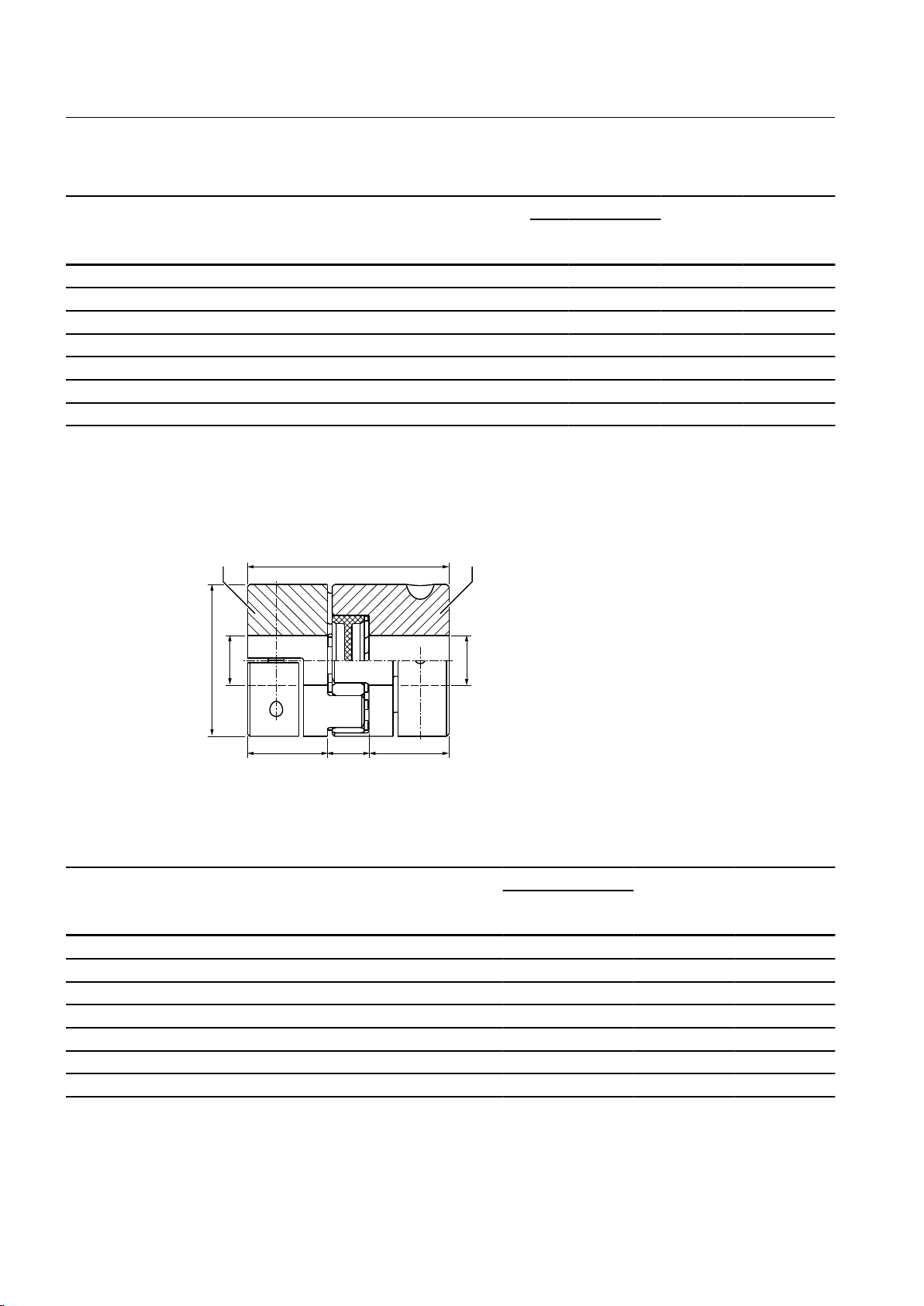

A.1.4 Type BHH
Weight
m
kg
1)
4 Coupling part H
Figure A-4 Type BHH
Table A-4 Geometry data and weights of type BHH
Size DA
mm
14 30 16 11 13 +0.5 35 0.02
19 40 23 25 16 +0.5 66 0.15
24 55 30 30 18 +0.5 78 0.35
28 65 38 35 20 +0.5 90 0.53
38 80 48 45 24 +1.0 114 0.98
42 95 50 50 26 +1.0 126 4.1
48 105 55 56 28 +1.0 140 5.6
1)
Weight applies to one coupling with maximum bore.
58 Operating Instructions 10/2017
D1 / D2
max.
mm
NL1 / NL2
mm
mm
S LG
perm dev.
mm
mm
Weight
1)
m
kg
BIPEX-S 3410en
Page 59
'$
/*
'
'
61/1/
A.1 Speeds, geometry data and weights
A.1.5 Type BKK
5 Coupling part K
Figure A-5 Type BKK
Table A-5 Geometry data and weights of type BKK
Size DA
mm
14 30 14 18.5 13 +0.5 50 0.11
19 40 20 25 15 +0.5 65 0.23
24 55 25 30 18 +0.5 78 0.57
28 65 36 35 20 +0.5 90 0.86
38 80 48 43.5 24 +1.0 111 1.5
42 95 50 50 26 +1.0 126 4.0
48 105 55 56 28 +1.0 140 5.4
1)
Weight applies to one coupling with maximum bore.
D1 / D2
max.
mm
NL1 / NL2
mm
mm
S LG
perm dev.
mm
mm
Technical data
Weight
1)
m
kg
BIPEX-S 3410en
Operating Instructions 10/2017 59
Page 60
'$
/*
G
'
61/1/
Technical data
A.1 Speeds, geometry data and weights

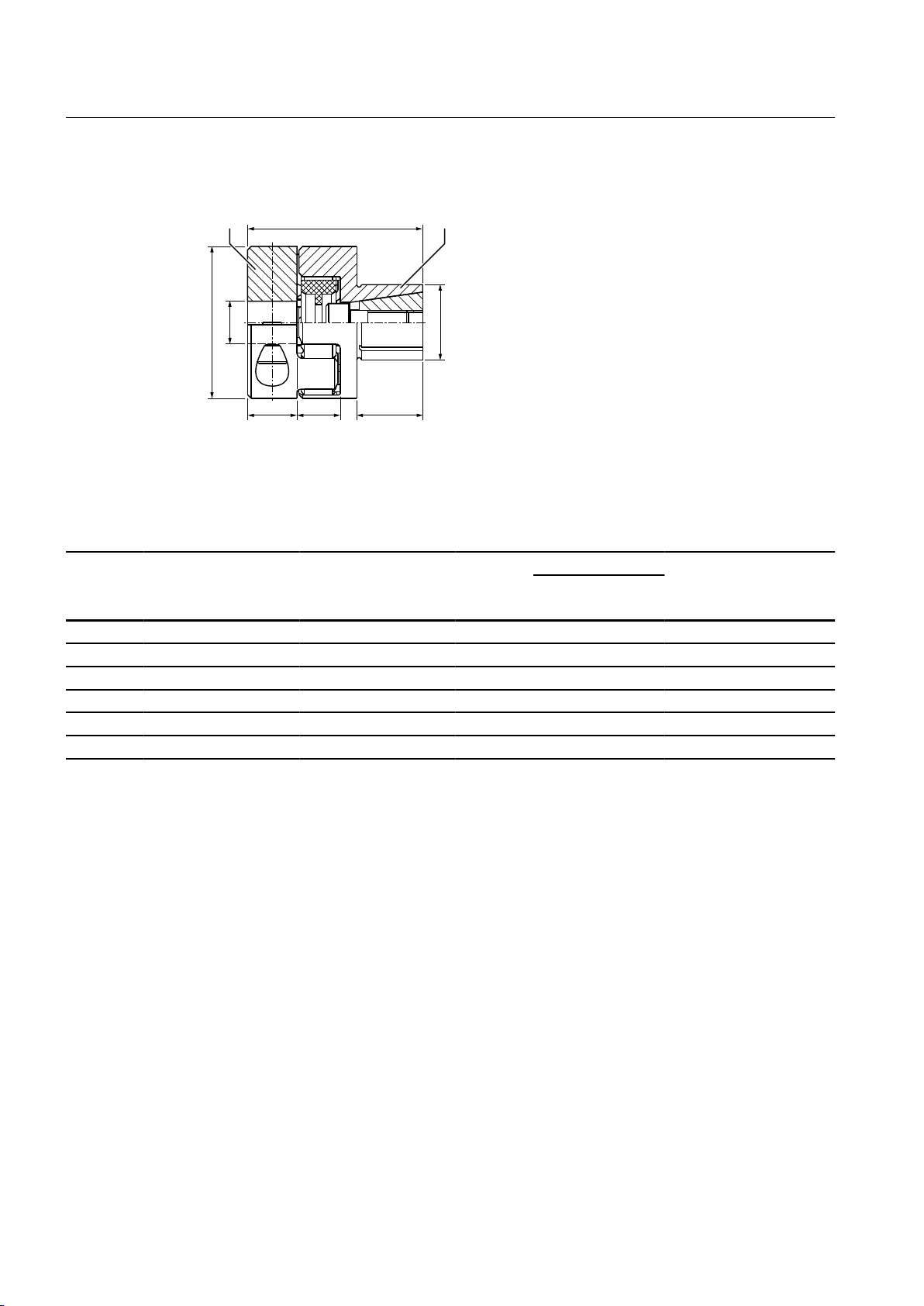

A.1.6 Type BCS
3 Coupling part C
6 Coupling part S
Figure A-6 Type BCS
Table A-6 Geometry data and weights of type BCS
Size DA
mm
9 20 9 16 10 11 10 +0.4 40 0.03
14 30 16 25 11 12.5 13 +0.5 42.5 0.06
19 40 24 30 17 20 16 +0.5 61 0.13
24 55 28 38 20 30 18 +0.5 76 0.33
28 65 35 42 21 36 20 +0.5 85 0.50
38 80 45 60 31 45 24 +1.0 113 1.1
1)
Weight applies to one coupling with maximum bore.
D1
max.
mm
d2
max.
mm
NL1
mm
NL2
mm
mm
S LG
perm dev.
mm
mm
Weight
m
kg
1)
60 Operating Instructions 10/2017
BIPEX-S 3410en
Page 61
'$
'=
/*
'
'
61/1/6
A.1 Speeds, geometry data and weights

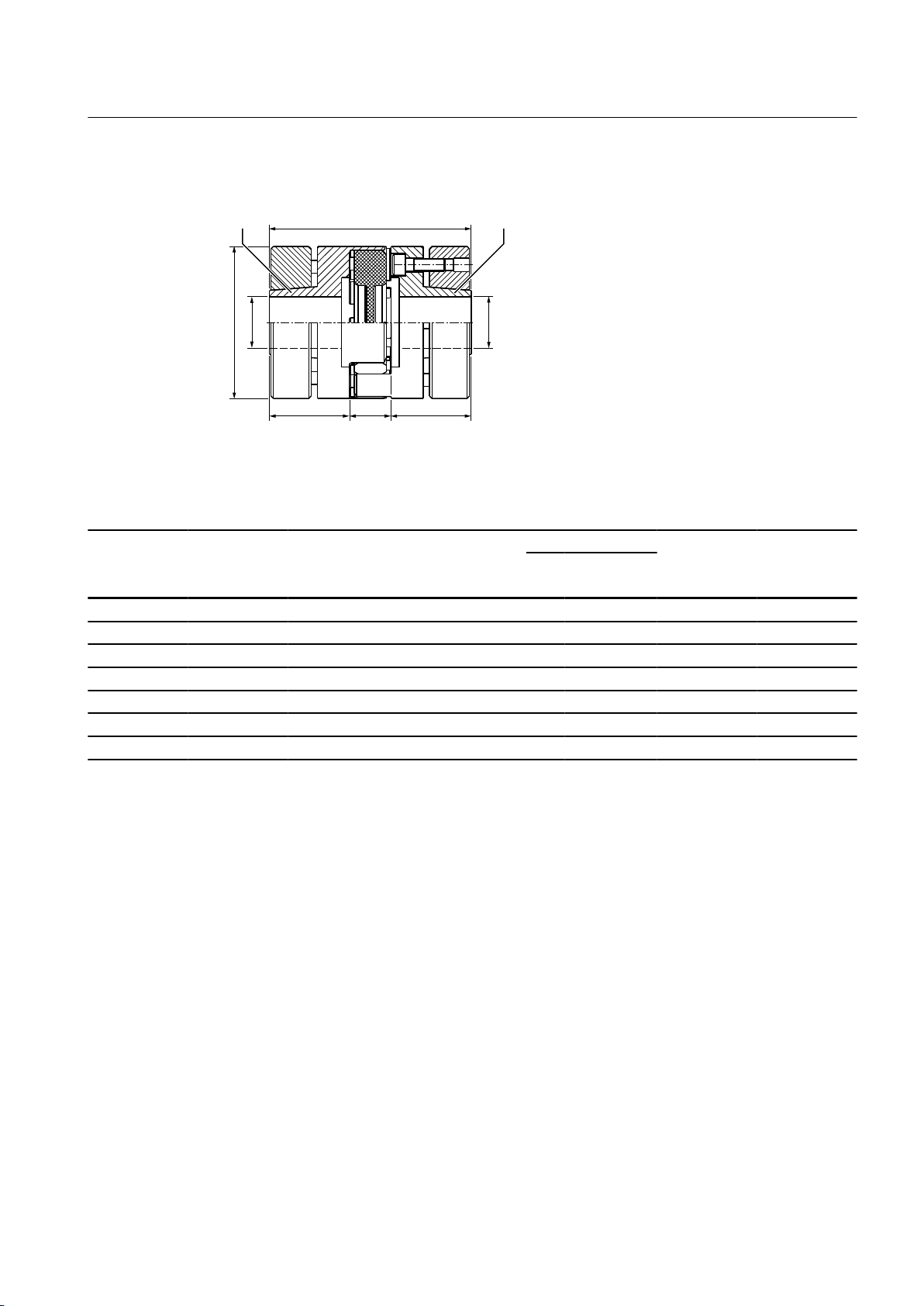

A.1.7 Type BHH-W
4 Coupling part H
7 Spacer W
Figure A-7 Type BHH-W
Table A-7 Geometry data and weights of type BHH-W
Size DA
mm
14 30 16 11 13 +0.5 30 85 3000 1.35
19 40 23 25 16 +0.5 40 135 3000 1.75
24 55 30 30 18 +0.5 50 165 3000 3.4
28 65 38 35 20 +0.5 60 205 3000 3.5
38 80 48 45 24 +1.0 75 250 3000 7.8
42 95 50 50 26 +1.0 90 265 3000 11.8
48 105 55 56 28 +1.0 110 285 3000 15.3
1)
Weight applies to one coupling with maximum bore and shaft spacing 1000 mm.
D1 / D2
max.
mm
NL1 / NL2
mm
mm
S DZ
perm dev.
mm
mm
LG Weight
min.mmmax.
mm
Technical data
1)
m
kg
BIPEX-S 3410en
Operating Instructions 10/2017 61
Page 62
Technical data
A.2 Shaft misalignment values during operation
A.2 Shaft misalignment values during operation
Table A-8 Maximum permissible shaft misalignment values during operation
Size
5
7
9
14
19
24
28
38
42
48
Shore hardness Permissible shaft misalignment
80 Shore A
92 Shore A
98 Shore A
80 Shore A
92 Shore A
98 Shore A
64 Shore D
80 Shore A
92 Shore A
98 Shore A
64 Shore D
80 Shore A
92 Shore A
98 Shore A
64 Shore D
80 Shore A
92 Shore A
98 Shore A
64 Shore D
92 Shore A
98 Shore A
64 Shore D
92 Shore A
98 Shore A
64 Shore D
92 Shore A
98 Shore A
64 Shore D
92 Shore A
98 Shore A
64 Shore D
92 Shore A
98 Shore A
64 Shore D
Axial
ΔKa
mm
0.4
0.4
0.4
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
1.2
1.2
1.2
1.2
1.4
1.4
1.4
1.5
1.5
1.5
1.8
1.8
1.8
2.1
2.1
2.1
perm
1
1
1
1
2
2
2
Radial
ΔKr
perm
mm
0.12
0.06
0.04
0.15
0.1
0.06
0.04
0.19
0.13
0.08
0.05
0.21
0.15
0.09
0.06
0.15
0.1
0.06
0.04
0.14
0.1
0.07
0.15
0.11
0.08
0.17
0.12
0.09
0.19
0.14
0.1
0.23
0.16
0.11
ΔKw
perm
Degrees
1.1
1
0.9
1.1
1
0.9
0.8
1.1
1
0.9
0.8
1.1
1
0.9
0.8
1.1
1
0.9
0.8
1
0.9
0.8
1
0.9
0.8
1
0.9
0.8
1
0.9
0.8
1
0.9
0.8
1)
Angular
ΔS
mm
0.19
0.17
0.16
0.27
0.24
0.22
0.20
0.38
0.35
0.31
0.28
0.58
0.52
0.47
0.42
0.77
0.70
0.63
0.56
0.96
0.86
0.77
1.13
1.02
0.91
1.40
1.26
1.12
1.66
1.49
1.33
1.83
1.65
1.47
perm
1) The specified permissible values for axial, angular and/or radial misalignment may not appear simultaneously. Halve the
values given in the table if axial, angular and/or radial misalignment appear simultaneously.
BIPEX-S 3410en
62 Operating Instructions 10/2017
Page 63
A.3 Tightening torques and widths A/F
Table A-9 Tightening torques TAand widths A/F SW for parts 11, 12 and 13
Technical data
A.3 Tightening torques and widths A/F
Size Type BNN
Part 11
1)
Type BGG
Part 12
2)
Type BCC
Part 12
2)
Type BHH
Part 12
2)
Type BKK
Part 12
Type BCS Type BHH-
2)
Part 12
2)
Part 13
2)
Part 12
T
A
NmSWmm
T
A
NmSWmm
T
A
NmSWmm
T
A
NmSWmm
T
A
NmSWmm
T
A
NmSWmm
T
A
NmSWmm
T
A
NmSWmm
5 2.5 1.5 0.3 1.5 - - - - - - - - - - - -
7 2.5 1.5 0.4 1.5 - - - - - - - - - - - -
9 5 2 0.8 2 - - - - - - 0.75 2 8 3 - -
14 5 2 2 2.5 2 2.5 1.4 3 1.3 2.5 2 2.5 9 4 3 3
19 10 2.5 11 5 10 4 8 4 2.9 3 15 4 15 5 5.9 4
24 10 2.5 15 5 18 5 10.5 5 6 4 15 5 35 6 15 5
28 15 4 32 6 43 6 25 6 6 4 35 6 70 8 32 6
38 15 4 38 6 84 8 25 6 10 5 35 6 120 10 38 6
42 20 4 84 8 84 8 69 8 35 6 - - - - 84 8
48 20 4 145 10 145 10 120 10 69 8 - - - - 145 10
1)
Threaded stud ISO 4029
2)
Hexagon socket cap screw DIN EN ISO 4762
Apply the recommended tightening torques in accordance with the stipulations in section
Tightening procedure (Page 63).
W
2)
A.4 Tightening procedure
Tighten fastening screws to the specified tightening torque in accordance with the following
table:
Table A-10 Tightening procedure
Scatter of the torque applied
at the tool
±5 %
The tightening torques apply to screws/bolts with untreated surfaces that are not oiled or are
only lightly oiled, and for screws/bolts that are used with a liquid screw locking agent in
accordance with these instructions. Use with lubricant paint or lubricant is not permitted.
BIPEX-S 3410en
Operating Instructions 10/2017 63
Tightening procedure
(As a rule, the tightening procedures listed are within the specified tool
torque scatter)
● Hydraulic tightening with mechanical screwdriver
● Torque-controlled tightening with a torque wrench or a torque
wrench that gives a signal
● Tightening with a precision mechanical screwdriver with dynamic
torque measurement
Page 64
Technical data
A.5 Cam rings
A.5 Cam rings
A.5.1 Use and storage of the cam rings
Note the following concerning the use and storage of the cam rings:
● Storage possible for up to 5 years
● Protect against direct sunlight, artificial light with a high UV‐content and extreme
temperatures
● Avoid contact with aggressive media
A.5.2 BIPEX-S cam ring (20)
Table A-11 BIPEX-S cam ring
Material Hardness Comment Marking Temperature range
PU 98 Shore A Standard for type BGG,
BCC, BHH, BKK, BCS
PU 92 Shore A Standard for type BNN yellow -40 °C to +90 °C
PU 80 Shore A blue -50 °C to +80 °C
PU 64 Shore D green -50 °C to +120 °C
red -30 °C to +90 °C
BIPEX-S 3410en
64 Operating Instructions 10/2017
Page 65
Page 66
FLENDER COUPLINGS
BIPEX-S
Operating Instructions 3410en
Edition 10/2017
Flender GmbH
Alfred-Flender-Straße 77
46395 Bocholt
GERMANY
Loading...
