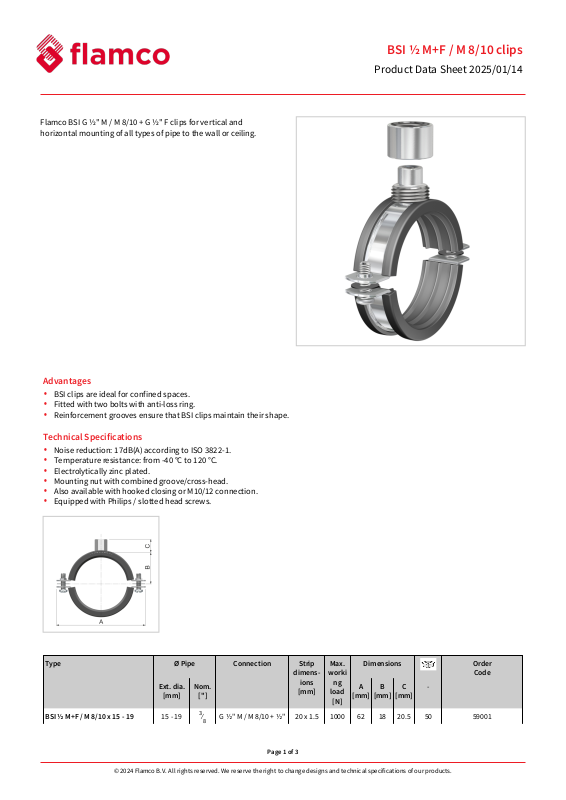

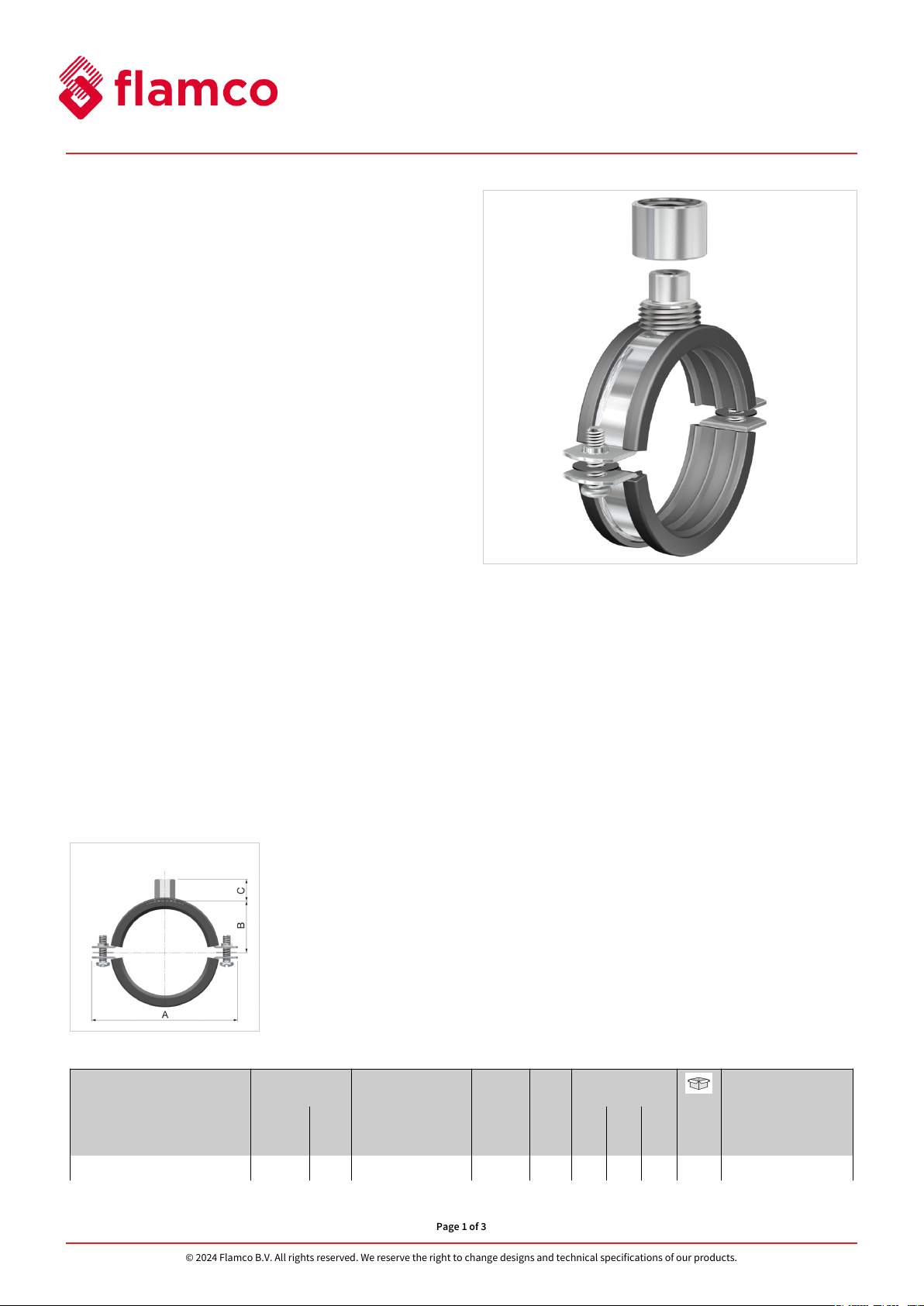

Flamco BSI G ½" M / M 8/10 + G ½" F clips for vertical and
horizontal mounting of all types of pipe to the wall or ceiling.

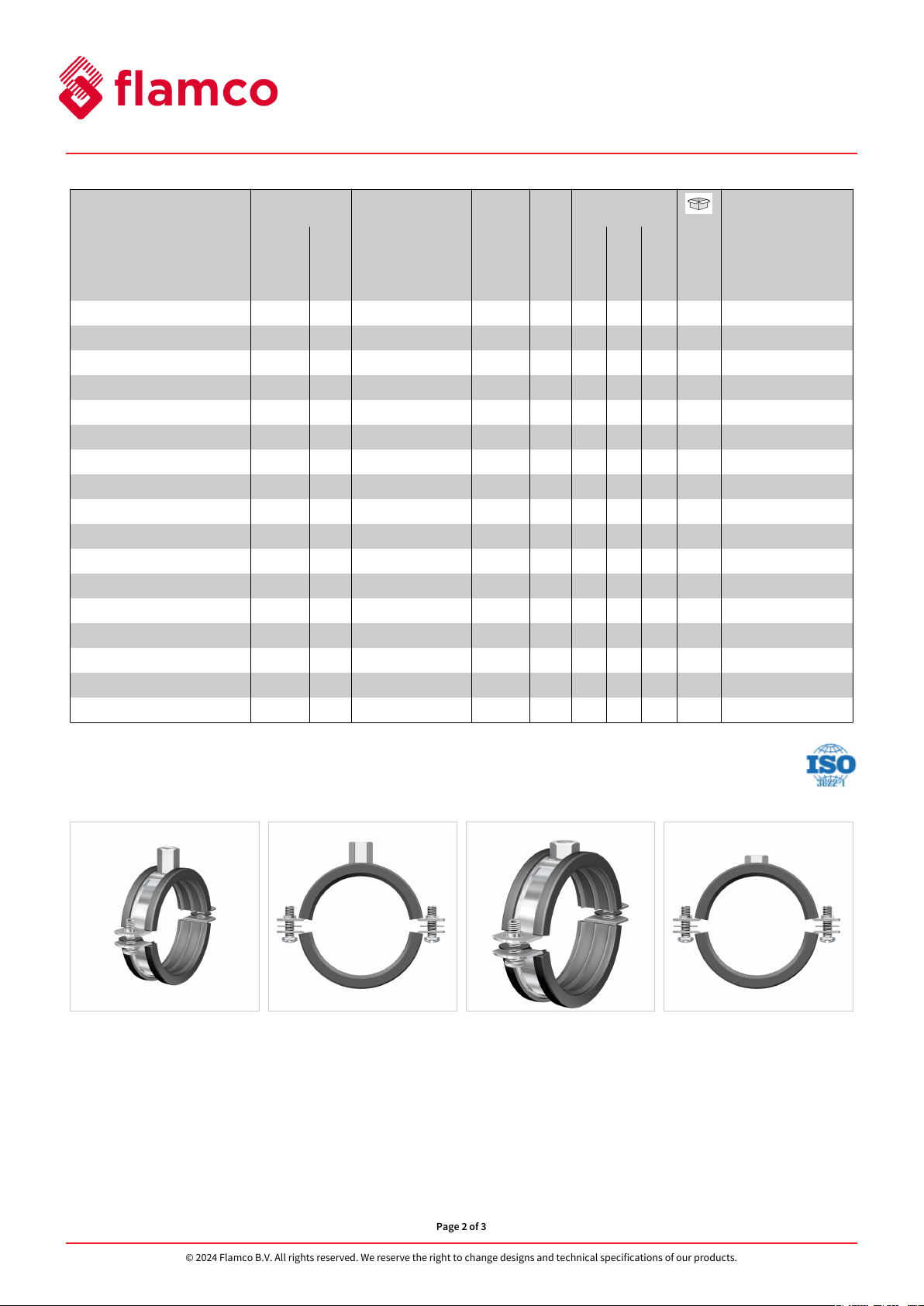

BSI ½ M+F / M 8/10 clips
Product Data Sheet 2025/01/14
Advantages
• BSI clips are ideal for confined spaces.
• Fitted with two bolts with anti-loss ring.
• Reinforcement grooves ensure that BSI clips maintain their shape.
Technical Specifications
• Noise reduction: 17dB(A) according to ISO 3822-1.
• Temperature resistance: from -40 °C to 120 °C.
• Electrolytically zinc plated.
• Mounting nut with combined groove/cross-head.
• Also available with hooked closing or M10/12 connection.
• Equipped with Philips / slotted head screws.
Type Ø Pipe Connection Strip
dimens-
Ext. dia.
[mm]
BSI ½ M+F / M 8/10 x 15 - 19 15 - 19
© 2024 Flamco B.V. All rights reserved. We reserve the right to change designs and technical specifications of our products.
Nom.
["]
3
⁄8G ½" M / M 8/10 + ½" 20 x 1.5 1000 62 18 20.5 50 59001
Page 1 of 3
ions
[mm]
Max.
worki
ng
load
[mm]B[mm]C[mm]
[N]
Dimensions Order
Code
A
-
Page 2
BSI ½ M+F / M 8/10 clips
Product Data Sheet 2025/01/14
Type Ø Pipe Connection Strip
dimens-
Ext. dia.
[mm]
BSI ½ M+F / M 8/10 x 20 - 25 20 - 25
BSI ½ M+F / M 8/10 x 26 - 30 26 - 30
BSI ½ M+F / M 8/10 x 32 - 36 32 - 36 1 G ½" M / M 8/10 + ½" 20 x 1.5 1000 81 26 20.5 50 59004
BSI ½ M+F / M 8/10 x 38 - 43 38 - 43 1 1⁄4G ½" M / M 8/10 + ½" 20 x 1.5 1000 81 26 20.5 50 59005
BSI ½ M+F / M 8/10 x 44 - 49 44 - 49 1 1⁄2G ½" M / M 8/10 + ½" 20 x 1.5 1000 94 33 20.5 50 59006
BSI ½ M+F / M 8/10 x 50 - 55 50 - 55 1 3⁄4G ½" M / M 8/10 + ½" 20 x 1.5 1000 103 36 20.5 50 59007
BSI ½ M+F / M 8/10 x 56 - 61 56 - 61 2 G ½" M / M 8/10 + ½" 20 x 1.5 1000 106 39 20.5 50 59008
BSI ½ M+F / M 8/10 x 62 - 67 62 - 67 - G ½" M / M 8/10 + ½" 20 x 2.0 1300 113 42 20.5 50 59009
BSI ½ M+F / M 8/10 x 75 - 80 75 - 80 2 1⁄2G ½" M / M 8/10 + ½" 20 x 2.0 1300 128 48 20.5 50 59011
BSI ½ M+F / M 8/10 x 82 - 86 82 - 86 2 3⁄4G ½" M / M 8/10 + ½" 20 x 2.0 1300 134 51 20.5 50 59012
BSI ½ M+F / M 8/10 x 87 - 92 87 - 92 3 G ½" M / M 8/10 + ½" 20 x 2.0 1300 134 51 20.5 50 59013
BSI ½ M+F / M 8/10 x 95 - 102 95 - 102 3 1⁄2G ½" M / M 8/10 + ½" 20 x 2.5 2150 158 58 20.5 50 59014
BSI ½ M+F / M 8/10 x 108 - 116 108 - 116 4 G ½" M / M 8/10 + ½" 20 x 2.5 2150 170 65 20.5 25 59015
BSI ½ M+F / M 8/10 x 121 - 127 121 - 127 - G ½" M / M 8/10 + ½" 20 x 2.5 2150 185 70 20.5 25 59016
BSI ½ M+F / M 8/10 x 131 - 141 131 - 141 5 G ½" M / M 8/10 + ½" 20 x 2.5 2150 195 77 20.5 25 59017
BSI ½ M+F / M 8/10 x 159 - 163 159 - 163 - G ½" M / M 8/10 + ½" 20 x 2.5 2150 215 88 20.5 25 59018
BSI ½ M+F / M 8/10 x 192 - 202 192 - 202 - G ½" M / M 8/10 + ½" 20 x 3.0 3000 265 107 20.5 25 59020
BSI ½ M+F / M 8/10 x 210 - 220 210 - 220 - G ½" M / M 8/10 + ½" 20 x 3.0 3000 274 117 20.5 25 59022
Nom.
["]
1
⁄2G ½" M / M 8/10 + ½" 20 x 1.5 1000 69 21 20.5 50 59002
3
⁄4G ½" M / M 8/10 + ½" 20 x 1.5 1000 74 23 20.5 50 59003
ions
[mm]
Max.
worki
ng
load
[mm]B[mm]C[mm]
[N]
Dimensions Order
Code
A
-
Page 2 of 3
© 2024 Flamco B.V. All rights reserved. We reserve the right to change designs and technical specifications of our products.
Page 3

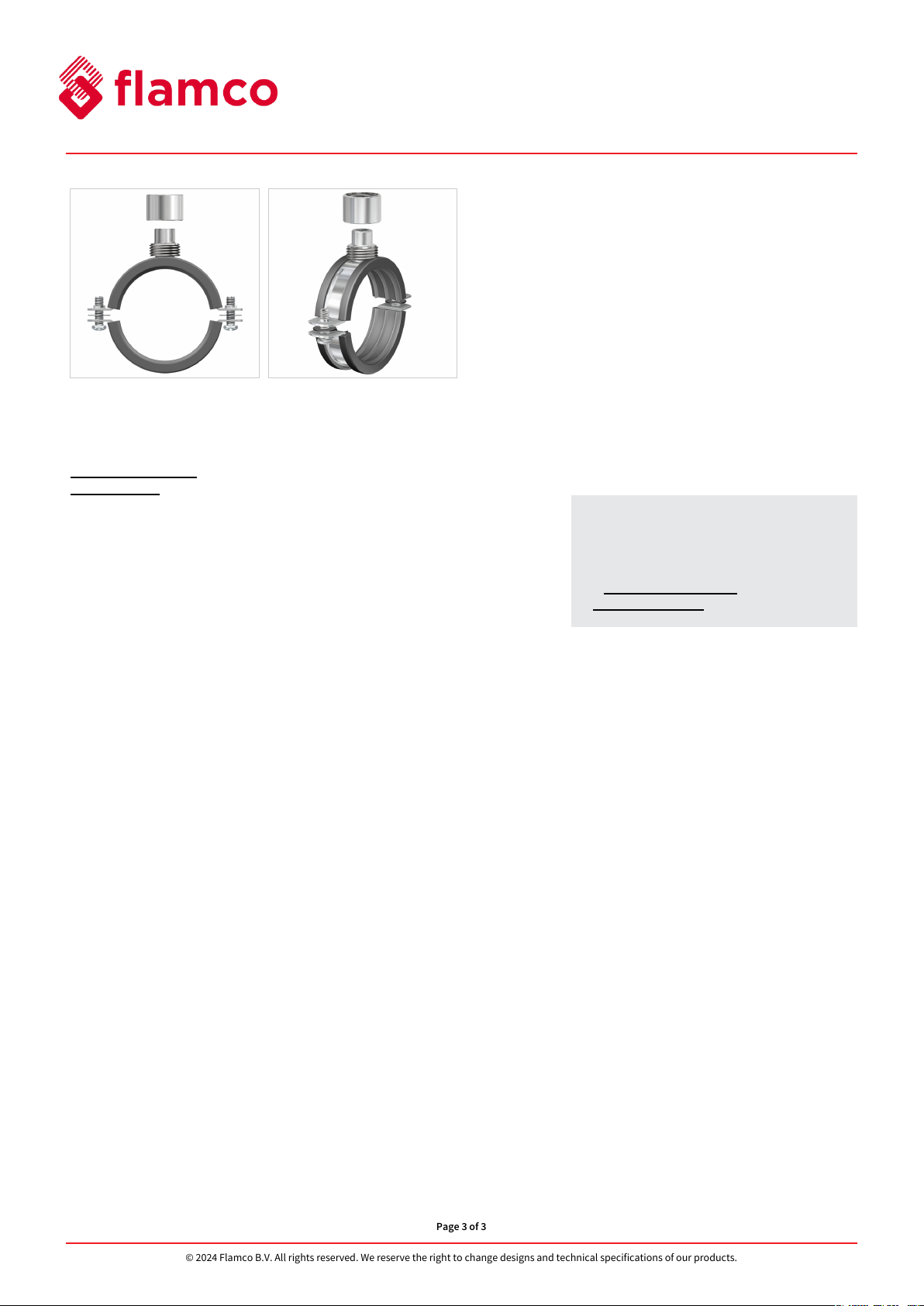

Find more information online:
cert.bsi-iso3822-1.pdf
Packaging data
BSI ½ M+F / M 8/10 clips
Product Data Sheet 2025/01/14
