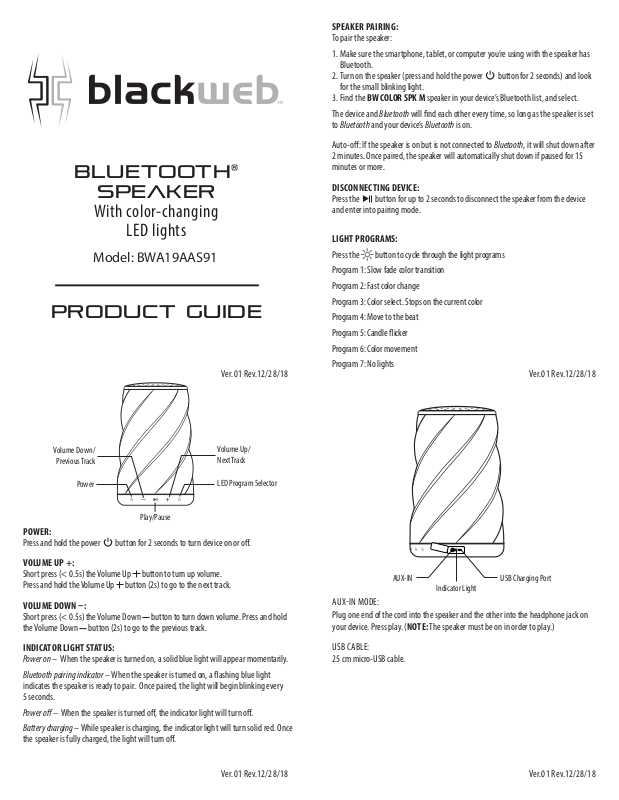

FKA Distributing WM1901 User Manual
BLUETOOTH
SPEAKER
With color-changing
SPEAKER PAIRING:
To pair the speaker:
1. Make sure the smartphone, tablet, or computer you’re using with the speaker has
Bluetooth.
2. Turn on the speaker (press and hold the power button for 2 seconds) and look
for the small blinking light.
3. Find the BW COLOR SPK M speaker in your device’s Bluetooth list, and select.
The device and Bluetooth will nd each other every time, so long as the speaker is set
to Bluetooth and your device’s Bluetooth is on.
Auto-o: If the speaker is on but is not connected to Bluetooth, it will shut down after
2 minutes. Once paired, the speaker will automatically shut down if paused for 15
®
minutes or more.
DISCONNECTING DEVICE:
Press the button for up to 2 seconds to disconnect the speaker from the device
and enter into pairing mode.
LED lights
Model: BWA19AAS91
PRODUCT GUIDE
Ver.01 Rev.12/28/18
Volume Down/
Previous Track
Power
Play/Pause
POWER:
Press and hold the power button for 2 seconds to turn device on or o.
Volume Up/
Next Track
LED Program Selector
LIGHT PROGRAMS:
Press the button to cycle through the light programs
Program 1: Slow fade color transition
Program 2: Fast color change
Program 3: Color select. Stops on the current color
Program 4: Move to the beat
Program 5: Candle icker
Program 6: Color movement
Program 7: No lights
Ver.01 Rev.12/28/18
VOLUME UP +:
Short press (< 0.5s) the Volume Up button to turn up volume.
Press and hold the Volume Up button (2s) to go to the next track.
VOLUME DOWN :
Short press (< 0.5s) the Volume Down button to turn down volume. Press and hold
the Volume Down button (2s) to go to the previous track.
INDICATOR LIGHT STATUS:
Power on – When the speaker is turned on, a solid blue light will appear momentarily.
Bluetooth pairing indicator – When the speaker is turned on, a ashing blue light
indicates the speaker is ready to pair. Once paired, the light will begin blinking every
5 seconds.
Power o – When the speaker is turned o, the indicator light will turn o.
Battery charging – While speaker is charging, the indicator light will turn solid red. Once
the speaker is fully charged, the light will turn o.
Ver.01 Rev.12/28/18
AUX-IN
Indicator Light
AUXIN MODE:
Plug one end of the cord into the speaker and the other into the headphone jack on
your device. Press play. (NOTE: The speaker must be on in order to play.)
USB CABLE:
25 cm micro-USB cable.
USB Charging Port
Ver.01 Rev.12/28/18
CALL HANDLING:
INCOMING CALL:
Answering and ending a call – When speaker is paired to your phone, press the play/pause
button to answer the call. To end a call, press the play/pause button.
Move call from speaker to device – If you are on the call and wish to move the call from the
speaker to your device, press the play/pause button (2s).
Reject an incoming call – To reject an incoming call, press the play/pause button (2s).
Situation
First incoming call Answer call Reject call
On call End call Move call from speaker to device
Press
play/pause button
Press
play/pause button (2s)
SPLASH PROOF IPX4 RATING:
IPX4 rating means this speaker is splash proof. Water being splashed on the speaker
from any direction will not cause any harm to the speaker or aect its performance.
CLEANING:
Use a soft, dry towel to clean the speaker. Using harsh cleaners or anything else may
cause harm to the mechanics inside. Remember to keep the charging and aux ap
ush with the speaker for the best protection.
FCC WARNING:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. This device
complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may cause
undesired operation.
FCC RF EXPOSURE STATEMENT:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
ISEDC CAUTION:
This device complies with Innovation, Science, and Economic Development Canada
license exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired operation of the
device.
ISEDC RF EXPOSURE STATEMENT:
The device is in compliance with RF exposure guidelines, users can obtain Canadian
information on RF exposure and compliance.
IMPORTANT LEGAL INFORMATION
IMPORTANT SAFEGUARDS:
When using an electrical product, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING
• WARNING: Listen responsibly. To avoid hearing damage, make sure the volume
on your device is turned down before connecting to the speaker. After turning
on your speaker, gradually turn up the volume until you reach a comfortable
listening volume.
• Use this product only for its intended use as described in this manual. Do not use
attachments not recommended by Blackweb.
• Blackweb is not liable for any damage caused to smartphones, iPod/MP3 players,
or any other device.
• Do not place or store this product where it can fall or be dropped into a tub or sink.
• Do not place or drop into water or any other liquid.
• Not for use by children. THIS IS NOT A TOY.
• Never operate this product if it has a damaged cord, plug, cable, or housing.
• Keep away from heated surfaces.
• Only set on dry surfaces. Do not place on surfaces wet from water or cleaning
solvents.
A MESSAGE FROM THE ENVIRONMENT
WARNING: This product has an internal, non-replaceable lithium battery.
Please dispose of in accordance with your local, state, province, and
country guidelines. This product contains small parts that may present a
choking hazard for young children.
CAUTION: All servicing of this product must be performed by authorized
audio service personnel only.
Blackweb is a trademark of Walmart Stores, Inc. Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Blackweb is under license.
Distributed by Walmart Stores, Inc., Bentonville, AR 72716
© 2019 Walmart Stores, Inc. All rights reserved.
Walmart.com
IB-WM1901
Ver.01 Rev.12/28/18
