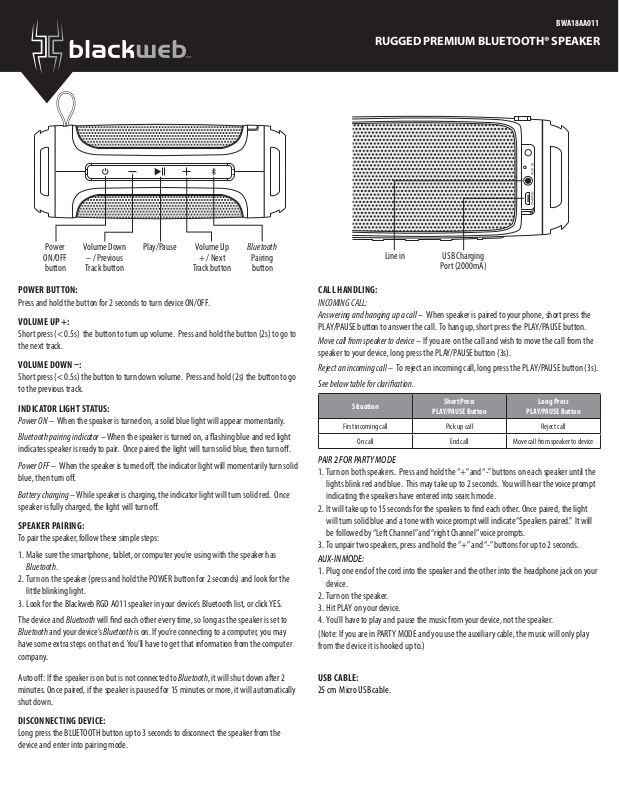

FKA Distributing WM1807D User Manual
BWA18AA011
RUGGED PREMIUM BLUETOOTH® SPEAKER
Power
ON/OFF
button
Volume Down
– / Previous
Track button
Play/Pause Volume Up
+ / Next
Track button
Bluetooth
Pairing
button
POWER BUTTON:
Press and hold the button for 2 seconds to turn device ON/OFF.
VOLUME UP +:
Short press (< 0.5s) the button to turn up volume. Press and hold the button (2s) to go to
the next track.
VOLUME DOWN –:
Short press (< 0.5s) the button to turn down volume. Press and hold (2s) the button to go
to the previous track.
INDICATOR LIGHT STATUS:
Power ON – When the speaker is turned on, a solid blue light will appear momentarily.
Bluetooth pairing indicator – When the speaker is turned on, a ashing blue and red light
indicates speaker is ready to pair. Once paired the light will turn solid blue, then turn o.
Power OFF – When the speaker is turned o, the indicator light will momentarily turn solid
blue, then turn o.
Battery charging – While speaker is charging, the indicator light will turn solid red. Once
speaker is fully charged, the light will turn o.
SPEAKER PAIRING:
To pair the speaker, follow these simple steps:
1. Make sure the smartphone, tablet, or computer you’re using with the speaker has
Bluetooth.
2. Turn on the speaker (press and hold the POWER button for 2 seconds) and look for the
little blinking light.
3. Look for the Blackweb RGD A011 speaker in your device’s Bluetooth list, or click YES.
The device and Bluetooth will nd each other every time, so long as the speaker is set to
Bluetooth and your device’s Bluetooth is on. If you’re connecting to a computer, you may
have some extra steps on that end. You’ll have to get that information from the computer
company.
Line in USB Charging
Port (2000mA)
CALL HANDLING:
INCOMING CALL:
Answering and hanging up a call – When speaker is paired to your phone, short press the
PLAY/PAUSE button to answer the call. To hang up, short press the PLAY/PAUSE button.
Move call from speaker to device – If you are on the call and wish to move the call from the
speaker to your device, long press the PLAY/PAUSE button (3s).
Reject an incoming call – To reject an incoming call, long press the PLAY/PAUSE button (3s).
See below table for clarication.
Situation
First incoming call Pick up call Reject call
On call End call Move call from speaker to device
Short Press
PLAY/PAUSE Button
Long Press
PLAY/PAUSE Button
PAIR 2 FOR PART Y MODE
1. Turn on both speakers. Press and hold the “+” and “-” buttons on each speaker until the
lights blink red and blue. This may take up to 2 seconds. You will hear the voice prompt
indicating the speakers have entered into search mode.
2. It will take up to 15 seconds for the speakers to nd each other. Once paired, the light
will turn solid blue and a tone with voice prompt will indicate “Speakers paired.” It will
be followed by “Left Channel” and “right Channel” voice prompts.
3. To unpair two speakers, press and hold the “+” and “-” buttons for up to 2 seconds.
AUX-IN MODE:
1. Plug one end of the cord into the speaker and the other into the headphone jack on your
device.
2. Turn on the speaker.
3. Hit PLAY on your device.
4. You’ll have to play and pause the music from your device, not the speaker.
(Note: If you are in PARTY MODE and you use the auxiliary cable, the music will only play
from the device it is hooked up to.)
Auto o: If the speaker is on but is not connected to Bluetooth, it will shut down after 2
minutes. Once paired, if the speaker is paused for 15 minutes or more, it will automatically
shut down.
DISCONNECTING DEVICE:
Long press the BLUETOOTH button up to 3 seconds to disconnect the speaker from the
device and enter into pairing mode.
USB CABLE:
25 cm Micro USB cable.
ONA18AA019, ONA18AA020, ONA18AA021
BWA18AA011
SPLASH PROOF (IPX5 RATING):
IPX5 rating means this speaker is splash proof. Water jets being splashed on the speaker
from any direction will not cause any harm to the speaker or aect its performance.
CLEANING:
Use a soft, dry towel to clean the speaker. Using water, harsh cleaners, or anything else
may cause harm to the mechanics inside. Remember to keep the charging and aux ap
ush with the speaker for the best protection.
FCC DISCLAIMER:
Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation. Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or TV reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note: Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
RUGGED PREMIUM BLUETOOTH® SPEAKER
MINI BLUETOOTH® SPEAKER
IMPORTANT LEGAL INFORMATION
IMPORTANT SAFEGUARDS:
When using an electrical product, basic precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING
• WARNING: Listen responsibly. To avoid hearing damage, make sure the volume on your
device is turned down before connecting to the speaker. After turning on your speaker,
gradually turn up the volume until you reach a comfortable listening volume.
• Use this product only for its intended use as described in this manual. Do not use
attachments not recommended by Blackweb.
• Blackweb is not liable for any damage caused to smartphones, iPod/MP3 players, or any
other device.
• Do not place or store this product where it can fall or be dropped into a tub or sink.
• Do not place or drop into water or any other liquid.
• Not for use by children. THIS IS NOT A TOY.
• Never operate this product if it has a damaged cord, plug, cable, or housing.
• Keep away from heated sur faces.
• Only set on dry surfaces. Do not place on surfaces wet from water or cleaning solvents.
Attention California Residents:
WARNING: This product contains chemicals known to the State of California to
cause cancer, birth defects, and other reproductive harm.
A MESSAGE FROM THE ENVIRONMENT
WARNING:
This product has an internal, non-replaceable lithium battery. Please dispose of in
accordance with your local, state, province, and countr y guidelines.
This product contains small parts that may present a choking hazard for young children.
CAUTION: All servicing of this product must be performed by authorized Service Personnel only.
FCC SAR Evaluation:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Bluetooth SIG, Inc., and any use of such marks by Blackweb is under license. Distributed by Wal-Mart Stores, Inc., Bentonville, AR
Blackweb is a trademark of Wal-Mar t Stores, Inc. The Bluetooth® word mark and logos are registered trademarks owned by
© 2018 Wal-Mart Stores, Inc. All Rights Reserved.
IB-WM1807
01/2018 V1
