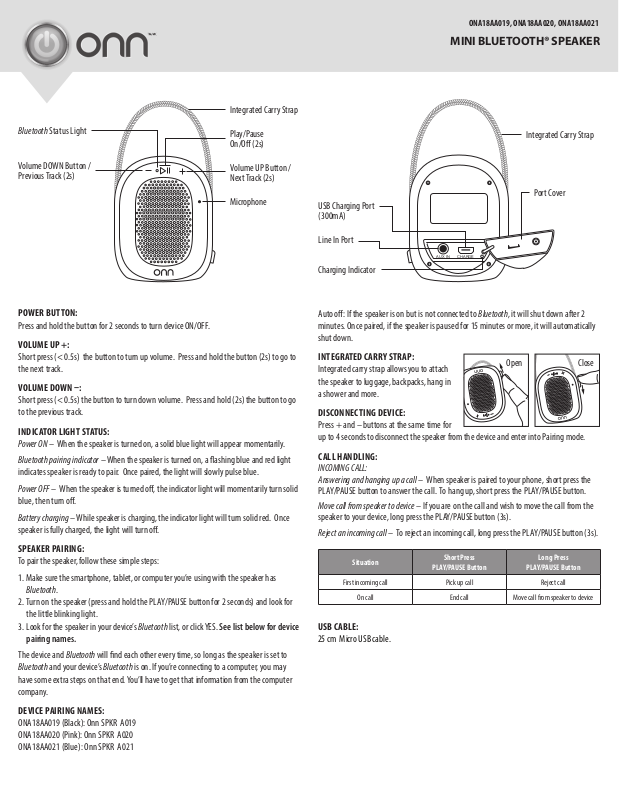

FKA Distributing WM1801D User Manual
Integrated Carry Strap
ONA18AA019, ONA18AA020, ONA18AA021
MINI BLUETOOTH® SPEAKER
Bluetooth Status Light
Play/Pause
On/O (2s)
Volume DOWN Button /
Previous Track (2s)
Volume UP Button /
Next Track (2s)
Microphone
POWER BUTTON:
Press and hold the button for 2 seconds to turn device ON/OFF.
VOLUME UP +:
Short press (< 0.5s) the button to turn up volume. Press and hold the button (2s) to go to
the next track.
VOLUME DOWN –:
Short press (< 0.5s) the button to turn down volume. Press and hold (2s) the button to go
to the previous track.
INDICATOR LIGHT STATUS:
Power ON – When the speaker is turned on, a solid blue light will appear momentarily.
Bluetooth pairing indicator – When the speaker is turned on, a ashing blue and red light
indicates speaker is ready to pair. Once paired, the light will slowly pulse blue.
Power OFF – When the speaker is turned o, the indicator light will momentarily turn solid
blue, then turn o.
Battery charging – While speaker is charging, the indicator light will turn solid red. Once
speaker is fully charged, the light will turn o.
SPEAKER PAIRING:
To pair the speaker, follow these simple steps:
1. Make sure the smartphone, tablet, or computer you’re using with the speaker has
Bluetooth.
2. Turn on the speaker (press and hold the PLAY/PAUSE button for 2 seconds) and look for
the little blinking light.
3. Look for the speaker in your device’s Bluetooth list, or click YES. See list below for device
pairing names.
The device and Bluetooth will nd each other every time, so long as the speaker is set to
Bluetooth and your device’s Bluetooth is on. If you’re connecting to a computer, you may
have some extra steps on that end. You’ll have to get that information from the computer
company.
Integrated Carry Strap
Port Cover
USB Charging Port
(300mA)
Line In Port
AUX IN CHARGE
Charging Indicator
Auto o: If the speaker is on but is not connected to Bluetooth, it will shut down after 2
minutes. Once paired, if the speaker is paused for 15 minutes or more, it will automatically
shut down.
INTEGRATED CARRY STRAP:
Integrated carry strap allows you to attach
CloseOpen
the speaker to luggage, backpacks, hang in
a shower and more.
DISCONNECTING DEVICE:
Press + and – buttons at the same time for
up to 4 seconds to disconnect the speaker from the device and enter into Pairing mode.
CALL HANDLING:
INCOMING CALL:
Answering and hanging up a call – When speaker is paired to your phone, short press the
PLAY/PAUSE button to answer the call. To hang up, short press the PLAY/PAUSE button.
Move call from speaker to device – If you are on the call and wish to move the call from the
speaker to your device, long press the PLAY/PAUSE button (3s).
Reject an incoming call – To reject an incoming call, long press the PLAY/PAUSE button (3s).
Situation
First incoming call Pick up call Reject call
On call End call Move call from speaker to device
Short Press
PLAY/PAUSE Button
Long Press
PLAY/PAUSE Button
USB CABLE:
25 cm Micro USB cable.
DEVICE PAIRING NAMES:
ONA18AA019 (Black): Onn SPKR A019
ONA18AA020 (Pink): Onn SPKR A020
ONA18AA021 (Blue): Onn SPKR A021
ONA18AA019, ONA18AA020, ONA18AA021
MINI BLUETOOTH® SPEAKER
FCC DISCLAIMER:
Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation. Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or TV reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note: Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
FCC SAR Evaluation:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
IMPORTANT LEGAL INFORMATION
IMPORTANT SAFEGUARDS:
When using an electrical product, basic precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING
• WARNING: Listen responsibly. To avoid hearing damage, make sure the volume on your
device is turned down before connecting to the speaker. After turning on your speaker,
gradually turn up the volume until you reach a comfortable listening volume.
• Use this product only for its intended use as described in this manual. Do not use
attachments not recommended by ONN.
• ONN is not liable for any damage caused to smartphones, iPod/MP3 players, or any other
device.
• Do not place or store this product where it can fall or be dropped into a tub or sink.
• Do not place or drop into water or any other liquid.
• Not for use by children. THIS IS NOT A TOY.
• Never operate this product if it has a damaged cord, plug, cable, or housing.
• Keep away from heated surfaces.
• Only set on dry surfaces. Do not place on surfaces wet from water or cleaning solvents.
Attention California Residents:
WARNING: This product contains chemicals known to the State of California to
cause cancer, birth defects, and other reproductive harm.
A MESSAGE FROM THE ENVIRONMENT
WARNING:
This product has an internal, non-replaceable lithium battery. Please dispose of in
accordance with your local, state, province, and country guidelines.
This product contains small parts that may present a choking hazard for young children.
CAUTION: All servicing of this product must be performed by authorized service personnel only.
ONN is a trademark of Wal-Mart Stores, Inc. The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc., and any use of such marks by ONN is under license. Distributed by Wal-Mart Stores, Inc., Bentonville, AR
© 2018 Wal-Mart Stores, Inc. All Rights Reserved.
IB-WM1801
01/2018 V1
