FKA Distributing WM1801 User Manual

Use Manual

ONA 18AA019、ONA 18AA020、ONA 18AA021

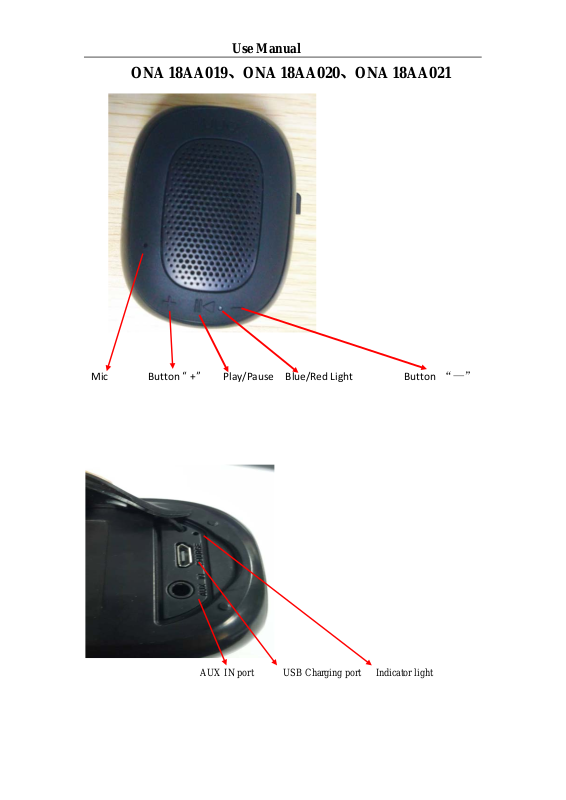

Mic Button “ +” Play/Pause Blue/Red Light Button “—”

AUX IN port USB Charging port Indicator light

Use Manual

Button function：

Pause/Play:
Long press will power on and power off /reject the call/exchange between #1 call and

#2 call/ reject the second call.
Short press will play/Pause and to answer the incoming call/Support the third parts
calling

“+”button : volume +, BT volume that sync with IOS. Long press to go to the next track.

“-” button： Volume-, BT volume that sync with IOS. Long press to got to the previous track.

s

Multi-Function Buttons：

Press “+” and “- ” at the same time to disconnect the BT

LED indicator ：

1：When BT don’t connect, Light Flash blue then red when pairing.
When BT connected, Light Blue LED Flash 5seconds/time

2：When charging the light will be a solid red and once done charging the light will turn off

3: When line-in blue light will slow flash 3seconds/time

4: Charging will use a charging with DC5V-300mA MicroUSB port to charge

BT pairing name ：

Black one ：Onn SPKR A019
Pink one ： Onn SPKR A020
Blue one： Onn SPKR A021

If the Bluetooth does not connect, it will shutdown after 2 minutes. If connected to Bluetooth

successfully 15 minutes non-operation, it will automatic shutdown.
Static current: Less than 15uA
Bluetooth transmission distance: not less than 10m
