2-Way 12" Active Monitor Speaker Cabinet
NF05066-1.1
Elettronica Montarbo srl Via O. Pigini, 8 - 62010 Montelupone (MC) - ITALY - T + 39 0733 227 1
F + 39 0733 227 250 - mail@montarbo.com - montarbo.com - Company under control of EKO Music Group SpA

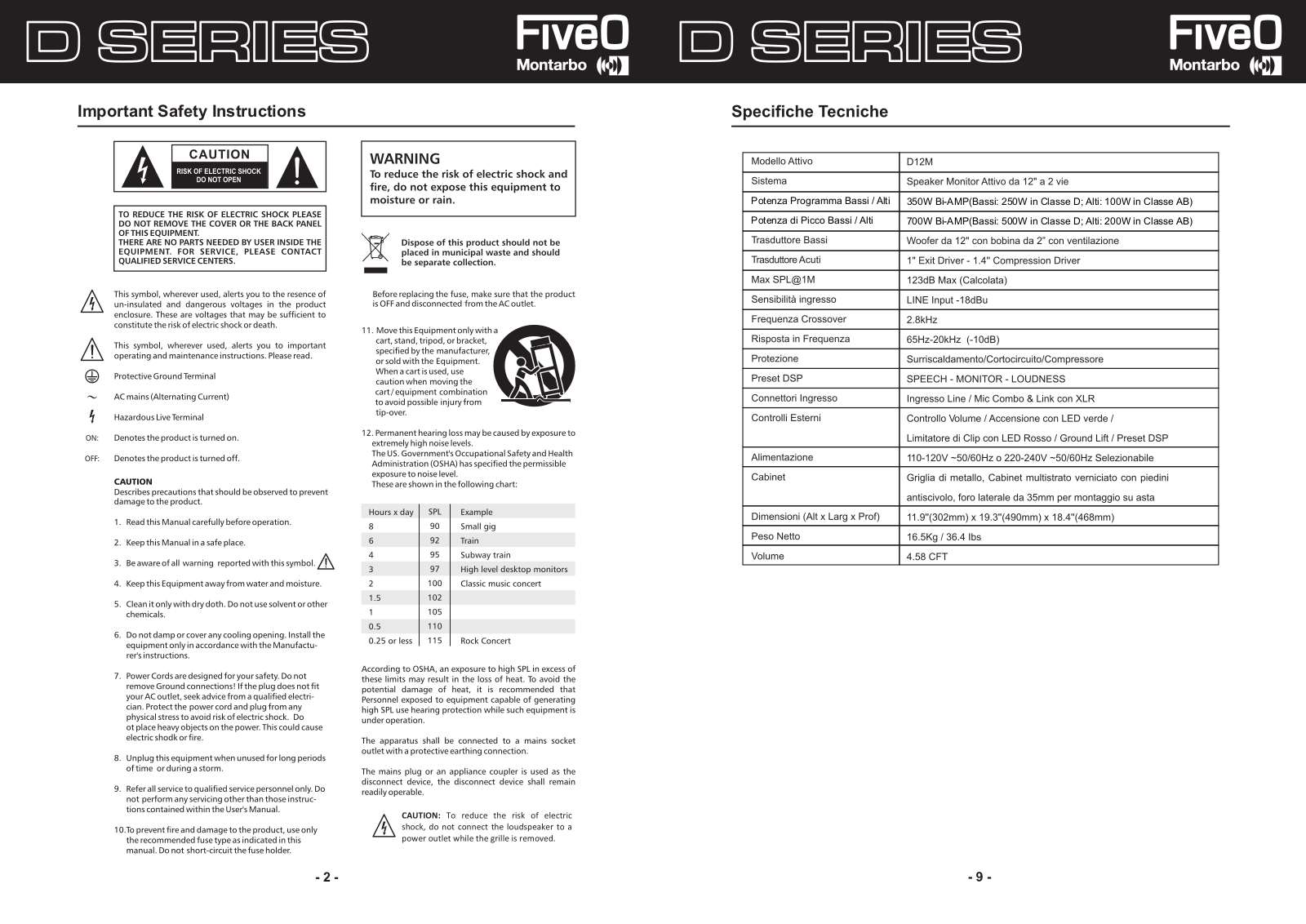

Important Safety Instructions
Potenza Programma Bassi / Alti
Potenza di Picco Bassi / Alti
350W Bi-AMP(Bassi: 250W in Classe D; Alti: 100W in Classe AB)
700W Bi-AMP(Bassi: 500W in Classe D; Alti: 200W in Classe AB)
- 2 -
Table of Contents
(Collegato al Pin 1 manualmente, )
Tipo TS Sbilanciato Tipo TRS Bilanciato Tipo TRS Sbilanciato Tipo XLR BilanciatoTipo XLR Sbilanciato
Bilanciato
1. INTRODUCTION
2. INSTALLATION TIPS
3. BACK PANEL DESCRIPTION
4. CONNECTION PLATE
5. WIRE CONNECTIONS
6. TECHNICAL SPECIFICATIONS
4
4
5
6
8
9
Sbilanciato
- 3 -
Monitor
- 4 -

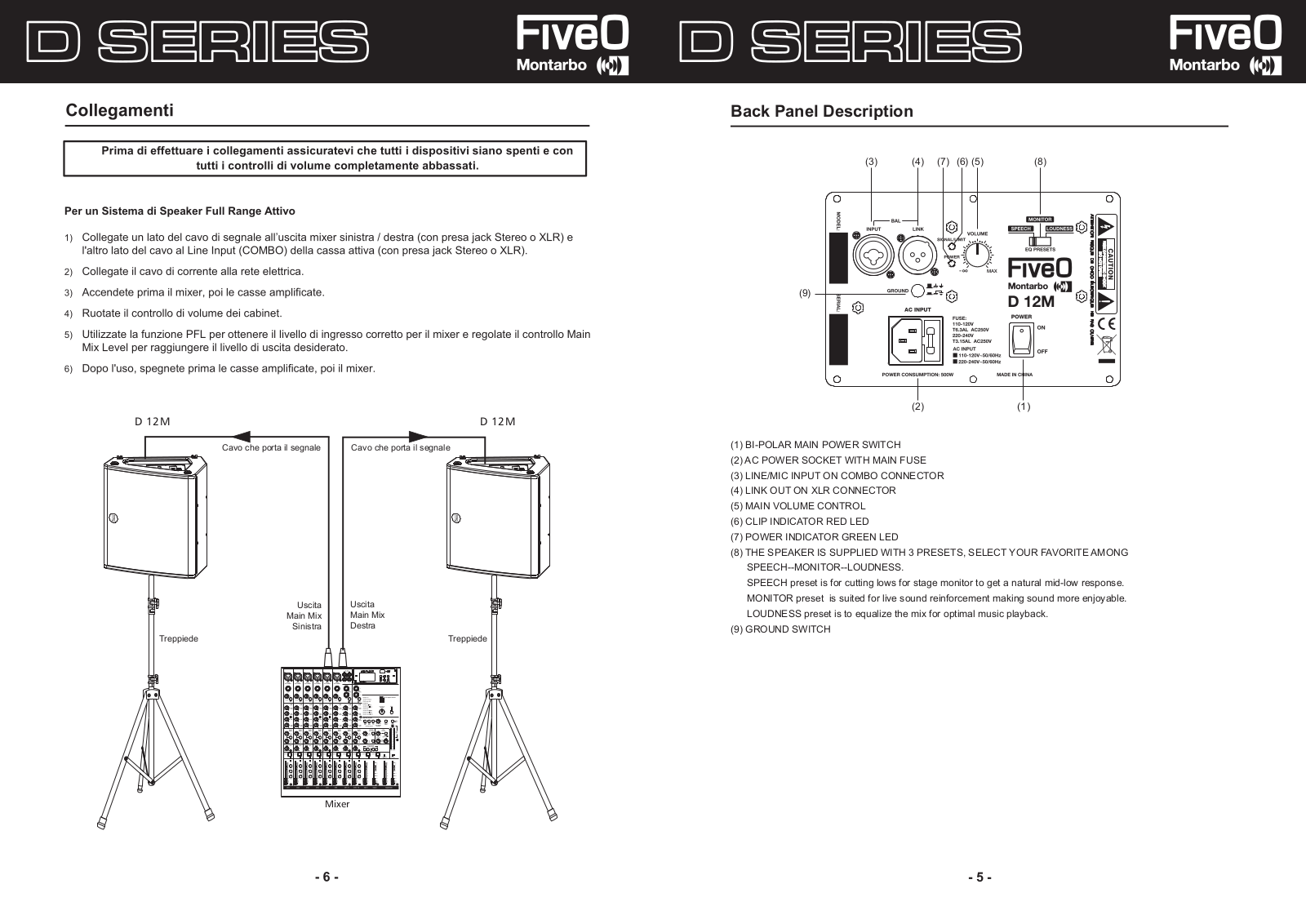

Back Panel Description
D 12M D 12M
Cavo che porta il segnale Cavo che porta il segnale
Uscita
Main Mix
Sinistra
Treppiede Treppiede
Uscita
Main Mix
Destra
(3)
(9)
(1) BI-POLAR MAIN POWER SWITCH
(2) AC POWER SOCKET WITH MAIN FUSE
(3) LINE/MIC INPUT ON COMBO CONNECTOR
(4) LINK OUT ON XLR CONNECTOR
(5) MAIN VOLUME CONTROL
(6) CLIP INDICATOR RED LED
(7) POWER INDICATOR GREEN LED
(8) THE SPEAKER IS SUPPLIED WITH 3 PRESETS, SELECT YOUR FAVORITE AMONG
SPEECH--MONITOR--LOUDNESS.
SPEECH preset is for cutting lows for stage monitor to get a natural mid-low response.
MONITOR preset is suited for live sound reinforcement making sound more enjoyable.
LOUDNESS preset is to equalize the mix for optimal music playback.
(9) GROUND SWITCH
(4) (5) (8)(7) (6)
(2)
(1)
Mixer
- 5 -

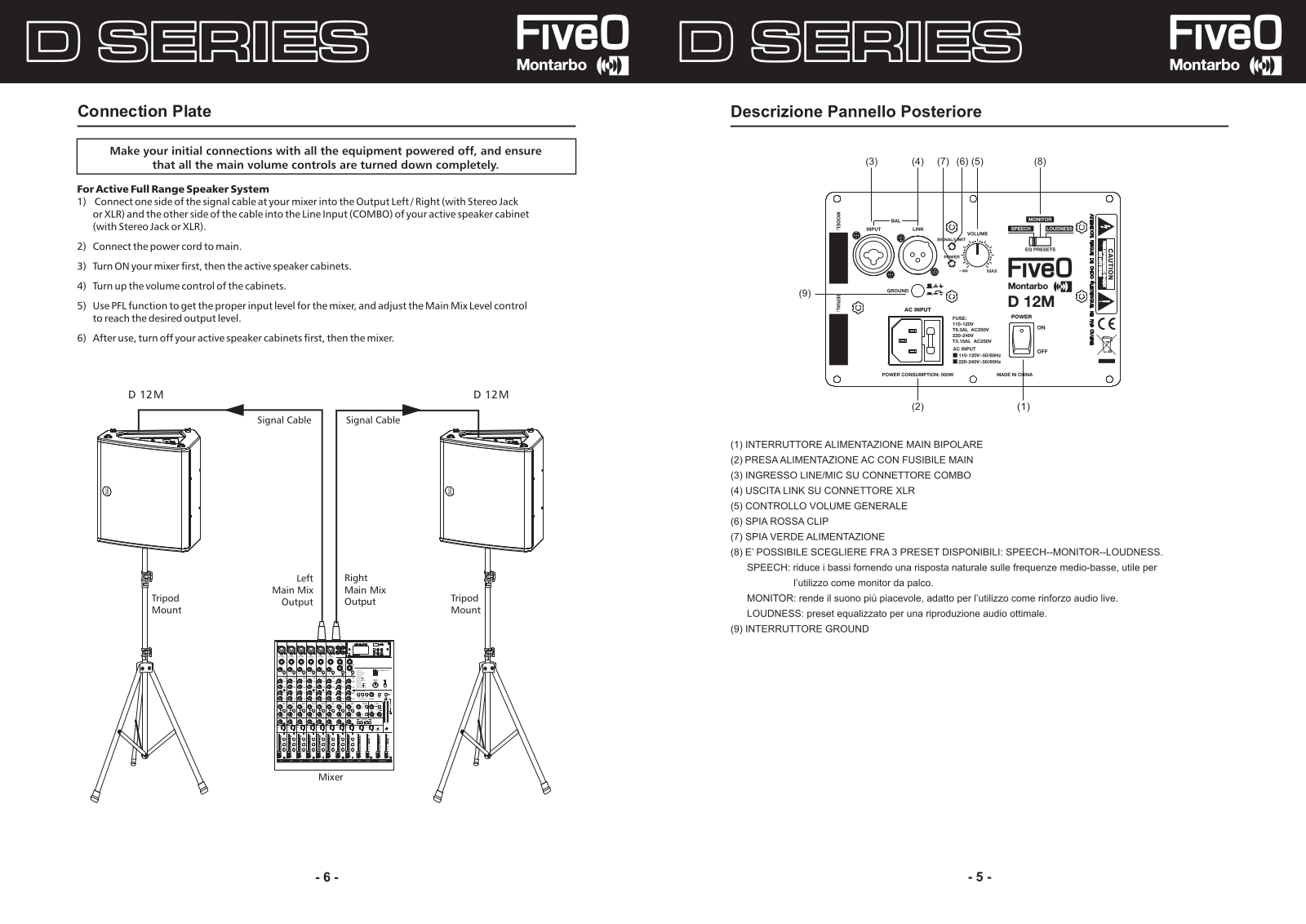

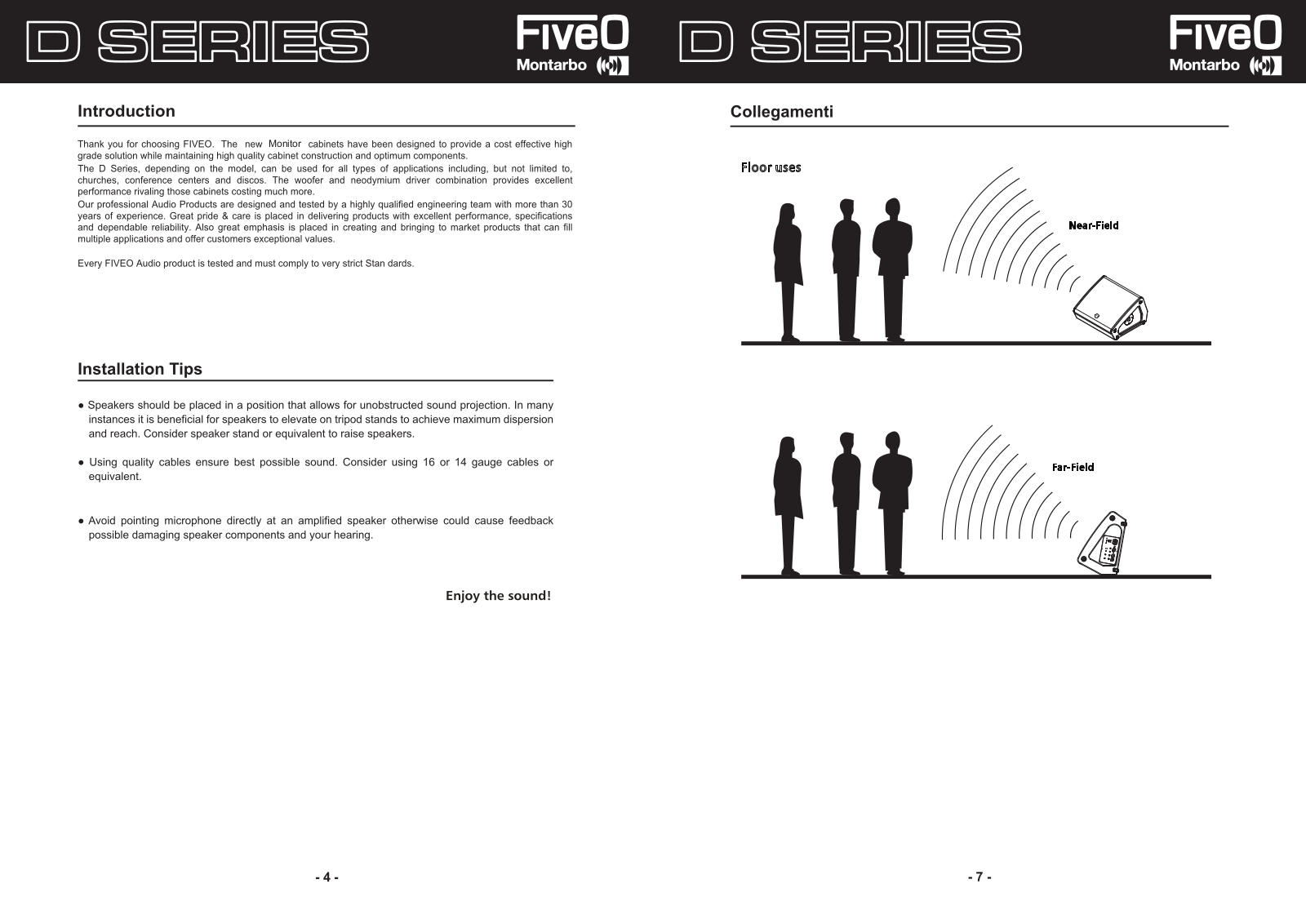

Connection Plate
D 12M D 12M
Mixer
- 6 -
Right
Main Mix
Output

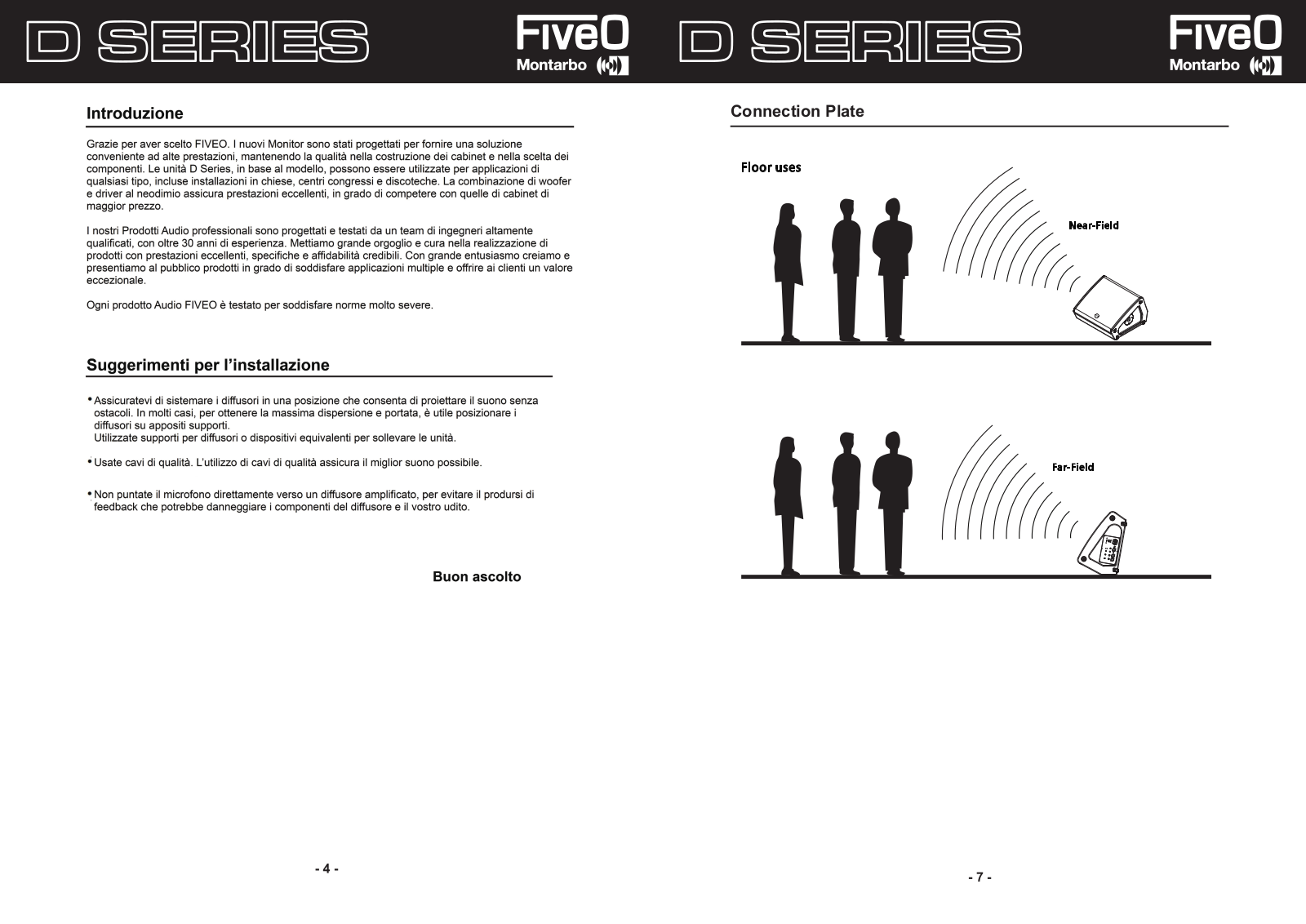

Connection Plate
Floor uses
Near- Field
Far-Field
- 7 -

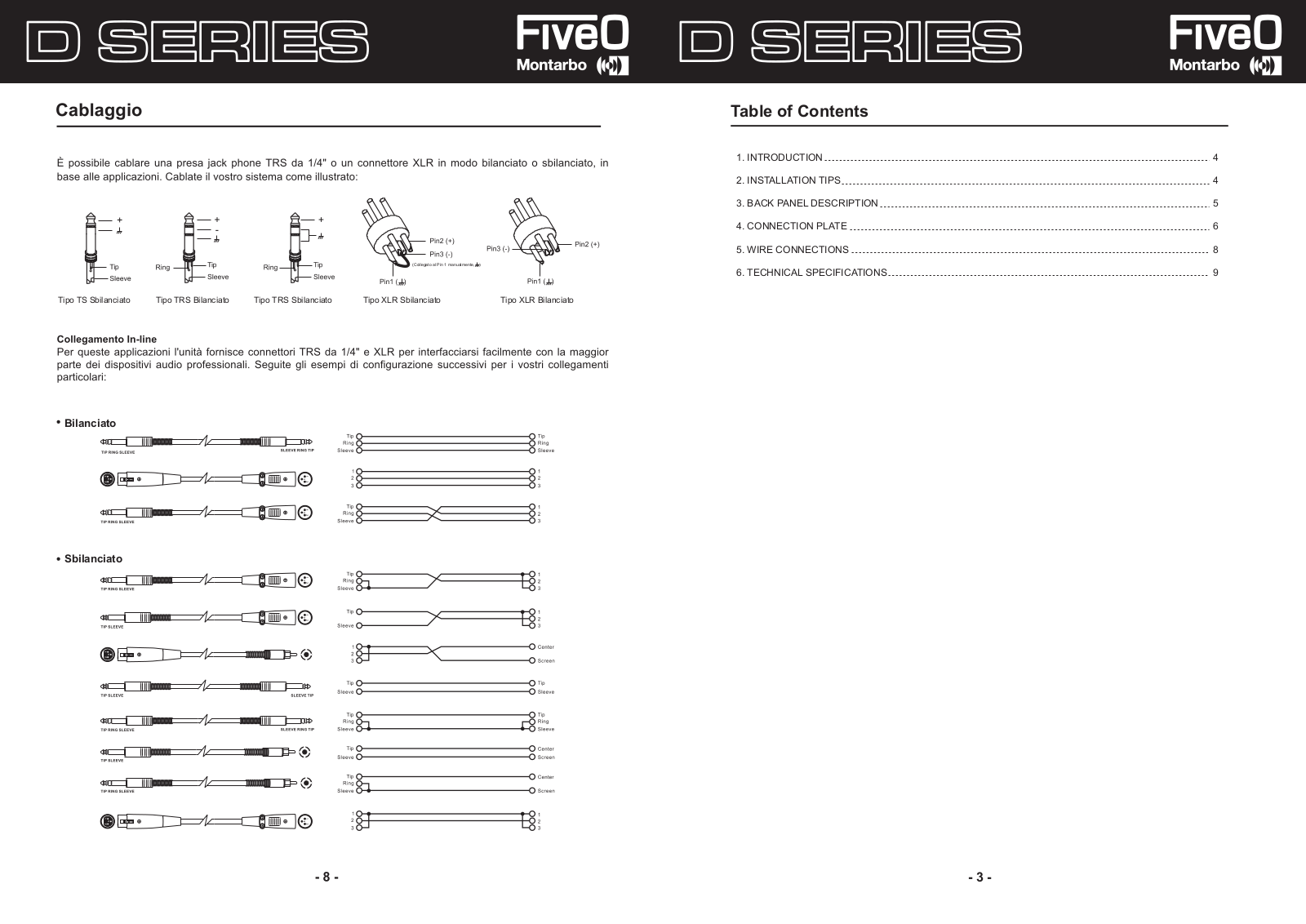

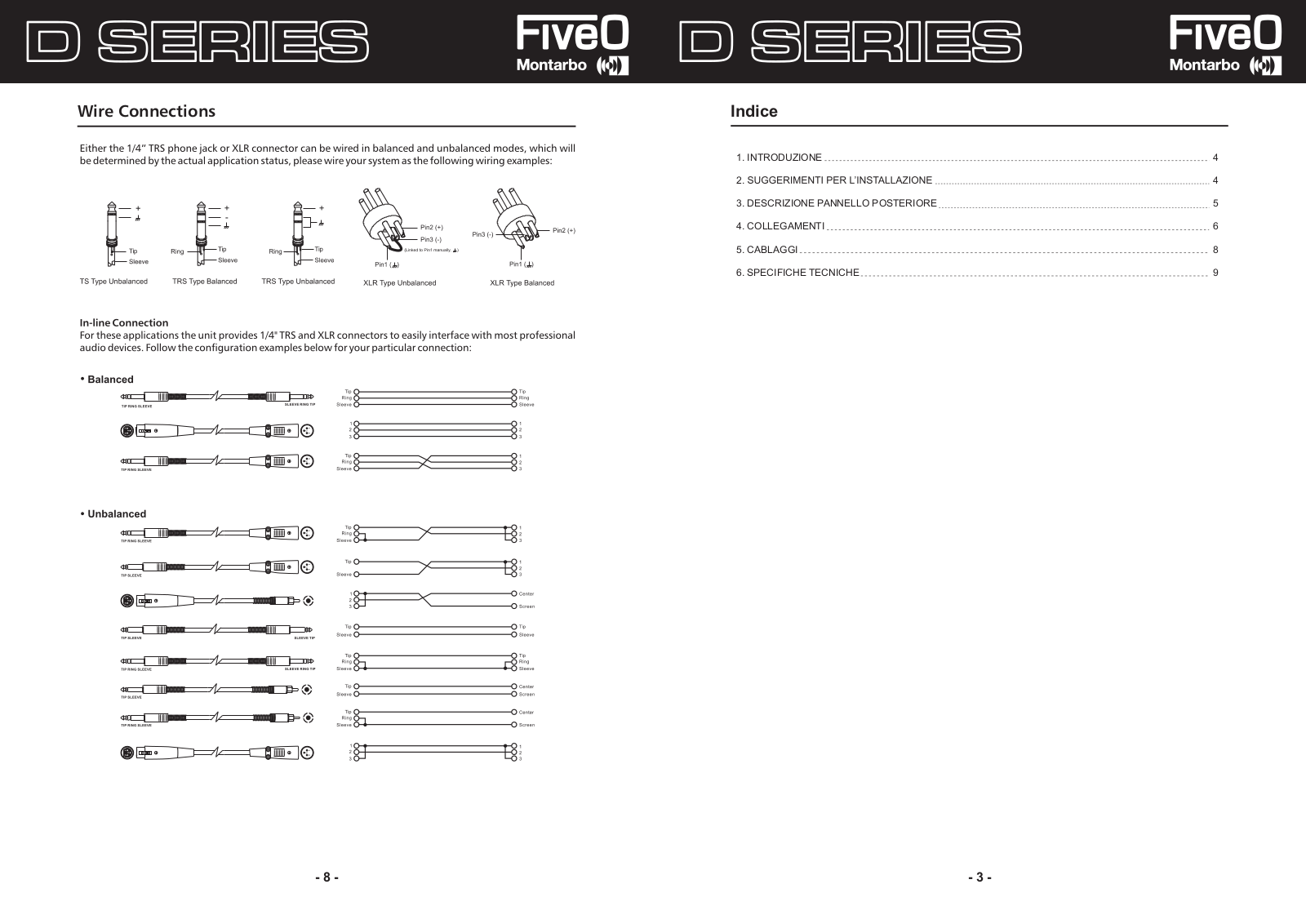

Wire Connections
Indice
1. INTRODUZIONE
2.
3. DESCRIZIONE PANNELLO POSTERIORE
4. COLLEGAMENTI
5. CABLAGGI
6. SPECIFICHE TECNICHE
4
4
5
6
8
9
- 8 -
- 3 -

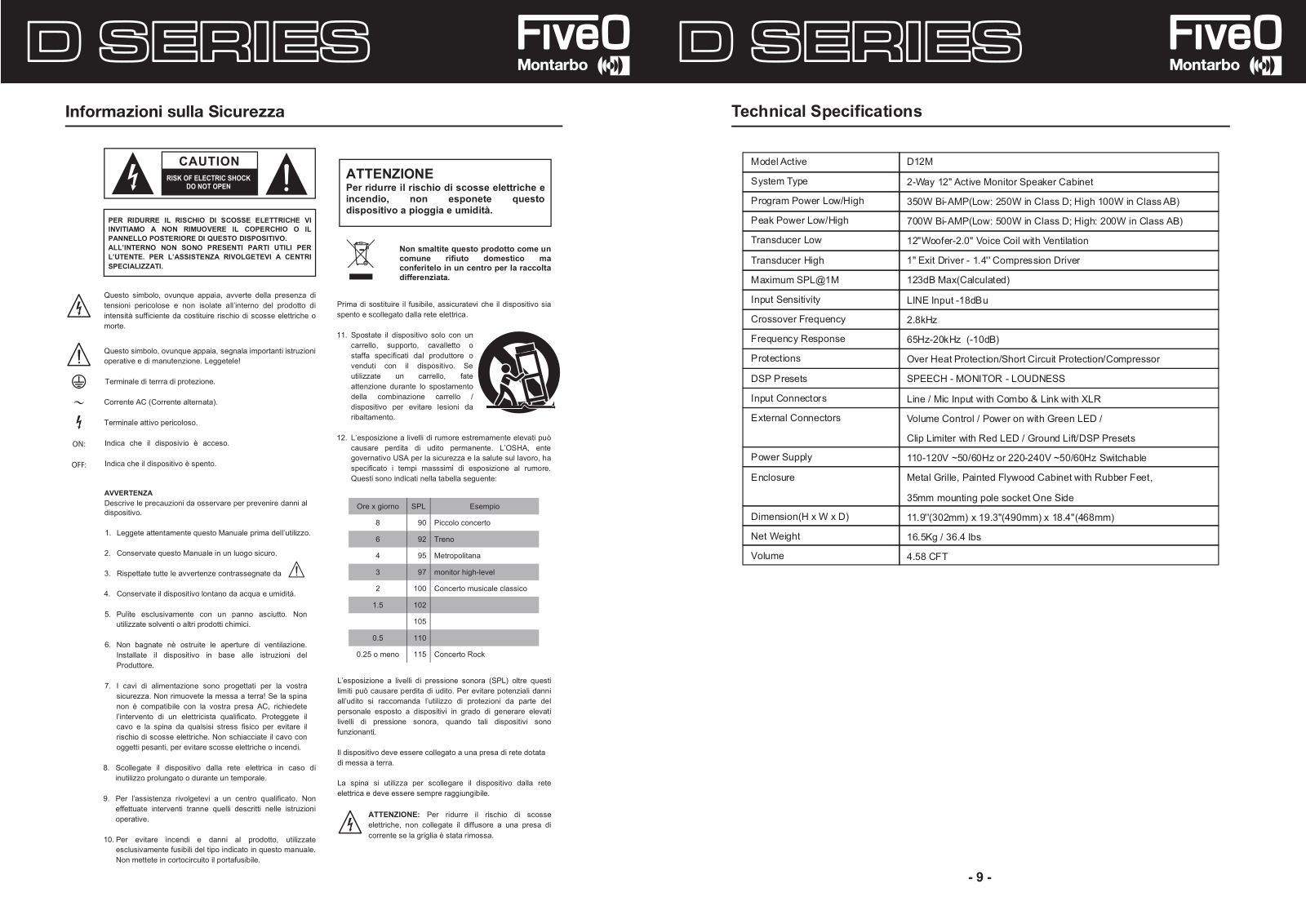

Technical Specifications
Model Active
System Type
Program Power Low/High
Peak Power Low/High
Transducer Low
Transducer High
Maximum SPL@1M
Input Sensitivity
Crossover Frequency
Frequency Response
Protections
DSP Presets
Input Connectors
External Connectors
Power Supply
Enclosure
D12M
2-Way 12" Active Monitor Speaker Cabinet
350W Bi-AMP(Low: 250W in Class D; High 100W in Class AB)
700W Bi-AMP(Low: 500W in Class D; High: 200W in Class AB)
12"Woofer-2.0" Voice Coil with Ventilation
1" Exit Driver - 1.4'' Compression Driver
123dB Max(Calculated)
LINE Input -18dBu
2.8kHz
65Hz-20kHz (-10dB)
Over Heat Protection/Short Circuit Protection/Compressor
SPEECH - MONITOR - LOUDNESS
Line / Mic Input with Combo & Link with XLR
Volume Control / Power on with Green LED /
Clip Limiter with Red LED / Ground Lift/DSP Presets
110-120V ~50/60Hz or 220-240V ~50/60Hz Switchable
Metal Grille, Painted Flywood Cabinet with Rubber Feet,
Dimension(H x W x D)
Net Weight
Volume
35mm mounting pole socket One Side
11.9''(302mm) x 19.3''(490mm) x 18.4''(468mm)
16.5Kg / 36.4 Ibs
4.58 CFT
- 9 -
