USER GUIDE

V-100 / V-200

Welcome

Thank you for making Fishman a part of your acoustic experience. We are proud

to offer you the fi nest acoustic amplifi cation products available: high-quality
professional-grade tools which empower you to sound your very best.

Troubleshooting

If you are unfamiliar with this product, please pay close attention to the
requirements for installation. Failure to do so can result in permanent damage
to the pickup.

Installation by a qualifi ed professional is strongly recommended.

Technical support, troubleshooting tips and installation information can be found

at http://www.fi shman.com/support/

2

Installation

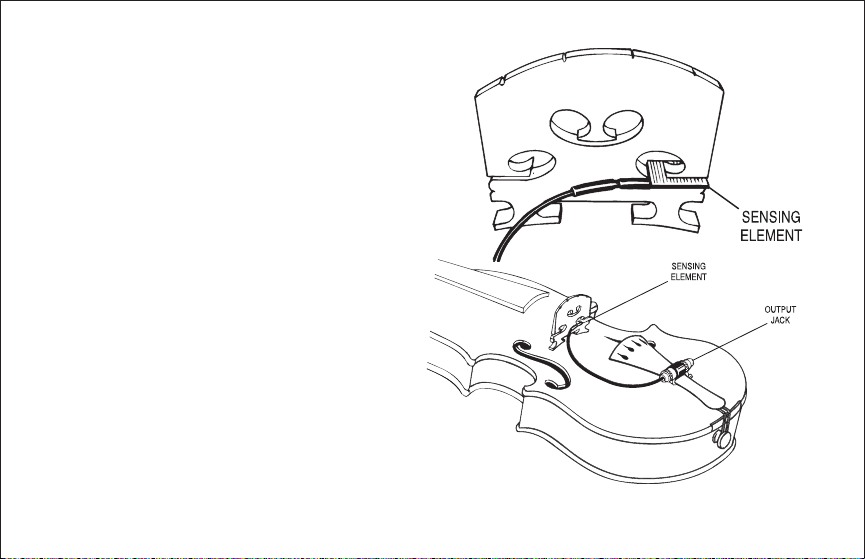

1. Measure the opening of the wing slot on the bridge with a vernier caliper.
The opening should be between .060” and .090” (1.5mm and 2.3mm) for

proper fi t.

If the wing slot measures less than .060” (1.5mm), employ a qualifi ed repairman
to enlarge the wing slot.

If the wing slot measures more than .090” (2.3mm), as is the case in violas, a small
wooden shim may be required. If so, use an adhesive to bond the shim to the

“leg” face.
