Fishman ELLIPSE AURA USER GUIDE

USER GUIDE
ELLIPSE AURA™ (for aftermarket installed systems)

Read Me First!!

To experience the benefits of Aura, you must first upload
Images into the preamp.

• Install the Aura Gallery 2.0 CD on your PC.

• Connect the Aura product to the computer with
the supplied USB cable and follow the onscreen
instructions to upload Images.

471-300-300 Rev B 2-07

Image Chart

Once you upload Images into your Ellipse Aura, fill in this chart for
quick reference.

Image # Instrument Name Microphone Mic Distance

1

2

3

4

READ ME!

This product is meant
professional guitar technician. Instructions for professional
installers are available at Service & Support at www.fishman.com.

to be installed only by a qualified

2

Fundamentals

To experience the benefits of Aura, install the
Aura Gallery CD on your computer then upload
Images into the Ellipse Aura preamp.

3

Quick Start

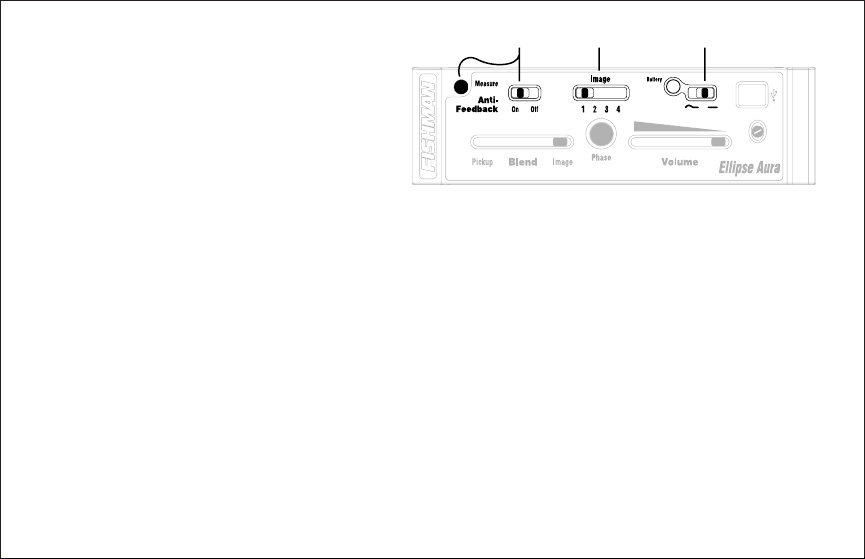

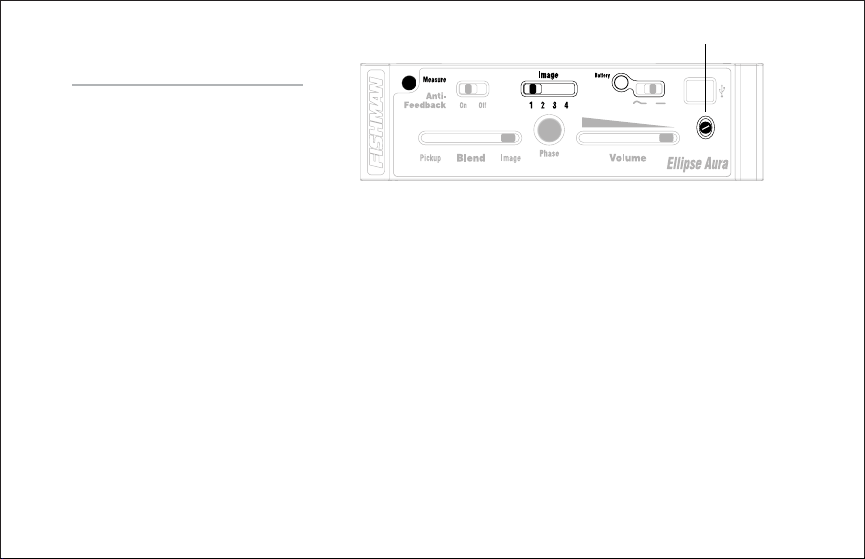

After you upload Images into the preamp, set the controls as illustrated:

4

1. Plug In • Connect the Ellipse Aura to your amplifier or PA with a ¼-inch
instrument cable.

2. Select an Image • Raise the Volume and use the Image switch to browse
through the four Images until you find one you prefer.

3. Blend in the pickup • Move the Blend slider to the left to mix in some
pickup signal with the Image.

4. Phase • Push the Phase switch in and out until you find the position that
sounds most pleasing. If feedback occurs, change the position of the switch.

5. Anti-Feedback • Start with the Volume off. Move the Anti-Feedback switch
to the On position (left). Push and hold the measure button for several seconds.
Raise the volume until feedback begins. The filter will latch onto the feedback
and eliminate it after a few seconds.
