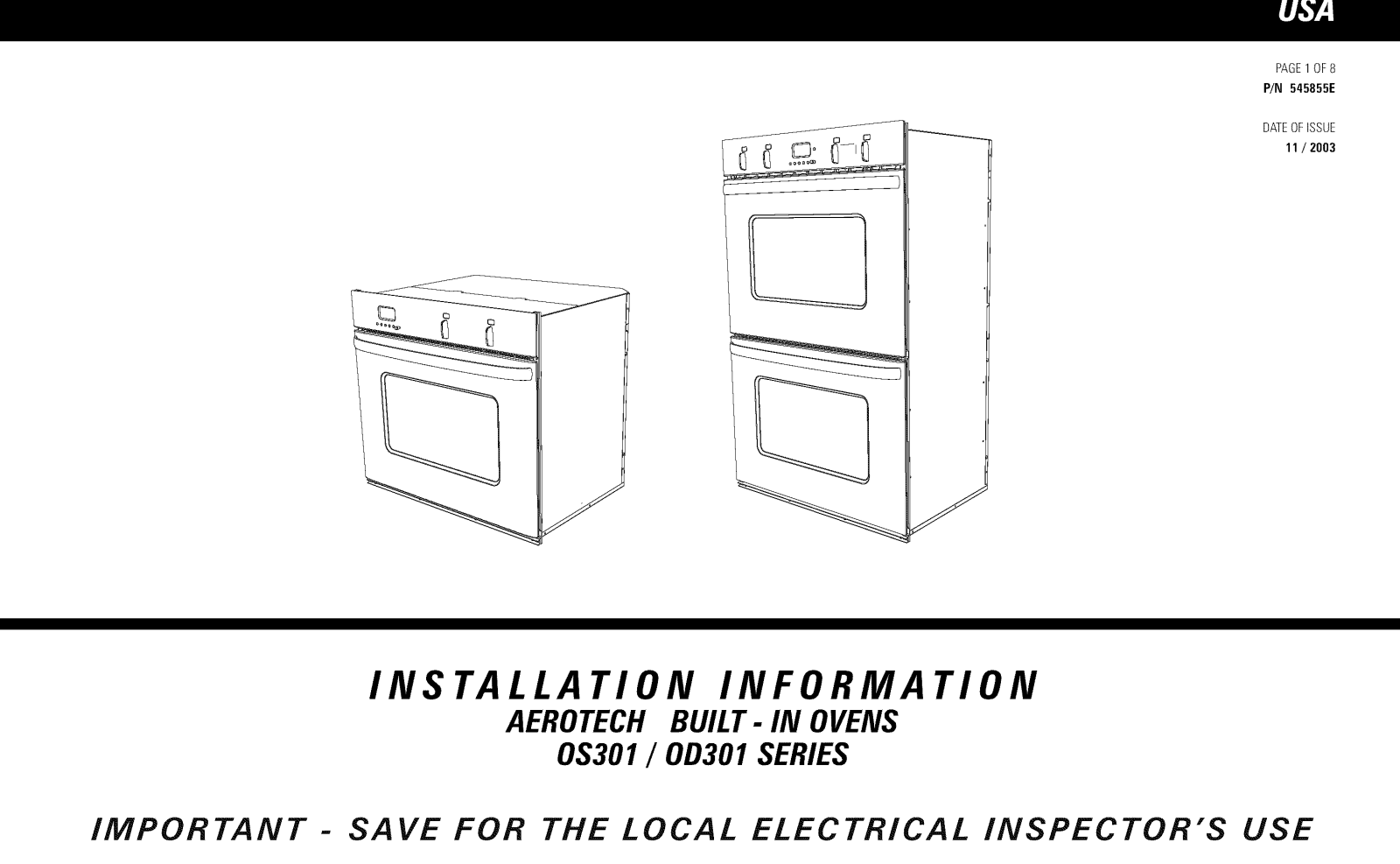

Fisher & Paykel OD301, OD301MV1-87818, OD301MV1-87893, OD301MV2-87930, OD301MV2-87932 Installation Guide
...
PAGE1OF8
P/N 545855E
DATEOFISSUE
11 / 2003
INSTALLATION INFORMATION
AEROTECH BUILT- IN OVENS
0S301 / 0D301 SERIES
IMPORTANT- SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE
BEFORE YOU START
Correct installation is the responsibility of the customer.
Ensure that the installer is properly qualified to install this oven.
= Make surethat the oven is locatedaway from anystrong and/orhot drafts of air,
• Thecabinetopeningdimensionsspecifiedare the absoluteminimum. Thesedimensionsallow a clearance
of upto 1/4"(6mm).
° Theproductmust beelectrically grounded.See"ElectricalConnection"for details,
* We recommendthat the electricalsupplyjunction boxis locatedeither3" belowthe mainsupportsurfaceof
the productonthe right handsideor flush mountedinthe rear wall behindthe productor mountedin the
adjacentright-handsidecabinet. A 1"diameterholeshouldbe drilledin the right rearcorner of the oven
cabinetorinthe rearofthe right-handsidewall as requiredto enablethe electricalsupplycordto be passed
throughthe cabinetto the junction box, Detailsofthese requirementsareshownin thediagramto the right.
* Theoven supportsurfaceshouldbeflat, leveland beableto supporta weight of at least 420 pounds(190 Kg)
for a doubleovenand 238 pounds(108 Kg)for single ovenmodels,
• Youwill needaNo,2 Phillipsscrewdriverto completethe installationof the oven intothe cabinet.
Thereshouldbe4suitablewood screwswith this installationkit (Partnumber556075)and4 spacers
(Partnumber 545455),
* A Fisher8 PaykelCE901cooktopcan beinstalledabovean 0S301single wall ovenif a 3/8" (10mm)gap is
providedbetweenthe top of theovenandthe bottomof thecooktop.
It is thecustomersresponsibility:

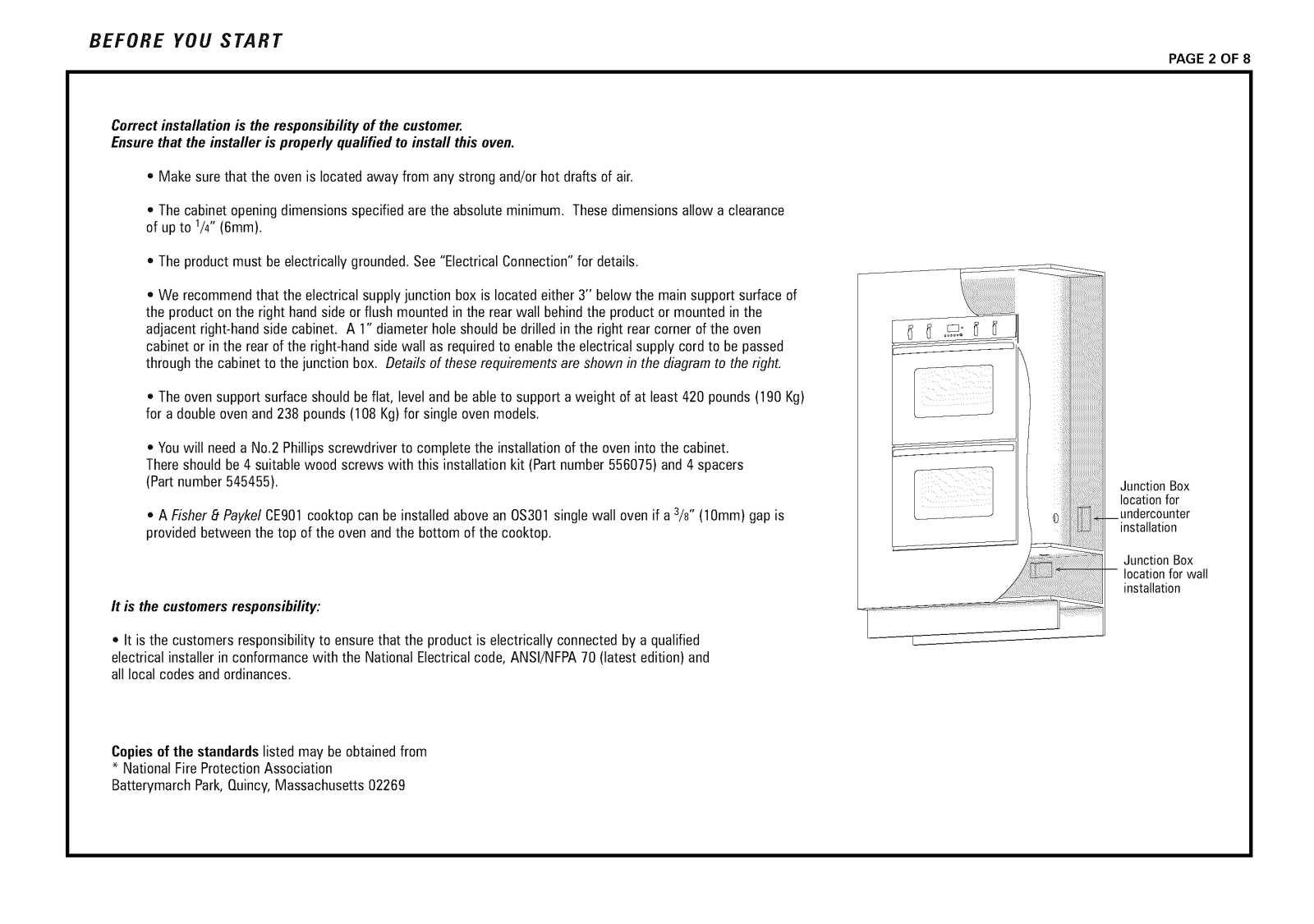

PAGE 2 OF 8
Junction Box
location for
undercounter
--installation
Junction Box
-- location for wall
installation
• It isthe customersresponsibilityto ensurethat the product is electricallyconnectedbya qualified
electricalinstallerin conformancewith the NationalElectricalcode,ANSI/NFPA70(latest edition)and
all localcodes andordinances,
Copiesof the standardslisted may beobtainedfrom
* NationalFireProtectionAssociation
BatterymarchPark,Quincy,Massachusetts02269

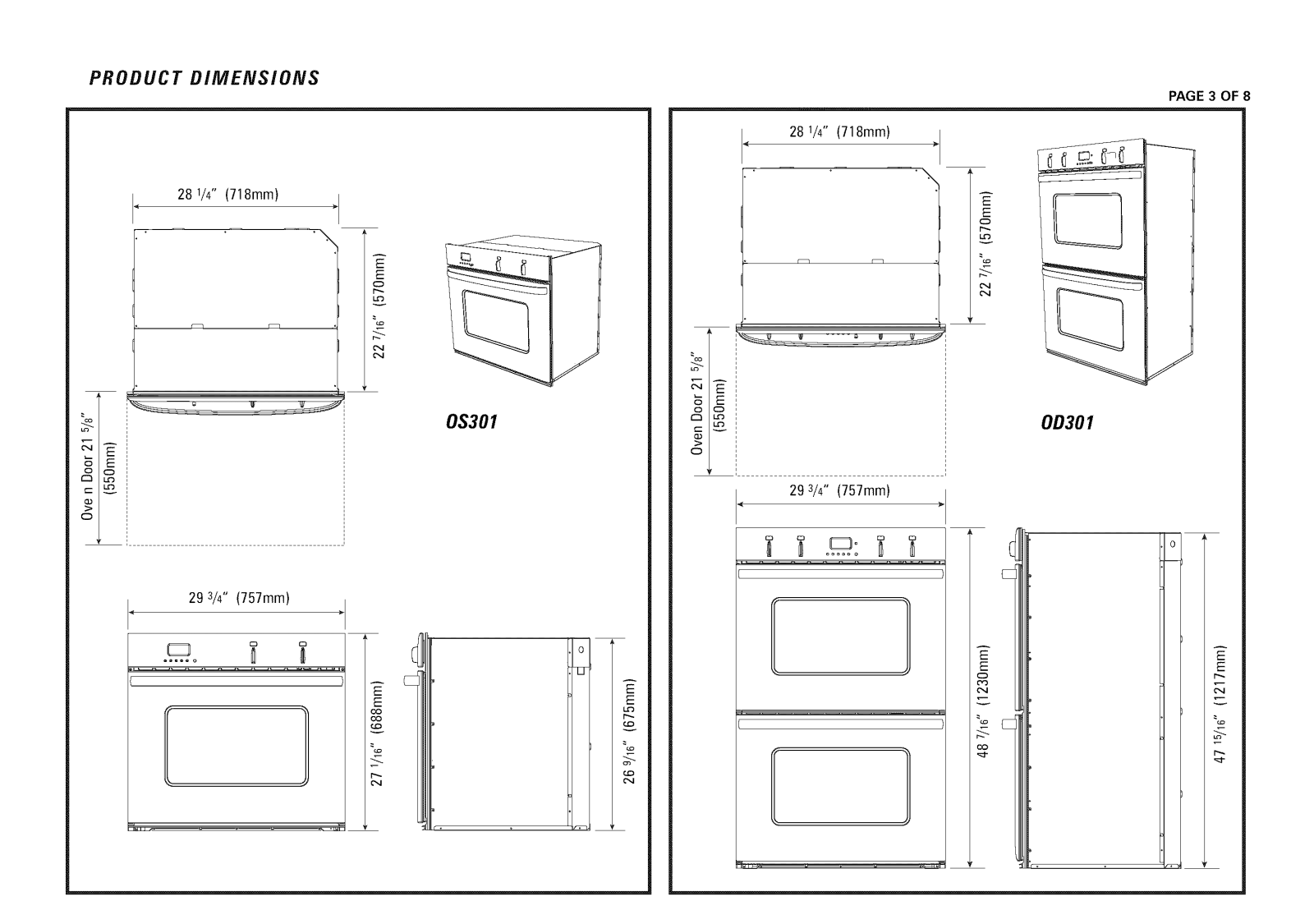

PRODUCT DIMENSIONS
28 1/4" (718mm)
PAGE 3 OF 8
28 1/4" (718mm)
.\
AE
E
O
,\
E
O
LO
v
_U --_ US
LO
v
%
Z-
51
29 3/4" (757mm)
......
0S301
0D301
29 3/4" (757mm)
o
p,..
F,
.C..
%
-.T.
p..
EA
E
