Page 1
Electronic Models
DEIX2
DGIX2
DE62T27GW
DG62T27GW
Supplementary to Issue B March 2005 – 517760B
517762
Page 2
517762
2
Page 3
517762 - AUGUST 2005 REPRINT - JULY 2008
The specifications and servicing procedures outlined in this manual are subject to change without
notice.
The latest version is indicated by the reprint date and replaces any earlier editions.
Note: This supplementary manual is only to be used in conjunction with 517760B, it is not
intended to be used on its own.
Fisher & Paykel Appliances Inc
5800 Skylab Rd,
Huntington Beach
California, CA92647
USA
Telephone: 888 936 7872
E-mail: customer.care@fisherpaykel.com
3
Page 4
517762 - AUGUST 2005 REPRINT - JULY 2008
CONTENTS
1 SERVICING REQUIREMENTS................................................................................................5
1.1 Health & Safety...............................................................................................................5
1.2 Electrical Safety ..............................................................................................................5
1.3 Electrostatic Discharge ...................................................................................................5
1.4 Good Working Practices .................................................................................................5
1.5 Safety Test......................................................................................................................5
1.6 Sheet Metal Edges..........................................................................................................5
2 MODEL INFORMATION..........................................................................................................6
2.1 Model Number.................................................................................................................6
2.2 Serial Number.................................................................................................................6
2.3 Product Code..................................................................................................................7
3 TECHNICAL OVERVIEW ........................................................................................................7
3.1 Finish ..............................................................................................................................7
3.2 Electrical Supply..............................................................................................................7
3.3 Dimensions .....................................................................................................................7
3.4 Maximum Capacity (Full Load) .......................................................................................8
4 COMPONENTS........................................................................................................................8
4.1 Display Module ...............................................................................................................8
5 SERVICE PROCEDURES.......................................................................................................8
5.1 Removal of Lid................................................................................................................8
5.2 Components in Console Area.........................................................................................8
5.3 Removal of Display Module ............................................................................................9
6 DIAGNOSTICS ........................................................................................................................9
6.1 Overview.........................................................................................................................9
6.2 Fault Code Summary....................................................................................................10
7 DIAGNOSTIC MODE.............................................................................................................14
7.1 Entering the Diagnostic Mode – Intuitive Model............................................................14

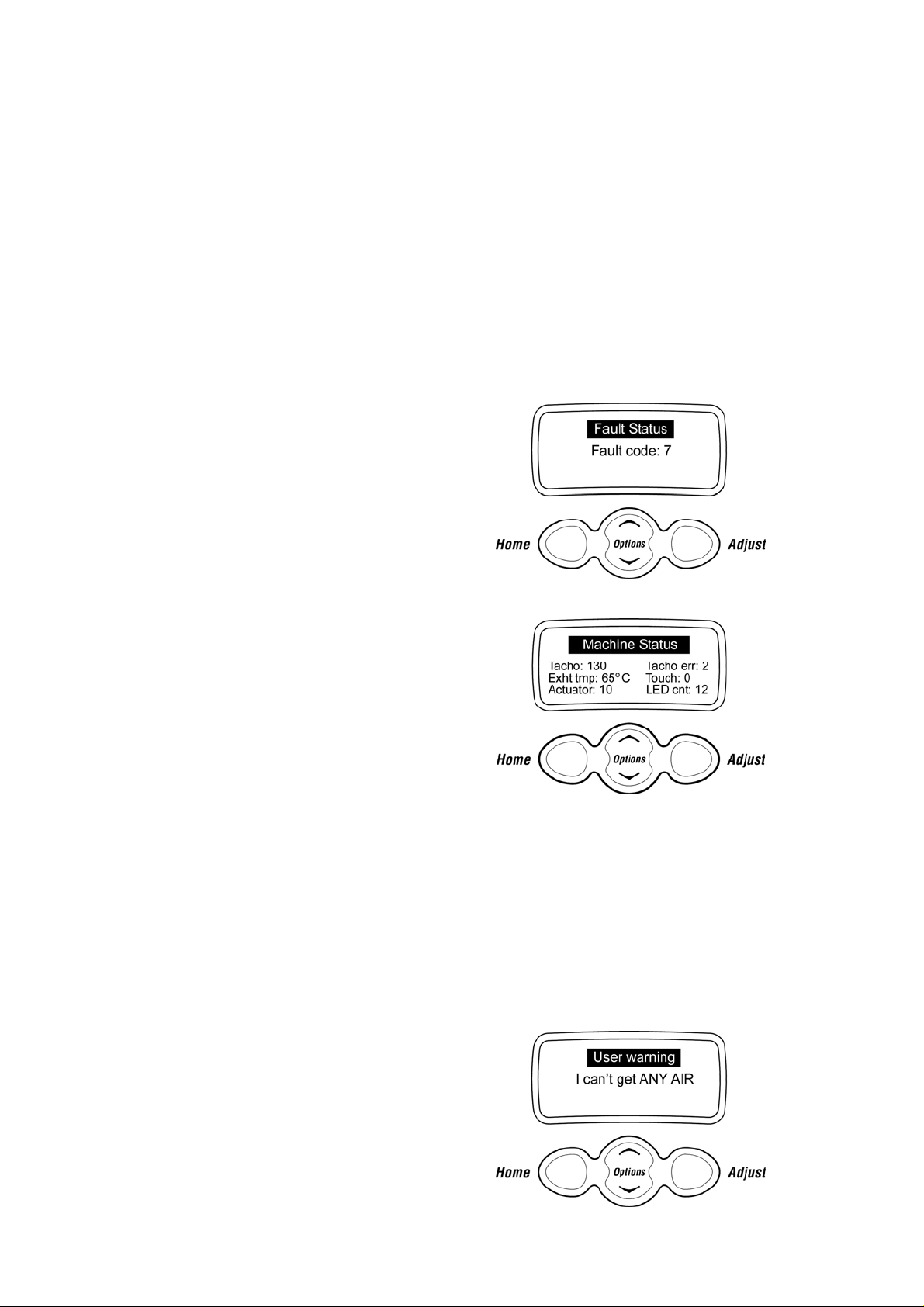

7.1.1 Data Display.........................................................................................................14

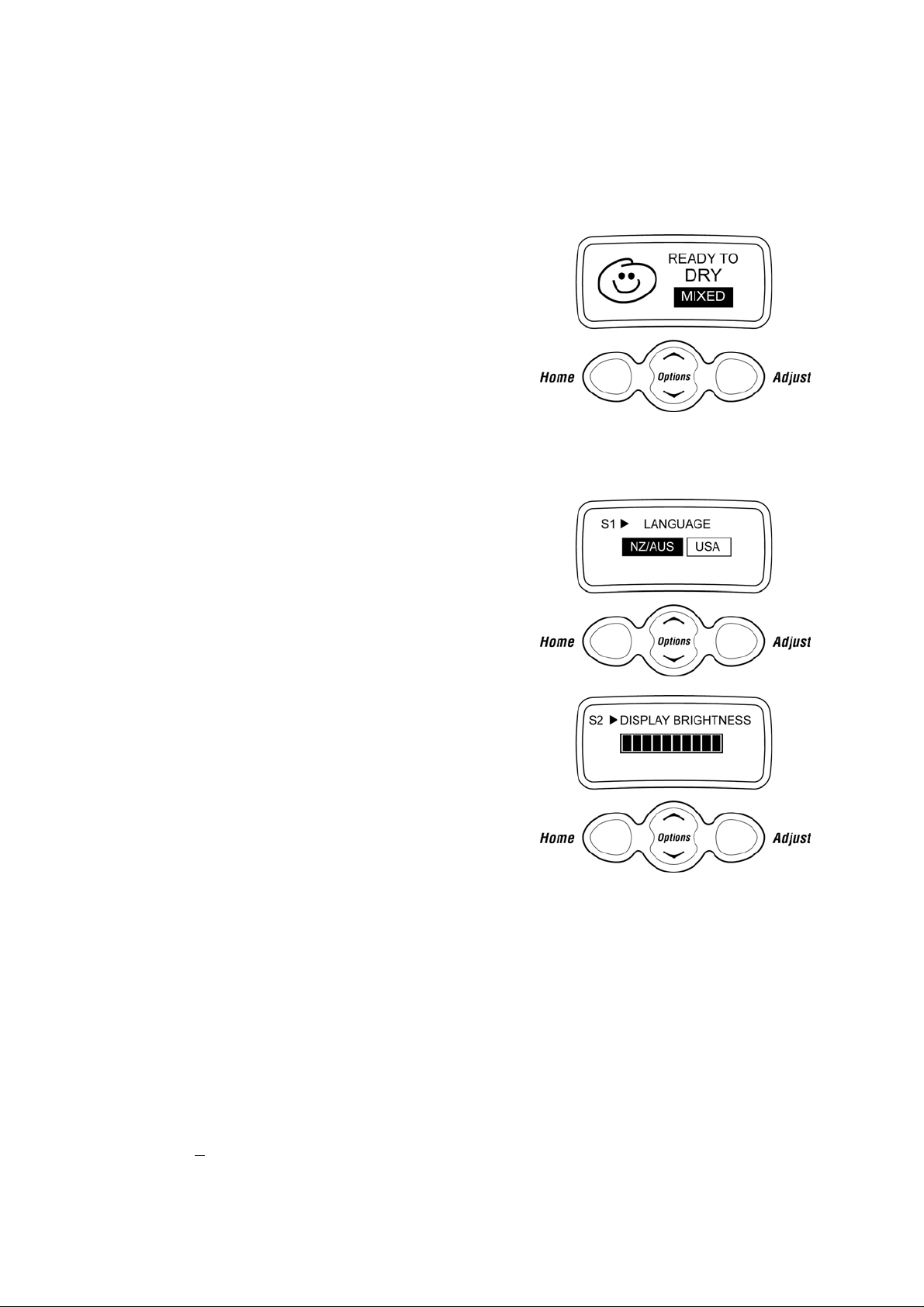

7.1.2 Adjust Options Menu............................................................................................15
7.1.3 Testing the Conductivity Contacts........................................................................15
7.1.4 Data Download Mode...........................................................................................16
7.1.5 Entering the Showroom Mode..............................................................................16
7.2 Entering the Diagnostic Mode – AeroSmart LCD Model...............................................16
7.2.1 Testing the Conductivity Contacts........................................................................17
7.2.2 Data Download Mode...........................................................................................17
7.3 Entering the Diagnostic Mode – AeroSmart LED Model...............................................17
7.3.1 Testing the Conductivity Contacts........................................................................18
7.3.2 Data Download Mode...........................................................................................18
8 AUTOSENSING.....................................................................................................................18
9 TEMPERATURE CONTROL .................................................................................................18
10 COOL DOWN.........................................................................................................................19
11 CYCLE CHART – ELECTRIC................................................................................................20
12 CYCLE CHART - GAS...........................................................................................................21

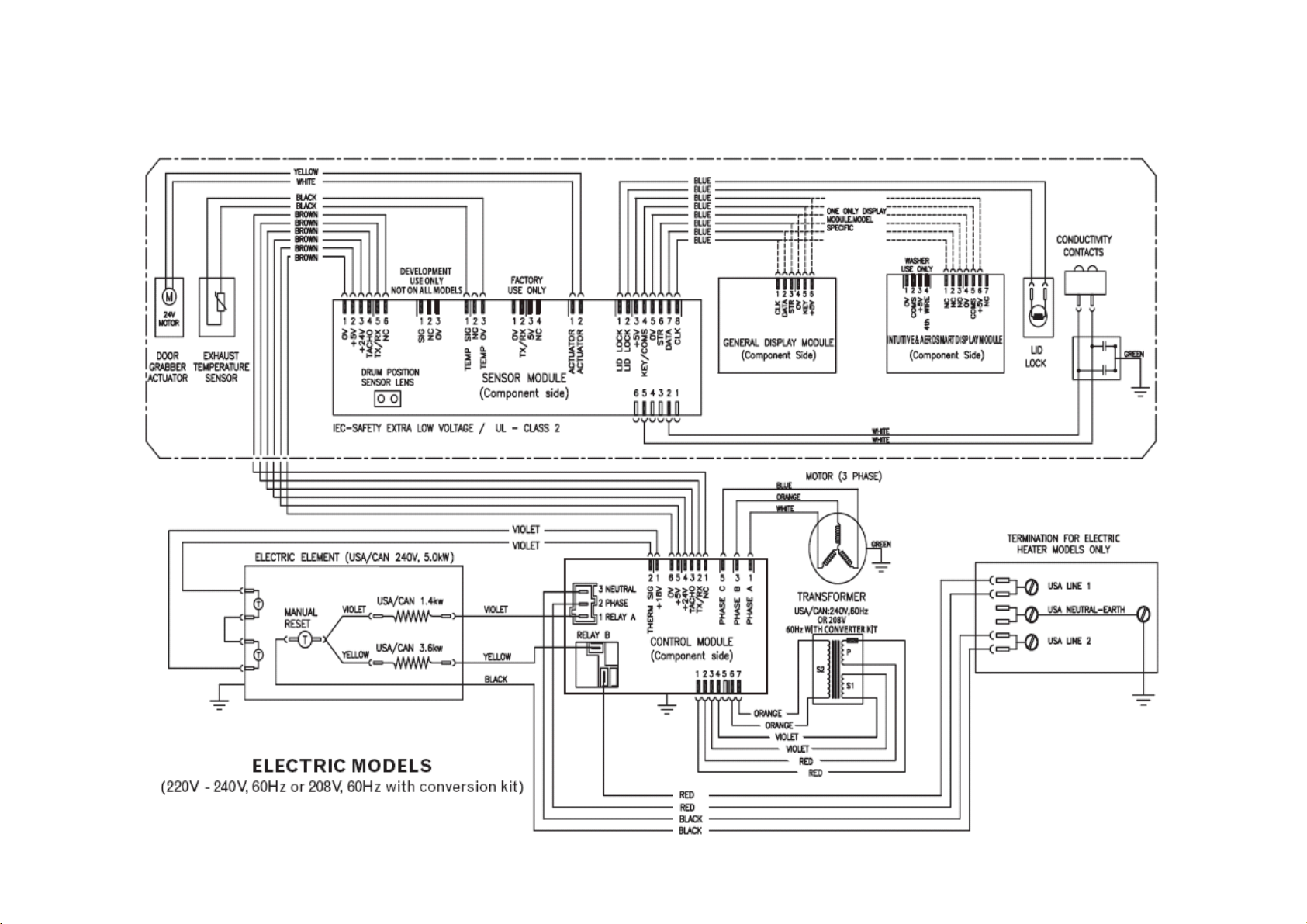

13 WIRING DIAGRAM - ELECTRIC...........................................................................................22

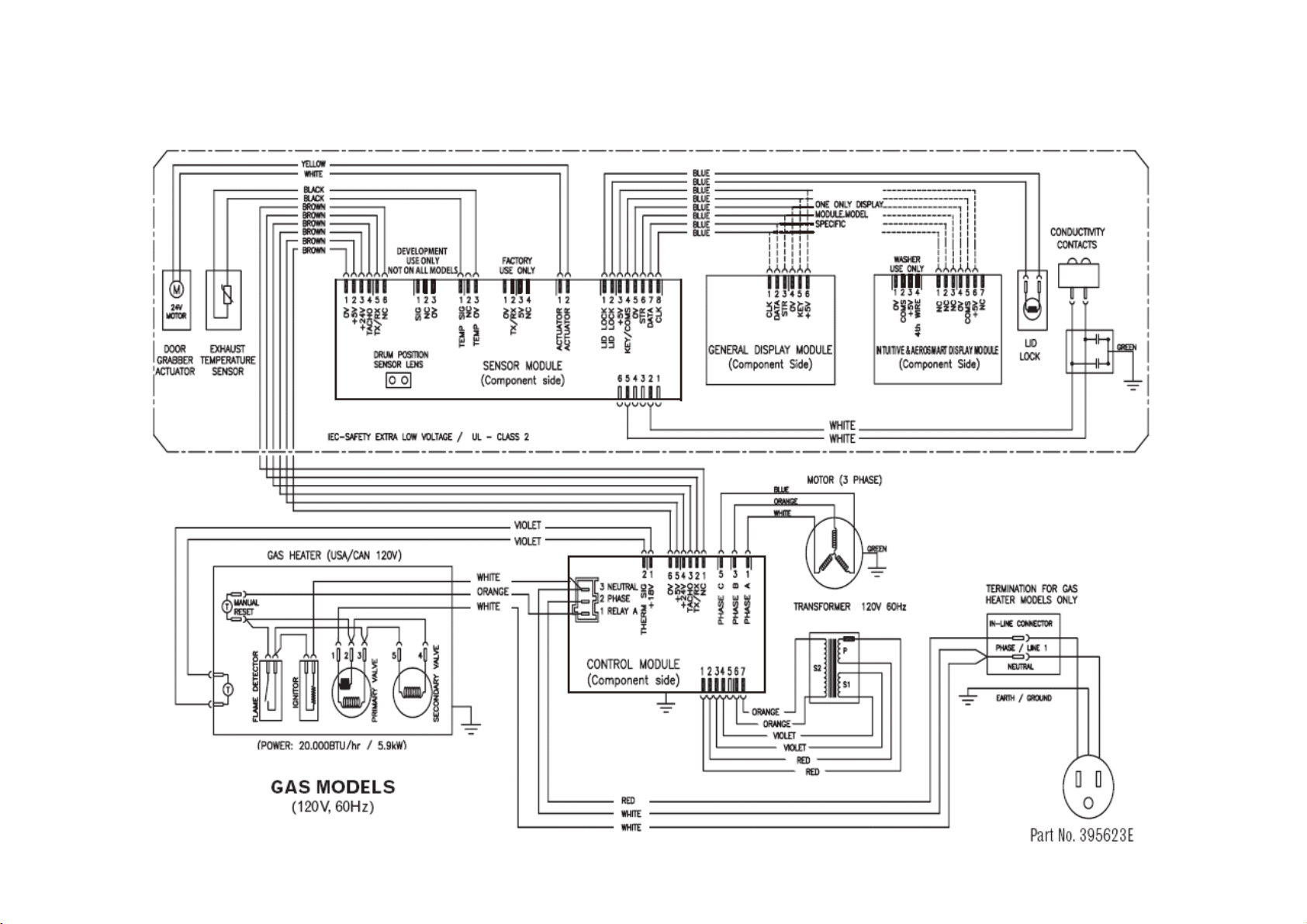

14 WIRING DIAGRAM – GAS....................................................................................................23
Fisher & Paykel Appliances Inc
5800 Skylab Rd,
Huntington Beach
California, CA92647
USA
Telephone: 888 936 7872
E-mail: customer.care@fisherpaykel.com
4
Page 5
517762
1 SERVICING REQUIREMENTS
1.1 Health & Safety
Note: When servicing the IntuitiveTM electronic dryer, health and safety issues must be
considered at all times. Specific safety issues are listed below to remind service people of
the health and safety issues.
1.2 Electrical Safety
WARNING! TO AVOID ELECTRIC SHOCK!
Do not attempt to service this dryer without suitable training and qualifications.
Ensure the mains power has been disconnected before servicing any part of the dryer. If the
power is required to be on for electrical fault finding, or checking the operation, then extreme care
should be taken not to make contact with electrical components other than with testing probes.
Ensure the dryer is turned off when removing any electrical component or connection.
1.3 Electrostatic Discharge
Electronic components are prone to damage from electrostatic discharges. The electronic
modules in this product contain no user serviceable components and breaking seals to access
internal components of an electronic module may void the product warranty. Avoid contact with
PCB edge connectors when handling electronic modules.
1.4 Good Working Practices
Ensure the work areas are kept tidy and free of hazards while servicing the dryer. On completion
of the servicing, ensure the dryer and work areas are left clean and tidy.
1.5 Safety Test
On completion of any service carried out to the dryer, all safety tests as required by law must be
carried out.
1.6 Sheet Metal Edges
When working around cut sheet metal edges use appropriate gloves or protection to eliminate the
chance of receiving a laceration.
5
Page 6
517762
2 MODEL INFORMATION
The product serial plate is located on the upper rear of the cabinet and contains the following
information:
2.1 Model Number
The model number contains the following information:
D E I X 2
Series
Size
Feature Level (I = Intuitive), (G = General)
Heating Type (E = Electric, G = Gas)
Product Type (Dryer)
In new models produced from 2007 the model numbering system changed to the following:
D E 62 T 27 G W 1
Iteration
Colour (White)
Features (E = Electronic, D = LED
Display, C = LCD Display, G = General)
Width (Inches)
Loading (T = Top Load)
Capacity cu/ft (6.2) IEC
Heating Type (E = Electric, G = Gas)
Product Type (Dryer)
2.2 Serial Number
The serial number consists of three letters and six digits and contains the following information:
Example:
E H N 123456
Sequential Serial Number
Manufacturing Plant Code
FISHERPAYKUL Code indicates month of
manufacture
CUMBERLAND Code indicates year of manufacture
Cumberland Code
Letter C U M B E R L A N D
Year 1 2 3 4 5 6 7 8 9 0
Fisherpaykul Code
Letter F I S H E R P A Y K U L
Month 1 2 3 4 5 6 7 8 9 10 11 12
Manufacturing Plant Code
A Laundry – Australia
F Refrigeration – New Zealand
M Range & Dishwasher
N Laundry – New Zealand
Q Refrigeration - Australia
6
Page 7
517762
In the example above, the appliance was manufactured in the fourth month of the fifth year (2005)
at the New Zealand Laundry plant.
2.3 Product Code
A suffix letter has been added to the Product Code. This suffix letter will change whenever a part
is changed that is not completely retro-fittable without the need for a kit, or whenever a cosmetic
change is made.
Model
Serial
At the same time, separate parts manuals will be produced for each product code, making it easier
for the service technician to obtain the correct part for the appliance they are servicing. The part
number of the manual will be the same as the Product Code.
It is now important that the service technician obtains the Product Code from the serial plate of the
appliance before ordering parts, then refers to the appropriate parts manual to ensure that the
correct part numbers are obtained.
3 TECHNICAL OVERVIEW
3.1 Finish
Cabinet: Pre-paint (Polyester)
Touch-Up Paint: White #503086
Lid: ABS Co-injected, one piece
Console: ABS with Polycarbonate insert for control panel
Drum: Stainless steel grade 430T
Top Deck: Polypropylene
3.2 Electrical Supply
USA Electric 220/240V AC 60Hz 24 Amps
USA Gas 110/120V AC 60Hz 6 Amps
3.3 Dimensions
Height to lid
Open 55 ½ in – 56 ¾ in 1410mm – 1440mm
Closed 36 ½ in – 37 ½ in 925mm – 955mm
Height to console 40 ¼ in – 41 ½ in 1020mm – 1050mm
Width 27 685mm
Depth 27 ½ in 700mm
Note: Exact height of the Intuitive
the base of the dryer.
Weight Packed 152lbs (69kg)
Unpacked 134 lbs (61kg)
Operating Voltage Maximum Current
TM
dryer is dependent on how far the feet are inserted into
7
Page 8
517762
3.4 Maximum Capacity (Full Load)
Drum Volume 6.2 cubic feet (.184 cubic meters)
4 COMPONENTS
The only visual change of major components between the G (General) dryer and Intuitive™ dryer
is with the Display Module, which now incorporates a LCD (Liquid Crystal Display) on the right
hand side of the module.
4.1 Display Module
5 SERVICE PROCEDURES
To remove the display module, follow the procedures as detailed below.
5.1 Removal of Lid
(a) Open the lid fully, then lift off vertically.
Reassembly
(a) Refit in reverse manner, ensuring that the hinge lugs on the lid
are vertical.
5.2 Components in Console Area
(a) Disconnect the unit from the power supply.
(b) Remove the lid.
(c) Remove the two screws at the rear of the console securing the
console to the top deck.
(d) Tilt the console forward.
Reassembly
(a) Refit in reverse manner.
Screws
Lift
8
Page 9
517762

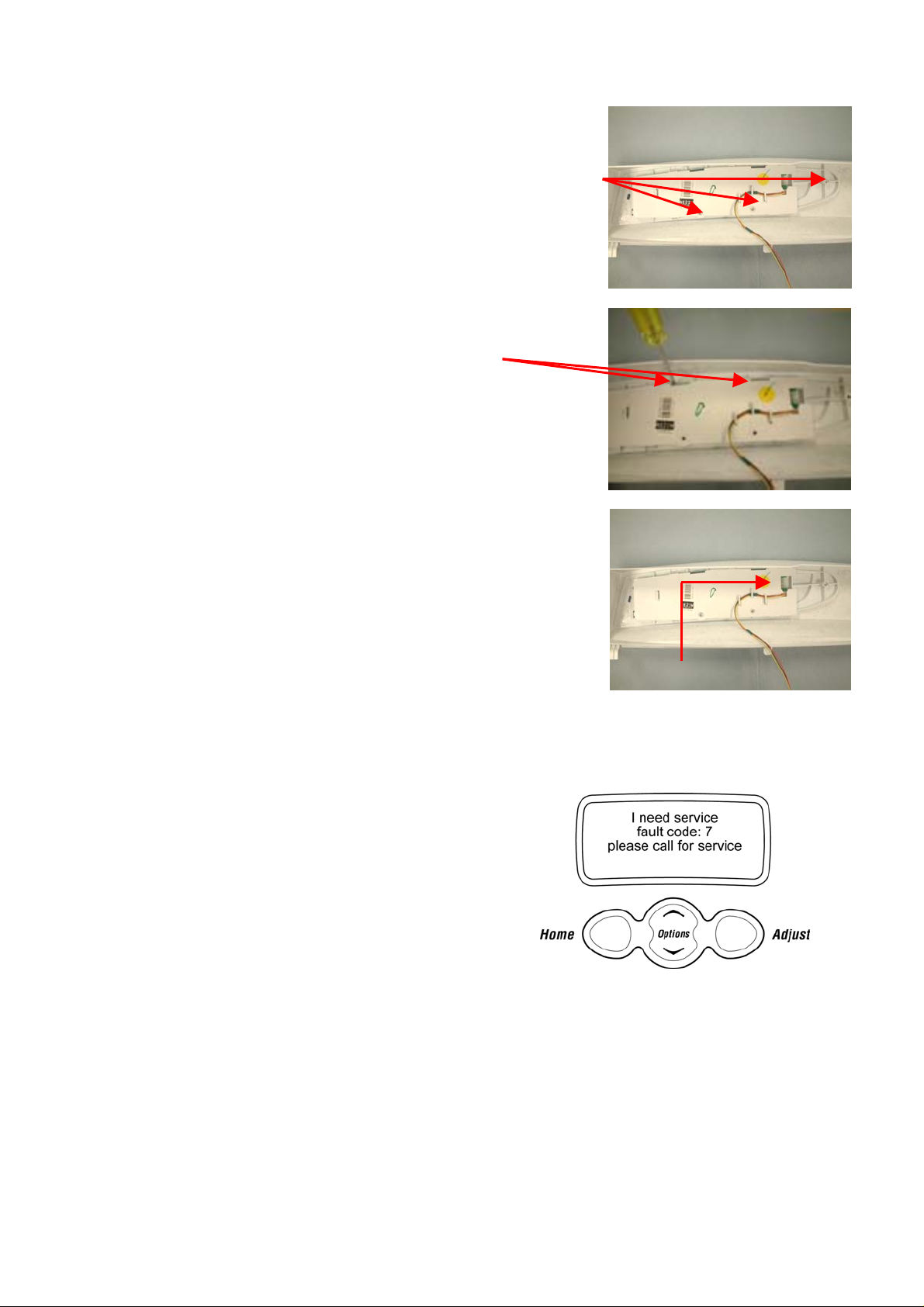

5.3 Removal of Display Module
(a) Follow instructions for removal of the console.
(b) Disconnect the wiring harness from the display module.
(c) Remove the 3 screws securing the display module to the
console.
(d) Using a flat bladed screwdriver, push the two top tabs
that secure the display module to the facia.
(e) When these tabs are clear, lift the right hand end of the
module and slide in the direction shown.
Slide after clearing top tabs
6 DIAGNOSTICS
6.1 Overview
If a fault occurs that prevents correct operation
of the dryer, and is detected by the controllers,
the dryer is stopped, the LCD shows a fault
code and the beeper is continuously turned on
and off.
Pressing any button once will disable the
beeping. The fault code information will remain
on the LCD screen until the power supply to the
dryer is turned off.
If the Dryer has been either turned off or isolated from the power supply the fault code can be

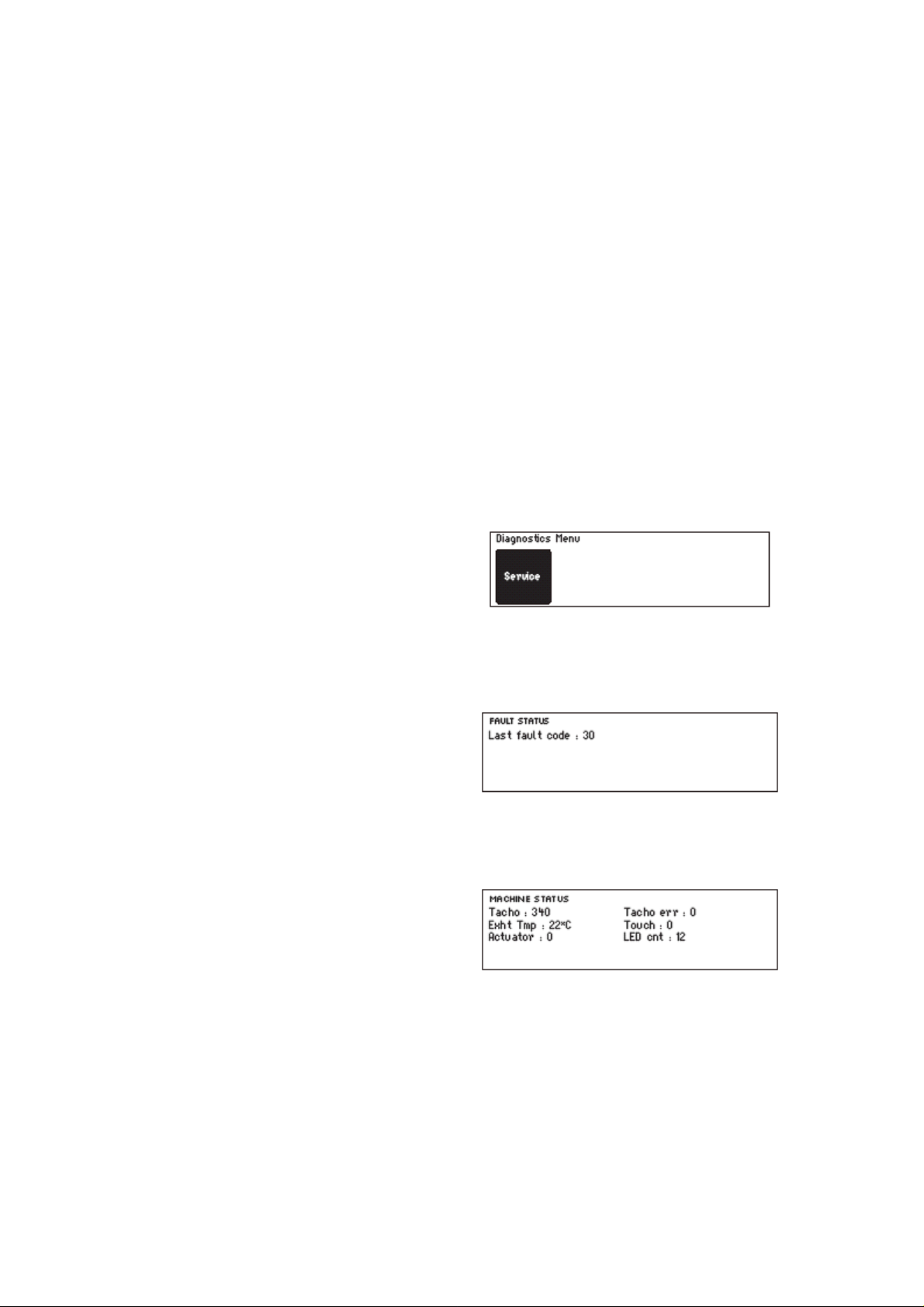

recalled from memory by entering diagnostic mode refer to Section
If Start/Pause is pressed while the fault code is displayed the beeping will stop and the optical
download is activated refer Section
User Warnings
In the case of User Warnings, the LCD screen will display the User Warning and the beep tone will
change from a continuous tone to a musical series of beeps, which are repeated every 5 seconds.
7.1.4.
7.1.
9
Page 10
517762
Depending on the nature of the User Warning, the operation of the dryer may cease or continue to
‘limp on’ until the cycle finishes or the user intervenes.
Pressing the Power button when a User Warning is displayed will immediately turn the dryer off.
User Warnings are saved to memory as Fault Codes, and the last Fault Code will be permanently
stored.

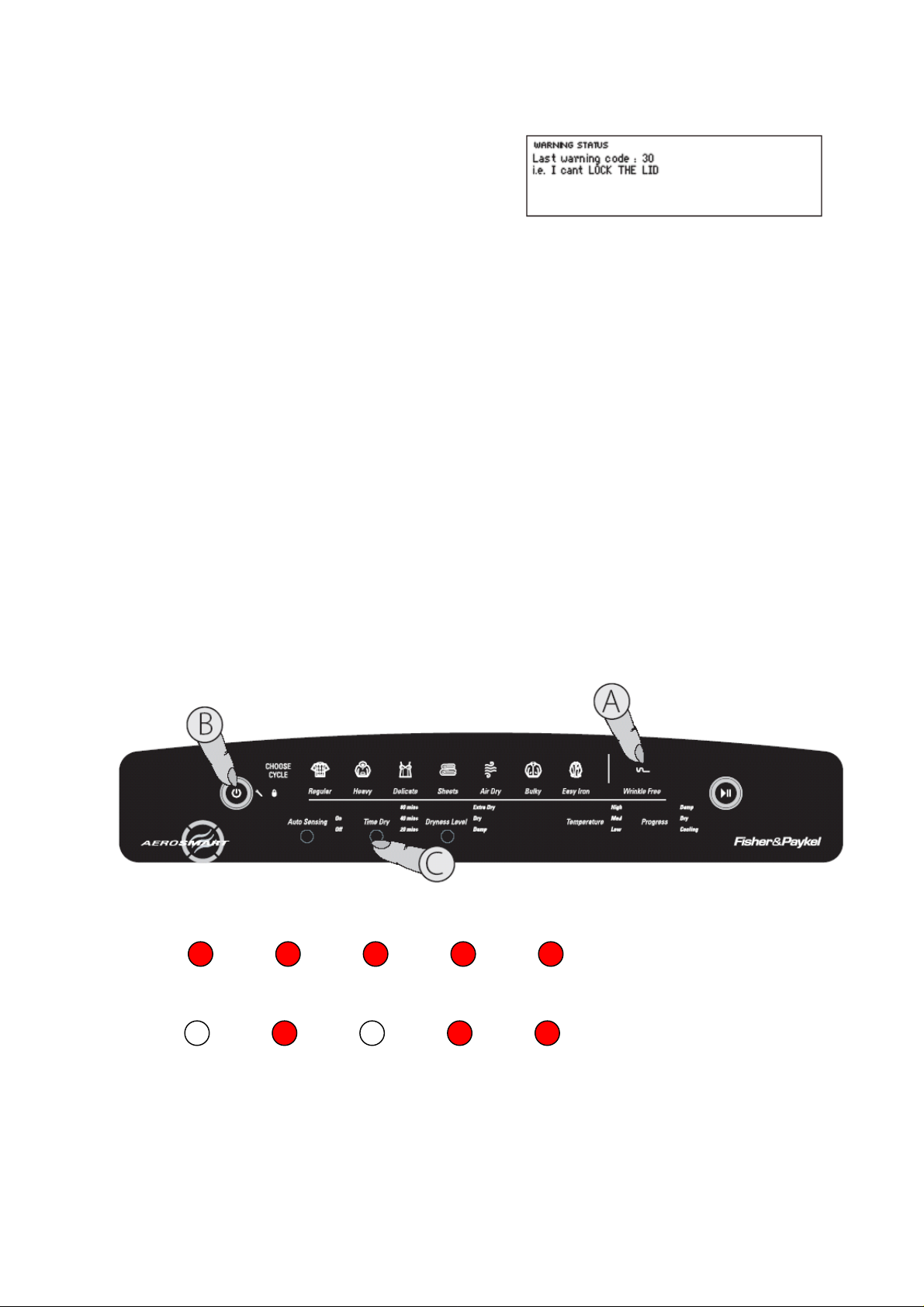

The warning will also be recorded in the Warning Status screen (refer to Section
the information on this screen will only be stored for as long as power is supplied to the dryer.
When the dryer is isolated from the supply the information in this screen will be erased.
7.1.1) however
6.2 Fault Code Summary
The following are the fault codes that may be displayed. The remedy section of each fault is the
suggested sequence of repair or replacement. If the first suggestion does not remedy the fault,
check the next on the list.
Fault Code 1 Communications Error.
Communications failure between the sensor module and motor control module.
Remedy: (1) Check the continuity of the module interconnecting harness.
(2) Replace the sensor module.
(3) Replace the motor control module.
Fault Code 2 Drum Gap Cannot be Located.
Remedy: (1) Ensure the sensor module is correctly located and clipped into place.
(2) Replace the lens on the sensor module.
(3) Replace the sensor module.
(4) Remove the top deck and clean the drum sensing “bumps” on the outside of
the drum end.
(5) Replace the drum.
Fault Code 3 Drum Stalled.
Remedy: (1) If there is mechanical movement of the drum, but this fault code is appearing,
follow the procedures for fault code 2.
(2) If there is no mechanical movement of the drum, check drum movement
mechanisms: belt, motor and motor harness.
(3) Replace the motor control module.
(4) Replace the motor.
Fault Code 4 Invalid Option Link Read.
The motor control module heat source option link read is invalid.
Remedy: Replace the motor control module.
Fault Code 6 Door Jammed – (User Warning).
The door is unable to close due to either clothes catching or an excessive closing load.
Remedy: (1) Remove the obstruction.
(2) Reposition or remove some of the load.
(3) Fix the cause of binding in the door closing mechanism.
(4) Replace the motor.
Fault Code 7 Motor Current Excessive.
Remedy: (1) Free up the dryer. Remove overload or cause of jamming.
(2) Replace the motor control module.
(3) Replace the motor.
Fault Code 7b Display Module RAM Check Error
On power up, the display has checked its memory against a known reference and found
differences.
Remedy: Replace the display module.
10
Page 11
517762
Fault Code 8 Exhaust Sensor Over Temperature.
The exhaust sensor measures over temperature (element short circuit or low resistance).
Remedy: (1) Check the integrity of the sensor circuit checking particularly for short
circuits. Approximate resistances (+
= 33 kOhms, 22
o
C = 11 kOhms, 40oC = 5 kOhms. Replace thermistor and
10%) at various temperatures are; 0oC
harness if out of range.
(2) Check the element integrity in that it switches off when the dryer is stopped.
(3) Replace the motor control module.
(4) Replace the sensor module.
Fault Code 9 Exhaust Sensor Under Temperature.
The exhaust sensor measures under temperature (open circuit or not plugged in).
Remedy: Refer to steps for over temperature fault (fault code 8) above, but open circuit
likely.
Fault Code 10 24 Volt Suppl y Measurement Erro r.
The sensor module measures low voltage on actuator power supply.
Remedy: Replace the sensor module.
Fault Code 11 Lid Lock Open Circuit.
Remedy: Check the lid lock harness and coil. If there is continuity through these, replace
the sensor module.
Fault Code 12 Lid Lock Switching Device Failure.
Remedy: Check that there are no short circuits in the lid lock circuit which may have
caused the failure in the sensor module. The resistance of the lid lock should be
between 50 and 100 ohms. If the circuit is correct, replace the sensor module.
Fault Code 14 Sensor Mo dule Fault.
Remedy: Replace the sensor module.
Fault Code 15 Sensor Mo dule Fault.
Remedy: Replace the sensor module.
Fault Code 16 Airflow Restriction – (User Warning).
Airflow restriction.
Remedy: (1) Check that the lint bucket is empty and the filter is clear.
(2) Ensure that the exhaust duct is not restricted, blocked or kinked, preventing
good airflow.
(3) Ensure that there is nothing inhibiting unrestricted airflow through the heater
housing, through the drum, lint filter, lint collector and through the exhaust
duct, and that the element has not shorted. If the dryer is located in a closet
ensure there is adequate ventilation for air intake.
(4) Check that the voltage is not too high.
(5) Check for element shorts or low resistance.
(6) Replace the automatic thermostat.
(7) Replace the motor control module.
Fault Code 20 Door Actua tor Stalled.
Remedy: As per fault code 21.
11
Page 12
517762
Fault Code 21 Door Actua tor Required Excess Voltage.
Remedy: (1) Ensure there is no weight placed on the lid of the product (e.g. clothes
basket). If so, remove the weight and retest.
(2) Inspect the installation, making sure that the cabinet sits evenly on the floor.
If excess load is placed on the cabinet, it can cause the sub-deck assembly
to twist.
(3) Inspect the front inside edge of the top deck for any signs of excessive
inwards bowing as this can cause it to catch on the door grabber, resulting in
excess current draw on activation. The bowing can be caused by a bowed
top deck or by incorrect assembly of the top deck to the cabinet front.
(4) Ensure the user intervention tab is not inhibiting door grabber movement.
(5) Check that the actuator linkage is located correctly. There must be no gap
between the linkage and the plastic moulding.
(6) Check that the actuator housing is in place, and that the four retaining lugs
are correctly located. Early models may have aluminium tape holding the
housing in place. If so, ensure that the tape is replaced when the housing is
refitted.
(7) Remove the actuator housing and look for obvious signs of things that are
out of position (can the worm drive be rotated freely both backwards and
forwards by hand, is the actuator motor in place?)
(8) Replace the faulty door actuator mechanism.
(9) Replace the door grabber, linkage and housings.
(10) Replace the sensor module.
Fault Code 22 Door Actua tor Open Circuit.
Remedy: (1) Check that the actuator wiring is plugged into the sensor module and is not
open circuit. If faulty, replace.
(2) Replace the sensor module.
Fault Code 23 Door Actua tor Movement Interrupted By Low Voltage.
The door actuator movement was interrupted by low voltage (brown out).
Remedy: (1) Ensure mains voltage is within +10% and –15% of nominal.
(2) Replace the sensor module, as voltage measurement circuit may be reading
incorrectly.
(3) Replace the motor control module, as it may not be supplying sufficient
power to the sensor module. When display is off, approximately 24V DC is
supplied.
Fault Code 24 Door Actua tor Movement Took Too Long.
Remedy: As per fault code 21.
Fault Code 28 Data Retrie val Error Following Loss of Power
Remedy: (1) Switch off the mains power supply to the dryer for at least 10 seconds and
confirm error.
(2) Replace the motor control module.
Fault Code 29 Brown-Out Data Retrieval Error.
Remedy: (1) If the fault occurs every time the dryer is turned on, replace the sensor
module.
(2) Replace the motor control module.)
Fault Code 30 Lid Lock unable to Lock – (User Warning).
Reason: The lid lock failed to lock. (Not user displayed.)
Remedy: (1) Ensure the lid is closed and the tongue engaged.
(2) Replace the lid lock harness.
(3) Replace the lid lock.
(4) Replace the sensor module.
12
Page 13
517762
Fault Code 45 Displa y Mo dule ROM Check Error
On power up, the display has checked its memory against a known reference and found
differences.
Remedy: Replace display module.
Fault Code 105 Comms Error Time Out
Communications failure between the sensor module and display module.
Remedy: (1) Visually check the contacts on the RAST (edge) connector at each end on
the harness between the sensor module and display module.
(2) Using a multimeter check for continuity of the wires on this harness.
(3) Replace display module.
(4) Replace sensor module.
Note: On the LCD model, the green Air Dry LED illuminated without the fault “beeps”
indicates the dryer is in a low mains voltage (brown out) state, and may be
momentarily displayed when the supply power is turned off.
On the LED model, the Wrinkle Free LED illuminated without the fault “beeps”
indicates the dryer is in a low mains voltage (brown out) state, and may be
momentarily displayed when the supply power is turned off.
13
Page 14
517762
7 DIAGNOSTIC MODE
7.1 Entering the Diagnostic Mode – Intuitive Model
To enter the Diagnostic Mode press and hold the Lifecycles button and then the Power button.
The machine will give 2 short beeps and the LCD screen will go blank. Make sure that the buttons
are released after the beeps.
Note: Provided the power supply to the machine is switched on, diagnostic mode may be
entered at any time.
7.1.1 Data Display
To enter the Data Display screens, push the Lifecycles button again. One of three displays will
appear in the screen (detailed below). To scroll through the different screens use the Options Up
or Down buttons.
Fault Status Screen
This screen will indicate the last fault code that
occurred. If a fault is registered the fault code is
saved to EEPROM, which retains its memory
even when the power is switched off. The fault
code will remain visible until another fault code
overwrites it.
Note: Fault codes 7b, 45, and 105 will be reset if
the power is switched off.
Machine Status Screen
Tacho: This displays the position of the
drum. The displayed figure is
updated every five seconds and will
change as the drum revolves.
Exht tmp: This displays the temperature in
of the exhaust sensor.
Actuator: This displays the count of the
current draw of the actuator motor.
Tacho Err: During reversals of the drum there will often be a transient error because of uncertainty
of direction during the reversing process, but this should be corrected on the next
revolution.
Touch: This displays the impedance of the conductivity contacts, refer to Section
LED Cnt: This is a measure of the infra-red light intensity required to sense the drum position. It
is normally about 14 but can range from 5 to 53.
Warning Status Screen
The last User Warning will be displayed on this
screen and will be displayed until another User
Warning overwrites it.
o
C
7.3.1
14
Page 15
517762
7.1.2 Adjust Options Menu
In the Adjust Options menu it is possible to adjust the brightness of the LCD display screen as well
as selecting the appropriate language for the market the product is sold into. To scroll to the
appropriate screen use the Options Up or Options Down button.
Note: When the product leaves the factory the language should be preset, and there should
be no reason to adjust this. However when replacing the Sensor Module it will be
necessary to manually set the language.
To enter the Adjust Options menu press Power
to turn the machine on. The adjacent screen
should now be displayed.
To access the Adjust Options Menu push the
Options Up or Options Down button, and hold
for 2 seconds. The Adjust Options Menu will
then be displayed. One of the two screens as
shown below will be displayed.
To scroll through the different screens press the
Options Up or Options Down buttons.
Language Selection
Press the Adjust button to change the selected
language. To lock the setting in press the
Home button.
Display Brightness
To adjust the display brightness push the
Adjust button, when the desired brightness has
been selected press the Home button to lock in
the setting.
7.1.3 Testing the Conductivity Contacts
Impedance Testing
It is possible to check the integrity of the conductivity contacts through diagnostics. Firstly enter
the Machine Status Screen as described in Section
damp clothes or fingers across the conductivity contacts, the value adjacent to the word Touch will
increase. The minimum value is zero, this indicates an open circuit. The maximum value is 255.
No change in this value when touching the contacts, or conversely a high value when not touching
the contacts, would indicate a fault in this circuit.
Resistance Test
An alternative, but slightly less reliable method of testing the conductivity contacts, is to test the
circuit with a multimeter. When using this method the power to the dryer must be switched off.
Place one probe of the multimeter on each conductivity contact. The resistance should be
6.4Mohms +
To exit the diagnostic mode, press the Power button.
2%.
7.1.1, and when in this mode, by touching
15
Page 16
517762
7.1.4 Data Download Mode
Encoded data is transmitted out of the red Heavy LED, and can be captured by an optical
download pen attached to a PC or hand held palm PC, where “Smart Tool” software interprets the
data to aid servicing.
To enter the Data Download mode;
Enter diagnostic mode as described in Section
LED will flash. Place the data download pen over the LED to download the data.
To exit from the data download mode, press the Power button.
7.1, then press the Start/Pause button. The Heavy
7.1.5 Entering the Showroom Mode
(a) Turn the power supply to the dryer on.
(b) Ensure that the display is off, then press and hold the Start/Pause button, then press the
Power button.
To exit, turn off the power supply to the dryer at the wall.
7.2 Entering the Diagnostic Mode – AeroSmart LCD Model
To enter the Diagnostic Mode press and hold the Wrinkle Free button and then the Select button.
The machine will give 2 short beeps and the
diagnostic menu will appear. Make sure that
the buttons are released after the beeps.
Press the Select button once. One of three displays will appear in the screen. To scroll through
the different screens, use the Left and Right arrow buttons.
Note: Provided the power supply to the machine is switched on, diagnostic mode may be
entered at any time.
Fault Status Screen
This screen will indicate the last fault code that
occurred. If a fault is registered the fault code is
saved to EEPROM, which retains its memory
even when the power is switched off.
The fault code will remain visible until another fault code overwrites it.
Note: Fault codes 7b, 45, and 105 will be reset if the power is switched off.
Machine Status Screen
Tacho: This displays the position of the
drum. The displayed figure is
updated every five seconds and will
change as the drum revolves.
Exht tmp: This displays the temperature in
Actuator: This displays the count of the current draw of the actuator motor.Tacho Err: During
reversals of the drum there will often be a transient error because of uncertainty of
direction during the reversing process, but this should be corrected on the next
revolution.
Touch: This displays the impedance of the conductivity contacts, refer to Section
o
C of the exhaust sensor.
7.3.1
16
Page 17
517762
LED Cnt: This is a measure of the infra-red light intensity required to sense the drum position. It
is normally about 14 but can range from 5 to 53.
Warning Status Screen
The last User Warning will be displayed on this
screen and will be displayed until another User
Warning overwrites it.
7.2.1 Testing the Conductivity Contacts
It is possible to check the integrity of the conductivity contacts through diagnostics. The same
method is used as for the Intuitive model. Refer to Section
7.1.3.
7.2.2 Data Download Mode
Encoded data is transmitted out of the Wrinkle Free LED, and can be captured by an optical
download pen attached to a PC or hand held palm PC, where “Smart Tool” software interprets the
data to aid servicing.
To enter the Data Download mode;
Enter diagnostic mode as described in Section
Wrinkle Free LED will flash. Place the data download pen over the LED to download the data.
To exit from the data download mode, press the Power button.
7.2, then press the Start/Pause button. The
7.3 Entering the Diagnostic Mode – AeroSmart LED Model
To enter the Diagnostic Mode press and hold the Wrinkle Free button (button A) and then the
Power button (button B). The dryer is now in Diagnostic Mode.
Press the Time Dry button (button C) three times to enter the last fault option.
Each LED has a specific value as follows:
LED
Sheets Air Dry Bulky Easy Iron Wrinkle Free
Value 16 8 4 2 1
Example:
In this example, the LEDs with values “8”, “2” and “1” are on, therefore 8+2+1=11. Therefore fault
code #11 is displayed. Refer to Section
6.2 for fault codes.
17
Page 18
517762
7.3.1 Testing the Conductivity Contacts
Impedance Testing
It is possible to check the integrity of the conductivity contacts through diagnostics. Firstly enter
the diagnostic mode described in Section
this mode, touching damp clothes or fingers across the conductivity contacts will cause the LED
display to change. If the contacts, or the harness to them, have gone open circuit, no change will
occur in the LED display. This is a useful method of checking the integrity of the sensor cells. To
exit the diagnostic mode, press the Power button.
Resistance Test
An alternative, but slightly less reliable method of testing the conductivity contacts, is to test the
circuit with a multimeter. When using this method the power to the dryer must be switched off.
Place one probe of the multimeter on each conductivity contact. The resistance should be
6.4Mohms +
To exit the diagnostic mode, press the Power button.
2%.
7.1.4, and then press the Time Dry button five times. In
7.3.2 Data Download Mode
Encoded data is transmitted out of the Wrinkle Free LED, and can be captured by an optical
download pen attached to a PC or hand held palm PC, where “Smart Tool” software interprets the
data to aid servicing.
To enter the Data Download mode;
Enter diagnostic mode as described in Section
Wrinkle Free LED will flash. Place the data download pen over the LED to download the data.
To exit from the data download mode, press the Power button.
7.3, then press the Start/Pause button. The
8 AUTOSENSING
When wet or damp clothes are loaded into a dryer they are partially saturated with water, which is
a relatively good conductor of electricity. In the Intuitive™ dryer, sensor bars (located beneath the
lint bucket) are used to measure the conductivity. When moisture in the clothes touches across the
sensor bars their conduction is measured. As the clothes dry they become less conductive and it is
this measurement that is used to calculate the dryness of the clothes load. Large loads will brush
against these sensor bars more frequently than small loads, and this strike count is used to help
determine the dryness of different sized loads.
Different fabrics retain moisture differently; a thick towel containing a lot of moisture will often
conduct the same as a light synthetic garment containing very little. It is this difference in fabric
characteristics plus the initial unknown moisture content that makes the calculation of dryness
reasonably complex. To test the sensor bars refer to Section
7.3.1
9 TEMPERATURE CONTROL
Auto sensing is automatically selected when the Intuitive™ dryer is turned on. The user can select
a time dry option of 20, 40 or 80 minutes through the Options menu. Auto sensing of the clothes
load dryness level is achieved by touch sensors that sense the moisture content of the load. An
exhaust temperature sensor is used to monitor the exhaust temperature. The controller limits the
temperature to what is required for the various cycles and determines what elements are used.
18
Page 19
517762
10 COOL DOWN
The dryer enters a cool down period at the end of the cycle. During this period the dryer continues
to run with the heating elements/burner turned off, blowing ambient air through the load to help
prevent creasing.
Autosensing: If any Auto Sensing cycle has been selected, the cool down period will continue
until the exhaust temperature drops to 35
minutes, the cycle will stop. This would occur if the ambient temperature was above 35
Timed Dry: If an 80 minute or 40 minute Timed Dry cycle has been selected, the cool down period
will run for the last 10 minutes of that cycle. If a 20 minutes Timed Dry cycle has been selected, the
cool down period will run for the last 5 minutes.
Cycle Cool Down
Auto Sensing Cool down will last until the exhaust temperature drops to 35
minutes, whichever occurs first.
Timed Dry 80 Minutes 10 Minutes
Timed Dry 40 Minutes 10 Minutes
Timed Dry 20 Minutes 5 Minutes
oC. However if this temperature is not achieved after 10
o
C.
o
C or 10
19
Page 20
517762
11 CYCLE CHART – ELECTRIC
This chart lists the available cycles that can be selected on the electric model, and provides information regarding these cycles.
Main Cycles
Cool Down1 Dryness level Additional
Timed Dry1
Heavy High 149oF (65 oC) Autosensing 95oF (35oC) or 10 Mins Dry - On On Off On
Mixed High 149oF (65 oC) Autosensing 95oF (35oC) or 10 Mins Dry - On On Off On
Casual Medium 140oF (60 oC) Autosensing 95oF (35oC) or 10 Mins Dry - On Off Off On
Dry & Wear Medium 140oF (60 oC) Autosensing 95oF (35oC) or 10 Mins Dry Wrinkle Free On Off Off On
Light Low 127oF (53 oC) Autosensing 95oF (35oC) or 10 Mins Dry - On Off Off On
Air Dry No Heat Ambient 40 Minutes Nil - - Off Off Off Off
comments
Lifecycles
Cool Down1 Dryness level Additional
Timed Dry1
Allergy High 149oF (65 oC) Autosensing 95oF (35oC) or 10 Mins Dry/Extra Dry - On On Off On
Towels High 149oF (65 oC) Autosensing 95oF (35oC) or 10 Mins Dry/Extra Dry On On Off On
Shirts Medium 140oF (60 oC) Autosensing 95oF (35oC) or 10 Mins Dry Wrinkle Free On Off Off On
Lingerie Light 127oF (53 oC) Autosensing 95oF (35oC) or 10 Mins Dry Wrinkle Free On Off Off On
comments
Special Items
Freshen Up No Heat Ambient 20 Mins Nil - - Off Off Off Off
Warm Up Medium 140oF (60 oC) 20Mins 5 Mins - - On Off Off On
Dry Clean Medium 140oF (60 oC) 40 Mins 95oF (35oC) or 10 Mins - Wrinkle Free On Off Off On
Bulky Items
Blankets Low 127oF (53 oC) Autosensing 95oF (35oC) or 10 Mins Damp/Dry - On Off Off On
Jeans High 149oF (65 oC) Autosensing 95oF (35oC) or 10 Mins Dry Wrinkle Free On On Off On
Comforter Low 127oF (53 oC) Autosensing 95oF (35oC) or 10 Mins Dry/Extra Dry - On Off Off On
1. Refer section 10
Door Closed Direction Door Open Direction2 Cycle Heat Temperature Autosensing /
3.6kW (2/3) 1.4kW
(1/3)
Door Closed Direction Door Open Direction2 Family Heat Temperature Autosensing /
3.6kW (2/3) 1.4kW (1/3) 3.6kW (2/3) 1.4kW (1/3)
3.6kW (2/3) 1.4kW (1/3)
20
Page 21
517762
12 CYCLE CHART - GAS
This chart lists the available cycles that can be selected on the gas model, and provides information regarding these cycles.
Main Cycles
Cool Down1 Dryness level Additional
Timed Dry1
Heavy High 149oF (65 oC) Autosensing 95oF (35oC) or 10 Mins Dry - 30s 3m 30s No Heat
Mixed High 149oF (65 oC) Autosensing 95oF (35oC) or 10 Mins Dry - 30s 3m 30s No Heat
Casual Medium 140oF (60 oC) Autosensing 95oF (35oC) or 10 Mins Dry - 30s 2m 20s No Heat
Dry & Wear Medium 140oF (60 oC) Autosensing 95oF (35oC) or 10 Mins Dry Wrinkle Free 30s 2m 20s No Heat
Light Low 127oF (53 oC) Autosensing 95oF (35oC) or 10 Mins Dry - 30s 2m 20s No Heat
Air Dry No Heat Ambient 40 Minutes Nil - - No Heat No Heat No Heat
comments
Lifecycles
Cool Down1 Dryness level Additional
Timed Dry1
Allergy High 149oF (65 oC) Autosensing 95oF (35oC) or 10 Mins Dry/Extra Dry - 30s 3m 30s No Heat
Towels High 149oF (65 oC) Autosensing 95oF (35oC) or 10 Mins Dry/Extra Dry 30s 3m 30s No Heat
Shirts Medium 140oF (60 oC) Autosensing 95oF (35oC) or 10 Mins Dry Wrinkle Free 30s 2m 20s No Heat
Lingerie Light 127oF (53 oC) Autosensing 95oF (35oC) or 10 Mins Dry Wrinkle Free 30s 2m 20s No Heat
comments
Special Items
Freshen Up No Heat Ambient 20 Mins Nil - - No Heat No Heat No Heat
Warm Up Medium 140oF (60 oC) 20Mins 5 Mins - - 30s 2m 20s No Heat
Dry Clean Medium 140oF (60 oC) 40 Mins 95oF (35oC) or 10 Mins - Wrinkle Free 30s 2m 20s No Heat
Bulky Items
Blankets Low 127oF (53 oC) Autosensing 95oF (35oC) or 10 Mins Damp/Dry - 30s 2m 20s No Heat
Jeans High 149oF (65 oC) Autosensing 95oF (35oC) or 10 Mins Dry Wrinkle Free 30s 3m 30s No Heat
Comforter Low 127oF (53 oC) Autosensing 95oF (35oC) or 10 Mins Dry/Extra Dry - 30s 2m 20s No Heat
1. Refer section 10
Door Closed Direction Door Open Direction2 Cycle Heat Temperature Autosensing /
Ignition Delay Gas Heating
Door Closed Direction Door Open Direction2 Family Heat Temperature Autosensing /
Ignition Delay Gas Heating
21
Page 22
517762
13 WIRING DIAGRAM - ELECTRIC
22
Page 23
517762
14 WIRING DIAGRAM – GAS
23
Page 24
517762
24
Page 25
517762
NOTES
25
Loading...
