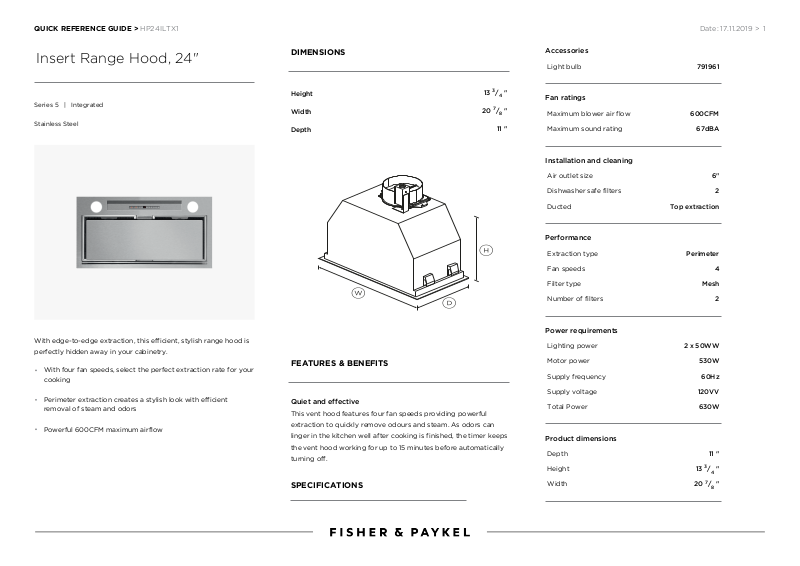

Fisher Paykel HP24ILTX1 Quick Guide
QUICK REFERENCE GUIDE > HP24ILTX1 Date: 17.11.2019 > 1
Insert Range Hood, 24"
Series 5 | Integrated
Stainless Steel
DIMENSIONS
Height
Width
Depth
13 3/4 "
20 7/8 "
11 "
Accessories
Light bulb 791961
Fan ratings
Maximum blower air flow 600CFM
Maximum sound rating 67dBA
Installation and cleaning
Air outlet size 6"
Dishwasher safe filters 2
Ducted Top extraction
Performance
Extraction type Perimeter
Fan speeds 4
Filter type Mesh
Number of filters 2
With edge-to-edge extraction, this efficient, stylish range hood is
perfectly hidden away in your cabinetry.
With four fan speeds, select the perfect extraction rate for your
cooking
Perimeter extraction creates a stylish look with efficient
removal of steam and odors
Powerful 600CFM maximum airflow
FEATURES & BENEFITS
Quiet and effective
This vent hood features four fan speeds providing powerful
extraction to quickly remove odours and steam. As odors can
linger in the kitchen well after cooking is finished, the timer keeps
the vent hood working for up to 15 minutes before automatically
turning off.
SPECIFICATIONS
Power requirements
Lighting power 2 x 50WW
Motor power 530W
Supply frequency 60Hz
Supply voltage 120VV
Total Power 630W
Product dimensions
Depth 11 "
Height 13 3/4 "
Width 20 7/8 "
QUICK REFERENCE GUIDE > HP24ILTX1 Date: 17.11.2019 > 2
Product information
Control type Soft-touch Buttons
Other product downloads available at fisherpaykel.com
Ventilation features
Light type Halogen 2x 50W
Timer function •
User Guide
Installation Guide
Installation Guide
Resources (zip)
Warranty
Parts and labor Two year parts and labor
A PEACE OF MIND SALE
SKU 50085
24 Hours 7 Days a Week Customer Support
T 1300 650 590 W www.fisherpaykel.com
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel's Customer Care Centre to ensure this page correctly describes the model
currently available. © Fisher & Paykel Appliances Ltd 2019.
