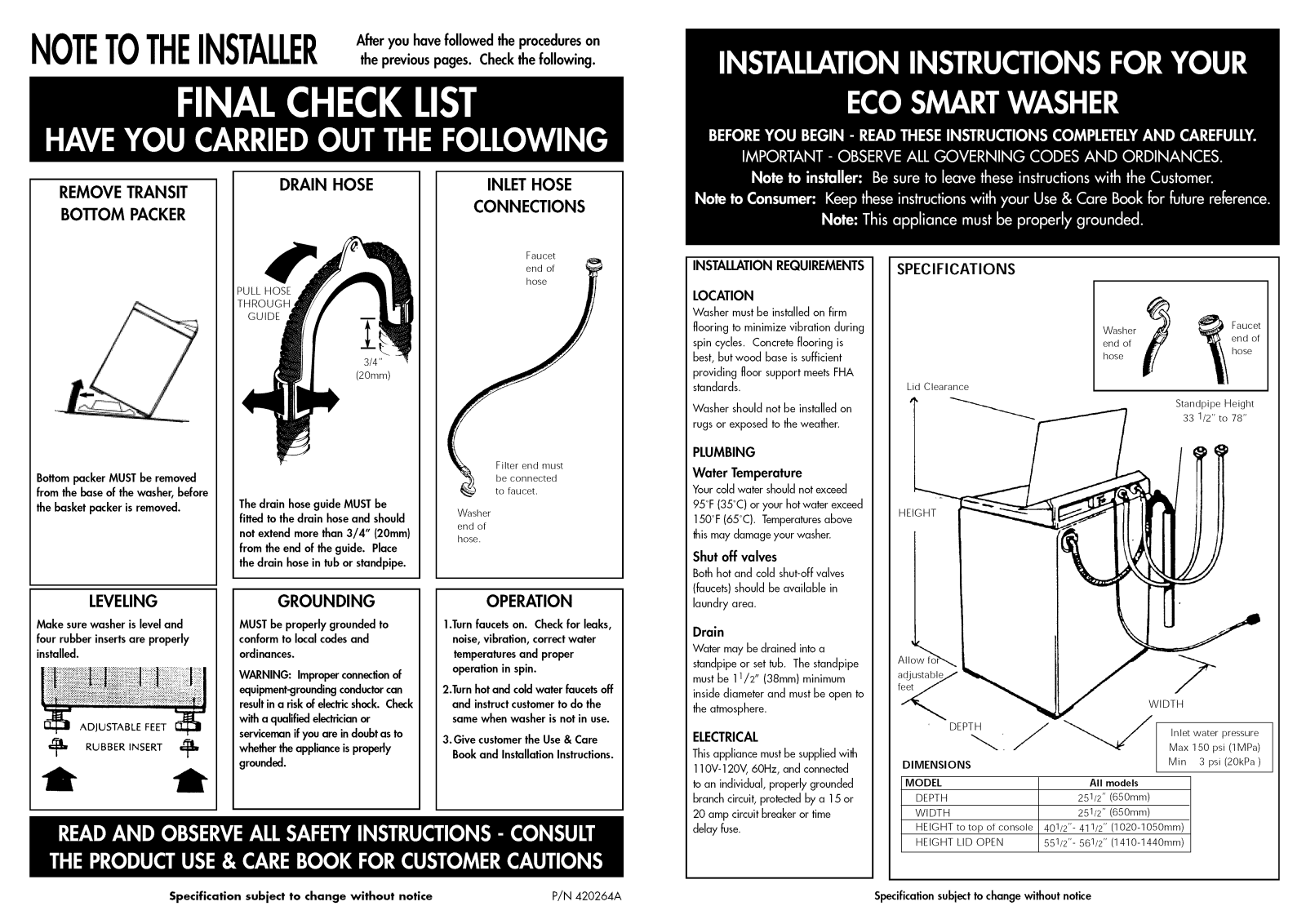

Afteryou havefollowedtheprocedureson

NOTETOTHEINSTALLER

thepreviouspages. Checkthefollowing.

REMOVE TRANSIT

BO'I'rOM PACKER

Bottompacker MUST be removed
from the base of the washer, before

the basket packer is removed.

LEVELING

Make sure washer is level and
four rubber insertsare properly

installed.

ADJUSTABLE FEET

_m RUBBER INSERT _'_

DRAIN HOSE

PULL HOSE
THROUGH

GUIDE m

3/4"

(20mm)

The drain hoseguide MUST be
fitted to the drain hose and should

not extend more than 3/4" (20mm)
from the end of the guide. Place

the drain hose in tub or standpipe.

GROUNDING

MUST be properly grounded to
conform to local codes and

ordinances.

WARNING: Improperconnection of

equipment-groundingconductor can
resultina riskof electricshock. Check

with a qualifiedelectricianor
servicemanif you are indoubt as to

whetherthe applianceis properly
grounded.

INLETHOSE

CONNECTIONS

Faucet
end of
hose

Filter end must
be connected

to faucet.

Washer
end of

hose.

OPERATION

1.Turnfaucets on. Check for leaks,
noise, vibration, correct water

temperatures and proper

operation in spin.

2.Turn hotand cold water faucetsoff
and instructcustomer to do the
same when washer is not in use.

3. Give customer the Use& Care
Book and Installation Instructions.

INSTALLATION REQUIREMENTS

LOCATION

Washer must be installed on firm
flooring to minimize vibration during

spin cycles. Concrete flooring is
best, but wood base is sufficient

providing floor support meets FHA
standards.

Washer should not be installed on
rugs or exposed to the weather.

PLUMBING

Water Temperature

Your cold water should not exceed
95°F (35°C) or your hot water exceed

150°F (65°C). Temperaturesabove

this may damage your washer.

Shut off valves

Both hot and cold shut-off valves
(faucets) should be available in

laundry area.

Drain

Water may be drained into a
standpipe or set tub. The standpipe
must be 11/2" (38mm) minimum

inside diameter and must be open to
the atmosphere.

ELECTRICAL

This appliance must be supplied with

110V-120V, 60Hz, and connected
to an individual, properly grounded
branch circuit, protected by a 15 or
20 amp circuit breaker or time

delay fuse.

SPECIFICATIONS

Washer
end of

hose

Lid Clearance

HEIGHT

Allowfo_
adjustablee//

DEPTH

DIMENSIONS

MODEL All models

DEPTH 251/2" (650mm)

WIDTH 251/2" (650mm)

HEIGHT to top of console 401/2 "- 411/2" (1020-1050mm)
HEIGHT LID OPEN 551/2 "- 561/2" (1410-1440mm)

_ Faucet

Standpipe Height

33 1/2" to 78"

! I

WIDTH

Inlet water pressure /

Max 150 psi (1MPa)
Min 3 psi (20kPa)

end of
hose

/

J

Specification subject to change without notice P/N 420264A Specificationsubjectto change without notice

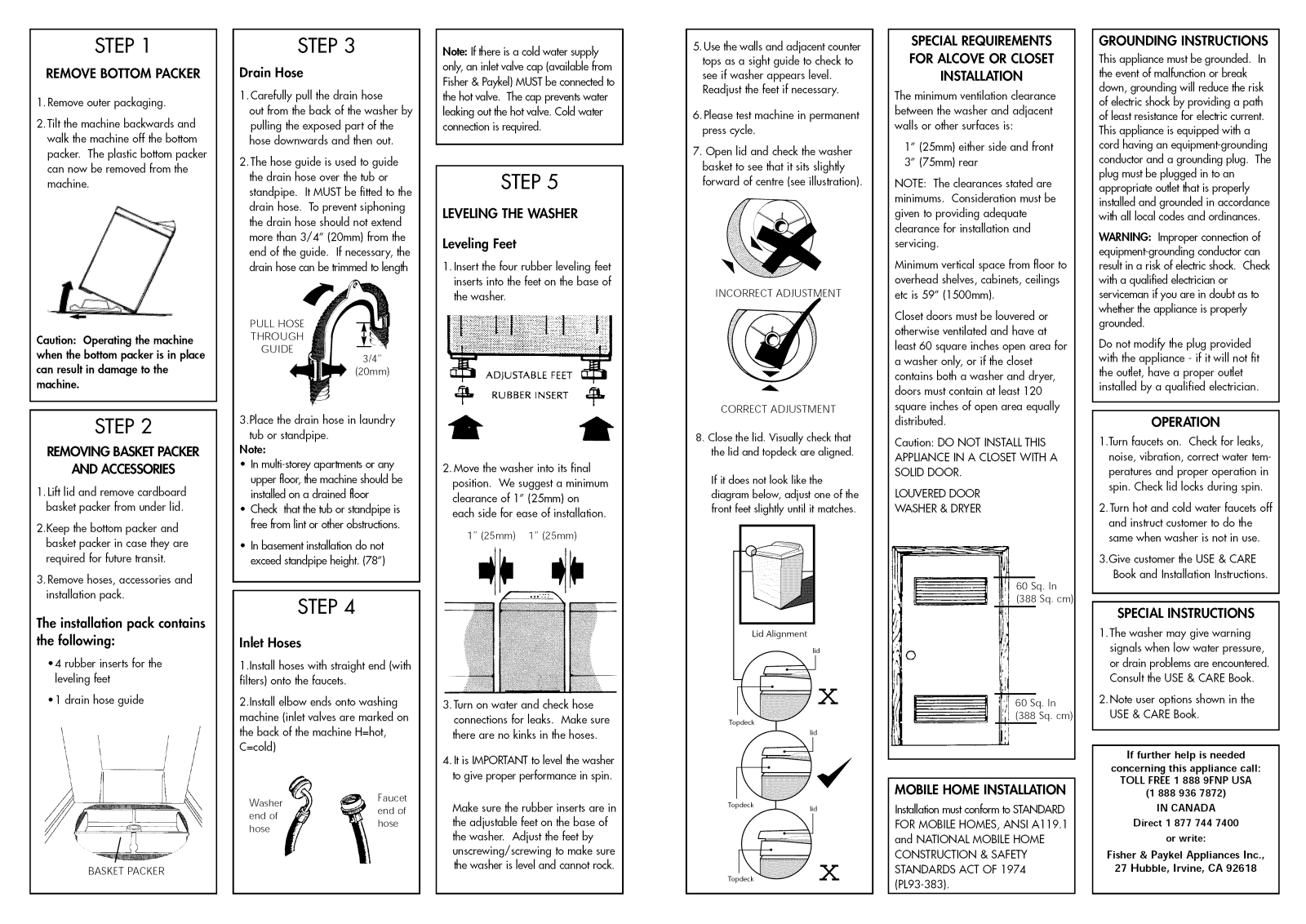

STEP1

REMOVE BOTTOM PACKER

1.Remove outer packaging.

2.Tilt the machine backwards and
walk the machine off the bottom

packer. The plastic bottom packer
can now be removed from the

machine.

Caution: Operating the machine
when the bottom packer is in place

can result in damage to the

machine.

STEP2

REMOVING BASKETPACKER

AND ACCESSORIES

1.Lift lid and remove cardboard
basket packer from under lid.

2.Keep the bottom packer and
basket packer in case they are
required for future transit.

3. Remove hoses, accessories and
installation pack.

The installation pack contains
the following:

*4 rubber insertsfor the

levelingfeet

STEP3

Drain Hose

1.Carefully pull the drain hose
out from the back of the washer by

pulling the exposed part of the

hose downwards and then out.

2.The hose guide is used to guide
the drain hose over the tub or

standpipe. ItMUST be fitted to the
drain hose. Toprevent siphoning

the drain hose should not extend
more than 3/4" (20mm) from the

end of the guide. If necessary, the
drain hosecan be trimmed to length

PULL HOSE
THROUGH

GUIDE

3/4"

(20ram)

3.Place the drain hose in laundry
tub or standpipe.

Note:

• Inmulti-storeyapartments or any
upper floor, the machine should be

installed on a drained floor

• Check that the tub or standpipe is
free from lint or other obstructions.

• Inbasementinstallationdo not
exceed standpipe height. (78")

STEP4

Inlet Hoses

1.Install hoses with straight end (with

filters) onto the faucets.

Note: Ifthere is a cold water supply

only, an inlet valve cap (available from

Fisher& Paykel)MUST be connected to

the hot valve. Thecap preventswater

leaking out the hotvalve. Cold water

connection is required.

STEP5

LEVELING THE WASHER

Leveling Feet

1. Insert the four rubber leveling feet
inserts into the feet on the base of

the washer.

ADJUSTABLE FEET

RUBBER INSERT

2.Move the washer into its final

position. We suggest a minimum
clearance of 1" (25mm) on

each side for ease of installation.

1" (25mm) 1" (25ram)

5. Use the walls and adjacent counter
tops as a sight guide to check to

see if washer appears level.
Readjust the feet if necessary.

6. Pleasetest machine in permanent
press cycle.

7. Open lid and check the washer
basket to see that it sits slightly
forward of centre (see illustration).

INCORRECTADJUSTMENT

CORRECT ADJUSTMENT

8. Closethe lid. Visually check that
the lid and topdeck are aligned.

If it does not look like the
diagram below, adjust one of the

front feet slightly until it matches.

Lid Alignment

lid

SPECIAL REQUIREMENTS

FOR ALCOVE OR CLOSET

INSTALLATION

The minimum ventilation clearance

between the washer and adjacent

walls or other surfaces is:

I" (25mm) either side and front

3" (75mm) rear

NOTE: The clearances stated are
minimums. Consideration must be

given to providing adequate
clearance for installation and

servicing.

Minimum vertical space from floor to
overhead shelves, cabinets, ceilings

etc is 59" (1500mm).
Closet doors must be Iouvered or

otherwise ventilated and have at

least 60 square inches open area for

a washer only, or if the closet
contains both a washer and dryer,

doors must contain at least 120

square inches of open area equally

distributed.
Caution: DO NOT INSTALLTHIS

APPLIANCE IN A CLOSETWITH A
SOLID DOOR.

LOUVEREDDOOR

WASHER & DRYER

i !-

60 Sq. In
(388 Sq. cm,

/,

'10

!r

GROUNDING INSTRUCTIONS

This appliance must be grounded. In

the event of malfunction or break
down, grounding will reduce the risk

of electric shockby providing a path
of leastresistancefor electric current.

This appliance is equipped with a

cord having an equipment-grounding
conductor and a grounding plug. The

plug mustbe plugged in to an
appropriate outlet that is properly
installed and grounded in accordance

with all local codesand ordinances.
WARNING: Improper connection of

equipment-grounding conductor can
resultin a risk of electricshock. Check

with a qualified electrician or

serviceman if you are in doubt as to

whether the appliance is properly

grounded.
Do not modify the plug provided

with the appliance - if it will not fit

the outlet, have a proper outlet
installed by a qualified electrician.

OPERATION

1.Turn faucets on. Check for leaks,
noise, vibration, correct water tem-
peratures and proper operation in
spin. Check lid locks during spin.

2.Turn hot and cold water faucets off
and instruct customer to do the

same when washer is not in use.

3.Give customer the USE& CARE

Book and Installation Instructions.

SPECIAL INSTRUCTIONS

1.The washer may give warning
signals when low water pressure,

or drain problems are encountered.
Consult the USE & CARE Book.

• 1drain hoseguide

\ /

/ ' /

! t J /

BASKETPACKER

2.Install elbow ends onto washing
machine (inlet valves are marked on

the back of the machine H=hot,
C=cold)

Washer
end or

hose

end of
hose

Faucet

3.Turn on water and check hose
connections for leaks. Make sure

there are no kinks in the hoses.

4. Itis IMPORTANTto level thewasher
to give proper performance in spin.

Make sure the rubber inserts are in
the adjustable feet on the base of

the washer. Adjust the feet by
unscrewing/screwing to make sure

the washer is leveland cannot rock.

! !

MOBILE HOME INSTALLATION

Installationmustconform to STANDARD
FOR MOBILE HOMES, ANSI A119.1

and NATIONAL MOBILE HOME
CONSTRUCTION & SAFETY
STANDARDS ACT OF 1974

(PL93-383).

60 Sq. In

(388 Sq. cm)

2. Note user options shown in the
USE& CARE Book.

If further help is needed

concerning this appliance call:

TOLL FREE 1 888 9FNP USA

(1 888 936 7872)

IN CANADA

Direct 1 877 744 7400

or write:

Fisher & Paykel Appliances Inc.,

27 Hubble, Irvine, CA 92618
