Fisher & Paykel ELBA OR61 Installation Instructions & User Manual
Freestanding cooker
OR61 models
NZ
INSTALLATION INSTRUCTIONS
USER GUIDE
1
CONTENTS
Safety and warnings 2
Installation instructions 4
Oven controls and setting the clock 7
First use – conditioning the oven and warmer drawer
9
Using the oven and warmer drawer 10
Oven functions 12
Oven cooking charts 14
Oven cooking tips 17
Using the timer 18
Automatic cooking 19
Using the ceramic glass cooktop 20
Using the radiant cooktop 21
Cookware 22
Care and cleaning 23
Troubleshooting 30
Warranty and service 33
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject
to change at any time. For current details about model and specification availability in
your country, please go to our website www.elba.co.nz/www.elba.com.au or contact your
local ELBA by Fisher & Paykel dealer.
2
SAFETY AND WARNINGS
WARNING!
Tipping Hazard
All cookers can tip. Keep children away and take care. The anti-tip
brackets supplied must be installed.
Failure to follow these instructions could result in injury.
WARNING!
Fire Hazard
Never leave the cooktop unattended during use – Boilover causes
smoking and greasy spillovers that may ignite.
Cooking grease or oil may also self-ignite at high temperatures. Take
extreme care when frying.
Never use your appliance for warming or heating the room. Persons could
be injured or a fire could start.
Keep the area around the appliance free from combustible materials (e.g.
wall coverings, curtains, drapes), gasoline and other flammable vapours
and liquids.
Do not let cooking grease or other flammable materials accumulate on or
near the appliance.
Do not hang any articles (e.g. dish towels) off the oven handle. Some
fabrics may ignite or melt from the heat.
Be sure that all the controls are turned off and the appliance is cool
before using any type of aerosol cleaner on or around the appliance.
Chemicals in such cleaners could, in the presence of heat, ignite or cause
metal parts to corrode.
Failure to follow this advice may result in death or serious injury.
!
!
WARNING!
Hot Surface Hazard
Accessible parts will become hot when this appliance is in use.
Take care to avoid touching hot surfaces inside the oven or on the
cooktop.
Use oven mitts or other protection when handling hot surfaces such as
oven shelves or dishes.
Take care when opening the oven door. Let hot air or steam escape
before removing or replacing food.
Supervise children and keep them safely away until the oven is cool.
Failure to follow this advice could result in burns and scalds.
!
WARNING!
Electrical Shock Hazard

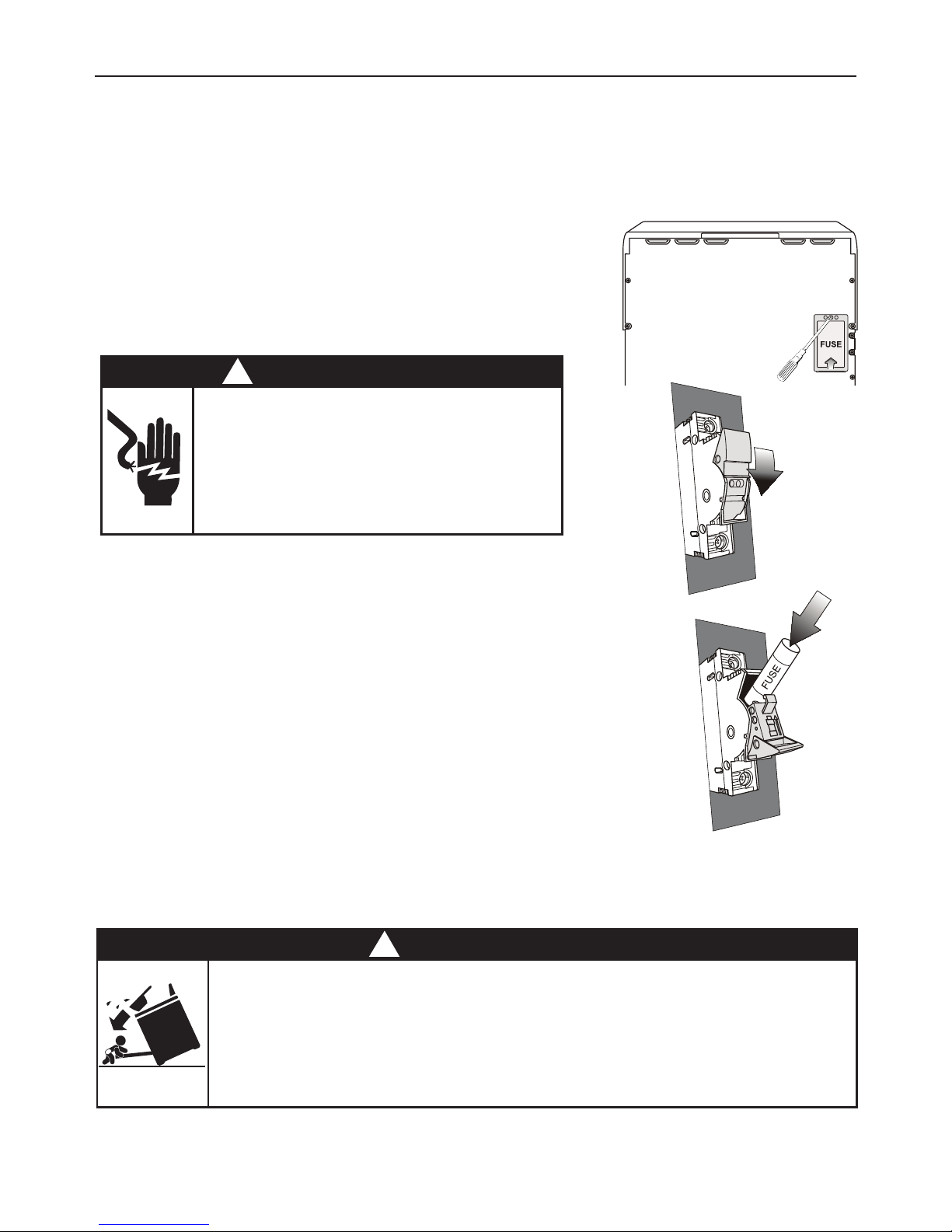

Switch the appliance off at the power supply before replacing fuses or the
oven lamp.
If the cooktop surface is cracked, switch the appliance off at the power
supply and contact your service centre. Do not use until repaired.
Failure to follow this advice may result in electrical shock or death.
!
3
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
Isolating switch: make sure this appliance is connected to a circuit which incorporates
an isolating switch providing full disconnection from the power supply.
Household appliances are not intended to be played with by children.
Children of less than 8 years old must be kept away from the appliance unless
continuously supervised. This appliance can be used by children aged from 8 years
and above, and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge, if they have been given supervision or instruction
concerning the use of the appliance in a safe way and they understand the hazards
involved. Cleaning and user maintenance shall not be done by children without
supervision.
After use, ensure the dials are all in the `OFF’ position.
Safe food handling: Food should be left in the oven for as short a time as possible
before and after cooking. This is to avoid contamination by organisms which may
cause potential food poisoning. Particular care should be taken during warmer
weather.
Do not place aluminium foil, dishes with reflective qualities, water, ice or any object
on the oven floor as this will cause a heat build-up which irreversibly damages the
enamel.
If the electrical supply cord is damaged, it must only be replaced by an authorised
person.
Do not stand or place heavy objects on the door.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door
glass since they scratch the surface, which may result in shattering of the glass.
Do not use a steam cleaner to clean any part of the cooker.
Do not keep flammable substances in the oven or in the drawer.
Do not operate your appliance by means of an external timer or separate remotecontrol system.
Under unfavourable electrical supply conditions, the appliance may cause temporary
voltage drops.
4
INSTALLATION INSTRUCTIONS
15 mm
CLEARANCE
15 mm
CLEARANCE
PRODUCT DEPTH = 610 mm
5 mm
905 mm
1145 mm
240 mm
610 mm
CLEARANCE
5 mm
CLEARANCE
Installing your cooker
IMPORTANT!
Connection of this cooker to fixed or flexible wiring must be made by a suitably
registered person. Connection by an unregistered person can cause a safety hazard.
Dimensions and clearances
Electrical connection
Some models have two side-mounted power outlets: the power socket on these
cookers are rated at 250V 10A AC only.
We recommend that the cooker sub circuit is protected by a suitably rated Miniature
Circuit Breaker (M.C.B) but not connected to a Residual Current Device (R.C.D) or an
Earth Leakage Breaker (E.L.C.B).
In New Zealand this appliance must be connected to the electrical supply using a
cable fitted with an appropriately rated plug. The plug must be compatible with the
socket-outlet fitted to the final subcircuit in the fixed wiring that is intended to supply
the appliance.
Power
OR61S2CEWW
220-240/380-415 V 2N AC 50 Hz 47.6A
OR61S4CEWW
220-240/380-415 V 2N AC 50 Hz 47.6A
OR61S8CEWSW
220-240/380-415 V 2N AC 50 Hz 53.7A
WARNING!
Electrical Shock Hazard
Before obtaining access to terminals, all supply circuits must be
disconnected.
Failure to follow this advice may result in electrical shock or death.
!
5
INSTALLATION INSTRUCTIONS
2
, three-core
Remove for two-phase
connection
Single phase connection:
The supply cable should be at least equivalent to an ordinary PVC sheathed and
insulated min. 4 mm2, three-core (twin and earth), min. 1 m long flexible cable.
Two-phase connection:
The supply cable should be at least equivalent to an ordinary PVC sheathed and
insulated, min. 2.5 mm2, four-core, min. 1 m long flexible cable. If fitted the bridging link
between 2 and 3 should be removed, as shown. Failure to this will result in damage to
the appliance.
This appliance must be connected to a circuit which incorporates an isolating switch
providing full disconnection from the power supply.
If you raised the cooker to align it with the bench, make sure the base of the cooker
cannot slip.
Connecting the cable
1 Remove the cable access cover (lower right hand corner).
2 Provide a minimum of 1 metre of cable.
For 220-240 single phase operation, connect phase wire to terminal 1
(with links between 1-2 and between 2-3 fitted).
For 380-415V two phase operation, remove the link between 2-3 and connect phase 1
wire to terminal 1 (with link between 1-2 fitted); then connect phase 2 wire to
terminal 3.
3 Connect neutral wire to terminal 5 (with link between 4-5 fitted).
4 Connect ground wire to earth terminal
.
5 Replace cover; check that no conductors are trapped by the wiring cover.
6
INSTALLATION INSTRUCTIONS
ANTI-TIP
BRACKET
ANTI-TIP
BRACKET
Anti-tip brackets
Two anti-tip brackets are supplied with the accessories so that the cooker can be
secured to the wall to prevent it from tipping over. Use the two screws on the back
panel of the cooker, as shown.
WARNING!
Tipping Hazard
All cookers can tip. Keep children away and take care. The anti-tip
brackets supplied must be installed.
Failure to follow these instructions could result in injury.
!
7
1
1
1
2
2
2
3
3
3
5
5
5
7
7
7
4
4
4
6
6
6

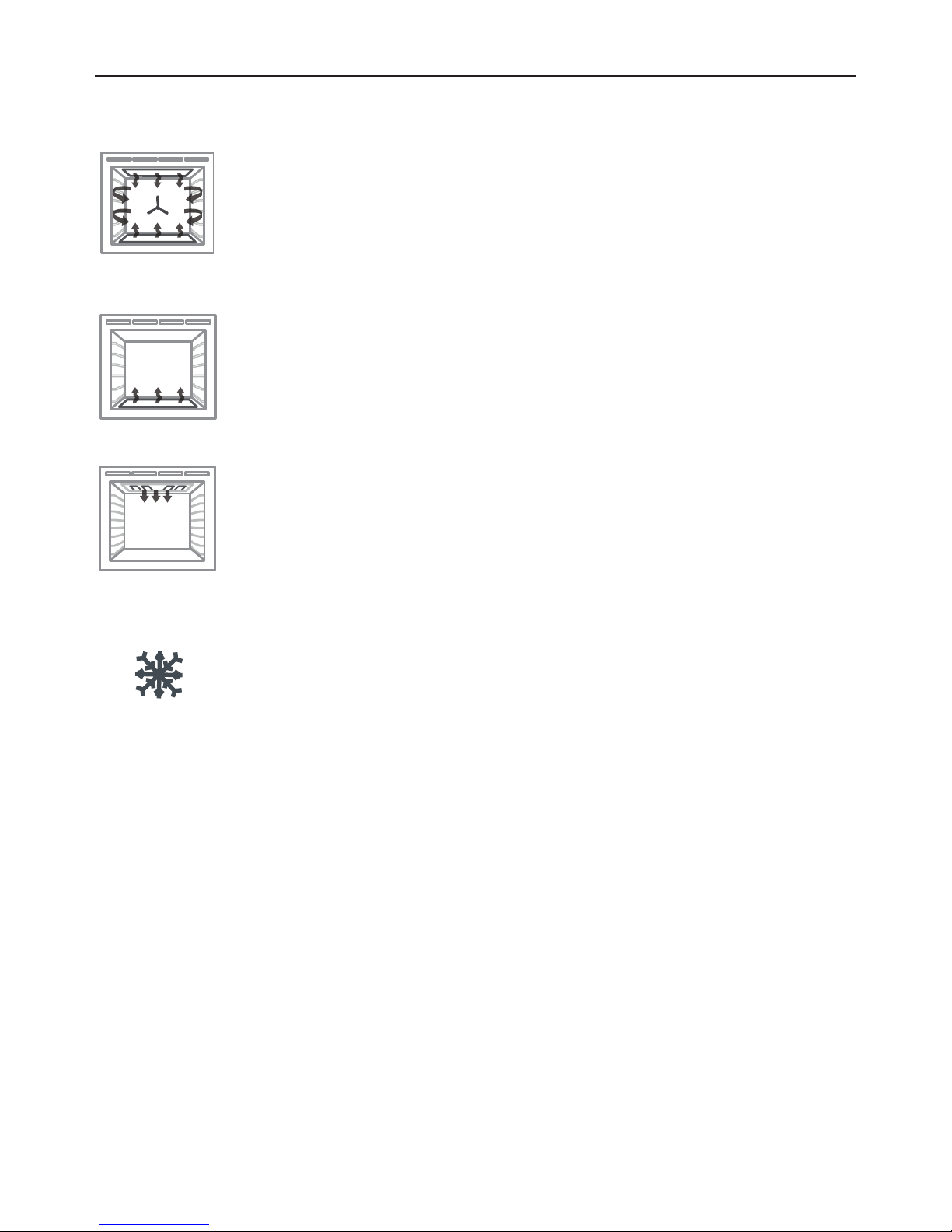

Two-function model
with electronic clock
Four-function model
Eight-function model
1 Function knob
2 Temperature knob
3 Temperature indicator light
4 Warmer drawer knob
5 Warmer drawer indicator light
6 Clock display
7 Control buttons
OVEN CONTROLS AND SETTING THE CLOCK
8
OVEN CONTROLS AND SETTING THE CLOCK

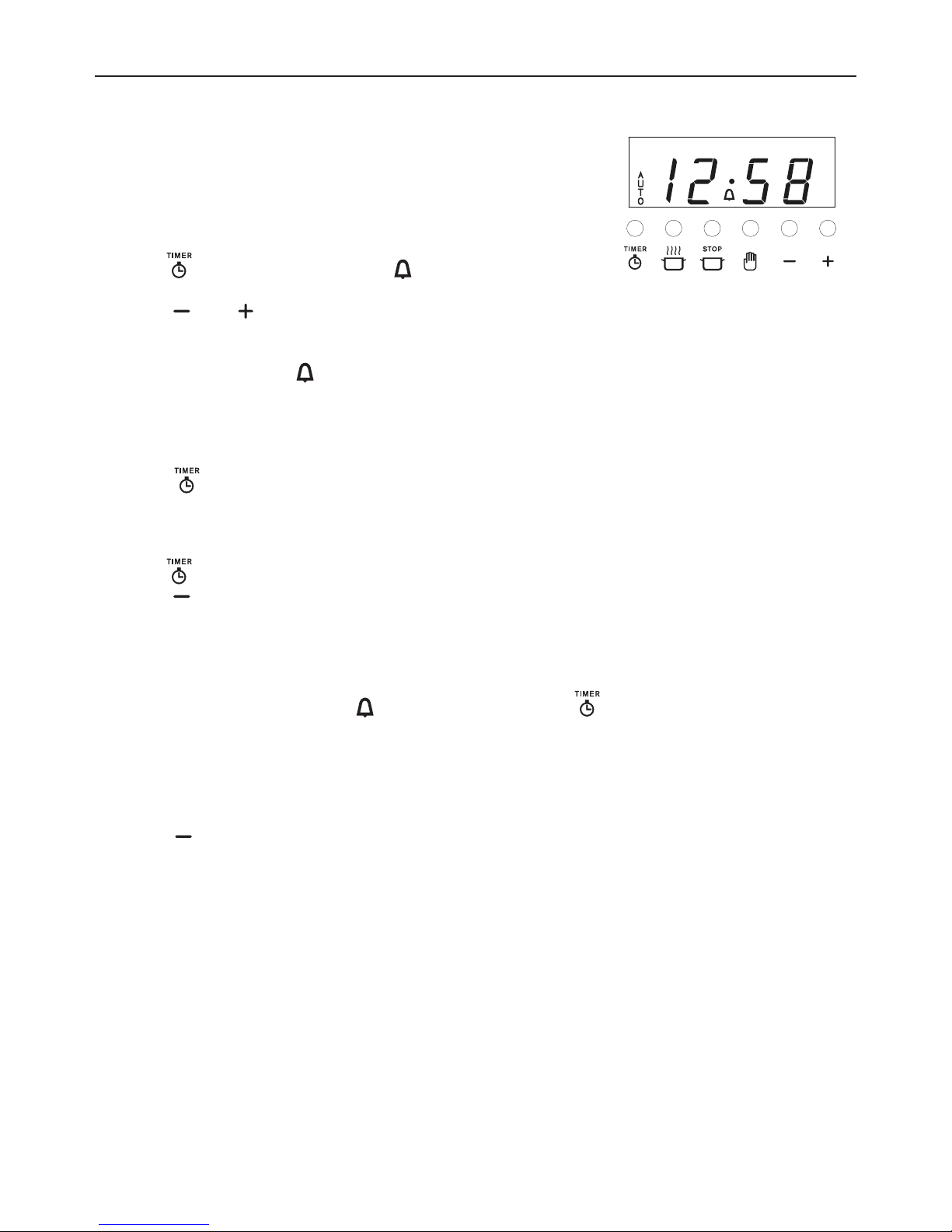

Buttons
sets the timer
sets the cooking time for automatic cooking
sets the stop time for automatic cooking
sets the clock, returns oven to manual mode,
cancels automatic cooking
decreases time and beep volume
increases time
Illuminated symbols

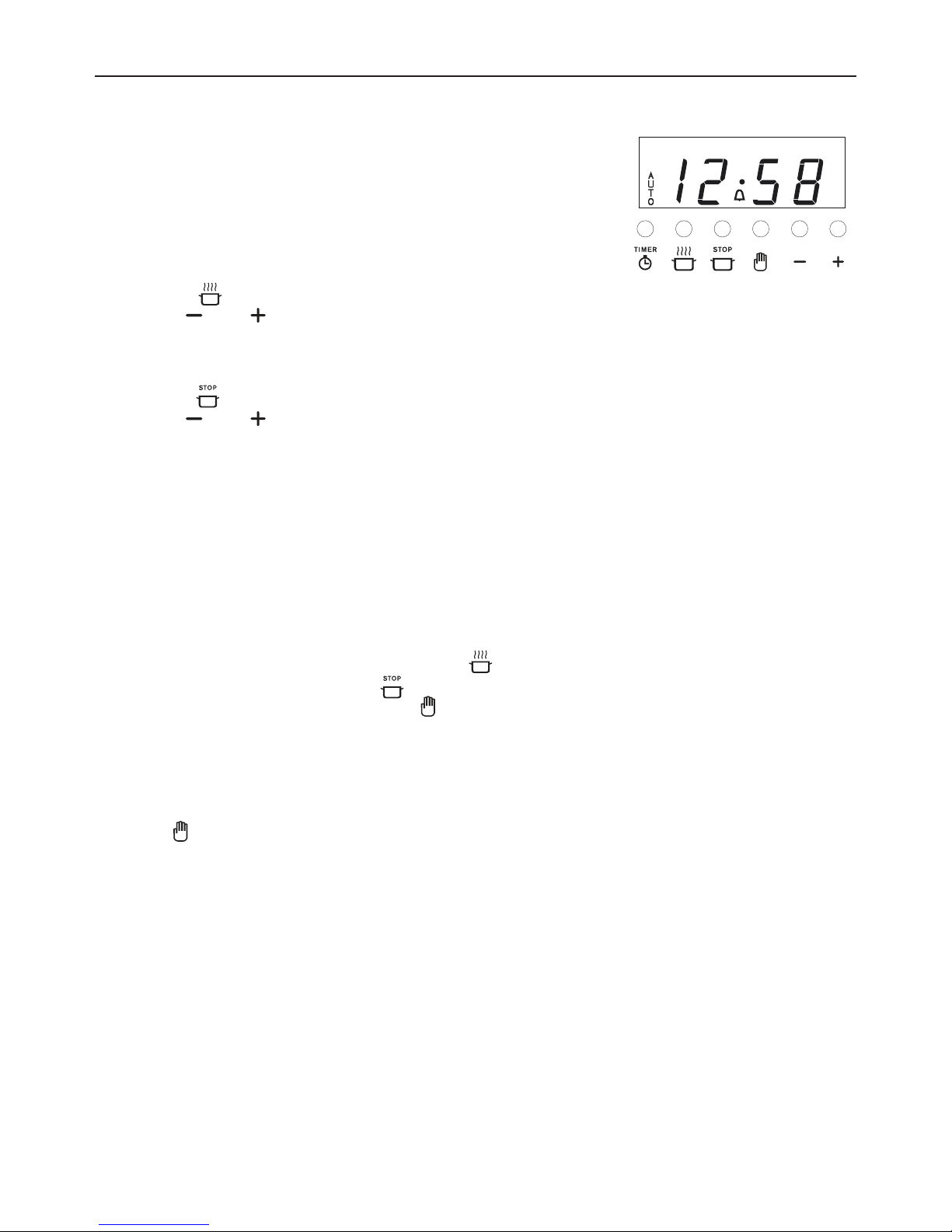

To set the clock
When the power to the cooker is turned on or restored after a power failure, 0
.
00 and
AUTO will flash in the display.
1 Press .
2 Press and until you have the correct time of day.
IF THE DISPLAY SHOWS IT MEANS THAT... FOR MORE INFORMATION
A
U
T
O
flashing with
0.00
The clock needs to be set. See instructions below.
steadily lit The oven is set for
automatic cooking.
See section ‘Automatic
cooking’
flashing and
beeping
Automatic cooking has
finished or has been set
incorrectly (the stop time is
before the time of day).
steadily lit The timer is set.
See section ‘Using the timer’
flashing and
beeping
The set time is up.
9
FIRST USE - CONDITIONING THE OVEN AND WARMER DRAWER
We recommend conditioning the oven before any cooking or baking and conditioning
the warmer drawer before using it for keeping food warm. Conditioning will burn off any
manufacturing oil residues and ensure that you get the best results right from the start.
Conditioning the oven
1 Read this user guide, taking special note of the ‘Safety and warnings’ section.
2 Make sure that the cooker is secured to the wall with the two anti-tip brackets.
3 Remove all accessories and packaging. Make sure you peel any protective film off the
surfaces. Discard the film immediately, keeping it out of reach of children.
4 If your model has an electronic clock, set the clock. See ‘Oven controls and setting the
clock’ for instructions.
IMPORTANT!
The oven will not work until the clock has been set.
5 Check the side racks are correcly in place on both sides and fit the oven accessories as
shown in ‘Using the oven and warmer drawer’.
6 Heat the oven for 1 hour at 200oC on BAKE (two-function models) or FAN BAKE
(four and eight-function models).
There will be a distinctive smell during the conditioning. This is normal, but make sure
your kitchen is well ventilated.

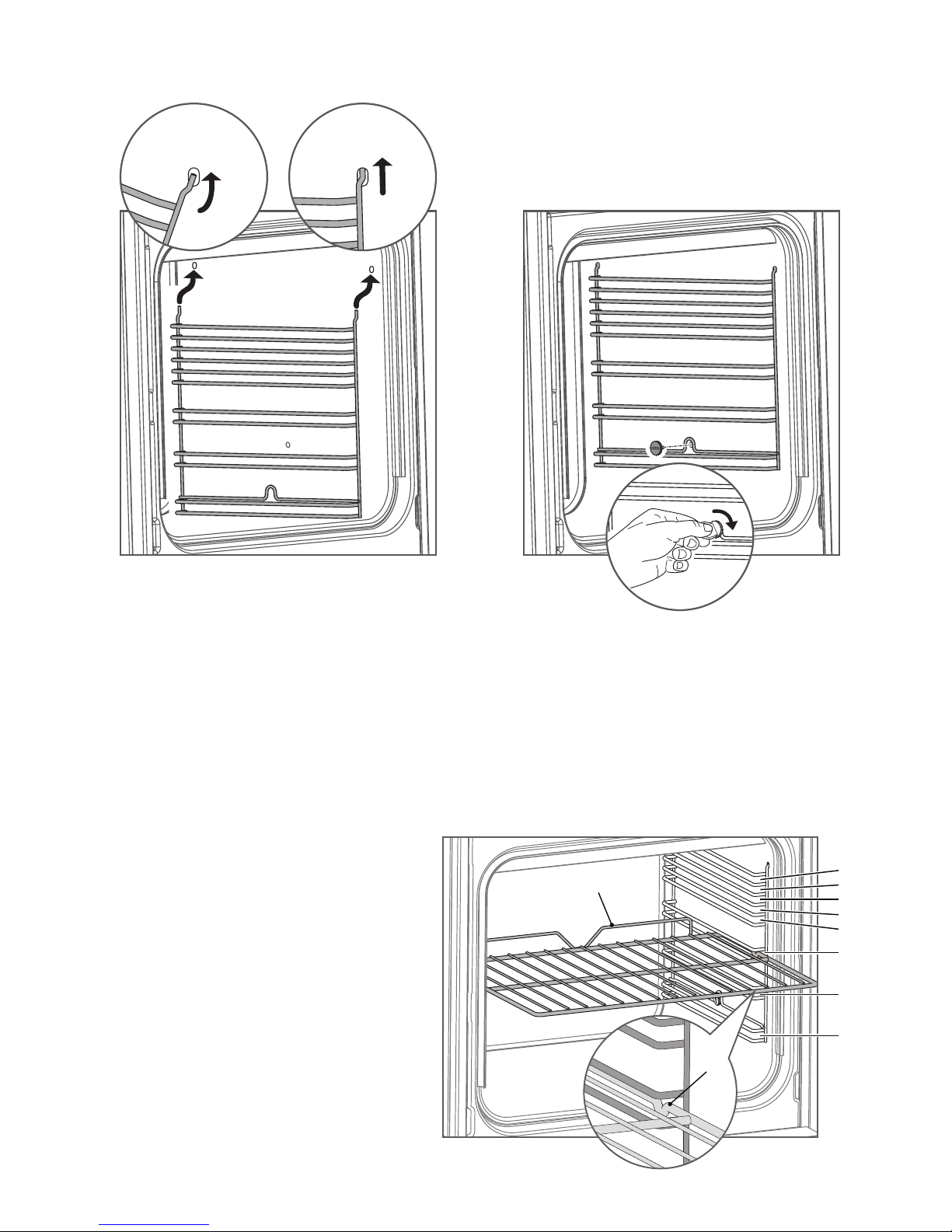

7 Once cooled, remove the oven accessories and the side racks on both sides, wipe out
the oven with a damp cloth and mild detergent, and dry thoroughly.
8 Refit the side racks as shown in ‘Using the oven and warmer drawer’.
Conditioning the warmer drawer (some models only)
1 Turn the empty warmer drawer on and leave it on for 30 minutes.
2 Turn off and allow the warmer drawer to cool, then wipe out with a damp cloth and mild
detergent and dry thoroughly.
