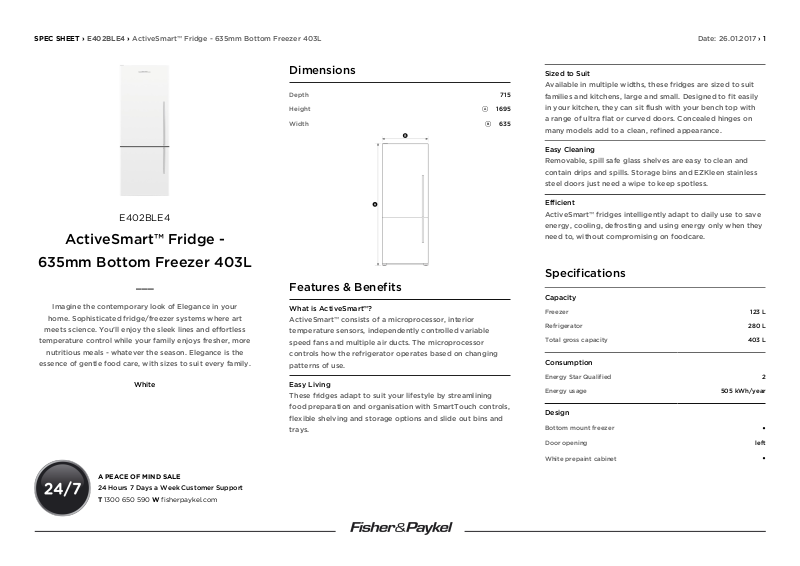

Fisher & Paykel E402BLE4 Specifications Sheet

SPEC SHEET › E402BLE4 › ActiveSmart™ Fridge - 635mm Bottom Freezer 403L Date: 26.01.2017 › 1

E402BLE4

ActiveSmart™ Fridge -

635mm Bottom Freezer 403L

___

Imagine the contemporary look of Elegance in your

home. Sophisticated fridge/freezer systems where art

meets science. You'll enjoy the sleek lines and effortless

temperature control while your family enjoys fresher, more

nutritious meals - whatever the season. Elegance is the

essence of gentle food care, with sizes to suit every family.

White

Dimensions

Depth 715

Height

Width

A 1695

B 635

Features & Benefits

What is ActiveSmart™?

ActiveSmart™ consists of a microprocessor, interior

temperature sensors, independently controlled variable

speed fans and multiple air ducts. The microprocessor

controls how the refrigerator operates based on changing

patterns of use.

Easy Living

These fridges adapt to suit your lifestyle by streamlining

food preparation and organisation with SmartTouch controls,

flexible shelving and storage options and slide out bins and

trays.

Sized to Suit

Available in multiple widths, these fridges are sized to suit

families and kitchens, large and small. Designed to fit easily

in your kitchen, they can sit flush with your bench top with

a range of ultra flat or curved doors. Concealed hinges on

many models add to a clean, refined appearance.

Easy Cleaning

Removable, spill safe glass shelves are easy to clean and

contain drips and spills. Storage bins and EZKleen stainless

steel doors just need a wipe to keep spotless.

Efficient

ActiveSmart™ fridges intelligently adapt to daily use to save

energy, cooling, defrosting and using energy only when they

need to, without compromising on foodcare.

Specifications

Capacity

Freezer 123 L

Refrigerator 280 L

Total gross capacity 403 L

Consumption

Energy Star Qualified 2

Energy usage 505 kWh/year

Design

Bottom mount freezer

Door opening left

White prepaint cabinet

•

•

A PEACE OF MIND SALE

24 Hours 7 Days a Week Customer Support

T 1300 650 590 W fisherpaykel.com

SPEC SHEET › E402BLE4 › ActiveSmart™ Fridge - 635mm Bottom Freezer 403L Date: 26.01.2017 › 2

Freezer

Bottle chill

Clear plastic bins 3

Door alarm

Ice tray 2

Measurements

Depth - door closed not including handle 715mm

Depth - including handle 736mm

Depth door open 90 ° 1278mm

Height - incl. feet and hinge cap 1695mm

Minimum air clearance - at rear (incl.

compressor tray)

Minimum air clearance - each side 20mm

Minimum air clearance - on top 50mm

30mm

Performance

ActiveSmart™ Foodcare

Fast freeze

Frost free

Humidity control system

Humidity controlled crisper bin

Refrigerator

•

•

Adjustable glass shelves 4

Covered door shelves 2

Door alarm

Egg Trays 2

Four shelves (incl above vegetable area)

Freezer shelves 1

Front levelling feet

Full extension runners

Full width door shelves 2

Half width adjustable door shelves 2

LED lighting

Roll out freezer tray

•

•

•

•

•

•

Warranty

Parts & Labour 2 years

•

Sealed system parts additional 3 years

•

•

SKU 24037

•

•

The product dimensions and specifications in this page apply to the specific product

and model. Under our policy of continuous improvement, these dimensions and

specifications may change at any time. You should therefore check with Fisher &

Paykel’s Customer Care Centre to ensure this page correctly describes the model

currently available. © © Fisher & Paykel Appliances Ltd 2017
