DishDrawer
MODELS
DD603
DD603I
DS603
DS603I
DD603M
DS603M
DD603H
DD603IH
DS603H
DS603IH
DD603HM
DS603HM
599084
MANUAL 599084
2
MANUAL 599084 September 2002 Reprinted 2 October, 2002
Fisher & Paykel Appliances Ltd
PO Box 58-732, Greenmount.
78 Springs Rd, East Tamaki
New Zealand
Tel: (09) 2730660
Fax: (09) 2730580
Fisher & Paykel Appliances Inc
27 Hubble, Irvine, California,
CA92618, USA
Ph: 949 790 8900
Fax: 949 790 8911
Fisher & Paykel Customer Services Pty
Ltd
A.C.N. 003 3335 171, 19 Enterprise Street,
Cleveland, QLD 4163
PO Box 798, Cleveland, QLD 4163,
Ph: 07 3826 9100,
Fax: 07 3826 9164
Fisher & Paykel Appliances Ltd UK
Broxell Close, Wedgnock Industrial
Estate, Warwick CV34 5QF
Ph: 01926 626700
Fax: 01926 626701
Fisher & Paykel Appliances Singapore
150 Ubi Avenue 4,
Sunlight Building #02-00
Singapore 408825
Phone: 6547 0100
Service Ph: 6741 0777
Fax: 6547 0123
COPYRIGHT FISHER & PAYKEL LTD 2002 3
MANUAL 599084
PRODUCTS
Brand Fisher & Payk e l
Voltage 110V 60Hz, 230-240V 50Hz*, 100V 50/60Hz+, 110-120V 50Hz
Model Series Code
DD603 0 87721* 87722* 88269 88270 88284+ 88411 87779 87785 87786
87787 87768 87769 87800 88707 88708 88732
DD603I 0 87723* 88271 87770 88709
DD603H 0 88906 88900 88737 88736 88738 88286 88290 88294
DD603IH 0 88907 88902 88904 88739 88287
DD603M 0 87820 87822
DD603HM 0 88421 88769 88292 88296
DS603 0 87724* 87725* 88272 88273 88285+ 88412 87780 87788 87789
87790 87771 87772 88710 88711 88731
DS603I 0 87726* 88274 87773 87795 88712
DS603H 0 88908 88901 88741 88740 88742 88288 88291 88295
DS603IH 0 88909 88903 88905 88743 88289
DS603M 0 87821 87823
DS603HM 0 88422 88770 88293 88297
4
MANUAL 599084
CONTENTS
FRONT PANELS / CONTROLS................................................................................................................................................6
CABINET..................................................................................................................................................................................10
LID & LINK ASSEMB LY.......................................................................................................................................................14
TUBS & COMPONENTS.........................................................................................................................................................16

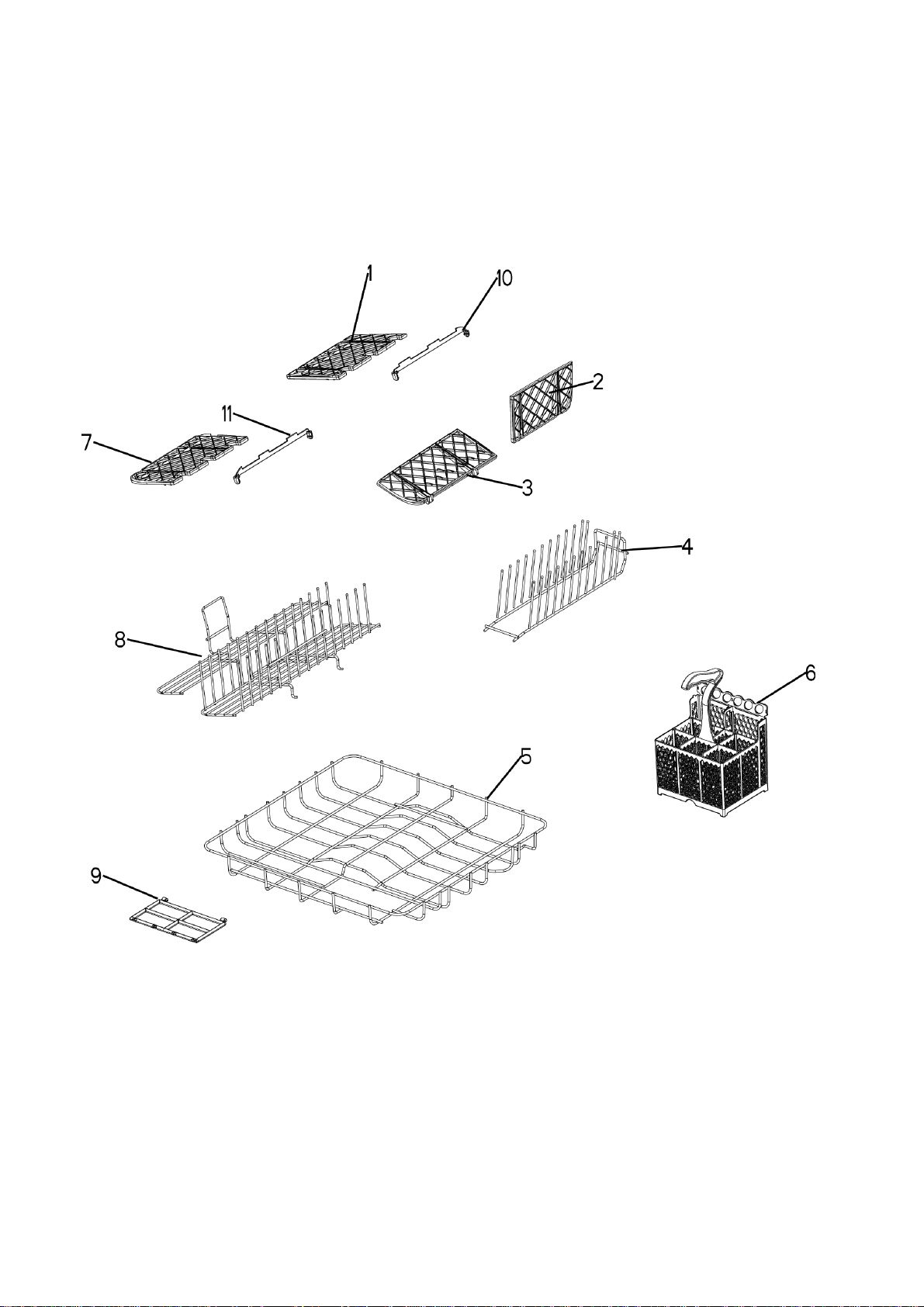

BASKETS & RACKS...............................................................................................................................................................20
INSTALLATION COMPONENTS.........................................................................................................................................22
GUIDE TO USING THI S MANUAL
The model(s) and/or series covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice, the latest version is
indicated by the reprint date and replaces any earlier editions.
The front cover picture shows the type of product and may not necessarily be an exact image of the
models covered by the manual.
Part References
Where a Model is shown, the part is exclusive to the Model(s) stated. Common parts relating to a part
reference are applicable to all other Model(s) which use the particular item. D-Double, S-Single,
I-Integrated, H-Water Softener, M-Iridium
Kit Parts
The components shown in italics are those parts in the kit which are available also as separate items. In
addition, some parts may be supplied with this kit which are not available as separate items and are
therefore not listed in this manual.
All details relating to Technical Bulletins or Notes are shown on a dedicated page. The Technical
Bulletin Number shown relates to the bulletin version which is produced for New Zealand Service
Centres.
Parts List Key
NOT USED As a part, indicates the diagram part reference is not used in this manual.
# Beside the part number, indicates the part is no longer available.
italics Kit components shown in italics are also available separately.
* Indicates a technical bulletin or note exists for the part or part reference.
NI As a part reference, indicates the part is not illustrated on the diagram.
MANUAL 599084
FRONT PANELS / CONTROLS
6
MANUAL 599084
FRONT PANELS / CONTROLS
REF PART DESCRIPTION MODEL
1 526618P
526975P
2 526484
3 526743
526744
526745
526954
4 526627
5 526211
6 526203P
526977P
7 526212
8 526221
526453
526637
526637
BADGE INT ASSY CHROME OVAL
INT BADGE COVER PH3/CLIP
BADGE INT ASSY SAT IN RECTAN G ULAR
INT BADGE COVER PH3/CLIP
BADGE ISOLATOR 525 P3
HANDLE LCD PREFINISH WH MLDG
HAND LE LCD PRE F IN ISH BK M LDG
HANDLE LCD PREFINISH SS MLDG
HANDLE LCD PREFINISH SS JA
SEAL LCD
HOUSING LCD BACK PH3
DISP LCD MERCURY 525 P3
LCD BOARD PH 3.5
HOUSING LCD FRONT PH3
BUTTONS CONTRO L WHITE PH3
BUTT ONS CON TRO L BLACK PH3
I
I
I
526454
9 526466
10 526440
11 526441
12 526080
13 525950
BUTTONS CONTROL SS PH3
SEA L INTEGR AT E D DOOR
SHIEL D INT DO OR UPPE R ASSY B K
SHIELD INT DOOR LOWER ASSY BK
INSERT DOOR
COW LING T UB
I
I
DI
7
MANUAL 599084
FRONT PANELS / CONTROLS
8
MANUAL 599084
FRONT PANELS / CONTROLS
REF PART DESCRIPTION MODEL
14 526244
526248
526908
526934
526232
526234
526245
526249
15 526654
526655
16 525010
17 526653
18 526240
527028
526237
526907
DOOR LOWER ASSY SS
DOOR LOWER ASSY SS US
DOOR LOWER ASSY SM
DOOR LOWER ASSY SM US
DOOR LOWE R ASS Y WH ITE
DOOR LOWE R ASS Y WH ITE US
DOOR LOWER ASSY BLACK
DOOR LOWER ASSY BLACK US
INSUL DOOR LOWER
INSUL DOOR LOWER US
PIN DOOR
INSUL DOOR UPPER
DOOR UPPER ASSY SS FP US
DOOR UPPER ASSY SS WP
DOOR UPPER ASSY SS QFP
DOOR UPPER ASSY SM QFP
D
D
DM
DM
D
D
D
D
D
D
M
526933
526230
526239
526241
526238
526240
527067
19 526755
20 526753
NI 526637
NI 526621
NI 526683
NI 526684
NI 526685
NI 527156
NI 527157
DOOR UPPER ASSY SM FP US
DOOR UPP ER AS SY WHITE QFP
DOOR UPP ER AS SY WHITE FP US
DOOR UPPER ASSY BLACK QFP
DOOR UPPER ASSY BLACK FP US
DOOR UPPER ASS SS JA
DOOR SINGLE ASSY SS JA
HARNESS BADGE ISOLATOR
HARNES S LCD P H
INT BADGE CO VER PH3/ C LIP
LIGHT PIPES INT BADGE
KIT INT BADGE BLACK OVAL
KIT INT BADGE SATIN CHROME OVAL
KIT INT BADGE BRASS OVAL
KIT INT BADGE CHROME OVAL
KIT INT BADGE SATIN RECTANGULAR
M
D
S
I
I
I
I
I
I
I
I
9
MANUAL 599084
CABINET
10
MANUAL 599084
CABINET
REF PART DESCRIPTION MODEL
1 526323
526324
2 526128
526130
3 526669
4 526756
526768
5 526378
6 526776
7 526776
526797
526509
525968
526378
526378
526378
SLIDE & BRACKET ASSY LH
SLIDE & BRACKET ASSY RH
LATCH ASSY RH
LATCH ASSY LH
INSUL CHASSIS TOP
KIT REPLACE CHASSIS DBL PH3
TAB TOP X2
FOOT X4
MOUNT LINK TOP
PRISM TUB HOME
KIT REPLACE CHASSIS SGL P H3
PRISM TUB HOME X2
PRISM TUB HOME
KIT TRIM CHARCOAL
PRISM TUB HOME X2
KIT TRIM CHARCOAL
D
8 556607
9 525968
10 525977
11 526509
12 556605
526378
PRISM TUB HOME X2
SCR E W MC M5 X1 0 TA PTIT E
MOUNT LI NK TOP
LID CHASSIS MODULE
FOOT
SCREW ST M3.5X25 PLAST PNPZ BK
D
D
11
MANUAL 599084
CABINET
12
MANUAL 599084
CABINET
REF PART DESCRIPTION MODEL
13 526250
14 556082
15 525958P
525959P
16 526667
526668
17 525466
18 526850
525113
526851
525842
19 525976
20 526690
21 525982
526673
526856
RETAINER LINK
SCRE W ST M4X12 XT ITE HX WP H NWX
MAINS FILTER BOARD PH3
MAINS FILTER BOARD PH3 US
INSUL CHASSIS BOTTOM LEFT
INSUL CHASSIS BOTTOM RIGHT
CLAMP HOSE HERBIE TYPE E
VALVE INLET DOUBLE W/SOFT
VALVE INLET DOUBLE
VALVE INLET SINGLE W/SOFT
VALVE INLET SINGLE
CHASS IS MO D ULE
INSUL CHASSIS SINGLE LEFT
FLEX ASSY MAINS 10A (NZ, AUS, DK)
FLEX ASSY MAINS DE
FLEX ASSY MAINS JA
D
D
DH
D
SH
S
S
526349
22 521349
527021
23 525983
24 525970
526809
25 525971
525972
26 527086
27 527096
NI 572638
NI 526841
NI 527141
NI 526797
FLEX ASSY MAINS GB
HOSE INLET ASSY WIRSBO COLD (NZ, AUS)
HOSE INLET ASSY WIRSBO CO LD WP, DK, EU, GB
FLEX ASSY MAINS US
HOSE INLET WIRSBO US
HOSE INLET WIRSBO JA
CLIP TUB RELE ASE R H
CLIP TUB RELE ASE L H
UNION N UT G20 MA LE G20 DK
WATER BLOCK DK
SADDLE TERMINATION STRIP
CABAS 1.5 GN/YE PVC 1600 x O JA
WASHER WIRSBO 25.8x11.0x2.0, DK
TAB TOP
13
MANUAL 599084

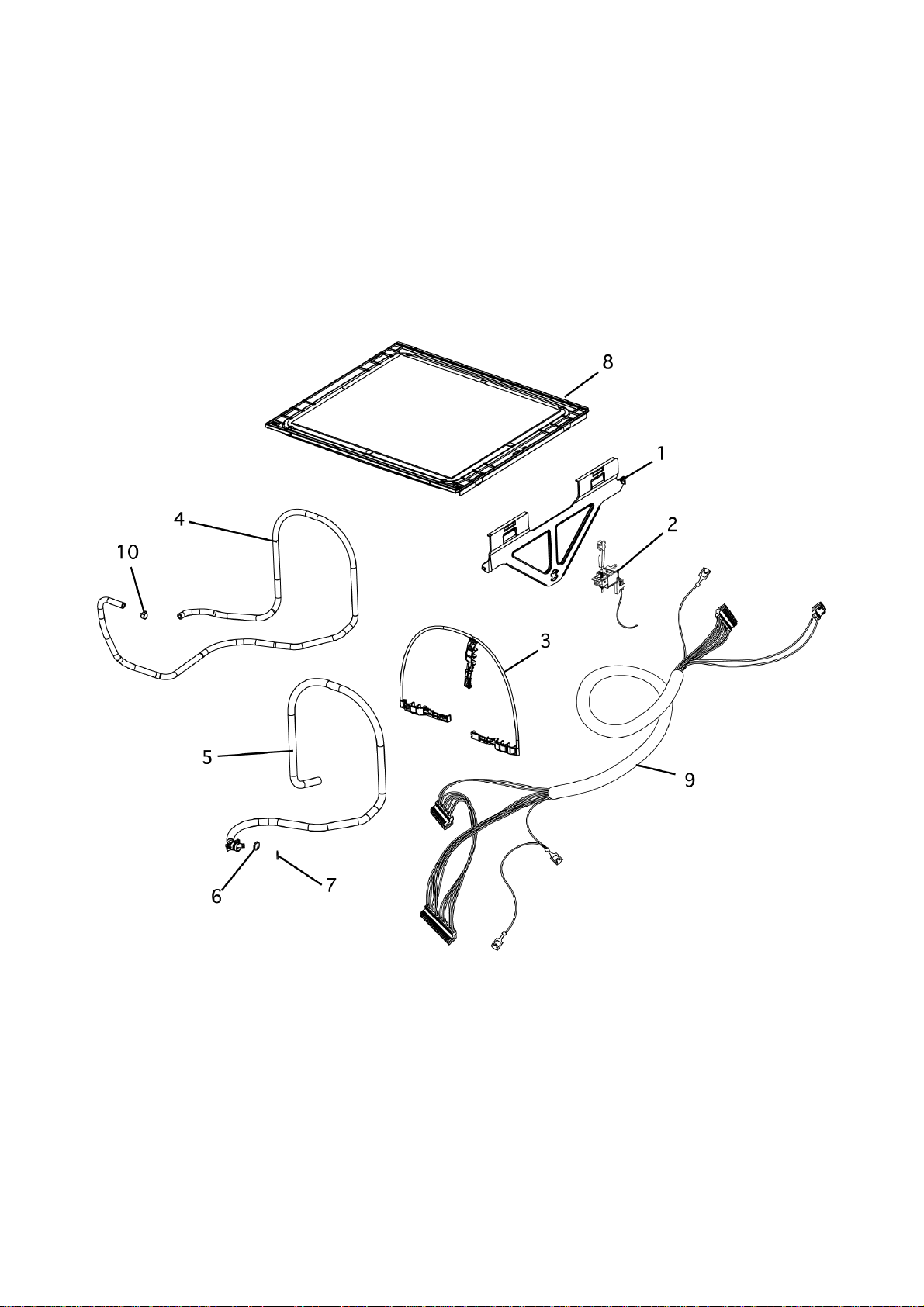

LID & LINK ASSEMBLY
14
MANUAL 599084
LID & LINK ASSEMBLY
REF PART DESCRIPTION MODEL
1 526186
526260
2 526469
526470
526275
526371
3 526396
4 526837
525964
526836
525965
5 527137
6 525940P
7 525414P
8 526732
525940
YOKE LID R IGHT
YOKE LID LEF T
LID ACT UAT OR ASSY B OT LH
LID ACT UAT OR ASSY B OT RH
LID ACT UAT OR ASSY T OP LH
LID ACT UAT OR ASSY T OP RH
LINK SUPPORT
HOSE FILL LOWER
HOSE FI LL LOWER US
HOSE FILL UPPER
HOSE FI LL UPPER US
KIT DRAI N HOSE
O RING CUFF SOCKET UL
O RING CUFF SOCKET UL REC PKT4
VALVE FLAP X2
LID ASSY PH3
D
D
D
D
9 526749
526750
10 525743
NI 525798
525482
525780
HARNESS CHASSIS LOWER
HARNESS CHASSIS UPPPER
CLAMP HOSE TYPE 12232-17-4
KIT DRAIN HOSE EXTENSION
CLIP WIRE DRAIN
DRAIN HOSE EXTENDER
D
15
MANUAL 599084
TUBS & COMPONENTS
16
MANUAL 599084
TUBS & COMPONENTS
REF PART DESCRIPTION MODEL
1 526069
2 527105
3 527005
527083
4 527018
5 525884
6 525969
527150
526798
527023
527047
527148
527085
527105
526069
525969
LOCK NUT FILTER PLATE
DRAIN FILTER TRIM
DRAIN FI LTER ASSY WS
DRAIN FILTER ASSY (WIRE MESH) GB, EU, DK
FILTER PLATE ASSY WS
DRAIN FILTER TRIM
LOCK NUT FILTER PLATE
MOTOR ROT OR ASSY
TUB W/ASSY PH3 WHITE QFP TEXT
TUB W/ASSY PH3 F& P SYMBOLS GB
TUB W/ASSY PH3 W/SOFT F&P T EXT, US
TUB W/ASSY PH3 W/SOFT SYMBOLS WP
TUB W/ASSY PH3 W/SOFT SYMBOLS BA
TUB W/ASSY PH3 W/SOFT FP SYMBL GB, EU, DK
KIT TUB REPLACEMENT AU
TUB W/ASSY PH3 QFP TEXT
H
H
H
H
7 526623
8 525610
9 526860
10 526789
11 526752
12 526842NAP
526842HNAP
526842USP
526842HUSP
526530
525059
525058
526443
525162
525940
526789
MOTOR ASSY
SEAL MOTOR HOUSING
SEAL HEATER PLATE
HEATER PLATE
LOCKING NUT
O RING CUFF SOCKET UL REC
LIGHT TRANSFER TUBE
DISPENSER RINSE AID BUNG ASSY
KIT DISP ENS ER
BRACKET DISPENSER SHORT X2
BRACKE T DI SPE NS ER S HOR T
HARNESS & FAN ASSY
CONTROLLER 525 PH3 NZ/AU
CONTROLLER 525 PH3.5 NZ/AU
CONTROLLER 525 PH3 US
CONTROLLER 525 PH3.5 US
526842JAP
526842HJAP
526842EUP
526842HEUP
CONTROLLER 525 PH3 JA
CONTROLLER 525 PH3.5 JA
CONTROLLER 525 PH3 EU / GB
CONTROLLER 525 PH3.5 EU / GB
17
MANUAL 599084
TUBS & COMPONENTS
18
MANUAL 599084
TUBS & COMPONENTS
REF PART DESCRIPTION MODEL
13 526530
14 526340P
15 525059
16 525058
17 526443
526444
526820
18 525162
19 526278
20 526279
21 525956
22 525014
527114
23 525940P
24 526751
25 526263
MOTOR ASSY CO MP PH3
HALL SENSOR 525 P3
SEA L MOTOR HO USI NG
SEAL HEATER PLATE/TUB
HEATER PLATE ASSY PH3
HEATER PLATE ASSY PH3 US
HEATER PLATE ASSY PH3 JA
LOCKING NUT
DUCT TOP ASSY PH3
DUCT BOTTO M PH3
COVER WIRI NG PH3
SPRAY ARM A SSY
SPRAY ARM ASSY SLUICING GB, EU, DK
O RING CUFF SOCKET UL REC PKT4
HARNES S MO TOR
HARNESS DISPENSER PH3
D
26 525743
27 526412
28 526718
29 526717
30 527084
31 527102P
32 526713
33 526840
34 526835
NI 556600
526718
526717
526713
527102P
556600
CLAMP HOSE TYPE 12232-17-4
HOSE FILL SOFTENER
O RING OVERFLOW SOFT ENER
O RING SALT TANK
KIT WATER SOFTENER ASSY (SP)
O RING OVERFLOW SOFTENER
O RING SALT TANK
BUNG SOFTENER ASSY
SALT SENSE SMD 525 PH3.5
SCREW M3.5X14 4 OFF
SALT SENSE SMD 525 PH3.5
BUNG SOFTENER ASSY
HARNES S WA TER S OFTE NE R
CONTAINER SALT FILLING
SCREW M3.5X14 PANTX WN1412KL35
H
H
H
H
H
H
H
H
H
H
H
H
H
19
MANUAL 599084
BASKETS & RACKS
20
MANUAL 599084
BASKETS & RACKS
REF PART DESCRIPTION MODEL
1 526374
2 526377
3 526376
4 525769
526811
526726
525581
5 526062
6 525489
7 526375
8 526346
527065
9 526345
10 527058
11 527069
NI 526815
CUP RACK BACK LEFT
CUP RACK BACK RIGHT
CUP RACK FRONT RIGHT
INSERT CROCKERY SILVER
INSERT CROCKERY SILVER JA
INSERT CROCKERY GB SILVER
INSERT CROCKERY 12 INCH SILVER
BASKET SILVER
CUTLE RY CON TA INE R ASSY
CUP RACK FRONT LEFT
UNI INSERT SILVER
UNI INSERT EURO SILVER
TRAP DOOR DRAIN FILTER ACCESS
SUPPORT CUP REAR GB, WP, BA, EU
SUPPORT CUP FRONT GB, WP, BA, EU
UNI INSERT SILVER JA
21
MANUAL 599084
INSTALLATION COMPONENTS
22
MANUAL 599084
INSTALLATION COMPONENTS
REF PART DESCRIPTION MODEL
1 525938
2 525953
3 525935
4 525477F
5 526771
526772
6 526773
7 525067
525925
8 525460
525926
9 526682
WASHER WIRS BO US
CLAMP HOSE DIA 32-20
EDGE 160MM 22PKG020 UHMWPE US
SUPPORT DRAIN HOSE
TRIM CAVITY SIDE DBL CHARCL US
(Only available as part of 526676 Kit Install
Double/Single US)
TRIM CAVITY SIDE SGL CHARCL US
(only available as part of 526676 Kit Install
Double/Single US)
TRIM CAVITY TOP CHARCL US
(only available as part of 526676 Kit Install
Double/Single US)
DRAIN SPIGOT CONNECTOR DOUBLE
DRAIN SPIGOT CONNECTOR DBL US
DRAIN SPIGOT CONNECTOR SINGLE
DRAIN SPIGOT CONNECTOR SGL US JA
KIT KICKSTRIP INTEGRATED
D
S
D
D
S
S
DI
10 526678
526679
527109
11 556089P
12 526680
526681
527108
13 526608
526610
527042
527053
527077
KICKSTRIP WHITE US KIT
KICKSTRIP B LACK US KIT
KIT KICKS T R IP SILVE R US
SCREW WS 8X5/8TWINFST PKT10
KIT KICKS T R IP WHITE
KIT KICKS T R IP BLACK
KIT KICKS T R IP SILVE R
INTEGRATE D INST DD6 03 I US
CARD INTEGRATED PANEL PREP NZ
CARD INTEGRATED PANEL PREP WP
CARD INTEGRATED PANEL PREP BA
CARD INTEGRATED PANEL PREP EU
D
D
DM
D
D
DM
I
I
I
I
I
23
MANUAL 599084
INSTALLATION COMPONENTS
24
MANUAL 599084
INSTALLATION COMPONENTS
REF PART DESCRIPTION MODEL
14 526609
526607
526948
527076
15 526624
526625
526947
527030
527051
526985
526984
526986
527142
527072
16 526534
526573
CARD INSTAL INSTR PH3 NZ AU
CARD INSTAL INSTR DD603 US
CARD INSTAL INSTR PH3 JA
CARD INSTAL INSTRU PH3 EU
BOOK USER GUIDE NZ/AU/GB
USER GUIDE US
BOOK USER GUIDE JA
BOOK USER GUIDE/INSTALL INS WP
BOOK USER GUIDE/INSTALL INS BA
BOOK USER GUIDE PH3.5 US
BOOK USER GUIDE PH3.5 NZ/AU
BOOK USER GUIDE PH3.5 GB
BOOK USER GUIDE PH3.5 JA
BOOK USER GUIDE EU, DK
VIDEO USE & CARE DD60 3
VIDEO USE & CARE D D603 US
526938
NI 525482
NI 526676
NI 526675
NI 526674
525 477F
525482
525925
525926
525938
525953
556089P
525935
526797
526610
556089P
VIDEO USE & CARE DD603 JA
CLIP WIRE DR AI N
KIT INSTALL DOUBLE/SI NGLE US
SUPPORT DRAIN HOSE
CLIP WIRE DRAIN
DRAIN SPIGOT CONNECTOR DBL US
DRAIN SPIGOT CONNECTOR SGL US
WASHER WIRSBO US
CLAMP HOSE DIA 32-20
SCREW WS 8X5/8 TWIN FAST PKT 10
EDGE 160MM 22 PKG020 UHMWPE US
TAB TOP x2
KIT INTEGRATED INSTA LL
CARD INTEGRATED PANEL PREP NZ
SCREW WS 8X5/8 TWINSFST MTSPH ZP
INTEGRATED INSTALL KIT USA (INS)
I
I
526608
556089P
CARD INTEGRATED PANEL PREP US
SCREW WS 5X5/8 TWIN FST MTSPH ZP
25
MANUAL 599084
INSTALLATION COMPONENTS
26
MANUAL 599084
INSTALLATION COMPONENTS
REF PART DESCRIPTION MODEL
NI 526677
NI 526950
NI 526956
526958
NI 526945
NI 527031
527052
525460
525477
525067
525482
556089P
526797
KIT INSTALL DOUBLE/SI NGLE
DRAIN SPIGOT CONNECTOR SINGLE
SUPPORT DRAIN HOSE
DRAIN SPIGOT CONNECTOR DOUBLE
CLIP WIRE DRAIN
SCREW WS 8X5/8 TWINFST MTSPH ZP
TAB TOP x2
CARD SERVICE LIST JA
ACPAC INSTAL DOUBLE DD603 JA
ACPAC INSTAL SINGLE DS603 JA
SHEET INSTAL WARNING JA
FOLDER USE & CARE WP
FOLDER USE & CARE BA
27
Loading...
