Please read all instructions thoroughly before installing the Over the Range Convection
Microwave Oven. Two people are recommended to install this product.
If a new electrical outlet is required, its installation should be completed by a qualified
electrician before the microwave oven is installed. See ELECTRICAL GROUNDING
INSTRUCTIONS page 5.

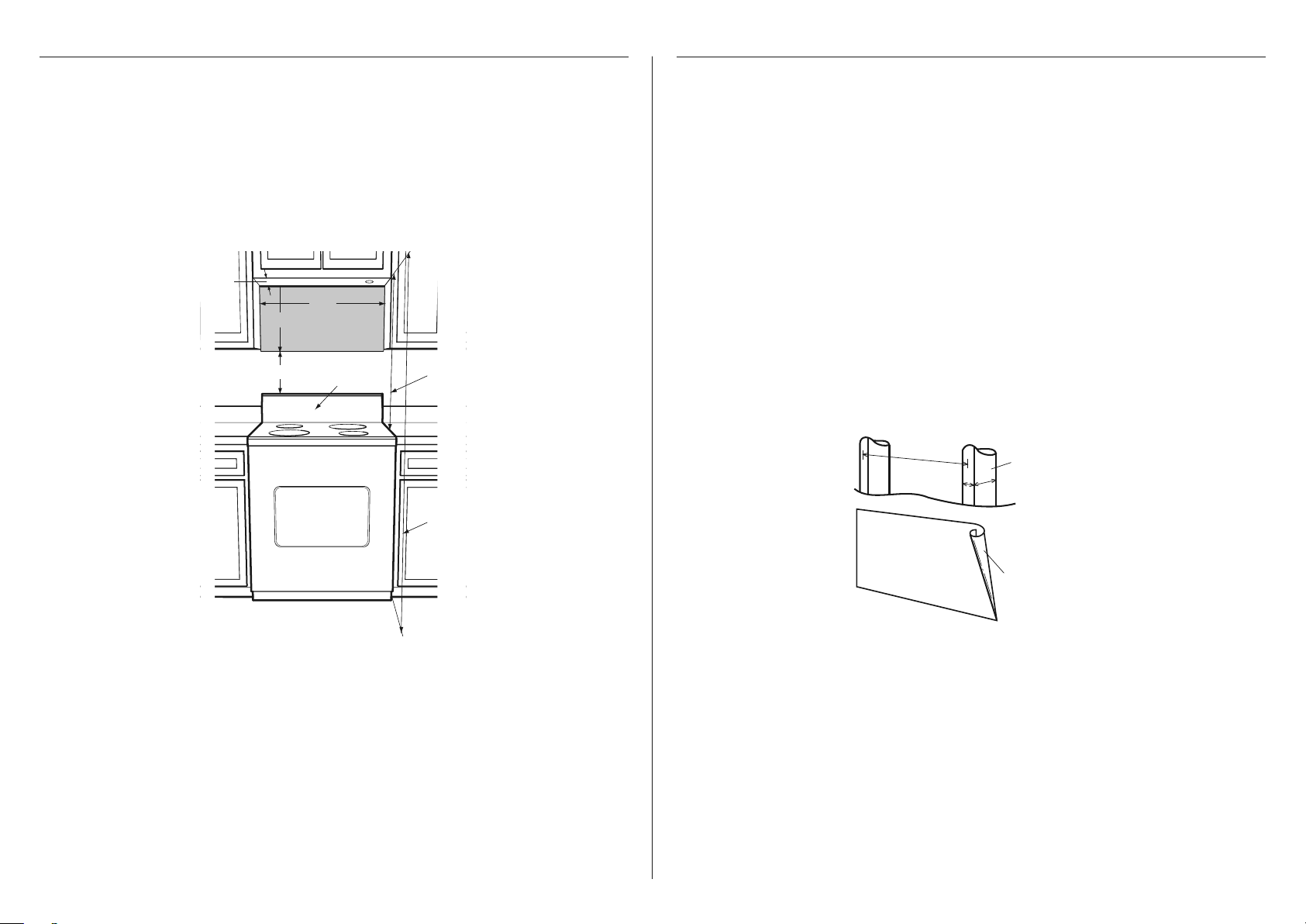

This microwave oven requires a mounting space on a wall as shown in Figure 1.
For proper installation and servicing, a 2-inch space is necessary between the top of the range
backsplash and the bottom of the Over the Range Microwave Oven.
12"
30"
15.5"
Minimum 2"
Backsplash
36" or more
from cooking
surface
72" or more
from floor
This Over the Range Microwave Oven should be mounted against and supported by a flat
vertical wall. The wall must be flat for proper installation. If the wall is not flat, use spacers to
fill in the gaps. Wall construction should be a minimum of 2" x 4" wood studding and 3/8"
or more thick dry wall or plaster/lath. The mounting surfaces must be capable of supporting
weight of 110 pounds—the oven and contents—AND the weight of all items which would
normally be stored in the top cabinet above the unit.
The unit should be attached to a minimum of one 2" x 4" wall stud.
To find the location of the studs, one of the following methods may be used:
A. Use a stud finder, a magnetic device which locates the nails in the stud.
B. Use a hammer to tap lightly across the mounting surface to find a solid sound. This will
indicate stud location.
The center of the stud can be located by probing the wall with a small nail to find the edges of
the stud and then placing a mark halfway between the edges. The center of any adjacent studs
will normally be 16" or 24" to either side of this mark.
Note: In the event that the unit will be unable to be supported by any stud, it will be necessary
to use special care in the placement of the toggle bolts and top cabinet screws. See Wall
Template for details. The top cabinet should be tested to ensure it is securely attached to the
wall. Place extra weight up to 110 pounds inside the top cabinet to test the support.
This appliance must be grounded. This microwave oven is
equipped with a cord having a grounding wire with a grounding
plug. It must be plugged into a wall receptacle that is properly
installed and grounded in accordance with the National
Electrical Code and local codes and ordinances. In the event
of an electrical short circuit, grounding reduces risk of electric
shock by providing an escape wire for the electric current.
WARNING - IMPROPER USE OF THE GROUNDING PLUG CAN RESULT
IN A RISK OF ELECTRIC SHOCK. DO NOT USE AN EXTENSION CORD.
IF THE POWER SUPPLY CORD IS TOO SHORT, HAVE A QUALIFIED
ELECTRICIAN OR SERVICEPERSON INSTALL AN OUTLET NEAR THE
APPLIANCE.
The microwave oven is equipped with a 3-prong grounding plug. DO NOT UNDER ANY
CIRCUMSTANCES CUT OR REMOVE THE GROUNDING PIN FROM THE PLUG.
The Power Supply Cord and plug must be connected to a separate 120 Volt AC, 60 Hz, 15
Amp, or more branch circuit, single grounded receptacle. The receptacle should be located
inside the cabinet directly above the Microwave Oven mounting location.
Notes:
1. If you have any questions about the grounding or electrical instructions, consult a qualified
electrician or serviceperson.
2. Neither Fisher & Paykel nor the dealer can accept any liability for damage to the oven
or personal injury resulting from failure to observe the correct electrical connection
procedures.
When the hood is vented to the outside, a hood exhaust duct is required. All ductwork must
be metal; absolutely do not use plastic duct. Check that all connections are made securely.
Please read the following carefully:
Exhaust connection
The hood exhaust has been designed to connect to a standard 3 1⁄4" x 10" rectangular duct. If
round duct is required, a rectangular-to-round adapter must be used.
Rear exhaust
If a rear or horizontal exhaust is to be used, care should be taken to align the exhaust with the
space between the studs, or wall should be prepared at the time it is constructed by leaving
enough space between wall studs to accommodate exhaust.
Maximum duct length
For satisfactory air movement, the total duct length of 3-1/4" x 10" rectangular or 6" diameter
round duct should not exceed 140 feet.
Elbows, adapters, wall, roof caps, etc. present additional resistance to air flow and are
equivalent to a section of straight duct which is longer than their actual physical size. When
calculating the total length, add the equivalent lengths of all transitions and adapters plus

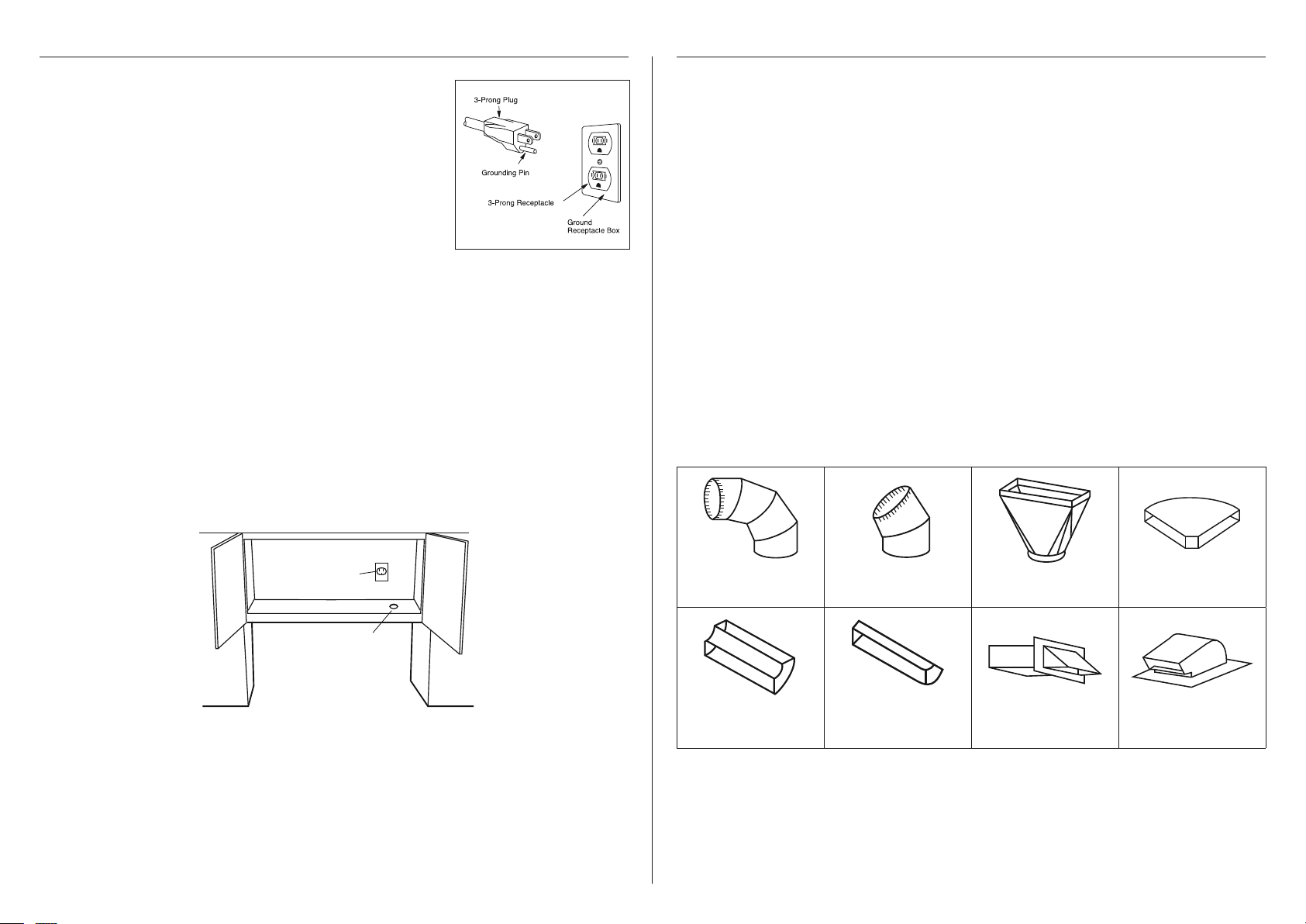

the length of all straight duct sections. Figure 4 shows the approximate feet of equivalent
length of some typical ductwork parts. Use the values in parentheses for calculating air flow
resistance equivalent, which should total less than 140 feet.
Ground
Receptacle
Opening for
Power Cord
Figure 3
EN 5
90˚ Elbow
(10 ft. / 304.8 cm.)
90˚ Elbow
(25 ft. / 762 cm.)
45˚ Elbow
(5 ft. / 152.4 cm.)
45˚ Elbow
(5 ft. / 152.4 cm.)
Figure 4
Adaptor
(5 ft. / 152.4 cm.)
Wall cap
(40 ft. / 1219.2 cm.)
10˚ Wide elbow
(10 ft. / 304.8 cm.)
Roof cap
(24 ft. / 731.52 cm.)
Page 6
TOOLS RECOMMENDED FOR INSTALLATIONINSTALLATION HARDWARE
z
Phillips screwdriver
z
Electric drill
z
Scissors
z
Pencil
z
Tape
z
Measure tape
z
1 1⁄2" wood bit or metal hole cutter (if metal cabinet is used)
1
z
⁄2", 5⁄8" and 3⁄32" drill bits
z
Saw to cut exhaust opening (if needed)
z
Protective drop cloth for product and range—you may also use carton for protection

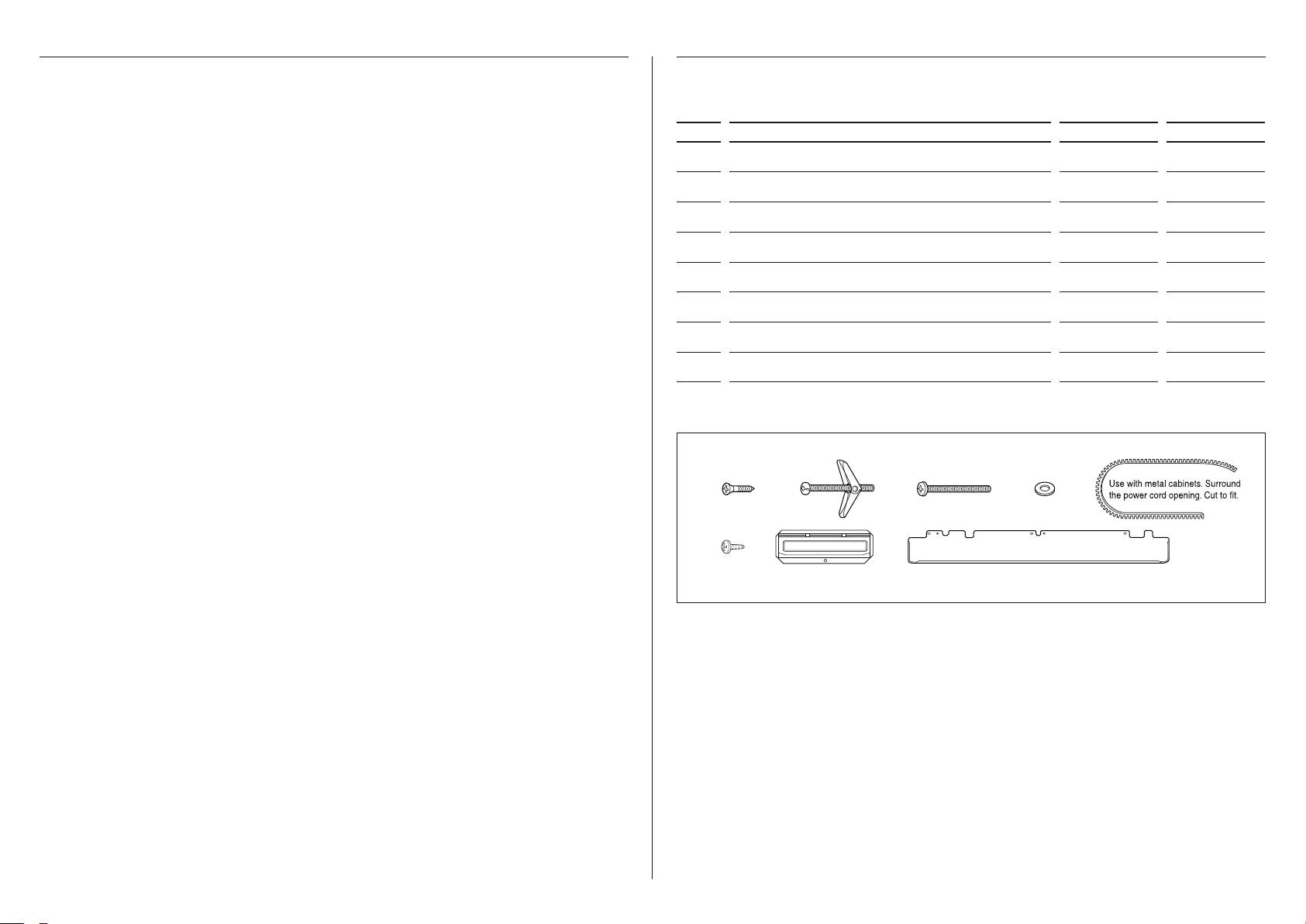

The INSTALLATION HARDWARE (items 1-8) packed with the oven should contain the
following:
ITEMNAMEQUANTITYPART CODE
Wood Screw 5 x 30 mm6290109
1
Toggle Bolt #10 - 24 x 50 mm
2
Top Cabinet Screw 5 x 60 mm
3
Flat Washer 30 mm diameter
4
Grommet
5
Tapping Screw 4 x 12 mm
6
Exhaust Damper Assembly
7
Mounting Deflector
8
4
2
2
1
4
1
1
290106
290108
290107
290105
245657
290046
290122
15
67
6 EN
234
8
Figure 5
Page 7
PREPARATION OF THE OVENVENTILATION SYSTEM
1. Open the bottom of the carton, remove oven and all packing materials.
2. CHECK THE OVEN.
Check the oven for any damage, such as misaligned or bent door, damaged door seals and
sealing surfaces, broken or loose door hinges and latches and dents inside the cavity or
on the door. If there is any damage, do not operate the oven and contact your dealer or
Fisher & Paykel AUTHORIZED SERVICER.

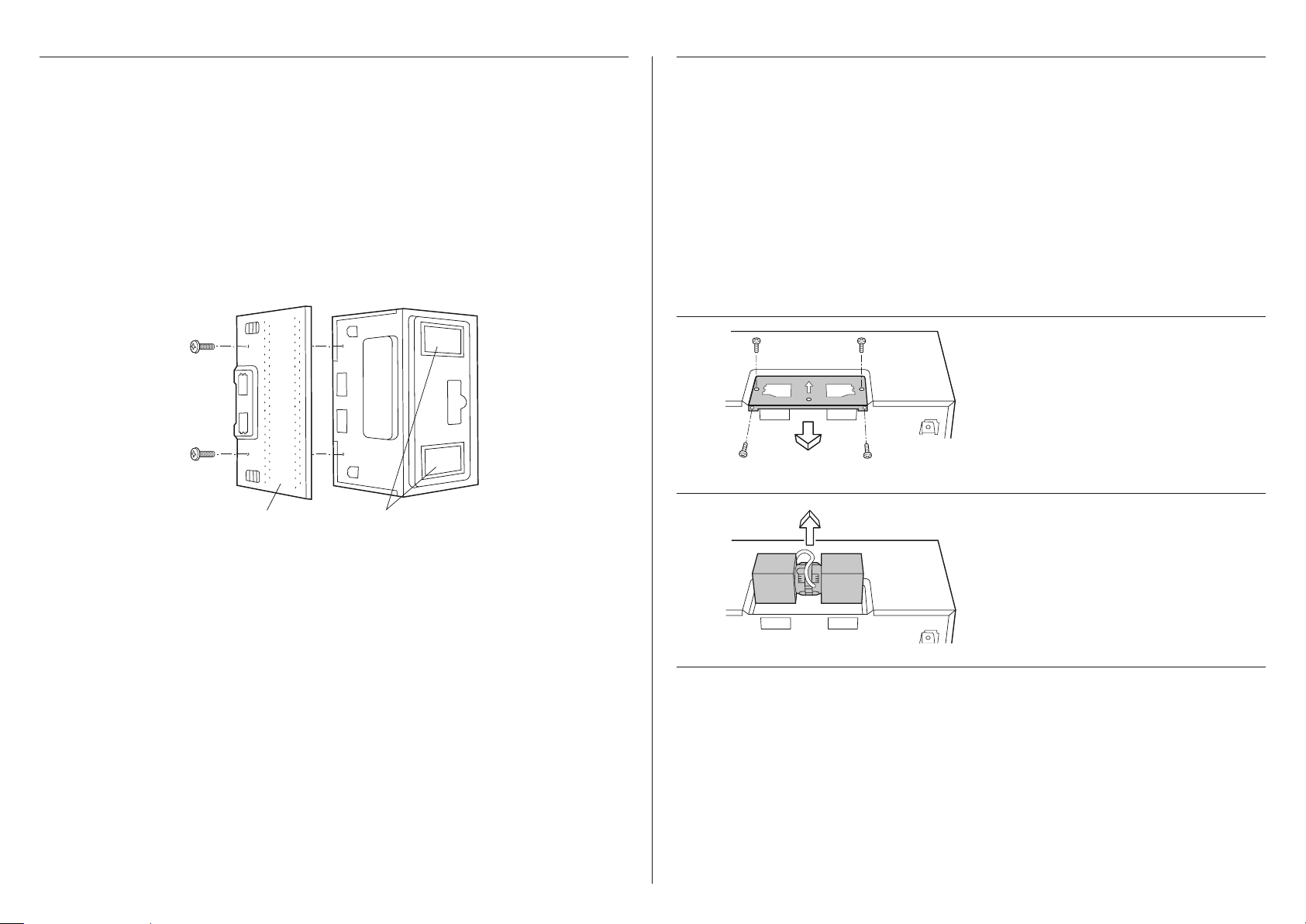

3. Rest the microwave oven on its side as shown in Figure 6.
4. Remove the two screws which secure the mounting plate to the rear side of the oven.
Remove the mounting plate. The two screws can be discarded.
Note: If the unit you purchased does not have the mounting plate attached to the rear side of
the oven, please disregard this section and continue to Section 8.
Mounting plate
Grease filter openings
Figure 6
This Over-the-range microwave oven is designed for adaptation to three types of hood
ventilation systems. Select the type required for your installation.
A. RECIRCULATING - NON-VENTED, DUCTLESS OPERATION
The unit is shipped assembled for recirculating.
Note:
1. The Exhaust Damper Assembly (Figure 11) is not required for recirculating operation.
2. The Charcoal Filter provided with the unit must be installed behind the exhaust louver
before use. For instructions on installation of the filter, refer to the "Cleaning and Care"
section in the Use and Care Guide.
3. The Charcoal Filter should be replaced every 6 to 12 months, depending on use.
B. HORIZONTAL EXHAUST - OUTSIDE VENTILATION
Step
1
z
Remove and save the 4 screws from
Fan Cover Bracket. Remove Fan Cover
Bracket by sliding it in the opposite
direction of the arrow on the Fan Cover
Bracket, as shown in Figure 7.
Figure 7
Step
2
z
Lift Hood Fan Unit carefully and slip
wires out of cavity. See Figure 8.
CAUTION:
DO NOT PULL OR STRETCH BLOWER WIRING.
Figure 8
EN 7
Page 8
VENTILATION SYSTEM
Step
3
(B)
Figure 9
Step
Put the wire back into the cavity.
4
Step
5
Wire Box
Figure 10
Step
6
Mounting Plate (back side)
Figure 11

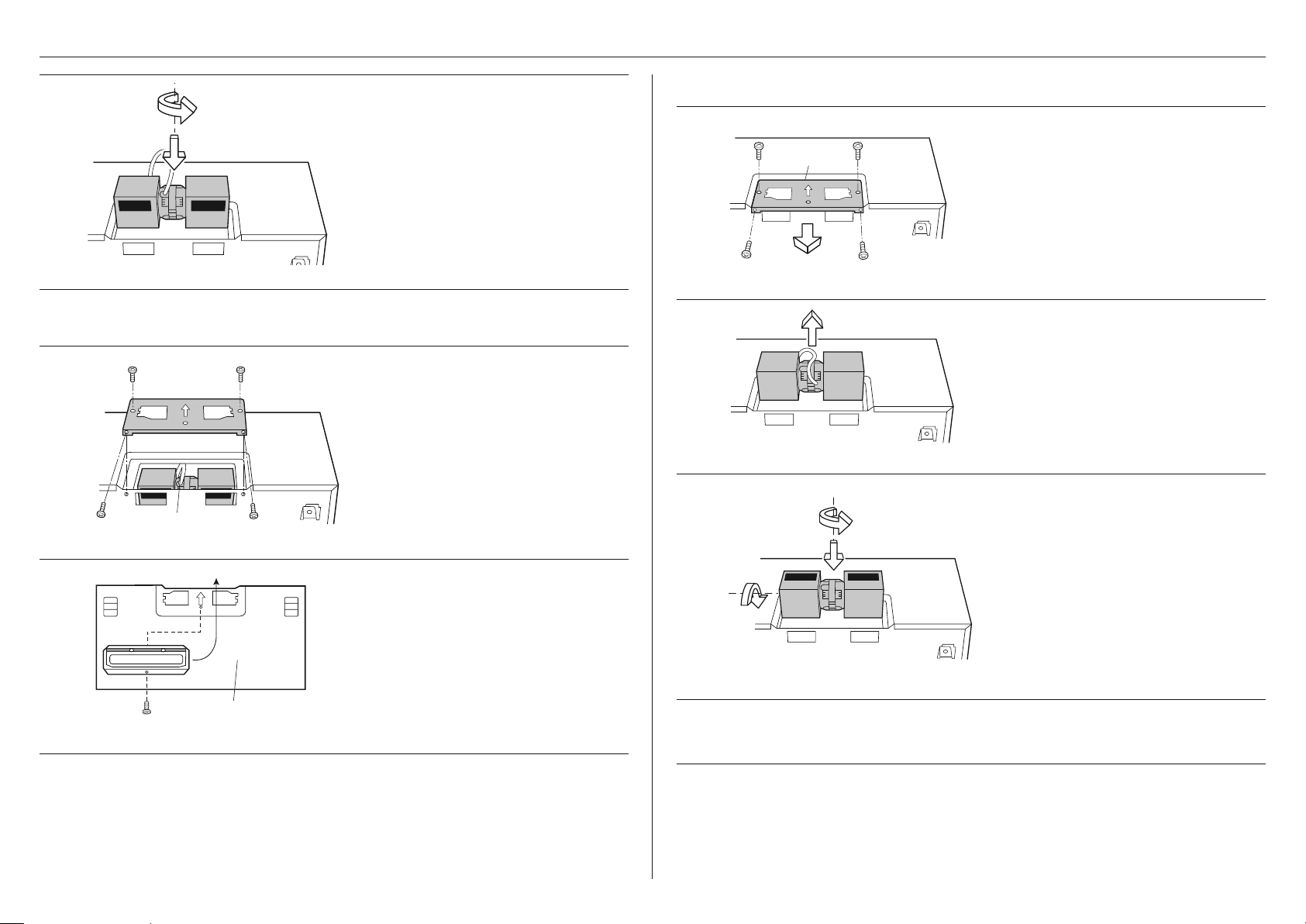

(A) Rotate 180˚
z
Rotate the Hood Fan Unit 180˚ so that
the fan blade openings are facing the
back of the oven. Note, you will need to
lift the wire over the hood fan unit so the
wire will clear. See Figure 9 (A). Replace
Hood Fan Unit into the oven. Be careful
not to pinch the wire and the Hood Fan
Unit. See Figure 9 (B).
z
Replace the fan cover bracket. Make sure
the fan blades are visible through the
rear openings in oven before proceeding.
Attach the fan cover bracket to the
unit with the 4 screws removed in step
1 above. See Figure 10. The hood fan
is now rotated for horizontal exhaust
operation.
z
Attach the Exhaust Damper Assembly
to the back of the mounting plate
by sliding it into the slits in the same
direction as the arrow. See Figure 11.
Using tapping screw 4 x 12 mm from the
INSTALLATION HARDWARE, tighten into
place.
C. VERTICAL VENTILATION - OUTSIDE VENTILATION
Step
1
Fan Cover Bracket
Figure 12
z
Remove and save the 4 screws from the
Fan Cover Bracket. Remove Fan Cover
Bracket by sliding it in the opposite
direction of the arrow on the Fan Cover
Bracket as shown in Figure 12.
Step
2
Figure 13
Step
3
(B)
Step
Replace the Fan Cover Bracket. Make sure the fan blades are visible through the top
openings in the oven before proceeding.
4
(A) Rotate 180˚
(C)
Figure 14
z
Lift the Hood Fan Unit carefully and slip
wires out of cavity. See Figure 13.
CAUTION:
DO NOT PULL OR STRETCH BLOWER WIRING
z
Rotate the Hood Fan Unit 180˚ so that
the fan blade openings are facing the
back of the oven. Note, you will need to
lift the wire over the hood fan unit so the
wire will clear. See Figure 14 (A). Then
rotate the Hood Fan Unit 90˚ so that the
fan blade openings are facing the top
of the oven. See Figure 14 (B). Replace
Hood Fan Unit into the oven. Be careful
not to pinch the lead wire between the
inner bracket and the Hood Fan Unit. Put
the lead wire into Wire Box. See Figure
14 (C).
8 EN
Page 9
VENTILATION SYSTEM
OVEN INSTALLATION
Step
5
Step
6
Wire Box

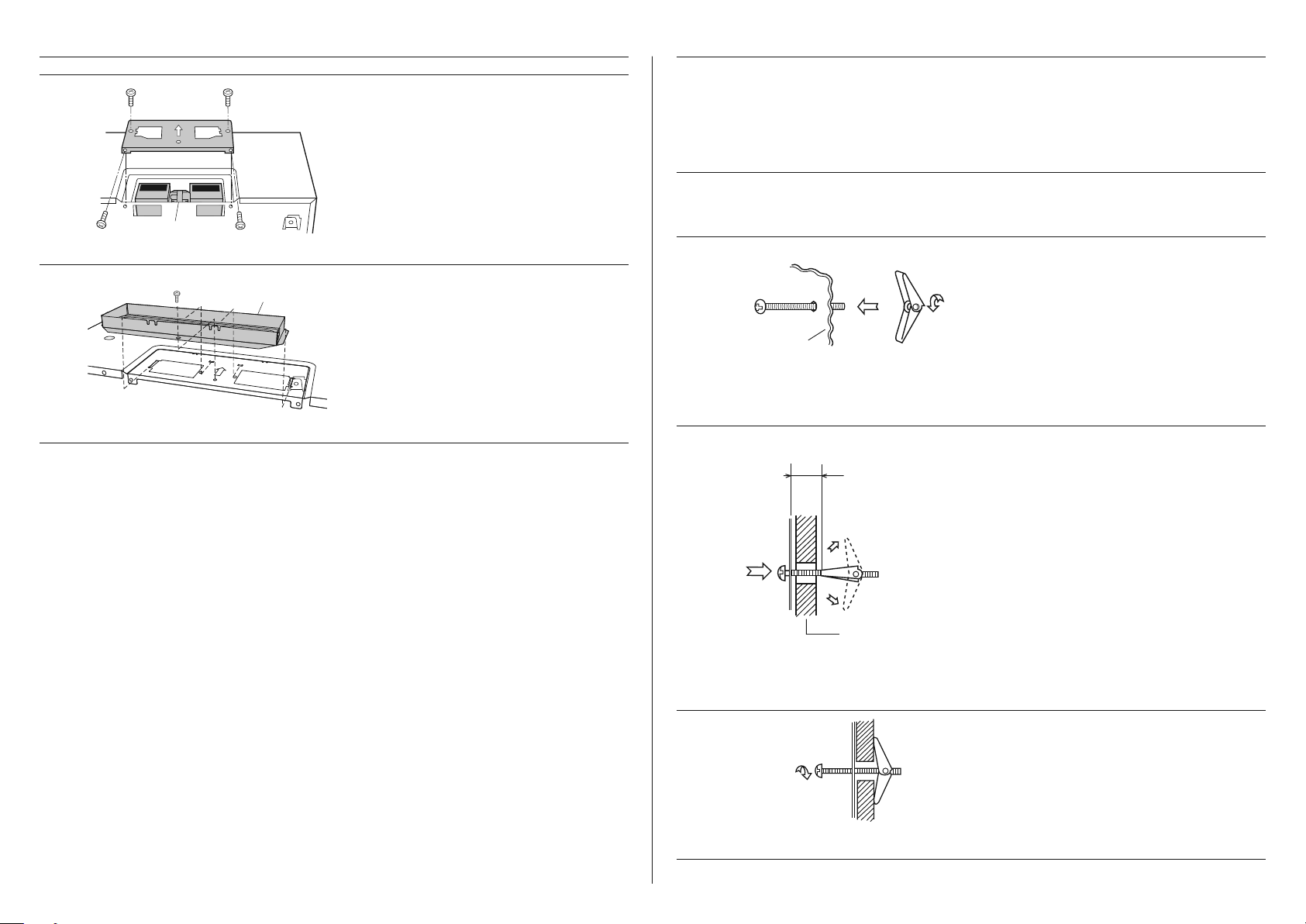

Figure 15
Exhaust Damper Assembly
Figure 16
z
Attach the Fan Cover Bracket to unit
with the 4 screws removed in step 1
above. See Figure 15. The Hood Fan
Unit is now rotated for vertical exhaust
operation.
z
Attach the Exhaust Damper Assembly
to the fan cover on the top of the
outercase cabinet by sliding it into the
slits in the same direction as the arrow.
Use 1 Tapping Screw 4 x 12 mm from the
INSTALLATION HARDWARE and tighten
into place. See Figure 16.
This oven cannot be properly installed without referring to the mounting instructions found on
both templates.
Read and follow mounting information on both
TOP CABINET TEMPLATE and WALL TEMPLATE.
MOUNTING PLATE
Step
Step
Step
1
2
3
z
Separate 4 Toggle Bolts 2, packed in the INSTALLATION HARDWARE, from the
Toggle Nuts.
z
Use Wood Screws 1 to attach Mounting
Plate to the stud or studs. Use Toggle
Bolts to attach Mounting Plate through
the holes at A, B, C and D; UNLESS
THOSE HOLES ARE LOCATED ON THE
STUD. Insert one Toggle Bolt into A,
Mounting Plate
Figure 17
Space more than
wall thickness
Wall
Figure 18
B, C and D where appropriate (these
correspond to the holes of the Wall
Template) and put the Toggle Nuts onto
the Toggle Bolts. Figure 17.
Refer to instructions in Wall Template.
z
Position the Mounting Plate with the
Toggle Bolts attached at the wall location
and insert Toggle Nuts and Bolts through
the holes in the wall with the Toggle Nuts
closed. Figure 18. Use Wood Screws 1 to
attach the Mounting Plate to studs.
Note: Before insertion, be sure you leave a
space more than the thickness of the wall
between the Mounting Plate and the end
of each of the Toggle Nuts (in the closed
position). If you do not leave enough space,
the Toggle Nut will not be able to open
on the other side of the wall. Also, once a
Toggle Nut opens, it cannot be withdrawn
from the hole; therefore make sure all of the
Toggles are in the correct position before
insertion.
Step
4
Figure 19
EN 9
z
Align the Mounting Plate carefully and
hold in position while tightening Toggle
Bolts. Pull Toggle Bolt toward you and
turn clockwise to tighten. Figure 19.
Page 10

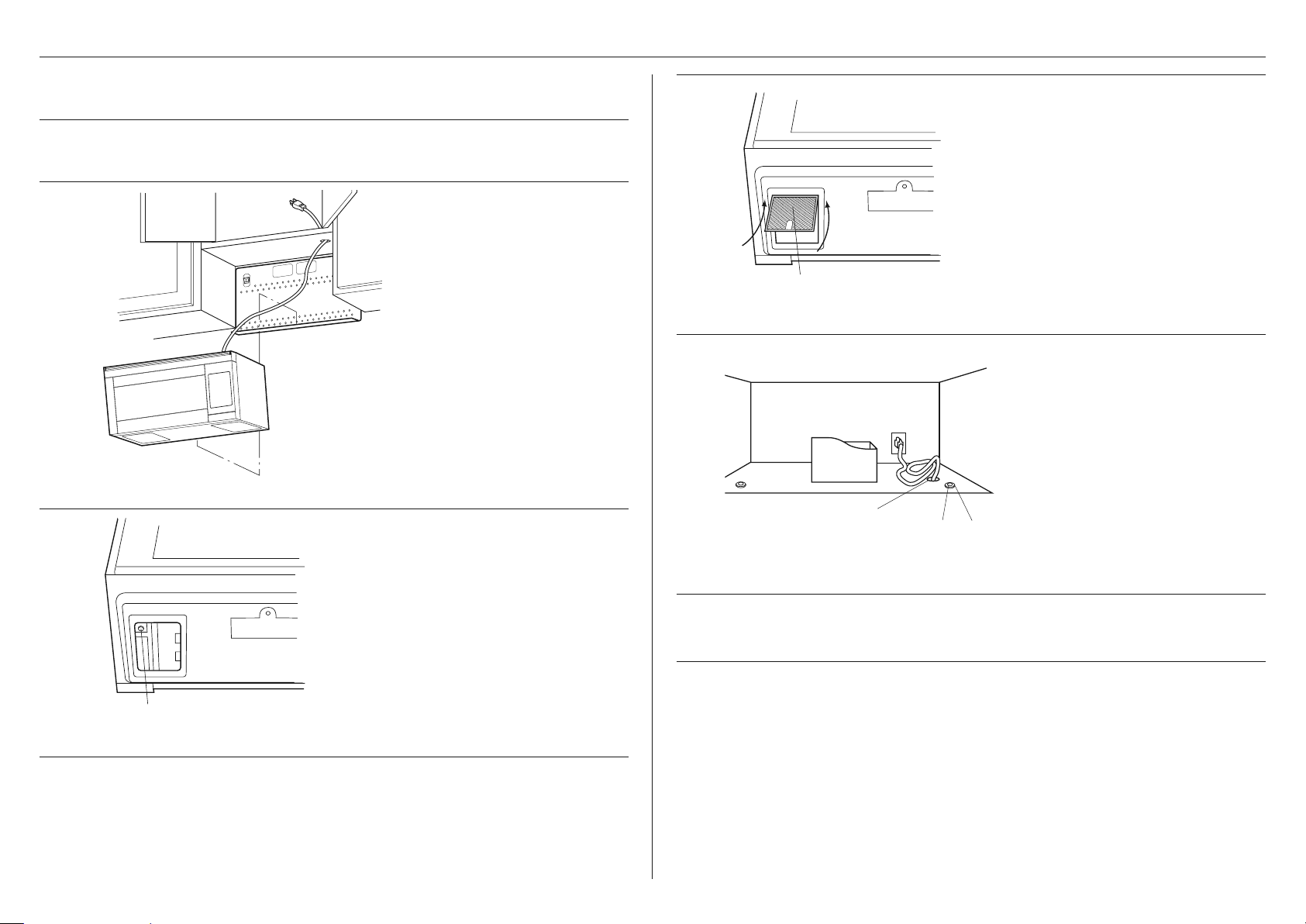

MOUNTING OVEN TO THE WALL
Two people are recommended to attach the Over the Range Microwave Oven to the Mounting
Plate.
Step
Thread the power supply cord through the hole made in the bottom of the top
cabinet.
1
Step
2
z
Hang the oven on the lower
edge of the mounting plate.
Rotate the unit upward. See
Figure 20. Take care that the
power cord is able to clear the
edge of the hole as the oven is
rotated upward. (In the case of a
non-recessed bottom in the top
cabinet, the hole for the cord
may need to be enlarged.)
Figure 20
Step
3
Step
4
Grease filter
Step
5
Figure 22
Grommet (for metal
cabinet only)
Figure 23
(D)
(E)
z
Install grease filters by fitting
into the opening. Push back and
up into place. See Figure 22.
z
Use the two Top Cabinet Screws
(D) and two Flat Washers (E),
supplied in the INSTALLATION
HARDWARE, to attach the unit
to the top cabinet. See Figure
23.
z
Tighten the two unit mounting
screws located in the grease
filter openings. See Figure 21.
Unit mounting screw
Figure 21
10 EN
Step
6
Make a bundle of the power supply cord and place it inside the cabinet.
Page 11

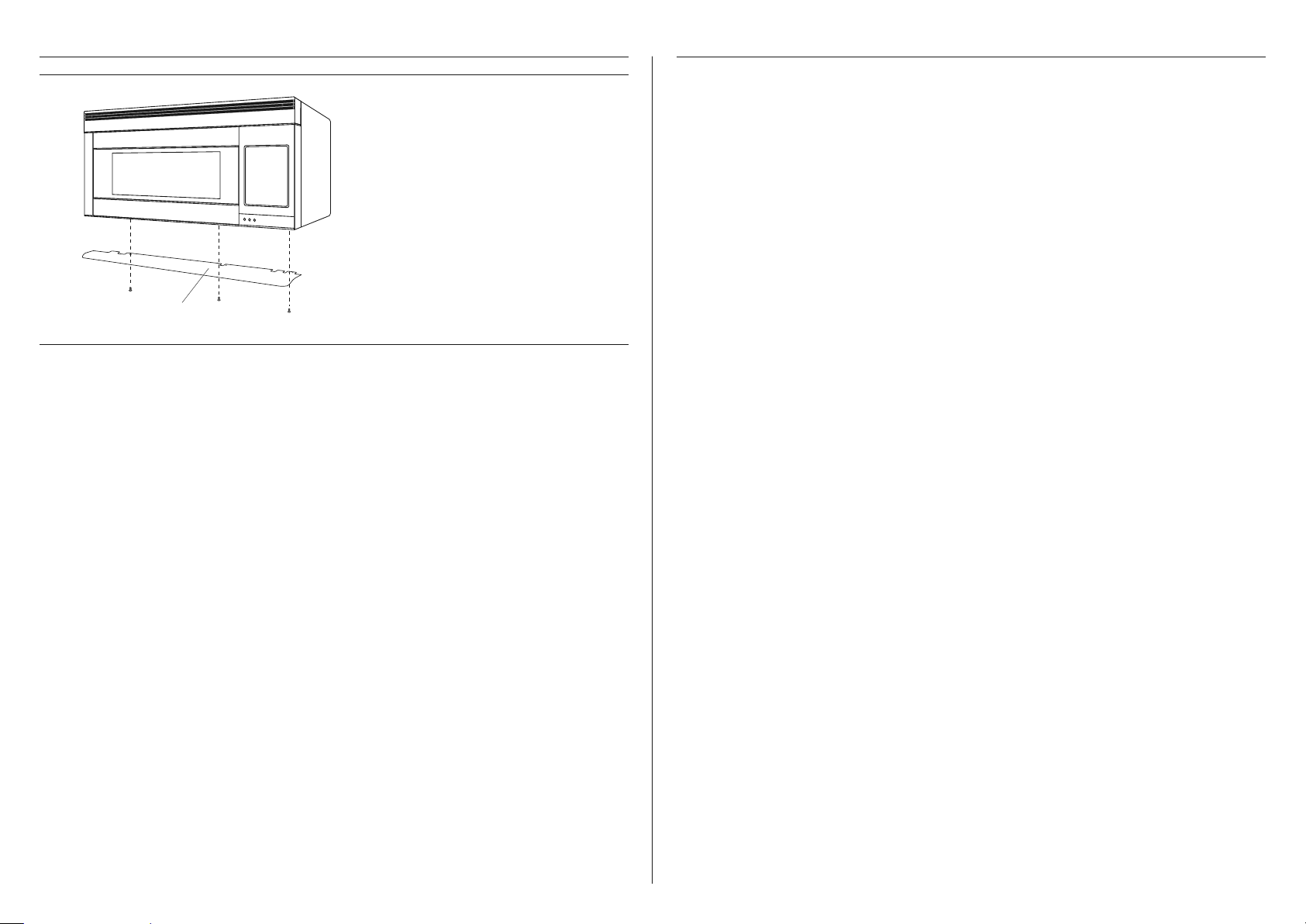

Deflector
MOUNTING DEFLECTORCHECKLIST FOR INSTALLATION
1. Make sure the unit has been installed according to all of the Installation Instructions and
the Wall and Top Cabinet Templates.
2. Plug in the power cord.
3. Keep the use and care guide.
z
Secure the deflector with 3 Tapping
screws 4 x 12 mm, packed in the
Installation Hardware.
