Fisher & Paykel CI302DTB, CI603DTB, CI604DTB, CI764DTB User Manual

BLACK INDUCTION COOKTOP

CI02DTB, CI60DTB, CI604DTB,

CI764DTB & CI905DTB models

USER GUIDE

NZ AU GB IE SG HK SEA

CONTENTS

Safety and warnings 5

First use 10

Cookware 12

Using your cooktop 13

Using the timer 15

Safety features 20

SmartZone 21

Bridging zones 22

PowerBoost 24

GentleHeat 27

Auto RapidHeat 28

Cooking guidelines 30

Care and cleaning 33

Troubleshooting 34

Energy guidelines 37

Energy guidelines (GB IE only) 38

Warranty and service 39

Registration

To register your product visit our website: fisherpaykel.com/register

3

SAFETY AND WARNINGS

!

WARNING!

Electric Shock Hazard

Failure to follow this advice may result in
electric shock or death.

• Do not cook on a broken or cracked cooktop.
If the cooktop surface should break or crack,
switch the appliance off immediately at the
mains power supply (wall switch) and contact a
qualified technician.

• Switch off the appliance before cleaning
or maintenance.

!

WARNING!

Fire Hazard

Failure to follow this advice may result in
serious burns or death.

• Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.

• Never try to extinguish fire with water. Switch
off the appliance. Cover the flame, eg with
a lid or fire blanket, or use dry chemical or
foam-type extinguisher.

• Do not store items on cooking surfaces.

5

SAFETY AND WARNINGS

!

WARNING!

Hot Surface Hazard

Failure to follow this advice may result in
electric shock or death.

• During use, accessible parts of this appliance
will become hot enough to cause burns.

• Do not let body, clothing or any item other than
suitable cookware contact with the ceramic
glass until the surface is cool.

• Never leave metal objects (such as kitchen
utensils) or empty pans on the cooktop as they
can become hot very quickly.

• Beware: magnetisable metal objects worn on
the body may become hot in the vicinity of
the cooktop. Gold or silver jewellery will not
be affected.

• Keep children away.

• Handles of saucepans may be hot to touch.
Check saucepan handles do not overhang other
cooking zones that are on. Keep handles out of
reach of children.

• Failure to follow this advice could result in burns
and scalds.

6

SAFETY AND WARNINGS

!

WARNING!

Health Hazard

Failure to follow this advice may result
in death.

• This appliance complies with electromagnetic
safety standards. However, persons with cardiac
pacemakers or other electrical implants (such
as insulin pumps) must consult with their doctor
or implant manufacturer before using this
appliance to make sure that their implants will
not be affected by the electromagnetic field.

!

WARNING!

Cut Hazard

Failure to follow this advice may result in
serious burns or death.

• The razor-sharp blade of a cooktop scraper is
exposed when the safety cover is retracted. Use
with extreme care and always store safely and
out of reach of children.

7

SAFETY AND WARNINGS

READ AND SAVE THIS GUIDE

WARNING!

To reduce the risk of fire, injury to persons or damage when using the appliance, follow
the important safety instructions listed below. Read all the guidance before using
the appliance.

Installation

z

Ensure your appliance is properly installed and grounded by a qualified technician.

General Use

z

Never leave the appliance unattended when in use. Boilover causes smoking and greasy
spillovers that may ignite.

z

Never use your appliance as a work or storage surface.

z

Wear proper apparel — Loose-fitting or hanging garments should never be worn while
using the appliance.

z

Never leave any objects or utensils on the appliance.

z

Do not place or leave any magnetisable objects (eg credit cards, memory cards) or
electronic devices (eg computers, MP3 players) near the appliance, as they may be
affected by its electromagnetic field.

z

We recommend using plastic or wooden kitchen utensils for cooking with your
induction cooktop.

z

Storage in or on appliance — Flammable materials should not be stored in an oven or
near surface units.

z

Do not place or leave aluminum foil on the cooktop.

z

Never use your appliance for warming or heating the room.

z

Do not use water on grease fires – Smother fire or flame or use dry chemical or
foam-type extinguisher.

z

Use only dry potholders — Moist or damp potholders on hot surfaces may result in
burns from steam. Do not let potholder touch hot heating elements. Do not use a towel
or other bulky cloth.

z

Use proper pan size — This appliance is equipped with one or more surface units of
different size. Always place small pans in the centre of the cooking zone.
Select utensils having flat bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a portion of the heating element
to direct contact and may result in ignition of clothing. Proper relationship of utensil to
burner will also improve efficiency.

z

After use, always turn off the cooking zones and the cooktop as described in this guide
(ie by using the touch controls). Do not rely on the pan detection feature to turn off the
cooking zones when you remove the pans.

z

Do not use a steam cleaner to clean your cooktop.

z

Do not place or drop heavy objects on your cooktop.

z

Do not stand on your cooktop.

z

Do not use pans with jagged edges or drag pans across the ceramic glass surface as
this can scratch the glass.

z

Do not use scourers or any other harsh/abrasive cleaning agents to clean your cooktop,
as these can scratch the ceramic glass.

z

Do not operate your cooktop by means of an external timer or separate
remote-control system.

8

SAFETY AND WARNINGS

z

Do not cook on broken cooktop — If cooktop should break, cleaning solutions and
spillovers may penetrate the broken cooktop and create a risk of electric shock.
Contact a qualified technician immediately.

Child Safety

z

Do not allow children to play with the appliance or sit, stand, or climb on it.

z

Do not store items of interest to children in cabinets above the appliance. Children
climbing on the cooktop could be seriously injured.

z

Do not leave children alone or unattended in the area where the appliance is in
use. Children of less than 8 years old must be kept away from the appliance unless
continuously supervised. This appliance can be used by children aged from 8 years
and above, and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, if they have been given supervision or
instruction concerning the use of the appliance in a safe way and they understand
the hazards involved. Cleaning and user maintenance shall not be done by children
without supervision.

Cleaning

z

Clean cooktop with caution — If a wet sponge or cloth is used to wipe spills on a hot
cooking area, be careful to avoid steam burn. Some cleaners can produce noxious
fumes if applied to a hot surface.

Servicing

z

Do not repair or replace any part of the appliance unless specifically recommended in
the user guide. All other servicing should be undertaken be a Fisher & Paykel trained
and supported service technician or qualified person.

z

If the power supply cable is damaged, it must only be replaced by a
qualified technician.

z

If the appliance is malfunctioning, it will display an alert code: first note down the alert
code (see section ‘Alert codes’ in this manual), then contact your Authorized Service
Center or Customer Care to arrange for service. Do not use your appliance until it has
been repaired by a Fisher & Paykel authorized technician.

z

CAUTION: The cooking process has to be supervised. A short term cooking process has
to be supervised continuously.

Standard Requirements

z

This induction cooktop generates and uses ISM frequency energy that heats cookware
by using an electromagnetic field. It has been tested and complies with Part 18 of the
FCC Rules for ISM equipment. This induction cooktop meets the FCC requirements to
minimize interference with other devices in residential installation. Induction cooktops
may cause interference with television or radio reception. If interfence occurs, the user
should try to correct the interference by:

z

Relocating the receiving antenna of the radio or television

z

Increasing the distance between the cooktop and the receiver

z

Connecting the receiver into an outlet different than the receiver.

9

FIRST USE

OFF A

9 8 7

1

3

7

4

6

ZONE DISPLAY DESCRIPTION

Cooking zone off
(not activated)

Cooking zone on
(activated but not operating)

Power levels

PowerBoost feature

Hot Surface indicator

Pan detection indicator

Bridged zone indicator

1

1

5

1

1

8

2

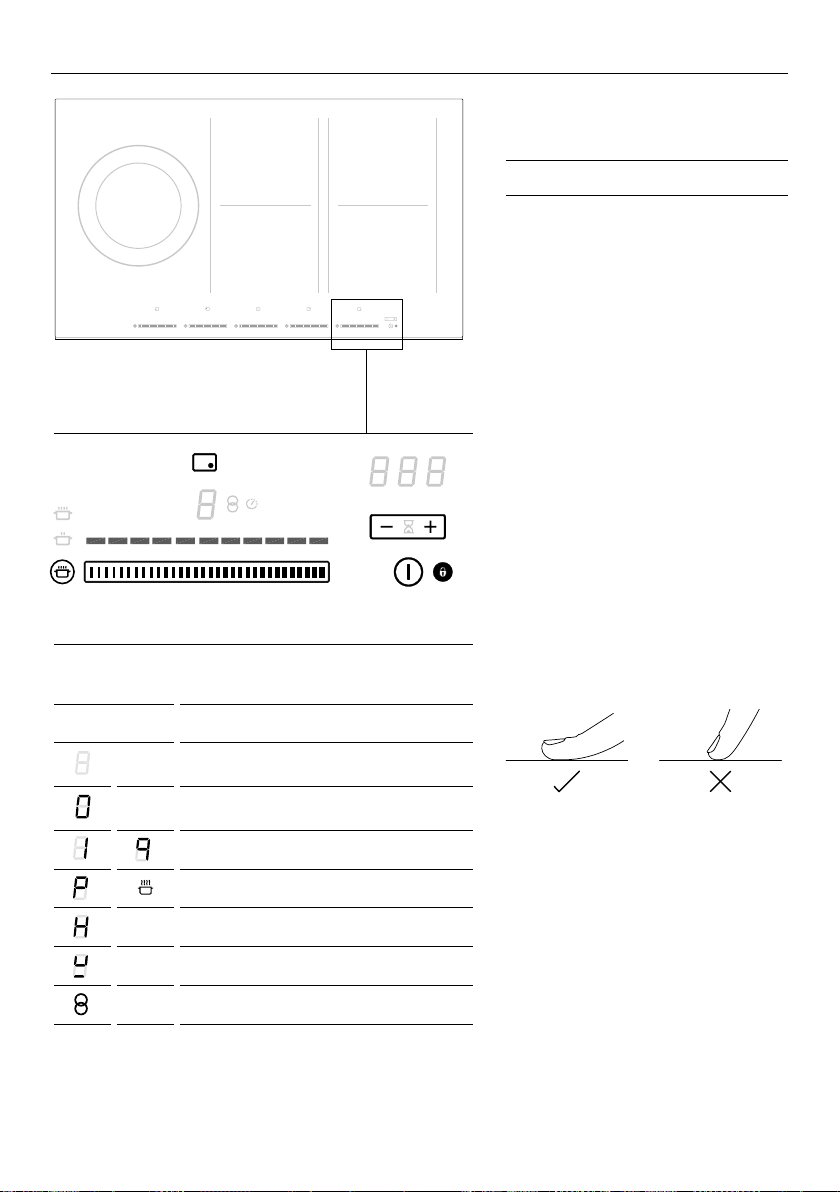

COOKTOP FEATURES

1 Induction zones

2 Control panel

3 Zone indicator

4 Zone display

5 Zone heat selector

6 GentleHeat control

7 GentleHeat indicators

!0

8 Cooktop

On/Off

9 Timer control

9

!0 Timer display

!1 Keylock

!1

Touch display

Your cooktop is operated using
an intuitive touch display. Use
the control panel to navigate
cooking settings.

Using the touch controls

Use the ball of your finger, not its
tip. The controls respond to touch,
so pressure is not needed.

WARNING!
Do not place metal objects on top of the control panel when the cooktop is on.

10

FIRST USE

5

5

CI302DTB model

1

3

CI764DTB induction zones

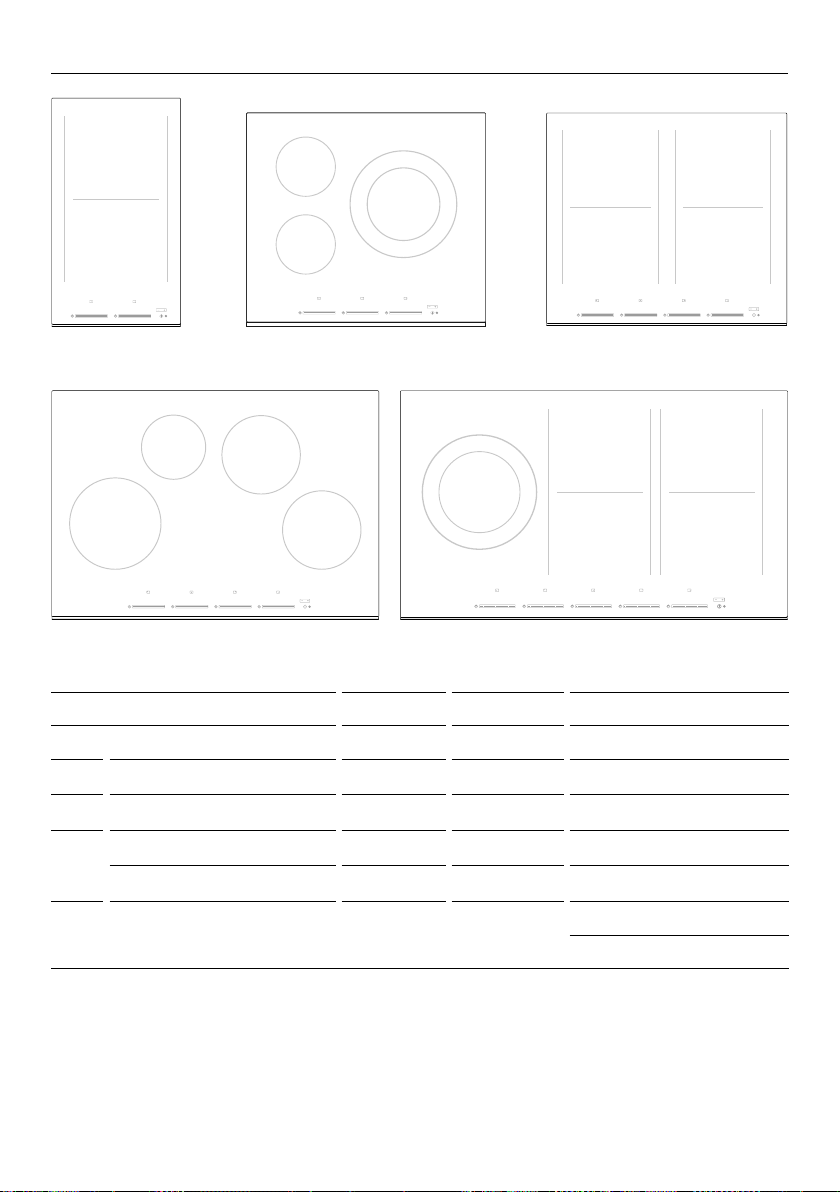

ZONE ZONE DIAMETER POWER POWERBOOST RECOMMENDED MINIMUM PAN SIZE

1

1

CI603DTB model

2

2

4

CI604DTB model

4

CI905DTB induction zones

5

5

5

5

5

5

5

5

145mm 1400 W 2200 W* 120mm

1

180mm 1850 W 3000 W* 145mm

2

210mm 2300 W 3700 W* 145mm

3

Inner zone: 180mm 1850 W 3000 W* 125mm

4

Dual zone: 260mm 2600 W 5000 W* 250mm

Smartzone 2100 W 3700 W**

5

Unbridged: 120mm

Bridged: 250mm

* Maximum output when set on PowerBoost.
** PowerBoost is not available when cooking zones are bridged. See ‘PowerBoost’

11

COOKWARE

The quality of your cookware can affect cooking performance. Only use
induction-compatible cookware that has been specifically designed for induction cooking.
Look for the induction symbol on the packaging or the bottom of the pan.

Suitable cookware material:

z

stainless steel –
with a magnetic base or core

z

aluminium and copper –
with a magnetic base or core

z

cast iron

z

steel

z

enamelled steel.

Unsuitable cookware material:

z

aluminium or copper –
without a magnetic base

z

glass

z

wood

z

porcelain

z

ceramic or earthenware.

To check if cookware material is suitable, carry out a magnet test:

Move a magnet across the base of the pan. If the magnet is attracted, the pan is induction
suitable. Ensure attraction is consistent across the base of the pan. If there are gaps, such
as an indented manufacturer’s logo, then the performance will be impaired.

If you do not have a magnet, fill the pan with some water and refer to section ‘Using your
cooktop’. If

does not flash and the water is heating, pan is suitable.

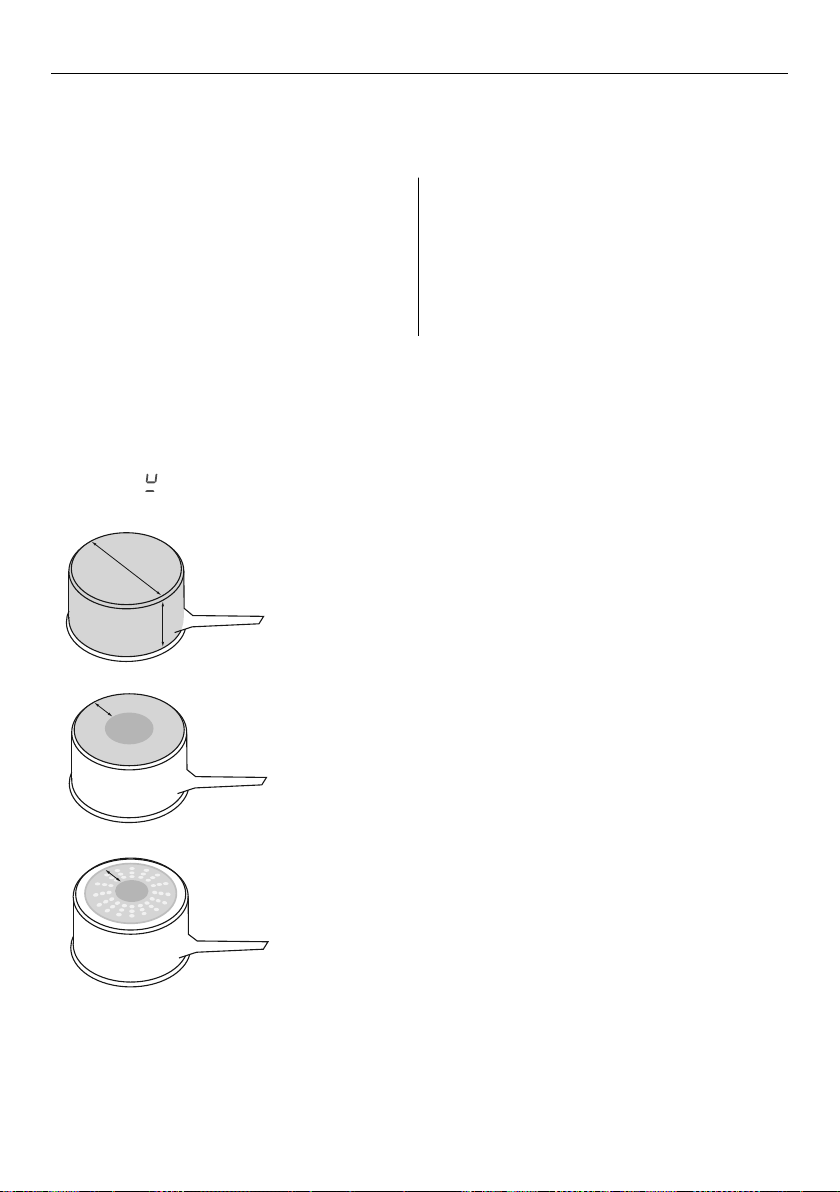

Quickest heating Performance

High content of ferromagnetic material. Heating area is
consistent across the base and up the sides of pan.

Average heating Performance

Reduced area of ferromagnetic material. Reduced zone of
heating, results in poor performance and slower heating.

Slow heating Performance

Very limited area of ferromagnetic material. Results in very
slow heating performance.

Note: This type of pot is good for very delicate tasks such
as melting chocolate, as heating is very slow.

Other cookware considerations

Ensure the base of your cookware is smooth, sits flat against the glass, and is similar in size
as the cooking zone. A small pot on a large cooking zone may not be detected. Always
centre your pan on the cooking zone and lift pans off the cooktop – do not slide, or they
may scratch the glass.

12

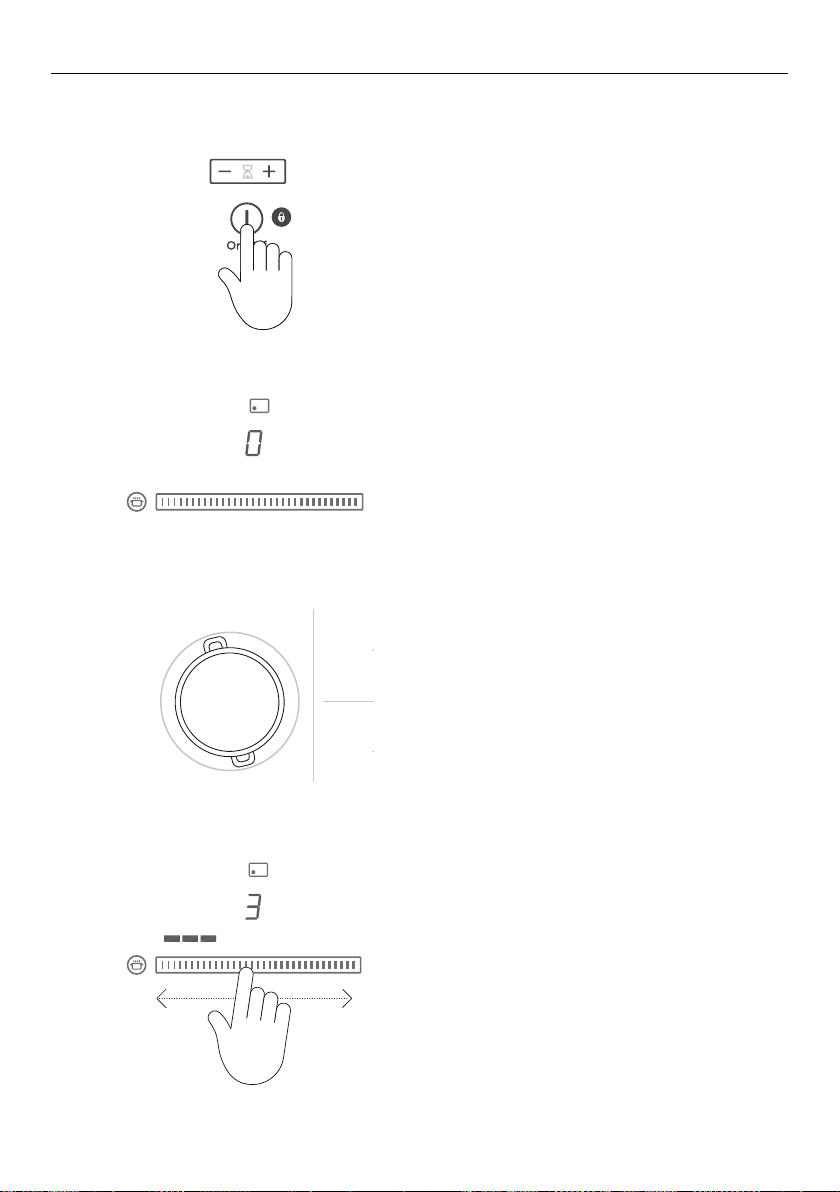

To start cooking

USING YOUR COOKTOP

1

2

3

Touch and hold the
for 2 seconds. The indicator light above the
control will glow.

COOKTOP On/Off control

0 will appear in the COOKING ZONE displays.

Place a suitable pan on the cooking zone.

Ensure the bottom of the pan and the surface
of the cooking zone are clean and dry.

Always place small pans in the centre of the
cooking zone.

4

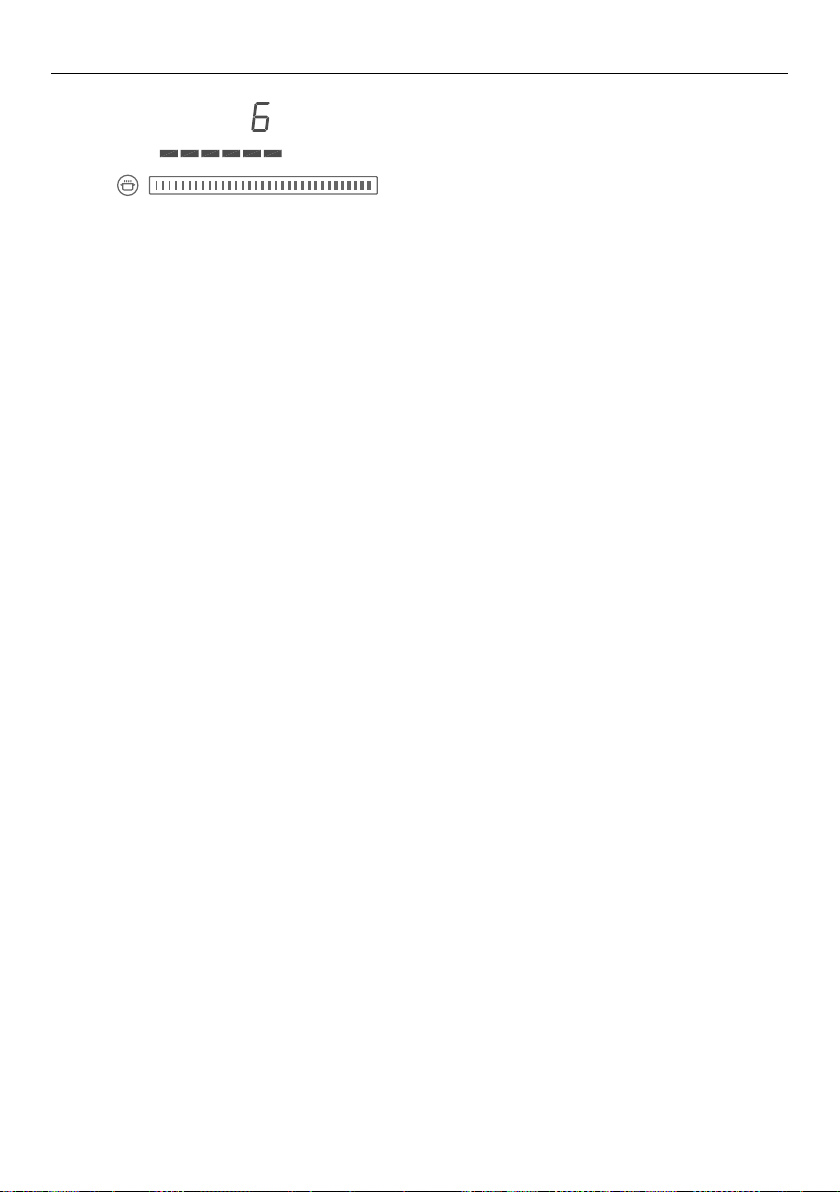

Select a heat setting by touching or sliding
the setting selector with your finger.

z

If you don’t select a heat setting within
20 seconds, the cooktop will automatically
turn off. Start with step 1 again.

z

You can modify the heat setting at any
time during cooking.

13

USING YOUR COOKTOP

If a display flashes alternately with the heat setting

This means that:

z

you have not placed a pan on the correct cooking zone or

z

the pan you’re using is not suitable for induction cooking or

z

the pan is too small or not properly centred on the
cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone.
The cooktop will automatically turn off after 10 minutes if no suitable pan is placed on it.

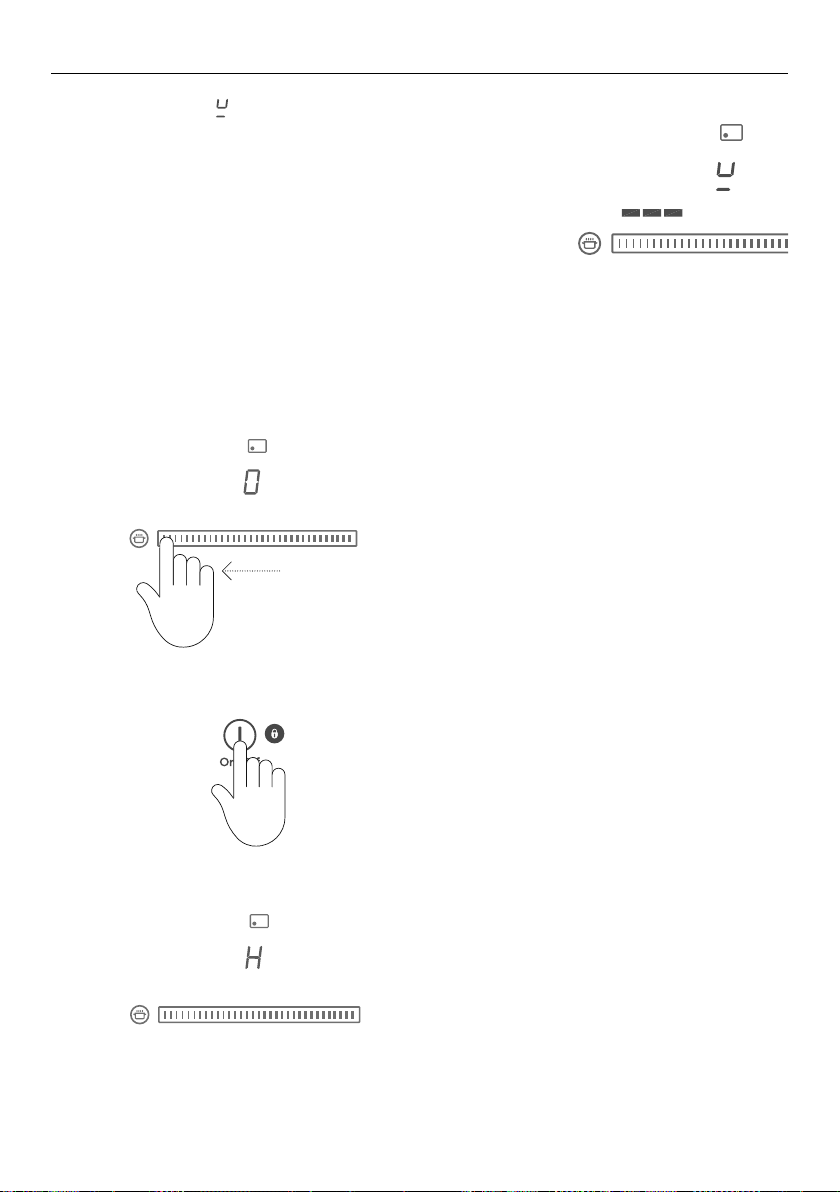

After cooking is done

1

2

3

Turn the cooking zone off by by touching
or sliding down to

Ensure the display shows

Turn the whole cooktop off by touching the

COOKTOP On/Off control.

Beware of hot surfaces:
window of any cooking zone that is too hot
to touch. It will remain on and steadily lit
even when the cooktop is turned off. It will
disappear when the surface has cooled down
to a safe temperature

0.

0.

H will flash in the

14

USING THE TIMER

.

.

You may use the timer in two different ways:

1 You can use it as a minute minder, even when not using the cooktop.
2 You can use it to set individual timers for multiple cooking zones that are in use.

You can set the timer for up to 1 hour and 59 minutes. The time will be displayed in hours
and minutes when the timer is set for longer than 10 minutes.

Using timer as minute minder

You can set the minute minder when you are not using any cooking zones. The cooktop
will turn itself off after 20 seconds after you have set the time, but the timer will continue
to count down. To change or cancel the minute minder setting, you will have to turn the
cooktop back on. See ‘To change or cancel a timer setting’.

.

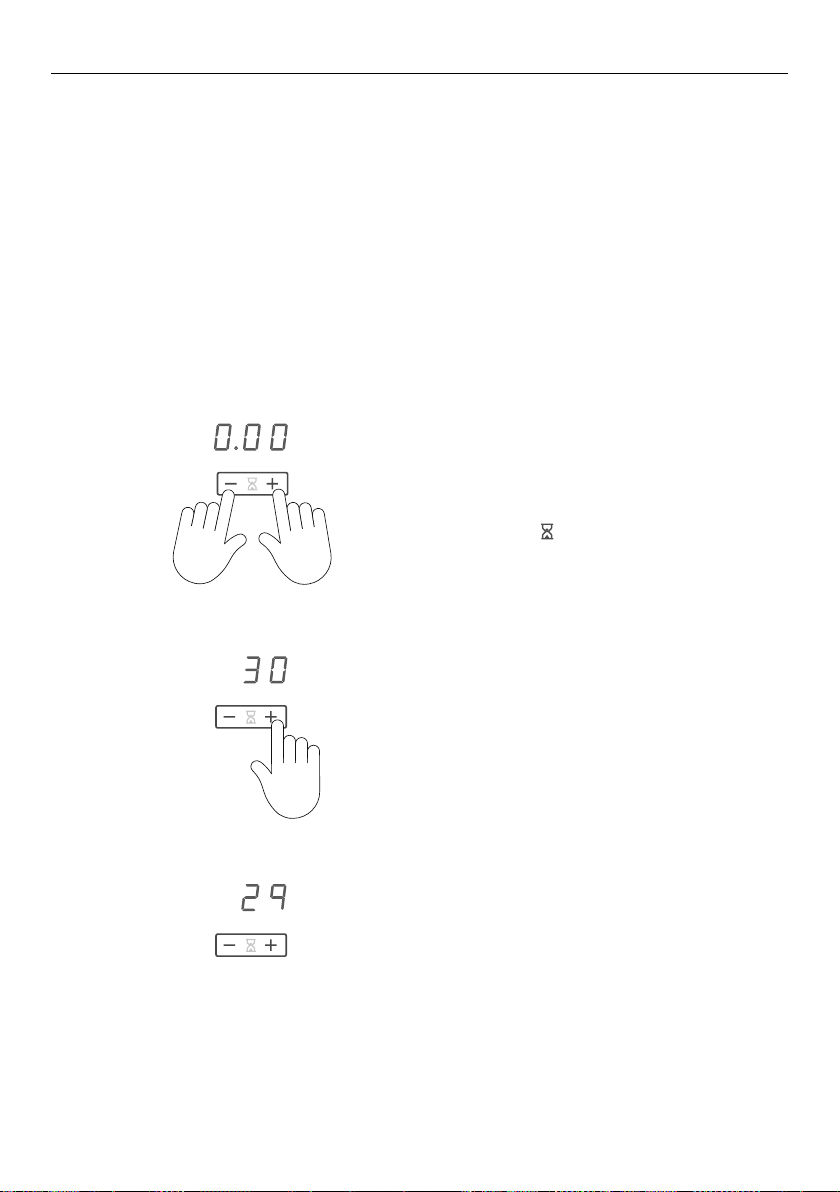

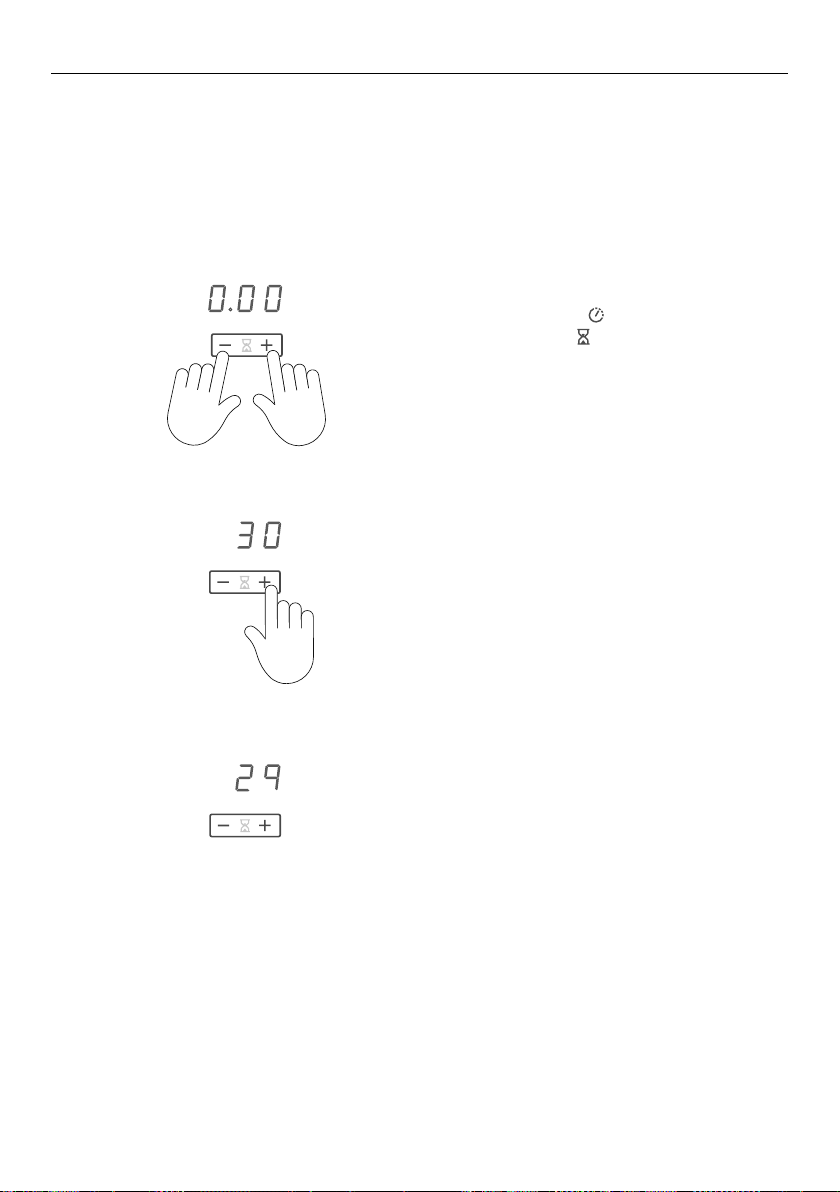

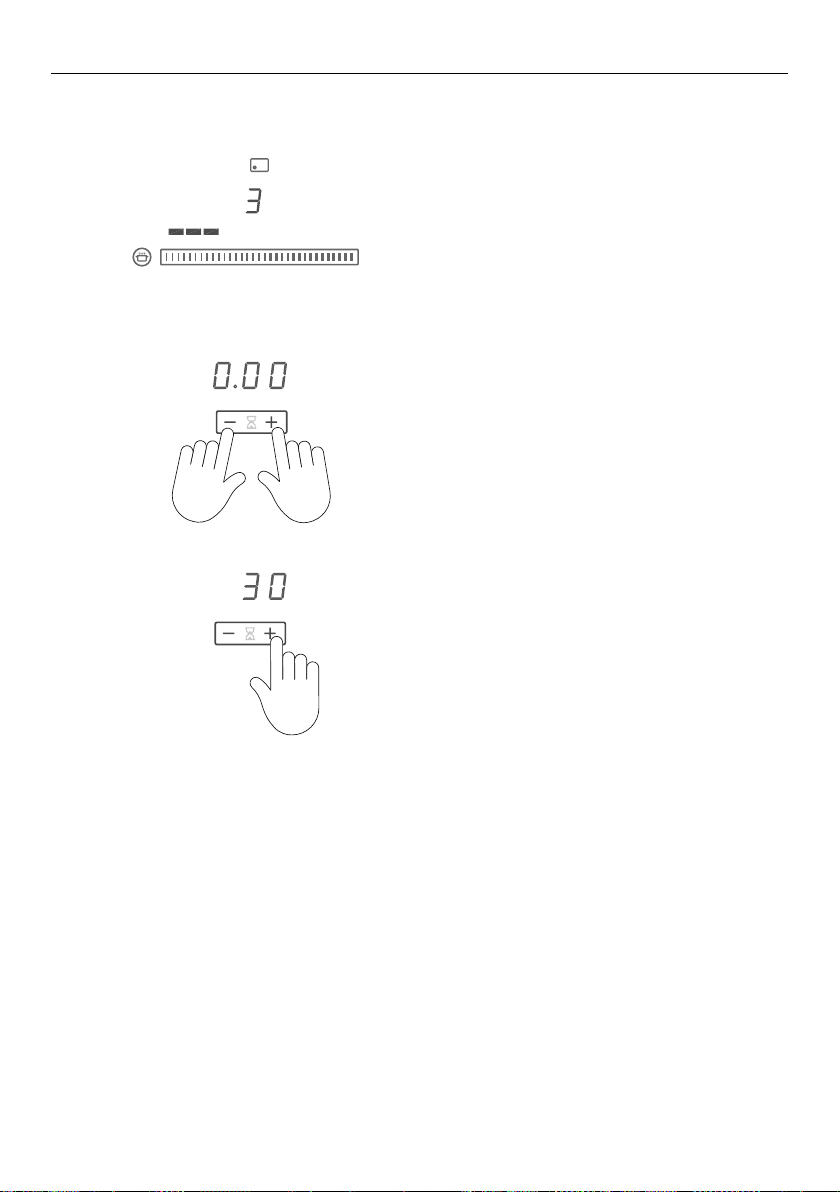

1

Make sure the cooktop is turned ON.

Touch the – and + controls of the
timer together.
minute display.

The egg timer

0.00 will show in the

will glow.

Set the time.

2

Hint: the minutes will scroll faster if you touch
and hold – or + continuously.

A few seconds after the time is set it will

3

begin to countdown. The display will show
the remaining time in hours and minutes or if
less than 10 minutes, in minutes and seconds.

When the set time is up

0.00 will flash and the timer will beep. Touch the – or + controls to stop the beeping.

15

.

.

USING THE TIMER

Using the cooking zone after setting minute minder

If you start using a cooking zone after you have set the minute minder, the minute minder
will continue to count down.

Setting minute minder while using one or more cooking zones

To set the minute minder while using
the cooking zone(s), repeatedly tap

.

1

2

– and + controls of the timer to cycle through
the individual timers
until the egg timer glows. 0.00 will steadily
show in the minute display.

For example:
If you have 5 cooking zones, you will need to
tap the – and + controls of the timer together
6 times.

Set the time.

Hint: the minutes will scroll faster if you
touch and hold – or + continuously.

for the cooking zones

A few seconds after the time is set it will
begin to countdown. The display will show

3

When set time is up

0.00 will flash and the timer will beep. Touch the – or + controls to stop the beeping.

16

the remaining time in hours and minutes or if
less than 10 minutes, in minutes and seconds.

USING THE TIMER

.

Setting the timer for individual cooking zones

1

Ensure the cooking zone(s) you want to set
the timer for are in use.

.

Tap the – and + controls of the timer together

2

3

until the indicator of the desired cooking
zone comes on.

Set the time.

Note: only indicators of cooking zones in use
will show as you scroll through.

You may now continue to set the timer for additional cooking zones:

Cycle through the zones, by tapping the – and + controls of the timer together until the
timer indicator of the required cooking zone comes on (refer to step 2 and 3).

z

Note: the indicator of the cooking zone previously set will be dimly lit, showing you that
the timer is set and counting down for that cooking zone.

17

USING THE TIMER

Setting different times for each of the cooking zones

Setting the minute minder when other timers are set

1 Repeatedly tap the – and + controls of the timer together as you cycle through the

individual timers
show in the minute display.

2 Touch the – and + controls to set the timer. It will then countdown.

Note the indicator lights of the previously set cooking zones will be dimly lit, showing
you that the timers are set and counting down.

When the timer is set

z

If more than one timer is set (including the minute minder), the indicator belonging to
the cooking zone or minute minder with the shortest remaining time setting will glow
brightly. Other timer indicators will be dimly lit.

To check the remaining time for another cooking zone:

z

Touch the – and + controls of the timer together and repeat until the indicator in the
desired cooking zone window glows brightly.

When the set time is up

z

0.00 will flash in the minute display.

z

The timer will beep.
Touch the – or + control to stop the beeping.
The timer indicator of the relevant cooking zone will go out. The display will show 0.

for the cooking zones until the egg timer glows. 0.00 will steadily

If the timer is still set and counting down for another cooking zone

The cooking time for the timer with the shortest remaining time left will be displayed and
the corresponding timer indicator will glow brightly.

18

USING THE TIMER

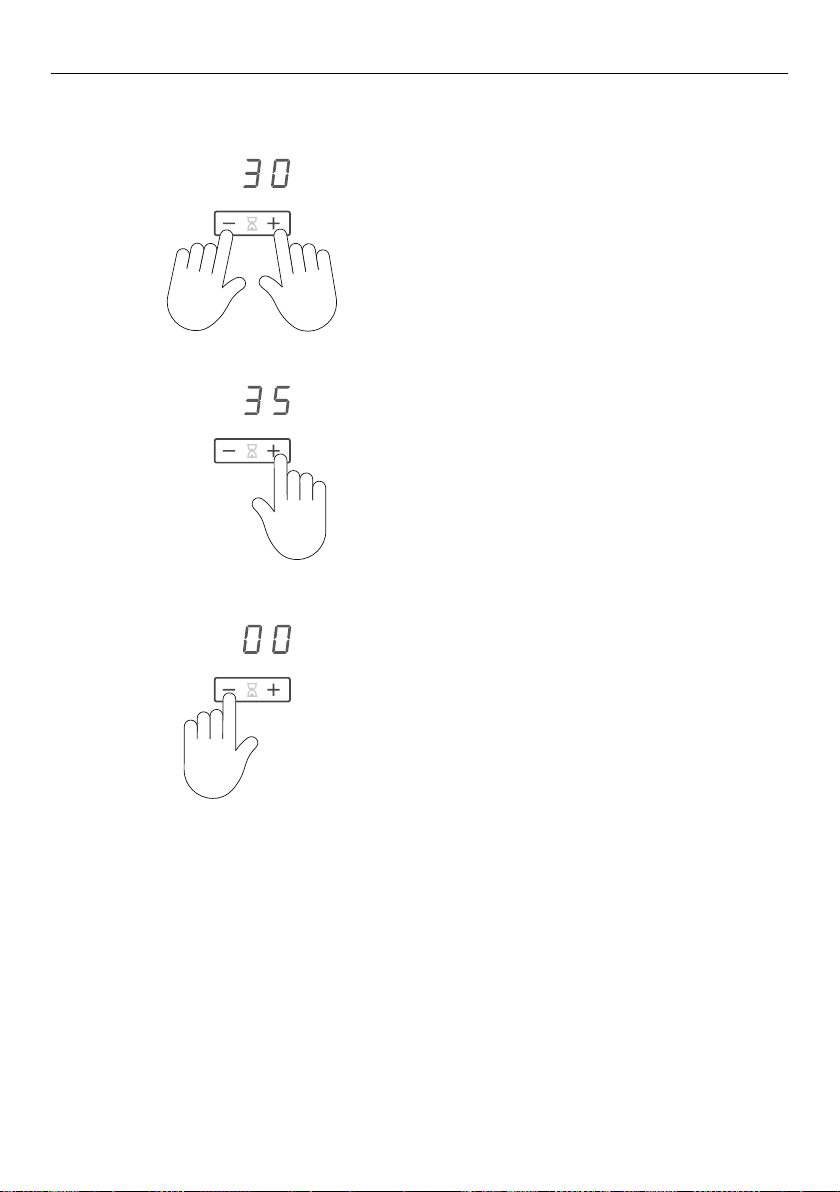

To change or cancel a timer setting

1

With the cooktop turned on, repeatedly tap
the – and + timer controls together until the
indicator light in the desired cooking zone
window glows brightly.

2

3

To change:

Set the new time.

To cancel:

Touch the – control of the timer and hold until
the minute display shows

Scrolling down the time to
the cooking zone.

When you have finished cooking, either touch
or slide the setting selector to a new setting
or to

0 to turn the cooking zone off.

0.
0 will not turn off

19

SAFETY FEATURES

The cooktop control dials can be locked for cleaning and to prevent unintended use.
When the cooktop is locked the controls and cooktop display will remain unresponsive.

LOCKING THE COOKTOP

Ensure all cooking zones have been turned
to OFF. Touch and hold the keylock control

for 5 seconds. The indicator light
above the control comes on, indicating
that the controls are locked.

UNLOCKING THE COOKTOP

To unlock the cooktop, touch and hold
the keylock control for 3 seconds.
The indicator light above the control
goes out. Your cooktop is now unlocked.

20

SMARTZONE

Using SmartZones (CI302DTB, CI604DTB & CI905DTB models only)

The SmartZones are large and can
accommodate several small pots. These
small pots will be detected as one large pot.

The entire SmartZone is activated when
a pot is detected. This means that other
magnetic items (such as cutlery) sitting in
the cooking zone will heat up.

Do not leave cutlery or other magnetic
items on your cooktop.

Dual zone cooking (CI905DTB models only)

When using a small pot on the dual cooking zone, ensure the pot is centered so that the
inner zone will detect the pot. If the pot covers the outer zone, then the outer zone will
automatically switch on.

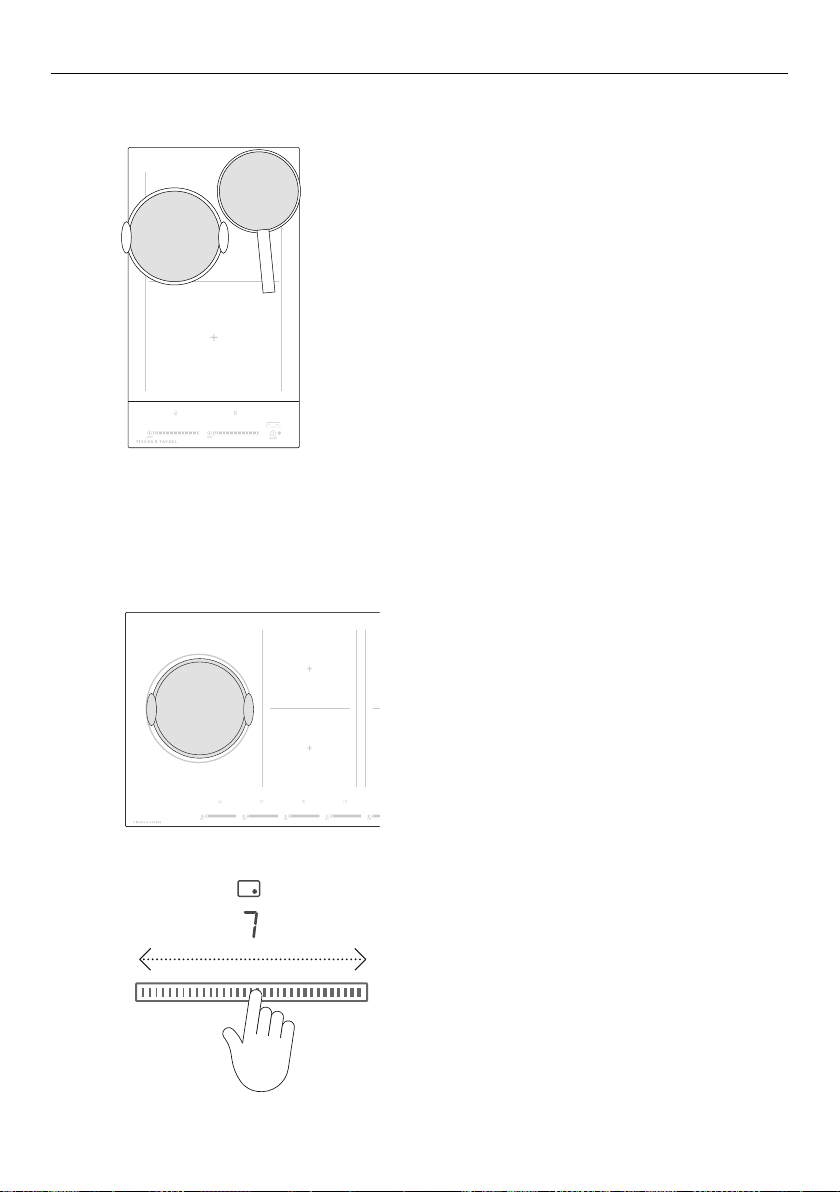

1

2

Place your pot on the cooktop over the two
zones you wish to use, covering both zones.

Select a heat setting by touching or sliding
the setting selector with your finger.

21

BRIDGING ZONES

Using Bridging Zones (CI905DTB3, CI604DTB & CI302DTB models only)

z

The bridging zone function allows you to use two SmartZones together giving you a

larger cooking area. Your pan(s) will need to cover both cooking zones.

z

There may be a cooler area in the centre of the cooktop between the cooking zones. You

may need to move food around the pan to ensure even cooking.

z

When using bridging zones, it is not possible to use the PowerBoost function.

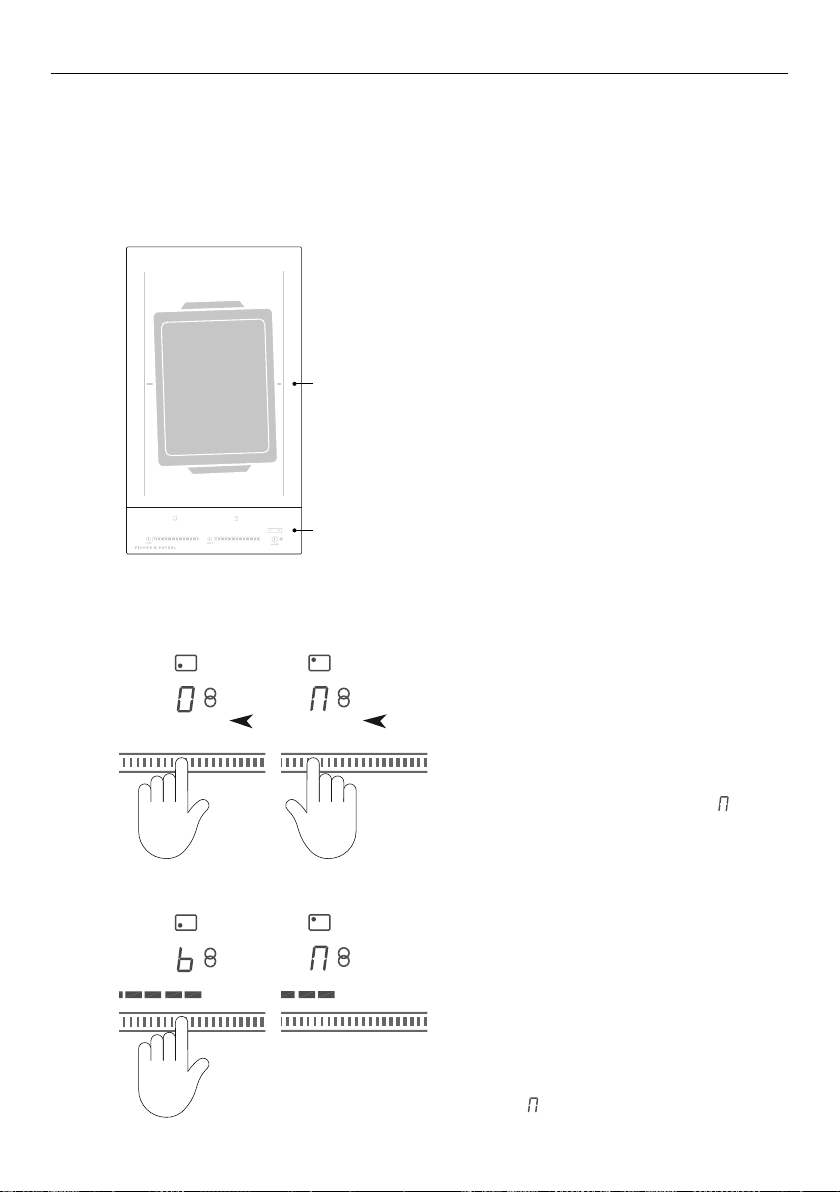

Bridging zone

Place the pan on the cooktop over the
two zones you wish to use, covering

cooler area

setting selectors
for bridged zone

Selecting the bridging function

both cooking zones that are turned
on. You can only bridge a cooking
zone with the one directly behind it.
It is not possible to bridge cooking
zones that are side by side.

22

1

2

Touch the setting selectors
(anywhere) of both cooking zones at
the same time.

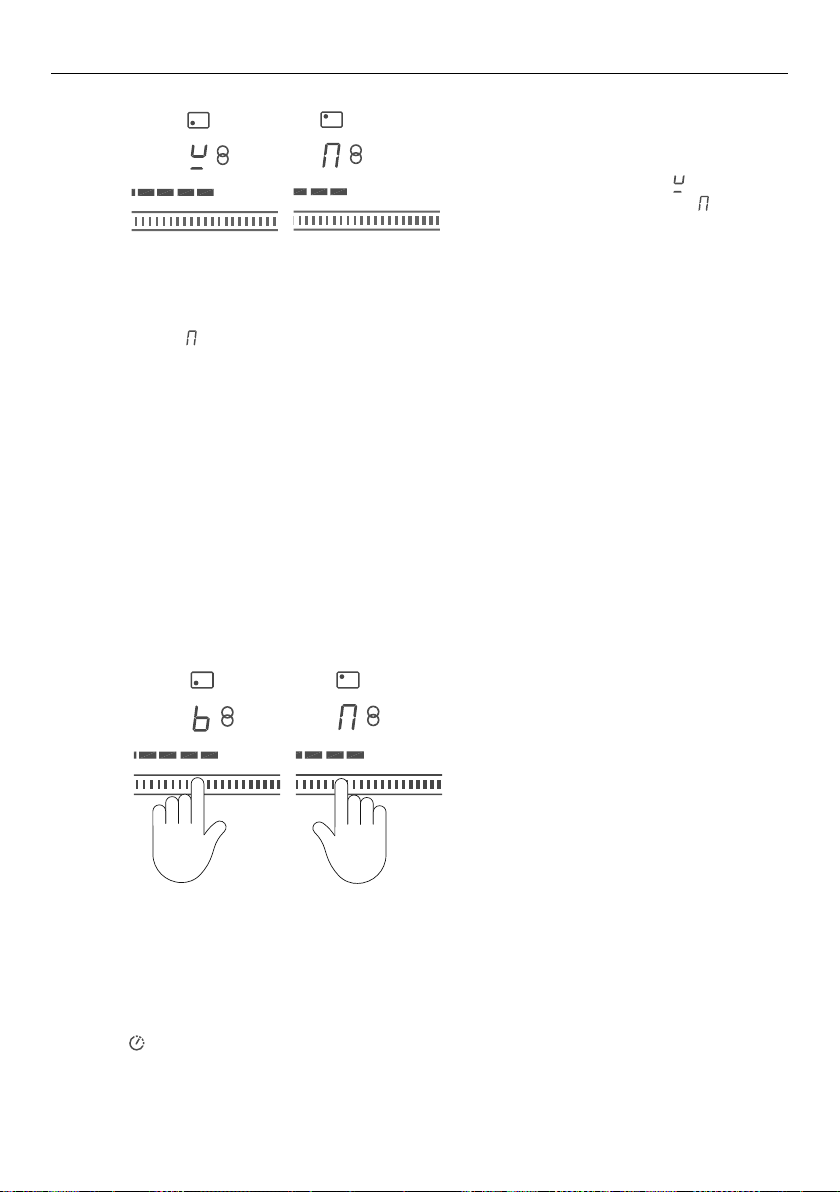

The bridging zone indicator light will
show in both control windows.
show in the left hand display, in the
right hand display.

Use the left hand setting selector
to set the heat setting for the
combined zone.

The heat setting will be displayed in
the left hand cooking zone control
window only, but the setting indicator
lights will glow on both cooking
zones. The right hand selector will
show

.

0 will

BRIDGING ZONES

If no pan is detected on either
cooking zone the left hand zone

3

If no pan is detected on one cooking zone:

z

The left hand display will still show the selected temperature and the right hand display

will still show .

If after 10 minutes no pan is detected:

z

The bridging function will switch off.

z

The cooking zone without a detectable pan will turn off.

z

The remaining cooking zone will continue cooking at the selected heat setting.

Using Automatic Cooking in bridged mode

1 Bridge the cooking zones by touching both setting selectors (anywhere) simultaneously.
2 Using the left hand setting selector, select the heat setting.
3 Hold your finger on the control at the selected heat setting until

with the selected setting.

To cancel bridging

display will alternate between the
selected setting and . The right
hand selector will show .

A flashes alternately

Touch the setting selectors of both

1

Sliding the scale down to
the timer for those cooking zones.

Using the timer in bridged mode:

You may only set one timer for the bridged cooking zone. See ‘Using the timer’. The timer
indicator

will show in both displays.

0 will not turn off bridging. Cancelling bridging will also cancel

bridged cooking zones at the same
time. The bridging indicator lights
will go out.

23

POWERBOOST

Using PowerBoost

This feature enables you to sear meat or bring liquid to boil very quickly. When a cooking
zone is set to PowerBoost, it uses more than 100% of the power of that particular cooking
zone, resulting in a boost of intense heat.

PowerBoost heats food and liquids very quickly. Do not leave the cooktop unattended
when using this feature.

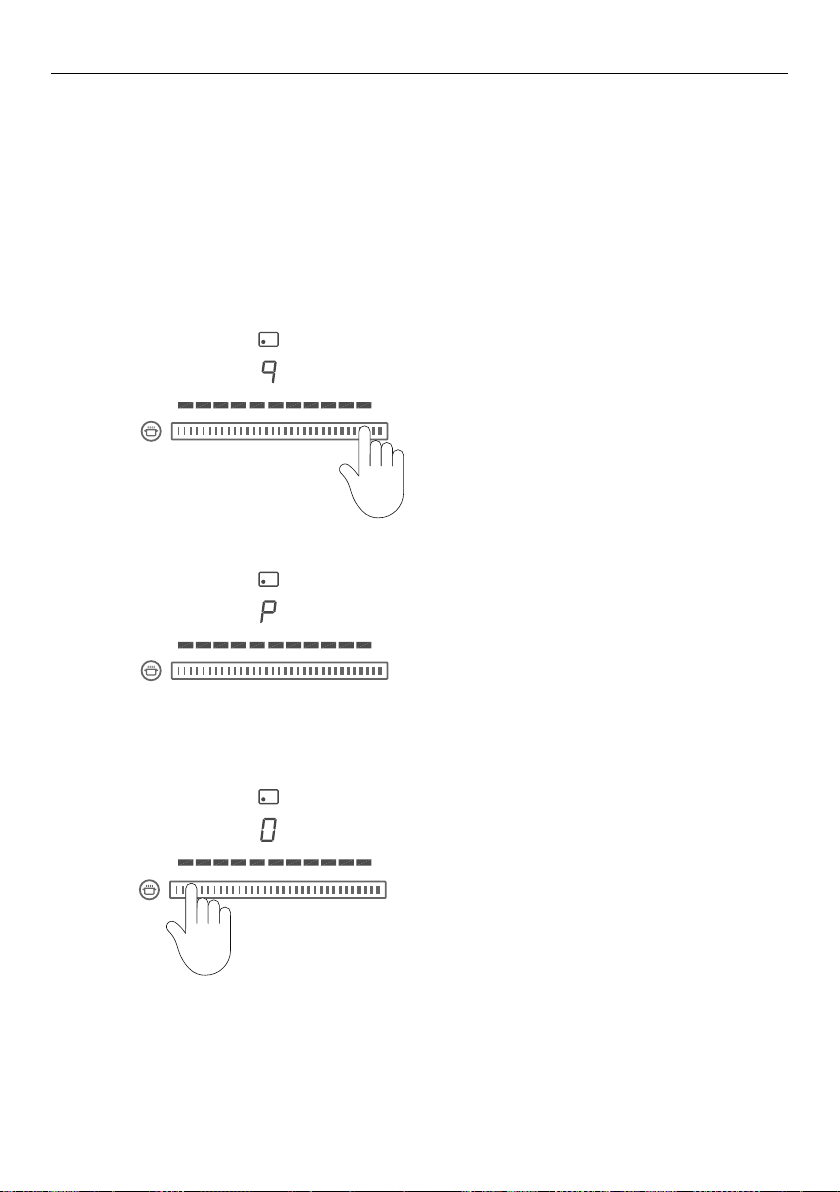

Setting a cooking zone for PowerBoost

1

2

3

Touch or slide the setting selector to set
the cooktop to the highest heat level (9).

Once PowerBoost is set, the cooking
zone will heat more than 100% for
10 minutes.
before the cooking zone automatically
reduces the heat to setting 9 (100%).

To quit the PowerBoost, touch or slide
the setting selector to a new setting or
to

0 to turn off the cooking zone.

P will flash for a few seconds

24

POWERBOOST

You can set two (CI603DTB, CI604DTB and CI764DTB) or three (CI905DTB) cooking zones
for PowerBoost, as long as one is not behind the other.

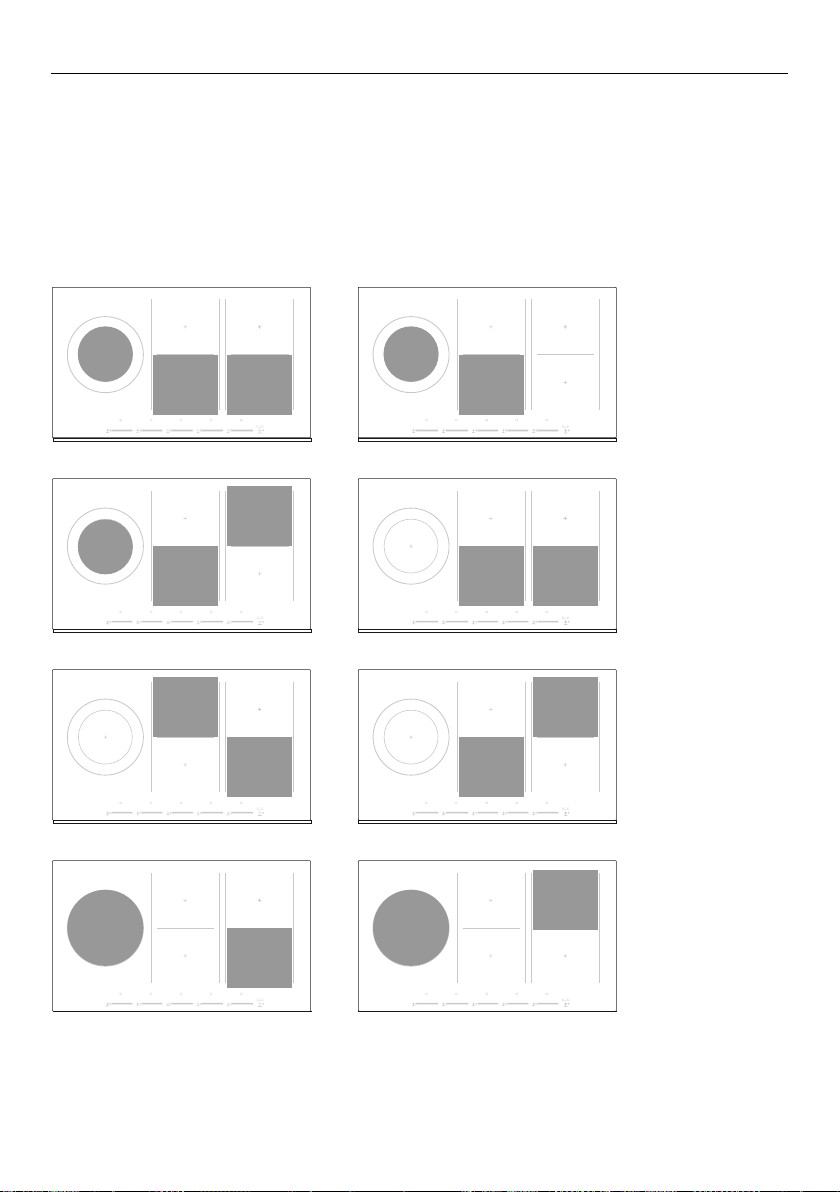

The following are examples of zones that can operate in PowerBoost mode simultaneously
without reduced power level. Other combination not shown below will result in
reduced power.

CI905DTB model

25

POWERBOOST

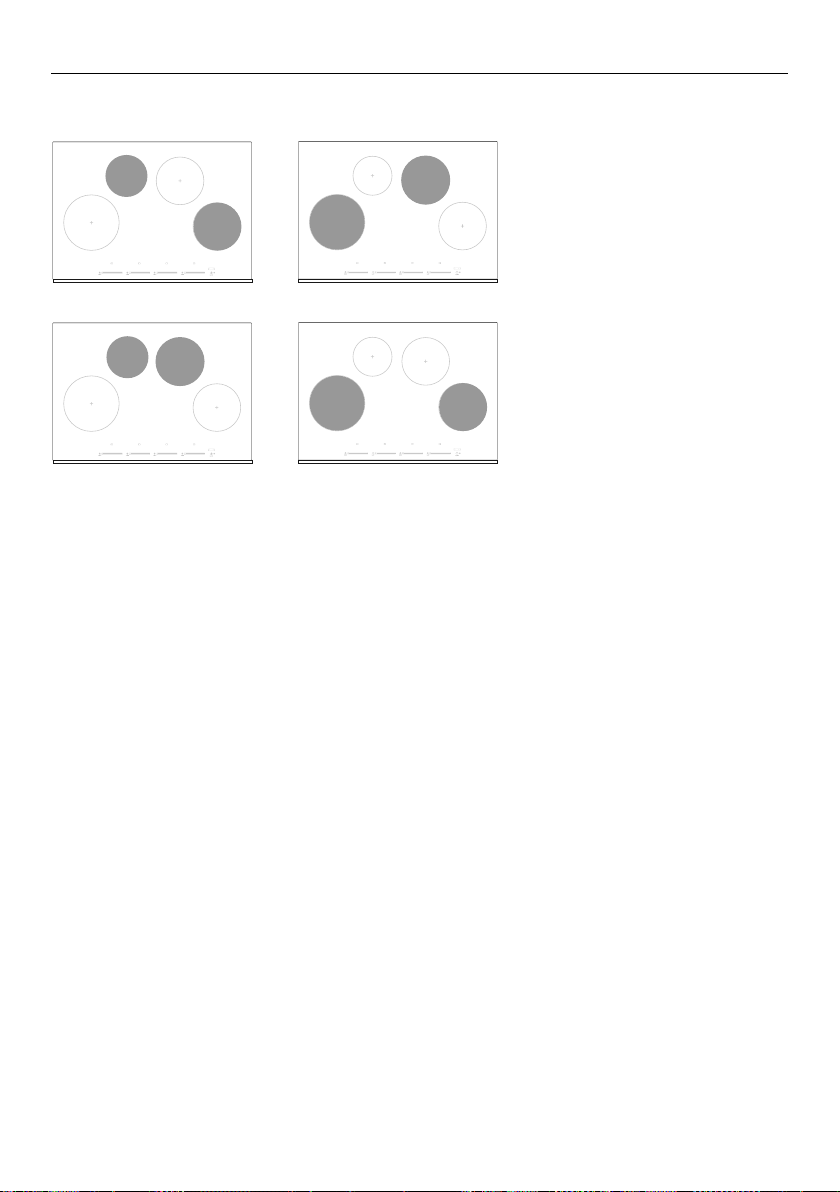

CI764DTB model

z

If one cooking zone is set to PowerBoost and a second cooking zone in front or behind

the first cooking zone is accidentlly set to PowerBoost, P will flash on the first cooking

zone to alert that the configuration is not possible and power is automatically decreased.

z

When a cooking zone is set for PowerBoost, the other cooking zone in front of or behind

may automatically reduce its power level.

z

PowerBoost is not available if cooking zones are bridged.

26

GENTLEHEAT

Using GentleHeat

There are two GentleHeat settings.

z

The Low setting is ideal for the most delicate cooking tasks (such as melting

chocolate), as the cooking zone will provide a very low continuous gentle heat.

z

The Medium setting is ideal for keeping cooked food warm and the gentle warming

of delicate foods.

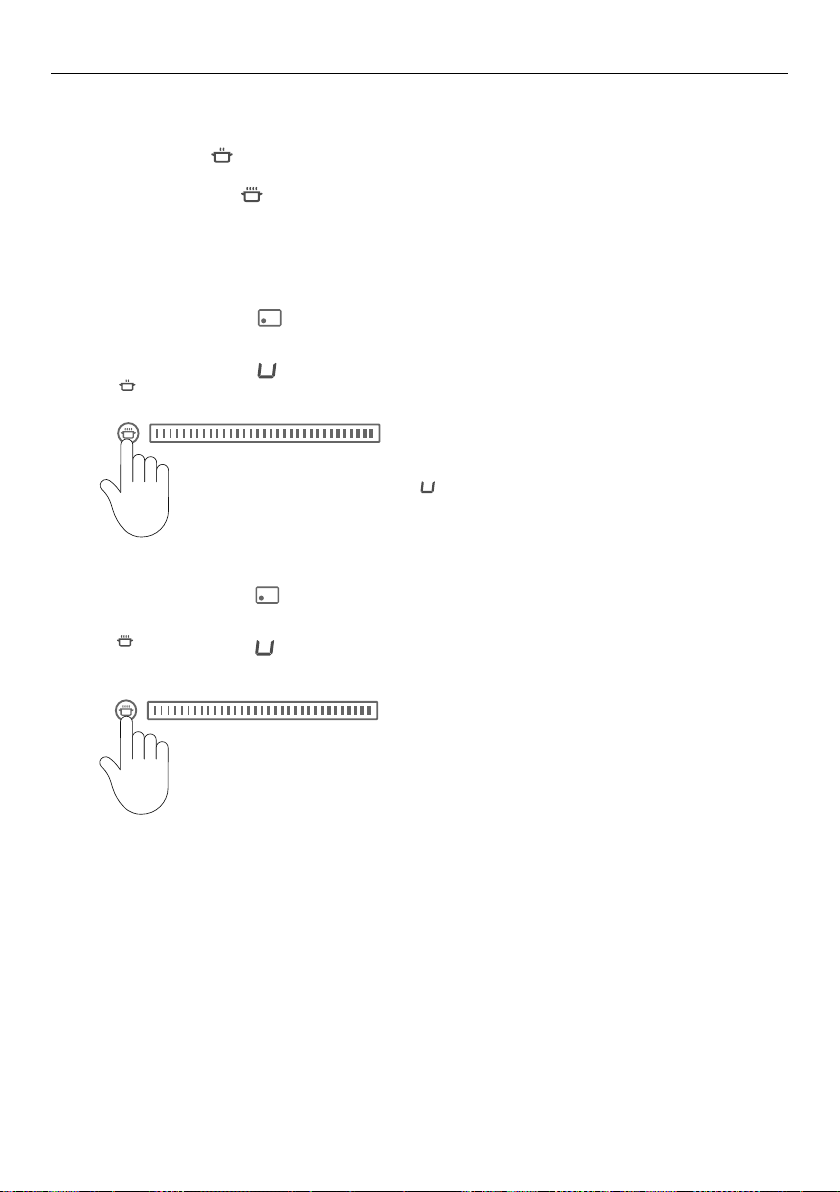

Setting up a cooking zone for GentleHeat

For Low setting

1

2

Touch and hold the GentleHeat control on the
setting selector.

The Low setting indicator above will glow and

will show in the display.

For Medium setting

With cooking zone turned on, touch the
GentleHeat control again to select the
Medium setting.

z

The Medium setting indicator above
will glow and the Low setting indicator
goes out.

z

Touching the GentleHeat control a third
time will switch off the cooking zone.

To quit the GentleHeat setting

Touch or slide the setting selector to a new setting or to

0 to turn the cooking zone off.

27

AUTO RAPIDHEAT

Using Auto RapidHeat

This feature enables the cooking zones to:

z

heat up food or liquid quickly at the

highest setting, and

z

reduce the temperature automatically

to a pre-selected heat setting.

The amount of time the cooking zone
will rapidly heat depends on the selected
heat setting.

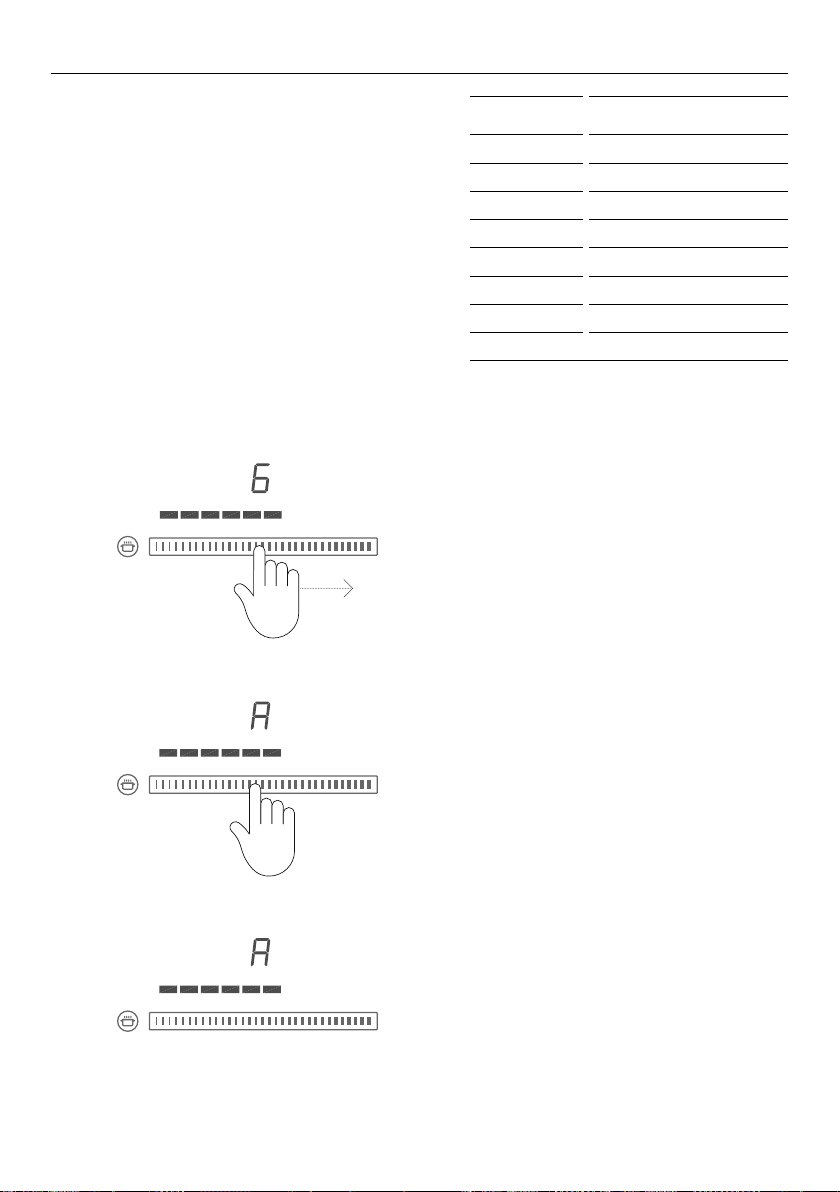

Setting up a cooking zone for Auto RapidHeat

With cooking zone turned on, touch and
slide the setting selector to the desired level

1

of reduced heat for the cooking zone.

Keep your finger on the selector.

HEAT SETTING

1 40 seconds

2 1 minute

3 2 minutes

4 3 minutes

5 4 minutes

6 7 minutes

7 2 minutes

8 3 minutes

APPROXIMATE TIME

AT RAPID HEAT

28

2

3

Hold your finger on the selector for 3 seconds
until the letter

A starts to flash alternately

with the selected temperature.

z

Lift up your finger once setting
is complete.

Initially, while the cooking zone is at the
highest setting, A will flash alternately with
your selected lower setting. The length of
time at the highest setting depends on the
selected lower heat setting.

AUTO RAPIDHEAT

Then, when the period of highest setting is

4

If you would like a lower or higher heat setting than you originally selected, simply slide to
the new setting and hold until the
and then modify the heat setting.

To quit Auto RapidHeat setting while A is flashing

Either touch or slide the setting selector to a new setting or to
zone off.

The Auto RapidHeat and PowerBoost features cannot be used together. If you turn
PowerBoost on when Auto RapidHeat is already set, the Auto RapidHeat will cancel
and PowerBoost will remain.

A starts flashing. Alternatively, wait until A stops flashing

over, A will stop flashing and the cooking
zone will automatically reduce the heat to
your pre-selected lower setting.

0 to turn the cooking

29

COOKING GUIDELINES

Take care when frying: oil and fat heat up very quickly, particularly if you’re using
PowerBoost. At extremely high temperatures oil and fat will ignite spontaneously and this
presents a serious fire risk.

Cooking tips

z

When food comes to the boil, reduce the temperature setting.

z

Using a lid will reduce cooking times and save energy by retaining the heat.

z

Minimize the amount of liquid or fat to reduce cooking times.

z

Start cooking on a high setting and reduce the setting when the food has

heated through.

Simmering, cooking rice

z

Simmering occurs below boiling point, at around 85°C, when bubbles are just rising

occasionally to the surface of the cooking liquid. This is the key to delicious soups and

tender stews because the flavours develop without overcooking the food. You should

also cook egg-based and flour-thickened sauces below boiling point.

z

Some tasks, including cooking rice by the absorption method, may require a

setting higher than the lowest setting to ensure the food is cooked properly in the

time recommended.

Searing steak

To cook juicy flavoursome steaks:

1 Stand the meat at room temperature for about 20 minutes before cooking.
2 Heat up a heavy-based frying pan.
3 Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and

then lower the meat onto the hot pan.

4 Turn the steak only once during cooking. The exact cooking time will depend on the

thickness of the steak and how cooked you want it. Times may vary from about 2 – 8
minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more
‘well done’ it will be.

5 Leave the steak to rest on a warm plate for a few minutes to allow it to relax and

become tender before serving.

Stir-frying

When stir-frying be careful to lift the pan clear of the surface if tossing the ingredients.
Sliding the pan across the cooktop surface may scratch it.

1 Choose an induction compatible flat-based wok or a large frying pan.
2 Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking

large quantities, cook the food in several smaller batches.

3 Preheat the pan briefly and add two tablespoons of oil.
4 Cook any meat first, put it aside and keep warm.
5 Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a

lower setting, return the meat to the pan and add your sauce.

6 Stir the ingredients gently to make sure they are heated through.
7 Serve immediately.

30

COOKING GUIDELINES

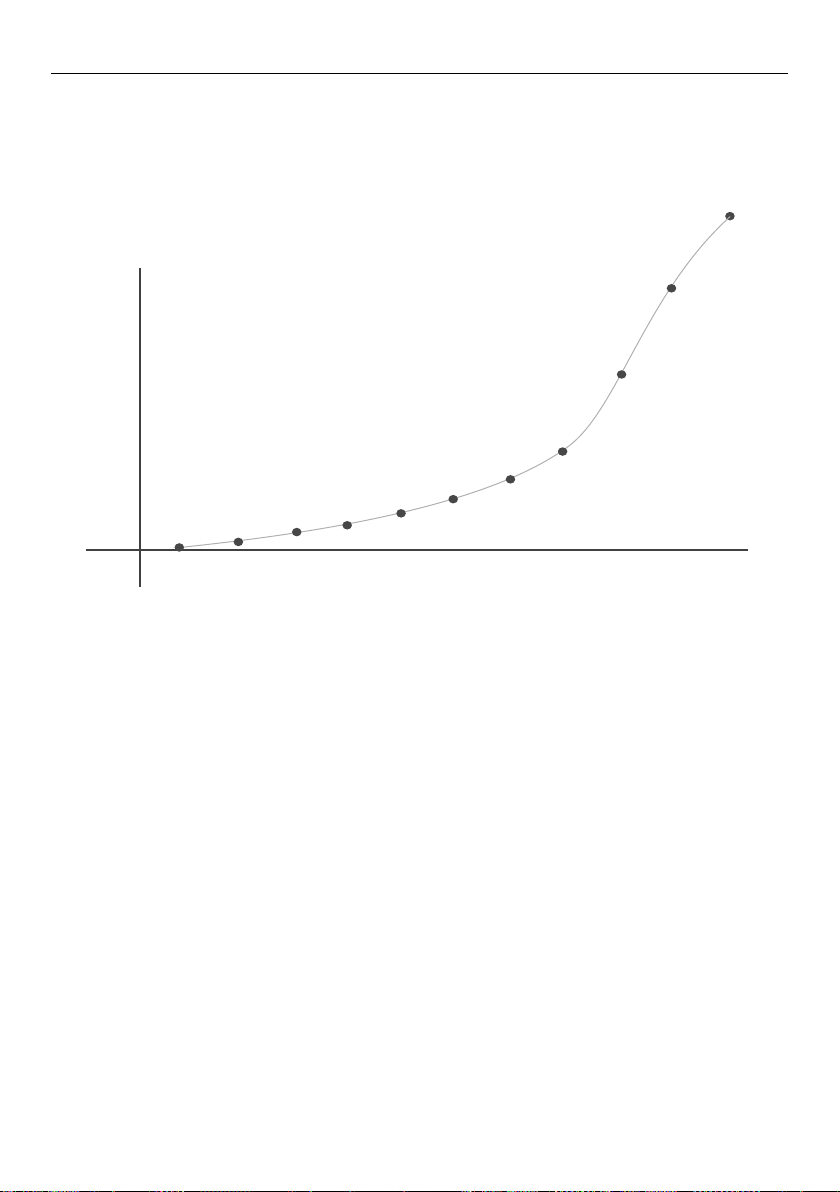

Heat settings

The settings below are guidelines only. The exact setting will depend on several factors,
including your cookware and the amount you are cooking. Experiment with the cooktop to
find the settings that best suit you.

100

80

60

40

Percentage of power %

20

0 u 1 2 3 4 5 6 7 8 9 P

Heat setting

31

HEAT SETTING SUITABILITY

z

u

1 - 2

3 - 4

5 - 6

7 - 8

9

P

melting chocolate, butter, and foods that burn quickly

z

delicate warming for small amounts of food

z

gentle simmering

z

slow warming

z

reheating

z

rapid simmering

z

cooking rice

z

pancakes

z

sautéing

z

cooking pasta

z

stir-frying

z

searing

z

bringing soup to the boil

z

boiling water

COOKING GUIDELINES

32

CARE AND CLEANING

WHAT? HOW? IMPORTANT!

Everyday soiling
on glass
(fingerprints, marks,
stains left by food or
non-sugary spillovers
on the glass)

Boilovers, melts,
and hot sugary spills
on the glass

Spillover on the
touch controls and
stainless steel strip

1 Switch the power to the

cooktop off at the wall.

2 Apply cooktop cleaner

while the glass is still
warm (but not hot!)

3 Rinse and wipe dry with a

clean cloth or paper towel.

4 Switch the power to

the cooktop back on at
the wall.

1 Remove these immediately

with a fish slice, palette
knife or razor blade
scraper suitable for
ceramic glass cooktops,
but beware of hot
cooking zone surfaces.

2 Switch the power to the

cooktop off at the wall.

3 Hold the blade or utensil

at a 30° angle and scrape
the soiling or spill to a
cool area of the cooktop.

4 Clean the soiling or spill

up with a dish cloth or
paper towel.

5 Follow steps 2 to 4 for

‘Everyday soiling on
glass’ above.

1 Switch the power to the

cooktop off at the wall.

2 Soak up the spill.
3 Wipe the touch control

area with a clean damp
sponge or cloth.

4 Wipe the area completely

dry with a paper towel.

5 Switch the power to

the cooktop back on
at the wall.

z

When the power to the
cooktop is switched off,
there will be no ‘hot
surface’ indication but the
cooking zone may still be
hot! Take extreme care.

z

Heavy-duty scourers, some
nylon scourers and harsh/
abrasive cleaning agents
may scratch the glass.
Always read the label to
check if your cleaner or
scourer is suitable.

z

Never leave cleaning
residue on the cooktop: the
glass may become stained.

z

Remove stains left by
melts and sugary food
or spillovers as soon as
possible. If left to cool on
the glass, they may be
difficult to remove or even
permanently damage the
glass surface.

z

Cut hazard: when the
safety cover is retracted,
the blade in a scraper
is razor-sharp. Use with
extreme care and always
store safely and out of
reach of children.

z

The cooktop may beep
and turn itself off, and the
touch controls may not
function while there is
liquid on them. Make sure
you wipe the touch control
area dry before turning the
cooktop back on.

33

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES WHAT TO DO

The cooktop cannot
be turned on.

The touch controls
are unresponsive.

The touch controls are
difficult to operate.

The glass is
being scratched.

Some or all displays
flash
continuous beep.

and there is a

No power. Make sure the cooktop is

connected to the power
supply and that it is switched
on at the wall. Check whether
there is a power outage in
your home or area. If you’ve
checked everything and the
problem persists, call your
Authorized Service Centre or
Customer Care.

The controls are locked. Unlock the controls.

See section ‘Safety features’
for instructions.

There may be a slight film of
water over the controls or
you may be using the tip of
your finger when touching
the controls.

Rough-edged cookware. Use cookware with flat and

Unsuitable, abrasive scourer or
cleaning products being used.

Liquid has spilled onto the
touch control area.

Make sure the touch control
area is dry and use the ball
of your finger when touching
the controls.

smooth bases. See ‘Suitable
cookware material’.

See ‘Care and cleaning’.

Switch the power to the
cooktop off at the wall and
see ‘Care and cleaning’
for instructions.

Pans do not become
hot. The heat setting
display comes on, but
the

does not flash

when I remove a pan.

-0- shows in the

timer display when I
turn on the cooktop.

34

There are objects (eg utensils)
on the touch control area.

Several touch controls are
registering continuous contact
(eg due to someone resting
their hand or arm on the touch
control area).

The cooktop is in
‘Display mode’.

Remove the objects from the
touch control area.

Remove the cause of
continuous contact.

Contact Customer Care
or your Authorized
Service Centre.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES WHAT TO DO

Some pans make
crackling or
clicking noises.

The cooktop makes
a low humming noise
when used on a high
heat setting (especially
PowerBoost).

Fan noise coming from
the cooktop.

Pans do not become
hot and
the display.

I have locked the control
panel while two cooking
zones are bridged and
the cooktop has not
turned off.

appears in

This may be caused by the
construction of your
cookware (layers of different
metals vibrating differently).

This is caused by
the technology of
induction cooking.

A cooling fan built into your
cooktop has come on to
prevent the electronics from
overheating. It may continue
to run even after you’ve
turned the cooktop off.

The cooktop cannot detect
the pan because it is not
suitable for induction cooking.

The cooktop cannot detect
the pan because it is too
small for the cooking zone or
not properly centred on it.

This is normal. The cooking
zones will remain inactive,
but the indicator lights will
remain on.

This is normal for induction
cookware and does not
indicate a fault.

This is normal, but the
noise should quieten down
or disappear completely
when you decrease the
heat setting.

This is normal and needs
no action. Do not switch
the power to the cooktop
off at the wall while the
fan is running.

Use cookware suitable for
induction cooking. See
section ‘Suitable
cookware material’.

Centre the pan and
make sure that its base
matches the size of the
cooking zone.

Unlock the controls,
deactivate the bridging
zones (by touching the
two setting selectors
simultaneously) and then
lock the cooktop again.

P flashes in the display

when you are trying to set
PowerBoost.

The cooktop or a cooking
zone has turned itself off
unexpectedly, a tone
sounds and an error code
is displayed (typically

E or Er alternating with

one or two digits in the
cooking zone displays).

PowerBoost is temporarily
unavailable because the
cooktop needs to protect
itself from overheating.

Technical fault. Please note down the error

Allow the cooktop to
cool down.

letters and numbers,
switch the power to the
cooktop off at the wall, and
contact your Authorized
Service Centre or Customer
Care with the error
code information.

35

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES WHAT TO DO

Condensation is forming
on surrounding walls,
cabinetry or your
overhead rangehood.

This is a normal for
induction cooking.
Energy efficient technology
means that no heat is lost to
surrounding surfaces.
This results in condensation
forming on these cooler
surfaces when steam is
produced by cooking.

This is normal for induction
cooking and does not
indicate a fault.
To minimise condensation:

z

Ensure adequate
ventilation while cooking.

z

Switch your rangehood
on 5 minutes before
cooking and let it run
for at least 5 minutes
after cooking.

z

Use your rangehood on
a lower speed setting
when boiling.

z

Use the cooktop on
a lower heat setting
when boiling.

z

Use pot lids to stop
moisture from escaping.

z

If condensation forms,
wipe down surrounding
walls and cabinetry
as needed.

36

ENERGY GUIDELINES

This cooktop has been designed and constructed in accordance with the following codes
and specifications:

In New Zealand and Australia:

z

AS/NZS 60335-1:2011 General Requirements for Domestic electrical appliances

z

AS/NZS 60335-2-6:2014 Particular Requirements for Domestic electrical

cooking appliances

z

AS/NZS CISPR 14.1.2013 Electromagnetic Compatibility Requirements.

In Europe:

Safety requirements of EEC Directive “Low voltage” 2014/35/EU:

z

EN 60335-1 General Requirements for Domestic electrical appliances

z

EN 60335-2-6 Particular Requirements for Domestic electrical cooking appliances

Safety requirements of EEC Directive “EMC” 2014/30/EU:

z

EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3 Electromagnetic

Compatibility Requirements.

Requirements of EEC Directive 93/68/EEC and 2011/65/EU

European directive 2012/16/EU on Waste Electrical and Electronic Equipment (WEEE)
(for European Union countries only)

GB This appliance is marked according to the European directive 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product.

The symbol
that this appliance may not be treated as household waste. Instead it shall be handed over
to the applicable collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for waste
disposal. For more detailed information about treatment, recovery and recycling of this
product, please contact your local city office, your household waste disposal service or the
shop where you purchased the product.

on the product, or on the documents accompanying the product, indicates

37

ENERGY GUIDELINES (GB IE ONLY)

MODEL

COOKING
ZONES

CI302DTB 2 20x25 cm

CI603DTB 3 LF (15 cm)

CI604DTB 4 20x25 cm

NO.

DIAMETER/
AREA
COOKING ZONE

per zone

LR (15 cm)
R (26 cm)

per zone

ENERGY
CONSUMPTION*
(PER ZONE)

195.6 Wh/kg

187.0 Wh/kg

LF 176.0 Wh/kg
LR 175.7 Wh/kg
R 184.0 Wh/kg

LF 187.5 Wh/kg
LR 191.7 Wh/kg

ENERGY
CONSUMPTION*
(WHOLE COOKTOP)

191 Wh/kg

179 Wh/kg

191 Wh/kg

RF 195.6 Wh/kg
RR 187.8 Wh/kg

CI764DTB 4 LF (21 cm)

LR (15 cm)
RF (18 cm)
RR (18 cm)

CI905DTB 5 Bridging Zones

20x25 cm
per zone
Wok (26 cm)

LF 170.3 Wh/kg
LR 182.5 Wh/kg
RF 170.0 Wh/kg
RR 173.0 Wh/kg

LF 196.9 Wh/kg
LR 183.6 Wh/kg
CTR 190.8 Wh/kg
RF 193.5 Wh/kg

174 Wh/kg

191 Wh/kg

RR 191.1 Wh/kg

*Energy consumption for electric cooking appliances are calculated using the following Standards

1) BS EN 50304 & BS EN 60350 -Electric cooking ranges, hobs, ovens and grills for household use­Methods for measuring performance.

Reducing the environmental impact of cooking

Reducing energy consumption will reduce the impact of cooking on the environment.
You can reduce energy consumption by:

z

Thawing frozen foods in the refrigerator first

z

Using a moderate setting to conserve energy

z

Using the correct sized pot

z

Using a pressure cooker

z

Cutting food into smaller pieces – this will reduce cooking time

z

Use a steamer or a pan with a divider to cook different vegetables at the same time

z

Using a cover when boiling water to reduce the time it takes to get to the boil.

z

Simmering liquid cooked foods instead of boiling vigorously

z

Keeping pot lids on to reduce heat loss.

38

WARRANTY AND SERVICE

Before you call for service or assistance

Check the things you can do yourself. Refer to the installation instructions and your user
guide and check that:

1 Your product is correctly installed.
2 You are familiar with its normal operation.

If after checking these points you still need assistance or parts, please refer to the
Service & Warranty book for warranty details and your nearest Authorized Service Centre,
Customer Care, or contact us through our website www.fisherpaykel.com.

Complete and keep for safe reference:

Model

Serial No.

Purchase Date

Purchaser

Dealer

Suburb

Town

Country

39

FISHERPAYKEL.COM

© Fisher & Paykel Appliances 2020. All rights reserved.

The models shown in this guide may not be available in all markets

The product specifications in this guide apply to the specific products and

models described at the date of issue. Under our policy of continuous product

improvement, these specifications may change at any time.

For current details about model and specification availability in your country,

please go to our website or contact your local Fisher&Paykel dealer.

and are subject to change at any time.

592129A 05.20
