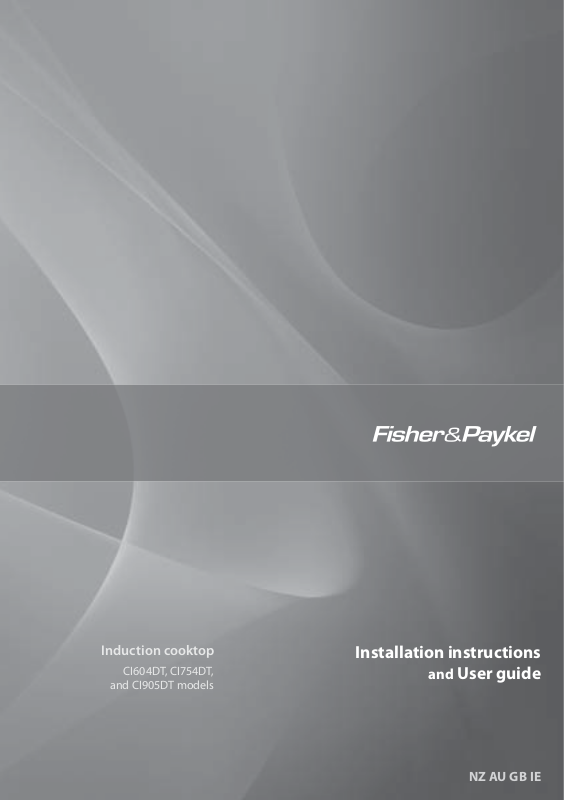

Fisher & Paykel CI754DT, CI905DT, CI604DT User Manual

Induction cooktop
CI604DT, CI754DT,
and CI905DT models
Installation instructions
and User guide
NZ AU GB IE
Contents
1
Installation instructions
Introduction
Choosing the right cookware
Using your induction cooktop
Using your cooktop’s special features
Cooking guidelines
Care and cleaning
Troubleshooting
Warranty and service
2
6
16
18
19
22
32
34
35
37
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed on the back cover or contact your local Fisher & Paykel dealer.
2
Safety and warnings
Your safety is important to us. Please read this information before using your cooktop.
Installation
WARNING!
Electrical Shock Hazard
Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. Connection to a good earth wiring system is essential and mandatory. Alterations to the domestic wiring system must only be made by a qualified electrician.
Failure to follow this advice may result in electrical shock or death.
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
WARNING!
Safety and warnings
Important safety instructions
Read these instructions carefully before installing or using this appliance. No combustible material or products should be placed on this appliance at any time. Please make this information available to the person responsible for installing the appliance as it
could reduce your installation costs.
In order to avoid a hazard, this appliance must be installed according to these instructions for
installation. This appliance is to be properly installed and earthed only by a suitably qualified person. This appliance should be connected to a circuit which incorporates an isolating switch providing
full disconnection from the power supply. Failure to install the appliance correctly could invalidate any warranty or liability claims.
3
4
Safety and warnings
Operation and maintenance
Electrical Shock Hazard
Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician. Switch the cooktop off at the wall before cleaning or maintenance.
Failure to follow this advice may result in electrical shock or death.
Health Hazard
This appliance complies with electromagnetic safety standards. However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
Failure to follow this advice may result in death.
WARNING!
WARNING!
WARNING!
Hot Surface Hazard
During use, accessible parts of this appliance will become hot enough to cause burns. Do not let body, clothing or any item other than suitable cookware contact with the ceramic glass until the surface is cool. Never leave metal objects (such as kitchen utensils) or empty pans on the cooktop as they can become hot very quickly. Beware: magnetisable metal objects worn on the body may become hot in the vicinity of the cooktop. Gold or silver jewellery will not be affected. Keep children away. Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
Failure to follow this advice could result in burns and scalds.
Safety and warnings
WARNING!
Cut Hazard
The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.
Failure to use caution could result in injury or cuts.
Important safety instructions
Never leave the appliance unattended when in use. Boilover causes smoking and greasy
spillovers that may ignite. Never use your appliance as a work or storage surface. Never leave any objects or utensils on the appliance. Do not place or leave any magnetisable objects (eg credit cards, memory cards) or electronic
devices (eg computers, MP3 players) near the appliance, as they may be affected by its
electromagnetic field. We recommend using plastic or wooden kitchen utensils for cooking with your induction cooktop. Never use your appliance for warming or heating the room. After use, always turn off the cooking zones and the cooktop as described in this manual (ie by
using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones
when you remove the pans. Do not allow children to play with the appliance or sit, stand, or climb on it. Do not store items of interest to children in cabinets above the appliance. Children climbing on
the cooktop could be seriously injured. Do not leave children alone or unattended in the area where the appliance is in use. Children or persons with a disability which limits their ability to use the appliance should have a
responsible and competent person to instruct them in its use. The instructor should be satisfied
that they can use the appliance without danger to themselves or their surroundings. Do not repair or replace any part of the appliance unless specifically recommended in the
manual. All other servicing should be done by a qualified technician. Do not use a steam cleaner to clean your cooktop. Do not place or drop heavy objects on your cooktop. Do not stand on your cooktop. Do not use pans with jagged edges or drag pans across the ceramic glass surface as this can
scratch the glass. Do not use scourers or any other harsh/abrasive cleaning agents to clean your cooktop, as these
can scratch the ceramic glass. If the power supply cable is damaged, it must only be replaced by a qualified technician. Do not operate your cooktop by means of an external timer or separate remote-control system.
5
6
Installation instructions
Cooktop and cutout dimensions
C
B
D
G
F
Electrical connection is made at the right rear
A
E
Cooktop and cutout dimensions (mm)
overall width of cooktop
A
overall depth of cooktop
B
height of chassis (plastic housing incl. terminal block)
C
below top of bench
width of chassis (metal frame)
D
depth of chassis (metal frame)
E
overall width of cutout
F
overall depth of cutout
G
CI604DT
600 750 900
530 530 530
55 55 55
546 716 852
476 476 482
560 725 870
490 490 494
CI754DT
CI905DT
Clearances
Installation instructions
7
D
C
EE
2x 50mm holes to allow adequate cool air
Fig. 1 Minimum clearances and ventilation
requirements - oven installed below cooktop
Oven with cooling fan
500 x 50 mm
Clearances (mm)
E
4 mm
2x 50mm holes to allow adequate cool air
500 x 10 mm
A
B
This cooktop requires
WARNING!
adequate supply of cool air to fully function. The base of the cooktop must have direct unrestricted ventilation to the room where the
C
cooktop is installed. Follow the requirements below.
2x 50mm holes to allow adequate cool air
4 mm
Top of drawer or other obstruction
500 x 10 mm
Fig. 2 Minimum clearances and ventilation
requirements - cupboard or drawer space below
CI604DT
CI754DT
CI905DT
minimum clearance from rear edge of cutout to:
A
nearest combustible surface
minimum clearance from glass surface to:
B
rangehood 650 650 650
minimum clearance from side edges of cutout to:
C
nearest combustible surface 85 78 80
minimum clearance from benchtop to:
D
overhead cabinet not directly above the
minimum clearance below top of benchtop to:
E
top of oven* installed below cooktop (see Fig.1) or cabinetry
* The oven installed below the cooktop MUST have a cooling fan.
cooktop 450 450 450
55 55 53
75 75 75
8
Installation instructions
Before you install the cooktop, make sure that
the benchtop is square and level, and no structural members interfere with space requirements the benchtop is made of a heat-resistant material the cooktop will not be installed directly above a dishwasher, fridge, freezer, washing machine or
clothes dryer, as the humidity may damage the cooktop electronics
if the cooktop is installed above an oven, the oven has a built-in cooling fan the installation will comply with all clearance requirements and applicable standards and
regulations a suitable isolating switch providing full disconnection from the mains power supply is
incorporated in the permanent wiring, mounted and positioned to comply with the local wiring
rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air
gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules
allow for this variation of the requirements)
the isolating switch will be easily accessible to the customer with the cooktop installed you consult local building authorities and by-laws if in doubt regarding installation you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces
surrounding the cooktop.
When you have installed the cooktop, make sure that
the power supply cable is not accessible through cupboard doors or drawers
there is adequate flow of cool air from the cabinetry to the base of the cooktop. You may
ventilate from adjacent cupboards, but ensure that the available air supply will not be restricted.
The ventilation area must be at least two 50mm holes or of an equivalent area.
the isolating switch is easily accessible by the customer
you complete the ‘Final checklist’ at the end of these installation instructions.
Installation instructions
Connecting the cooktop to the mains power supply
Important!
This cooktop must be connected to the mains power supply only by a suitably qualified person.
Before connecting the cooktop to the mains power supply, check that:
1
the domestic wiring system is suitable for the power drawn by the cooktop.
2
the voltage corresponds to the value given in the rating plate
3
the power supply cable sections can withstand the load specified on the rating plate.
To connect the cooktop to the mains power supply, do not use adapters, reducers, or branching
devices, as they can cause overheating and fire.
The power supply cable must not touch any hot parts and must be positioned so that its
temperature will not exceed 75
Power supply
CI604DT 6950W @220-240/380-415V 2N~ (30A)
CI754DT 7400W @220-240/380-415V 2N~ (32A)
CI905DT 9800W @220-240/380-415V 3N~ (42A)
Important!
Check with an electrician whether the domestic wiring system is suitable without alterations. Any
alterations must only be made by a qualified electrician.
o
C at any point.
9
Connection diagrams
CI604DT, CI754DT
Single-phase connection
220-240V~
12345
PE
N
L
CI905DT
Single-phase connection
220-240V~
12345
PE
N
L
Two-phase connection
380-415V 2N~
12345
PE
L1L
Three-phase connection
N
2
380-415V 3N~
4
123
L1L3L
2
5
PE
N
10
Installation instructions
Applying the supplied foam seal
1
Turn the cooktop upside down and place it carefully on a soft surface.
Important!
To avoid damage to the glass, ensure there is a protective cover underneath it.
2
Apply the foam seal around the glass overhang, 5 mm in from the edge of the glass.
3
Turn the cooktop the right way up and place it into the cutout.
Clamping down the cooktop
Depending on the thickness of the benchtop, secure the supplied clamping brackets as shown.
x 4
48-65 mm
x 4
Important!
Do not overtighten the screws!
30-48 mm
Important!
Do not overtighten the screws!
Fig. 3 Clamping down the cooktop
Installation instructions
11
Flush mounting installation (not recommended)
C
WARNING!
We do not recommend flush mounting and sealing as servicing requires the cooktop to be removed from the benchtop. The
owner carries all risk for flush mounting the cooktop. The owner
must ensure the cooktop has been cut out from the benchtop before servicing can be carried out. Fisher & Paykel will not be liable for any costs associated with removing or replacing a flush-mounted and/or sealed-in product, nor for repairing any damage that may be incurred by doing this.
F
I
I
G
G
F
Cooktop and cutout dimensions (mm)
Electrical connection is made at the right rear
B
D
A
E
J
G
F
H
I
CI604DT
CI754DT
CI905DT
overall width of cooktop
A
overall depth of cooktop
B
height of chassis (plastic housing incl. terminal block)
C
below top of bench
width of chassis (metal frame)
D
depth of chassis (metal frame)
E
overall width of routered recess
F
I
width of cutout
F
overall depth of routered recess
G
I
depth of cutout
G
corner radius of routered recess
H
height of routered recess
I
minimum clearance below top of benchtop to:
top of oven* installed below cooktop
J
thermal protection barrier
* The oven installed below the cooktop MUST have a cooling fan.
600 750 900
530 530 530
55 55 55
546 716 852
476 476 482
605 755 905
560 725 870
535 535 535
490 490 494
max. 2 max. 2 max. 2
555
95 80
95 80
95 80
12
Installation instructions
Flush mounting installation (not recommended)
Important!
For any clearance or other installation requirement not specified separately for flush mounting installation, details in the previous section (recommended method of installation) apply.
A
B
53-70 mm
Important!
5 mm
Do not overtighten the screws!
Important!
Do not overtighten the screws!
C
35-53 mm
