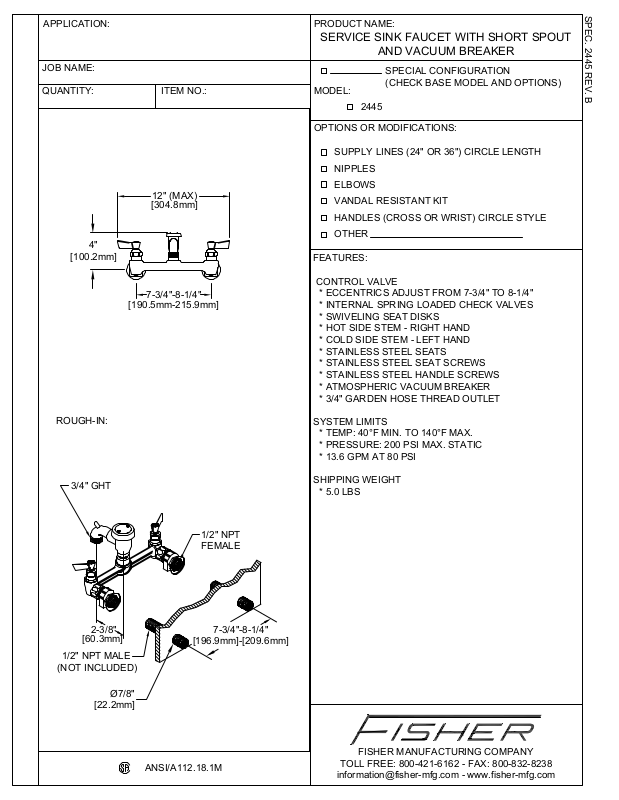

Fisher Manufacturing 2445 Specifications

APPLICATION:

JOB NAME:

QUANTITY:

4"

[100.2mm]

ITEM NO.:

12" (MAX)

[304.8mm]

7-3/4"-8-1/4"

[190.5mm-215.9mm]

PRODUCT NAME:

SERVICE SINK FAUCET WITH SHORT SPOUT

AND VACUUM BREAKER

SPECIAL CONFIGURATION

MODEL:

OPTIONS OR MODIFICATIONS:

SUPPLY LINES (24" OR 36") CIRCLE LENGTH

NIPPLES

ELBOWS

VANDAL RESISTANT KIT

HANDLES (CROSS OR WRIST) CIRCLE STYLE

OTHER

FEATURES:

CONTROL VALVE
* ECCENTRICS ADJUST FROM 7-3/4" TO 8-1/4"
* INTERNAL SPRING LOADED CHECK VALVES
* SWIVELING SEAT DISKS
* HOT SIDE STEM - RIGHT HAND
* COLD SIDE STEM - LEFT HAND
* STAINLESS STEEL SEATS
* STAINLESS STEEL SEAT SCREWS
* STAINLESS STEEL HANDLE SCREWS
* ATMOSPHERIC VACUUM BREAKER
* 3/4" GARDEN HOSE THREAD OUTLET

(CHECK BASE MODEL AND OPTIONS)

2445

SPEC. 2445 REV. B

ROUGH-IN:

3/4" GHT

2-3/8"

[60.3mm]

1/2" NPT MALE

(NOT INCLUDED)

Ø7/8"

[22.2mm]

SYSTEM LIMITS

* TEMP: 40°F MIN. TO 140°F MAX.
* PRESSURE: 200 PSI MAX. STATIC
* 13.6 GPM AT 80 PSI

SHIPPING WEIGHT

* 5.0 LBS

1/2" NPT
FEMALE

7-3/4"-8-1/4"

[196.9mm]-[209.6mm]

ANSI/A112.18.1M

FISHER MANUFACTURING COMPANY

TOLL FREE: 800-421-6162 - FAX: [phone]

[e-mail] - www.fisher-mfg.com
