APPLICATION:
JOB NAME:
QUANTITY:
ITEM NO.

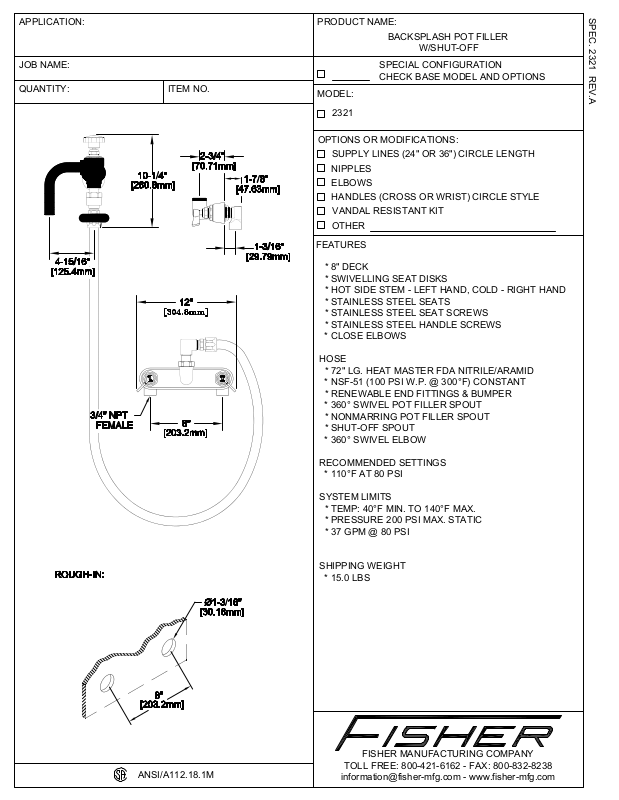

PRODUCT NAME:
BACKSPLASH POT FILLER
W/SHUT-OFF
SPECIAL CONFIGURATION
CHECK BASE MODEL AND OPTIONS
MODEL:
2321
OPTIONS OR MODIFICATIONS:
SUPPLY LINES (24" OR 36") CIRCLE LENGTH
NIPPLES
ELBOWS
HANDLES (CROSS OR WRIST) CIRCLE STYLE
VANDAL RESISTANT KIT
OTHER
FEATURES
* 8" DECK
* SWIVELLING SEAT DISKS
* HOT SIDE STEM - LEFT HAND, COLD - RIGHT HAND
* STAINLESS STEEL SEATS
* STAINLESS STEEL SEAT SCREWS
* STAINLESS STEEL HANDLE SCREWS
* CLOSE ELBOWS
SPEC. 2321 REV.A
HOSE
* 72" LG. HEAT MASTER FDA NITRILE/ARAMID
* NSF-51 (100 PSI W.P. @ 300°F) CONSTANT
* RENEWABLE END FITTINGS & BUMPER
* 360° SWIVEL POT FILLER SPOUT
* NONMARRING POT FILLER SPOUT
* SHUT-OFF SPOUT
* 360° SWIVEL ELBOW
RECOMMENDED SETTINGS
* 110°F AT 80 PSI
SYSTEM LIMITS
* TEMP: 40°F MIN. TO 140°F MAX.
* PRESSURE 200 PSI MAX. STATIC
* 37 GPM @ 80 PSI
SHIPPING WEIGHT
* 15.0 LBS
ANSI/A112.18.1M
FISHER MANUFACTURING COMPANY
TOLL FREE: 800-421-6162 - FAX: 800-832-8238
information
fisher-mfg.com - www.fisher-mfg.com
