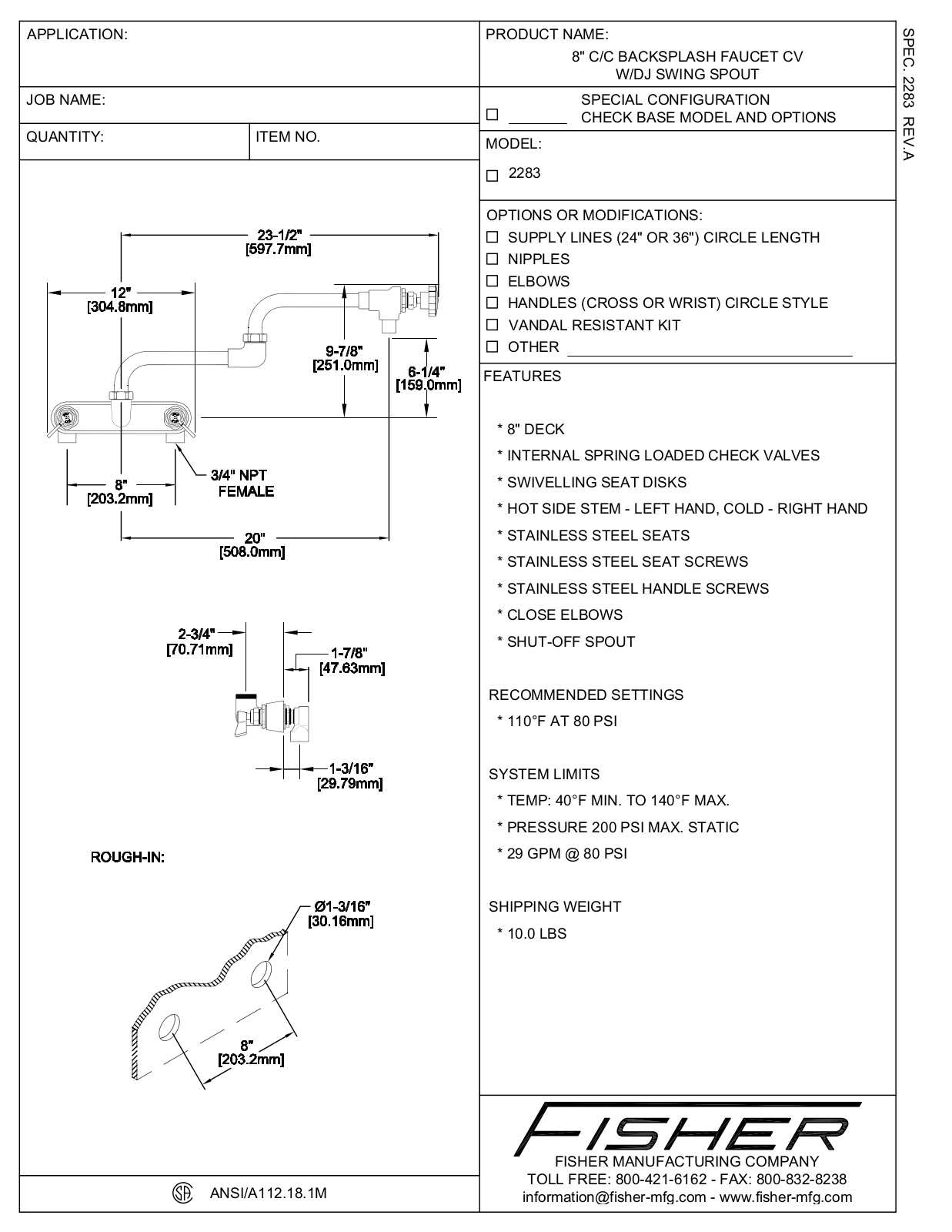

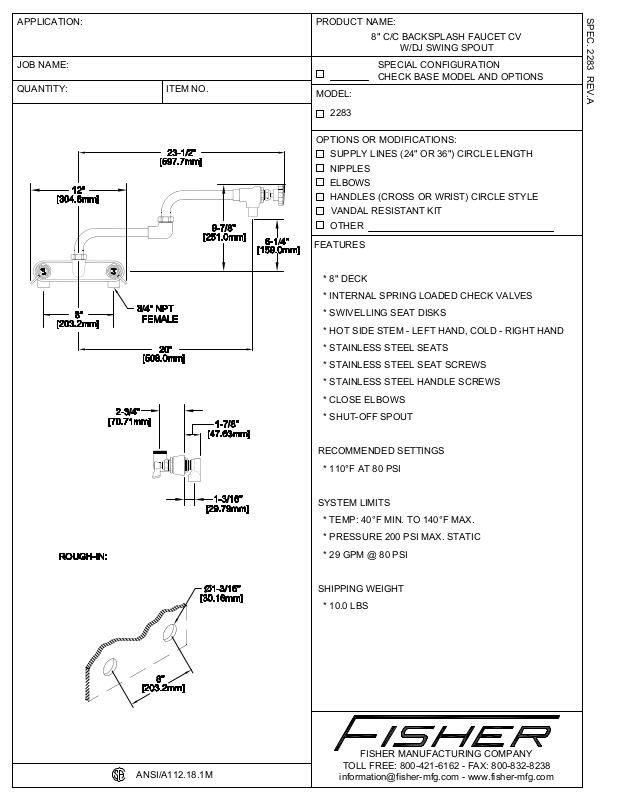

Fisher Manufacturing 2283 User Manual

@

APPLICATION:

JOB NAME:

QUANTITY: ITEM NO.

PRODUCT NAME:

8" C/C BACKSPLASH FAUCET CV

W/DJ SWING SPOUT

SPECIAL CONFIGURATION
CHECK BASE MODEL AND OPTIONS

MODEL:

2283

OPTIONS OR MODIFICATIONS:

SUPPLY LINES (24" OR 36") CIRCLE LENGTH

NIPPLES

ELBOWS

HANDLES (CROSS OR WRIST) CIRCLE STYLE

VANDAL RESISTANT KIT

OTHER

FEATURES

* 8" DECK

* INTERNAL SPRING LOADED CHECK VALVES

SPEC. 2283 REV.A

* SWIVELLING SEAT DISKS

* HOT SIDE STEM - LEFT HAND, COLD - RIGHT HAND

* STAINLESS STEEL SEATS

* STAINLESS STEEL SEAT SCREWS

* STAINLESS STEEL HANDLE SCREWS

* CLOSE ELBOWS

* SHUT-OFF SPOUT

RECOMMENDED SETTINGS

* 110°F AT 80 PSI

SYSTEM LIMITS

* TEMP: 40°F MIN. TO 140°F MAX.

* PRESSURE 200 PSI MAX. STATIC

* 29 GPM @ 80 PSI

SHIPPING WEIGHT

* 10.0 LBS

ANSI/A112.18.1M

FISHER MANUFACTURING COMPANY

TOLL FREE: 800-421-6162 - FAX: [phone]

information

fisher-mfg.com - www.fisher-mfg.com
