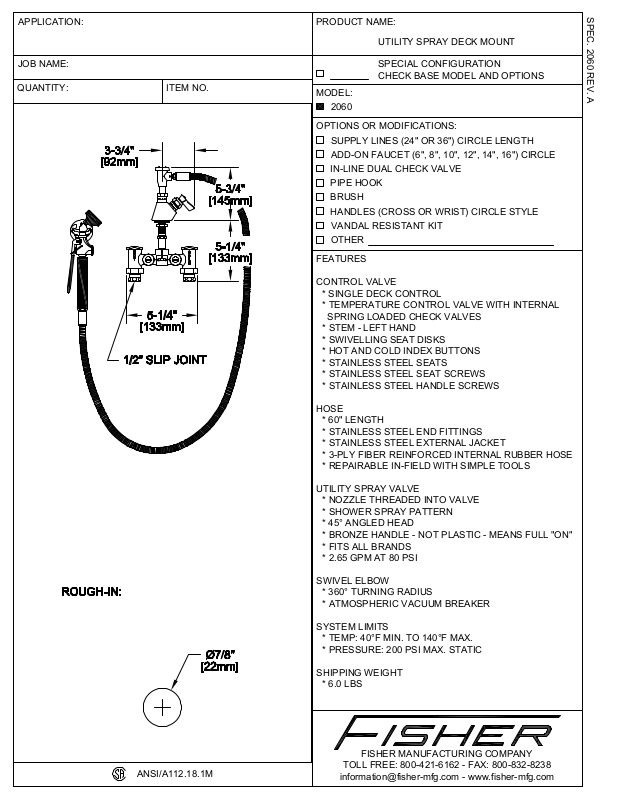

Fisher Manufacturing 2060 Specifications

APPLICATION:

PRODUCT NAME:

UTILITY SPRAY DECK MOUNT

SPEC. 2060 REV. A

JOB NAME:

QUANTITY:

ITEM NO.

SPECIAL CONFIGURATION
CHECK BASE MODEL AND OPTIONS

MODEL:

2060

OPTIONS OR MODIFICATIONS:

SUPPLY LINES (24" OR 36") CIRCLE LENGTH

ADD-ON FAUCET (6", 8", 10", 12", 14", 16") CIRCLE

IN-LINE DUAL CHECK VALVE

PIPE HOOK

BRUSH

HANDLES (CROSS OR WRIST) CIRCLE STYLE

VANDAL RESISTANT KIT

OTHER

FEATURES

CONTROL VALVE

* SINGLE DECK CONTROL
* TEMPERATURE CONTROL VALVE WITH INTERNAL
SPRING LOADED CHECK VALVES
* STEM - LEFT HAND
* SWIVELLING SEAT DISKS
* HOT AND COLD INDEX BUTTONS
* STAINLESS STEEL SEATS
* STAINLESS STEEL SEAT SCREWS
* STAINLESS STEEL HANDLE SCREWS

HOSE

* 60" LENGTH
* STAINLESS STEEL END FITTINGS
* STAINLESS STEEL EXTERNAL JACKET
* 3-PLY FIBER REINFORCED INTERNAL RUBBER HOSE
* REPAIRABLE IN-FIELD WITH SIMPLE TOOLS

UTILITY SPRAY VALVE

* NOZZLE THREADED INTO VALVE
* SHOWER SPRAY PATTERN
* 45° ANGLED HEAD
* BRONZE HANDLE - NOT PLASTIC - MEANS FULL "ON"
* FITS ALL BRANDS
* 2.65 GPM AT 80 PSI

SWIVEL ELBOW

* 360° TURNING RADIUS
* ATMOSPHERIC VACUUM BREAKER

SYSTEM LIMITS

* TEMP: 40°F MIN. TO 140°F MAX.
* PRESSURE: 200 PSI MAX. STATIC

SHIPPING WEIGHT

* 6.0 LBS

ANSI/A112.18.1M

FISHER MANUFACTURING COMPANY

TOLL FREE: 800-421-6162 - FAX: [phone]

[e-mail] - www.fisher-mfg.com
