INSTRUCTION MANUAL
Network Camera
VCC-WB2000
About this manual
Before installing and using this unit, please read this manual carefully. Be sure to keep it handy
for later reference.
Contents
Information to user...........................................2
Precautions....................................................... 3
Features ............................................................ 4
Accessories ...................................................... 4
Operating environment....................................4
Name and Function of Each Part .................... 5
Attaching the Lens...........................................7
Flange Back Adjustment..................................8
Connections...................................................... 9
Basic Connections................................... 9
Connecting to a LAN ............................. 10
Connecting to the Internet .................... 10
Connecting to a Wireless LAN.............. 10
PPP (Dial-up) Connections ................... 11
Network Camera Settings..............................12
Installation of Plug-in Software ............13
1
Browser Settings ...................................15
Cookie Settings......................................15

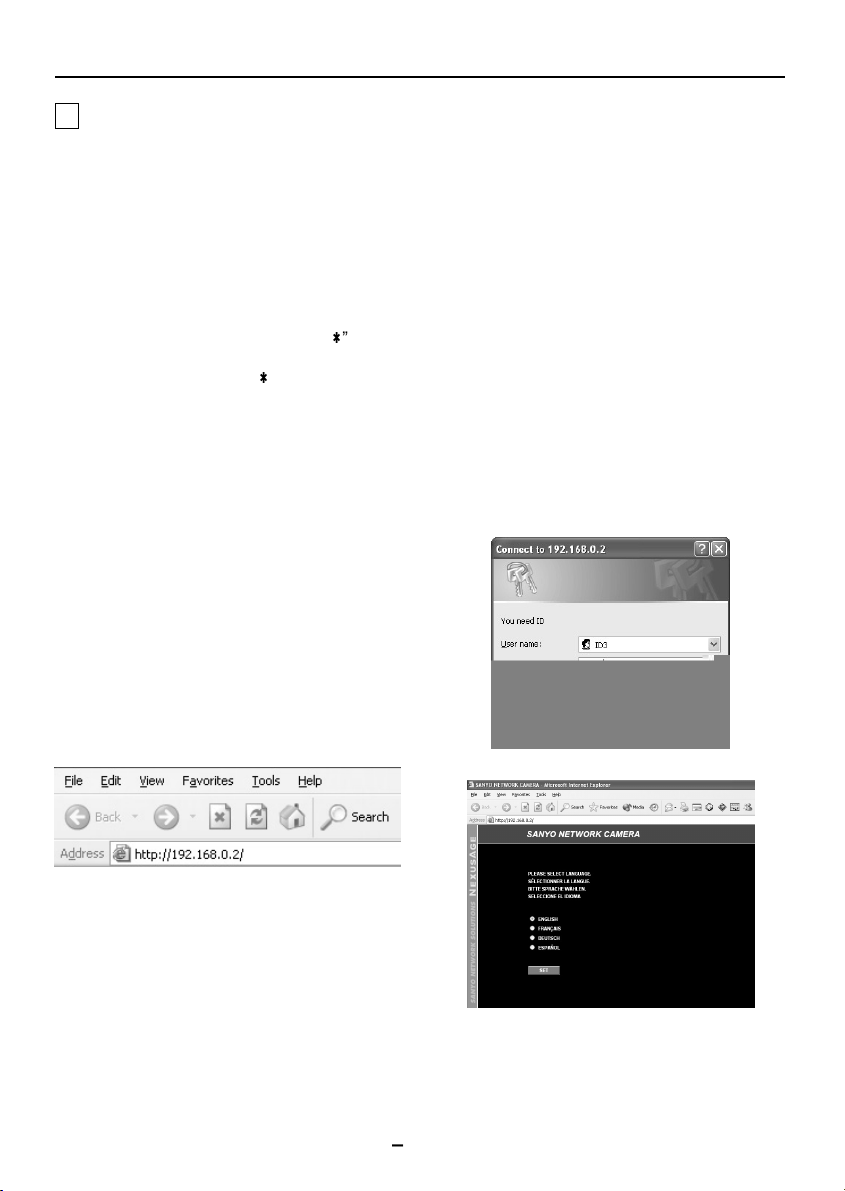

Computer and Camera Settings ........... 16
2
Network Connection Settings............... 17
3

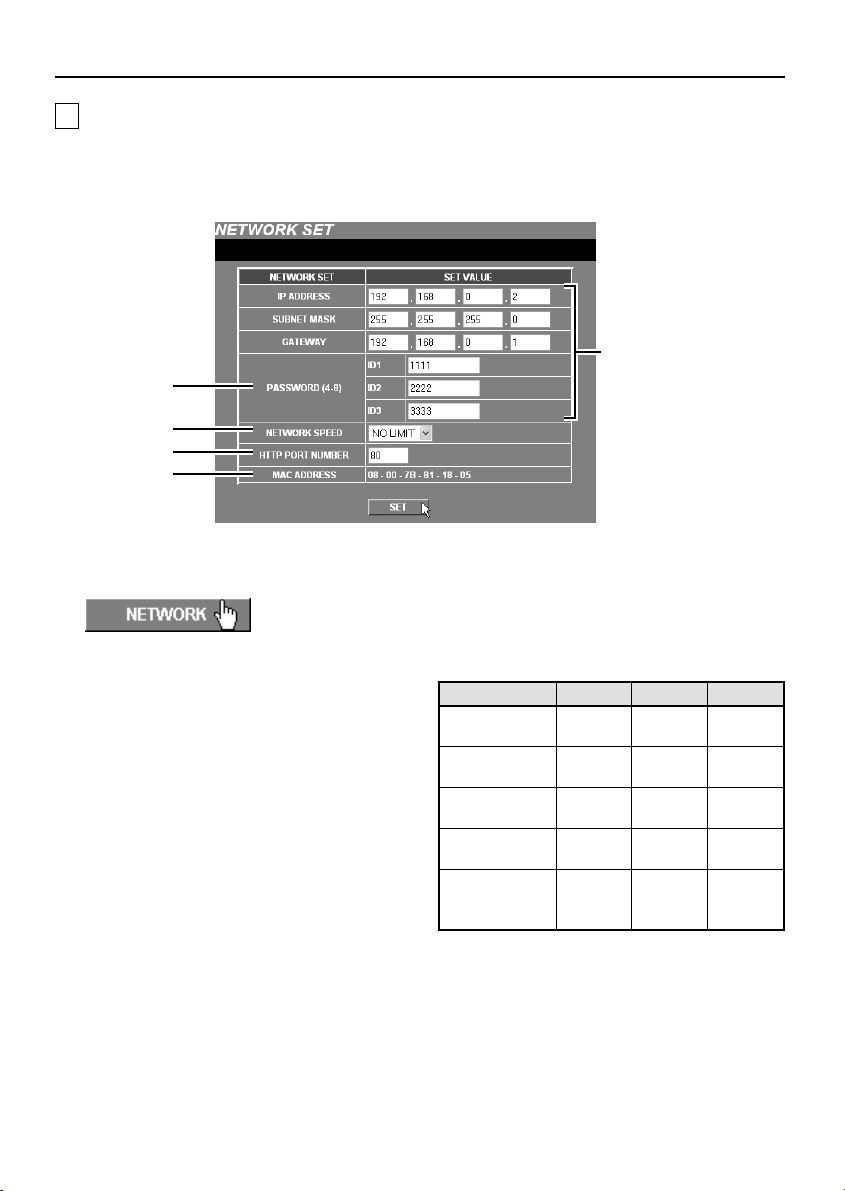

NETWORK SET Settings ................... 18
A

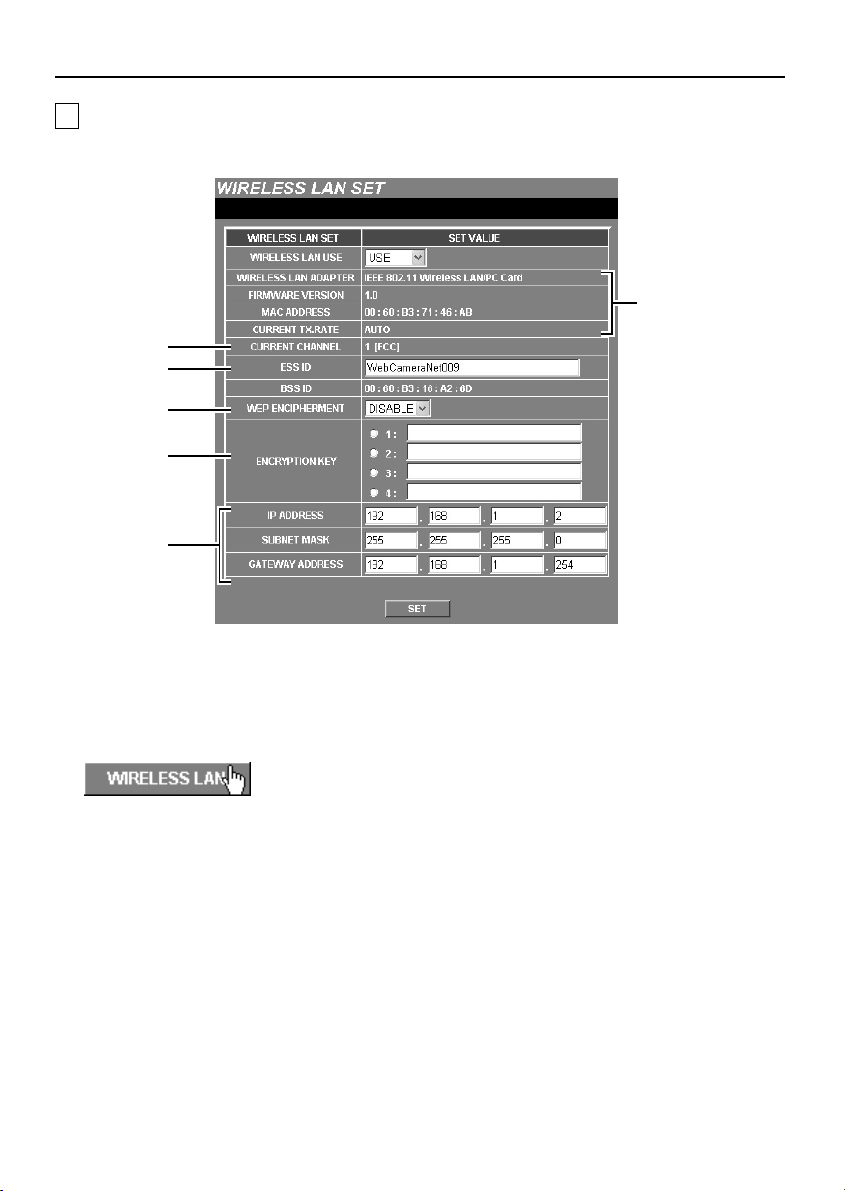

WIRELESS LAN SET Settings........... 20
B
PPP SET Settings............................... 22
C

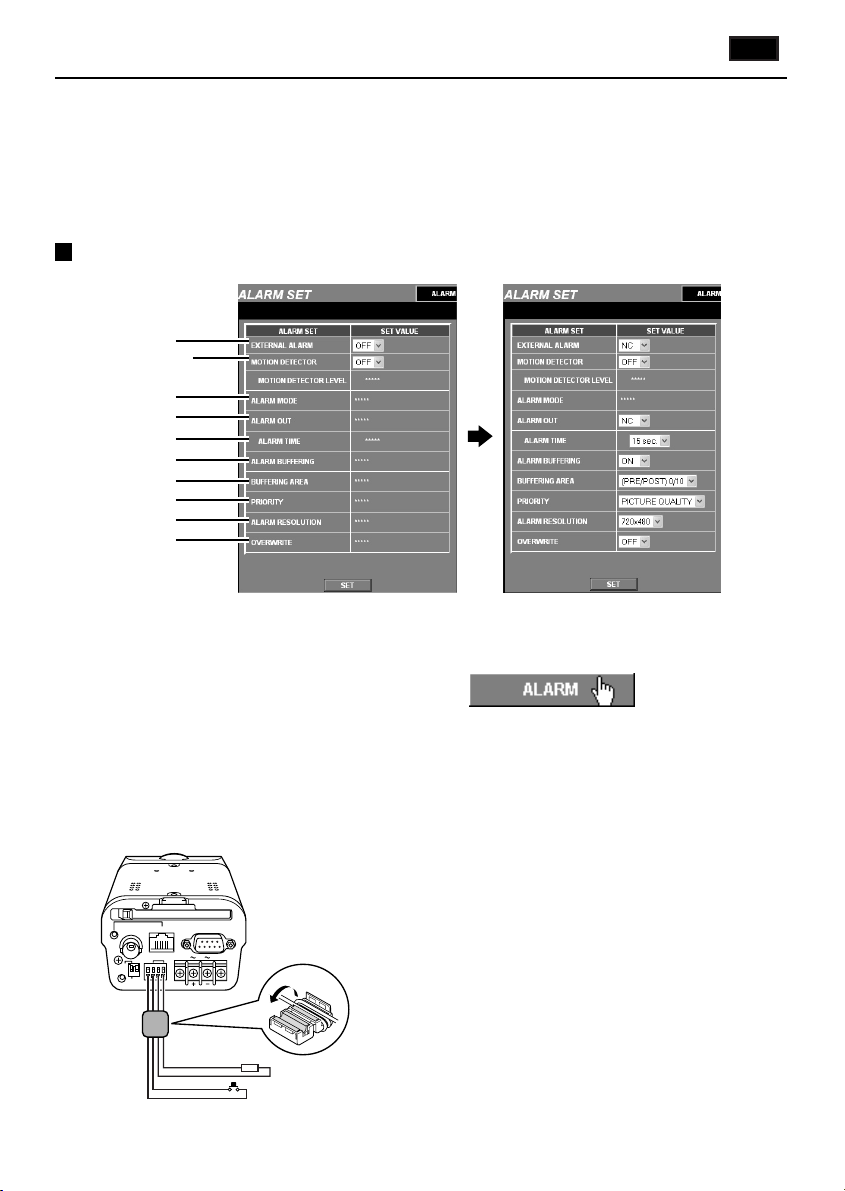

Alarm Setting...................................................35
External Alarm Sensor Settings............35

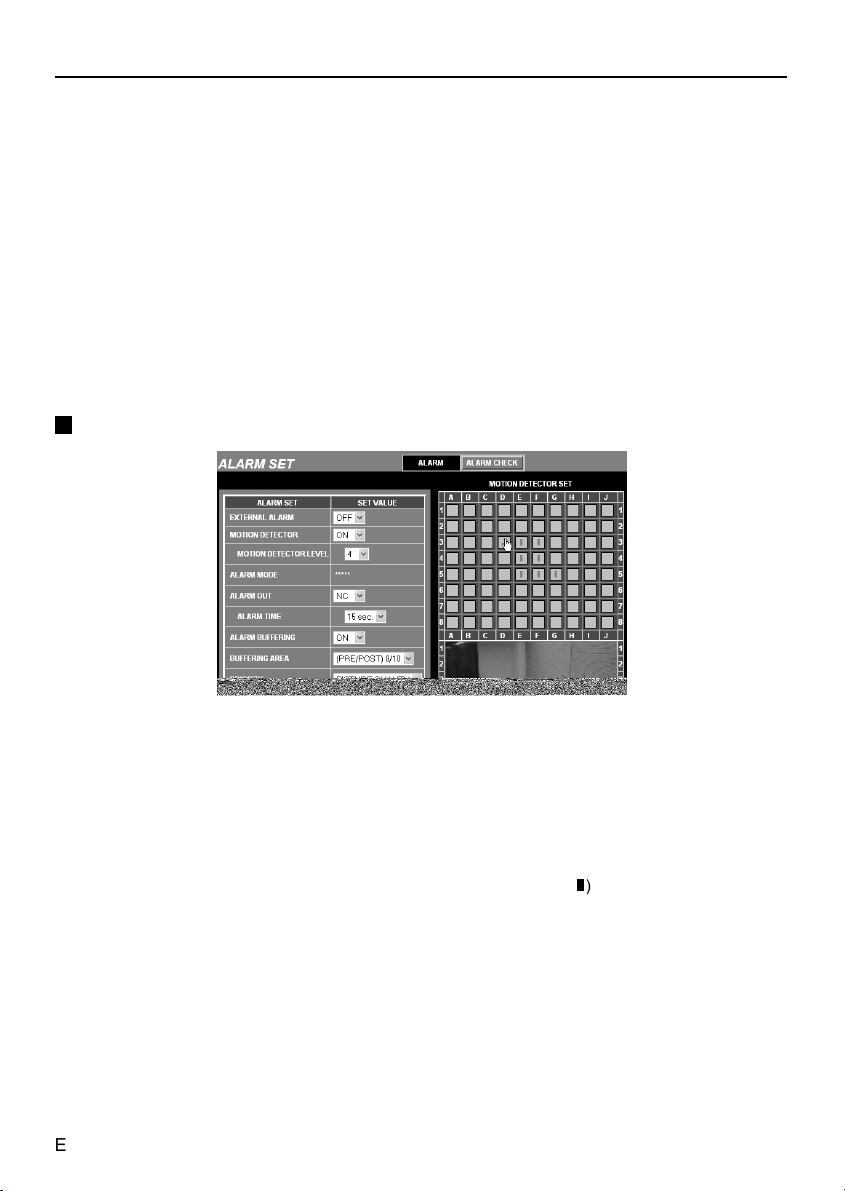

MOTION DETECTOR SET Settings .......37
Alarm Data Recording Capacity............38

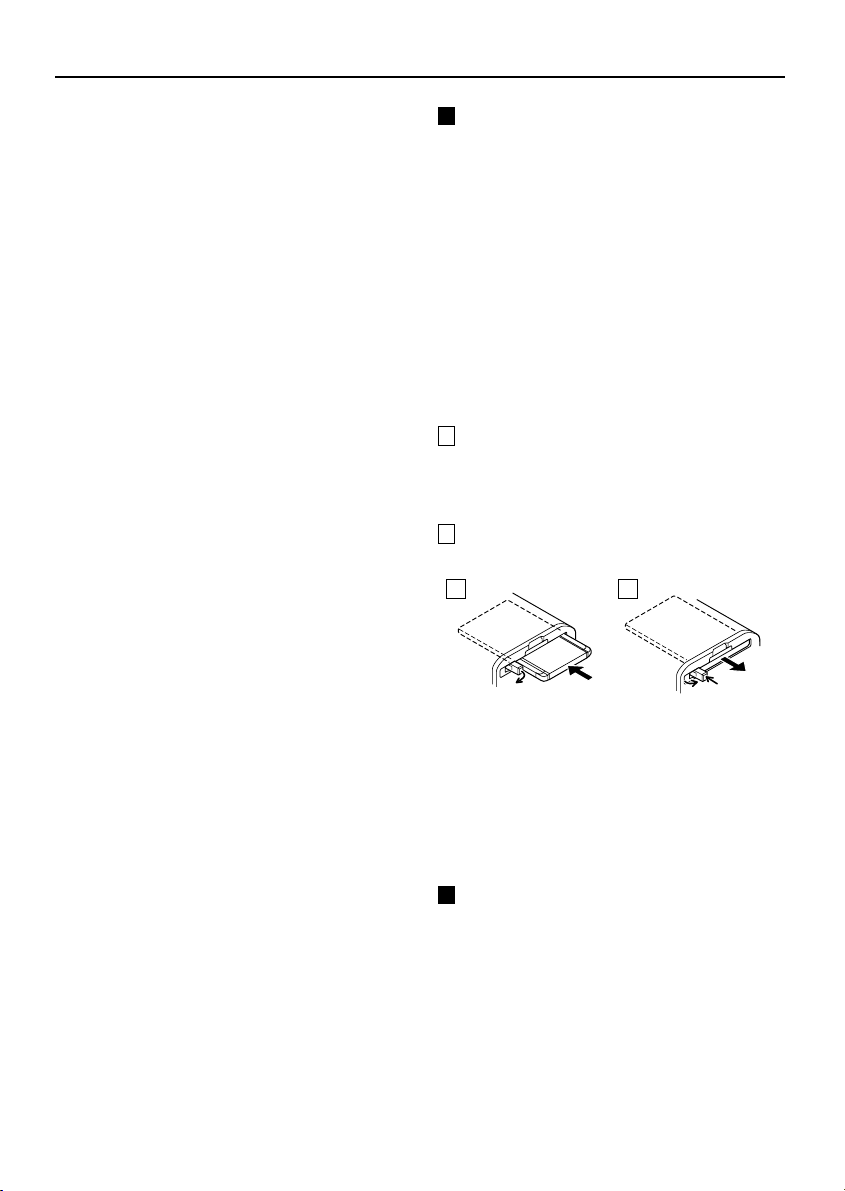

Expansion memory cards......................38
Recording Alarm Data............................39

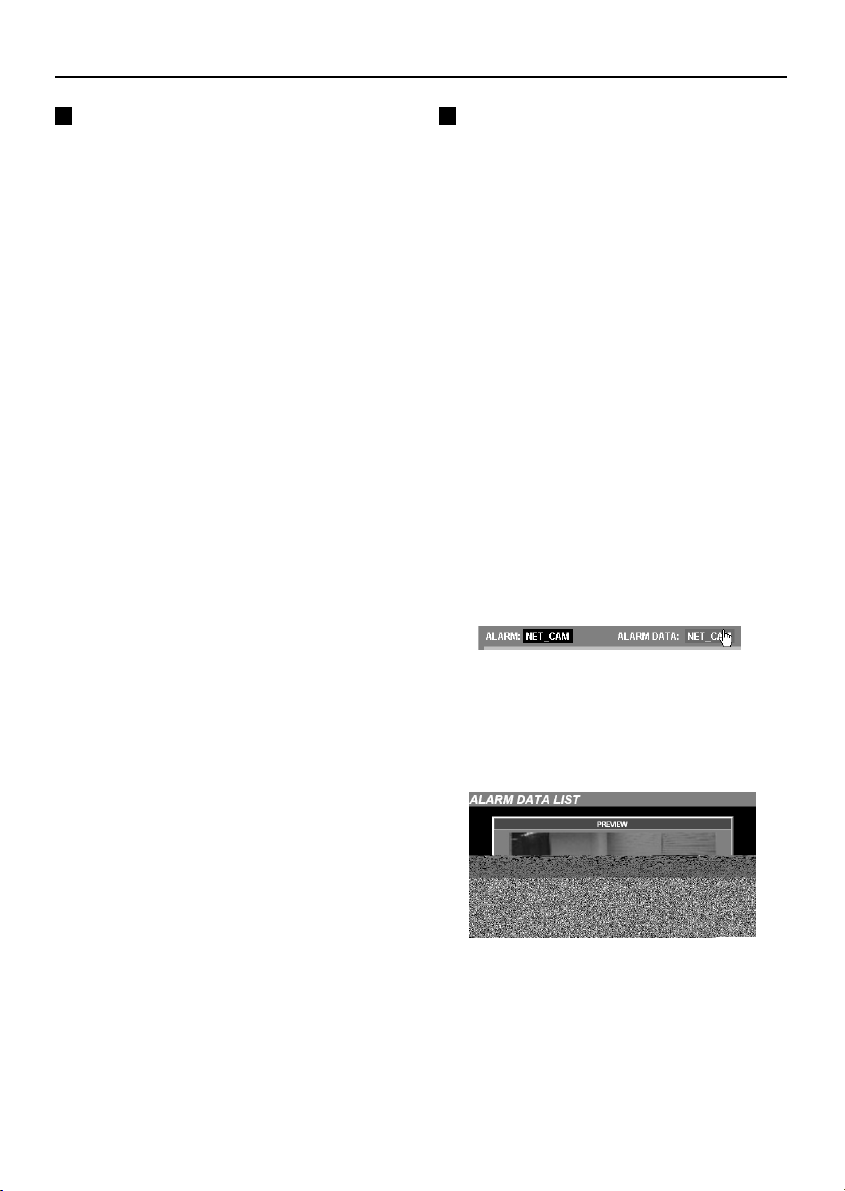

Playing Back Alarm Data.......................39
BUFFER DATA VIEW screen .................40
Playing Back Expansion Memory
Card Images............................................41
Deleting Alarm Images...........................41
Pre-alarm and Post-alarm Recording...42
CLOCK SET Settings ......................................43
RS-232C Settings (RS-232C SET)..................44
STATUS Checking ..........................................44
Troubleshooting..............................................45
If the camera cannot be connected ......45
If you forget the IP Address ..................45
Specifications .................................................46
Menu Screen and Main Menu ........................ 24
Main menu .............................................. 24
Menu screen...........................................25
Viewing Camera Images ................................ 26

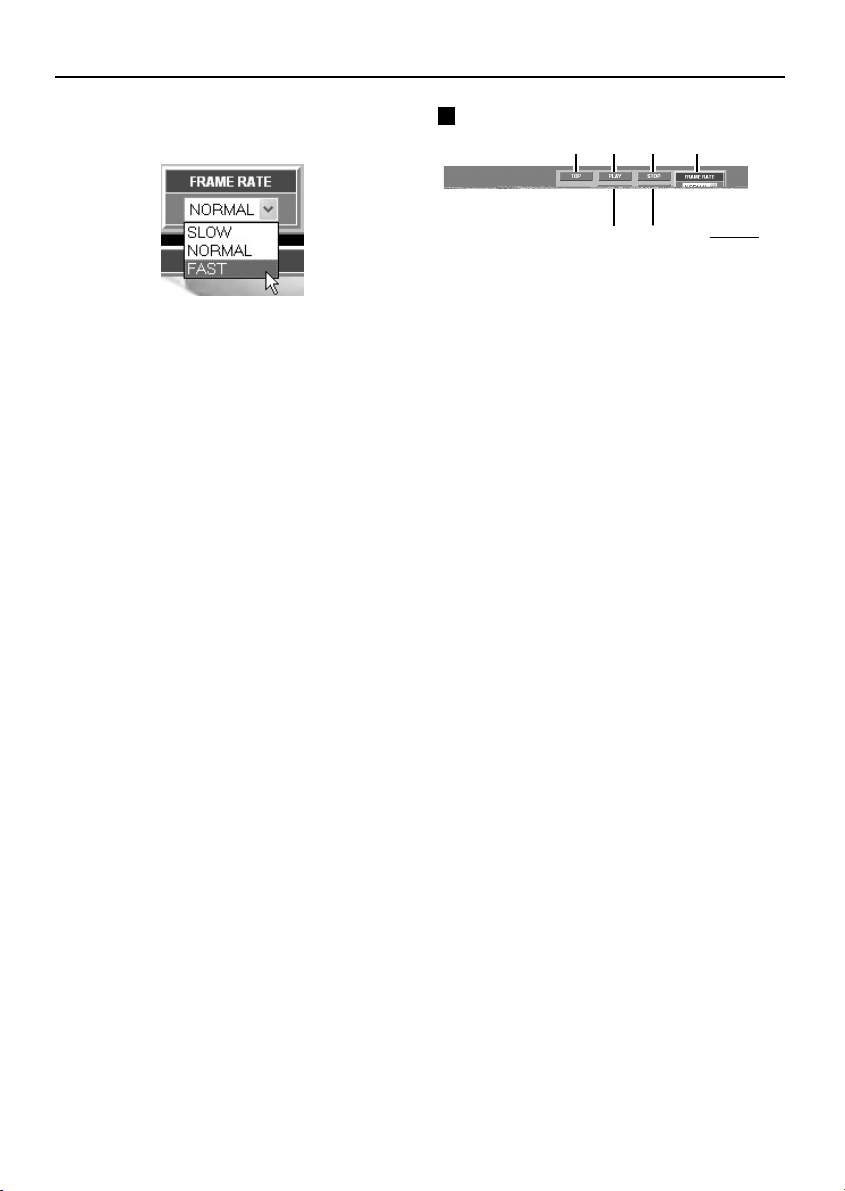

LIVE VIEW Settings ........................................ 28
Saving Images into a Computer ...........30

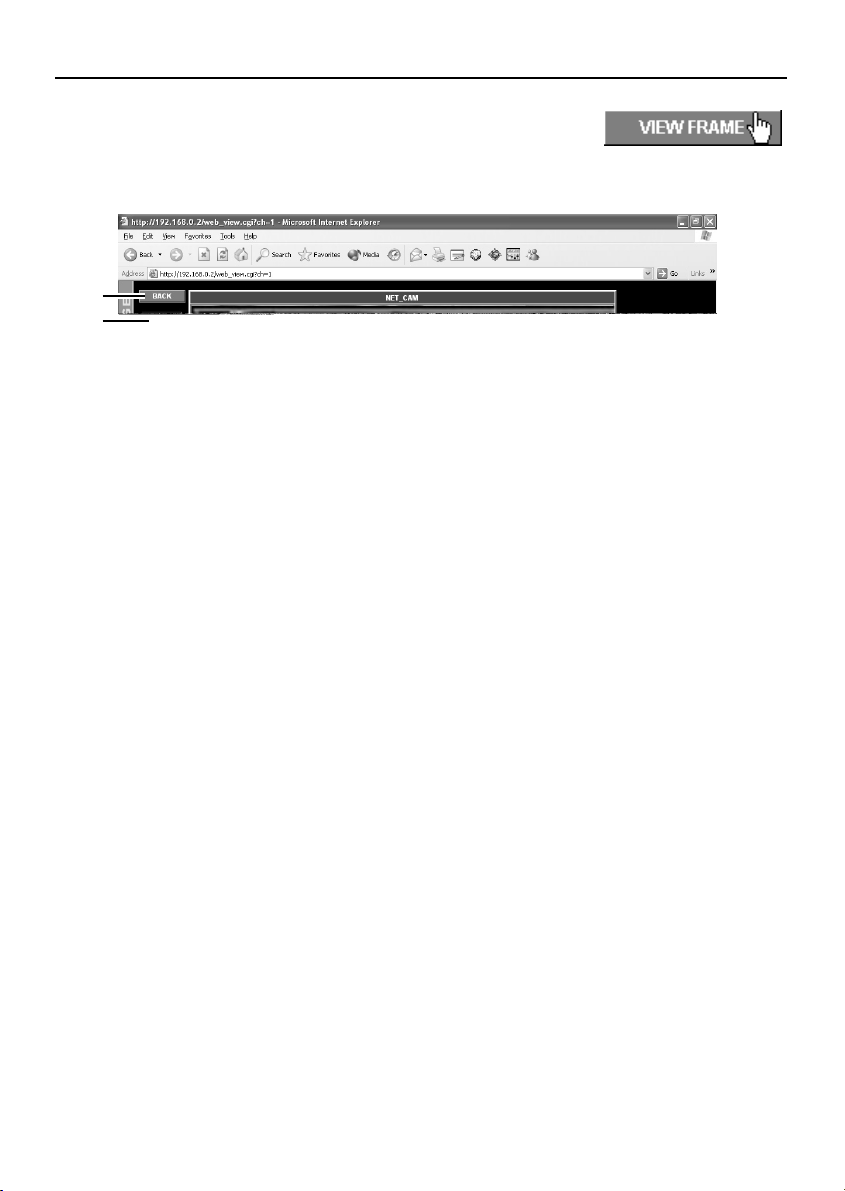

VIEW FRAME Operations...............................31
CAMERA Settings...........................................32

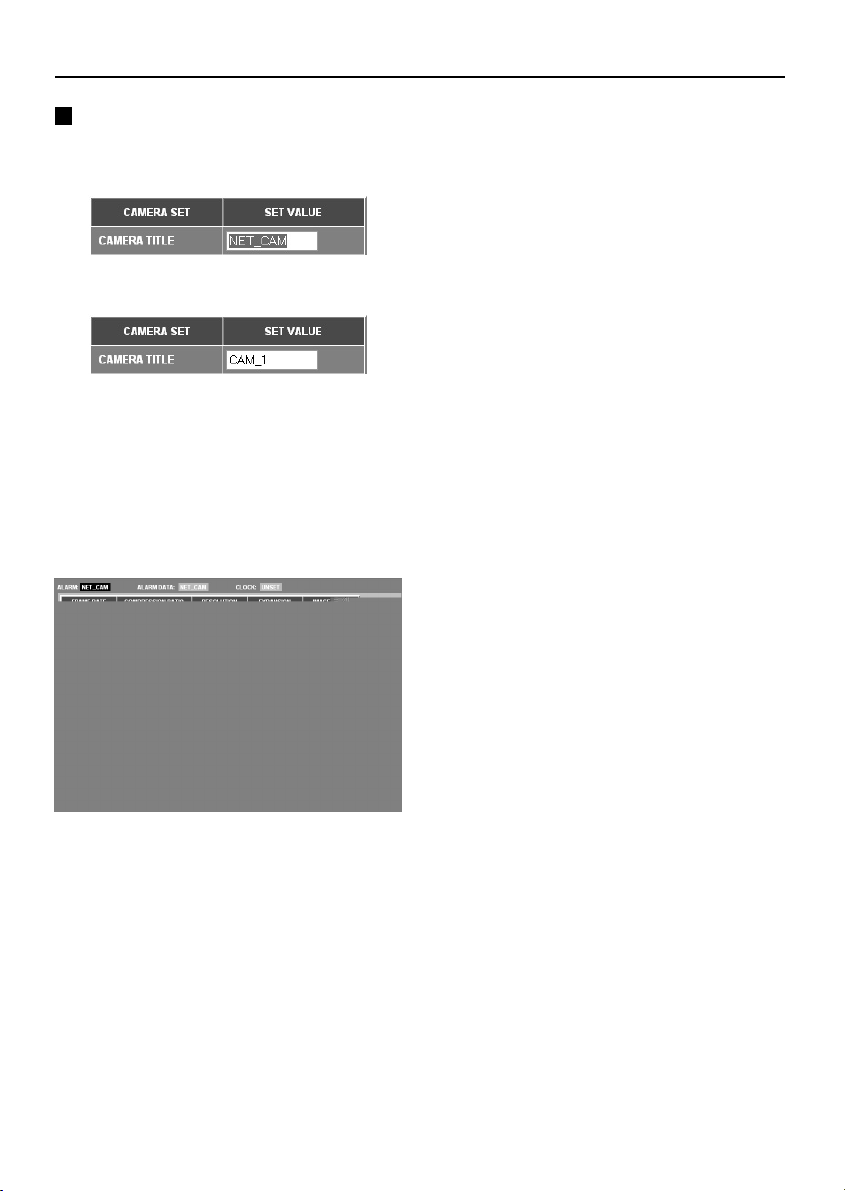

Setting the camera title ......................... 34
English
– 1 –
Information to user
Safety Guard
THIS SYMBOL INDICATES THAT
THERE ARE IMPORTANT
OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING
THIS UNIT.
WARNING:
TO PREVENT THE RISK OF FIRE OR
ELECTRIC SHOCK , DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
For the customers in Canada
This Class B digital apparatus complies with
Canadian ICES-003.
Pour la clientèle canadienne
Cet appareil numerique de la Classe B est
conforme à la norme NMB-003 du Canada.
This installation should be made by a qualified
service person and should conform to all local
codes.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications not expressly
approved by Sanyo may void the user’s
authority to operate this camera.
– 2 –
English
Precautions
In case of problem
Do not use the camera if smoke or a strange
odour comes from the unit, or if it seems not to
function correctly. Disconnect the power cord
immediately, and consult your dealer (or a
Sanyo Authorized Service Centre).
Do not open or modify
Do not open the cabinet, as it may be
dangerous and cause damage to the unit. For
internal settings and repairs, consult your dealer
(or a Sanyo Authorized Service Centre).
Do not put objects inside the unit
Make sure that no metal objects or flammable
substance get inside the camera. If used with a
foreign object inside, it could cause a fire,
short-circuits or damages.
If water or a liquid gets inside the camera,
disconnect the power cord immediately, and
consult your dealer (or a Sanyo Authorized
Service Centre). Be careful to protect the
camera from rain, sea water, etc.
Be careful when handling the unit
To prevent damages, do not drop the camera or
subject it to strong shock or vibration.
Install away from electric or magnetic
fields
If installed close to a TV, radio transmitter,
magnet, electric motor, transformer, audio
speakers the magnetic field they generate will
distort the image.
Protect from humidity and dust
To prevent damages to the camera, do not
install it where there is greasy smoke or steam,
where the dampness may get too high, or where
there is a lot of dust.
Protect from high temperatures
Do not install close to stoves, or other heat
generating devices, such as spotlights, etc., or
where it could be subject to direct sunlight, as
that could cause deformation, discoloration or
other damages.
Be careful when installing close to the ceiling, in
a kitchen or boiler room, as the temperature
may raise to high levels.
Install where the temperature range will stay
between –10°C and 50°C. (no condensation)
Cleaning
Dirt can be removed from the cabinet by
•
wiping it with a soft cloth. To remove stains,
wipe with a soft cloth moistened with a soft
detergent solution and wrung dry, then wipe
dry with dry soft cloth.
Do not use benzine, thinner or other
•
chemical product on the cabinet, as that may
cause deformation and paint peeling. Before
using a chemical cloth, make sure to read all
accompanying instructions. Make sure that
no plastic or rubber material comes in
contact with the cabinet for a long period of
time, as that may cause damage or paint
peeling.
English
– 3 –
Features
Operating
Web Server Function
This camera is equipped with a web server
function. The camera can be accessed using a
computer’s web browser in order to view the
camera images. In addition, up to a maximum of
16 users can simultaneously access a single
camera on the network.
Network Connections
This camera is equipped with both an Ethernet
connector and an RS-232C connector, allowing
it to be connected to a variety of different
network environments, such as LANs and the
Internet.
Wireless LAN Compatibility
The camera can also be used in a wireless LAN
environment by installing the specified wireless
LAN card.
Adoption of JPEG2000
The images captured by the camera are
compressed using the JPEG2000 format before
transmission. In comparison to conventional
JPEG formats, this format produces very little
image deterioration and allows large volumes of
data to be transmitted quickly (maximum 30 fps).
Note: The transmission rate will vary depending
on individual network conditions.
A network environment that can transmit
data at high speeds is required in order to
transmit data at 30 fps.
Alarm Recording and Playback Functions
The built-in motion sensor detects movement,
and the camera can also be connected to an
external alarm sensor that is set to detect
abnormalities, so that images can be recorded
and played back when an alarm occurs.
Accessories
environment
The camera requires the following conditions to
operate.
OS: In this manual, the English versions of
•
the Microsoft
system, the Microsoft
Edition operating system, the Microsoft
Windows® 2000 operating system and the
Microsoft
are all referred to as Windows.
Intel and Pentium are trademarks or
registered trademarks of Intel Corporation or
its subsidiaries in the United States and
other countries.
CPU: Intel
•
or similar with equivalent speed capacity
(2 GHz Pentium
Microsoft and Windows are trademarks, or
registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
Memory: 128 MB or more (256 MB or more
•
recommended)
Drive: CD-ROM drive
•
Network card: 10Base-T / 100Base-TX
•
Protocols: TCP/IP, PPP, FTP, HTTP
•
Browser: Microsoft Internet Explorer 5.5
•
SP2 or later
Computer monitor display size of 1024 x
•
768 pixels or greater
Session disconnect time (3 minutes)
If there is no activity (such as a screen refresh)
for three minutes when a setting screen or other
screen is displayed, the current session is
disconnected and screen operations will not be
possible. In such cases, the language selection
screen will be displayed when mouse or other
operations are attempted.
®
Windows® 98 operating
®
Windows® Millennium
®
Windows® XP operating system
®
Pentium® III 750 Mhz or higher
®
IV recommended)
®
1 Setup CD-ROM . . . . . . . . . . . . . . . . . . . 1 pc.
2 Lens iris plug (4-pin). . . . . . . . . . . . . . . . 1 pc.
3 Clamping core . . . . . . . . . . . . . . . . . . . . 2 pc.
– 4 –
English

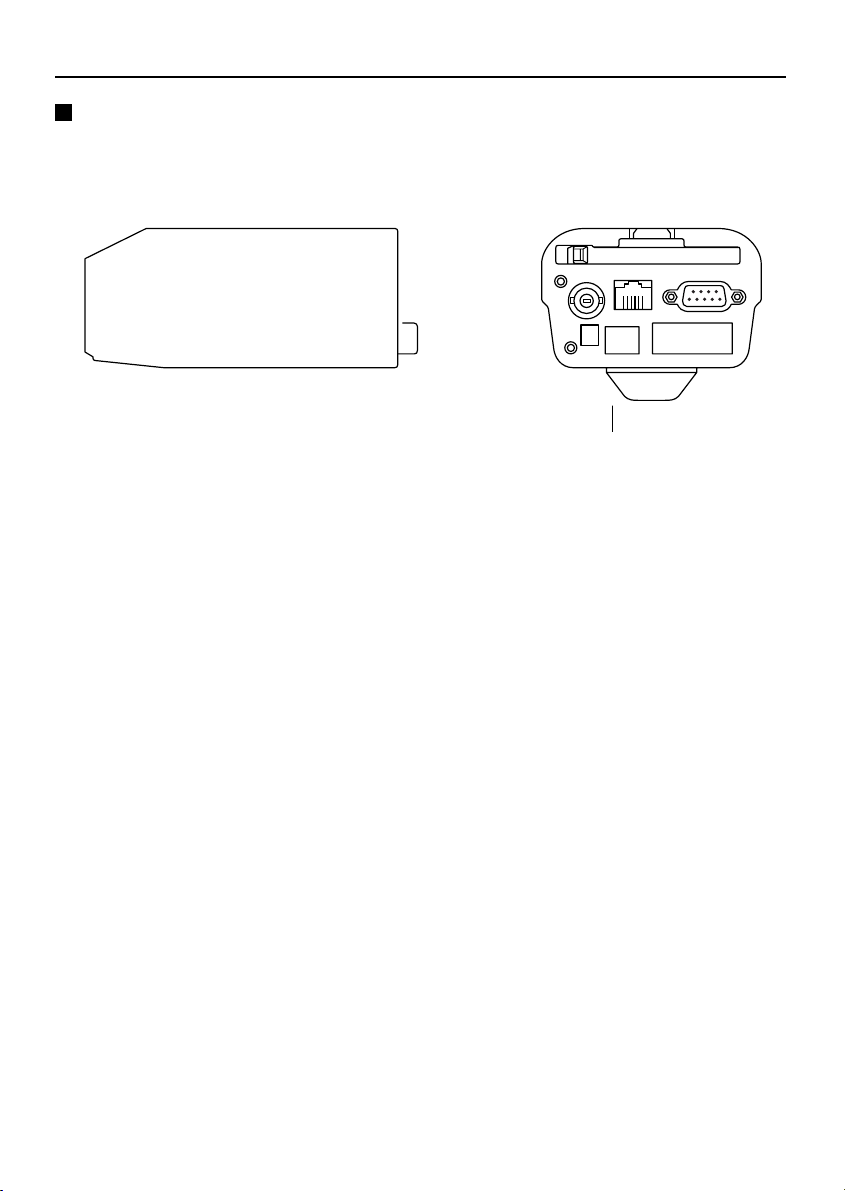

Name and Function of Each Part
4
3
1
3
2
Lens mount cap
1
Attach this cap to protect the lens mounting
section. When using the camera, remove the
cap and attach the automatic iris-type lens
(sold separately).
Camera mounting bracket
2
This bracket can be installed to either the top
or bottom of the camera as desired. When
changing the position of the camera
mounting bracket, you should always reuse
the screws that have been removed.
Note: If using a camera mounting bracket (sold
separately), select a location that is strong
enough to bear the full weight of the
camera and the mounting bracket for long
periods, and install the camera and
mounting bracket securely.
5
PC CARD
MONITOR
ETHERNET
OUT
6
7
3
4
5
POWER
Flange back locking screws (p. 8)
Flange back adjustment dial (p. 8)
PC CARD slot
PC
1 2
MODEM
ALARM IN OUT
COM
Use this slot to insert a memory card or
wireless LAN card.
Note: Make sure that the camera’s power is
turned off before inserting the card.
MONITOR OUT connector
6
When setting up the camera, use this
connector to connect the camera to the
VIDEO IN connector of a monitor for
adjusting the angle of view and focus.
POWER indicator
7
This indicator illuminates when 24 V AC or
12 V DC is being supplied to the power input
terminals of the camera.
AC24V
DC12V
RS-232C
GND
CLASS 2 WIRING
English
– 5 –
Name and Function of Each Part
MONITOR
ETHERNET
8
OUT
COM
PC
POWER
1 2
MODEM
ALARM IN OUT
JF
9
AC24V
DC12V
PC CARD
RS-232C
CLASS 2 WIRING
I
H
G
GND
Link indicator
8
This indicator illuminates when the camera is
connected to a network. It flashes while data
transmission is in progress.
ALARM terminals
9
COM
B
A
ALARM IN OUT
A
ALARM IN terminal
Connect this terminal to an infrared
sensor or similar use in external detection
of intruders.
B
ALARM OUT terminal
Connect this terminal to a buzzer or lamp
that is used to warn when the motion
sensor detects an alarm.
C
Ground terminal (COM)
24 V AC/12 V DC input terminals (AC24V,
F
DC12V, GND)
C
RS-232C connector
G
Use this connector to connect the camera to
a modem for transmission of data along
telephone lines, or for connecting the camera
to a computer.
Use the PC/MODEM select switch to change
the camera operation between modem and
computer operation.
ETHERNET connector
H
Use this connector to connect the camera
directly to a computer or to a network. Use a
10Base-T or 100Base-TX (Category 5, UTP)
cable to make the connection.
Lens iris output connector
I
Connect this connector (4-pin socket) to the
lens iris plug of the automatic iris-type lens
(sold separately).
PC/MODEM select switch
J
Use this switch to set the function of the
RS-232C connector when connecting the
camera directly to either a modem or
computer.
Note:
Make sure that the camera’s power is turned
•
off before setting the function of the
RS-232C connector.
Using the RS-232C connector to connect the
•
camera to a computer is only done for
service purposes. You should not use this
switch yourself.
– 6 –
English
Attaching the Lens
Use a DC-type automatic iris-type lens (sold separately).
1
Remove the lens mount cap.
2
Attach the CS mount-type lens.
Note:
The “L” part of the lens
should be 5 mm or less in
length. If a lens that does not
conform to this standard is
used, it will not be possible to
attach the lens correctly.
Gently screw the lens into the camera.
The following automatic iris-type lenses can
be used.
VCL-CS8LY (standard, f = 8 mm)
•
VCL-CS4LY (wide angle, f = 4 mm)
•
VCL-CS2LY (extra wide angle, f = 2.8 mm)
•
3
Connect the lens iris plug to the lens iris
output connector of the camera.
Lenses from other manufacturers may have
different plug shapes and specifications. In
such cases, you may need to rewire the lens
iris plug.
(–) control coil
1
(+) control coil
2
2
4
L
(Connecting to the lens iris plug)
1
3
(+) drive coil
3
(–) drive coil
4
2
4
1
3
1 Cut off the plug of the lens cable, cut off
approximately 8 mm of the insulation, and
then strip the ends of the cable sheaths
leaving approximately 6 mm of sheath intact.
2 Solder the ends of the cable wires to the
ends of the pins, and then attach the cover of
the lens iris plug.
3
For C mount type
In order to allow correct adjustment of the flange
back, attach the C mount adapter ring (option) to
the lens before attaching the lens to the camera.
2
English
– 7 –
Flange Back Adjustment
The flange back is the distance between the lens (sold separately) and the image capturing surface of
the camera. It is adjusted at the time of shipment from the factory to accommodate the types of lenses
that are generally assumed to be in use.
Accordingly, the flange back does not normally need to be adjusted. However, if attaching a zoom lens
and changing from wide angle to telephoto, the images may not be captured in proper focus, and so in
such cases the flange back should always be adjusted by following the procedure given below.
1
Connect a cable between the MONITOR
OUT connector of the camera and the
VIDEO IN connector of a monitor.
2
Turn on the camera’s power.
Adjust the flange back while viewing the
camera images on the monitor.
3
Use a Phillips screwdriver to loosen the
two flange back locking screws.
4
Move the zoom lens to the telephoto
setting, and then use the lens focus ring
to adjust the focus.
5
Move the zoom lens to the wide angle
setting, and then use the flange back
adjustment dial to adjust the focus.
TV monitor
(sold separately)
3, 6
5
MONITOR
ETHERNET
OUT
COM
PC
POWER
1 2
MODEM
ALARM IN OUT
Power supply
PC CARD
RS-232C
AC24V
GND
DC12V
6
Move the zoom lens from wide angle to
telephoto (repeating steps 4 and 5) and
check that the images are properly
focused. Then tighten the flange back
locking screws.
– 8 –
4
English
Connections
Turn off the power for all equipment before making any connections.
Basic Connections
1
Connect the camera to a computer.
Connect a cable between the ETHERNET connectors of the camera and the computer.
Use a crossed wire-type Ethernet cable.
2
Connect the power supply.
When using this unit, the supplied clamping core A must be installed on the power cord, in order to
prevent electromagnetic interference to the other devices connected.
If using a commercially-available 24 V AC adapter, always be sure to connect the ground wire
•
(18AWG or higher) to the ground terminal. (Figure 1)
If using a 12 V DC power supply, make the connections as shown in Figure 2.
•
Note:
In order to avoid any problems with the camera and the power supply, take sufficient care to
•
ensure that the polarities are correct when connecting the power supply.
When the accessory ferrite cores are attached, they will increase the load on the cable, so after
•
doing the installation, adjust the cable accordingly.
3
Insert the power cord plug into a wall outlet.
The POWER indicator (A) will illuminate.
Computer
English
(A)
Ethernet cable
(crossed wire-type cable)
MONITOR
ETHERNET
OUT
COM
PC
POWER
1 2
MODEM
ALARM IN OUT
24 V AC connection
AC24V
DC12V
Figure 1
– 9 –
AC24V
DC12V
PC CARD
RS-232C
CLASS 2 WIRING
GND
GND
12 V DC connection
Figure 2
AC24V
DC12V
A
GND
Connections
Connecting to a LAN
Use an Ethernet cable to connect the
ETHERNET connector of the camera to the
LAN’s Ethernet switching hub.
Use a straight-type Ethernet cable.
☞
PC CARD
MONITOR
OUT
PC
POWER
1 2
MODEM
ALARM IN OUT
Ethernet cable
(straight type)
Ethernet switching hub
ETHERNET
COM
AC24V
DC12V
RS-232C
CLASS 2 WIRING
GND
LAN
Connecting to the Internet
Use an Ethernet cable to connect the
ETHERNET connector of the camera to a
device such as a router or ADSL modem that is
connected to the Internet.
If connecting to a router, use a straight-type
☞
Ethernet cable. If connecting to an ADSL
modem or to some other type of device, refer
to the documentation provided with the
device for details on what type of connection
method should be used.
Connecting to a Wireless LAN
This camera can be connected to wired LANs
using an Ethernet cable, and it can be
connected to wireless LANS.
To connect the camera to a wireless LAN,
☞
insert a wireless LAN card into the PC CARD
slot of the camera. You should use only the
recommended wireless LAN cards and
access points.
When a wireless LAN card has been
inserted into the camera, the wireless LAN
basically has priority, but if you change the
network address to a different setting, you
can also use the camera with a wired LAN at
the same time, so that if a connection cannot
be made to the wireless LAN, you can check
the settings using the wired LAN instead.
(A) Inserting the wireless LAN card
Insert the wireless LAN card while checking that
the direction is correct, and then press the eject
button to lock it in.
(B) Removing the wireless LAN card
Press the eject button to eject the wireless LAN
card.
(A)
Access point
MONITOR
OUT
PC
POWER
1 2
MODEM
ALARM IN OUT
Ethernet cable
(straight type)
Router or ADSL modem
ETHERNET
COM
AC24V
DC12V
PC CARD
RS-232C
CLASS 2 WIRING
PC CARD
MONITOR
OUT
GND
Internet
POWER
PC
1 2
MODEM
ALARM IN OUT
ETHERNET
COM
AC24V
DC12V
CLASS 2 WIRING
RS-232C
GND
LAN
(B)
Note:
Consult the place of purchase for the camera
•
for details on obtaining a recommended
wireless LAN card.
The ambient temperatures should be less
•
than 40° when the camera is being used with
the wireless LAN card inserted.
– 10 –
English
Connections
PPP (Dial-up) Connections
If connecting the camera using PPP, you will
need to install the Network Archiving software
(sold separately). In addition, the data that is
transmitted via PPP connections consists of
alarm images and alarm information. In addition
to the connection method shown below, you can
also connect the camera to an ISDN terminal
adapter and use the Network Archiving
software. Refer to the documentation provided
with the Network Archiving software for further
details.
Use a serial cable to connect the RS-232C
☞
connector of the camera to a modem. Set pin
1 of the PC/MODEM select switch to the
“MODEM” setting. You do not need to
change the setting for pin 2.
Note: When using modem connections, you
cannot access the camera using a
computer’s web browser. You should
normally connect the camera to a wired
LAN or wireless LAN.
PC CARD
RS-232C
CLASS 2 WIRING
Network Camera Settings
In order to use the camera as a network camera, you must make the following settings in the order
given.
When making network connection settings, the network settings must always be made first.
1
Installation of Plug-in Software (p. 13)
Use the accessory setup CD-ROM to set u the computer.
2
Computer and Camera Settings (p. 16)
Connect the computer and the camera directly, and access the camera using the computer’s web
browser.
3
Network Connection Settings (p. 17)
More than one camera can be connected to the same network, but before the cameras can be
connected, you need to make various settings for each camera such as assigning IP addresses.
The following three types of network connections can be made. Set the cameras in accordance
with the purpose of use.
A
NETWORK settings (p. 18)
These settings are for when the camera is being connected to a LAN. This is the normal type
of connection to use for this camera.
B
WIRELESS LAN settings (p. 20)
These settings are used when connecting the camera to an access point for a wireless LAN.
C
PPP (dial-up) SET settings (p. 22)
These settings are used when using a modem to connect the camera to the Internet.
Note: If using a modem to make a dial-up connection, you will need to use the Network Archiving
software that is sold separately.
– 12 –
English
Network Camera Settings
1 Installation of Plug-in Software
Install the plug-in software (on the setup CD-ROM) onto the computer that is to be used. Installing the
plug-in software makes it possible to view live images from network cameras using the computer’s web
browser.
1
Turn on the power for the computer.
After Windows has loaded, continue to the
next step.
2
Insert the setup CD-ROM into the
CD-ROM drive of the computer.
3
Click Start and then click Run.
4
Type D:\Setup.exe.
Type the drive letter for the CD-ROM drive of
the computer in place of “D”.
6
Click the [Next] button.
7
Read the license agreement, and select
Agree if you agree to the terms of the
license. Then click the [Next] button.
5
Click the [OK] button.
After a short wait, the installation window will
appear.
Note: Simply answer the prompts that
appear on the screen in order to
continue installing the software. The
installation program has been set up
beforehand to install the software
correctly.
English
– 13 –
Network Camera Settings
8
Type in your username and organization
name, and then click the [Next] button.
9
Click the [Install] button.
Installation of the software will start and the
window display will change to show the
installation progress.
10
Click the [Finish] button.
This completes the installation of the
plug-in software.
(Uninstalling the plug-in software)
To uninstall the plug-in software, select
“Add/Remove Programs” from the Windows
Control Panel, and delete “J2KCORE”.
– 14 –
English
Network Camera Settings
Browser Settings
Check that the Security settings for Microsoft
Internet Explorer are set as described below.
Select Internet Options from the Tools menu,
click the Security tab and then click the Custom
Level button to display the settings.
1
Set “ Run ActiveX controls and plug-ins”
to “ Enable” in the “ ActiveX controls and
plug-ins” section.
Cookie Settings
The camera uses cookies.
If using Internet Explorer Version 6.0 as the web
browser, select Internet Options from the Tools
menu, click the Privacy tab and then move the
slide bar to the “Medium” position.
Note: If using Internet Explorer Version 5.5
SP2, click the Security tab.
2
Set “ Active scripting” to “ Enable” in the
“ Scripting” section.
English
– 15 –
Loading...
