Replacement Parts Sheet
MCK-1031
March 2010
Types 64 and 64SR
Types 64 and 64SR Replacement Parts List
12
13
11
4
2
9
14
16
8
5
6
10A6397
10

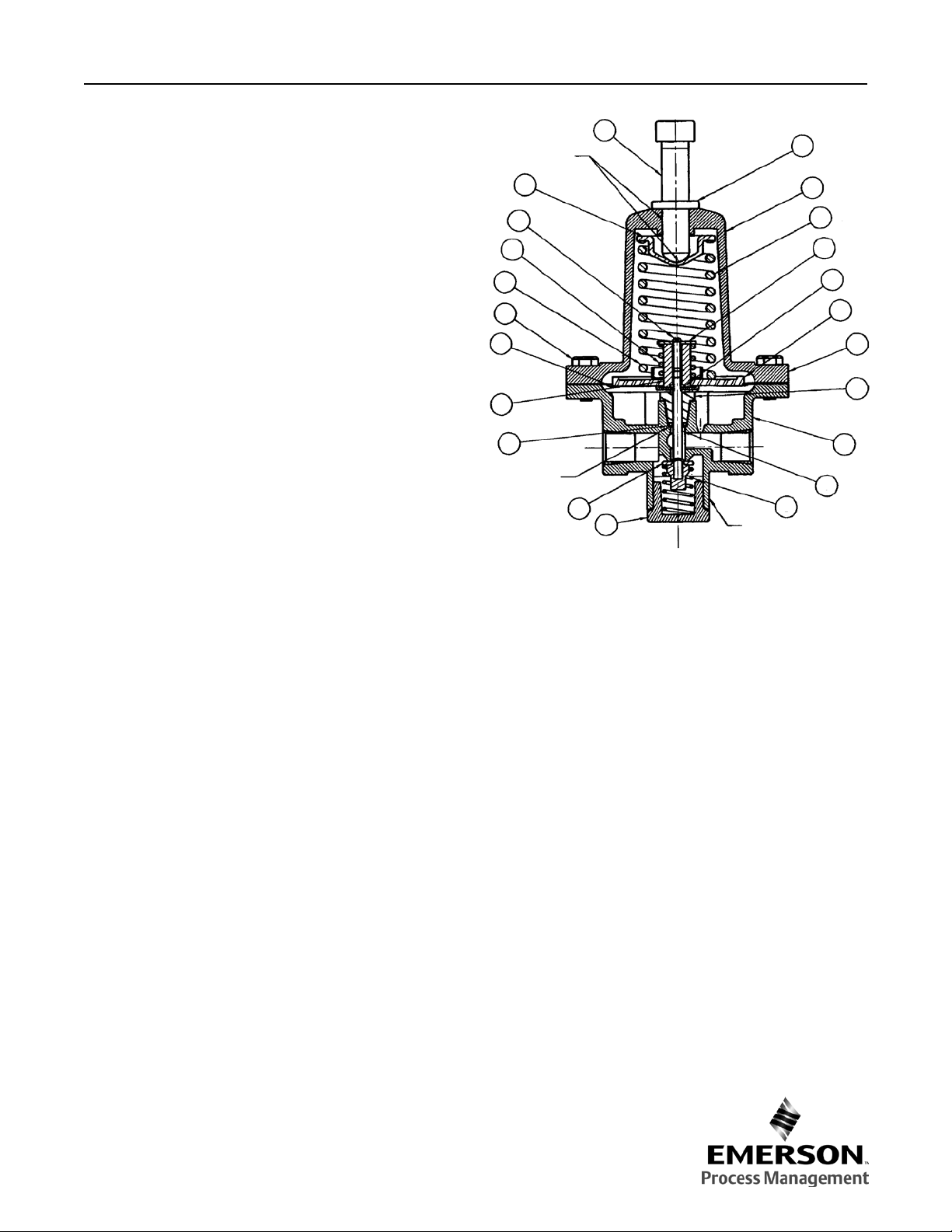

Figure 1. Type 64 LP-Gas Regulator Assembly
Parts List
Key Description Part Number
Replacement Parts Kit (includes
keys: 3 - valve spring, 5 - O-ring, 6 - disc holder
assembly, 7 - valve stem, 8 - stem guide,
9 - diaphragm assembly, and 16 - vent screen) R64X0000012
1 Body T1063708012
2 Spring Case 2P901508012
3 Valve Spring 1D666827222
4 Regulator Spring
3 to 15 psig (0,21 to 1,03 bar), red 1D892327022
3 to 20 psig (0,21 to 1,4 bar), silver 1D751527022
5 to 35 psig (0,34 to 2,4 bar), blue 1D665927022
30 to 60 psig (2,1 to 4,1 bar), green 1D745527142
35 to 100 psig (2,4 to 6,9 bar), yellow 1E543627142
1
7
3
Key Description Part Number
(1)
5
O-ring 1D6825T0012
(1)
6
Disc Holder Assembly 1D6656000A2
7 Valve Stem 1D963835172
8 Stem Guide 1D666914092
(1)
9
Diaphragm Assembly (includes: diaphragm,
diaphragm head, pusher post, and lower
spring guide) 1D6662000A2
10 Body Plug 1D665209012
11 Upper Spring Seat 1D667125072
12 Adjusting Screw 1D995448702
13 Lock Nut 1D667728982
14 Screw (8 required) 1A391724052
16 Vent Screen 0L078343062
25 Pipe Plug 1C333528992
1. Recommended spare part.
D450150T012
www.FISHERregulators.com/lp
Types 64 and 64SR
Replacement Parts Sheet
MCK-1031
March 2010
Parts List
Key Description Part Number
Replacement Parts Kit (includes
keys: 5 - O-ring, 6 - disc holder assembly,
29 - O-ring, and 34 - diaphragm) R64SRT00012
1 Body T1063708012
2 Spring Case 2P901508012
3 Valve Spring 1D666827222
4 Regulator Spring
3 to 15 psig (0,21 to 1,03 bar), red 1D892327022
3 to 20 psig (0,21 to 1,4 bar), silver 1D751527022
5 to 35 psig (0,34 to 2,4 bar), blue 1D665927022
(1)
5
O-ring 1D6825T0012
(1)
6
Disc Holder Assembly 1D6656000A2
7 Valve Stem T1047135172
8 Stem Guide T1046714092
10 Body Plug 1D665209012
11 Upper Spring Seat 1D667125072
12 Adjusting Screw 1D995448702
13 Lock Nut 1D667728982
14 Screw (8 required) 1A391724052
16 Vent Screen (not shown) 0L078343062
28 Spring Seat T10474X0012
(1)
29
O-ring 1H2926X0052
30 Relief Valve Seat T10473X0012
31 Screw 1A782228982
32 Spring T10468X0012
33 Lower Spring Guide T10472X0012
(1)
34
Diaphragm T1047002052
35 Diaphragm Head T10469X0012
36 Spacer T10475X0012
12
SEALANT
11
31
32
33
14
34
36
5
LUBRICANT
6
T10477
10
NOTE: VENT TO BE LOCATED ON
LEFT SIDE AS VIEW FROM INLET.
Figure 2. Type 64SR LP-Gas Regulator Assembly
13
2
4
28
29
35
30
8
1
7
3
SEALANT
1. Recommended spare part.
