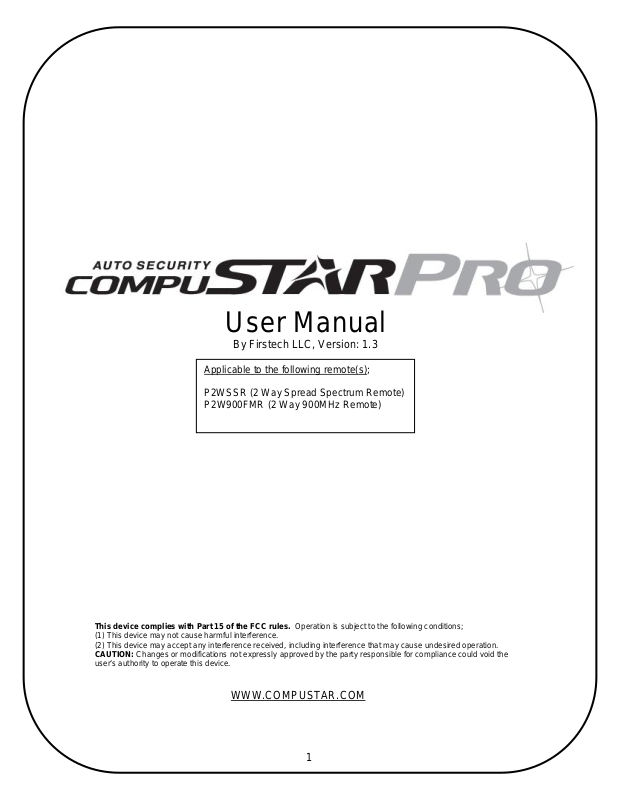

Firstech, LLC. P2W900FMR User Manual
User Manual
By Firstech LLC, Version: 1.3
Applicable to the following remote(s);
P2WSSR (2 Way Spread Spectrum Remote)
P2W900FMR (2 Way 900MHz Remote)
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions;
(1) This device may not cause harmful interference.
(2) This device may accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this device.
WWW.COMPUSTAR.COM
1
Introduction ............................................................................................................................................... 3
Kit(s) Contents .......................................................................................................................................... 3
Warranty Coverage ................................................................................................................................... 3
Remote Reference .................................................................................................................................... 4
Quick Reference ........................................................................................................................................ 5
Valet Mode .............................................................................................................................................. 5
Remote Maintenance – Battery Replacement ......................................................................................... 5
Programming the Clock (LCD Remotes Only) ......................................................................................... 5
2 Way Remote Button Functions ............................................................................................................. 6
1 Way Remote Button Functions ............................................................................................................. 7
Remote LCD (liquid crystal display) Diagram and Icons ...................................................................... 8
General System Functions ..................................................................................................................... 10
Active Lock/Arm and Unlock/Disarm ..................................................................................................... 11
Passive Lock/Arm .................................................................................................................................. 11
Automatic Transmission Remote-Start Function ................................................................................... 11
Manual Transmission Remote-Start Function (Reservation Mode) ....................................................... 11
Trunk Release ....................................................................................................................................... 12
Auxiliary Outputs/Window Roll-Down/Sliding Doors .............................................................................. 12
Temperature and Battery Query ............................................................................................................ 13
Silent Arm/Disarm ................................................................................................................................. 13
Remote Mute/Vibration Mode ................................................................................................................ 13
Shock Sensor On/Off ............................................................................................................................ 13
Advanced System Functions ................................................................................................................. 14
Drive Lock/Ignition Controlled Door Locks ............................................................................................ 14
Turbo Timer Mode ................................................................................................................................. 14
2nd Car Mode (Multiple Vehicle Control) ................................................................................................ 14
Remote Alarm Clock ............................................................................................................................. 14
Car Call/RPS (Remote Paging Sensor)................................................................................................. 15
RPS (Remote Paging Sensor) Unlock/Disarm ...................................................................................... 15
Secure Valet Switch .............................................................................................................................. 16
Timer Start Mode ................................................................................................................................... 16
Auto Mode ............................................................................................................................................. 16
Anti Jacking Mode ................................................................................................................................. 17
Remote Coding / Programming Routine(s) .......................................................................................... 18
Programming P2W9000R ..................................................................................................................... 18
Programming P2WSSR ......................................................................................................................... 18
Remote Start Error Diagnostic .............................................................................................................. 19
Alarm Diagnostic .................................................................................................................................... 19
Limited Lifetime Warranty ...................................................................................................................... 20
Notes: ....................................................................................................................................................... 21
2
Introduction
Thank you for purchasing a CompuStar Pro system for your vehicle. In order to truly enjoy the benefits
of this system, we recommend that you fully review the following manual. Please note that this manual
applies to the PRO 2WSSR and 2W9000FMR systems, regardless of whether you purchased the alarm
only, starter only or alarm/starter combination. There are certain features listed in this manual that may
not be available for your system. There may also be features listed in this manual that require additional
installation or programming before they can become active. If you have any questions, please contact
the original place of purchase. For further information you may also contact our customer support center
by calling 888-820-3690.
Kit(s) Contents
*Only available in Canada
Warranty Coverage
Caution:
authorized CompuStar Pro dealer. For complete warranty details visit www.compustar.com
page of this manual.
Warranty registration can be completed online by visiting www.compustar.com
registration form within 10 days of purchase. We no longer include a mail-in warranty registration card
with each unit – registration must be done online. To verify that an authorized dealer installed your
system, we highly recommend that you keep a copy of the original proof of purchase, such as the dealer
invoice in a safe place.
The Manufactures warranty will be voided if this product is installed by anyone other than an
or the last
. Please complete the
3
Remote Reference
P1WSSR (1-Way Spread Spectrum)
Optional (not included w/unit)
P1W900FMR (1-Way 900MHz)
P2WSSR (2-Way Spread Spectrum)
Applicable to the following models;
- P2WSS-AS (alarm and remote start)
- P2WSS-A (alarm w/out remote start)
- P2WSS-S (remote start w/out alarm)
P2W9000R (2-Way 900MHz)
Applicable to the following models;
- P2W9000-AS (alarm and remote start)
- P2W9000-A (alarm w/out remote start)
- P2W9000-S (remote start w/out alarm)
4
Quick Reference
Valet Mode
When servicing or loaning your vehicle to others, the CompuStar Pro system should be in Valet mode.
Valet mode prevents the system from remote starting and disables all alarm functions.
IMPORTANT: While in Valet mode the CompuStar will still lock and unlock power lock systems.
The system can be put into valet one of two ways;
1. Turn the vehicles key to the ignition “on” position and tap buttons (I + III) simultaneously for
0.5 seconds. The parking lights will flash once and the LCD will display Z’s above the vehicle
image to confirm the system is in valet mode. Repeat this process to take the system out of
valet mode. The parking lights will flash twice and Z’s will disappear to confirm the system is out of valet
mode.
2. If you don’t have your remote control, you can put the system into valet by turning the ignition key “on”
and then “off” five times within 10 seconds. The parking lights will flash once to confirm the system is in
valet mode. Shortly after the first flash, the parking lights will flash twice. A remote control is required to
take the system out of valet mode. IMPORTANT: If your system is set up for a secure valet option, you
will not be able to put the system into valet until the proper code has been entered to the secure valet
switch (see page 13 for details).
Remote Maintenance – Battery Replacement
The only regular maintenance this system requires is remote control battery replacement.
No programming is required when replacing the battery.
Two-Way Remotes: Models P2WSSR, P2W9000FMR
First, release the battery cover lock located on the back of the remote. Once the lock is released, gently
slide the battery cover off to expose the battery. The P2WSSR requires one AA battery and the
P2W9000FMR requires one AAA battery. IMPORTANT: Be sure to observe correct polarity when
installing the battery.
One-Way Remotes: P1WSSR, 1W900FMR
First, remove the small Phillips screw located on the back of the remote. Once the screw has been
removed, gently pull the remote apart being careful to not touch the circuit board. The P1WSSR and
1W900FMR require two 2025 batteries. These specialty batteries can be purchased from your local
CompuStar dealer or an electronics store.
Programming the Clock (LCD Remotes Only)
STEP 1: Enter remote programming mode by holding down buttons (II + III) for 2.5 seconds. The remote
will beep once and the LCD will read “Prog” to indicate that you have successfully entered programming
mode.
STEP 2: Three seconds after entering programming mode the time icon will flash
indicating to set the time. Adjust the time settings by tapping button (I) to change the hour
and tapping button (II) to adjust the minutes.
STEP 3: Once the desired time has been set, exit remote programming by holding down buttons (II + III)
for 2.5 seconds. The remote will beep three times indicating that you have successfully exited
programming mode.
5
2 Way Remote Button Functions
Button Duration
0.5
seconds
I
2.5
seconds
0.5
seconds
II
2.5
seconds
0.5
seconds
III
IV
2.5
seconds
double
tap
0.5
seconds
2.5
seconds
Additional
Programming
Required
no Lock/Arm and Unlock/Disarm.
Option 2-11 Run time extender. Resets remote start and turbo run-time while vehicle is remote started.
no Aux 1. Triggers the auxiliary 1 output (most commonly used for rear defrost or window roll-down).
no Activates the remote start. Repeat and remote start will shut off.
no Aux 2. Triggers the auxiliary 2 output (most commonly used for rear defrost or window roll-down).
no Trunk pop. Triggers the trunk release output and opens the vehicles trunk.
no Turns on the CompuGLO backlight (LCD remotes only).
no
no Locks out button functions to prevent accidental button presses.
Function / Description
Car Check (updates vehicle status on remote pager) / Secure Auxiliary / Temperature Display / Vehicle
Voltage Display / Remote Voltage Display
I + II
I + III
I + IV
II + III
II + IV
4 seconds no Panic/vehicle locater (flashes vehicles parking lights and sounds siren and horn).
0.5
seconds
2.5
seconds
0.5
seconds
2.5
seconds
0.5
seconds
2.5
seconds
0.5
seconds
2.5
seconds
0.5
seconds
2.5
seconds
no Turns siren on/off (Note: With the siren off, it will still sound in the event the alarm is triggered).
no Option programming menu 1. For use during installation.
no Valet mode (see page 5 for details)
no Turns the shock sensor on/off.
Option 1-9 Drive lock. Activates ignition controlled door locks.
no Option programming menu 2. For use during installation.
no Activates passive arming (vehicle will arm/lock 30 seconds after the vehicle is disarmed)
no
Option 2-6
no Initiates parking timer - similar to a stop watch function.
Accesses remote option programming (clock, alarm clock, vibrate mode, mute and programmed remote
start timing)
Activates timer start mode. Timer start mode has multiple programmable settings: duration settings,
temperature settings and self start settings.
III + IV
0.5
seconds
2.5
seconds
Option 2-2
no
Activates the built-in Turbo timer function. Additional installation is required when using this feature on
automatic transmission vehicles.
Puts the remote in 2nd car mode. 2nd Car mode allows one remote to control two vehicles. Note: The
remote must be programmed to the 2nd Car in order for this feature to be active.
6
1 Way Remote Button Functions
Button Duration
Additional
Programming
Required
Function / Description
0.5 seconds no
3.5 seconds no
0.5 seconds no
0.5 seconds no
2.5 seconds no
0.5 seconds no
2.5 seconds no
0.5 seconds no
2.5 seconds no
0.5 seconds no
2.5 seconds no
Lock/Arm
Panic/vehicle locater (flashes vehicles parking lights and sounds siren and horn).
Unlock/Disarm
Aux 1. Triggers the auxiliary 1 output (most commonly used for rear defrost or window
roll-down).
Trunk pop. Triggers the trunk release output and opens the vehicles trunk.
Aux 2. Triggers the auxiliary 2 output (most commonly used for rear defrost or window
roll-down).
Activates the remote start. Repeat and remote start will shut off.
Turns siren on/off (Note: With the siren off, it will still sound in the event the alarm is
triggered).
Option programming menu 1 - Installers Only.
Valet mode (see page 5 for details)
Turns the shock sensor on/off.
0.5 seconds Option 1-9
2.5 seconds no
0.5 seconds no
0.5 seconds Option 2-6
0.5 seconds Option 2-2
2.5 seconds no
Drive lock. Activates ignition controlled door locks.
Option programming menu 2 - Installers Only.
Activates passive arming (vehicle will arm/lock 30 seconds after the vehicle is disarmed)
Activates timer start mode. Timer start mode has multiple programmable settings:
duration settings, temperature settings and self start settings.
Activates the built-in Turbo timer function. Additional installation is required when using
this feature on automatic transmission vehicles.
Car Check (updates vehicle status on remote pager) / Secure Auxiliary
If you would like additional information on the functionality of your 1-way companion remote, please visit
the support page at www.compustar.com
to download the full user manual.
