Firstech, LLC. FT-DC2-S Product Manual

REVISION DATE

20161025

DOCUMENT NUMBER

NOTICE

The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device. This device must be installed by a certiﬁed technician. Please review the Installation Guide carefully before beginning any work.

U.S. Patent No. 8,856,780

PRODUCT GUIDE

FT-DC2-S

U.S. Patent No. 8,856,780

GETTING STARTED

WELCOME

NEED HELP?

Congratulations on the purchase of your FT-DC2 solution. You are now a few simple steps away from enjoying your new remote starter unit with enhanced features.

Before starting your installation, please ensure that your FT-DC2 module is programmed with the correct ﬁ rmware for your vehicle and that you carefully review the install guide.

1 866 427-2999

support@idatalink.com

idatalink.com/support www.12voltdata.com/forum www.facebook.com/groups/idatatech

TABLE OF CONTENTS

Box Contents

3

Tach Programming Procedure

4

Remote Programming Procedure

5

Valet Mode Programming Procedure

6

Compatible Accessories

7

Online Module Settings

9

Module Diagnostics

10

Remote Starter Error Codes

11

Module Reset Procedure

12

PAGE 2 OF 12

• 20161025

U.S. Patent No. 8,856,780

AUTOMATIC

TRANSMISSION

CUT LOOP

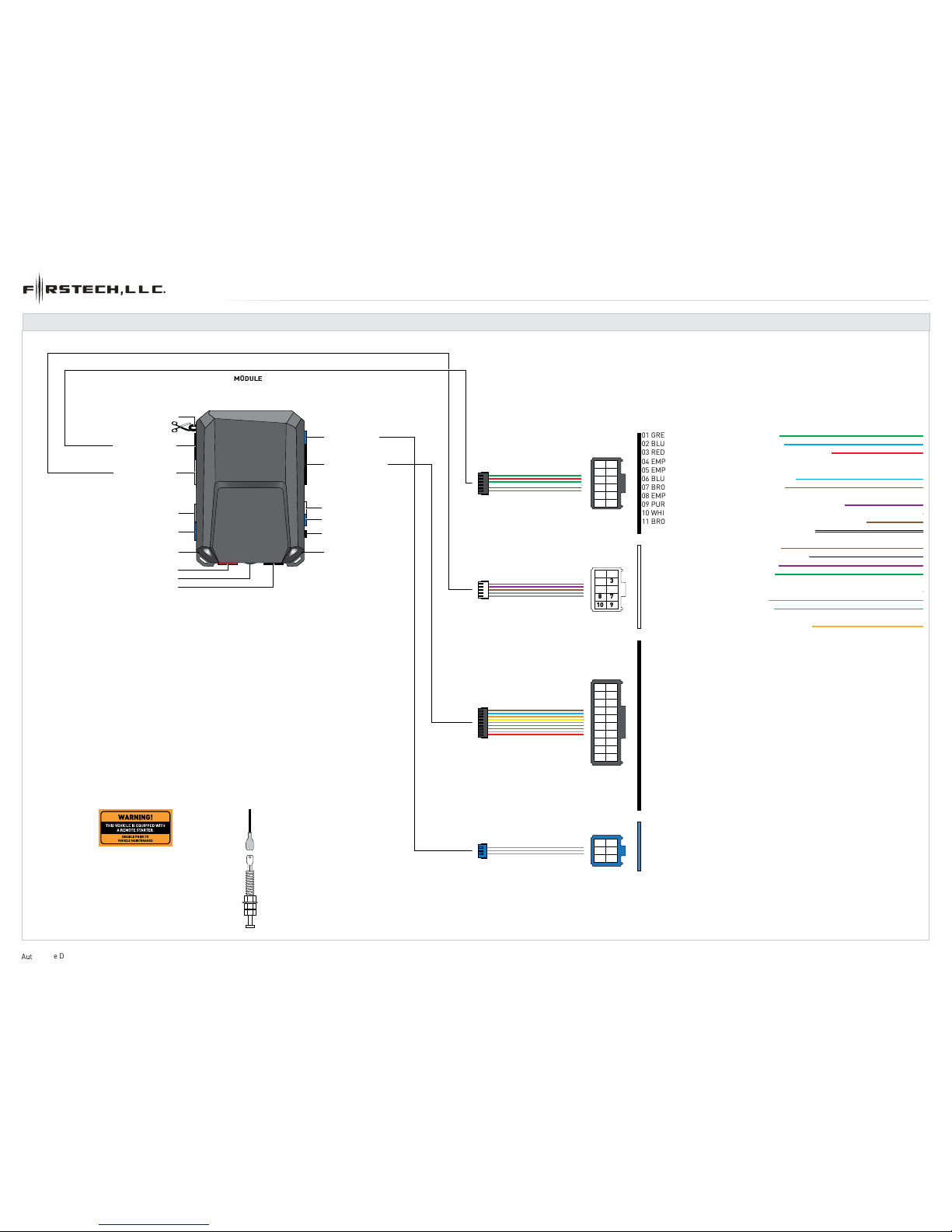

BOX CONTENTS

FT-DAS - 4 PIN RED

RF PORT - 4 PIN BLUE

DRONE - 4 PIN GRAY

2 PIN WHITE - LED

PROGRAMMING BUTTON

2 PIN BLUE - THERMISTOR

LED 1

LED 2

FT-DAS SENSITIVTY ADJUSTMENT DIAL

WEBLINK PORT - 4 PIN BLACK

HOOD SWITCHSTICKERS



7 9

3

10

8

6

4

1

2

5

7 9

3

10

8

11

12

6

4

1

2

5

7 9

3

10

8

11 13

14

12

15 17

18

19

20

16

6

4

1

2

5

4

5

3

2

1

6

M5

M4

01 GREEN•BLACK DOT - LOCK (-) OUTPUT

01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT 03 RED/WHITE•BLACK DOT - TRUNK RELEASE (-) OUTPUT

03 RED/WHITE•BLACK DOT - TRUNK RELEASE (-) OUTPUT 04 EMPTY04 EMPTY 05 EMPTY05 EMPTY 06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT

06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT 07 BROWN•BLACK DOT - SIREN (+) OUTPUT07 BROWN•BLACK DOT - SIREN (+) OUTPUT 08 EMPTY

08 EMPTY 09 PURPLE/BLACK•BLACK DOT - RAP SHUTDOWN (-) OUTPUT09 PURPLE/BLACK•BLACK DOT - RAP SHUTDOWN (-) OUTPUT 10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT 11 BROWN/BLACK•BLACK DOT - GROUND WHEN ARMED (-) OUTPUT

11 BROWN/BLACK•BLACK DOT - GROUND WHEN ARMED (-) OUTPUT 12 WHITE•BLACK DOT - PARKING LIGHTS (-) OUTPUT

01 BROWN•SILVER DOT - BRAKE (+) INPUT 02 BLACK/WHITE•SILVER DOT - E-BRAKE (-) INPUT 03 PURPLE•SILVER DOT - DOOR (+) INPUT 04 GREEN•SILVER DOT - DOOR (-) INPUT 05 EMPTY 06 WHITE/BLUE•SILVER DOT - X-TRIGGER (-) INPUT 07 GRAY•SILVER DOT - HOOD (-) INPUT 08 BLUE•SILVER DOT - TRUNK (-) INPUT 09 EMPTY 10 TAN•SILVER DOT - EXT ALARM SENSOR (-) INPUT

FUNCTIONS DEFINED BY FIRMWARE

M3

M2

M3 - 10 PIN WHITE

M2 - 12 PIN BLACK

M5 - 6 PIN BLUE

M4 - 20 PIN BLACK

2X

BOX CONTENTS - 1 OF 1

www.idatalink.com

A

PAGE 3 OF 12

• 20161025

U.S. Patent No. 8,856,780

01

ENGINE START

STOP

OFF ACC ON STARTSTART

START

02

03

04

05

06



CH PROGRAMMING PROCEDURE - 1 OF 1

S

ART vehicle for 15 seconds.

Press and hold the brake pedal.

Press and release the module’s programming button. (OR if the remotes are already programmed to the vehicle, press and hold the start button of the remote for 2.5 seconds.)

Wait, LED 2 will ﬂ ash GREEN. (See the Module Diagnostics page)

Release the brake pedal.

Module Programming Procedure completed.

PAGE 4 OF 12

• 20161025

U.S. Patent No. 8,856,780

>>

01

02

ENGINE START

STOP

OFF ACC ON START

ON

03

04

05

06

>>

07

08

ENGINE START

STOP

OFF ACC ON STARTOFF

09

AFTERMARKET REMOTE PROGRAMMING PROCEDURE - 1 OF 1

W 

ogram aftermarket remotes before usage. A maximum of four [4x] aftermarket remotes per system.

Time restriction. Complete next step within 7 seconds.

Cycle ignition ON ﬁ ve times [5x OFF/ON] rapidly.

Parking Light will ﬂ ash once [1x].

Time restriction. Complete next step within 5 seconds from previous step.

Press once [1x] on LOCK button of aftermarket remote.

Parking Light will ﬂ ash once [1x].

To program additional remotes: repeat steps 4 to 6 using each additional remote.

Wait, Parking Light will ﬂ ash twice [2x].

Turn ignition to OFF position.

Aftermarket Remote Programming Procedure completed.

PAGE 5 OF 12

• 20161025

U.S. Patent No. 8,856,780

>>

01

02

ENGINE START

STOP

OFF ACC ON START

ON

03

04

05

ENGINE

START STOP

OFF ACC ON STARTOFF

06

>>

VALET MODE PROGRAMMING PROCEDURE - 1 OF 1

N

TE: In Valet Mode, the Remote starter is not functional. Keyless entry, Lock and Unlock will remain functional. See RF kit user manual for alternate valet mode programming.

Time restriction. Complete next step within 7 seconds.

Cycle ignition ON twice [2x OFF/ON] rapidly.

Press and release the BRAKE pedal three times [3x].

Parking Light will ﬂ ash once [1x] then will ﬂ ash twice [2x].

Set ignition to OFF position.

Valet Mode Programming Procedure completed.

To exit valet mode: repeat steps 1 to 5.

PAGE 6 OF 12

• 20161025

U.S. Patent No. 8,856,780

PAGE 7 OF 12

• 20161025



TIBLE ACCESSORIES - 1 OF 2

MODULE

TELEMATIC PORT

DRONE

(NC)

TELEMATIC KIT (accessory sold separately)

10 11 12 13 14 15 16

1 2 3 4 5 6 7 8

9

WEBLINK MOBILE (accessory sold separately)

MOBILE DEVICE PORT

OBDII CONNECTOR

4 PIN BLACK CABLE

MODULE

WEBLINK PORT

OBDII CONNECTOR

WEBLINK CABLE (required accessory sold separately)

WEBLINK CABLE

COMPUTER

USB PORT

4 PIN BLACK CABLE

MODULE

WEBLINK PORT

U.S. Patent No. 8,856,780

PAGE 8 OF 12

• 20161025



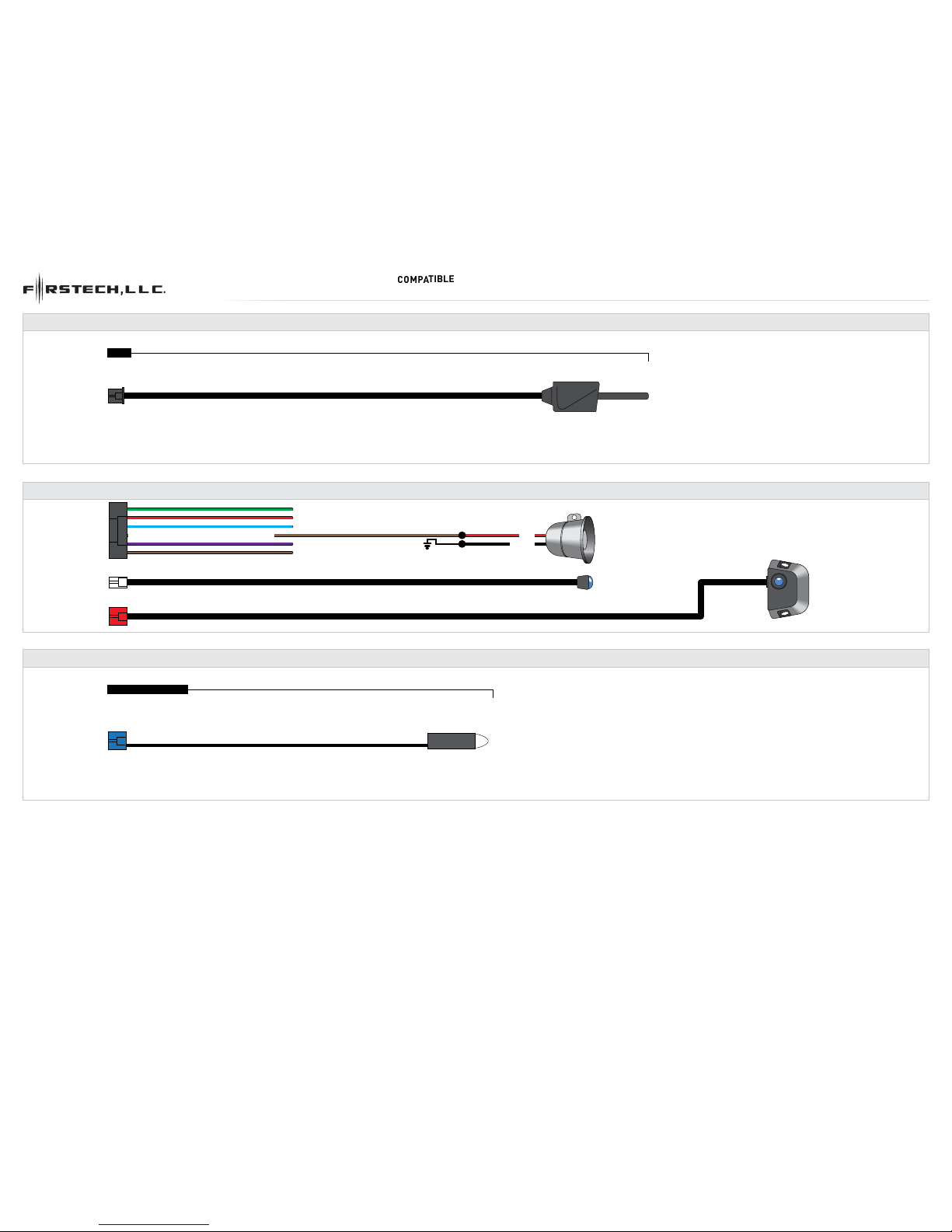

TIBLE ACCESSORIES - 2 OF 2

RF KIT

RF KIT (accessories sold separately)

ANTENNA

MODULE

RF PORT

TEMPERATURE SENSOR

TEMPERATURE SENSOR (accessories sold separately)

MODULE

2 PIN BLUE

07 BROWN•BLACK DOT - SIREN (+) OUTPUT RED

BLACK

SIREN

ALARM LED

FT-DAS

MODULE

12 PIN BLACK

MODULE

2 PIN WHITE

MODULE

4 PIN RED

ALARM KIT (accessories sold separately)

U.S. Patent No. 8,856,780

ONLINE MODULE SETTINGS - 1 OF 1

WEB PROGRAMMABLE MENUS DESCRIPTION

MENU 1 – Remote Starter RS related conﬁ guration options MENU 2 – Doorlock Options Convenience feature conﬁ guration options MENU 3 – Security Options Alarm activation and settings MENU 4 – AUX function assignments Set transmitter AUX buttons controls MENU 5 – Programmable outputs (POC) Set actions for programmable outputs MENU 6 – Pulse Timer Output Conﬁ guration (PTO) Set duration for pulse timer outputs (if used) MENU 7 – Input Conﬁ gurations Set inputs for Auto by ﬁ rmware/Data/Analog MENU 8 – Output Conﬁ gurations Set outputs for Auto by ﬁ rmware/Data/Analog

Programming options are avaible through Weblink and Weblink Mobile only.

PAGE 9 OF 12

• 20161025

U.S. Patent No. 8,856,780

MODULE DIAGNOSTICS - 1 OF 1

TEST MODULE

LED 1 STATUS

DIAGNOSTIC

I DURING MODULE PROGRAMMING

Flashing RED Missing/wrong information from ﬁ rmware or vehicle. Solid RED Module waiting for more vehicle information. Flashing GREEN Additional steps required to complete module programming. Solid GREEN then OFF Module correctly programmed. OFF No activity or module already programmed.

II DURING TACH PROGRAMMING

1 GREEN ﬂ ash Tach signal programmed in Analog 2 GREEN ﬂ ashes Tach signal programmed in Data 3 RED ﬂ ashes No tach signal detected 4 RED ﬂ ashes System is in valet mode 5 RED ﬂ ashes Tach set for ‘VTS’. No tach programming required 6 RED ﬂ ashes Tach set for ‘assumed start’. No tach programming required

III DURING REMOTE START

Flashing RED Module incorrectly programmed. Solid RED Module incorrectly programmed. Flashing GREEN Module correctly programmed and operational. Solid GREEN then OFF Reset in progress. OFF Invalid ground when running status from remote starter.

IV WITH IGNITION OFF

Flashing RED Module incorrectly programmed or connected. Solid RED Module not programmed. Waiting for more vehicle information. Flashing GREEN False ground when running status from remote starter. Solid GREEN then OFF Reset in progress. OFF Module at rest and ready for a remote start sequence.

PAGE 10 OF 12

• 20161025

U.S. Patent No. 8,856,780

REMOTE STARTER ERROR CODES - 1 OF 1

REMOTE STARTER ERROR CODES:

NOTES

[X] NUMBER OF

PARKING LIGHT

FLASHES

DIAGNOSTIC

I WARNING: The following applies only when the parking

lights are connected and supported by the system.

01

E ! "# $

02 Ke

y

  % &

'% () *&+ % &

$

II After a remote starter failure, the parking lights will ﬂ ash

three [3x] times, then will ﬂ ash [X] number times to indicate an error code. See table.

03 Door is open. 04 Trunk is open. 05 Foot brake is ON. 06 Hood is open. 07 The reservation is OFF. (Manual transmission only) 08 Tach failure. 09 The vehicle is moving (VSS). 10 System is in Valet Mode. 11 CAN communication failure 12 RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence. 13 Bypass problem.

REMOTE STARTER SHUTDOWN ERROR CODES:

NOTES

[Y] NUMBER OF

PARKING LIGHT

FLASHES

DIAGNOSTIC

I WARNING: The following applies only when the parking

lights are connected and supported by the system.

01 Engine tach signal is lost. 02 Emergency brake is lost.

II

If the engine shuts down after a remote starter sequence: Press and hold the Trunk button and the Start button at the same time for 2.5 seconds when using a 1-WAY remote. OR Press once [1x] on button “4” when using a 2-WAY remote.

The parking lights will ﬂ ash four [4x] times, then will ﬂ ash [Y] number times to indicate an error code. See table.

03 Foot brake is ON. 04 Hood is open. 05 Engine RPM limiter is ON. 06 Glow plug timeout error. 07 Vehicle is moving (VSS). 08 N/A 09 N/A 10 Door is open. 11 CAN communication failure during RS sequence. 12 RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence. 13 Takeover is not allowed. 14 Shutdown error, board overheat protection.

PAGE 11 OF 12

• 20161025

U.S. Patent No. 8,856,780

>>

01

02

03

04

05

06

07

08

>>

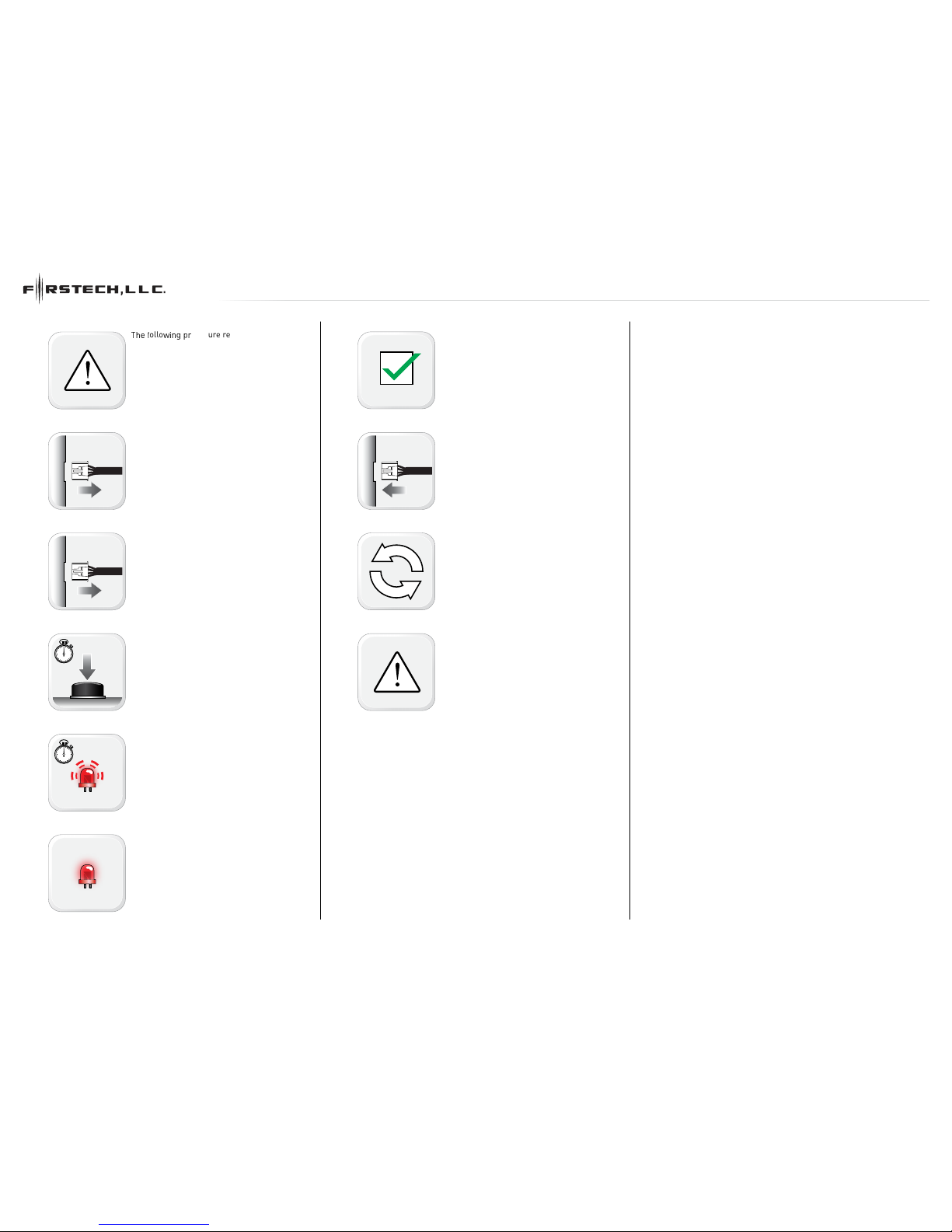

MODULE RESET PROCEDURE - 1 OF 1

T,- .

ollo

w/01 23

ocedure resets the module programming to the vehicle. It does not reset any settings conﬁ gured online.

Disconnect all connectors from module except the M1 BLACK 8-pin connector and the M4 BLACK 20-pin connector.

Disconnect the M1 BLACK 8-pin connector and the M4 BLACK 20-pin connector.

PRESS AND HOLD the module’s programming button while connecting the M1 BLACK 8-pin connector and the M4 BLACK 20-pin connector.

Wait, LED 1 will ﬂash RED. RELEASE programming button.

LED 1 will turn RED for 2 seconds.

Module RESET completed.

Reconnect all connectors.

Repeat programming procedure.

Failure to follow procedure may result with a DTC or a CHECK ENGINE error message.

PAGE 12 OF 12

• 20161025

U.S. Patent No. 8,856,780

20161212

REVISION DATE

FT-RSA-FO1B-[FT-DC2-S]

FIRMWARE

FT-DC2-S

HARDWARE

ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL)

ACCESSORIES

DOCUMENT NUMBER

2011-2014 FORD EDGE STD KEY AT

INSTALL GUIDE

NOTICE

The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device. This device must be installed by a certiﬁed technician. Please review the Installation Guide carefully before beginning any work.

T001_H

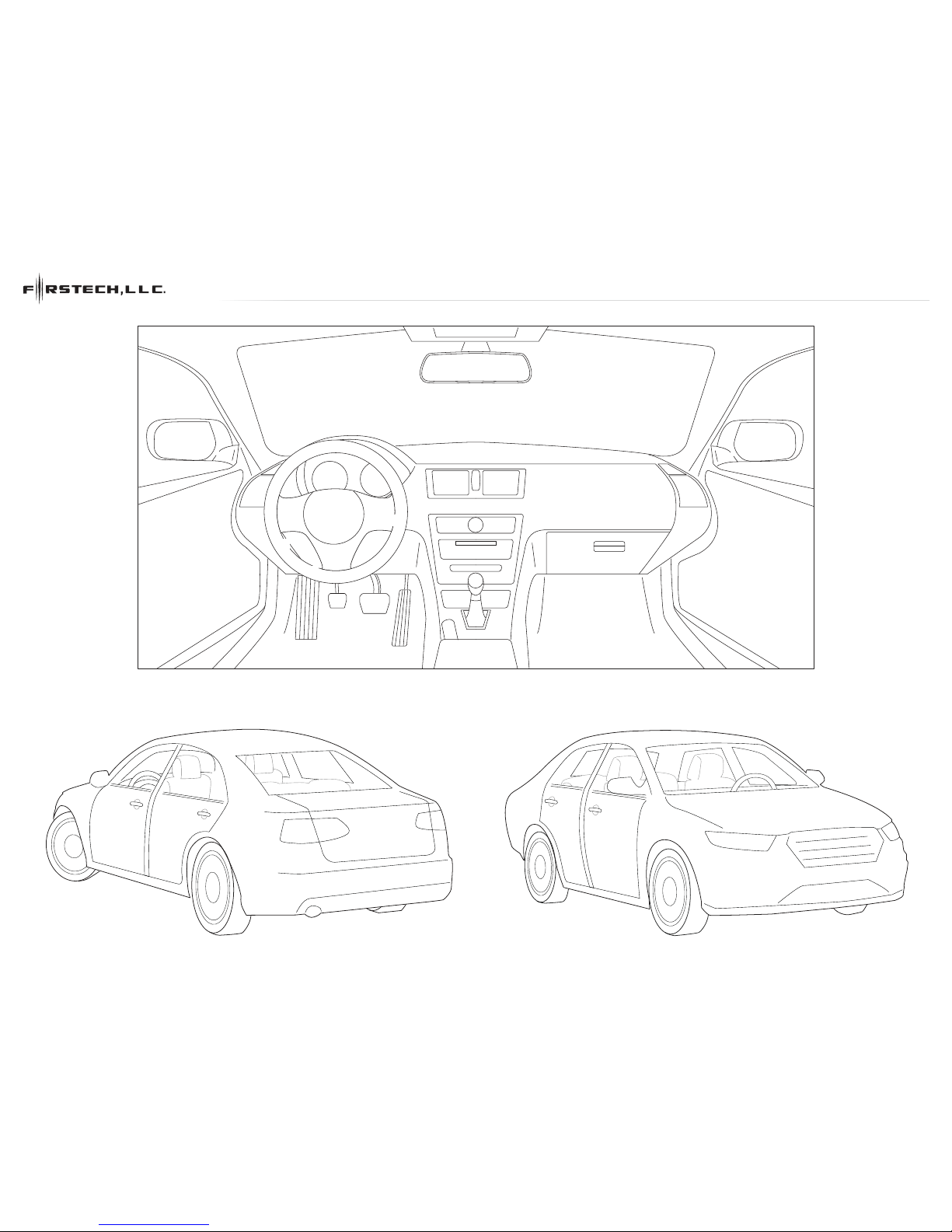

T-HARNESS / COMPONENT LOCATOR - 1 OF 1

A

B

D

C

PAGE 2 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford Edge STD key AT

20161212

87A

30

87

85

86

!

MS2

MS1

VS2VS2

VS1VS1

VS4VS4

VS3VS3

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

10

1 2 3 4 5

6 7 8 9

1 2 3 4 5 6

7 8

1 2 3 4 5

6

T001_H

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

GREEN/PURPLE

GREEN/WHITE

BROWN/YELLOW

BROWN/RED

19 RED19 RED

2020

0101

0202

0303

0404

0505

0606

0707

0808

0909

1010

1111

1212

1313

1414

1515

1616

1717

1818

0101

0202

0303

0404

0505

0606

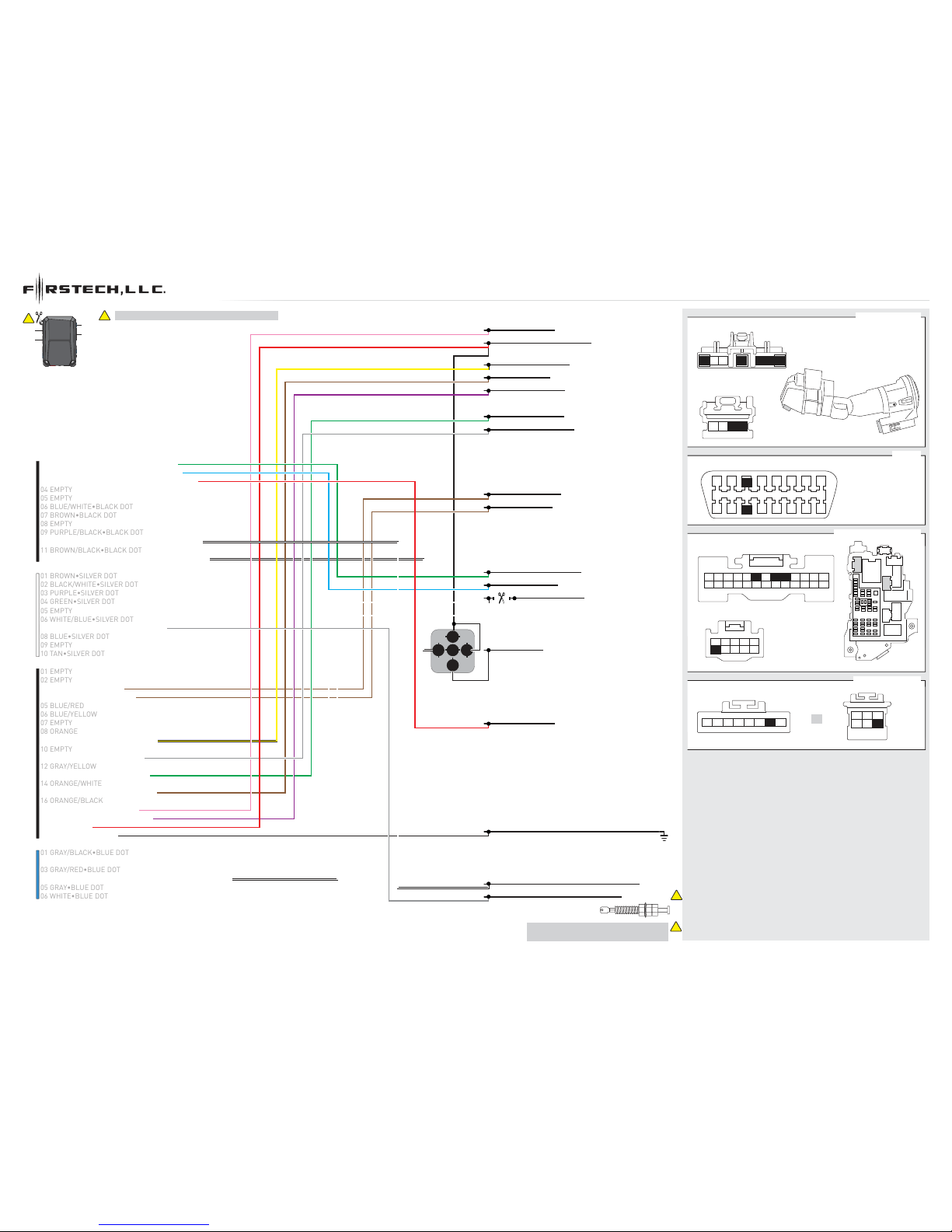

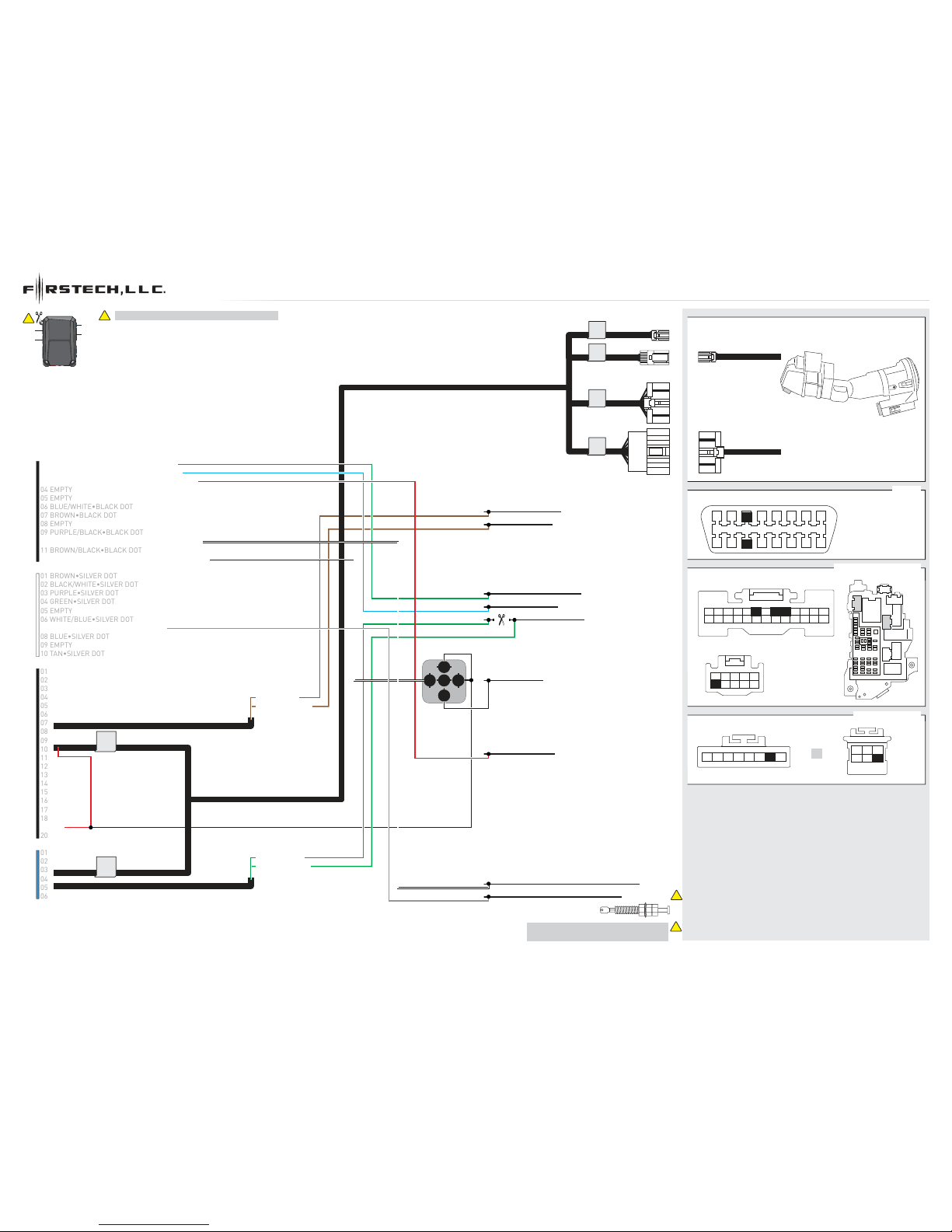

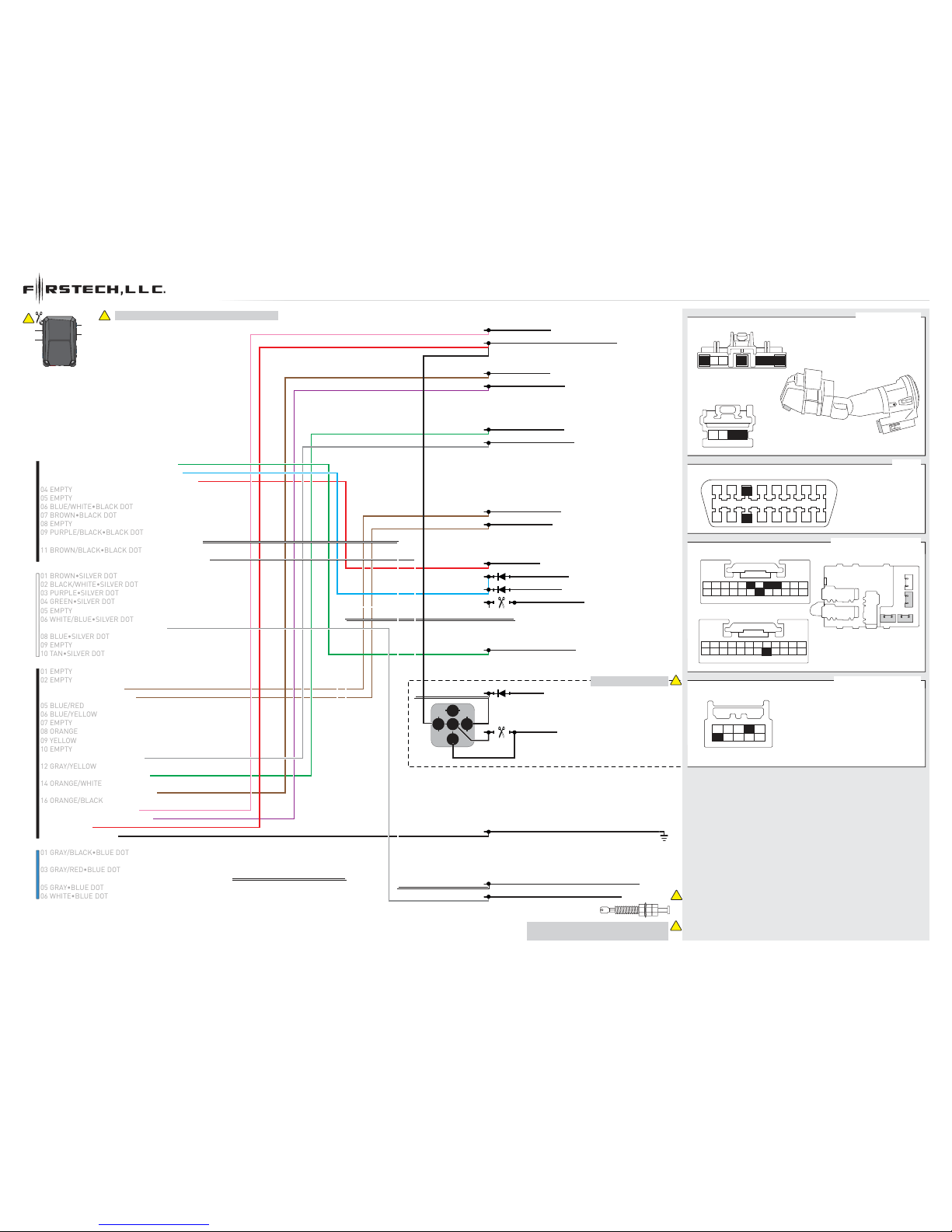

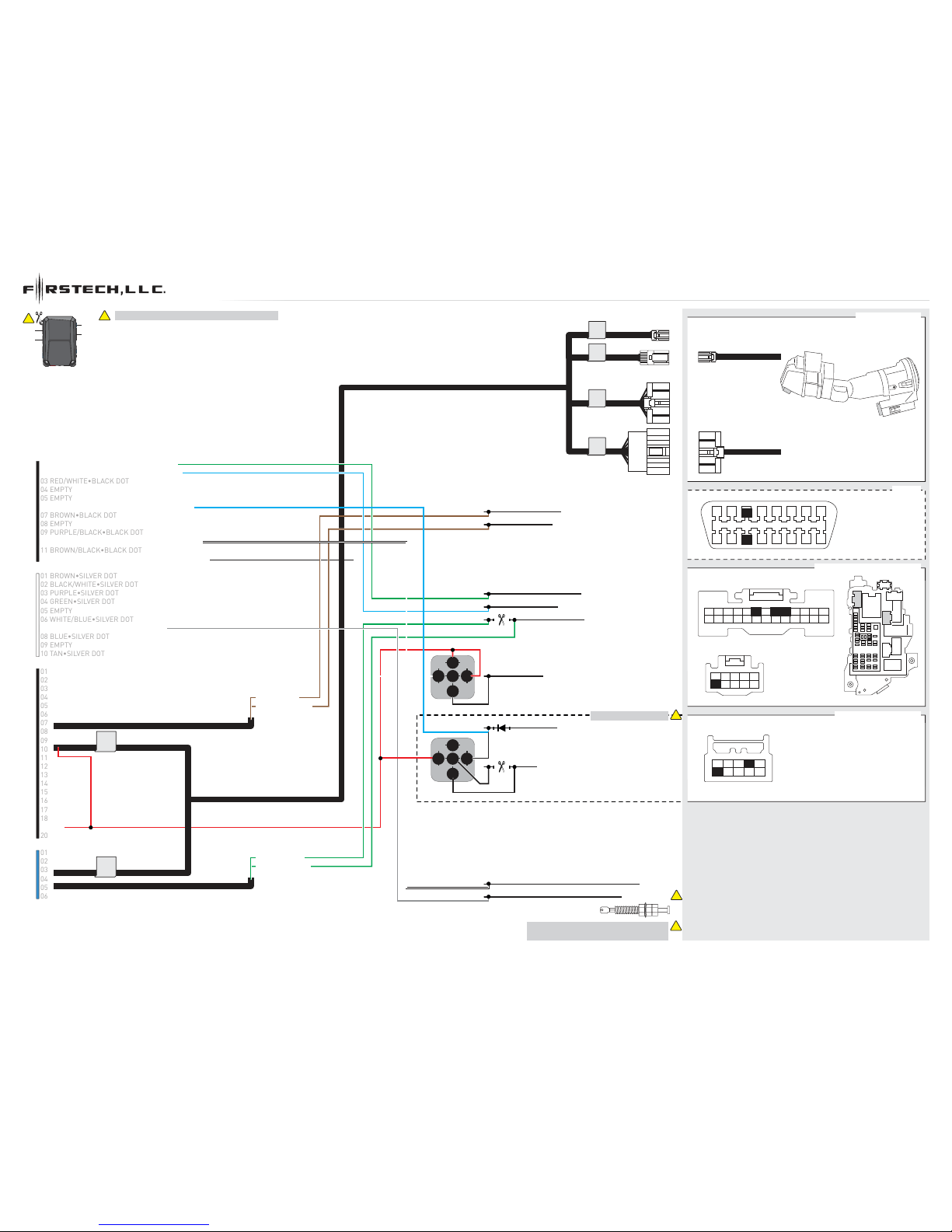

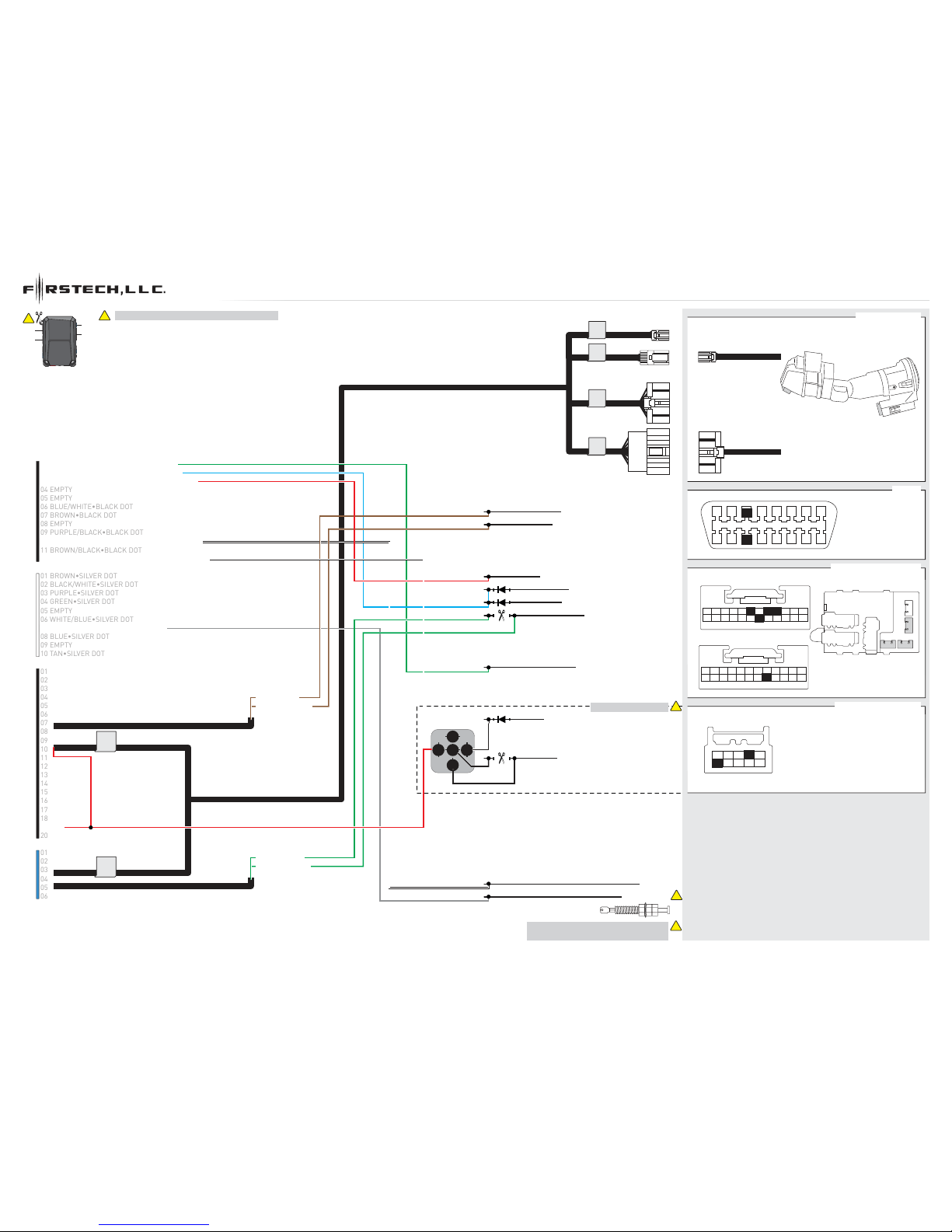

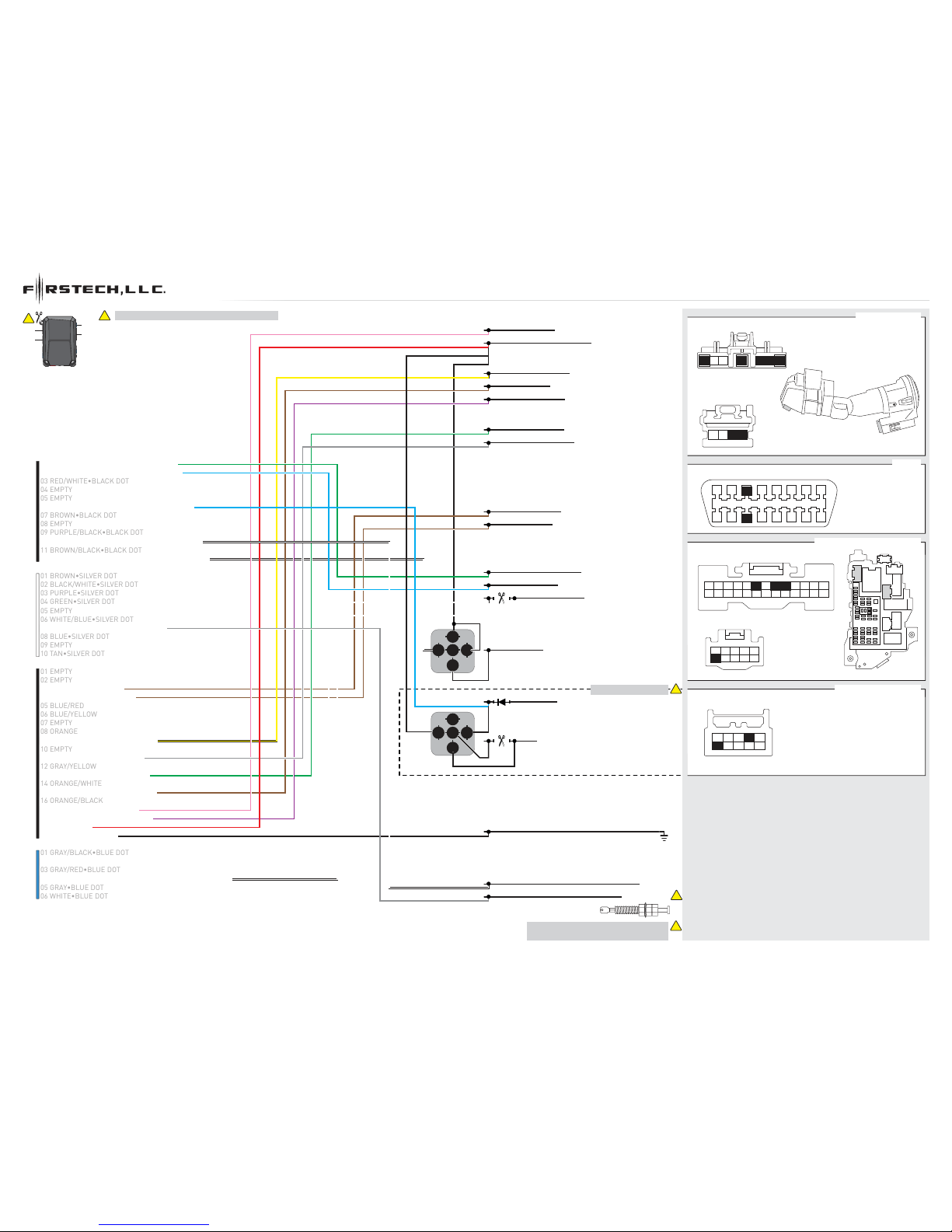

T-HARNESS / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

1: BLACK

2: GRAY

1: BLACK

BCM, DRIVER SIDE DASH (C)

LIFTGATE SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE/GREEN - 06

TRUNK RELEASE (-) GRAY/YELLOW

UNLOCK (-) YELLOW/PURPLE - 08

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

OBDII (B)

06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT 03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

1

2

1: IMMOBILIZER CONNECTOR

1: IMMOBILIZER HARNESS

2: IGNITION CONNECTOR

2: IGNITION HARNESS

2

1

OR

!

M3

M2

M5 M4

PAGE 3 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford Edge STD key AT

20161212

T001_W

HARDWIRE / COMPONENT LOCATOR - 1 OF 1

A

B

D

C

PAGE 4 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford Edge STD key AT

20161212

87A

30

87

85

86

!

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

OR

10

1 2 3 4 5

6 7 8 9

1 2 3 4 5 6

7 8

1 2 3 4 5

6

1 4 72 3 5 6

1 2 3 4

T001_W

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

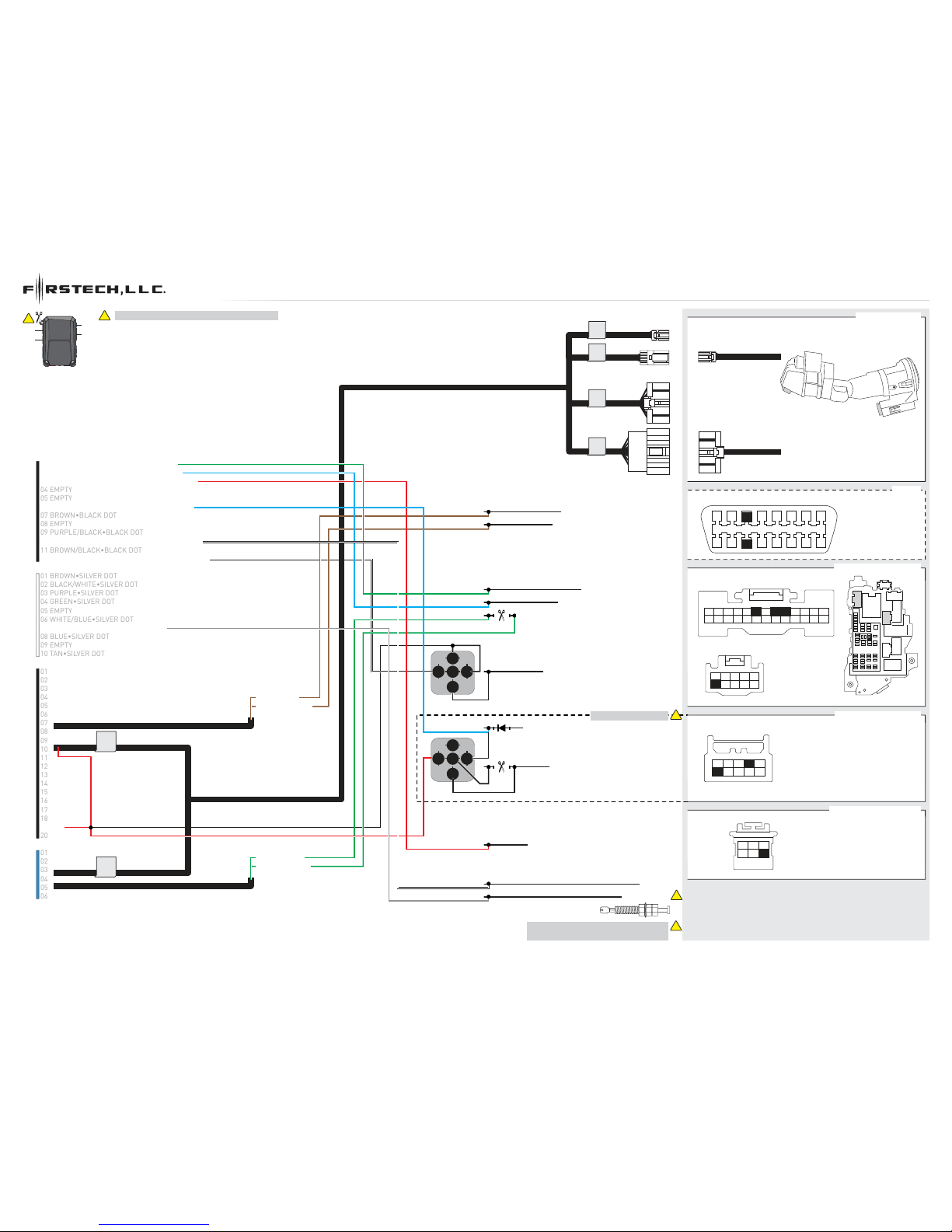

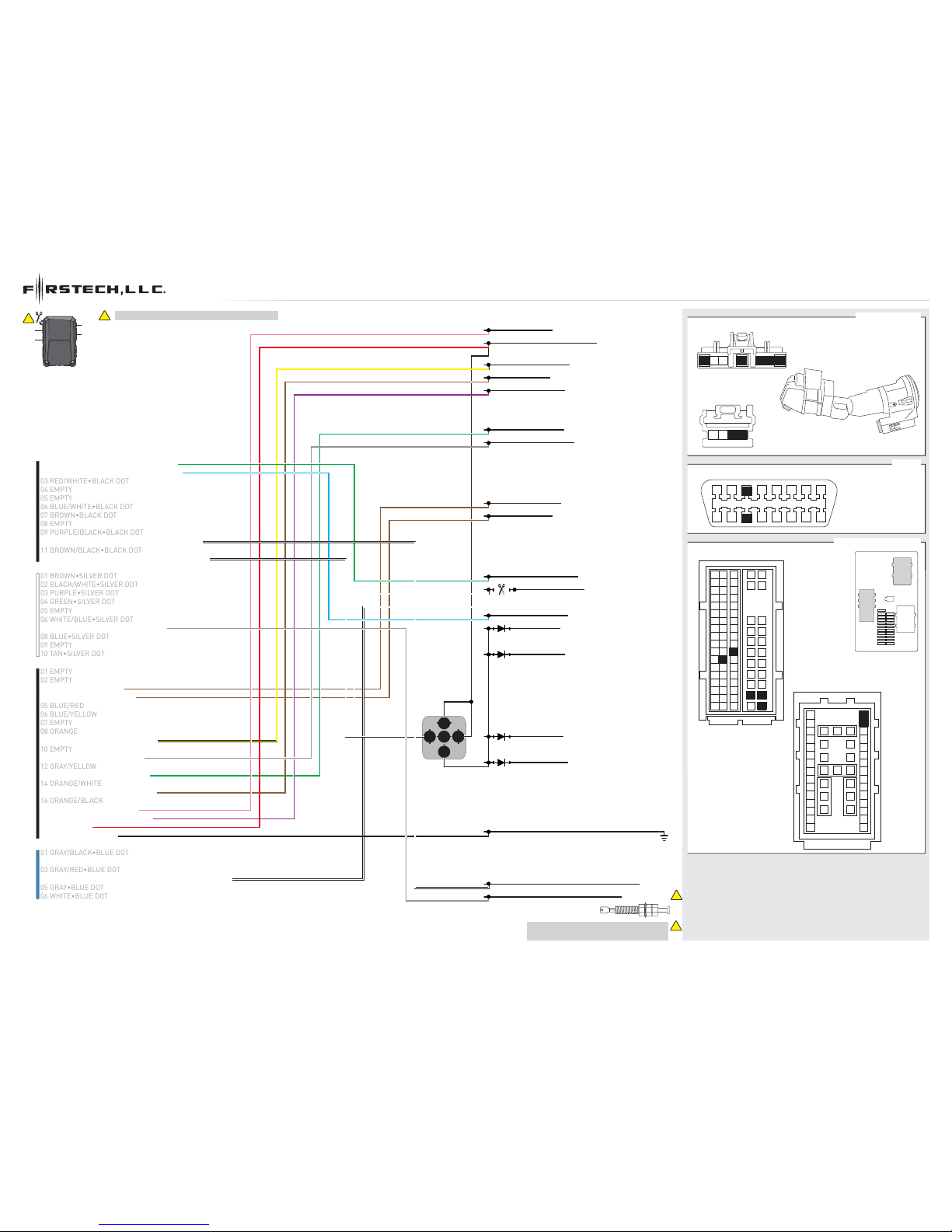

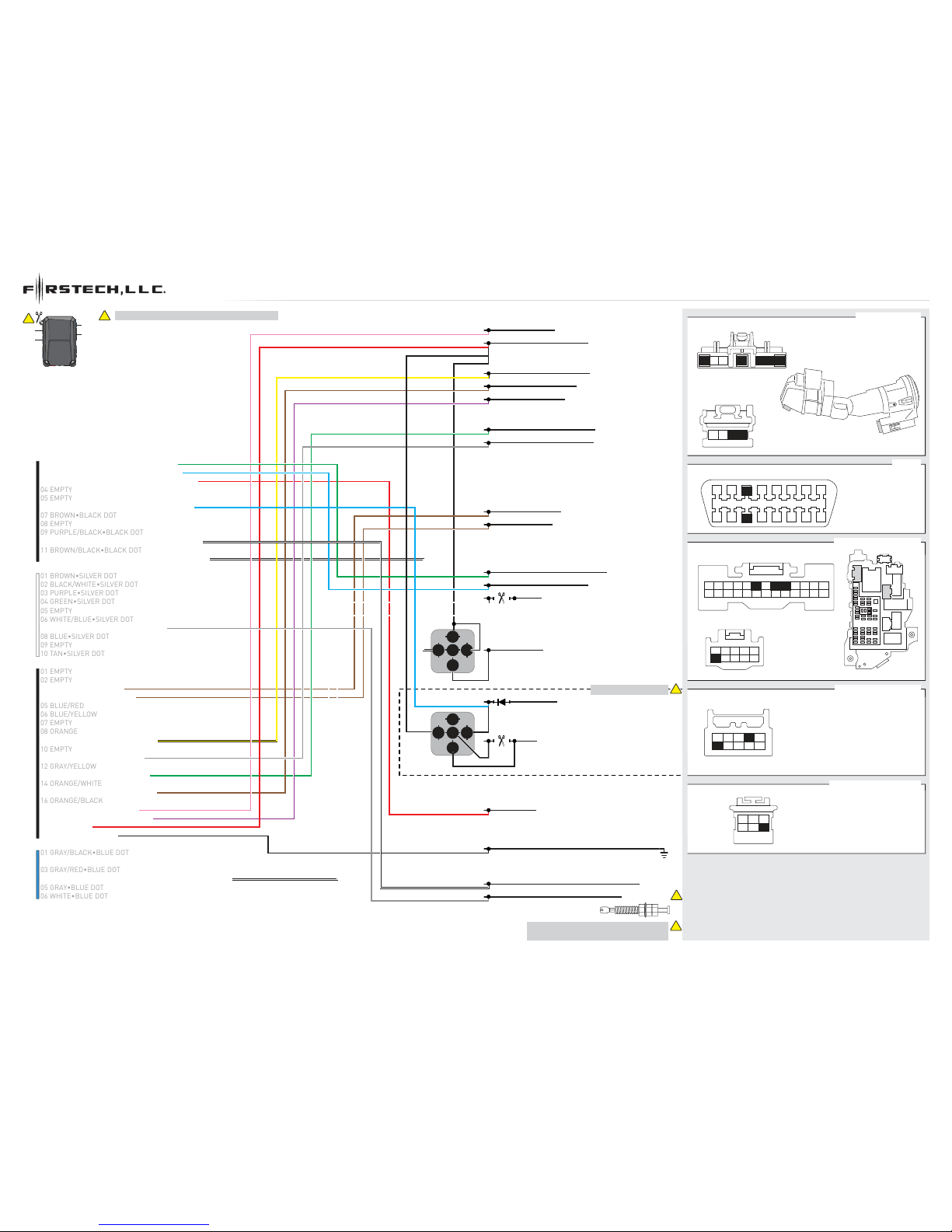

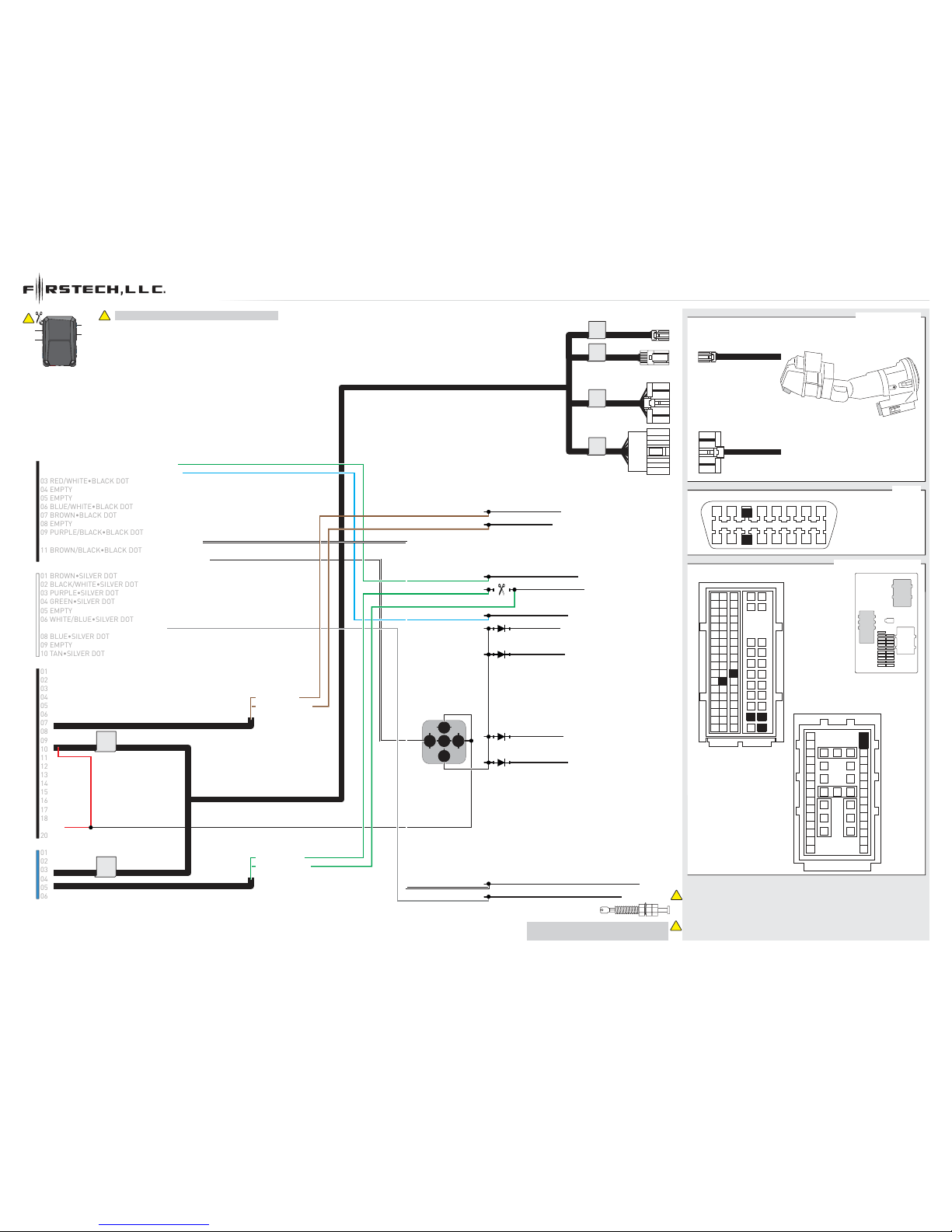

HARDWIRE / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

03 BROWN/RED - CANH 103 BROWN/RED - CANH 1 04 BROWN/YELLOW - CANL 104 BROWN/YELLOW - CANL 1

1: BLACK

2: GRAY

1: BLACK

BCM, DRIVER SIDE DASH (C)

LIFTGATE SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

IGNITION 1 (+) WHITE/ORANGE - 01

ACCESSORY (+) PURPLE/GREEN - 06

RX (DATA) PURPLE/GRAY - 04

TX (DATA) YELLOW/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE/GREEN - 06

TRUNK RELEASE (-) GRAY/YELLOW

UNLOCK (-) YELLOW/PURPLE - 08

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

1

2

IGNITION SWITCH (A)

OBDII (B)

12V (+) GREEN/RED - 04

KEYSENSE (+) BLUE/GRAY - 05

STARTER 1 (+) BLUE/WHITE - 07

06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT 03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

01 EMPTY01 EMPTY

02 EMPTY02 EMPTY

05 BLUE/RED05 BLUE/RED

06 BLUE/YELLOW06 BLUE/YELLOW

07 EMPTY07 EMPTY

08 ORANGE08 ORANGE

09 YELLOW - KEYSENSE (+) OUTPUT09 YELLOW - KEYSENSE (+) OUTPUT

10 EMPTY10 EMPTY

11 GRAY/RED - IMMO. RX (DATA)11 GRAY/RED - IMMO. RX (DATA)

12 GRAY/YELLOW12 GRAY/YELLOW

13 GREEN/RED - IMMO. TX (DATA)13 GREEN/RED - IMMO. TX (DATA)

14 ORANGE/WHITE14 ORANGE/WHITE

15 BROWN - ACCESSORY (+) IN/OUT15 BROWN - ACCESSORY (+) IN/OUT

16 ORANGE/BLACK16 ORANGE/BLACK

17 PINK - IGNITION (+) IN/OUT17 PINK - IGNITION (+) IN/OUT 18 PURPLE - STARTER (+) OUTPUT18 PURPLE - STARTER (+) OUTPUT 19 RED - 12V (+)19 RED - 12V (+) 20 BLACK - GROUND (-)20 BLACK - GROUND (-)

01 GRAY/BLACK•BLUE DOT01 GRAY/BLACK•BLUE DOT

02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE

03 GRAY/RED•BLUE DOT03 GRAY/RED•BLUE DOT

04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE

05 GRAY•BLUE DOT05 GRAY•BLUE DOT

06 WHITE•BLUE DOT06 WHITE•BLUE DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

1

2

1

2

!

M3

M2

M5 M4

PAGE 5 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford Edge STD key AT

20161212

>>

01

OFF

ACC ON

START

02

OFF

ACC

ON

START

03

04

OFF

ACC ON

START

05

OFF

ACC ON

START

06

OFF

ACC ON

START

07

OFF

ACC

ON

START

08

09

10

OFF

ACC ON

START

11

OFF

ACC ON

START

12

OFF

ACC

ON

START

13

14

15

OFF

ACC ON

START

16

>>

✤✁✂✄☎ ✆✝✞✝✟✤✤✠✡✞ ✆✝☛☎✁✂✝☎ ☞✌ ✍☎✎✏✑ ✒ ✓ ✔ ✌

NOTE: To complete this procedure, both OEM keys are required.

Insert key 1 into ignition.

Turn key 1 to ON position. LED 1 will turn solid RED.

Wait, LED 1 will ﬂash GREEN. (This may take up to 30 seconds)

Turn key 1 to OFF position.

Remove key 1.

Insert key 1 into ignition.

Turn key 1 to ON position.

If LED 1 turns solid GREEN for 2 seconds: Module Programming Procedure completed. If LED 1 turns solid RED, proceed with following step.

TIME RESTRICTION. Complete steps 08 to 10 within 4 seconds after LED 1 turns OFF.

Remove key 1.

Insert key 2 into ignition.

Turn key 2 to ON position.

Wait, LED 1 will turn solid RED then will turn OFF.

TIME RESTRICTION. Complete steps 13 and 14 within 4 seconds after LED 1 turns OFF.

Remove key 2.

Press and release programming button.

If the LED 1 begins to ﬂash RED, you are using a cloned key or used the same key twice.

PAGE 6 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford Edge STD key AT

20161212

17

18

OFF

ACC ON

START

19

20

21

22

23

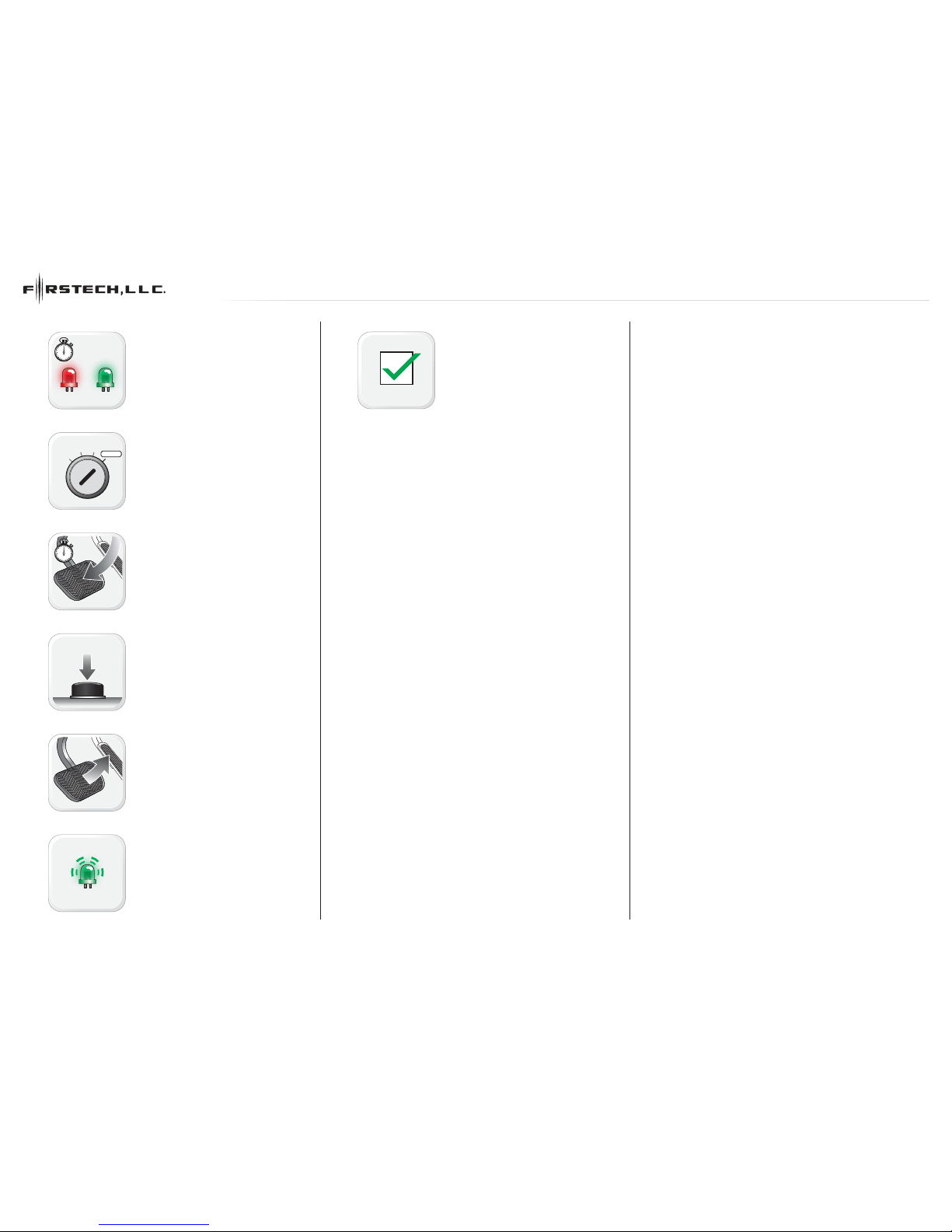

MODULE PROGRAMMING PROCEDURE (2 KEYS) - 2 OF 2

Wait, LED 1 will turn solid RED then will turn solid GREEN.

START vehicle for 15 seconds.

Press and hold the brake pedal.

Press and release the module’s programming button.

Release the brake pedal.

Wait, LED 2 will ﬂash GREEN.

Module Programming Procedure completed.

PAGE 7 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford Edge STD key AT

20161212

>>

01

02

ENGINE START

STOP

OFF ACC ON START

ON

03

04

>>

✕✣✖✗✘✚✗✙ ✛✙✘✜✗✢✥✙✗ ✦ ✧ ✘★ ✧

All vehicle doors must be closed and locked prior to remote start sequence.

Press unlock on OEM or aftermarket remote or request switch.

DO NOT PRESS BRAKE PEDAL. Set ignition to ON position. Wait 2 seconds for key validation.

Press and release BRAKE pedal.

Take over procedure completed.

Failure to follow procedure will result in vehicle engine shutdown.

PAGE 8 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford Edge STD key AT

20161212

INSTALLATION CHECKLIST - 1 OF 2

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press the LOCK button once [1x] on the aftermarket keyfob.



Question 1: Do the doors lock? YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock connections as illustrated in the wiring diagram, if applicable. Repeat the test and call technical support, if the problem persists.

4 Press the UNLOCK button once [1x] on the aftermarket keyfob.



Question 2: Do the doors unlock? YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock connections as illustrated in the wiring diagram, if applicable. Repeat the test and call technical support, if the problem persists.

5 Press the TRUNK release button once [1x] on the aftermarket keyfob if supported.



Question 3: Does the trunk or hatch open/unlock? YES: Close trunk or hatch and go to next step.



NO: Verify the remote programming, the RF connections and the wired trunk/hatch connections as illustrated in the wiring diagram, if applicable. Repeat the test and call technical support, if the problem persists.

6 Press the AUX 1 button once [1x] on the aftermarket keyfob if supported.



Question 4: Does the driver side sliding door open? YES: Press the AUX 1 button once [1x] to close the driver sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call technical support, if the problem persists.

7 Press the AUX 2 button once [1x] on the aftermarket keyfob if supported.



Question 5: Does the passenger side sliding door open? YES: Press the AUX 2 button once [1x] to close the passenger sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call technical support, if the problem persists.

8 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 6: Does the vehicle remote start? YES: Go to next step.



NO: Verify the remote programming, the RF connections and check the remote start error codes. Repeat the test and call technical support, if the problem persists.

9 Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle.



Question 7: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If problem persists, press the brake pedal once [1x] to shut down the vehicle and call technical support.

10 RAP and auto light shutdown test



Question 8: Did the radio, interior controls and headlights turn off within 60 seconds after remote start shutdown?

YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support if the problem persists.

11 Open hood.

12

If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step.

13 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 9: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 14 Close hood. 15 Enter vehicle and close the doors. 16 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle. 17 Wait for the vehicle to start. 18 Press brake pedal.



Question 10: Does the vehicle shut down?

YES: Go to next step.



NO: The module does NOT detect the brake pedal signal. Press the START/STOP button once

[1x] on the aftermarket keyfob to shut down vehicle, check connection as illustrated in the

wiring diagram, if applicable, and call technical support.

19 Exit vehicle. 20 Installation checklist completed.

CHECKLIST - WITH AFTERMARKET KEYFOB

PAGE 9 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford Edge STD key AT

20161212

INSTALLATION CHECKLIST - 2 OF 2

CHECKLIST - WITH OEM KEYFOB

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 1: Does the vehicle remote start?

YES: Go to next step.



NO: The module doesn't detect OEM remote lock button from the vehicle communication network. Check all connections, repeat the test and call technical support, if the problem persists.

4 Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle.



Question 2: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If the problem persists, press on the brake pedal once [1x] to shut down the vehicle and call technical support.

5 RAP Shutdown test



Question 3: Did the radio, interior controls, and headlights turn off within 60 seconds after remote start shutdown? YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support, if the problem persists. 6 Open hood. 7 If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step. 8 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 4: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 9 Close hood.

10 Enter vehicle and close the doors. 11 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle. 12 Wait for the vehicle to start. 13 Press brake pedal.

 

Question 5: Does the vehicle shut down?

YES: Go to next step.

NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if

applicable, and call technical support.

14 Exit vehicle. 15 Installation checklist completed.

PAGE 10 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford Edge STD key AT

20161212

U.S. Patent No. 8,856,780

20161212

REVISION DATE

FT-RSA-FO1B-[FT-DC2-S]

FIRMWARE

FT-DC2-S

HARDWARE

ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL)

ACCESSORIES

DOCUMENT NUMBER

2011-2015 FORD EXPLORER STD KEY AT

INSTALL GUIDE

NOTICE

The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device. This device must be installed by a certiﬁed technician. Please review the Installation Guide carefully before beginning any work.

T001_H

T-HARNESS / COMPONENT LOCATOR - 1 OF 1

A

B

D

C

PAGE 2 OF 10

U.S. Patent No. 8,856,780 2011-2015 Ford Explorer STD key AT

20161212

87A

30

87

85

86

!

MS2

MS1

VS2VS2

VS1VS1

VS4VS4

VS3VS3

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

10

1 2 3 4 5

6 7 8 9

1 2 3 4 5 6

7 8

1 2 3 4 5

6

T001_H

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

GREEN/PURPLE

GREEN/WHITE

BROWN/YELLOW

BROWN/RED

19 RED19 RED

2020

0101

0202

0303

0404

0505

0606

0707

0808

0909

1010

1111

1212

1313

1414

1515

1616

1717

1818

0101

0202

0303

0404

0505

0606

T-HARNESS / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

1: BLACK

2: GRAY

1: BLACK

BCM, DRIVER SIDE DASH (C)

LIFTGATE SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE/GREEN - 06

TRUNK RELEASE (-) GRAY/YELLOW

UNLOCK (-) YELLOW/PURPLE - 08

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

OBDII (B)

06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT 03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

1

2

1: IMMOBILIZER CONNECTOR

1: IMMOBILIZER HARNESS

2: IGNITION CONNECTOR

2: IGNITION HARNESS

2

1

OR

!

M3

M2

M5 M4

PAGE 3 OF 10

U.S. Patent No. 8,856,780 2011-2015 Ford Explorer STD key AT

20161212

T001_W

HARDWIRE / COMPONENT LOCATOR - 1 OF 1

A

B

D

C

PAGE 4 OF 10

U.S. Patent No. 8,856,780 2011-2015 Ford Explorer STD key AT

20161212

87A

30

87

85

86

!

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

OR

10

1 2 3 4 5

6 7 8 9

1 2 3 4 5 6

7 8

1 2 3 4 5

6

1 4 72 3 5 6

1 2 3 4

T001_W

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

HARDWIRE / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

03 BROWN/RED - CANH 103 BROWN/RED - CANH 1 04 BROWN/YELLOW - CANL 104 BROWN/YELLOW - CANL 1

1: BLACK

2: GRAY

1: BLACK

BCM, DRIVER SIDE DASH (C)

LIFTGATE SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

IGNITION 1 (+) WHITE/ORANGE - 01

ACCESSORY (+) PURPLE/GREEN - 06

RX (DATA) PURPLE/GRAY - 04

TX (DATA) YELLOW/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE/GREEN - 06

TRUNK RELEASE (-) GRAY/YELLOW

UNLOCK (-) YELLOW/PURPLE - 08

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

1

2

IGNITION SWITCH (A)

OBDII (B)

12V (+) GREEN/RED - 04

KEYSENSE (+) BLUE/GRAY - 05

STARTER 1 (+) BLUE/WHITE - 07

06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT 03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

01 EMPTY01 EMPTY

02 EMPTY02 EMPTY

05 BLUE/RED05 BLUE/RED

06 BLUE/YELLOW06 BLUE/YELLOW

07 EMPTY07 EMPTY

08 ORANGE08 ORANGE

09 YELLOW - KEYSENSE (+) OUTPUT09 YELLOW - KEYSENSE (+) OUTPUT

10 EMPTY10 EMPTY

11 GRAY/RED - IMMO. RX (DATA)11 GRAY/RED - IMMO. RX (DATA)

12 GRAY/YELLOW12 GRAY/YELLOW

13 GREEN/RED - IMMO. TX (DATA)13 GREEN/RED - IMMO. TX (DATA)

14 ORANGE/WHITE14 ORANGE/WHITE

15 BROWN - ACCESSORY (+) IN/OUT15 BROWN - ACCESSORY (+) IN/OUT

16 ORANGE/BLACK16 ORANGE/BLACK

17 PINK - IGNITION (+) IN/OUT17 PINK - IGNITION (+) IN/OUT 18 PURPLE - STARTER (+) OUTPUT18 PURPLE - STARTER (+) OUTPUT 19 RED - 12V (+)19 RED - 12V (+) 20 BLACK - GROUND (-)20 BLACK - GROUND (-)

01 GRAY/BLACK•BLUE DOT01 GRAY/BLACK•BLUE DOT

02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE

03 GRAY/RED•BLUE DOT03 GRAY/RED•BLUE DOT

04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE

05 GRAY•BLUE DOT05 GRAY•BLUE DOT

06 WHITE•BLUE DOT06 WHITE•BLUE DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

1

2

1

2

!

M3

M2

M5 M4

PAGE 5 OF 10

U.S. Patent No. 8,856,780 2011-2015 Ford Explorer STD key AT

20161212

>>

01

OFF

ACC ON

START

02

OFF

ACC

ON

START

03

04

OFF

ACC ON

START

05

OFF

ACC ON

START

06

OFF

ACC ON

START

07

OFF

ACC

ON

START

08

09

10

OFF

ACC ON

START

11

OFF

ACC ON

START

12

OFF

ACC

ON

START

13

14

15

OFF

ACC ON

START

16

>>

✤✁✂✄☎ ✆✝✞✝✟✤✤✠✡✞ ✆✝☛☎✁✂✝☎ ☞✌ ✍☎✎✏✑ ✒ ✓ ✔ ✌

NOTE: To complete this procedure, both OEM keys are required.

Insert key 1 into ignition.

Turn key 1 to ON position. LED 1 will turn solid RED.

Wait, LED 1 will ﬂash GREEN. (This may take up to 30 seconds)

Turn key 1 to OFF position.

Remove key 1.

Insert key 1 into ignition.

Turn key 1 to ON position.

If LED 1 turns solid GREEN for 2 seconds: Module Programming Procedure completed. If LED 1 turns solid RED, proceed with following step.

TIME RESTRICTION. Complete steps 08 to 10 within 4 seconds after LED 1 turns OFF.

Remove key 1.

Insert key 2 into ignition.

Turn key 2 to ON position.

Wait, LED 1 will turn solid RED then will turn OFF.

TIME RESTRICTION. Complete steps 13 and 14 within 4 seconds after LED 1 turns OFF.

Remove key 2.

Press and release programming button.

If the LED 1 begins to ﬂash RED, you are using a cloned key or used the same key twice.

PAGE 6 OF 10

U.S. Patent No. 8,856,780 2011-2015 Ford Explorer STD key AT

20161212

17

18

OFF

ACC ON

START

19

20

21

22

23

MODULE PROGRAMMING PROCEDURE (2 KEYS) - 2 OF 2

Wait, LED 1 will turn solid RED then will turn solid GREEN.

START vehicle for 15 seconds.

Press and hold the brake pedal.

Press and release the module’s programming button.

Release the brake pedal.

Wait, LED 2 will ﬂash GREEN.

Module Programming Procedure completed.

PAGE 7 OF 10

U.S. Patent No. 8,856,780 2011-2015 Ford Explorer STD key AT

20161212

>>

01

02

ENGINE START

STOP

OFF ACC ON START

ON

03

04

>>

✕✣✖✗✘✚✗✙ ✛✙✘✜✗✢✥✙✗ ✦ ✧ ✘★ ✧

All vehicle doors must be closed and locked prior to remote start sequence.

Press unlock on OEM or aftermarket remote or request switch.

DO NOT PRESS BRAKE PEDAL. Set ignition to ON position. Wait 2 seconds for key validation.

Press and release BRAKE pedal.

Take over procedure completed.

Failure to follow procedure will result in vehicle engine shutdown.

PAGE 8 OF 10

U.S. Patent No. 8,856,780 2011-2015 Ford Explorer STD key AT

20161212

INSTALLATION CHECKLIST - 1 OF 2

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press the LOCK button once [1x] on the aftermarket keyfob.



Question 1: Do the doors lock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

4 Press the UNLOCK button once [1x] on the aftermarket keyfob.



Question 2: Do the doors unlock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

5 Press the TRUNK release button once [1x] on the aftermarket keyfob if supported.



Question 3: Does the trunk or hatch open/unlock?

YES: Close trunk or hatch and go to next step.



NO: Verify the remote programming, the RF connections and the wired trunk/hatch

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

6 Press the AUX 1 button once [1x] on the aftermarket keyfob if supported.



Question 4: Does the driver side sliding door open?

YES: Press the AUX 1 button once [1x] to close the driver sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

7 Press the AUX 2 button once [1x] on the aftermarket keyfob if supported.



Question 5: Does the passenger side sliding door open?

YES: Press the AUX 2 button once [1x] to close the passenger sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

8 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 6: Does the vehicle remote start?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and check the remote start error

codes. Repeat the test and call technical support, if the problem persists.

9 Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle.



Question 7: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If problem persists, press the brake pedal once [1x] to shut down the vehicle and call technical support.

10 RAP and auto light shutdown test



Question 8: Did the radio, interior controls and headlights turn off within 60 seconds after remote start shutdown?

YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support if the problem persists.

11 Open hood.

12

If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step.

13 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 9: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 14 Close hood. 15 Enter vehicle and close the doors. 16 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle. 17 Wait for the vehicle to start. 18 Press brake pedal.



Question 10: Does the vehicle shut down?

YES: Go to next step.



NO: The module does NOT detect the brake pedal signal. Press the START/STOP button once

[1x] on the aftermarket keyfob to shut down vehicle, check connection as illustrated in the

wiring diagram, if applicable, and call technical support.

19 Exit vehicle. 20 Installation checklist completed.

CHECKLIST - WITH AFTERMARKET KEYFOB

PAGE 9 OF 10

U.S. Patent No. 8,856,780 2011-2015 Ford Explorer STD key AT

20161212

INSTALLATION CHECKLIST - 2 OF 2

CHECKLIST - WITH OEM KEYFOB

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 1: Does the vehicle remote start?

YES: Go to next step.



NO: The module doesn't detect OEM remote lock button from the vehicle communication network. Check all connections, repeat the test and call technical support, if the problem persists.

4 Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle.



Question 2: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If the problem persists, press on the brake pedal once [1x] to shut down the vehicle and call technical support.

5 RAP Shutdown test



Question 3: Did the radio, interior controls, and headlights turn off within 60 seconds after remote start shutdown? YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support, if the problem persists. 6 Open hood. 7 If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step. 8 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 4: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 9 Close hood.

10 Enter vehicle and close the doors. 11 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle. 12 Wait for the vehicle to start. 13 Press brake pedal.

 

Question 5: Does the vehicle shut down?

YES: Go to next step.

NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if

applicable, and call technical support.

14 Exit vehicle. 15 Installation checklist completed.

PAGE 10 OF 10

U.S. Patent No. 8,856,780 2011-2015 Ford Explorer STD key AT

20161212

U.S. Patent No. 8,856,780

20161212

REVISION DATE

FT-RSA-FO1B-[FT-DC2-S]

FIRMWARE

FT-DC2-S

HARDWARE

ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL)

ACCESSORIES

DOCUMENT NUMBER

2011-2014 FORD F-150 STD KEY AT

INSTALL GUIDE

NOTICE

The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device. This device must be installed by a certiﬁed technician. Please review the Installation Guide carefully before beginning any work.

T002_H

T-HARNESS / COMPONENT LOCATOR - 1 OF 1

A

D

B

C

PAGE 2 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford F-150 STD key AT

20161212

87A

30

87

85

86

!

MS2

MS1

2

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

10

1 2 3 4 5

6 7 8 9

10

1 2 3

4 5

6 7 8 9

87A

30

87

85

86

VS2VS2

VS1VS1

VS4VS4

VS3VS3

T002_H

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

GREEN/PURPLE

GREEN/WHITE

BROWN/YELLOW

BROWN/RED

19 RED19 RED

2020

0101

0202

0303

0404

0505

0606

0707

0808

0909

1010

1111

1212

1313

1414

1515

1616

1717

1818

0101

0202

0303

0404

0505

0606

T-HARNESS / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

1: BLACK

2: GRAY

1: GRAY

BCM, PASSENGER KICK PANEL (C)

PARKING LIGHT SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE/GREEN - 06

UNLOCK (-) YELLOW/PURPLE - 08

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

AUTOLIGHT (OPEN) PURPLE/GREEN - 04

LIGHT OFF (-) WHITE/PURPLE - 06

06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

03 RED/WHITE•BLACK DOT03 RED/WHITE•BLACK DOT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

WITH AUTOLIGHT ONLY

1

2

OBDII (B)

1: IMMOBILIZER CONNECTOR

1: IMMOBILIZER HARNESS

2: IGNITION CONNECTOR

2: IGNITION HARNESS

IGNITION SWITCH (A)

2

1

!

M3

M2

M5 M4

PAGE 3 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford F-150 STD key AT

20161212

T002_W

HARDWIRE / COMPONENT LOCATOR - 1 OF 1

A

D

B

C

PAGE 4 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford F-150 STD key AT

20161212

87A

30

87

85

86

!

2

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

10

1 2 3 4 5

6 7 8 9

1 4 72 3 5 6

1 2 3 4

10

1 2 3

4 5

6 7 8 9

87A

30

87

85

86

T002_W

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

HARDWIRE / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

03 BROWN/RED - CANH 103 BROWN/RED - CANH 1 04 BROWN/YELLOW - CANL 104 BROWN/YELLOW - CANL 1

1: BLACK

2: GRAY

1: GRAY

BCM, PASSENGER KICK PANEL (C)

PARKING LIGHT SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

IGNITION 1 (+) WHITE/ORANGE - 01

ACCESSORY (+) PURPLE/GREEN - 06

RX (DATA) PURPLE/GRAY - 04

TX (DATA) YELLOW/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE/GREEN - 06

UNLOCK (-) YELLOW/PURPLE - 08

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

AUTOLIGHT (OPEN) PURPLE/GREEN - 04

LIGHT OFF (-) WHITE/PURPLE - 06

1

2

IGNITION SWITCH (A)

OBDII (B)

12V (+) GREEN/RED - 04

KEYSENSE (+) BLUE/GRAY - 05

STARTER 1 (+) BLUE/WHITE - 07

06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

03 RED/WHITE•BLACK DOT03 RED/WHITE•BLACK DOT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

01 EMPTY01 EMPTY

02 EMPTY02 EMPTY

05 BLUE/RED05 BLUE/RED

06 BLUE/YELLOW06 BLUE/YELLOW

07 EMPTY07 EMPTY

08 ORANGE08 ORANGE

09 YELLOW - KEYSENSE (+) OUTPUT09 YELLOW - KEYSENSE (+) OUTPUT

10 EMPTY10 EMPTY

11 GRAY/RED - IMMO. RX (DATA)11 GRAY/RED - IMMO. RX (DATA)

12 GRAY/YELLOW12 GRAY/YELLOW

13 GREEN/RED - IMMO. TX (DATA)13 GREEN/RED - IMMO. TX (DATA)

14 ORANGE/WHITE14 ORANGE/WHITE

15 BROWN - ACCESSORY (+) IN/OUT15 BROWN - ACCESSORY (+) IN/OUT

16 ORANGE/BLACK16 ORANGE/BLACK

17 PINK - IGNITION (+) IN/OUT17 PINK - IGNITION (+) IN/OUT 18 PURPLE - STARTER (+) OUTPUT18 PURPLE - STARTER (+) OUTPUT 19 RED - 12V (+)19 RED - 12V (+) 20 BLACK - GROUND (-)20 BLACK - GROUND (-)

01 GRAY/BLACK•BLUE DOT01 GRAY/BLACK•BLUE DOT

02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE

03 GRAY/RED•BLUE DOT03 GRAY/RED•BLUE DOT

04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE

05 GRAY•BLUE DOT05 GRAY•BLUE DOT

06 WHITE•BLUE DOT06 WHITE•BLUE DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

WITH AUTOLIGHT ONLY

1

2

1

2

!

M3

M2

M5 M4

PAGE 5 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford F-150 STD key AT

20161212

>>

01

OFF

ACC ON

START

02

OFF

ACC

ON

START

03

04

OFF

ACC ON

START

05

OFF

ACC ON

START

06

OFF

ACC ON

START

07

OFF

ACC

ON

START

08

09

10

OFF

ACC ON

START

11

OFF

ACC ON

START

12

OFF

ACC

ON

START

13

14

15

OFF

ACC ON

START

16

>>

✤✁✂✄☎ ✆✝✞✝✟✤✤✠✡✞ ✆✝☛☎✁✂✝☎ ☞✌ ✍☎✎✏✑ ✒ ✓ ✔ ✌

NOTE: To complete this procedure, both OEM keys are required.

Insert key 1 into ignition.

Turn key 1 to ON position. LED 1 will turn solid RED.

Wait, LED 1 will ﬂash GREEN. (This may take up to 30 seconds)

Turn key 1 to OFF position.

Remove key 1.

Insert key 1 into ignition.

Turn key 1 to ON position.

If LED 1 turns solid GREEN for 2 seconds: Module Programming Procedure completed. If LED 1 turns solid RED, proceed with following step.

TIME RESTRICTION. Complete steps 08 to 10 within 4 seconds after LED 1 turns OFF.

Remove key 1.

Insert key 2 into ignition.

Turn key 2 to ON position.

Wait, LED 1 will turn solid RED then will turn OFF.

TIME RESTRICTION. Complete steps 13 and 14 within 4 seconds after LED 1 turns OFF.

Remove key 2.

Press and release programming button.

If the LED 1 begins to ﬂash RED, you are using a cloned key or used the same key twice.

PAGE 6 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford F-150 STD key AT

20161212

17

18

OFF

ACC ON

START

19

20

21

22

23

MODULE PROGRAMMING PROCEDURE (2 KEYS) - 2 OF 2

Wait, LED 1 will turn solid RED then will turn solid GREEN.

START vehicle for 15 seconds.

Press and hold the brake pedal.

Press and release the module’s programming button.

Release the brake pedal.

Wait, LED 2 will ﬂash GREEN.

Module Programming Procedure completed.

PAGE 7 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford F-150 STD key AT

20161212

>>

01

02

ENGINE START

STOP

OFF ACC ON START

ON

03

04

>>

✕✣✖✗✘✚✗✙ ✛✙✘✜✗✢✥✙✗ ✦ ✧ ✘★ ✧

All vehicle doors must be closed and locked prior to remote start sequence.

Press unlock on OEM or aftermarket remote or request switch.

DO NOT PRESS BRAKE PEDAL. Set ignition to ON position. Wait 2 seconds for key validation.

Press and release BRAKE pedal.

Take over procedure completed.

Failure to follow procedure will result in vehicle engine shutdown.

PAGE 8 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford F-150 STD key AT

20161212

INSTALLATION CHECKLIST - 1 OF 2

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press the LOCK button once [1x] on the aftermarket keyfob.



Question 1: Do the doors lock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

4 Press the UNLOCK button once [1x] on the aftermarket keyfob.



Question 2: Do the doors unlock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

5 Press the TRUNK release button once [1x] on the aftermarket keyfob if supported.



Question 3: Does the trunk or hatch open/unlock?

YES: Close trunk or hatch and go to next step.



NO: Verify the remote programming, the RF connections and the wired trunk/hatch

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

6 Press the AUX 1 button once [1x] on the aftermarket keyfob if supported.



Question 4: Does the driver side sliding door open?

YES: Press the AUX 1 button once [1x] to close the driver sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

7 Press the AUX 2 button once [1x] on the aftermarket keyfob if supported.



Question 5: Does the passenger side sliding door open?

YES: Press the AUX 2 button once [1x] to close the passenger sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

8 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 6: Does the vehicle remote start?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and check the remote start error

codes. Repeat the test and call technical support, if the problem persists.

9 Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle.



Question 7: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If problem persists, press the brake pedal once [1x] to shut down the vehicle and call technical support.

10 RAP and auto light shutdown test



Question 8: Did the radio, interior controls and headlights turn off within 60 seconds after remote start shutdown?

YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support if the problem persists.

11 Open hood.

12

If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step.

13 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 9: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 14 Close hood. 15 Enter vehicle and close the doors. 16 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle. 17 Wait for the vehicle to start. 18 Press brake pedal.



Question 10: Does the vehicle shut down?

YES: Go to next step.



NO: The module does NOT detect the brake pedal signal. Press the START/STOP button once

[1x] on the aftermarket keyfob to shut down vehicle, check connection as illustrated in the

wiring diagram, if applicable, and call technical support.

19 Exit vehicle. 20 Installation checklist completed.

CHECKLIST - WITH AFTERMARKET KEYFOB

PAGE 9 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford F-150 STD key AT

20161212

INSTALLATION CHECKLIST - 2 OF 2

CHECKLIST - WITH OEM KEYFOB

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 1: Does the vehicle remote start?

YES: Go to next step.



NO: The module doesn't detect OEM remote lock button from the vehicle communication network. Check all connections, repeat the test and call technical support, if the problem persists.

4 Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle.



Question 2: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If the problem persists, press on the brake pedal once [1x] to shut down the vehicle and call technical support.

5 RAP Shutdown test



Question 3: Did the radio, interior controls, and headlights turn off within 60 seconds after remote start shutdown? YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support, if the problem persists. 6 Open hood. 7 If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step. 8 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 4: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 9 Close hood.

10 Enter vehicle and close the doors. 11 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle. 12 Wait for the vehicle to start. 13 Press brake pedal.

 

Question 5: Does the vehicle shut down?

YES: Go to next step.

NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if

applicable, and call technical support.

14 Exit vehicle. 15 Installation checklist completed.

PAGE 10 OF 10

U.S. Patent No. 8,856,780 2011-2014 Ford F-150 STD key AT

20161212

U.S. Patent No. 8,856,780

20161212

REVISION DATE

FT-RSA-FO1B-[FT-DC2-S]

FIRMWARE

FT-DC2-S

HARDWARE

ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL)

ACCESSORIES

DOCUMENT NUMBER

2011-2016 FORD F-SUPER DUTY STD KEY AT

INSTALL GUIDE

NOTICE

The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device. This device must be installed by a certiﬁed technician. Please review the Installation Guide carefully before beginning any work.

T002_H

T-HARNESS / COMPONENT LOCATOR - 1 OF 1

A

D

B

C

PAGE 2 OF 10

U.S. Patent No. 8,856,780 2011-2016 Ford F-Super Duty STD key AT

20161212

87A

30

87

85

86

!

MS2

MS1

2

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

10

1 2 3 4 5

6 7 8 9

10

1 2 3

4 5

6 7 8 9

87A

30

87

85

86

VS2VS2

VS1VS1

VS4VS4

VS3VS3

T002_H

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

GREEN/PURPLE

GREEN/WHITE

BROWN/YELLOW

BROWN/RED

19 RED19 RED

2020

0101

0202

0303

0404

0505

0606

0707

0808

0909

1010

1111

1212

1313

1414

1515

1616

1717

1818

0101

0202

0303

0404

0505

0606

T-HARNESS / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

1: BLACK

2: GRAY

1: GRAY

BCM, PASSENGER KICK PANEL (C)

PARKING LIGHT SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE/GREEN - 06

UNLOCK (-) YELLOW/PURPLE - 08

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

AUTOLIGHT (OPEN) PURPLE/GREEN - 04

LIGHT OFF (-) WHITE/PURPLE - 06

06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

03 RED/WHITE•BLACK DOT03 RED/WHITE•BLACK DOT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

WITH AUTOLIGHT ONLY

1

2

OBDII (B)

1: IMMOBILIZER CONNECTOR

1: IMMOBILIZER HARNESS

2: IGNITION CONNECTOR

2: IGNITION HARNESS

IGNITION SWITCH (A)

2

1

!

M3

M2

M5 M4

PAGE 3 OF 10

U.S. Patent No. 8,856,780 2011-2016 Ford F-Super Duty STD key AT

20161212

T002_W

HARDWIRE / COMPONENT LOCATOR - 1 OF 1

A

D

B

C

PAGE 4 OF 10

U.S. Patent No. 8,856,780 2011-2016 Ford F-Super Duty STD key AT

20161212

87A

30

87

85

86

!

2

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

10

1 2 3 4 5

6 7 8 9

1 4 72 3 5 6

1 2 3 4

10

1 2 3

4 5

6 7 8 9

87A

30

87

85

86

T002_W

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

HARDWIRE / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

03 BROWN/RED - CANH 103 BROWN/RED - CANH 1 04 BROWN/YELLOW - CANL 104 BROWN/YELLOW - CANL 1

1: BLACK

2: GRAY

1: GRAY

BCM, PASSENGER KICK PANEL (C)

PARKING LIGHT SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

IGNITION 1 (+) WHITE/ORANGE - 01

ACCESSORY (+) PURPLE/GREEN - 06

RX (DATA) PURPLE/GRAY - 04

TX (DATA) YELLOW/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE/GREEN - 06

UNLOCK (-) YELLOW/PURPLE - 08

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

AUTOLIGHT (OPEN) PURPLE/GREEN - 04

LIGHT OFF (-) WHITE/PURPLE - 06

1

2

IGNITION SWITCH (A)

OBDII (B)

12V (+) GREEN/RED - 04

KEYSENSE (+) BLUE/GRAY - 05

STARTER 1 (+) BLUE/WHITE - 07

06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

03 RED/WHITE•BLACK DOT03 RED/WHITE•BLACK DOT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

01 EMPTY01 EMPTY

02 EMPTY02 EMPTY

05 BLUE/RED05 BLUE/RED

06 BLUE/YELLOW06 BLUE/YELLOW

07 EMPTY07 EMPTY

08 ORANGE08 ORANGE

09 YELLOW - KEYSENSE (+) OUTPUT09 YELLOW - KEYSENSE (+) OUTPUT

10 EMPTY10 EMPTY

11 GRAY/RED - IMMO. RX (DATA)11 GRAY/RED - IMMO. RX (DATA)

12 GRAY/YELLOW12 GRAY/YELLOW

13 GREEN/RED - IMMO. TX (DATA)13 GREEN/RED - IMMO. TX (DATA)

14 ORANGE/WHITE14 ORANGE/WHITE

15 BROWN - ACCESSORY (+) IN/OUT15 BROWN - ACCESSORY (+) IN/OUT

16 ORANGE/BLACK16 ORANGE/BLACK

17 PINK - IGNITION (+) IN/OUT17 PINK - IGNITION (+) IN/OUT 18 PURPLE - STARTER (+) OUTPUT18 PURPLE - STARTER (+) OUTPUT 19 RED - 12V (+)19 RED - 12V (+) 20 BLACK - GROUND (-)20 BLACK - GROUND (-)

01 GRAY/BLACK•BLUE DOT01 GRAY/BLACK•BLUE DOT

02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE

03 GRAY/RED•BLUE DOT03 GRAY/RED•BLUE DOT

04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE

05 GRAY•BLUE DOT05 GRAY•BLUE DOT

06 WHITE•BLUE DOT06 WHITE•BLUE DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

WITH AUTOLIGHT ONLY

1

2

1

2

!

M3

M2

M5 M4

PAGE 5 OF 10

U.S. Patent No. 8,856,780 2011-2016 Ford F-Super Duty STD key AT

20161212

>>

01

OFF

ACC ON

START

02

OFF

ACC

ON

START

03

04

OFF

ACC ON

START

05

OFF

ACC ON

START

06

OFF

ACC ON

START

07

OFF

ACC

ON

START

08

09

10

OFF

ACC ON

START

11

OFF

ACC ON

START

12

OFF

ACC

ON

START

13

14

15

OFF

ACC ON

START

16

>>

✤✁✂✄☎ ✆✝✞✝✟✤✤✠✡✞ ✆✝☛☎✁✂✝☎ ☞✌ ✍☎✎✏✑ ✒ ✓ ✔ ✌

NOTE: To complete this procedure, both OEM keys are required.

Insert key 1 into ignition.

Turn key 1 to ON position. LED 1 will turn solid RED.

Wait, LED 1 will ﬂash GREEN. (This may take up to 30 seconds)

Turn key 1 to OFF position.

Remove key 1.

Insert key 1 into ignition.

Turn key 1 to ON position.

If LED 1 turns solid GREEN for 2 seconds: Module Programming Procedure completed. If LED 1 turns solid RED, proceed with following step.

TIME RESTRICTION. Complete steps 08 to 10 within 4 seconds after LED 1 turns OFF.

Remove key 1.

Insert key 2 into ignition.

Turn key 2 to ON position.

Wait, LED 1 will turn solid RED then will turn OFF.

TIME RESTRICTION. Complete steps 13 and 14 within 4 seconds after LED 1 turns OFF.

Remove key 2.

Press and release programming button.

If the LED 1 begins to ﬂash RED, you are using a cloned key or used the same key twice.

PAGE 6 OF 10

U.S. Patent No. 8,856,780 2011-2016 Ford F-Super Duty STD key AT

20161212

17

18

OFF

ACC ON

START

19

20

21

22

23

MODULE PROGRAMMING PROCEDURE (2 KEYS) - 2 OF 2

Wait, LED 1 will turn solid RED then will turn solid GREEN.

START vehicle for 15 seconds.

Press and hold the brake pedal.

Press and release the module’s programming button.

Release the brake pedal.

Wait, LED 2 will ﬂash GREEN.

Module Programming Procedure completed.

PAGE 7 OF 10

U.S. Patent No. 8,856,780 2011-2016 Ford F-Super Duty STD key AT

20161212

>>

01

02

ENGINE START

STOP

OFF ACC ON START

ON

03

04

>>

✕✣✖✗✘✚✗✙ ✛✙✘✜✗✢✥✙✗ ✦ ✧ ✘★ ✧

All vehicle doors must be closed and locked prior to remote start sequence.

Press unlock on OEM or aftermarket remote or request switch.

DO NOT PRESS BRAKE PEDAL. Set ignition to ON position. Wait 2 seconds for key validation.

Press and release BRAKE pedal.

Take over procedure completed.

Failure to follow procedure will result in vehicle engine shutdown.

PAGE 8 OF 10

U.S. Patent No. 8,856,780 2011-2016 Ford F-Super Duty STD key AT

20161212

INSTALLATION CHECKLIST - 1 OF 2

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press the LOCK button once [1x] on the aftermarket keyfob.



Question 1: Do the doors lock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

4 Press the UNLOCK button once [1x] on the aftermarket keyfob.



Question 2: Do the doors unlock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

5 Press the TRUNK release button once [1x] on the aftermarket keyfob if supported.



Question 3: Does the trunk or hatch open/unlock?

YES: Close trunk or hatch and go to next step.



NO: Verify the remote programming, the RF connections and the wired trunk/hatch

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

6 Press the AUX 1 button once [1x] on the aftermarket keyfob if supported.



Question 4: Does the driver side sliding door open?

YES: Press the AUX 1 button once [1x] to close the driver sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

7 Press the AUX 2 button once [1x] on the aftermarket keyfob if supported.



Question 5: Does the passenger side sliding door open?

YES: Press the AUX 2 button once [1x] to close the passenger sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

8 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 6: Does the vehicle remote start?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and check the remote start error

codes. Repeat the test and call technical support, if the problem persists.

9 Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle.



Question 7: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If problem persists, press the brake pedal once [1x] to shut down the vehicle and call technical support.

10 RAP and auto light shutdown test



Question 8: Did the radio, interior controls and headlights turn off within 60 seconds after remote start shutdown?

YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support if the problem persists.

11 Open hood.

12

If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step.

13 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 9: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 14 Close hood. 15 Enter vehicle and close the doors. 16 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle. 17 Wait for the vehicle to start. 18 Press brake pedal.



Question 10: Does the vehicle shut down?

YES: Go to next step.



NO: The module does NOT detect the brake pedal signal. Press the START/STOP button once

[1x] on the aftermarket keyfob to shut down vehicle, check connection as illustrated in the

wiring diagram, if applicable, and call technical support.

19 Exit vehicle. 20 Installation checklist completed.

CHECKLIST - WITH AFTERMARKET KEYFOB

PAGE 9 OF 10

U.S. Patent No. 8,856,780 2011-2016 Ford F-Super Duty STD key AT

20161212

INSTALLATION CHECKLIST - 2 OF 2

CHECKLIST - WITH OEM KEYFOB

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 1: Does the vehicle remote start?

YES: Go to next step.



NO: The module doesn't detect OEM remote lock button from the vehicle communication network. Check all connections, repeat the test and call technical support, if the problem persists.

4 Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle.



Question 2: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If the problem persists, press on the brake pedal once [1x] to shut down the vehicle and call technical support.

5 RAP Shutdown test



Question 3: Did the radio, interior controls, and headlights turn off within 60 seconds after remote start shutdown? YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support, if the problem persists. 6 Open hood. 7 If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step. 8 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 4: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 9 Close hood.

10 Enter vehicle and close the doors. 11 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle. 12 Wait for the vehicle to start. 13 Press brake pedal.

 

Question 5: Does the vehicle shut down?

YES: Go to next step.

NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if

applicable, and call technical support.

14 Exit vehicle. 15 Installation checklist completed.

PAGE 10 OF 10

U.S. Patent No. 8,856,780 2011-2016 Ford F-Super Duty STD key AT

20161212

U.S. Patent No. 8,856,780

20161212

REVISION DATE

FT-RSA-FO1B-[FT-DC2-S]

FIRMWARE

FT-DC2-S

HARDWARE

ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL)

ACCESSORIES

DOCUMENT NUMBER

2014-2016 FORD FIESTA STD KEY AT

INSTALL GUIDE

NOTICE

The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device. This device must be installed by a certiﬁed technician. Please review the Installation Guide carefully before beginning any work.

T005_H

T-HARNESS / COMPONENT LOCATOR - 1 OF 1

A

C

D

B

PAGE 2 OF 10

U.S. Patent No. 8,856,780 2014-2016 Ford Fiesta STD key AT

20161212

!

1

2

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

MS2

MS1

VS2VS2

VS1VS1

VS4VS4

VS3VS3

87A

30

87

85

86

10

1 2 3

4 5

6 7 8 9

10 11 12

13

14 15 16 17 18

19 20 21 22 23 24

1 2 3 4 5

6 7 8 9

10 11 12

13

14 15 16 17 18 19

20 21 22 23 24

1 2 3 4 5 6 7 8 9

T005_H

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

TRUNK RELEASE (-) GREEN/WHITE - 06

CANH (DATA) GRAY/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BROWN/WHITE - 20

UNLOCK (-) BLUE/BROWN - 08

DISARM (-) PURPLE/BROWN - 09

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 19

LIGHT OFF (-) WHITE/PURPLE - 06

PARKING LIGHT (-) YELLOW/BLUE - 02

WITH AUTOLIGHT ONLY

1

M5

M4

M2

M3

1: IMMOBILIZER CONNECTOR

1: IMMOBILIZER HARNESS

2: IGNITION CONNECTOR

2: IGNITION HARNESS

IGNITION SWITCH (A)

OBDII (B)

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

2

1

T-HARNESS / WIRING DIAGRAM - 1 OF 1

GREEN/PURPLE

GREEN/WHITE

BROWN/YELLOW

BROWN/RED

19 RED19 RED

0101

0202

0303

0404

0505

0606

0707

0808

0909

1010

1111

1212

1313

1414

1515

1616

1717

1818

2020

0101

0202

0303

0404

0505

0606

03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

04 EMPTY04 EMPTY

06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

1: GRAY

2: WHITE

1: GRAY

BCM, BEHIND GLOVE BOX (C)

PARKING LIGHT SWITCH (D)

2

1

!

M3

M2

M5 M4

PAGE 3 OF 10

U.S. Patent No. 8,856,780 2014-2016 Ford Fiesta STD key AT

20161212

T005_W

HARDWIRE / COMPONENT LOCATOR - 1 OF 1

A

C

D

B

PAGE 4 OF 10

U.S. Patent No. 8,856,780 2014-2016 Ford Fiesta STD key AT

20161212

!

2

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

1 4 72 3 5 6

1 2 3 4

10

1 2 3

4 5

6 7 8 9

87A

30

87

85

86

10 11 12

13

14 15 16 17 18

19 20 21 22 23 24

1 2 3 4 5

6 7 8 9

10 11 12

13

14 15 16 17 18 19

20 21 22 23 24

1 2 3 4 5 6 7 8 9

T005_W

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

TRUNK RELEASE (-) GREEN/WHITE - 06

03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

HARDWIRE / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

03 BROWN/RED - CANH 103 BROWN/RED - CANH 1 04 BROWN/YELLOW - CANL 104 BROWN/YELLOW - CANL 1

1: GRAY

2: WHITE

1: GRAY

BCM, BEHIND GLOVE BOX (C)

PARKING LIGHT SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

IGNITION 1 (+) BROWN/ORANGE - 01

ACCESSORY (+) PURPLE/GREEN - 06

RX (DATA) PURPLE/GRAY - 04

TX (DATA) YELLOW/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BROWN/WHITE - 20

UNLOCK (-) BLUE/BROWN - 08

DISARM (-) PURPLE/BROWN - 09

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 19

LIGHT OFF (-) WHITE/PURPLE - 06

PARKING LIGHT (-) YELLOW/BLUE - 02

1

2

IGNITION SWITCH (A)

OBDII (B)

12V (+) RED - 04

STARTER 1 (+) BLUE/WHITE - 07

06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

01 EMPTY01 EMPTY

02 EMPTY02 EMPTY

05 BLUE/RED05 BLUE/RED

06 BLUE/YELLOW06 BLUE/YELLOW

07 EMPTY07 EMPTY

08 ORANGE08 ORANGE

09 YELLOW09 YELLOW

10 EMPTY10 EMPTY

11 GRAY/RED - IMMO. RX (DATA)11 GRAY/RED - IMMO. RX (DATA)

12 GRAY/YELLOW12 GRAY/YELLOW

13 GREEN/RED - IMMO. TX (DATA)13 GREEN/RED - IMMO. TX (DATA)

14 ORANGE/WHITE14 ORANGE/WHITE

15 BROWN - ACCESSORY (+) IN/OUT15 BROWN - ACCESSORY (+) IN/OUT

16 ORANGE/BLACK16 ORANGE/BLACK

17 PINK - IGNITION (+) IN/OUT17 PINK - IGNITION (+) IN/OUT 18 PURPLE - STARTER (+) OUTPUT18 PURPLE - STARTER (+) OUTPUT 19 RED - 12V (+)19 RED - 12V (+) 20 BLACK - GROUND (-)20 BLACK - GROUND (-)

01 GRAY/BLACK•BLUE DOT01 GRAY/BLACK•BLUE DOT

02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE

03 GRAY/RED•BLUE DOT03 GRAY/RED•BLUE DOT

04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE

05 GRAY•BLUE DOT05 GRAY•BLUE DOT

06 WHITE•BLUE DOT06 WHITE•BLUE DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

WITH AUTOLIGHT ONLY

2

1

2

!

M3

M2

M5 M4

PAGE 5 OF 10

U.S. Patent No. 8,856,780 2014-2016 Ford Fiesta STD key AT

20161212

>>

01

OFF

ACC ON

START

02

OFF

ACC

ON

START

03

04

OFF

ACC ON

START

05

OFF

ACC ON

START

06

OFF

ACC ON

START

07

OFF

ACC

ON

START

08

09

10

OFF

ACC ON

START

11

OFF

ACC ON

START

12

OFF

ACC

ON

START

13

14

15

OFF

ACC ON

START

16

>>

✤✁✂✄☎ ✆✝✞✝✟✤✤✠✡✞ ✆✝☛☎✁✂✝☎ ☞✌ ✍☎✎✏✑ ✒ ✓ ✔ ✌

NOTE: To complete this procedure, both OEM keys are required.

Insert key 1 into ignition.

Turn key 1 to ON position. LED 1 will turn solid RED.

Wait, LED 1 will ﬂash GREEN. (This may take up to 30 seconds)

Turn key 1 to OFF position.

Remove key 1.

Insert key 1 into ignition.

Turn key 1 to ON position.

If LED 1 turns solid GREEN for 2 seconds: Module Programming Procedure completed. If LED 1 turns solid RED, proceed with following step.

TIME RESTRICTION. Complete steps 08 to 10 within 4 seconds after LED 1 turns OFF.

Remove key 1.

Insert key 2 into ignition.

Turn key 2 to ON position.

Wait, LED 1 will turn solid RED then will turn OFF.

TIME RESTRICTION. Complete steps 13 and 14 within 4 seconds after LED 1 turns OFF.

Remove key 2.

Press and release programming button.

If the LED 1 begins to ﬂash RED, you are using a cloned key or used the same key twice.

PAGE 6 OF 10

U.S. Patent No. 8,856,780 2014-2016 Ford Fiesta STD key AT

20161212

17

18

OFF

ACC ON

START

19

20

21

22

23

MODULE PROGRAMMING PROCEDURE (2 KEYS) - 2 OF 2

Wait, LED 1 will turn solid RED then will turn solid GREEN.

START vehicle for 15 seconds.

Press and hold the brake pedal.

Press and release the module’s programming button.

Release the brake pedal.

Wait, LED 2 will ﬂash GREEN.

Module Programming Procedure completed.

PAGE 7 OF 10

U.S. Patent No. 8,856,780 2014-2016 Ford Fiesta STD key AT

20161212

>>

01

02

ENGINE START

STOP

OFF ACC ON START

ON

03

04

>>

✕✣✖✗✘✚✗✙ ✛✙✘✜✗✢✥✙✗ ✦ ✧ ✘★ ✧

All vehicle doors must be closed and locked prior to remote start sequence.

Press unlock on OEM or aftermarket remote or request switch.

DO NOT PRESS BRAKE PEDAL. Set ignition to ON position. Wait 2 seconds for key validation.

Press and release BRAKE pedal.

Take over procedure completed.

Failure to follow procedure will result in vehicle engine shutdown.

PAGE 8 OF 10

U.S. Patent No. 8,856,780 2014-2016 Ford Fiesta STD key AT

20161212

INSTALLATION CHECKLIST - 1 OF 2

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press the LOCK button once [1x] on the aftermarket keyfob.



Question 1: Do the doors lock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

4 Press the UNLOCK button once [1x] on the aftermarket keyfob.



Question 2: Do the doors unlock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

5 Press the TRUNK release button once [1x] on the aftermarket keyfob if supported.



Question 3: Does the trunk or hatch open/unlock?

YES: Close trunk or hatch and go to next step.



NO: Verify the remote programming, the RF connections and the wired trunk/hatch

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

6 Press the AUX 1 button once [1x] on the aftermarket keyfob if supported.



Question 4: Does the driver side sliding door open?

YES: Press the AUX 1 button once [1x] to close the driver sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

7 Press the AUX 2 button once [1x] on the aftermarket keyfob if supported.



Question 5: Does the passenger side sliding door open?

YES: Press the AUX 2 button once [1x] to close the passenger sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

8 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 6: Does the vehicle remote start?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and check the remote start error

codes. Repeat the test and call technical support, if the problem persists.

9 Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle.



Question 7: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If problem persists, press the brake pedal once [1x] to shut down the vehicle and call technical support.

10 RAP and auto light shutdown test



Question 8: Did the radio, interior controls and headlights turn off within 60 seconds after remote start shutdown?

YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support if the problem persists.

11 Open hood.

12

If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step.

13 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 9: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 14 Close hood. 15 Enter vehicle and close the doors. 16 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle. 17 Wait for the vehicle to start. 18 Press brake pedal.



Question 10: Does the vehicle shut down?

YES: Go to next step.



NO: The module does NOT detect the brake pedal signal. Press the START/STOP button once

[1x] on the aftermarket keyfob to shut down vehicle, check connection as illustrated in the

wiring diagram, if applicable, and call technical support.

19 Exit vehicle. 20 Installation checklist completed.

CHECKLIST - WITH AFTERMARKET KEYFOB

PAGE 9 OF 10

U.S. Patent No. 8,856,780 2014-2016 Ford Fiesta STD key AT

20161212

INSTALLATION CHECKLIST - 2 OF 2

CHECKLIST - WITH OEM KEYFOB

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 1: Does the vehicle remote start?

YES: Go to next step.



NO: The module doesn't detect OEM remote lock button from the vehicle communication network. Check all connections, repeat the test and call technical support, if the problem persists.

4 Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle.



Question 2: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If the problem persists, press on the brake pedal once [1x] to shut down the vehicle and call technical support.

5 RAP Shutdown test



Question 3: Did the radio, interior controls, and headlights turn off within 60 seconds after remote start shutdown? YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support, if the problem persists. 6 Open hood. 7 If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step. 8 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 4: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 9 Close hood.

10 Enter vehicle and close the doors. 11 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle. 12 Wait for the vehicle to start. 13 Press brake pedal.

 

Question 5: Does the vehicle shut down?

YES: Go to next step.

NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if

applicable, and call technical support.

14 Exit vehicle. 15 Installation checklist completed.

PAGE 10 OF 10

U.S. Patent No. 8,856,780 2014-2016 Ford Fiesta STD key AT

20161212

U.S. Patent No. 8,856,780

20161212

REVISION DATE

FT-RSA-FO1B-[FT-DC2-S]

FIRMWARE

FT-DC2-S

HARDWARE

ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL)

ACCESSORIES

DOCUMENT NUMBER

2013-2015 FORD FLEX STD KEY AT

INSTALL GUIDE

NOTICE

The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device. This device must be installed by a certiﬁed technician. Please review the Installation Guide carefully before beginning any work.

T003_H

T-HARNESS / COMPONENT LOCATOR - 1 OF 1

A

C

B

DE

PAGE 2 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Flex STD key AT

20161212

87A

30

87

85

86

!

MS2

MS1

VS2VS2

VS1VS1

VS4VS4

VS3VS3

2

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

10

1 2 3 4 5

6 7 8 9

10

1 2 3

4 5

6 7 8 9

87A

30

87

85

86

1 2 3 4 5

6

T003_H

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

GREEN/PURPLE

GREEN/WHITE

BROWN/YELLOW

BROWN/RED

19 RED19 RED

2020

0101

0202

0303

0404

0505

0606

0707

0808

0909

1010

1111

1212

1313

1414

1515

1616

1717

1818

0101

0202

0303

0404

0505

0606

T-HARNESS / WIRING DIAGRAM - 1 OF 1

TRUNK/LIFTGATE RELEASE (-) GRAY - 06

03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

1: BLACK

2: GRAY

1: GRAY

BCM, DRIVER SIDE DASH (C)

PARKING LIGHT SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE - 06

UNLOCK (-) YELLOW - 08

DRIVER DOOR PIN (OPEN) PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

AUTOLIGHT (OPEN) PURPLE/GREEN - 04

LIGHT OFF (-) WHITE/PURPLE - 06

OBDII (B)

06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

WITH AUTOLIGHT ONLY

1

2

1: BLACK

TRUNK/LIFTGATE SWITCH (E)

1: IMMOBILIZER CONNECTOR

1: IMMOBILIZER HARNESS

2: IGNITION CONNECTOR

2: IGNITION HARNESS

IGNITION SWITCH (A)

2

1

!

M3

M2

M5 M4

PAGE 3 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Flex STD key AT

20161212

T003_W

HARDWIRE / COMPONENT LOCATOR - 1 OF 1

A

C

B

DE

PAGE 4 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Flex STD key AT

20161212

87A

30

87

85

86

!

2

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

10

1 2 3 4 5

6 7 8 9

1 4 72 3 5 6

1 2 3 4

10

1 2 3

4 5

6 7 8 9

87A

30

87

85

86

1 2 3 4 5

6

T003_W

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

TRUNK/LIFTGATE RELEASE (-) GRAY - 06

03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

HARDWIRE / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

03 BROWN/RED - CANH 103 BROWN/RED - CANH 1 04 BROWN/YELLOW - CANL 104 BROWN/YELLOW - CANL 1

1: BLACK

2: GRAY

1: GRAY

BCM, DRIVER SIDE DASH (C)

PARKING LIGHT SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

IGNITION 1 (+) WHITE/ORANGE - 01

ACCESSORY (+) PURPLE - 06

RX (DATA) PURPLE - 04

TX (DATA) YELLOW - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE - 06

UNLOCK (-) YELLOW - 08

DRIVER DOOR PIN (OPEN) PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

AUTOLIGHT (OPEN) PURPLE/GREEN - 04

LIGHT OFF (-) WHITE/PURPLE - 06

1

2

IGNITION SWITCH (A)

OBDII (B)

12V (+) YELLOW/RED - 04

KEYSENSE (+) BLUE - 05

STARTER 1 (+) BLUE/WHITE - 07

06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

01 EMPTY01 EMPTY

02 EMPTY02 EMPTY

05 BLUE/RED05 BLUE/RED

06 BLUE/YELLOW06 BLUE/YELLOW

07 EMPTY07 EMPTY

08 ORANGE08 ORANGE

09 YELLOW - KEYSENSE (+) OUTPUT09 YELLOW - KEYSENSE (+) OUTPUT

10 EMPTY10 EMPTY

11 GRAY/RED - IMMO. RX (DATA)11 GRAY/RED - IMMO. RX (DATA)

12 GRAY/YELLOW12 GRAY/YELLOW

13 GREEN/RED - IMMO. TX (DATA)13 GREEN/RED - IMMO. TX (DATA)

14 ORANGE/WHITE14 ORANGE/WHITE

15 BROWN - ACCESSORY (+) IN/OUT15 BROWN - ACCESSORY (+) IN/OUT

16 ORANGE/BLACK16 ORANGE/BLACK

17 PINK - IGNITION (+) IN/OUT17 PINK - IGNITION (+) IN/OUT 18 PURPLE - STARTER (+) OUTPUT18 PURPLE - STARTER (+) OUTPUT 19 RED - 12V (+)19 RED - 12V (+) 20 BLACK - GROUND (-)20 BLACK - GROUND (-)

01 GRAY/BLACK•BLUE DOT01 GRAY/BLACK•BLUE DOT

02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE

03 GRAY/RED•BLUE DOT03 GRAY/RED•BLUE DOT

04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE

05 GRAY•BLUE DOT05 GRAY•BLUE DOT

06 WHITE•BLUE DOT06 WHITE•BLUE DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

WITH AUTOLIGHT ONLY

1

2

1

2

1: BLACK

TRUNK/LIFTGATE SWITCH (E)

!

M3

M2

M5 M4

PAGE 5 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Flex STD key AT

20161212

>>

01

OFF

ACC ON

START

02

OFF

ACC

ON

START

03

04

OFF

ACC ON

START

05

OFF

ACC ON

START

06

OFF

ACC ON

START

07

OFF

ACC

ON

START

08

09

10

OFF

ACC ON

START

11

OFF

ACC ON

START

12

OFF

ACC

ON

START

13

14

15

OFF

ACC ON

START

16

>>

✤✁✂✄☎ ✆✝✞✝✟✤✤✠✡✞ ✆✝☛☎✁✂✝☎ ☞✌ ✍☎✎✏✑ ✒ ✓ ✔ ✌

NOTE: To complete this procedure, both OEM keys are required.

Insert key 1 into ignition.

Turn key 1 to ON position. LED 1 will turn solid RED.

Wait, LED 1 will ﬂash GREEN. (This may take up to 30 seconds)

Turn key 1 to OFF position.

Remove key 1.

Insert key 1 into ignition.

Turn key 1 to ON position.

If LED 1 turns solid GREEN for 2 seconds: Module Programming Procedure completed. If LED 1 turns solid RED, proceed with following step.

TIME RESTRICTION. Complete steps 08 to 10 within 4 seconds after LED 1 turns OFF.

Remove key 1.

Insert key 2 into ignition.

Turn key 2 to ON position.

Wait, LED 1 will turn solid RED then will turn OFF.

TIME RESTRICTION. Complete steps 13 and 14 within 4 seconds after LED 1 turns OFF.

Remove key 2.

Press and release programming button.

If the LED 1 begins to ﬂash RED, you are using a cloned key or used the same key twice.

PAGE 6 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Flex STD key AT

20161212

17

18

OFF

ACC ON

START

19

20

21

22

23

MODULE PROGRAMMING PROCEDURE (2 KEYS) - 2 OF 2

Wait, LED 1 will turn solid RED then will turn solid GREEN.

START vehicle for 15 seconds.

Press and hold the brake pedal.

Press and release the module’s programming button.

Release the brake pedal.

Wait, LED 2 will ﬂash GREEN.

Module Programming Procedure completed.

PAGE 7 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Flex STD key AT

20161212

>>

01

02

ENGINE START

STOP

OFF ACC ON START

ON

03

04

>>

✕✣✖✗✘✚✗✙ ✛✙✘✜✗✢✥✙✗ ✦ ✧ ✘★ ✧

All vehicle doors must be closed and locked prior to remote start sequence.

Press unlock on OEM or aftermarket remote or request switch.

DO NOT PRESS BRAKE PEDAL. Set ignition to ON position. Wait 2 seconds for key validation.

Press and release BRAKE pedal.

Take over procedure completed.

Failure to follow procedure will result in vehicle engine shutdown.

PAGE 8 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Flex STD key AT

20161212

INSTALLATION CHECKLIST - 1 OF 2

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press the LOCK button once [1x] on the aftermarket keyfob.



Question 1: Do the doors lock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

4 Press the UNLOCK button once [1x] on the aftermarket keyfob.



Question 2: Do the doors unlock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

5 Press the TRUNK release button once [1x] on the aftermarket keyfob if supported.



Question 3: Does the trunk or hatch open/unlock?

YES: Close trunk or hatch and go to next step.



NO: Verify the remote programming, the RF connections and the wired trunk/hatch

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

6 Press the AUX 1 button once [1x] on the aftermarket keyfob if supported.



Question 4: Does the driver side sliding door open?

YES: Press the AUX 1 button once [1x] to close the driver sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

7 Press the AUX 2 button once [1x] on the aftermarket keyfob if supported.



Question 5: Does the passenger side sliding door open?

YES: Press the AUX 2 button once [1x] to close the passenger sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

8 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 6: Does the vehicle remote start?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and check the remote start error

codes. Repeat the test and call technical support, if the problem persists.

9 Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle.



Question 7: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If problem persists, press the brake pedal once [1x] to shut down the vehicle and call technical support.

10 RAP and auto light shutdown test



Question 8: Did the radio, interior controls and headlights turn off within 60 seconds after remote start shutdown?

YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support if the problem persists.

11 Open hood.

12

If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step.

13 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 9: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 14 Close hood. 15 Enter vehicle and close the doors. 16 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle. 17 Wait for the vehicle to start. 18 Press brake pedal.



Question 10: Does the vehicle shut down?

YES: Go to next step.



NO: The module does NOT detect the brake pedal signal. Press the START/STOP button once

[1x] on the aftermarket keyfob to shut down vehicle, check connection as illustrated in the

wiring diagram, if applicable, and call technical support.

19 Exit vehicle. 20 Installation checklist completed.

CHECKLIST - WITH AFTERMARKET KEYFOB

PAGE 9 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Flex STD key AT

20161212

INSTALLATION CHECKLIST - 2 OF 2

CHECKLIST - WITH OEM KEYFOB

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 1: Does the vehicle remote start?

YES: Go to next step.



NO: The module doesn't detect OEM remote lock button from the vehicle communication network. Check all connections, repeat the test and call technical support, if the problem persists.

4 Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle.



Question 2: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If the problem persists, press on the brake pedal once [1x] to shut down the vehicle and call technical support.

5 RAP Shutdown test



Question 3: Did the radio, interior controls, and headlights turn off within 60 seconds after remote start shutdown? YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support, if the problem persists. 6 Open hood. 7 If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step. 8 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 4: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 9 Close hood.

10 Enter vehicle and close the doors. 11 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle. 12 Wait for the vehicle to start. 13 Press brake pedal.

 

Question 5: Does the vehicle shut down?

YES: Go to next step.

NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if

applicable, and call technical support.

14 Exit vehicle. 15 Installation checklist completed.

PAGE 10 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Flex STD key AT

20161212

U.S. Patent No. 8,856,780

20161212

REVISION DATE

FT-RSA-FO1B-[FT-DC2-S]

FIRMWARE

FT-DC2-S

HARDWARE

ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL)

ACCESSORIES

DOCUMENT NUMBER

2013-2015 FORD TAURUS STD KEY AT

INSTALL GUIDE

NOTICE

The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device. This device must be installed by a certiﬁed technician. Please review the Installation Guide carefully before beginning any work.

T004_H

T-HARNESS / COMPONENT LOCATOR - 1 OF 1

A

C

B

D

E

PAGE 2 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Taurus STD key AT

20161212

87A

30

87

85

86

!

MS2

MS1

87A

30

87

85

86

VS2VS2

VS1VS1

VS4VS4

VS3VS3

2

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

10

1 2 3 4 5

6 7 8 9

10

1 2 3

4 5

6 7 8 9

1 2 3 4 5

6

T004_H

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

GREEN/PURPLE

GREEN/WHITE

BROWN/YELLOW

BROWN/RED

19 RED19 RED

2020

1: IMMOBILIZER CONNECTOR

1: IMMOBILIZER HARNESS

2: IGNITION CONNECTOR

2: IGNITION HARNESS

IGNITION SWITCH (A)

2

1

0101

0202

0303

0404

0505

0606

0707

0808

0909

1010

1111

1212

1313

1414

1515

1616

1717

1818

0101

0202

0303

0404

0505

0606

TRUNK/LIFTGATE RELEASE (-) BROWN - 06

03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

T-HARNESS / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

1: BLACK

2: GRAY

1: GRAY

BCM, DRIVER SIDE DASH (C)

PARKING LIGHT SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE/GREEN - 06

UNLOCK (-) YELLOW/PURPLE - 08

DRIVER DOOR PIN (OPEN) GREEN/PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

AUTO LIGHT (OPEN) PURPLE/GREEN

OR PURPLE - 04

LIGHT OFF (-) WHITE/PURPLE OR WHITE - 06

OBDII (B)

06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

WITH AUTOLIGHT ONLY

1

2

1: BLACK

TRUNK/LIFTGATE SWITCH (E)

!

M3

M2

M5 M4

PAGE 3 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Taurus STD key AT

20161212

T004_W

HARDWIRE / COMPONENT LOCATOR - 1 OF 1

A

C

B

D

E

PAGE 4 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Taurus STD key AT

20161212

87A

30

87

85

86

!

2

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

10

1 2 3 4 5

6 7 8 9

1 4 72 3 5 6

1 2 3 4

10

1 2 3

4 5

6 7 8 9

87A

30

87

85

86

1 2 3 4 5

6

T004_W

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

TRUNK/LIFTGATE RELEASE (-) BROWN - 06

03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

HARDWIRE / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

03 BROWN/RED - CANH 103 BROWN/RED - CANH 1 04 BROWN/YELLOW - CANL 104 BROWN/YELLOW - CANL 1

1: BLACK

2: GRAY

1: GRAY

BCM, DRIVER SIDE DASH (C)

PARKING LIGHT SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

IGNITION 1 (+) WHITE/ORANGE - 01

ACCESSORY (+) PURPLE/GREEN - 06

RX (DATA) PURPLE/GRAY - 04

TX (DATA) YELLOW/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE/GREEN - 06

UNLOCK (-) YELLOW/PURPLE - 08

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

AUTO LIGHT (OPEN) PURPLE/GREEN

OR PURPLE - 04

LIGHT OFF (-) WHITE/PURPLE OR WHITE - 06

1

2

IGNITION SWITCH (A)

OBDII (B)

12V (+) YELLOW/RED - 04

KEYSENSE (+) BLUE/GRAY - 05

STARTER 1 (+) BLUE/WHITE - 07

06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

01 EMPTY01 EMPTY

02 EMPTY02 EMPTY

05 BLUE/RED05 BLUE/RED

06 BLUE/YELLOW06 BLUE/YELLOW

07 EMPTY07 EMPTY

08 ORANGE08 ORANGE

09 YELLOW - KEYSENSE (+) OUTPUT09 YELLOW - KEYSENSE (+) OUTPUT

10 EMPTY10 EMPTY

11 GRAY/RED - IMMO. RX (DATA)11 GRAY/RED - IMMO. RX (DATA)

12 GRAY/YELLOW12 GRAY/YELLOW

13 GREEN/RED - IMMO. TX (DATA)13 GREEN/RED - IMMO. TX (DATA)

14 ORANGE/WHITE14 ORANGE/WHITE

15 BROWN - ACCESSORY (+) IN/OUT15 BROWN - ACCESSORY (+) IN/OUT

16 ORANGE/BLACK16 ORANGE/BLACK

17 PINK - IGNITION (+) IN/OUT17 PINK - IGNITION (+) IN/OUT 18 PURPLE - STARTER (+) OUTPUT18 PURPLE - STARTER (+) OUTPUT 19 RED - 12V (+)19 RED - 12V (+) 20 BLACK - GROUND (-)20 BLACK - GROUND (-)

01 GRAY/BLACK•BLUE DOT01 GRAY/BLACK•BLUE DOT

02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE

03 GRAY/RED•BLUE DOT03 GRAY/RED•BLUE DOT

04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE

05 GRAY•BLUE DOT05 GRAY•BLUE DOT

06 WHITE•BLUE DOT06 WHITE•BLUE DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

WITH AUTOLIGHT ONLY

1

2

1

2

1: BLACK

TRUNK/LIFTGATE SWITCH (E)

!

M3

M2

M5 M4

PAGE 5 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Taurus STD key AT

20161212

>>

01

OFF

ACC ON

START

02

OFF

ACC

ON

START

03

04

OFF

ACC ON

START

05

OFF

ACC ON

START

06

OFF

ACC ON

START

07

OFF

ACC

ON

START

08

09

10

OFF

ACC ON

START

11

OFF

ACC ON

START

12

OFF

ACC

ON

START

13

14

15

OFF

ACC ON

START

16

>>

✤✁✂✄☎ ✆✝✞✝✟✤✤✠✡✞ ✆✝☛☎✁✂✝☎ ☞✌ ✍☎✎✏✑ ✒ ✓ ✔ ✌

NOTE: To complete this procedure, both OEM keys are required.

Insert key 1 into ignition.

Turn key 1 to ON position. LED 1 will turn solid RED.

Wait, LED 1 will ﬂash GREEN. (This may take up to 30 seconds)

Turn key 1 to OFF position.

Remove key 1.

Insert key 1 into ignition.

Turn key 1 to ON position.

If LED 1 turns solid GREEN for 2 seconds: Module Programming Procedure completed. If LED 1 turns solid RED, proceed with following step.

TIME RESTRICTION. Complete steps 08 to 10 within 4 seconds after LED 1 turns OFF.

Remove key 1.

Insert key 2 into ignition.

Turn key 2 to ON position.

Wait, LED 1 will turn solid RED then will turn OFF.

TIME RESTRICTION. Complete steps 13 and 14 within 4 seconds after LED 1 turns OFF.

Remove key 2.

Press and release programming button.

If the LED 1 begins to ﬂash RED, you are using a cloned key or used the same key twice.

PAGE 6 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Taurus STD key AT

20161212

17

18

OFF

ACC ON

START

19

20

21

22

23

MODULE PROGRAMMING PROCEDURE (2 KEYS) - 2 OF 2

Wait, LED 1 will turn solid RED then will turn solid GREEN.

START vehicle for 15 seconds.

Press and hold the brake pedal.

Press and release the module’s programming button.

Release the brake pedal.

Wait, LED 2 will ﬂash GREEN.

Module Programming Procedure completed.

PAGE 7 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Taurus STD key AT

20161212

>>

01

02

ENGINE START

STOP

OFF ACC ON START

ON

03

04

>>

✕✣✖✗✘✚✗✙ ✛✙✘✜✗✢✥✙✗ ✦ ✧ ✘★ ✧

All vehicle doors must be closed and locked prior to remote start sequence.

Press unlock on OEM or aftermarket remote or request switch.

DO NOT PRESS BRAKE PEDAL. Set ignition to ON position. Wait 2 seconds for key validation.

Press and release BRAKE pedal.

Take over procedure completed.

Failure to follow procedure will result in vehicle engine shutdown.

PAGE 8 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Taurus STD key AT

20161212

INSTALLATION CHECKLIST - 1 OF 2

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press the LOCK button once [1x] on the aftermarket keyfob.



Question 1: Do the doors lock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

4 Press the UNLOCK button once [1x] on the aftermarket keyfob.



Question 2: Do the doors unlock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

5 Press the TRUNK release button once [1x] on the aftermarket keyfob if supported.



Question 3: Does the trunk or hatch open/unlock?

YES: Close trunk or hatch and go to next step.



NO: Verify the remote programming, the RF connections and the wired trunk/hatch

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

6 Press the AUX 1 button once [1x] on the aftermarket keyfob if supported.



Question 4: Does the driver side sliding door open?

YES: Press the AUX 1 button once [1x] to close the driver sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

7 Press the AUX 2 button once [1x] on the aftermarket keyfob if supported.



Question 5: Does the passenger side sliding door open?

YES: Press the AUX 2 button once [1x] to close the passenger sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

8 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 6: Does the vehicle remote start?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and check the remote start error

codes. Repeat the test and call technical support, if the problem persists.

9 Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle.



Question 7: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If problem persists, press the brake pedal once [1x] to shut down the vehicle and call technical support.

10 RAP and auto light shutdown test



Question 8: Did the radio, interior controls and headlights turn off within 60 seconds after remote start shutdown?

YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support if the problem persists.

11 Open hood.

12

If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step.

13 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 9: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 14 Close hood. 15 Enter vehicle and close the doors. 16 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle. 17 Wait for the vehicle to start. 18 Press brake pedal.



Question 10: Does the vehicle shut down?

YES: Go to next step.



NO: The module does NOT detect the brake pedal signal. Press the START/STOP button once

[1x] on the aftermarket keyfob to shut down vehicle, check connection as illustrated in the

wiring diagram, if applicable, and call technical support.

19 Exit vehicle. 20 Installation checklist completed.

CHECKLIST - WITH AFTERMARKET KEYFOB

PAGE 9 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Taurus STD key AT

20161212

INSTALLATION CHECKLIST - 2 OF 2

CHECKLIST - WITH OEM KEYFOB

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 1: Does the vehicle remote start?

YES: Go to next step.



NO: The module doesn't detect OEM remote lock button from the vehicle communication network. Check all connections, repeat the test and call technical support, if the problem persists.

4 Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle.



Question 2: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If the problem persists, press on the brake pedal once [1x] to shut down the vehicle and call technical support.

5 RAP Shutdown test



Question 3: Did the radio, interior controls, and headlights turn off within 60 seconds after remote start shutdown? YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support, if the problem persists. 6 Open hood. 7 If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step. 8 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 4: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 9 Close hood.

10 Enter vehicle and close the doors. 11 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle. 12 Wait for the vehicle to start. 13 Press brake pedal.

 

Question 5: Does the vehicle shut down?

YES: Go to next step.

NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if

applicable, and call technical support.

14 Exit vehicle. 15 Installation checklist completed.

PAGE 10 OF 10

U.S. Patent No. 8,856,780 2013-2015 Ford Taurus STD key AT

20161212

U.S. Patent No. 8,856,780

20161212

REVISION DATE

FT-RSA-FO1B-[FT-DC2-S]

FIRMWARE

FT-DC2-S

HARDWARE

ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL)

ACCESSORIES

DOCUMENT NUMBER

2015-2016 FORD TRANSIT STD KEY AT

INSTALL GUIDE

NOTICE

The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device. This device must be installed by a certiﬁed technician. Please review the Installation Guide carefully before beginning any work.

T006_H

A

C

B

T-HARNESS / COMPONENT LOCATOR - 1 OF 1

PAGE 2 OF 10

U.S. Patent No. 8,856,780 2015-2016 Ford Transit STD key AT

20161212

87A

30

87

85

86

!

2

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

1

2

3

4

5

6

7

8

9

40

41

42

43

44

45

46

47

48

49

50

51

52

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

53

54

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

1

2

3

4

5

6

7

8

9

40

41

42

43

44

45

46

MS2

MS1

VS2VS2

VS1VS1

VS4VS4

VS3VS3

T006_H

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

03 RED/WHITE•BLACK DOT03 RED/WHITE•BLACK DOT

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

1: BROWN

2: BROWN

BCM, DRIVER SIDE DASH (C)

CANH (DATA) GRAY/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) GRAY/YELLOW - 25

UNLOCK (-) PURPLE/GRAY - 56

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 44

PARKING LIGHT FRONT RIGHT (+)

BROWN/YELLOW- 66

PARKING LIGHT REAR RIGHT (+)

WHITE/ORANGE - 67

PARKING LIGHT REAR LEFT (+)

PURPLE/GREEN- 15

PARKING LIGHT FRONT LEFT (+)

GREEN/ORANGE - 14

1: IMMOBILIZER CONNECTOR

1: IMMOBILIZER HARNESS

2: IGNITION CONNECTOR

2: IGNITION HARNESS

IGNITION SWITCH (A)

OBDII (B)

06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

2

1

2

T-HARNESS / WIRING DIAGRAM - 1 OF 1

GREEN/PURPLE

GREEN/WHITE

BROWN/YELLOW

BROWN/RED

19 RED19 RED

0101

0202

0303

0404

0505

0606

0707

0808

0909

1010

1111

1212

1313

1414

1515

1616

1717

1818

2020

0101

0202

0303

0404

0505

0606

!

M3

M2

M5 M4

PAGE 3 OF 10

U.S. Patent No. 8,856,780 2015-2016 Ford Transit STD key AT

20161212

T006_W

HARDWIRE / COMPONENT LOCATOR - 1 OF 1

A

C

B

PAGE 4 OF 10

U.S. Patent No. 8,856,780 2015-2016 Ford Transit STD key AT

20161212

87A

30

87

85

86

!

2

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

1 4 72 3 5 6

1 2 3 4

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

1

2

3

4

5

6

7

8

9

40

41

42

43

44

45

46

47

48

49

50

51

52

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

53

54

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

1

2

3

4

5

6

7

8

9

40

41

42

43

44

45

46

T006_W

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

03 RED/WHITE•BLACK DOT03 RED/WHITE•BLACK DOT

HARDWIRE / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

03 BROWN/RED - CANH 103 BROWN/RED - CANH 1 04 BROWN/YELLOW - CANL 104 BROWN/YELLOW - CANL 1

1: BROWN

2: BROWN

BCM, DRIVER SIDE DASH (C)

CANH (DATA) GRAY/ORANGE - 03

IGNITION 1 (+) BROWN/YELLOW - 01

ACCESSORY (+) PURPLE/GREEN - 06

RX (DATA) PURPLE/GRAY - 04

TX (DATA) YELLOW/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) GRAY/YELLOW - 25

UNLOCK (-) PURPLE/GRAY - 56

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 44

PARKING LIGHT FRONT RIGHT (+)

BROWN/YELLOW- 66

PARKING LIGHT REAR RIGHT (+)

WHITE/ORANGE - 67

PARKING LIGHT REAR LEFT (+)

PURPLE/GREEN- 15

PARKING LIGHT FRONT LEFT (+)

GREEN/ORANGE - 14

1

2

IGNITION SWITCH (A)

OBDII (B)

12V (+) BLUE/RED - 04

KEYSENSE (+) BLUE/GRAY - 05

STARTER 1 (+) BLUE/WHITE - 07

06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

01 EMPTY01 EMPTY

02 EMPTY02 EMPTY

05 BLUE/RED05 BLUE/RED

06 BLUE/YELLOW06 BLUE/YELLOW

07 EMPTY07 EMPTY

08 ORANGE08 ORANGE

09 YELLOW - KEYSENSE (+) OUTPUT09 YELLOW - KEYSENSE (+) OUTPUT

10 EMPTY10 EMPTY

11 GRAY/RED - IMMO. RX (DATA)11 GRAY/RED - IMMO. RX (DATA)

12 GRAY/YELLOW12 GRAY/YELLOW

13 GREEN/RED - IMMO. TX (DATA)13 GREEN/RED - IMMO. TX (DATA)

14 ORANGE/WHITE14 ORANGE/WHITE

15 BROWN - ACCESSORY (+) IN/OUT15 BROWN - ACCESSORY (+) IN/OUT

16 ORANGE/BLACK16 ORANGE/BLACK

17 PINK - IGNITION (+) IN/OUT17 PINK - IGNITION (+) IN/OUT 18 PURPLE - STARTER (+) OUTPUT18 PURPLE - STARTER (+) OUTPUT 19 RED - 12V (+)19 RED - 12V (+) 20 BLACK - GROUND (-)20 BLACK - GROUND (-)

01 GRAY/BLACK•BLUE DOT01 GRAY/BLACK•BLUE DOT

02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE

03 GRAY/RED•BLUE DOT03 GRAY/RED•BLUE DOT

04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE

05 GRAY•BLUE DOT05 GRAY•BLUE DOT

06 WHITE•BLUE DOT06 WHITE•BLUE DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

1

2

1

2

!

M3

M2

M5 M4

PAGE 5 OF 10

U.S. Patent No. 8,856,780 2015-2016 Ford Transit STD key AT

20161212

>>

01

OFF

ACC ON

START

02

OFF

ACC

ON

START

03

04

OFF

ACC ON

START

05

OFF

ACC ON

START

06

OFF

ACC ON

START

07

OFF

ACC

ON

START

08

09

10

OFF

ACC ON

START

11

OFF

ACC ON

START

12

OFF

ACC

ON

START

13

14

15

OFF

ACC ON

START

16

>>

✤✁✂✄☎ ✆✝✞✝✟✤✤✠✡✞ ✆✝☛☎✁✂✝☎ ☞✌ ✍☎✎✏✑ ✒ ✓ ✔ ✌

NOTE: To complete this procedure, both OEM keys are required.

Insert key 1 into ignition.

Turn key 1 to ON position. LED 1 will turn solid RED.

Wait, LED 1 will ﬂash GREEN. (This may take up to 30 seconds)

Turn key 1 to OFF position.

Remove key 1.

Insert key 1 into ignition.

Turn key 1 to ON position.

If LED 1 turns solid GREEN for 2 seconds: Module Programming Procedure completed. If LED 1 turns solid RED, proceed with following step.

TIME RESTRICTION. Complete steps 08 to 10 within 4 seconds after LED 1 turns OFF.

Remove key 1.

Insert key 2 into ignition.

Turn key 2 to ON position.

Wait, LED 1 will turn solid RED then will turn OFF.

TIME RESTRICTION. Complete steps 13 and 14 within 4 seconds after LED 1 turns OFF.

Remove key 2.

Press and release programming button.

If the LED 1 begins to ﬂash RED, you are using a cloned key or used the same key twice.

PAGE 6 OF 10

U.S. Patent No. 8,856,780 2015-2016 Ford Transit STD key AT

20161212

17

18

OFF

ACC ON

START

19

20

21

22

23

MODULE PROGRAMMING PROCEDURE (2 KEYS) - 2 OF 2

Wait, LED 1 will turn solid RED then will turn solid GREEN.

START vehicle for 15 seconds.

Press and hold the brake pedal.

Press and release the module’s programming button.

Release the brake pedal.

Wait, LED 2 will ﬂash GREEN.

Module Programming Procedure completed.

PAGE 7 OF 10

U.S. Patent No. 8,856,780 2015-2016 Ford Transit STD key AT

20161212

>>

01

02

ENGINE START

STOP

OFF ACC ON START

ON

03

04

>>

✕✣✖✗✘✚✗✙ ✛✙✘✜✗✢✥✙✗ ✦ ✧ ✘★ ✧

All vehicle doors must be closed and locked prior to remote start sequence.

Press unlock on OEM or aftermarket remote or request switch.

DO NOT PRESS BRAKE PEDAL. Set ignition to ON position. Wait 2 seconds for key validation.

Press and release BRAKE pedal.

Take over procedure completed.

Failure to follow procedure will result in vehicle engine shutdown.

PAGE 8 OF 10

U.S. Patent No. 8,856,780 2015-2016 Ford Transit STD key AT

20161212

INSTALLATION CHECKLIST - 1 OF 2

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press the LOCK button once [1x] on the aftermarket keyfob.



Question 1: Do the doors lock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

4 Press the UNLOCK button once [1x] on the aftermarket keyfob.



Question 2: Do the doors unlock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

5 Press the TRUNK release button once [1x] on the aftermarket keyfob if supported.



Question 3: Does the trunk or hatch open/unlock?

YES: Close trunk or hatch and go to next step.



NO: Verify the remote programming, the RF connections and the wired trunk/hatch

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

6 Press the AUX 1 button once [1x] on the aftermarket keyfob if supported.



Question 4: Does the driver side sliding door open?

YES: Press the AUX 1 button once [1x] to close the driver sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

7 Press the AUX 2 button once [1x] on the aftermarket keyfob if supported.



Question 5: Does the passenger side sliding door open?

YES: Press the AUX 2 button once [1x] to close the passenger sliding door and go to next step.



NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

8 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 6: Does the vehicle remote start?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and check the remote start error

codes. Repeat the test and call technical support, if the problem persists.

9 Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle.



Question 7: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If problem persists, press the brake pedal once [1x] to shut down the vehicle and call technical support.

10 RAP and auto light shutdown test



Question 8: Did the radio, interior controls and headlights turn off within 60 seconds after remote start shutdown?

YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support if the problem persists.

11 Open hood.

12

If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step.

13 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 9: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 14 Close hood. 15 Enter vehicle and close the doors. 16 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle. 17 Wait for the vehicle to start. 18 Press brake pedal.



Question 10: Does the vehicle shut down?

YES: Go to next step.



NO: The module does NOT detect the brake pedal signal. Press the START/STOP button once

[1x] on the aftermarket keyfob to shut down vehicle, check connection as illustrated in the

wiring diagram, if applicable, and call technical support.

19 Exit vehicle. 20 Installation checklist completed.

CHECKLIST - WITH AFTERMARKET KEYFOB

PAGE 9 OF 10

U.S. Patent No. 8,856,780 2015-2016 Ford Transit STD key AT

20161212

INSTALLATION CHECKLIST - 2 OF 2

CHECKLIST - WITH OEM KEYFOB

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area. 2 Close all vehicle doors, hood and trunk. 3 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 1: Does the vehicle remote start?

YES: Go to next step.



NO: The module doesn't detect OEM remote lock button from the vehicle communication network. Check all connections, repeat the test and call technical support, if the problem persists.

4 Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle.



Question 2: Does the vehicle shut down? YES: Go to next step.



NO: Repeat step. If the problem persists, press on the brake pedal once [1x] to shut down the vehicle and call technical support.

5 RAP Shutdown test



Question 3: Did the radio, interior controls, and headlights turn off within 60 seconds after remote start shutdown? YES: Go to next step.



NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support, if the problem persists. 6 Open hood. 7 If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step. 8 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 4: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.



NO: Go to next step. 9 Close hood.

10 Enter vehicle and close the doors. 11 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle. 12 Wait for the vehicle to start. 13 Press brake pedal.

 

Question 5: Does the vehicle shut down?

YES: Go to next step.

NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if

applicable, and call technical support.

14 Exit vehicle. 15 Installation checklist completed.

PAGE 10 OF 10

U.S. Patent No. 8,856,780 2015-2016 Ford Transit STD key AT

20161212

U.S. Patent No. 8,856,780

20161212

REVISION DATE

FT-RSA-FO1B-[FT-DC2-S]

FIRMWARE

FT-DC2-S

HARDWARE

ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL)

ACCESSORIES

DOCUMENT NUMBER

2011-2012 LINCOLN MKX STD KEY AT

INSTALL GUIDE

NOTICE

The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device. This device must be installed by a certiﬁed technician. Please review the Installation Guide carefully before beginning any work.

T001_H

T-HARNESS / COMPONENT LOCATOR - 1 OF 1

A

B

D

C

PAGE 2 OF 10

U.S. Patent No. 8,856,780 2011-2012 Lincoln MKX STD key AT

20161212

87A

30

87

85

86

!

MS2

MS1

VS2VS2

VS1VS1

VS4VS4

VS3VS3

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

10

1 2 3 4 5

6 7 8 9

1 2 3 4 5 6

7 8

1 2 3 4 5

6

T001_H

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

GREEN/PURPLE

GREEN/WHITE

BROWN/YELLOW

BROWN/RED

19 RED19 RED

2020

0101

0202

0303

0404

0505

0606

0707

0808

0909

1010

1111

1212

1313

1414

1515

1616

1717

1818

0101

0202

0303

0404

0505

0606

T-HARNESS / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

1: BLACK

2: GRAY

1: BLACK

BCM, DRIVER SIDE DASH (C)

LIFTGATE SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE/GREEN - 06

TRUNK RELEASE (-) GRAY/YELLOW

UNLOCK (-) YELLOW/PURPLE - 08

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

OBDII (B)

06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT 03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

1

2

1: IMMOBILIZER CONNECTOR

1: IMMOBILIZER HARNESS

2: IGNITION CONNECTOR

2: IGNITION HARNESS

2

1

OR

!

M3

M2

M5 M4

PAGE 3 OF 10

U.S. Patent No. 8,856,780 2011-2012 Lincoln MKX STD key AT

20161212

T001_W

HARDWIRE / COMPONENT LOCATOR - 1 OF 1

A

B

D

C

PAGE 4 OF 10

U.S. Patent No. 8,856,780 2011-2012 Lincoln MKX STD key AT

20161212

87A

30

87

85

86

!

1

10 11 12 13 14 15 16

1 2 3

11

3 4 5 6 7 8

9

10 11

12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

1 234 5

678 9

OR

10

1 2 3 4 5

6 7 8 9

1 2 3 4 5 6

7 8

1 2 3 4 5

6

1 4 72 3 5 6

1 2 3 4

T001_W

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

HARDWIRE / WIRING DIAGRAM - 1 OF 1

1

M5

M4

M2

M3

04 EMPTY04 EMPTY

03 BROWN/RED - CANH 103 BROWN/RED - CANH 1 04 BROWN/YELLOW - CANL 104 BROWN/YELLOW - CANL 1

1: BLACK

2: GRAY

1: BLACK

BCM, DRIVER SIDE DASH (C)

LIFTGATE SWITCH (D)

CANH (DATA) GRAY/ORANGE - 03

IGNITION 1 (+) WHITE/ORANGE - 01

ACCESSORY (+) PURPLE/GREEN - 06

RX (DATA) PURPLE/GRAY - 04

TX (DATA) YELLOW/ORANGE - 03

CANL (DATA) PURPLE/ORANGE - 11

LOCK (-) BLUE/GREEN - 06

TRUNK RELEASE (-) GRAY/YELLOW

UNLOCK (-) YELLOW/PURPLE - 08

DRIVER DOOR PIN (OPEN)

GREEN/PURPLE - 09

PARKING LIGHT (+) YELLOW/BLUE - 06

1

2

IGNITION SWITCH (A)

OBDII (B)

12V (+) GREEN/RED - 04

KEYSENSE (+) BLUE/GRAY - 05

STARTER 1 (+) BLUE/WHITE - 07

06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT

08 EMPTY

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT 02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT 03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

03 RED/WHITE•BLACK DOT - TRUNK (-) OUTPUT

05 EMPTY05 EMPTY

07 BROWN•BLACK DOT07 BROWN•BLACK DOT

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT - PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT01 BROWN•SILVER DOT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 EMPTY05 EMPTY

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 EMPTY09 EMPTY

10 TAN•SILVER DOT10 TAN•SILVER DOT

01 EMPTY01 EMPTY

02 EMPTY02 EMPTY

05 BLUE/RED05 BLUE/RED

06 BLUE/YELLOW06 BLUE/YELLOW

07 EMPTY07 EMPTY

08 ORANGE08 ORANGE

09 YELLOW - KEYSENSE (+) OUTPUT09 YELLOW - KEYSENSE (+) OUTPUT

10 EMPTY10 EMPTY

11 GRAY/RED - IMMO. RX (DATA)11 GRAY/RED - IMMO. RX (DATA)

12 GRAY/YELLOW12 GRAY/YELLOW

13 GREEN/RED - IMMO. TX (DATA)13 GREEN/RED - IMMO. TX (DATA)

14 ORANGE/WHITE14 ORANGE/WHITE

15 BROWN - ACCESSORY (+) IN/OUT15 BROWN - ACCESSORY (+) IN/OUT

16 ORANGE/BLACK16 ORANGE/BLACK

17 PINK - IGNITION (+) IN/OUT17 PINK - IGNITION (+) IN/OUT 18 PURPLE - STARTER (+) OUTPUT18 PURPLE - STARTER (+) OUTPUT 19 RED - 12V (+)19 RED - 12V (+) 20 BLACK - GROUND (-)20 BLACK - GROUND (-)

01 GRAY/BLACK•BLUE DOT01 GRAY/BLACK•BLUE DOT

02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE02 WHITE/BLACK•BLUE DOT - DDP (OPEN) VEHICLE SIDE

03 GRAY/RED•BLUE DOT03 GRAY/RED•BLUE DOT

04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE04 WHITE/RED•BLUE DOT - DDP (OPEN) CONNECTOR SIDE

05 GRAY•BLUE DOT05 GRAY•BLUE DOT

06 WHITE•BLUE DOT06 WHITE•BLUE DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF

THE VEHICLE IS NOT EQUIPPED WITH ONE.

1

2

1

2

!

M3

M2

M5 M4

PAGE 5 OF 10

U.S. Patent No. 8,856,780 2011-2012 Lincoln MKX STD key AT

20161212

>>

01

OFF

ACC ON

START

02

OFF

ACC

ON

START

03

04

OFF

ACC ON

START

05

OFF

ACC ON

START

06

OFF

ACC ON

START

07

OFF

ACC

ON

START

08

09

10

OFF

ACC ON

START

11

OFF

ACC ON

START

12

OFF

ACC

ON

START

13

14

15

OFF

ACC ON

START

16

>>

✤✁✂✄☎ ✆✝✞✝✟✤✤✠✡✞ ✆✝☛☎✁✂✝☎ ☞✌ ✍☎✎✏✑ ✒ ✓ ✔ ✌

NOTE: To complete this procedure, both OEM keys are required.

Insert key 1 into ignition.

Turn key 1 to ON position. LED 1 will turn solid RED.

Wait, LED 1 will ﬂash GREEN. (This may take up to 30 seconds)

Turn key 1 to OFF position.

Remove key 1.

Insert key 1 into ignition.

Turn key 1 to ON position.

If LED 1 turns solid GREEN for 2 seconds: Module Programming Procedure completed. If LED 1 turns solid RED, proceed with following step.

TIME RESTRICTION. Complete steps 08 to 10 within 4 seconds after LED 1 turns OFF.

Remove key 1.

Insert key 2 into ignition.

Turn key 2 to ON position.

Wait, LED 1 will turn solid RED then will turn OFF.

TIME RESTRICTION. Complete steps 13 and 14 within 4 seconds after LED 1 turns OFF.

Remove key 2.

Press and release programming button.

If the LED 1 begins to ﬂash RED, you are using a cloned key or used the same key twice.

PAGE 6 OF 10

U.S. Patent No. 8,856,780 2011-2012 Lincoln MKX STD key AT

20161212

17

18

OFF

ACC ON

START

19

20

21

22

23

MODULE PROGRAMMING PROCEDURE (2 KEYS) - 2 OF 2

Wait, LED 1 will turn solid RED then will turn solid GREEN.

START vehicle for 15 seconds.

Press and hold the brake pedal.

Press and release the module’s programming button.

Release the brake pedal.

Wait, LED 2 will ﬂash GREEN.

Module Programming Procedure completed.

PAGE 7 OF 10

U.S. Patent No. 8,856,780 2011-2012 Lincoln MKX STD key AT

20161212

>>

01

02

ENGINE START

STOP

OFF ACC ON START

ON

03

04

>>

✕✣✖✗✘✚✗✙ ✛✙✘✜✗✢✥✙✗ ✦ ✧ ✘★ ✧

All vehicle doors must be closed and locked prior to remote start sequence.

Press unlock on OEM or aftermarket remote or request switch.

DO NOT PRESS BRAKE PEDAL. Set ignition to ON position. Wait 2 seconds for key validation.

Press and release BRAKE pedal.

Take over procedure completed.

Failure to follow procedure will result in vehicle engine shutdown.

PAGE 8 OF 10

U.S. Patent No. 8,856,780 2011-2012 Lincoln MKX STD key AT

20161212
