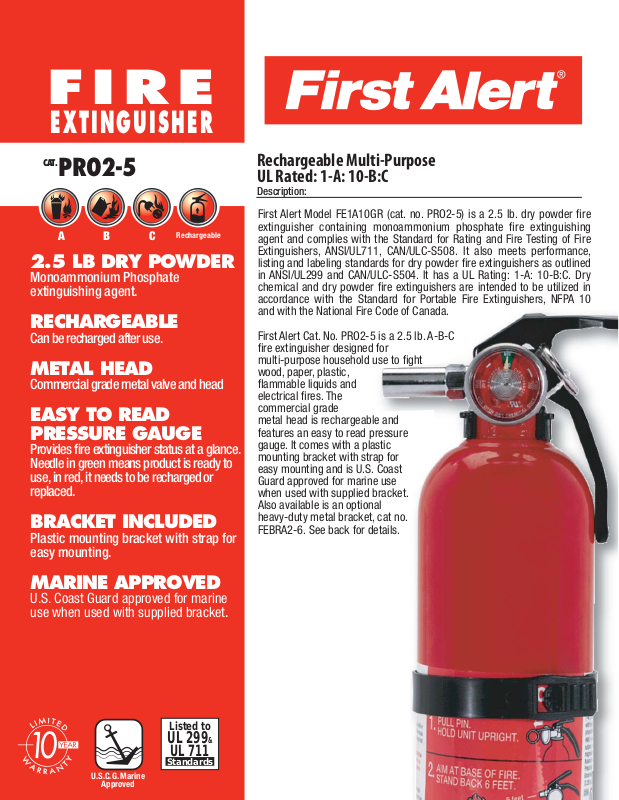

First Alert PR02-5 User Manual

FIRE

EXTINGUISHER

CAT.

PRO2-5

2.5 LB DRY POWDER

Monoammonium Phosphate extinguishing agent.

RECHARGEABLE

Can be recharged after use.

METAL HEAD

Commercial grade metal valve and head

EASY TO READ PRESSURE GAUGE

Provides ﬁre extinguisher status at a glance. Needle in green means product is ready to use, in red, it needs to be recharged or replaced.

BRACKET INCLUDED

Plastic mounting bracket with strap for easy mounting.

Rechargeable

Rechargeable Multi-Purpose UL Rated: 1-A: 10-B:C

Description:

First Alert Model FE1A10GR (cat. no. PRO2-5) is a 2.5 lb. dry powder ﬁre extinguisher containing monoammonium phosphate ﬁre extinguishing agent and complies with the Standard for Rating and Fire Testing of Fire Extinguishers, ANSI/UL711, CAN/ULC-S508. It also meets performance, listing and labeling standards for dry powder ﬁre extinguishers as outlined in ANSI/UL299 and CAN/ULC-S504. It has a chemical and dry powder ﬁre extinguishers are intended to be utilized in accordance with the Standard for Portable Fire Extinguishers, NFPA 10 and with the National Fire Code of Canada.

First Alert Cat. No. PRO2-5 is a 2.5 lb. A-B-C ﬁre extinguisher designed for multi-purpose household use to ﬁght wood, paper, plastic, ﬂammable liquids and electrical ﬁres. The commercial grade metal head is rechargeable and features an easy to read pressure gauge. It comes with a plastic mounting bracket with strap for easy mounting and is U.S. Coast Guard approved for marine use when used with supplied bracket. Also available is an optional heavy-duty metal bracket, cat no. FEBRA2-6. See back for details.

UL Rating: 1-A: 10-B:C. Dry

MARINE APPROVED

U.S. Coast Guard approved for marine use when used with supplied bracket.

Listed to

UL 299

UL 711

Standards

U.S.C.G. Marine

Approved

CAT.

PRO2-5

OVERALL DIMENSIONS

14.2”

3.1”

ARCHITECTURAL AND ENGINEERING SPEC

The ﬁre extinguisher shall be a First Alert Model FE1A10GR and shall provide at a minimum the following features and functions:

1. Dry powder ﬁre extinguisher containing monoammonium phosphate ﬁre extinguishing agent.

2. Rated at 1-A: 10-B:C.

3. A commercial grade metal head that is rechargeable per First Alert M08-0145 Service Manual and a red steel can.

4. An easy to read pressure gauge with a needle that visually shows ﬁre extinguisher pressure status via a green section signifying pressure is good and a red section signifying unit needs to be recharged or replaced.

5. A plastic mounting bracket with strap.

6. U.S. Coast Guard approved for marine use with approved bracket. Marine Type, U.S. Coast Guard Type-A-Size II, Type-B:C-Size I. Approval 162.028/EX3622. Valid only with bracket assembly number P87-0340 or bracket number B70-0161 and strap number S70-0007.

7. The unit shall be capable of operating between -40°F (-40°C) and 120°F (49°C).

8. Pressurized to 100 psi (689 kPa). Meets DOT requirements for cylinders. Tested to 300 psi (2070 kPa).

9. The unit shall at a minimum be listed to and meet the requirements of UL711, ULC-S508, UL299 and ULC-S504.

Rechargeable

BRACKET INSTALLATION OPTIONS

Plastic Bracket Assembly

P87-0340

Metal Bracket

FEBRA2-6

TECHNICAL SPECS

Dimensions: 3.1” dia x 14.2”H

Weight: 5.1 lbs.

Temperature Range: -40°F (-40°C) to 120°F (49°C)

Pressurized to: 100 psi (689kPa)

Head/Can Type: Metal/Steel

Rechargeable: Yes, per First Alert M08-0145 Service Manual

Rating/MSDS: 1-A: 10-B:C / F-9751 Foray® monoammonium phosphate

Listing: Listed to

UL711, ULC-S508, UL299 and ULC-S504

Standards

SHIPPING SPECS:

Individual Carton Dimensions 4.25 ”L x 4.06”W x 14.88”H

Weight 5.3 lbs.

Cube 0.15 ft3

UPC 0 29054 00090 3 Master Carton Dimensions 13.31”L x 8.44”W x 15.63”H

Master Pack 6

Weight 32.7 lbs.

Cube 1.02 ft3

I2 of 5 200 29054 00090 7 Pallet Information

Cases per Layer 15

Number of Layers 3

Cases per Pallet 45

Units per Pallet 270

Cube* 50.6 ft3 / 57.6 ft3

Weight 1,538 lbs.

*Note: First measure is actual load cube including pallet height. Second measure includes unused pallet space based on a standard GMA (Notched) 48” x 40” x 5” pallet.

FIRE EXTINGUISHER CLASSIFICATIONS

It’s important to understand how ﬁre extinguishers are classiﬁed in order to choose the correct model. BRK Brands, Inc. offers a wide range of residential, marine, commercial, and automotive ﬁre extinguishers to meet the needs of your customers.

This Fire Extinguisher

TRASH–WOOD–PAPER

Fire extinguishers with a Class A rating are effective against ﬁres involving paper, wood, textiles, and plastics. The primary chemical used to ﬁght these ﬁres is monoammonium phosphate, because of its ability to smother ﬁres in these types of materials.

LIQUIDS

Fire extinguishers with a Class B rating are effective against ﬂammable liquid ﬁres. These can be ﬁres where cooking liquids, oil, gasoline, kerosene, or paint have become ignited. Two commonly used chemicals are effective in ﬁghting these types of ﬁres. Monoammonium phosphate effectively smothers the ﬁre, while sodium bicarbonate induces a chemical reaction which extinguishes the ﬁre.

ELECTRICAL EQUIPMENT

Fire extinguishers with a Class C rating are suitable for ﬁres in “live” electrical equipment. Both monoammonium phosphate and sodium bicarbonate are commonly used to ﬁght this type of ﬁre because of their nonconductive properties.

brkelectronics.com

First Alert is a registered trademark of the First Alert Trust BRK is a registered trademark of BRK Brands, Inc. Foray is a registered trademark of Ansul, Inc. CM3016
