First Alert Onelink User Manual

Owner’s Manual &

Installation Guide

Model THERM-500

CAUTIO

Follow the Installation Instructions before proceeding. Set the thermostat mode to “OFF” prior to changing settings in setup or restoring Factory Defaults.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for an intentional radiator, pursuant to Part 15, subpart C of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference in radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that of the receiver.

• Consult the dealer or an experienced radio or TV technician for help.

Notice: Only peripherals complying with FCC limits may be attached to this equipment. Operation with noncompliant peripherals or peripherals not recommended by First Alert / BRK Brands, Inc. is likely to result in interference to radio and TV reception. Changes or modiﬁcations to the product, not expressly approved by First Alert / BRK Brands, Inc. could void the user’s authority to operate the equipment.

FCC - INDOOR Mobile Radio Information: To comply with FCC RF exposure limits for general population / uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.

We, First Alert / BRK Brands, Inc. declare under our sole responsibility that the device to which this declaration relates: Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This color touchscreen has the ability to receive updates to its ﬁrmware. Periodically ﬁrmware updates are released by the manufacturer to add features and/or performance enhancements. This manual was produced reﬂecting the most current ﬁrmware/feature set at the time of publication, ﬁrmware rev. 3.04. Firmware releases after rev. 3.04 may not be adequately depicted in this manual. Please refer to the appropriate website or contact your place of purchase to learn about changes to the thermostat after ﬁrmware release 3.04.

Glossary of Terms

Auto-Changeover: A mode in which the thermostat will turn on the

heating or cooling based on room temperature demand.

Cool Setpoint: The warmest temperature that the space should rise

to before cooling is turned on (without regard to deadband).

Deadband: The number of degrees the thermostat will wait, once a

setpoint has been reached, before energizing heating or cooling.

Differential: The forced temperature difference between the heat

setpoint and the cool setpoint.

Heat Setpoint: The coolest temperature that the space should drop

to before heating is turned on (without regard to deadband).

Icon: The word or symbol that appears on the thermostat display.

Mode: The current operating condition of the thermostat

(i.e. Off, Heat, Cool, Auto, Program On).

Non-Programmable Thermostat: A thermostat that does not have

the capability of running Time Period Programming.

Programmable Thermostat: A thermostat that has the capability of

running Time Period Programming.

Temperature Swing: Same as Deadband.

Time Period Programming: A program that allows the thermostat

to automatically adjust the heat setpoint and/or the cool setpoint based on the time of the day. Same as Schedule.

iii

Table of Contents

GET TO KNOW YOUR THERMOSTAT

Home Screen ...............................................................................................1

Menu Screens .............................................................................................1

Dropdown Dashboard ...............................................................................2

Care and Use of Your Thermostat ............................................................3

QUICK START

Selecting Your Desired Temperature and Mode ..................................4

Using the Fan Button .................................................................................4

Setting the Time & Date ............................................................................5

Setting the Time ...................................................................................6

Setting the Date ...................................................................................7

Daylight Savings Setup ......................................................................7

MAIN MENU BUTTONS

SCHEDULE ...................................................................................................8

View My Schedule .............................................................................9

Edit My Schedule ................................................................................9

SMART FAN ................................................................................................11

Smart Fan On/Off ................................................................................12

Smart Fan Minimum Runtime ..........................................................12

Start/Stop Times .................................................................................12

Days to allow Smart Fan operation ................................................12

SCREENSAVER ...........................................................................................13

Screensaver On/Off ............................................................................14

ScreensaverSetup ..............................................................................14

Screensaver Preview ........................................................................14

ALERTS ........................................................................................................15

View Current Alerts ...........................................................................16

Reset Alerts .........................................................................................16

Set/Edit Reminders ............................................................................16

Service Information (Who To Call For Service) ............................16

Table of Contents

DISPLAY ...................................................................................................17

Active Brightness ...........................................................................18

Idle Brightness ...............................................................................18

Night Dimmer ..................................................................................18

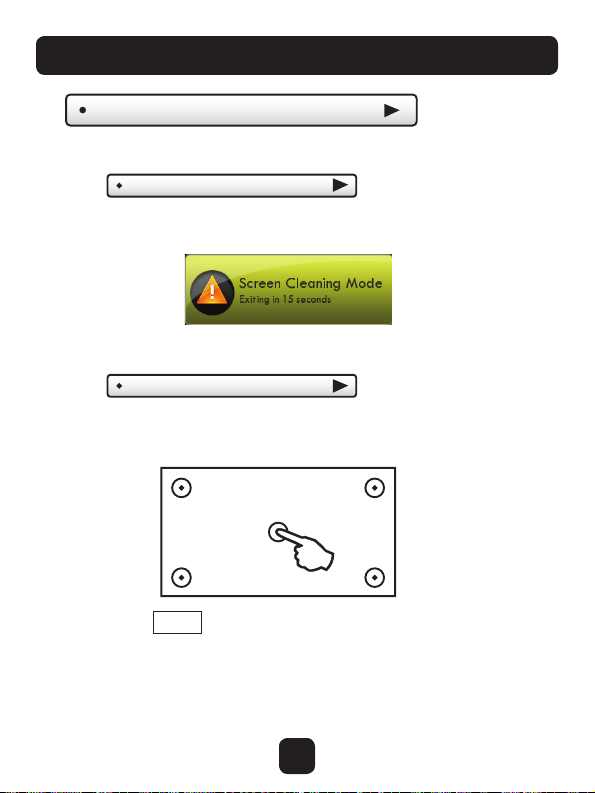

Maintenance ...................................................................................19

PREFERENCES .........................................................................................20

User Interface Themes ..................................................................21

Custom Wallpaper .........................................................................21

Heat/Cool Indicator ........................................................................21

Sound Options .................................................................................21

HUMIDITY ................................................................................................22

Humidiﬁcation Settings ................................................................23

Dehumidiﬁcation Settings ............................................................23

VACATION/AWAY ...................................................................................24

Vacation Mode On/Off ...................................................................25

Schedule ..........................................................................................26

Modes & Setpoints ........................................................................26

SECURITY .................................................................................................27

Auto Screenlock .............................................................................28

Setpoint Limits ................................................................................28

INFORMATION ........................................................................................29

My Thermostat ................................................................................30

View Runtime Graphs ....................................................................30

Who to Call for Service .................................................................30

SETTINGS ................................................................................................31

Thermostat Name ...........................................................................36

Available Modes ............................................................................36

SD Card (Import and Export) .........................................................36

Table of Contents

GENERAL SETUP ..................................................................................... 37

Units (F or C)........................................................................................37

Language .............................................................................................37

Smart Recovery On/Off .....................................................................37

Simple Thermostat On/Off ................................................................37

AUTOMATED DEMAND RESPONSE ....................................................31

ADR On/Off ..........................................................................................31

Price Dependent Action ...................................................................31

Event Max Cool Setpoint ..................................................................31

Event Min Heat Setpoint ...................................................................31

Static Cool Setpoint ..........................................................................31

Static Heat Setpoint ..........................................................................31

Cool Setpoint Offset ..........................................................................31

Heat Setpoint Offset ..........................................................................31

INSTALLATION SETTINGS.....................................................................38

Heat & Cool Stages ...........................................................................38

Heat & Cool Stages .......................................................................38

Compressor Stages........................................................................38

Aux Heat Stages.............................................................................38

Timers & Deadbands .........................................................................39

Free Cooling ........................................................................................40

Heat Pump Settings............................................................................41

Heat Pump Lockout - Enabled/Disabled ...................................41

Heat Pump Lockout Outdoor Temp.............................................41

Aux Heat Lockout Enabled/Disabled ........................................41

Aux Heat Lockout Temp ...............................................................41

Dual Fuel Settings .........................................................................41

Dual Fuel On/Off .....................................................................41

Changeover With Outdoor Temp On/Off ............................41

Adjust Balance Point ............................................................41

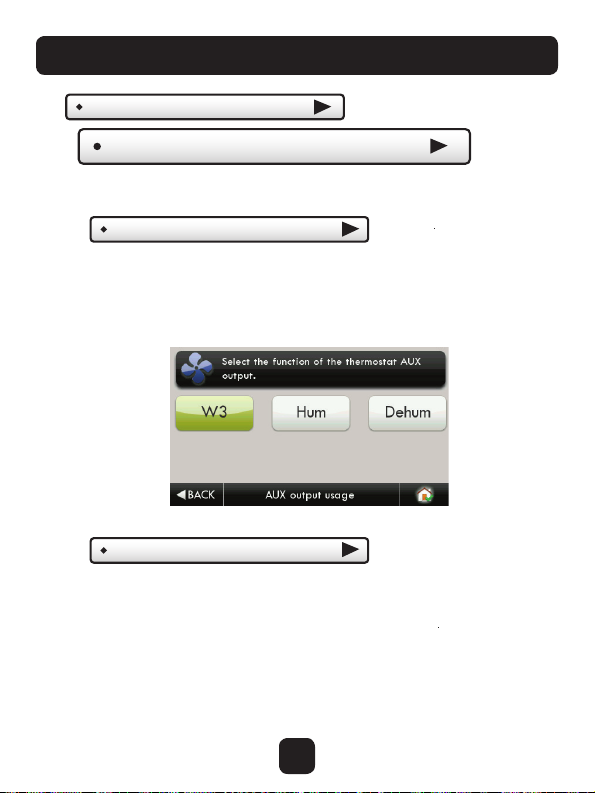

AUX Output Settings ..........................................................................42

Fan Off Delay.......................................................................................43

Sensor Settings ..................................................................................43

Table of Contents

Control Sensor .........................................................................43

Wired Sensor ...........................................................................43

Calibrate Sensors ....................................................................43

Test Outputs ..........................................................................................43

Dealer Information ..............................................................................44

Upgrade Firmware ..............................................................................44

Delete Custom Images ........................................................................44

Reset to Factory Default Settings .....................................................44

Restart Thermostat ..............................................................................44

........................................................................................................ 45

WI-FI

Status .................................................................................................... 45

Setup ..................................................................................................... 45

SKYPORT ................................................................................................... 46

Account ................................................................................................ 46

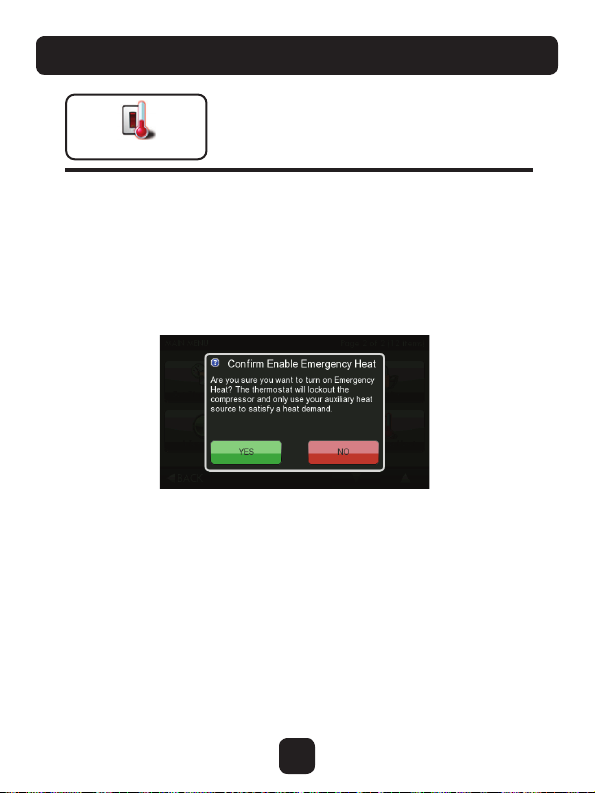

EMERGENCY HEAT .................................................................................. 47

ONELINK ASSISTANT ................................................................................... 48

Installing the Onelink Assistant Software ......................................... 48

Uploading Photos ................................................................................... 49

INSTALLATION INSTRUCTIONS .................................................................. 50

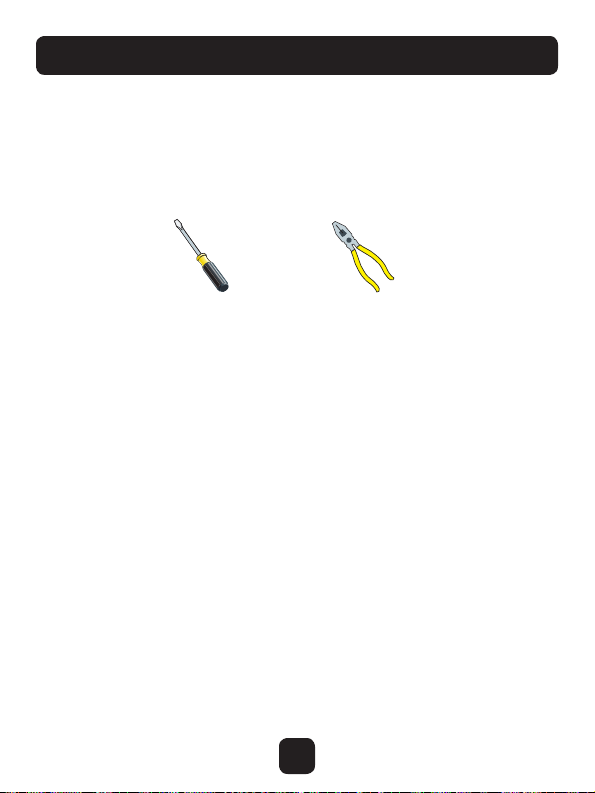

Remove & Replace the Old Thermostat .............................................. 50

Wire Connections ................................................................................... 51

Determining Your Existing Wiring and Equipment ........................... 52

Making 4 Wires Work When 5 Wires Are Required ........................ 54

Making 5 Wires Work When 6 Wires Are Required ........................ 55

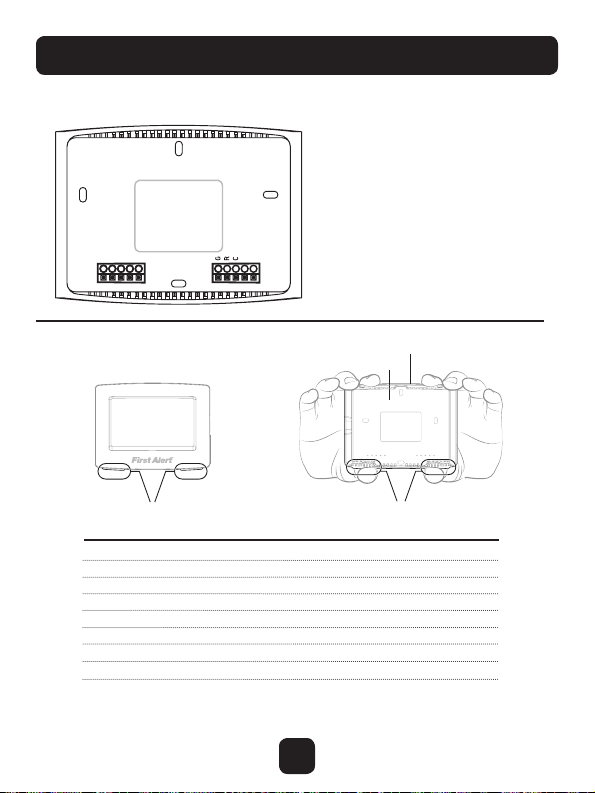

The OneLink Thermostat Backplate .................................................... 56

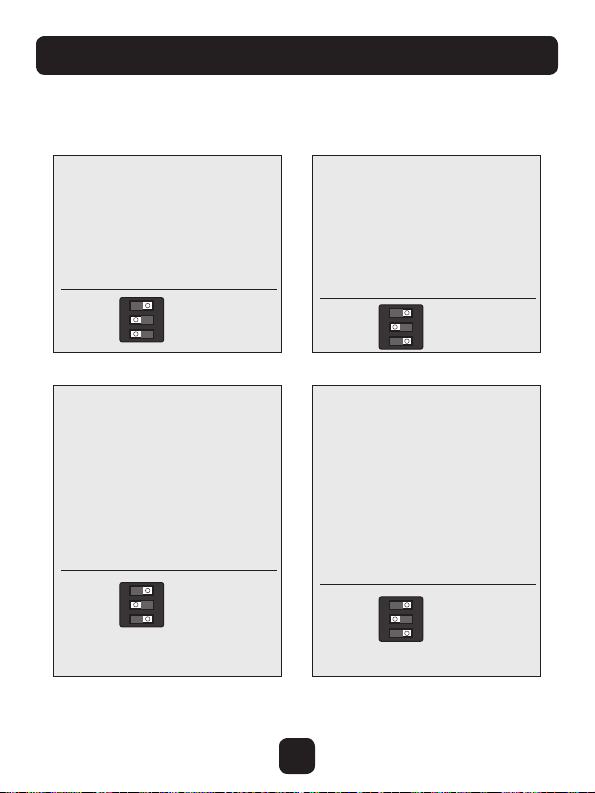

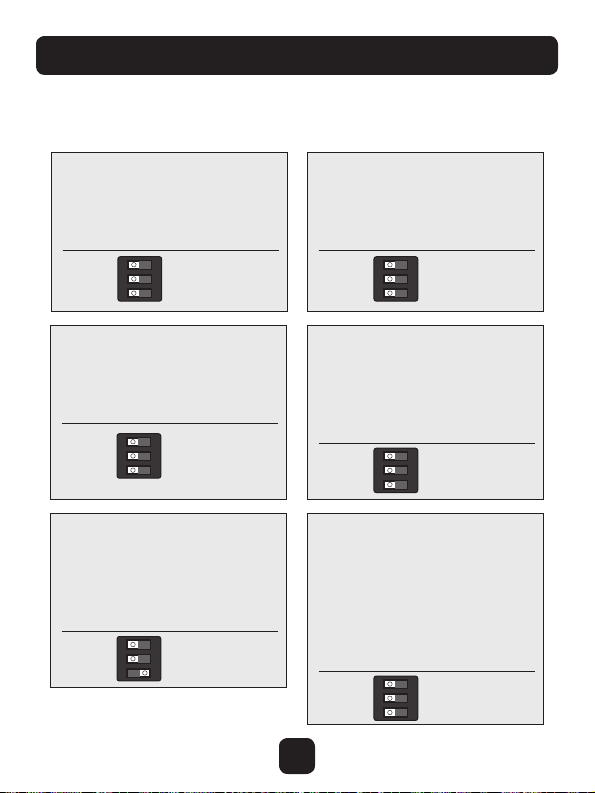

Explanation Of the Thermostat Dip Switches .................................... 57

Sample Wiring Diagrams ...................................................................... 58

TROUBLESHOOTING ..................................................................................... 61

INDEX ............................................................................................................. 62

NOTES ............................................................................................................. 66

WARRANTY .................................................................................................... 67

vii

Get To Know Your Thermostat

Home Screen

)

Backlit ColorTouch Display

Connectivity Symbol Table

Not connected to Wi-Fi®

Connected to local access point w/IP address without Skyport access

Connected to local access point w/IP address, but not yet connected to Skyport

Connected to Skyport

Main Menu Screen

Back

Button

Buttons

Outdoor Temperature

(If optional accessory is used

Drop Down

Dashboard Button

Fan Button

Date & Time Home / Away

Mode Buttons

Sub Menu Screen

Sub Menu

Buttons

Indicates Options

Available

Scrolling

Buttons

Warmer Button

SD Card

Slot

Cooler Button

Menu Button

Scrolling

Buttons

Home Button

Get To Know Your Thermostat

Roo

creen

Dropdown Dashboard

The Dropdown Dashboard displays temperature, humidity, and other readings. It will also show the high and low readings of the day.

Drop Down

Dashboard Button

Wi-Fi

Connection

Icon

(The contents of your Dashboard may vary)

Temp

Outdoor Temp

Dropdown Dashboard

Weather

Display

Press the HOME button to return to the Home S

Get To Know Your Thermostat

Care and Use of Your Thermostat

Pencils, pens and other sharp objects should never be used on your thermostat; these may damage your touchscreen. Only use your ﬁnger tip to press the touchscreen buttons.

Use a soft, damp cloth to clean the screen.

DO NOT USE ABRASIVE CLEANERS OR CLEANERS THAT CONTAIN SOLVENTS. DO NOT SPRAY ANYTHING DIRECTLY ONTO THE THERMOSTAT.

Quick Start - Temperature, Modes & Fan

Selecting Your Desired Temperature and Mode

Press

The Heat or Cool Setpoint is the temperature the room has to reach before heating or cooling will turn on.

(Without regard to deadband)

Press

HEAT will allow only heat operation.

COOL will allow only cool operation.

AUTO will allow both Heat and Cool operation.

OFF - heating and cooling systems are turned off.

AUTO-CHANGEOVER MODE - Pressing the WARMER or

COOLER buttons in Auto mode will adjust both the heat and cool setpoints simultaneously. To adjust heat and cool setpoints individually, choose HEAT mode to adjust the heat setpoint and COOL mode to adjust the cool setpoint, then return to AUTO mode.

HEAT OR COOL MODE - Pressing the WARMER or COOLER buttons in Heat or Cool mode will adjust only the heat or cool setpoints.

or to adjust temperature

Cool Setpoint

Heat Setpoint

or the MODE Icon

Using the Fan Button

Press the FAN Icon

FAN ON fan runs constantly even in OFF Mode.

FAN AUTO fan only runs with a heating or cooling demand.

Warm

Button

Cooler

Button

Quick Start - Set Time & Date

NOTE: When the thermostat is connected to the Sk yport; the Time & Date are automatically synchronized to the Skyport

Set Time & Date

Set Current Time

Use AM/PM - ON

Set Current Date

Daylight Savings Setup

Cloud, including automatic Daylight Savings adjustments.

Daylight Savings Time - OFF

Start Schedule

Starts On

Day

Month

Stop Schedule

Ends On

Day

Month

(2nd)

(Sun)

(March)

(1st)

(Sun)

(November)

Quick Start - Set Time & Date

Setting the Time

Press

then

Set Time & Date

Set Current Time

Press

Choose

For 12 hour AM/PM clock

For 24 hour clock

Press

hr +

and

hr -

BACK

when ﬁnished.

Use AM/PM - ON

Use AM/PM - OFF

BACK

when ﬁnished.

to scroll down.

NOTE: If the Skyport Wi-Fi Key is installed on the thermostat, the Time and Date settings will not be accessible.

(12:00 AM)

min +

to set the current time.

min -

Pres

Quick Start - Set Time & Date

Press

Setting the Date

Set Current Date

Press

Press the day on the calendar

Su Mo Tu We Th Fr Sa

27 28 29 30 1 23

45678910

1211

19 20 21 22 23 24

1234567

Daylight Savings Setup

Tu rn Daylight Savings Time on or off.

Adjust when Daylight Savings Time begins.

Adjust when Daylight Savings Time ends.

Press

after making a change to a selection.

Press

or the Home button when ﬁnished.

BACK

6/1/2013

to set the current month and year.

17161514

31302928272625

Daylight Savings Time - OFF

Daylight Savings Time - ON

Start Schedule

Starts On

Day

Month

Stop Schedule

Ends On

Day

Month

Press

when ﬁnished

(2nd)

(Sun)

(March)

(Sun)

(November)

(1st)

BACK

Main Menu Buttons - Schedule

Schedule

View My Schedule

Edit My Schedule

Main Menu Buttons - Schedule

This thermostat features up to four programmable time periods per 24 hour day: Morning, Day, Evening, and Night. The start time for each time period is

Schedule

View My Schedule

ress a day of the week to view its settings. This may be repeated for each day.

Edit My Schedule

Press and select days to program

Select individual days

Select groups of days

Then press NEXT

adjustable. The stop time for each time period is the start time for the next period.

Continued

Main Menu Buttons - Schedule

ings.

Save

Edit

Edit My Schedule

Press and select a Time Period (Morning, Day, Evening, or Night) to edit.

Adjust Mode, Start Time, and Heat and Cool Setpoints to desired sett The Time Period may also be Enabled or Disabled. Un-check the Enabled box for Time Periods you don’t want to use. Press DONE when ﬁnished.

Mode

Start Time

When you are ﬁnished editing the four time periods press

Review your program. Press SAVE to keep your program. Press EDIT to make further changes.

TIP:

For a simpler schedule that only uses 2 time periods, un-check Enabled for Day and Evening Time Periods.

Heat and Cool Setpoints

Done

(Continued)

Enable/Disable

Time Period

Main Menu Buttons - Smart Fan

Smart Fan

Who To Call For Service

Smart Fan - OFF

View Runtime Graphs

Smart Fan Min Runtime

Who To Call For Service

Start/Stop Times

View Runtime Graphs

Days To Run Fan

Main Menu Buttons - Smart Fan

et the minimum number of minutes the fan will run from the top

The fan may be programmed to turn on automatically for a speciﬁed

Smart Fan

Press to turn fan schedule on or off

Smart Fan - OFF

Smart Fan - ON

period during the day.

Smart Fan Min Runtime

S of each hour. Set runtime to 60 minutes to be on continuously from Start Time to Stop time. (5 - 60 mins.)

Start/Stop Times

Set when the Smart Fan schedule will start and stop. For example, you may not want Smart Fan to run during sleeping hours.

Days To Run Fan

Choose which days of the week Smart Fan will run.

(7:00AM - 9:00PM)

(10m)

Main Menu Buttons - Screensaver

Screensaver

Who To Call For Service

Screensaver - OFF

View Runtime Graphs

Screensaver Setup

Screensaver Turn On Delay

Screensaver Type

Slideshow

Digital Clock

Analog Clock

Change Image After...

Use Theme Images - OFF

Randomize Slideshow - OFF

Show Clock - OFF

Home Screen Info - OFF

View Runtime GraphsScreensaver Prev iew

Main Menu Buttons - Screensaver

return to the sub menu.

The Screensaver allows you

Screensaver

Screensaver - OFF

Screensaver - ON

Screensaver Setup

Screensaver Turn On Delay

How long after a button press for the Screensaver to appear. 1, 3, 5, or 30 minutes

Screensaver Type

Slideshow, Digital Clock, Analog Clock

Change Image After...

15, 30 seconds -

Use Theme Images - OFF

Slideshow uses included Theme Images. Off or On

Randomize Slideshow - OFF

Shufﬂes slideshow photos in random order

Show Clock - OFF

Shows the time and date every 5 photos. Off or On

Home Screen Info - OFF

Shows the mode, setpoints, and temperature after every 10 photos. Off or On.

Screensaver Preview

Press this button to preview your screensaver operation before returning to the Home Screen.

After the preview, press anywhere on the screen to

to create custom slideshows.

(5m)

(Slideshow)

1, 5, or 10 minutes

Main Menu Buttons - Alerts

Alerts

View Current Alerts

Reset Alerts

Reset Air Filter Alert

Reset UV Lamp Alert

Reset Humidity Pad Alert

Set/Edit Reminders

Service Call Reminder - OFF

Days Until Service Call

Air Filter Reminder - OFF

Set Max Filter Runtime

Set Max Filter Days

UV Lamp Reminder - OFF

Max UV Lamp Runtime

Humidity Pad Reminder - OFF

Set Max Hum Runtime

(0 days)

(300 hrs)

(0 days)

(360 days)

Service Information...

Main Menu Buttons - Alerts

The alerts let you know when

Alerts

View Current Alerts

View and reset current service alerts here.

Reset Alerts

Clear and reset current service alerts.

Set/Edit Reminders

Set service alert runtimes and turn reminders on or off.

Service Call Reminder - OFF

Days Until Service Call

Air Filter Reminder - OFF

Set Max Filter Runtime

Set Max Filter Days

UV Lamp Reminder - OFF

Set Max UV Lamp Runtime

Humidity Pad Reminder - OFF

Set Max Hum Runtime

Service Information...

View your service company’s contact information.

your system needs service.

Alerts will appear on the bottom bar of the Home Screen.

Press to view and reset current alerts.

(0 days)

(500 hrs)

(300 days)

Dealer’s

Logo

here

Main Menu Buttons - Display

Display

Active Brightness

Idle Brightness

Night Dimmer

Auto Night Dimmer - OFF

Set Idle Brightness

Set Dimmer Schedule

Maintenance

Screen Cleaning

To uch Calibration

Main Menu Buttons - Display

The display brightness options

When Night Dimmer

may be adjusted in this menu.

Display

Active Brightness

You may select how bright the backlight is while the thermostat is active. The display is active for 3 minutes after last touch, it then goes Idle.

Idle Brightness

You may select how bright the backlight is while the thermostat is idle.

Night Dimmer

You may dim the brightness of the screen at night.

Auto Night Dimmer - OFF

The screen can be set to dim automatically at night. Dimming the display can prolong the life of the backlight.

Set Idle Brightness

Set the screen brightness for the Night Dimmer. is On, the display will go idle 8 seconds after last touch.

Set Dimmer Schedule

Set the schedule for the Night Dimmer.

(80%)

(30%)

(20%)

Main Menu Buttons - Display

Maintenance

Maintenance allows you to clean and calibrate the touch screen.

Screen Cleaning

Screen Cleaning Mode disables the touch feature for 15 seconds so the screen may be cleaned without altering any settings.

Use a soft cloth without solvents or abrasive cleaners

Touch Calibration

Under normal circumstances, the touchscreen should not need to be calibrated.

Touch and hold the center of the targets as they appear on the screen

Touch Screen Calibration

Press when done.

FINISH

When calibration is complete, the thermostat will automatically restart and return to the Home Screen.

Main Menu Buttons - Preferences

Preferences

User Interface Themes

Custom Wallpaper

Heat/Cool Indicator

Heat/Cool Indicator OFF

Taskbar red/white OFF

Room Temp red/blue OFF

Mode Status red/blue OFF

Sound Options

Beep - OFF

Beep Sound

Main Menu Buttons - Preferences

oose from.

You may set the type of back ground that appears on the thermostat

Preferences

Home Screen.

User Interface Themes

This thermostat has several high quality background themes to ch NOTE: At Sunset, the background will change to an evening scene and the moon will replace the sun. At Sunrise it will return to a daytime scene.

Custom Wallpaper

You may choose your own background image by selecting a photo that you have uploaded from an SD memory card.

(ocean)

Heat/Cool Indicator

You may choose an enhanced indicator of the current status of the HVAC equipment.

Heat/Cool Indicator - ON/OFF Taskbar Red/White - ON/OFF

Room Temp Red/Blue - ON/OFF Mode Status Red/Blue - ON/OFF

Sound Options

Beep - ON

Beep - OFF

Turn the beep sound on or off.

Beep Sound

(Beep 1)

Choose from different beep sounds.

Main Menu Buttons - Preferences

Humidity

Humidiﬁcation Settings

Humidify setpoint

Humidify with heat - OFF

Run fan w/humidity demand - OFF

Dehumidiﬁcation Settings

Dehumidity setpoint

Run A/C to dehumidify - OFF

Maximum Overcool

Reheat - OFF

Dehumidify only when cooling - ON

(0%)

(99%)

(0°)

Main Menu Buttons - Preferences

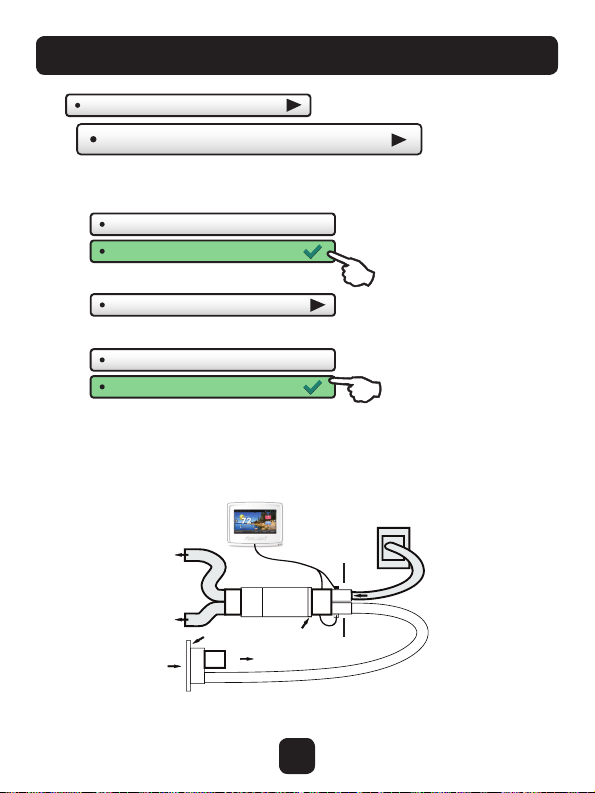

The Humidity feature allows the thermostat to control a humidiﬁer or use your air conditioner

Humidity

IMPORTANT: Aux Output Usage must be set for Hum or Dehum for these settings to take effect.

See: AUX Output Sett ings on page 39.

Humidiﬁcation Settings

Humidify setpoint

Adjust Humidify setpoint. (0% - 60%)

Humidify with heat - OFF

When this step is ON, Humidify will only run with a demand for heat.

Run fan - OFF

When this step is ON, the fan will run with a call for Humidiﬁcation.

Dehumidiﬁcation Settings

Dehumidify setpoint

Adjust Dehumidify setpoint. (25% - 99%)

Run A/C to dehumidify - OFF

When this step is ON, the A/C system will be used for Dehumidiﬁcation.

Maximum Overcool

This speciﬁes how many degrees the A/C system will run past the cool setpoint to satisfy a demand for Dehumidiﬁcation. (0-20 degrees F)

Reheat - OFF

This turns on electric strip heat during an A/C to dehumidify demand to help maintain desired room temperatures. (Run A/C to dehumidify must be set to ON and the GAS ELEC Dip Switch must be set to ELEC - page 52 - to access this feature.

Dehumidify only when cooling - ON

Run dehumidiﬁcation only when HVAC calls for A/C

to dehumidify the space

(0%)

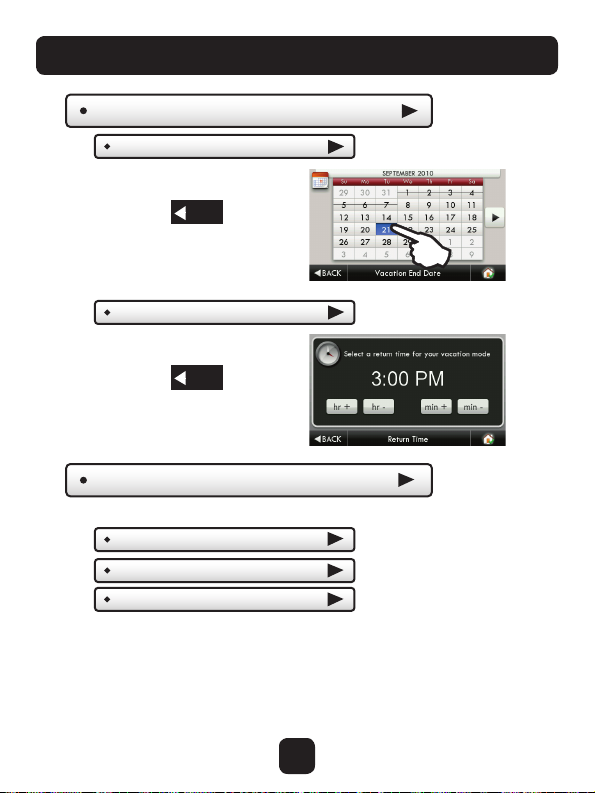

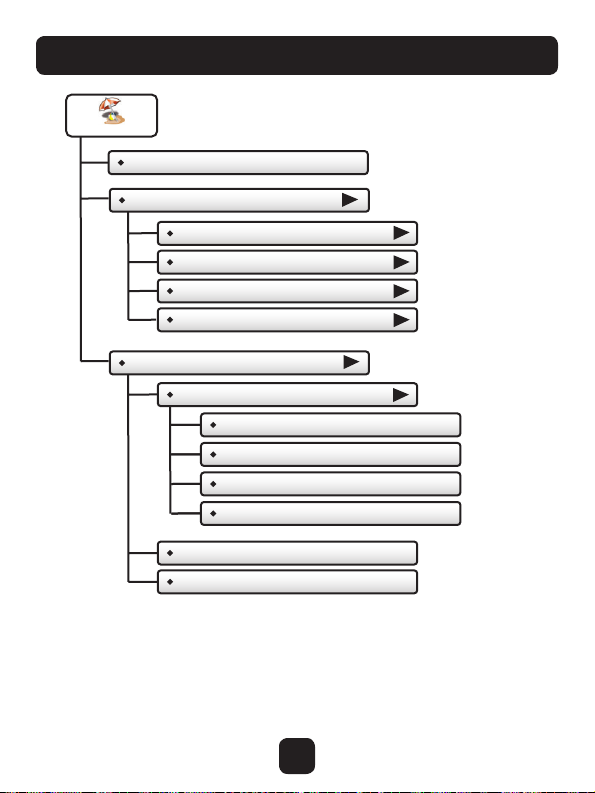

Main Menu Buttons - Vacation/Away

Va cation/Away

Clear Vacation Schedule

Set Vacation Schedule

Start Date

Start Time

Return Date

Return Time

Settings while away

Mode

OFF

Auto

Heat

Cool

Heat Setpoint

Cool Setpoint

Main Menu Buttons - Vacation/Away

Vacation or pressing the AWAY button, will use

temporary, energy saving settings without

Vacation/Away

Clear Vacation Schedule

Removes the stored vacation schedule.

Set Vacation Schedule

Set your Vacation Schedule.

changing the regular schedule. Pressing the HOME button will return the thermostat to normal comfort settings.

BACK

Tue Sep 07 2010

Start Date

Select the day Vacation Mode will start.

Then press

BACK

Start Time

Select the time Vacation Mode will start.

Then press

BACK

(9:00 AM)

Continued

Main Menu Buttons - Vacation/Away

(Continued)

way Mode.

Schedule

Return Date

Select the day Vacation Mode will end.

Then press

Return Time

BACK

Tue Sep 21 2010

(3:00 PM)

Select the time Vacation Mode will end.

Then press

BACK

Settings while away

Select the desired Mode and setpoints to be used in Vacation/A

Mode

Heat Setpoint

Cool Setpoint

(Auto)

(50˚)

(85˚)

Main Menu Buttons - Security

Security

Auto Screenlock

Auto Screenlock - OFF

Set Passcode

Lock After...

Allow fan/mode changes - NO

Allow setpoint changes - NO

Allow home/away changes - NO

Setpoint Limits

Setpoint Limits - OFF

Minimum Cool Setpoint

Maximum Heat Setpoint

Main Menu Buttons - Security

Security settings may be set to limit or prevent changes to

Security

Auto Screenlock

Auto Screenlock - OFF

Auto Screenlock - ON

Set Passcode

Use keypad to enter and conﬁrm passcode.

Press UNLOCK then enter passcode to access thermostat settings.

Lock After...

Set the time the screen will automatically lock after the last button press.

Allow fan/mode changes - NO

Choose to allow fan/mode changes when Auto Screenlock is on.

Allow setpoint changes - NO

Choose to allow setpoint changes when Auto Screenlock is on.

Allow home/away changes - NO

Choose to allow use of the Home and Away button when Auto Screenlock is on.

Setpoint Limits

Limits how high or low heating and cooling may be adjusted.

your thermostat.

(code not set )

When the thermostat is locked, the bottom bar of the display will show:

(5 m)

NOTE: Code must be set before Auto Screenlock can be turned on.

* If you forget your passcode, enter 6736 for access.

Main Menu Buttons - Information

Information

My Thermostat

View Runtime Graphs

Last 7 Days - Cooling

Last 7 Days - Heating

Delete Runtime Data

Who To Call For Service

Main Menu Buttons - Information

This button contains valuable service and system runtime

Information

My Thermostat

View your thermostat dip switch settings, equipment status, runtimes, and other settings.

View Runtime Graphs

Track your system’s runtime/energy usage.

Last 7 Days - Cooling

Last 7 Days - Heating

Delete Runtime Data

Press to delete your current equipment runtime information.

Who To Call For Service

Your service company’s contact information is displayed here.

information.

Press the information icon to learn more about each graph

*NOTE: The runtime graphs are updated at 12:00 AM each day.

Press anywhere on the screen to return to the submenu.

Dealer’s

Logo here

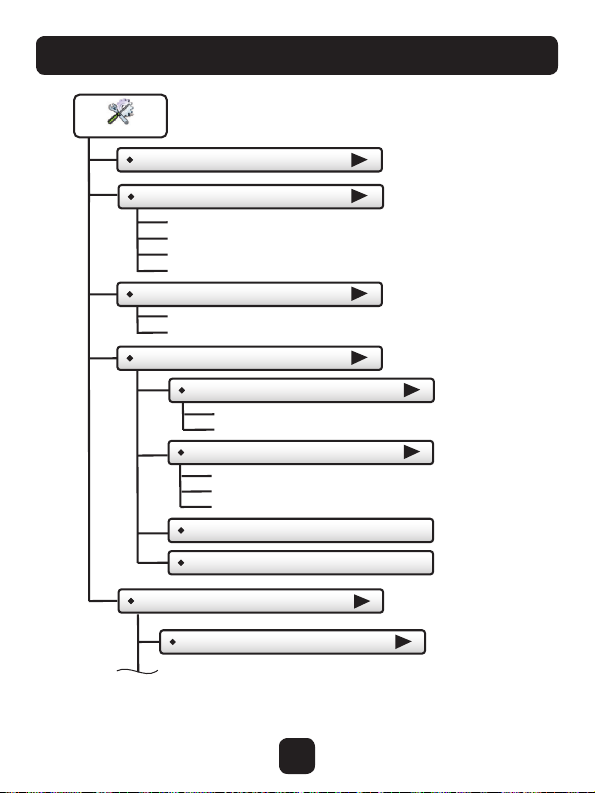

Main Menu Buttons - Settings

(Continued next page

Settings

Thermostat Name

Available Modes

All Modes Including Auto Heat and Cool Heat Only Cool Only

SD Card

Import Settings from SD Card Export Settings to SD Card

General Setup

Units

Fahrenheit Celsius

Language

English Spanish/Espanol French/Francais

Smart Recovery - ON/OFF

Simple Thermostat - ON/OFF

Automated Demand Response

ADR - Off/On

)

Main Menu Buttons - Settings

Settings

Automated Demand Response

Price Dependent Action

Skip Event Observe Setpoint Offsets Observe Static Setpoints

Event Max Cool Setpoint

Event Min Heat Setpoint

Static Cool Setpoint

Static Heat Setpoint

Cool Setpoint Offset

Heat Setpoint Offset

Installation Settings

(Continued)

Heat & Cool Stages

(Continued next page)

Heat & Cool Stages Compressor Stages

Aux Heat Stages

Availability depends on Heat Pump dip switch settings.

}

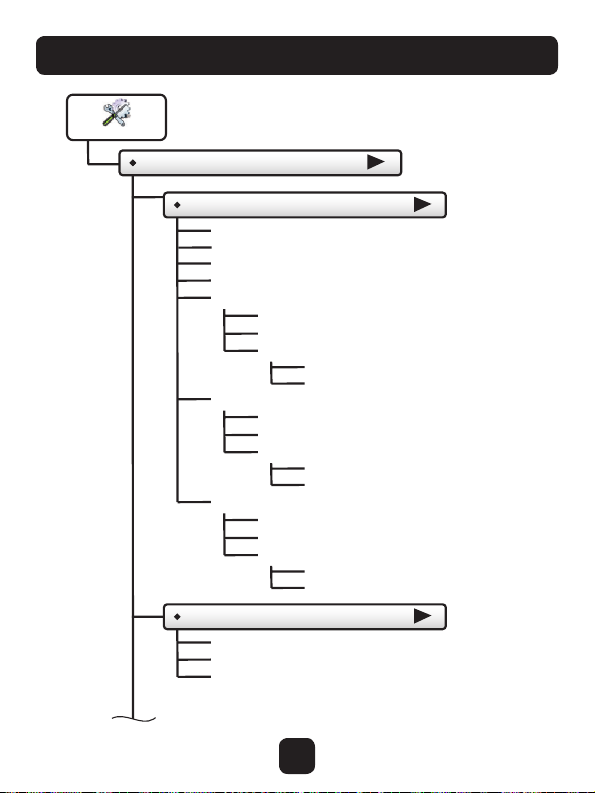

Main Menu Buttons - Settings

Timers & Deadbands

Cycles Per Hour

2nd Stage Deadband

Deadband Setpoint

Compressor Min Off Time 1st Stage Deadband

2nd Stage Deadband 2nd Stage Timer 2nd Stage Tu rnoff Point

3rd Stage Deadband

Deadband Setpoint

3rd Stage Deadband 3rd Stage Timer 3rd Stage Tu rnoff Point

4th Stage Deadband

Deadband Setpoint

4th Stage Deadband 4th Stage Timer 4th Stage Tu rnoff Point

Free Cooling

Free Cooling - On/Off Usable Outdoor Temp Mechanical Cooling? - Yes/No

Installation Settings

(Continued)

Min Heat/Cool Difference

(Continued next page)

Settings

Main Menu Buttons - Settings

(Continued)

(Continued next page

Settings

Installation Settings

Heat Pump Settings

Heat Pump Lockout - Enabled/Disabled HP Lockout Outdoor Temp Aux Heat Lockout - Enabled/Disabled Aux Heat Lockout Te mp

Dual Fuel Settings

AUX Output Settings

AUX Output Usage AUX Output Polarity

Fan Off Delay

Sensor Settings

Control Sensor

Wired Sensor Use

Calibrate Sensors

)

Dual Fuel - On/Off Changeover With Outdoor - On/Off Adjust Balance Point

Thermostat Sensor Only Wired Sensor Only Average Wired/Thermostat

Use as Outdoor Sensor Use as Remote Sensor Use as Supply Sensor Use as Return Sensor

Thermostat

Wired Sensor

Humidity

Main Menu Buttons - Settings

Settings

Installation Settings

Te st Outputs

Dealer Information

Dealer Name Contact Name Dealer Phone Dealer Email Dealer Website

Upgrade Firmware

Delete Custom Images

Calibrate Clock

Factory Defaults

Restart Thermostat

(Continued)

Main Menu Buttons - Settings

Thermostat heating and cooling options are found

Settings

Thermostat Name

Use keypad to name your thermostat. The name is displayed on the Home Screen.

(Up to 14 characters)

Name appears here

in this menu

Available Modes

Choose the desired modes the thermostat will use: Heat, Cool, Heat & Cool, or Auto (All). For example, if you only have a heater, choose Heat, and only Heat & Off modes will be available. This will simplify the operation for the user.

(all)

SD Card

Import and export ﬁles to and from the thermostat. See the First Alert Assistant instructions for further details.

Import Settings from SD Card

Upload ﬁles from First Alert Assistant or another thermostat.

Export Settings to SD Card

Export ﬁles from one thermostat and import them into others.

General Setup

Units

Fahrenheit (F)

Celsius (C)

(F)

*NOTE: A 2GB SD card is recommended. To import and export ﬁles, the SD card must contain the same version of the ﬁrmware as the thermostat.

Main Menu Buttons - Settings

General Setup

Language

English Spanish/Español French/Français

Smart Recovery - OFF

Smart Recovery - ON

Smart Recovery turns on the heat before the Morning start time to bring the room temperature to the Morning setpoint at the start of the Morning time period. Please allow 4-8 days for Smart Recovery time to adjust. When used with a heat pump, electric strip heat will be disabled while Smart Recovery is active.

Simple Thermostat - OFF

Simple Thermostat - ON

(en)

(Continued)

Tu rn on Simple Thermostat for the most basic user interface.

When Simple Thermostat is on, alerts will appear in the top bar of the main screen. Press on the top yellow alert bar to view alerts.

Top Bar

Room

Temperature

Press

turn

Off

Press

for

Cooling

Press

to turn

Fan

On or Auto

Press

for

Heat

Note: When using the Simple Thermostat Home Screen; the program schedule along with the HOME and AWAY features are unavailable.

Warmer Button

Single Setpoint

Cooler Button

Menu Button

Main Menu Buttons - Settings

None, 1 minute, or 5 minutes.

Installation Settings

(2˚)

(1h1c)

Only available when dip switch is set for Heat Pump operation.

}

Heat & Cool Stages

Up to 2 Stages Cooling and 4 stages Heating.

Compressor Stages

Up to 2 compressors.

Aux Heat Stages

0 to 2 stages of Aux Heating.

Timers & Deadbands

Cycles Per Hour

At 6 cycles per hour, the HVAC unit will only be allowed to energize once every 10 minutes. The Cycles Per Hour limit may be overridden and reset by pressing the WARMER or COOLER buttons. (2, 3, 4, 5, 6, No Limit)

Min Heat/Cool Difference

The minimum gap between Heat and Cool setpoints. (0 - 6 deg. F)

Compressor Min OFF Time

(1h1c)

(6)

(5m)

Main Menu Buttons - Settings

Installation Settings

Timers & Deadbands

The Deadband is the number of degrees or minutes that the thermostat waits before it initiates the stages of heating or cooling.

(Continued)

1st Stage Deadband Speciﬁes the minimum temperature difference between the room temperature and the desired setpoint before the ﬁrst stage of heating or cooling is allowed to turn on. For example, if the heat setpoint is 68˚ and the 1st Stage deadband is set to 2 degrees, the room temperature will need to drop to 66 degrees before the heat turns on.

1st Stage Deadband

(1 - 6 deg. F)

2nd Stage Deadband

Number of degrees past 1st stage before 2nd stage turns on. (0 - 10 deg. F)

2nd Stage Timer

Number of minutes past 1st stage before 2nd stage turns on. (0 - 60 mins.) (The 2nd stage deadband must also be met)

2nd Stage Turnoff Point

Deadband or Setpoint.

3rd Stage Deadband

4th Stage Deadband

(2˚)

(2mins )

(Deadband )

(2˚)

The 3rd and 4th stage deadband settings have the same adjustable steps as 2nd stage deadband.

Main Menu Buttons - Settings

Installation Settings

Free Cooling

Free Cooling requires additional dampers and duct work to be installed. Additionally the thermostat is wired in a different manner for this feature to function properly. Before enabling this feature, please make sure these steps are completed.

Free Cooling - DISABLED

(Continued)

Free Cooling - ENABLED

Turns on Free Cooling.

Usable Outdoor Temp

Free Cooling shuts off above this outdoor temperature. (40 - 80 degrees F)

Mechanical Cooling? - NO

(65˚)

Mechanical Cooling? - YES

If you don’t have a compressor, set Mechanical Cooling to “NO”, Y1 will then be used to control the Free Cooling Damper(s) and Y2 will be disabled. If set to “YES”, mechanical (compressor) cooling will be controlled by the Y2 terminal. (See page 53 for wiring diagram)

Mechanical air conditioning is turned on with a 2nd stage demand for cooling and the Free Cooling, outdoor air damper is closed.

Supply Grilles

Return Grille

AirFlow

Supply Plenum

AirFlow

Return Air Grill

Barometric Vent to Attic

Barometric

AirFlow

Damper

(To relieve building pressure)

HVAC Unit

Furnace

Coil

Outdoor Air Grille

Free Cooling

Damper

Damper1

Open Return Plenum

Damper2

Closed

Air Filter

Return

Damper

Outdoor

AirGrill

AirFlow

Free Cooling

Main Menu Buttons - Settings

Installation Settings

Heat Pump Settings

Heat Pump Lockout - DISABLED

Heat Pump Lockout - ENABLED

Turns on Heat Pump Lock out.

HP Lockout Outdoor Temp

Heat Pump will not run below this temp. (20 - 75 deg. F)

Aux Heat Lockout - DISABLED

Aux Heat Lockout - ENABLED

Turns on Aux Heat Lockout.

Aux Heat Lockout Temp

Aux Heat will not run above this temp. (20 - 75 deg. F) GAS/EL or HP dip switch must be set for HP and GAS or ELEC dip switch must be set for ELEC.

Dual Fuel Settings

This feature is for heat pump applications only.

This will only appear if the GAS/EL or HP dip switch is set for HP and the GAS or ELEC dip switch is set for Gas.

When Dual Fuel is ON, an outdoor temperature or, if Change With Outdoor is set to OFF a demand for third stage heat will be used to stop running the heat pump and switch to a fossil fuel source of heat. NOTE: Once the change to fossil fuel is made, the heat demand must ﬁnish with fossil fuel. Additional heat demands within 10 minutes will also use fossil fuel, regardless of outdoor temperature or stage demand.

(Continued)

(65˚)

(Only available when dip switch is set for Heat Pump operation.)

• Dual Fuel - ON/OFF

•

Changeover With Outdoor - ON/OFF

ON: Uses an outdoor sensor for ch angeover. OFF: Uses a third stage heat demand for ch angeover.

•

Adjust Balance Point

Choose the temperature for changeover to fossil fuel. (5 - 60 deg. F)

Main Menu Buttons - Settings

Installation Settings

AUX Output Settings

Allows the W3/AUX output to be used for Heating, Humidiﬁcation, or Dehumidiﬁcation.

AUX output usage

(Continued)

(W3)

IMPORTANT: Aux Output Usage must be set for Hum or Dehum before any settings will take effect in the Humidity Main Menu.

AUX output polarity

The AUX Output polarity may be set for Normally Open or Normally Closed to accommodate different types of humidiﬁcation and dehumidiﬁcation equipment.

(NO)

Main Menu Buttons - Settings

Installation Settings

Fan Off Delay

Runs the fan for a short time after Cooling or electric strip heat turns off to increase system efﬁciency. (0 - 120 Secs.)

(Continued)

(0s)

Sensor Settings

Control Sensor

When a remote sensor is connected to the thermostat, the user may choose which sensor source is used to measure room temperature.

Thermostat sensor only

•

Remote Sensor only

•

Average remote/thermostat

•

Wired Sensor Use

The wired sensor may be used as follows:

Outdoor sensor

•

Remote Sensor

•

Supply Sensor

•

Return Sensor

•

Calibrate Sensors

The thermostat and wired sensor may be calibrated -7 to +7 degrees F. The integral humidity sensor may be calibrated -20% to +20% RH

(thermostat )

(remote)

(0˚)

Test Outputs

The installer or service technician can use this feature to test the functions without any time delays of the thermostat.

With a 1st stage cooling call, Y1 and G are active

Main Menu Buttons - Settings

Dealer Information

A Dealer may enter their company contact information for the customer to use when they need service. This will appear when the “Who To Call For Service” button is pressed in the Information Menu.

Use the keyboard to enter your information.

Dealer Name

•

• Contact Name

• Dealer Phone

Dealer Email

•

Dealer We bsite

•

Upgrade Firmware

Press to upgrade the thermostat ﬁrmware. The SD Card must be in the thermostat SD Card reader and contain the valid ﬁrmware. If an error message appears, conﬁrm with ColorTouch Assistant that ﬁrmware is up to date or simply try reinserting the SD card.

If you are connected to Skyport Wi-Fi and you receive an Alert that new ﬁrmware is available, simply press the Upgrade Firmware button to upgrade wirelessly.

Note: Occasionally an update that requires a large amount of data is not possible

to do wirelessly. In this case an update using an SD card will be required.

Delete Custom Images

Press to delete the custom photos you uploaded to the thermostat.

Calibrate Clock

If needed, the clock may be calibrated up to -10 to +10 minutes per month.

Factory Defaults

Press to reset the thermostat back to the factory settings.

Restart Thermostat

If needed, press here to restart the thermostat.

Dealer’s

Logo

(0 mins)

here

Main Menu Buttons - Wi-Fi

Wi-Fi

Wi-Fi Status

Wi-Fi Setup

Choose Network

Password Entry

Local API - OFF

Enabling the local API allows 3rd party software to interface with your thermostat, such as a home automation system.

Wi-Fi Status

It is here that you will ﬁnd helpful information regarding the connectivity status of your thermostat, including the thermostat’s ID.

Wi-Fi Setup

Choose your network from the list and enter the network password.

If your network does not appear in the list, hit the refresh button.

Network Name 1

Network Name 2

Network Name 3

Network Name 4

BACK

Main Menu Buttons - Skyport

Skyport

Skyport Services - ON

Weather Updates - ON

Skyport Account

Enable the thermostat to connect to the Skyport Cloud for remote monitoring and control features. Upon pressing Skyport Account, the thermostat will search for available local networks with which to connect. After indentifying local access points, you will be promted to choose a network, enter a password and other network options.

Main Menu Buttons - Emergency Heat

The Emergency Heat function is only available if your thermostat

Emergency Heat

To initiate the Emergency Heat feature, Press the Emergency Heat button. During Emergency Heat operation the thermostat will turn on the fan and auxiliary stages of heat when there is a demand for heat. The 1st stage of heating and all stages of cooling will be unavailable. To exit Emergency Heat, press the Emergency Heat button.

is set to control a Heat Pump.

The Onelink Assistant

Onelink Assistant may be downloaded at no charge at:

www.ﬁrstalertthermostats.com

Every time the user runs the Onelink Assistant software, it automatically

connects to First Alert thermostat website in the background and updates the

software and ﬁrmware (the operating system for First Alert) at no cost.

The Onelink Assistant allows you to use your computer to:

• Upload photos for background and slideshow images

• Conﬁgure installation settings

• Program a time period schedule

• Upload dealer and service contac information and company logo

• Update thermostat ﬁrmware

Uploading Photos and Settings to your thermostat

The Onelink Assistant

When you are ﬁnished adding and editing photos and settings, click on Save to SD. When prompted, remove the SD card from the SD card reader on your computer.

Save to SD

*NOTE: A 2GB SD card is recommended.

At the thermostat:

Insert the SD card into the SD Card Slot.

Press

Next, press

then

Settings

SD Card Slot

Press

SD Card

Then press

Import Settings from SD Card

Select the items to import into your thermostat then press

Your thermostat will automatically save your new photos and settings.

Installation Instructions

Remove and Replace the old thermostat

To install the thermostat properly, please follow these step by step instructions. If you are unsure about any of these steps, call a qualiﬁed technician for assistance.

• Assemble tools: Flat blade screwdriver, wire cutters and wire

strippers.

• Make sure your Heater/Air Conditioner is working properly

before beginning installation of the thermostat.

• Carefully unpack the thermostat. Save the screws, any brackets,

and instructions.

• Turn off the power to the Heating/Air Conditioning system at

the main fuse panel. Most residential systems have a separate breaker for disconnecting power to the furnace.

• Remove the cover of the old thermostat. If it does not come off

easily, check for screws.

• Loosen the screws holding the thermostat base or subbase to

the wall and lift away.

• Disconnect the wires from the old thermostat. Tape the ends of

the wires as you disconnect them, and mark them with the letter of the terminal for easy reconnection to the new thermostat.

• Keep the old thermostat for reference purposes, until your new

thermostat is functioning properly.

Installation Instructions

Wire Connections

If the terminal designations on your old thermostat do not match those on the new thermostat, refer to the chart below or the wiring

diagrams that follow.

Wire from the Install on the old thermostat Function new thermostat terminal marked connector marked

G or F Fan G

Y1, Y or C Cooling Y1

W1, W or H Heating W1/0/B

Rh, R, M, Vr, A Power R

C Common C

O/B Rev. Valve W1/O/B*

W2 2nd Stage Heat W2

Y2 2nd Stage Cooling Y2

W3 3rd Stage Heat W3

OUT - Outdoor Sensor SENSOR

OUT + Outdoor Sensor SENSOR

* O/B is used if your system is a Heat Pump.

Installation Instructions

Before you go any further, determine what your existing wiring and equipment situation is.

A. If you have a Heating only system without Air Conditioning, the First

Aler t model sTHERM-50 0 will re quire 3 wires: R (24Vac) , C (24Vac ) and W (H eat). Mos t systems that only have Hea ting us e very simple thermostats that require 2 wires: the R (24Vac ) and W ( Heat). The THERM -500 thermostat re quire s 3 wires to supply power to the thermostat. In this case an Add-a-W ire ac cessory will not work and it will be necessar y to ins tall another wire for the C (24Vac) connection.

B. If you have a single stage fossil fuel heater with air c ondi tioning, the

First Aler t model THERM-5 00 will require 5 wires for indep endent fan control. They are R (24Vac), C (24Vac), W (H eat), Y (Cooling ), and G (Fan ). You may connec t only 4 wires, a s instructed in the “Making 4 Wires Work When 5 Wire s Are Required” sec tion on p age 50 .

If there are only 4 wires present that ar e connecte d to the existin g

thermostat, there are at least 3 options available to connect the First Alert THERM-500:

1. Us e the 4 wires as instru cted in the“Making 4 Wires Work When 5 Wires Are Required” section on page 50, and note that the fan w ill only opera te with a Heating or Cooling demand.

2. Pull new thermostat wire from the HVAC equipment to the thermostat so tha t there are at least 5 wires available.

3. Pur chas e and ins tall an Add-A-Wire accessory.

C. If you have a multi-stage HVAC sys tem compri sed of a fossil fuel

heater with air conditioning, the First Aler t model THERM-5 00 will require the 5 wires mentione d above ( R, C, W, Y, G) plus an additional wire for each additional stage of Heating or Cooling. You may reduce the 5 wire requirement to 4 if you give up independent fan control following the instruction in the “Making 4 Wires Work When 5 Wires Are Required” section on page 50, or use the optional Add-A-W ire ac ce ss or y.

Installation Instructions

D. If you have a heat pum p with out aux heat, the First Alert model

THERM -500 will require 5 wires: R (24Vac), C (24Vac), W1/ O/ B (Reversing Value) , Y (1st Stage Compr essor), and G (Fan).

If you are short 1 wire, there are at least 3 options available to connect

the First Alert mo del TH ERM- 500:

1. Us e the available w ires as instructed in the“Making 4 Wires Work When 5 Wire s Are Re quired” sec tion on p age 50 and note that the fan will only operate with a He ating or Cooling demand.

2. Pull new thermostat wire from the HVAC equipment to the thermostat so tha t there are at least 5 wires available.

3. Pur chas e and ins tall an Add-A-Wire accessory.

E. If you have a heat pump with aux heat, the Fir st Alert model

THERM -500 will require 6 wires: R (24Vac), C (24Vac), W1/ O/ B (Reversing Value) , Y (1 (Fan ).

If you are short 1 wire, there are at least 3 options available to connect

the First Alert mo del TH ERM- 500:

1. Us e the available w ires as instructed in the“Making 5 Wires Work When 6 Wire s Are Re quired” sec tion on p age 51 and note that the fan will only operate with a He ating or Cooling demand.

2. Pull new thermostat wire from the HVAC equipment to the thermostat so tha t there are at least 6 wires available.

3. Pur chas e and ins tall an Add-A-Wire accessory.

Stage Compr essor), W2 (Aux Heat), and G

Installation Instructions

Making 4 Wires Work When 5 Wires Are Required

If you have System B from page 48 and you would like to install the Fir st Aler t model THERM-5 00 using only 4 wires, follow the dire ctions below. You will need a screwdriver along with a 3" long piece of thermostat wire to use as a jumper :

1. Make sure the power is of f.

2. L abel and disconne ct wires at the thermost at. Please note the color and corresp onding wire de signator with each color. For example: The R wire is red and the W wire is white and so on. You will need this inf ormation handy for the next step at the HVAC equipment.

3. At the HVAC equipment end of the thermostat wires (usually at the furna ce) , locate the terminals that the wire s are at tached to.

4. Remove the “G wire” from the terminal marked G.

5. Place the “G wire” on terminal C.

6. Place one end of the 3" long jumpe r on terminal G.

7. Place the other end of the 3 " long jumper on terminal Y. Please note that there will be more than 1 wire on terminal Y.

8. W hen connec ting the wires to the Fir st Alert thermostat, note that the wire that was previously conne cted to the G ter minal of the old thermostat will now be required to be connected to the C terminal on the Fir st Alert thermo stat. All other wires will be connec ted such that the conne ctions on each end of the indivi dual w ires match

terminal designations. For example : Conne ct the yellow wire on the thermostat end to the Y terminal on the thermostat. The yellow wire will be connected to the Y terminal on the HVAC equipment end also.

Installation Instructions

Making 5 Wires Work When 6 Wires Are Required

If you have System C or E from page s 48-49 or any system that requires 6 wires, and you would like to install the First Alert model T HERM -50 0 using only 5 wires, follow the direc tions below. You will need a s crewdriver along with a 3" long pie ce of thermostat w ire to us e as a jump er:

1. Make sure the power is of f.

3. At the HVAC equipment end of the thermostat wires (usually at the furna ce) , locate the terminals that the wire s are at tached to.

4. Remove the “G wire” from the terminal marked G.

5. Place the “G wire” on terminal C.

6. Place one end of the 3" long jumpe r on terminal G.

7. Place the other end of the 3 " long jumper on terminal Y. Please note that there will be more than 1 wire on terminal Y.

Installation Instructions

The THERM-500 Backplate

W1/O/BY2Y1

SENSOR

NOTE:

The backplate does not fully cover a full size vertical junction box. The ACC-WPLWH OneLink Wallplate or a single-gang, horizontally mounted junction box would be needed for that type of installation

To remove the thermostat backplate:

Using the Finger Pull Areas, pull the front housing away from the backplate.

Look for these tabs to locate

the pull areas

W3 3rd stage heat circuit W2 2nd stage heat circuit W1/O/B 1st stage heat circuit Y2 2nd stage compressor relay Y1 1st stage compressor relay G fan relay R 24 VAC return C 24 VAC common SENSOR remote/outdoor/supply/return sensor connections

IMPORTANT: This thermostat requires both R (24 VAC Return) and

Backplate

Pull out with thumbs in these areas

Front Housing

C (24 VAC Common) be connected to the backplate terminals.

GAS/EL

GAS ELEC GAS ELEC

Installation Instructions

Explanation of Thermostat Dip Switches

Dip switches are located on the back of the thermostat

GAS/EL

GAS

HP HPGAS/EL

123

O O BB

1 2 3

1 23

123

ELEC

This dip switch conﬁgures the thermostat to control a conventional gas/electric system or a heat pump. If your system is anything other than a heat pump, leave this

switch set for GAS/EL.*

*For some commercial heat pumps, this switch may need

123

to be set for GAS/EL. Consult the commercial heat pump literature.

When the GAS/EL or HP dip switch is conﬁgured for HP, this dip switch (O or B) must be set to control the appropriate reversing valve. If O is chosen, the W1/O/B terminal will energize in cooling. If B is chosen, the

1 2 3

W1/O/B terminal will energize in heating.

1. When GAS/EL or HP is set for GAS/EL: This switch (GAS or ELEC) controls how the thermostat will control the Fan (G) terminal in heating mode. When GAS is chosen, the thermostat will not energize the Fan (G) terminal in heating. When ELEC is chosen the thermostat will energize the fan in heating.

1 23

2. When GAS/EL or HP is set for HP: This switch (GAS or ELEC) deﬁnes the Aux Heat type. When GAS is chosen, the auxiliary heat will not be allowed to run during heat pump operation. When using a Dual Fuel system, set this switch for GAS. When ELEC is chosen, up to two stages of auxiliary strip heat will be allowed to run.

SENSOR

Installation Instructions

Sample Wiring Diagrams

with Dip Switch Positions

Conventional Heating and Cooling Systems

2 Wire, Heat Only

Residential & Commercial 1 Stage Heating with no Fan.

The thermostat will not work with 2 wires. Either pull new wire or purchase a model TSTATGAC-2W two-wire kit

GAS/EL HP

4 Wire, Cool Only

R C Y1 G

GAS/EL HP

5 Wire, 1 Stage Cooling, 1 Stage Heat

R C W1/O/B Y1 G

GAS/EL

GAS

Residential & Commercial 1 Stage Cooling.

GAS

Residential & Commercial 1 Stage Cooling, with 1 stage Electric Heat.

GAS

123

ELEC

24VAC Power 24VAC Common 1st Stage Cool Fan

123

ELEC

24VAC Power 24VAC Common 1st Stage Heat 1st Stage Cool Fan

123

ELEC

3 Wire, Heat Only

Residential & Commercial 1 Stage Heating with no Fan.

R C W1/O/B

GAS/EL HP

GAS

5 Wire, 1 Stage Cooling, 1 Stage Heat

Residential & Commercial 1 Stage Cooling, with 1 stage Gas Heat.

R C W1/O/B Y1 G

GAS/EL HP

GAS

8 Wire, 2 Stage Cooling, 3 Stage Heat

Residential & Commercial 2 Stage Cooling, with 3 stage Gas Heat.

R C W1/O/B W2 W3/AUX Y1 Y2 G

GAS/EL HP

GAS

24VAC Power 24VAC Common 1st Stage Heat

24VAC Power 24VAC Common 1st Stage Heat 1st Stage Cool Fan

24VAC Power 24VAC Common 1st Stage Heat 2nd Stage Heat 3rd Stage Heat 1st Stage Cool 2nd Stage Cool Fan

123

B ELEC

Installation Instructions

Sample Wiring Diagrams

Heat Pump Systems

5 Wire, 1 Stage Cooling, 1 Stage Heat

Residential & Commercial Heat Pump with ‘O’ Reversing Va lve

R 24VAC Power C 24VAC Common W1/O/B Reversing Valve Y1 1st Stage Compressor (Cool or Heat) G Fan

GAS/EL

GAS

7 Wire, 2 Stage Cooling, 3 Stage Heat

Residential & Commercial Heat Pump with ‘O’ Reversing Va lve.

R 24VAC Power C 24VAC Common W1/O/B Reversing Valve W2 3rd Stage Heat Y1 1st Stage Compressor (Cool or Heat) Y2 2nd Stage Compressor (Cool or Heat) G Fan

GAS/EL

GAS

(Number of Compressor Stages set to 2)

123

ELEC

123

ELEC

with Dip Switch Positions

6 Wire, 1 Stage Cooling, 2 Stage Heat

Residential & Commercial Heat Pump with ‘O’ Reversing Valve

R 24VAC Power C 24VAC Common W1/O/B Reversing Valve Y1 1st Stage Compressor (Cool or Heat) W2 Aux Heat G Fan

GAS/EL

GAS

8 Wire, 2 Stage Cooling, 4 Stage Heat

Residential & Commercial Heat Pump with ‘O’ Reversing Va lve.

R 24VAC Power C 24VAC Common W1/O/B Reversing Valve W2 3rd Stage Heat W3 4th Stage Heat Y1 1st Stage Compressor (Cool or Heat) Y2 2nd Stage Compressor (Cool or Heat) G Fan

GAS/EL

GAS

(Number of Compressor Stages set to 2)

123

ELEC

123

ELEC

Installation Instructions

Outdoor Sensor

Sample Wiring Diagrams

with Dip Switch Positions

Heat Pump Systems with Dual Fuel

7 Wire, 2 Stage Cooling, 3 Stage Heat

Residential & Commercial Heat Pump with ‘O’ Reversing Va lve and Fo ssil Fuel furnace.

R 24VAC Power C 24VAC Common W1/O/B Reversing Valve W2 3rd Stage Heat (connected to furnace) Y1 1st Stage Compressor (Cool or Heat) Y2 2nd Stage Compressor (Cool or Heat) G Fan

Free Cooling

Damper

10K Thermistor

ACC-TSEN

Free Cooling utilizes the Y1 terminal for the operation of 1st stage cooling. If mechanical (compressor) cooling is also present, the mechanical cooling is connected to the Y2 terminal in this instance.

Free Cooling may be used with a Gas/Electric or Heat Pump system.

Temperature Sensor: ACC-TSEN Temperature Sensor 10K ohm sensor at 77F/25C. Negative Temperature Coefﬁcient.

GAS/EL HP

Number of Compressor Stages set to 2

(see Compressor Stages, pg. 33)

Dual Fuel set to On

(see Dual Fuel Settings, pg. 36)

GAS

123

ELEC

Use 18-22 gauge thermostat wire

Y1Y2W1/O/B

SENSOR

CRG

Troubleshooting

• SYMPTOM: The thermostat touchscreen buttons are not responsive. CAUSE: The touchscreen is out of calibration. REMEDY: Remove the thermostat from the backplate. Push the

thermostat back onto the backplate, while keeping your ﬁnger pressed ﬁrmly against the center of the touchscreen, until the Calibration screen appears. Re-calibrate the Touchscreen. See Touch Calibration section of

full user’s manual (page 19).

• SYMPTOM: The display is blank. CAUSE: Lack of proper power. REMEDY: Make sure the power is on to the HVAC and that you have

24vac between R & C.

• SYMPTOM: The air conditioning does not attempt to turn on.

CAUSE: The cooling setpoint is set too high. REMEDY: Lower the cooling setpoint or lower the cooling set-point

limit. See Setpoint Limits (page 28).

• SYMPTOM: The heating does not attempt to turn on.

CAUSE: The heating setpoint is set too low. REMEDY: Raise the heating setpoint or raise the heating set-point limit.

See Setpoint Limits (page 28).

• SYMPTOM: When controlling a residential heat pump, and asking for cooling, the heat comes on.

CAUSE: The thermostat reversing valve dip switch is set for “B”. REMEDY: Set the reversing valve jumper for “ O ”.

• SYMPTOM: When calling for cooling, both the heat and cool come on. CAUSE: The thermostat equipment dip switch is conﬁgured for “HP”

and the HVAC unit is a Gas/Electric. REMEDY: Set the equipment dip switch for “Gas”.

• SYMPTOM: Air handler control board fuse blows when thermostat is attached to backplate with power on, but does not blow until the thermostat is placed onto the backplate.

CAUSE: The Outdoor sensor and/or sensor wiring is shorted. REMEDY: Check/replace Outdoor sensor and/or sensor wiring.
