First Act MA002 User Manual
INSTALLING BATTERIES
The MA002 Amplifier operates with two 9-volt alkaline batteries. Two battery compartments can be found
on the back of the amp, on either side of the speaker.
Replace both batteries by following these steps:
Open the battery compartment door, pinch the tab, and pull the door to open.
To install a new battery, snap the +/- terminals of the battery into place on the connector pad.
Place the attached battery into the compartment.
Close the compartment door.
Do not mix old and new batteries. Do not mix alkaline standard (carbon-zinc) and rechargeable (nickelcadmium) batteries.
First Act
745 Boylston Street
Boston, MA 02116 USA
firstact.com
1

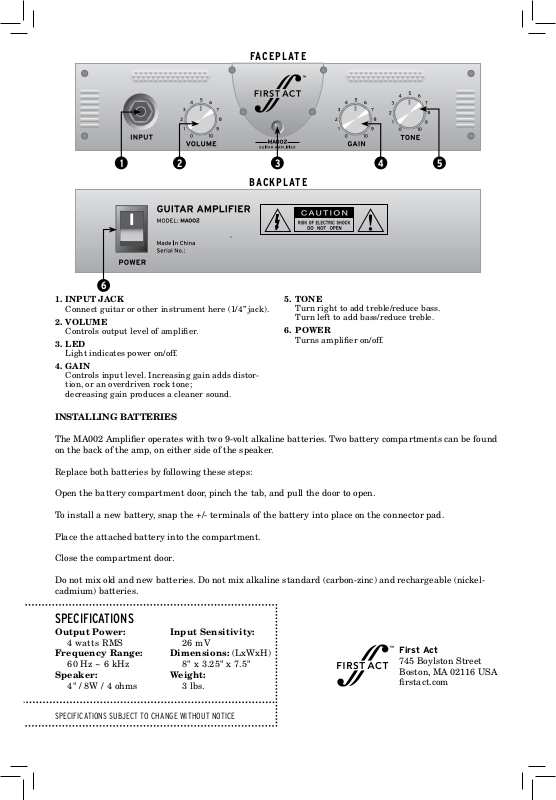

FA CEP L ATE
2 3 4 5
6
BAC K P L AT E
1. INPUT JACK
Connect guitar or other instrument here (1/4” jack).
2. VOLUME
Controls output level of amplifier.
3. LED
Light indicates power on/off.
4. GAIN
Controls input level. Increasing gain adds distortion, or an overdriven rock tone;
decreasing gain produces a cleaner sound.
5. TONE
Turn right to add treble/reduce bass.
Turn left to add bass/reduce treble.
6. POWER
Turns amplifier on/off.
Output Power:
4 watts RMS
Frequency Range:
60 Hz ~ 6 kHz
Speaker:
4" / 8W / 4 ohms
Input Sensitivity:
26 mV
Dimensions: (LxWxH)
8" x 3.25" x 7.5"
Weight:
3 lbs.
SPECIF ICATIONS SUBJECT TO CHANG E WITH OUT NOTI CE
SPECIFICATIONS
MA002
AMPLIFIER
INSTRUCTION
MANUAL
Customer Assistance
Phone: 888.551.1115
Email: info@firstact.com
1. This unit should be protected from contact
with water, moisture, or liquids of any kind.
2. This amplifier should only be serviced by a
qualified repair technician.
3. This unit should not be placed near a heat
source (permissible operating temperature
range 32–104ºF).
4. Turn amplifier power off when not in use.
5. The outside of the amplifier may be cleaned
with a dry cloth only. Do not use water or
chemicals to clean.
6. This unit contains digital circuitry and may
cause interference if placed too close to radio
or television receivers.
7. Do not operate the amplifier if:
» the unit has been dropped
» the unit has been exposed to
moisture/liquids of any kind
» the unit is not functioning properly
Note: If you suspect that your amp is
defective, have it checked and repaired by
a qualified service technician.
8. Do not expose the unit to:
» Direct sunlight
» Excessive humidity
» Excessive dust
» Strong vibration
9. To prevent electric shock hazard, do not open
the cabinet or chassis of the amplifier.
First Act and the Fir st Act lo go are
trade marks o f First Act Inc.
©2006 -2007 First Act Inc. All rights reserved .
MA00 2.M.01
IMPORTANT SAFETY INSTRUCTIONS
Please read carefully before operating your amplier:
Follow these basic precautionary measures to ensure a longer life for your amplifier, and to reduce
the risk of electric shock.
CAUTION - ELECTRICA LLY OPER ATED P RODUCT
Not recommended fo r children under 8 years of age. As
with a ll electr ic product s, precautions shoul d be obser ved
during handling and use to prevent el ectric sh ock.
