Firetide 1500R 1 User Manual

HotPoint 1500R Outdoor Wireless Mesh Router

wireless instant networks™

Hardware Installation Guide

HotPoint 1500R Outdoor Wireless Mesh Router

i

Hardware Installation Guide

Hardware Installation Guide

HotPoint 1500R Outdoor Wireless Mesh Router

Part No. xxxxx Rev A

****Requires Part Number****

Copyright Notice

© 2003-2004 Firetide, Inc. All rights reserved.

Trademarks

Firetide, the Firetide logo, Wireless Instant Networks, HotPoint are trademarks of Firetide, Inc. All other
trademarks are the property of their respective owners.

ii

HotPoint 1500R Outdoor Wireless Mesh Router

HotPoint Limited End User Product Warranty

Pursuant to all provisions described herein, Firetide products are warranted for one (1) year from
the date of purchase against defects in the build materials and workmanship. Firetide also
warrants that the Software will materially conform to the documentation supplied by Firetide with
the Software. In the event that the Software fails to materially conform to the documentation and
an authorized Firetide reseller is notified in writing of such failure within the warranty period,
Firetide or its reseller shall use commercially reasonable efforts to promptly correct the
nonconformity. Firetide does not warrant that the use of the Software will be uninterrupted or error
free. Firetide does not warrant that the Products will meet any requirements or specifications of
any End User Customer. This warranty applies to the entire Firetide product, including antennas
and the AC power adapter.

The above warranties are void if the alleged defect cannot be verified by Firetide or if, as
determined by Firetide, the product failure was due to tampering, abuse, misuse, accident,
shipping, handling, or storage; or if the product has been installed, used, or maintained in a
manner not described in the product user manual, if the product has been altered In any way, or If
product serialization has been altered. Any at-tempt to disassemble or repair the product by
anyone other than Firetide immediately voids this warranty.

This warranty applies only to the original End User purchaser of the product and may not be
transferred to any other individual or entity.

THE FOREGOING ARE THE EXCLUSIVE WARRANTIES APPLICABLE TO THE PRODUCT
INCLUDING THE SOFTWARE, AND THE EXCLUSIVE REMEDY FOR DEFECTS IN THE
PRODUCT. FIRETIDE DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPRESS,
IMPLIED, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO IMPLIED
WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT OR FITNESS FOR A
PARTICULAR PURPOSE. SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED
WARRANTIES SO TO THAT EXTENT THIS LIMITATION MAY NOT APPLY TO YOU.

In no event will Firetide be liable for any special, incidental, consequential, punitive or indirect
damages whatsoever (including, without limitation, damages for loss of profits, business
interruption, loss of information, or other pecuniary loss) arising out of the use or inability to use
the product or the performance, interruption or failure of the product, irrespective of the cause of
action, even if Firetide has been advised of the possibility of such damages. Firetide's cumulative
liability for all claims arising out of or in connection with this warranty will not exceed the amount
paid by the original End User purchaser to purchase the product. The amounts payable for the
product are based in part on these limitations and these limitations shall apply not-withstanding
the failure of essential purpose of any remedy. Some jurisdictions do not allow the exclusion or
limitation of incidental or consequential damages, so to that extent the above limitations or
exclusions may not apply to you.

By using the product the original End User purchaser agrees to and is bound by these terms and
conditions.

In the event that a product fails to meet this warranty and Firetide’s authorized reseller is notified
in writing of such failure within the warranty period, Firetide shall, at its own discretion, either
repair the product or replace it with the same or a functionally-equivalent product free of charge.
Replacement products may contain refurbished materials in whole or in part. Firetide will honor
this warranty provided the product is returned through an authorized Firetide reseller or dealer
with shipping charges prepaid, along with a proof of purchase describing the original purchase
date and product serial numbers if applicable. The authorized reseller must acquire a Return
Materials Authorization (RMA) number from Firetide prior to returning any product. Firetide does
not accept shipments of defective products without shipping charges prepaid.

v

Hardware Installation Guide

Safety Instructions

The HotPoint 1500R outdoor wireless mesh router must be installed by a qualified
professional such as a licensed electrician. Failure to install this equipment properly may
result in equipment damage and personal injury or death.

Explanation of Graphical Symbols:

This symbol is intended to alert the user to the presences of non-insulated dangerous

voltage” that may be of sufficient magnitude to constitute a risk of lethal electric shock to persons.

This symbol is intended to alert the user to the presence of important operating,
maintaining and servicing instructions in the literature accompanying the 1500R. Failing to
comply with this instruction may result in electrical shock.

This symbol is intended to alert the user to the presence of important operating,
maintaining and servicing instructions in the literature accompanying the 1500R. Failing to
comply with this instruction may result in a hazard.

Caution! Risk of electric shock!

POWER LINES CAN BE LETHAL

Do not install the HotPoint 1500R outdoor mesh router where possible contact with power lines
can be made. Antennas, masts, towers, guy wires or cables may lean or fall and contact these
lines. People may be injured or killed if they are touching or holding any part of equipment when it
contacts electric lines. Make sure there is NO possibility that equipment or personnel can come in
contact directly or indirectly with power lines.

ASSUME ALL OVERHEAD LINES ARE POWER LINES

The horizontal distance from a tower, mast or antenna to the nearest power line should be at
least twice the total length of the mast/antenna combination. This will ensure that the mast will not
contact power if it falls either during or after installation.

iv

HotPoint 1500R Outdoor Wireless Mesh Router

SURVEYING THE SITE

Look over the entire site before beginning any installation and anticipate possible hazards. Never
assume anything without checking it out for yourself! Don't take shortcuts!

Caution! Risk of electric shock!

TO AVOID FALLING, USE SAFE PROCEDURES WHEN WORKING AT HEIGHTS ABOVE
GROUND.

• Select equipment locations that will allow safe and simple installation.

• Don’t work alone. A friend or co-worker can save your life if an accident happens.

• Don't attempt repair work when you are tired. Not only will you be more careless, but your

primary diagnostic tool - deductive reasoning - will not be operating at full capacity.

•

• Use approved non-conducting ladders, shoes and other safety equipment. Make sure all

equipment is in good repair.

• If a tower or mast begins falling, don’t attempt to catch it. Stand back and let it fall.

• If anything such as a wire or mast does come in contact with a power line, DON’T TOUCH IT

OR ATTEMPT TO MOVE IT. Instead, save your life by calling the power company.

• Don’t attempt to erect antennas or towers on windy days.

• MAKE SURE ALL TOWERS AND MASTS ARE SECURELY GROUNDED, AND

ELECTRICAL CABLES CONNECTED TO ANTENNAS HAVE LIGHTNING ARRESTORS.
This will help prevent fire damage or human injury in case of lightning, static build-up, or short
circuit within equipment connected to the antenna. The HotPoint 1500R has an external
ground connector and built in lightning protection. Be sure that any other equipment
connected to the HotPoint 1500R also has the same level of protection.

• The base of the antenna mast or tower must be connected directly to the building protective

ground or to one or more approved grounding rods, using 10AWG ground wire and corrosion­resistant connectors.

• Refer to the National Electrical Code for grounding details.

IF A PERSON COMES IN CONTACT WITH ELECTRICAL POWER, AND CANNOT MOVE.

• DON’T TOUCH THAT PERSON, OR YOU MAY BE ELECTROCUTED.

• Use a non-conductive dry board, stick or rope to push or drag them so they no longer are in

contact with electrical power.

• Once they are no longer contacting electrical power, administer CPR if you are certified, and

request emergency medical aid immediately.

DO NOT OPEN THE COVER

•

Dangerous voltages inside.

•

No serviceable parts inside.

•

Refer to qualified service personnel.

•

Unit must be disconnected from power prior to servicing

v

Hardware Installation Guide

Table of Contents

OTPOINT LIMITED END USER PRODUCT WARRANTY ............................................................................ III

H

SAFETY INSTRUCTIONS............................................................................................................................. IV

Explanation of Graphical Symbols:.................................................................................................. iv

TABLE OF CONTENTS ...................................................................................................................................VI

FIRETIDE™ HOTPOINT™ 1500R OUTDOOR WIRELESS MESH ROUTER.................................................... 1

HOTPOINT 1500R INSTALLATION ................................................................................................................. 2

UNPACKING ................................................................................................................................................ 2

SITE PLANNING........................................................................................................................................... 3

REQUIRED TOOLS AND SUPPLIES.............................................................................................................. 4

STAGING CONSIDERATIONS....................................................................................................................... 4

MOUNTING THE ANTENNA .......................................................................................................................... 5

MOUNTING GUIDELINES ............................................................................................................................. 5

WALL MOUNTING........................................................................................................................................ 6

POLE MOUNTING........................................................................................................................................ 6

MOUNTING THE ENCLOSURE ..................................................................................................................... 8

MOUNTING GUIDELINES ............................................................................................................................. 8

WALL MOUNTING........................................................................................................................................ 8

POLE MOUNTING........................................................................................................................................ 9

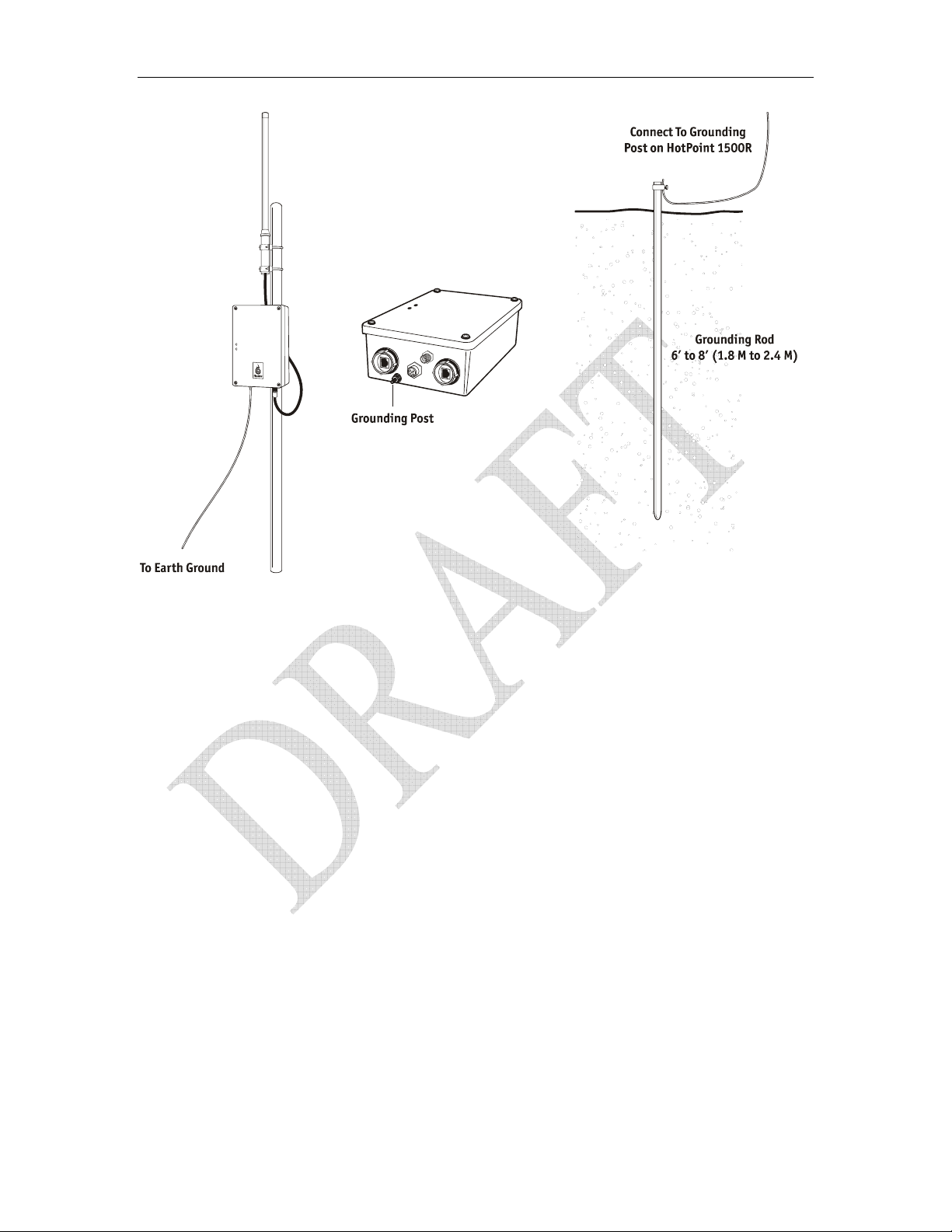

CONNECTING TO EARTH GROUND........................................................................................................... 10

POWER OPTIONS...................................................................................................................................... 12

REMOTE POWER AGGREGATOR MODULE............................................................................................... 12

POWER OVER ETHERNET (POE).............................................................................................................. 13

BATTERY BACKUP.................................................................................................................................... 14

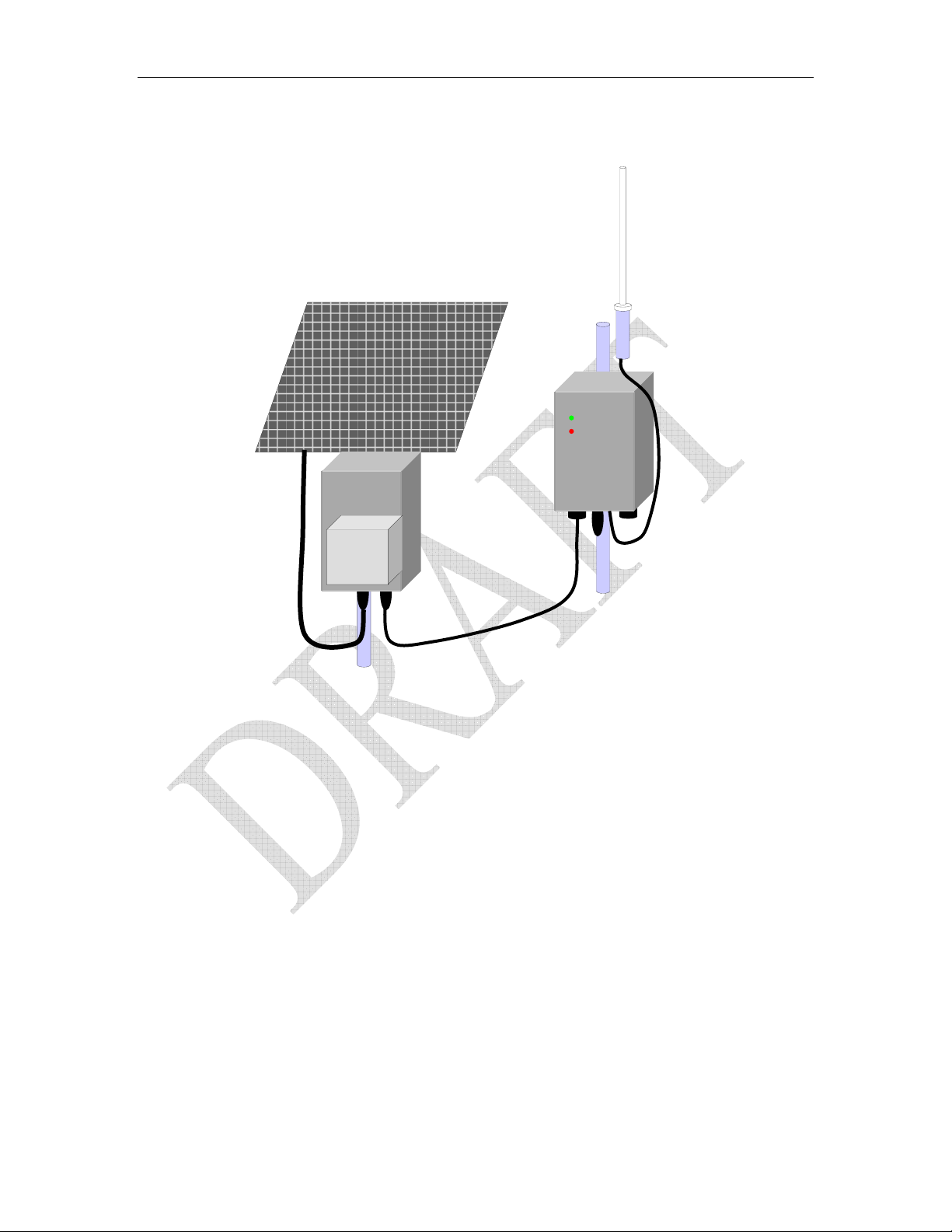

SOLAR POWERED..................................................................................................................................... 15

APPENDIX A- CONTACTING FIRETIDE........................................................................................................16

APPENDIX B- CONNECTORS ........................................................................................................................ 17

APPENDIX C- REGULATORY NOTICES ........................................................................................................ 18

APPENDIX D- SPECIFICATIONS.................................................................................................................... 19

vi

Firetide™ HotPoint™ 1500R Outdoor Wireless Mesh Router

Firetide™ HotPoint™ 1500R outdoor mesh routers provide dual-spectrum (2.4GHz/5 GHz) high­bandwidth operation for outdoor mesh networking applications. They employ a 100mW radio
covering distances up to 2600 ft/800 m while operating in the 5GHz spectrum and distances up to
5000ft/1600m while operating in the 2.4GHz spectrum. By operating in a less crowded frequency
spectrum and a NEMA certified enclosure, these rugged mesh routers enable mesh netwo rks to
operate in outdoor environments and to provide greater bandwidth for both rural and metro
applications. Operating in the 5GHz band, the HotPoint 1500R units are ideal for operation in
environments that are congested with 2.4GHz wireless traffic. Alternatively, the HotPoint 1500R
can also operate in the 2.4GHz spectrum where the 5GHz is not permitted for use in the outdoor
environment.

The HotPoint 1500R also provides two weatherproof Ethernet ports for provisioning Ethernet
instantly without the need for a wired backhaul. Eliminating the wired backhaul enables the
installation of outdoor networking equipment such as weatherized access points, computers, and
surveillance cameras virtually anywhere at a fraction of the time and cost associated with
installing wired outdoor solutions.

A remote power module, with a 50 foot/15 meter cable, supplies power from an external
transformer or optional third party power sources such as solar cells and batteries. The HotPoint
1500R mesh router can supply power over Ethernet to auxiliary network devices such as
surveillance cameras and outdoor access points. Additionally, the HotPoint 1500R mesh router
can receive its power from auxiliary network devices that provide power over Ethernet, up to a
maximum of 48VDC.

1

Firetide HotPoint 1500R Outdoor Wireless Mesh Router

Hardware Installation Guide

HotPoint 1500R Installation

The Hardware Installation Guide describes how to install the HotPoint 1500R safely and is
intended to be installed by trained technical professionals. Be sure to read and understand all
installation instructions and safety instructions before proceeding with the installation.

Unpacking

The HotPoint 1500R Outdoor Wireless Mesh Router package contains the following items. If you
are missing any of these items, contact your Firetide reseller.

HotPoint 1500R Wireless Outdoor Mesh Router Components

Mesh Router

• HotPoint 1500R Outdoor Mesh Router with NEMA 4 enclosure with weatherproof
connector caps.

• Mounting brackets, bolts, washers and nuts to install the enclosure to a pole or wall.

2
