Page 1
2222685-21
REFRIGERATOR
FRF 120
INSTRUCTION BOOKLET
t
Page 2
2 Printed on paper manufactured with environmentally sound proceses
General Safety
¥ This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorised
technicians.
¥ Take utmost care when handling your
appliance so as not to cause any damages to
the cooling unit with consequent possible fluid
leakages.
¥ The appliance must not be located close to
radiators or boilers.
¥ Avoid prolonged exposure of the appliance to
direct sunlight.
¥ Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating
appliances.
During Use
¥ This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.
It is not intended for commercial or industrial use.
¥ Containers with flammable gases or liquids can
leak at low temperatures. Do not store any
containers with flammable materials, such as spray
cans, fire extinguisher refill cartridges etc. in the
refrigerator.
¥ Frozen food should not be refrozen once it has
thawed out.
¥ Do not place carbonated or fizzy drinks in the
freezer compartment.
¥ Ice lollies can cause Ôfrost/freezer burnsÕ if
consumed straight from the star compartement.
¥ Do not remove items from the freezer
compartement if your hands are damp/wet, as this
could cause skin abrasions or frost/freezer burns.
¥ Bottles and cans must not be placed in the freezer
compartment they can burst when the contents
freeze.
¥ ManufacturersÕ recommended storage times should
be adhered to. Refer to relevant instructions.
Maintenance and Cleaning
¥ Before cleaning, always switch off the appliance
and disconnect from the electrical supply.
¥ When unplugging always pull the plug from the
mains socket, do not pull on the cable.
Prior to Installation
¥ Check the appliance for transport damage. Under
no circumstance should a damaged appliance be
installed. In the event of damage please contact
your retailer.
Installation
¥ This appliance is heavy. Care should be taken
when moving it.
¥ It is dangerous to alter the specifications or attempt
to modify this product in any way.
¥ Ensure that the appliance does not stand on the
electrical supply cable.
Important: if the supply
cable is damaged, it must be replaced by
authorized service or qualified personnel using a
special cable of the same type.
¥ Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
¥ Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall, but leaving the required
distance for ventilation, as states in the installation
instructions.
¥ The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Refrigerant
¥ The refrigerant isobutane (R600a) is contained
within the refrigerant circuit of the appliance, a
natural gas with a high level of environmental
compatibility, which is nevertheless flammable.
¥ During transportation and installation of the
appliance, be certain that none of the components
of the refrigerant circuit become damaged.
¥ If the refrigerant circuit should become damaged:
- avoid open flames and sources of ignition.
- thoroughly ventilate the room in which the
appliance is situated.
Child Safety
¥ Do not allow children to tamper with the controls or
play with the product.
¥ There is a risk of suffocation! Keep packaging
material away from children!
These warnings are provided in the interests of your safety. Ensure that you understand them all
before installing or using this appliance. Your safety is of paramount importance. If you are unsure
about any of the meanings of these warnings contact the Customer Care Department.
Important Safety Instructions
Page 3
At the end of the Appliance Life
¥ When disposing of your appliance use an
authorised disposal site.
¥ Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
3
Instructions for the User
Important Safety Instructions . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Setting the temperature . . . . . . . . . . . . . . . . . . . . .4
Fresh food refrigeration . . . . . . . . . . . . . . . . . . . . .4
The door shelves . . . . . . . . . . . . . . . . . . . . . . . . . .4
The -star compartment . . . . . . . . . . . . . .5
Freezing fresh food . . . . . . . . . . . . . . . . . . . . . . . .5
Frozen food storage . . . . . . . . . . . . . . . . . . . . . . .5
Thawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Making ice cubes
. . . . . . . . . . . . . . . . . . . . . . . . .5
Normal Operating Sounds . . . . . . . . . . . . . . . . . . .5
Health and Safety Guidelines . . . . . . . . . . . . . . . .6
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Maintenance and Cleaning . . . . . . . . . . . . . . . . . .8
Internal cleaning . . . . . . . . . . . . . . . . . . . . . . . . . .8
Periodic cleaning . . . . . . . . . . . . . . . . . . . . . . . . . .8
Changing the light bulb . . . . . . . . . . . . . . . . . . . . .8
When the appliance is not in use . . . . . . . . . . . . .8
Something Not Working? . . . . . . . . . . . . . . . . . . .9
Service and Spare Parts . . . . . . . . . . . . . . . . . . .10
Customer Care Department . . . . . . . . . . . . . . . .10
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . .11
Instructions for the Installer
Technical Specifications . . . . . . . . . . . . . . . . . . .12
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Electrical Connection . . . . . . . . . . . . . . . . . . . . .13

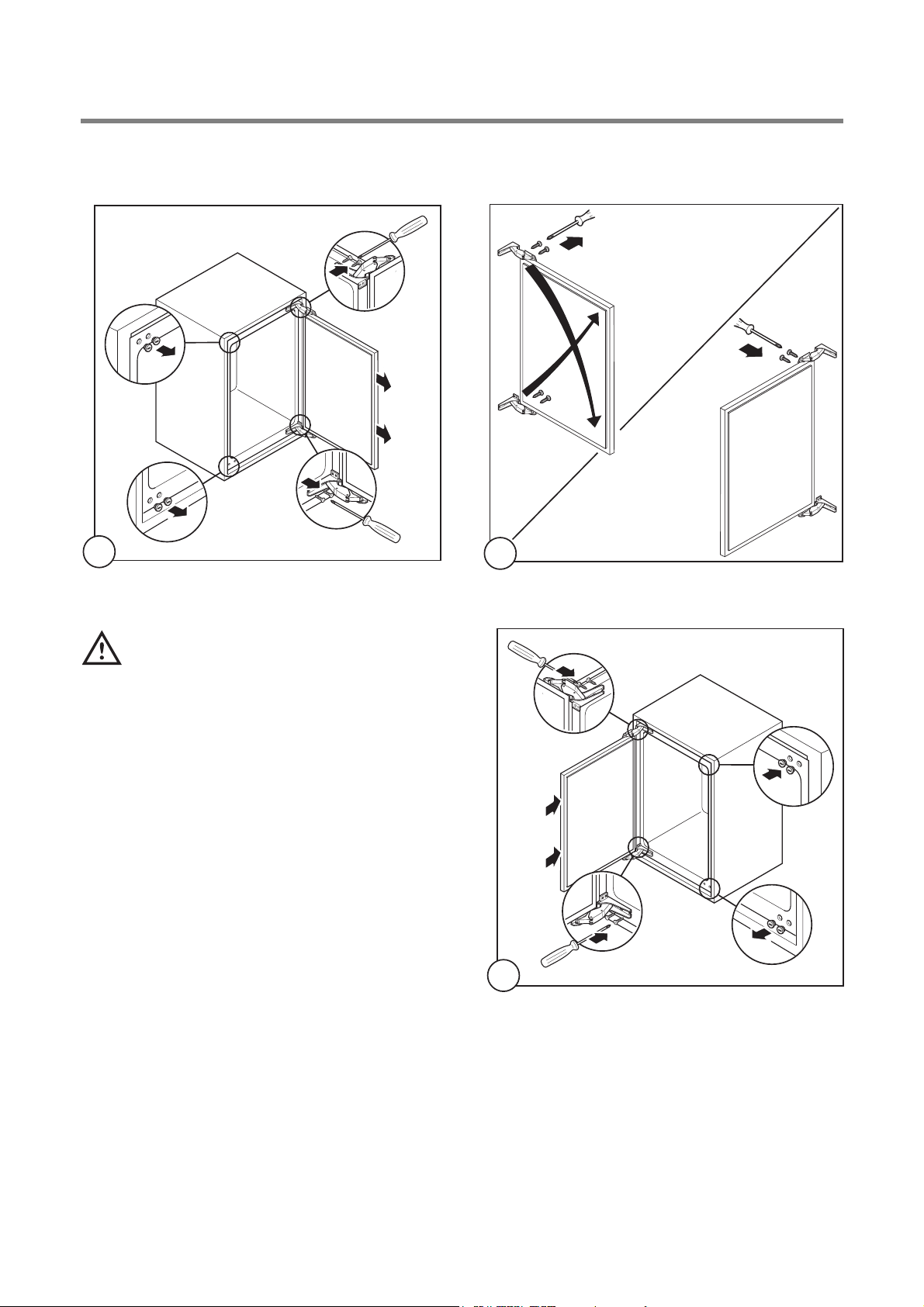

Door reversal . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Inner door reversal . . . . . . . . . . . . . . . . . . . . . . .15

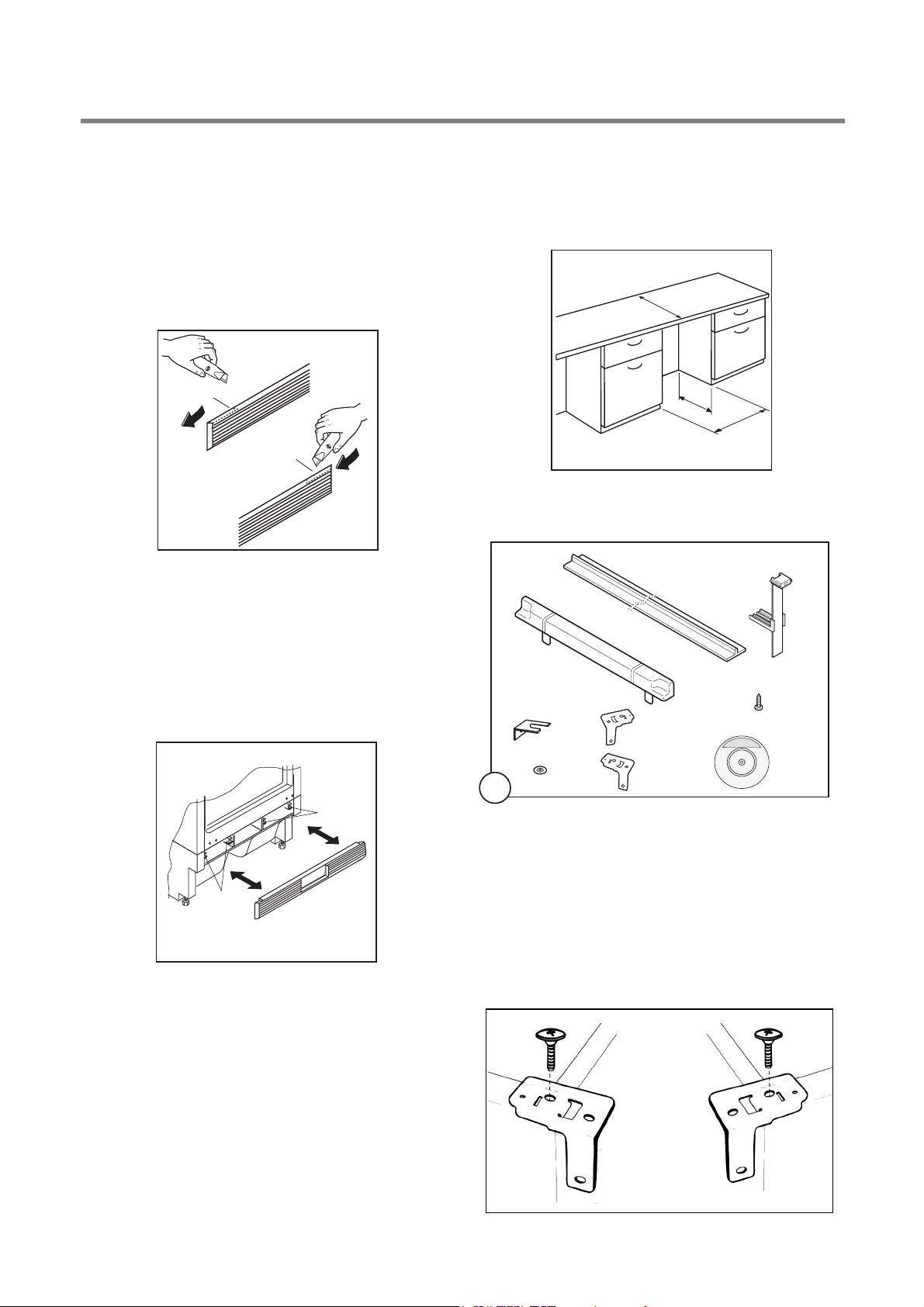

Building-in Instructions . . . . . . . . . . . . . . . . . . . .15
Grid preparation . . . . . . . . . . . . . . . . . . . . . . . . .15

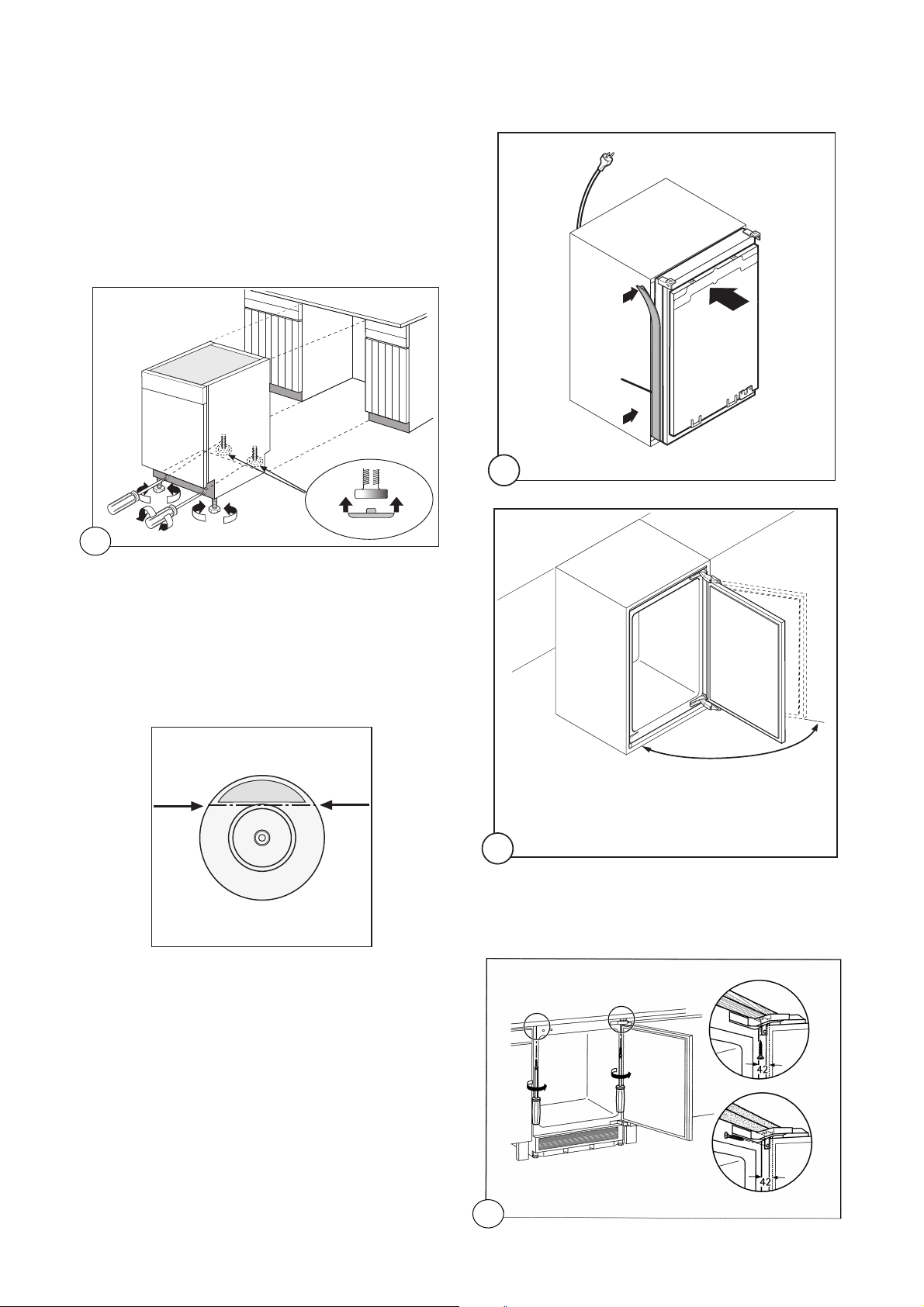

Building in the appliance under a worktop . . . . .16
Fitting the plinth . . . . . . . . . . . . . . . . . . . . . . . . . .19
Contents
Servicing
¥ This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
¥ Under no circumstances should you attempt to
repair the appliance yourself.Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Force
Centre.
Page 4
Setting the temperature
The temperature inside the refrigerator is regulated
by a thermostat control knob with 6 temperature
positions and one ÇOFFÈ (O) position.
Position 1 = minimum coldness
Position 6 = maximum coldness
Turn the thermostat control knob to the required
position.
An intermediate position is usually the most suitable,
although the temperature will be affected by:
¥
Room temperature
¥ How often the door is opened
¥ How much food is stored
¥ Position of the appliance
In determining the correct temperature control setting
all these factors have to be considered and some
experimentation may be necessary.
When altering the temperature setting, allow 24
hours for the temperature to stablise before making
further changes.
Important
During prolonged periods of abnormally hot
weather, if the thermostat is set on too high a
number, the cooling system may operate
continuously and the fridge cooling plate may
not defrost. Turning the knob to a lower
number will cause the automatic defrosting to
resume.
If you wish to return to a lower temperature,
turn the thermostat knob to a higher number,
however you should turn the setting lower
occasionally to allow automatic defrosting.
4
Operation
The door shelves
To permit storage of food packages of various sizes
the half tray can be adjusted in horizontal.
To do this proceed as figure.
For more thorough cleaning, the top door shelf and
the bottle shelf can be removed by pulling them in
the director of the arrows, then refitting them in
position.
Fresh food refrigeration
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.
To help you use your refrigerator correctly, here are
some more useful hints:
Raw meat (beef, pork, lamb & chicken or poultry):
wrap in polythene bags and place on top of the salad
bin.
Meat can only be stored safely in this way for one
or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad bin.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
The walls of the refrigerator are equipped with
runners so that shelves can be positioned as
desired.
Before use
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water). Do not use soap or
detergent as the smell may linger. Dry thoroughly.
D040
Page 5
5
The -star compartment
This compartment is suitable for freezing fresh food,
for the storage of commercially frozen food and for
ice cube making.
Freezing fresh food
To freeze fresh foods it is not necessary to change
the setting of the thermostat knob.
However, for a quicker freezing operation, turn the
thermostat knob to the coldest setting; but remember
that, in this condition, the refrigerator compartment
temperature might drop below 0¡C. If this occurs
reset thermostat knob to a warmer setting.
Only freeze top quality, fresh and thoroughly cleaned
foodstuffs.
Do not allow fresh food to touch food which is
already frozen.
During the freezing process, ensure that the freezer
compartment door remains closed.
Frozen food storage
Storing ready-frozen foods is quite straightforward.
The packs can be placed beside each other or on top
of each other.
You are strongly advised to place ready-frozen food
in the compartment as quickly as possible after
purchase and we therefore recommend that you buy
them last. Also ensure that the external packaging is
intact.
Packaging which is swollen or has traces of refrozen
water droplets on the pack could indicate that the
product has not been kept at a suitable temperature
and that it may have lost its original quality.
Partially thawed food must not be refrozen, it must
be consumed within 24 hours.
Never exceed the storage times indicated.
Do not open the -star compartment door too
often and do not leave open longer than necessary.
Important
In the event of a power cut do not open the
door. The food in the -star
compartment will not be affected if the power
cut is short and if the compartment is full.
Should the food begin to thaw, it must be
consumed quickly and must not be re-frozen.
Thawing
Food can be thawed in a number of ways, depending
on the type of food and the size of the packs.
Meat, fish and fruit should be thawed in the
refrigeration compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
A microwave oven is particularly suitable for thawing
any type of frozen or deep-frozen food: follow the
oven instructions, particularly regarding the
placement of aluminium wrapping in the oven.
Making ice cubes
The appliance is provided with a plastic ice cube tray.
Fill the tray 3/4 full to allow the ice to expand and
place it in the -star compartment. To turn out
the ice cubes simply give the tray a slight twist to
release the cubes.
Never tray to free an ice tray that is frozen to the
-star compartment using a sharp or
pointed object.
Important
Do not consume ice-lollies which have just
come out of the -star compartment.
Their extremely low temperature can cause
frost burns. Do not remove items from the
-star compartment if your hands are
damp/wet, as this could cause skin abrasions
or "frost/freezer burns".
Normal Operating Sounds
You may hear faint gurgling or bubbling sounds when
the refrigerant is pumped through the coils or tubing
at the rear, to the cooling plate.
When the compressor is on, the refrigerant is being
pumped round, and you will hear a whirring sound or
pulsating noise from the compressor.
A thermostat controls the compressor, and you will
hear a faint ÔclickÕ when the thermostat cuts in and
out.
Page 6
6
Because of consumer demand, preservatives have been removed from many pre-prepared foods.
This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and
storage of food is even more important than ever.
The following tips should help you to ensure that
the food in your home is in as perfect condition
as possible.
¥ Keep the time between buying chilled food and
placing it in your fridge as short as possible. Tests
showed that the temperature of 1 litre of orange
juice rose to 22¡C in an hour between the
supermarket and home. It then took 11 hours to get
down to 7¡C in the refrigerator.
¥ Keep the refrigerator door closed as much as
possible.
¥ Do not push food together too much, try to allow air
to circulate around each item.
¥ Cool cooked food as quickly as possible but do
NOT place in the refrigerator until cool. (Leave food
in a cool place in order that it can then be placed in
the refrigerator as soon as possible).
¥ Do NOT mix raw and cooked meat, they must be in
separate containers. Take care not to let the meat
juices drip onto other food. If the meat does drip,
remove everything and clean thoroughly.
¥ Do not store food uncovered.
¥ Remove suspect food from your refrigerator and
clean the interior (see ÒMaintenance and
CleaningÓ).
¥ Never allow spillages to dry and harden.
¥ Store eggs in the egg rack provided in the
refrigerator door. Discard any broken or chipped
eggs.
¥ Regularly check the refrigerator door seal to
ensure that it is clean and free from debris.
¥ Always wash your hands with soapy water and dry
them with a clean towel before handling food.
¥ Keep work surfaces clean and avoid cross
contamination by not using the same work surface
or knife, without washing them thoroughly in
between.
Health and Safety Guidelines
Page 7
7
Defrosting
The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located below the appliance, where it
evaporates.
Important
To avoid defrost water overflowing and
dripping onto the food in the fridge, periodically
clean the water discharge hole (F) situated
under the salad drawers. Use the special
cleaner provided (P) which you will find
already inserted into the discharge hole.
The freezer compartment, however, will become
progressively covered with frost. This should be
removed with the special plastic scraper provided,
whenever the thickness of the frost exceeds 4 mm.
During this operation it is not necessary to switch off
the power supply or to remove the foodstuffs.
Never use sharp metal tools to scrape off
frost from the evaporator as you could
damage it.
Do not use a mechanical device or any artificial
means to speed up the thawing process other than
those recommended by the manufacturer.
However, when the ice becomes very thick on the
inner liner, complete defrosting should be carried out
as follows:
1. pull out the plug from the wall socket or turn the
thermostat knob to the ÇOÈ setting;
2. remove any stored food, wrap it in several layers
of newspaper and put it in a cool place;
3. leave the door open, place a basin on the top shelf
of the refrigerator compartment, under the drain
hole, remove the plug as shown in the figure;
4. when defrosting is completed, dry the interior
thoroughly and refit the plug.
Keep the scraper for future use; turn the thermostat
knob back to the required setting or replace the plug
in the power socket. After two or three hours, reload
the previously removed food into the compartment.
Important
A temperature rise of the frozen food packs,
during defrosting, may shorten their safe
storage life.
P
S.I.011
F
PR151
Page 8
8
Maintenance and Cleaning
Warning
Before any maintenance or cleaning work
is carried out, DISCONNECT the appliance
from the ELECTRICITY supply.
Important
This appliance contains hydrocarbons in
its cooling unit maintenance and
recharging must therefore only be carried
out by authorised technicians.
Internal cleaning
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED CLEANING
PRODUCTS OR WAX POLISHES, TO CLEAN THE
INTERIOR AS THESE WILL DAMAGE THE
SURFACE AND LEAVE A STRONG SMELL.
Clean the drain hole of the water trough at regular
intervals and make sure that the drain hole is never
obstructed, so that the defrost water may flow freely.
Important
Do not use abrasive products.

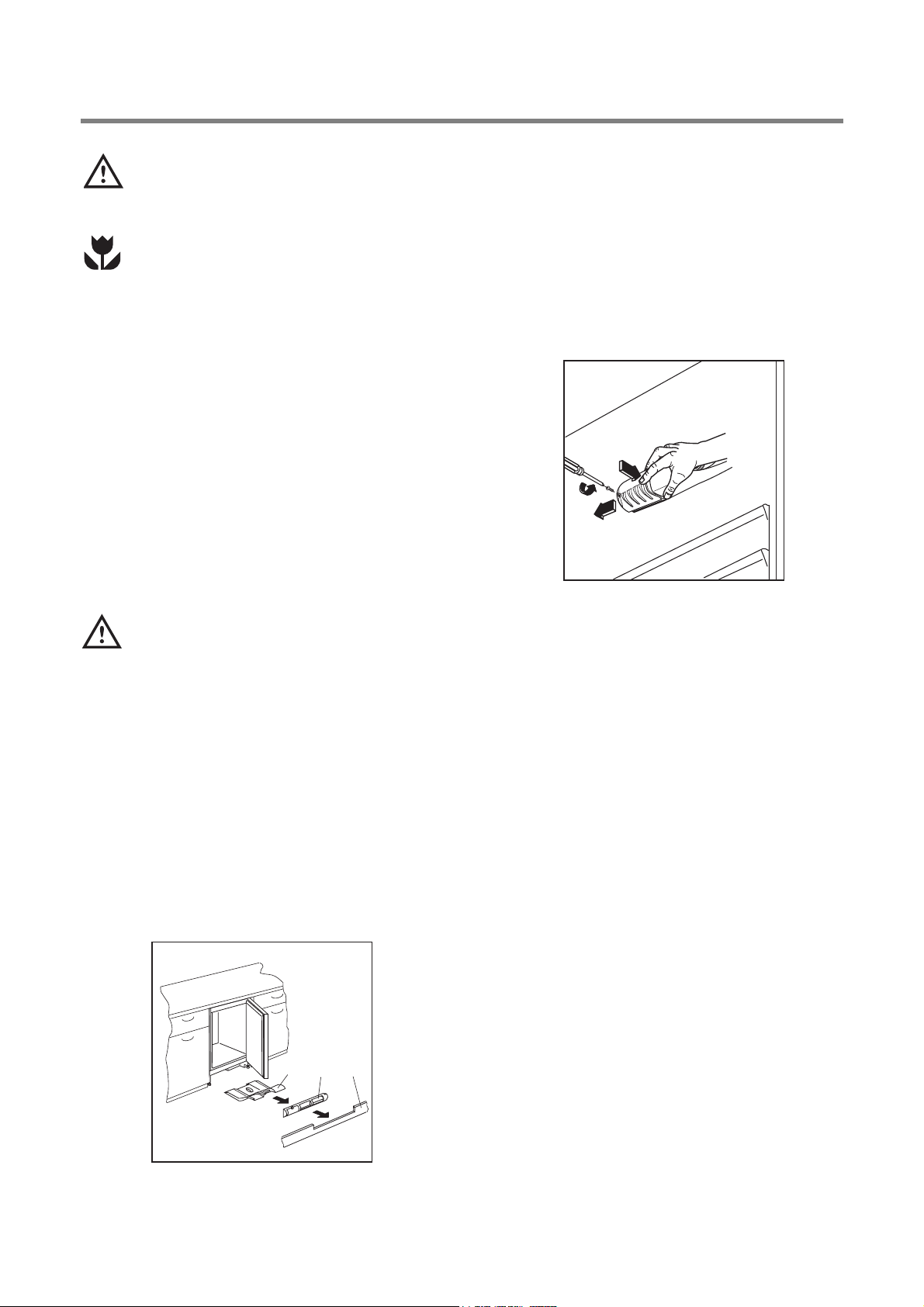

Changing the light bulb
Should the interior light fail to work, first switch off the
appliance and disconnect from the electricity supply,
then replace the bulb as follows:
1. Unscrew the light cover and then pull it outward by
pressing as shown in the figure. Unscrew the bulb
and replace it with a new 15 watt bulb (available
from your nearest Service Force centre).
2. Replace the light cover by sliding it into its original
position and replacing the screw.
Periodic cleaning
The appliance is equipped with a ventilation grid.
Keep clean to guarantee good ventilation and good
working order of the appliance.
An accumulation of dust will affect the performance
of the appliance and cause excessive electricity
consumption.
The structure of the appliance permits cleaning of the
rear zone close to the wall, using a vacuum cleaner.
1. Remove the plinth (1), then the ventilation grid (2);
2. Carefully pull the air deflector out (3), checking
that there is no water left from the defrosting.
When the appliance is not in use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all foods
and clean the appliance, leaving the door ajar to
prevent unpleasant smells.
D411
21
3
S.I.013
Page 9
9
Something not Working?
Before contacting your local Service Force Centre check the following points.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.
Symptom Solution
No power to appliance
The light does not come on
The temperature in the fridge or freezer section is too
high
The compressor runs continuosly
Excessive frost and ice has built up
Noise
Water under the salad bins
- Check there is power at the socket.
- Check there is not a power cut by checking the
household lights.
- Check the fuse has not blown.
- Ensure that the bulb is correctly fitted.
- Replace the bulb if it has blown.
- Check the door light switch is not jammed.
- Check the ambient temperature is within the appliances
operating limits of 10ûC to 32ûC.
- Check the thermostat control knob is turned to the
correct setting relative to ambient conditions.
- Adjust the thermostat control knob to give correct
temperature control. See page 4.
- Check that the door is closed.
- Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
- Check that air ventilation is not obstructed.
- Ensure the door is not left open.
- Check that nothing is preventing the door from closing.
- Is the door gasket intact and clean.
- Refer to normal operating sounds.
- Check the drain hole is not blocked. (see Maintenance
and Cleaning).
If after the above checks, there is still a fault, call your local Service Force Centre.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
Page 10
10
Service and Spare Parts
Customer Care Department
For general enquiries concerning your appliance, please contact our Customer Care Department by letter or
telephone at the address below:
Customer Care Department
EHP
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 950950 (*)
* calls to this number may be recorded for training purposes.
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your
local Service Force Centre by telephoning:-
08705 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
For the address of your local Service Force Centre and further information about Service Force, please visit
the website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the heading ÒSomething Not
Working.Ó
When you contact the Service Force Centre you will need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found on the rating plate)
5. The purchase date
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
Page 11
Standard guarantee conditions
We, EHP, undertake that if within 12 months of the date of purchase this Firenzi appliance or any part thereof is
proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or
replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
¥ The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
¥ The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's
instructions.
¥ The appliance has not been serviced, maintained repaired, taken apart or tampered with by any person not
authorised by us.
¥ All service work under this guarantee must be undertaken by a Service Force Centre.
¥ Any appliance or defective part replaced shall become the Company's property.
¥ This guarantee is in addition to your statutory and other legal rights.
Home visits are made between
8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
¥ Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
¥ Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside
the United Kingdom.
¥ Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
¥ The guarantee starts from the date you first purchased your product.
¥ The guarantee is for the same period and to the same extent for labour and parts as exists in the new
country of use for this brand or range of products.
¥ This guarantee relates to you and cannot be transferred to another user.
¥ Your new home is within European Community (EC) or European Free Trade Area.
¥ The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
¥ The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliance.
France Senlis +33 (0) 344 62 20 13
Germany NŸrnberg +49 (0) 800 234 7378
Italy Pordenone +39 (0) 800 11 7511
Sweden Stockholm +46 (0) 20 78 77 50
UK Slough +44 (0) 1753 219898
11
Guarantee Conditions
Page 12
Warning
IF YOU ARE DISCARDING AN OLD
APPLIANCE THAT HAS A LOCK OR CATCH
ON THE DOOR, YOU MUST ENSURE THAT
IT IS MADE UNUSABLE TO PREVENT
YOUNG CHILDREN BEING TRAPPED
INSIDE.
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
under ÒDoor reversalÓ.
12
Positioning
The appliance should only be installed at a location
where the ambient temperature corresponds to the
climate classification indicated on the rating plate,
which is located on the inside right of the appliance.
The following table shows which ambient
temperature is correct for each climate classification.
SN +10¡C to +32¡C
ST +18¡C to +38¡C
The appliance should be located in a dry
atmosphere, out of direct sunlight and away from
continuous heat and extreme temperature, e.g. not
next to a boiler or radiator or in a very cold room e.g.
an outhouse. If these temperatures are exceeded i.e.
warmer or colder, then the appliance may not
operate correctly.
Technical Specifications
DIMENSIONS Height 81,5 cm
Width 59,6 cm
Depth 54 cm
POWER SUPPLY VOLTAGE AND FREQUENCY 220-240 V / 50 Hz
TOT ALPOWER ABSORBED 80 W
AVERAGE DAILY UNITS ELECTRICITY(*) 0,75 kWh
TOTAL GROSS CAPACITY 122 l
NET CAPACITY Fridge 103 l
NET CAPACITY
compartment
17 l
STAR RATING
(*)This figure is based on standard test results in accordance with European Standard EN153. Actual
consumption will depend on how the appliance is used and where it is located.
Installation
For building-in and door reversal instructions please
refer to the relevant instructions on the following
pages.
Important
It must be possible to disconnect the appliance
from the mains power supply; the plug must
therefore be easily accessible after installation.
Page 13
13
If you fit your own plug, the colours of the wires in the
mains lead of your appliance, may not correspond
with the markings identifying the terminals in your
plug, proceed as follows:
Connect the Green and the Yellow (earth) wire to the
terminal in the plug which is marked with the letter
ÇEÈ or the earth symbol , or coloured green and
yellow.
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter ÇNÈ or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter ÇLÈ or coloured
red.
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BS1362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
A replacement cover/carrier must be obtained from
your local Service Force Centre.
This appliance complies with the following E.E.C.
Directive:
-73/23 EEC of 19.2.73 (Low Voltage
Directive) and subsequent amendments.
- 87/308 of 2.6.87 (Radio Interference
Suppression) and subsequent amendments.
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
amendments.
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of breakdown.
Electrical Connection
WARNING
THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability
should this safety measure not be
observed.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
Important
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
GREEN & YELLOW
BLUE
D207
13 AMP . FUSE
13 AMP
BROWN
CORD CLAMP
Page 14
14
Door reversal
To reverse the opening direction of the door, proceed
as shown in the figures:
Attention
After completion of the door reversing
operation, check that the door gasket adheres
to the cabinet. If the ambient temperature is
cold (i.e. in Winter), the gasket may not fit
perfectly to the cabinet. In that case, wait for the
natural fitting of the gasket or accelerate this
process by heating up the part involved with a
normal hairdryer on a low setting.
4
1
5
6
7
8
2
1
3
2
10
13
9
12
11
3
Page 15
15
Inner door reversal
180°
Page 16
16
Building-in instructions
Before carrying out any work, remove the plug from
the power socket.
Grid preparation
Left door opening:
Remove the left side (A) of the grid cutting it from the
rear (see figure).
Right door opening:
Remove the right side (B) of the grid cutting it from
the rear (see figure).
To position the grid on the appliance proceed as
follows:
Apply the grid to the base of the appliance by
pushing on to the clasps (a) until they click.
Building in the appliance under a
worktop
The dimensions of the recessed installation area
must correspond with those indicated in the figure.
Installation kit
1. Two cabinet securing brackets are supplied with
the installation pack. They need to be assembled
onto the cabinet prior to cabinet being pushed into
the Kitchen aperture.
- To fit these brackets remove the two screws at the
top left and right hand front corners of the cabinet.
- Position the two brackets as shown in the figure
and replace the two securing screws.
Left hand
bracket
Right hand
bracket
A
B
DO002/2
600
550
min.
600
DO013
1xA
1xB
2
1
2xC
12
DO001
2
1
2
1
a
a
Page 17
17
2. Push the appliance into place. The plug socket
necessary for connection of the appliance to the
electricity supply should be positioned, so that the
plug is not placed in the recess.
3. To adjust the height proceed as follows:
- Loosen or tighten the two front feet.
- The rear feet are adjusted by turning the screw in
the front kick plate to the left or right.
5. Screw appliance into place and retain the cabinet
with screws through the securing brackets into the
worktop or adjacent woodwork as necessary.
5
4. If necessary, pads are supplied for the rear feet to
make sliding the appliance in and out of the recess
easier. To fit the pads, press them onto the rear
feet.
If required, the dimensions of these pads can be
reduced by breaking them where marked.
N.B. The joint cover (B) is to be assembled after
having installed the appliance in the recess.
2
596
555
max
-
Li89
+
2
1
B
3
115°
II52
4
Page 18
18
6. To mount the furniture door proceed as shown in
the figures:
UPPER PART OF KITCHEN FURNITURE PANEL
LOWER PART OF KITCHEN FURNITURE PANEL
2
1
10
a
C
1
a
=
=
4
2
3
b
9
6
275 275
9/a
b
max 100
7
45
ab
°
C
clic
C
3
clic
10
c
8
1
2
Page 19
19
Fitting the plinth
Important
For the efficient operation of the appliance, it is
important that the original ventilation grid is
used.
¥ For an opening height dimension A=820 mm and a
plinth height dimension a=100 mm, the plinth may
be fitted without adjustments. The same applies to
an opening height dimension B=870 mm and a
plinth height dimension b=150 mm.
¥ For plinth heights greater than a=100 mm, b=150
mm, a cut should be made in the plinth, 580 mm
wide, in the centre of the appliance position,
leaving a remaining height of a=100 mm, b=150
mm.
¥ Attach plinth to the kitchen units.
Important
The plinth must be positioned at a minimun
distance of 25 mm from the door.
7. Refit the covering strip.
11
12
=
10
=
A = 820
B = 870
a = 100
b = 150
580
25 - 80
25
DO008
A
13
Page 20
923 453 683
Page 21
documentation manual, user maintenance, brochure, user reference, pdf manual
This file has been downloaded from:
User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..
Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,
manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
Loading...
