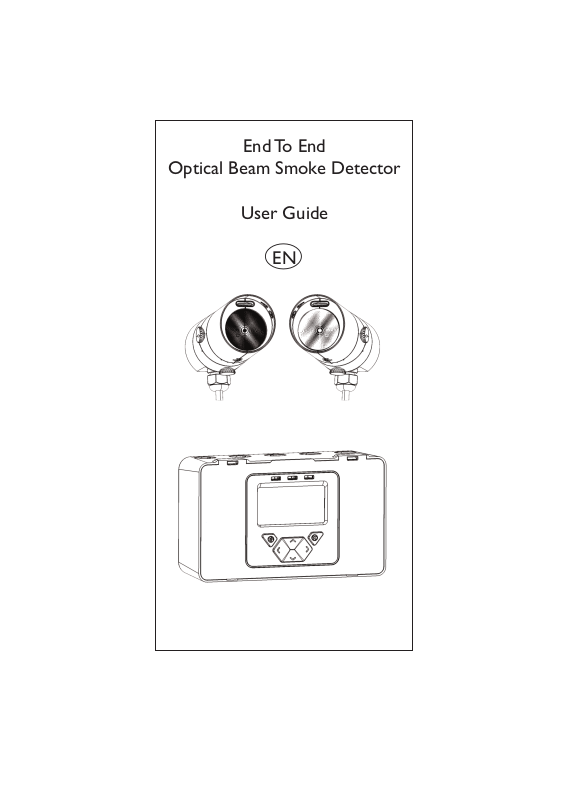

End To End
Optical Beam Smoke Detector
User Guide
EN
1.General Information
>30cm
Transmitter
Ensure clear line of
sight from Receiver
to Transmitter
>30cm
Receiver
5 - 120m
Power
Supply Unit
Controller
• IMPORTANT NOTE: The infrared beam path MUST be kept clear of obstructions at all
times! Failure to comply may result in the system initiating a Fire or Fault signal.
• All installations should comply with local regulations
• For installations approved to UL 268 refer to NFPA 72 for installation guidance. In such
installations, it is advised that the maximum distance of Transmitter and Receiver from the
ceiling must be 10% of the distance between floor and ceiling
• Ensure a clear line of sight from Receiver to Transmitter
• Mount on solid surfaces (structural wall or girder) and ensure fixing is rigid
• Position beam as high as possible, but with a minimum distance of 30cm from
Receiver/Transmitter to ceiling
• Mount Receiver and Transmitter directly opposite each other
• Do NOT position where personnel or objects can enter the beam path
• Do NOT install the Transmitter or Receiver in environments where condensation or icing are
likely to occur
2
2. Wiring Diagrams
Wiring two Receivers onto two zones:
ECEIVER 1
R
OUTPUT
-
+
RECEIVER 1
IRE
F
N/O COM N/C
RECEIVER 2
UTPUT
O
+ -
RECEIVER 1
N/O COM N/C
AULT
F
TRANSMITTER
UPPLY
S
+ -
ECEIVER 2
R
FIRE
/O COM N/C
N
TRANSMITTER
UPPLY
S
+ -
RECEIVER 2
AULT
F
N/O COM N/C
12V to 36V DC
XT
E
ST
R
see note 1
ZONE 1 -
ONE 1 +
Z
ZONE 2 ZONE 2 +
SUPPLY -
UPPLY +
S
OL
E
For connection of two Receivers to one zone:
RECEIVER 1
FIRE
N/O COM N/C
see note 1
ZONE 1 ZONE 1 +
RECEIVER 1
FAULT
N/O COM N/C
RECEIVER 2
FIRE
N/O COM N/C
see note 1
EOL
EOL
RECEIVER 2
FAULT
N/O COM N/C
XTERNAL
E
ESET
R
• Note 1: This component is the fire resistor. Its value is specified by the Fire Control Panel
manufacturer. For U.S. installations it is typically a short circuit
• ALWAYS use a separate 2-core cable for each Receiver head
• CAUTION: For system monitoring - Do not use looped wire under any terminals. Break wire
run to provide monitoring of connections
• Components not supplied:
• End Of Line ('EOL') component - supplied by Fire Control Panel manufacturer
• Fire Resistor
• After installation, check operation of Fire and Fault connection on Fire Panel
• Apply a voltage of 5V to 40V to ‘EXT RST’ contact for at least 2 seconds to clear a latched
fire condition
• For wiring to other types of Fire Control Panel, or to wire multiple Controllers onto one Zone,
refer to additional installation instructions supplied with the product
3
3. Fitting the Product
ECEIVER:
R
TRANSMITTER:
- +
TO ‘RECEIVER
OUTPUT’ ON
CONTROLLER
BOARD
LED indicator must face
downward
- +
TO
12 to 36V SUPPLY OR
‘TRANSMITTER SUPPLY’
ON CONTROLLER
BOARD
4
4. Apply Power
NOTE: One System Controller can be used to control and monitor up to two Receiver
heads. The ‘#’ symbol in this guide is used to represent the number of the Receiver
currently selected (1 or 2).
Apply Power to Controller,
Receiver(s) & Transmitter
3 seconds
• Receivers are not found (normal at this stage):
• Commissioned System:
• Receivers have been found but not commissioned:
• Communications fault, or no Receiver connected:
5

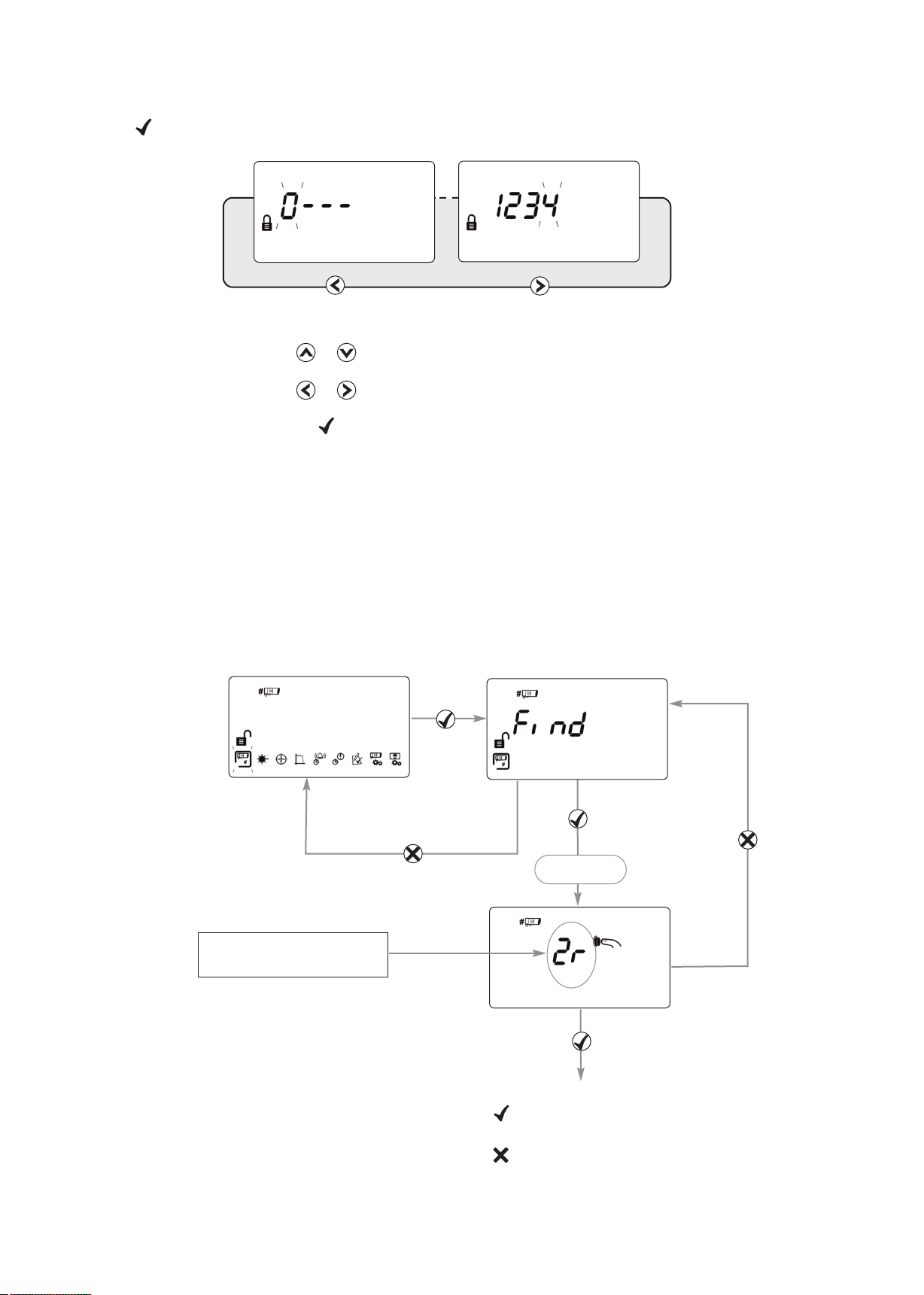

5. Enter Pass Code to Access Engineering Menu
Press to enter PASS CODE SCREEN in USER MENU
Default Pass Code: 1 2 3 4
Change digit
Move between digits
Accept
• An incorrect Pass Code will return the
display to the Pass Code entry screen
• Three incorrect attempts will lock access for
three minutes
6. Finding Receivers
• Perform 'Find' during initial installation, or when adding or removing Receivers
10 seconds
This will be the number of
Receivers found
• Press to enable ‘Found’ Receivers
• Any unused Receiver channels are switched off
• Press to re-scan if the number is incorrect
6
7. Select Receiver to be Accessed
• All Receivers need to be aligned separately
• Steps 8 and 9 explain how to align individual Receivers
2-
1-
8. LASER Targeting
• The LASER in the Receiver head is used to align the Receiver with the Transmitter.
• The LASER can be activated using the button on the Receiver head whilst in Engineering
Menu, or via the LASER icon in the ENGINEERING MENU as shown below.
• Move the LASER as close to the Transmitter as possible, by moving the Receiver’s
thumbwheels
• The system will signal Fault while in this mode
The LASER TIMEOUT
value (MIN=1 min.;
MAX=59 mins.) may be
incremented or
decremented in 1 min.
steps by using:
DANGER
LASER RADIATION - AVOID
DIRECT EYE EXPOSURE
POWER OUTPUT < 5mW
CLASS 3R LASER
Wavelength 630 - 680 nm
Countdown Elapsed
If it is not possible to see the LASER because of the installation environment (for example, if
there is high ambient light) then align the Receiver by eye so that it is pointing at the
Transmitter.
7
9. Alignment
Step 1
In installation mode you are centring the Transmitter beam onto the Receiver and the system is
adjusting its power for optimum signal.
Step 2
Step 3
Signal too
high
Tx
Rx
Reduce Tx
power
Green - short/long
flash
No flash
Rx
Set Tx power to
maximum.
Tx
View LEDs on Rx or
LCD value
No flash
(SEE NOTE 1)
NOTE 1: Value can be
between 2 and 178.
A higher value means a
better alignment.
Amber -
short/long flash
No flash
Signal too
low
Rx
Adjust thumbwheels
Tx
Proceed to Step 4
8
Step 4
From Step 3
(SEE NOTE 1)
Green - flash/stop
Rx
Signal
increased
Tx
View LEDs on Rx or
LCD value
Green - flash/stop
Adjust one
thumbwheel by
1/4 turn.
Tx
NOTE 1: Value can be
between 2 and 178.
A higher value means a
better alignment.
Amber - flash/stop
Rx
(SEE NOTE 1)
Signal
decreased
Adjust same thumbwheel by
1/4 turn in the opposite
direction.
Tx
LED - no flash
LCD = between 2
and 178
Reduce Tx
power
Tx
Green - short/long
flash
LCD = 180
Tx
Adjust same thumbwheel by 1/4 turn
in the same direction. Release thumbwheel and wait 1 second.
View LEDs on Rx or
LCD value
Amber flash/stop
LCD value
decreases
Adjust same thumbwheel by 1/8 turn in
the opposite direction
Green - flash/stop
LCD value
increases
Repeat step 4 for the other
thumb-wheel
9
Press tick to accept
alignment
10. Manual Fire and Fault Tests
After installation or cleaning, it is recommended that a Manual Fire and Fault test is performed:
Fire Test: Slowly half-cover the Receiver. The Controller will indicate Fire after the Fire Delay
Time.
Uncover the Receiver. The Controller will return to Normal state after approximately 5 seconds.
Fault Test: Completely cover the Receiver taking less than 2 seconds to do so. The Controller
will indicate Fault after the Fault Delay time.
Uncover the Receiver. The Controller will return to Normal state after approximately 5 seconds.
11. Remote Fire Test
The Remote Fire Test allows the user to perform a Fire Test from the System Controller.
The Remote Fire Test is acceptable for Fire Authority Acceptance and Routine Maintenance per
UL 268-5.
Receiver Fire LED Test
The Receiver will signal 'Fire',
the System Controller will stay
Normal.
Press to exit without
performing the test.
Relay / Controller Wiring Test
The System Controller signals
'Fire' to the Fire Control Panel.
Press or to exit.
10
12. Fire Threshold
This setting is the threshold at which the Receiver will detect a fire. Default factory setting=35%.
(Set for each Receiver).
• Sensitivity can be adjusted in 1% steps by pressing up or down keys
• Press to accept setting
UL268 Fire Threshold Ranges:
Distance betweenTransmitter
and Receiver
5 - 10m (16.4 - 32.8 ft ) 25%
10 - 20m (32.8 - 65.6 ft ) 25 - 30%
20 - 40m (65.6 - 131.2 ft ) 25 - 45%
40 - 60m (131.2 - 196.8 ft ) 35 - 60%
60 - 80m (196.8 - 262.5 ft ) 45 - 60%
80 - 100m (262.5 - 328.1 ft ) 55 - 60%
100 - 120m (328.1 - 393.7 ft ) 60 %
Fire Threshold Range
EN Approved Sensitivity Ranges:
Complies with EN54-12 for sensitivity levels between 25% and 35%, with a maximum delay to
fire of 20 seconds
11
13. Delay To Fire
This setting is the delay the System Controller uses before signalling a FIRE condition to the
Fire Control Panel. Default factory setting=10 seconds.
(Set for each Receiver).
14. Delay To Fault
This setting is the delay the System Controller uses before signalling a FAULT condition to the
Fire Control Panel. Default factory setting=10 seconds.
(Set for each Receiver).
15. Latching/Non-Latching Mode
In Latching Mode the system will stay in Fire condition after the fire clears. In Non-Latching
Mode the system will automatically return to normal condition after the fire clears
Default factory setting=Non-Latching (Set for each Receiver).
Non-Latching
Latching
Use to move between icons in
the Receiver Menu, until the graph and bell
icons are shown
To clear a latched fire, apply 5-40V to the External Reset terminal, enter the passcode, or
power cycle for 20s.
12
16. Cleaning The System
The system will automatically compensate for dust build-up by changing the Compensation
Level. However, it is recommended that the Receiver lenses are cleaned periodically with a soft
lint-free cloth.
The system should be isolated from the Fire Control Panel before cleaning takes place. After
cleaning, verify that the system is operating normally by following the Alignment procedure and
the Fire and Fault Tests described in this User Guide.
13
17. Troubleshooting
E-00 AIM not recognised Refer to manufacturer for further technical
assistance
E-01 Receiver Communications Fault Check wiring between Controller and
Receiver
E-02 ‘Find’ not successfully executed Follow ‘Find’ process
E-03 Compensation limit reached Clean and re-align system
E-04 Receiver missed too many readings, or lost
sync with the Transmitter
E-05 Receiver is not aligned Follow alignment procedure
E-06 Rapid Obscuration Fault Ensure clear line of sight from Transmitter to
E-07 Signal High Fault Ensure there is no stray light from another source
E-15 Signal too low at end of alignment Ensure clear line of sight from Transmitter to
E-16 Signal too high at end of alignment Follow alignment procedure again. Do not exit
E-18 Short circuit detected on communications
between Controller and Receiver
Ensure clear line of sight from Transmitter to
Receiver
Receiver
Receiver. Ensure alignment of Transmitter AND
Receiver. Do not exit whilst alignment status LEDs
are still flashing
whilst alignment status LEDs are still flashing
Check wiring between Controller and Receiver
E-19 IR signal integrity fault Check there are no strong sources of light near the
Receiver, or direct sunlight
E-20 Ambient light fault Check there are no strong sources of light near the
Receiver, or direct sunlight
E-21 Power too low fault Check power supply to Controller
14
18. Technical Specifications
Parameter Value
Operating Distance between Transmitter and Receiver 5 - 120m
Operating Voltage Range 12 to 36V DC +/- 10%
Transmitter Current 8mA
Quiescent Current (Controller with 1 or 2 Receivers) 14mA
Alarm Current (Controller with 1 or 2 Receivers) 14mA
Fault Current (Controller with 1 or 2 Receivers) 14mA
Power Down Reset Time >20 seconds
Fire and Fault Relay Contacts VFCO 2A@ 30 Volts DC, resistive
Maximum Cable Length (Controller to Receiver) 100m
Cable Gauge
Operating Temperature
Storage Temperature -40°C to +85°C (non-condensing)
Receiver Tolerance to Beam Misalignment at 25% sensitivity ± 2.5°
Transmitter Tolerance to Beam Misalignment at 25% sensitivity ± 0.7°
Fire Threshold Range
Delays to Fire and Fault 2-30s, individually selectable
Optical Wavelength 850nm
Rapid Obscuration Fault Threshold 85%
LED Indications - Control Unit
LED Indications - Receiver
IP Rating IP54
Relative Humidity (Max.) 93%, (non-condensing)
CPD Reference 0786-CPD-21162
UL File S3417 (volume 6)
Housing Construction (Controller/Transmitter/Receiver) UL94 V0 PC
24 - 14 AWG
0.5 - 1.6mm
-10°C to +55°C (non-condensing)- EN
-20°C to +55°C (non-condensing)- UL
0.45 - 3.98 dB
10 - 60%
Red = Fire (one for each Receiver)
Amber = Fault (one for each Receiver)
Green = System OK
Red = Fire. Green and Amber indication LEDs for
single-person alignment
Dimensions
Control Unit
Transmitter & Receiver
Width,
mm (in)
202.7 (7.98) 124 (4.9) 71.5 (2.82) 0.606 (1.34)
77.6 (3.05) 77.6 (3.05) 160 (6.3) 0.207 (0.46)
Height,
mm (in)
Depth,
mm (in)
Weight,
kg (lb)
inc. brackets
15
Document Number: 0044-047-02-EN
Loading...
