Page 1
WARNING:
BEFORE USING THIS FIREARM,
READ THROUGH THESE WARNINGS
AND INSTRUCTIONS CAREFULLY
AND THOROUGHLY.
THIS MANUAL SHOULD ALWAYS ACCOMPANY
THIS PISTOL AND BE TRANSFERRED WITH IT
UPON CHANGES OF OWNER OR USER.
LDA Series Pistols
SAFETY and
INSTRUCTION
MANUAL
©2002 Para-Ordnance Mfg., Inc.
Page 2
THIS MANUAL ONLY APPLIES TO PARA-ORDNANCE
DOUBLE-ACTION LDA SERIES PISTOLS.
FIREARMS ARE CLASSIFIED AS DANGEROUS
WEAPONS. THEREFORE THIS PRODUCT IS
POTENTIALLY LETHAL.
FAILURE TO READ, UNDERSTAND AND FOLLOW
ANY OF THESE WARNINGS AND INSTRUCTIONS
MAY RESULT IN INJURY, DEATH OR
DAMAGE OF PROPERTY.
WARNING
CHILDREN ARE ATTRACTED TO AND CAN OPERATE FIREARMS THAT CAN
CAUSE SEVERE INJURIES OR DEATH. PREVENT CHILD ACCESS BY ALWAYS
KEEPING GUNS LOCKED AWAY AND UNLOADED WHEN NOT IN USE.
IF YOU KEEP A LOADED FIREARM WHERE A CHILD OBTAINS AND
IMPROPERLY USES IT, YOU MAY BE FINED OR SENT TO PRISON.
ADVERTENCIA
A LOS NINOS LOS ATRAEN LAS ARMAS DE FUEGO Y LAS PUEDEN
HACER FUNCIONAR ELLOS PUEDEN CAUSARSES LESIONES GRAVES Y
LA MUERTE. EVITE QUE LOS NINOS TENGAN ACCESO A LAS ARMAS
DE FUEGO GUARDANDOLAS SIEMPRE CON LLAVE Y DESCARGADAS
CUANDO NO LAS ESTE UTILIZANDO, SI USTED TIENE UNA ARMA
DE FUEGO CARGADA EN UN LUGAR EN QUE UN NINO TIENE
ACCESO A ELLA Y LA USA INDEBIDAMENTE, LE PUEDEN DAR
UNA MULTA O ENVIARLO A LA CARCEL.
WARNING: DO NOT MAKE ANY ATTEMPTS TO PRACTICE LOADING,
UNLOADING, ETC. WITH LIVE AMMUNITION UNLESS YOU HAVE FULLY
UNDERSTOOD THIS MANUAL AND ARE CERTAIN ABOUT THE PROPER
HANDGUN SAFELY, SEEK SUPERVISED INSTRUCTION RUN BY A LOCAL
HANDLING AND OPERATION OF THIS PRODUCT.
WHERE IN DOUBT ABOUT YOUR ABILITY TO HANDLE OR USE THIS
GUN CLUB, GUN DEALER, OR POLICE DEPARTMENT.
Page 3
FIREARMS SAFETY –
ACCIDENT PREVENTION
YOUR RESPONSIBILITY
WHEN PRESSING THE TRIGGER,
YOU MUST EXPECT THE GUN TO FIRE
AND YOU MUST TAKE FULL
RESPONSIBILITY FOR FIRING IT
ALWAYS TREAT A FIREARM
AS IF IT WERE LOADED
THE BASIC PRINCIPLES OF HANDLING AND
OPERATION OF THIS FIREARM MUST BE FULLY
UNDERSTOOD AND FOLLOWED EXACTLY.
THIS MANUAL IS PROVIDED TO ASSIST YOU
IN THE PROPER USE AND MAINTENANCE OF
YOUR PARA-ORDNANCE PISTOL. IF YOU HAVE
ANY FURTHER QUESTIONS PLEASE CONTACT
US DIRECTLY.
MANUALS ARE AVAILABLE
FREE FROM THE FACTORY:
980 TAPSCOTT ROAD
SCARBOROUGH, ONTARIO M1X 1C3
(416) 297-7855 • FAX: (416) 297-1289
www.paraord.com
Page 4
CONTENTS
Page
MAIN FEATURES...........................................................1
FIREARM SAFETY INSTRUCTIONS...........................3
FEATURES
TECHNICAL DATA & AMMO INFO............................8
SAFETY FEATURES
SLIDE LOCK SAFETY....................................................9
GRIP SAFETY..............................................................11
PASSIVE SAFETIES......................................................12
FUNCTION
MALFUNCTIONS .......................................................13
LOADING...................................................................14
UNLOADING .............................................................18
FIRING .......................................................................19
MAINTENANCE
DISASSEMBLY ............................................................21
REASSEMBLY..............................................................27
CLEANING PISTOL ....................................................35
CLEANING MAGAZINES...........................................36
DISASSEMBLY, CLEANING AND REASSEMBLY
OF10-ROUND PARA-ORDNANCE MAGAZINE....38
TRANSPORTATION & STORAGE...............................40
WARRANTY INFORMATION ....................................41
LIMITS & LIABILITY .................................................41
SERVICE & REPAIR ....................................................42
SPARE PARTS..............................................................43
PARTS ILLUSTRATION..............................................44
PARTS LIST..................................................................45
Page 5

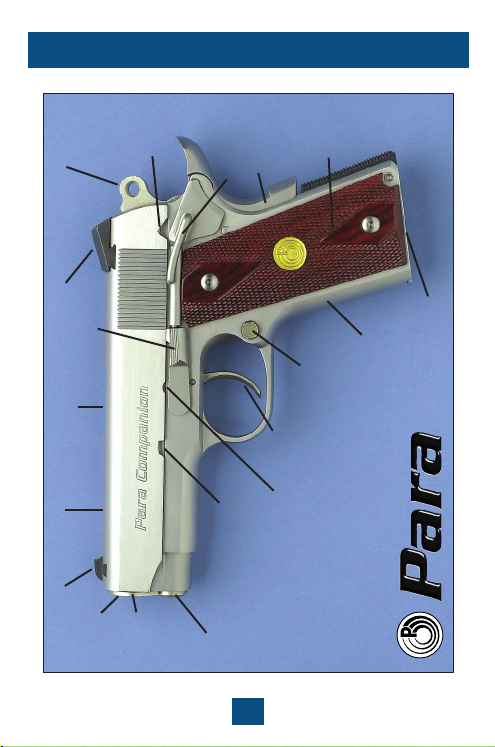

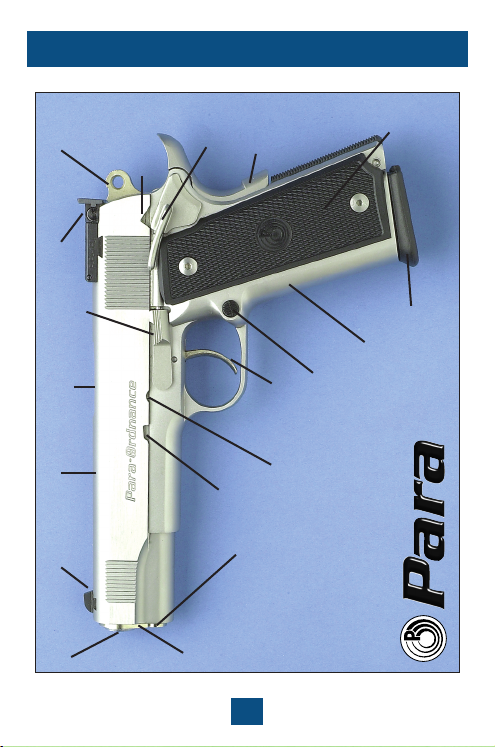

MAIN FEATURES -
LDA-Series Single Stack
SLIDE LOCK
HAMMERREAR SIGHT
SLIDE STOP
(OTHER SIDE)
EJECTOR PORT
SLIDEFRONT SIGHT
BARREL
SAFETY
NOTCH
BARREL
BUSHING
GRIP
SLIDE LOCK
SAFETY
SLIDE STOP
NOTCH
RECOIL
SPRING PLUG
1
SAFETY
TRIGGER
DISASSEMBLY
NOTCH
GRIP
MAGAZINE
RECEIVER
MAGAZINE
CATCH
C7.45 LDA
Para Companion
Page 6
MAIN FEATURES -
SLIDE LOCK
SAFETY
HAMMERREAR SIGHT
SLIDE STOP
EJECTOR PORT
(OTHER SIDE)
SLIDEFRONT SIGHT
NOTCH
LDA-Series Limited
GRIP
SAFETY
SLIDE LOCK
SAFETY
MAGAZINE
CATCH
TRIGGER
DISASSEMBLY
NOTCH
NOTCH
SLIDE STOP
GRIP
MAGAZINE
RECEIVER
BARREL
BARREL
BUSHING
RECOIL
SPRING PLUG
2
16.40 LDA Limited
Page 7
FIREARMS SAFETY INSTRUCTIONS
DO NOT USE ANY FIREARM WITHOUT HAVING A FULL
AND COMPLETE UNDERSTANDING OF ITS PARTICULAR
MECHANICAL AND HANDLING CHARACTERISTICS.
FOR YOUR SAFETY AND THE SAFETY
OF OTHERS YOU MUST ENSURE YOUR
COMPLETE AND CLEAR UNDERSTANDING
OF THIS MANUAL AND YOU MUST FOLLOW ITS
NEVER ALLOW ANYONE TO USE THIS FIREARM WITHOUT
HAVING THAT PERSON READ THIS MANUAL FIRST.
CAUTIONS:
1.
2. NEVER – EVER – POINT ANY GUN, LOADED OR
3. ALWAYS KEEP YOUR FINGER AWAY FROM THE TRIGGER,
SAFETY INSTRUCTIONS EXACTLY.
IMPROPER HANDLING OF YOUR PISTOL
CAN RESULT IN INJURY, DEATH
OR PROPERTY DAMAGE.
ALWAYS TREAT EVERY FIREARM AS IF IT WERE
LOADED.
UNLOADED, AT ANYTHING YOU DO NOT INTEND
TO SHOOT.
OUTSIDE THE TRIGGER GUARD, UNTIL YOU ARE AIMING
AT A TARGET AND READY TO SHOOT.
3
Page 8
4. ALWAYS BE SURE OF YOUR BACKSTOP, WHAT LIES
BEYOND YOUR TARGET, AND THE SAFETY OF
BYSTANDERS BEFORE YOU CONSIDER SHOOTING
YOUR PISTOL. THE BACKSTOP MUST BE ADEQUATE
TO STOP AND CONTAIN BULLETS. OTHERWISE, A
BULLET IS CAPABLE OF TRAVELING THROUGH OR
PAST YOUR TARGET FOR A DISTANCE OF UP TO 1
1
/
2
MILES. DO NOT SHOOT IF YOU ARE UNCERTAIN
ABOUT WHAT LIES BEYOND YOUR TARGET.
5. ALWAYS MAKE
SURE YOUR PISTOL IS UNLOADED AND
THE SLIDE IS LATCHED OPEN BEFORE HANDING IT TO
ANOTHER PERSON OR LAYING IT DOWN.
6. ALWAYS MAKE SURE THAT YOUR PISTOL HAS NOT
BEEN IN ANY WAY DAMAGED AS THE RESULT OF IT
HAVING BEEN DROPPED OR ANY OTHER INCIDENT
OR CIRCUMSTANCE, INCLUDING CORROSION, THAT
MAY HAVE POSSIBLY CAUSED DAMAGE TO SOME
PARTS OF THE MECHANISM.
7. ALWAYS HAVE A COMPETENT GUNSMITH INSPECT
YOUR PISTOL SO AS TO ENSURE ITS PROPER FUNCTION.
REMEMBER, ONLY WEAPONS IN PERFECT WORKING
ORDER CAN BE SAFE WEAPONS.
8. NEVER LEAVE A PISTOL COCKED AND READY TO FIRE.
ALWAYS USE YOUR HANDGUN SAFELY AND
WISELY. PROTECT YOURSELF AND THOSE
AROUND YOU BY TAKING THE PROPER
AND NECESSARY PRECAUTIONS PRIOR
TO FIRING YOUR PISTOL.
REMEMBER, UNSAFE PRACTICES CAN
BE THE CAUSE OF INJURY, DEATH,
OR PROPERTY DAMAGE.
4
Page 9
9. NEVER LEAVE A LOADED PISTOL UNATTENDED.
10. ALWAYS MAKE SURE THAT ANY OTHER SHOOTERS
OR BYSTANDERS ARE WELL CLEAR OF YOU WHEN
PREPARING TO SHOOT YOUR PISTOL. EJECTED
CARTRIDGES CAN CAUSE INJURY TO ANYONE
STANDING IN THEIR PATH. NEVER OBSTRUCT THE
EJECTION PORT ON YOUR PISTOL BY PLACING
YOUR FINGERS IN FRONT OF IT.
11. ALWAYS WEAR ADEQUATE SHOOTING GLASSES AND
ENCOURAGE OTHERS TO DO THE SAME.
UNPROTECTED EYES MAY BE INJURED BY POWDER GAS,
CARBON RESIDUE, LUBRICANT, METALLIC PARTICLES OR
SIMILAR DEBRIS THAT CAN DAMAGE EYES AND EVEN
CAUSE BLINDNESS.
12. ALWAYS WEAR ADEQUATE EAR PROTECTION AND
MAKE SURE THAT OTHERS IN YOUR VICINITY DO THE
SAME. REPEATED EXPOSURE TO SHOOTING NOISE CAN
LEAD TO CUMULATIVE, PERMANENT HEARING LOSS.
13. ALWAYS CARRY YOUR PISTOL EMPTY WITH THE SLIDE
LATCHED OPEN UNTIL PREPARING TO FIRE.
ALWAYS EMPLOY SAFE HANDLING,
LOADING, AND SHOOTING METHODS.
REMEMBER A LOADED FIREARM HAS
THE POTENTIAL TO KILL. INTELLIGENTLY
HANDLED IT CAN BE USED SAFELY.
14. NEVER CONSUME ALCOHOL OR TAKE DRUGS PRIOR
TO SHOOTING. IF UNDER MEDICATION, SEEK A
DOCTOR’S ADVICE TO BE SURE THAT YOU ARE FIT
AND ABLE TO HANDLE A GUN SAFELY.
5
Page 10
15. NEVER SHOOT AT A FLAT SURFACE OF WATER OR AT
ANY HARD SURFACE IN ORDER TO AVOID HAZARDOUS
RICOCHETS THAT CAN CAUSE INJURY, DEATH, OR
PROPERTY DAMAGE.
ALWAYS USE AMMUNITION THAT COMPLIES
WITH THE INDUSTRY PERFORMANCE
STANDARD AS ESTABLISHED BY THE
SPORTING ARMS AND AMMUNITION
MANUFACTURER’S INSTITUTE (SAAMI).
TO DO OTHERWISE MAY RESULT IN INJURY,
DEATH, OR DAMAGE TO PROPERTY.
16. ALWAYS MAKE SURE THE MUZZLE IS POINTED IN A
SAFE DIRECTION.
17. NEVER LOAD YOUR PISTOL UNTIL YOU ARE PROPERLY
READY TO USE IT. UNLOAD IT THE MINUTE YOU HAVE
COMPLETED SHOOTING.
18. ALWAYS EXAMINE THE BARREL BORE TO BE CERTAIN
IT IS CLEAR AND FREE OF ANY OBSTRUCTIONS. ANY
OBSTRUCTION, WHETHER IT BE FROM DIRT, CORROSION
OR OTHER DEBRIS, EVEN A HEAVY COATING OF OIL
OR DROPS OF WATER, MAY RESULT IN DAMAGE TO
THE PISTOL THAT CAN CAUSE INJURY, DEATH, OR
PROPERTY DAMAGE.
19. ALWAYS USE ONLY CLEAN, DRY, ORIGINAL HIGH
QUALITY FACTORY-MADE AMMUNITION THAT IS
IN GOOD CONDITION AND OF THE PROPER TYPE
AND CALIBER FOR YOUR GUN. IMPROPERLY LOADED
AMMUNITION CAN PROVE TO BE EXTREMELY
DANGEROUS WHEN CARTRIDGES HAVE BEEN LOADED
OUTSIDE THE EXACTING SAFETY LIMITS BUILT INTO
YOUR PISTOL.
6
Page 11
20. ALWAYS HAVE THE SAFETY ON UNTIL YOU INTEND
TO FIRE.
21. NEVER WALK OR CLIMB WITH A LOADED FIREARM.
PISTOLS HAVE SHORT BARRELS AND THEREFORE
EXTREME CARE SHOULD BE TAKEN WHEN HANDLING
THEM BECAUSE THEIR ATTITUDE AND DIRECTION CAN
BE EASILY CHANGED. HOLD YOUR PISTOL SO THAT THE
MUZZLE IS CONTROLLABLE.
ALWAYS STORE GUNS AND AMMUNITION
SEPARATELY, LOCKED IF POSSIBLE,
OUT OF SIGHT, AND BEYOND THE REACH
OF CHILDREN AND INEXPERIENCED
OR CARELESS ADULTS.
22. ALWAYS MAKE SURE THAT YOUR PISTOL IS NOT
LOADED BEFORE CLEANING AND STORING IT.
23. NEVER DRY FIRE YOUR PISTOL WHEN YOU HAVE
REMOVED THE SLIDE FROM THE RECEIVER.
LEAD WARNING:
DISCHARGING FIREARMS IN POORLY
VENTILATED AREAS, CLEANING FIREARMS, OR
HANDLING AMMUNITION MAY RESULT IN
EXPOSURE TO LEAD AND OTHER SUBSTANCES
KNOWN TO CAUSE BIRTH DEFECTS, REPRODUCTIVE HARM, AND OTHER SERIOUS INJURY.
HAVE ADEQUATE VENTILATION AT ALL TIMES.
WASH HANDS THOROUGHLY AFTER EXPOSURE.
7
Page 12
FEATURES
With law enforcement officers and competitive shooters
in mind, Para-Ordnance’s LDA-Series pistols offer unique
features along with the durability and reliability of a
time proven design.
The LDA-Series semi-automatic pistols are quite similar in
appearance while they all function in the same manner.
Among themselves, the pistols vary in caliber, size, weight,
barrel/barrel bushing configuration, surface finish, and
in the type of metal used for their respective receivers
(steel or stainless steel).
While this manual uses the Para Companion (C7.45 LDA)
and the 16.40 LDA Limited pistols for its illustrations, the
directions also apply to the other LDA models unless
otherwise noted.
Model Caliber Rounds Barrel Receiver Finish
D14.45ER/T14.45ER
D14.45SR/T14.45ER
D16.40ER
D16.40SR/T16.40SR
D18.9ER/T18.9ER
D18.9SR/T18.9SR
L12.45ER
L12.45SR
L14.40SR
D7.45E/T7.45E
D7.45S/T7.45S
C7.45S
C6.45S
* For recreational use, magazine capacity is restricted to 10 rounds in U.S.A. and Canada.
.45 ACP *14+1 5" Steel Black
.45 ACP *14+1 5" Stainless Stainless
.40 S&W *16+1 5" Steel Black
.40 S&W *16+1 5" Stainless Stainless
.45 ACP *12+1 3.5" Steel Black
.45 ACP *12+1 3.5" Stainless Stainless
.40 S&W *14+1 3.5" Stainless Stainless
.45 ACP 7+1 5" Steel Black
.45 ACP 7+1 5" Stainless Stainless
.45 ACP 7+1 3.5" Stainless Stainless
.45 ACP 6+1 3" Stainless Stainless
Table 1:
9mm *18+1 5" Steel Black
9mm *18+1 5" Stainless Stainless
8
Page 13
SAFETY FEATURES
Para-Ordnance LDA-Series Double-Action semi-automatic
pistols are equipped with a number of safety devices (some
are hand-operated while others are passive) that are designed
to minimize accidental discharges.
NEVER RELY ON A SAFETY MECHANISM
TO JUSTIFY CARELESS HANDLING OR
POOR MAINTENANCE.
ALWAYS POINT YOUR PISTOL
IN A SAFE DIRECTION.
HAND-OPERATED SAFETIES
These safeties are activated manually.
SLIDE L
This safety device can only be activated when the slide is fully
forward. (Figure 1).
OCK SAFETY
SLIDE LOCK
SAFETY NOTCH
SLIDE LOCK
SAFETY

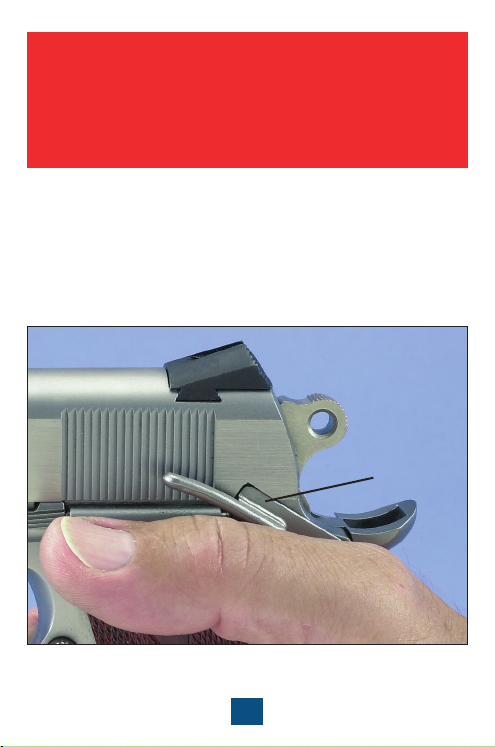

Figure 1
9
Page 14
NEVER LEAVE YOUR PISTOL LOADED
AND READY TO FIRE.
THIS IS AN EXTREMELY DANGEROUS
CONDITION WHICH CAN LEAD TO AN
ACCIDENTAL DISCHARGE THAT MAY CAUSE
INJURY, DEATH, OR PROPERTY DAMAGE.
To engage the Slide Lock Safety push the Slide Lock Safety up
until it fully engages the Slide Lock Notch (Figure 2). At this
point, the slide is prevented from moving rearward. If the
cocking cam has been cocked and the trigger re-set, engaging
the slide lock safety will disengage the drawbar to prevent the
hammer from moving rearward if the trigger is pressed.
SLIDE LOCK
SAFETY
(ENGAGED)

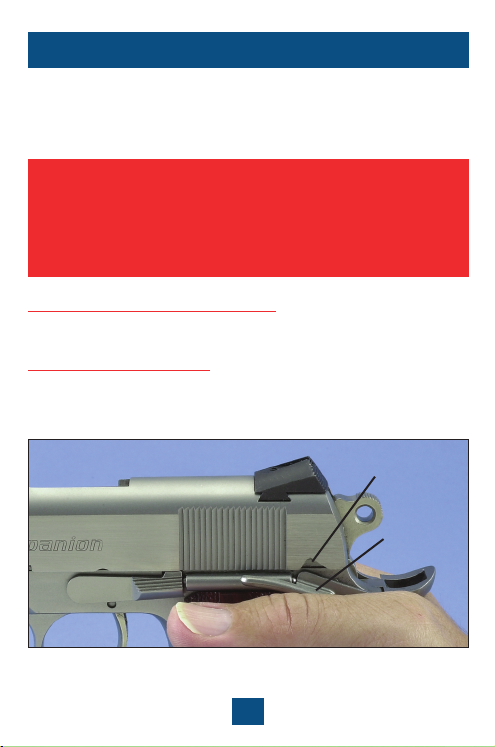

Figure 2
10
Page 15
GRIP SAFETY

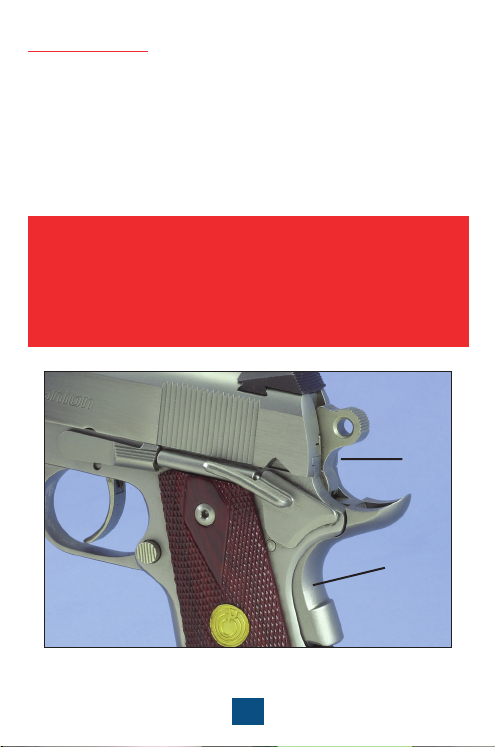

The Grip Safety (Figure 3) locks both the hammer and slide.
In order to press the trigger and move the hammer, which is
necessary to fire the pistol, you must firmly grasp the pistol’s
receiver, fully depressing the Grip Safety. When you are ready
to fire the pistol, the forward pressure of your hand on the
Grip Safety disengages this safety device and allows the
hammer the necessary freedom for its rearward movement
required to fire the pistol when the trigger is pressed.
NEVER COMPROMISE SAFETY. NEVER ALTER
OR MODIFY THIS PISTOL IN ANY WAY.
THE MANUFACTURER WILL NOT
BE RESPONSIBLE FOR ANY
UNAUTHORIZED MODIFICATIONS
PERFORMED ON THIS GUN.
HAMMER
AND
SLIDE
LOCKED
GRIP
SAFETY
(ACTIVE, IN
THE OUT
POSITION)
Figure 3
11
Page 16
PASSIVE SAFETIES
THESE SAFETIES ARE ACTIVATED AUTOMATICALLY WITHOUT
MANUAL INTERVENTION. DO NOT BYPASS THEM OR
RENDER THEM INOPERATIVE.
These mechanisms form parts of a safety system incorporated
into your Para-Ordnance pistol and they are designed and
installed for the prevention of accidental discharges that could
otherwise follow as the result of some commonplace occurrences.
NEVER RELY ON A SAFETY MECHANISM
TO JUSTIFY CARELESS HANDLING
Your Para-Ordnance pistol is equipped with the following
passive safeties:
Inertia Firing Pin: Size and position of the firing pin, which
is held to the rear by a spring, keep the pin from striking
the cartridge primer unless the spring force and inertia of
the firing pin are overcome by the blow of the hammer.
Firing Pin Lock: To minimize the risk of accidental discharge
that may be the result of the pistol being dropped or the
muzzle receiving a blow, this safety device prevents
the movement of the firing pin until the trigger is
intentionally squeezed.
OF YOUR PISTOL.
ALWAYS EXPECT THE GUN
TO FIRE WHEN YOU
PRESS THE TRIGGER.
12
Page 17
FUNCTION
The action of the LDA-Series pistols is based on a tilting barrel
design that locks the barrel and slide together at the moment
of firing. After firing, the barrel and slide recoil to the rear for
a short distance still locked together. Following this initial
movement, the barrel tilts downward from its locked position,
permitting full recoil of the slide and the extraction and
ejection of the spent cartridge cases.
ALWAYS REMEMBER, THAT WHEN FIRED,
A DOUBLE-ACTION PISTOL RELOADS
AND RECOCKS ITSELF AUTOMATICALLY
AND IS READY TO FIRE AGAIN BY SIMPLY
PRESSING THE TRIGGER. ALWAYS KEEP THE
PISTOL POINTED IN A SAFE DIRECTION.
OPERATION
The proper method for manually cocking the LDA pistol is by
pulling back the slide. To pull back the slide, you must first fully
depress the grip safety.

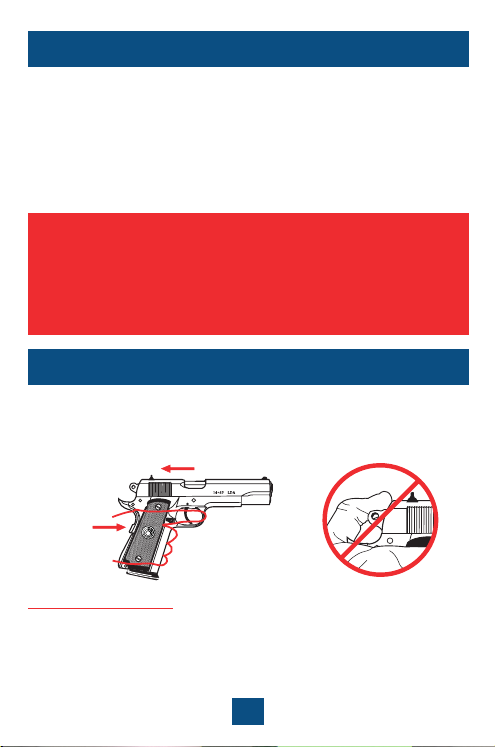

PULL THE SLIDE BACK
2.
1.
DEPRESS
THE GRIP
SAFETY
MALFUNCTIONS
In any semi-automatic pistol, stoppages can occur due to
mechanical malfunction or ammunition failure. Please
perform the following procedures to correctly deal with
such malfunctions.
13
Page 18
NEVER FORCE A JAMMED ACTION.
TO DO SO MAY CAUSE AN EXPLOSION THAT
CAN RESULT IN SERIOUS INJURY, DEATH
OR PROPERTY DAMAGE.
1. STOP SHOOTING IMMEDIATELY if you encounter any
mechanical malfunction while firing your pistol, e.g.,
cartridge has failed to extract, report on firing does not
sound right, powder gas is being “spit out,” cartridge
primer is punctured or cartridge case is bulged or
punctured. HAVE THE FIREARM AND AMMUNITION
EXAMINED BY A COMPETENT GUNSMITH.
2. FAILURE TO FIRE: KEEP THE MUZZLE POINTED IN A SAFE
DIRECTION and hold it there for 30 seconds to determine
if a HANGFIRE (slow ignition) has occurred. If round has
not fired within the 30 seconds, remove the magazine,
eject the round and examine the primer.
3. In any double-action pistol, an unfired cartridge or fired
cartridge case may become jammed between the slide and
the barrel. To clear a jammed cartridge, KEEP THE MUZZLE
POINTED IN A SAFE DIRECTION and remove the magazine.
Pull the slide back and lock it to the rear by engaging the
Slide Stop. Remove the cartridge.
NOTE: Disposal of misfired or otherwise damaged, unfired
cartridges should be carried out according to instructions
provided by the manufacturer of the ammunition.
LOADING
PRACTICE THESE IMPORTANT ASPECTS OF SAFE GUN
HANDLING WITH AN UNLOADED PISTOL OR WITH DUMMY
ROUNDS UNTIL YOU ARE ABLE TO PERFORM EACH OF THE
FOLLOWING STEPS WITH SKILL AND CONFIDENCE. READ
THROUGH THIS MANUAL COMPLETELY BEFORE MAKING
ACTUAL USE OF THIS PISTOL.
14
Page 19
1. Remove the empty magazine from your pistol by
pressing on the Magazine Catch button (Figure 4).
NOTE: As the magazine will fall free from the receiver of its
own weight, place one hand under the magazine to prevent it
from dropping to the ground and having it damaged.
SERRATED
FINGER
GROOVES
MAGAZINE
CATCH
BUTTON
MAGAZINE
FOLLOWER
MAGAZINE
MAGAZINE
WELL

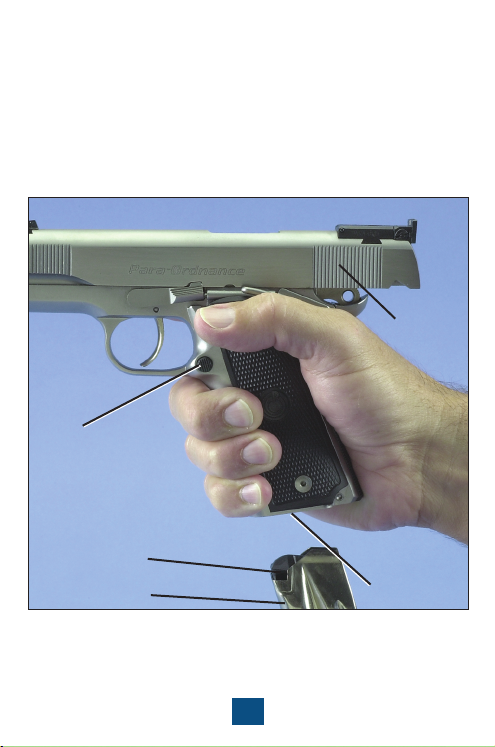

Figure 4
15
Page 20
DO NOT LOAD DAMAGED AMMUNITION.
ALWAYS LOAD YOUR MAGAZINE WITH CLEAN,
DRY, ORIGINAL HIGH QUALITY FACTORY
MADE AMMUNITION THAT IS IN GOOD
CONDITION AND THE PROPER CALIBER
FOR YOUR PISTOL (TABLE 1).
PRACTICE WITH DUMMY CARTRIDGES.
2. Load magazine from the top open end, the front of the
cartridge pointing away from you, with the type and
quantity of ammunition for your pistol (Table 1).
Press rounds down and back (Figure 5).
RETAINING LIPS
MAGAZINE

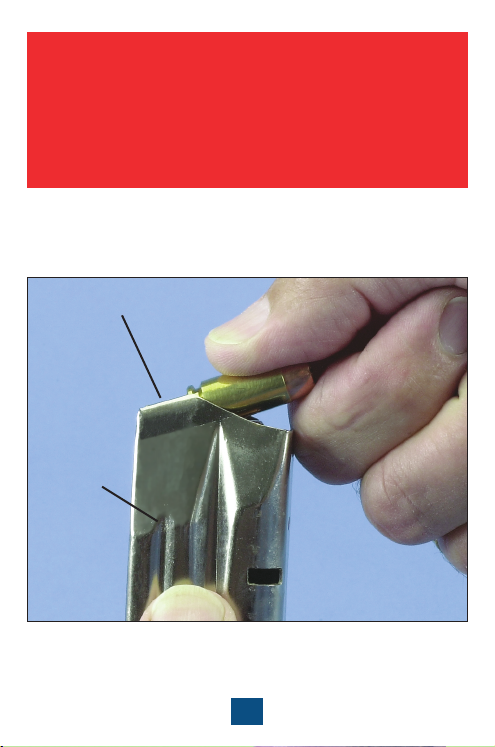

Figure 5
16
Page 21
3. Insert an EMPTY magazine (one with no cartridges in it)
into the frame of the pistol. Pull back on the slide, by
grasping the serrated sides of the slide from the rear, until
the Magazine Follower pushes the Slide Stop up into the
Slide Stop Notch on the slide (Figure 4). The slide is now
locked open in its rearward position and the hammer is
back with the cocking cam cocked.
4. Remove the empty magazine from your pistol by pressing
on the Magazine Catch button (Figure 4). NOTE: As the
magazine will fall free from the receiver of its own weight,
place one hand under the magazine to prevent it from
dropping to the ground and having it damaged.
5. VISUALLY AND PHYSICALLY INSPECT THE BARREL
CHAMBER TO ENSURE THAT THE BARREL CHAMBER IS
EMPTY AND THAT THE BORE IS FREE OF OBSTRUCTIONS.
Insert a loaded magazine into the frame of the pistol with
cartridges pointing forward and make sure that the
magazine is pressed up far enough to lock into place.
NOTE: DO NOT SLAM THE MAGAZINE INTO PLACE OR
OVER-INSERT IT.
6. WITH THE MUZZLE ALWAYS POINTED IN A SAFE
DIRECTION, hold the pistol firmly in the shooting hand
WITHOUT TOUCHING THE TRIGGER. Pull back on the slide
with the other hand, by grasping the serrated sides of the
slide from the rear, as far as it will go. Release the slide and
allow it to fly forward with all its force and feed the top
round from the magazine into the chamber. THE PISTOL IS
NOW READY FOR INSTANT USE.
7. APPLY SLIDE LOCK SAFETY UNTIL YOU ARE READY TO
SHOOT.
17
Page 22
NEVER LEAVE YOUR PISTOL IN THE COCKED
AND READY TO FIRE POSITION.
THIS CONDITION IS EXTREMELY
DANGEROUS.
UNLOADING
Always unload your pistol immediately after use and before
cleaning and storage. BEFORE PROCEEDING MAKE SURE
YOU ARE WEARING SAFETY GLASSES AND KEEP THE
PISTOL POINTED AWAY FROM YOUR FACE.
FOLLOW THIS UNLOADING SEQUENCE EXACTLY IN ORDER
TO AVOID THE POSSIBILITY OF THE CHAMBER BEING
UNINTENTIONALLY LOADED WITH A LIVE CARTRIDGE.
1. WITH THE MUZZLE ALWAYS POINTED IN A SAFE
DIRECTION, hold the pistol firmly in the shooting hand
WITHOUT TOUCHING THE TRIGGER. Remove the
magazine by placing the other hand below it and
pressing the magazine catch button.
2. When unloading prior to the magazine having been
totally expended and the slide stop having latched the
slide open, keep your hands clear of the ejection port and
pull the slide back vigorously to extract and eject a round
from the chamber. NOTE: If the slide is locked open in its
rearward position, this step (Step #2) does not apply.
3. CAUTION: INSPECT THE CHAMBER AND MAKE SURE
THAT IT IS EMPTY.
18
Page 23
4. With pistol still pointing in a safe direction, release the
slide and allow it to snap forward on the empty chamber
and then press the trigger and let the hammer cycle back
and forward. NOTE: If the slide is locked open to its rearward position, pull the slide back slightly and then release it.
If the magazine contains any cartridges, hold it with the
5.
bullet end of the cartridges pointing away from you and
press each cartridge forward and out of the magazine.
6. SEGREGATE MISFIRED AND DAMAGED AMMUNITION
FOR DISPOSAL ACCORDING TO AMMUNITION
MANUFACTURER’S INSTRUCTIONS.
FIRING
ALWAYS WEAR AND ENCOURAGE
OTHERS AROUND YOU TO WEAR
EAR PROTECTION AND SAFETY GLASSES
WHICH SHOULD PREVENT POSSIBLE
PERMANENT HEARING LOSS OR BLINDNESS.
1. WITH THE BARREL ALWAYS POINTING IN A SAFE
DIRECTION, load your pistol as previously described in
the section on “LOADING.”
2. With a firm hold on the pistol receiver, KEEPING YOUR
FINGER AWAY FROM THE TRIGGER, take aim and press
down on the Slide Lock Safety to disengage it from the
slide lock notch.
3. Take steady aim at your target and place your index
finger over the trigger. Press the trigger gently, pressing
it to the back, until the hammer falls on the firing pin.
19
Page 24
THIS IS A SEMI-AUTOMATIC PISTOL THAT
WHEN FIRED, AUTOMATICALLY RELOADS AND
RECOCKS ITSELF AND IS READY TO FIRE AGAIN
SIMPLY BY PRESSING THE TRIGGER.
4. Immediately following the firing of a shot, and if a
subsequent shot is not to be fired at once, apply the
Slide Lock Safety by pushing it into the slide lock notch.
However, if the last round has already been fired from
the magazine the slide will be locked to the rear with the
engagement of the Slide Stop and the Slide Lock Safety
cannot be applied.
5. WITH PISTOL POINTING IN A SAFE DIRECTION, unload
as previously described in section on “UNLOADING.”
MAINTENANCE
Proper periodic maintenance is essential to the reliable
functioning of any firearm. The service life and performance
of the pistol depend upon correct handling and proper care.
All firearms require periodic maintenance and inspection
which may reveal a need for adjustment or repair.
You should clean your pistol as soon after firing as possible
and where your pistol has not been fired it should still be
cleaned periodically. Have your firearm checked by a
competent gunsmith annually, even if no functioning
problem exists, since some potential problems may not
be apparent from external examination of the pistol.
If the pistol gets wet, or is exposed to sand or other foreign
matter, have it cleaned as soon as possible.
20
Page 25
ALWAYS WEAR SAFETY GLASSES AND KEEP
PISTOL POINTED AWAY FROM YOUR FACE, WHEN
PREPARING TO STRIP AND CLEAN YOUR PISTOL
TO AVOID INJURY TO THE EYES IN THE EVENT
THAT SOME COMPONENT MAY COME FLYING
LOOSE FROM YOUR GUN.
DISASSEMBLY
Due to some differences in the various LDA models, it is
necessary, for the purposes of these disassembly instructions,
that these specific pistols be identified separately for certain
steps in the procedure.
Carefully follow the steps that apply to your specific model
pistol for disassembly.
STEP 1. (ALL LDA PISTOLS) Always make certain that the
MAGAZINE HAS BEEN REMOVED and your PISTOL
IS NOT LOADED.
BEFORE PROCEEDING MAKE SURE YOU ARE
WEARING SAFETY GLASSES AND KEEP THE
MUZZLE OF THE PISTOL POINTED
AWAY FROM YOUR FACE.
STEP 2. (ALL LDA PISTOLS EXCEPT C6.45 LDA) With barrel
pointing upward and away from your face, place the pistol
with the back (heel) of the receiver and the grip safety
resting on a table or bench.
21
Page 26

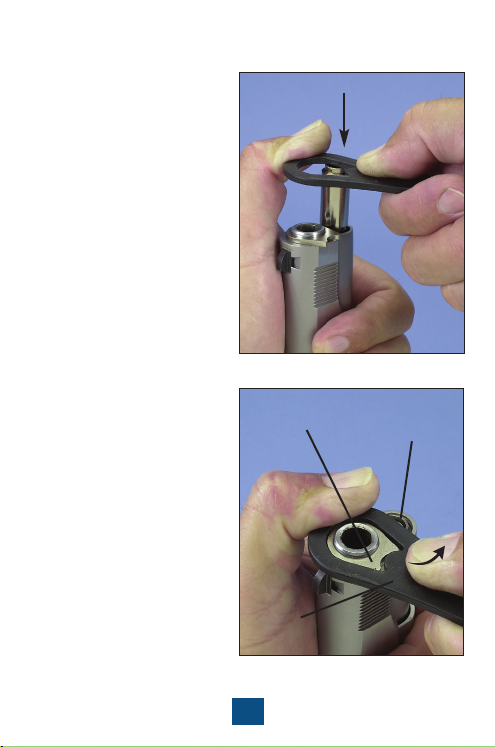

STEP 3.

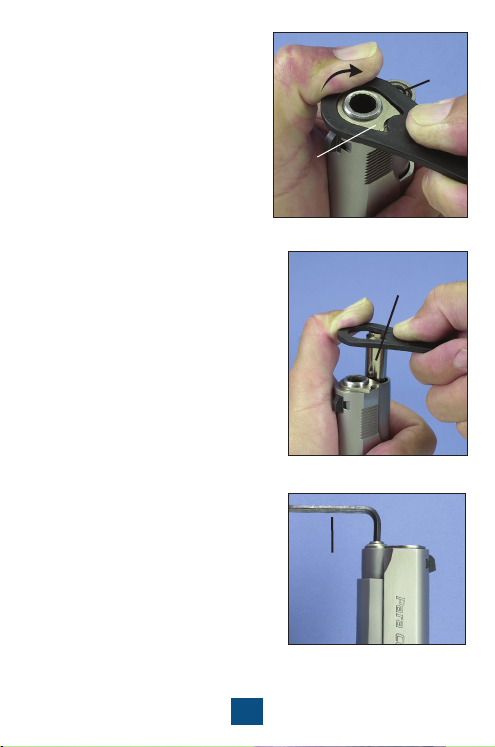

Using the barrel bushing
wrench provided press
down the recoil spring
plug (located below the
muzzle) while at the same
time, rotating the barrel
bushing clockwise for
about a quarter (1/4) turn
so as to free the plug and
recoil spring (Figure 6).
Continue to apply pressure on
the recoil spring plug to prevent
ejection of it and the spring.
Then gently and gradually
allow the spring and the recoil
spring plug to extend out of the
slide (Figure 7).
(C7.45 LDA ONLY) Using the
5/32" hex wrench which has
been provided, unscrew and
remove the front section of the
two-piece recoil spring guide
(Figure 8).

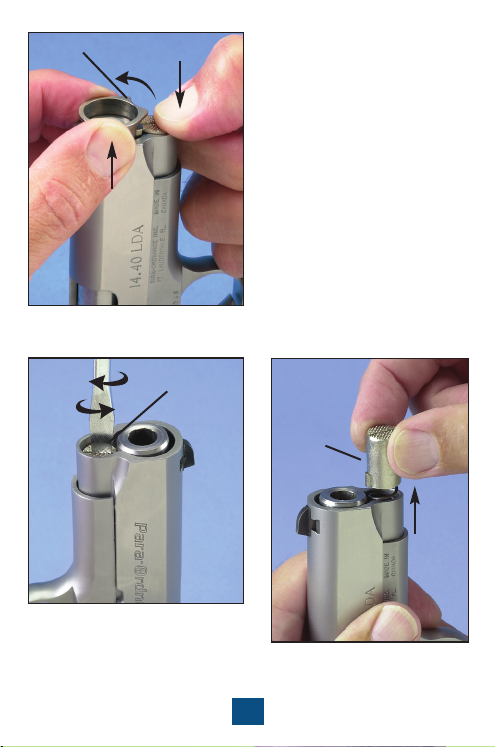

(12.45 LDA/14.40 LDA ONLY)
Press down on recoil spring
plug (located just below muzzle)
while at the same time rotate
the barrel bushing counterclockwise about 1/8 turn (Figure 9).
BARREL
BUSHING
5/32" HEX
WRENCH
Figure 6
RECOIL
SPRING
PLUG
Figure 7
RECOIL
SPRING
PLUG
22
Figure 8
Page 27
BARREL BUSHING
Figure 9
Figure 10
RECOIL
SPRING
PLUG
Then pull bushing out
with an upward motion
(Figure 9).
With a screwdriver push
the recoil spring plug in
and turn it about 1/2
turn in either direction
(Figure 10). As you con-
tinue to control the force
on the recoil spring,
carefully allow the plug
and spring to extend out
of the slide. Remove plug
from spring (Figure 11).
RECOIL
SPRING
PLUG
23
Figure 11
Page 28
BEFORE PROCEEDING MAKE SURE YOU ARE WEAR-
ING SAFETY GLASSES AND KEEP THE MUZZLE OF
THE PISTOL POINTED AWAY FROM YOUR FACE.
STEP 4. (ALL LDA PISTOLS EXCEPT C7.45 LDA/C6.45 LDA)
With the Grip Safety depressed, push the slide back to the
point that the slide stop lug is directly opposite the
disassembly notch (Figure 12). Then push the rounded
end of the slide stop pin, on the right side of the receiver,
inward and through the receiver and out the left side.

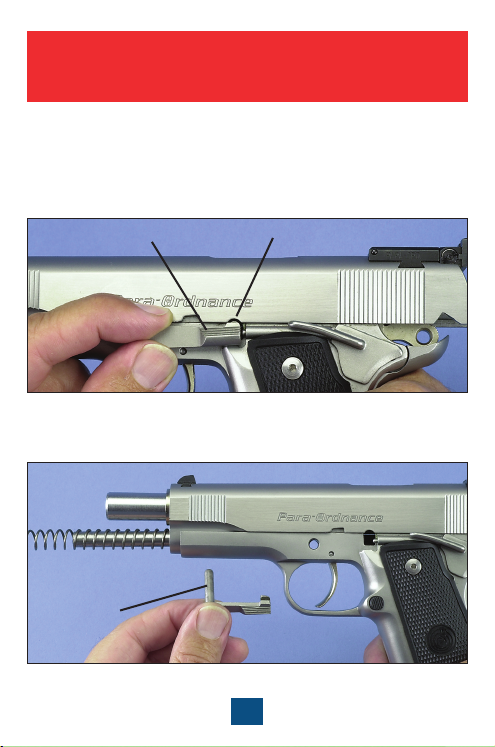

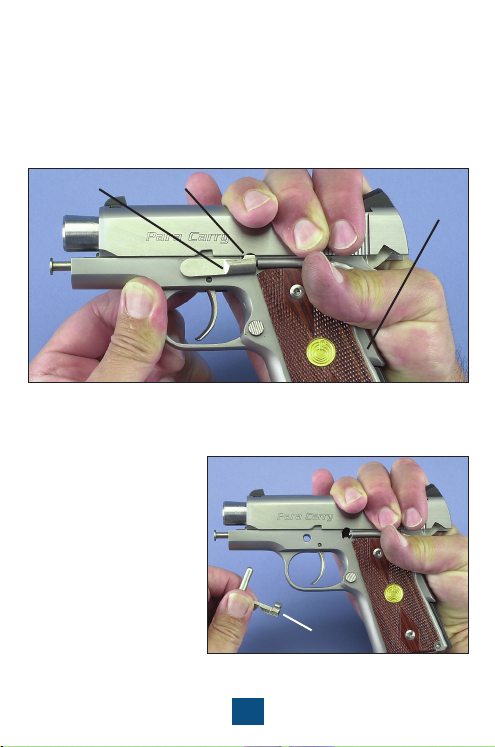

DISASSEMBLY NOTCHSLIDE STOP
Figure 12
Disengage slide stop from the slide by removing slide stop
completely from the receiver (Figure 13).
SLIDE STOP
Figure 13
24
Page 29
STEP 4 Con’t. (C7.45 LDA/C6.45 LDA ONLY) With the pistol
unloaded and the muzzle pointing in a safe direction,
depress the grip safety while pushing the slide back to the
point that the slide stop lug is directly opposite the disassembly
notch (Figure 14). Then push the rounded end of the slide
stop pin, on the right side of the receiver, inward and
through the receiver and out the left side.
SLIDE STOP
DISASSEMBLY NOTCH
SAFETY
DEPRESSED
Figure 14
CAUTION: the recoil spring is partially compressed during
and after this step.
While holding the slide
firmly, disengage the
slide stop from the
slide by removing it
completely from the
receiver. (Figure 15).
Carefully allow the
slide to move forwards.
This will allow the
recoil spring to further
decompress.
SLIDE
STOP
Figure 15
25
GRIP
Page 30
STEP 5. (ALL LDA PISTOLS) Push slide forward and remove
slide from the receiver.
(C7.45 LDA ONLY) Wrap hand
around the slide at the dustshield
area to control the recoil spring and
recoil spring guide head
(Figure 16).

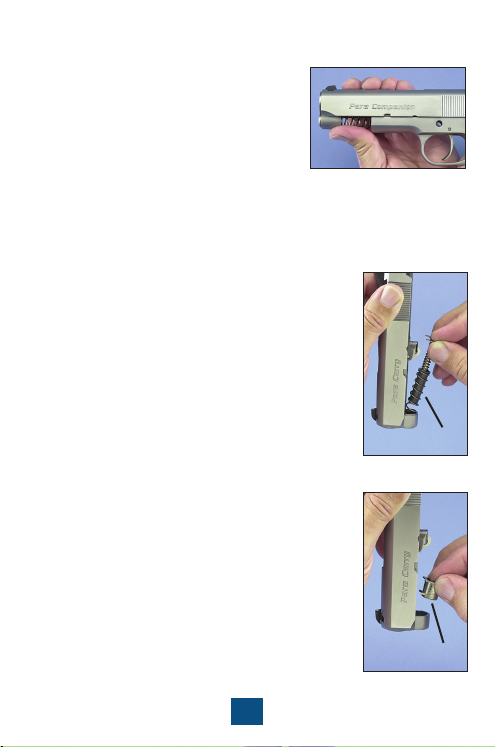

(C6.45 LDA ONLY) The recoil spring
is still partially compressed. Use care
Figure 16
to prevent it from becoming
disengaged from the slide.
STEP 6. (ALL PISTOLS EXCEPT C7.45 LDA AND C6.45
LDA) Lift recoil spring guide and pull it
toward the rear and out of the slide.
(C7.45 LDA ONLY) Lift the rear of the recoil
spring and guide then remove towards rear
of the slide.
(C6.45 LDA ONLY) Carefully lift the rear of
the recoil spring assembly from the slide
and allow it to fully decompress (Figure 17).
Lift decompressed recoil spring assembly
and pull it toward the rear and out of the
slide.
RECOIL SPRING
ASSEMBLY
Figure 17
STEP 7. (C7.45 LDA/C6.45 LDA ONLY)
To remove recoil spring plug, push plug
from the front of the slide to the rear,
and remove completely from the slide
(Figure 18).

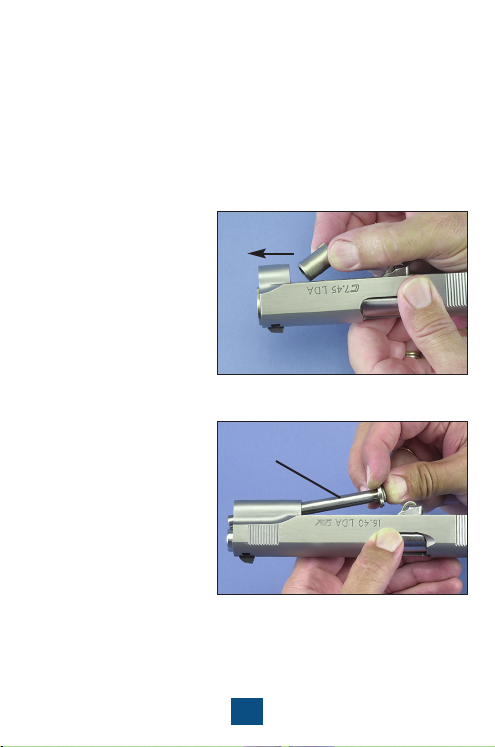

(C7.45 LDA ONLY) To remove the barrel
bushing, turn the bushing counterclockwise as far as it will go and pull
it forward, and out of the slide and
off the barrel.
RECOIL SPRING
PLUG
Figure 18
26
Page 31
(7.45 LDA/14.45 LDA/16.40 LDA/18.9 LDA ONLY)
To remove the barrel bushing from the barrel, turn the
bushing counterclockwise and then push the barrel and
bushing forward to the point that the bushing is clear of
the slide and can be removed from the barrel.
(12.45 LDA/14.40 LDA ONLY) Bushing was removed in
Step 3.
STEP 8. (ALL LDA PISTOLS) With barrel bushing (or recoil
spring plug C6.45 LDA ONLY) already removed, push barrel link forward and remove the barrel through the front
of the slide.
DO NOT DISASSEMBLE YOUR PISTOL
ANY FURTHER.
DO NOT REMOVE OR ALTER ANY PARTS,
ESPECIALLY SAFETY PARTS.
If your pistol requires further work it should be done at an
Authorized Service Center or at the factory.
REASSEMBLY
Due to some differences in the various LDA models, it is
necessary, for the purposes of these disassembly instructions,
that these specific pistols be identified separately for certain
steps in the procedure.
Carefully follow the steps that apply to your specific model
pistol for reassembly.
STEP 1. (ALL LDA PISTOLS) Push barrel link forward and
install the barrel through the front of the slide.
27
Page 32
STEP 2. (7.45 LDA/14.45 LDA/16.40 LDA/18.9 LDA ONLY)
To install the barrel bushing in the barrel, push the barrel
forward enough to allow you to slide the barrel bushing
onto it. Then push the bushing rearward until it contacts
the slide. Turn it clockwise to engage it in the slide.
(C7.45 LDA ONLY) Slip barrel bushing over end of barrel,
and push bushing rearward as far as it will go. Turn
bushing clockwise to allow recoil plug to be installed.
(12.45 LDA/14.40 LDA ONLY) Bushing will be installed
later.
(C7.45 LDA/C6.45
LDA ONLY) To install
recoil spring plug,
push plug forward
from the rear of the
slide and insert plug
completely into the
slide (Figure 19).
STEP 3. (ALL LDA PISTOLS
Figure 19
EXCEPT LIMITED
MODELS AND C7.45
LDA/C6.45 LDA)
RECOIL
GUIDE
Assemble the recoil
spring and guide.
Make certain the
closed end of the recoil
spring is seated in the
base of the guide.
Then proceed to place
the parts in the slide.
Figure 20
(ALL LIMITED MODEL LDA PISTOLS) Insert recoil guide
by pushing it towards the front of the slide (Figure 20).
28
Page 33
STEP 4. (ALL LDA PISTOLS EXCEPT LIMITED MODELS
AND C7.45 LDA/C6.45 LDA) Insert recoil spring and
guide by pushing them toward the front of the slide.
(ALL LIMITED MODEL LDA PISTOLS) Slip recoil spring,
closed end first, over the front of the recoil spring guide,
until the spring end makes contact with the base of the
guide.
(C7.45 LDA AND C6.45 LDA ONLY)
Insert the recoil spring and guide
into the rear of the recoil spring
plug. Carefully compress the recoil
springs assembly toward the front
until the guide head can be lowered
in place just in front of the barrel
lugs. Make sure the barrel link is
rotated back then lower it in place
(Figure 21).
While being careful not to allow the
spring assembly to fly out, slowly
turn the slide over (recoil spring
assembly at the bottom).
Simultaneously wrap your hand
around the front of the slide to keep
the recoil spring assembly from
popping out.
RECOIL SPRING
ASSEMBLY
Figure 21
STEP 5. (ALL PISTOLS EXCEPT C7.45 LDA AND C6.45
LDA) Make sure the plunger lever is down (forward)
at the top of the receiver and keep it down by tipping
the receiver forward. Now you can run the slide onto the
receiver to the point that the barrel link is exposed
through slide stop hole in the receiver. Insert the slide stop
pin in and through the receiver and barrel link.
29
Page 34
STEP 5 con’t.
(C7.45 LDA AND C6.45 LDA ONLY) Make sure the
plunger is down (forward) at the top of the receiver, and
keep it down by tipping the receiver forward. Wrap your
fingers around the slide to hold the recoil assembly in
position. Now slowly run the slide onto the receiver to the
point that the hole in the barrel link is exposed through
the slide stop hole in the receiver (Figure 22).
PLUNGER
RECOIL ASSEMBLY
Figure 22
STEP 6.
(ALL LDA PISTOLS) Make sure the grip safety is depressed
and push the
slide rearward
GRIP SAFETY DEPRESSED
to properly
align the
disassembly
notch and snap
the slide stop
pin into place
(Figure 23).
Figure 23
30
Page 35
BEFORE PROCEEDING MAKE SURE YOU ARE
WEARING SAFETY GLASSES AND KEEP THE
MUZZLE OF THE PISTOL POINTED
AWAY FROM YOUR FACE.

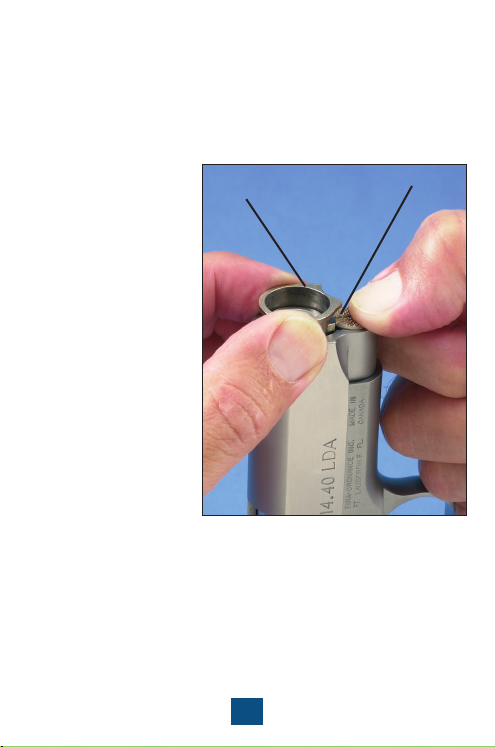

STEP 7.
(12.45 LDA/14.40 LDA
ONLY) Insert recoil
spring plug on end
of recoil spring so
the small lug on the
recoil spring plug is
positioned as shown
(Figure 24).
Push plug into slide
with a downward
motion. As you
continue to control
the force on the recoil
spring, carefully push
the plug and spring
completely into the
slide.

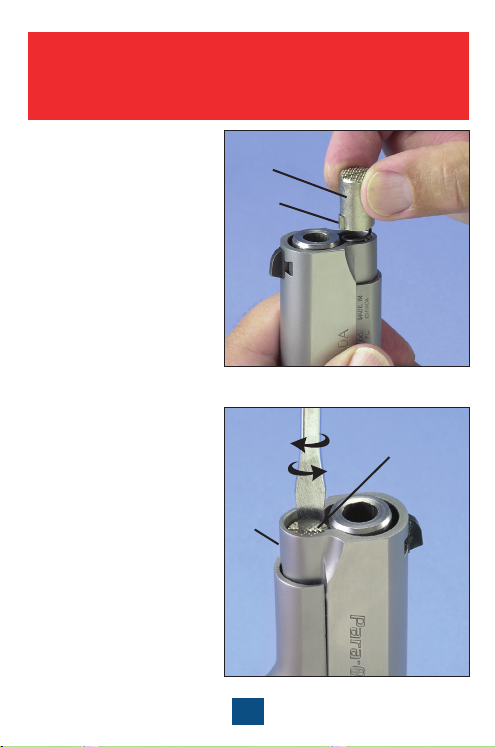

Now, with a
screwdriver, push the
recoil spring plug in
and turn it about 1/2
turn in either
direction, so that the
lug on the recoil plug
locks into the slot
shown
(Figure 25).
RECOIL
SPRING
PLUG
LUG
LUG
SLOT
31
Figure 24
RECOIL
SPRING
PLUG
Figure
25
Page 36
STEP 7 con’t.
(12.45 LDA/14.40 LDA ONLY)

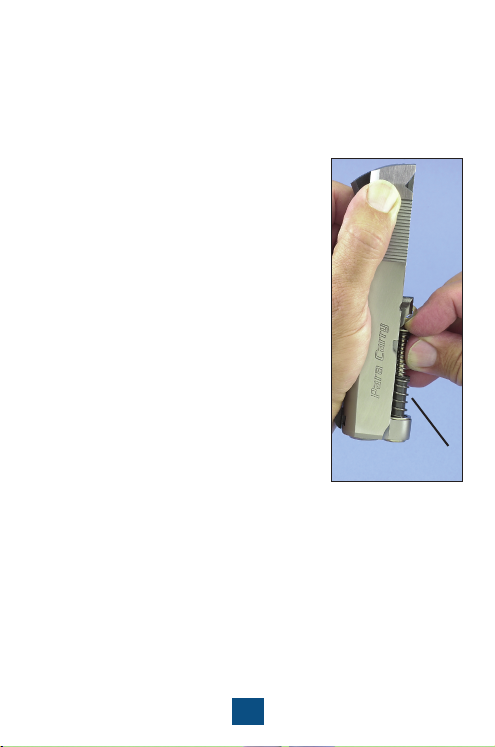

Press bushing over barrel and into the slide, with flange
turned slightly counterclockwise while depressing the
recoil spring plug with your thumb (Figure 26).
When bushing is seated against the front of the slide,
rotate the bushing
clockwise about 1/8
turn into locked
BARREL
BUSHING
RECOIL SPRING
position.
Make certain that
the recoil spring is
correctly seated and
locked. Take note of
the fact that the
recoil spring plug is
designed to be
flush, or minimally
protruding beyond,
the face of the barrel
bushing when the
screwdriver slot is
vertical. Reconfirm
this by looking at
the underside of the
slide, just in front of
the receiver, to
ensure that the lug
Figure 26
on the recoil spring plug is fully seated in its slot on the
slide.
CAUTION: ALWAYS MAKE SURE THAT THE RECOIL
SPRING PLUG IS CORRECTLY SEATED AND LOCKED
AS DESCRIBED ABOVE.
PLUG
32
Page 37
STEP 7 con’t.
(7.45 LDA/14.45 LDA/16.40 LDA/18.9 LDA ONLY)

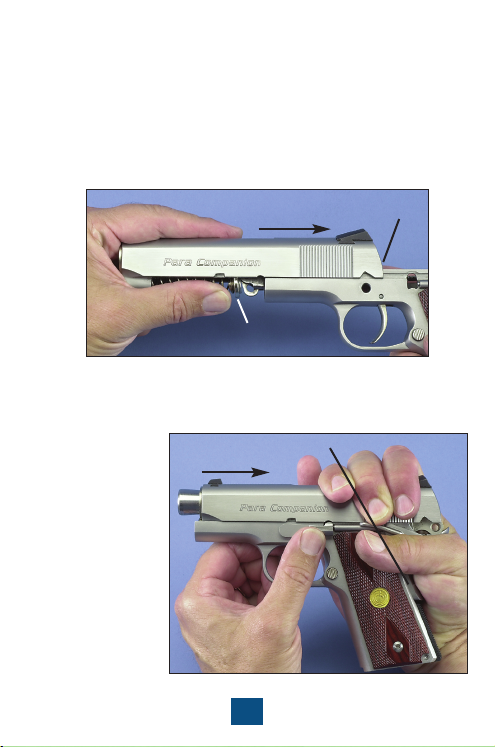

Push the slide fully forward. Slip the recoil plug
over the end of the recoil
spring. Using the barrel
bushing wrench apply
and maintain pressure
on the plug, gently and
gradually push the
spring and plug into the
slide far enough so that
you can rotate the barrel
bushing with the wrench
counter-clockwise slightly
and hold the plug in
place (Figure 27).
Figure 27
Now, place your bushing
wrench over the bushing
and, while pressing the
BARREL
BUSHING
wrench down firmly to
hold the plug down,
rotate the bushing
counter-clockwise until
the plug can snap into
place (Figure 28).
BARREL
BUSHING
WRENCH
Figure 28
RECOIL
SPRING
PLUG
33
Page 38
STEP 7 con’t. (C7.45 LDA ONLY)
Replace the front section of the
recoil guide through the center
of the plug, and using the hex
wrench, screw the front section
in place (Figure 29).
Figure 29

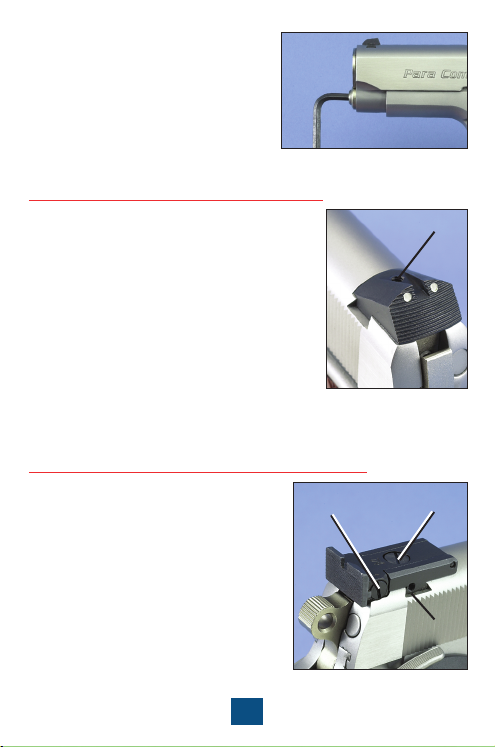

SIGHT ADJUSTMENT - Fixed Sights
The rear sight is adjustable for
windage only. Using a 5/64" hex
wrench which has been provided,
loosen the hex set screw located
directly in front of the rear sight
notch. You may now change windage
by moving the rear sight either left or
right in its dovetail. Remember,
always move your rear sight in the
direction you want your bullet’s
impact to go (Figure 30).
SIGHT ADJUSTMENT - Adjustable Sights
First, loosen the locking set screw
(Figure 31) on the right side of
the rear sight with the 1.5mm
hex wrench which has been provided. To adjust your rear sight
for elevation, use the largest
blade of the screwdriver which
has been provided. To raise the
sight and thus raise the impact
point of the bullet, turn the screw
WINDAGE
SCREW
SET SCREW
Figure 30
ELEVATION
SCREW
SET
SCREW
34
Figure 31
Page 39
SIGHT A
DJUSTMENT - Adjustable Sights con’t.
counter-clockwise. When adjustment is complete, retighten
locking set screw. To adjust for windage, turn the screw on the
right side of the rear sight clockwise to move the bullet’s impact
to the right; counter-clockwise to move impact to the left.
NOTE: There is no locking set screw for the windage adjustment screw.
CLEANING PISTOL
1. Disassemble (field-strip) the pistol to the extent described
on Pages 21 through 27.
2. Clean your pistol by brushing the barrel bore and chamber
with a good powder-removing solvent and bore brush.
Wipe the areas clean with patches or a swab.
3. Using a small brush dipped in solvent, remove all deposits
from around the breech of the barrel, chamber, extractor
and adjacent areas which have been subjected to powder
residue. Wipe all surfaces clean with patch or swab.
4. After cleaning the entire pistol, use a cloth to apply a light
coating of high quality gun oil by passing it once through
the barrel and all other surfaces.
NOTE: Excess accumulations of oil can interfere with the
safe and reliable function of the pistol.
ALWAYS PASS A DRY PATCH THROUGH THE
BARREL TO REMOVE AS MUCH OIL AS POSSIBLE
PRIOR TO USING PISTOL. FIRING THE PISTOL
WITH OIL, GREASE OR ANY OTHER MATERIAL
EVEN PARTIALLY OBSTRUCTING THE BORE MAY
RESULT IN DAMAGE TO THE PISTOL WHICH CAN
CAUSE INJURY, DEATH, OR PROPERTY DAMAGE.
35
Page 40
BEFORE PROCEEDING MAKE SURE YOU ARE
WEARING SAFETY GLASSES AND KEEP THE
MUZZLE OF THE PISTOL POINTED
AWAY FROM YOUR FACE.
CLEANING SINGLE-STACK MAGAZINES
FOLLOWER
MAGAZINE
BODY
SPRING
Figure 32
uppermost and pointed forward, back into magazine,
compress spring and insert thin rod as previously directed.
Place follower in magazine and remove the thin rod to allow
the spring to press follower into its correct position.
This should be done whenever cleaning the pistol. Remove the magazine
follower and spring by depressing
them with a pencil or wooden dowel
about 2” into the magazine and
inserting a thin rod through the lower
of the front two holes in the magazine
body. Turn the magazine upside down
and tap it, so the follower falls away
from the spring. Remove the follower
from the magazine body. Now, push
down on the spring to take up the
tension, and remove the thin rod. You
can now remove the spring from the
magazine (Figure 32).
Clean the follower, spring and
magazine body. Lubricate lightly.
To reassemble, insert spring, with loop

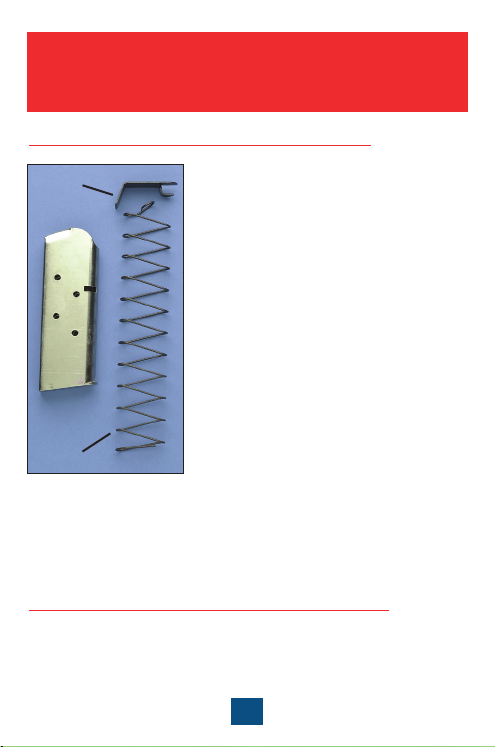

CLEANING HIGH-CAPACITY MAGAZINES
This should be done whenever cleaning the pistol.
Slide magazine floor plate toward the front of the magazine,
taking care to avoid forcible ejection of the magazine spring
36
Page 41
from the body. With the floor plate out of the way, remove
the spring and follower. Clean all components, taking care
to remove any powder deposits on the magazine retaining
lips and follower (Figure 33).
NOTE: Place spring correctly oriented with closed loop
uppermost pointing forward.

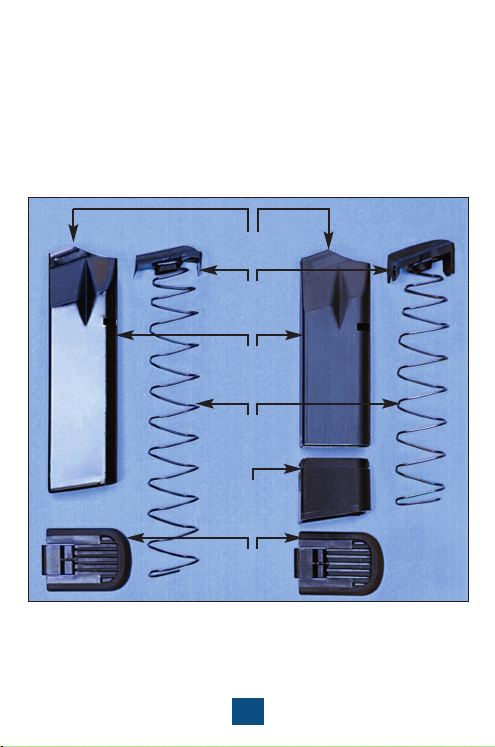

High-Capacity
Magazine Assembly
MAGAZINE
RETAINING LIPS
MAGAZINE
FOLLOWER
MAGAZINE
BODY
MAGAZINE
SPRING
MAGAZINE
EXTENSION
MAGAZINE
FLOOR
PLATE
10-Round
Magazine Assembly
Figure 33
High-Capacity Magazine (left) is for law enforcement only.
For recreational use, magazine capacity is restricted to
10 rounds in the U.S.A. and Canada.
37
Page 42
DISASSEMBLY, CLEANING & REASSEMBLY
OF 10-ROUND PARA-ORDNANCE MAGAZINE
DISASSEMBLY

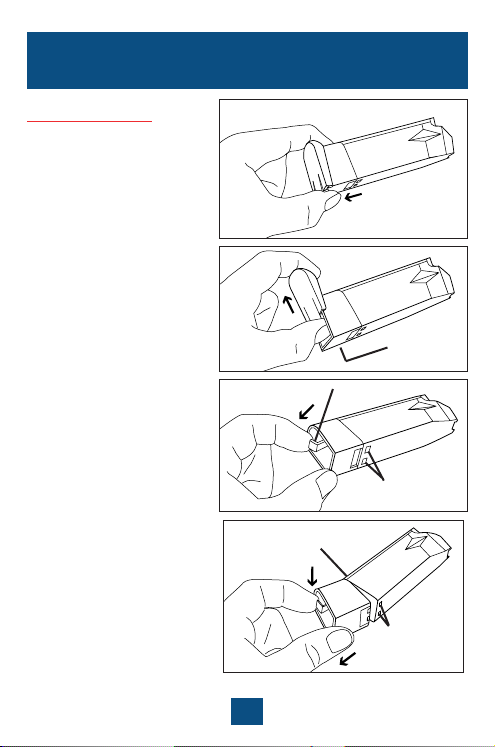

STEP 1: Remove all ammunition
from the magazine. Firmly grasp the
metal magazine body in one hand
and with the other hand grip the
magazine’s base plate. Use your
thumb to slightly raise the slotted
tab at the rear of the base plate.
CAUTION: Lift the slotted tab
only enough to clear the rear of the
magazine extension.

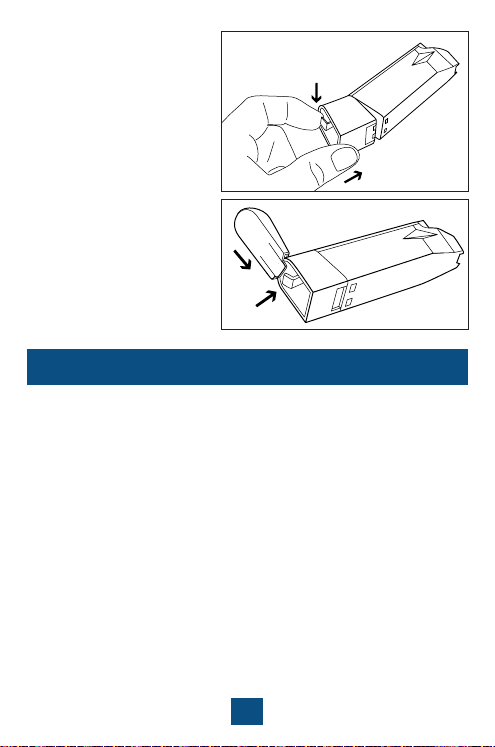

STEP 2: Slide the base plate
towards the front of the magazine to
remove it.
STEP 3: While holding the maga-
zine in one hand, use the index finger of the other hand to gently
apply a small amount of pressure
to the release lever at the bottom
of the magazine extension.
This will retract the two small tabs
at the rear of the extension which
keep it in place. Gently increase
the pressure on the release lever
until some resistance is felt.
CAUTION: Do not apply
excessive pressure to the release
lever or it may break off.
CAUTION: The spring and
follower are compressed in the
magazine. Care should be taken
during this step to prevent them
from flying out.
SLOTTED
TAB ON
BASE PLATE
ROUND TAB
(FRONT)
38
RELEASE
LEVER
METAL
MAGAZINE
BODY
MAGAZINE
EXTENSION
(REAR)
TWO SMALL
TABS (REAR)
TWO
SMALL
TABS
(REAR)
Page 43
STEP4: While maintaining the gentle pressure on the release lever, begin to rotate the
magazine extension downward to release it from the metal magazine body. Release pressure
from the lever as soon as the two small tabs at the top rear of the extension clear the
magazine body. The extension can now be removed by easing it slightly rearward to release the
round tab at the front. The spring and magazine follower can now be removed through
the opening at the bottom of the metal magazine body. As you remove it, note which end faces
the front.
CLEANING
CAUTION: Do not attempt to remove the follower from the spring.
Wipe the outside of the magazine with a rag. Insert a dry rag through the opening at the bottom
of the metal magazine body and remove all residue from the inside. Do the same from the
smaller opening at the top.
Clean all residue from the spring and from the magazine follower.
CAUTION: Do not apply oil to any part or lubricate any part of the magazine.
REASSEMBLY
STEP 1: Insert the spring and follower into the opening at the bottom of the metal magazine body.
CAUTION: Make sure that the rounded top edge of the follower is at the front of the
magazine.
Position the bottom of the spring around the four posts on the magazine extension. Then,
gently compress the spring with the magazine extension so that it is fully contained inside the
magazine body. Engage the round tab at the top front of the magazine extension in the small
hole at the front of the magazine body.
While still holding the spring compressed, gently apply a tiny amount of rearward pressure to
the lever at the bottom of the extension until some resistance is felt.
Then, rotate the rear of the extension upwards so it engages the magazine body. Continue rotating until the two small tabs are fully engaged.
Release the pressure from the lever at the bottom of the extension. The magazine extension is
now locked in place.
STEP 2: With your index finger, gently depress the lever at the bottom of the extension. This
will allow you to replace the base plate without breaking the tab.
39
Page 44
While holding the lever in a depressed
position, begin to replace the base plate
by sliding it rearward from the front of
the extension. Be sure that the base plate
engages the two rails on the sides of the
extension.
Continue to slide the base plate towards
the rear until a click is heard, indicating
that the slotted tab at the rear of the
base plate has passed over the rear edge
of the extension, locking it in place.
Reassembly is now complete.
These instructions apply to all 10round magazines for Para-Ordnance
12.45 LDA, 14.40 LDA, 14.45 LDA,
16.40 LDA and 18.9 LDA handguns.
TRANSPORTATION AND STORAGE
When transporting your firearm to and from shooting activities, keep it unloaded and obey all laws
relating to the transportation of firearms in your area.
When storing your firearm, store it securely and keep it separated from ammunition, under lock and
key, and out of the sight and reach of children and other inexperienced persons.
NOTE: Protect your firearms from theft.
DO NOT STORE your pistol in anything which will attract moisture, e.g., leather or heavy cloth, and do
not store it in an air-tight container or with a plug inserted in the barrel for these are factors that can
contribute to corrosion.
EXTENDED STORAGE requires that the internal mechanisms are well oiled with an acid-free lubricating oil or preservative while external mechanisms (receiver, barrel, etc.) should be coated with an
anti-rust oil.
COLD CLIMATE STORAGE requires that you make use of an oil which will not congeal at low temperatures. USE SPARINGLY.
BEFORE USING YOUR FIREARM AGAIN BE SURE TO CLEAN IT.
40
Page 45
WARRANTY INFORMATION
Para-Ordnance acknowledges its obligations under implied warranty legislation, with
respect to the sale of consumer goods, that may be in force in jurisdictions where its
products are sold. Due to differences in the extent and interpretation of such statutes,
and also on the basis of the Magnusson-Moss Warranty Act of the United States of
America, Para-Ordnance has elected not to offer any written or express warranty on its
product line and you are advised to consult existing legislation in your country, state or
province with regard to any implied warranty rights you may have under such laws.
NOTE: Different remedies may be available to you in different jurisdictions.
LIMITS OF LIABILITY
NOTE: PARA-ORDNANCE HAS CAREFULLY PACKAGED THIS PRODUCT PRIOR TO
SHIPMENT FROM THE FACTORY. PLEASE EXAMINE IT CAREFULLY AT TIME OF
PURCHASE TO ENSURE IT IS UNDAMAGED.
PARA-ORDNANCE SHALL NOT BE RESPONSIBLE IN ANY MANNER WHATSOEVER FOR
INJURY, DEATH, OR DAMAGE TO PROPERTY AS A RESULT OF THE INTENTIONAL OR
ACCIDENTAL DISCHARGE OF THIS FIREARM, OR FROM ITS PROPER FUNCTION WHEN
THE PISTOL IS USED FOR PURPOSES FOR WHICH IT WAS NOT DESIGNED.
FURTHERMORE, PARA-ORDNANCE SHALL NOT BE RESPONSIBLE FOR ANY CLAIMS
THAT MAY ARISE AS A RESULT OF, WHETHER IN WHOLE OR IN PART, IMPROPER OR
CARELESS HANDLING, UNAUTHORIZED MODIFICATIONS, USE OF IMPROPER
AMMUNITION (WRONG CALIBER, DEFECTIVE, HAND LOADED, OR RELOADED
CARTRIDGES) THAT IS NOT ORIGINAL HIGH QUALITY COMMERCIALLY
MANUFACTURED AND IN GOOD CONDITION, ABUSE, NEGLECT, CORROSION, OR
OTHER INFLUENCES BEYOND OUR IMMEDIATE AND DIRECT CONTROL. UNDER NO
CIRCUMSTANCES SHALL PARA-ORDNANCE BE RESPONSIBLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SUCH AS LOSS OF USE OF PROPERTY, LOSS OF
EARNINGS OR PROFITS, OR ANY OTHER COMMERCIAL LOSS.
NOTE: DIFFERENT REMEDIES MAY BE AVAILABLE TO YOU IN DIFFERENT
JURISDICTIONS.
41
Page 46
SERVICE AND REPAIR
Para-Ordnance is strongly committed to properly servicing its products, as it has over the
years, and in place of an express or written warranty it will provide all necessary service
for its pistols purchased after January 1, 2001 free of charge to the original purchaser
only, where adjustment or repair is required due to some defect in materials or workmanship.
If any problem or question should arise with regard to the performance of your firearm,
please contact us, by mail or telephone, and fully describe all circumstances involved.
This will allow us to determine the best way to handle your problem. If authorized factory
service is deemed necessary, you will be given a return authorization number and
shipping instructions.
MAKE SURE THAT THE MAGAZINE AND PISTOL
ARE UNLOADED. DO NOT SHIP ANY CARTRIDGES
WHEN AUTHORIZED TO SHIP YOUR FIREARM FOR ADJUSTMENT OR REPAIR, PLEASE
CAREFULLY NOTE THE FOLLOWING:
1. A detailed, written explanation of your problem should accompany the firearm being
shipped for service or repair. Include model name, serial number and your return
address (day telephone number optional). Also include a copy of your original proof of
purchase.
2. All firearms should be shipped by common carrier (e.g., UPS), prepaid (we will not
accept collect shipments) and insured for their full value. It is illegal for unlicensed
individuals to ship handguns through the mail.
3. Due to the vast number of laws governing the transfer and transportation of firearms,
it is strongly recommended that your firearm be shipped through a licensed dealer
who will also accept delivery on your behalf when the pistol is returned.The shipment
should be accompanied by a signed copy of the dealer’s license.
4. DO NOT include holsters, custom grips or other accessories when shipping your
firearm for service.
5. DO NOT indicate the nature of the contents on the package or use the “ParaOrdnance” name to address the shipment.
6. DO include the return authorization number on the outside of the package.
WITH A FIREARM.
42
Page 47
SPARE PARTS
For Para-Ordnance replacement parts please contact your local dealer who should be
able to assist you. Alternatively, you can also contact the Para-Ordnance Parts
Department by mail or phone, for up-to-date information on the names and locations of
our Authorized Service Centers as well as current parts prices.
PARTS AVAILABLE FOR SALE SHOULD BE INSTALLED AT A PARA-ORDNANCE
AUTHORIZED SERVICE CENTER. OTHERWISE, IT IS THE PURCHASER’S TOTAL
RESPONSIBILITY TO MAKE ABSOLUTELY CERTAIN THAT ANY PARTS FITTED AND
INSTALLED ARE OF THE CORRECT TYPE AND THE WORK IS PERFORMED BY A
COMPETENT PERSON.
PARA-ORDNANCE WILL NOT BE RESPONSIBLE
FOR ANY UNAUTHORIZED ALTERATIONS
PERFORMED, UNAUTHORIZED ATTACHMENTS
FITTED OR UNAUTHORIZED PARTS
USED 0N THIS PRODUCT.
NOTES:
43
Page 48

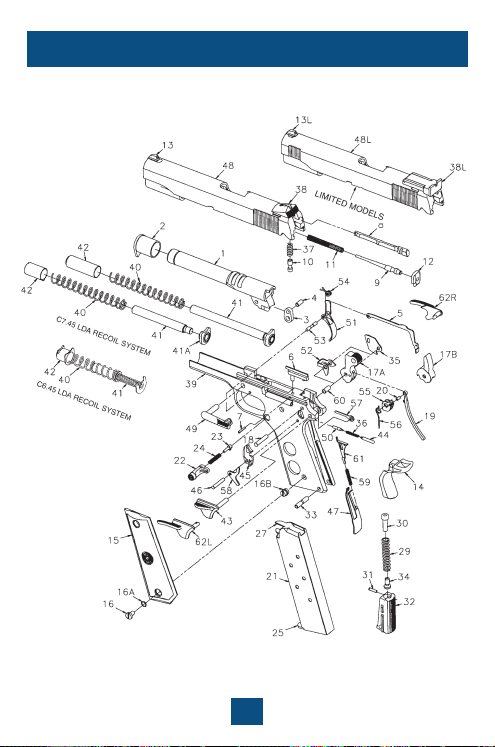

LDA SINGLE-STACK PARTS ILLUSTRATION
44
Page 49
LDA SINGLE-STACK PARTS LIST
1. BARREL
2. BARREL BUSHING
3. BARREL LINK
4. BARREL LINK PIN
5. DRAWBAR
6. EJECTOR
7. EJECTOR PIN
8. EXTRACTOR
9. FIRING PIN
10. FIRING PIN PLUNGER
11. FIRING PIN SPRING
12. FIRING PIN STOP
13/13L. FRONT SIGHT
14. GRIP SAFETY
15. GRIP (SET)
16. GRIP SCREW (4)
16A. GRIP SCREW
LOCKING RINGS
16B. GRIP SCREW BUSHING
17A. HAMMER
17B. HAMMER (SPURLESS)*
18. HAMMER PIN
19. HAMMER STRUT
20. COCKING CAM PIN
21. MAGAZINE ASSEMBLY
22. MAGAZINE CATCH
23. MAGAZINE CATCH LOCK
24. MAGAZINE CATCH SPRING
25. MAGAZINE FLOOR PLATE
27. MAGAZINE FOLLOWER
28. MAGAZINE SPRING
(NOT SHOWN)
29. MAIN SPRING
30. MAIN SPRING CAP
31. MAIN SPRING CAP PIN
32. MAIN SPRING HOUSING
(FLAT)
33. MAIN SPRING HOUSING
PIN
34. MAIN SPRING HOUSING
PIN RETAINER
35. PLUNGER LEVER
36. PLUNGER SPRING
37. PLUNGER SPRING F/P
38/38L. REAR SIGHT
39. RECEIVER
40. RECOIL SPRING
41. RECOIL SPRING GUIDE
41A. RECOIL SPRING GUIDE HEAD
42. RECOIL SPRING PLUG
43. SLIDE LOCK SAFETY
44. SAFETY LOCK PLUNGER
45. SEAR
46. SEAR PIN
47. SEAR SPRING
48/48L. SLIDE
49. SLIDE STOP
50. SLIDE STOP PLUNGER
51. TRIGGER
52. STRADDLE
53. TRIGGER PIN
54. TRIGGER RETURN SPRING
55. COCKING CAM
56. HAMMER RETURN SPRING
57. SAFETY LOCK LEVER
58. GRIP SAFETY LEVER
59. DRAWBAR PLATFORM
SPRING
60. HAMMER ASSEMBLY PIN
61. DRAWBAR PLATFORM
62L/R. AMBIDEXTROUS SLIDE
LOCK SAFETY
(LEFT/RIGHT)
*Spurless Hammer is standard on
C6.45 LDA and Law Enforcement
full-size model LDA’s.
45
Page 50

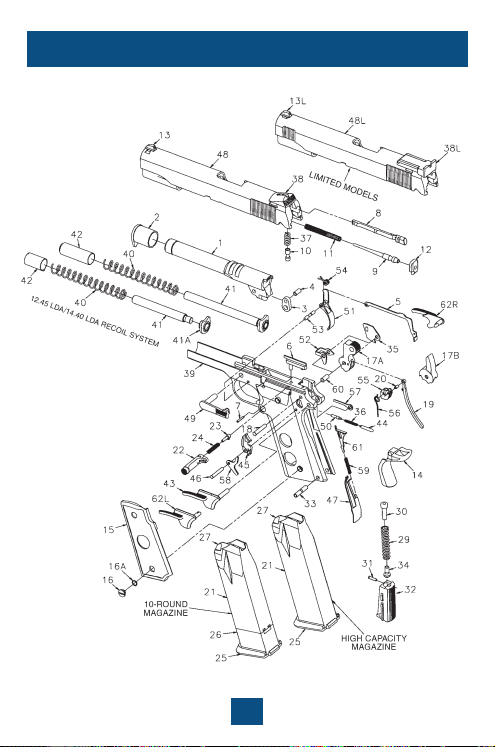

LDA-SERIES PARTS ILLUSTRATION
46
Page 51
LDA-SERIES PARTS LIST
1. BARREL
2. BARREL BUSHING
3. BARREL LINK
4. BARREL LINK PIN
5. DRAWBAR
6. EJECTOR
7. EJECTOR PIN
8. EXTRACTOR
9. FIRING PIN
10. FIRING PIN PLUNGER
11. FIRING PIN SPRING
12. FIRING PIN STOP
13/13L. FRONT SIGHT
14. GRIP SAFETY
15. GRIP (SET)
16. GRIP SCREW (4)
16A. GRIP SCREW
LOCKING RINGS
17A. HAMMER
17B. HAMMER (SPURLESS)*
18. HAMMER PIN
19. HAMMER STRUT
20. COCKING CAM PIN
21. MAGAZINE ASSEMBLY
22. MAGAZINE CATCH
23. MAGAZINE CATCH LOCK
24. MAGAZINE CATCH SPRING
25. MAGAZINE FLOOR PLATE
26. MAGAZINE EXTENSION
(10-ROUND MAGAZINE
ONLY)
27. MAGAZINE FOLLOWER
28. MAGAZINE SPRING
(NOT SHOWN)
29. MAIN SPRING
30. MAIN SPRING CAP
31. MAIN SPRING CAP PIN
32. MAIN SPRING HOUSING
(FLAT)
33. MAIN SPRING HOUSING
PIN
34. MAIN SPRING HOUSING
PIN RETAINER
35. PLUNGER LEVER
36. PLUNGER SPRING
37. PLUNGER SPRING F/P
38/38L. REAR SIGHT
39. RECEIVER
40. RECOIL SPRING
41. RECOIL SPRING GUIDE
41A. RECOIL SPRING GUIDE HEAD
42. RECOIL SPRING PLUG
43. SLIDE LOCK SAFETY
44. SAFETY LOCK PLUNGER
45. SEAR
46. SEAR PIN
47. SEAR SPRING
48/48L. SLIDE
49. SLIDE STOP
50. SLIDE STOP PLUNGER
51. TRIGGER
52. STRADDLE
53. TRIGGER PIN
54. TRIGGER RETURN SPRING
55. COCKING CAM
56. HAMMER RETURN SPRING
57. SAFETY LOCK LEVER
58. GRIP SAFETY LEVER
59. DRAWBAR PLATFORM
SPRING
60. HAMMER ASSEMBLY PIN
61. DRAWBAR PLATFORM
62L/R. AMBIDEXTROUS SLIDE
LOCK SAFETY (LEFT/RIGHT)
*Spurless Hammer is standard on
12.45 LDA, 14.40 LDA and Law
Enforcement full-size model LDA’s.
47
Page 52
FIREARM RECORD
MODEL
SERIAL NO.
PURCHASED FROM
DATE PURCHASED
This instruction manual should always accompany this
firearm and be transferred with it upon change of ownership.
980 TAPSCOTT ROAD
SCARBOROUGH, ONTARIO M1X 1C3
(416) 297-7855 • FAX: (416) 297-1289
www.paraord.com
MANUAL #PO0902
Loading...
