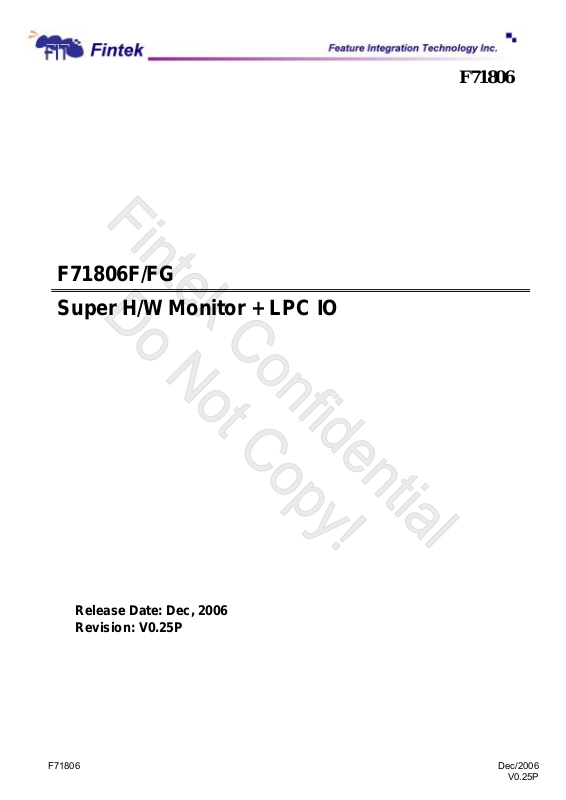

F71806F/FG

F71806

Super H/W Monitor + LPC IO

Release Date: Dec, 2006 Revision: V0.25P

F71806 Dec/2006

V0.25P

Page 2

F71806 Datasheet Revision History

Version Date Page Revision History

0.10P 10/04/2004 - Preliminary Release Version.

0.20P 10/27/2004 - Added Application Circuit.

0.21P 04/15/2005 - Added ”Green Package” Ordering Information

0.22P 11/01/2005 - Added 24MHz Clock Input.

- Updated Application Circuit.

- After V0.22P Datasheet is for B Version Chip Use and Downward

0.23P 11/20/2005 - Added OVT# Signal Output in Pin 55.

F71806

Compatible.

- Modified Pin 77 OVT# Function to Be the Default Function.

0.24P 12/08/2005 - Modified Datasheet Revision History Description of Version

0.22P/0.23P. (For LBB version use after V0.22P)

0.25P 12/28/2006 Added Patent Note

Please note that all data and specifications are subject to change without notice. All the trade marks of products and

companies mentioned in this data sheet belong to their respective owners.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these

products can reasonably be expected to result in personal injury. Customers using or selling these products for use

in such applications do so at their own risk and agree to fully indemnify Fintek for any damages resulting from such

improper use or sales.

F71806 Dec/2006

V0.25P

Page 3

F71806

Table of Contents

1 GENERAL DESCRIPTION.........................................................................................................................................................4

2 FEATURES....................................................................................................................................................................................4

3 KEY SPECIFICATIONS ..............................................................................................................................................................6

4 PIN CONFIGURA T ION...............................................................................................................................................................6

5 PIN DESCRIPTIONS ...................................................................................................................................................................7

5.1 POWER PIN.........................................................................................................................................................................7

5.2 LPC INTERFACE.................................................................................................................................................................7

5.3 FDC...................................................................................................................................................................................8

5.4 UART PORT AND SIR.........................................................................................................................................................8

5.5 IEEE 1284 PARALLEL PORT .............................................................................................................................................10

5.6 H/W MONITOR.................................................................................................................................................................11

5.7 ACPI FUNCTION PINS.......................................................................................................................................................12

5.8 VID CONTROLLING PINS...................................................................................................................................................13

5.9 N.C PINS...........................................................................................................................................................................13

6 FUNCTION DESCRIPTION .....................................................................................................................................................14

6.1 POWER ON STRAPPING OPTIONS.......................................................................................................................................14

6.2 ACPI................................................................................................................................................................................14

6.3 PCI RESET AND PWROK SIGNALS ..................................................................................................................................15

6.4 HARDWARE MONITOR ......................................................................................................................................................16

6.5 FDC.................................................................................................................................................................................23

6.6 UART..............................................................................................................................................................................23

6.7 PARALLEL PORT ...............................................................................................................................................................23

7 REGISTER DESCRIPTIONS....................................................................................................................................................24

7.1 GLOBAL CONTROL REGISTERS.........................................................................................................................................24

7.1.1 Software Reset Register  Index 02h........................................................................................................................................25

7.1.2 Logic Device Number Register  Index 07h.............................................................................................................................25

7.1.3 Chip ID Register  Index 20h................................................................................................................................................... 25

7.1.4 Chip ID Register  Index 21h................................................................................................................................................... 25

7.1.5 Vendor ID Register  Index 23h ...............................................................................................................................................26

7.1.6 Vendor ID Register  Index 24h ...............................................................................................................................................26

7.1.7 Software Power Down Register  Index 25h............................................................................................................................26

Dec., 2006

V0.25P

Page 4

F71806

7.1.8 UART IRQ Sharing Register  Index 26h ................................................................................................................................26

7.1.9 Power LED Function Select Register  Index 28h....................................................................................................................27

7.1.10 Multi Function Select 1 Register  Index 29h (Powered by VDD)...........................................................................................28

7.1.11 Multi Function Select 2 Register  Index 2Ah (Powered by VDD).......................................................................................... 29

7.1.12 Multi Function Select 3 Register  Index 2Bh (Powered by VDD)..........................................................................................29

7.1.13 Multi Function Select 4 Register  Index 2Ch (Powered by VSB3V)......................................................................................30

7.1.14 Multi Function Select 5 Register  Index 2Dh (Powered by VSB3V)......................................................................................31

7.2 FDC REGISTERS...............................................................................................................................................................32

7.2.1 Logic Device Number Register....................................................................................................................................................32

7.2.2 FDC Configuration Registers.......................................................................................................................................................32

7.2.3 Device Registers..........................................................................................................................................................................35

7.3 UART1 REGISTERS..........................................................................................................................................................50

7.3.1 Logic Device Number Register....................................................................................................................................................50

7.3.2 UART 1 Configuration Registers.................................................................................................................................................50

7.3.3 Device Registers..........................................................................................................................................................................51

7.4 UART 2 REGISTERS .........................................................................................................................................................54

7.4.1 Logic Device Number Register....................................................................................................................................................54

7.4.2 UART 2 Configuration Registers.................................................................................................................................................55

7.4.3 Device Registers..........................................................................................................................................................................56

7.5 PARALLEL PORT REGISTERS .............................................................................................................................................60

7.5.1 Logic Device Number Register....................................................................................................................................................60

7.5.2 Parallel Port Configuration Register............................................................................................................................................ 60

7.5.3 Device Registers..........................................................................................................................................................................61

7.6 HARDWARE MONITOR REGISTERS....................................................................................................................................65

7.6.1 Logic Device Number Register....................................................................................................................................................65

7.6.2 Hardware Monitor Configuration Registers................................................................................................................................. 66

7.6.3 Device Registers..........................................................................................................................................................................67

7.7 GPIO REGISTERS .............................................................................................................................................................85

7.7.1 Logic Device Number Register....................................................................................................................................................85

7.7.2 Configuration Registers ...............................................................................................................................................................85

7.8 VID REGISTER .................................................................................................................................................................93

7.8.1 Logic Device Number Register....................................................................................................................................................93

7.8.2 VID Configuration Registers .......................................................................................................................................................94

7.8.3 Device Registers..........................................................................................................................................................................94

7.9 ACPI AND PME REGISTERS .............................................................................................................................................97

7.9.1 Logic Device Number Register....................................................................................................................................................97

7.9.2 ACPI and PME Configuration Registers......................................................................................................................................97

Dec., 2006

V0.25P

Page 5

F71806

8 PCB LAYOUT GUIDE................................................................................................................................................................99

9 ELECTRICAL CHARACTERISTICS...................................................................................................................................101

9.1 ABSOLUTE MAXIMUM RATIN GS .....................................................................................................................................101

9.2 DC CHARACTERISTICS...................................................................................................................................................102

9.3 AC CHARACTERISTICS...................................................................................................................................................102

10 ORDERING INFORMATION..............................................................................................................................................103

11 PACK AGE D IMEN SIONS....................................................................................................................................................103

12 F71806 DEMO CIRCUIT......................................................................................................................................................104

Dec., 2006

V0.25P

Page 6

1 General Description

The F71806 is the featured IO chip without KBC function specifically for clone chipset PC system.

Equipped with one IEEE 1284 parallel port , two UART port and FDC. The F71806 provides SIR, integrated

with hardware monitor, supports 11 sets of voltage sensor and 4 voltage fault signal outputs, 3 sets of creative

auto-controlling fans and 3 temperature sensor pins for the accurate current type temp. Measurement for CPU

thermal diode or external transistors 2N3906.

The F71806 provides flexible features for multi-directional application. For instance, supports 12 pins

CPU VID controlling for VRM9.0/10.0 and CPU VID OTF (On The Fly), provides 24 GPIO pins which include

pulse/level mode selection, IRQ sharing function also designed in UART feature for particular usage and

F71806

accurate current mode H/W monitor will be worth in measurement of temperature, provides 3 modes fan speed

control mechanism included Manual Mode/Speed Mode/Temperature Mode for users’ selection. The F71806 is

2 Features

General Functions

¾ Comply with LPC Spec. 1.0

¾ Support DPM (Device Power Management), ACPI

¾ Support 12 pins CPU VID controlling and comply with VRM9.0/10.0

¾ Vcore monitoring supports dynamic VID

¾ 24 GPIO Pins for flexible application

¾ 24/48 MHz clock input

FDC

¾ Compatible with IBM PC AT disk drive systems

¾ Variable write pre-compensation with track selectable capability

¾ Support vertical recording format

¾ DMA enable logic

¾ 16-byte data FIFOs

¾ Support floppy disk drives and tape drives

¾ Detects all overrun and under run conditions

¾ Built-in address mark detection circuit to simplify the read electronics

¾ Completely compatible with industry standard 82077

¾ 360K/720K/1.2M/1.44M/2.88M format; 250K, 300K, 500K, 1M, 2M bps data transfer rate

Dec., 2006

V0.25P

Page 7

UART

¾ Two high-speed 16C550 compatible UART with 16-byte FIFOs

¾ Fully programmable serial-interface characteristics

¾ Baud rate up to 115.2K

Infrared

¾ Support IrDA version 1.0 SIR protocol with maximum baud rate up to 115.2K bps

F71806

Parallel Port

¾ One PS/2 compatible bi-directional parallel port

¾ Support Enhanced Parallel Port (EPP) − Compatible with IEEE 1284 specification

¾ Support Extended Capabilities Port (ECP) − Compatible with IEEE 1284 specification

¾ Enhanced printer port back-drive current protection

Hardware Monitor Functions

¾ 12 VID pins for VRM10.0 and CPU VID OTF (On The Fly)

¾ 3 current type accurate (±3) ℃ thermal inputs for CPU thermal diode and 2N3906 transistors

¾ 11 sets voltage monitoring (8 external and 3 internal powers)

¾ 4 voltage_fault# hardware signal outputs

¾ 3 fan speed monitoring inputs

¾ 3 fan speed auto-control (support 3 wire and 4 wire fans)

¾ Case intrusion detection circuit

¾ WATCHDOG comparison of all monitored values

¾ Issue PME# and independent Voltage_fault #

Package

¾ 128-pin PQFP

Noted: Patented TW207103 TW207104 US6788131 B1 TW235231 TW237183 TWI263778

Dec., 2006

V0.25P

Page 8

3 Key Specifications

Supply Voltage 3.0V to 3.6V

Operating Supply Current 16 mA typ.

4 Pin Configuration

F71806

Dec., 2006

V0.25P

Page 9

5 Pin Descriptions

I/O

- TTL level bi-directional pin with 12 mA source-sink cap ability.

12t

I/OOD

- TTL level bi-directional pin, can select to OD or OUT by register, with 12 mA source-sink

12t

capability.

- TTL level bi-directional pin, can select to OD or OUT by register, with 16 mA source-sink

16t

capability.

F71806

I/OD

12t

I/OD

12ts5V

I/O

12ts5V

I/OD

16t,5V

I/O

8t-u47,5V

- Output pin with 12 mA source-sink capability.

- TTL level bi-directional pin, Open-drain outpu with 12 mA sink capability.

- TTL level bi-directional pin and schmitt trigger, Open-drain output with 12 mA sink capability,

5V tolerance.

- TTL level bi-directional pin and schmitt trigger with 12 mA sink capability, 5V tolerance.

- TTL level bi-directional pin, Open-drain outpu with 16 mA sink capability, 5V tolerance.

- TTL level bi-directional pin with 8 mA sink capability, pull-up 47k ohms, 5V tolerance.

AOUT - Output pin(Analog).

16-u10,5V

t5V

INts

- TTL level input pin and schmitt trigger, 5V tolerance.

ts5V

- Open-drain output pin with 12 mA sink capability.

- Open-drain output pin with 16 mA sink capability, pull-up 10k ohms, 5V tolerance.

- Open-drain output pin with 24 mA sink capability.

- TTL level input pin,5V tolerance.

- TTL level input pin and schmitt trigger.

AIN - Input pin(Analog).

P - Power.

5.1 Power Pin

Pin No. Pin Name Type Description

4,35,99 VCC P Power supply voltage input with 3.3V 67 VSB P Stand-by power supply voltage input 3.3V 69 VBAT P Battery voltage input 86 AGND(D-) P Analog GND 15,50,74, 117 GND P Digital GND

5.2 LPC Interface

Pin No. Pin Name Type PWR Description

37 LRESET# INts VCC Reset signal. It can connect to PCIRST# signal on the host.

Dec., 2006

V0.25P

Page 10

38 LDRQ# O12 VCC Encoded DMA Request signal. 39 SERIRQ I/O 40 LFRAM# INts VCC Indicates start of a new cycle or termination of a broken

41-44 LAD[3:0] I/O

47 PCICLK INts VCC 33MHz PCI clock input. 49 CLKIN INts VCC System clock input. According to the input frequency

5.3 FDC

F71806

VCC Serial IRQ input/Output.

12t

cycle.

VCC These signal lines communicate address, control, and data

12t

information over the LPC bus between a host and a peripheral.

24/48MHz.

Pin No. Pin Name Type PWR Description

54 DRVA# OD24 VCC Drive Select A. When set to 0, this pin enables disk drive A.

56 WDATA# OD24 VCC Write data. This logic low open drain writes

57 DIR# OD24 VCC Direction of the head step motor. An open drain output.

58 STEP# OD24 VCC Step output pulses. This active low open drain output

59 HDSEL# OD24 VCC Head select. This open drain output determines which disk

60 WGATE# OD24 VCC Write enable. An open drain output. 61 RDATA# IN 62 TRK0# IN

63 INDEX# IN

64 WPT# IN

65 DSKCHG# IN

DENSEL#

OD24 VCC Motor A On. When set to 0, this pin enables disk drive 0.

MOA#

OD24 VCC Drive Density Select.

Set to 1 - High data rate.(500Kbps, 1Mbps) Set to 0 – Low data rate. (250Kbps, 300Kbps)

This is an open drain output.

pre-compensation serial data to the selected FDD. An open drain output.

Logic 1 = outward motion Logic 0 = inward motion

produces a pulse to move the head to another track.

drive head is active. Logic 1 = side 0 Logic 0 = side 1

VCC The read data input signal from the FDD.

ts5V

VCC Track 0. This Schmitt-triggered input from the disk drive is

ts5V

active low when the head is positioned over the outermost track.

VCC This Schmitt-triggered input from the disk drive is active low

ts5V

when the head is positioned over the beginning of a track marked by an index hole.

VCC Write protected. This active low Schmitt input from the disk

ts5V

drive indicates that the diskette is write-protected.

VCC Diskette change. This signal is active low at power on and

ts5V

whenever the diskette is removed.

5.4 UART Port and SIR

Pin No. Pin Name Type PWR Description

Dec., 2006

V0.25P

Page 11

F71806

O12 Infrared Transmitter Output. 66 IRTX/GPIO16

I/O INts Infrared Receiver input. 70 IRRX/GPIO30

I/OOD

118 DCD1# IN

119 RI1# IN

120 CTS1# IN 121 DTR1# I/O

122 RTS1# I/O

123 DSR1# IN

124 SOUT1/

I/O

Config4E_2E

VCC

12t

General Purpose IO

VSB

12t

VCC Data Carrier Detect. An active low signal indicates the

t5V

General Purpose IO. Open drain and drive select by register.

modem or data set has detected a data carrier.

VCC Ring Indicator. An active low signal indicates that a ring

t5V

signal is being received from the modem or data set.

VCC Clear To Send is the modem control input.

t5V

VCC UART 1 Data Terminal Ready. An active low signal informs

8t-u47,5V

the modem or data set that controller is ready to communicate. Internal 47k ohms pulled high and disable after power on strapping.

VCC UART 1 Request To Send. An active low signal informs the

8t-u47,5V

modem or data set that the controller is ready to send data. Internal 47k ohms pulled high and disable after power on strapping.

VCC Data Set Ready. An active low signal indicates the modem

t5V

or data set is ready to establish a communication link and transfer data to the UART.

8t-u47,5V

VCC

UART 1 Serial Output. Used to transmit serial data out to the communication link. Internal 47k ohms pulled high and disable after power on strapping.

125 SIN1 IN

126 DCD2# IN

127 RI2# IN

128 CTS2# IN 1 DTR2# / RST_DRV I/O

2 RTS2#/PWM_DC I/O

3 DSR2# IN

5 SOUT2

I/O

6 SIN2 IN

Power on strapping : 1 (Default) C

onfiguration register:4E

0 Configuration register:2E

VCC Serial Input. Used to receive serial data through the

t5V

communication link.

VCC Data Carrier Detect. An active low signal indicates the

t5V

modem or data set has detected a data carrier.

VCC Ring Indicator. An active low signal indicates that a ring

t5V

signal is being received from the modem or data set.

VCC Clear To Send is the modem control input.

t5V

8t-u47,5V

VCC

UART 2 Data Terminal Ready. An active low signal informs the modem or data set that controller is ready to communicate. Internal 47k ohms pulled high and disable after power on strapping.

Power on strapping : 1 (Default) : pin31/33/34/48/84 OD

0 Drive

8t-u47,5V

VCC

UART 2 Request To Send. An active low signal informs the modem or data set that the controller is ready to send data. Internal 47k ohms pulled high and disable after power on strapping.

Power on strapping : 1 (Default) PWM Mode

0 Drive Linear Mode

VCC Data Set Ready. An active low signal indicates the modem

t5V

or data set is ready to establish a communication link and transfer data to the UART.

VCC UART 2 Serial Output. Used to transmit serial data out to

8t-u47,5V

the communication link. Internal 47k ohms pulled high and disable after power on strapping.

VCC Serial Input. Used to receive serial data through the

t5V

communication link.

Dec., 2006

V0.25P

Page 12

5.5 IEEE 1284 Parallel Port

Pin No. Pin Name Type PWR Description

100 SLCT IN

101 PE IN

102 BUSY IN

103 ACK# IN

ts5V

104 SLIN# I/OD

105 INIT#

I/OD

106 ERR#

ts5V

107 AFD# I/OD

108 STB# I/OD

109

110 111 112 113 114 115 116

I/O

PD0

I/O

PD1

I/O

PD2

I/O

PD3

I/O

PD4

I/O

PD5

I/O

PD6

I/O

PD7

F71806

VCC An active high input on this pin indicates that the printer is

selected. Refer to the description of the parallel port for definition of this pin in ECP and EPP mode.

VCC An active high input on this pin indicates that the printer has

detected the end of the paper. Refer to the description of the parallel port for the definition of this pin in ECP and EPP mode.

VCC An active high input indicates that the printer is not ready to

receive data. Refer to the description of the parallel port for definition of this pin in ECP and EPP mode.

VCC An active low input on this pin indicates that the printer has

received data and is ready to accept more data. Refer to the description of the parallel port for the definition of this pin in ECP and EPP mode.

VCC Output line for detection of printer selection. Refer to the

12ts5V

description of the parallel port for the definition of this pin in ECP and EPP mode.

VCC Output line for the printer initialization. Refer to the

12ts5V

description of the parallel port for the definition of this pin in ECP and EPP mode.

VCC An active low input on this pin indicates that the printer has

encountered an error condition. Refer to the description of the parallel port for the definition of this pin in ECP and EPP mode.

VCC An active low output from this pin causes the printer to auto

12ts5V

feed a line after a line is printed. Refer to the description of the parallel port for the definition of this pin in ECP and EPP mode.

VCC An active low output is used to latch the parallel data into the

12ts5V

printer. Refer to the description of the parallel port for the definition of this pin in ECP and EPP mode.

VCC Parallel port data bus bit 0. Refer to the description of the

12ts5V

parallel port for the definition of this pin in ECP and EPP mode.

VCC Parallel port data bus bit 1.

12ts5V

VCC Parallel port data bus bit 2.

12ts5V

VCC Parallel port data bus bit 3.

12ts5V

VCC Parallel port data bus bit 4.

12ts5V

VCC Parallel port data bus bit 5.

12ts5V

VCC Parallel port data bus bit 6.

12ts5V

VCC Parallel port data bus bit 7.

12ts5V

Dec., 2006

V0.25P

Page 13

5.6 H/W Monitor

Pin No. Pin Name Type PWR Description

92-94, VIN7~VIN5 AIN VCC Voltage Input 7 ~ 5. 96-98 VIN3~VIN1 AIN VCC Voltage Input 3 ~ 1. 7 FANIN1 IN 8 FAN_CTL1 O12 VCC Fan 1 control output. This pin provides PWM duty-cycle

9 FANIN2 IN 10 FAN_CTL2 O12 VCC Fan 2 control output. This pin provides PWM duty-cycle

11 FANIN3 IN 12 FAN_CTL3 O12 VCC Fan 3 control output. This pin provides PWM duty-cycle

87 D3+ AIN VCC CPU thermal diode/transistor temperature sensor input. 88 D2+ AIN VCC CPU thermal diode/transistor temperature sensor input. 89 D1+ AIN VCC CPU thermal diode/transistor temperature sensor input. 90 VREF AOUT 73 PME#/GPIO21 OD12

26 GPIO0 I/OOD

27 GPIO1 I/OOD

28 GPIO2 I/OOD

29 GPIO3/

Voltage_Fault1#/ IRRX

36 GPIO4/

Voltage_Fault2#/ BEEP

I/OD

I/OOD

ATX Power Good. 95 ATXPG/VIN4 AIN VCC Voltage Input 4. PCI Reset # signal input. 91 PCIRSTIN#/VIN8 AIN VCC Voltage Input 8.

VCC Fan 1 tachometer input.

output or a voltage output.

VCC Fan 2 tachometer input.

output or a voltage output.

VCC Fan 3 speed input.

output or a voltage output.

VCC Voltage sensor output.

Generated PME event. It supports the PCI PME# interface. This signal allows the peripheral to request the system to

12t

VSB

wake up from the S3 state. General Purpose IO.

VCC General purpose IO.

12t

1. Support Level and Pulse mode output.

2. Open drain and drive select

3. Without input de-bounce.

VCC General purpose IO.

12t

1. Support Level and Pulse mode output.

2. Open drain and drive select

3. Without input de-bounce.

VCC General purpose IO.

12t

1. Support Level and Pulse mode output.

2. Open drain and drive select

3. Without input de-bounce.

VCC

12t

General purpose IO.

1. Support Level and Pulse mode output.

2. Open drain and drive select

3. Without input de-bounce.

Voltage fault indication for VIN1 abnormal event. Infrared Receiver input. (Powered by Vcc)

VCC General purpose IO.

12t

1. Support Level and Pulse mode output.

2. Open drain and drive select

3. Without input de-bounce.

F71806

Dec., 2006

V0.25P

Page 14

F71806

Voltage fault indication for VIN2 abnormal event.

Beep Pin.

53 GPIO5/

Voltage_Fault3#/ FANCTL1

I/OOD

VCC

12t

General purpose IO.

1. Support Level and Pulse mode output.

2. Open drain and drive select

3. Without input de-bounce. Voltage fault indication for VIN3 abnormal event.

Fan 1 control output. This pin provides PWM duty-cycle open drain output for Intel 4-pin Fan.

55 GPIO6/

Voltage_Fault4#/ WDTRST1#/ OVT#

I/OOD

VCC

12t

General purpose IO.

1. Support Level and Pulse mode output.

2. Open drain and drive select

3. Without input de-bounce. Voltage fault indication for VIN4 abnormal event.

Watch dog timer signal output 1. Over temperature signal output.

77 OVT#/

GPIO24/ WDTRST2#

I/OOD

VSB

12t

Over temperature signal output.(Default 85°C)

General purpose IO. Open drain and drive select by register. Watch dog timer signal output 2.

5.7 ACPI function pins

Pin No. Pin Name Type PWR Description

30 RSTCON#/GPIO10 I/OD

32 PWROK1/GPIO12 I/OD

I/OOD

LED_VCC

VCC

12t

VCC

16t

VCC

12t

VCC

16t

VCC

16t

VCC

16t

RESET connect# with 50ms debouce function, it connects to reset button, and also other reset source on the motherboard. If the register RSTCON_EN (5h) is set to 1, the pin 30 will infect PCIRST1# ~ PCIRST5# outcome. If the register RSTCON_EN is set to 0, the pin 30 will infect PWROK1 and PWROK2 outcome. General purpose IO.

It is a output buffer of RSTCON# and LRESET#. 31 PCIRST1#/GPIO11 I/OOD General purpose IO. Pin1 RST_DRV = 1(high) : OD = 0(low) : Drive PWROK function, It is power good signal of VCC, which is delayed 400ms (default) as VCC arrives at 2.8V. General purpose IO. It is a output buffer of RSTCON# and LRESET#. 33 PCIRST2#/GPIO13 I/OOD General purpose IO. Pin1 RST_DRV = 1(high) : OD =0(low): Drive It is a output buffer of RSTCON# and LRESET#. 34 PCIRST3#/GPIO14 I/OOD General purpose IO. Pin1 RST_DRV = 1(high) : OD =0(low) : Drive It is a output buffer of RSTCON#,LRESET# and PCIRSTIN. 48 PCIRST5#/GPIO15

General purpose IO. Pin1 RST_DRV = 1(high) : OD =0(low) : Drive

Dec., 2006

V0.25P

Page 15

Power LED for VCC.

68 COPEN# INt VBAT Case Open Detection #. This pin is connected to a specially

72 PWSWOUT#

/GPIO20

/GPIO22

76 PSON#/GPIO23

78 PWROK2/GPIO25/

LED_VSB

85 RSMRST#/GPIO27 I/OD

F71806

designed low power CMOS flip-flop backed by the battery for case open state preservation during power loss.

I/OD OD12

I/OD IN

Main power switch button input. 75 PWSWIN#

I/OD OD12

I/OD I/OD

VSB

12t

VSB Panel Switch Output. This pin is low active and pulse output.

General purpose IO.

12t

VSB

12t

VSB Power supply on-off control output. Connect to ATX power

General purpose IO.

12t

VSB

12t

VSB

16t

VSB

12t

S3# Input is Main power on-off switch input. 71 S3#/GPIO31

General purpose IO.

It is power on request output#.

General purpose IO.

supply PS_ON# signal.

PWROK function, It is power good signal of VCC, which is delayed 400ms (default) as VCC arrives at 2.8V. General purpose IO. Power LED for VSB It is a output buffer of RSTCON#,LRESET# and PCIRSTIN. 84 PCIRST4#/GPIO26 I/OOD General purpose IO. Pin1 RST_DRV = 1(high) : OD =0(low) : Drive Resume Reset# function, It is power good signal of VSB, which is delayed 66ms as VSB arrives at 2.3V. General purpose IO.

5.8 VID controlling pins

Pin No. Pin Name Type PWR Description

13,14, 16,17, 18,19 20-25 VIDOUT[5:0] OD12 VCC CPU VID output pins. 79 SLOTOCC# IN

VIDIN[5:0] IN

5.9 N.C pins

Pin No. Pin Name Description

45,46,80,81,82,83 N.C N.C pins

VCC CPU VID input pins.

1. Special level input VIHÆ 0.9, VIL Æ 0.6.

2. Power by VCC.

VSB CPU SLOTOCC# input.

Dec., 2006

V0.25P

Page 16

6 Function Description

6.1 Power on Strapping Options

The F71806 provides four pins for power on hardware strapping to select functions. There is a form to describe how to

set the functions you want.

Pin No. Symbol Value Description

1 Pin31/33/34/48/84 will be defined a Open Drain pin. (Default) 1 RST_DRV

F71806

6.2 ACPI

The Advanced Configuration and Power Interface (ACPI) is a system for controlling the use of power in a

computer. It lets computer manufacturer and user to determine the computer’s power usage dynamically.

S3 and S5. S0 is a full-power state; the computer is being actively used in this state. The other two are called

sleep states and reflect different power consumption when power-down. S3 is a state that the processor is

powered down but the last procedural state is being stored in memory which is still active. S5 is a state that

memory is off and the last procedural state of the processor has been stored to the hard disk. Take S3 and S5

0 Pin31/33/34/48/84 will be defined a Drive pin.

1 Fan control mode: PWM mode. ( Default) 2 PWM_DC

0 Fan control mode: Linear mode.

1 Chip selection in configuration 4E. (Default) 124 Config4E_2E

0 Chip selection in configuration 2E.

There are three ACPI states that are of primary concern to the system designer and they are designated S0,

as comparison, since memory is fast, the computer can quickly come back to full-power state, the disk is slower

than the memory and the computer takes longer time to come back to full-power state. However, since the

memory is off, S5 draws the minimal power comparing to S0 and S3.

It is anticipated that only the following state transitions may happen:

S0→S3, S0→S5, S5→S0, S3→S0 and S3→S5. Among them, S3→S5 is illegal transition and won’t be allowed by state machine. It is necessary to enter S0 first in order to get to S5 from S3. As for transition S5→S3 will occur only as an immediate state during state transition from S5→S0. It isn’t allowed in the normal state transition.

The below diagram described the timing, the always on and always off, keep last state could be set in

control register. In keep last state mode, one register will keep the status of before power loss. If it is power on

Dec., 2006

V0.25P

Page 17

before power loss, it will remain power on when power is resumed, otherwise, if it is power off before power loss,

it will remain power off when power is resumed.

F71806

VBAT VSB RSMRST# S3# PS_ON# PSIN# PSOUT# VCC3V

VBAT VSB RSMRST# S3# PS_ON# PSIN# PSOUT#

DEFAULT TIMING Always off

VCC3V

ALways ON TIMING

6.3 PCI Reset and PWROK Signals

The F71806 supports 5 output buffers for 5 reset signals. If the register RSTCON_EN (5h) is set to 1, the pin

RSTCON# will infect PCIRST1# ~ PCIRST5# outcome. Then, the result of PCIRST# outcome will be affected by conditions

Dec., 2006

V0.25P

Page 18

as below:

PCIRST1# Æ Output buffer of RSTCON# and LRESET#.

PCIRST2# Æ Output buffer of RSTCON# and LRESET#.

PCIRST3# Æ Output buffer of RSTCON# and LRESET#.

PCIRST4# Æ Output buffer of RSTCON#, LRESET# and PCIRSTIN#

PCIRST5# Æ Output buffer of RSTCON#, LRESET# and PCIRSTIN#

+3.3V

Delay

S3#

S3# ATXPG

ATXPG RSTCON#

RSTCON#

PWROK1/2

RSTCON#

RSTCON# LRESET#

LRESET#

PCIRSTIN#

F71806

PCIRST1~3#

PCIRST4~5#

So far as the PWROK issue is as above figure. PWROK is delayed 400ms (default) as VCC arrives 2.8V,

and the delay timing can be programmed by register. (100ms ~ 400ms)

In the figure, the RSTCON# will be implemented by register RSTCON_EN. If RSTCON_EN be set to 0, the

RSTCON# pin will affect PWROK outputs. If RSTCON_EN be set to 1, the RSTCON# pin will affect PCIRST

outputs (Default).

6.4 Hardware Monitor

6.4.1 Analog Input

The F71806 provides 8 pins (8-bit) ADC voltage inputs. These input voltages should be positive and is limited

at range of 0v to 2.048V. The minimum resolution (1-LSB) is 8mV. If the voltage is over this range, the divider

resistor must be added and the divided voltage is also in the range of 0V to 2.048V.

The maximum input voltage of the analog pin is 2.048V because the 8-bit ADC has a 8mv LSB. Really, the

application of the PC monitoring would most often be connected to power suppliers. The voltage range of 0V to

2.048V can be connected to these analog inputs. The 3.3V and VSB5V should be reduced a factor with external

resistors so as to obtain the input range..

There are 8 voltage inputs in the F71806 and the voltage divided formula is shown as follows:

If we choose R1=27K, R2=5.1K, the exact input voltage for V+12v will be 1.907V, which is within the

tolerance. As for application circuit, it can be refer to the figure shown as follows.

×=

VVIN

For instance, where V

is the analog input voltage.

+12V

Dec., 2006

V0.25P

Page 19

F71806

VIN(Lower than 2.048V)

F71806F

10K, 1%

Typical Thermister Connection

10K, 25 C

6.4.2 Temperature Monitoring

The F71806 can be measured from 0°C to 140°C. The status depends on different situation. As connected

to a BJT thermal diode, detected temperature ranges from 0°C to 140°C. As connected to a thermistor, detected

temperature ranges from 0°C to 127°C. The temperature format is as the following table:

Temperature ( High Byte ) Digital Output

VREF

D1/D2/D3

AGND(D-)

C 2200pF

0°C 0000 0000

1°C 0000 0001

25°C 0001 1001

50°C 0011 0010

75°C 0100 1011

90°C 0101 1010

100°C 0110 0100

140°C 1000 1100

2N3906

The F71806 can provide two external thermal sensors to detect temperature. When monitored temperature

exceeds the over-temperature threshold value, OVT# (pin77) will be asserted until the temperature goes below

the hysteresis temperature.

Dec., 2006

V0.25P

Page 20

ote

6.4.3 Fan speed count

Inputs are provided by the signals from fans equipped with tachometer outputs. The level of these signals

should be set to TTL level, and maximum input voltage cannot be over VCC. If the input signals from the

HYST

OVT#

F71806

tachometer outputs are over the VCC, the external trimming circuit should be added to reduce the voltage to

obtain the input specification. The normal circuit and trimming circuits are shown as follows:

+12V

Pull-up resister

4.7K Ohms

+12V

FAN Out

GND

Fan with Tach Pull-Up to +12V, or Totern-Pole Output and Register Attenuator

22K~30K

Fan Input

10K

FANIN 1

F71806F

FAN

Connector

Fan with Tach Pull-Up to +12V, or Totem-Pole Putput and Zener Clamp

+12V

FAN Out

GND

+12V

Pull-up resister < 1K or totem-pole output

> 1K

3.3V Zener

Fan Input

FANIN 1

F71806F

+5V

FAN Out

GND

+5V

Pull-up resister

4.7K Ohms

1K~2.7K

Fan Input

10K

FANIN1

F71806F

FAN

Connector

+5V

FAN Out

GND

+5V

Pull-up resister < 1K or totem-pole output

> 1K

3.3V Zener

Fan Input

FANIN1

F71806F

Fan with Tach Pull-Up to +5V, or Totern-Pole Output and Register Attenuator

Determine the fan counter according to:

Fan with Tach Pull-Up to +5V, or

m-Pole Putput and Zener

Dec., 2006

V0.25P

Page 21

In other words, the fan speed counter has been read from register, the fan speed can be evaluated by the

following equation. As for fan, it would be best to use 2 pulses tachmeter output per round.

6.4.4 Fan speed control

The F71806 provides 2 fan speed control methods: 1. Linear FAN Control 2. PWM Duty Cycle

Count

RPM

105.1 ×

RPM

105.1 ×

Count

F71806

Linear Fan Control

The range of DC output is 0~3.3V, controlled by 8-bit register (CR6Bh for FAN1, CR7Bh for FAN2 and

CR8Bh for FAN3). 1 LSB is about 0.013V. The output DC voltage is amplified by external OP circuit, thus to

reach maximum FAN OPERATION VOLTAGE, 12V.

The output voltage will be given as followed:

And the suggested application circuit for linear fac control would be:

DC OUTPUT VOLTAGE

3.3(V) tageOutput_vol ×=

ValueRegister bit -8 Programmed

255

12V

PMOS

JP1

R10K

DC FAN Control with OP

C 47u

CON3

3 2 1

1N4148

0.1u

4.7K

R27K

FANIN MONITOR

R 10K

3.9K

LM358

PWM duty Fan Control

The duty cycle of PWM can be programmed by a 8-bit register which are defined in the CR6Bh, CR7Bh and

CR8Bh. The default duty cycle is set to 100%, that is, the default 8-bit registers is set to FFh. The expression of

duty can be represented as follows.

Dec., 2006

V0.25P

Page 22

F71806

(%)Duty_cycle ×=

+12V

PWM Clock Input

NMOS

6.4.5 Fan speed control mechanism

There are 3 modes to control fan speed and they are manual, fan speed mode and temperature mode. For

manual mode, it generally acts as PWM fan speed control. As for speed mode and temperature mode, they are

more intelligent fan speed control and described as below:

PNP Transistor

FAN

255

PWM Clock Input

ValueRegister bit -8 Programmed

NMOS

+5V

%100

PNP Transistor

FAN

Fan Speed mode

Fan speed mode is an intelligent method according to expected fan speed pre-setting by BIOS. In the

beginning, fan speed will be operated at full speed and the F71806 will get the full speed count value. After that,

the fan speed will automatically rotate according to the expected fan speed setting by BIOS. For instance, the

Temperature mode

At this mode, F71806 provides the clever system to automatically control fan speed related to temperature

system. The F71806 can provide three temperature boundaries and three intervals for user setting, and each

interval has its related fan speed count. All these values should be set by BIOS first. In the F71806 design, the

F71806 will auto-generate temperature boundaries (average value) between those boundaries that user setting,

and it will auto-produce interval fan speed count (average value) between users setting value.

If the temperature value is set to 40, 50 and 90°C, it will auto-generate two temperature boundaries value of

45°C (This value is calculated automatically by hardware design of the F71806. (450+40)/2 =45 ) and 70°C. The

same way, the related desired fan speed counts for each interval are 4200RPM, 3600RPM, 3000RPM,

2500RPM, 2000RPM and Stop Counts. When the temperature is within 50~70°C, the fan speed counts will be

3000RPM (Registers CRA4h~CRA9h, CRB4h~CRB9h and CRC4h~CRC9h). The F71806 will auto-adjust

PWMOUT (PWM_DUTY) to make fan speed match the expected value. It can be said that the fan will be turned

on with a specific speed set by BIOS and automatically controlled with the temperature varying. The F71806 will

Dec., 2006

V0.25P

Page 23

take charge of all the fan speed control and need no software support.

F71806

Auto-Generated (Average value)

90 Degree C

70 Degree C

50 Degree C

45 Degree C

40 Degree C

Desired Counts (RPM)

4200

3600

3000

2500

2000

Stop Counts

Auto-Generated (Average value)

Default Status Sketch

PWMOUT Duty-cycle operating process

In both “FAN SPEED” and “TEMPERATURE” modes, F71806 adjust PWMOUT (PWM_DUTY1 (CR6B) of

Fan1, PWM_DUTY2 (CR7B) of Fan2, PWM_DUTY3 (CR8B) of Fan3) duty-cycle according to current fan count

and expected fan count. It will operate as follows:

(1). When expected count is FFFFh, PWMOUT duty-cycle (PWM_DUTY)will be set to 00h to turn off fan.

(2). When expected count is 0000h, PWMOUT duty-cycle (PWM_DUTY) will be set to FFh to turn on fan

with full speed.

(3). If both (1) and (2) are not true and KEEP_STOP (see INDEX 60h) is set to 0:

(a). When PWMOUT duty-cycle decrease to STOP_DUTY(≠ 00h), obviously the duty-cycle will

decrease to 00h next, F71806 will keep duty-cycle at 00h 3 seconds

. After that, F71806 starts to

compare current fan count and expected count in order to increase or decrease its duty-cycle. This

ensures that if there is any glitch during the 3 seconds

period, F71806 will ignore it.

(b). When PWMOUT duty-cycle increase from 00h to START_DUTY(≠ 00h), F71806 also will keep

duty-cycle at START_DUTY 3 seconds

. After that, F71806 starts to compare current fan count and

expected count in order to increase or decrease its duty-cycle. This ensures that if there is any

glitch during the 3 seconds

period, F71806 will ignore it.

Note 1: The period of HOLD_DUTY_TIME can be programmed at INDEX 67h of FAN1.

Dec., 2006

V0.25P

Page 24

)

START

STOP

START

F71806

STOP

6.4.6 FAN_FAULT#

Fan_Fault will be asserted ( throuth PME# Pin 73) when the fan speed doesn’t meet the expected fan

speed within a programmable period (default is 3 seconds) when PWMOUT duty-cycle is 100%.

Current Fan Count

Expected Fan Count

100%

Duty-cycle

Fan_Fault#

3 sec(default

6.4.7 VOLT_FAULT# (Voltage Fault Signal)

When voltage leaps from the security range setting by BIOS, the warning signal VOLT_FAULT# will be

activated. Shown in figure.

Dec., 2006

V0.25P

Page 25

6.5 FDC

F71806

High limit

Low limit

VOLT_FAULT#

The Floppy Disk Controller provides the interface between a host processor and one floppy disk drives. It

integrates a controller and a digital data separator with write pre-compensation, data rate selection logic,

microprocessor interface, and a set of registers. The FDC supports data transfer rates of 250 Kbps, 300 Kbps,

500 Kbps, and 1 Mbps. It operates in PC/AT mode and supports 3-mode type drives.

The FDC configuration is handled by software and a set of Configuration registers. Status, Data, and

Control registers facilitate the interface between the host microprocessor and the disk drive, providing

information about the condition and/or state of the FDC. These configuration registers can select the data rate,

enable interrupts, drives, and DMA modes, and indicate errors in the data or operation of the FDC/FDD. The

controller manages data transfers using a set of data transfer and control commands. These commands are

handled in three phases: Command, Execution, and Result. Not all commands utilize all these three phases.

6.6 UART

The F71806 provides two UART ports and supports IRQ sharing for system application. The UARTs are

used to convert data between parallel format and serial format. They convert parallel data into serial format on

transmission and serial format into parallel data on receiver side. The serial format is formed by one start bit,

followed by five to eight data bits, a parity bit if programmed and one ( 1.5 or 2 ) stop bits. The UARTs include

complete modem control capability and an interrupt system that may be software trailed to the computing time

required to handle the communication link. They have FIFO mode to reduce the number of interrupts presented

to the host. Both receiver and transmitter have a 16-byte FIFO.

6.7 Parallel Port

The parallel port in F71806 supports an IBM XT/AT compatible parallel port ( SPP ), bi-directional paralle

Dec., 2006

V0.25P

Page 26

port ( BPP ), Enhanced Parallel Port ( EPP ), Extended Capabilities Parallel Port ( ECP ) mode. Refer to the

configuration registers for more information on selecting the mode of operation.

F71806

7 Register Descriptions

7.1 Global Control Registers

The configuration register is used to control the behavior of the corresponding devices. To configure the

index port and data port are 0x4E and 0x4F respectively. Pull down the SOUT1 pin to change the default value to

0x2E/0x2F (Can be programmed by register!). To enable configuration, the entry key 0x87 must be written to the

index port. To disable configuration, write exit key 0xAA to the index port. Following is a example to enable

configuration and disable configuration by using debug.

-o 4e 87

-o 4e 87 ( enable configuration )

-o 4e aa ( disable configuration )

Dec., 2006

V0.25P

Page 27

7.1.1 Software Reset Register  Index 02h

Bit Name R/W Default Description

7-1 Reserved - - Reserved

0 SOFT_RST R/W 0 Write 1 to reset the register and device powered by VDD ( VCC ).

7.1.2 Logic Device Number Register  Index 07h

Bit Name R/W Default Description

7-0 LDN R/W 00h 00h: Select FDC device configuration registers.

F71806

01h: Select UART 1 device configuration registers.

02h: Select UART 2 device configuration registers.

03h: Select Parallel Port device configuration registers.

04h: Select Hardware Monitor device configuration registers.

05h: Reserved.

06h: Select GPIO device configuration registers.

07h: Select VID device configuration registers.

0ah: Select PME & ACPI device configuration registers.

7.1.3 Chip ID Register  Index 20h

Bit Name R/W Default Description

7-0 CHIP_ID1 R 03h Chip ID 1 of F71806.

7.1.4 Chip ID Register  Index 21h

Bit Name R/W Default Description

7-0 CHIP_ID2 R 41h Chip ID2 of F71806.

7.1.5 Vendor ID Register  Index 23h

Bit Name R/W Default Description

Dec., 2006

V0.25P

Page 28

7-0 VENDOR_ID1 R 19h Vendor ID 1 of Fintek devices.

7.1.6 Vendor ID Register  Index 24h

Bit Name R/W Default Description

7-0 VENDOR_ID2 R 34h Vendor ID 2 of Fintek devices.

7.1.7 Software Power Down Register  Index 25h

Bit Name R/W Default Description

F71806

7-6 Reserved - - Reserved

5 Reserved R/W 0

4 SOFTPD_HM R/W 0

3 SOFTPD_PRT R/W 0

2 SOFTPD_UR2 R/W 0

1 SOFTPD_UR1 R/W 0

0 SOFTPD_FDC R/W 0

Reserved.

Power down the Hardware Monitor device. This will stop the Hardware Monitor

clock.

Power down the Parallel Port device. This will stop the Parallel Port clock.

Power down the UART 2 device. This will stop the UART 2 clock.

Power down the UART 1 device. This will stop the UART 1 clock.

Power down the FDC device. This will stop the FDC clock.

7.1.8 UART IRQ Sharing Register  Index 26h

Bit Name R/W Default Description

7 CLK24M_SEL W 0

0: external clock is 48MHz

1: external clock is 24MHz

6-2 Reserved - -

1 IRQ_MODE R/W 0

o IRQ_SHAR R/W 0

Reserved.

0: PCI IRQ sharing mode (low level).

1: ISA IRQ sharing mode (low pulse).

0: disable IRQ sharing of two UART devices.

1: enable IRQ sharing of two UART devices.

Dec., 2006

V0.25P

Page 29

7.1.9 Port Select Register  Index 27h

Bit Name R/W Default Description

F71806

7-5 Reserved - -

4 PORT_4E_EN W -

3-0 Reserved - -

Reserved.

The default value of the register is power on trap by SOUT1.

Pull down to select configuration register port 2E/2F, else 4E/4F.

The port could be changed by writing this register.

0: Configuration register port is 2E/2F.

1: Configuration register port is 4E/4F.

Reserved.

7.1.10 Power LED Function Select Register  Index 28h

Bit Name R/W Default Description

7 Reserved - -

6-5 VDDLED_SEL R/W

2’b11

Reserved.

VDDLED function select, powered by VDD.

00: VDDLED always output low.

4 VDDLED_EN R/W 0

3 Reserved - -

01: VDDLED tri-state

10: VDDLED output 0.5Hz clock.

11: VDDLED output 1Hz clock.

( clock output is inverse with VSBLED clock output )

(Powered by VDD)

VDDLED enable, powered by VDD.

0: the function of PCIRST5#/GP15/VDDLED is PCIRST5#/GP15.

1: the function of PCIRST5#/GP15/VDDLED is VDDLED.

(Powered by VDD)

Reserved.

Dec., 2006

V0.25P

Page 30

F71806

2-1 VSBLED_SEL R/W

0 VSBLED_EN R/W 0

2’b11

VSBLED function select, powered by VSB3V.

00: VSBLED always output low.

01: VSBLED tri-state

10: VSBLED output 0.5Hz clock.

11: VSBLED output 1Hz clock.

(Powered by VSB)

VSBLED enable, powered by VSB3V.

0: the function of PWROK2/GP25/VSBLED is PWROK2/GP25.

1: the function of PWROK2/GP25/VSBLED is VSBLED.

(Powered by VSB)

7.1.11 Multi Function Select 1 Register  Index 29h (Powered by VDD)

Bit Name R/W Default Description

7 RST_DRV_DIS R 1

6-5 Reserved - -

4 PIN29_IRRX_EN W 0

3 BEEP_GPEN R/W 0

2 FANCTL1_GPEN R/W 0

1 VIN8_EN R/W 0

0 VIN4_EN R/W 0

0: enable PCIRSTx pin driving.

1: disable PCIRSTx pin driving.

Power on trap by DTR2#

Reserved.

0: the function of pin 29 is GPIO3/Voltage_fault1.

1: the function of pin 29 is IRRX.

0: the function of GPIO4/Voltage_fault2#/BEEP is GPIO4/Voltage_fault2#.

1: the function of GPIO4/Voltage_fault2#/BEEP is BEEP.

0: the function of GPIO5/Voltage_fault3#/FANCTL1 is PIO5/Voltage_fault3#.

1: the function of GPIO5/Voltage_fault3#/FANCTL1 is FANCTL1.

0: the function of PCIRSTIN#/VIN8 is PCIRSTIN#.

1: the function of PCIRSTIN#/VIN8 is VIN8.

0: the function of ATXPG/VIN4 is ATXPG.

1: the function of ATXPG/VIN4 is VIN4.

Dec., 2006

V0.25P

Page 31

7.1.12 Multi Function Select 2 Register  Index 2Ah (Powered by VDD)

Bit Name R/W Default Description

F71806

7 Reserved - 6 GPIO16_EN R/W 0

5 GPIO15_EN R/W 0

4 GPIO14_EN R/W 0

3 GPIO13_EN R/W 0

2 GPIO12_EN R/W 0

1 GPIO11_EN R/W 0

Reserved.

0: the function of IRTX/GPIO16 is IRTX.

1: the function of IRTX/GPIO16 is GPIO16.

It works when VDDLED_EN is 0.

0: the function of PCIRST5#/GPIO15 is PCIRST5#.

1: the function of PCIRST5#/GPIO15 is GPIO15.

0: the function of PCIRST3#/GPIO14 is PCIRST3#.

1: the function of PCIRST3#/GPIO14 is GPIO14.

0: the function of PCIRST2#/GPIO13 is PCIRST2#.

1: the function of PCIRST2#/GPIO13 is GPIO13.

0: the function of PWROK1/GPIO12 is PWROK1.

1: the function of PWROK1/GPIO12 is GPIO12.

0: the function of PCIRST1#/GPIO11 is PCIRST1#.

1: the function of PCIRST1#/GPIO11 is GPIO11.

0 GPIO10_EN R/W 0

0: the function of RSTCON#/GPIO10 is RSTCON#.

1: the function of PCIRST0#/GPIO10 is GPIO10.

7.1.13 Multi Function Select 3 Register  Index 2Bh (Powered by VDD)

Bit Name R/W Default Description

7-6 GPIO6_SEL R/W 00

5 VIN3F_EN R/W 0

00: the function of GPIO6/Voltage_fault4#/WDTRST1#/OVT# is GPIO6.

01: the function of GPIO6/Voltage_fault4#/WDTRST1#/OVT# is

Voltage_fault4#.

10: the function of GPIO6/Voltage_fault4#/WDTRST1#/OVT# is WDTRST1#.

11: the function of GPIO6/Voltage_fault4#/WDTRST1#/OVT# is OVT#.

( Powered by VDD, reset by VDD3VOK )

Functions when FANCTL1_GPEN is 0.

0: the function of GPIO5/Voltage_fault3# is GPIO5.

1: the function of GPIO5/Voltage_fault3# is Voltage_fault3#.

Dec., 2006

V0.25P

Page 32

F71806

4 VIN2F_EN R/W 0

3 VIN1F_EN R/W 0

2 VIN7_ID2_EN R/W 0

1 VIN7_ID1_EN R/W 0

0 VIN7_ID0_EN R/W 0

Functions when BEEP_GPEN is 0.

0: the function of GPIO4/Voltage_fault2# is GPIO4.

1: the function of GPIO4/Voltage_fault2# is Voltage_fault2#.

0: the function of GPIO3/Voltage_fault1# is GPIO3.

1: the function of GPIO3/Voltage_fault1# is Voltage_fault1#.

0: the function of GPIO2 pin is GPIO2.

1: Reserved.

0: the function of GPIO1 pin is GPIO1.

1: Reserved.

0: the function of GPIO0 pin is GPIO0.

1: Reserved.

7.1.14 Multi Function Select 4 Register  Index 2Ch (Powered by VSB3V)

Bit Name R/W Default Description

7 GPIO27_EN R/W 0

6 GPIO26_EN R/W 0

5 GPIO25_EN R/W 0

4 Reserved - 3 GPIO23_EN R/W 0

2 GPIO22_EN R/W 0

1 GPIO21_EN R/W 0

0: the function of RSMRST#/GPIO27 is RSMRST#.

1: the function of RSMRST#/GPIO27 is GPIO27.

0: the function of PCIRST4#/GPIO26 is PCIRST4#.

1: the function of PCIRST4#/GPIO26 is GPIO26.

Functions when VSBLED_EN is 0.

0: the function of PWROK2/GPIO25 is PWROK2.

1: the function of PWROK2/GPIO25 is GPIO25.

Reserved.

0: the function of PSON#/GPIO23 is PSON#.

1: the function of PSON#/GPIO23 is GPIO23.

0: the function of PWSWIN#/GPIO22 is PWSWIN#.

1: the function of PWSWIN#/GPIO22 is GPIO22.

0: the function of PME#/GPIO21 is PME#.

1: the function of PME#/GPIO21 is GPIO21.

Dec., 2006

V0.25P

Page 33

F71806

0 GPIO20_EN R/W 0

0: the function of PWSWOUT#/GPIO20 is PWSWOUT#.

1: the function of PWSWOUT#/GPIO20 is GPIO20.

7.1.15 Multi Function Select 5 Register  Index 2Dh (Powered by VSB3V)

Bit Name R/W Default Description

7 CLK24M_SEL R 0

6 PIN29_IRRX_EN R 0

5 PIN77_DRV_EN R/W 0

4 PIN70_DRV_EN R/W 0

0: external clock is 48MHz

1: external clock is 24MHz.

0: the function of pin 29 is GPIO3/Voltage_fault1.

1: the function of pin 29 is IRRX.

Set the output type of pin 77 when programmed as GPIO24.

0: open drain.

1: push-pull.

Set the output type of pin 70 when programmed as GPIO30.

0: open drain.

1: push-pull.

3-2 GPIO24_SEL R/W 01

1 GPIO31_EN R/W 0

0 GPIO30_EN R/W 0

00: the function of OVT#/GPIO24/WDTRST2# is GPIO24.

01: the function of OVT#/GPIO24/WDTRST2# is OVT#.

10: the function of OVT#/GPIO24/WDTRST2# is WDTRST2#.

11: Reserved.

0: the function of S3#/GPIO31 is S3#.

1: the function of S3#/GPIO31 is GPIO31.

0: the function of IRRX/GPIO30 is IRRX.

1: the function of IRRX/GPIO30 is GPIO30.

Dec., 2006

V0.25P

Page 34

7.2 FDC Registers

7.2.1 Logic Device Number Register

Logic Device Number Register  Index 07H

Bit Name R/W Default Description

7-0 LDN R/W 00h 00h: Select FDC device configuration registers.

F71806

01h: Select UART 1 device configuration registers.

02h: Select UART 2 device configuration registers.

7.2.2 FDC Configuration Registers

FDC Device Enable Register  Index 30h

Bit Name R/W Default Description

7-1 Reserved - - Reserved

0 FDC_EN R/W 1 0: disable FDC.

03h: Select Parallel Port device configuration registers.

04h: Select Hardware Monitor device configuration registers.

05h: Reserved.

06h: Select GPIO device configuration registers.

07h: Select VID device configuration registers.

0ah: Select PME & ACPI device configuration registers.

1: enable FDC.

Base Address High Register  Index 60h

Bit Name R/W Default Description

7-0 BASE_ADDR_HI R/W 03h The MSB of FDC base address.

Base Address Low Register  Index 61h

Bit Name R/W Default Description

7-0 BASE_ADDR_LO R/W F0h The LSB of FDC base address.

Dec., 2006

V0.25P

Page 35

IRQ Channel Select Register  Index 70h

Bit Name R/W Default Description

7-4 Reserved - - Reserved.

3-0 SELFDCIRQ R/W 06h Select the IRQ channel for FDC.

DMA Channel Select Register  Index 74h

Bit Name R/W Default Description

7-3 Reserved - - Reserved.

2-0 SELFDCDMA R/W 010 Select the DMA channel for FDC.

F71806

FDD Mode Register  Index F0h

Bit Name R/W Default Description

7-4 Reserved - - Reserved.

3-2 IF_MODE R/W 11 00: Model 30 mode.

01: PS/2 mode.

10: Reserved.

11: AT mode (default).

1 FDMAMODE R/W 1 0: enable burst mode.

1: non-busrt mode (default).

0 EN3MODE R/W 0 0: normal floppy mode (default).

1: enhanced 3-mode FDD.

FDD Drive Type Register  Index F2h

Bit Name R/W Default Description

7-2 Reserved - - Reserved.

1-0 FDD_TYPE R/W 11 FDD drive type.

FDD Selection Register  Index F4h

Bit Name R/W Default Description

7-5 Reserved - - Reserved.

Dec., 2006

V0.25P

Page 36

4-3 FDD_DRT R/W 00 Data rate table select, refer to table A.

2 Reserved - - Reserved.

1-0 FDD_DT R/W 00 Drive type select, refer to table B.

TABLE A

Data Rate Table Select Data Rate Selected Data Rate DENSEL

F71806

00: select regular drives and 2.88 format.

01: 3-mode drive.

10: 2 mega tape.

11: reserved.

FDD_DRT[1] FDD_DRT[0] DATARATE1 DATARATE0 MFM FM

0 0 500K 250K 1

0 0

0 1

1 0

TABLE B

Drive Type

FDD_DT1 FDD_DT0

0 1 300K 150K 0

1 0 250K 125K 0

1 1 1Meg --- 1

0 0 500K 250K 1

0 1 500K 250K 0

1 0 250K 125K 0

1 1 1Meg --- 1

0 0 500K 250K 1

0 1 2Meg --- 0

1 0 250K 125K 0

1 1 1Meg --- 1

DRVDEN0 Remark

0 DENSEL 4/2/1 MB 3.5”

0 1 DATARATE1

1 0 DENSEL#

1 1 DATARATE0

2/1 MB 5.25”

1/1.6/1 MB 3.5” (3-Mode )

Dec., 2006

V0.25P

Page 37

7.2.3 Device Registers

7.2.3.1 Status Register A (PS/2 mode)  Base + 0

Bit Name R/W Default Description

7 INTPEND R 0 This bit indicates the state of the interrupt output.

6 DRV2_N R - 0: a second drive has been installed.

5 STEP R 0 This bit indicates the complement of STEP# disk interface output.

4 TRK0_N R - This bit indicates the state of TRK0# disk interface input.

3 HDSEL R 0 This bit indicates the complement of HDSEL# disk interface output.

2 INDEX_N R - This bit indicates the state of INDEX# disk interface input.

1 WPT_N R - This bit indicates the state of WPT# disk interface input.

0 DIR R 0 This bit indicates the complement of DIR# disk interface output.

F71806

1: a second drive has not been installed.

0: side 0.

1: side 1.

0: disk is write-protected.

1: disk is not write-protected.

7.2.3.2 Status Register A (Model 30 mode)  Base + 0

Bit Name R/W Default Description

7 INTPEND R 0 This bit indicates the state of the interrupt output.

6 DRQ R 0 This bit indicates the state of the DRQ signal.

5 STEP_FF R 0 This bit indicates the complement of latched STEP# disk interface output.

4 TRK0 R - This bit indicates the complement of TRK0# disk interface input.

3 HDSEL_N R 1 This bit indicates the state of HDSEL# disk interface output.

0: side 0.

1: side 1.

2 INDEX R - This bit indicates the complement of INDEX# disk interface input.

1 WPT R - This bit indicates the complement of WPT# disk interface input.

0: disk is write-protected.

1: disk is not write-protected.

0 DIR_N R 1 This bit indicates the state of DIR# disk interface output.

0: head moves in inward direction.

1: head moves in outward direction.

7.2.3.3 Status Register B (PS/2 Mode)  Base + 1

Bit Name R/W Default Description

7-6 Reserved R 11 Reserved. Return 11b when read.

5 DR0 R 0 Drive select 0. This bit reflects the bit 0 of Digital Output Register.

4 WDATA R 0 This bit changes state at every rising edge of WDATA#.

3 RDATA R 0 This bit changes state at every rising edge of RDATA#.

Dec., 2006

V0.25P

Page 38

2 WGATE R 0 This bit indicates the complement of WGATE# disk interface output.

1 MOTEN1 R 0 This bit indicates the complement of MOB# disk interface output. Not support

0 MOTEN0 R 0 This bit indicates the complement of MOA# disk interface output.

7.2.3.4 Status Register B (Model 30 Mode)  Base + 1

Bit Name R/W Default Description

7 DRV2_N R - 0: a second drive has been installed.

6 DSB_N R 1 This bit indicates the state of DRVB# disk interface output. Not support in this

5 DSA_N R 1 This bit indicates the state of DRVA# disk interface output.

4 WDATA_FF R 0 This bit is latched at the rising edge of WDATA# and is cleared by a read from

3 RDATA_FF R 0 This bit is latched at the rising edge of RDATA# and is cleared by a read form

2 WGATE_FF R 0 This bit is latched at the falling edge of WGATE# and is cleared by a read from

1 DSD_N R 1 This bit indicates the complement of DRVD# disk interface output. Not support

0 DSC_N R 1 This bit indicates the complement of DRVC# disk interface output. Not support

F71806

in this design.

1: a second drive has not been installed.

design.

the Digital Input Register.

in this design.

7.2.3.5 Digital Output Register  Base + 2

Bit Name R/W Default Description

7 MOTEN3 R 0 Motor enable 3. Not support in this design.

6 MOTEN2 R 0 Motor enable 2. Not support in this design.

5 MOTEN1 R/W 0 Motor enable 1. Used to control MOB#. MOB# is not support in this design.

4 MOTEN0 R/W 0 Motor enable 0. Used to control MOA#.

3 DAMEN R/W 0 DMA enable. This bit has two mode of operation.

PC-AT and Model 30 mode: write 1 will enable DMA and IRQ, write 0 will disable DMA and IRQ.

PS/2 mode: This bit is reserved. DMA and IRQ are always enabled in PS/2 mode.

2 RESET R 0 Write 0 to this bit will reset the controller. I will remain in reset condition until a 1

is written.

1 DSD_N R 1 This bit indicates the complement of DRVD# disk interface output. Not support

in this design.

0 DSC_N R 1 This bit indicates the complement of DRVC# disk interface output. Not support

in this design.

Dec., 2006

V0.25P

Page 39

7.2.3.6 Tape Drive Register  Base + 3

Bit Name R/W Default Description

7-6 Reserved R 00 Reserved. Return 00b when read.

5-4 TYPEID R 11 Reserved in normal function, return 11b when read.

3-2 Reserved R 11 Reserved. Return 11b when read in normal function.

1-0 TAPESEL R/W 0 These bits assign a logical drive number to be a tape drive.

7.2.3.7 Main Status Register  Base + 4

Bit Name R/W Default Description

F71806

If 3 mode FDD function is enabled. These bits indicate the drive type ID.

Return 00b when read in 3 mode FDD function.

7 RQM R 0 Request for Master indicates that the controller is ready to send or receive data

from the uP through the FIFO.

6 DIO R 0 Data I/O (direction):

0: the controller is expecting a byte to be written to the Data Register.

1: the controller is expecting a byte to be read from the Data Register.

5 NON_DMA R 0 Non DMA Mode:

0: the controller is in DAM mode.

1: the controller is interrupt or software polling mode.

4 FDC_BUSY R 0 This bit indicate that a read or write command is in process.

3 DRV3_BUSY R 0 FDD number 3 is in seek or calibration condition. FDD number 3 is not support

in this design.

2 DRV2_BUSY R 0 FDD number 2 is in seek or calibration condition. FDD number 2 is not support

in this design.

1 DRV1_BUSY R 0 FDD number 1 is in seek or calibration condition. FDD number 1 is not support

in this design.

0 DRV0_BUSY R 0 FDD number 0 is in seek or calibration condition.

7.2.3.8 Data Rate Select Register  Base + 4

Bit Name R/W Default Description

7 SOFTRST W 0 A 1 written to this bit will software reset the controller. Auto clear after reset.

6 PWRDOWN W 0 A 1 to this bit will put the controller into low power mode which will turn off the

oscillator and data separator circuits.

5 Reserved - - Return 0 when read.

Dec., 2006

V0.25P

Page 40

4-2 PRECOMP W 000 Select the value of write precompensation:

1-0 DRATE W 10 Data rate select:

F71806

250K-1Mbps 2Mbps

000: default delays default delays

001: 41.67ns 20.8ns

010: 83.34ns 41.17ns

011: 125.00ns 62.5ns

100: 166.67ns 83.3ns

101: 208.33ns 104.2ns

110: 250.00ns 125.00ns

111: 0.00ns (disabled) 0.00ns (disabled)

The default value of corresponding data rate:

250Kbps: 125ns

300Kbps: 125ns

500Kbps: 125ns

1Mbps: 41.67ns

2Mbps: 20.8ns

MFM FM

00: 500Kbps 250Kbps

01: 300Kbps 150Kbps

10: 250Kbps 125Kbps

11: 1Mbps illegal

7.2.3.9 Data (FIFO) Register  Base + 5

Bit Name R/W Default Description

7-0 DATA R/W 00h The FIFO is used to transfer all commands, data and status between controller

and the system. The Data Register consists of four status registers in a stack with only one register presented to the data bus at a time. The FIFO is default disabled and could be enabled via the CONFIGURE command.

Status Registers 0

Bit Name R/W Default Description

7-6 IC R - Interrupt code :

00: Normal termination of command.

01: Abnormal termination of command.

10: Invalid command.

11: Abnormal termination caused by poling.

5 SE R - Seek end.

Set when a SEEK or RECALIBRATE or a READ or WRITE with implied seek command is completed.

4 EC R - Equipment check.

0: No error

1: When a fault signal is received form the FDD or the TRK0# signal fails to occur after 77 step pulses.

Dec., 2006

V0.25P

Page 41

3 NR R - Not ready.

2 HD R - Head address.

1-0 DS R - Drive select.

Status Registers 1

Bit Name R/W Default Description

F71806

0: Drive is ready

1: Drive is not ready.

The current head address.

00: Drive A selected.

01: Drive B selected.

10: Drive C selected.

11: Drive D selected.

7 EN R - End of Track.

Set when the FDC tries to access a sector beyond the final sector of a cylinder.

6 DE R - Data Error.

The FDC detect a CRC error in either the ID field or the data field of a sector.

4 OR R - Overrun/Underrun.

Set when the FDC is not serviced by the host system within a certain time interval during data transfer.

3 Reserved - - Unused. This bit is always “0”

2 ND R - No Data.

Set when the following conditions occurred:

1. The specified sector is not found during any read command.

2. The ID field cannot be read without errors during a READ ID command.

3. The proper sector sequence cannot be found during a READ TRACK command.

1 NW R - No Writable

Set when WPT# is active during execution of write commands.

0 MA R - Missing Address Mark.

Set when the following conditions occurred:

1. Cannot detect an ID address mark at the specified track after encountering the index pulse form the INDEX# pin twice.

2. Cannot detect a data address mark or a deleted data address mark on the specified track.

Status Registers 2

Bit Name R/W Default Description

7 Reserved - - Unused. This bit is always “0”.

6 CM R - Control Mark.

Set when following conditions occurred:

1. Encounters a deleted data address mark during a READ DATA command.

2. Encounters a data address mark during a READ DELETED DATA command.

Dec., 2006

V0.25P

Page 42

5 DD R - Data Error in Data Field.

4 WC R - Wrong Cylinder.

3 SE R - Scan Equal.

2 SN R - Scan Not Satisfied.

1 BC R - Bad Cylinder.

0 MD R - Missing Data Address Mark.

F71806

The FDC detects a CRC error in the data field.

Set when the track address from the sector ID field is different from the track address maintained inside the FDC.

Set if the equal condition is satisfied during execution of the SCAN command.

Set when the FDC cannot find a sector on the track which meets the desired condition during any scan command.

The track address from the sector ID field is different from the track address maintained inside the FDC and is equal to FFh which indicates a bad track.

Set when the FDC cannot detect a data address mark or a deleted data address mark.

Status Registers 3

Bit Name R/W Default Description

7 Reserved - - Unused. This bit is always “0”.

6 WP R - Write Protect.

5 Reserved R - Unused. This bit is always “1”.

4 T0 R - Track 0.

3 Reserved. R - Unused. This bit is always “1”.

2 HD R - Head Address.

1 DS1 R -

0 DS0 R -

7.2.3.10 Digital Input Register (PC-AT Mode)  Base + 7

Bit Name R/W Default Description

Indicates the status of WPT# pin.

Indicates the status of the TRK0# pin.

Indicates the status of the HDSEL# pin.

Drive Select.

These two bits indicate the DS1, DS0 bits in the command phase.

7 DSKCHG R - This bit indicates the complement of DSKCHG# disk interface input.

6-0 Reserved R - Reserved.

7.2.3.11 Digital Input Register (PS/2 Mode)  Base + 7

Bit Name R/W Default Description

7 DSKCHG R - This bit indicates the complement of DSKCHG# disk interface input.

6-3 Reserved - - Reserved.

Dec., 2006

V0.25P

Page 43

2-1 DRATE R 10 These bits indicate the status of the DRATE programmed through the Data

0 HIGHDEN_N R 1 0: 1Mbps or 500Kbps data rate is chosen.

7.2.3.12 Digital Input Register (Model 30 Mode)  Base + 7

Bit Name R/W Default Description

7 DSKCHG_N R - This bit indicates the state of DSKCHG# disk interface input.

6-4 Reserved - - Reserved.

3 DMAEN R 0 This bit reflects the DMA bit in Digital Output Register.

2 NOPRE R 0 This bit reflects the NOPRE bit in Configuration Control Register.

F71806

Rate Select Register or Configuration Control Register.

1: 300Kbps or 250Kbps data rate is chosen.

1-0 DRATE R 10 These bits indicate the status of DRATE programmed through the Data Rate

Select Register or Configuration Control Register.

7.2.3.13 Configuration Control Register (PC-AT and PS/2 Mode)  Base + 7

Bit Name R/W Default Description

7-2 Reserved - - Reserved.

1-0 DRATE W 10 These bit determine the data rate of the floppy controller. See DRATE bits in

Data Rate Select Register.

7.2.3.14 Configuration Control Register (Model 30 Mode)  Base + 7

Bit Name R/W Default Description

7-3 Reserved - - Reserved.

2 NOPRE W 0 This bit could be programmed through Configuration Control Register and be

read through the bit 2 in Digital Input Register in Model 30 Mode. But it has no functionality.

1-0 DRATE W 10 These bit determine the data rate of the floppy controller. See DRATE bits in

Data Rate Select Register.

7.2.3.15 FDC Commands

Terminology:

C Cylinder Number 0 -256 D Data Pattern DIR Step Direction 0: step out 1: step in DS0 Drive Select 0 DS1 Drive Select 1 DTL Data Length

Dec., 2006

V0.25P

Page 44

EC Enable Count EOT End of Track EFIFO Enable FIFO 0: FIFO is enabled. 1: FIFO is disabled. EIS Enable Implied Seek FIFOTHR FIFO Threshold GAP Alters Gap Length GPL Gap Length H/HDS Head Address HLT Head Load Time HUT Head Unload Time LOCK Lock EFIFO, FIFOTHR, PTRTRK bits. Prevent these bits from being affected by software reset. MFM MFM or FM mode 0: FM 1: MFM MT Multi-Track N Sector Size Code. All values up to 07h are allowable. 00: 128 bytes 01: 256 bytes

.. ..

07 16 Kbytes NCN New Cylinder Number ND Non-DMA Mode OW Overwritten PCN Present Cylinder Number POLL Polling disable 0: polling is enabled. 1: polling is disabled. PRETRK Precompensation Start Track Number R Sector address RCN Relative Cylinder Number SC Sector per Cylinder SK Skip deleted data address mark SRT Step Rate Time ST0 Status Register 0 ST1 Status Register 1 ST2 Status Register 2 ST3 Status Register 3 WGATE Write Gate alters timing of WE.

F71806

Read Data

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W MT MFM SK 0 0 1 1 0 Command code

W 0 0 0 0 0 HDS DS1 DS0

W ----------------------------- C ---------------------------

W ----------------------------- H ---------------------------

W ----------------------------- R ---------------------------

Sector ID information

prior to command

execution

Dec., 2006

V0.25P

Page 45

F71806

W ------------------------------ N ---------------------------

W ---------------------------- EOT --------------------------

W ---------------------------- GPL --------------------------

W ---------------------------- DTL --------------------------

Execution Data transfer between

Result R ---------------------------- ST0 --------------------------

R ----------------------------- ST1 --------------------------

R ---------------------------- ST2 --------------------------

R ----------------------------- C ---------------------------

R ----------------------------- H ---------------------------

R ----------------------------- R ---------------------------

R ----------------------------- N ---------------------------

Read Deleted Data

the FDD and system

Status information

after command

execution.

Sector ID information

after command

execution.

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W MT MFM SK 0 1 1 0 0 Command code

W 0 0 0 0 0 HDS DS1 DS0

W ----------------------------- C ---------------------------

W ----------------------------- H ---------------------------

Sector ID information

prior to command

execution

W ----------------------------- R ---------------------------

W ------------------------------ N ---------------------------

W ---------------------------- EOT --------------------------

W ---------------------------- GPL --------------------------

W ---------------------------- DTL --------------------------

Execution Data transfer between

the FDD and system

Result R ---------------------------- ST0 --------------------------

R ----------------------------- ST1 --------------------------

Status information

after command

execution.

R ---------------------------- ST2 --------------------------

R ----------------------------- C ---------------------------

R ----------------------------- H ---------------------------

Sector ID information

after command

execution.

R ----------------------------- R ---------------------------

R ----------------------------- N ---------------------------

Dec., 2006

V0.25P

Page 46

Read A Track

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 0 MFM 0 0 0 0 1 0 Command code

W 0 0 0 0 0 HDS DS1 DS0

F71806

W ----------------------------- C ---------------------------

W ----------------------------- H ---------------------------

Sector ID information

prior to command

execution

W ----------------------------- R ---------------------------

W ------------------------------ N ---------------------------

W ---------------------------- EOT --------------------------

W ---------------------------- GPL --------------------------

W ---------------------------- DTL --------------------------

Execution Data transfer between

the FDD and system.

FDD reads contents

of all cylinders from

index hole to EOT.

Result R ---------------------------- ST0 --------------------------

R ----------------------------- ST1 --------------------------

Status information

after command

execution.

R ---------------------------- ST2 --------------------------

R ----------------------------- C ---------------------------

R ----------------------------- H ---------------------------

Sector ID information

after command

execution.

R ----------------------------- R ---------------------------

R ----------------------------- N ---------------------------

Read ID

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 0 MFM 0 0 1 0 1 0 Command code

W 0 0 0 0 0 HDS DS1 DS0

Execution The first correct ID

information on the

cylinder is stored in

Data Register.

Result R ---------------------------- ST0 --------------------------

R ----------------------------- ST1 --------------------------

R ---------------------------- ST2 --------------------------

Status information

after command

execution.

Dec., 2006

V0.25P

Page 47

F71806

R ----------------------------- C ---------------------------

R ----------------------------- H ---------------------------

R ----------------------------- R ---------------------------

R ----------------------------- N ---------------------------

Disk status after the

command has been

completed.

Verify

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W MT MFM SK 1 0 1 1 0 Command code

W EC 0 0 0 0 HDS DS1 DS0

W ----------------------------- C ---------------------------

W ----------------------------- H ---------------------------

W ----------------------------- R ---------------------------

W ------------------------------ N ---------------------------

W ---------------------------- EOT --------------------------

Sector ID information

prior to command

execution

W ---------------------------- GPL --------------------------

W -------------------------- DTL/SC ------------------------

Execution No data transfer

Result R ---------------------------- ST0 --------------------------

R ----------------------------- ST1 --------------------------

R ---------------------------- ST2 --------------------------

R ----------------------------- C ---------------------------

R ----------------------------- H ---------------------------

R ----------------------------- R ---------------------------

R ----------------------------- N ---------------------------

Status information

after command

execution.

Sector ID information

after command

execution.

Version

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 0 0 0 1 0 0 0 0 Command code

Result R 1 0 0 1 0 0 0 0 Enhanced controller

Write Data

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Dec., 2006

V0.25P

Page 48

Command W MT MFM 0 0 0 1 0 1 Command code

W 0 0 0 0 0 HDS DS1 DS0

F71806

W ----------------------------- C ---------------------------

W ----------------------------- H ---------------------------

Sector ID information

prior to command

execution

W ----------------------------- R ---------------------------

W ------------------------------ N ---------------------------

W ---------------------------- EOT --------------------------

W ---------------------------- GPL --------------------------

W ---------------------------- DTL --------------------------

Execution Data transfer between

the FDD and system.

Result R ---------------------------- ST0 --------------------------

R ----------------------------- ST1 --------------------------

Status information

after command

execution.

R ---------------------------- ST2 --------------------------

R ----------------------------- C ---------------------------

R ----------------------------- H ---------------------------

Sector ID information

after command

execution.

R ----------------------------- R ---------------------------

R ----------------------------- N ---------------------------

Write Deleted Data

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W MT MFM 0 0 1 0 0 1 Command code

W 0 0 0 0 0 HDS DS1 DS0

W ----------------------------- C ---------------------------

W ----------------------------- H ---------------------------

W ----------------------------- R ---------------------------

W ------------------------------ N ---------------------------

W ---------------------------- EOT --------------------------

W ---------------------------- GPL --------------------------

W ---------------------------- DTL --------------------------

Execution Data transfer between

Result R ---------------------------- ST0 --------------------------

R ----------------------------- ST1 --------------------------

Sector ID information

prior to command

execution

the FDD and system.

Status information

after command

Dec., 2006

V0.25P

Page 49

F71806

R ---------------------------- ST2 --------------------------

R ----------------------------- C ---------------------------

R ----------------------------- H ---------------------------

R ----------------------------- R ---------------------------

R ----------------------------- N ---------------------------

Format A Track

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 0 MFM 0 0 1 1 0 1 Command code

W 0 0 0 0 0 HDS DS1 DS0

W ------------------------------ N --------------------------- Bytes/Sector

W ---------------------------- SC -------------------------- Sectors/Cylinder

W ---------------------------- GPL -------------------------- Gap 3 Length

W ----------------------------- D --------------------------- Data Pattern

Execution

for each

sector

( repeat )

------------------------------ C ---------------------------

W ------------------------------ H ---------------------------

W ------------------------------ R ---------------------------

execution.

Sector ID information

after command

execution.

Input sector

parameter.

Recalibrate

W ----------------------------- N --------------------------

Result R ---------------------------- ST0 --------------------------

R ----------------------------- ST1 --------------------------

R ---------------------------- ST2 --------------------------

R ------------------------- Undefined ----------------------

R -------------------------- Undefined -----------------------

R ------------------------- Undefined ----------------------

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 0 0 0 0 0 1 1 1 Command code

W 0 0 0 0 0 0 DS1 DS0

Execution Head retracted to

Status information

after command

execution.

track 0

Dec., 2006

V0.25P

Page 50

Sense Interrupt Status

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 0 0 0 0 1 0 0 0 Command code

Result R ---------------------------- ST0 --------------------------

R ---------------------------- PCN --------------------------

Specify

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 0 0 0 0 0 0 1 1 Command code

W |------------------ SRT -------------------| |------------------ HUT -------------------|

F71806

W |------------------------------------- SRT ---------------------------------------| ND

Seek

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 0 0 0 0 1 1 1 1 Command code

W 0 0 0 0 0 HDS DS1 DS0

W ---------------------------- NCN --------------------------

Execution Head positioned over

proper cylinder on

diskette

Configure

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 0 0 0 1 0 0 1 1 Command code

W 0 0 0 0 0 HDS DS1 DS0

Execution Internal registers

Relative Seek

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 1 DIR 0 0 1 1 1 1 Command code

W 0 EIS EFIFO POLL |---------------- FIFOTHR ---------------|

W ---------------------------- PRETRK --------------------------

W 0 0 0 0 0 HDS DS1 DS0

written

Dec., 2006

V0.25P

Page 51

W ---------------------------- RCN --------------------------

Perpendicular Mode

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 0 0 0 1 0 0 1 0 Command code

W OW 0 D3 D2 D1 D0 GAP WGATE

Lock

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W LOCK 0 0 1 0 1 0 0 Command code

Result R 0 0 0 LOCK 0 0 0 0

F71806

Dumpreg

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 0 0 0 0 1 1 1 0 Command code

Result R -------------------------- PCN ( Drive 0 ) ------------------------

R -------------------------- PCN ( Drive 0 ) ------------------------

R |------------------ SRT -------------------| |------------------ HUT -------------------|

R |------------------------------------- SRT ---------------------------------------| ND

R -------------------------- SC/EOT ------------------------

R LOCK 0 D3 D2 D1 D0 GAP WGATE

R 0 EIS EFIFO POLL |---------------- FIFOTHR ---------------|

R ---------------------------- PRETRK --------------------------

Sense Drive Status

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W 0 0 0 0 0 1 0 0 Command code

W 0 0 0 0 0 HDS DS1 DS0

Result R ---------------------------- ST3 -------------------------- Status information

abut disk drive

Dec., 2006

V0.25P

Page 52

Invalid

Phase R/W D7 D6 D5 D4 D3 D2 D1 D0 Remark

Command W ---------------------------- Invalid Codes -------------------------- FDC goes to standby

Result R ---------------------------- ST0 -------------------------- ST0 = 80h

7.3 UART1 Registers

F71806

state.

7.3.1 Logic Device Number Register

Logic Device Number Register  Index 07H

Bit Name R/W Default Description

7-0 LDN R/W 00h 00h: Select FDC device configuration registers.

01h: Select UART 1 device configuration registers.

02h: Select UART 2 device configuration registers.

03h: Select Parallel Port device configuration registers.

04h: Select Hardware Monitor device configuration registers.

05h: Reserved.

06h: Select GPIO device configuration registers.

07h: Select VID device configuration registers.

0ah: Select PME & ACPI device configuration registers.

7.3.2 UART 1 Configuration Registers

UART 1 Device Enable Register

Bit Name R/W Default Description

7-1 Reserved - - Reserved

0 UR1_EN R/W 1 0: disable UART 1.

 Index 30h

1: enable UART 1.

Dec., 2006

V0.25P

Page 53

Base Address High Register  Index 60h

Bit Name R/W Default Description

7-0 BASE_ADDR_HI R/W 03h The MSB of UART 1 base address.

Base Address Low Register  Index 61h

Bit Name R/W Default Description

7-0 BASE_ADDR_LO R/W F8h The LSB of UART 1 base address.

IRQ Channel Select Register  Index 70h

F71806

Bit Name R/W Default Description

7-4 Reserved - - Reserved.

3-0 SELUR1IRQ R/W 4h Select the IRQ channel for UART 1.

RS485 Enable Register  Index F0h

Bit Name R/W Default Description

7-5 Reserved - - Reserved.

4 RS485_EN R/W 0 0: RS232 driver.

3-0 Reserved - - Reserved.

7.3.3 Device Registers

1: RS485 driver. Auto drive RTS# low when transmitting data.

7.3.3.1 Receiver Buffer Register  Base + 0

Bit Name R/W Default Description

7-0 RBR R 00h

The data received.

Read only when LCR[7] is 0

7.3.3.2 Transmitter Holding Register  Base + 0

Bit Name R/W Default Description

7-0 THR W 00h

Data to be transmitted.

Write only when LCR[7] is 0

Dec., 2006

V0.25P

Page 54

7.3.3.3 Divisor Latch (LSB)  Base + 0

Bit Name R/W Default Description

7-0 DLL R/W 01h

7.3.3.4 Divisor Latch (MSB)  Base + 1

Bit Name R/W Default Description

7-0 DLM R/W 00h

7.3.3.5 Interrupt Enable Register  Base + 1

Bit Name R/W Default Description

7-4 Reserved - - Reserved.

3 EDSSI R/W 0 Enable Modem Status Interrupt. Access only when LCR[7] is 0.

2 ELSI R/W 0 Enable Line Status Error Interrupt. Access only when LCR[7] is 0.

1 ETBFI R/W 0 Enable Transmitter Holding Register Empty Interrupt. Access only when

0 ERBFI R/W 0 Enable Received Data Available Interrupt. Access only when LCR[7] is 0.

F71806

Baud generator divisor low byte.

Access only when LCR[7] is 1.

Baud generator divisor high byte.

Access only when LCR[7] is 1.

LCR[7] is 0.

7.3.3.6 Interrupt Identification Register  Base + 2

Bit Name R/W Default Description

7 FIFO_EN R 0

6 FIFO_EN R 0

5-4 Reserved - - Reserved.

3-1 IRQ_ID R 000

0 IRQ_PENDN R 1

0: FIFO is disabled

1: FIFO is enabled.

0: FIFO is disabled

1: FIFO is enabled.

000: Interrupt is caused by Modem Status 001: Interrupt is caused by Transmitter Holding Register Empty 010: Interrupt is caused by Received Data Available. 110: Interrupt is caused by Character Timeout

011: Interrupt is caused by Line Status.

1: Interrupt is not pending.

0: Interrupt is pending.

7.3.3.7 FIFO Control Register  Base + 2

Bit Name R/W Default Description

7-6 RCV_TRIG W 00

5-3 Reserved - - Reserved.

2 CLRTX R 0

1 CLRRX R 0

00: Receiver FIFO trigger level is 1. 01: Receiver FIFO trigger level is 4. 10: Receiver FIFO trigger level is 8.

11: Receiver FIFO trigger level is 14.

Reset the transmitter FIFO.

Reset the receiver FIFO.

Dec., 2006

V0.25P

Page 55

F71806

0 FIFO_EN R 0

0: Disable FIFO. 1: Enable FIFO.

7.3.3.8 Line Control Register  Base + 3

Bit Name R/W Default Description

7 DLAB R/W 0

6 SETBRK R/W 0

5 STKPAR R/W 0

4 EPS R/W 0

3 PEN R/W 0

2 STB R/W 0

1-0 WLS R/W 00

0: Divisor Latch can’t be accessed. 1: Divisor Latch can be accessed via Base and Base+1. 0: Transmitter is in normal condition. 1: Transmit a break condition. XX0: Parity Bit is disable 001: Parity Bit is odd. 011: Parity Bit is even 101: Parity Bit is logic 1 111: Parity Bit is logic 0 0: Stop bit is one bit 1: When word length is 5 bit stop bit is 1.5 bit else stop bit is 2 bit 00: Word length is 5 bit 01: Word length is 6 bit 10: Word length is 7 bit 11: Word length is 8 bit

7.3.3.9 MODEM Control Register  Base + 4

Bit Name R/W Default Description

7-5 Reserved - -

4 LOOP R/W 0

3 OUT2 R/W 0

2 OUT1 R/W 0

1 RTS R/W 0

0 DTR R/W 0

Reserved.

0: UART in normal condition. 1: UART is internal loop back 0: All interrupt is disabled. 1: Interrupt is enabled (disabled) by IER. Read from MSR[6] is loop back mode

0: RTS# is forced to logic 1 1: RTS# is forced to logic 0 0: DTR# is forced to logic 1 1: DTR# is forced to logic 0

7.3.3.10 Line Status Register  Base + 5

Bit Name R/W Default Description

7 RCR_ERR R 0

6 TEMT R 1

5 THRE R 1

4 BI R 0

3 FE R 0

2 PE R 0

0: No error in the FIFO when FIFO is enabled 1: Error in the FIFO when FIFO is enabled. 0: Transmitter is in transmitting. 1: Transmitter is empty. 0: Transmitter Holding Register is not empty. 1: Transmitter Holding Register is empty. 0: No break condition detected. 1: A break condition is detected. 0: Data received has no frame error. 1: Data received has frame error. 0: Data received has no parity error. 1: Data received has parity error.

Dec., 2006

V0.25P

Page 56

F71806

1 OE R 0

0 DR R 0

0: No overrun condition occurred. 1: An overrun condition occurred. 0: No data is ready for read. 1: Data is received.

7.3.3.11 MODEM Status Register  Base + 6

Bit Name R/W Default Description

7 DCD R -

6 RI R -

5 DSR R -

4 CTS R -

3 DDCD R 0

2 TERI R 0

1 DDSR R 0

0 DCTS R 0

Complement of DCD# input. In loop back mode, this bit is equivalent to OUT2 in MCR. Complement of RI# input. In loop back mode , this bit is equivalent to OUT1 in MCR Complement of DSR# input. In loop back mode , this bit is equivalent to DTR in MCR Complement of CTS# input. In loop back mode , this bit is equivalent to RTS in MCR 0: No state changed at DCD#. 1: State changed at DCD#. 0: No Trailing edge at RI#. 1: A low to high transition at RI#. 0: No state changed at DSR#. 1: State changed at DSR#. 0: No state changed at CTS#. 1: State changed at CTS#.

7.3.3.12 Scratch Register  Base + 7

Bit Name R/W Default Description

7-0 SCR R/W 00h

7.4 UART 2 Registers

7.4.1 Logic Device Number Register

Logic Device Number Register  Index 07H

Bit Name R/W Default Description

Scratch register.

Dec., 2006

V0.25P

Page 57

7-0 LDN R/W 00h 00h: Select FDC device configuration registers.

F71806

01h: Select UART 1 device configuration registers.

02h: Select UART 2 device configuration registers.

03h: Select Parallel Port device configuration registers.

04h: Select Hardware Monitor device configuration registers.

05h: Reserved.

06h: Select GPIO device configuration registers.

07h: Select VID device configuration registers.

0ah: Select PME & ACPI device configuration registers.

7.4.2 UART 2 Configuration Registers

UART 2 Device Enable Register  Index 30h

Bit Name R/W Default Description

7-1 Reserved - - Reserved

0 UR2_EN R/W 1 0: disable UART 2.

1: enable UART 2.

Base Address High Register  Index 60h

Bit Name R/W Default Description

7-0 BASE_ADDR_HI R/W 02h The MSB of UART 2 base address.

Base Address Low Register  Index 61h

Bit Name R/W Default Description

7-0 BASE_ADDR_LO R/W F8h The LSB of UART 2 base address.

IRQ Channel Select Register  Index 70h

Bit Name R/W Default Description

7-4 Reserved - - Reserved.

3-0 SELUR2IRQ R/W 3h Select the IRQ channel for UART 2.

Dec., 2006

V0.25P

Page 58

RS485 Enable Register  Index F0h

Bit Name R/W Default Description

7-5 Reserved - - Reserved.

4 RS485_EN R/W 0 0: RS232 driver.

3 RXW4C_IR R/W 0 0: No reception delay when SIR is changed form TX to RX.

2 TXW4C_IR R/W 0 0: No transmission delay when SIR is changed form RX to TX.

F71806

1: RS485 driver. Auto drive RTS# low when transmitting data.

1: Reception delays 4 characters time when SIR is changed form TX to RX.

1: Transmission delays 4 characters time when SIR is changed form RX to TX.

1-0 Reserved - - Reserved.

SIR Mode Control Register  Index F1h

Bit Name R/W Default Description

7 Reserved - - Reserved.

6 Reserved - - Reserved.

5 Reserved - - Reserved.

4-3 IRMODE R/W 00 00: disable IR function.

01: disable IR function.

10: IrDA function, active pulse is 1.6uS.

11: IrDA function, active pulse is 3/16 bit time.

2 HDUPLX R/W 1 0: SIR is in full duplex mode for loopbak test. TXW4C_IR and RXW4C_IR are

of no use.

1: SIR is in half duplex mode.

1 TXINV_IR R/W 0 0: IRTX is in normal condition.

1: inverse the IRTX.

0 RXINV_IR R/W 0 0: IRRX is in normal condition.

1: inverse the IRRX.

7.4.3 Device Registers

7.4.3.1 Receiver Buffer Register  Base + 0

Bit Name R/W Default Description

Dec., 2006

V0.25P

Page 59

F71806

7-0 RBR R 00h

The data received.

Read only when LCR[7] is 0

7.4.3.2 Transmitter Holding Register  Base + 0

Bit Name R/W Default Description

7-0 THR W 00h

Data to be transmitted.

Write only when LCR[7] is 0

7.4.3.3 Divisor Latch (LSB)  Base + 0

Bit Name R/W Default Description

7-0 DLL R/W 01h

Baud generator divisor low byte.

Access only when LCR[7] is 1.

7.4.3.4 Divisor Latch (MSB)  Base + 1

Bit Name R/W Default Description

7-0 DLM R/W 00h

Baud generator divisor high byte.

Access only when LCR[7] is 1.

7.4.3.5 Interrupt Enable Register  Base + 1

Bit Name R/W Default Description

7-4 Reserved - - Reserved.

3 EDSSI R/W 0 Enable Modem Status Interrupt. Access only when LCR[7] is 0.

2 ELSI R/W 0 Enable Line Status Error Interrupt. Access only when LCR[7] is 0.

1 ETBFI R/W 0 Enable Transmitter Holding Register Empty Interrupt. Access only when

LCR[7] is 0.

0 ERBFI R/W 0 Enable Received Data Available Interrupt. Access only when LCR[7] is 0.

7.4.3.6 Interrupt Identification Register  Base + 2

Bit Name R/W Default Description

7 FIFO_EN R 0

6 FIFO_EN R 0

5-4 Reserved - - Reserved.

3-1 IRQ_ID R 000

0 IRQ_PENDN R 1

0: FIFO is disabled

1: FIFO is enabled.

0: FIFO is disabled

1: FIFO is enabled.

011: Interrupt is caused by Line Status.

1: Interrupt is not pending.

0: Interrupt is pending.

Dec., 2006

V0.25P

Page 60

7.4.3.7 FIFO Control Register  Base + 2

Bit Name R/W Default Description

7-6 RCV_TRIG W 00

5-3 Reserved - - Reserved.

2 CLRTX R 0

1 CLRRX R 0

0 FIFO_EN R 0

7.4.3.8 Line Control Register  Base + 3

F71806

00: Receiver FIFO trigger level is 1. 01: Receiver FIFO trigger level is 4. 10: Receiver FIFO trigger level is 8.

11: Receiver FIFO trigger level is 14.

Reset the transmitter FIFO.

Reset the receiver FIFO.

0: Disable FIFO. 1: Enable FIFO.

Bit Name R/W Default Description

7 DLAB R/W 0

6 SETBRK R/W 0

5 STKPAR R/W 0

4 EPS R/W 0

3 PEN R/W 0

2 STB R/W 0

1-0 WLS R/W 00

7.4.3.9 MODEM Control Register  Base + 4

Bit Name R/W Default Description

7-5 Reserved - -

4 LOOP R/W 0

3 OUT2 R/W 0

2 OUT1 R/W 0

1 RTS R/W 0

0 DTR R/W 0

Reserved.

0: UART in normal condition. 1: UART is internal loop back 0: All interrupt is disabled. 1: Interrupt is enabled (disabled) by IER. Read from MSR[6] is loop back mode

0: RTS# is forced to logic 1 1: RTS# is forced to logic 0 0: DTR# is forced to logic 1 1: DTR# is forced to logic 0

7.4.3.10 Line Status Register  Base + 5

Bit Name R/W Default Description

7 RCR_ERR R 0

0: No error in the FIFO when FIFO is enabled 1: Error in the FIFO when FIFO is enabled.

Dec., 2006

V0.25P

Page 61

F71806

6 TEMT R 1

5 THRE R 1

4 BI R 0

3 FE R 0

2 PE R 0

1 OE R 0

0 DR R 0

0: Transmitter is in transmitting. 1: Transmitter is empty. 0: Transmitter Holding Register is not empty. 1: Transmitter Holding Register is empty. 0: No break condition detected. 1: A break condition is detected. 0: Data received has no frame error. 1: Data received has frame error. 0: Data received has no parity error. 1: Data received has parity error. 0: No overrun condition occurred. 1: An overrun condition occurred. 0: No data is ready for read. 1: Data is received.

7.4.3.11 MODEM Status Register  Base + 6

Bit Name R/W Default Description

7 DCD R -

6 RI R -

5 DSR R -

4 CTS R -

3 DDCD R 0

2 TERI R 0

1 DDSR R 0

0 DCTS R 0

7.4.3.12 Scratch Register  Base + 7

Bit Name R/W Default Description

7-0 SCR R/W 00h

Scratch register.

Dec., 2006

V0.25P

Page 62

7.5 Parallel Port Registers

7.5.1 Logic Device Number Register

Logic Device Number Register  Index 07H

Bit Name R/W Default Description

7-0 LDN R/W 00h 00h: Select FDC device configuration registers.

F71806

01h: Select UART 1 device configuration registers.

02h: Select UART 2 device configuration registers.

03h: Select Parallel Port device configuration registers.

04h: Select Hardware Monitor device configuration registers.

05h: Reserved.

06h: Select GPIO device configuration registers.

07h: Select VID device configuration registers.

0ah: Select PME & ACPI device configuration registers.

7.5.2 Parallel Port Configuration Register

Parallel Port Device Enable Register  Index 30h

Bit Name R/W Default Description

7-1 Reserved - - Reserved

0 PRT_EN R/W 1 0: disable Parallel Port.

1: enable Parallel Port.

Base Address High Register  Index 60h

Bit Name R/W Default Description

7-0 BASE_ADDR_HI R/W 03h The MSB of Parallel Port base address.

Base Address Low Register  Index 61h

Bit Name R/W Default Description

7-0 BASE_ADDR_LO R/W 78h The LSB of Parallel Port base address.

Dec., 2006

V0.25P

Page 63

IRQ Channel Select Register  Index 70h

Bit Name R/W Default Description

7-4 Reserved - - Reserved.

3-0 SELPRTIRQ R/W 7h Select the IRQ channel for Parallel Port.

DMA Channel Select Register  Index 74h

Bit Name R/W Default Description

7-5 Reserved - - Reserved.

4 ECP_DMA_MODE R/W 0 0: non-burst mode DMA.

1: enable burst mode DMA.

3 Reserved - - Reserved.

2-0 SELPRTDMA R/W 011 Select the DMA channel for Parallel Port.

F71806

PRT Mode Select Register  Index F0h

Bit Name R/W Default Description

7 Reserved - - Reserved.

6-3 ECP_FIFO_THR R/W 1000 ECP FIFO threshold.

2-0 PRT_MODE R/W 010 000: Standard and Bi-direction (SPP) mode.

001: EPP 1.9 and SPP mode.

010: ECP mode (default).

011: ECP and EPP 1.9 mode.

100: Printer mode.

101: EPP 1.7 and SPP mode.

110: Reserved.

111: ECP and EPP1.7 mode.

7.5.3 Device Registers

7.5.3.1 Parallel Port Data Register

Bit Name R/W Default Description

 Base + 0

7-0 DATA R/W 00h The output data to drive the parallel port data lines.

7.5.3.2 ECP Address FIFO Register  Base + 0

Bit Name R/W Default Description

Dec., 2006

V0.25P

Page 64

F71806

7-0 ECP_AFIFO R/W 00h

Access only in ECP Parallel Port Mode and the ECP_MODE programmed in the Extended Control Register is 011.

The data written to this register is placed in the FIFO and tagged as an Address/RLE. It is auto transmitted by the hardware. The operation is only defined for forward direction. It divide into two parts :

Bit 7 :

0: bits 6-0 are run length, indicating how many times the next byte to appear (0 = 1time, 1 = 2times, 2 = 3times and so on).

1: bits 6-0 are a ECP address.

Bit 6-0 :

Address or RLE depends on bit 7.

7.5.3.3 Device Status Register  Base + 1

Bit Name R/W Default Description

7 BUSY_N R - Inverted version of parallel port signal BUSY.

6 ACK_N R - Version of parallel port signal ACK#.

5 PERROR R - Version of parallel port signal PE.

4 SELECT R - Version of parallel port signal SLCT.

3 ERR_N R - Version of parallel port signal ERR#.

2-1 Reserved R 11 Reserved. Return 11b when read.

0 TMOUT R - This bit is valid only in EPP mode. Return 1 when in other modes.

It indicates that a 10uS time out has occurred on the EPP bus.

0: no time out error.

1: time out error occurred, write 1 to clear.

7.5.3.4 Device Control Register  Base + 2

Bit Name R/W Default Description

7-6 Reserved - 11 Reserved. Return 11b when read.

5 DIR R/W 0 0: the parallel port is in output mode.

1: the parallel port is in input mode.

It is auto reset to 0 when in SPP mode.

4 ACKIRQ_EN R/W 0 Enable an interrupt at the rising edge of ACK#.

3 SLIN R/W 0 Inverted and then drives the parallel port signal SLIN#.

When read, the status of inverted SLIN# is return.

2 INIT_N R/W 0 Drives the parallel port signal INIT#.

When read, the status of INIT# is return.

1 AFD R/W 0 Inverted and then drives the parallel port signal AFD#.

When read, the status of inverted AFD# is return.

0 STB R/W 0 Inverted and then drives the parallel port signal STB#.

When read, the status of inverted STB# is return.

Dec., 2006

V0.25P

Page 65

7.5.3.5 EPP Address Register  Base + 3

Bit Name R/W Default Description

F71806

7-0 EPP_ADDR R/W 00h

Write this register will cause the hardware to auto transmit the written data to the device with the EPP Address Write protocol.

Read this register will cause the hardware to auto receive data from the device by with the EPP Address Read protocol.

7.5.3.6 EPP Data Register  Base + 4 – Base + 7

Bit Name R/W Default Description

7-0 EPP_DATA R/W 00h

Write this register will cause the hardware to auto transmit the written data to the device with the EPP Data Write protocol.

Read this register will cause the hardware to auto receive data from the device by with the EPP Data Read protocol.

7.5.3.7 Parallel Port Data FIFO  Base + 400h

Bit Name R/W Default Description

7-0 C_FIFO R/W 00h Data written to this FIFO is auto transmitted by the hardware to the device by

using standard parallel port protocol.

It is only valid in ECP and the ECP_MODE is 010b.The operation is only for forward direction.

7.5.3.8 ECP Data FIFO  Base + 400h

Bit Name R/W Default Description

7-0 ECP_DFIFO R/W 00h Data written to this FIFO when DIR is 0 is auto transmitted by the hardware to

the device by using ECP parallel port protocol.

Data is auto read from device into the FIFO when DIR is 1 by the hardware by using ECP parallel port protocol. Read the FIFO will return the content to the system.

It is only valid in ECP and the ECP_MODE is 011b.

7.5.3.9 ECP Test FIFO  Base + 400h

Bit Name R/W Default Description

7-0 T_FIFO R/W 00h Data may be read, written from system to the FIFO in any Direction. But no

hardware handshake occurred on the parallel port lines. It could be used to test the empty, full and threshold of the FIFO.

It is only valid in ECP and the ECP_MODE is 110b.

7.5.3.10 ECP Configuration Register A  Base + 400h

Bit Name R/W Default Description

Dec., 2006

V0.25P

Page 66

7 IRQ_MODE R 0 0: interrupt is ISA pulse.

6-4 IMPID R 001 000: the design is 16-bit implementation.

3 Reserved - - Reserved.

2 BYTETRAN_N R 1 0: when transmitting there is 1 byte waiting in the transceiver that does not

1-0 Reserved R 00 Return 00 when read.

F71806

1: interrupt is ISA level.

Only valid in ECP and ECP_MODE is 111b.

001: the design is 8-bit implementation (default).

010: the design is 32-bit implementation.

011-111: Reserved.

Only valid in ECP and ECP_MODE is 111b.

affect the FIFO full condition.

1: when transmitting the state of the full bit includes the byte being transmitted.

Only valid in ECP and ECP_MODE is 111b.

7.5.3.11 ECP Configuration Register B  Base + 401h

Bit Name R/W Default Description

7 COMP R 0 0: only send uncompressed data.

1: compress data before sending.

Only valid in ECP and ECP_MODE is 111b.

6 Reserved R 1 Reserved. Return 1 when read.

Only valid in ECP and ECP_MODE is 111b.

5-3 ECP_IRQ_CH R 001 000: the interrupt selected with jumper.

001: select IRQ 7 (default).

010: select IRQ 9.

011: select IRQ 10.

100: select IRQ 11.

101: select IRQ 14.

110: select IRQ 15.

111: select IRQ 5.

Only valid in ECP and ECP_MODE is 111b.

2-0 ECP_DMA_CH R 011 Return the DMA channel of ECP parallel port.

Only valid in ECP and ECP_MODE is 111b.

7.5.3.12 Extended Control Register  Base + 402h

Bit Name R/W Default Description

Dec., 2006

V0.25P

Page 67

7-5 ECP_MODE R/W 000 000: SPP Mode.

4 ERRINTR_EN R/W 0 0: disable the interrupt generated on the falling edge of ERR#.

3 DAMEN R/W 0 0: disable DMA.

2 SERVICEINTR R/W 1 0: enable the following case of interrupt.

1 FIFOFULL R 0 0: The FIFO has at least 1 free byte.

0 FIFOEMPTY R 0 0: The FIFO contains at least 1 byte.

F71806

001: PS/2 Parallel Port Mode.

010: Parallel Port Data FIFO Mode.

011: ECP Parallel Port Mode.

100: EPP Mode.

101: Reserved.

110: Test Mode.

111: Configuration Mode.

Only valid in ECP.

1: enable the interrupt generated on the falling edge of ERR#.

1: enable DMA. DMA starts when SERVICEINTR is 0.

DMAEN = 1: DMA mode.

DMAEN = 0, DIR = 0: set to 1 whenever there are writeIntrThreshold or more bytes are free in the FIFO.

DMAEN = 0, DIR = 0: set to 1 whenever there are readIntrThreshold or more bytes are valid to be read in the FIFO.

1: The FIFO is completely full.

1: The FIFO is completely empty.

7.6 Hardware Monitor Registers

7.6.1 Logic Device Number Register

Logic Device Number Register

Bit Name R/W Default Description

 Index 07H

Dec., 2006

V0.25P

Page 68

7-0 LDN R/W 00h 00h: Select FDC device configuration registers.

F71806

01h: Select UART 1 device configuration registers.

02h: Select UART 2 device configuration registers.

03h: Select Parallel Port device configuration registers.

04h: Select Hardware Monitor device configuration registers.

05h: Reserved.

06h: Select GPIO device configuration registers.

07h: Select VID device configuration registers.

0ah: Select PME & ACPI device configuration registers.

7.6.2 Hardware Monitor Configuration Registers

Hardware Monitor Device Enable Register  Index 30h

Bit Name R/W Default Description

7-1 Reserved - - Reserved

0 HM_EN R/W 0 0: disable Hardware Monitor.

1: enable Hardware Monitor.

Base Address High Register  Index 60h

Bit Name R/W Default Description

7-0 BASE_ADDR_HI R/W 02h The MSB of Hardware Monitor base address.

Base Address Low Register  Index 61h

Bit Name R/W Default Description

7-0 BASE_ADDR_LO R/W 95h The LSB of Hardware Monitor base address.

IRQ Channel Select Register  Index 70h

Bit Name R/W Default Description

7-4 Reserved - - Reserved.

3-0 SELHMIRQ R/W 0000 Select the IRQ channel for Hardware Monitor.

Dec., 2006

V0.25P

Page 69

7.6.3 Device Registers

7.6.3.1 START_STOP Control Register  Index 00h

Bit Name R/W Default Description

7 INIT R/W 0 Set one restores power on default value to all registers. This bit clears itself

6 SOFT_PWDN R/W 0 Set this bit to 1 will power down A/D converter circuit. Default is 0.

5-1 Reserved - - Reserved

0 START R/W 1 A one enables startup of monitoring operations; a zero puts the part in standby

7.6.3.2 Temperature Mode Control Register  Index 01h

F71806

since the power on default is zero.

mode.

Bit Name R/W Default Description

7-6 Temperature

Fault Queue

5-4 Reserved - -

3 COMB_LEVEL R/W 1

2 T3_MODE R/W 0

1 T2_MODE R/W 0

0 T1_MODE R/W 0

R/W 00

This value stands for how many times of successive temperature fault can be tolerated. 00: 1 times. 01: 2 times. 10: 4 times. 11: 8 times.

Reserved

Set to 1, enable COMB filter. Set to 0, disable COMB filter. COMB filter is only applied to BJT thermal diode mode.

If temperature select thermistor mode, the COMB filter will not work on it.

Set to 1, select T3 as connected to a BJT thermal diode. At this mode, T3 detected temperature ranges from 0°C ~ 140°C.

Set to 0, select T3 as connected to a thermistor. At this mode, T3 detected temperature ranges from 0°C ~ 127°C.

Set to 1, select T2 as connected to a BJT thermal diode. At this mode, T2 detected temperature ranges from 0°C ~ 140°C.

Set to 0, select T2 as connected to a thermistor. At this mode, T2 detected temperature ranges from 0°C ~ 127°C.

Set to 1, select T1 as connected to a BJT thermal diode. At this mode, T1 detected temperature ranges from 0°C ~ 140°C.

Set to 0, select T1 as connected to a thermistor. At this mode, T1 detected temperature ranges from 0°C ~ 127°C.

7.6.3.3 ADC_CLK Frequency Control Register  Index 02h

Bit Name R/W Default Description

7-2 Reserved - - Reserved

1-0 ADC_CLK_SEL R/W 00

Select ADC clock frequency. 00 : 12.8K(Default) 01 : 6.4K 10 : 3.2K

11 : 1.6K

Dec., 2006

V0.25P

Page 70

7.6.3.4 FAN1 Full Speed Count Register 0  Index 0Ah

Bit Name R/W Default Description

7-0 F1_FULL(MSB) R 00h When power on, the FANPWM1 will output full duty cycle (FFh) to enable

7.6.3.5 FAN1 Full speed Count Register 1 Index 0Bh

Bit Name R/W Default Description

7-0 F1_FULL(LSB) R FFh When power on, the FANPWM1 will output full duty cycle (FFh) to enable

F71806

system FAN. After 10 seconds when detecting FANIN signal, assuming the

fan has been fully turned on, the fan speed count detected will be recorded in the register. If there is no signal on FANIN after power on, the PWMOUT1 will keep outputting FFh duty cycle.

system FAN. After 10 seconds when detecting FANIN signal, assuming the

fan has been fully turned on, the fan speed count detected will be recorded in the register. If there is no signal on FANIN after power on, the PWMOUT1 will keep outputting FFh duty cycle.

7.6.3.6 FAN2 Full Speed Count Register 0  Index 0Ch

Bit Name R/W Default Description

7-0 F2_FULL(MSB) R 0Fh When power on, the FANPWM2 will output full duty cycle (FFh) to enable

system FAN. After 10 seconds when detecting FANIN signal, assuming the

fan has been fully turned on, the fan speed count detected will be recorded in the register. If there is no signal on FANIN2 after power on, the PWMOUT2 will keep outputting FFh duty cycle.

7.6.3.7 FAN2 Full speed Count Register 1 Index 0Dh

Bit Name R/W Default Description

7-0 F2_FULL(LSB) R FFh When power on, the FANPWM2 will output full duty cycle (FFh) to enable

system FAN. After 10 seconds when detecting FANIN signal, assuming the

fan has been fully turned on, the fan speed count detected will be recorded in the register. If there is no signal on FANIN1 after power on, the PWMOUT2 will keep outputting FFh duty cycle.

7.6.3.8 FAN3 Full Speed Count Register 0  Index 0Eh

Bit Name R/W Default Description

7-0 F3_FULL(MSB) R 0Fh When power on, the FANPWM3 will output full duty cycle (FFh) to enable

system FAN. After 10 seconds when detecting FANIN signal, assuming the

fan has been fully turned on, the fan speed count detected will be recorded in the register. If there is no signal on FANIN2 after power on, the PWMOUT3 will keep outputting FFh duty cycle.

Dec., 2006

V0.25P

Page 71

7.6.3.9 FAN3 Full speed Count Register 1 Index 0Fh

Bit Name R/W Default Description

7-0 F3_FULL(LSB) R FFh When power on, the FANPWM3 will output full duty cycle (FFh) to enable

system FAN. After 10 seconds when detecting FANIN signal, assuming the

fan has been fully turned on, the fan speed count detected will be recorded in the register. If there is no signal on FANIN3 after power on, the PWMOUT3 will keep outputting FFh duty cycle.

7.6.3.10 Value RAM  Index 10h - 2Fh, 40h - 59h

In the following table, the unit of voltage reading/limit is 8mV. The unit of temperature reading/limit is 1ºC.

Address 10-3F R/W Description

0Ah RO FAN1 full speed count reading [11:8] 0Bh RO FAN1 full speed count reading [7:0] 0Ch RO FAN2 full speed count reading [11:8] 0Dh RO FAN2 full speed count reading [7:0] 0Eh RO FAN3 full speed count reading [11:8] 0Fh RO FAN3 full speed count reading [7:0]

10h RO VCC reading. This reading is the divided voltage of VCC inside the chip. 11h RO VIN1 reading.

12h RO VIN2 reading. 13h RO VIN3 reading. 14h RO VIN4 reading. 15h RO VIN5 reading. 16h RO VIN6 reading. 17h RO VIN7 reading. 18h RO VIN8 reading.

19h RO VSB reading. This reading is the divided voltage of VSB inside the chip. 1Ah RO VBAT reading. This reading is the divided voltage of VBAT inside the chip. 1Bh RO T1 temperature reading. 1Ch RO T2 temperature reading. 1Dh RO T3 temperature reading.

1Eh Reserved

20h RO FAN1 count reading (MSB)

21h RO FAN1 count reading (LSB)

22h RO FAN2 count reading (MSB)

23h RO FAN2 count reading (LSB)

24h RO FAN3 count reading (MSB)

25h RO FAN3 count reading (LSB)

26h ~ 27h Reserved

28h R/W FAN1 count limit. (MSB)

29h R/W FAN1 count limit. (LSB) 2Ah R/W FAN2 count limit. (MSB) 2Bh R/W FAN2 count limit. (LSB). 2Ch R/W FAN3 count limit. (MSB) 2Dh R/W FAN3 count limit. (LSB) 2Eh R/W VBAT high limit. This limit should correspond to the divided voltage. 2Fh R/W VBAT low limit. This limit should correspond to the divided voltage.

40h R/W VCC high limit. This limit should correspond to the divided voltage.

41h R/W VCC low limit. This limit should correspond to the divided voltage.

F71806

Dec., 2006

V0.25P

Page 72

42h R/W VIN1 high limit.

43h R/W VIN1 low limit.

44h R/W VIN2 high limit.

45h R/W VIN2 low limit.

46h R/W VIN3 high limit.

47h R/W VIN3 low limit.

48h R/W VIN4 high limit.

49h R/W VIN4 low limit. 4Ah R/W VIN5 high limit. 4Bh R/W VIN5 low limit. 4Ch R/W VIN6 high limit. 4Dh R/W VIN6 low limit. 4Eh R/W VIN7 high limit. 4Fh R/W VIN7 low limit.

50h R/W VIN8 high limit.

51h R/W VIN8 low limit.

52h R/W VSB high limit. This limit should correspond to the divided voltage.

53h R/W VSB low limit. This limit should correspond to the divided voltage.

54h R/W T1 high limit.

55h R/W T1 low limit.

56h R/W T2 high limit.

57h R/W T2 low limit.

58h R/W T3 high limit.

59h R/W T3 low limit.

F71806

7.6.3.11 INTERRUPT ENABLE Control Register 1  Index 30h

Bit Name R/W Default Description

7 EN_VIN7 R/W 0 Set to 1, enables VIN7 abnormal interrupt.

6 EN_VIN6 R/W 0 Set to 1, enables VIN6 abnormal interrupt.

5 EN_VIN5 R/W 0 Set to 1, enables VIN5 abnormal interrupt.

4 EN_VIN4 R/W 0 Set to 1, enables VIN4 abnormal interrupt.

3 EN_VIN3 R/W 0 Set to 1, enables VIN3 abnormal interrupt.

2 EN_VIN2 R/W 0 Set to 1, enables VIN2 abnormal interrupt.

1 EN_VIN1 R/W 0 Set to 1, enables VIN1 abnormal interrupt.

0 EN_3VDD R/W 0 Set to 1, enables 3VDD abnormal interrupt.

7.6.3.12 INTERRUPT ENABLE Control Register 2  Index 31h

Bit Name R/W Default Description

7-6 Reserved - -

5 EN_T3 R/W 0 Set to 1, enables T3 abnormal interrupt.

4 EN_T2 R/W 0 Set to 1, enables T2 abnormal interrupt.

3 EN_T1 R/W 0 Set to 1, enables T1 abnormal interrupt.

2 EN_VBAT R/W 0 Set to 1, enables VBAT abnormal interrupt.

1 EN_VSB R/W 0 Set to 1, enables VSB abnormal interrupt.

0 EN_VIN8 R/W 0 Set to 1, enables VIN8 abnormal interrupt.

Dec., 2006

V0.25P

Page 73

7.6.3.13 INTERRUPT ENABLE Control Register 3  Index 32h

Bit Name R/W Default Description

7 Reserved - -

6 EN_CASE R/W 0 Set to 1, enables Chassis Open interrupt.

5 EN_FAN3_TAR R/W 0 Set to 1, enables FAN3 target speed mismatched interrupt when FANPWM3

4 EN_FAN2_TAR R/W 0 Set to 1, enables FAN2 target speed mismatched interrupt when FANPWM2

3 EN_FAN1_TAR R/W 0

2 EN_FAN3_LMT R/W 0

1 EN_FAN2_LMT R/W 0 Set to 1, enables FAN2 abnormal interrupt.

0 EN_FAN1_LMT R/W 0 Set to 1, enables FAN1 abnormal interrupt.

F71806

duty-cycle is 100%.

Set to 1, enables FAN1 target speed mismatched interrupt when FANPWM1 duty-cycle is 100%. Set to 1, enables FAN3 abnormal interrupt.

7.6.3.14 INTERRUPT STATUS Register 1  Index 33h

Bit Name R/W Default Description

7 VIN7_STS R/W 0 A one indicates VIN7 reaches its high or low limit. Write 1 to clear this bit,

write 0 will be ignored.

6 VIN6_STS R/W 0 A one indicates VIN6 reaches its high or low limit. Write 1 to clear this bit,

write 0 will be ignored.

5 VIN5_STS R/W 0 A one indicates VIN5 reaches its high or low limit. Write 1 to clear this bit,

write 0 will be ignored.

4 VIN4_STS R/W 0 A one indicates VIN4 reaches its high or low limit. Write 1 to clear this bit,

write 0 will be ignored.

3 VIN3_STS R/W 0

2 VIN2_STS R/W 0

1 VIN1_STS R/W 0 A one indicates VIN1 reaches its high or low limit. Write 1 to clear this bit,

0 3VDD_STS R/W 0 A one indicates 3VDD reaches its high or low limit. Write 1 to clear this bit,

A one indicates VIN3 reaches its high or low limit. Write 1 to clear this bit, write 0 will be ignored. A one indicates VIN2 reaches its high or low limit. Write 1 to clear this bit, write 0 will be ignored.

write 0 will be ignored.

7.6.3.15 INTERRUPT STATUS Register 2  Index 34h

Bit Name R/W Default Description

7-6 Reserved - -

5 T3_STS R/W 0 A one indicates T3 reaches its high or low limit. Write 1 to clear this bit, write

0 will be ignored.

4 T2_STS R/W 0 A one indicates T2 reaches its high or low limit. Write 1 to clear this bit, write

0 will be ignored.

3 T1_STS R/W 0

2 VBAT_STS R/W 0

A one indicates T1 reaches its high or low limit. Write 1 to clear this bit, write 0 will be ignored. A one indicates VBAT reaches its high or low limit. Write 1 to clear this bit, write 0 will be ignored.

Dec., 2006

V0.25P

Page 74

1 VSB_STS R/W 0 A one indicates VSB reaches its high or low limit. Write 1 to clear this bit,

0 VIN8_STS R/W 0 A one indicates VIN8 reaches its high or low limit. Write 1 to clear this bit,

7.6.3.16 INTERRUPT STATUS Register 3  Index 35h

Bit Name R/W Default Description

7 Reserved - -

6 CASEOPEN 0

5 FAN3_TAR_STS R/W 0 A one indicates FAN3 can not reach the expect count in time. The time is

4 FAN2_TAR_STS R/W 0 A one indicates FAN2 can not reach the expect count in time. The time is

3 FAN1_TAR_STS R/W 0

2 FAN3_STS R/W 0

1 FAN2_STS R/W 0 A one indicates FAN2 reaches its high or low limit. Write 1 to clear this bit,

0 FAN1_STS R/W 0 A one indicates FAN1 reaches its high or low limit. Write 1 to clear this bit,

F71806

write 0 will be ignored.

A one indicates that Chassis has been opened.

defined by FAN3 Fault Time registers.

defined by FAN2 Fault Time registers.

A one indicates FAN1 can not reach the expect count in time. The time is defined by FAN1 Fault Time registers. A one indicates FAN3 reaches its high or low limit. Write 1 to clear this bit, write 0 will be ignored.

write 0 will be ignored.

7.6.3.17 REAL_TIME STATUS Register 1  Index 36h

Bit Name R/W Default Description

7 VIN7_RT R 0 A one indicates VIN7 is at abnormal range.

6 VIN6_RT R 0

5 VIN5_RT R 0 A one indicates VIN5 is at abnormal range.

4 VIN4_RT R 0 A one indicates VIN4 is at abnormal range.

3 VIN3_RT R 0

2 VIN2_RT R 0

1 VIN1_RT R 0 A one indicates VIN1 is at abnormal range.

0 3VDD_RT R 0 A one indicates 3VDD is at abnormal range.

A one indicates VIN6 is at abnormal range.

A one indicates VIN3 is at abnormal range.

A one indicates VIN2 is at abnormal range.

7.6.3.18 REAL_TIME STATUS Register 2  Index 37h

Bit Name R/W Default Description

7-6 Reserved - -

5 T3_RT R 0 A one indicates T3 exceeds its high limit.

4 T2_RT R 0 A one indicates T2 exceeds its high limit.

3 T1_RT R 0

2 VBAT_RT R 0

1 VSB_RT R 0 A one indicates VSB exceeds its high limit.

A one indicates VBAT exceeds its high limit.

Dec., 2006

V0.25P

Page 75

0 VIN8_RT R 0 A one indicates VIN8 exceeds its high limit.

7.6.3.19 REAL_TIME STATUS Register 3  Index 38h

Bit Name R/W Default Description

7 Reserved - -

6 CASEOPEN R 0 A one indicates that chassis is opened.

5 FAN3_TAR_RT R 0

4 FAN2_TAR_RT R 0

3 FAN1_TAR_RT R 0

2 FAN3_RT R 0

1 FAN2_RT R 0 A one indicates FAN2 is at abnormal range.

0 FAN1_RT R 0 A one indicates FAN1 is at abnormal range.

F71806

A one indicates FAN3 can not reach the expect count in time when FANPWM3 duty-cycle is 100%. The time is defined by FAN3 Fault Time registers. After FAN3 reaches the expect count, the bit will be set to 0. A one indicates FAN2 can not reach the expect count in time when FANPWM2 duty-cycle is 100%. The time is defined by FAN2 Fault Time registers. After FAN2 reaches the expect count, the bit will be set to 0. A one indicates FAN1 can not reach the expect count in time when FANPWM1 duty-cycle is 100%. The time is defined by FAN1 Fault Time registers. After FAN1 reaches the expect count, the bit will be set to 0. A one indicates FAN3 is at abnormal range.

7.6.3.20 VIN_FAULT Mode Register 3  Index 39h

Bit Name R/W Default Description

7 Reserved R/W 0 Reserved.

6-4 Reserved - - Reserved.

3 VIN4F_SEL R 0

2 VIN3F_SEL R 0

1 VIN2F_SEL R 0

0 VIN1F_SEL R 0

Set to 1, once VIN4_FAULT is asserted, it will not be de-asserted when VIN4 is back to normal range. Set to 0, VIN4_FAULT is asserted/de-asserted according to its value whether is out of high/low limit. Set to 1, once VIN3_FAULT is asserted, it will not be de-asserted when VIN4 is back to normal range. Set to 0, VIN3_FAULT is asserted/de-asserted according to its value whether is out of high/low limit. Set to 1, once VIN2_FAULT is asserted, it will not be de-asserted when VIN4 is back to normal range. Set to 0, VIN2_FAULT is asserted/de-asserted according to its value whether is out of high/low limit. Set to 1, once VIN1_FAULT is asserted, it will not be de-asserted when VIN4 is back to normal range. Set to 0, VIN1_FAULT is asserted/de-asserted according to its value whether is out of high/low limit.

7.6.3.21 VIN_FAULT STATUS Register  Index 3Ah

Bit Name R/W Default Description

7 Reserved R/W 0 Reserved.

6-4 Reserved - -

Dec., 2006

V0.25P

Page 76

F71806

3 STS_VIN4_FAULT R/W 0

2 STS_VIN3_FAULT R/W 0

1 STS_VIN2FAULT R/W 0

0 STS_VIN1_FAULT R/W 0

Read one indicates that VIN4 is out of its high/low limit. Write 1 to clear this status. Read one indicates that VIN3 is out of its high/low limit. Write 1 to clear this status. Read one indicates that VIN2 is out of its high/low limit. Write 1 to clear this status. Read one indicates that VIN1 is out of its high/low limit. Write 1 to clear this status.

7.6.3.22 T_FAULT Control Register  Index 3Bh

Bit Name R/W Default Description

7-3 Reserved - -

2 EN_T3_FAULT R/W 0

1 EN_T2_FAULT R/W 0

0 EN_T1_FAULT R/W 0 Set to 1, enable temperature 1(VT1) fault through pin OVT_N.

Set to 1, enable temperature 3(VT3)fault through pin OVT_N.

Set to 1, enable temperature 2(VT2) fault through pin OVT_N.

7.6.3.23 Case Open Status Clear Register  Index 3Ch

Bit Name R/W Default Description

7-1 Reserved - -

0 CLR_INTRUDE W 0 Write 1 to clear the latched CASEOPEN event status.

7.6.3.24 BEEP Control Register 1  Index 3Dh

Bit Name R/W Default Description

7 EN_VIN7_BEEP R/W 0 Write 1 to enable the beep alarm for VIN7 abnormal event. Write 0 to disable it.

6 EN_VIN6_BEEP R/W 0 Write 1 to enable the beep alarm for VIN6 abnormal event. Write 0 to disable it.

5 EN_VIN5_BEEP R/W 0 Write 1 to enable the beep alarm for VIN5 abnormal event. Write 0 to disable it.

4 EN_VIN4_BEEP R/W 0 Write 1 to enable the beep alarm for VIN4 abnormal event. Write 0 to disable it.

3 EN_VIN3_BEEP R/W 0 Write 1 to enable the beep alarm for VIN3 abnormal event. Write 0 to disable it.

2 EN_VIN2_BEEP R/W 0 Write 1 to enable the beep alarm for VIN2 abnormal event. Write 0 to disable it.

1 EN_VIN1_BEEP R/W 0 Write 1 to enable the beep alarm for VIN1 abnormal event. Write 0 to disable it.

0 EN_VCC_BEEP R/W 0 Write 1 to enable the beep alarm for 3VDD abnormal event. Write 0 to disable

it.

7.6.3.25 BEEP Control Register 2  Index 3Eh

Bit Name R/W Default Description

7-6 Reserved - -

5 EN_T3_BEEP R/W 0 Write 1 to enable the beep alarm for T3 abnormal event. Write 0 to disable it

4 EN_T2_BEEP R/W 0 Write 1 to enable the beep alarm for T2 abnormal event. Write 0 to disable it

3 EN_T1_BEEP R/W 0 Write 1 to enable the beep alarm for T1 abnormal event. Write 0 to disable it

Dec., 2006

V0.25P

Page 77

2 EN_VBAT_BEEP R/W 0 Write 1 to enable the beep alarm for VBAT abnormal event. Write 0 to disable

1 EN_VIN7_BEEP R/W 0 Write 1 to enable the beep alarm for VSB abnormal event. Write 0 to disable it

0 EN_VIN8_BEEP R/W 0 Write 1 to enable the beep alarm for VIN8 abnormal event. Write 0 to disable it

7.6.3.26 BEEP Control Register 3  Index 3Fh

Bit Name R/W Default Description

7 Reserved - -

6 EN_CASE_BEEP R/W 0 Write 1 to enable the beep alarm for CASEOPEN abnormal event. Write 0 to

5 EN_FAN3_TAR_

BEEP

4 EN_FAN2_TAR_

BEEP

3 EN_FAN1_TAR_BEEP R/W 0 Write 1 to enable the beep alarm for FAN1 target-not-reached event. Write 0 to

2 EN_FAN3_LMT_BEEP R/W 0 Write 1 to enable the beep alarm for FAN3 under-limit event. Write 0 to disable

1 EN_FAN2_LMT_BEEP R/W 0 Write 1 to enable the beep alarm for FAN2 under-limit event. Write 0 to disable

0 EN_FAN1_LMT_BEEP R/W 0 Write 1 to enable the beep alarm for FAN1 under-limit event. Write 0 to disable

F71806

disable it

R/W 0 Write 1 to enable the beep alarm for FAN3 target-not-reached event. Write 0 to

disable it

R/W 0 Write 1 to enable the beep alarm for FAN2 target-not-reached event. Write 0 to

disable it

7.6.3.27 FAN1 OPERATING Control Register -- Index 60h

Bit Name R/W Default Description

7 FAN1_SKIP R - When this bit is set to 1, FAN1 is not monitored.

When this bit is set to 0, FAN1 is monitored.

6 Reserved - -

FAN1_FORCE_MONI

TOR

FAN1_DC_MODE

F1_LATCH_FULL

F1_KEEP_STOP

1-0

F1_MODE

R/W 0

R/W 00

Set to 1, FAN1 speed is monitored every monitor cycle even the fan is stopped. Set to 0, FAN1 speed will not be monitored at the next monitor cycle if the fan is stopped. Set to 1, FAN1 control is set to DC mode. Set to 0, FAN1 control is set to PWM duty-cycle mode. Set to 1, current FAN1 COUNT will be bypass to FAN1_FULL_SPEED.

Set to 1, keep FANPWM1 duty-cycle decrease to STOP DUTY and hold.

00: FAN1 operates in SPEED mode. FANPWM duty-cycle is automatically adjusted according to FAN EXPECT register. 01: FAN1 operates in TEMPERATURE mode. FANPWM duty-cycle is

automatically adjusted according to current temperature,

1x: FAN1 operates in MANUAL mode. Software set the FANPWM duty-cycle

directly.

7.6.3.28 FANPWM1 START UP DUTY-CYCLE  Index 61h

Bit Name R/W Default Description

7-0

F1_START_DUTY[9:2]

R/W 30h FANPWM1 will increasing duty-cycle from 0 to this valuedirectly.

Dec., 2006

V0.25P

Page 78

7.6.3.29 FANPWM1 STOP DUTY-CYCLE  Index 62h

Bit Name R/W Default Description

7-0

F1_STOP_DUTY[9:2]

7.6.3.30 FANPWM1 Output Frequency Control  Index 63h

Bit Name R/W Default Description

F71806

R/W 25h FANPWM1 will decreasing duty-cycle to 0 from this value directly or keep

duty-cycle in this value when FAN1_KEEP_STOP set to 1.

7 PWM1_DIV[7] R/W Set to 1, PRECLK(Pre-Clock) = 48M Hz ;

6-0 PWM1_DIV[6:0] R/W

FANPWM1 output frequency =

80h

Set to 0, PRECLK = 1M Hz . Pre-divisor of PRECLK.

PRECLK

256)-(Pr ∗divisore

So, PWM frequency ranges from 30.5Hz~187.5KHz

7.6.3.31 FANPWM1 STEP Control Register -- Index 64h

Bit Name R/W Default Description

7-4 F1_UP_STEP R/W This value determines the increasing speed of PWM1_DUTY. 3-0 F1_DOWN_STEP R/W

00h

This value determines the decreasing speed of PWM1_DUTY.

7.6.3.32 FAN1_FAULT TIME Register  Index 65h

Bit Name R/W Default Description

7-0 F1_FAULT_TIME R/W 03h This register determines the time for fan to chase to the expect speed. Two

conditions cause fan fault event: (1). When PWM_Duty reaches FFh, if the fan speed count can’t reach the fan expect count in the time. (2). When PWM_Duty reaches 00h, if the fan speed count can’t reach the fan expect count in the time. The unit of this register is 1 second. The default value is 3 seconds.

7.6.3.33 FAN1 Expect count Register---Index 69h

Bit Name R/W Default Description

7-4 Reserved - 3-0

F1_EXPECT (MSB)

00h

User expect fan1 count value, program this register to control the expect fan1 speed

7.6.3.34 FAN1 Expect count Register-- Index 6Ah

PBit Name R/W Default Description

7-0 F1_EXPECT (LSB) R 00h User expect fan1 count value, program this register to control the expect fan1

speed.

Dec., 2006

V0.25P

Page 79

7.6.3.35 FAN1 PWM_DUTY -- Index 6Bh

Bit Name R/W Default Description

7-0 PWM_DUTY1 R/W FFh When FAN1 control is at PWM Duty-cycle mode, this value represents the

7.6.3.36 FAN2 OPERATING Control Register -- Index 70h

Bit Name R/W Default Description

F71806

duty-cycle. When FAN1 control is at DC mode, this value represents the DC voltage output. Each step (LSB) is VCC / 256. This register is programmable at Manual mode. At SPEED or TEMPERATURE mode, this register reflects current FANPWM1 duty-cycle.

7 FAN2_SKIP R - When this bit is set to 1, FAN2 is not monitored.

When this bit is set to 0, FAN2 is monitored.

6 Reserved - - Reserved.

FAN2_FORCE_MONI

TOR

FAN2_DC_MODE

3 F2_LATCH_FULL R/W 0 Set to 1, current FAN2 COUNT will be bypass to F2_FULL_SPEED. 2 F2_KEEP_STOP R/W 0 Set to 1, keep FANPWM2 duty-cycle decrease to STOP DUTY and hold.

1-0 F2_MODE R/W 00 00: FAN2 operates in SPEED mode. FANPWM duty-cycle is automatically

R/W 0

Set to 1, FAN2 speed is monitored every monitor cycle even the fan is stopped. Set to 0, FAN2 speed will not be monitored at the next monitor cycle if the fan is stopped. Set to 1, FAN2 control is set to DC mode. Set to 0, FAN2 control is set to PWM duty-cycle mode.

adjusted according to FAN EXPECT register.

01: FAN2 operates in TEMPERATURE mode. FANPWM duty-cycle is

automatically adjusted according to current temperature,

1x: FAN2 operates in MANUAL mode. Software set the FANPWM duty-cycle

directly.

7.6.3.37 FANPWM2 START UP DUTY-CYCLE  Index 71h

Bit Name R/W Default Description

7-0 F2_START_DUTY R/W 30h FANPWM2 will increase duty-cycle from 0 to this value directly.

7.6.3.38 FANPWM2 STOP DUTY-CYCLE  Index 72h

Bit Name R/W Default Description

7-0 F2_STOP_DUTY R/W 25h FANPWM2 will decreasing duty-cycle to 0 from this value directly or keep

duty-cycle in this value when F2_KEEP_STOP set to 1.

7.6.3.39 FANPWM2 Output Frequency Control  Index 73h

Bit Name R/W Default Description

7 PWM2_DIV[7] R/W Set to 1, PRECLK(Pre-Clock) = 48M Hz ;

6-0 PWM2_DIV[6:0] R/W

80h

Set to 0, PRECLK = 1M Hz . Pre-divisor of PRECLK.

Dec., 2006

V0.25P

Page 80

F71806

FANPWM2 output frequency =

PRECLK

256)(Pr ∗− divisore

So, PWM frequency ranges from 30.5Hz~187.5KHz

7.6.3.40 FANPWM2 STEP Control Register -- Index 74h

Bit Name R/W Default Description

7-4

2_UP_STEP R/W This value determines the increasing speed of PWM2_DUTY.

3-0

2_DOWN_STEP R/W

00h

This value determines the decreasing speed of PWM2_DUTY

7.6.3.41 FAN2_FAULT TIME Register  Index 75h

Bit Name R/W Default Description

7-0 F2_FAULT_TIME R/W 03h This register determines the time for fan to chase to the expect speed. Two

7.6.3.42 FAN2 Expect count Register-- Index 79h

Bit Name R/W Default Description

7-4 Reserved - 3-0

F2_EXPECT (MSB)

00h

User expect fan2 count value, program this register to control the expect fan2 speed

7.6.3.43 FAN2 Expect count Register-- Index 7Ah

Bit Name R/W Default Description

7-0 F2_EXPECT (LSB) R 00h User expect fan2 count value, program this register to control the expect

fan2 speed.

7.6.3.44 FAN2 PWM_DUTY -- Index 7Bh

Bit Name R/W Default Description

7-0 PWM_DUTY2 R/W FFh When FAN2 control is at PWM Duty-cycle mode, this value represents the

duty-cycle. When FAN2 control is at DC mode, this value represents the DC voltage output. Each step (LSB) is VCC / 256. This register is programmable at Manual mode. At SPEED or TEMPERATURE mode, this register reflects current FANPWM1 duty-cycle.

Dec., 2006

V0.25P

Page 81

7.6.3.45 FAN3 OPERATING Control Register -- Index 80h

Bit Name R/W Default Description

7 FAN3_SKIP R - When this bit is set to 1, FAN3 is not monitored.

6 Reserved - -

FAN3_FORCE_MONI

TOR

FAN3_DC_MODE

3 F3_LATCH_FULL R/W 0 Set to 1, current FAN3 COUNT will be bypass to F3_FULL_SPEED.

2 F3_KEEP_STOP R/W 0 Set to 1, keep FANPWM3 duty-cycle decrease to STOP DUTY and hold.

1-0 F3_MODE R/W 00 00: FAN3 operates in SPEED mode. FANPWM3 duty-cycle is

R/W 0

F71806

When this bit is set to 0, FAN3 is monitored.

Set to 1, FAN3 speed is monitored every monitor cycle even the fan is stopped. Set to 0, FAN3 speed will not be monitored at the next monitor cycle if the fan is stopped. Set to 1, FAN3 control is set to DC mode. Set to 0, FAN3 control is set to PWM duty-cycle mode.

automatically adjusted according to FAN EXPECT register. 01: FAN3 operates in TEMPERATURE mode. FANPWM3 duty-cycle is

automatically adjusted according to current temperature,

1x: FAN3 operates in MANUAL mode. Software set the FANPWM3

duty-cycle directly.

7.6.3.46 FANPWM3 START UP DUTY-CYCLE  Index 81h

Bit Name R/W Default Description

7-0 F3_START_DUTY R/W 30h FANPWM3 will increase duty-cycle from 0 to this value directly.

7.6.3.47 FANPWM3 STOP DUTY-CYCLE  Index 82h

Bit Name R/W Default Description

7-0 F3_STOP_DUTY R/W 25h FANPWM3 will decreasing duty-cycle to 0 from this value directly or keep

7.6.3.48 FANPWM3 Output Frequency Control  Index 83h

Bit Name R/W Default Description

7 PWM3_DIV[7] R/W Set to 1, PRECLK(Pre-Clock) = 48M Hz ;

6-0 PWM3_DIV[6:0] R/W

FANPWM3 output frequency =

duty-cycle in this value when F3_KEEP_STOP set to 1.

80h

Set to 0, PRECLK = 1M Hz . Pre-divisor of PRECLK.

PRECLK

256)(Pr ∗− divisore

So, PWM frequency ranges from 30.5Hz~187.5KHz

7.6.3.49 FANPWM3 STEP Control Register -- Index 84h

Bit Name R/W Default Description

Dec., 2006

V0.25P

Page 82

F71806

7-4 F3_UP_STEP R/W This value determines the increasing speed of PWM3_DUTY. 3-0 F3_DOWN_STEP R/W

00h

This value determines the decreasing speed of PWM3_DUTY

7.6.3.50 FAN3_FAULT TIME Register  Index 85h

Bit Name R/W Default Description

7-0 F3_FAULT_TIME R/W 03h This register determines the time for fan to chase to the expect speed. Two

7.6.3.51 FAN3 Expect count Register-- Index 89h

Bit Name R/W Default Description

7-4 Reserved - 3-0

F3_EXPECT (MSB)

00h

User expect fan3 count value, program this register to control the expect fan3 speed

7.6.3.52 FAN3 Expect count Register-- Index 8Ah

Bit Name R/W Default Description

7-0 F3_EXPECT (LSB) R 00h User expect fan3 count value, program this register to control the expect fan3

speed.

7.6.3.53 FAN3 PWM_DUTY -- Index 8Bh

Bit Name R/W Default Description

7-0 PWM_DUTY3 R/W FFh When FAN3 control is at PWM Duty-cycle mode, this value represents the

duty-cycle. When FAN3 control is at DC mode, this value represents the DC voltage output. Each step (LSB) is VCC / 256. This register is programmable at Manual mode. At SPEED or TEMPERATURE mode, this register reflects current FANPWM1 duty-cycle

7.6.3.54 FAN1 CONTROL v.s. TEMPERATURE 1 (INDEX A0 -- AD registers )

T1 BOUNDARY 1 TEMPERATURE – Index A0h

Bit Name R/W Default Description

Dec., 2006

V0.25P

Page 83

7-0 T1_TP_1 R/W 00h The 1st BOUNDARY temperature for T1 in temperature mode.

T1 BOUNDARY 5 TEMPERATURE – Index A1h

Bit Name R/W Default Description

7-0 T1_TP_5 R/W 00h The 5th BOUNDARY temperature for T1 in temperature mode.

F71806

When T1 temperature is exceed this boundary, FAN1 segment 1 speed count

registers will be loaded into FAN1 expect count registers.

When T1 temperature is below this boundary, FAN1 segment 2 speed count

registers will be loaded into FAN1 expect count registers.

When T1 temperature is exceed this boundary, FAN1 segment 5 speed

count registers will be loaded into FAN1 expect count registers.

When T1 temperature is below this boundary, FAN1 segment 6 speed

count registers will be loaded into FAN1 expect count registers.

T1 BOUNDARY 9 TEMPERATURE – Index A2h

Bit Name R/W Default Description

7-0 T1_TP_9 R/W 00h The 9th BOUNDARY temperature for T1 in temperature mode.

When T1 temperature is exceed this boundary, FAN1 segment 9 speed

count registers will be loaded into FAN1 expect count registers.

When T1 temperature is below this boundary, FAN1 segment 10 speed

count registers will be loaded into FAN1 expect count registers.

FAN1 SEGMENT 1 SPEED COUNT (MSB) – Index A4h

Bit Name R/W Default Description

7-4 Reserved - 3-0 T1_SP_1_MSB R/W

0Fh

The MSB of 1st expected fan speed for FAN1 in temperature mode.

FAN1 SEGMENT 1 SPEED COUNT (LSB) – Index A5h

Bit Name R/W Default Description

7-0 T1_SP_1_LSB R/W FFh The LSB of 1st expected fan speed for FAN1 in temperature mode.

FAN1 SEGMENT 5 SPEED COUNT (MSB) – Index A6h

Bit Name R/W Default Description

7-4 Reserved - 3-0 T1_SP_5_MSB R/W

0Fh

The MSB of 5th expected fan speed for FAN1 in temperature mode.

FAN1 SEGMENT 5 SPEED COUNT (LSB) – Index A7h

Bit Name R/W Default Description

7-0 T1_SP_5_LSB R/W FFh The LSB of 5th expected fan speed for FAN1 in temperature mode.

Dec., 2006

V0.25P

Page 84

FAN1 SEGMENT 9 SPEED COUNT (MSB) – Index A8h

Bit Name R/W Default Description

F71806

7-4 Reserved - 3-0 T1_SP_9_MSB R/W

0Fh

The MSB of 9th expected fan speed for FAN1 in temperature mode.

FAN1 SEGMENT 9 SPEED COUNT (LSB) – Index A9h

Bit Name R/W Default Description

7-0 T1_SP_9_LSB R/W FFh The LSB of 9th expected fan speed for FAN1 in temperature mode.

7.6.3.55 FAN2 CONTROL v.s. TEMPERATURE 2 (INDEX B0 -- BD registers )

T2 BOUNDARY 1 TEMPERATURE – Index B0h

Bit Name R/W Default Description

7-0 T2_TP_1 R/W 00h The 1st BOUNDARY temperature for T2 in temperature mode.

When T2 temperature is exceed this boundary, FAN2 segment 1 speed count

registers will be loaded into FAN2 expect count registers.

When T2 temperature is below this boundary, FAN2 segment 2 speed count

registers will be loaded into FAN2 expect count registers.

T2 BOUNDARY 5 TEMPERATURE – Index B1h

Bit Name R/W Default Description

7-0 T2_TP_5 R/W 002h The 5th BOUNDARY temperature for T2 in temperature mode.

When T2 temperature is exceed this boundary, FAN2 segment 5 speed

count registers will be loaded into FAN2 expect count registers.

When T2 temperature is below this boundary, FAN2 segment 6 speed

count registers will be loaded into FAN2 expect count registers.

T2 BOUNDARY 9 TEMPERATURE – Index B2h

Bit Name R/W Default Description

7-0 T2_TP_9 R/W 00h The 9th BOUNDARY temperature for T2 in temperature mode.

When T2 temperature is exceed this boundary, FAN2 segment 9 speed

count registers will be loaded into FAN2 expect count registers.

When T2 temperature is below this boundary, FAN2 segment 10 speed

count registers will be loaded into FAN2 expect count registers.

FAN2 SEGMENT 1 SPEED COUNT (MSB) – Index B4h

Bit Name R/W Default Description

7-4 Reserved - 3-0 T2_SP_1_MSB R/W

0Fh

The MSB of 1st expected fan speed for FAN2 in temperature mode.

Dec., 2006

V0.25P

Page 85

FAN2 SEGMENT 1 SPEED COUNT (LSB) – Index B5h

Bit Name R/W Default Description

7-0 T2_SP_1_LSB R/W FFh The LSB of 1st expected fan speed for FAN2 in temperature mode.

FAN2 SEGMENT 5 SPEED COUNT (MSB) – Index B6h

Bit Name R/W Default Description

F71806

7-4 Reserved - 3-0 T2_SP_5_MSB R/W

0Fh

The MSB of 5th expected fan speed for FAN2 in temperature mode.

FAN2 SEGMENT 5 SPEED COUNT (LSB) – Index B7h

Bit Name R/W Default Description

7-0 T2_SP_5_LSB R/W FFh The LSB of 5th expected fan speed for FAN2 in temperature mode.

FAN2 SEGMENT 9 SPEED COUNT (MSB) – Index B8h

Bit Name R/W Default Description

7-4 Reserved - 3-0 T2_SP_9_MSB R/W

0Fh

The MSB of 9th expected fan speed for FAN2 in temperature mode.

FAN2 SEGMENT 9 SPEED COUNT (LSB) – Index B9h

Bit Name R/W Default Description

7-0 T2_SP_9_LSB R/W FFh The LSB of 9th expected fan speed for FAN2 in temperature mode.

7.6.3.56 FAN3 CONTROL v.s. TEMPERATURE 3 ( INDEX C0 -- CD registers )

T3 BOUNDARY 1 TEMPERATURE – Index C0h

Bit Name R/W Default Description

7-0 T3_TP_1 R/W 00h The 1st BOUNDARY temperature for T3 in temperature mode.

When T3 temperature is exceed this boundary, FAN3 segment 1 speed count

registers will be loaded into FAN3 expect count registers.

When T3 temperature is below this boundary, FAN3 segment 2 speed count

registers will be loaded into FAN3 expect count registers.

T3 BOUNDARY 5 TEMPERATURE – Index C1h

Bit Name R/W Default Description

Dec., 2006

V0.25P

Page 86

7-0 T3_TP_5 R/W 00h The 5th BOUNDARY temperature for T3 in temperature mode.

T3 BOUNDARY 9 TEMPERATURE – Index C2h

Bit Name R/W Default Description

7-0 T3_TP_9 R/W 00h The 9th BOUNDARY temperature for T3 in temperature mode.

F71806

When T3 temperature is exceed this boundary, FAN3 segment 5 speed

count registers will be loaded into FAN3 expect count registers.

When T3 temperature is below this boundary, FAN3 segment 6 speed

count registers will be loaded into FAN3 expect count registers.

When T3 temperature is exceed this boundary, FAN3 segment 9 speed

count registers will be loaded into FAN3 expect count registers.

When T3 temperature is below this boundary, FAN3 segment 10 speed

count registers will be loaded into FAN3 expect count registers.

FAN3 SEGMENT 1 SPEED COUNT (MSB) – Index C4h

Bit Name R/W Default Description

7-4 Reserved - 3-0 T3_SP_1_MSB R/W

0Fh

The MSB of 1st expected fan speed for FAN3 in temperature mode.

FAN3 SEGMENT 1 SPEED COUNT (LSB) – Index C5h

Bit Name R/W Default Description

7-0 T3_SP_1_LSB R/W FFh The LSB of 1st expected fan speed for FAN3 in temperature mode.

FAN3 SEGMENT 5 SPEED COUNT (MSB) – Index C6h

Bit Name R/W Default Description

7-4 Reserved - 3-0 T3_SP_5_MSB R/W

0Fh

The MSB of 5th expected fan speed for FAN3 in temperature mode.

FAN3 SEGMENT 5 SPEED COUNT (LSB) – Index C7h

Bit Name R/W Default Description

7-0 T3_SP_5_LSB R/W FFh The LSB of 5th expected fan speed for FAN1 in temperature mode.

FAN3 SEGMENT 9 SPEED COUNT (MSB) – Index C8h

Bit Name R/W Default Description

7-4 Reserved - 3-0 T3_SP_9_MSB R/W

0Fh

The MSB of 9th expected fan speed for FAN3 in temperature mode.

FAN3 SEGMENT 9 SPEED COUNT (LSB) – Index C9h

Bit Name R/W Default Description

Dec., 2006

V0.25P

Page 87

7-0 T3_SP_9_LSB R/W FFh The LSB of 9th expected fan speed for FAN3 in temperature mode.

7.7 GPIO Registers

7.7.1 Logic Device Number Register

F71806

Logic Device Number Register

Bit Name R/W Default Description

7-0 LDN R/W 00h 00h: Select FDC device configuration registers.

 Index 07H

01h: Select UART 1 device configuration registers.

02h: Select UART 2 device configuration registers.

03h: Select Parallel Port device configuration registers.

04h: Select Hardware Monitor device configuration registers.

05h: Reserved.

06h: Select GPIO device configuration registers.

07h: Select VID device configuration registers.

0ah: Select PME & ACPI device configuration registers.

7.7.2 Configuration Registers

7.7.2.1 IRQ Channel Select Register  Index 70h

Bit Name R/W Default Description

7-4 Reserved - - Reserved.

3-0 SELGIOIRQ R/W 0h Select the IRQ channel for GPIO[6:0] interrupt.

7.7.2.2 GPIO Output Enable Register  Index E0h

Bit Name R/W Default Description

7 Reserved - - Reserved.

6 GPIO6_OE R/W 0 0: GPIO6 is in input mode.

1: GPIO6 is in output mode.

5 GPIO5_OE R/W 0 0: GPIO5 is in input mode.

1: GPIO5 is in output mode.

4 GPIO4_OE R/W 0 0: GPIO4 is in input mode.

1: GPIO4 is in output mode.

Dec., 2006

V0.25P

Page 88

3 GPIO3_OE R/W 0 0: GPIO3 is in input mode.

2 GPIO2_OE R/W 0 0: GPIO2 is in input mode.

1 GPIO1_OE R/W 0 0: GPIO1 is in input mode.

0 GPIO0_OE R/W 0 0: GPIO0 is in input mode.

7.7.2.3 GPIO Output Data Register  Index E1h

Bit Name R/W Default Description

7 Reserved - - Reserved.

6 GPIO6_VAL R/W 0 0: GPIO6 outputs 0 when in output mode.

5 GPIO5_VAL R/W 0 0: GPIO5 outputs 0 when in output mode.

4 GPIO4_VAL R/W 0 0: GPIO4 outputs 0 when in output mode.

3 GPIO3_VAL R/W 0 0: GPIO3 outputs 0 when in output mode.

2 GPIO2_VAL R/W 0 0: GPIO2 outputs 0 when in output mode.

1 GPIO1_VAL R/W 0 0: GPIO1 outputs 0 when in output mode.

0 GPIO0_VAL R/W 0 0: GPIO0 outputs 0 when in output mode.

F71806

1: GPIO3 is in output mode.

1: GPIO2 is in output mode.

1: GPIO1 is in output mode.

1: GPIO0 is in output mode.

1: GPIO6 outputs1 when in output mode and GPIO6_MODE is 0.

GPIO6 outputs a pulse when in output mode and GPIO6_MODE is 1. Auto clear after the pulse.

1: GPIO5 outputs 1 when in output mode and GPIO5_MODE is 0.

GPIO5 outputs a pulse when in output mode and GPIO5_MODE is 1. Auto clear after the pulse.

1: GPIO4 outputs 1 when in output mode and GPIO4_MODE is 0.

GPIO4 outputs a pulse when in output mode and GPIO4_MODE is 1. Auto clear after the pulse.

1: GPIO3 outputs 1 when in output mode and GPIO3_MODE is 0.

GPIO3 outputs a pulse when in output mode and GPIO3_MODE is 1. Auto clear after the pulse.

1: GPIO2 outputs 1 when in output mode and GPIO2_MODE is 0.

GPIO2 outputs a pulse when in output mode and GPIO2_MODE is 1. Auto clear after the pulse.

1: GPIO1 outputs 1 when in output mode and GPIO1_MODE is 0.

GPIO1 outputs a pulse when in output mode and GPIO1_MODE is 1. Auto clear after the pulse.

1: GPIO0 outputs 1 when in output mode and GPIO0_MODE is 0.

GPIO0 outputs a pulse when in output mode and GPIO0_MODE is 1. Auto clear after the pulse.

7.7.2.4 GPIO Pin Status Register  Index E2h

Bit Name R/W Default Description

7 Reserved - - Reserved.

6 GPIO6_IN R - The pin status of GPIO6/Voltage_fault4#/WDTRST1#.

5 GPIO5_IN R - The pin status of GPIO5/Voltage_fault3#.

Dec., 2006

V0.25P

Page 89

4 GPIO4_IN R - The pin status of GPIO4/Voltage_fault2#.

3 GPIO3_IN R - The pin status of GPIO3/Voltage_fault1#.

2 GPIO2_IN R - The pin status of GPIO2.

1 GPIO1_IN R - The pin status of GPIO1.

0 GPIO0_IN R - The pin status of GPIO0.

7.7.2.5 GPIO Output Mode Register  Index E3h

Bit Name R/W Default Description

7 Reserved - - Reserved.

6 GPIO6_MODE R/W 0 0: level mode, GPIO6 output is controlled by GPIO6_VAL.

5 GPIO5_MODE R/W 0 0: level mode, GPIO5 output is controlled by GPIO5_VAL.

4 GPIO4_MODE R/W 0 0: level mode, GPIO4 output is controlled by GPIO4_VAL.

3 GPIO3_MODE R/W 0 0: level mode, GPIO3 output is controlled by GPIO3_VAL.

2 GPIO2_MODE R/W 0 0: level mode, GPIO2 output is controlled by GPIO2_VAL.

1 GPIO1_MODE R/W 0 0: level mode, GPIO1 output is controlled by GPIO1_VAL.

0 GPIO0_MODE R/W 0 0: level mode, GPIO0 output is controlled by GPIO0_VAL.

F71806

1: pulse mode, write GPIO6_VAL 1 to generate a pulse via GPIO6.

1: pulse mode, write GPIO5_VAL 1 to generate a pulse via GPIO5.

1: pulse mode, write GPIO4_VAL 1 to generate a pulse via GPIO4.

1: pulse mode, write GPIO3_VAL 1 to generate a pulse via GPIO3.

1: pulse mode, write GPIO2_VAL 1 to generate a pulse via GPIO2.

1: pulse mode, write GPIO1_VAL 1 to generate a pulse via GPIO1.

1: pulse mode, write GPIO0_VAL 1 to generate a pulse via GPIO0.

7.7.2.6 GPIO Pulse Width Select 1 Register  Index E4h

Bit Name R/W Default Description

7-6 GPIO3_PW_SEL R/W 00 GPIO3 pulse width select:

00: 500us (default).

01: 1ms.

10: 20ms.

11: 100ms.

5-4 GPIO2_PW_SEL R/W 00 GPIO2 pulse width select:

00: 500us (default).

01: 1ms.

10: 20ms.

11: 100ms.

3-2 GPIO1_PW_SEL R/W 00 GPIO1 pulse width select:

00: 500us (default).

01: 1ms.

10: 20ms.

11: 100ms.

Dec., 2006

V0.25P

Page 90

1-0 GPIO0_PW_SEL R/W 00 GPIO0 pulse width select:

7.7.2.7 GPIO Pulse Width Select 2 Register  Index E5h

Bit Name R/W Default Description

7-6 Reserved - - Reserved.

5-4 GPIO6_PW_SEL R/W 00 GPIO6 pulse width select:

3-2 GPIO5_PW_SEL R/W 00 GPIO5 pulse width select:

1-0 GPIO4_PW_SEL R/W 00 GPIO4 pulse width select:

F71806

00: 500us (default).

01: 1ms.

10: 20ms.

11: 100ms.

00: 500us (default).

01: 1ms.

10: 20ms.

11: 100ms.

00: 500us (default).

01: 1ms.

10: 20ms.

11: 100ms.

00: 500us (default).

01: 1ms.

10: 20ms.

11: 100ms.

7.7.2.8 GPIO Pulse Mode Register  Index E6h

Bit Name R/W Default Description

7 Reserved - - Reserved.

6 GPIO6_PUL_MODE R/W 0 GPIO6 pulse mode:

0: output low pulse when in pulse mode.

1: output high pulse when in pulse mode.

5 GPIO5_PUL_MODE R/W 0 GPIO5 pulse mode:

0: output low pulse when in pulse mode.

1: output high pulse when in pulse mode.

4 GPIO4_PUL_MODE R/W 0 GPIO4 pulse mode:

0: output low pulse when in pulse mode.

1: output high pulse when in pulse mode.

3 GPIO3_PUL_MODE R/W 0 GPIO3 pulse mode:

0: output low pulse when in pulse mode.

1: output high pulse when in pulse mode.

2 GPIO2_PUL_MODE R/W 0 GPIO2 pulse mode:

0: output low pulse when in pulse mode.

1: output high pulse when in pulse mode.

Dec., 2006

V0.25P

Page 91

1 GPIO1_PUL_MODE R/W 0 GPIO1 pulse mode:

0 GPIO0_PUL_MODE R/W 0 GPIO0 pulse mode:

7.7.2.9 GPIO Pad Type Register  Index E7h

Bit Name R/W Default Description

7 Reserved - - Reserved.

6 GPIO6_DRV_EN R/W 0 GPIO6 pad type:

5 GPIO5_DRV_EN R/W 0 GPIO5 pad type:

4 GPIO4_DRV_EN R/W 0 GPIO4 pad type:

3 GPIO3_DRV_EN R/W 0 GPIO3 pad type:

2 GPIO2_DRV_EN R/W 0 GPIO2 pad type:

1 GPIO1_DRV_EN R/W 0 GPIO1 pad type:

0 GPIO0_DRV_EN R/W 0 GPIO0 pad type:

F71806

0: output low pulse when in pulse mode.

1: output high pulse when in pulse mode.

0: output low pulse when in pulse mode.

1: output high pulse when in pulse mode.

0: open drain.

1: push-pull.

0: open drain.

1: push-pull.

0: open drain.

1: push-pull.

0: open drain.

1: push-pull.

0: open drain.

1: push-pull.

0: open drain.

1: push-pull.

0: open drain.

1: push-pull.

7.7.2.10 GPIO IRQ Enable Register  Index E8h

Bit Name R/W Default Description

7 Reserved - - Reserved.

6 GPIO6_IRQ_EN R/W 0 GPIO6 interrupt enable:

0: disable interrupt.

1: assert an interrupt when GPIO6 changed in input mode.

5 GPIO5_IRQ_EN R/W 0 GPIO5 interrupt enable:

0: disable interrupt.

1: assert an interrupt when GPIO5 changed in input mode.

4 GPIO4_IRQ_EN R/W 0 GPIO4 interrupt enable:

0: disable interrupt.

1: assert an interrupt when GPIO4 changed in input mode.

Dec., 2006

V0.25P

Page 92

3 GPIO3_IRQ_EN R/W 0 GPIO3 interrupt enable:

2 GPIO2_IRQ_EN R/W 0 GPIO2 interrupt enable:

1 GPIO1_IRQ_EN R/W 0 GPIO1 interrupt enable:

0 GPIO0_IRQ_EN R/W 0 GPIO0 interrupt enable:

7.7.2.11 GPIO Edge Detect Register  Index E9h

F71806

0: disable interrupt.

1: assert an interrupt when GPIO3 changed in input mode.

0: disable interrupt.

1: assert an interrupt when GPIO2 changed in input mode.

0: disable interrupt.

1: assert an interrupt when GPIO1 changed in input mode.

0: disable interrupt.

1: assert an interrupt when GPIO0 changed in input mode.

Bit Name R/W Default Description

7 Reserved - - Reserved.

6 GPIO6_EDG R/W 1 GPIO6 edge detect:

0: input data does not change.

1: input data changes. Write 1 to clear.

5 GPIO5_EDG R/W 1 GPIO5 edge detect:

0: input data does not change.

1: input data changes. Write 1 to clear.

4 GPIO4_EDG R/W 1 GPIO4 edge detect:

0: input data does not change.

1: input data changes. Write 1 to clear.

3 GPIO3_EDG R/W 1 GPIO3 edge detect:

0: input data does not change.

1: input data changes. Write 1 to clear.

2 GPIO2_EDG R/W 1 GPIO2 edge detect:

0: input data does not change.

1: input data changes. Write 1 to clear.

1 GPIO1_EDG R/W 1 GPIO1 edge detect:

0: input data does not change.

1: input data changes. Write 1 to clear.

0 GPIO0_EDG R/W 1 GPIO0 edge detect:

0: input data does not change.

1: input data changes. Write 1 to clear.

7.7.2.12 GPIO1 Output Enable Register  Index F0h

Bit Name R/W Default Description

7 Reserved - - Reserved.

6 GPIO16_OE R/W 0 0: GPIO16 is in input mode.

1: GPIO16 is in output mode.

5 GPIO15_OE R/W 0 0: GPIO15 is in input mode.

1: GPIO15 is in output mode.

Dec., 2006

V0.25P

Page 93

4 GPIO14_OE R/W 0 0: GPIO14 is in input mode.

3 GPIO13_OE R/W 0 0: GPIO13 is in input mode.

2 GPIO12_OE R/W 0 0: GPIO12 is in input mode.

1 GPIO11_OE R/W 0 0: GPIO11 is in input mode.

0 GPIO10_OE R/W 0 0: GPIO10 is in input mode.

7.7.2.13 GPIO1 Output Data Register  Index F1h

Bit Name R/W Default Description

7 Reserved - - Reserved.

6 GPIO16_VAL R/W 1 0: GPIO16 outputs 0 when in output mode.

5 GPIO15_VAL R/W 1 0: GPIO15 outputs 0 when in output mode.

4 GPIO14_VAL R/W 1 0: GPIO14 outputs 0 when in output mode.

3 GPIO13_VAL R/W 1 0: GPIO13 outputs 0 when in output mode.

2 GPIO12_VAL R/W 1 0: GPIO12 outputs 0 when in output mode.

1 GPIO11_VAL R/W 1 0: GPIO11 outputs 0 when in output mode.

0 GPIO10_VAL R/W 1 0: GPIO10 outputs 0 when in output mode.

F71806

1: GPIO14 is in output mode.

1: GPIO13 is in output mode.

1: GPIO12 is in output mode.

1: GPIO11 is in output mode.

1: GPIO10 is in output mode.

1: GPIO16 outputs1 when in output mode.

1: GPIO15 outputs 1 when in output mode.

1: GPIO14 outputs 1 when in output mode.

1: GPIO13 outputs 1 when in output mode.

1: GPIO12 outputs 1 when in output mode.

1: GPIO11 outputs 1 when in output mode.

1: GPIO10 outputs 1 when in output mode.

7.7.2.14 GPIO1 Pin Status Register  Index F2h

Bit Name R/W Default Description

7 Reserved - - Reserved.

6 GPIO16_IN R - The pin status of IRTX/GPIO16.

5 GPIO15_IN R - The pin status of PCIRST5#/GPIO15.

4 GPIO14_IN R - The pin status of PCIRST3#/GPIO14.

3 GPIO13_IN R - The pin status of PCIRST2#/GPIO13.

2 GPIO12_IN R - The pin status of PWROK1/GPIO12.

1 GPIO11_IN R - The pin status of PCIRST1#/GPIO11.

0 GPIO10_IN R - The pin status of RSTCON#/GPIO10.

7.7.2.15 GPIO2 Output Enable Register  Index F3h

Bit Name R/W Default Description

Dec., 2006

V0.25P

Page 94

7 GPIO27_OE R/W 0 0: GPIO27 is in input mode.

6 GPIO26_OE R/W 0 0: GPIO26 is in input mode.

5 GPIO25_OE R/W 0 0: GPIO25 is in input mode.

4 GPIO24_OE R/W 0 0: GPIO24 is in input mode.

3 GPIO23_OE R/W 0 0: GPIO23 is in input mode.

2 GPIO22_OE R/W 0 0: GPIO22 is in input mode.

1 GPIO21_OE R/W 0 0: GPIO21 is in input mode.

0 GPIO20_OE R/W 0 0: GPIO20 is in input mode.

F71806

1: GPIO27 is in output mode.

1: GPIO26 is in output mode.

1: GPIO25 is in output mode.

1: GPIO24 is in output mode.

1: GPIO23 is in output mode.

1: GPIO22 is in output mode.

1: GPIO21 is in output mode.

1: GPIO20 is in output mode.

7.7.2.16 GPIO2 Output Data Register  Index F4h

Bit Name R/W Default Description

7 GPIO27_VAL R/W 1 0: GPIO27 outputs 0 when in output mode.

1: GPIO27 outputs1 when in output mode.

6 GPIO26_VAL R/W 1 0: GPIO26 outputs 0 when in output mode.

1: GPIO26 outputs1 when in output mode.

5 GPIO25_VAL R/W 1 0: GPIO25 outputs 0 when in output mode.

1: GPIO25 outputs 1 when in output mode.

4 GPIO24_VAL R/W 1 0: GPIO24 outputs 0 when in output mode.

1: GPIO24 outputs 1 when in output mode.

3 GPIO23_VAL R/W 1 0: GPIO23 outputs 0 when in output mode.

1: GPIO23 outputs 1 when in output mode.

2 GPIO22_VAL R/W 1 0: GPIO22 outputs 0 when in output mode.

1: GPIO22 outputs 1 when in output mode.

1 GPIO21_VAL R/W 1 0: GPIO21 outputs 0 when in output mode.

1: GPIO21 outputs 1 when in output mode.

0 GPIO20_VAL R/W 1 0: GPIO20 outputs 0 when in output mode.

1: GPIO20 outputs 1 when in output mode.

7.7.2.17 GPIO2 Pin Status Register  Index F5h

Bit Name R/W Default Description

7 GPIO27_IN R - The pin status of RSMRST#/GPIO27.

6 GPIO26_IN R - The pin status of PCIRST4#/GPIO26.

5 GPIO25_IN R - The pin status of PWROK2/GPIO25.

4 GPIO24_IN R - The pin status of GPIO24/OVT#/WDTRST2#.

3 GPIO23_IN R - The pin status of PSON#/GPIO23.

2 GPIO22_IN R - The pin status of PWSWIN#/GPIO22.

Dec., 2006

V0.25P

Page 95

1 GPIO21_IN R - The pin status of PME#/GPIO21.

0 GPIO20_IN R - The pin status of PWSWOUT#/GPIO20.

7.7.2.18 GPIO3 Output Enable Register  Index F6h

Bit Name R/W Default Description

7-2 Reserved - - Reserved.

1 GPIO31_OE R/W 0 0: GPIO31 is in input mode.

0 GPIO30_OE R/W 0 0: GPIO30 is in input mode.

7.7.2.19 GPIO3 Output Data Register  Index F7h

F71806

1: GPIO31 is in output mode.

1: GPIO30 is in output mode.

Bit Name R/W Default Description

7-2 Reserved - - Reserved.

1 GPIO31_VAL R/W 1 0: GPIO31 outputs 0 when in output mode.

0 GPIO30_VAL R/W 1 0: GPIO30 outputs 0 when in output mode.

7.7.2.20 GPIO3 Pin Status Register  Index F8h

Bit Name R/W Default Description

7-2 Reserved - - Reserved.

1 GPIO31_IN R - The pin status of S3#/GPIO31.

0 GPIO30_IN R - The pin status of IRRX/GPIO30.

7.8 VID Register

7.8.1 Logic Device Number Register

1: GPIO31 outputs 1 when in output mode.

1: GPIO30 outputs 1 when in output mode.

Logic Device Number Register  Index 07H

Bit Name R/W Default Description

Dec., 2006

V0.25P

Page 96

7-0 LDN R/W 00h 00h: Select FDC device configuration registers.

F71806

01h: Select UART 1 device configuration registers.

02h: Select UART 2 device configuration registers.

03h: Select Parallel Port device configuration registers.

04h: Select Hardware Monitor device configuration registers.

05h: Reserved.

06h: Select GPIO device configuration registers.

07h: Select VID device configuration registers.

0ah: Select PME & ACPI device configuration registers.

7.8.2 VID Configuration Registers

VID Device Enable Register  Index 30h

Bit Name R/W Default Description

7-1 Reserved - 0 Reserved

0 VID_EN R/W 0 0: disable VID.

Base Address High Register  Index 60h

Bit Name R/W Default Description

7-0 BASE_ADDR_HI R/W 00h The MSB of VID base address.

Base Address Low Register  Index 61h

Bit Name R/W Default Description

7-0 BASE_ADDR_LO R/W 00h The LSB of VID base address.

1: enable VID.

7.8.3 Device Registers

7.8.3.1 VID Control Register  Index 00h

Bit Name R/W Default Description

7 CLK_SEL R/W 0 Select Watchdog Timer clock, set to 1 will use external clock source (power by

Vcc), else will use internal OSC 2MHz clock (power by VSB3V).

6-3 Reserved - - Reserved

Dec., 2006

V0.25P

Page 97

2 CPU_SEL R/W 0 CPU select, if set this bit to 1 will select AMD CPU, else if set to 0 is Intel

1 EN_OTF R/W 0 If set this bit to 1 will enable VID on the fly mode, user can change new VID

0 VID_EXTEND R/W 1 Set this bit to 1 to enable Intel VRM10 mode, this bit default is enable, (This bit

F71806

CPU(default),

(This bit will auto clear by SLOTOCC# or Watchdog timer, and protect write

command by VID_KEY REG 0x30.)

value by program the REG 0x01 VID_OFFSET, else if set to 0, VID will in

programming mode, user can program REG 0x02 to decide VID output data.

(This bit will auto clear by SLOTOCC# or Watchdog timer, and protect write

command by VID_KEY REG 0x03.)

will auto clear by SLOTOCC# or Watchdog timer, and protect write command

by VID_KEY REG 0x03.)

7.8.3.2 VID on the fly offset Register  Index 01h

Bit Name R/W Default Description

7-6 Reserved - -

5-0

VID_OFFSET R/W

Reserved

VID offset register. The offset value is representative in 2’s complement. The

00h

real VID value will be added by this offset and then will be put into VID_OUT

(when EN_OTF is set). The offset ranges from -16 to +31.

1Fh : +31.

01h : +1.

00h : +0.

3Fh : -1.

30h : -16.

7.8.3.3 VID Output Data Register  Index 02h

Bit Name R/W Default Description

Enable VIDOUT. If set to one and VID output key is asserted referred as

7 EN_VIDOUT R/W

6 VIDKEY_OK RO

5-0 VIDOUT_DATA R/W

VIDKEY, the VIDOUT_DATA will output to these pins of VIDOUT. This bit is

supplied by VSB3V and reset by the VSB3V power good or Watchdog timer is

asserted or SLOTOCC# is asserted.

When the sequential key is programmed to register 22H. this bit will set to 1. if

program exit sequential key to register 22H, this bit read back will be 0

VIDOUT Data. These bits is mapping to VIDOUT[5:0] if EN_VIDOUT is enable.

These bits power is supplied by VSB3V for keeping data when VDD3V power

00h

is lose.

Dec., 2006

V0.25P

Page 98

7.8.3.4 VIDKEY Protection  Index 03h

Bit Name R/W Default Description

7-0 VIDKEY R/W 00h

7.8.3.5 VID Input Data Register  Index 04h

Bit Name R/W Default Description

F71806

VID Key for protection the VIDOUT. If would like to program VID Output Data

defined as 0x32, 0x5d, 0x42, 0xac. And the exit key is 0x35.

7-6 Reserved - -

5-0 VID_IN R XXh VID Input data.

Reserved

7.8.3.6 Watchdog Timer Control Register  Index 05h

Bit Name R/W Default Description

7 Reserved R 0

6 STS_WD_TMOUT R / W 0

5 WD_ENABLE R/W 0

4 WD_PULSE R/W 0

3 WD_UNIT R/W 0

2 WD_HACTIVE R/W 0

1-0 WD_PSWIDTH R/W 00

Reserved. Read will return 0.

Watchdog is timeout. When the watchdog is timeout, this bit will be set to one. If set to 1, write 1 will clear this bit. Write 0, no effect.

Enable watchdog timer.

Watchdog output level or pulse. If set 0 (default), the pin of watchdog is level output. If write 1, the pin will output with a pulse.

Watchdog unit select. Default 0 is select second. Write 1 to select minute.

Program WD output level. If set to 1 and watchdog asserted, the pin will be high. If set to 0 and watchdog asserted, this pin will drive low (default).

Watchdog pulse width selection. If the pin output is selected to pulse mode. The pulse width can be choice.

00b – 1m second. 01b – 25m second. 10b – 125m second 11b – 5 second

7.8.3.7 Watchdog Timer Range Register  Index 05h

Bit Name R/W Default Description

7-0 WD_TIME R/W 00h

Watchdog timing range from 0 ~ 255. The unit is either second or minute

programmed by the watchdog timer control register bit3.

Dec., 2006

V0.25P

Page 99

7.9 ACPI and PME Registers

7.9.1 Logic Device Number Register

Logic Device Number Register  Index 07H

Bit Name R/W Default Description

7-0 LDN R/W 00h 00h: Select FDC device configuration registers.

F71806

01h: Select UART 1 device configuration registers.

02h: Select UART 2 device configuration registers.

03h: Select Parallel Port device configuration registers.

04h: Select Hardware Monitor device configuration registers.

05h: Reserved.

06h: Select GPIO device configuration registers.

07h: Select VID device configuration registers.

0ah: Select PME & ACPI device configuration registers.

7.9.2 ACPI and PME Configuration Registers

Device Enable Register  Index 30h

Bit Name R/W Default Description

7-1 Reserved - - Reserved

0 PME_EN R/W 0 0: disable PME.

1: enable PME.

PME Event Enable Register  Index F0h

Bit Name R/W Default Description

7 Reserved - - Reserved

6 MS_PME_EN R/W 0 PS/2 mouse PME event enable.

0: disable PS/2 mouse PME event.

1: enable PS/2 mouse PME event.

5 Reserved. -* 0 Reserved.

4 HM_PME_EN R/W 0 Hardware monitor PME event enable.

0: disable hardware monitor PME event.

1: enable hardware monitor PME event.

Dec., 2006

V0.25P

Page 100

3 PRT_PME_EN R/W 0 Parallel port PME event enable.

2 UR2_PME_EN R/W 0 UART 2 PME event enable.

1 UR1_PME_EN R/W 0 UART 1 PME event enable.

0 FDC_PME_EN R/W 0 FDC PME event enable.

PME Event Status Register  Index F1h

F71806

0: disable parallel port PME event.

1: enable parallel port PME event.

0: disable UART 2 PME event.

1: enable UART 2 PME event.

0: disable UART 1 PME event.

1: enable UART 1 PME event.

0: disable FDC PME event.

1: enable FDC PME event.

Bit Name R/W Default Description

7 Reserved - - Reserved

6 MS_PME_ST R/W 1 PS/2 mouse PME event status.

0: PS/2 mouse has no PME event.

1: PS/2 mouse has a PME event to assert. Write 1 to clear to be ready for next PME event.

5 Reserved. - 1 Reserved.

4 HM_PME_ST R/W 0 Hardware monitor PME event status.

0: Hardware monitor has no PME event.

1: Hardware monitor has a PME event to assert. Write 1 to clear to be ready for next PME event.

3 PRT_PME_ST R/W 0 Parallel port PME event status.

0: Parallel port has no PME event.

1: Parallel port has a PME event to assert. Write 1 to clear to be ready for next PME event.

2 UR2_PME_ST R/W 0 UART 2 PME event status.

0: UART 2 has no PME event.

1: UART 2 has a PME event to assert. Write 1 to clear to be ready for next PME event.

1 UR1_PME_ST R/W 0 UART 1 PME event status.

0: UART 1 has no PME event.

1: UART 1 has a PME event to assert. Write 1 to clear to be ready for next PME event.

0 FDC_PME_ST R/W 1 FDC PME event status.

0: FDC has no PME event.

1: FDC has a PME event to assert. Write 1 to clear to be ready for next PME event.

ACPI Control Register  Index F4h

Bit Name R/W Default Description

7-3 Reserved - - Reserved

Dec., 2006

V0.25P
