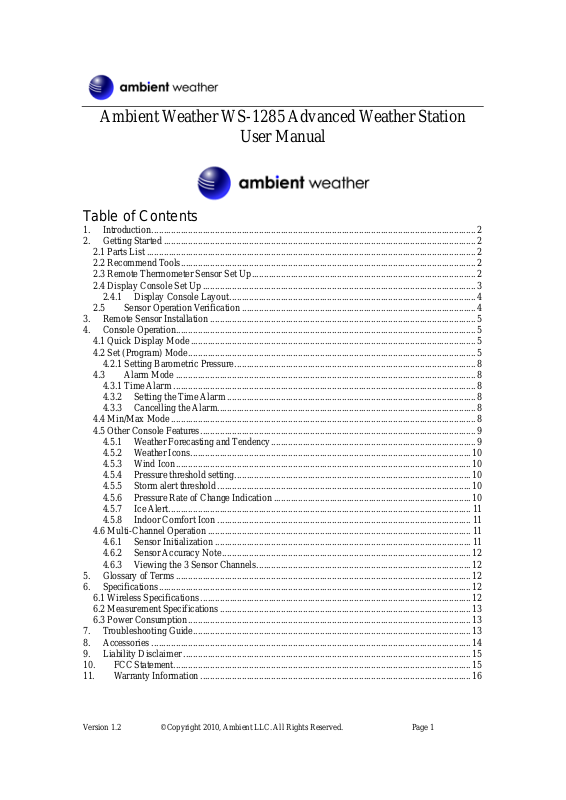

Fine Offset Electronics WH5 Users Manual

Ambient Weather WS-1285 Advanced Weather Station

User Manual

Table of Contents

Introduction.....................................................................................................................................2

2. Getting Started................................................................................................................................2

2.1 Parts List .......................................................................................................................................2

2.2 Recommend Tools.........................................................................................................................2

2.3 Remote Thermometer Sensor Set Up............................................................................................2

2.4 Display Console Set Up................................................................................................................3

2.4.1 Display Console Layout..................................................................................... ................4

2.5 Sensor Operation Verification ................................................................................................4

3. Remote Sensor Installation .............................................................................................................5

4. Console Operation...........................................................................................................................5

4.1 Quick Display Mode.....................................................................................................................5

4.2 Set (Program) Mode......................................................................................................................5

4.2.1 Setting Barometric Pressure...................................................................................................8

4.3 Alarm Mode...........................................................................................................................8

4.3.1 Time Alarm........................................................................... ................... .............. ................8

4.3.2 Setting the Time Alarm......................................................................................................8

4.3.3 Cancelling the Alarm..........................................................................................................8

4.4 Min/Max Mode.............................................................................................................................8

4.5 Other Console Features.................................................................................................................9

4.5.1 Weather Forecasting and Tendency................................................. ...................................9

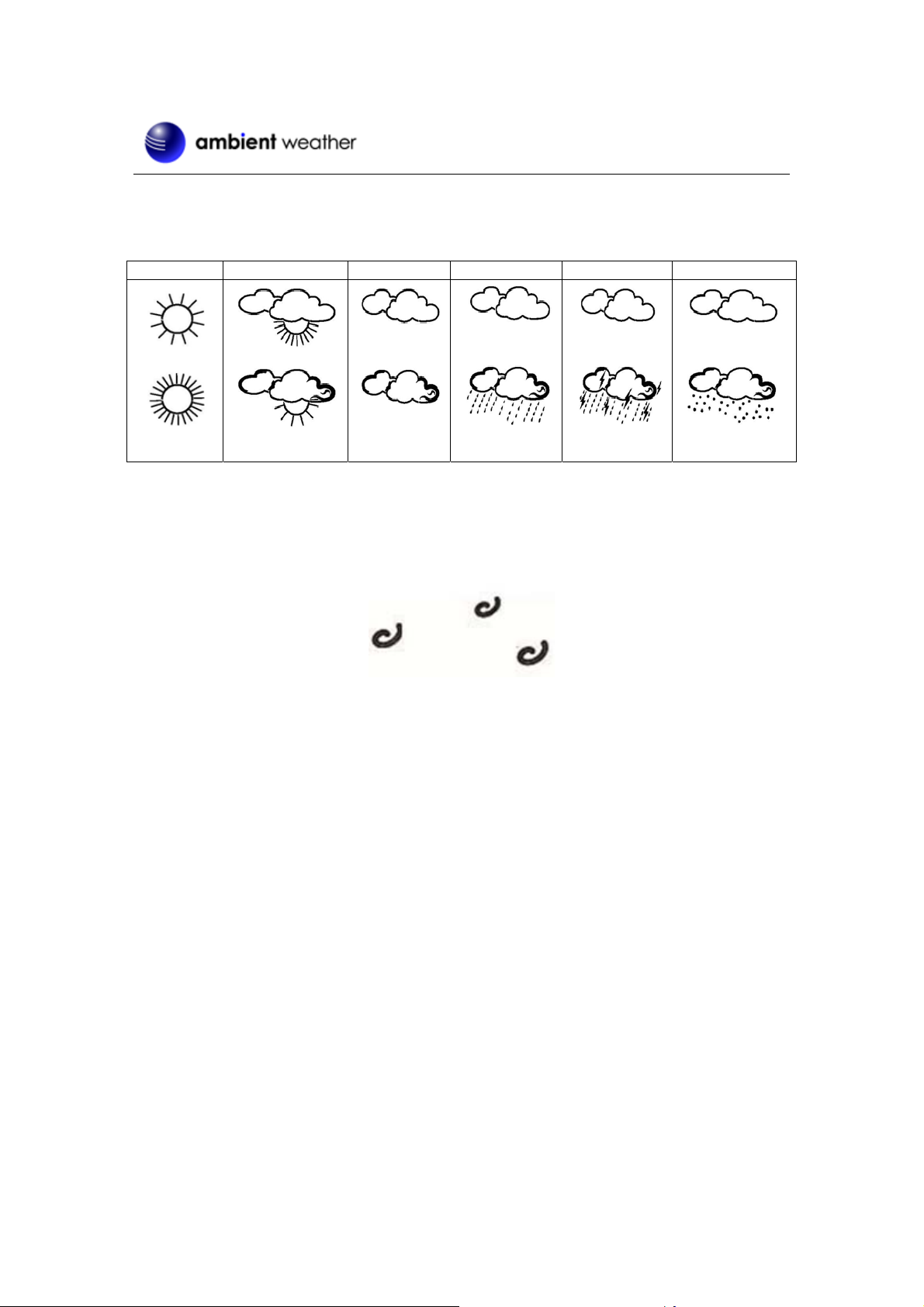

4.5.2 Weather Icons................................................................................................ ...................10

4.5.3 Wind Icon.........................................................................................................................10

4.5.4 Pressure threshold setting.................................................................................................10

4.5.5 Storm alert threshold........................................................................................................10

4.5.6 Pressure Rate of Change Indication .................................................................................10

4.5.7 Ice Alert...................................................................................... ......................................11

4.5.8 Indoor Comfort Icon........................................................................................................ 11

4.6 Multi-Channel Operation............................................................................................................11

4.6.1 Sensor Initialization ......................................................................................................... 11

4.6.2 Sensor Accuracy Note.................................................. ................................................ ....12

4.6.3 Viewing the 3 Sensor Channels........................................................................................12

5. Glossary of Terms.........................................................................................................................12

6. Specifications................................................................................................................................12

6.1 Wireless Specifications...................................................... ............... .............. .............. ..............12

6.2 Measurement Specifications.......................................................................................................13

6.3 Power Consumption....................................................................................................................13

7. Troubleshooting Guide................... ..... .................................................................................. ........13

8. Accessories ...................................................................................................................................14

9. Liability Disclaimer ........................................................................................................ ..............15

10. FCC St atement......................................................................................... .................................15

11. Warranty Information...............................................................................................................16

1. Introduction

Thank you for your purchase of the Ambient Weather WS-1285 Weather Station with time, indoor temperature and humidity, outdoor temperature and outdoor humidity, barometer and weather forecasting. The following user guide provides step by step instructions for installation, operation and troubleshooting. To download the latest manual and additional troubleshooting tips, please visit:

http://ambientweather.wikispaces.com/ws1285

2. GettingStarted

The WS-1285 weather station consists of a display console (receiver), and a wireless thermometer (remote transmitter).

2.1PartsList

QTY Item

1 Display Console

Frame Dimensions (LxWxH): 5.5 x 3.0 x 1.0 in LCD Dimensions (LxW): 3.5 x 2.0”

1 Thermometer transmitter (WH5) with mounting bracket

Dimensions (LxWxH): 4.5” x 1.25” x 0.5”

1 User Manual

2.2RecommendTools

• Philips screwdriver (precision)

• Drill for mounting bracket

2.3RemoteThermometerSensorSetUp

Note: To avoid permanent damage, please take note of the battery polarity before inserting the

batteries.

Remove the battery door on the back of th e sensor with a Philips screwdriver (there is only one screw, in the middle of the unit). Insert two AAA batteries as shown in 错误！未找到引用源。 (we recommend lithium batteries for co ld weather climates, but alkaline batteries are sufficient for most climates).

Replace the battery door and set screw. Note that the temperature and humidity wil l be displayed on the LCD display. Looking at the back of the unit from top to bottom, the polarity is (+) (-) for the left battery and (-) (+) for the right battery.

FRONT VIEW BACK VIEW

Figure 1

2.4DisplayConsoleSetUp

Note: To avoid permanent damage, please take note of the battery polarity before inserting the

batteries.

Move the remote thermometer at least 10’ away from the display console (if the sens or is too close, it may not be received by the display console).

Remove the battery door on the back of the display. Insert two AA (alkaline or lithium, avoid rechargeable) batteries in the back of the display console.

All of the LCD segments will light up for a few seconds to verify all segments are operating properly.

Replace the battery door, and fold out the desk stand and place the console in the upright position.

The console will instantly display indoor temperature, date and ti me. The outdoor temperature and humidity will display --, then update on the display within a few minutes. Do not touch any buttons until the remote sensor reports in, otherwise the remote sensor search mode will be terminated, and you must power down and power up the console again. When the remote sensor data has been received, the console will automatically switch to the normal mode, and all further settings can be performed.

If the remote does not update, please reference the troubleshooting guide in Section 7.

2.4.1 DisplayConsoleLayout

Note: The following illustration shows the full segments of the LCD for description purposes

only and will not appear like this during normal operation.

13.

5 6

11.

12.

1. WWVB radio controlled time signal

2. time

3. ice alert

4. weather forecast icon

5. barometric pressure units of measure

6. barometeric pressure

7. weather tendency arrow .

8. indoor temperature display

9. base station low battery indicator

10. sensor channel indication 11 . outdoor temperature display

15.

16.

17.

19.

21.

Figure 2

12. temperature units of measure

13. date/day of week

14. alarm icon

15. alarm time

16. MIN/MAX icon

17. barograph

18. comfort icon

19. indoor humidity display

20. transmitter low battery indicator

21. Outdoor humidity display

2.5 SensorOperationVerification

Verify the indoor and outdoor humidity match closely with the console and sensor array in the same

location (about 10’ apart). The sensors should be within 8% (the accuracy is ± 4%). Allow about 30 minutes for both sensors to stabilize.

Verify the indoor and outdoor temperature match closely with the console and sensor array in the same location (about 10’ apart). The sensors should be within 4°F (the accuracy is ± 2°F). Allow about 30 minutes for both sensors to stabilize.

3. RemoteSensorInstallation

It is recommended you mount the remote sensor on a north facing wall, in a shaded area (the sensor can mount to a horizontal or vertical surfac e). Direct sunlight and radiant heat sources will result in inaccurate temperature readings. Although the sensor is water resistant, it is best to mount in a well protected area, such as an eve.

Use 3 screws to affix the mounting bracket to the wall, as shown in Figure 1. Connect the remote sensor to the wall bracket (it will snap into place).

4. ConsoleOperation

Note: After 30 seconds of inactivity, the display will automatically revert to the normal display

mode (automatic time out).

Note: The MIN/MAX/- functio ns use the same button and are used interchangeably. The CH/+

functions use the same button and are used interchang e ably.

Note: There are two modes of operation (1) normal mode, and (2) set mode, where settings are

programmed.

4.1QuickDisplayMode

While in Normal Mode, press the SET key to toggle between the time of day and the year.

4.2Set(Program)Mode

While in Normal Mode, press and hold the SET key for at least three seco nds to enter the Set M ode. The first setting will begin flashing. You can press the SET key again to skip any step, as defi ned below.

Note: In the Set mode, press the + key or the - key to change or scroll the value. Hold the + ke y

or the - key for 3 seconds to increase/decrease rapi dly.

Note: To exit the Set Mode, press and hold the ALARM key for 3 seconds (or wait 30 seconds),

and the Set Mode will return to Normal Mode.

1. Language. The English (EN) language setting will begin flashing. Press the + key to

toggle between the following languages: English:ENÆRussian:RUÆGerman:GEÆFrench:FRÆSpanish:ES.

2. Contrast. Press the SET key to change the contrast. The d efault contrast is 4. Pr ess the +

key or – key to increase or decrease the contrast level (1-8).

3. Time Zone Settings. Press the SET key again to adjust the Time Zone (TZ) setting.

Press the + key or – key to adjust the time zon e from -12 to 12, based on the number of hours from Coordinated Universal Time, or Greenwich Mean Time (GMT).

The following table provides times zones throughout the world. Locations in the eastern hemisphere are positive, and locations in the western hemisphere are negative.

Hours fro m

Time Zone Cities

GMT

-12 IDLW: International Date Line West ---

-11 NT: Nome Nome, AK

-10 AHST: Alaska-Hawaii Standard

Honolulu, HI CAT: Central Alaska HST: Hawaii Standard

-9 YST: Yukon Standard Yukon Territory

-8 PST: Pacific Standard Los Angeles, CA, USA

-7 MST: Mountain Standard Denver, CO, USA

-6 CST: Central Standard Chicago, IL, USA

-5 EST: Eastern Standard New York, NY, USA

-4 AST: Atlantic Standard Caracas

-3 --- São Paulo, Brazil

-2 AT: Azores Azores, Cape Verde Islands

-1 WAT: West Africa --0 GMT: Greenwich Mean

London, England

WET : Western European 1 CET: Central European Paris, France 2 EET: Eastern European Athens, Greece 3 BT: Baghdad Moscow, Russia 4 --- Abu Dhabi, UAE 5 --- Tashkent 6 --- Astana 7 --- Bangkok 8 CCT: China Coast Bejing 9 JST: Japan Standard Tokyo

10 GST: Guam Standard Sydney 11 --- Magadan 12 IDLE: International Date Line East

Wellington, New Zealand

NZST: New Zealand Standard

4. Radio Controlled Clock (RCC). Press the SET key again to change the RCC. The rCC

(ON or OFF) setting will begin flashing. Press the + key to toggle betwee n RCC ON (adjusts automatically to the atomic clock) and RCC OFF (uses the quartz clock).

Note: The ti me and date display is based on the si gnal provided by the highly accurat e

government operated atomic clock in Fort Collins, CO. The base station will continue to scan for the radio controlled time signal each day at 2:00, 8:00, 12:00 and 20:00, despite if you manually set the date and time. If reception is unsuccessful, the radio controlled time icon will not appear but reception attempts will continue. If reception has been successful, the

received time and date will overwrite the manually set time and date.

5. Daylight Savings Time (DST). Press the SET key again to adjust the DST. The DST (ON

or OFF) setting will begin flashing. Press the + key to toggle between DST ON and DST OFF.

6. 12/24 Hour Format. Press the SET key again to adjust the 12/24 hour format setting. P ress

the + key to change between 12 hour and 24 hour format.

7. Day/Month and M onth/Day Format. Press the SET key again to adjust the Day /Month

and Month/Day format. Pres the + key to toggle between month/day (mm/dd) format and day/month (dd/mm) format.

8. Change Year. Press the SET key again to set the calendar year. Press the + key or - key to

adjust the calendar year.

9. Change Month. Press the SET key again to set the calendar month. Press the + key or

MIN/MAX key to adjust the calendar month.

10. Change Day. Press the SET key again to set the calend ar day. Press the + key or - key to

adjust the calendar day (note that the display format is Month/Day/Year).

11. Change Hour. Press the SET key again to set the hour. Press the + key or - key to adjust the

hour up or down.

12. Change Minute. Press the SET key again to set the minute. Press the + key or - key to

adjust the minute.

13. Temperature Units (Celsius or Fahrenheit). Press the SET key again to change the

temperature units. Press the + key to toggle the temperature units from Celsius to Fahrenheit.

14. Barometric Pressure Display Units (mmHg, hPa or inHg). Press the SET key again to

change the barometric pressure units. P ress the + key to toggle the pressure units between mmHg, hPa and inHg.

15. Relative Pressure Calibration. Press the SET key to adjust the relative barometric pressure.

Press the + key or - key to adjust the relative barometric pressure up or down. Reference Section 4.2.1 Setting Barometric Pressure for more details on this function.

16. Pressure Threshold Setting (default level 2). Press the SET key again to adjust the

pressure threshold setting. Press the + key or - key to adjust the pressure threshold up or down. Reference Section 错误！未找到引用源。 for more details on this function.

17. Storm Threshold Setting (default level 4). Press the SET key again to adjust the storm

threshold setting. Press the + key or - key to adjust the storm threshold up or down. Reference Section 错误！未找到引用源。 for more details on this function.

18. Weather Forecast Icon Setting. Press the SET key again to set the weather forecast icon

setting. the + key to toggle between Sunny, Partly Cloudy, Cloudy, and Rainy.

4.2.1SettingBarometricPressure

To compare pressure conditions from one location to another, meteorologists correct pressure to sea-level conditions. Because the air pressure decr eases as you rise in altitude, the sea-l evel corrected pressure (the pressure your location would be at if located at sea-level) is generally higher than your measured pressure.

Thus, your absolute pressur e may read 28.62 inHg (969 mb) at an altitude of 1000 feet (305 m), but the relative pressure is 30.00 inHg (1016 mb).

The standard sea-level pressure is 29.92 in Hg (1013 mb). This is the average sea-level pressure around the world. Relative pressure measurements greater than 29.92 inHg (1013 mb) are considered high pressure and relativ e pressure measur ements less than 29.92 inHg ar e considered low pressure.

To determine the relative pressure for your location, locate an official reporting station near you (the internet is the best source for real time barometer conditions, such as Weather.com or Wunderground.com), and set your weather station to match the official reporting station.

To change the r elative pressure when flashing, press the relative pressure setting to match the official reporting station.

+ key or - key to increase or decrease the

4.3 AlarmMode

4.3.1TimeAlarm

While in Normal Mode, press the ALARM key to activate or de-activate the al arm. If the alar m is active, the alarm time will be display ed next to the alarm ico n be displayed next to the alarm icon

. If the alarm is de-activ e, OFF will

4.3.2 SettingtheTimeAlarm

To set the alarm time, press and hold the ALARM key for 3 seconds. The alarm hour will begin flashing.

Change Alarm Hour . Press the + key or - key to adjust the alarm hour up or down.

Change Alarm Minut e. Press the SET key again to s et the alar m minute. P ress th e + key or - key to adjust the alarm minute. Press the SET key again to exit the exit the

4.3.3 CancellingtheAlarm

When an alarm has been triggered, the alarm will sound and the alarm icon will flash for 120 seconds. Press the ALARM key to silence the alarm.

4.4Min/MaxMode

While in Normal Mode, press the MIN/MAX key to enter the min/max mode.

Note: If you have multiple remote te mper ature and hum idity sens ors, sel ect the Channel y ou wis h

to view the min/max data before you enter the min/max mode.

1. Maximum Barometric Pressure. The maximum barometric pressure, associated date and

time, and the MAX icon will be displayed. To reset the maximum barometric pressure to the current pressure, press and hold the MIN/MAX key for two seconds.

2. Minimum Barometric Pressure. Press the MIN/MAX key again. The minimum

barometric pressure, associated da te and time, and t he MIN icon will be displayed. To reset the minimum barometric pr essure to the current pressur e, press and hold the MIN/MAX key for two seconds.

3. Maximum Remote Temperature (Chanel 1, 2 or 3). Press the MIN/M AX key again. The

maximum remote temperature (if you have multiple temperature/humidity sensors, the channel currently select ed on the display), associated date and time, and th e MAX icon will be displayed. To reset the maximum remote temperature to the current te mperature, press and hold the MIN/MAX key for two seconds.

4. Minimum Remote Temperature (Chanel 1, 2 or 3). Press the MIN/MAX key again. The

minimum remote temperature (if you have multiple temperature/humidity sensors, the channel currently select ed on the display), associated date and time, and th e MAX icon will be displayed. To reset the minimum remote temperature to the cur rent temperature, press and hold the MIN/MAX key for two seconds.

5. Maximum Remote Humidity (Chanel 1, 2 or 3). Press the MIN/MAX key again. The

maximum remote humidity (if you have multiple temperature/humidity sensors, the channel currently selected on the display), associated date and time, and the MAX icon will be displayed. To reset the maximum remote humidity to the current humidity, press and hold the MIN/MAX key for two seconds.

6. Minimum Remote Humidity (Chanel 1, 2 or 3). Press the MIN/MAX key again. The

minimum remote humidity (if you have multiple temperature/humidity sensors, the channel currently selected on the display), associated date and time, and the MAX icon will be displayed. To reset the minimum remote humidity to the curr ent humidity, press and hold the MIN/MAX key for two seconds.

7. Press the MIN/MAX key again to exit th e mi n/ ma x mode.

4.5OtherConsoleFeatures

The following section describes additional console features.

4.5.1 WeatherForecastingandTendency

Note: The weather forecast or pressure tendency is based on the rate of change of barometric

pressure. In general, when the pr essure increases, the weather improves (sunny to partly cloudy) and when the pressure decreases, the weather degrades (cloudy to rain). For significant decreases in barometric pressure, the storm i con will be displayed. If the temperature is below freezing (32 degF), the snow icon will replace the r ainy or stormy icon.

The weather forecast is an estimation or generalization of weather changes in the next 24 to 48 hours, and varies from location to location. The tendency is simply a tool for projectin g weather conditions and is never to be relied upon as an accurate method to predict the weather.

The weather tendency arrow shows positive (Ï) and negative (Ð) trends in barometric pressure.

4.5.2 WeatherIcons

The six weather icons are Sunny, Partly Cloudy, Cloudy, Rainy, Stormy and Snowy, as shown in Figure 3. If there is no significant chan ge in pressure, the forecast icon will not change.

Sunny Partly Cloudy Cloudy Rainy Stormy Snowy

Figure 3

4.5.3 WindIcon

If the air pressure decreases less than -3 mmHg within 3 hours, the wind icon will be displayed, as shown in Figure 4. This rapid decrease in barometric pressure indicates winds are expected.

Figure 4

4.5.4 Pressurethresholdsetting

The pressure threshold (the negative or positive rate of change of pressure signifying a change in the weather) can be adjusted by the user from level 2 to level 4 (default level 2 mbar/hour).

The lower the level pressure threshold setting, the higher sensitivity for weather forecast changes. Locations that experience frequent changes in air pressure require a higher setting compared to locations where the air pressure is typically stagnant.

4.5.5 Stormalertthreshold

The storm threshold (the negative rate of pressure change signifying a storm is expected) can be adjusted by the user fro m level 3 to lev el 5 (the default level 4 mbar/hour).

When negative rate of change of pressure is exceeded for 3 hours, the storm warning indicator will be activated, and the clouds with rain icon and tendency arrows will flash for 3 hours indicating the storm warning feature has been activated.

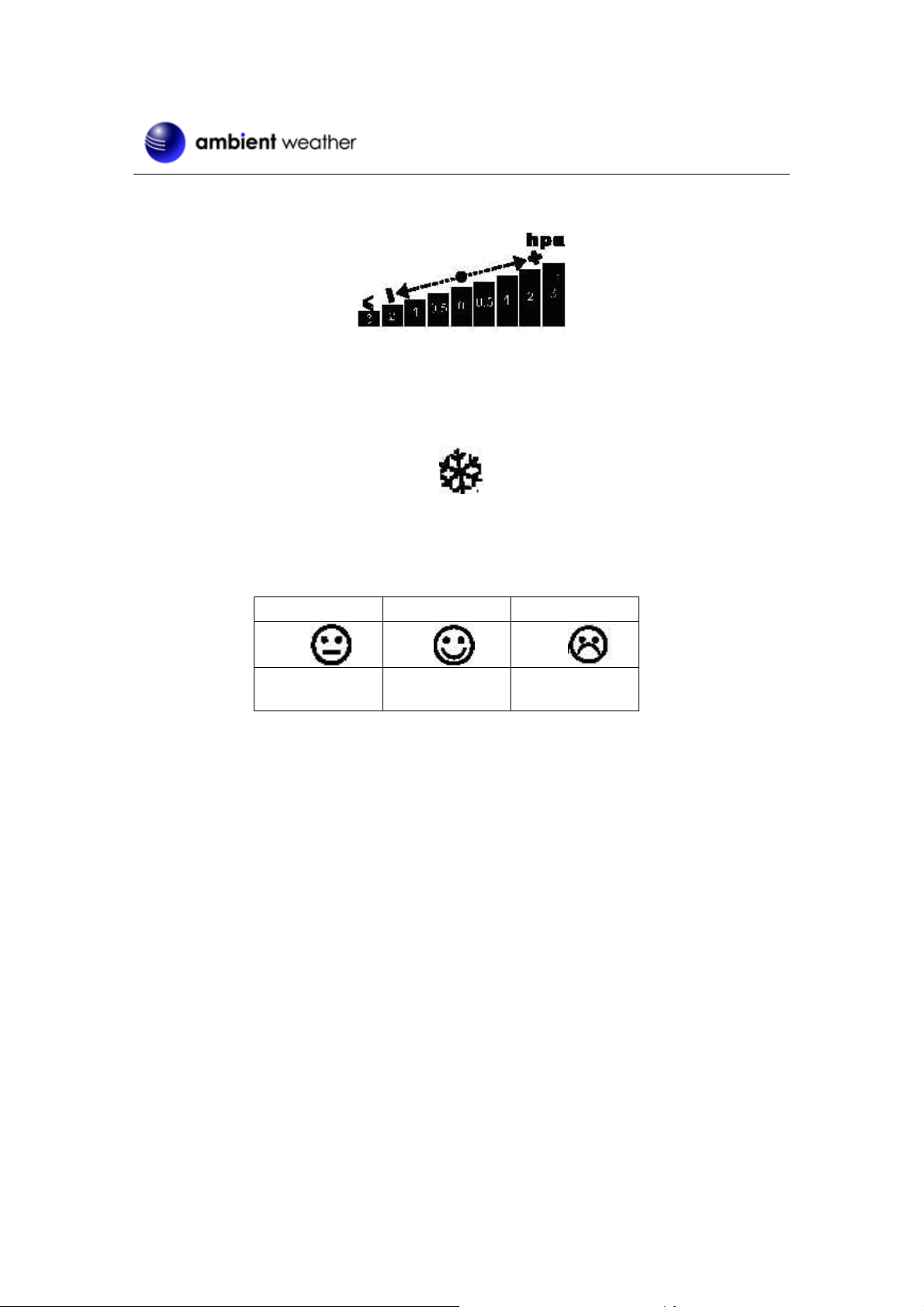

4.5.6 PressureRateofChangeIndication

The pressure rate of change icon is updated every 10 minutes and provides an indication in short term pressure changes. The icon displays - Æ + if pressure is increasing, and + Æ - if pressure is decreasing. The arrow is not present if there are no pressure changes in the last 10 minutes.

The values indicated are based on the changes in pressure (mbar) per 10 minutes.

Figure 5

4.5.7 IceAlert

When the temperature is bet we en 27 degC and 34 degC, the ice alert icon will be present.

Figure 6

4.5.8 IndoorComfortIcon

An indoor comfort icon indicates the comfort zone based on indoor humidity, as shown in Figure 7.

RH<45%

Dry Comfortable Wet

RH 45%~65% RH >65%

Figure 7

4.6Multi‐ChannelOperation

The WS-1285 supports up to three WH-3C remote thermometers (one is included). The optional sensors can be purchased at AmbientWeather.com.

4.6.1 SensorInitialization

Power up the sensors and console in the following order:

1. Power up the console. Do not touch any of the buttons, as described in Section 2.4.

2. Power up the first remote thermometer as described in Section 2.5. Wait until the sensor

reports into the console.

3. Power up the second remote thermometer as described in Section 2.5. Wait until the sensor

reports to the console. The first sensor will be desig nated as Channel 1 and the second sensor will be designated as Channel 2.

4. Power up the third remote thermometer as described in Section 2.5. Wait until the sensor

reports to the console. The third sensor will be designated as Channel 3. The display will switch between each sensor until you exit the initialization state by pressing any button.

4.6.2 SensorAccuracyNote

Verify the temperature val ues match closely with the console and sensor array in the same location (about 10’ apart). The sensors should be within 4°F (the accuracy is ± 2°F).

Allow about 30 minutes for both sensors to stabilize.

4.6.3 Viewingthe3SensorChannels

To view the 3 sensor channels, select the CH/+ button. The minimum and maximum can be viewed for each channel as specified in Se ction 4.3.

If the sensor communication has been lost (blank display where temperature and humidity are displayed), hold the CH/+ key for 3 seconds to re-aquire the current channel sensor signal. If you have additional remote sensors, hold the CH/+ key for 5 seconds to re-acquire all of the sensor signals.

5. GlossaryofTerms 

Term Definition

Absolute Barometric Pressure

Accuracy Accuracy is defined as the ability of a measur e ment to match th e actu al

HectoPascals (hPa) Pressure units in SI (international system) units of measurement. Same

Hygrometer A hygrometer is a device that measures relative humidity. Relative

Inches of Mercury (inHg) Pressure in Imper ial un its of mea sur e.

Range Range is defined as the amount or extent a value can be measured. Relative Barometric Pressure

Relative barometric pressure, corrected to sea-level. To compare pressure conditions from one lo cation to another, meteorologists cor rect pressure to sea-level cond itions. Because the air pressure decreases as you rise in altitude, the sea-lev el corrected pressure (the pressure your location would be at if located at sea-level) is generally higher than your measured pressure.

value of the quantity being measured.

as millibars (1 hPa = 1 mbar)

humidity is a term used to describe the amount or percentage of water vapor that exists in air.

1 inch of mercury = 33.86 millibars

Measured barometric pressu re relative to your location or ambient conditions.

6. Specifications

6.1WirelessSpecifications

• Line of sight wireless transmission (in open air): 300 feet

• Frequency: 433 MHz

• Update Rate: 60 seconds

6.2MeasurementSpecifications

The following table provide s specifications for the measured parameters.

Measurement Range Accuracy Resolution

Indoor Temperature 14 to 140 °F ± 2 °F 0.1 °F Outdoor Temperature -40 to 140 °F ± 2 °F 0.1 °F Indoor Humidity 20 to 95% ± 5% 1 % Outdoor Humidity 20 to 95% ± 5% 1 % Barometric Pressure 8.85 to 32.50 inHg ± 0.08 inHg (within

range of 27.13 to 32.50 inHg)

0.01 inHg

6.3PowerConsumption

• Base station : 2 x AA 1.5V Alkaline batteries

• Remote sensor : 2 x AAA 1.5V Alkaline batteries

• Battery life: Minimum 24 months for base station

Minimum 24 months for remote thermometer sensor (use lithium batteries in cold weather climates)

7. TroubleshootingGuide

If your question is not answered here, you can contact us as follows:

1. Email Support: support@ambientweather.com

2. Live Chat Support: www.ambientweather.com/chat.html

3. Technical Support: 480-283-1644 (M-F 8am to 4pm Arizona Time)

Problem Solution

Wireless remote (thermo-hygrometer) not reporting in to console.

The temperature and humidity are blank the display console.

The maximum line of sight communic ation range is 300’. Move the sensor assembly closer to the display console.

If the sensor assembly is too close (less than 10’), move the sensor assembly away from the display console.

Cycle power on the console. The console may have exited the search mode.

Install a fresh set of batteries in the remote thermo-hygrometer. For cold weather environments, install lithium batteries.

Make sure the remote sensors are not transmitting through solid metal (acts as an RF shield), or earth barrier (down a hill).

Move the display console around electrical noise generating devices, such as computers, TVs and other wireless transmitters or receivers.

(M-F 8am to 4p m Arizona Time)

Move the remote sensor to a higher location. Move the remote sensor to a closer location.

Radio Frequency (RF) S ensors cannot transmit through metal barriers (example, aluminum siding) or multiple,

thick walls. Temperature sensor reads too high in the day time.

Indoor and Outdoor Temperature do not agree

Indoor and Outdoor Humidity do not agree

Humidity is reading 20% at low humidity or 95% at high humidity Absolute pressure does not agree with official reporting station

The forecast icon is not accurate The weather station console must run for several days to

Display console contrast is weak Replace console batteries with a fresh set of batteries.

Make sure the thermo-hygrometer is mounted in a

shaded area on the north facing wall. Consider the

following radiation shield if this is not possible:

http://www.ambientweather.com/amwesrpatean.html

Allow up to one hour for the sensors to stabilize due to

signal filtering. The indoor and outdoor temperature

sensors should agree within 4 °F (the sensor accuracy is

± 2 °F)

Allow up to one hour for the sensors to stabilize due to

signal filtering. The indoor and outdoor humidity sensors

should agree within 10 % (the sensor accuracy is ± 5 %)

The humidity sensor is out of range (20 to 95%)

Make sure you properly calibrate the sensor to an official

local weather station (reference 4.2 Set (Program)

Mode4.2 Set (Program) Mode

The barometer is only accurate to ± 0.08 inHg within the

following relative pressure range: 27.13 to 32.50 inHg,

which corresponds to an altitude of -2,200 to 2,700 feet.

At higher altitudes, expect some non-linearity or error.

trend barometric pressure.

The weather forecast is an es ti mat i on or g e ner ali zat ion of

weather changes in the next 24 to 48 hours, and varies

from location to l ocation. The tendency is simply a tool

for projecting weather conditions and is never to be

relied upon as an accurate method to predict the weather.

8.  Accessories

The following software and hardware accessories are available for this weather station at

www.AmbientWeather.com .

Accessory Image Description

Energizer AA Lithium Battery (2-pack) - Batteries for Long Life and Cold Climates

AA lithium batteries for cold weather climates.

Accessory Image Description

SRS100LX T em perature and Humidity Solar Radiation Shield

Solar Radiation Shield improves temperature accuracy for hot weather climates. Remove the rain guard and install over thermometer.

Ambient Weather WH5 WH5 Wirel ess Thermometer

Ambient W eather WS-1285-C Wireless Weather Forecaster with Indoor Temperature, Humidity and Outdoor T emperature (console only)

Add two additional remote wireless thermometers for a total of three remote sensors.

Add multiple consoles throughout your house or business. Each console ca n read up to three remote sensors.

9. LiabilityDisclaimer

Please help in the preservation of the environment and return used batteries to an authorized depot. The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild country and/or in unauthorized grounds strongly damages the environment.

Reading the “User manual” is highly recommended. The manufacturer and supplier cannot ac cept any responsibility for any incorrect readings and any consequences that occur should an inaccurate reading take place.

This product is designed for use in the home only as indication of weather conditions. This product is not to be used for medical purposes or for public information.

The specifications of this product may change without prior notice.

This product is not a toy. Keep out of the reach of children.

No part of this manual may be reproduced without written authorization of the manufacturer.

Ambient, LLC WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT.

10. FCCStatement

Statement according to FCC pa rt 15.19: This device complies with par t 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

Statement according to FCC pa rt 15.21: Modifications not expr essly approved by this company could void the user's authority to operate the equipment. Statement according to FCC part 15.105: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the F CC Rules. These li mits are designed to provide reasonable protection against harmful interfer ence in a residenti al installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception , which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the follow in g measures:

• Reorien t or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

11.  WarrantyInformation

Ambient, LLC provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship.

This limited warranty begins on the original date of purchase, is valid only on products purchased and only to the original purchase r of this product. To receive warranty service, the purch aser must contact Ambient, LLC for problem determination and service procedures.

Warranty service can only be performed by a A mbient, LLC. The original dated bill of sale must be presented upon request as proof of purchase to Ambient, LLC.

Your Ambient, LLC warranty covers all defects in material and workmanship with the following specified exceptions: (1) damage caus ed by accident, unreasonable use or neglec t (lack of reasonable and necessary maintenance); (2) damage resulting from failure to follow instructio ns contained in your owner’s manual; (3) damage resulting from the performance of repairs or alterations by so meone ot her than an authorized Ambient, LLC authorized servic e center; (4) units used for other than home use ( 5) applications and uses that this product was not intended (6) the products inability to receive a sign al due to any source of interference or metal obstructions and (7) extreme acts of nature, such as lightning strikes or floods.

This warranty covers only actual defects within the product itself, and does not cover the cost of installation or removal from a fixed installation, normal set-up or adjustments, claims based on misrepresentation by the seller or performance variations resulting from installation-related circumstances.

Fine Offset Electronics WH5 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
